A photoelectrochemical aptasensor based on double Z-scheme α-Fe2O3/MoS2/Bi2S3 ternary heterojunction for sensitive detection of circulating tumor cells

A novel photoelectrochemical (PEC) aptasensor based on a dual Z-scheme α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction for the ultrasensitive detection of circulating tumor cells (CTCs) was developed. The α-Fe₂O₃/MoS₂/Bi₂S₃ nanocomposite was prepared via a step-by-step route, and the photoproduced electron/hole transfer path was speculated by conducting trapping experiments of reactive species. α-Fe₂O₃/MoS₂/Bi₂S₃-modified electrodes exhibited greatly enhanced photocurrent under visible light due to the double Z-scheme charge transfer process, which met the requirement of the PEC sensor for detecting larger targets. After the aptamer was conjugated on the photoelectrode through chitosan (CS) and glutaraldehyde (GA), when MCF-7 cells were presented and captured, the photocurrent of the PEC biosensing system decreased due to steric hindrance. The current intensity had a linear relationship with the logarithm of MCF-7 cell concentration ranging from 10 to 1×10⁵ cells mL⁻¹, with a low detection limit of 3 cell mL⁻¹ (S/N = 3). The dual Z-scheme α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction-modified PEC aptasensor exhibited high sensitivity and excellent specificity and stability. Additionally, MCF-7 cells in human serum were determined by this PEC aptasensor, exhibiting great potential as a promising tool for clinical detection.

1 Introduction

Circulating tumor cells (CTCs) are a dependable biomarker for cancer diagnosis, detection, and prediction. They are released from primary or metastatic sites of tumors and circulate through peripheral blood to distant body regions (Hong and Zu, 2013; Tang et al., 2016; Wang et al., 2023a; Gong et al., 2023). Quick, inexpensive, and highly sensitive techniques to identify CTCs are urgently needed. Various conventional strategies have been established for the detection of CTCs including the immunomagnetic bead approach (Den Toonder, 2011), reverse transcriptase polymerase chain reaction (RT-PCR)-based technique (Dirix et al., 2009), enzyme-linked immunosorbent immunoassay (ELISA) (Van der Auwera et al., 2010), and fluorescence spectroscopy (Yang et al., 2018). Nevertheless, complicated operations, expensive instruments, and low sensitivity limit these methods for CTC-based clinical diagnostics. The photoelectrochemical (PEC) aptasensor, as a novel and quickly evolving technique, has found widespread use in trace analyses as an efficient method. The PEC aptasensor delivers reasonable specificity between the aptamers and target analytes (Zhong et al., 2023). As “chemical antibodies,” aptamers are single-stranded oligonucleotide sequences synthesized from the SELEX process (Stoltenburg et al., 2007; Fang and Tan, 2010; Yi et al., 2023; Zhao et al., 2023). Meanwhile, the PEC aptasensor has a high sensitivity because the excitation light source and current signal are separated completely, which minimizes interference between the input and output signals (Osterloh, 2013). Additionally, the PEC aptasensor offers exceptional benefits including simplicity, low cost, and easy integration by integrating a relatively simple optical and electrochemical instrument (Freeman et al., 2013; Yue et al., 2013). However, in order to achieve the very sensitive detection of CTCs, PEC aptasensors require a strong photocurrent because of the dielectric and relatively large size of CTCs.

Currently, semiconductors are preferred as photoactive materials for the PEC aptasensor because of their exceptional photocurrent enhancement. Molybdenum disulfide (MoS₂) is a typical photoactive material, which has a band gap is approximately 1.8 eV (Wu et al., 2017) and energy levels that match the visible region of the solar spectrum, making it efficient for visible-light harvesting (Li et al., 2011; Hong et al., 2014). However, the challenges related to undesired photo-generated carrier (electron/hole, e−/h+) lifetimes may limit its PEC performance (Pei et al., 2019). Constructing a heterostructure (or heterojunction) with other semiconductors is considered the most efficient strategy (Liu et al., 2017; Han et al., 2018). To further boost the light utilization and electron–hole pair separation, Z-scheme heterojunction has been carried out using multiple semiconductors with well-matched band structures, which exhibits a distinct photocatalytic redox ability (Saravanakumar and Park, 2021; Yu et al., 2021). Bismuth trisulfide (Bi₂S₃), with a direct band gap (1.3–1.7 eV), is also ideally suited to absorb visible light and particularly well-matched with MoS₂ nanosheets for the construction of Z-scheme heterojunction in PEC analysis. For example, Q.A. Drmosh prepared Z-scheme Bi₂S₃/MoS₂/TiO₂ nanotube-based photoelectrodes with enhanced visible light absorption and increased charge lifetime (Wang Q. et al., 2023). Similarly, hematite (α-Fe₂O₃), with its band gap (1.9–2.2 eV), nontoxic nature, and excellent and chemical stability, is also a promising photocatalyst in the visible-light region (Zhang Z. et al., 2020; Wheeler et al., 2012). In photocatalysis, the combination of α-Fe₂O₃ and MoS₂ (α-Fe₂O₃/MoS₂) is also a suitable candidate to use as a Z-scheme heterojunction. Guo and Xing designed a hollow flower-like polyhedral α-Fe₂O₃/MoS₂/Ag Z-scheme heterojunction that demonstrated excellent photocatalytic degradation for 2,4-DCP (Guo et al., 2020). To enhance the activity of Z-scheme photocatalysts even more, the double Z-scheme photocatalytic system coupling of three or more semiconductors has gained extensive attention in photocatalysts, which enhanced visible light absorption and achieved more efficient charge carrier separation and transfer (Jiang et al., 2018).

Herein, we presented a novel PEC aptasensor based on a dual Z-scheme α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction for the ultrasensitive detection of CTCs. The α-Fe₂O₃/MoS₂/Bi₂S₃ nanocomposite was prepared via a step-by-step route, and α-Fe₂O₃/MoS₂/Bi₂S₃-modified electrodes exhibited greatly enhanced photocurrent under visible light. The photoproduced electron/hole transfer path was speculated by conducting trapping experiments of reactive species to demonstrate the charge transfer process. After the aptamer was conjugated on the photoelectrode, MCF-7 cells were captured through a specific immunoreaction between the aptamer and tumor, leading to the decrease in photocurrent due to steric hindrance. The evolution of the current signal could be reflected directly through the concentration of MCF-7 cells. The fabricated PEC aptasensor showed excellent sensitivity, stability, and selectivity. Additionally, MCF-7 cells in human serum were determined by this PEC aptasensor, which exhibited great potential in clinical detection.

2 Materials and methods

2.1 Materials and apparatus

Ferrous sulfate hydrate (FeSO₄·7H₂O), urea, ethanol, ammonium molybdate tetrahydrate ((NH₄)₆MoO₂₄·4H₂O), thiourea, bismuth nitrate pentahydrate (Bi(NO₃)₃·5H₂O), glacial acetic acid, glutaraldehyde (50%, GA), ascorbic acid (AA), isopropanol (IPA), p-benzoquinone (BQ), methylene blue (MB), and chitosan (CS) were purchased from Aladdin Reagent Company (Shanghai, China). Fluorine-doped tin oxide (FTO) glass was obtained from South China Xiangcheng Technology Co., Ltd. Oligonucleotides and bovine serum albumin (BSA) were purchased from Sangon Biotech Co., Ltd. (Shanghai, China), and all chemical reagents were analytical grade without further purification.

Aptamer DNA (Apt-DNA):

${\text{NH}}_2-{\mathrm{C}}_{12}-\text{CACTACAGAGGTTGCGTCTGTCCCACGTTGTCA}\text{TGGG\hspace{0.17em}GGGTTGGCCTG}$

All the electrochemical measurements were carried out on a CHI 760E electrochemical workstation (Shanghai Chenhua Instrument Co., Ltd., China) with a three-electrode system composed of FTO as the working electrode, a platinum electrode as the counter electrode, and a saturate Ag/AgCl electrode as the reference electrode. Electrochemical impedance spectroscopy (EIS) and cyclic voltammetry (CV) were performed in 5 mM K₃Fe(CN)₆/K₄Fe(CN)₆ (0.1 M KCl) as the supporting electrolyte.

2.2 Preparation of the double Z-scheme α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction

Flower-like α-Fe₂O₃ with nanorod petals was prepared as depicted in a previous report with minor modification (Wang et al., 2023c). First, 2.28 g of FeSO₄·7H₂O and 0.6 g of urea were dissolved in 100 mL mixed solution (V_H2O:V_C2H5OH = 4:1) and sonicated for 10 min. Then, the mixed solution was transferred into a 250-mL three-necked flask to reflux at 90°C for 6 h. After precipitation and drying at 60°C for 24 h, the reddish brown FeOOH powder was prepared. Subsequently, the α-Fe₂O₃ nanorods were obtained by the calcination of the prepared FeOOH at 500°C for 3 h in a Laboratory Muffle stove.

α-Fe₂O₃/MoS₂ nanocomposites were successfully prepared via a hydrothermal route. First, 0.1234 g of (NH₄)₆MoO₂₄·4H₂O and 0.2284 g of thiourea were dissolved in 35 mL of distilled water and stirred for 30 min. Then, 0.357 g of α-Fe₂O₃ was added to the above solution under stirring for 30 min. Subsequently, the obtained solution was transferred to a 50-mL Teflon-sealed autoclave and heated to 200°C for 6 h. After being cooled to room temperature, the α-Fe₂O₃/MoS₂ nanocomposites were obtained after being centrifuged and washed three times.

α-Fe₂O₃/MoS₂/Bi₂S₃ nanocomposites were successfully prepared by a hydrothermal process. First, 0.0236 g of thiourea was added in 25 mL distilled water and stirred for 3 min. Then, 0.076 g of Bi(NO₃)₃·5H₂O was added to the above solution and stirred for 20 min. Then, 0.04 g of α-Fe₂O₃/MoS₂ nanocomposites was added and stirred at 180°C for 20 min. After being cooled to room temperature, the α-Fe₂O₃/MoS₂/Bi₂S₃ nanocomposites were obtained after being centrifuged and washed. The product was dried in an oven at 60°C for 24 h for the next experiment.

2.3 Fabrication of the PEC aptasensor and PEC detection of CTCs

The PEC aptasensor based on a direct dual Z-scheme α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction for the ultrasensitive detection of CTCs is shown in Scheme 1. First, 20 μL (2 mg mL⁻¹) of α-Fe₂O₃/MoS₂/Bi₂S₃ nanocomposites were dropped to the surface of FTO, and 20 μL of mixture solution containing chitosan and acetic acid (chitosan/acetic acid = 1%, w/v) was added on the electrode surface of FTO/α-Fe₂O₃/MoS₂/Bi₂S₃. After being dried at 37°C, the FTO/α-Fe₂O₃/MoS₂/Bi₂S₃ electrode was immersed in GA solution (0.2%) and incubated for 30 min. Then, 20 μL of aptamer DNA (5 μM) was dropped onto the electrode and incubated for 40 min at 37°C. Subsequently, 20 μL of BSA (1%) was used to block the nonspecific binding sites, and the capture electrode FTO/α-Fe₂O₃/MoS₂/Bi₂S₃/CS/GA/BSA was constructed. A volume of 20 μL of MCF-7 cell solution with different concentrations was dropped onto the electrode surface and incubated for 120 min at 37°C. Finally, the PEC response of the biosensor was recorded in 10 mL of PBS (0.01 M, pH 7.4) containing ascorbic acid (AA, 0.14 mol L⁻¹) under visible light irradiation using a LED lamp (excitation wavelength, 450 nm; 100 W) with on–off light switching of 10 s.

SCHEME 1

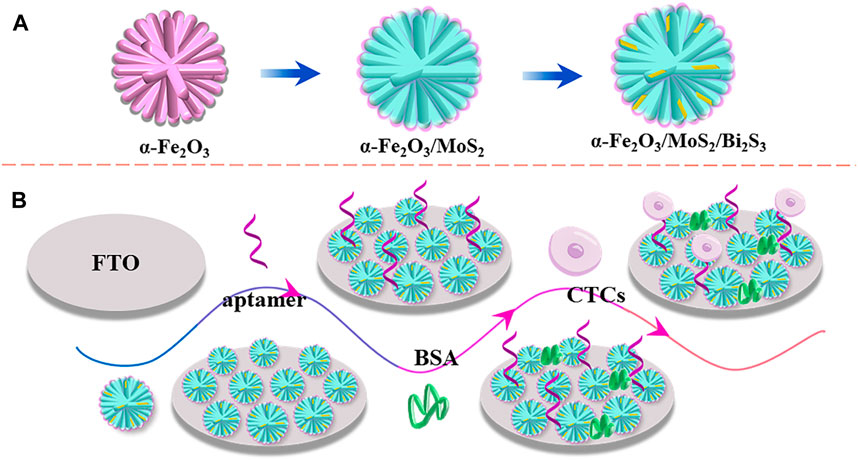

SCHEME 1. Schemata of the preparation of the α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction (A) and fabrication of the PEC aptasensor (B).

3 Results and discussion

3.1 Characterization of the α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction

SEM was used to analyze the morphology of the as-synthesized samples. As shown in Figure 1A, the SEM image of α-Fe₂O₃ displayed a uniform flower-like nanostructure, and the nanorod petal was approximately 3–4 µm in length. The SEM image of α-Fe₂O₃/MoS₂ (Figure 1B) revealed that α-Fe₂O₃ was encapsulated in MoS₂ nanosheets and exhibited ripples, which indicated the formation of the α-Fe₂O₃/MoS₂ heterojunction. Subsequently, Bi₂S₃ grew in the layered MoS₂, and the α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction exhibited an icicle flower-like structure, as shown in Figure 1C. X-ray diffraction (XRD) patterns were used to characterize the α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction. Figure 1D shows the characteristic diffraction peaks that correspond to the JCPDS card No. 33–0664 α-Fe₂O₃, respectively. Additionally, three peak representatives (14.13°, 28.47°, and 32.91°) which belonged to the (002), (004), and (100) crystal planes of MoS₂ (JCPDS card No. 75–1539), respectively, proved the formation of MoS₂. Meanwhile, a few prominent peaks of Bi₂S₃ appeared based on JCPDS card No. 17–0320. These illustrated the formation of the α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction. As expected, the element mapping images (Figure 1E) showed the distribution of O, Bi, Mo, S, and Fe, offering direct evidence of the effective achievement of α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction. The UV-vis absorption spectra of α-Fe₂O₃, α-Fe₂O₃/Bi₂S₃, and α-Fe₂O₃/MoS₂/Bi₂S₃ were investigated as described in Supplementary Figure S1. Both MoS₂ and Bi₂S₃ presented a broad absorption spectrum across the visible light region. For the α-Fe₂O₃/MoS₂/Bi₂S₃ heterojunction, α-Fe₂O₃ also enhanced its absorption ability in visible light, which would lead to an increase in photocatalytic activity.

FIGURE 1

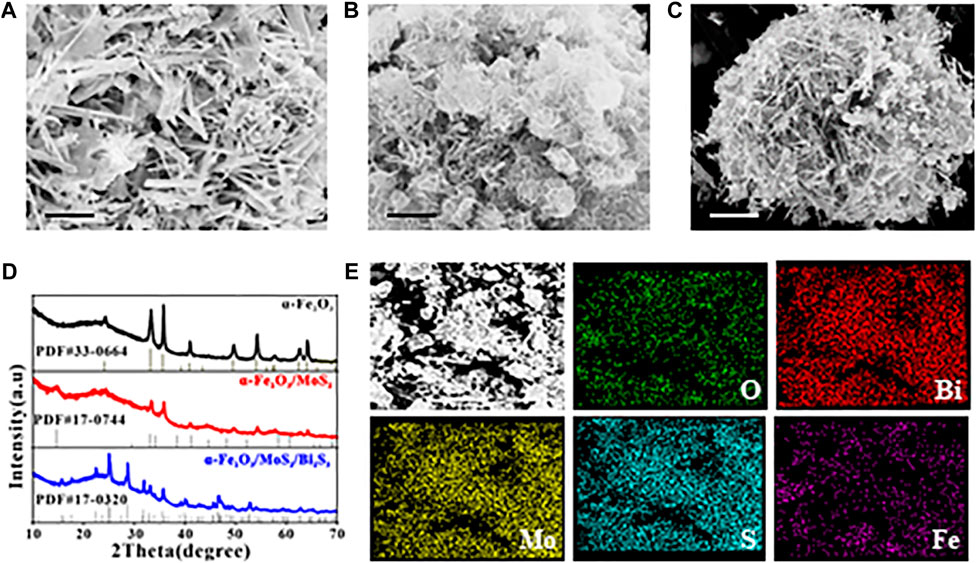

FIGURE 1. SEM images of (A) α-Fe₂O₃, (B) α-Fe₂O₃/MoS₂, and (C) α-Fe₂O₃/MoS₂/Bi₂S₃. (D) XRD patterns of α-Fe₂O₃, α-Fe₂O₃/MoS₂, and α-Fe₂O₃/MoS₂/Bi₂S₃. (E) SEM-EDS mapping of α-Fe₂O₃/MoS₂/Bi₂S₃. Scale bar for (A–C) is 1 μm.

3.2 Photocatalytic mechanism of the α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction

The band gap energy (Eg) of α-Fe₂O₃ (2.1 eV), MoS₂ (1.38 eV), and Bi₂S₃ (1.41 eV) was investigated by UV–vis diffuse reflectance spectroscopy, and the flat-band potentials (α-Fe₂O₃, 0.69 eV; MoS₂, −0.4 eV; Bi₂S, 0.59 eV; all vs. SSCE) were derived using Mott–Schottky plots, as shown in Supplementary Figure S2. Their valence bands (VBs) were 0.93 eV, −0.16 eV, and −0.35 eV, respectively, which was obtained based on the following formula: VB = CB + Eg. The trapping experiments of reactive species in this photocatalytic process were carried out. In this work, IPA (radical •OH scavenger) and BQ (radical •O²⁻ scavenger) were employed as quenchers in the degradation experiment of methylene blue (MB), as shown in Supplementary Figure S3. During this photocatalytic process, both BQ and IPA significantly reduced the degradation rate of MB, demonstrating that a larger amount of •OH and •O²⁻ on the surface of α-Fe₂O₃/MoS₂/Bi₂S₃ was involved in the degradation of MB. The standard potential of the OH⁻/•OH pair (+2.40 eV vs. NHE) was lower than the VB position of α-Fe₂O₃ and higher than the VB position of both MoS₂ and Bi₂S₃. We could speculate that only h+ of α-Fe₂O₃ reacted with OH− or H₂O to form •OH. Meanwhile, the standard potential of the O₂/•O²⁻pair (−0.33 eV vs. NHE) was more positive than that of Bi₂S₃ and more negative than the CB of both α-Fe₂O₃ and MoS₂. It was concluded that •O²⁻was more possible to be produced by Bi₂S₃.

Based on these, the transfer pathway of electrons in α-Fe₂O₃/MoS₂/Bi₂S₃ is shown in Figure 2. Under visible irradiation, photo-generated e−/h+ was produced on the CB and VB of α-Fe₂O₃, Bi₂S₃, and MoS₂. The e− in the CB of α-Fe₂O₃ and MoS₂ transferred to the VB of MoS₂ and Bi₂S₃ to recombine with the h+, respectively. This resulted in the accumulation of high-energy e− and h + on the VB of Bi₂S₃ and the CB of α-Fe₂O₃, where they participated in photocurrent production. This double Z-scheme heterojunction promoted the detecting photocurrent intensity in the PEC aptasensor because it effectively inhibited the recombination of electron–hole pairs and absorbed sufficient light.

FIGURE 2

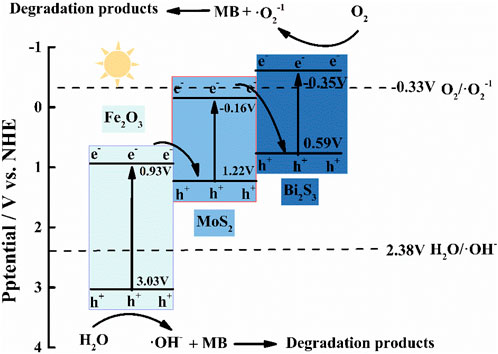

FIGURE 2. Proposed charge transfer and photocatalytic mechanisms of the double Z-scheme α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction.

3.3 Characterization of the PEC aptasensor

As shown in Figure 3A, the photocurrent of FTO/α-Fe₂O₃/MoS₂/Bi₂S₃ (curve b) was much larger than that of the naked FTO electrode (curve a) due to the creation of ternary heterojunctions with high light absorption and photoelectric conversion efficiency. Steric hindrance caused a reduction in photocurrents after Apt-DNA (curve c), BSA (curve d), and MCF-7 cell (curve e) were assembled on the photoelectrode of FTO/α-Fe₂O₃/MoS₂/Bi₂S₃. These demonstrated that the PEC aptasensor was successfully constructed. Meanwhile, electrochemical impedance spectroscopy (EIS) was also carried out to validate this process. The diameter of the high-frequency semicircle in the Nyquist plot corresponded to the electron transfer resistance (R_et) of the electrode surface (Luo et al., 2022). As shown in Figure 3B, the R_et value of the naked FTO electrode was small (curve a), and it drastically decreased (curve b) when the α-Fe₂O₃/MoS₂/Bi₂S₃ heterojunction was dropped on the FTO electrode. Subsequently, when the Apt-DNA (curve c), BSA (curve d), and MCF-7 cell (curve e) were continuously assembled on the FTO/α-Fe₂O₃/MoS₂/Bi₂S₃ surface, they led to an increase in R_et because they impeded the diffusion of electrons to the electrode surface, indicating their successful immobilization.

FIGURE 3

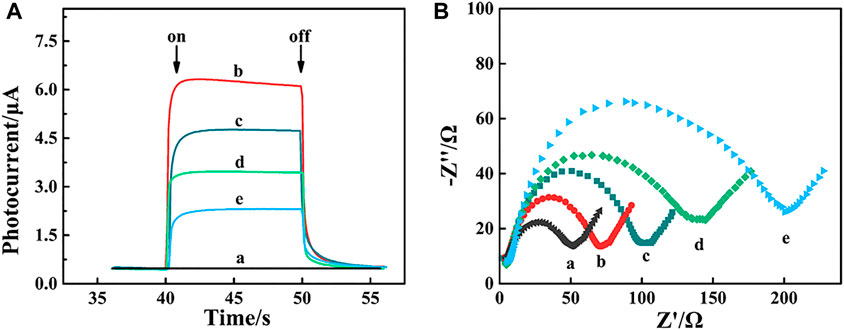

FIGURE 3. Photocurrent response (A) and EIS spectrum (B) of FTO electrode. (a), α-Fe₂O₂/MoS₂/Bi₂S₂ heterojunction (b), α-Fe₂O₂/MoS₂/Bi₂S₂ heterojunction/Apt-DNA (c) and α-Fe₂O₃/MoS₂/Bi₂S₃ /Apt-DNA/BSA (d) and α-Fe₂O₂/MoS₂/Bi₂S₂/Apt-DNA/BSA/MCF-7 cell.

3.4 Optimization of PEC measurement conditions

A number of parameters, including the concentration of Apt-DNA, the amount of AA, and the incubation time of the Apt-DNA with the photoelectrode and captured electrode with MCF-7 cells, were optimized. As shown in Figure 4A, the photocurrent response peaked at 0.15 mol L⁻¹, and no obvious change was observed at higher concentrations. As a result, the concentration of AA in all subsequent experiments was 0.15 mol L⁻¹. The impact of Apt-DNA concentration on the PEC response of the biosensor is shown in Figure 4B. The photocurrent decreased as the concentration of Apt-DNA increased up to 5 M, after which there was no obvious change, indicating Apt-DNA saturation. Accordingly, 5 µM of Apt-DNA was used in all subsequent experiments. The immobilization time is also shown in Figure 4C. The photocurrent decreased in the range from 0 to 60 min and then remained constant. It was that the amount of Apt-DNA was saturated after a certain time. Meanwhile, the incubation time of Apt-DNA with the captured electrode was also examined, as shown in Figure 4D. The ideal duration was found to be approximately 120 min. Under optimal conditions, the photocurrent was large and stable, which would be performed for subsequent experiments.

FIGURE 4

FIGURE 4. Effects of the (A) concentration of Apt-DNA, (B) amount of AA, (C) incubation time of the Apt-DNA with the photoelectrode, and (D) captured electrode with MCF-7 cells.

3.5 Detection performance of the PEC aptasensor

The PEC response decreased with an increase in MCF-7 cell concentrations due to steric hindrance (Figure 5A). The decrease in photocurrent intensity demonstrated a good linear relationship with the logarithm of the MCF-7 cell concentration in the range from 10 to 1×10⁵ cells mL⁻¹ (Figure 5B). The linear regression equation was y = −0.36 lgC cells+2.79 (C cells, cell mL⁻¹) with a correlation coefficient (R²) of 0.9952 (n = 3) and a low detection limit of 3 cell mL⁻¹ (S/N = 3). Therefore, the PEC aptasensor exhibited an ultrasensitive detection of MCF-7 cells compared with the other biosensors given in Table 1.

FIGURE 5

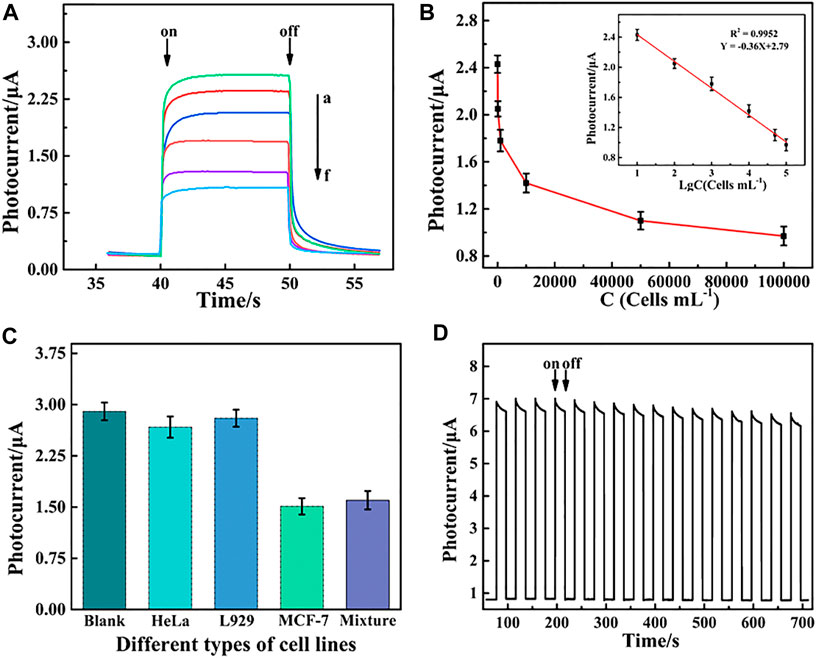

FIGURE 5. (A) Photocurrent responses of the PEC aptasensor toward MCF-7 cells and (B) relationship of the PEC signal and cell concentration at different concentrations ranging from 10 to 1×10⁵ cells mL⁻¹. Inset of (B) shows linear relationship between the change in photocurrent intensity (ΔI) and the logarithm value of the MCF-7 cell concentration. (C) Selectivity of PEC detection for MCF-7 cells including the blank, HeLa, L929, MCF-7 cells, and mixture cells containing HeLa, L929, and MCF-7. (D) Stability of the PEC biosensor under repeated light irradiation from 0 to 700 s.

TABLE 1

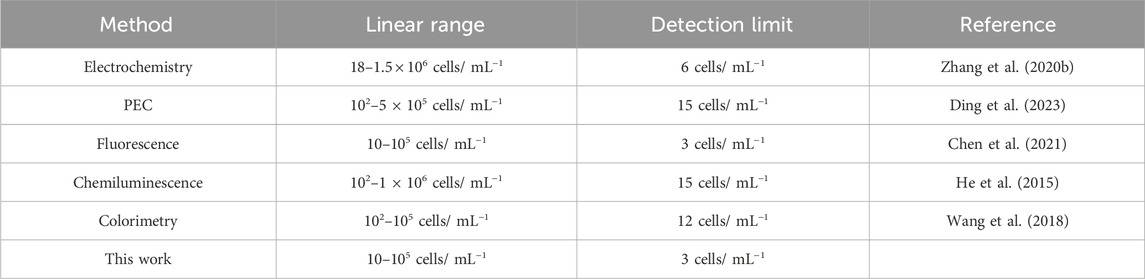

TABLE 1. Comparison of the performance of the PEC aptasensor with other methods for CTC detection.

3.6 Application of the PEC aptasensor in real samples

To assess the application potential, the prepared PEC aptasensor was used to detect MCF-7 cells in real samples. MCF-7 cells with different concentrations (10, 50, 100, 500, and 1,000 cells mL⁻¹) were spiked into serum samples for the assay. The recoveries of MCF-7 were between 92% and 107.6% with a relative standard deviation (RSD) from 5.7% to 7.8% (Table 2), demonstrating great potential for the detection of CTCs in real samples.

TABLE 2

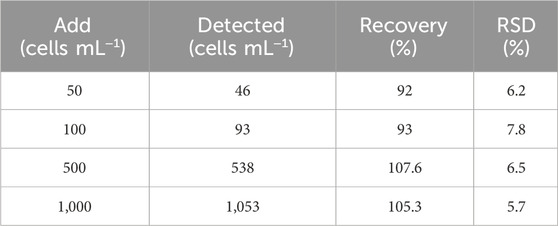

TABLE 2. Spiked detection of CTCs in serum samples (n = 6).

4 Conclusion

In summary, we developed a dual Z-scheme PEC aptasensor based on the α-Fe₂O₃/MoS₂/Bi₂S₃ ternary heterojunction for the ultrasensitive detection of CTCs. The α-Fe₂O₃/MoS₂/Bi₂S₃ ternary nanocomposite was prepared via a step-by-step route, and the analysis of radical trapping experiments confirmed that the active species •O²⁻, h⁺, and •OH were produced in the α-Fe₂O₃/MoS₂/Bi₂S₃ photocatalytic system. The mechanism analysis demonstrated that the charge transfer of the α-Fe₂O₃/MoS₂/Bi₂S₃ nanocomposite followed a dual Z-scheme route, which exhibited a significant enhanced photocurrent under visible light, resulting in improved visible light absorption, increased surface area, and enhanced separation efficiency of photo-generated electron–hole pairs. The constructed PEC aptasensor offered a linear PEC response, with the CTC concentration ranging from 10 to 1×10⁵ cells mL⁻¹ and a low detection limit of 3 cell mL⁻¹ (S/N = 3). Additionally, MCF-7 cells in human serum were determined by this PEC aptasensor, which exhibited great potential in clinical detection.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding authors.

Author contributions

KF: conceptualization, formal analysis, and writing–original draft. YD: investigation, methodology, and writing–review and editing. MH: project administration, supervision, and writing–original draft. WY: conceptualization, project administration, and writing–original draft. YG: data curation, formal analysis, and writing–original draft. XH: project administration, supervision, and writing–review and editing. YW: writing–original draft and writing–review and editing.

Funding

The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This research was funded by the National Natural Science Foundation of China (No. 81802372), Hebei Natural Science Foundation (H2020107005 and H2020107002), and the Scientific and Technological Project of the Hebei Province of China (No. 14397702D).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fbioe.2024.1372688/full#supplementary-material
