- 1School of Life Sciences, Jiangsu University, Zhenjiang, Jiangsu, China
- 2School of Advanced Manufacturing, Nanchang University, Nanchang, China
- 3NUS Environmental Research Institute, National University of Singapore, Singapore, Singapore
Due to the wide presence of microplastics in water, the interaction between microplastic particles and microalgae cells in medium merits the attention of researchers. Microplastic particles can impact the original transmission of light radiation in water bodies since the refractive index of microplastics is different from that of water bodies. Accordingly, the accumulation of microplastics in water bodies will certainly impact microalgal photosynthesis. Therefore, experimental measurements and theoretical studies characterizing the radiative properties of the interaction between light and microplastic particles are highly significant. The extinction and absorption coefficient/cross-section of polyethylene terephthalate and polypropylene were experimentally measured using transmission and integrating methods in the spectral range of 200–1,100 nm. The absorption cross-section of PET shows remarkable absorption peaks in the vicinity of 326 nm, 700 nm, 711 nm, 767 nm, 823 nm, 913 nm, and 1,046 nm. The absorption cross-section of PP has distinctive absorption peaks near 334 nm, 703 nm, and 1,016 nm. The measured scattering albedo of the microplastic particles is above 0.7, indicating that both microplastics are scattering dominant media. Based on the results of this work, an in-depth understanding of the interaction between microalgal photosynthesis and microplastic particles in the medium will be obtained.
1 Introduction
To attenuate the greenhouse effect worldwide, microalgae, in recent years, are intensively employed to capture atmospheric CO2 or reduce CO2 emission in industries. In the practice, to improve the performance of microalgae in CO2 capture, photosynthesis should be enhanced. Therefore, considerable emphasis has been centered on the optimization of environmental parameters to create suitable conditions for microalgal photosynthesis. Previous studies have studied the effects of turbidity, temperature, pH, and hardness of medium on microalgal growth and metabolisms. However, few research works have focused on the interaction between microplastic particles in medium and microalgal photosynthesis.
Plastic products have penetrated all aspects of modern human life due to their excellent performance. Microplastics originate from anthropogenic production and disposal of waste plastic products, which have harmful potential impacts on human and ecosystem health (Leal Filho et al., 2019; Jiang et al., 2022). Currently, the impact of microplastics on human health and ecosystem balance is unclear and difficult to estimate since research on microplastics is still in its infancy (Leslie et al., 2022). Nevertheless, the presence of microplastic particles has been observed in natural waters, wastewater, and underground water.
The common plastic types include polyethylene terephthalate (PET), polypropylene (PP), polyethylene (PE), polystyrene (PS), polyvinyl chloride (PVC), polyethylene naphthalate (PEN), and polyamide-12 (PA12) (Hale et al., 2020). The global average percentage of plastics recycled is low, with the majority of plastics entering the natural environment through incineration, burial, or direct disposal (Hale et al., 2020). For example, more than half of the garbage that enters the ocean is plastic waste. Plastic waste breaks down in interaction with the marine environment resulting in microplastics (Kane et al., 2020). Microplastics are widely distributed in nature through oceanic circulation and wind transport (Campanale et al., 2020). Microplastics entering water bodies, both freshwater and marine, will have an impact on the original water body light radiative transfer to the extent that it affects the biological physiology in the water body (Issac and Kandasubramanian, 2021). The radiative properties of microplastics will have an important impact on the transfer of light radiation in the water body and further influence microalgal photosynthesis.
Moreover, microplastics are considered to be one of the most common microplastic contaminants (Manzoor et al., 2020; Kinigopoulou et al., 2022). However, recycling microplastic contaminant particles from the ocean and applying them to solar collectors not only helps to improve marine ecology but also improves the heat transfer performance of solar collectors. In addition, research on the radiative properties of microplastic particles can also be employed to enhance microalgal photosynthesis in a medium polluted with microplastics (Hamd et al., 2022). Research has shown that the addition of nano- and micron-particle suspensions to the conventional solar collector can improve its heat transfer performance (Devendiran and Amirtham, 2016; Turkyilmazoglu, 2016). Rubin (Rubin, 1982) studied the radiative properties of PET films in the infrared band based on optical constants. Ouchi et al. (1996) reported the absorption spectra of PET and PEN films in soft X-ray regions by using polarized synchrotron radiation. Liu’s group proposed an improved transmission method for measuring the extinction characteristics of particle suspensions (Li et al., 2015a; Li et al., 2016). The combined double optical pathlength transmission with the ellipsometry method was applied to obtain the optical constants of transparent materials (Li et al., 2015b; Li et al., 2017a). Kameya and Hanamura (Kameya and Hanamura, 2011) proposed a new transmittance measurement technique to measure the absorption characteristics of the nanoparticle suspension at Vis-NIR wavelengths. The absorption coefficient of the nanoparticle suspensions was obtained by spectral transmittance, and the Kramers-Kronig relation was used to acquire the refractive index of the nanofluid. Zhang et al. (2020a); Zhang et al. (2020b) experimentally measured the spectral optical constants of seven different polymers in the range of 0.4–20 μm. Currently, there is a lack of research on the radiative properties of PET and PP particles in the visible and near-infrared wavelength bands. The radiative properties of microplastic in the visible wavelength band have important applications for the investigation of light radiative transfer in aqueous ecosystems.
In this study, the spectral normal transmission and hemispherical transmittance measurements of the radiative properties of PET and PP microplastic suspensions were conducted. The extinction coefficients/cross-sections, absorption coefficients/cross-sections, and SPF of the two microplastic particles in the spectral range of 200–1,100 nm were presented. Furthermore, the characteristics of the radiative properties of microplastic particles were analyzed and summarized. It is expected that this work could provide important knowledge to improve microalgal photosynthesis in a medium polluted with microplastic particles.
2 Light transfer theory
When the light beam is directed into the microplastic suspension, the light will be absorbed and scattered. The interaction between light and microplastic particles is described by the radiative properties of particles. The radiative transfer process can be quantitatively governed by the light transfer equation (LTE), which can be generally written as (Modest and Mazumder, 2021),
with the emitting term neglected for the spectral region studied in this work. Here,
where the
where
3 Experimental methods
3.1 Extinction and absorption coefficient measurements
The extinction coefficient of microplastic particles was obtained from the experimentally measured normal transmittance of the microplastic suspensions in cuvettes. The schematic of the microplastic sample for subsequent normal and hemispherical transmittance measurements is provided in the Supplementary Figure S1. The sample thickness is
where L denotes the thickness of the quartz glass cuvette. Afterward, the extinction cross-section of the microplastic particles can be obtained by dividing their extinction coefficient by the particle number concentration. In the transmission method for measuring the extinction coefficient, it is important to note that the transmittance measurement of the reference sample can be used as a means to eliminate the experimental deviation caused by multiple reflections of the three-layer optical transmission system (Li et al., 2016).
The spectral normal hemispherical transmittance of the microplastic suspension was measured by using the integrating sphere technique. An integrating sphere with an 8 cm diameter was used to collect the scattered energy. The interior of the integrating sphere was coated with a highly reflective material, polytetrafluoroethylene, which has a good Lambertian reflective property and over 98% reflectivity, allowing efficient measurement of the transmitted energy in all directions. The formula of the absorption coefficient measurement can be generally written as (Pilon et al., 2011)
where
3.2 Sample preparation
A common approach called the two-step method can be used to configure microplastic particle suspensions. Among the various methods of nanofluid preparation, the two-step method serves as one of the most widely used pathways for the preparation of particle suspensions (Yu and Xie, 2012). Firstly, the micro and nanopowder particles are prepared using physical or chemical methods, and secondly, the nanopowders are dispersed uniformly to form a stable particle suspension using external stirring. In this study, the PET and PP microplastic powder was directly purchased from the Hua Chuang Plastic Chemical Co. Microplastics are not miscible with water, so the approach described in existing literature was employed to disperse the microplastic particles uniformly in deionized water (Kumar and Arasu, 2018; Li et al., 2020). We weighed a certain mass of microplastic powder and mixed it with deionized water. We added a small amount of dispersant (Tarleton X-100 emulsifier OP) and then stirred with a magnetic stirrer for half an hour to form a microplastic suspension. Additionally, the microplastic suspension was subjected to ultrasonic shaking for more than half an hour with an ultrasonic cleaner to achieve dispersion and stabilize the microplastic suspension. The effect of dispersant on the measurement of the radiative properties of microplastic particles is negligible because the dose of dispersant is very small and it does not absorb in the visible near-infrared band (Kong et al., 2010).
Moreover, earlier studies suggested that independent scattering occurs at particle volume fractions smaller than 0.006 (Tien and Drolen, 1987). The particle volume fraction is less than 0.006 for all particle number concentrations considered in this study. The subsequent calculation results show that the microplastic suspension is a medium with strong forward scattering characteristics with an asymmetry factor above 0.92 in the visible near-infrared spectral region. Lorentz-Mie’s theory was used to theoretically calculate the SPF and asymmetry factor of the microplastics based on the complex refractive index of the materials (Peiponen et al., 2019) and the optical constants of surrounding water (Segelstein, 1981). Therefore, the absorption coefficient measurement is acceptable by using the forwardly spectral normal hemispherical transmittance, which is relatively straightforward and readily implemented under the condition that certain accuracy is guaranteed (Ma et al., 2018b; Zhao et al., 2018). Supplementary Figure S2 shows the particle size distribution for the two different microplastics with approximately spherical shapes. As shown, the average microplastic particle diameter measured was 43.41 µm and 47.78 µm for PET and PP, respectively, and the particle size distribution obtained from the measurement approximates a Gaussian distribution.
3.3 Experimental uncertainty and validation
The experimental uncertainty of the absorption and extinction coefficients originate from the transmittance and integration measurements. To assess the experimental uncertainty of the radiative properties of the PET, each sample was measured six times. The average value and standard deviation can be estimated by the following expression (Li et al., 2017b).
respectively, where
The polystyrene microspheres were used to verify the accuracy of experimental measurements of the microplastic particles, which are usually used as standard particles to calibrate the experimental method. The calibration and comparison of measurement results for the experimental methods in this work have been confirmed in previous papers (Wen et al., 2023).
4 Results and discussions
4.1 Normal and hemispherical transmittance
Figure 1 shows the spectral normal-normal transmittance and normal-hemispherical transmittance at different concentrations for PET and PP, respectively. For both particles, the normal transmittance of the entire spectrum decreases with increasing particle number concentration. A low transmittance spectral band means that there is a large attenuation of light transmission. The normal transmittance trends are similar for different particle number concentrations, which indicates that the transmittance measurements meet independent scattering. Independent scattering is also the theoretical requirement that experimental measurements of absorption and extinction coefficients should satisfy. The hemispherical transmittance collects all the scattered light, so hemispherical transmittance is used to obtain absorption coefficients for translucent media or particle suspensions. The hemispheric transmittance decreases with increasing concentrations, and the transmittance at different concentrations has a similar pattern of variation. The similarity of the measurement curves for different concentrations indirectly confirms that the measurement results meet the single scattering condition.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1193033/fbioe-11-1193033-HTML/image_m/fbioe-11-1193033-g001.jpg)

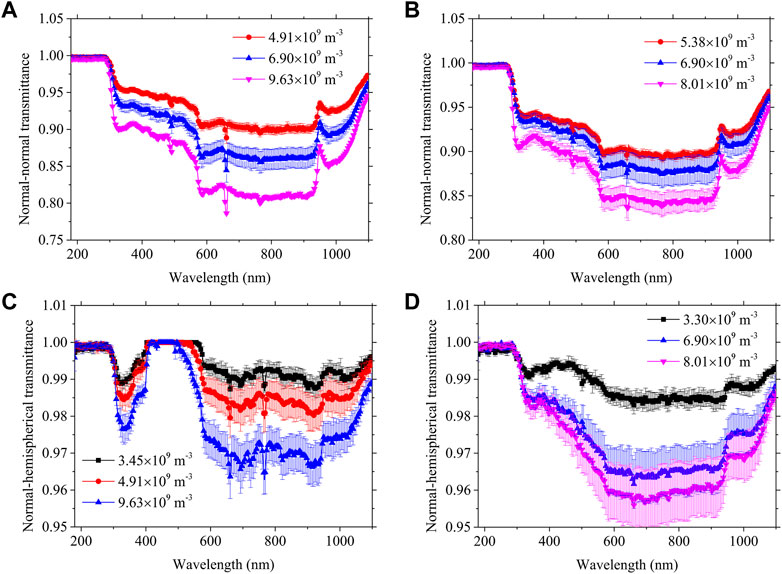

FIGURE 1. The spectral normal-normal transmittance of (A) PET and (B) PP, and the spectral normal-hemispherical transmittance of (C) PET and (D) PP.
4.2 Extinction coefficient and cross-section
Figure 2 shows the measured spectral extinction coefficients and cross-sections of PET and PP in the 200–1,100 nm spectra at different concentrations with error bars. The measured extinction coefficients of PET showed similar patterns of variation at different concentrations and the extinction coefficients increased with the increase of particle number concentration. The extinction coefficient of PET reaches a maximum at 658 nm wavelength in the measured spectral range. The extinction cross-sections at different concentrations almost coincide because the extinction cross-sections are concentration independent. The optical thickness (
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1193033/fbioe-11-1193033-HTML/image_m/fbioe-11-1193033-g002.jpg)

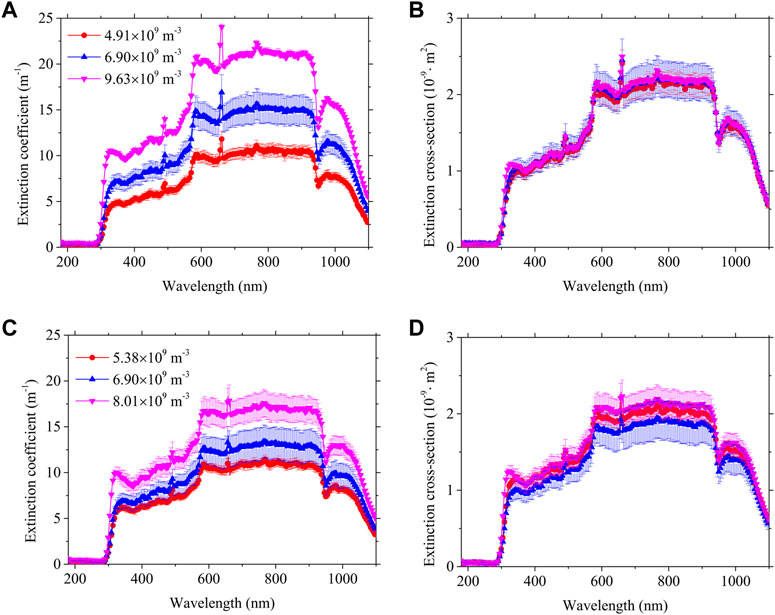

FIGURE 2. The spectral (A) extinction coefficient and (B) cross-section of PET, and the spectral (C) extinction coefficient and (D) cross-section of PP.
It also can be seen that the extinction coefficient of PP increases with increasing concentrations, while the extinction cross sections approximately overlap. The extinction cross-section is a property of the particles themselves that does not vary with concentration under independent scattering conditions. The extinction cross-sections obtained here for the three concentrations do not coincide exactly because the perfect single scattering conditions cannot be fulfilled in the actual measurement, and the experimental measurement itself is subject to errors. The extinction cross sections at different concentrations almost superimposed on each other within the experimental error.
4.3 Absorption coefficient and cross-section
Figure 3 shows the absorption coefficient and absorption cross-section of PET and PP obtained from the hemispherical transmittance for different particle number concentrations in the 200–1,100 nm spectrum. As shown, the absorption coefficient increases with increasing concentrations for the two microplastic particles. The absorption cross-sections of microplastic particles at different concentrations almost overlap, which is in accordance with the particle scattering theory. Similarly, the measurement of the absorption cross-section does not exactly coincide in part with the measurement error introduced by the experimental equipment and the experimental conditions. The size of the integrating sphere detection ports leads to the leakage of scattered light under the influence of the particle number concentration. The absorption peaks in the absorption coefficients at different concentrations all correspond to the same wavelength position. The absorption peaks of PET particles are more significant compared to PP particles.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1193033/fbioe-11-1193033-HTML/image_m/fbioe-11-1193033-g003.jpg)

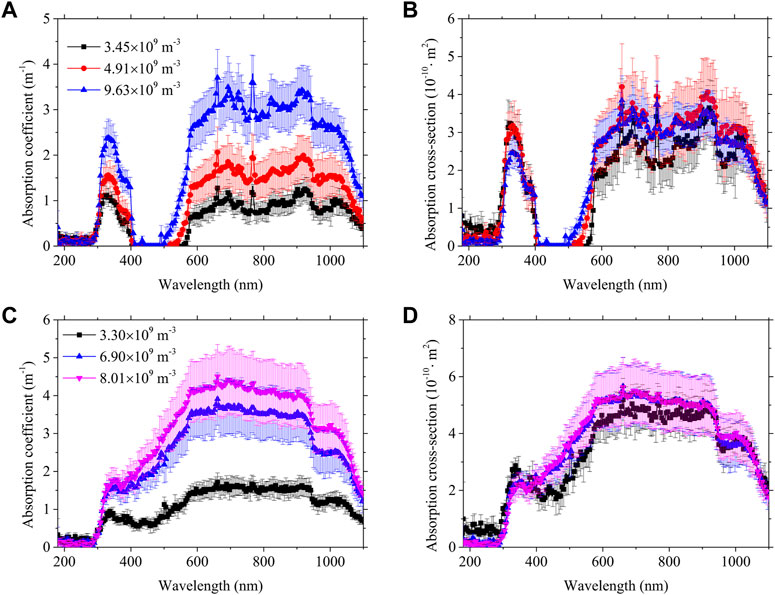

FIGURE 3. (A) Absorption coefficient and (B) absorption cross-section of PET, and (C) absorption coefficient and (D) absorption cross-section of PP.
The absorption cross-section of PET shows multiple significant absorption peaks near 326 nm, 700 nm, 711 nm, 767 nm, 823 nm, 913 nm, and 1,046 nm, while the absorption cross-section of PP has several significant absorption peaks in the vicinity of 334 nm, 703 nm, and 1,016 nm. Above, we only listed some obvious absorption peak locations for both microplastics; in fact, there are some absorption peaks that are not readily observable. The absorption peaks of functional groups often exist as multiple consecutive absorption peaks (Bower and Maddams, 1992). The absorption peaks of PP are less than those of PET mainly due to the fact that PP is a saturated polymer while PET is an unsaturated polymer (Jørgensen, 2015).
4.4 Scattering phase function
Figure 4 give the spectral SPFs and the SPFs at several typical wavelengths for PET and PP particles, respectively. The SPF of microplastic describes the spatial distribution pattern of the scattered energy. As shown, the SPFs of the two microplastic particles exhibit strong forward scattering properties, which means most scattered energy is concentrated in the forward small-angle orientation. It is also showing an enhanced backward reflection at 180° in the backward direction. The SPF of PET shows a small peak in the vicinity of 110°, and a similar peak exists for PP near 100°. The peak of PET near 110° shows a decreasing trend and then gradually increases with the increasing wavelength over the whole spectrum. Nevertheless, the peak of PP appearing near 100° shows a progressive increase with increasing wavelengths throughout the spectrum. Overall, the SPFs of PET and PP do not vary significantly over the entire Vis-NIR spectrum.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1193033/fbioe-11-1193033-HTML/image_m/fbioe-11-1193033-g004.jpg)

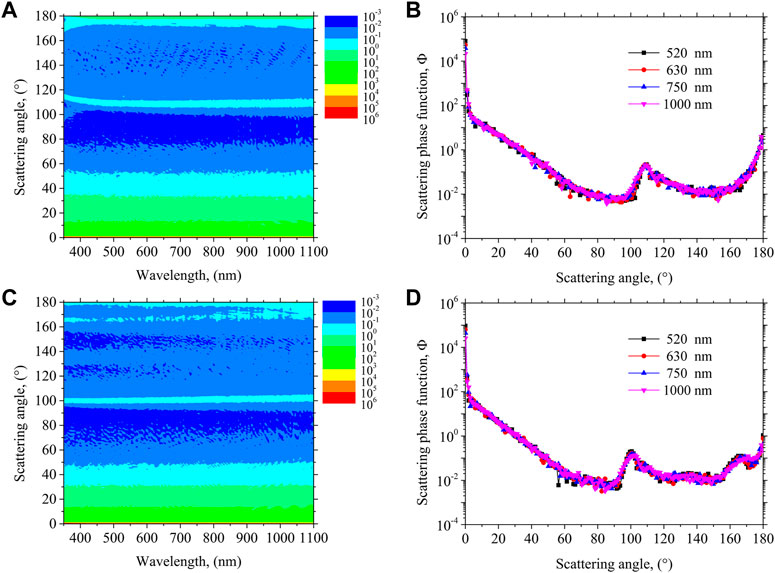

FIGURE 4. Spectral scattering phase function for PET (A) and PP (C), and scattering phase function at four different wavelengths of PET (B) and PP (D), respectively.
The important concept of scattering albedo should also be addressed along with the SPF. The scattering albedo is defined as the ratio between the scattering coefficient and extinction coefficient
5 Conclusion
The radiative properties of PET and PP microplastics from 200 to 1,100 nm were investigated. The absorption cross-sections and extinction cross-sections obtained from measurements at different concentrations were almost coincident under independent scattering measurement conditions, respectively. The absorption cross-section of PET shows multiple significant absorption peaks near 326 nm, 700 nm, 711 nm, 767 nm, 823 nm, 913 nm, and 1,046 nm. The absorption cross-section of PP has significant absorption peaks in the vicinity of 334 nm, 703 nm, and 1,016 nm. The SPFs of the two microplastic particles exhibit strong forward scattering properties, which do not change significantly over the entire Vis-NIR spectrum. Moreover, both microplastics are scattering dominant media due to the high scattering albedo. This study provides the radiative properties of microplastics in the Vis-NIR spectrum, which can be widely employed to calculate the solar radiation distribution in a medium and create a suitable environment for microalgal photosynthesis.
Data availability statement
The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.
Author contributions
All authors listed have made a substantial, direct, and intellectual contribution to the work and approved it for publication.
Funding
This study was supported by Jiangxi Provincial Natural Science Foundation (No. 20212BAB214060) and China Scholarship Council (No. 202006825052).
Acknowledgments
We gratefully thank the Jiangxi Provincial Natural Science Foundation (No. 20212BAB214060) and China Scholarship Council (No. 202006825052) for supporting this research.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fbioe.2023.1193033/full#supplementary-material
References
Bower, D. I., and Maddams, W. (1992). The vibrational spectroscopy of polymers. Cambridge: Cambridge University Press.
Campanale, C., Massarelli, C., Savino, I., Locaputo, V., and Uricchio, V. F. (2020). A detailed review study on potential effects of microplastics and additives of concern on human health. Int. J. Environ. Res. Public Health 17, 1212. doi:10.3390/ijerph17041212
Devendiran, D. K., and Amirtham, V. A. (2016). A review on preparation, characterization, properties and applications of nanofluids. Renew. Sustain. Energy Rev. 60, 21–40. doi:10.1016/j.rser.2016.01.055
Hale, R. C., Seeley, M. E., La Guardia, M. J., Mai, L., and Zeng, E. Y. (2020). A global perspective on microplastics. J. Geophys. Res. Oceans 125, e2018JC014719. doi:10.1029/2018jc014719
Hamd, W., Daher, E. A., Tofa, T. S., and Dutta, J. (2022). Recent advances in photocatalytic removal of microplastics: Mechanisms, kinetic degradation, and reactor design. Front. Mar. Sci. 9, 885614. doi:10.3389/fmars.2022.885614
Issac, M. N., and Kandasubramanian, B. (2021). Effect of microplastics in water and aquatic systems. Environ. Sci. Pollut. Res. 28, 19544–19562. doi:10.1007/s11356-021-13184-2
Jiang, Y., Yang, F., Hassan Kazmi, S. S. U., Zhao, Y., Chen, M., and Wang, J. (2022). A review of microplastic pollution in seawater, sediments and organisms of the Chinese coastal and marginal seas. Chemosphere 286, 131677. doi:10.1016/j.chemosphere.2021.131677
Jonasz, M., and Fournier, G. (2011). Light scattering by particles in water: Theoretical and experimental foundations. Amsterdam, Netherlands: Elsevier.
Jørgensen, C. K. (2015). Absorption spectra and chemical bonding in complexes. Amsterdam, Netherlands: Elsevier.
Kameya, Y., and Hanamura, K. (2011). Enhancement of solar radiation absorption using nanoparticle suspension. Sol. Energy 85, 299–307. doi:10.1016/j.solener.2010.11.021
Kane, I. A., Clare, M. A., Miramontes, E., Wogelius, R., Rothwell, J. J., Garreau, P., et al. (2020). Seafloor microplastic hotspots controlled by deep-sea circulation. Science 368, 1140–1145. doi:10.1126/science.aba5899
Kinigopoulou, V., Pashalidis, I., Kalderis, D., and Anastopoulos, I. (2022). Microplastics as carriers of inorganic and organic contaminants in the environment: A review of recent progress. J. Mol. Liq. 350, 118580. doi:10.1016/j.molliq.2022.118580
Kong, L., Liu, Z. F., Hu, X. L., and Liu, S. P. (2010). Absorption, fluorescence and resonance Rayleigh scattering spectra of hydrophobic hydrogen bonding of eosin Y/Triton X-100 nanoparticles and their analytical applications. Sci. China Chem. 53, 1851–1861. doi:10.1360/zb2010-40-12-1851
Kumar, D. D., and Arasu, A. V. (2018). A comprehensive review of preparation, characterization, properties and stability of hybrid nanofluids. Renew. Sustain. Energy Rev. 81, 1669–1689. doi:10.1016/j.rser.2017.05.257
Leal Filho, W., Saari, U., Fedoruk, M., Iital, A., Moora, H., Klöga, M., et al. (2019). An overview of the problems posed by plastic products and the role of extended producer responsibility in Europe. J. Clean. Prod. 214, 550–558. doi:10.1016/j.jclepro.2018.12.256
Leslie, H. A., van Velzen, M. J. M., Brandsma, S. H., Vethaak, A. D., Garcia-Vallejo, J. J., and Lamoree, M. H. (2022). Discovery and quantification of plastic particle pollution in human blood. Environ. Int. 163, 107199. doi:10.1016/j.envint.2022.107199
Li, X. C., Liu, L. H., Zhao, J. M., and Tan, J. Y. (2015). Optical properties of sodium chloride solution within the spectral range from 300 to 2500 nm at room temperature. Appl. Spectrosc. 69, 635–640. doi:10.1366/14-07769r
Li, X. C., Wang, C. C., Zhao, J. M., and Liu, L. H. (2017). A new method for determining the optical constants of highly transparent solids. Appl. Spectrosc. 71, 70–77. doi:10.1177/0003702816657568
Li, X. C., Zhao, J. M., Liu, L. H., and Tan, J. Y. (2015). Optical properties of edible oils within spectral range from 300 to 2500 nm determined by double optical pathlength transmission method. Appl. Opt. 54, 3886–3893. doi:10.1364/ao.54.003886
Li, X. C., Zhao, J. M., Liu, L. H., and Zhang, L. (2017). Optical extinction characteristics of three biofuel producing microalgae determined by an improved transmission method. Particuology 33, 1–10. doi:10.1016/j.partic.2016.08.004
Li, X. C., Zhao, J. M., Wang, C. C., and Liu, L. H. (2016). Improved transmission method for measuring the optical extinction coefficient of micro/nano particle suspensions. Appl. Opt. 55, 8171–8179. doi:10.1364/ao.55.008171
Li, X. K., Chen, W. J., and Zou, C. J. (2020). The stability, viscosity and thermal conductivity of carbon nanotubes nanofluids with high particle concentration: A surface modification approach. Powder Technol. 361, 957–967. doi:10.1016/j.powtec.2019.10.106
Ma, C. Y., Song, G. F., Zhao, J. M., and Liu, L. H. (2018). Experimental method of the radiative properties of microalgae at different growth period. J. Harbin Inst. Technol. 50, 50–58.
Ma, C. Y., Zhao, J. M., and Liu, L. H. (2018). Experimental study of the temporal scaling characteristics of growth-dependent radiative properties of Spirulina platensis. J. Quantitative Spectrosc. Radiat. Transf. 217, 453–458. doi:10.1016/j.jqsrt.2018.06.021
Manzoor, A., Li, J. L., Wang, P. D., Hozzein, W. N., and Li, W. J. (2020). Environmental perspectives of microplastic pollution in the aquatic environment: A review. Mar. Life Sci. Technol. 2, 414–430. doi:10.1007/s42995-020-00056-w
Modest, M. F., and Mazumder, S. (2021). Radiative heat transfer. Massachusetts, United States: Academic Press.
Ouchi, I., Nakai, I., Kamada, M., and Tanaka, S. I. (1996). Polarized absorption spectra of polyethylene terephthalate and polyethylene naphthalate films in soft x-ray region. J. Electron Spectrosc. Relat. Phenom. 78, 363–366. doi:10.1016/s0368-2048(96)80099-5
Peiponen, K. E., Räty, J., Ishaq, U., Pélisset, S., and Ali, R. (2019). Outlook on optical identification of micro- and nanoplastics in aquatic environments. Chemosphere 214, 424–429. doi:10.1016/j.chemosphere.2018.09.111
Pilon, L., Berberoğlu, H., and Kandilian, R. (2011). Radiation transfer in photobiological carbon dioxide fixation and fuel production by microalgae. J. Quantitative Spectrosc. Radiat. Transf. 112, 2639–2660. doi:10.1016/j.jqsrt.2011.07.004
Rubin, M. (1982). Infrared properties of polyethylene terephthalate films. Sol. Energy Mater. 6, 375–380. doi:10.1016/0165-1633(82)90041-7
Segelstein, D. J. (1981). The complex refractive index of water. Kansas City: University of Missouri.
Tien, C. L., and Drolen, B. L. (1987). Thermal radiation in particulate media with dependent and independent scattering. Annu. Rev. Heat Transf. 1, 1–32. doi:10.1615/annualrevheattransfer.v1.30
Turkyilmazoglu, M. (2016). Performance of direct absorption solar collector with nanofluid mixture. Energy Convers. Manag. 114, 1–10. doi:10.1016/j.enconman.2016.02.003
Wen, H., Zhao, Z. Q., Zhang, Z. J., and Ma, C. Y. (2023). Thermal radiative properties of polyamide-12 from 0.2 to 1.1 μm. Opt. Eng. 62, 034102. doi:10.1117/1.oe.62.3.034102
Yu, W., and Xie, H. (2012). A review on nanofluids: Preparation, stability mechanisms, and applications. J. Nanomater. 2012, 1–17. doi:10.1155/2012/435873
Zhang, X. N., Qiu, J., Li, X. C., Zhao, J. M., and Liu, L. H. (2020). Complex refractive indices measurements of polymers in visible and near-infrared bands. Appl. Opt. 59, 2337–2344. doi:10.1364/ao.383831
Zhang, X. N., Qiu, J., Zhao, J. M., Li, X. C., and Liu, L. H. (2020). Complex refractive indices measurements of polymers in infrared bands. J. Quantitative Spectrosc. Radiat. Transf. 252, 107063. doi:10.1016/j.jqsrt.2020.107063
