Nour Fatema
Ruben Michael Ceballos
Chenguang Fan- 1Cell and Molecular Biology Program, University of Arkansas, Fayetteville, AR, United States
- 2Department of Biological Sciences, University of Arkansas, Fayetteville, AR, United States
- 3Department of Chemistry and Biochemistry, University of Arkansas, Fayetteville, AR, United States
Cellulose is one of the most abundant organic compounds in nature and is available from diverse sources. Cellulose features tunable properties, making it a promising substrate for biomaterial development. In this review, we highlight advances in the physical processes and chemical modifications of cellulose that enhance its properties for use as a biomaterial. Three cellulosic products are discussed, including nanofibrillated, nanocrystalline, and bacterial cellulose, with a focus on how each may serve as a platform for the development of advanced cellulose-based biomaterials for Biomedical applications. In addition to associating mechanical and chemical properties of cellulosic materials to specific applications, a prospectus is offered for the future development of cellulose-based biomaterials for biomedicine.
Introduction
Cellulose is the most abundant, broadly-distributed natural polymer in the world (Moon et al., 2011). It is composed of glucose residues linked by β-1,4-glycosidic bonds. Natural fibers from cellulosic feedstock and synthetic cellulose are used in textiles, food, construction, and many other industries (Zhu et al., 2016; Yang et al., 2021). The biocompatibility, biodegradability, water-retention capacity, renewability, and tunability of cellulose make it an ideal biopolymer for use as a biomaterial (Bhaladhare and Das, 2022). In general, cellulosic materials are considered to be environment-friendly and are low-cost when compared to other conventional synthetic materials (Hickey and Pelling, 2019). Cellulose polymers for biomaterials may be produced either by chemical synthesis or biosynthesis. Feedstock from a variety of sources (e.g., plants, animals, and microbes) serve as substrates to produce cellulose-based materials (He et al., 2016; Okeyoshi et al., 2018).
Over the past decade, there has been renewed interest in the use of cellulosic feedstocks to produce biofuels as fuel prices fluctuate erratically and use of fossil fuels continue to contribute to geopolitical instability and climate change (Ceballos, 2017; Kumar et al., 2020; Saravanan et al., 2022). In addition, other research has focused on the physical and chemical properties of cellulose for the development of cellulose-based biomaterials (Habibi, 2014; Agarwal and Csóka, 2019; Tarrahi et al., 2022). It has been shown that cellulose fibers produce elongated fibrillary structures or intact rod-like crystalline particles in the nanoscale range when subjected to mechanical shearing or controlled acid hydrolysis (Klemm et al., 2011). This is advantageous because it permits useful modifications to the macromolecular structure of cellulose (through a variety of chemistries) with nanoscale tunability for a myriad of sophisticated applications (Habibi, 2014).
Several reviews are published on using nanoscale, structured cellulosic substrates (i.e., nanocellulose) in biomaterials. These are mainly focused on sourcing, isolation, fabrication, and surface modifications to cellulose (Hickey and Pelling, 2019; Moohan et al., 2020; Sood et al., 2021; Mali and Sherje, 2022). Although these reports offer details regarding synthesis of cellulosic materials, forming composites, and current applications for cellulosic biomaterials (Agarwal and Csóka, 2019; Tarrahi et al., 2022), few is focused on the compatibility between particular physical processes and chemical properties and the suitability of the resulting nanocellulose-based materials for specific biomedical applications. Here, we aim to connect the features of cellulose-based materials based on their physical and chemical properties to biomedical applications. This review addresses different types of cellulose-based substrates (e.g., nanofibrillated, nanocrystalline, and bacterial cellulose) and the benefits of selected chemical and physical treatments that are amenable for biomedical applications of cellulose-based materials.
Modifications in the synthesis of cellulose-based biomaterials
Over the last decade, improvements for the use of cellulose as a biomaterial have included modifying surface properties and constructing cellulose-based composites to serve a wider range of applications (Habibi, 2014; Jorfi and Foster, 2015). Structured cellulose with nanoscale features (i.e., nanocellulose) that include a high aspect (i.e., length-to-width) ratio and a large (micro- to macroscopic) surface area (Agarwal and Csóka, 2019) can be broadly classified as either nanofibrillated cellulose (NFC), nanocrystalline cellulose (NCC), or bacterial cellulose (BC) depending upon its source and properties (Lin and Dufresne, 2014). Functionality of cellulosic materials can be modified surface alterations, including physical adsorption of molecules, attachment of chemical moieties, and derivatization by one or more functional groups (Figure 1).

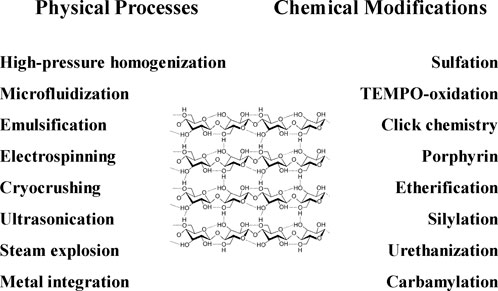

FIGURE 1. Modifications in the synthesis of cellulose-based biomaterials.
Modifications by physical or mechanical processes
Mechanical shearing laterally disintegrates cellulose fibers into sub-structural nanoscale units, called nanofibrils, resulting in nanofibrillated cellulose (NFC) (Habibi, 2014). Rigorous mechanical disruption produces NFC, which features fibrils on the order of several microns (Orlando et al., 2020). Three main technologies, homogenization, microfluidization, and microgrinding, are widely used for mechanical treatment of substrate leading to NFC. For example, a high-pressure homogenization method, which combines a homogenizer and a microfluidizer, is one of the most common substrate treatments due high defibrillation efficiency and relatively short isolation times compared to other methods. During high-pressure homogenization, high shear forces produce defibrillated cellulose fibers from both crystalline and amorphous domains of the cellulose substrate (Kose et al., 2011; Habibi, 2014). Another method to produce NFC is emulsification in which agitation of a multi-phase mixture yields small aqueous droplets of hydrogel precursors in a hydrophobic medium (i.e., oil or organic solvent). This is a proven strategy to produce of nano- or micro-sphere gels (El-Sherbiny and Yacoub, 2013).
NFC may also be produce by other methods including cryocrushing, ultrasonication, and steam explosion (Uetani and Yano, 2011). Cryocrushing involves a combination of severe shearing of cellulose in a refiner, followed by high-impact crushing under liquid nitrogen. Resulting microfibrils are useful in the production of high strength and high stiffness composites for high-performance applications like bone tissue and prosthetics engineering (Chakraborty et al., 2005). In ultrasonication, purified cellulose is soaked in deionized water and then subjected to ultrasonic fibrillation to isolate nanofibers. The process can be performed at a different frequencies and output power levels depending upon the purpose of the process (Xie et al., 2016). Ultrasonication yields nanofibers with desired properties, such as high crystallinity and thermal resistance (Chen et al., 2011), which are used as nanocomposites, filtration media, or films that feature optical transparency (Chakraborty et al., 2005; Chen et al., 2011). Steam explosion is another alternative process for NFC production, in which saturated steam is used to treat cellulosic feedstock. NFC derived from steam explosion exhibits a notable increase in tensile strength as well as improvement in other properties, such as reduced lignin content (Chakraborty et al., 2005).
For BC, silver has been integrated into cellulose by soaking feedstock with various substances, including silver salts (Chen et al., 2019), silver sulfadiazine (Aris et al., 2019), and silver-based fluorescent complexes (deBoer et al., 2015). Other metals such as titanium oxide (Ullah M. W. et al., 2016b), zinc or zinc oxide (Wahid et al., 2019; Dharmalingam and Anandalakshmi, 2020; Dinca et al., 2020), and zeolites or montmorillonite (Horue et al., 2020) have also been integrated into BC biomaterials. BC acts as stabilizing agent to control particle nucleation. Therefore, integration of metal nanoparticles into BC is promising strategy homogeneously incorporating metal nanoparticles and controlling particle formation. In general, the biocompatibility, high specific surface area, and non-toxicity of BC are properties that have prompted rapid development of BC-based biomaterials (Sureshkumar et al., 2010).
Modifications by chemical alteration
In addition to physical processes, chemical modifications have also been used to develop cellulose-based biomaterials for specific applications. For example, sulfation introduces highly negative sulfate esters on the surface of NCC. This, in turn, can enhance adsorption of select biomolecules such as enzymes (Chen et al., 2013). The 2,2,6,6-tetramethylpiperidine-1-oxyl (TEMPO)-mediated oxidation of cellulose is a widely used method to change the hydroxymethyl groups of cellulose to carboxylic forms while conserving secondary hydroxyls (Besbes et al., 2011; Isogai et al., 2011). Cellulose has also been explored as a substrate for carrying out reactions by click chemistry. Click chemistry produces a group of reactions that are fast, simple to use, easy to purify, versatile, regiospecific, and give high product yields (Hein et al., 2008). For example, porphyrin was covalently immobilized to NCC via a 1,3-dipolar cycloaddition catalyzed by Cu(I), which resulted in photodynamic inactivation of Mycobacterium smegmatis and Staphylococcus aureus. Escherichia coli was also inactivated but at lower efficacy (Feese et al., 2011). Etherification has been used as a cost effective and highly efficient chemical treatment step to facilitate the defibrillation of the fibers (Hasani et al., 2008; Eyholzer et al., 2012). Etherification of cellulose by aqueous sodium hydroxide may be followed by cationic surface functionalization of NCC or NFC with ammonium groups via the addition of a nucleophile. Surface modifications to NCC or NFC have also been done through silylation with alkyldimethylchlorosilanes followed by isocyanate treatment (Gousse et al., 2002; Andresen et al., 2007). Either NCC or NFC can be treated with isocyanate, which results in urethane linkages via urethanization or carbamylation. This enhances the molecular hydrophobicity of the material (Siqueira et al., 2013).
Chemical modification of a cellulose substrate either alone or in conjunction with mechanical or physical treatment may endow the emerging cellulose-based material with a unique set of properties. Selection of manufacturing processes yields biomaterial with desired thermal stability, tensile strength, crystallinity, and other factors. Different material profiles can be matched to compatible applications.
Modifications of cellulose-based biomaterials for biomedical applications
The use of cellulose as a biomaterial has a long history. Physical processes or chemical modifications of cellulose (Orlando et al., 2020), derivatization of cellulose (Yang et al., 2021), or mixing cellulose with other materials to produce composites (Aris et al., 2019; Wahid et al., 2019) have all resulted in the development of innovative and useful biomaterials. These cellulose-based materials are becoming increasingly useful in biomedicine, including diagnosis, treatment, prevention, and analysis of disease and disease progression (Figure 2).

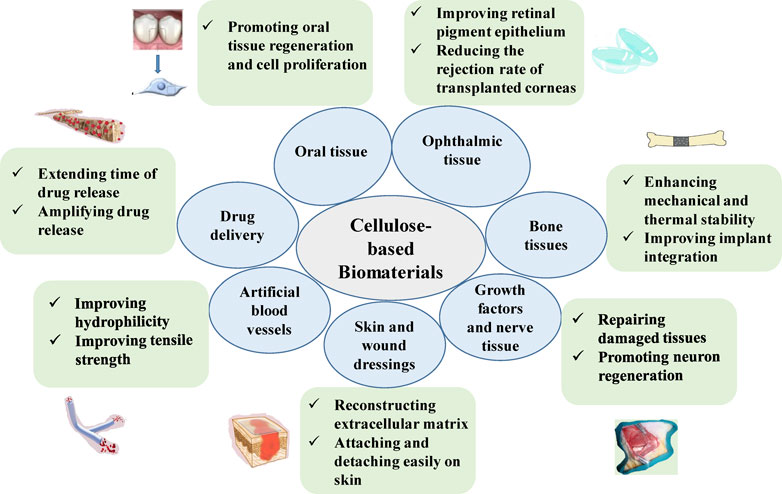

FIGURE 2. Biomedical applications and advantages of cellulose-based materials.
Drug delivery
Cellulose and nanocellulose have been used in the form of gels, membranes, spheres, and crystals as excipients for a wide range of drugs (Agarwal and Csóka, 2019). Early literature reports that periodate-oxidized cellulose can be used to immobilize insulin or p-amino salicylic acid for prolonged drug delivery (Singh et al., 1981; Bala et al., 1982). In addition, by copolymerizing methacrylic acid, N-isopropyl acrylamide, or ethylene glycol dimethacrylate and employing silica microspheres modified by 3-methacryloxypropyltrimethoxysilane as a template, cellulose-coated hollow microspheres have been engineered to enable prolonged (i.e., slow release) drug delivery (Agarwal and Csóka, 2019). In contrast, for a rapid and controlled drug delivery, oxidized cellulose beads have been developed. Specifically, TEMPO-mediated oxidation provides a pH-responsive system for drug release from beads cellulose beads, which can be tuned to retain drug at pH 1.2 and release drug at pH 7.0 (Xie et al., 2021). The release rate is controlled by changes in oxidation state, allowing drug release at different locations with strategic timing (Xie et al., 2021). Cellulose beads can also be derived from BC. For example, a high-absorbance BC membrane was developed for sustained release of the anti-inflammatory drug diclofenac in transdermal systems (Silva et al., 2014). Using glycerol to facilitate drug absorption and enhance membrane malleability, diclofenac was more readily absorbed (Agarwal and Csóka, 2019). In another report, benzalkonium chloride-treated BC dry films were found to have high drug-loading capacity and enhanced drug efficacy for at least 24 h against Staphylococcus aureus and Bacillus subtilis when applied to wounds (Ullah H. et al., 2016a).
Skin and wound dressings
Cellulose-based materials have been used in wound healing to mimic skin, facilitate rapid regeneration of skin cells, and minimize scarring (Hickey and Pelling, 2019). Among the most advanced materials used in wound dressings are those produced via bioprinting. Nanocellulose can be an ideal component of bio-ink. For example, nanocellulose fibrils derived from TEMPO-mediated oxidation reduce viscosity in bioprinting yielding advantageous rheological properties (Rees et al., 2015). Bioprinting with nanocellulose-based bio-ink also permits the construction of porous nanostructures to stabilize functionalized molecules. For example, carboxymethylated-periodate nanocellulose has been used in bioprinting to produce 3D porous structures with the capacity to carry and launch microbicides (Rees et al., 2015). Electrospinning is a useful method for the production of 3D porous matrices that mimic the natural structures of layers within skin. Mixtures of cellulose acetate and hydrogel (e.g., gelatin and poly urethane) have been used in electrospinning processes to form scaffolds (Vatankhah et al., 2014). By varying the ratio of nanocellulose-to-hydrogel, parameters such as porosity, stiffness, hydrophobicity, absorption, and surface area can be tuned to improve efficiency in wound healing applications (Liu et al., 2012). The high specific surface area and hydrophilicity of NFC allows it to hold large amounts of water (relative to its dry mass). When dispersed in water, NFC yields a hydrogel that can be modified for a variety of purposes including the production of wound dressing products. It has been shown that functionalized cellulose dressings are superior to existing commercial products such as Suprathel (Hakkarainen et al., 2016).
Bone tissue engineering
Cellulose has been used in bone tissue engineering because cellulose fibers resemble the collagen fibers of bone tissue and are compatible with the stiff, mechanical environment found in bone systems (Torgbo and Sukyai, 2018; Vallejo et al., 2021). Because the mechanical properties of hydrogels cannot withstand mechanical stresses seen on bone, they are often reinforced with nanocellulose (e.g., NFC). Cellulose nanocrystals (e.g., NCC) serve as support in electrospun matrices of polylactic acid (PLA) or polyvinyl alcohol (PVA) hydrogels (Chalal et al., 2014; Rescignano et al., 2014; Zhang et al., 2015). It has been demonstrated that adhesion between PLA and cellulose in electrospinning can be enhanced by maleic anhydride grafting, polyethylene glycol grafting (PEG), and sodium dodecyl sulfate (SDS). This process modifies the nanocrystals to produce matrices with smaller diameters and polydispersity (Zhou et al., 2013). It also increases mechanical and thermal stability. For example, it has been reported that PLA-cellulose scaffolds can exhibit tensile strengths greater than 10 MPa (Zhang et al., 2015). Fibrous nanocellulose has been used with bioactive glass to coat metal implants resulting in rapid mineralization (e.g., hydroxyapatite formation) to facilitate cell attachment and proliferation around the implants (Chen et al., 2015). Thus, high mechanical strength cellulose and cellulose composites are being successfully implemented in bone tissue regeneration applications.
Nerve tissue repair and growth factor delivery
Cellulosic materials have been used as scaffolds for nerve cell and stem cell culturing as well as for the delivery of growth factors into tissues of the nervous system (Wang et al., 2013; Du et al., 2014; Kuzmenko et al., 2016). For example, cellulose-based biomaterials have been shown to promote the regeneration of neurons after spinal cord injury. NFC scaffolds are used in research to promote in vitro neural stem cell differentiation. In vivo, the tunable porosity of NFC scaffolds can facilitate optimal release of growth factors into injured spinal cord regions (Tsai et al., 2006; Hackett et al., 2010). For targeted delivery into micro-environments surrounding neural stem cells, cellulose-based scaffolds have been used to transport and release growth factors. This is useful for heterogeneous neural differentiation of large populations of stem cells and for repairing damaged nerve tissues (Wang et al., 2013).
Ophthalmic tissue repair
Cellulose-based materials have been developed for several ophthalmic applications. For example, BC/polyvinyl alcohol (PVA) composites are being developed to mimic properties of the natural cornea, which offers a transparent structure with high light transmittance, flexibility but with mechanical strength, and desirable thermal properties (Wang et al., 2010). BC-based contact lens and lens components can be doped with antibiotics, such as ciprofloxacin/γ-cyclodextrin to prevent infection or to treat active bacterial infections (Cavicchioli et al., 2015). BC biomaterials that are modified with chitosan and carboxymethyl cellulose to maximize hydrophilicity have been shown to facilitate enhances propagation of retinal pigment epithelial cells (Goncalves et al., 2015). This offers new prospects in the treatment of multiple eyes diseases including age-related macular degeneration.
Oral tissue repair
Nanocellulose-based materials have also been developed for oral tissue repair and post-surgical recovery. For example, a blend of BC with calcium chloride and sodium alginate has resulted in the construction of a cellulosic “sponge”. This material has been shown to promote the proliferation of gingival fibroblast cells (Chiaoprakobkij et al., 2011). Similar BC-based materials have shown utility in recovery regimens in root canal surgeries. Specifically, BC biomaterials for plugging cavities from dental root canals showed the ability to expand and cover the entire canal space with the added benefit of sterilizing and removing residue from the canal space (Yoshino et al., 2013).
Artificial blood vessels
Cellulosic biomaterials have also been used in the regeneration and replacement of vasculature. BC can be molded to very different shapes during its synthesis to generate substrates optimized for enhancing cell attachment and proliferation (Mohite and Patil, 2014; Picheth et al., 2017). Studies have demonstrated that in vascular grafting, materials made with BC induce a reduction in thrombin at target surfaces thus inhibiting clot formation (Fink et al., 2010). This is a notable advantage over other commonly materials commonly used for vascular grafting (e.g., PET and PTFE). In addition, BC-derived composites have emerged as a major alternative in the replacement of atherosclerotic blood vessels. For example, blending BC nanocrystals with PVA (Polyvinyl alcohol) results in an artificial vessel with high tensile strength, low cytotoxicity, and enhanced suture retention profile (Tang et al., 2015). A key issue in implants is optimizing cell adhesion. The development of hydrophilic BC-based biomaterials with polyethylene glycol (PEG) grafted into the cellulosic base have shown favorable compatibility for cell proliferation and adhesion (e.g., fibroblasts), reduced propensity for complement activation, and resistance to bacterial adhesion (da Silva et al., 2016). The development of such hydrophilic BC composites offers notable advances in the development of novel artificial blood vessels implants, coatings for cardiovascular stents (resistant to bacterial adhesion), and the replacement heart valves.
Prospectus
Development of nanocellulose-based biomaterials is a robust area of current research and engineering. From feedstock choice to defining properties of different cellulosic substrates and matching pretreatment and manufacturing processes to specific applications, the diversity and number of cellulosic biomaterials is growing. In this review, we have summarized general properties of three common cellulosic materials (i.e., NCC, NFC, BC) and discussed physical and chemical processes used to produce or modify each. We have provided examples of how these starting materials are being used in different biomedical applications and why the unique properties of each cellulose substrate are suitable to each application. Due to the sensitivity of biological systems to foreign materials and the tunability of cellulosic substrates, the use of cellulose-based biomaterials for biomedical applications is a robust area of research and development. The shear abundance of cellulose as a raw material and its status as a sustainable resource make cellulosic materials even more attractive. Efforts to understand the limitations of cellulosic biomaterials in biomedicine, such as the potential for immunological rejection, facilitating disease transmission, and enhancing risks for future malignancies are valuable as cellulose-based products become more widely used in biomedicine (Savoji et al., 2018). The potential is great, indeed. Cellulose is being used in bio-ink that serves to produce scaffolds for the regeneration of tissues or entire organs (Weng et al., 2021). Cellulose matrices are being used to stabilize differentiating stem cells and in tissue engineering. Cellulose-based drug delivery systems (e.g., cellulose microspheres and nanobeads) are used to regulate the controlled release of medications and growth factors with high resolution and specificity. Thus, despite some limitations such as production costs for advanced cellulosic substrates (Tornello et al., 2016) and special transportation/storage conditions (Guan et al., 2020), the future looks promising for the use of cellulose-based biomaterials in biomedicine.
Author contributions
NF, RC, and CF wrote and edited the manuscript. All authors contributed to the article and approved the submitted version.
Funding
This work was funded by the National Institutes of Health (R15GM140433 to CF and P20GM139768 to CF) and the National Science Foundation (MCB 1818346 to RC).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Agarwal, C., and Csóka, L. (2019). “Chapter 6 - surface-modified cellulose in biomedical engineering,” in Materials for biomedical engineering. Editors V. Grumezescu, and A. M. Grumezescu (Elsevier),Amsterdam, Netherlands 215–261. doi:10.1016/B978-0-12-818431-8.00007-6
Andresen, M., Stenstad, P., Moretro, T., Langsrud, S., Syverud, K., Johansson, L. S., et al. (2007). Nonleaching antimicrobial films prepared from surface-modified microfibrillated cellulose. Biomacromolecules 8 (7), 2149–2155. doi:10.1021/bm070304e
Aris, F. A. F., Fauzi, F., Tong, W. Y., and Abdullah, S. S. S. (2019). Interaction of silver sulfadiazine with bacterial cellulose via ex-situ modification method as an alternative diabetic wound healing. Biocatal. Agric. Biotechnol. 21, 101332. doi:10.1016/j.bcab.2019.101332
Bala, K., Guha, S. K., and Vasudevan, P. (1982). p-Amino salicylic acid — oxidized cellulose system: a model for long term drug delivery. Biomaterials 3 (2), 97–100. doi:10.1016/0142-9612(82)90041-2
Besbes, I., Alila, S., and Boufi, S. (2011). Nanofibrillated cellulose from TEMPO-oxidized eucalyptus fibres: Effect of the carboxyl content. Carbohydr. Polym. 84 (3), 975–983. doi:10.1016/j.carbpol.2010.12.052
Bhaladhare, S., and Das, D. (2022). Cellulose: A fascinating biopolymer for hydrogel synthesis. J. Mat. Chem. B 10, 1923–1945. doi:10.1039/d1tb02848k
Cavicchioli, M., Corso, C. T., Coelho, F., Mendes, L., Saska, S., Soares, C. P., et al. (2015). Characterization and cytotoxic, genotoxic and mutagenic evaluations of bacterial cellulose membranes incorporated with ciprofloxacin: A potential material for use as therapeutic contact lens. World J. Pharm. Pharm. Sci. 4, 1626–1647.
Ceballos, R. M. (2017). Bioethanol and natural resources: Substrates, chemistry and engineered systems. Boca Raton, FL: CRC Press. doi:10.1201/9781315154299
Chakraborty, A., Sain, M., and Kortschot, M. (2005). Cellulose microfibrils: A novel method of preparation using high shear refining and cryocrushing. Holzforschung 59 (1), 102–107. doi:10.1515/hf.2005.016
Chalal, S., Hussain, F. S. J., and Yusoff, M. B. M. (2014). Biomimetic growth of bone-like apatite via simulated body fluid on hydroxyethyl cellulose/polyvinyl alcohol electrospun nanofibers. Biomed. Mat. Eng. 24 (1), 799–806. doi:10.3233/bme-130871
Chen, G., Zhang, B., Zhao, J., and Chen, H. W. (2013). Improved process for the production of cellulose sulfate using sulfuric acid/ethanol solution. Carbohydr. Polym. 95 (1), 332–337. doi:10.1016/j.carbpol.2013.03.003
Chen, H., Cheng, R. Y., Zhao, X., Zhang, Y. H., Tam, A., Yan, Y. F., et al. (2019). An injectable self-healing coordinative hydrogel with antibacterial and angiogenic properties for diabetic skin wound repair. NPG Asia Mat. 11, 3. doi:10.1038/s41427-018-0103-9
Chen, Q., Garcia, R. P., Munoz, J., de Larraya, U. P., Garmendia, N., Yao, Q. Q., et al. (2015). Cellulose nanocrystals-bioactive glass hybrid coating as bone substitutes by electrophoretic Co-deposition: In situ control of mineralization of bioactive glass and enhancement of osteoblastic performance. ACS Appl. Mat. Interfaces 7 (44), 24715–24725. doi:10.1021/acsami.5b07294
Chen, W. S., Yu, H. P., Liu, Y. X., Hai, Y. F., Zhang, M. X., and Chen, P. (2011). Isolation and characterization of cellulose nanofibers from four plant cellulose fibers using a chemical-ultrasonic process. Cellulose 18 (2), 433–442. doi:10.1007/s10570-011-9497-z
Chiaoprakobkij, N., Sanchavanakit, N., Subbalekha, K., Pavasant, P., and Phisalaphong, M. (2011). Characterization and biocompatibility of bacterial cellulose/alginate composite sponges with human keratinocytes and gingival fibroblasts. Carbohydr. Polym. 85 (3), 548–553. doi:10.1016/j.carbpol.2011.03.011
da Silva, R., Sierakowski, M. R., Bassani, H. P., Zawadzki, S. F., Pirich, C. L., Ono, L., et al. (2016). Hydrophilicity improvement of mercerized bacterial cellulose films by polyethylene glycol graft. Int. J. Biol. Macromol. 86, 599–605. doi:10.1016/j.ijbiomac.2016.01.115
deBoer, T. R., Chakraborty, I., and Mascharak, P. K. (2015). Design and construction of a silver(I)-loaded cellulose-based wound dressing: Trackable and sustained release of silver for controlled therapeutic delivery to wound sites. J. Mater. Science-Materials Med. 26 (10), 9. doi:10.1007/s10856-015-5577-1
Dharmalingam, K., and Anandalakshmi, R. (2020). Functionalization of cellulose-based nanocomposite hydrogel films with zinc oxide complex and grapefruit seed extract for potential applications in treating chronic wounds. Polymer 202, 122620. doi:10.1016/j.polymer.2020.122620
Dinca, V., Mocanu, A., Isopencu, G., Busuioc, C., Brajnicov, S., Vlad, A., et al. (2020). Biocompatible pure ZnO nanoparticles-3D bacterial cellulose biointerfaces with antibacterial properties. Arabian J. Chem. 13 (1), 3521–3533. doi:10.1016/j.arabjc.2018.12.003
Du, J., Tan, E., Kim, H. J., Zhang, A., Bhattacharya, R., and Yarema, K. J. (2014). Comparative evaluation of chitosan, cellulose acetate, and polyethersulfone nanofiber scaffolds for neural differentiation. Carbohydr. Polym. 99, 483–490. doi:10.1016/j.carbpol.2013.08.050
El-Sherbiny, I. M., and Yacoub, M. H. (2013). Hydrogel scaffolds for tissue engineering: Progress and challenges. Glob. Cardiol. Sci. Pract. 2013 (3), 38–342. doi:10.5339/gcsp.2013.38
Eyholzer, C., Tingaut, P., Zimmermann, T., and Oksman, K. (2012). Dispersion and reinforcing potential of carboxymethylated nanofibrillated cellulose powders modified with 1-hexanol in extruded poly(lactic acid) (PLA) composites. J. Polym. Environ. 20 (4), 1052–1062. doi:10.1007/s10924-012-0508-4
Feese, E., Sadeghifar, H., Gracz, H. S., Argyropoulos, D. S., and Ghiladi, R. A. (2011). Photobactericidal porphyrin-cellulose nanocrystals: Synthesis, characterization, and antimicrobial properties. Biomacromolecules 12 (10), 3528–3539. doi:10.1021/bm200718s
Fink, H., Faxalv, L., Molnar, G. F., Drotz, K., Risberg, B., Lindahl, T. L., et al. (2010). Real-time measurements of coagulation on bacterial cellulose and conventional vascular graft materials. Acta Biomater. 6 (3), 1125–1130. doi:10.1016/j.actbio.2009.09.019
Goncalves, S., Padrao, J., Rodrigues, I. P., Silva, J. P., Sencadas, V., Lanceros-Mendez, S., et al. (2015). Bacterial cellulose as a support for the growth of retinal pigment epithelium. Biomacromolecules 16 (4), 1341–1351. doi:10.1021/acs.biomac.5b00129
Gousse, C., Chanzy, H., Excoffier, G., Soubeyrand, L., and Fleury, E. (2002). Stable suspensions of partially silylated cellulose whiskers dispersed in organic solvents. Polymer 43 (9), 2645–2651. doi:10.1016/s0032-3861(02)00051-4
Guan, N., Liu, Z. H., Zhao, Y. H., Li, Q., and Wang, Y. T. (2020). Engineered biomaterial strategies for controlling growth factors in tissue engineering. Drug Deliv. 27 (1), 1438–1451. doi:10.1080/10717544.2020.1831104
Habibi, Y. (2014). Key advances in the chemical modification of nanocelluloses. Chem. Soc. Rev. 43 (5), 1519–1542. doi:10.1039/c3cs60204d
Hackett, J. M., Dang, T. T., Tsai, E. C., and Cao, X. D. (2010). Electrospun biocomposite polycaprolactone/collagen tubes as scaffolds for neural stem cell differentiation. Materials 3 (6), 3714–3728. doi:10.3390/ma3063714
Hakkarainen, T., Koivuniemi, R., Kosonen, M., Escobedo-Lucea, C., Sanz-Garcia, A., Vuola, J., et al. (2016). Nanofibrillar cellulose wound dressing in skin graft donor site treatment. J. Control. Release 244, 292–301. doi:10.1016/j.jconrel.2016.07.053
Hasani, M., Cranston, E. D., Westman, G., and Gray, D. G. (2008). Cationic surface functionalization of cellulose nanocrystals. Soft Matter 4 (11), 2238–2244. doi:10.1039/b806789a
He, S. D., Wang, X., Zhang, Y., Wang, J., Sun, H. J., Wang, J. H., et al. (2016). Isolation and prebiotic activity of water-soluble polysaccharides fractions from the bamboo shoots (Phyllostachys praecox). Carbohydr. Polym. 151, 295–304. doi:10.1016/j.carbpol.2016.05.072
Hein, C. D., Liu, X. M., and Wang, D. (2008). Click chemistry, a powerful tool for pharmaceutical sciences. Pharm. Res. 25 (10), 2216–2230. doi:10.1007/s11095-008-9616-1
Hickey, R. J., and Pelling, A. E. (2019). Cellulose biomaterials for tissue engineering. Front. Bioeng. Biotechnol. 7, 45. doi:10.3389/fbioe.2019.00045
Horue, M., Cacicedo, M. L., Fernandez, M. A., Rodenak-Kladniew, B., Sanchez, R. T. M., and Castro, G. R. (2020). Antimicrobial activities of bacterial cellulose - silver montmorillonite nanocomposites for wound healing. Mater. Sci. Eng. C 116, 111152. doi:10.1016/j.msec.2020.111152
Isogai, A., Saito, T., and Fukuzumi, H. (2011). TEMPO-oxidized cellulose nanofibers. Nanoscale 3 (1), 71–85. doi:10.1039/c0nr00583e
Jorfi, M., and Foster, E. J. (2015). Recent advances in nanocellulose for biomedical applications. J. Appl. Polym. Sci. 132 (14), 19. doi:10.1002/app.41719
Klemm, D., Kramer, F., Moritz, S., Lindstrom, T., Ankerfors, M., Gray, D., et al. (2011). Nanocelluloses: A new family of nature-based materials. Angew. Chem. Int. Ed. 50 (24), 5438–5466. doi:10.1002/anie.201001273
Kose, R., Mitani, I., Kasai, W., and Kondo, T. (2011). Nanocellulose" as a single nanofiber prepared from pellicle secreted by gluconacetobacter xylinus using aqueous counter collision. Biomacromolecules 12 (3), 716–720. doi:10.1021/bm1013469
Kumar, M., Sun, Y. Q., Rathour, R., Pandey, A., Thakur, I. S., and Tsang, D. C. W. (2020). Algae as potential feedstock for the production of biofuels and value-added products: Opportunities and challenges. Sci. Total Environ. 716, 137116. doi:10.1016/j.scitotenv.2020.137116
Kuzmenko, V., Kalogeropoulos, T., Thunberg, J., Johannesson, S., Hagg, D., Enoksson, P., et al. (2016). Enhanced growth of neural networks on conductive cellulose-derived nanofibrous scaffolds. Mater. Sci. Eng. C 58, 14–23. doi:10.1016/j.msec.2015.08.012
Lin, N., and Dufresne, A. (2014). Nanocellulose in biomedicine: Current status and future prospect. Eur. Polym. J. 59, 302–325. doi:10.1016/j.eurpolymj.2014.07.025
Liu, X., Lin, T., Gao, Y., Xu, Z. G., Huang, C., Yao, G., et al. (2012). Antimicrobial electrospun nanofibers of cellulose acetate and polyester urethane composite for wound dressing. J. Biomed. Mat. Res. 100B (6), 1556–1565. doi:10.1002/jbm.b.32724
Mali, P., and Sherje, A. P. (2022). Cellulose nanocrystals: Fundamentals and biomedical applications. Carbohydr. Polym. 275, 118668. doi:10.1016/j.carbpol.2021.118668
Mohite, B. V., and Patil, S. V. (2014). A novel biomaterial: Bacterial cellulose and its new era applications. Biotechnol. Appl. Biochem. 61 (2), 101–110. doi:10.1002/bab.1148
Moohan, J., Stewart, S. A., Espinosa, E., Rosal, A., Rodriguez, A., Larraneta, E., et al. (2020). Cellulose nanofibers and other biopolymers for biomedical applications. A review. Appl. Sci. (Basel). 10 (1), 65. doi:10.3390/app10010065
Moon, R. J., Martini, A., Nairn, J., Simonsen, J., and Youngblood, J. (2011). Cellulose nanomaterials review: Structure, properties and nanocomposites. Chem. Soc. Rev. 40 (7), 3941–3994. doi:10.1039/c0cs00108b
Okeyoshi, K., Joshi, G., Okajima, M. K., and Kaneko, T. (2018). Formation of polysaccharide membranes by splitting of evaporative air-LC interface. Adv. Mat. Interfaces 5 (3), 1701219. doi:10.1002/admi.201701219
Orlando, I., Basnett, P., Nigmatullin, R., Wang, W. X., Knowles, J. C., and Roy, I. (2020). Chemical modification of bacterial cellulose for the development of an antibacterial wound dressing. Front. Bioeng. Biotechnol. 8, 557885. doi:10.3389/fbioe.2020.557885
Picheth, G. F., Pirich, C. L., Sierakowski, M. R., Woehl, M. A., Sakakibara, C. N., de Souza, C. F., et al. (2017). Bacterial cellulose in biomedical applications: A review. Int. J. Biol. Macromol. 104, 97–106. doi:10.1016/j.ijbiomac.2017.05.171
Rees, A., Powell, L. C., Chinga-Carrasco, G., Gethin, D. T., Syverud, K., Hill, K. E., et al. (2015). 3D bioprinting of carboxymethylated-periodate oxidized nanocellulose constructs for wound dressing applications. Biomed Res. Int. 7, 1–7. doi:10.1155/2015/925757
Rescignano, N., Fortunati, E., Montesano, S., Emiliani, C., Kenny, J. M., Martino, S., et al. (2014). PVA bio-nanocomposites: A new take-off using cellulose nanocrystals and plga nanoparticles. Carbohydr. Polym. 99, 47–58. doi:10.1016/j.carbpol.2013.08.061
Saravanan, A., Kumar, P. S., Jeevanantham, S., Karishma, S., and Vo, D. V. N. (2022). Recent advances and sustainable development of biofuels production from lignocellulosic biomass. Bioresour. Technol. 344, 126203. doi:10.1016/j.biortech.2021.126203
Savoji, H., Godau, B., Hassani, M. S., and Akbari, M. (2018). Skin tissue substitutes and biomaterial risk assessment and testing. Front. Bioeng. Biotechnol. 6, 86. doi:10.3389/fbioe.2018.00086
Silva, N. H., Rodrigues, A. F., Almeida, I. F., Costa, P. C., Rosado, C., Neto, C. P., et al. (2014). Bacterial cellulose membranes as transdermal delivery systems for diclofenac: In vitro dissolution and permeation studies. Carbohydr. Polym. 106, 264–269. doi:10.1016/j.carbpol.2014.02.014
Singh, M., Vasudevan, P., Sinha, T. J. M., Ray, A. R., Misro, M. M., and Guha, K. (1981). AN insulin delivery system from oxidized cellulose. J. Biomed. Mat. Res. 15 (5), 655–661. doi:10.1002/jbm.820150504
Siqueira, G., Bras, J., Follain, N., Belbekhouche, S., Marais, S., and Dufresne, A. (2013). Thermal and mechanical properties of bio-nanocomposites reinforced by Luffa cylindrica cellulose nanocrystals. Carbohydr. Polym. 91 (2), 711–717. doi:10.1016/j.carbpol.2012.08.057
Sood, A., Gupta, A., and Agrawal, G. (2021). Recent advances in polysaccharides based biomaterials for drug delivery and tissue engineering applications. Carbohydr. Polym. Technol. Appl. 2, 100067. doi:10.1016/j.carpta.2021.100067
Sureshkumar, M., Siswanto, D. Y., and Lee, C. K. (2010). Magnetic antimicrobial nanocomposite based on bacterial cellulose and silver nanoparticles. J. Mat. Chem. 20 (33), 6948–6955. doi:10.1039/c0jm00565g
Tang, J. Y., Bao, L. H., Li, X., Chen, L., and Hong, F. F. (2015). Potential of PVA-doped bacterial nano-cellulose tubular composites for artificial blood vessels. J. Mat. Chem. B 3 (43), 8537–8547. doi:10.1039/c5tb01144b
Tarrahi, R., Khataee, A., Karimi, A., and Yoon, Y. (2022). The latest achievements in plant cellulose-based biomaterials for tissue engineering focusing on skin repair. Chemosphere 288, 132529. doi:10.1016/j.chemosphere.2021.132529
Torgbo, S., and Sukyai, P. (2018). Bacterial cellulose-based scaffold materials for bone tissue engineering. Appl. Mater. Today 11, 34–49. doi:10.1016/j.apmt.2018.01.004
Tornello, P. R. C., Ballarin, F. M., Caracciolo, P. C., and Abraham, G. A. (2016). Micro/nanofiber-based scaffolds for soft tissue engineering applications: Potential and current challenges. Nanobiomaterials soft tissue Eng.,5 201–229. doi:10.1016/B978-0-323-42865-1.00008-8
Tsai, E. C., Dalton, P. D., Shoichet, M. S., and Tator, C. H. (2006). Matrix inclusion within synthetic hydrogel guidance channels improves specific supraspinal and local axonal regeneration after complete spinal cord transection. Biomaterials 27 (3), 519–533. doi:10.1016/j.biomaterials.2005.07.025
Uetani, K., and Yano, H. (2011). Nanofibrillation of wood pulp using a high-speed blender. Biomacromolecules 12 (2), 348–353. doi:10.1021/bm101103p
Ullah, H., Santos, H. A., and Khan, T. (2016a). Applications of bacterial cellulose in food, cosmetics and drug delivery. Cellulose 23 (4), 2291–2314. doi:10.1007/s10570-016-0986-y
Ullah, M. W., Ul-Islam, M., Khan, S., Kim, Y., Jang, J. H., and Park, J. K. (2016b). In situ synthesis of a bio-cellulose/titanium dioxide nanocomposite by using a cell-free system. RSC Adv. 6 (27), 22424–22435. doi:10.1039/c5ra26704h
Vallejo, M., Cordeiro, R., Dias, P. A. N., Moura, C., Henriques, M., Seabra, I. J., et al. (2021). Recovery and evaluation of cellulose from agroindustrial residues of corn, grape, pomegranate, strawberry-tree fruit and fava. Bioresour. Bioprocess. 8 (1), 25. doi:10.1186/s40643-021-00377-3
Vatankhah, E., Prabhakaran, M. P., Jin, G. R., Mobarakeh, L. G., and Ramakrishna, S. (2014). Development of nanofibrous cellulose acetate/gelatin skin substitutes for variety wound treatment applications. J. Biomater. Appl. 28 (6), 909–921. doi:10.1177/0885328213486527
Wahid, F., Duan, Y. X., Hu, X. H., Chu, L. Q., Jia, S. R., Cui, J. D., et al. (2019). A facile construction of bacterial cellulose/ZnO nanocomposite films and their photocatalytic and antibacterial properties. Int. J. Biol. Macromol. 132, 692–700. doi:10.1016/j.ijbiomac.2019.03.240
Wang, J. H., Gao, C., Zhang, Y. S., and Wan, Y. Z. (2010). Preparation and in vitro characterization of BC/PVA hydrogel composite for its potential use as artificial cornea biomaterial. Mater. Sci. Eng. C 30 (1), 214–218. doi:10.1016/j.msec.2009.10.006
Wang, Y. F., Cooke, M. J., Sachewsky, N., Morshead, C. M., and Shoichet, M. S. (2013). Bioengineered sequential growth factor delivery stimulates brain tissue regeneration after stroke. J. Control. Release 172 (1), 1–11. doi:10.1016/j.jconrel.2013.07.032
Weng, T. T., Zhang, W., Xia, Y. L., Wu, P., Yang, M., Jin, R. H., et al. (2021). 3D bioprinting for skin tissue engineering: Current status and perspectives. J. Tissue Eng. 12, 204173142110285. doi:10.1177/20417314211028574
Xie, F., De Wever, P., Fardim, P., and van den Mooter, G. (2021). TEMPO-oxidized cellulose beads as potential pH-responsive carriers for site-specific drug delivery in the gastrointestinal tract. Molecules 26 (4), 1030. doi:10.3390/molecules26041030
Xie, J. L., Hse, C. Y., De Hoop, C. F., Hu, T. X., Qi, J. Q., and Shupe, T. F. (2016). Isolation and characterization of cellulose nanofibers from bamboo using microwave liquefaction combined with chemical treatment and ultrasonication. Carbohydr. Polym. 151, 725–734. doi:10.1016/j.carbpol.2016.06.011
Yang, Y., Lu, Y. T., Zeng, K., Heinze, T., Groth, T., and Zhang, K. (2021). Recent progress on cellulose-based ionic compounds for biomaterials. Adv. Mat. 33 (28), 2000717. doi:10.1002/adma.202000717
Yoshino, A., Tabuchi, M., Uo, M., Tatsumi, H., Hideshima, K., Kondo, S., et al. (2013). Applicability of bacterial cellulose as an alternative to paper points in endodontic treatment. Acta Biomater. 9 (4), 6116–6122. doi:10.1016/j.actbio.2012.12.022
Zhang, C. M., Salick, M. R., Cordie, T. M., Effingham, T., Dan, Y., and Turng, L. S. (2015). Incorporation of poly(ethylene glycol) grafted cellulose nanocrystals in poly(lactic acid) electrospun nanocomposite fibers as potential scaffolds for bone tissue engineering. Mater. Sci. Eng. C 49, 463–471. doi:10.1016/j.msec.2015.01.024
Zhou, C. J., Shi, Q. F., Guo, W. H., Terrell, L., Qureshi, A. T., Hayes, D. J., et al. (2013). Electrospun bio-nanocomposite scaffolds for bone tissue engineering by cellulose nanocrystals reinforcing maleic anhydride grafted PLA. ACS Appl. Mat. Interfaces 5 (9), 3847–3854. doi:10.1021/am4005072
