Hyun-Sik Yun1†
Young-Saeng Kim- 1Department of Biology, College of Natural Sciences, Kyungpook National University, Daegu, South Korea
- 2School of Applied Biosciences, Kyungpook National University, Daegu, South Korea
- 3School of Life Sciences and Biotechnology, BK21 Plus KNU Creative BioResearch Group, Kyungpook National University, Daegu, South Korea
- 4Research Institute of Ulleung-do & Dok-do, Kyungpook National University, Daegu, South Korea
- 5Advanced Bio-Resource Research Center, Kyungpook National University, Daegu, South Korea
Microbes are essential in biofloc technology for controlling nitrogen levels in water. The composition and function of microorganisms with biofloc systems were reported; however, data on microorganisms other than bacteria, such as algae (which are essential in the nitrogen cycle) and zooplankton (which are bacterial and algal predators), remain limited. The microbial communities (including bacteria, algae, zooplankton, and fungi) were investigated in shrimp farms using biofloc technology. Using Illumina MiSeq sequencing, the V4 region of 18S rRNA and the V3–V4 region of 16S rRNA were utilized for the analysis of the eukaryotic and prokaryotic microbial communities. As a result, it was found that the biofloc in the shrimp farm consisted of 48.73%–73.04% eukaryotic organisms and 26.96%–51.27% prokaryotic organisms. In these shrimp farms, prokaryotic microbial communities had higher specie richness and diversity than eukaryotic microbial communities. However, the eukaryotic microbial communities were more abundant than their prokaryotic counterparts, while algae and zooplankton dominated them. It was discovered that the structures of the microbial communities in the shrimp farms seemed to depend on the effects of predation by zooplankton and other related organisms. The results provided the nitrogen cycle in biofloc systems by the algal and bacterial groups in microbial communities.
1 Introduction
Given their roles as decomposers and producers, microorganisms play crucial roles in various ecosystem material cycles (Mickalide and Kuehn, 2019; López-Mondéjar et al., 2020). This includes the nitrogen-related material cycle (Cirri and Pohnert, 2019; Urakawa et al., 2019), in which some microorganisms utilize nitrogen for anabolic or catabolic processes (Takai, 2019; Dai et al., 2020). Through such methods, pollutants, such as ammonia, are removed, and nitrogen-based compounds, e.g., proteins, are synthesized (Pilgrim et al., 1970). The action of microorganisms in this context has become the basis for their use on an industrial level (Huo et al., 2020; Zhang et al., 2020). For example, microbial functions are applied to treat nitrogen compounds in wastewater generated in cities (Huo et al., 2020; Zhang et al., 2020). Additionally, microorganisms are used in removing nitrogen-based compounds from water containing aquatic organisms in large-scale fish farms to small-scale home aquariums (Miranda-Baeza et al., 2020; Putra et al., 2020). However, until recently, microorganism-based removal of pollutants was rarely used in aquatic organism-breeding programs; indeed, the breeding of aquatic organisms was traditionally sustained through water exchange (Timmons et al., 1998). Given that the water exchange method needs substantial water levels and generates wastewater, improved methods are now being developed (Timmons et al., 1998).
Biofloc technology is a method that removes some limitations associated with traditional aquatic organism-breeding methods (Bakar et al., 2015; Chen et al., 2019). With biofloc technology, pollutants, including ammonia generated by aquatic organisms, are removed from water by culturing microorganisms in the aquatic-organisms’ breeding space (Bakar et al., 2015; Chen et al., 2019). These cultured microorganisms remove pollutants and act as food for aquatic organisms (Cardona et al., 2015; Bossier and Ekasari, 2017). Consequently, the microbial-derived biomass reduces the necessary feed input during the breeding of aquatic organisms and increases productivity (Cardona et al., 2015; Bossier and Ekasari, 2017). Moreover, effective removal of pollutants using microorganisms has made the traditional water exchange process unnecessary (Bakar et al., 2015; Bossier and Ekasari, 2017; Chen et al., 2019). Therefore, biofloc technology has reduced costs and increased efficiency in the aquatic organism production and breeding industry (Gaitán-Angulo et al., 2016).
To maximize the effects of biofloc technology, previous research on the constituents of microbial communities in biofloc systems has been conducted (Wei G et al., 2020; Wei Y-F et al., 2020). Through previous studies, it has been found that the structural characteristics of the microbial community constituting biofloc can vary depending on the method and carbon source applied to form biofloc (Vilani et al., 2016; Arantes et al., 2017; Luo et al., 2022). Furthermore, this revealed the need for a deeper understanding of the characteristics of photo-autotrophic, heterotrophic, and chemotrophic microbial organisms in biofloc (Vilani et al., 2016; Arantes et al., 2017; Luo et al., 2022). Although previous pollutant removal and floc formation-related research has enhanced understanding of biofloc technology (D’Silva and Kyndt, 2020; Dauda, 2020), more studies on microalgae are needed to deepen this understanding (Ray et al., 2009; Wang et al., 2019). It is known that microalgae can synthesize nitrogen-related organic substances, such as proteins, using ammonia and nitrate (Cui et al., 2020). Additionally, hydrocarbons and lipids (including unsaturated fatty acids) can be produced through photosynthesis, while antioxidants such as astaxanthin and lutein are included among the pigments manufactured for photosynthesis (Kawale and Kishore, 2019; Cui et al., 2020; Li L. et al., 2020). These microalgae-produced substances can be fed to aquatic organisms, thereby increasing the productivity and quality of farm products (Crab et al., 2012; Dauda, 2020; Khanjani and Sharifinia, 2020). However, more research on the role and features of microalgae in biofloc technology is still needed.
In the Republic of Korea, biofloc technology is applied to various aquatic organisms, including the shrimp species Litopenaeus vannamei, which is now actively manufactured with the use of biofloc (Taw, 2014; Hamidoghli et al., 2018). In this study, Illumina MiSeq system was applied to characterize the microbial communities that constitute the biofloc in shrimp farms of the southern Korean Peninsula. The structure of these communities, including eukaryotic and prokaryotic microbial communities, was analyzed. The algal and bacterial groups demonstrate the metabolic processes involved in the nitrogen cycle in biofloc systems.
2 Materials and methods
2.1 Sample collection
Water samples from the shrimp farms were obtained from five farm tanks (Figure 1; Tank A: 34°47′33.1″N 128°34′17.5″E, 2456, Geojenamseo-ro, Dongbu-myeon, Geoje-si, Gyeongsangnam-do, Republic of Korea; Tank B: 34°47′33.2″N 128°34′17.8″E, 2456, Geojenamseo-ro, Dongbu-myeon, Geoje-si, Gyeongsangnam-do, Republic of Korea; Tank C: 34°56′08.7″N 128°11′44.8″E, 1656, Jaranman-ro, Hail-myeon, Goseong-gun, Gyeongsangnam-do, Republic of Korea; Tank D: 34°56′19.7″N 128°11′50.5″E, 1699, Jaranman-ro, Hail-myeon, Goseong-gun, Gyeongsangnam-do, Republic of Korea; Tank E: 34°56′36.1″N 128°14′53.1″E, 199, Sambong 1-gil, Samsan-myeon, Goseong-gun, Gyeongsangnam-do, Republic of Korea). The tanks of each farm are designed and modified according to previous research (Avnimelech, 1999; Arnold et al., 2009; Khanjani and Sharifinia, 2020). The pumps and air stones were used to circulate the water inside the tank, and molasses (48% total carbon, EMzone, Thailand) were added to the tank water for the formation of a biofloc-forming microbial community and proceeded according to the calculation guided (Avnimelech, 1999; Arnold et al., 2009; Khanjani and Sharifinia, 2020). The farm maintains a shrimp density of 250–350 individuals/m2. The time when biofloc was investigated was nearing the harvest time of shrimp. Shrimp purchased from shrimp farms and weighed for each shrimp was found to be in the range of 25–30 g for each shrimp from all shrimp farms. To form and maintain bioflocs, all of the shrimp farms investigated were using molasses. The water in the tanks was sampled and the floc derived from the microorganisms contained in the water. Five water samples were taken from five sites in each tank. All samples (500-ml water) were collected on 15 June 2020, and stored in refrigerated containers before being transported to the laboratory. From these main samples, further samples were taken on 16 June 2020, for Illumina MiSeq analysis, which was conducted by Macrogen Co., Ltd. (Seoul, South Korea; https://dna.macrogen.com/kor/), with samples delivered through an express courier service.

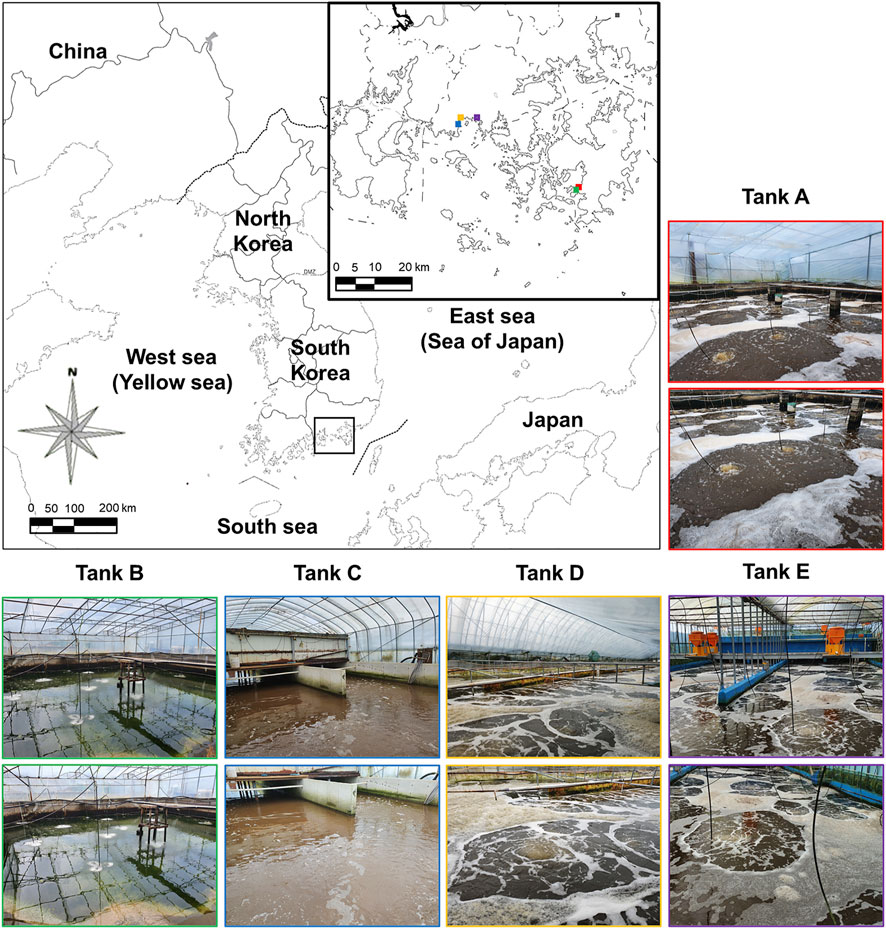

FIGURE 1. Sampling sites on the southern coast of the Korean Peninsula. The location of the Litopenaeus vannamei shrimp farms using biofloc technology is indicated by the black box. Additionally, locations (colored squares on the main map) and images of tanks A (red boxes), B (green boxes), C (blue boxes), D (orange boxes), and E (purple boxes) are indicated. For exact tank locations, see Section 2.1.
2.2 Measurement of physicochemical environmental factors
A multiparameter instrument (U-50 Multiparameter Water Quality Meter; HORIBA, Kyoto, Japan) was used to determine the physicochemical and environmental factors of the shrimp farm-water samples. Samples for measuring physicochemical and environmental factors were collected on the same day and at the same time separately from samples for Illumina MiSeq analysis. The measurement was carried out immediately after sampling, 500-ml samples were placed in measuring tubes and evaluated for seven measurement factors: temperature, pH, electrical conductivity (EC), dissolved oxygen (DO), nephelometric turbidity unit (NTU), total dissolved solids (TDS), and salinity.
2.3 Illumina MiSeq for microbial community analysis
Illumina MiSeq analysis was conducted in the laboratory of Macrogen (Vo and Jedlicka 2014). First, DNA was extracted using a DNeasy PowerSoil Kit (Cat. No. 12888-100, QIAGEN) according to the manufacturer’s instructions (Claassen et al., 2013). Next, the quality of the extracted DNA was quantified using PicoGreen (Promega) and a Nanodrop system. PCR amplified each DNA sample, and the amplified samples were prepared according to either the Illumina 18S Metagenomic Sequencing Library protocol or the Illumina 16S Metagenomic Sequencing Library protocol for eukaryotic or prokaryotic microbial communities, respectively (Stoeck et al., 2010; Klindworth et al., 2013; Vo and Jedlicka, 2014). The 18S rRNA region was amplified using the 18S V4 primer set (forward primer: TAReuk454FWD1, 5′-CCAGCA (G⁄C)C(C⁄T)GCGGTAA TTCC-3’; reverse primer: TAReukREV3, 5′-ACTTTCG TTCTTGAT (C⁄T) (A⁄G)A-3′) (Stoeck et al., 2010); the 16S rRNA region was amplified using the 16S V3–V4 primer set (forward primer: MiSeq341F, 5′-TCGTCGGCAGCGTC AGATGTGTATAAGAGA CAGCCTACGGGNGGCWGCAG-3’; reverse primer: MiSeq805R, 5′-GTCTCGT GGGCTCGGAGATGTGTATAAGAGACAGGACTACHVGGGTATCTAATCC-3′) (Klindworth et al., 2013). The quality of the amplified DNA was quantified using PicoGreen and a VICTOR Nivo system (PerkinElmer). Subsequent limited-cycle amplification was performed to add multiplexing indices and Illumina sequencing adapters to the amplified PCR products (Meyer and Kircher, 2010). The final products were normalized and pooled using PicoGreen, and the size of the libraries was verified using TapeStation DNA D1000 ScreenTape system (Agilent, Santa Clara, CA, United States). Subsequently, the sequencing data were analyzed using the MiSeq platform (Illumina, San Diego, CA, United States) (Kozich et al., 2013).
2.4 Taxonomic identification
The raw data from MiSeq were demultiplexed using the index sequence, and a FASTQ file was generated for each sample. The adapter sequence was eliminated using SeqPurge, and the barcode sequence was trimmed and filtered according to the standard quality value (low-quality sequences: average quality value <25) (Sturm et al., 2016). Based on the barcode sequences included in the NCBI database, all refined raw data were identified using a BLASTN search (query coverage: > 99%) (Zhang Z et al., 2000). When the results could not be classified into a sublevel, ‘-’ was added to the end of the name. The operational taxonomic unit (OTU) was determined by CD-HIT at a 97% sequence similarity level (Li et al., 2012). Rarefaction curves and diversity indicators were computed through the mothur platform (Heck et al., 1975; Schloss et al., 2009). The results of beta diversity (sample diversity information of the comparison group) based on weighted UniFrac distance flexibility between the samples were visualized using an UPGMA tree (FigTree, http://tree.bio.ed.ac.uk/software/figtree/) (Bokulich et al., 2013).
2.5 Statistical analysis
We expressed the ratio of biomass present and the fatty acids contents, which we defined as 100%. We compared individual data points using Student’s t-test, and a p-value of <0.05 was considered statistically significant. All experiments were performed at least in triplicate, and the general microbiology test data were expressed as mean ± standard deviation (SD) (n = 3).
3 Results and Discussion
3.1 Physicochemical Characteristics of the shrimp farm aquatic environment
The physicochemical and environmental features of the aquatic environment in the shrimp farms are summarized in Table 1. Temperatures in tanks were 24.40°C–28.20°C (highest: tank A, 28.20°C; lowest: tank D, 24.40°C; range: 3.80°C). For pH, there was a difference of 1.76 between the highest (tank B, 8.51) and lowest (tank D, 6.75) pH values. In all tanks, EC was around 50.0 mS/cm (highest: tank E, 51.3 mS/cm; lowest: tank A, 49.6 mS/cm; range: 1.7 mS/cm). DO in tanks was 7.05–7.86 mg/L (highest: tank D, 7.86 mg/L; lowest: tank E, 7.05 mg/L; range: 0.81 mg/L). The NTU values in samples were 4.25–95.10 NTU (highest: tank C, 95.10 NTU; lowest: tank B, 4.25 NTU; range: 90.85 NTU); thus, of all measured features, NTU varied most among tanks. All measured TDS values were around 30.0-g/L (highest: tank E, 30.8 g/L; lowest: tank A and tank D, 30.3-g/L; range: 0.5 g/L). Salinity was around 33.0‰ in all tanks (highest: tank E, 33.7‰; lowest: tank A, 32.5‰; range: 1.2‰). From these features, the differences among tanks were insignificant for four measured factors, namely EC, DO, TDS, and salinity. Still, they were significant for three measured factors, i.e., temperature, pH, and NTU.

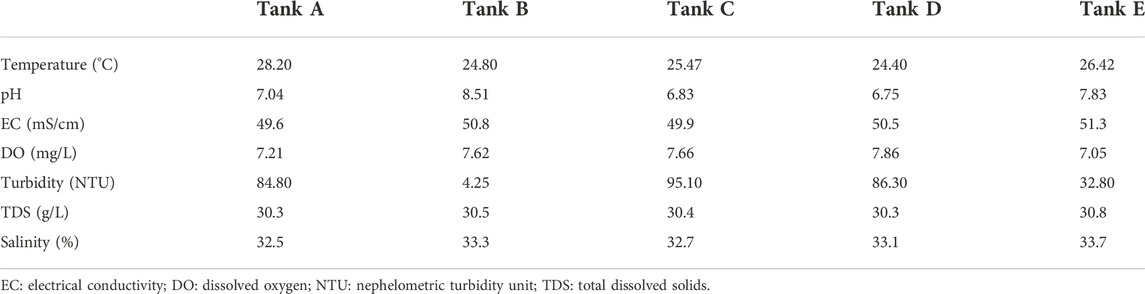

TABLE 1. The seven physicochemical factors studied in the five tanks from Litopenaeus vannamei shrimp farms.
In this study, the five tanks exhibited similar results for all environmental features except pH and turbidity. Of all environmental features with similar results, the error range was <10%. In contrast, the error range for pH and turbidity was >10%. Additionally, the tendency of measuring low turbidity in samples with high pH was confirmed. Generally, pH can substantially affect aquatic organisms, but it can also be altered by several microorganisms, including bacteria and algae (Shiraiwa et al., 1993; García-de-la-Fuente et al., 2011; Giordani et al., 2019). The observed differences in pH propose that the composition of microbial communities differed among samples and reflects the compositional features of the community (Lei and VanderGheynst, 2000; Giordani et al., 2019). The features of the microbial community are also indicated by turbidity, which arises in phenomena such as flocculation (Van Den Hende et al., 2011). In summary, the high pH and low turbidity in this study suggest that the microbial communities of shrimp farms using biofloc were affected by pH, which altered turbidity.
3.2 Environmental characteristics and microbial species diversity in shrimp farms using biofloc systems
The results of Illumina MiSeq, and the species richness and diversity of the microbial community (calculated based on sequencing results), are indicated in Supplementary Table S3 and Figure 2. In the analyzed samples, 90,416–120,981 total reads were obtained for the eukaryotic microbial community depending on the tank, of which 23,414–70,926 reads were validated. Although tank E had the largest number of total reads (120,981) among all tanks, the difference between the total and validated, reads was also the largest (difference: 96,575). In contrast, tank B had the least number of total reads (90,416) with the least difference between total and validated reads (difference: 19,490). For the prokaryotic microbial community, 22,060–41,788 total reads were obtained from samples depending on the tank, of which 21,321–41,533 reads were validated. The total and validated reads were highest in tank B (41,788 and 41,533, respectively) and lowest in tank E (22,060 and 21,321, respectively). Unlike in the eukaryotic microbial community, the difference between the total and validated reads was relatively small in the prokaryotic microbial community (differences: tank A, 72; tank B, 255; tank C, 1,505; tank D, 955; tank E, 739). The mean read-length of the analyzed reads was 402.90–416.43 bp for the eukaryotic microbial community and 438.33–450.89 bp for the prokaryotic microbial community. The maximum read-lengths for the eukaryotic and prokaryotic microbial communities were 419 and 461 bp, respectively. The number of OTUs detected from the samples was 44–152 for the eukaryotic microbial community and 115–228 for the prokaryotic microbial community. Thus, across all samples, the number of OTUs was greater in the prokaryotic microbial community than in the eukaryotic microbial community.
FIGURE 2. Rarefaction curves and UPGMA trees calculated from the five tanks. (A–D) Rarefaction curves are for OTUs and species richness (Chao1). The OTUs were analyzed using CD-HIT program at 97% sequence similarity, and the rarefaction curves and diversity indices for OTUs and Chao1 were computed using the mothur platform. (E,F) The relationships among the microbial community diversities for the five tanks. The UPGMA trees were formed using the weighted UniFrac distance. [For eukaryotic microbial communities: rarefaction curves of (A) OTUs and (C) Chao1, and (E) UPGMA tree. For prokaryotic microbial communities: rarefaction curves of (B) OTUs and (D) Chao1, and (F) UPGMA tree]. The data underlying all the graphs indicated in this figure can be found in the Supplementary Table S3.
In the microbial communities of the shrimp farms using biofloc technology, the scale of the eukaryotic microbial community was relatively larger than that of the prokaryotic microbial community; however, there was more species richness and diversity in the prokaryotic microbial community. Comparing the eukaryotic or prokaryotic microbial communities in each sample, no specific patterns among the number of reads, species richness, and species diversity was found. These results support previous findings of lack of association between community scale, species richness, and species diversity (Sanjit and Bhatt, 2005). Additionally, no obvious relationship between the eukaryotic microbial community and prokaryotic microbial community were found in samples (Santi et al., 2019), e.g., the number of eukaryotic microbial OTUs was highest in tank C (152), but the number of prokaryotic microbial OTUs was highest in tank E (228); the number of eukaryotic microbial OTUs was lowest in tank D (44), but the number of prokaryotic microbial OTUs in tank D was relatively high (183).
Chao1, an indicator of species richness, exhibited a similar trend to that observed in OTUs. In the eukaryotic microbial community, species richness was lowest in tank D (44.00) and highest in tank C (154.50). In the prokaryotic microbial community, species richness was generally higher; it was lowest in tank B (137.75) and highest in tank E (276.24). When considering the same sample, the species richness of the eukaryotic microbial community was lower than that of the prokaryotic microbial community. Two diversity indicators (Shannon and inverse Simpson) were used to quantify species diversity; however, results for the two diversity indicators were inconsistent. In the eukaryotic microbial community, the Shannon value was ordered as follows: tank C (2.83) > tank A (2.37) > tank B (2.00) > tank E (1.55) > tank D (1.36). In contrast, the inverse Simpson value was ordered as follows: tank A (0.73) > tank C (0.68) > tank B (0.57) > tank D (0.53) > tank E (0.41). Among the analyzed samples, the eukaryotic microbial communities of tank A (Shannon, 2.37; inverse Simpson, 0.73) and tank C (Shannon, 2.83; inverse Simpson, 0.68) exhibited relatively high species diversity, while the species diversity of tank D (Shannon, 1.36; inverse Simpson, 0.53) and tank E (Shannon, 1.55; inverse Simpson, 0.41) was relatively low. In the prokaryotic microbial community, Shannon values were ordered as follows: tank C (5.03) > tank E (4.56) > tank D (4.52) > tank A (4.35) > tank B (3.11). In contrast, inverse Simpson values in this community were as follows: tank C (0.92) > tank D (0.91) > tank A (0.90) > tank E (0.88) > tank B (0.68). In the prokaryotic microbial community, tank C had relatively high species diversity (Shannon, 5.03; inverse Simpson, 0.92), while the species diversity of tank B (Shannon, 3.11; inverse Simpson, 0.68) was low.
Based on UPGMA trees, the eukaryotic microbial community of tank B was similar only to that of tank D. In contrast, the prokaryotic microbial community of tank B was comparable only to that of tank C. The fact that the microbial community of tank B exhibited no similarities with other tank communities seemed to be due to differences in tank B’s pH and turbidity relative to other tanks (Santi et al., 2019). Based on these results, it was suggest that differences in microbial communities can occur when environmental features, such as pH and turbidity, differ (Santi et al., 2019). The similarity between microbial communities was visualized using an UPGMA tree (Figures 2E,F). Throughout the eukaryotic and prokaryotic microbial communities, similarities were high in the order tank E, tank A, and tank C based on tank D. For tank B, the eukaryotic microbial community was highly similar to that of tank D. In contrast, the prokaryotic microbial community was highly similar to that of tank C. These results indicate that there were no association between the number of reads, species richness, and diversity in the microbial communities from the biofloc of the shrimp farms. Additionally, species richness and diversity had little relevance to the similarity between the microbial communities. Even though the number of reads analyzed from the prokaryotic microbial community was less than that from the eukaryotic microbial community, the species richness and diversity were higher.
In the results, unique microbial communities were formed in each shrimp farm using biofloc according to the subtle environmental differences related to each sample. Although the features of the unique microbial community did not manifest as differences in species richness and diversity, they are expected to be revealed by the similarities between microbial communities. Additionally, prokaryotic microbial communities tend to have higher species richness and diversity than eukaryotic microbial communities, but one community type did not influence the diversity of the other.
3.3 Compositional characteristics of the microbial communities in shrimp farms with biofloc technology
Microbial organisms in shrimp farms using biofloc systems can decompose nitrogen compounds, including ammonia, or convert them into substances that are nontoxic to aquatic organisms (Abakari et al., 2020). This function is conducted by bacteria involved in some denitrification and nitrification processes or by an algal group that synthesizes organic compounds containing nitrogen through photosynthesis (Ray et al., 2009; Abakari et al., 2020; Luo et al., 2020). According to the results, there are relatively large-scale eukaryotic microbial communities with abundant algal or zooplankton/other groups in the studied shrimp farms using biofloc technology. Therefore, the biological mechanisms related to nitrogen compounds are expected to have different properties depending on the composition of the microbial community (Ray et al., 2009; Abakari et al., 2020). In microbial communities, in which the eukaryotic microbial community is dominated by zooplankton/other related organisms (such as in tanks A, C, and E) the mechanisms related to nitrogen compounds would be dependent on the bacterial group (Ray et al., 2009; Abakari et al., 2020). Alternatively, where the algal group occupies most of the eukaryotic microbial community (such as in tanks B and D, in which algae also occupied more than 50% of the total microbial community), the metabolic process would be dominated by the algal group (Ray et al., 2009).
Based on the results of taxonomic identification, members of eukaryotic and prokaryotic microbial communities was classified into four organism groups (algae, fungi, zooplankton/other, and bacteria), and the phylum composition of each group were compared (Figure 3). In tank A, the microbial community comprised 12.89% algae, 0.08% fungi, 35.76% zooplankton/other groups, and 51.27% bacteria. In tank B, it consisted of 60.38% algae, 0.82% of fungi, 1.95% of zooplankton/other groups, and 36.85% bacteria. In tank C, it comprised 2.81% algae, 0.16% fungi, 68.21% zooplankton/other groups, and 28.82% bacteria. In tank D, it consisted of 70.60% algae, 1.96% fungi, 0.48% zooplankton/other groups, and 26.96% bacteria. Finally, in tank E, it comprised 10.49% algae, 0.02% fungi, 42.86% zooplankton/other groups, and 46.62% bacteria. Based on these findings, the microbial community was composed of 48.73%–73.04% eukaryotic organisms (i.e., algae, fungi, and zooplankton/other groups) and 26.96%–51.27% prokaryotic organisms (bacteria). Therefore, there was a more abundant eukaryotic microbial community in the analyzed samples. Furthermore, the features of the eukaryotic microbial community were divided into two types: algal group-dominant (tanks B and D) and zooplankton/other group-dominant (tanks A, C, and E). Notably, fungi were detected at low levels in all samples (0.02%–1.96%).

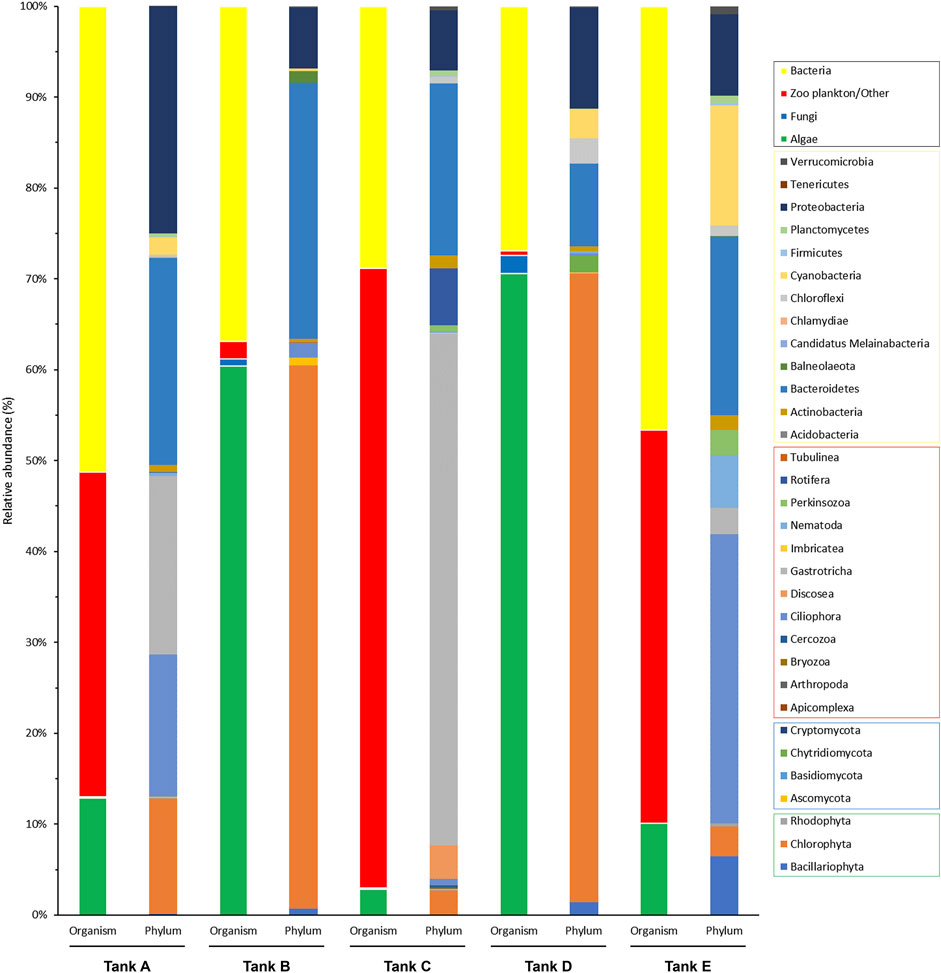

FIGURE 3. Community composition of the organism groups and phyla from the five tanks. The four organism groups that composed the microbial communities in each tank and the phyla from each group are indicated (black box, organism groups; yellow box, bacterial phyla; red box, zooplankton/other related phyla; blue box, fungal phyla; green box, algal phyla). The data underlying all the graphs indicated in this figure can be found in Supplementary Tables S1, S2.
For a more detailed among-sample comparison of the eukaryotic and prokaryotic microbial communities, their compositions at the phylum level were analyzed separately (Figure 4). In total, 19 phyla were detected in the eukaryotic microbial community (five samples); they consisted of three algal phyla (Bacillariophyta, Chlorophyta, and Rhodophyta), four fungal phyla (Ascomycota, Basidiomycota, Chytridiomycota, and Cryptomycota), and 12 zooplankton/other related phyla (Apicomplexa, Arthropoda, Bryozoa, Cercozoa, Ciliophora, Discosea, Gastrotricha, Imbricatea, Nematoda, Perkinsozoa, Rotifera, and Tubulinea) (Figure 4A). In tank A, three algal phyla (Bacillariophyta, 0.31%; Chlorophyta, 25.99%; Rhodophyta, 0.16%), one fungal phylum (Ascomycota, 0.17%), and four zooplankton/other related phyla (Ciliophora, 32.13%; Gastrotricha, 40.44%; Nematoda, 0.66%; Rotifera, 0.14%) were detected. In tank B, two algal phyla (Bacillariophyta, 1.16%; Chlorophyta, 94.78%), two fungal phyla (Ascomycota, 1.29%; Basidiomycota, 0.01%), and two zooplankton/other related phyla (Ciliophora, 2.63%; Tubulinea, 0.13%) were detected. In tank C, three algal phyla (Bacillariophyta, 0.07%; Chlorophyta, 3.72%; Rhodophyta, 0.16%), three fungal phyla (Ascomycota, 0.14%; Basidiomycota, < 0.01%; Cryptomycota, 0.09%), and 11 zooplankton/other related phyla (Apicomplexa, 0.03%; Arthropoda, 0.02%; Bryozoa, 0.01%; Cercozoa, 0.32%; Ciliophora, 0.99%; Discosea, 5.22%; Gastrotricha, 79.14%; Imbricatea, 0.02%; Nematoda, 0.31%; Perkinsozoa, 0.96%; Rotifera, 8.80%) were detected. In tank D, three algal phyla (Bacillariophyta, 1.93%; Chlorophyta, 94.69%; Rhodophyta, 6.05%), three fungal phyla (Ascomycota, 0.21%; Basidiomycota, 0.02%; Chytridiomycota, 2.46%), and four zooplankton/other related phyla (Bryozoa, 0.04%; Ciliophora, 0.30%; Nematoda, 0.25%; Perkinsozoa, 0.06%) were detected. Finally, in tank E, three algal phyla (Bacillariophyta, 12.17%; Chlorophyta, 6.86%; Rhodophyta, 0.63%), one fungal phylum (Ascomycota, 0.04%), and six zooplankton/other related phyla (Bryozoa, 0.03%; Cercozoa, 0.06%; Ciliophora, 59.59%; Gastrotricha, 5.45%; Nematoda, 10.76%; Perkinsozoa, 4.41%) were detected. Among the detected phyla, Bacillariophyta (tank E, 12.17%), Chlorophyta (tank A, 25.99%; tank B, 94.78%; tank D, 94.69%; tank E, 6.05%), Ciliophora (tank A, 32.13%; tank E, 59.59%), Discosea (tank C, 5.22%), Gastrotricha (tank A, 40.44%; tank C, 79.14%; tank E, 5.45%), Nematoda (tank E, 10.76%), and Rotifera (tank C, 8.80%) had a relative abundance >5% in the eukaryotic microbial community. Specific trends were observed in the eukaryotic microbial community composition of each sample. For example, the communities in tanks B and D, algal group-dominated, were dominant in Chlorophyta (>94% relative abundance). Alternatively, the communities in tanks A, C, and tank E, which were zooplankton/other group-dominated, consisted of three or more phyla, including algal phyla, with a relative abundance >5%.

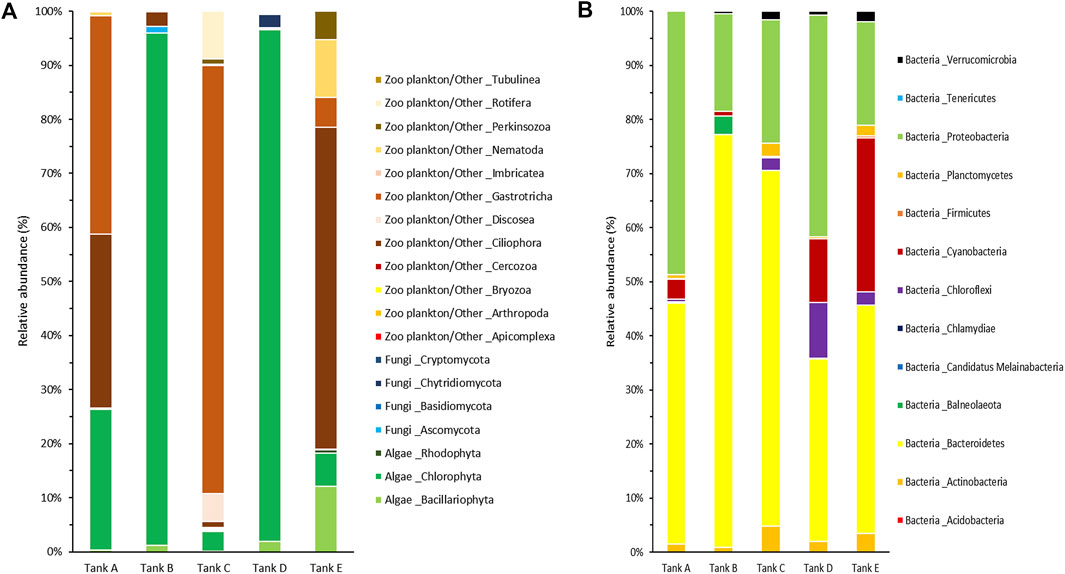

FIGURE 4. Community composition at the phylum level from the five tanks. (A) The eukaryotic and (B) prokaryotic microbial communities are indicated separately. The data underlying all the graphs indicated in this figure can be found in Table 2 and Supplementary Tables S1, S2.
In the prokaryotic microbial communities of the biofloc, 13 bacterial phyla (Acidobacteria, Actinobacteria, Bacteroidetes, Balneolaeota, Candidatus Melainabacteria, Chlamydiae, Chloroflexi, Cyanobacteria, Firmicutes, Planctomycetes, Proteobacteria, Tenericutes, and Verrucomicrobia) were detected (Figure 4B). In tank A, the prokaryotic microbial community consisted of ten bacterial phyla (Actinobacteria, 1.49%; Bacteroidetes, 44.52%; Candidatus Melainabacteria, 0.03%; Chlamydiae, 0.18%; Chloroflexi, 0.49%; Cyanobacteria, 3.74%; Firmicutes, 0.07%; Planctomycetes, 0.75%; Proteobacteria, 48.72%; Verrucomicrobia, 0.01%). In tank B, it comprised nine bacterial phyla (Actinobacteria, 0.87%; Bacteroidetes, 76.30%; Balneolaeota, 3.44%; Chlamydiae, 0.01%; Cyanobacteria, 0.87%; Firmicutes, 0.01%; Proteobacteria, 18.10%; Tenericutes, 0.02%; Verrucomicrobia, 0.38%). In tank C, it consisted of ten bacterial phyla (Acidobacteria, less than 0.01%; Actinobacteria, 4.83%; Bacteroidetes, 65.70%; Chlamydiae, 0.09%; Chloroflexi, 2.28%; Cyanobacteria, 0.02%; Firmicutes, 0.22%; Planctomycetes, 2.45%; Proteobacteria, 22.86%; Verrucomicrobia, 1.55%). In tank D, it comprised nine bacterial phyla (Actinobacteria, 1.99%; Bacteroidetes, 33.74%; Balneolaeota, 0.07%; Chlamydiae, 0.02%; Chloroflexi, 10.35%; Cyanobacteria, 11.76%; Planctomycetes, 0.34%; Proteobacteria, 41.05%; Verrucomicrobia, 0.68%). Lastly, in tank E, it consisted of 11 bacterial phyla (Acidobacteria, 0.03%; Actinobacteria, 3.46%; Bacteroidetes, 42.18%; Balneolaeota, 0.03%; Chlamydiae, 0.01%; Chloroflexi, 2.47%; Cyanobacteria, 28.46%; Firmicutes, 0.34%; Planctomycetes, 1.94%; Proteobacteria, 19.20%; Verrucomicrobia, 1.88%). Among the 13 bacterial phyla detected, Bacteroidetes (tank A, 44.52%; tank B, 76.30%; tank C, 65.70%; tank D, 33.74%; tank E, 42.18%), Chloroflexi (tank D, 10.35%), Cyanobacteria (tank D, 11.76%; tank E, 28.46%), and Proteobacteria (tank A, 48.72%; tank B, 18.10%; tank C, 22.86%; tank D, 41.05%; tank E, 19.20%) all had a relative abundance >5% in the prokaryotic microbial community. In all samples, Bacteroidetes and Proteobacteria tended to be dominant, whereas Chloroflexi and Cyanobacteria appeared at high levels, with Bacteroidetes and Proteobacteria, in tanks D and E only.
In this study, the composition of the microbial community was determined at the phylum level. The zooplankton/other groups in the studied shrimp farms were mostly composed of Ciliophora, Discosea, Gastrotricha, and Nematoda, which are phyla containing algal and bacterial predators (Nosek and Bereczky, 1983; Poinar, 2010; Riera and Todaro, 2012; Santoferrara et al., 2017; Fisher et al., 2019; Lotonin and Smirnov, 2020). The algal group mostly consisted of Bacillariophyta (diatom) and Chlorophyta (green algae) containing suspended microalgae (Car et al., 2020; Mohseni et al., 2020; Tahir et al., 2020). The bacterial group was mainly composed of Bacteroidetes, Chloroflexi, Cyanobacteria, and Proteobacteria (Kawaichi et al., 2013; Chen et al., 2019; Liu et al., 2019; Zammit, 2019; Tanay et al., 2020). Species associated with nitrogen-related metabolism may be present among these phyla (Kawaichi et al., 2013; Chen et al., 2019; Liu et al., 2019; Tanay et al., 2020). Additionally, Cyanobacteria is involved in nitrogen-related metabolism through functions such as photosynthesis and nitrogen fixation (Zammit, 2019). In the studied microbial communities, algal and bacterial groups would therefore be consumed by zooplankton and related organisms (Abakari et al., 2020; Sgnaulin et al., 2020), while the algal and bacterial groups would compete for nitrogen (Liu et al., 2019; Urakawa et al., 2019; D’Silva and Kyndt, 2020). Given that the bacterial group was more abundant than the algal group under conditions in which the zooplankton/other groups were dominant (e.g., tanks A, C, and E), predation by the zooplankton and related organisms has a greater impact on the algal group than on the bacterial group (Fisher et al., 2019). Concurrently, the algal group thrived relative to the bacterial group under conditions in which the influence of the zooplankton/other group was weak (e.g., tanks B and C). Thus, shrimp farms using biofloc systems are more suitable environments for algae to bloom than for bacteria to thrive (Cirri and Pohnert, 2019; González-Camejo et al., 2020). In summary, this study suggests that nitrogen-related metabolism in shrimp farms using biofloc technology is mainly carried out by algae. Still, when predation by zooplankton is predominant, nitrogen-related metabolism is instead conducted mainly by bacteria. This phenomenon is expected to occur because the zooplankton and related organisms in shrimp farms affect algae more than bacteria.
3.4 Expected roles and functionality of major microbial species in shrimp farms with biofloc systems
Among the microbial species that mainly constituted the microbial communities of the studied shrimp farms, the three algal species were diatom (P. panduriforme) and green algae (T. marina and Nannochloris sp.) types, which are photosynthetic floating microalgae (Car et al., 2020; Mohseni et al., 2020; Tahir et al., 2020). They absorb nitrogen sources, such as ammonia, and synthesize proteins through metabolism, including photosynthesis (El-Sheekh et al., 1994; González-Camejo et al., 2020). Therefore, the algal species in these shrimp farms are expected to play significant roles in the nitrogen cycle and as producers in the ecosystems of the microbial community and shrimp farm (Peace et al., 2014; González-Camejo et al., 2020).
From the taxonomic identification results, the detected species (from the phylum level to the species level) are summarized in Supplementary Tables S1, S2. Among the detected species (91 eukaryotic species and 276 prokaryotic species), the species for which relative abundance was >5% in each of the eukaryotic and prokaryotic microbial communities are listed in Table 2. In tank A, Nannochloris sp. (25.26%), Strombidium guangdongense (31.09%), and Halichaetonotus aculifer (40.44%) were most abundant in the eukaryotic microbial community. In comparison, Donghicola eburneus (8.43%), Muricauda lutimaris (17.73%), and Geoalkalibacter subterraneus (21.51%) were highly prevalent in the prokaryotic microbial community. Tetraselmis marina (90.28%) dominated the eukaryotic microbial community in tank B, while Polaribacter marinivivus (56.47%) dominated the prokaryotic microbial community. In tank C, H. aculifer (79.11%) dominated the eukaryotic microbial community, while Lutimonas halocynthiae (27.66%) was the most prevalent in the prokaryotic microbial community. In tank D, Nannochloris sp. (94.69%) dominated the eukaryotic microbial community, whereas D. eburneus (22.65%) was the most abundant in the prokaryotic microbial community. Finally, in tank E, Psammodictyon panduriforme (11.74%) and Acineta tuberosa (59.01%) were particularly abundant in the eukaryotic microbial community. In comparison, Tenacibaculum aestuarii (20.91%) and Loriellopsis cavernicola (27.90%) were the most prevalent in the prokaryotic microbial community.

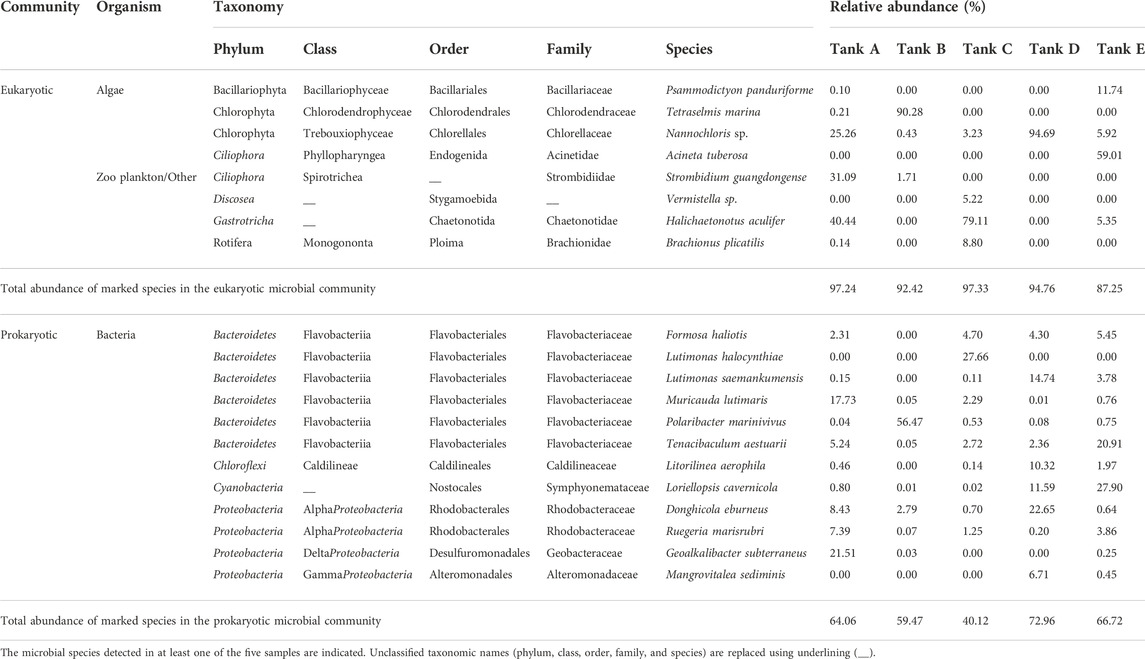

TABLE 2. Taxonomy and relative abundance of predominant strains in eukaryotic and prokaryotic microbial communities from the five tanks at the studied Litopenaeus vannamei shrimp farms.
The five major zooplankton/other related species in the studied microbial communities included unicellular amoebae (Discosea: Vermistella sp.) and multicellular zooplankton (Ciliophora: A. tuberosa and S. guangdongense; Gastrotricha: H. aculifer; Rotifera: Brachionus plicatilis) (Nosek and Bereczky, 1983; Poinar, 2010; Santoferrara et al., 2017; Fisher et al., 2019; Lotonin and Smirnov, 2020). These algal and bacterial predators consume decaying organic matter (Nosek and Bereczky, 1983; Riera and Todaro, 2012; Santoferrara et al., 2017; Fisher et al., 2019; Lotonin and Smirnov, 2020); however, they unexpected to be primarily involved in the nitrogen cycle or organic compound synthesis because they do not photosynthesize and use inorganic-type nitrogen sources (Caron, 1991; Li Y. et al., 2020). Therefore, zooplankton/other related species will play a role in nitrogen cycle as mediators that convert organic nitrogen into inorganic nitrogen or transfer organic nitrogen to other organisms (Caron, 1991; Li Y. et al., 2020). These processes occur because the zooplankton or related species are primary consumers (Caron, 1991; Li Y. et al., 2020). Previous studies on the influence of consumers on producers suggest that the features of the consumption process can affect the selection of producer species and change the species diversity of communities (Li Y. et al., 2020; Ling and Moreau, 2020; Williams et al., 2020). In this study, it was confirmed that algal group atrophy and relative bacterial group prosperity occurred in environments dominated by the zooplankton/other groups and that the algal group conversely prospered in environments in which the zooplankton/other groups were weak. Therefore, zooplankton and related species in shrimp farms using biofloc technology will directly and indirectly affect the nitrogen cycle as consumers (Caron, 1991; Li Y. et al., 2020).
In the eukaryotic microbial communities of all samples, 1–4 dominant species accounted for 82.02%–96.79% of the total abundance (tank A, 96.79%; tank B, 90.28%; tank C, 93.13%; tank D, 94.69%; tank E, 82.02%), whereas 1–5 dominant species accounted for 27.66%–66.01% of the total abundance in the prokaryotic microbial community (tank A, 60.30%; tank B, 56.47%; tank C, 27.66%; tank D, 66.01%; tank E, 54.26%). There were examples of dominant species with a relative abundance >90% in the eukaryotic microbial community: T. marina (tank B, 90.28%) and Nannochloris sp. (tank D, 94.69%). Others dominated with lower relative abundances >50%: A. tuberosa (tank E, 59.01%) and H. aculifer (tank C, 79.11%). However, in the prokaryotic microbial community, all highly abundant species except P. marinivivus (tank B, 56.47%) had a relative abundance <30%. These results show that the eukaryotic microbial communities were populated by extremely dominant species, whereas species with relatively lower abundance were prevalent in prokaryotic microbial communities.
The bacterial group in the studied microbial communities contained 12 major species. These bacterial species have been detected and reported in sources involved in the elimination of substances such as ammonia and nitrates (Kawaichi et al., 2013; Chen et al., 2019; Liu et al., 2019; Zammit, 2019; Tanay et al., 2020), e.g., sewage treatment plants, and have been studied for their involvement in nitrogen-related metabolic processes such as nitrification and denitrification (Liu et al., 2019; Abakari et al., 2020; D’Silva and Kyndt, 2020). Additionally, the Cyanobacteria L. cavernicola can photosynthesize and is expected to function similarly to members of the algal group (Zammit, 2019). Furthermore, several previous studies have shown that the synthesis of proteins by bacteria is involved in the ammonia and nitrogen cycles and in nitrate-related metabolism (Liu et al., 2019; Tanay et al., 2020). Given these diverse metabolic functions, members of the bacterial group would not be limited to ecological roles as decomposers but may also serve as producers (Riley and Gordon, 1999; Denef and Banfield, 2012). Given that prokaryotic microbial communities in the studied shrimp farms had higher species richness and diversity than the eukaryotic microbial communities, the major species of the bacterial group were diverse, and their nitrogen-related metabolism and ecological roles are likely to be multifarious (Liu et al., 2019; Abakari et al., 2020; Tanay et al., 2020).
In result, in shrimp farms using biofloc technology, microbial communities differ in terms of the major species in each organism group. Still, they seem to have common features in terms of their function and ecological role (Abakari et al., 2020). However, as the bacterial group consists of various major species, relatively clear differences exist among microbial communities with the function of bacterial species (Abakari et al., 2020). Generally, the studied microbial communities had similarities in nitrogen-related metabolism and ecological roles, despite observed differences in environmental factors and the composition of microbial communities. Thus, this study proposes that various metabolic processes are conducted by various species from the bacterial group, which plays many roles in shrimp farms with biofloc systems.
3.5 Ecological communication between microbial groups and the nitrogen cycle in shrimp farms using biofloc technology
Referring to previous research and the results, the ecological communication and nitrogen cycle of the microbial communities in shrimp farms using biofloc systems was illustrated (Figures 5, 6). In these microbial communities, the algal group comprised photoautotrophic organisms, and the zooplankton/other groups comprised heterotrophic organisms (Browdy et al., 2012; Loureiro et al., 2012). Alternatively, the bacterial groups consisted of photoautotrophic, autotrophic, and heterotrophic organisms (Miranda-Baeza et al., 2017; Tanay et al., 2020). Considering the ecological features of the members, competition for limited nitrogen resources would likely occur between the algal and bacterial groups (Figure 5) (Riley and Gordon, 1999; González-Camejo et al., 2020). Additionally, the zooplankton/other groups would affect the algal and bacterial group through predation (Figure 5) (Fisher et al., 2019). This model is supported by the structure of the microbial communities in the investigated samples. For example, the algal group dominates the microbial communities of tanks B and D, which had a relatively low abundance of the zooplankton/other groups. Alternatively, in the microbial communities of tanks A, C, and E, which had a relatively large abundance of the zooplankton/other groups, the bacterial groups were more dominant than the algal groups. Thus, the zooplankton/other groups in shrimp farms using biofloc systems has a stronger influence on the algal groups than the bacterial groups (Fisher et al., 2019; Stoecker and Pierson, 2019). Additionally, under conditions in which the influence of predation is excluded, the algal groups outcompete the bacterial groups because it is more adept at using nitrogen resources than the bacterial groups (Zhu et al., 2019).

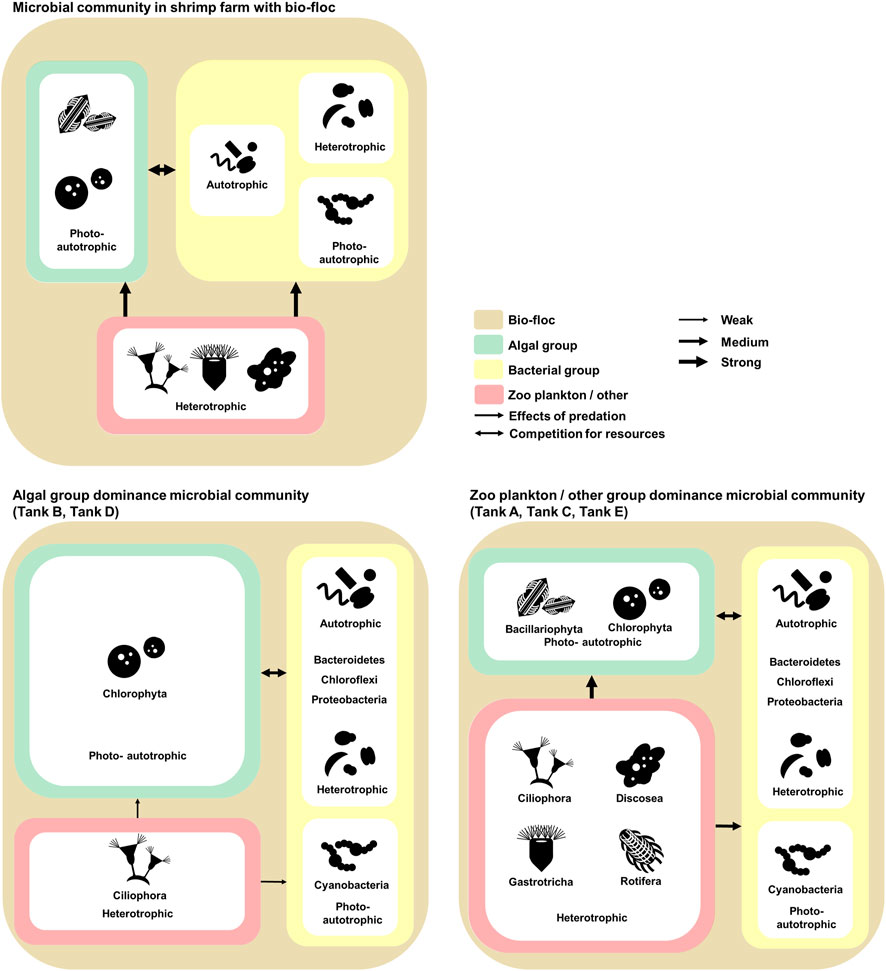

FIGURE 5. The investigated model of relationships and communications in the microbial communities of Litopenaeus vannamei shrimp farms with biofloc technology. The microbial communities coincide with biofloc technology. The environmental features of the aquatic environment in the shrimp farms. The data underlying all the diagrams indicated in this figure can be found in Table 2 and Supplementary Tables S1, S2.
FIGURE 6. The investigated model of the nitrogen cycle in the microbial communities found in the studied Litopenaeus vannamei shrimp farm with biofloc technology. The nitrogen cycle followed in the studied Litopenaeus vannamei shrimp farms. Litopenaeus vannamei shrimp farms studied in biofloc technology. Physicochemical Characteristics of the Shrimp farm aquatic environment. The data underlying all the diagrams indicated in this figure can be found in Table 1 and Supplementary Tables S1, S2.
The nitrogen cycle also indicates why algal groups are more dominant than bacterial groups when the selection pressure due to predation is low (Figure 6) (Riley and Gordon, 1999; González-Camejo et al., 2020). According to previous studies, algae can use several nitrogen sources, including ammonia and nitric acid, and the abundance of these sources is related to the phenomenon of algal bloom (Zhu et al., 2019; Yao et al., 2020). In contrast, although species associated with nitrogen in the bacterial group use several metabolic processes (e.g., nitrification and assimilation), the type of nitrogen source available to a particular species is limited, or the metabolism process is not actively conducted (Jordan et al., 2005). Additionally, the prosperity of the bacterial group is more dependent on organic carbon sources than on nitrogen (Liu et al., 2019; Tanay et al., 2020). In shrimp farms, a certain amount of nitrogen can be maintained through the nitrogen cycle (Abakari et al., 2020). Alternatively, organic carbon sources depend on externally derived organic carbon sources, except for those produced by photosynthetic organisms. The carbon cycle is not fully part of the shrimp farm ecosystem (Crab et al., 2012). Therefore, the microbial communities of shrimp farms depend on the nitrogen cycle and external organic carbon sources. In conclusion, the effects of predation and the nitrogen cycle strongly affect the composition of microbial communities in shrimp farms in biofloc systems.
4 Conclusions
In biofloc systems of the investigated shrimp farms, the prokaryotic microbial communities tended to have higher species richness and diversity than the eukaryotic microbial communities. However, the eukaryotic microbial communities were more abundant and dominant than their prokaryotic counterparts. Overall, the eukaryotic microbial communities were dominated by algae and zooplankton/other related organisms. Therefore, there seem to be unique microbial communities in individual shrimp farms using biofloc technology, but commonalities and patterns appear in these microbial communities. Particularly, the structures of the microbial communities in these shrimp farms depend on the effects of predation by zooplankton and other related organisms; this structure is likely to be shown in the characteristics of the nitrogen cycle in the biofloc system. In this study, we provided many insights into the microbial communities existing in shrimp farms using biofloc technology on the southern coast of the Korean Peninsula. The results provided nitrogen circulation and nitrogen-related metabolism by microorganisms, such as bacteria and algae.
