Zhong Li1Jike Yang1,2Huihua Guo2Sith Kumseranee3
Suchada Punpruk3Magdy E. Mohamed4
Mazen A. Saleh4
Tingyue Gu1*- 1Department of Chemical and Biomolecular Engineering, Institute for Corrosion and Multiphase Technology, Ohio University, Athens, OH, United States
- 2Corrosion and Protection Center, University of Science and Technology Beijing, Beijing, China
- 3PTT Exploration and Production, Bangkok, Thailand
- 4Research and Development Center, Saudi Arabian Oil Company, Dhahran, Saudi Arabia
Apart from pinhole leaks, MIC (microbiologically influenced corrosion) can also cause catastrophic failures such as pipe ruptures and support beam collapses due to mechanical property degradation or stress corrosion cracking. In this work, X80 pipeline steel dogbone coupons and square coupons were immersed in 150 ml broths containing Desulfovibrio vulgaris, a common corrosive sulfate reducing bacterium (SRB), for up to 14 days. The headspace volumes in the anaerobic bottles were increased from 150 ml to 200 ml and 300 ml to increase MIC severity. After 14 days of SRB incubation in ATCC 1249 culture medium with X80 coupons at 37°C, the sessile cell counts were 6.5 × 107 cells cm−2 for 150 ml, 2.3 × 108 cells cm−2 for 200 ml and 1.4 × 109 cells cm−2 for 300 ml headspace volumes, respectively owing to reduced H2S cytotoxicity in the broth with a larger headspace because it allowed more biogenic H2S to escape from the broth. Weight losses were 1.7 mg cm−2, 1.9 mg cm−2 and 2.3 mg cm−2 for 150 ml, 200 ml and 300 ml headspace volumes, respectively. The corresponding pit depths were 2.6 μm, 4.2 μm and 6.2 μm for 150 ml, 200 ml and 300 ml headspace volumes, respectively. Electrochemical impedance spectroscopy (EIS), linear polarization resistance (LPR) and potentiodynamic polarization results corroborated the increasing weight loss and pitting data trends as a result of increased headspace. Tensile testing of dogbone coupons after the 14-day SRB immersion test indicated that more severe MIC pitting led to a higher ultimate strain loss by up to 23% (300 ml headspace) compared to the abiotic control, while the ultimate strength losses for all headspace volumes were quite small (3% and lower).
Introduction
There is growing awareness of MIC (microbiologically influenced corrosion) threat to various assets in marine, oil and gas, and water utilities industries, etc. It is widely believed that MIC accounts for at least 20% of all of corrosion losses (Jia et al., 2017; Xu et al., 2017; Jia et al., 2019a). NACE International estimated that the total cost of corrosion is around US$2.5 trillion/year globally, and MIC accounts for 20%–40% (Beavers and Thompson, 2006; Wolodko et al., 2018; Salgar-Chaparro et al., 2020). The Aliso Canyon gas leak between 2015 and 2016 caused a major environmental disaster with a massive emission of methane gas that is a very potent greenhouse gas. The leak was attributed to metal well casing failure due to soil MIC (CPUC and DOGGR, 2019). In addition to pinhole leaks which was likely the case for the 2006 Alaska Pipeline leak (Jacobson, 2007), MIC can cause mechanical property degradation, leading to metal fracturing/rupturing/collapsing and cracking that reduce equipment service lifespan (Enning and Garrelfs, 2014; Sherman et al., 2015). Most MIC studies so far focused on pitting corrosion. There is a lack of studies on the impact of MIC on mechanical property degradation. In practical applications, disastrous consequences such as pipeline ruptures and support beam collapses can be caused by mechanical property degradation with MIC as the root cause.
SRB (sulfate reducing bacteria) are a major type of microbes that cause MIC. SRB can acquire energy by oxidizing organic substances or H2 for reducing sulfate (SO42−) to hydrogen sulfide (H2S) and other sulfide species (Lovley and Phillips, 1994; Promnuan and Sompong, 2017). When sulfate acts as the electron acceptor and lactate (soluble organic carbon) as the electron donor for SRB respiration, the redox reaction occurs entirely inside SRB cells to generate energy (Jacobson, 2007; Xu and Gu, 2014; Li et al., 2018).
In the two half-reactions above, E°' is the reduction potential vs. SHE (standard hydrogen electrode) at 25°C, pH 7, and 1 M solutes (or 1 bar gases) (Thauer et al., 2007). The actual respiration of sulfate using lactate as electron donor is more complicated. It usually involves lactate oxidation to produce pyruvate, and then pyruvate oxidation to yield H2 with concomitant ATP (adenosine 5′-triphosphate) production. H2 serves as electron donor for sulfate reduction (Peck, 1993; Smith et al., 2019; Zhou et al., 2022).
SRB sessile cells require energy to maintain themselves even when they are not growing. When there is a lack of carbon source in the local environment near the bottom of an SRB biofilm, elemental iron can provide electrons for SRB survival, which leads to MIC. E°′ of Fe2+/Fe is similar to that of acetate + CO2/lactate (Thauer et al., 2007). This means elemental Fe is as energetic as lactate.
The cell potential (ΔEo′) of the redox reaction combining Reactions (3) and (4) above is +230 mV, which results in a negative Gibbs free energy change, indicating that the overall corrosion reaction is thermodynamically favored (Gu et al., 2015). Electrons from extracellular iron (insoluble) oxidation must be transported across the SRB cell membrane to the SRB cytoplasm for sulfate reduction (Eaktasang et al., 2016; Lv and Du, 2018). This kind of cross-cell membrane electron transfer process is known as extracellular electron transfer (EET), an important topic in microbial metabolism for energy production (Lovley and Phillips, 1994; Li et al., 2018; Gu et al., 2021; Huang et al., 2022). D. vulgaris MIC of carbon steel observes the EET-MIC theory according to the evidence provided by carbon source starvation tests and electron mediator tests in the literature (Xu and Gu, 2014; Dou et al., 2019; Wang et al., 2020). 2H+/H2 is used as an electron shuttle (i.e., H2 cycling) for hydrogenase-positive SRB such as D. vulgaris to donate electrons for sulfate reduction (Peck, 1993). 2H+/H2 electron shuttle can bridge Reactions (3) and (4) with H2 cycling, which is consistent with the cathodic depolarization theory (Li et al., 2018).
Experimental data have rather conclusively shown that H2S is not the cause of D. vulgaris (a typical SRB strain) corrosion of carbon steel at circumneutral broth pH (Wang et al., 2020). Typical SRB MIC of carbon steel tests are not like abiotic H2S corrosion which involves acidic pH with a large amount of H2 produced (Jia et al., 2019a).
In the past, most investigations focused on MIC pitting. Not many studies paid attention to MIC impact on the degradation of mechanical properties. MIC pitting of metal surfaces weaken the metals (Unsal et al., 2016; Jia et al., 2019a; Jia et al., 2019b; Wang et al., 2020). Pit density and pit depth both impacted the mechanical properties of materials (Tang et al., 2014; Sheng and Xia, 2017; Javed et al., 2020a; Javed et al., 2020b; Zhang et al., 2020). In abiotic corrosion studies, it was found that corrosion activity degraded the ultimate strength of steel (Saad-Eldeen et al., 2012). It is suggested that when SRB are present, some engineering materials are likely to fail in a relatively shorter time than in an abiotic environment (Javaherdashti, 2011). It has been reported that the ultimate strength and ultimate strain were reduced significantly in the presence of the Pseudomonas species due to the biofilm formation and the resultant MIC process (Vaidya et al., 1997; Huang et al., 2022). In another study, the presence of corrosive Bacillus megaterium bacterium decreased the mechanical properties such as yield stress, ultimate strength and elongation of an Al-Cu alloy (Yousaf et al., 2015). Recently, it was found that moderately starved D. vulgaris biofilm degraded ultimate tensile strength and ultimate tensile strain of X80 carbon steel more than those with the biofilm without carbon source starvation because starvation made SRB sessile cells more eager to harvest electrons from Fe(0) via EET (Li et al., 2022).
It has been known that in carbon steel MIC by SRB, a larger headspace allows more H2S to escape from the broth. This reduces the H2S cytotoxicity in the broth, allowing better planktonic and sessile SRB growth, and thus leading to more severe MIC (Jia et al., 2019a). X80 carbon steel is widely used in many industries because of its low cost and ease of fabrication (López-Celvera et al., 2018; Zhang et al., 2019; Pereira et al., 2021; Tian and Pan, 2021). However, X80 steel pipelines may suffer from both MIC and mechanical property degradation caused by MIC (Alamri, 2020; Liu et al., 2022; Fu et al., 2022; Wasim and Djukic, 2022). This study investigated the effects of SRB sessile cell growth on MIC and the subsequent mechanical property degradation of X80 pipeline steel. In this study, dogbone coupons made of X80 carbon steel were used to investigate mechanical property degradation as a consequence of exposure to varied severity of MIC pitting by SRB, which was achieved by varying the headspace. After SRB exposure in anaerobic bottles, X80 dogbones were analyzed for MIC pitting and then tested on a tensile machine to measure mechanical property damages. Square X80 coupons were used to obtain weight loss. Square X80 coupons were also used as working electrodes in electrochemical glass cells to measure MIC severity electrochemically to corroborate weight loss and pit depth data trends from anaerobic bottles and to provide transient corrosion behavior.
Experimental
Preparation of X80 dogbone coupons and square coupons
The X80 steel composition is listed in Table 1. Dogbone coupons were too heavy to measure milligram weight loss accurately in this work. Thus, three square coupons, each with a 1 cm2 unpainted top surface (all other surfaces were covered with a polytetrafluoroethylene paint), were incubated without shaking in each anaerobic bottle with 150 ml SRB broth to obtain one MIC weight loss data point. Square coupons (1 cm2 exposed surface) were also used as working electrodes in electrochemical glass cells. Dogbone specimens were used to test the mechanical properties. The dimensions of the dogbone coupons (Figure 1) were based on the ASTM E8/E8M standard (ASTM-E8/E8M-13a, 2013). The dogbone coupons were polished to 1,200 grit by the supplier. Each dogbone coupon was painted with polytetrafluoroethylene, except for a middle section with a width of 6 mm and length of 22 mm which was exposed to the SRB broth on all four sides. The top surfaces of all the square coupons (including the abiotic control and electrode coupons) were sequentially polished with 180, 400 and 600 grit abrasive papers. After that, all the coupons were cleaned with pure isopropanol and dried under UV light for 20 min.
TABLE 1. Elemental composition of X80 steel (mass%).

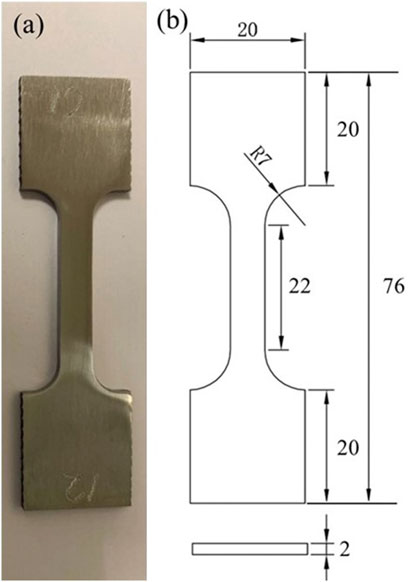

FIGURE 1. (A) Image of dogbone coupon of X80 carbon steel, and (B) its dimensions in mm.
Culture medium and inoculum
D. vulgaris (ATCC 7757), a common SRB strain in MIC research, was selected for this research. The culture medium was ATCC 1249 medium, which is a modified Baar’s medium for sulfate reducers. The culture medium pH was adjusted to pH 7 using a NaOH solution. The culture medium was sterilized in an autoclave at 121°C. After autoclaving, the culture medium was deoxygenated using filter-sterilized N2 sparging for more than 45 min. One hundred ppm (final concentration) L-cysteine was then added to the culture medium as an oxygen scavenger to reduce dissolved oxygen further and to mitigate possible slow oxygen leakage (Dou et al., 2019). Each anaerobic bottle was inoculated with 2 ml 3-day old SRB seed culture (grown in ATCC 1249 culture medium) before incubation at 37°C without shaking.
Biofilm morphology and coupon weight loss
In this research, the X80 dogbone coupons were too large for SEM (scanning electron microscopy) imaging work and for obtaining accurate weight loss data. Thus, small X80 square coupons (1 cm2 exposed top surface) were used to obtain the biofilm SEM images and weight loss data after 14 days of incubation 37°C. Each 450 ml anaerobic bottle contained 150 ml deoxygenated culture medium (fixed) with either 150 ml, 200 ml or 300 ml headspace (adjusted using inert glass beads or Epoxy blocks).
A SEM machine (FEI Quanta 250, Hillsboro, OR, United States) was used to observe the biofilm morphology on square coupons. Before the SEM observations, the cells and corrosion products/biomass were gentled rinsed with a PBS (phosphate buffered saline) solution for 15 s each for 3 times before sessile cell counting, and then soaked in 2.5% (w/w) glutaraldehyde biocide solution for 8 h at 10°C to immobilize the biofilm on each coupon. Then, the coupons were sequentially dehydrated with 50% (v/v), 70%, 80% 90%, and 95% ethanol sequentially for 10 min at each concentration and finally with 100% ethanol for 0.5 h. Subsequently, the coupon surfaces were sputter coated with Au to provide electric conductivity before the SEM observations.
After the 14-day incubation, the square coupons for weight loss data were cleaned with a fresh Clarke’s solution to remove biofilms and corrosion products before weighing. Each weight loss data point was the average of 3 replicate coupons from the same anaerobic bottle.
Electrochemical measurements
A potentiostat (Model VersaSTAT 3, Princeton Applied Research, Oak Ridge, TN, United States) was used to measure the electrochemical responses of the X80 working electrode (1 cm2 surface) in SRB broth. Each glass cell contained 150 ml deoxygenated culture medium (fixed) with either 150 ml, 200 ml or 300 ml headspace (adjusted using Epoxy resin as space filler). Each bottle was inoculated with 2 ml 3-day old SRB seed culture for static incubation at 37°C. A saturated calomel electrode (SCE) was used as the reference electrode, and a thin platinum plate (10 mm × 10 mm × 1 mm) was used as the counter electrode. The abiotic control glass cell had 150 ml culture medium and 300 ml headspace without SRB inoculation. There was no need to vary the headspace for the abiotic control because there was no biogenic H2S escape to the headspace.
Open circuit potential (OCP), LPR, EIS and potentiodynamic polarization analyses were performed. LPR was scanned at a rate of 0.1667 mV s−1 in the range of −10 mV to +10 mV vs. OCP. EIS was performed at OCP by applying a sinusoidal signal of 10 mV (amplitude) in the frequency ranging from 104 to 10–2 Hz. Potentiodynamic polarization curves were measured at the end of the 14-day incubation from OCP to OCP −200 mV using one working electrode, and from OCP to OCP +200 mV using another working electrode in a replicate glass cell at a rate of 0.1667 mV s−1. The corrosion potential (Ecorr), corrosion current density (icorr), and anodic and (absolute) cathodic Tafel slopes (βa and βc) were determined from a Tafel analysis of the polarization curves.
Headspace gas measurements, sessile cell counts, pit depths, and tensile testing
Dogbone coupons were immersed in anaerobic bottles with 150 ml culture medium and varied headspace volumes (150 ml, 200 ml and 300 ml), and each anaerobic bottle contained one dogbone coupon. The headspace variation was achieved using Epoxy resin as space filler because the bottle volume and liquid culture medium volume were the same, but the headspace volume varied.
The concentration of H2S and total pressure in different anaerobic bottles were measured using a portable H2S sensor (GAXT-H-DL, BW Technologies, Calgary, Alberta, Canada), a digital manometer (Xplorer GLX-PS-2002, PASCO scientific, Roseville, CA, United States), respectively. The H2S sensor had an upper limit of 100 ppm (v/v). If a headspace sample had a higher concentration, dilution was required (Wang et al., 2020). A 125 ml anaerobic vial sealed with 1 atm air was injected with 10 ml headspace gas for 12.5X dilution. After mixing, a syringe was used to flush and flood the H2S sensor’s port with 40 ml of the headspace gas before taking a meter reading.
Sessile cells on a dogbone coupon were counted using a hemocytometer under a 400X microscope. Each dogbone coupon had a total area of 4 cm2 covered by the SRB biofilm. The biofilm biomass was first scrapped off the coupon and then suspended in a PBS buffer before counting. Because D. vulgaris cells were seen motile, they were easily distinguished from artifacts (Wang et al., 2020).
The biofilms and corrosion products on the dogbone coupon surfaces were removed using a fresh Clarke’s solution according to ASTM G1–03. After the removal, the maximum pit depth for each dogbone coupon was obtained under an InfiniteFocus Microscopy (IFM) machine (Model ALC13, Alicona Imaging GmbH, Graz, Austria).
After the pit depth analysis, tensile tests were performed on an electromechanical universal testing machine (E44.304, MTS system, MN, United States) on the same dogbone coupons.
Results and discussion
Surface and biofilm analyses using square coupons
The SEM biofilm images in Figure 2 show the surface morphologies of the D. vulgaris biofilms for different headspace volumes after the 14-day incubation. The short rod shape is typical for D. vulgaris, consistent with SEM images in other studies (Unsal et al., 2022; Wang et al., 2022). Figure 2 indicates that the number of sessile cells increased with increasing headspace volume. This qualitative information is consistent with quantitative sessile cell count data on dogbone coupons discussed below. A larger headspace led to less H2S cytotoxicity in the broth and thus better SRB growth (Jia et al., 2019a).
FIGURE 2. SEM biofilm images of X80 square coupon in 150 ml SRB broth with varied headspace volume after 14-day incubation: (A,A′) with 150 ml headspace at two magnifications, (B,B′) with 200 ml headspace, and (C,C′) with 300 ml headspace.
Weight losses using square coupons
The weight losses for 150 ml, 200 ml and 300 headspace volumes were 1.7 ± 0.17 mg cm−2, 1.9 ± 0.33 mg cm−2 and 2.3 ± 0.37 mg cm−2, respectively (Figure 3). Although the neighboring weight loss data were close with fairly wide error bars as a result of the short-term test, the 150 ml and 300 ml weight losses had a p-value < 0.05, indicating that the weight increased with statistical significance when the headspace volume increased from 150 to 300 ml. These weight losses after SRB incubation were much larger than the 0.2 ± 0.05 mg cm−2 abiotic carbon steel weight loss obtained after 14 days of incubation in the deoxygenated ATCC 1249 culture medium without SRB inoculation. The increasing SRB MIC weight loss trend corresponds to the increasing sessile cell trend observed in Figure 2, which is consistent with EET-MIC, in which more sessile cells harvest more electrons from elemental iron, leading to more severe corrosion (Jia et al., 2018).

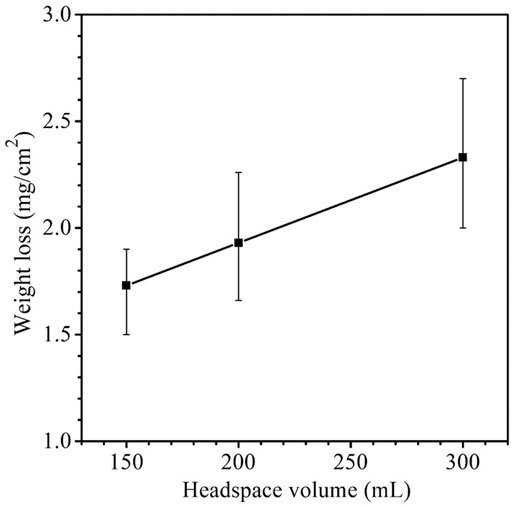

FIGURE 3. Weight losses of X80 in 150 ml SRB broth with varied headspace volume after 14-day incubation. (Each error bar represents standard deviation from 3 coupons in the same anaerobic bottle).
Electrochemical tests using square coupons
The OCP trends for different headspace volumes during the 14-day incubation of X80 electrode in the SRB culture medium are shown in Figure 4A. A lower OCP indicates a higher tendency for the working electrode to lose electrons. Figure 4A does not consistently indicate that a higher headspace volume had a lower OCP. This is not surprising for complicated SRB systems (Tran Thi Thuy et al., 2020). After all, OCP only indicates corrosion tendency, but the actual corrosion outcome relies on corrosion kinetics. The same observation was made previously in a study on biogenic H2S impact on carbon steel MIC by D. vulgaris in ATCC 1249 culture medium which included abiotic OCP (Jia et al., 2018).

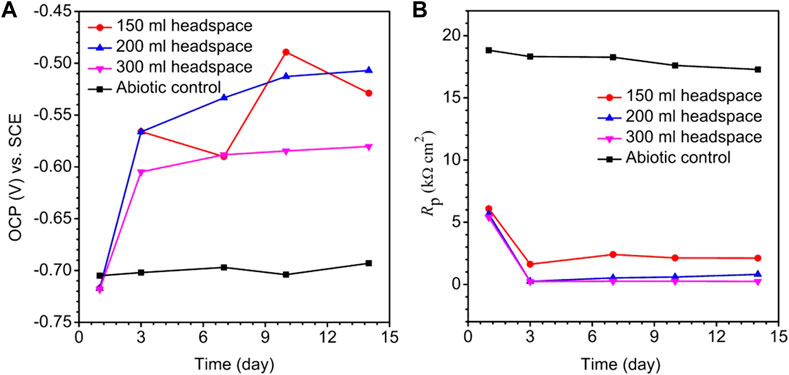

FIGURE 4. Variations of OCP vs. time (A) and Rp vs. time (B) for X80 in abiotic culture medium and in 150 ml SRB broth during 14-day incubation with headspace volumes of 150 ml, 200 ml and 300 ml (fixed 150 ml broth volume).
Polarization resistance (Rp) from LPR scans in Figure 4B describes the transient corrosion kinetics during the 14-day incubation. Rp is inversely proportional to corrosion rate (Cai et al., 2022). Figure 4B shows a large drop of Rp in the first 3 days, suggesting that as biofilm established on the metal surface, corrosion rate increased. The abiotic Rp curve for X80 in the deoxygenated ATCC 1249 culture medium remained around 17–18 kΩ cm2, much higher than the biotic Rp curves. Figure 4B also shows that Rp for the 300 ml headspace was the lowest, and Rp for 150 ml was the highest, indicating highest and lowest corrosion rate, respectively, which is consistent with weight loss data trend in Figure 3.
For EIS, the Nyquist and Bode plots of the abiotic and the biotic X80 coupons for different immersion times and different headspace volumes are shown in Figure 5. The abiotic EIS data in the deoxygenated ATCC 1249 culture medium were show the same trend with abiotic Rp trend. The Nyquist plots indicate a capacitive behavior. A larger diameter of the semi-circle in the Nyquist plot means a higher corrosion resistance in Figure 5A. The EIS data in Figure 5 were fitted with the equivalent electrical circuits in Figure 6. A simple one-time constant circuit was needed for the abiotic control EIS spectra, while the biotic EIS spectra required a two-time constant circuit. The fitted parameters are summarized in Table 2. The biotic impedance spectra for the three different headspace volumes (150 ml, 200 ml and 300 ml) fitted well with a two-time constant circuit model. The capacitors in the circuit model were not ideal capacitors. Thus, constant phase elements (CPEs) were used instead with n values in Table 2 indicating how close the CPEs (constant phase elements) were to capacitors (n = 1). The biotic equivalent circuit in Figure 6B contains: 1) solution resistance (Rs), 2) a parallel combination of charge transfer resistance (Rct) and CPE1 (Qdl) associated with the metal surface electric double layer, 3) a parallel combination of biofilm resistance (Rf) and CPE2 (Qf) associated with the biofilm/corrosion product layer on the X80 steel surface. The abiotic equivalent circuit in Figure 6A is simpler without Rf and Qf.

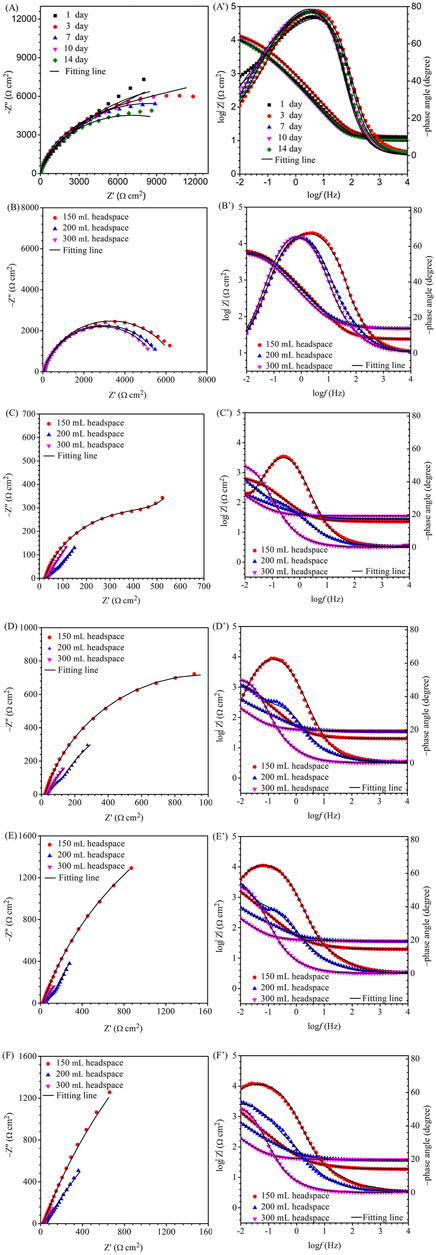

FIGURE 5. Nyquist and Bode plots for X80 in SRB broth during 14-day incubation with fixed 150 ml broth with varied headspace volume: (A,A′) abiotic control, (B,B′) first day biotic, (C,C′) third day biotic, (D,D′) seventh day biotic, (E,E′) 10th day biotic, and (F,F′) 14th day biotic EIS spectra.

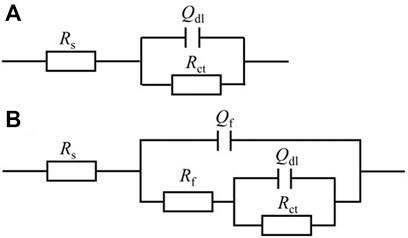

FIGURE 6. Equivalent electric circuits to model abiotic (A) and biotic (B) EIS spectra in Figure 5.

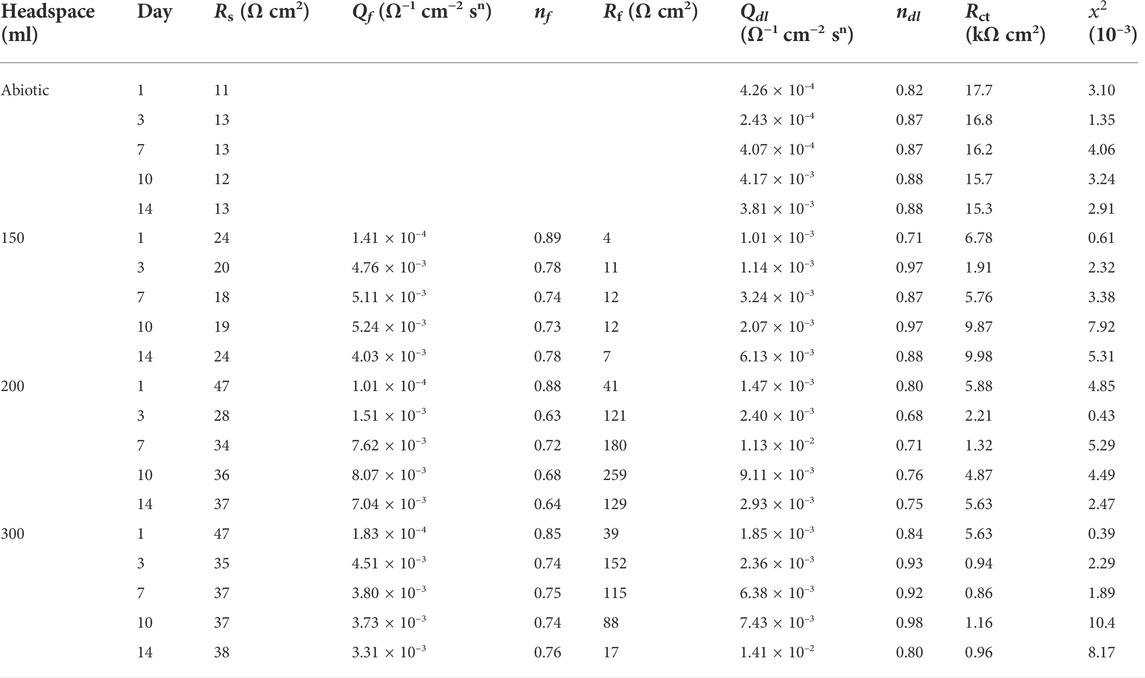

TABLE 2. Electrochemical parameters obtained from fitting EIS spectra in Figure 5.
Compared with charge resistance (Rct) values, the film resistance Rf values were quite small. However, the Rf values became larger with the increasing headspace volume due to D. vulgaris becoming more corrosive, which is consistent with the increased sessile cell count (Figure 2). Rct was rate limiting in this study because it was much larger than Rs and Rf. (Rct + Rf) is often used as the equivalent to Rp in qualitative corrosion analysis. In this work, (Rct + Rf) was the smallest for 300 ml headspace in Table 2, indicating the highest corrosion rate.
The Tafel plots of X80 are shown in Figure 7. The corrosion current densities from the Tafel analysis of the potentiodynamic polarization curves are listed in Table 3. After the 14 days of SRB incubation, the coupon for the 300 ml headspace had the highest corrosion current density (icorr) of 74.8 μA cm−2 (Table 3), compared to 19.1 μA cm−2 (for 200 ml) and 4.8 μA cm−2 (for 150 ml). The abiotic icorr in the deoxygenated ATCC 1249 culture medium was 0.79 μA cm−2, which was negligibly small. The corrosion current density trend here corroborates the Rp−1 trend in Figure 4B and (Rct + Rf)−1 trend in Table 2. Thus, all the electrochemical corrosion data trends, with the exception of OCP, are consistent with the weight loss trend, all pointing to more sessile cells for faster MIC, which is characteristic of EET-MIC.

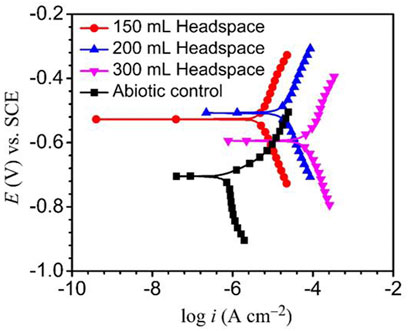

FIGURE 7. Potentiodynamic polarization curves at end of 14-day incubation with SRB, and without SRB (abiotic control).

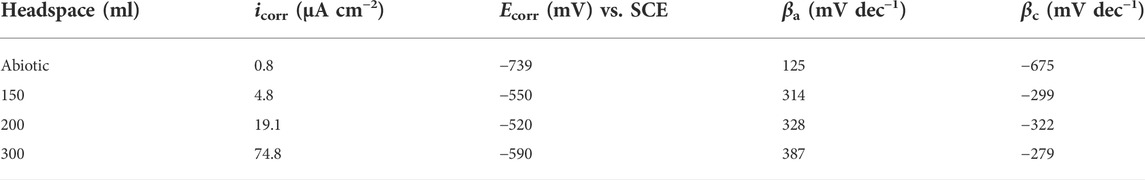

TABLE 3. Fitted electrochemical parameters from Tafel analysis at the end of the 14-day incubation in Figure 7.
H2S concentration and total gas pressure in headspace of anaerobic bottle with dogbone coupon
Table 4 shows that the H2S concentrations in the headspace gas phases for the anaerobic bottles (each containing one dogbone coupon) with headspace volumes of 150 ml, 200 ml and 300 ml were 8.50 × 103 ppm (v/v), 7.75 × 103 ppm, and 7.28 × 103 ppm, respectively after the 14-day SRB incubation. The corresponding H2S concentration in the liquid phase was estimated based on H2S equilibrium at 37°C according to a published report (Ning et al., 2014). The dissolved [H2S] values for the headspace volumes of 150 ml, 200 ml and 300 ml were 1.06 mM, 0.95 mM and 0.84 mM, respectively (Figure 8; Table 4). As expected, a larger headspace allowed more H2S to escape from the liquid phase in order to reach a different H2S equilibrium between the gas and liquid phases. Figure 8 also shows that the final broth pH values were 7.08, 7.26, and 7.54 corresponding to headspace volumes of 150 ml, 200 ml and 300 ml, respectively. The broth pH increased slightly with the increasing headspace volume, because a larger headspace allowed more H2S to escape and this took away more protons from the broth as shown in Reaction (5). According to the following reaction (Jia et al., 2019a),

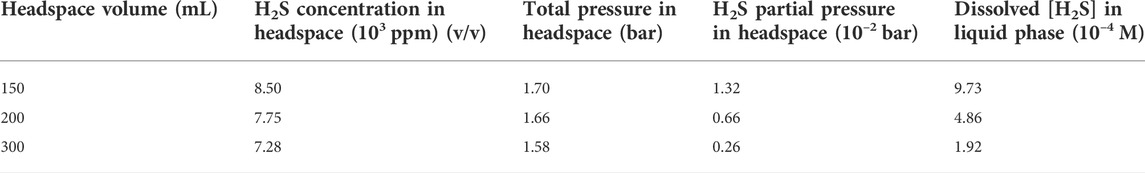

TABLE 4. Data obtained and calculated for dogbone coupons with different headspace volumes (fixed 150 ml broth volume) after 14-day incubated in anaerobic bottles.

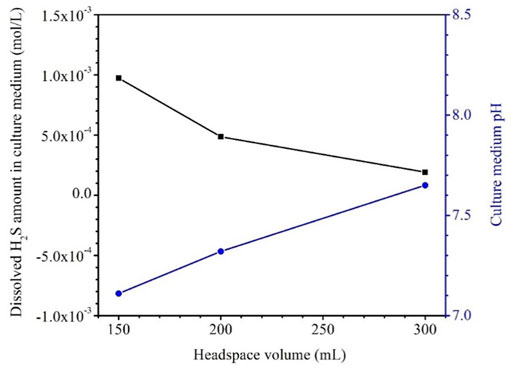

FIGURE 8. Dissolved [H2S] in both and broth pH after 14-day incubation in bottles with fixed 150 ml broth and varied headspace volume.
The dissolved [H2S] in the broth became lower with the increasing headspace volume while the pH value became higher (Table 4; Figure 8). All the pH values in this work were above and not far from 7. This is different from abiotic H2S corrosion studies, in which researchers introduce exogenous H2S to an aqueous solution and thus resulting in acidic pH, which is needed to cause appreciable abiotic H2S corrosion (Sun and Nesic, 2007).
Sessile cell counts on dogbone coupons
After the 14-day incubation, the sessile cell count was found to be higher in the anaerobic bottle with a larger headspace volume (Figure 9). The cell counts on coupons in the bottles with the headspace volumes of 150 ml, 200 ml and 300 ml were 6.5×107 cells cm−2, 2.3×108 cells cm−2 and 1.4×109 cells cm−2, respectively. The increasing sessile cell count trend agrees with the decreasing dissolved [H2S] in Table 4. Decreased [H2S] means less toxicity and thus better sessile cell growth (Jia et al., 2019b). Although the 300 ml headspace bottle had lower H2S concentrations in both the gas and the liquid phases, its total amount (1.47 × 10–4 mol) was higher than in the bottles with 150 ml and 200 ml headspace volumes. This was reasonable because less H2S toxicity allowed better SRB growth and thus produced more H2S in the total amount in the liquid and headspace of a sealed anaerobic bottle.

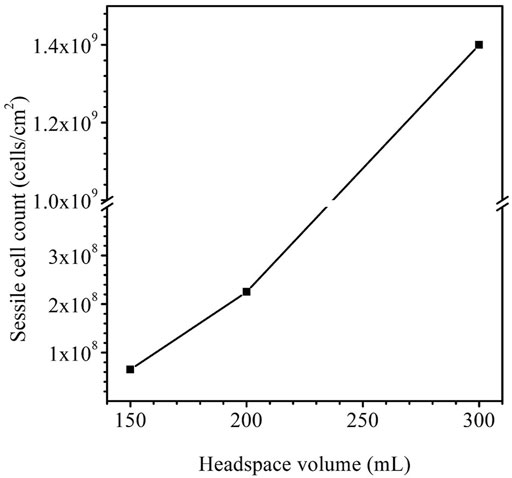

FIGURE 9. Sessile cell counts on dogbone coupons after 14-day incubation in anaerobic bottles with fixed 150 ml broth and varied headspace volume.
Pit depths on dogbone coupons
Coupon surface morphologies on dogbone coupons after the 14-day incubation with biofilms and corrosion products removed were examined under IFM. Figure 10A shows that the abiotic coupon surface exhibited polished coupon surface roughness (y-scale enlarged to show details). For the biotic dogbone coupons, the maximum pit depth increased with a larger headspace volume in Figures 10B–D. They were 2.6 μm, 4.2 μm and 6.2 μm for headspace volumes of 150 ml, 200 ml and 300 ml, respectively. The pit depth trend here is consistent with the weight loss data trend. In future studies, pit density should be investigated as well (Javed et al., 2020a; Javed et al., 2020b). With a larger headspace, there was a lower amount of dissolved [H2S] and more sessile cells, which led to higher weight loss and deeper pits. The maximum pit depth increased by 58% when the headspace increased from 150 ml to 300 ml, while the broth volume was fixed at 150 ml.

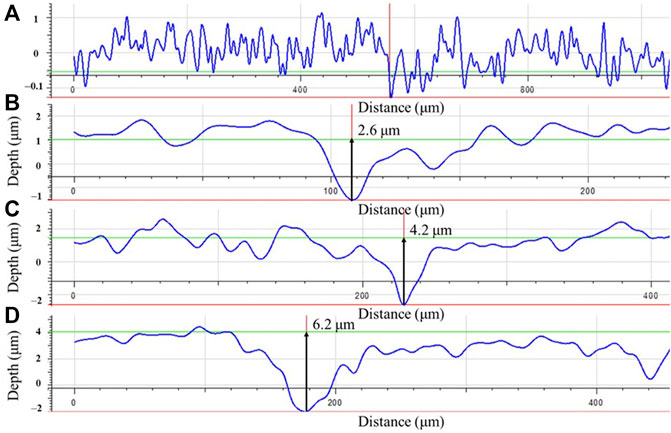

FIGURE 10. Maximum pit depths on dogbone coupons after 14-day incubation in bottles with headspace volumes of: (A) 150 ml (abiotic control), (B) 150 ml, (C) 200 ml, and (D) 300 ml, respectively.
Tensile testing using dogbone coupons
Figure 11 shows the stress-strain curves of X80 dogbone coupons. The dogbone coupons were retrieved after they had been immersed in SRB bottles with fixed 150 ml culture medium volume and varied headspace volumes (150 ml, 200 ml and 300 ml) for 14 days at 37°C. The ultimate (tensile) strength is the maximum stress that a material can withstand before final failure (Thamma and Jantasorn, 2022). It is the highest point of the Y-axis in Figure 11. The ultimate strain (elongation at break) demonstrates the ability of a material to resist shape change before finally breaking (Tian et al., 2021). It is the largest value of the X-axis (strain) in Figure 11 (Sluzalec, 1992). Lowering of these parameters can reflect the mechanical property degradation of the material under different conditions such as different MIC severity.

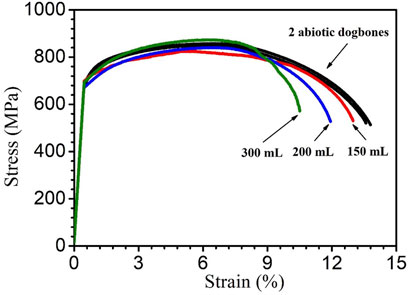

FIGURE 11. Stress–strain curves for 2 replicate abiotic X80 dogbone coupons and dogbone coupons (with corrosion products removed) obtained after 14-day incubation with SRB.
The ultimate strength of abiotic control X80 carbon steel was 853 ± 3 MPa. The ultimate tensile strength values of the abiotic dogbone coupon, and biotic dogbone coupons from bottles with different headspace volumes were all quite close as shown in Figure 11. Compared with the abiotic dogbone, in the presence of SRB with headspace volumes of 150 ml, 200 ml 300 ml, the ultimate strength losses were 3%, 2% and 0%, respectively (Table 5). These values were rather small. On the other hand, ultimate strain was reduced in the presence of SRB. Compared with the abiotic dogbone, in the presence of SRB with headspace volumes of 150 ml, 200 ml 300 ml, the ultimate strain losses were 6%, 13% and 23%, respectively (Table 5). With an increased headspace, MIC severity increased, making X80 steel more brittle. The corrosion damage by SRB pitting was the main factor in its mechanical property degradation study. H2S was unlike the driving force behind the relatively large ultimate strain loss, because in this work, more severe MIC corresponded with lower [H2S] in the broth.

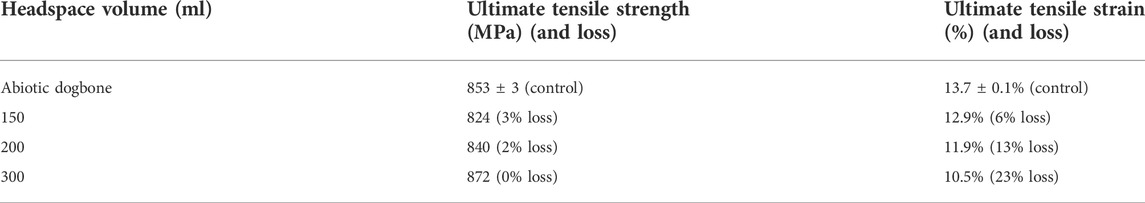

TABLE 5. Ultimate tensile strength and ultimate tensile strain data from Figure 11.
Conclusion
(1) The tensile testing results show that the presence of SRB made the X80 steel more brittle which was reflected by the relatively large ultimate strain losses, compared to the abiotic control. Meanwhile, the ultimate strength loss was small (up to only 3%) for all the dogbone coupons after the 14-day incubation.
(2) More severe MIC weight loss and pitting led to more ultimate strain loss (up to 23%) in X80.
(3) This work confirms that in an anaerobic bottle with SRB, a larger headspace allows more H2S to escape from the broth, and this reduces the H2S toxicity in the broth and thus promoting sessile SRB growth. Increased sessile cell count leads to more severe weight loss and MIC pitting, which is consistent with EET-MIC.ASTM-E8/E8M-13a, 2013.
