Deviant Dynamics of Resting State Electroencephalogram Microstate in Patients With Subjective Tinnitus

Given the importance of central reorganization and tinnitus, we undertook the current study to investigate changes to electroencephalogram (EEG) microstates and their association with the clinical symptoms in tinnitus. High-density (128 channel) EEG was used to explore changes in microstate features in 15 subjects with subjective tinnitus and 17 age-matched controls. Correlations between microstate parameters and subjective tinnitus symptoms were also analyzed. An increased presence of class A microstate and decreased presence of class D microstate were found in coverage and lifespan of microstate parameters in the tinnitus patients. Syntax analysis also demonstrated an aberrant pattern of activity, with reduced transitions from class D to class B in tinnitus patients. Moreover, a significant positive correlation of tinnitus loudness with increased lifespan of microstate class C was found. Significant differences in temporal characteristics and syntax of the EEG microstate classes were found at rest between tinnitus patients and the healthy subjects. Our study indicates that EEG microstates may provide a possible valuable method to study large-scale brain networks, which may in turn be beneficial to investigation of the neurophysiological mechanisms behind tinnitus.

Introduction

Subjective tinnitus is defined as the perception of a phantom sound in the absence of a corresponding internal or external sound source (Jastreboff, 1990). It is a common clinical symptom experienced chronically by 10–15% of the adult population. Of these, approximately 1∼2% are affected severely (Langguth et al., 2013). At present, the main clinical interventions for tinnitus include counseling, cognitive behavioral therapy, tinnitus retraining therapy, and sound therapy. The therapeutic benefit of these interventions varies greatly among patients with subjective tinnitus (Langguth, 2015).

The effectiveness of tinnitus intervention requires a comprehensive understanding of the mechanisms of tinnitus. It is widely accepted that tinnitus is caused not only by peripheral hearing loss, but also as a result of aberrant neural activity in the central auditory pathway (Chen et al., 2014, 2015, 2016, 2017). Tinnitus patients with peripheral hearing loss show decreased signal output from the cochlea, which can result in tinnitus (Chen et al., 2016). Recent studies have indicated that even tinnitus patients with normal audiograms may have a “hidden hearing loss,” which may trigger tinnitus (Weisz et al., 2006). Functional imaging research shows hyperactivity in neurons along the auditory pathway in tinnitus patients (Arnold et al., 1996; Lanting et al., 2009). The activity of the central auditory system increases compensating for the reduction in cochlear output caused by deafferentation (Chen et al., 2017). These functional imaging studies also indicate that perception of tinnitus is related to aberrant activity in some non-auditory brain regions such as the prefrontal area and the limbic system which includes hippocampal and parahippocampal areas (Simonetti and Oiticica, 2015; Chen et al., 2016, 2017). Currently many pathophysiological models are offered to explain the generation and development of tinnitus, including central gain, thalamocortical dysrhythmia, neural synchrony, frontostriatal gating, noise-canceling deficit, global workspace, and precision coding (Llinas et al., 1999; Seki and Eggermont, 2003; Leaver et al., 2011; Schaette and McAlpine, 2011; De Ridder et al., 2014; Rauschecker et al., 2015; Sedley et al., 2016). The exact mechanism of subjective tinnitus is still the subject of significant debate. In this study, we explore alterations in central brain areas by tinnitus in a novel way to try to resolve the further central mechanisms behind tinnitus.

Electroencephalogram (EEG) is a technique that records electrical potentials within the brain using electrodes placed on the scalp. Resting-state EEG has been shown to be an inexpensive, non-invasive and high temporal resolution tool for studying tinnitus (Ingber and Nunez, 2011). Differences in EEG findings between tinnitus patients and those without tinnitus have been found (Moazami-Goudarzi et al., 2010). For example, EEG studies found an increase in gamma activity in the auditory cortex (Ortmann et al., 2011) whilst others revealed aberrant alterations in other brain regions outside the auditory cortex such as the parahippocampus and insula (Moazami-Goudarzi et al., 2010; Vanneste et al., 2010), indicating that tinnitus results from abnormal alterations in multiple brain regions.

There are several methods that can be used to extract information from EEG signals. One such mechanism – microstate analysis, identifies a series of quasi-stable microstates in the multichannel EEG signals. The microstate analysis simultaneously includes multichannel EEG recordings from across the scalp (Khanna et al., 2015). It can therefore partly compensate for the deficiency of EEG in identifying spatial resolution and analyze the abnormality of large-scale brain networks. Microstates can provide helpful information on global function to further understand brain neural activity at rest.

An increased number of studies have indicated that EEG microstates are significantly changed in some central neuropsychiatric diseases such as schizophrenia, dementia, depression, and panic disorder. Studies of EEG microstates in central neuropsychiatric diseases may provide a novel method for the detection of objective physiological biomarkers, to monitor the severity of disease, the evaluation of therapeutic effect and the design of targeted treatments (Khanna et al., 2015).

However, knowledge of microstate abnormalities in tinnitus is limited. A few EEG microstate studies have been conducted into auditory hallucination. For example, Kindler et al. (2011) found microstate D of the EEG to be significantly shorter in periods of hallucination when compared to non-hallucinating patients. As tinnitus and auditory hallucination share similar central cortex activity, with an increase in theta-gamma response during EEG measurement (Vanneste et al., 2013), and the generation of tinnitus involves several brain regions and multiple neural networks, the microstate analysis may be a powerful method to explore the neurophysiological mechanism of tinnitus over the whole brain. Therefore, the present study set out to explore alteration in EEG microstates in tinnitus patients with normal persons as controls. The specific purpose is to investigate the central mechanism of tinnitus and identify whether the EEG microstate is an effective method to study tinnitus. On the basis of central organization and alteration of cerebral connectivity after tinnitus, the hypothesis is proposed that significant changes of the resting state microstates would be found in tinnitus participants when compared to healthy subjects. Such differences could be used as an important electrophysiological marker of tinnitus.

Materials and Methods

Participants

Patients with tinnitus were recruited from the Ear, Nose and Throat clinic, Sun Yat-sen Memorial hospital, Sun Yat-sen University. Detailed selection criteria for inclusion and exclusion in this study are:

(1)   They had sought clinical help for their tinnitus problem, which had lasted more than 3 months;

(2)   They had no history of head trauma or central nervous system disorders;

(3)   They had normal hearing thresholds or mild sensorineural hearing loss (the averaged hearing threshold ≤ 40 dB HL). All tinnitus patients with either current conductive hearing loss or previous middle ear surgery (e.g., mastoidectomy) as well as participants with moderate to severe hearing loss (i.e., the averaged hearing threshold ≥ 40 dB HL) were also excluded (Mohamad et al., 2016).

(4)   Tinnitus patients with pulsatile tinnitus due to aberrant vascular malformation, Meniere’s disease, otosclerosis, chronic headache, neurological disorders such as brain tumors, traumatic brain injury or stroke and individual being treated for mental disorders as well as undergoing treatment (e.g., intake medication) for tinnitus during the study were not included in the study in order to increase the sample homogeneity.

The study group included 15 patients with tinnitus (11 male and 4 female; age Mean = 38.07 years, SD = 14.22 years) and 17 control subjects without tinnitus (10 male and 7 female; age Mean = 36.65 years, SD = 11.72 years). Prior to the experiment, a written consent form was signed by all participants after they had been properly informed of the experiment. The study was approved by the Institution Review Board of The Sun Yat-sen Memorial Hospital at Sun Yat-sen University of China.

Routine Audiological Examinations

Routine audiological examination consisted of otoscopy, followed by pure-tone audiometry in which air conduction thresholds were measured for both ears at 125, 250, 500 Hz and 1.0, 2.0, 4.0 and 8.0 kHz, and bone conduction hearing thresholds were measured between 250 Hz and 4.0 kHz in a sound-proof booth. The mean hearing threshold is the average of hearing sensitivity at the frequencies of 500, 1000, 2000, and 4000 Hz. All participants had hearing thresholds measured using a pure tone audiometer (PTA). The audiological results showed average hearing thresholds, ranging from 250 to 8000 Hz at better than 20 dB HL for participants in control group.

Tinnitus Specific Assessments

Patients were asked to describe their tinnitus characteristics, including duration and laterality (i.e., being in the right, left or both ears or central in the head). Tinnitus pitch and loudness matching measurements were performed ipsilaterally to the ear with predominant or louder tinnitus if there was a difference between the two sides. When the tinnitus was equally loud on both sides or was localized in the head, the matching tones were given to the ear with the better hearing. Otherwise, the ear was chosen randomly if there was no difference between the acuity of the two ears.

During the tinnitus pitch matching tests, the nine audiometric frequencies between 125 Hz and 8.0 kHz (i.e., 125, 250, 500 Hz and 1.0, 2.0, 3.0, 4.0, 6.0, and 8.0 kHz) were firstly used to roughly match the tinnitus pitch. Participants were initially asked to make a clear distinction between the perceptive tinnitus pitch and presented matching tones, and then they reported verbally whether the matching tone needed to go higher or lower until the exact matching tone or a close approximation to their tinnitus was obtained. The test tone was adjusted in a half-octave step. If there was no matching with a pure tone perceived by participants, narrow-band noise was used instead.

When the matching frequency was found, the level was initially set to 5 dB above the measured audiometric threshold to find an approximate tinnitus loudness level, then the level was adjusted in 1 dB step until the subject indicated that the tone matched the loudness of their tinnitus (Kim et al., 2016). The tinnitus loudness in decibels sensation level (dB SL) was computed by subtracting the presented sound intensity level in decibels hearing level (dB HL) with the auditory threshold at that frequency (De Ridder et al., 2015).

Self-Reported Tinnitus Issues and Tinnitus Handicap Inventory (THI) Questionnaire

Tinnitus severity was assessed by the Tinnitus Handicap Inventory (THI). The THI questionnaire was provided to the patient prior to the experiment. The THI is a 25-item measure for evaluating the self-perceived level of handicap caused by tinnitus, based on a 0–100 increasing handicap scale (with 100 being total handicap and 0 being no handicap) (Newman et al., 1996).

EEG Recordings

Recordings were made using a dense array EEG system with 128 channels and saved electronically with Electrical Geodesics, Inc. (EGI, Eugene), and a NetAmps 200 amplifier. The sampling rate was set to 1000 Hz and impedances were kept below 50 kΩ. The CZ electrode was used as reference for online recording. A resting EEG was obtained over approximately 7 min. During acquisition, the data was band pass filtered (0.1 Hz high-pass and 100 Hz low-pass). Subjects were instructed to sit on a chair in a comfortable position, to remain calm for the recording and to open their eyes and fixate a cross mark on the computer screen.

Preprocessing of EEG Data

The raw data files from the EGI were transformed into mat file format ready for preprocessing with a EEGLAB for v13.0.0 toolbox by Matlab. Data were first re-referenced against the average reference by all the electrode and resampling rate to 500 Hz/s. EEG signals were amplified, band-pass-filtered to 0.5–80 Hz. A notch filter was implemented at 50 Hz to reduce the effect of the electric circuit on the EEG signal. Gross artifacts were manually removed from the raw EEGs after visual inspection, while components of muscle artifacts, eye movement, and heart beats were removed using an ICA-based correction process. After ICA correction, the signal was reconstructed and segmented into 2 s epochs. A minimum of 20 artifact-free epochs were randomly selected for microstate analysis.

EEG Microstate Analysis

Microstate analysis followed the standard procedure used in earlier work (Koenig et al., 2002). Selected EEG epochs were digitally band pass filtered from 2 to 20 Hz. This bandpass filter was used as a consequence of previous studies (Koenig et al., 2002; Nishida et al., 2013), into the nature of microstates recorded in a multichannel array over the scalp and the alpha frequency band (8–12 Hz) of the multichannel resting-state EEG signal (Lehmann et al., 1987). Recently, most microstates studies are based on larger bandwidths with 2–20 Hz (Koenig et al., 2002; Kindler et al., 2011).

Due to the large number of original EEG maps, it is usual to reduce the EEG data to the time points at the local maxima of the global field power (GFP) before applying the clustering analysis process. The GFP reflects the potential variances across multi-electrodes at a specific time point. Let K denote the number of electrodes in the EEG data, V_i(t) the potential of the i-th electrode at time t, the GFP can then be computed as:

$\text{GFP}(t)=\sqrt{\frac{1}{K}{\displaystyle \sum _{\text{i}=1}^{\text{K}}{(V_{\text{i}}(t)-V_{\text{mean}}(t))}^2}}$

Where $V_{\text{mean}}(t)=\frac{1}{K}{\displaystyle {\sum }_{\text{i}=1}^{\text{K}}{V}_{\text{i}}(t)}$ is the mean of the instantaneous potentials across the electrodes. With the GFP computed, a set of topographic maps at the local minima of the GFP curve were extracted as the representative maps (König and Mellegarcia, 2009), upon which the clustering analysis was then performed to find the quasi-stable microstates in the EEG data. Clustering analysis is an important technique in the field of data mining and machine learning. Here, the purpose of clustering is to segment the scalp maps in the EEG data into several homogeneous subsets, each referred to as a microstate. It is suggested that the EEG maps can be typically clustered into four microstates, categorized as classes A, B, C, and D (König and Mellegarcia, 2009; Khanna et al., 2015). Specifically, we adopt a modified version of the classical k-means clustering algorithm to perform the segmentation. In terms of the categorization task, we use a top–down strategy to categorize the microstates of each subject and each group. First, the EEG maps (with maximum GFP) of all subjects from both the tinnitus group and the control group are collectively clustered into four grand subsets. With the mean map of each subset computed, the four grand subsets can be assigned to classes A, B, C, and D, respectively. Then, the EEG maps in the same group are clustered into four group subsets. Each of the group subsets is assigned to the same class as the grand subset that this group subset shows most similarity. Finally, the EEG maps of each subject (in the tinnitus group or the control group) can be clustered and assigned to one of the four microstate classes.

With the microstates of all subjects obtained, we proceeded to compute and analyze several parameters of the microstates, such as average lifespan, frequency of occurrence, coverage, topographical shape, amplitude, transition probabilities of microstates, etc. The average lifespan of a microstate is the average length of time when a microstate appears and remains stable. The frequency of occurrence of a microstate is the average number of times per second that a microstate occurs during a period of recording. The coverage of a microstate is the fraction of recording time that the microstate is dominant. There are four types of microstate topographical shape. The amplitude of a microstate is the mean GFP when microstate is dominant (Strelets et al., 2003; Nishida et al., 2013). The transition probability of a microstate means that the microstate is non-random and has the potential significance of sequence transfer (Lehmann et al., 2005).

Statistical Analysis

To investigate the topographical differences of the microstate classes between the two groups we performed t-test on each class of microstates parameters. Pearson correlation analysis was performed to assess the association between the parameters of microstates and tinnitus subjective response. A p level of less than 0.05 (two-sided) was considered to be statistically significant. All statistical analyses were conducted using SPSS 13.0 software.

Results

The demographic information of patients in the tinnitus group is shown in Table 1. There were no significant group differences between the tinnitus and control groups in terms of age (t = −0.310, df = 30, p = 0.759) and gender (x² = 0.744, df = 1, p = 0.472). Tinnitus characteristic, including pitch, laterality, loudness, and hearing threshold are also given in Table 1.

TABLE 1

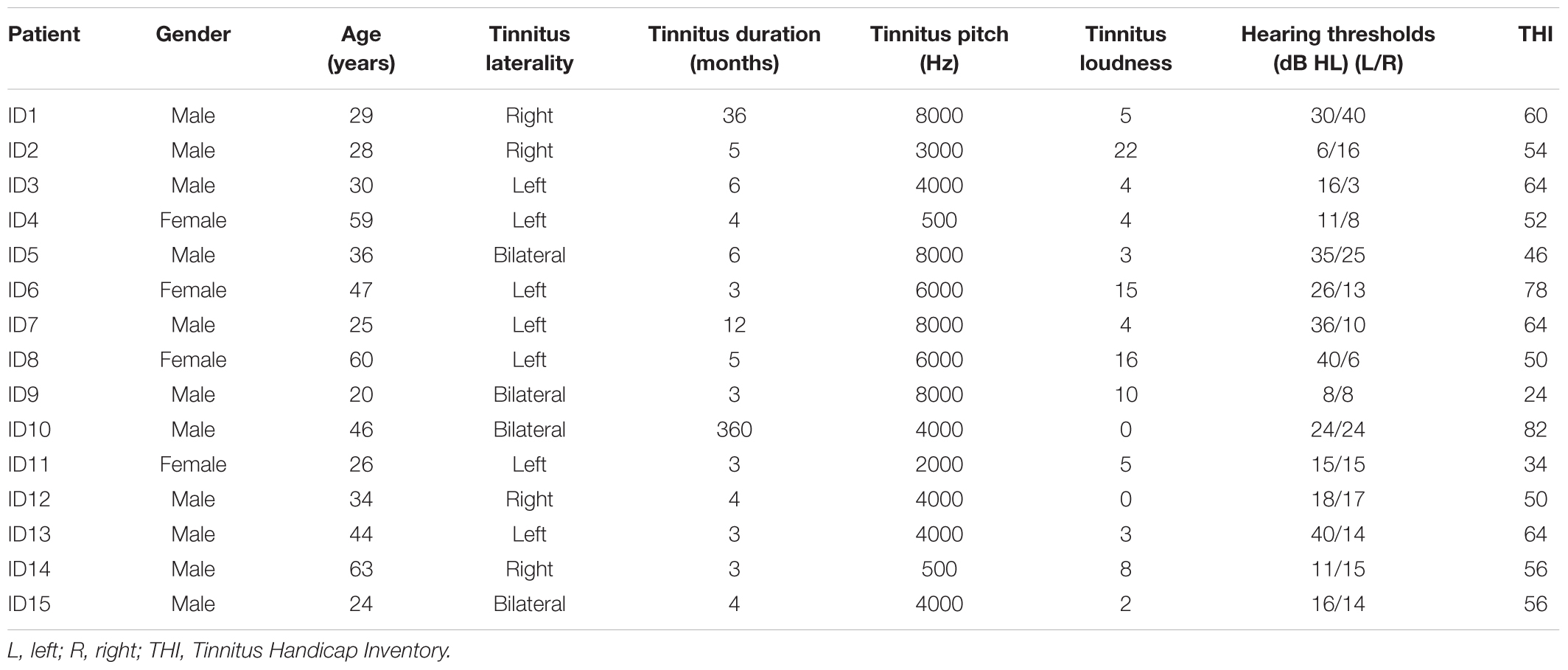

TABLE 1. The landscape layout of participants with tinnitus.

The mean microstate maps obtained from both groups are shown in Figure 1. Similar to previous literature (Lehmann et al., 2005; Britz et al., 2010), four microstate topographies were found and classified as A, B, C, and D. Microstate class orientations were:

FIGURE 1

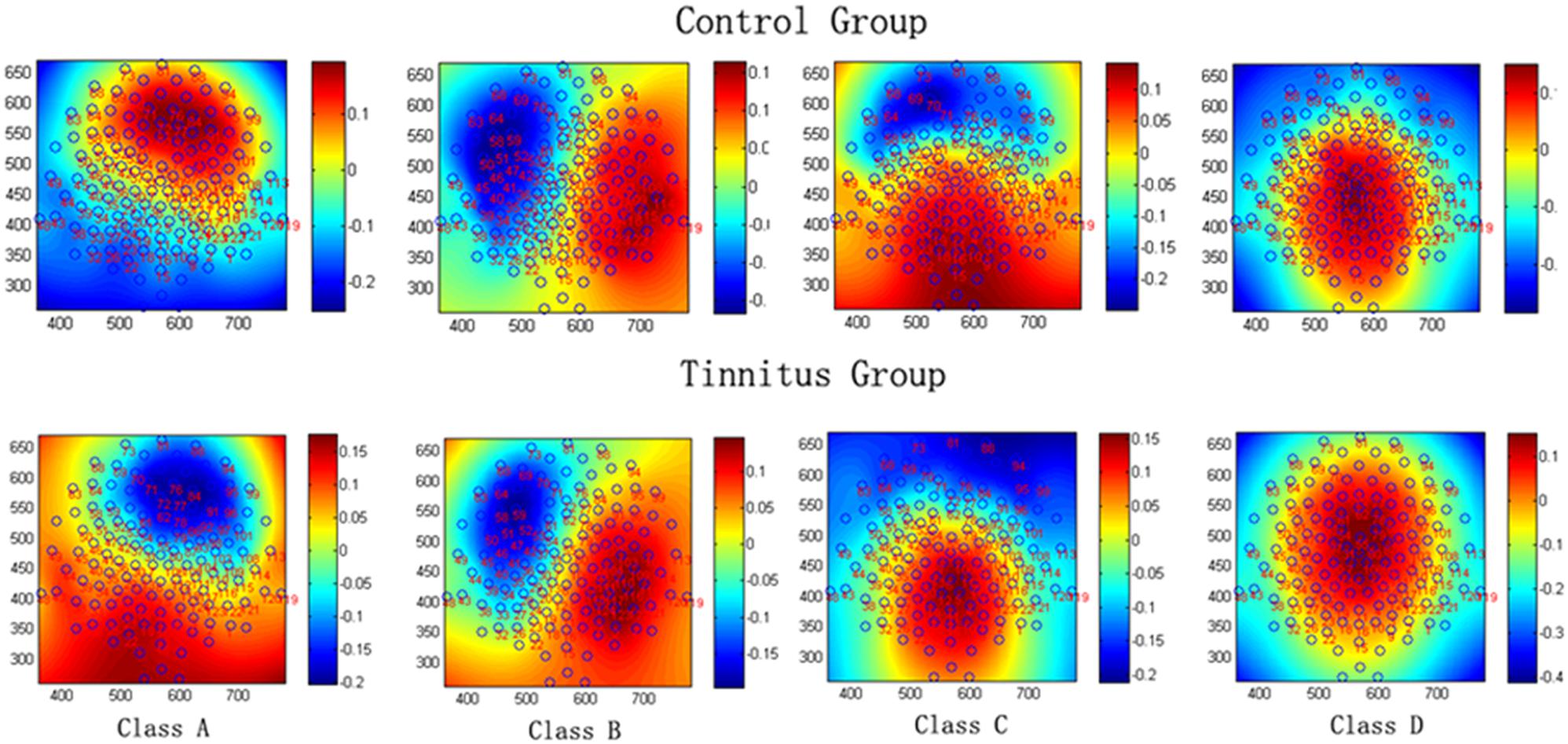

FIGURE 1. The spatial configuration of the four classes of microstates in the control group and tinnitus group.

A - right-frontal left-posterior

B - left-frontal right-posterior

C - anterior–posterior

D - fronto-central extreme.

Independent sample t-tests between the tinnitus (N = 15) and control groups (N = 17) for each microstate parameter are detailed in Table 2. These parameters included the coverage, lifespan, amplitude and frequency of the microstates. The t-test revealed significant group differences in coverage and lifespan of classes A and D. With coverage, class A showed an increased presence (t = −2.748, df = 30, p = 0.01), whilst class D showed a decreased presence (t = 2.628, df = 30, p = 0.013) in the tinnitus group. There were no group differences in classes B and C. With lifespan, class A (t = −2.934, df = 30, p = 0.006) was significantly longer in the tinnitus patients than in controls, whilst the lifespan of class D (t = 2.244, df = 30, p = 0.032) in tinnitus patients was significantly shorter than in controls. There was no significant difference in class B or class C. No group differences in amplitude and frequency of the four microstates were found.

TABLE 2

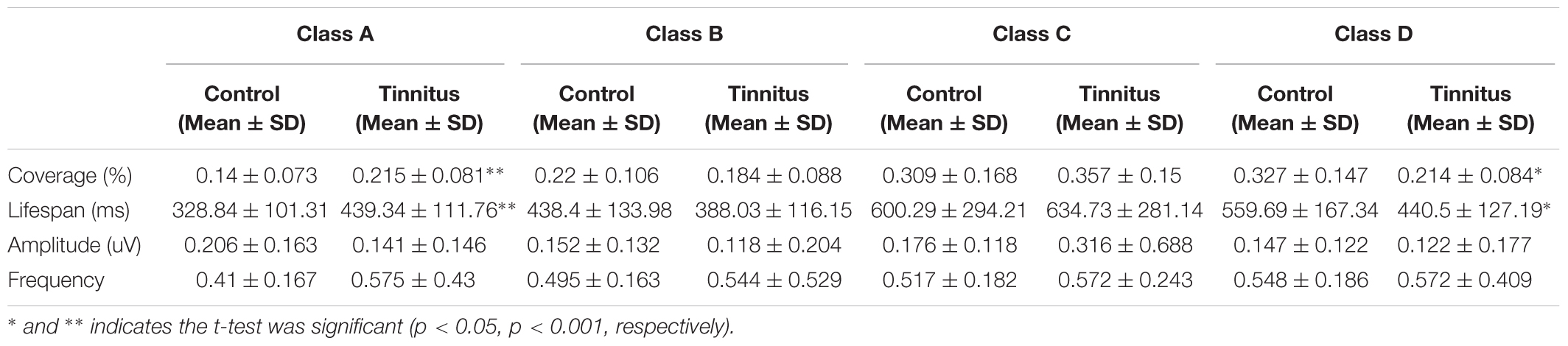

TABLE 2. Comparison of the microstate analysis results in patients with tinnitus and control subjects.

Table 3 demonstrates the correlations between changes in microstate features and tinnitus subjective symptoms. The only significant effect was found between the lifespan of class C and tinnitus loudness perception (r = 0.569, p = 0.027). No significant correlations were found in the changes of microstate features with THI in the tinnitus group (p > 0.05).

TABLE 3

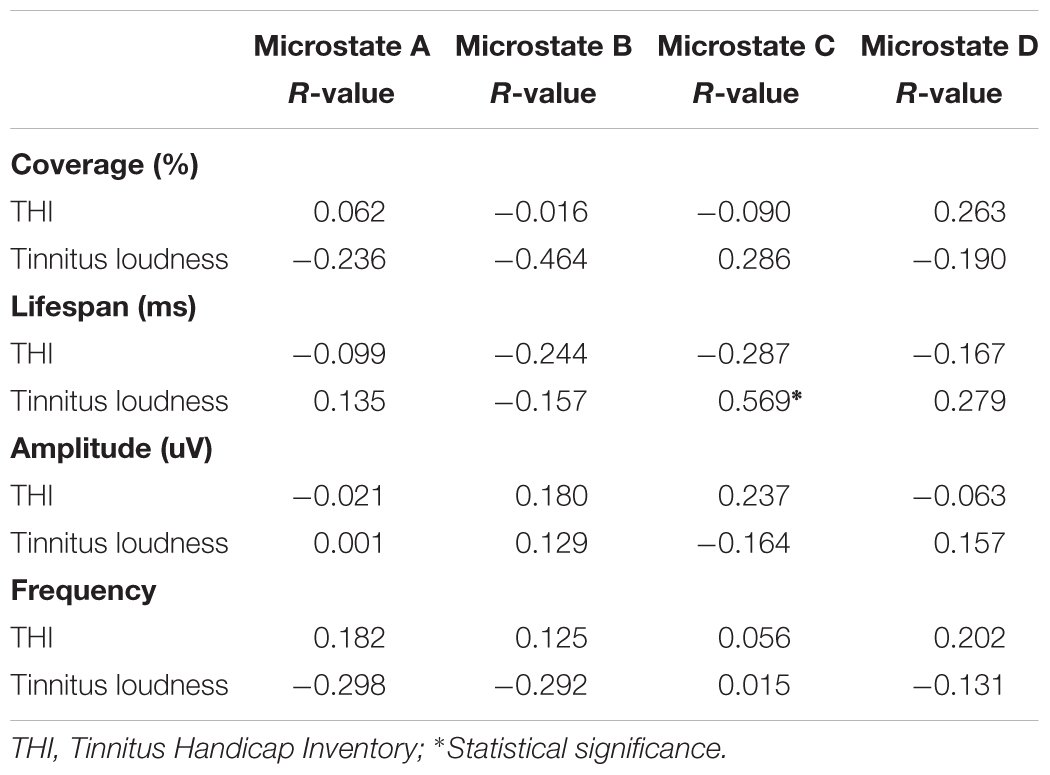

TABLE 3. Correlations between changes of microstates and tinnitus subjective symptoms.

Figure 2 shows that the probability of transition from class D microstate to class B microstate was significantly decreased (p = 0.016) in the tinnitus patients compared to controls. No other significant group differences in the probability of transition among microstate classes were found.

FIGURE 2

FIGURE 2. Schematic view of the syntax pattern. ^∗Indicates significant difference (p < 0.05).

Discussion

To our knowledge, this is the first study to investigate microstate dynamics in individuals with tinnitus. Significant differences were found in the temporal characteristics and syntax of the EEG microstate classes at rest for tinnitus patients when compared to healthy subjects. EEG microstate performance revealed a significantly increased presence of the class A microstate, and a decreased presence of the class D microstate. The syntax analysis also demonstrated an aberrant pattern of activity with reduced transitions from class D to class B in the patients. Moreover a significant positive correlation of tinnitus loudness with increased lifespan of microstate class C was found.

The time coverage and lifespan of microstate class A was significantly increased in our study. In the study by Britz et al. (2010), microstate class A was shown to correlate with activations in the bilateral superior and middle temporal gyrus areas that were related to phonological processing. Previous studies have shown hyperactivity in temporal areas and reorganization of the auditory cortex in tinnitus subjects (Diesch et al., 2010; Chen et al., 2015, 2016, 2017) and van der Loo et al. (2009) found enhancement of gamma oscillations over the auditory cortex that correlated with the tinnitus intensity. Given that tinnitus had a deficit on failing to stop attending to an essentially irrelevant signal (tinnitus sound), it may increases demands on auditory processing and attentional resources (Mohamad et al., 2016). Tinnitus may impoverish phonological input and interfere with the capability of phonological processing system to store auditory verbal information (Mohamad et al., 2016), which could add to the demand on the central executive with a resultant increase in the presence of microstate class A.

Reductions in time coverage and lifespan of microstate class D were also found in the tinnitus patients. Britz et al. (2010) suggested that microstate class D correlated with signals in the right-lateralized dorsal and ventral areas of the frontal and parietal cortex. These areas roughly corresponded to the central executive resting-state network. Neuroimaging evidence suggests that the frontal cortex, including the superior frontal gyrus and inferior frontal gyrus, exhibit increased neural activity in tinnitus patients, indicating that structural and functional differences in the frontal cortex may contribute to the mechanism and certain perceptual features of tinnitus (Burton et al., 2012). The inferior frontal gyrus serves as the core region of the central executive control network by regulating the attention allocation to tinnitus perception (Sridharan et al., 2008; Aron et al., 2014; Chen et al., 2017). The network involved in actively manipulating and maintaining attention, decision making and working-memory (Tomescu et al., 2014). Previous studies have reported impoverishment of attention execution and working memory in tinnitus. For example, Rossiter et al. (2006) suggested that tinnitus interferes with working memory and reduces cognitive capability to perform tasks that require effortful and attention. Heeren et al. (2014) also found that tinnitus subjects were unable to stop attending to the irrelevant tinnitus sound which might interfere with sustained executive attention. Therefore, the reduction of microstate class C indicates misengagement of the executive network which may be responsible for the self-reported tinnitus symptoms.

Another intriguing finding was the significant correlation between tinnitus loudness and the lifespan of microstate class C. This result was consistent with the finding by Tomescu et al. (2014), who showed a positive correlation between the presence of microstate class C and hallucinations in schizophrenia. Britz et al. (2010) stated that microstate class C was associated with a salience network, which was considered a large-scale neural network involving the detection and orientation of both internal and external stimuli. Recent studies assessing the functional and structural changes of tinnitus have found evidence of dysfunctional salience networks (Amaral and Langers, 2015). Network dysfunction would disrupt connectivity with the central executive attention network leading to deficits in cognitive processing, which could explain the positive tinnitus clinical symptoms (Tomescu et al., 2014). Therefore, the significant correlation shown in the present study indicates that the lifespan of microstate class C may be regarded as a possible objective and valuable biomarker to determine the severity of tinnitus.

Syntax analysis showed a significant decrease in the probability of transition from class D to class B microstates. Britz et al. (2010) suggested that the class B microstate was correlated with bilateral visual cortex areas. The decreased transition from the central executive network to a visual network was likely to result from greater demand on attentional resources to tinnitus sound which led to reduction of cognitive resources to visual attention. This result suggests that interventions that engage a visual attention network may provide relief from tinnitus-related systems due to the competition for attentional resources (Sedley et al., 2016).

Previous studies have attempted to discover the mechanisms behind tinnitus (Koenig et al., 2002; Langguth et al., 2013; Elgoyhen et al., 2015). Increased neuronal firing rate, enhanced neuronal synchrony, changes in tonotopic organization in central auditory pathways, and changes in non-auditory brain areas may be neuronal correlates of tinnitus (Langguth et al., 2013). Although several pathophysiological models have been proposed, none is able to explain all experimental and clinical findings. For example, one tinnitus model implicates the abnormal neuronal excitation of the auditory cortex due to cochlear damage (Schaette and Kempter, 2006). According to this model excitation in part of the auditory temporal cortex was increased to compensate for the auditory deafferentation and to maintain a stable neuronal activity (Elgoyhen et al., 2015). This model could be used to explain the results of the increased presence of the microstate A, which correlate with activation in bilateral superior and middle temporal cortex.

Another model to describe the development of tinnitus is that the central reorganization causes changes to structural and functional central network activity (Elgoyhen et al., 2015). The network dysfunction would disrupt connectivity with the central executive attention network leading to deficits in cognitive processing (Elgoyhen et al., 2015; Song et al., 2015). This model could therefore explain the significant correlation in the present study between the microstate class C and tinnitus loudness.

However, it is important to note that tinnitus is a highly heterogeneous condition with respect to hearing ability. Characteristics of the perceived sound are associated with variability of awareness and distress, duration and comorbidities (Langguth et al., 2013; Elgoyhen et al., 2015; Shore et al., 2016). Evidence shows that heterogeneity seem almost inevitable among tinnitus patients, even tinnitus patients with the same or similar hearing status conditions (e.g., tinnitus patients with normal hearing thresholds) (Zhao et al., 2014). As a result, it is extremely difficult to completely eliminate the heterogeneous factor, even when robust inclusion criteria are used. In addition, as the variability in the clinical presentation of the disorder is expected to be reflected by a similar development model, identifying the underlying neuronal mechanisms of tinnitus is challenging. The present study, due to its novelty and pilot study nature, will necessarily have limitations that require the results to be treated with caution. Small sample size is unable to rule out heterogeneous condition factors, such as hearing impairment. Future longitudinal research with larger sample sizes and comparisons of specific tinnitus subgroups (i.e., patients with tinnitus with different hearing status, distress levels, duration, laterality, and so on) is needed to develop a model of tinnitus, and examine the predictive value of EEG microstates for tinnitus mechanisms as well as its clinical relevance.

Conclusion

Significant differences in temporal characteristics and syntax of the EEG microstate classes were found at rest between tinnitus patients and the healthy subjects. Our study indicates that EEG microstates may provide a possible valuable method to study large-scale brain networks, which may in turn be beneficial to investigation of the neurophysiological mechanisms behind tinnitus.
