Lok Kumar Shrestha
Katsuhiko Ariga- 1Research Center for Materials Nanoarchitectonics (MANA), National Institute for Materials Science (NIMS), Tsukuba, Japan
- 2Department of Materials Science, Institute of Pure and Applied Sciences, University of Tsukuba, Tsukuba, Japan
- 3Department of Advanced Materials Science, Graduate School of Frontier Sciences, The University of Tokyo, Chiba, Japan
The recognition of the importance of nanostructures is mainly due to the development of nanotechnology. For further developments in materials sciences, a concept that integrates nanotechnology with material chemistry to fabricate functional materials has to be proposed. Nanoarchitectonics will carry out this task. In nanoarchitectonics, we architect functional material systems from nano-units (atoms, molecules, nanomaterials). The methodology is not specific to any particular material or application. It covers a wide range. Therefore, nanoarchitectonics can be thought of as the method for everything in materials science. As typical demonstrations for usages of nanoarchitectonics, this review paper presents our work on nanoarchitectonics for supercapacitors. We divide it into two categories with different approaches. The first is the development of carbon materials as supercapacitor electrode materials from biomass. The second category is preparing carbon materials using structures created by supramolecular assembly of fullerenes such as C60 and C70. By presenting examples using opposite starting materials, a complex natural material, and an ultimately simple molecule, we will demonstrate the versatility and breadth of possibilities of this approach.
1 Introduction
Many problems exist in today’s society, such as energy, environment, and medicine. Solving these problems requires the development of materials and systems assembled from them that can meet those demands. Especially, there is a tremendous interest in energy issues that support expanded human activities. In addition to solar cells (Kojima et al., 2009; Kinoshita, 2022), fuel cells (Islam et al., 2022; Huang H. et al., 2024), and various ion batteries (Yoshino, 2022; Hosaka and Komaba, 2022), there are high expectations for supercapacitors (Zhang et al., 2023; Shinde et al., 2023a). What underlies these energy devices is the development of materials that enhance their functions. One of the essential keys to solving energy problems lies in material chemistry.
More fundamentally, human development has been accompanied by the progress of materials science. People have obtained materials from the natural world and processed them to create useful tools. In the 20th century, various disciplines related to materials production were established. These are organic chemistry, inorganic chemistry, coordination chemistry, polymer chemistry, supramolecular chemistry, biochemistry, and other material chemistry, which gave mankind knowledge and ways to design and rationally synthesize desired substances. The creation of the discipline has greatly increased the speed at which functional substances can be developed. As functional material systems were developed, one fact became apparent. It is not only the materials themselves but also the material’s structure that is extremely important in expressing its function. In particular, control of the nano-level structure is important. Such knowledge is paramount in current research on energy materials development (Guo et al., 2016; Imahori, 2023).
The recognition of the importance of nanostructures is mainly due to the development of nanotechnology. Nanotechnology techniques have made it possible to directly observe and manipulate atoms, molecules, and nano-objects (Sugimoto et al., 2007; Sun et al., 2023). It is also possible to measure physical properties at the nanoscale (Kimura et al., 2019; Tokura and Kanazawa, 2021). It has been found that there are unique physical properties, such as quantum effects at the nanoscale (Shimohata et al., 2023; Saitow, 2024). In addition, when functional components are rationally organized, their functions change dramatically. Signals, energy, electrons, and chemical signals can flow asymmetrically or be harvested. Functions beyond those of devices developed by microfabrication techniques are demonstrated in nanomaterial systems and devices that are controlled by nanoscale phenomena (Ishii et al., 2023; Kalyana Sundaram et al., 2023). This point in energy-related materials and devices is also important.
The importance of nanostructures in developing functional materials is widely recognized, and that has to be supported by establishing a new concept. In other words, a concept that integrates nanotechnology with material chemistry to fabricate functional materials has to be proposed. This task will be carried out by nanoarchitectonics (Figure 1) (Ariga et al., 2015; Aono and Ariga, 2016), which has recently gained much attention. As Richard Feynman initiated nanotechnology in the middle of the 20th century (Feynman, 1960; Roukes, 2007), nanoarchitectonics was proposed by Masakazu Aono at the beginning of the 21st century (Chaikittisilp et al., 2022; Ariga, 2023a). Therefore, nanoarchitectonics can be considered a post-nanotechnology concept (Ariga, 2021). Methods such as nanoarchitectonics were also considered in fields such as supramolecular chemistry and materials science (Ariga et al., 2019; Liu S. et al., 2023). Therefore, rather than pioneering something completely new, nanoarchitectonics is more of an integration of existing scientific fields. Nanoarchitectonics is an attempt to integrate nanotechnology with various fields of material science, microfabrication technology, and biology. Nanoarchitectonics is the process of building functional materials based on knowledge at the nano-level (Ariga, 2023b).

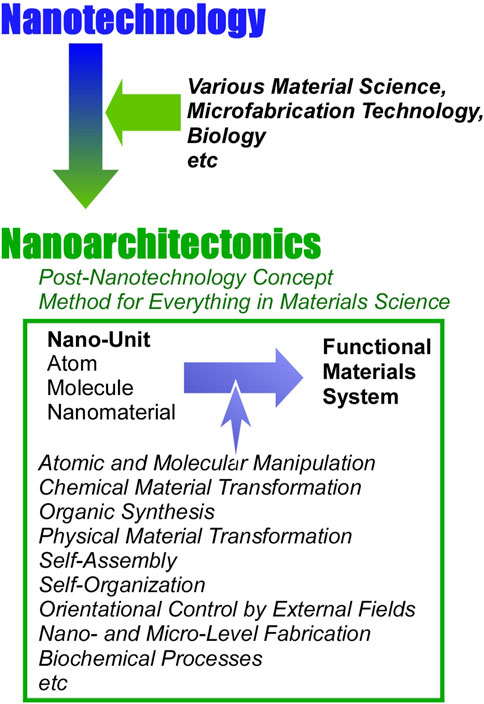

Figure 1. Outline of nanoarchitectonics concept.
In nanoarchitectonics, we architect functional material systems from nano-units (atoms, molecules, nanomaterials). In doing so, it successfully selects or combines various methods from various research fields (Ariga et al., 2016). The elemental processes include atomic and molecular manipulation, chemical material transformation, organic synthesis, physical material transformation, self-assembly, self-organization, orientational control by external fields, nano- and micro-level fabrication, and biochemical processes. For example, thin-film fabrication techniques such as Langmuir-Blodgett (LB) method (Oliveira et al., 2022; Ariga, 2023c) and layer-by-layer (LbL) assembly (Ariga et al., 2022; Ariga et al., 2024) are used in combination to architect functional material systems. Rather than creating materials through self-assembly by simple equilibrium, nanoarchitectonics combines several processes and is better suited for building asymmetric and hierarchical functional structures (Ariga et al., 2020). In other words, it is a methodology suitable for building more functional complex systems.
The above nanoarchitectonics methodology is not specific to any particular material or application. It covers a wide range. Nanoarchitectonics is a methodology for building functional materials from nano units, such as atoms and molecules. Originally, all matter is made of atoms and molecules. Therefore, nanoarchitectonics is a concept that can be applied to manufacture all matter. In analogy to the theory of everything (Laughlin and Pines, 2000), which is the ultimate theory of physics, nanoarchitectonics can be thought of as the method for everything in materials science (Ariga and Fakhrullin, 2022; Ariga, 2024). In fact, there are a variety of recent papers advocating nanoarchitectonics. It is also used in fundamental fields such as material synthesis (Hikichi et al., 2023; Huang P. et al., 2024), structure fabrication (Cao et al., 2022; Eftekhari et al., 2024), basic physics (Nayak et al., 2018; Eguchi et al., 2021), and biochemistry (Kalinova et al., 2022; Shen et al., 2022). On the other hand, there are also reports of its use in catalysis (Chen et al., 2021a; Sharma et al., 2024), sensors (Chen et al., 2022a; Kim et al., 2023), devices (Tsuchiya et al., 2022; Azzaroni et al., 2023), environmental remediation (Prasanthi et al., 2022; Tipplook et al., 2024), drug delivery (Reddy et al., 2023; Zhang et al., 2024), cell control (Hu et al., 2022; Jia et al., 2023), and medical applications (Sutrisno and Ariga, 2023; Meng et al., 2024). The use of nanoarchitectonics in the energy field, where material development is a very powerful factor, is remarkable. It is used in solar cells (Liu X. et al., 2021; Bogachuk et al., 2023), fuel cells (Thmaini et al., 2023; Liang et al., 2024), batteries (Chen et al., 2016; Koralkar et al., 2024), and their elemental technologies (Kim et al., 2017; Chen et al., 2022b), as well as in supercapacitor applications (Shinde et al., 2023b; Wang et al., 2024).
Against this background, this review paper presents our work on nanoarchitectonics for supercapacitors. We divide it into two categories with different approaches. The first is the development of carbon materials as supercapacitor electrode materials from biomass (Shrestha et al., 2023a; Zhang and Peng, 2024). This category presents the preparation of carbon materials from natural materials with complex components, such as plant seeds, as starting materials, and the development of enhanced energy storage supercapacitors. The second category is the preparation of carbon materials using structures created by supramolecular assembly of fullerenes such as C60 and C70 (Shrestha RG. et al., 2020; Munawar et al., 2023). Fullerenes are very simple objects, 0D molecules composed of a single element, carbon. By presenting examples using opposite starting materials, a complex natural material, and an ultimately simple molecule, we will demonstrate the versatility and breadth of possibilities of this approach. The characteristics of these approaches will also be compared in the final section.
2 From biomass
Biomass carbon is a carbon material processed from plant-derived surplus biomass as raw material. Carbon materials derived from the biowaste by activation or carbonization contributes to realizing a recycling-oriented economic society by recycling raw materials (Sagawa et al., 2022; Hassan et al., 2024). Furthermore, it is expected to reduce air pollutants such as PM2.5 and greenhouse gases such as CO2 emitted from the incineration and disposal of surplus biomass. CO2 is absorbed by photosynthesis during the process of biomass material generation. This maintains an equilibrium between the CO2 emitted and the CO2 used in photosynthesis, and the use of biomass carbon is said to contribute to carbon neutrality (Chapman et al., 2022; Fukushima et al., 2023). It could also lead to a reduction in global environmental impact and prevention of global warming. There has been growing concern to manage the natural biowaste for the sustainable development and to produce energy storage materials. It has been essential to recycle the biowaste into the renewable energy-related applications. Biomass of natural origin can be transformed into the functional carbon materials through various carbonization processes, including physical activation, chemical activation, direct carbonization, etc. Because of the low cost of the precursors (biowaste), the scalability of biomass-derived carbon materials is better than that of carbon prepared from other carbon sources. The scalable materials production is relatively economical compared to the synthetic carbon sources such as fullerene crystals. Surface textural properties of the biomass carbons are tunable depending on the preparation method, activating agents, mixing ratio of the activator and precursor, and the carbonization temperature. The specific surface area can be tuned from a few hundred to a few thousand m2/g. The yield of the carbon materials depends on the carbonization temperature. Generally, chemical activation with the low energy method, i.e., at low carbonization temperatures (400°C–700°C), leads to the high yield of the carbons, enabling the scalable synthesis of biomass carbon. It can be converted to high energy storage and energy-related applications if its structure and surface textural properties can be skillfully controlled. Biomass-derived ultrahigh surface area carbon materials are being considered as the high-performance electrode materials in supercapacitors. Below are some recent examples of biomass carbons explored as electrode materials for supercapacitors.
Nanoporous activated carbon materials derived from agricultural waste are useful as electrode materials for high-rate performance electrochemical supercapacitors. Shrestha and co-workers have created a high surface area nanoporous activated carbon material from Lapsi (Choerospondias axillaris) seeds as an agricultural waste biomass (Shrestha LK. et al., 2020). In addition to the fixed carbon content, moisture content, and volatile matter, the biomass precursors also have ash content. The ash content measures the amount of noncombustible materials contained in the sample, i.e., the minerals left over after removing the moisture and volatile organic materials after high-temperature heat treatments. In other words, it is an industrial by-product obtained as a solid waste generated during the chemical conversion of biomass for energy production. It can be further transformed into a helpful resource. The ash content depends on the biomass itself. From the proximate analysis of Lapsi seed stone powder, the ash content was estimated to be ca. 2.7%. After the chemical activation, the surface morphology studied by scanning electron microscopy (SEM) revealed that the Lapsi-derived carbon exhibits granules of irregular size distributions. The carbon particles ranged from 50 to 300 μm, containing macropores and honeycomb-like surface morphology. Such an irregular shape of the carbon particles is commonly observed in biomass-derived carbon. On the other hand, self-assembled fullerene crystals’ well-defined shape and size give porous carbon materials retaining of the shape and size of the starting materials. The high surface area nanoporous carbon material was obtained by activating the raw material with zinc chloride at 700°C. The specific surface areas and pore volumes of the carbon materials are found, in the ranges from 931 to 2,272 m2 g−1 and 0.998–2.845 cm3 g−1, respectively. The amorphous structure of the resulting carbonaceous material was confirmed by powder X-ray diffraction and Raman scattering spectroscopy. The presence of oxygen-containing functional groups was also confirmed by Fourier transform infrared spectroscopy, and electron microscopic analysis, including SEM and TEM, revealed the granular nanoporous structure of the material. High-resolution TEM observations revealed a graphitic carbon structure with interconnected mesopores. The surface area and pore volume of this carbon material were found to be superior to the commercially available activated carbons. The working electrode was prepared using these carbon materials, and the electrochemical supercapacitance performance was investigated in a three-electrode cell setup in 1 M H2SO4 aqueous electrolyte solution. The electrode prepared with the optimal surface textural properties showed excellent electrochemical supercapacitance performance achieving a high specific capacitance (Cs) of 284 F g−1 at a current density of 1 A g−1, followed by a 99% capacity retention after 10,000 charge-discharge cycles. It shows that Lapsi seed can be a potential carbon source for designing high-performance supercapacitor devices.
Nanoporous carbon was prepared from Phyllanthus emblica (Amala) seed by chemical activation with a potassium hydroxide (KOH) activator (Shrestha LK. et al., 2022). KOH activation was performed at different temperatures (700°C–1,000°C) under a nitrogen gas atmosphere. The prepared samples are referred to as AmC_K700, AmC_K800, AmC_K900, and AmC_K1000 depending on the carbonization temperature. A reference sample prepared without activation is referred to as AmP_900. The prepared nanoporous carbon has a hierarchical pore structure with micro- and mesopores (Figure 2). Well-developed micro/mesoporous structures were observed in SEM (Shrestha LK. et al., 2022) and TEM images (Figure 2). Low-resolution TEM images showed carbon particles of a few microns in size with a porous structure. On the other hand, the magnified TEM images showed abundant mesopores with graphite backbone. Carbon materials with micro/mesopore structures improve the rate performance of supercapacitor electrodes. Figure 3A shows cyclic voltammograms (CV) of Amala-derived carbons recorded at 50 mV s−1. Quasi-rectangular CV profiles with a rapid current response upon exchange of the potential sweep reveal the carbon electrodes exhibit an electrical double-layer capacitor (EDLC) type energy storage mechanism. The shape of the CV curve of the carbon obtained by the lower temperature carbonization (AmC_K700) deviates from the ideal EDLC behavior. The curve exhibits weak redox peaks at 0.2–0.4 V. This is due to a partial contribution of pseudocapacitance to the EDLC due to oxygen functionalities in the carbon material. The total integral current collection in the CV curve for the 900°C carbonized sample is the highest, inferring the highest energy storage capacity among the studied samples, which can be attributed to the surface area properties. Figure 3B shows the CV profiles of the sample with optimal surface textural properties (AmC_K900) at different scan rates from 5–500 mV s−1. Obviously, the total current output escalates with the sweep rate, sustaining the shape of the CV curves even at 500 mV s−1, demonstrating a fast electrolyte ion transfer to the electrode surface via mesoporous structures followed by excellent reversibility. Figure 3C compares the galvanostatic charge/discharge (GCD) curves measured at a fixed current density of 1 A g−1. Triangular symmetrical GCD profiles with the linear discharge tail complement the EDLC energy storage with a well-balanced energy storage mechanism. The discharge time relates to the energy storage capacity of the electrode. The longest discharge time recorded for the AmC_K900 electrode suggests this sample’s highest energy storage capacity, which is in line with CV data. Fast electrolyte ion transfer to the electrode surface is evident with the triangular shape GCD curve retention recorded at a high current density of 50 A g−1 (Figure 3D). The directly carbonized sample showed very low specific capacitance (Cs) (9 F g−1). However, due to the KOH activation, the AmC_K900 electrode with optimal surface textural properties achieved a high specific capacitance of 272 F g−1 (∼30-fold enhancement in the capacitance compared to the reference sample). Figure 3E compares the Cs of all the electrodes vs. current density. The Cs of AmC_K900 is superior at all current densities from 1 to 50 A g−1, followed by AmC_K800 and AmC_K700. The cycle performance of supercapacitors is very crucial in practical energy storage applications. The Amala-derived carbon electrodes showed an excellent cycle life of more than 97% after successive charging/discharging for 10,000 cycles (Figure 3F). Cost-effective manufacturing, rich textural properties, and excellent electrochemical results suggest that P. emblica seed is a useful carbon source for the formation of high energy storage supercapacitors.
Figure 2. SEM, TEM, and high-resolution TEM images of nanoporous carbon prepared from Phyllanthus emblica seed by chemical activation with potassium hydroxide at high temperatures under a nitrogen gas atmosphere. Reproduced under terms of the CC-BY license from Shrestha LK. et al. (2022) MDPI.
Figure 3. Electrochemical supercapacitance performance of nanoporous carbon prepared from Phyllanthus emblica seed by chemical activation with potassium hydroxide at high temperatures under a nitrogen gas atmosphere. (A) comparison of the CV profiles of reference sample and activated samples recorded at a fixed scan rate of 50 mV s−1, (B) CV profiles vs. scan rate for the electrode with the optimal surface textural properties as a typical example, (C) comparison of the GCD curves at a fixed current density of 1 A g−1, (D) GCD profiles vs. current density for the optimal sample, (E) specific capacitance of all samples at different current density, and (F) cycle life of the selected electrodes up to 10,000 consecutive charging/discharging cycles. Reproduced under terms of the CC-BY license from Shrestha LK. et al. (2022) MDPI.
The inclusion of additional nitrogen functional groups in biomass-derived activated carbon materials with a hierarchical nanoporous structure is expected to further impart superior electrochemical performance. From this perspective, carbon materials based on the Nelumbo nucifera (Lotus) seed were developed (Shrestha LK. et al., 2021). A self-nitrogen-doped nanoporous carbon material was prepared from N. nucifera seed powder by KOH activation at different temperatures (600°C–1,000°C). This carbon material is an amorphous material with a partially graphitic structure containing up to 3.28 atomic% nitrogen. In addition, it has a hierarchical micro- and mesoporous structure. Increasing temperature monotonously increases the total specific surface area. However, there is a maximum in the microporosity. It reaches a maximum at 900°C and then decreases due to the micropore coalescence (Table 1). Thus, the LTSC_K900 offers a much higher electrochemically accessible surface area, promoting ion diffusion through mesopores and electrolyte ion adsorption in the micropores. Inspired by the ultrahigh surface area and self-nitrogen-doping, the electrochemical supercapacitance performances of the Lotus seed-derived activated carbon materials were studied in a three-electrode cell setup. Supercapacitor electrodes made of carbon fabricated under optimized conditions (LTSC_K900) showed excellent electric double-layer capacitor performance. As shown in Figure 4A the total integral current of the LTSC_K900 electrode is the highest among the studied sample. Similarly, the discharge time of this electrode is the longest, inferring the highest energy storage capacity (Figure 4B). The calculated Cs of the electrode materials shows that due to the lack of porosity, the directly carbonized sample has a very low specific capacitance compared to the KOH-activated samples (Figure 4C). The reference sample without activation showed Cs of only 7.1 F g−1 at 1 A g−1, whereas the LTSC_K900 sample achieved the highest specific capacitance of 379.2 F g−1, which can be attributed to the ultrahigh surface area, hierarchically micro-and mesopore architectures and self-nitrogen doping. Furthermore, an extraordinarily long cycle life was achieved with only 0.3% capacity loss after 10,000 charge-discharge cycles (Figure 4D). Electrochemical results indicate that hierarchical porous carbon with nitrogen functionality from N. nucifera seed has significant potential as an electric double-layer capacitor electrode material for high-performance supercapacitor applications. Hierarchical porous carbon from N. nucifera seed could be a novel and low-cost precursor for large-scale production of carbon materials with self-nitrogen doping. The resulting carbon materials have great potential as electrode materials for high-performance energy storage supercapacitors.
Table 1. Surface area, pore volume, and pore sizes of the Lotus seed-derived activated carbon materials obtained by the KOH activation at different temperatures from 600°C to 1,000°Ca. Reproduced under terms of the CC-BY license from Shrestha LK. et al. (2021) MDPI.
Figure 4. Supercapacitance performance of nanoporous carbon prepared from Nelumbo nucifera (Lotus) seed by the KOH activation. (A) CV profiles of the electrodes prepared with a reference and activated samples recorded 50 mV s−1, (B) comparison of the GCD curves at 1 A g−1, which shows that sample activated at 900°C show the longest discharge time inferring highest energy storage capacity, (C) specific capacitance of all samples at different current density, and (D) cycle life up to 10,000 cycles. Reproduced under terms of the CC-BY license from Shrestha LK. et al. (2021) MDPI.
Hierarchical nanoporous activated carbon with a large surface area was prepared by KOH activation and high-temperature carbonization of Phoenix dactylifera seed as an agricultural waste (Shrestha RG. et al., 2022). The nanoporous activated carbon obtained from this biomass has a very large surface area and a large pore volume. This excellent surface porosity is due to its interconnected micro- and mesoporous structure. Due to this excellent surface property, this biomass carbon hierarchical nanoporous material has excellent electrochemical charge storage capacity as a supercapacitor electrode material. This hierarchical nanoporous activated carbon has ample potential as an electrode material for commercial and advanced supercapacitors. It is particularly important to consider the activation process and choice of activator to produce a material with a large surface area and optimal pore size distribution. This example demonstrates the importance of KOH activation in the preparation of large surface area activated carbon from biomass for the development of advanced energy storage devices.
Nanoporous activated carbon was synthesized by activation of Terminalia bellirica (Barro) seed stone, a biowaste, with zinc chloride (ZnCl2) (Gnawali et al., 2023a). Activation was carried out at relatively low temperatures (400°C–700°C) under an inert nitrogen gas atmosphere. The synthesized carbon material showed well-developed porosity. In particular, the material with the optimal surface area exhibited excellent iodine and methylene blue adsorption properties. Energy storage supercapacitance performance was also investigated, and high specific capacitance was obtained. In short, electrochemical measurements revealed excellent energy storage supercapacitance performance. Terminalia bellirica seed is also an important carbon source for producing porous carbon materials with high surface area, which is desired for adsorption technology and high-performance supercapacitor applications.
Ultra-high surface area nanoporous carbon materials with hierarchical micro- and mesopore structures were prepared from Artocarpus heterophyllus seeds (Maji et al., 2021a). In this method, the KOH activation method was performed at high temperatures, 600°C–1,000°C. Low-magnification SEM images of all materials prepared show similar microstructures with micron-sized pores on the surface of irregular granular particles (Figure 5). The surface morphology was quite different from that of the KOH-activated samples compared to those carbonized as is. In other words, KOH activation produced an ultra-high surface area nanoporous carbon material with a hierarchical porous structure in which micropores and mesopores coexist. The ultra-high surface area, large pore volume, and hierarchical micro- and mesopore structure of the material enabled it to function as a high-rate performance electrode material for supercapacitors. The experimental results suggest fast electrolyte ion diffusion of near the electrode surface. These behaviors were verified using molecular simulations. The simulation results showed that the capacitance increases as the electrolyte enters the pores. On the other hand, the charging rate was found to be lower than that of the nonporous electrode. However, the mobility of ions in the mesoporous and electric double-layer regions was similar to that of the bulk. Carbon materials with high surface area and large porosity with a hierarchical porous structure are preferred as electrode materials for high energy density supercapacitors. Hierarchical porous carbon from Artocarpus heterophyllus seed was experimentally and theoretically proved to have considerable potential to satisfy this requirement.
Figure 5. SEM images of ultra-high surface area nanoporous carbon materials with hierarchical micro- and mesopore structures prepared from Artocarpus heterophyllus seeds at high temperatures, 600, 800, 900, and 1,000°C. Reprinted with permission from Maji et al. (2021a) American Chemical Society.
3 Based on fullerene assembly
Various biomass types of precursors can be tested extensively to obtain a more ideal carbon material. On the other hand, there are other approaches to develop desired carbon materials by nanoarchitectonics from well-understood molecular structures. In particular, morphology-controlled porous carbons containing many mesopores with extended π-electron conjugation are ideal for supercapacitor applications. For example, fullerenes (C60, C70, etc.) are ideal 0D carbon molecules with extended conjugation of π electrons. In contrast to other material-type nanocarbons, such as one-dimensional carbon nanotubes and two-dimensional graphene, fullerenes can easily form a variety of self-assembled structures under controlled conditions. Recently, self-assembled fullerene nanostructures have been investigated as a π-electron carbon source for the design and synthesis of high surface area porous carbon materials (Shrestha et al., 2013a; Bhadra et al., 2022). Fullerenes form various morphologies of self-assembled structures at the liquid-liquid interface and on solid substrates. For example, the corresponding processes can create 0D spheres and particles (Jiang B. et al., 2022; Chen et al., 2022c), 1D nanowhiskers and nanotubes (Miyazawa, 2009; Shrestha et al., 2013b), 2D nanosheets and nanodiscs (Chen et al., 2021b; Song et al., 2022), and 3D nanocubes (Bairi et al., 2017; Xu et al., 2021) and horns (Tang et al., 2019). The fabrications of hierarchical superstructures, such as a combination of these structures, were also reported (Bairi et al., 2016a; Hsieh et al., 2020). Furthermore, these self-assembled fullerene nanostructures can be directly converted into high surface area nanoporous carbon materials by high-temperature heat treatment while retaining their initial morphology. The framework structure, such as graphitic or amorphous, and porosity can be controlled by carefully varying temperature conditions. The resulting nanoporous carbon materials have a large surface area and excellent electrochemical conductivity. Therefore, they are suitable for applications such as electrode materials for electric double-layer capacitors. Below are some examples of the preparation of carbon materials derived from fullerene assemblies and their supercapacitor applications.
Shrestha and co-workers synthesized self-assembled structures of fullerene C60 modulated by the nonionic surfactants of diglycerol monolaurate and diglycerol monomyristate (Shrestha et al., 2016). C60 self-assemblies prepared at the liquid-liquid interface consisting of isopropyl alcohol and a saturated solution of C60 in ethylbenzene were in the 1D form with well-defined facet structures. On the other hand, when C60 crystals were grown in the presence of 1% diglycerol monolaurate or diglycerol monomyristate surfactant in ethyl benzene, the C60 self-assembled morphology changed to a kompeito-like morphology with an average diameter of approximately 1.2 μm (Figure 6). This is thought to be an effect of reverse micelles in ethylbenzene. Self-assembled 1D faceted C60 crystals and kompeito-like C60 crystals showed strong photoluminescence. The photoluminescence maxima were blue-shifted by about 15 nm compared to the original C60. These self-assembled structures could be used to control the optoelectronic properties of fullerene nanostructures. The kompeito-like C60 crystals can be converted to highly graphitized nanoporous carbon by high-temperature treatment while maintaining their original morphology. In other words, the kompeito-like crystals were transformed into high surface area nanoporous carbon with a graphitic structure when heat-treated at 2000°C. The heat-treated nanoporous carbon with graphitized strong pore walls has a high surface area. This enhanced the electrochemical supercapacitance performance. The specific capacitance of the carbon sample was about 17 times higher than that of the original kompeito-like C60 crystal. In addition, the cycling stability was excellent.
Figure 6. (Case 1) C60 self-assemblies in the 1D form with well-defined facet structure prepared at the liquid-liquid interface consisting of isopropyl alcohol and a saturated solution of C60 in ethylbenzene: (Case 2) C60 self-assembled morphology in a kompeito-like morphology with an average diameter of approximately 1.2 μm grown in the presence of 1% diglycerol monolaurate or diglycerol monomyristate surfactant in ethyl benzene. Reprinted with permission from Shrestha et al. (2016) American Chemical Society.
Macaroni-like fullerene crystals were prepared by dynamic liquid-liquid interfacial deposition at room temperature. High-temperature treatment directly converted this structure into mesoporous carbon tubes (Figure 7) (Maji et al., 2021b). During the dynamic liquid-liquid interfacial precipitation process, the C60 molecules are not sufficiently present, resulting in a cavity in the center. A hexagonal tube with a solid core in the center is then formed. STEM and TEM analysis confirmed the presence of a solid core in the center and cavities at both ends. Macaroni-like fullerene crystals were heated under a constant flow of nitrogen gas at a high temperature of 900°C to obtain macaroni carbon tubes. The resulting carbon material maintains its initial macaroni-like morphology. High-magnification TEM images confirmed that it has an interconnected skeletal structure with a uniform pore distribution and narrow pore size distribution. The amorphous structure with graphitic carbon structure and partially developed mesoporous structures is induced by heat treatment due to the loss of crystallinity of C60. The high surface area, large pore volume, and interconnected mesopore structure of the macaroni carbon tubes exhibit excellent electrochemical supercapacitance performance. Thus, the electrochemical performance of macaroni carbon tubes derived from a π-electron-rich carbon source was superior to materials based on graphene, carbon nanotubes, activated fullerenes, or nitrogen-doped activated fullerenes. Supercapacitor properties are higher than those of other well-known carbon materials. Tubular morphology with high electrochemical conductivity and interconnected nanoporous structures that facilitating electrode charge transport are key factors in superior electrochemical performance.
Figure 7. Macaroni-like fullerene crystals prepared by the dynamic liquid-liquid interfacial deposition at room temperature, which was directly converted into mesoporous carbon tubes by high-temperature treatment. Reprinted with permission from Maji et al. (2021b) Oxford University Press.
As seen in the examples above, the energy storage performance of supercapacitors is based on ultra-high specific surface area and rapid diffusion of electrolyte ions through interconnected channels in mesoporous structures. For this purpose, nanostructured hierarchical micro/mesoporous hollow structures are necessary for carbon materials. Shrestha and co-workers prepared self-assembled fullerene-ethylenediamine hollow spheres, which were carbonized at high temperatures to fabricate hollow carbon spheres (Figure 8) (Shrestha et al., 2023b). The fullerene-ethylenediamine hollow spheres were first prepared under ambient temperature conditions using the dynamic liquid-liquid interfacial deposition method. The fullerene-ethylenediamine hollow spheres had an average outer diameter of 290 nm, an inner diameter of 65 nm, and a thickness of 225 nm. This object was carbonized at high temperatures (700, 900, 1,100°C). Nanoporous hollow carbon spheres with large surface area and large pore volume were obtained depending on the processing temperature (Table 2). In particular, the carbon material obtained by carbonization at 900°C showed optimal structural characteristics, including well-developed porosity, interconnected pore structure, and large surface area. It showed remarkable electrochemical electric double-layer capacitance properties in 1 M sulfuric acid solution. Figure 9A shows the CV profiles of the reference FE-HS sample and the carbonized samples FE-HS_700, FE-HS_900, and FE-HS_1100. Here again, all the electrodes exhibit quasi-rectangular CV curves demonstrating EDLC behavior. Note that a minor redox peak at 0.5 V (oxidation) and 0.4 V (reduction) with minor intensity can be attributed to the oxygen and nitrogen surface functionalities. In line with the porosity properties, the FE-HS_900 electrode delivered the highest total integral current among all the electrodes suggesting micropore-driven enhanced energy storage performance (Table 2). Due to a lack of porosity the reference sample FE-HS has the lowest integral current collection (Figure 9A) indicating its weak energy storage capacity. The specific surface area of the FE-HS_700 sample is significantly higher than that of FE-HS (Table 2). However, there is not much difference in the total current collection. The FE-HS_700 sample is a fullerene-EDA complex with lower conductivity compared to higher-temperature carbonized samples FE-HS_900 and FE-HS_1100. The CV recorded at different scan rates from 5 to 50 mV s−1 for FE-HS_900 and FE-HS_1100 electrodes show a sustain in the quasi-rectangular shape (Figures 9B, C), signifying quick electrolyte ion diffusion to the electrode surface promoted by the hierarchical micro/mesopore architectures. Figure 9D compares the GCD profiles at a fixed current density of 1 A g−1, which, as revealed by the CV measurements, shows that the FE-HS_900 sample, due to the optimal surface area, shows the longest discharge time, inferring the highest energy storage capacity. The FE-HS and FE-HS_700 have low Cs of 73 and 81 F g−1, respectively. On the other hand, FE-HS_900 and FE-HS_1100 exhibit much higher values of 293 and 283 F g−1 at 1 A g−1, respectively. The GCD profiles vs. current densities for the optimal sample (Figure 9E) show the retention of a quasi-rectangular shape even at a high current density of 20 A g−1. The Cs vs. current density plots (Figure 9F) reveal that the rate performances of the FE-HS_900 and FE-HS_1100 electrodes are also good, providing good specific capacitances respectively of 152 F g−1 (51.8%) and 147 F g−1 (51.9%) at the current rate of 20 A g−1.
Figure 8. Self-assembled fullerene-ethylenediamine hollow spheres, which were carbonized at high temperatures to fabricate hollow carbon spheres. Reproduced under terms of the CC-BY license from Shrestha et al. (2023b) MDPI.
Table 2. Surface textural properties (surface area, pore volume and pore size) of the fullerene C60-ethyelendiamine hollow spheres (FE-HS), and the derived porous carbons obtained by high temperature carbonization of FE-HS (700°C–1,100°C) under the nitrogen gas atmospherea. Reproduced under terms of the CC-BY license from Shrestha et al. (2023b) MDPI.
Figure 9. Electrochemical supercapacitance performance of fullerene-ethylenediamine hollow spheres derived nanoporous carbon materials. (A) Comparison of the CV curves a fixed scan rate of 5 mV s−1, (B,C) CV profiles at different sweep for the samples carbonized at 900°C and 1,100°C, (D) comparison of GCD profiles at 1 A g−1 current density, (E) GCD profiles vs. current density for the electrode with optimal surface textural properties, and (F) calculated specific capacitances of all the electrodes at different current density from 1 to 20 Ag−1. Reproduced under terms of the CC-BY license from Shrestha et al. (2023b) MDPI.
The high-performing electrode materials in the three-electrode systems (FE-HS_900 and FE-HS_1100) were considered for the supercapacitor device performance. Figure 10A shows CV profiles of the symmetric cells at a fixed scan rate of 5 mV s−1. Perfect rectangular shapes of the CV curves confirm the EDLC charge storage behavior of the cell. The total integral current in the CV curves of FE-HS_900 and FE-HS_1100 suggest that both devices have a similar energy storage capacity. Figure 10B shows the CV curves of FE-HS_900 cell at different scan rates from 5 to 50 mV s−1. The shape of the CV curve is sustained to its original rectangular shape even at a high scan rate of 50 mV s−1. This infers a fast electrolyte ion diffusion, which is promoted by the presence of mesoporous channels with interconnected pore structures. Figures 10C–E shows the GCD profiles. Similar discharge times of both cells indicate similar energy storage capacities (Figure 10C). Fast electrolyte ion diffusion is seen in the GCD profiles at a higher current density of 10 A g−1 (Figures 10D, E). The specific capacitances of the symmetric cells are found to be 164 F g−1 (FE-HS_900) and 167 F g−1 (FE-HS_1100) at a current density of 1 A g−1 (Figure 10F), followed by a good rate performance (50% capacitance retention) at 10 A g−1. Both systems showed an outstanding cycling life of 96% without substantial losses in columbic efficiency (98%) after 10,000 repeated charging/discharging cycles (Figure 10G). Figure 10H shows Nyquist plots from the electrochemical impedance spectroscopy (EIS) measurements. The semi-circular behavior in the high-frequency region with a ∼45° slope in the low-frequency region implies charge transfer resistance and Warburg impedance. This phenomenon is common in hetero-atoms (oxygen and nitrogen) holding porous carbon materials. Figure 10I summarizes the energy density performance of the symmetric supercapacitors. The devices supplied a specific energy and specific power of 7.44 Wh kg−1and 0.57 kW kg−1 (FE-HS_900) and 10.2 Wh kg−1 and 0.78 kW kg−1 (FE-HS_1100). These results indicate that carbon materials from the self-assembled fullerene-ethylenediamine hollow sphere have excellent energy storage performance as supercapacitors. Because of the simple preparation procedure, there is also great potential for scalable fabrication of carbon materials for supercapacitor applications.
Figure 10. Supercapacitance performance of the assembled symmetric cells prepared using fullerene-ethylenediamine hollow spheres derived nanoporous carbon materials carbonized at 900°C and 1,100°C. (A) CV curves of the cells recorded at 5 mVs−1 (B) CV curves at different scan rates, (C) GCD curves at 1 A g−1, (D–E) GCD profiles vs. current density; (F) calculated specific capacitance, (G) cycle performance and coulombic efficiency; (H) Nyquist plots, and (I) Ragon plots of the symmetric supercapacitors. Reproduced under terms of the CC-BY license from Shrestha et al. (2023b) MDPI.
As a new carbon material, fullerene C60 microbelt was prepared using the liquid-liquid interface precipitation method (Figure 11) (Tang et al., 2017). First, supramolecularly assembled structures of quasi-two-dimensional microbelt with a high aspect ratio of fullerene C60 were prepared at room temperature at the liquid-liquid interface of a carbon disulfide solution of fullerene C60 and isopropyl alcohol. The length of the synthesized fullerene C60 microbelt could be controlled by the synthesis conditions. Pseudo-2D mesoporous carbon microbelts were obtained by heat treatment of C60 microbelts at 900°C and 2000°C. At 900°C, the C60 microbelts were converted to an amorphous carbon structure. On the other hand, heat treatment at 2,000°C resulted in the formation of a graphite structure with densely packed graphene layers. In particular, microbelts heat-treated at 900°C had a high surface area, high pore volume, and a strong mesoporous framework developed. These structural characteristics resulted in excellent electrochemical supercapacitor performance. The carbon belts exhibited super-cycle stability: no capacity loss was observed after 10,000 charge-discharge cycles. These results suggest that quasi-two-dimensional mesoporous carbon microbelts derived from π-electron-rich fullerene C60 crystals are promising materials for electrochemical supercapacitor applications.
Figure 11. Preparation of fullerene C60 microbelt using the liquid-liquid interface precipitation method and mesoporous carbon microbelt by heat treatment at 900°C and 2,000°C. Reprinted with permission from Tang et al. (2017) American Chemical Society.
C70 is also used as a fullerene carbon source. Mesoporous crystalline fullerene C70 microtubes were first prepared by supramolecular assembly. This structure was directly converted into mesoporous graphitic carbon microtubes by heat treatment at 2,000°C (Figure 12) (Bairi et al., 2016b). The original one-dimensional tubular morphology was retained during this carbonization process. The walls of the resulting graphitic carbon microtubes were composed of ordered conjugated sp2 carbons with a strong mesoporous framework structure. In other words, mesopores have developed on the tube surface, and the crystalline C70 has been completely transformed into highly graphitized carbon. Cyclic voltammetry and chronopotentiometry measurements show that this carbon material exhibits high specific capacitance. These results indicate that fullerene C70 is a promising source of π-electron carbon; mesoporous graphitic carbon microtubes derived from C70 are also promising electrode materials for high-performance electrochemical supercapacitor applications.
Figure 12. Images of mesoporous graphitic carbon microtubes from mesoporous crystalline fullerene C70 microtubes by heat treatment at 2000°C. Reproduced under terms of the CC-BY license from Bairi et al. (2016b) Royal Society of Chemistry.
Other forms of carbon materials created from C70 are also useful in energy storage applications. Figure 13 shows that 3D mesoporous crystalline fullerene C70 cubes (MCFC) can be fabricated and thermally converted to mesoporous carbon while retaining their original cubic morphology (Bairi et al., 2019). Mesoporous crystalline fullerene C70 cubes are treated by high-temperature heat treatment at 900°C under a nitrogen gas atmosphere to obtain mesoporous carbon cubes (MCFC-900) with amorphous structure. After the carbonization, the original cubic morphology is retained in the 900°C carbon. Clear 3D cubic morphology and high porous structure are confirmed by TEM in the MCFC-900 sample. High-resolution TEM observations revealed an amorphous carbon structure (Figure 13). The synthesized mesoporous carbon cubes exhibit excellent electrochemical capacitive properties. Figure 14A compares the CV curves of MCFC and MCFC-900, i.e., before and after heat treatments at a fixed scan rate of 5 mV s−1. The total current collection of the MCFC-900 sample is much higher than that of the starting material MCFC. This suggests the higher energy storage capacity of MCFC-900 compared to the MCFC. The CV curves vs. scan rate profiles of MCFC-900 (Figure 14B) reveal rapid current response and show a quasi-rectangular shape at low scan rates, appearing to be a characteristic of EDLCs. The CV profile departs from a rectangular shape with increasing scan rates due to oxygenated functional groups on the carbon surface. Figure 14C shows the GCD profiles of the MCFC-900 recorded at different current densities. The triangular charge-discharge profile with a long discharging tail confirms that the EDLC charge storage has a large capacitance. A high specific capacitance of 205 F g−1 was calculated at a current density of 1 A g−1 followed by a very high retention of specific capacitance (56.0%) at a high current density of 20 A g−1 demonstrating the high-rate performance of MCFC-900 (Figure 14D). Furthermore, after 10,000 cycles, no decrease in specific capacitance was observed (Bairi et al., 2019). This novel mesoporous carbon with cubic morphology could be a potential electrode material for high-rate performance supercapacitors applications.
Figure 13. Preparation of mesoporous carbon cubes from mesoporous crystalline fullerene C70 cubes through heat treatment at high temperatures (900°C and 2000°C). Reprinted with permission from Bairi et al. (2019) Royal Society of Chemistry.
Figure 14. Supercapacitance performance of micro/mesoporous carbon cubes prepared by the direct carbonization of fullerene cubes at high temperature (900°C). (A) Comparison of CV curves for reference and carbonized sample at 5 mV s−1, (B) CV response at higher scan rates up to 300 mV s−1, (C) GCD profiles from 1 to 20 A g−1, and (D) the corresponding specific capacitance of the carbonized samples showing the high-rate performance of the electrode. Reprinted with permission from Bairi et al. (2019) Royal Society of Chemistry.
We have summarized the electrochemical energy storage performance of various porous carbon materials synthesized from natural biomass and synthetic carbon precursors (Table 3). It can be seen that in an aqueous electrolyte system (acidic, alkaline, and neutral medium), the specific capacitance of a single electrode in the three-electrode cell setup largely depends on the surface textural properties, pore size distribution, conductivity wet, stability, and surface functionality of the electrode materials. The overall energy storage capacity of supramolecular fullerene assemblies-derived hierarchically porous carbon materials is higher or comparable to the ultra-high surface area of microporous and nanoporous biomass carbon materials. For example, porous carbon tubes obtained by the high-temperature carbonization of macaroni fullerene crystals achieved an outstanding specific capacitance of 422 F g−1 at a current density of 1 A g−1 due to hierarchical pores with micro- and mesopore architectures and interconnected mesopore structures, which enhances the ion diffusion to the electrode surface. On the other hand, compared to macaroni fullerene crystals-derived carbon tubes, the Houttuynia biomass-derived carbon material achieved even higher specific capacitance (473 F g−1 at 1 A g−1) due to ultrahigh surface area (2090 m2g−1) and 3D hierarchically porous high nitrogen-doped carbon nanostructure (∼8 wt%) (Shang et al., 2020). The specific capacitance was further improved with the carbon nanosheets obtained from Prosopis Juliflora wood carbon waste blocks. An outstanding electrochemical performance with a specific capacitance of 588 F g−1 at 0.5 A g−1 with excellent stability (retention 92.5% after 6,000 cycles) was found in 6 M KOH electrolyte (Selvaraj et al., 2021), which was caused due to ultra-high specific surface area (2,943 m2g−1), and ample pore volume (1.83 cm3g−1) followed by a rational micro/meso/macro pore size distributed in the carbon flakes like 2D nanosheets.
Table 3. Electrochemical supercapacitance performance (comparison of specific capacitances) of porous carbon materials prepared from different biomass carbon precursors and fullerene crystals.
We have also compared the symmetric cell performances of carbon materials prepared from both carbon sources (Table 4). Most electrochemical performance studies revealed that the porous carbon materials prepared from biomass carbon precursors deliver energy density in the range of 5–60 Wh/kg depending on the surface area, pore size distribution, morphology of the carbon particles, surface functionality, wetting properties, etc. Microporous carbon materials with irregular shape particle type morphology show a high specific capacitance in the tree-electrode cell setup, especially at low current density. However, they offer a limited energy density in the symmetric cells, generally in the range of 5–10 Wh/kg, due to inappropriate pore sizes to promote ion diffusion, surface functionality to improve the wetting, and low conductivity for charge transfer at the electrode surface. For example, a symmetric cell prepared using the porous carbon prepared from Sichuan pepper achieved an energy density of 4.2 Wh/kg at a power density of 0.25 kW/kg. Compared to Sichuan pepper-derived carbon, nitrogen-doped 3D hierarchically porous honeycomb-like nanostructured carbon materials prepared from Houttuynia biomass showed superior energy density performance in the symmetric cell, offering a higher energy density of 15.99 Wh/kg at 0.5 kW/kg of power density. The energy density performance could be improved with the 3D hierarchical porous nanosheet carbon electrode obtained from Prosopis Juliflora carbon. The symmetric cell delivered a high energy density of 56.7 Wh/kg at a power density of 0.78 kW/kg in aqueous electrolyte (1 M Na2SO4) due to ultrahigh surface area, enhanced degree of graphitization, surface functionalities (nitrogen- and oxygen doping: contact angle ∼32° showing good wetting properties), and pore structure/volume. Compared to the symmetric cells prepared using biomass carbon materials, the cell prepared with the fullerene crystal-derived carbon materials offers lower energy density in the range of ∼10 Wh/kg, which is due to the lack of surface functionalities as the starting material the self-assembled fullerene crystals are purely made of fullerene molecules without any surface functionalities. However, it could sustain higher power density, an intrinsic property of supercapacitors, compared to biomass carbons. To further enhance the energy performance of the fullerene-derived porous carbons, a higher degree of graphitization and hetero-atom doping is essential to improve the conductivity and wetting of the electrode surface. With multi-dimensional morphologies of the fullerene assemblies, producing functional hierarchical porous carbons with high-energy performance supercapacitors would be advantageous.
Table 4. Comparison of the energy density of symmetric supercapacitor cells prepared using porous carbon materials obtained from different carbon sources (biomass and fullerene).
4 Summary and perspectives: biomass vs. fullerene
For summary and perspectives, examples of porous carbon materials prepared from biomass sources and through fullerene assemblies and their applications in supercapacitors are compared from viewpoints of advantages, disadvantages, future necessity, and so on.
Over the past few decades, a wide range of nanostructured materials, including nanoporous materials, have been developed as potential electrode materials for advanced supercapacitors. Most materials explored include conductive polymers, metallic nanoparticles, metal oxides, sulfides, selenides, and hydroxides. Indeed, these pseudocapacitor electrode materials undergo Faradic reaction at the electrode surface and exhibit superior specific capacitance compared to the EDLC. However, due to the low electrical conductivity, environmental harmfulness, and poor cycling stability, these materials are unsuitable for an environmentally safe society and thus are unsuccessful commercially. Therefore, massive interest has been paid to carbonaceous materials because of low-cost production, good electrical conductivity, excellent thermochemical stability, surface functionality, and environmental friendliness. Several carbonaceous materials, including elite carbon materials such as fullerene, carbon nanotubes, graphene, carbon aerogel and ordered porous carbons, carbon nanohorns, and so on, have been widely explored in energy storage systems. Porous carbon materials fabricated from natural biomass precursors have become a focus in energy storage, energy conversion, sensing, separation, and purification because these precursors are sustainable, renewable precursors, and environmentally friendly. The fabrication process is relatively simple to make it suitable for large-scale production for commercialization.
As discussed in the previous sections, hierarchically porous carbon materials with a three-dimensional network structure, ultrahigh surface area, and well-defined pore structures are highly demanded in energy storage applications, and they can be fabricated from different synthetic or natural carbon sources. We described the self-assembled fullerene crystals as excellent π-electron-rich synthetic carbon sources for producing high surface area nanoporous carbons with well-defined pore structures. Fullerene is advantageous over biomass because of its several intriguing properties that enable the fabrication of porous carbons with desired porosity and interconnectivity among the pore architectures. Furthermore, fullerene molecules (C60 and C70) function as unique functional building blocks, forming several supramolecular self-assemblies through the π-stacking interactions, enabling the facile fabrication of shape- and size-controlled fullerene crystals. One can fabricate fullerene assemblies from 0D (spheres), 1D (rods and tubes), 2D (sheet and disks) to 3D (cubes), hollow structures with tunable thickness, and hierarchical superstructures such as fullerene cubic shape core with nanorods coming out of the cube surface. Fullerene self-assemblies and the derived porous graphitic carbon materials have been well explored in gas sensing, especially volatile organic compounds. They are sensitive to toxic aromatic vapors due to strong π-π interaction promoted by the diffusion of the guest in the mesoporous structure, demonstrating its potential impact in the environment.
Interestingly, all these fullerene nanomaterials can be converted into nanoporous carbon materials upon high-temperature carbonization without losing the morphology. Thus, using fullerene crystals as the carbon source, one can quickly and efficiently fabricate nanoporous carbons with well-defined shapes, which cannot be obtained by carbonization or activation of biomass. Furthermore, fullerene crystals derived porous carbons have a higher graphitic degree compared to the biomass carbons and exhibit hierarchical pore architectures composed of both micro- and mesopore structures with interconnected pore structures, which is not so common in the activated carbons obtained from biomass. One can use fullerene crystals as the carbon source to prepare ultrahigh surface area nanoporous carbon by single-step direct carbonization without any activators. Temperature, heating ramp, and hold time are the only parameters to tune the porosity. One can keep the pentagon properties of the fullerene molecule depending on the requirement by subtly tuning the temperature.
Despite the several advantages of fullerene crystals as a carbon source, commercial fullerenes are expensive. Scale-up synthesis is essential for commercial and practical applications of porous carbon materials, which would be extremely expensive with the fullerenes. For the scale-up production of carbon materials on an industrial scale, biomass is beneficial. It is a natural and sustainable carbon source. Therefore, most of the commercial carbons are produced from biowaste, such as coconut shells, sugarcane baggage, rice husks, etc. The carbon source itself is cost-free. It’s only the processing cost of the biomass carbon. However, the carbon materials obtained by the high-temperature heat treatment of the biomass result in the formation of non-porous or low surface area carbon with poorly developed pore structures. A significant amount of chemical activating agents is required to produce high-porosity biomass carbons. Furthermore, chemically activated biomass carbon generally forms mere micropores, which is not beneficial in energy storage supercapacitor applications. For high-performance energy storage applications, porous carbon with micro- and mesopore structures is required. Mesopores, especially interconnected mesopores, serve as the channels for the electrolyte ion transfer from the solution to the electrode surface and enhance the rate and cycle performance of the supercapacitors. Another technical issue with biomass is its complex composition and compositional variation, resulting in different surface area carbons from the same biomass. Unlike the template (soft- or hard-template) synthesis of porous carbon, nanopore engineering is challenging with biomass carbons. A deeper fundamental study to tailor the pore size is required to produce hierarchically porous carbon materials from the sustainable biomass carbon source on the industrial scale at a low cost, which will be an asset in designing practical high-performance supercapacitors devices. As discussed in the symmetric cell, the performance of carbon materials prepared from different sources could deliver limited energy density, which is yet far from fulfilling society’s energy demand. Therefore, to enhance the energy density performances of biomass and fullerene-derived porous carbons, the synthesis of hierarchical porous architectures with interconnected micro-, meso-, and macropores with hetero-atom doping with a high degree of graphitization can be regarded as the strategic ideal material design. Nevertheless, choosing the appropriate biomass and approach to synthesize hierarchical porous carbon with outstanding electrochemical properties for high-performance supercapacitors is challenging. Combining biomass- and fullerene-derived materials may exhibit synergy to improve properties and capacitance performance. Furthermore, growing fullerene assemblies in the meso- and macroporous honeycombs or channels of the biomass carbons and consequent activation/carbonization may enhance the textural properties and energy density.
This short review concisely shows a variety of nanoarchitectonics approaches for nanostructured carbon materials for the same purpose as supercapacitors. Although these approaches are based on totally different sources, biomass and fullerene, the obtained properties and further demanded requirements have common features. On the other hand, these sources have different advantages and disadvantages. Nanoarchitectonics approaches are versatile for many materials, but its efficient usages require deeper considerations depending on the materials selection.
