ORIGINAL RESEARCH article
Front. Astron. Space Sci.
Sec. Low-Temperature Plasma Physics
Volume 12 - 2025 | doi: 10.3389/fspas.2025.1519446
This article is part of the Research Topic Calibration Techniques in Plasma Research View all articles
The final, formatted version of the article will be published soon.
You have multiple emails registered with Frontiers:
Please enter your email address:
If you already have an account, please login
You don't have a Frontiers account ? You can register here

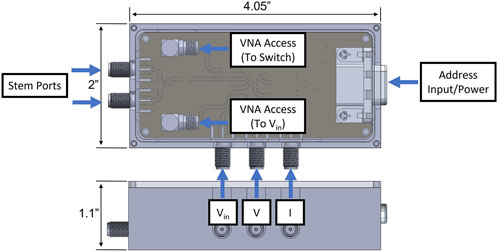

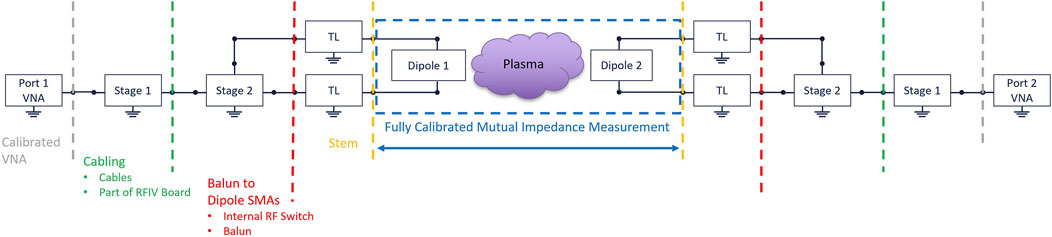

For two dipole antennas in a two-port system, an impedance calibration method is presented for situations where the dipole antennas are inaccessible during testing, but environmental changes require recalibration, such as during mutual-impedance measurements of a plasma inside a vacuum chamber. The antenna system of this study is composed of two dipoles connected by rigid coax cables to their respective calibration boxes. The boxes house surface mounted baluns, for balancing the dipoles, and surface mounted standards, for calibrating the cables. The cables connect the system through the chamber walls to the measurement hardware, a Vector Network Analyzer (VNA). The calibration method de-embeds the two dipoles without using a "through" measurement, allowing for remote calibration and recalibration during testing. Since the eventual goal of this work is to apply the calibration method to an array of dipoles for plasma impedance tomography, the lack of a "through" measurement provides the following key capabilities that removes uncertainty and significantly reduce the setup time: 1) Calibration uncertainty in the cables due to thermal changes and movement are accounted for, which has previously not been possible during plasma testing. 2) The calibration procedure inside the chamber can be fully automated, greatly speeding up the calibration time for multiple antenna pairs. 3) Without the need for a "through" measurement, the number of calibration measurements within the chamber is reduced to the number of antennas (N ) rather than the number of unique antenna pairs (N (N -1)/2). The measured S-parameters are simulated in the python package scikit-rf to de-embed the dipoles. This new virtual approach incorporates the balun common mode and eliminates error from the conventional balun characterization where only the differential mode is considered. The presented calibration method has been validated with direct measurements of known cable loads and a COMSOL simulation for a range of 1 MHz -1 GHz, equating to an electron density range of roughly 10 10 -10 16 m -3 . Extending this method to higher plasma densities could be possible with hardware that performs in the respective GHz range.
Keywords: Plasma tomography, Mutual impedance probe, De-embedding method, Plasma impedance probe, Dipole Calibration
Received: 29 Oct 2024; Accepted: 18 Mar 2025.
Copyright: © 2025 Paliwoda, Tejero and Gatling. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
* Correspondence:
Matthew Crawford Paliwoda, Naval Research Laboratory, Washington D.C., United States
