A long time-series forecasting informer architecture-based ionospheric foF2 model in the low-latitude region

Deep learning models have made great accomplishments in space weather forecasting. The critical frequency of the ionospheric F2 layer (foF2) is a key ionospheric parameter, which can be understood and predicted by some advanced new deep learning technologies. In this paper, we utilized an Informer architecture model to predict foF2 for several hours up to 48 h and analyzed its variations during periods of quiet, moderate, and intense geomagnetic conditions. The Informer method forecasts the temporal variations of foF2 by processing and training the past and present foF2 data from the Haikou station, China, during 2006–2014. It is evident that the Informer–foF2 model achieves better prediction performance than the widely used long short-term memory model. The Informer–foF2 model captures the correlation features within the foF2 time series and better predicts the variations ranging for hours up to days during different geomagnetic activities.

1 Key Points

• An Informer architecture-based model is used to forecast ionospheric foF2 at low latitudes.

• The Informer–foF2 model has advantages in predicting variations from several hours up to 48 h.

• The Informer–foF2 model forecast for geomagnetic storms is in good agreement with the observations.

2 Introduction

The F2 layer of the ionosphere has the highest degree of ionization, which is closely linked to the Global Positioning System (GPS) and other navigation systems as well as long-range, high-frequency (HF) communications. The critical frequency of F2 layer (foF2), as one of the most important parameters of radio science, controls the electromagnetic wave propagation through the ionosphere. Therefore, accurate prediction of foF2 is important and a difficult problem in space weather forecasting, especially for long time series at low latitudes (Cander et al., 1998; Rao et al., 2018; Zhang et al., 2022; Fan et al., 2019). There are many precedents for researchers to combine ionospheric phenomena with deep learning (Chen et al., 2019; Zhou et al., 2021; Wang et al., 2022; Yang et al., 2024; Hu and Zhang, 2018). Although many models could simulate and predict the ionospheric F2 layer variations, the complex changes in solar activities make the spatial and temporal variability of foF2 difficult to be predicted and even more difficult to achieve the expected performance at low latitudes. Other ionosphere models such as the International Reference Ionosphere (IRI) (empirical model) (Wichaipanich et al., 2017), random forest (machine learning model), and autoregressive integrated moving average model (ARIMA, time-series model) cannot predict the sudden changes in foF2 caused by a geomagnetic storm. These models do not perform well in long-term forecasting since they are restricted by long-range dependencies. In order to achieve improvement in the forecasting accuracy over a longer time span, deep learning techniques are implemented to forecast foF2 for a sufficiently long duration. Long sequence time-series forecasting means the forecast of high-resolution ionospheric parameters continuously ahead of a few days.

There are several studies on ionospheric modeling using the basic deep learning approach of artificial neural networks (ANNs), which began in the mid-1990s (Willscroft and Poole, 1996; Altinay et al., 1997; Sai Gowtam and Tulasi Ram, 2017; Wang et al., 2013; Kim et al., 2020; Moon et al., 2020; Li et al., 2021; Zhou et al., 2021). Williscroft and Poole (1996) used 10 years of foF2 data observed from the Grahamstown ionosonde and the sunspot number and Ap index to train a simple ANN. Altinay et al. (1997) developed a 1-h prediction model for foF2 using 10 years of foF2 data observed from the Poitiers ionosonde in Central Europe and the Kp index to train a multilayer perceptron model. Since these ANN-based models do not consider past data for the current specific period, the predictive performance cannot be applicable to the phenomena affected by the prior states that are older than the specified period and are naturally not competent for long time-series prediction tasks.

To overcome the shortcomings of the above algorithms, the long short-term memory (LSTM) algorithm, a technique that remembers past data and reflects it in predictions, was developed (Ergen and Kozat, 2018). Earlier, foF2 and hmF2 parameters were predicted by Moon et al. (2020) using LSTM models. Kim et al. (2020) used a physics-based model, which could predict up to 24 h of mid-latitude ionospheric data by inputting the parameters predicted by Moon et al. (2020). Although the LSTM-based model showed reasonably good prediction performance on geomagnetically quiet days, the model predictions are not correlated well during geomagnetically disturbed periods (Kim et al., 2021). The current LSTM model significantly improves the prediction accuracy and time span of the long time series, but its response to abrupt changes was not sufficiently rapid due to the retention of memory states (Lissa et al., 2020).

The LSTM models incorporating the attention module have been applied in long-term time-series prediction studies. The attention mechanism offers the possibility to focus on the response triggered by a certain factor Xia et al., 2022, such as the foF2 anomalies caused by geomagnetic perturbations (Liu and Guo, 2019; Rao et al., 2021). Tang et al. (2023) combined BiLSTM with Attention to predict foF2. With the widespread use of the transformer model (Vasmani et al., 2017), the fully attention-based model is applied to more and more fields, and its excellent performance has led to its use for solving long sequence time-series forecasting (LSTF) problems, but the computational complexity limitation of the transformer itself has led to unsatisfactory results. The transformer-like model Informer proposed by Zhou et al. (2021), which uses the Probsparse self-attention mechanism, has shown excellent capability in the long-term time-series prediction problem, and at the same time, the high computational speed, low complexity, and high accuracy demonstrated by the Informer are very attractive. The long-term time-series prediction of the ionospheric foF2 has been implemented in this study based on the foF2 data from the Haikou station at a low-latitude region. We achieved better long-term forecasting performance and avoided self-correction due to geomagnetic activities (Gao et al., 2020). We present the prediction results of foF2 at low latitudes using the Informer model and discuss its advantages and limitations. The Informer-based model shows great potential in solving LSTF problems and saving computing resources. From an experimental standpoint, the Informer-based model has excellent performance in time-series prediction and has great value for further research and application. In this study, we refer to the 48-h prediction as a long-term time-series prediction and attempt to find the most suitable model for long-term time-series prediction on foF2. The models constructed in this paper are applicable to the quiet, moderate, and intense geomagnetic periods, and the comparisons of these models in different periods are discussed.

3 Informer model architecture

Due to the significant correlation with the foF2 time series, recurrent neural networks (RNNs) have been extensively used in foF2 prediction. However, typical RNNs are limited in their long-term dependence due to gradient issues, which do not represent abrupt events. The transformer module by using self-attention can solve those problems to some extent, but the module is limited by computation complexity and error accumulation in the decoding process directly in long sequence time-series forecasting. So the Informer–foF2 model is developed to perform foF2 forecasting using ProbSparse self-attention to simplify the calculation and the generative decoder to output the forecast results directly (Bi et al., 2022).

The Informer model was proposed by Zhou et al., in 2021, and we fine-tuned the model to make it better at predictive tasks of foF2. Figure 1 shows the Informer–foF2 architecture. It has two critical components denoted as encoder and decoder modules. The encoder converts input information into a dense vector of fixed dimensionality and extracts features from elements to generate feature mapping. Inversely, the decoder combines the information and feature mapping to the predicted outputs.

Figure 1

Figure 1. Informer–foF2 architecture.

ProbSparse self-attention differs in finding a more active query to simplify corresponding attention calculation from traditional multi-head self-attention. The sparsity measurement of ProbSparse self-attention is shown below Equation 1.

$\overline{M}\left(q_i,K\right)=\underset{j}{\max }\left\{\frac{q_i{k}_j^T}{\sqrt{d}}\right\}-\frac{1}{L_K}{\displaystyle \sum _{j=1}^{L_K}}\frac{q_i{k}_j^T}{\sqrt{d}},(1)$

where L_k is 1/q (k_j | q_i), the i times query of sparsity measurement is defined as q_i; and q_i and k_j from Q and K, generated in the encoder training process, represent query and key vectors, respectively. ProbSparse self-attention calculates the corresponding attention between the active queries and keys, replacing the other by a uniform distribution. Attention calculation is defined as follows Equation 2, where $\overline{Q}$ is a sparse matrix and it contains the sparsity measurement:

$\overline{A}\left(Q,K,V\right)=Softmax\left(\frac{\overline{Q}{K}^T}{\sqrt{d}}\right)V.(2)$

The distilling block is using 1-d max pooling operation to accomplish feature downsampling in order to make encoder feature extraction quick and simple. The ProbSparse self-attention and distilling operations alternately stack. The encoder output feature mapping is acquired by a two-channel stack.

For the decoder architecture, the generative decoder generates all predicted outputs at once to replace the transformer’s decoder, in which it avoids the time-consuming dynamic decoding process in the encoder–decoder architecture. A decoder is composed of two decoder layers, each with a self-attention, a cross-attention, a three-layer norm, and a dropout. The decoder input is a truncation of the later part of the encoder input and a matrix with the same shape as the predicted target. After passing through the decoder, each placeholder (position to be predicted) has a vector, which is then input into a fully connected layer to obtain the predicted results.

A detailed explanation of the Informer architecture is given by Zhou et al. (2021). The specific model composition of the Informer for the foF2 prediction is shown in Table 1.

Table 1

Table 1. Specific model composition of the Informer.

The LSTM-based model and IRI will appear as contrast models to demonstrate the advantages of the Informer-based model. The LSTM model is a widely used time-series forecasting model in various fields. In previous studies, LSTM has been shown to significantly improve model prediction RMSE (root mean squared error) over empirical models such as IRI and pure time-series models such as ARIMA. LSTM is an excellent model for time-series problems with multivariate effects, especially for time-series data prediction tasks such as foF2, where the fluctuations are severe and perturbations are diverse. The principle of the BiLSTM model is similar to that of the LSTM model, and the improvement is less significant than that of the Informer. This work mainly discusses the effect of the self-attention model on the long-term time-series prediction of foF2, so LSTM is chosen as the representative model to verify the effect of the Informer. The LSTM used in this comparison has been tuned for several experiments and can basically reach the average level of the LSTM prediction models for low-latitude regions, as found in previously published results by several researchers. In order to better demonstrate the model enhancement, we also compare the model outputs with the commonly used empirical model, IRI-2016. We trained 1-h, 5-h, 12-h, 24-h, and 48-h models based on LSTM and Informer. In addition, we perform the same procedure for the corresponding IRI output for foF2 values at the Haikou station (20.0^o N and 110.1^o E), China, and use these outputs for comparisons with the actual foF2 measurements from Haikou.

4 Data and model inputs

The ionospheric foF2 measurements are manually scaled from the ionograms of the Haikou station (20.0^o N and 110.1^o E) in 1-h resolution. The solar radio flux F10.7 is available from the Space Weather website https://www.spaceweather.gc.ca/index-en.php in 1-day resolution. The geomagnetic indices such as Dst and Kp are available from the Kyoto World Data Center, https://wdc.kugi.kyoto-u.ac.jp/dstae/index.html, having resolutions of 1 h and 3 h, respectively.

The foF2 data from 1 January 2006 to 31 May 2014 are the input and target of the Informer–foF2 model. In order to ensure the input data continuity of the time-series model, the missing data of foF2 have been interpolated by the linear interpolation method. The model output at the time of the geomagnetic disturbances is generated considering F10.7, Dst, and Kp indices. The data have been processed at 1-h intervals and are shown in Figure 2. Due to foF2 exhibiting outstanding time-auto correlation, the 24-h prediction window was chosen for the study. We use the foF2 of the past 96 h to predict the foF2 of the future 48 h, which are all multiples of 24.

Figure 2

Figure 2. Actual values of (A) foF2, (B) Dst, (C) Kp, and (D) F10.7 to the Informer–foF2 model input during January 2006–May 2014.

In order to make the Informer–foF2 model fit better with the prepared training datasets, we changed the numbers of the encoder and decoder layers, multi-head attention, dropout, minimum batch size, and embedding to optimize the configuration of the proposed model. The total number of foF2 samples is split as 70% for training, 10% for validation, and 20% for testing and prediction.

To quantitatively evaluate the performance of our model, we calculated the RMSE (root mean square error), MAE (mean absolute error), MSE (mean square error), MAPE (mean absolute percentage error), and MSPE (mean squared percentage error) as evaluating indicators. The calculation methods are as follows: $RMSE=\sqrt{\frac{1}{n}{\displaystyle \sum _{i=1}^n}{\left(\widehat{y_i}-y_i\right)}^2}$, $MSE=\frac{1}{n}{\displaystyle \sum _{i=1}^n}{\left(\widehat{y_i}-y_i\right)}^2$, $MAE=\frac{1}{n}{\displaystyle \sum _{i=1}^n}\left|\widehat{y_i}-y_i\right|$, $MAPE=\frac{100\%}{n}{\displaystyle \sum _{i=1}^n}\left|\frac{\widehat{y_i}-y_i}{y_i}\right|$, and $MSPE=\frac{100\%}{n}{\displaystyle \sum _{i=1}^n}{\left(\frac{\widehat{y_i}-y_i}{y_i}\right)}^2$. Here, $y_i$ is the ground truth and $\widehat{y_i}$ is the model prediction. The primary reference metric is RMSE.

5 Results

Table 2 summarizes the performance of the models used in the study. The Informer–foF2 model achieves the best performance among different models. The results have shown that the Informer–foF2 model shows better predictive performance for lower RMSE by approximately 17%, 47%, 29%, 35%, and 27% compared to the LSTM–foF2 model. Moreover, the Informer model significantly outperforms the best level of LSTM models, as shown in Table 2. Figure 3 shows the RMSE of LSTM–foF2 and Informer–foF2 models. Informer has a significant improvement in prediction accuracy and is more accurate for long-term (5–48 h) forecasting. It is more suitable for long-term forecasting than LSTM and is far superior to the IRI-2016 model. Therefore the IRI-2016 model will not be referenced for comparison in the latter picture.

Table 2

Table 2. Accuracy of foF2 forecasting compared to the IRI-2016 model and other LSTM observations.

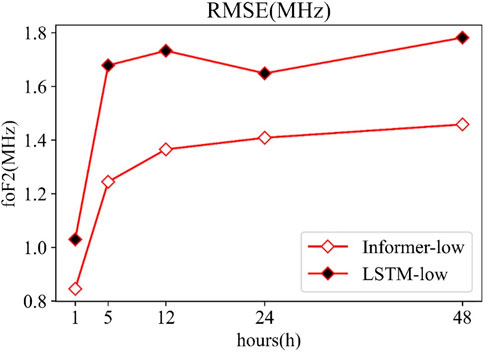

Figure 3

Figure 3. RMSE score of each model. The white dots represent different time span prediction models based on Informer, while the black dots represent LSTM-based models.

Figure 4 shows the RMSE of Informer–foF2 for each hour during the entire 48-h prediction. The forecast errors corresponding to the 24th hour and 48th hour are marked in red, with a significant decrease compared to other points in the forecast. It is obvious that as time goes on, the errors increase gradually but not linearly; after approximately 15 h, the increase in RMSE becomes gentle. It shows that the Informer–foF2 model has enormous advantages in long-term time-series prediction, and we believe that the correlation among foF2 data also plays an important role in this work. The results have also shown clear 24-h diurnal periodicities at the Haikou station.

Figure 4

Figure 4. Informer–foF2 RMSE of each predicts step. 1 to 48 represent each predicted value for the next 48 h, marked in red at 24 and 48 h.

Figure 5 shows that the diurnal variations of foF2 are contained within 2-day forecasts for the low-latitude region, where the predictive output of the Informer and LSTM models is benchmarked against actual measurement values. The blue solid line denotes the forecasts by the Informer model, the black dashed line indicates LSTM outputs, and the red dotted line is the actual foF2 measurements. During the spring equinox, the prediction curve of the Informer-48 model aligns more closely with the actual values. At the summer solstice, the LSTM-48 model prediction deviates significantly at approximately 10 h, and in the latter half of the prediction window, both model prediction curves diverge from the actual values to some extent; however, the difference curve shows that the Informer-48 model performs relatively better. Around the autumn equinox, both models perform similarly for the initial 36 h, but beyond this point, the LSTM-48 model prediction curve noticeably deviates from the actual data, demonstrating the Informer-48 model’s advantage in longer-term predictions. During the winter solstice, it is observed that the model performance deteriorates, starting approximately 36 h toward the end of the prediction window, with the LSTM-48 model exhibiting significantly more fluctuations than the Informer-48 model. Thus, the Informer-based ionospheric F2 layer critical frequency prediction model exhibits superior performance in low-latitude ionospheric foF2 forecasting, showing substantial advantages over the LSTM model.

Figure 5

Figure 5. Figure shows the comparison between the Informer-48 and LSTM-48 model predictions against the actual values around the spring equinox, summer solstice, autumnal equinox, and winter solstice. (A) shows the comparison of the Informer model with the actual observations of foF2. (B) shows the comparison between the predicted values of the LSTM model and the measured values of foF2. (C) shows the difference between the predicted and measured values of the two models.

In order to show the performance of the Informer–foF2 model in the storm period, two storm events have been selected, which occurred on 17 March 2013 and 28 March 2013 (Figures 6, 7). The storm on 17 March had a Dst minimum of −131 nT (03 LT, 19 March), while the storm on 28 March had −59 nT (20 LT, 28 March) (Shim et al., 2018). The blue line represents the results of the Informer 48-h prediction model of the event (the labels in the figures is Informer-48); the (Rao et al., 2021) black line represents the results of the LSTM 48-h prediction model (the labels in the figures is LSTM-48); the pink and green lines represent the results of the Informer and LSTM 1-h prediction models (the labels in the figures are Informer-1 and LSTM-1), respectively; and the red line is the real foF2 value (the labels in the figures is REAL). The gray region needs special attention as it can more clearly distinguish the performance differences of the models.

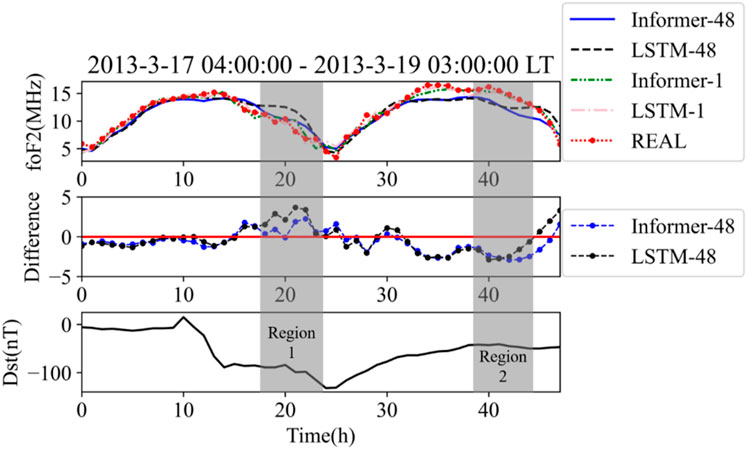

Figure 6

Figure 6. Comparison between the observed values and predicted foF2 values during the intense geomagnetic storm on 17 March 2013.

Figure 7

Figure 7. Comparison between the observed values and predicted foF2 values during the moderate geomagnetic storm on 28 March 2013.

As shown in Figure 6, the measured foF2 values at the Haikou station are presented alongside the predicted foF2 values by both the Informer–foF2 and LSTM–foF2 models. During the intense geomagnetic storm, the Dst index plummeted to approximately −120 nT and persisted for an extended period, inducing fluctuations in foF2, which in turn affect the performance of predictive models, particularly those spanning longer durations. It is evident that prior to the storm, the actual measurements closely align with the predictions from the Informer–foF2 model. As the storm commences, both models continue to approximate the actual foF2 values well, and upon examining the differences between the predicted and measured values, the results from the Informer-48 and LSTM-48 models are remarkably similar, suggesting that both the LSTM and Informer models provide a good fit for the data to be forecasted in the initial phase of long sequence time-series predictions.

Notably, as the Dst index hovers at approximately −100 nT for approximately 10 h before continuing its descent, a significant deviation is observed in the LSTM 48-h prediction model from the actual values during this period, as shown in the gray-shaded area 1, whereas the Informer-48 model maintains a good performance. A shortcoming of the 48-h models is their inability to accurately grasp fluctuations that oscillate within smaller time intervals; the attention-based Informer model exhibits a pronounced advantage in unpredictable fluctuation events such as geomagnetic storms. As the storm gradually abates, a brief resurgence in the predictive accuracy of both models is observed. However, it is clear that the predictions from the Informer-48 and LSTM-48 models begin to diverge from the actual ionospheric foF2 values, particularly toward the end of the forecasting window, as depicted in gray-shaded area 2, where both models’ predictions substantially veer off the true foF2 curve, with the discrepancies significantly increasing. In addition to the objective influence of time and the cumulative effect of predictive errors, the persistent impact of the storm’s incomplete recovery should be considered, with all three factors contributing to the substantial divergence in the predictive models. The aforementioned temporal objective influence refers to the noticeable decline in model performance during nighttime (Feng et al., 2021). Both gray areas 1 and 2 occur during the local time interval of approximately 22:00 to 4:00, where a considerable drop in model performance is evident. Overall, the Informer-48 ionospheric foF2 prediction model exhibits a certain superiority over the LSTM-48 model, clearly closer to predicting the true values.

Figure 7 shows that, compared with the characterization of the strong magnetic storm described in Figure 6, the prediction accuracy of the model for the moderate magnetic storm is significantly closer to the measured value. In the 10 h preceding the forecast, both the Informer-48 and LSTM-48 models exhibit deviations from the actual foF2 measurements, with the Informer-48 predictions more closely mirroring the actual data. At the minimum of the Dst index within gray-shaded area 1, the Informer-48’s forecasted values are seen to align almost congruently with the actual foF2 measurements, whereas the LSTM-48’s forecasts display a discernible discrepancy, highlighting the LSTM model’s difficulties in capturing the abrupt shifts associated with geomagnetic activity. In the waning hours of this event, as denoted by gray-shaded area 2, the Informer-48 model’s performance remains superior to that of the LSTM-48 model. This advantage in the predictive capability at the end of the forecast window further underscores the Informer-48 model’s proficiency in accurately undertaking long-duration foF2 forecasting tasks.

Figure 8 describes the performance of the low-latitude forecasting model during a geomagnetic quiet period, providing a lucid illustration of the model’s capabilities when the perturbations of magnetic storms are absent. At the inception of the forecast, as highlighted by the gray-shaded area 1 in the diagram, the LSTM-48 model’s predictions manifest a notable deviation from the actual measurements. Similarly, within gray-shaded area 2, the LSTM-48 model continues to demonstrate suboptimal performance, starkly contrasted by the Informer-48 model’s precise mirroring of the actual foF2 trajectory. These specific intervals correspond to the periods of gradual decline from the day’s peak foF2 values, where the LSTM’s retention of historical temporal data may be the culprit of the observed predictive inaccuracies. This underscores the advantage of utilizing the one-step generative decoder inherent to the Informer-48 model.

Figure 8

Figure 8. Comparison between the observed values and predicted foF2 values during the geomagnetic quiet period.

We calculate the RMSE of models, as shown in Figures 6–8, to more visually display the performance of the mode during geomagnetic storm events and quiet period. The results are shown in Table 3. The calmer the geomagnetic activity, the smaller the model prediction error will be. This is because the occurrence of geomagnetic storms is very sudden, and their effects are difficult to predict, and even introducing many parameters to assist in prediction will inevitably have a certain lag, affecting the model prediction results.

Table 3

Table 3. RMSE score of 48-h models in events.

Combining various factors, the Informer model demonstrates great performance in the foF2 prediction task, while showing good stability and prediction accuracy in the long duration time series, and it captures general trends of variations during the storm.

6 Conclusion

In this paper, the Informer long-term time-series architecture is implemented to forecast the ionospheric foF2 variation in the low latitude. The model input is the ionospheric foF2 data at the Haikou station, China, along with space weather parameters Kp, F10.7, and Dst from 2006 to 2014. Prediction results are compared with the output values of traditional LSTM models and are analyzed in detail during moderate and intense geomagnetic storm events, separately. The overall performance of the model for all the events was discussed, and the conclusion was drawn that the prediction performance of the model is degraded at night. The analysis of events also demonstrated the superior advantage of the informer model in long-term (from hours to within 2 days) sequence prediction tasks. In the measurement examples used for verification, the Informer–foF2–48 h model predicts foF2 parameters with the RMSE of 1.245 MHz and shows that the prediction accuracy maintains stability as the prediction window expands. The RMSE demonstrates that the proposed method performed well in long-term time-series prediction compared with other models and captured some variations in the ionospheric foF2. The prediction results of the proposed Informer–foF2 model provide insights into ionospheric foF2 prediction at low latitudes and long-term time-series prediction from hours up to 2 days. The Informer-based ionospheric foF2 prediction model proved that it can forecast the continuous change in ionospheric foF2 more accurately and more reliably than existing methods.

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author contributions

FQ: writing–original draft and writing–review and editing. Z-YX: writing–review and editing. Q-HZ: writing–review and editing. H-BZ: writing–review and editing. S-RZ: writing–review and editing. YW: writing–review and editing. Y-ZM: writing–review and editing. DZ: writing–review and editing. SL: writing–review and editing. VM: writing–review and editing.

Funding

The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. The work was supported by the National Natural Science Foundation of China (Grants 42325404, 42120104003, and 42204164), the Stable-Support Scientific Project of China Research Institute of Radiowave Propagation (Grant A132312191), the Chinese Meridian Project, the China Postdoctoral Science Foundation (Grant 2021M701974), and the foundation of National Key Laboratory of Electromagnetic Environment (Grant No. 6142403230102).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
