Thermospheric nitric oxide energy budget during extreme geomagnetic storms: a comparative study

We selected three superstorms (disturbance storm time [Dst] index less than −350 nT) of 2003–04 to study the thermospheric energy budget with a particular emphasis on the thermospheric cooling emission by nitric oxide via a wavelength of 5.3 μm. The nitric oxide radiative emission data are obtained from the Sounding of the Atmosphere by Broadband Emission Radiometry (SABER) instrument onboard the Thermosphere Ionosphere Mesosphere Energetics and Dynamics (TIMED) satellite and the thermosphere ionosphere electrodynamic general circulation model (TIEGCM) simulation. Different energy sources for the magnetospheric energy injection and the thermospheric/ionospheric dissipation processes are calculated using empirical formulations, model simulations, and space-borne and ground-based measurements. The Joule heating rates calculated from different sources showed similar variations but significant differences in the magnitude. The nitric oxide cooling power is calculated by zonally and meridionally integrating the cooling flux in the altitude range of 100–250 km. The satellite observed that cooling flux responds faster to the energy input, as compared to the modeled results. The cooling power increases by an order of magnitude during storm time with maximum radiation observed during the recovery phase. Both the satellite-observed and modeled cooling powers show a strong positive correlation with the Joule heating power during the main phase of the storm. It is found that the maximum radiative power does not occur during the strongest storm, and it strongly depends on the duration of the main phase. The model simulation predicts a higher cooling power than that predicted by the observation. During a typical superstorm, on average, a cooling power of 1.87 × 10⁵ GW exiting the thermosphere is estimated by the TIEGCM simulation. On average, it is about 40% higher than the satellite observation.

1 Introduction

The solar wind and the plasma embedded in the interplanetary magnetic field (IMF) are the dominating sources of energy for the coupled magnetosphere–ionosphere system. The interaction between the magnetosphere and IMF controls the solar wind energy input into the magnetosphere (Dungey, 1961). The process of interaction can lead to the well-known phenomenon “the geomagnetic storm” that affects the whole magnetosphere–ionosphere–thermosphere (MIT) system enveloping the space environment of near-Earth satellites (Baker et al., 2004; Eastwood et al., 2017). The largest/strongest geomagnetic storms are usually associated with the high-speed solar wind and extreme values of the southward IMF. When the IMF is southward oriented, an enormous amount of solar wind energy is transferred into the magnetosphere. The solar wind–magnetosphere coupling is about two orders higher for the southward IMF Bz than that for the northward IMF Bz (Tsurutani and Gonzalez, 1994). Consequently, little amount of energy is allowed to enter the magnetosphere if the orientation of the IMF Bz is northward.

Extreme geomagnetic storms (disturbance storm time [Dst] $<$ −350 nT) mostly occur within ±2–3 years of the peak solar cycle. They are of huge significance so far as the social and technological importance is concerned (Baker et al., 2004; Eastwood et al., 2017). The extreme storms can create hazardous impacts on ground-based and space-borne technologies, such as satellite damage and communication and navigation failures. For instance, the Halloween storm of October–November 2003 caused geomagnetically induced current (GIC) on the ground, power grid failure, and radiation outage affecting about 60% of Earth and space science missions (Rosenqvist et al., 2005; Kataoka, 2022a). This event also resulted in one of the strongest substorms in the history in northern Scandinavia (Rosenqvist et al., 2005). Extreme storms are rare. However, they deposit a huge amount of solar wind energy into the MIT system, more than an order of magnitude compared to a typical intense storm. Sometimes, a minor storm can destroy the satellite systems (Kataoka, 2022b). The impacts of the superstorms on the space environment, space technologies, and space communication are extremely hazardous. It is important to investigate the energy evolution during extreme storms. However, to the best of our knowledge, no study has reported on the energy evolution, in combination with the nitric oxide (NO) cooling emission, during extreme geomagnetic storm events.

In addition, solar wind energy deposition, particularly during extreme geomagnetic storms, causes large-scale global perturbations in the MIT system including the thermospheric energetics and dynamics through the processes of Joule heating and energetic particle precipitation (Sinnhuber, 2012). Several studies report on the impacts of the extreme geomagnetic storms on the MIT system (Lu et al., 1988; Vichare et al., 2005; Sutton et al., 2005; Krauss et al., 2015, 2018; Bag et al., 2014, 2021, 2023a, b, Bag., 2018; Bharti et al., 2018; Oliveira et al., 2020; and references therein). Horvath and Lovell (2010) observed the large-scale propagation of ionospheric disturbances and their impact on the equatorial ionization anomaly during extreme geomagnetic storms. Liu and Lühr (2005), by analyzing the CHAMP satellite observations, reported about 400%, 500%, and 800% enhancement in the thermospheric density at 400 km during the extreme storms of 29–30 October 2003, 30–31 October 2003, and 20–22 November 2003, respectively. Similarly, huge thermospheric density enhancement has been reported from different satellite observations and model simulations (Sutton et al., 2005; Krauss et al., 2015; 2018; National Science and Technology Council, 2018).

The primary mechanisms for the dissipation of the solar and magnetospheric energy input into the MIT are the ring current dissipation, auroral particle precipitation, and Joule heating. Among these, Joule heating is by far the dominating mechanism of energy dissipation (Kozyra et al., 1998; Lu et al., 1998) and is of greater importance due to its huge global implications in affecting the neutral species. It was believed that only about 10% of energy input is dissipated through Joule heating and particle precipitation when Perreault and Akasofu (1981) derived the epsilon parameter (Knipp et al., 1998; Lu et al., 1998; Turner et al., 2001; Tanskanen et al., 2002). However, this amount is increasing gradually. Turner et al. (2009) suggested that about 71%, 17%, and 12% of the total energy are transferred to Joule heating, particle precipitation, and ring current, respectively, during coronal mass ejection (CME)-driven storms. About 68%, 22%, and 10% of the total energy is transferred to Joule heating, particle precipitation, and ring current, respectively, during corotating interaction region (CIR) storms. On the other hand, Hajra et al. (2014) reported about 50% of Joule heating during CIR events. The energy partitioning strongly depends on the solar origin of geomagnetic storms (Perreault and Akasofu, 1978; Knipp et al., 1998; Lu et al., 1998; Turner et al., 2001, 2009; Guo et al., 2012; Chen et al., 2014; Verkhoglyadova et al., 2016). It is now established that the CIR-driven storms are more geoeffective than the CME storms because of the longer-time energy depositions. Earlier studies show that the time-integrated energy input during CIR storms can be larger than that during a typical CME-driven storm (Kozyra et al., 2006; Turner et al., 2009). However, during short periods, the strongest CME-driven storms are more geoeffective than the CIR-driven storms as far as thermospheric density is concerned (Krauss et al., 2015, 2018). The ionospheric efficiency exponentially decreases with an increase in the solar wind input for solar wind input less than 3,000 GW (Guo et al., 2012). It also strongly depends on the clock angle and is independent of the dynamical pressure (Lu et al., 1998; Vichare et al., 2005; Alex et al., 2006; DeLucas et al., 2007; Turner et al., 2009; Guo et al., 2012, and references therein).

In addition to the ionospheric processes such as downward molecular heat conduction, vertical advection, and adiabatic heating, the radiative emission by nitric oxide via a wavelength of 5.3 μm also significantly redistributes the energy input during geomagnetic storms (Maeda et al., 1989; 1992; Mlynczak et al., 2003; 2005; Verkhoglyadova et al., 2016). The NO radiative emission at 5.3 μm is the dominating thermospheric coolant at the altitude of 100–300 km and well known as a “natural thermostat” (Kockarts, 1980; Mlynczak et al., 2003). The primary source is the inelastic collision of nitric oxide with atomic oxygen density.

$NO\left(\nu =1\right)+O\to NO\left(\nu =0\right)+O.(1)$

Under low-latitude sun-lit conditions, molecular nitric oxide is produced by the inelastic collision between atomic nitrogen (N²D) and molecular oxygen (Barth, 1992; Richards, 2004; Gardner et al., 2005). In addition, during geomagnetic storms and in the high-latitude region, nitric oxide is generated by particle precipitation through a series of chemical reactions. The N₂ molecule is dissociated by the auroral electrons of energy 1–10 keV and ions with an energy of 10–20 keV to produce N(²D), whereas the auroral electrons with energy in the range of 0.3–0.9 keV dissociate molecular nitrogen to produce N(⁴S) (Barth, 1992; Richards, 2004; Gardner et al., 2005). They, again, interact with oxygen molecules to form NO, as given below:

$N\left({}^{4}S,{}^{2}D\right)+O_2\to NO+O.(2)$

This reaction mechanism is important above 110 km because it is highly sensitive to the thermospheric temperature (Gardner et al., 2005).

Under geomagnetic quiet conditions, the radiative cooling balances the EUV/UV heating and the chemical heating (Lin and Deng, 2019). The NO cooling emission also affects the long-term trend of the thermospheric temperature and density. By using the Global Ionosphere Thermosphere Model simulation, Lin and Deng (2019) reported about −17% decadal change in the total NO cooling power during 1982–2013. The NO cooling emission also strongly depends on the solar activity. Li et al. (2018) reported a strong solar cycle dependence of the maximum cooling rate by Sounding of the Atmosphere using Broadband Emission Radiometry (SABER) measurements onboard the Thermosphere Ionosphere Mesosphere Energetic and Dynamics (TIMED) satellite and the Thermosphere–Ionosphere–Electrodynamics General Circulation Model (TIEGCM) simulation during 2005–2016. Furthermore, they outlined a strong discrepancy between the TIEGCM simulation of the maximum NO cooling rate and TIMED/SABER measurement at the local noon during solar minimum. The NO emission exhibits strong latitudinal variations. By analyzing 15 years (2002–2016) of TIMED/SABER observations, Tang et al. (2017) showed that the NO cooling flux at the polar region is about three times larger than the equatorial value. The NO cooling emission also undergoes a significant enhancement during geomagnetic storm periods due to its sensitivity to Joule heating and particle precipitation (Lu et al., 2010; Mlynczak et al., 2003, 2010; Knipp et al., 2013, 2017; Bag., 2018; Bharti et al., 2018; Bag et al., 2021, 2023a, b; Li et al., 2018; Lin and Deng, 2019; Lin et al., 2019; and references therein). In addition, earlier studies show that NO cooling emission can contribute to the overcooling of the thermosphere and density overdamping due to the early and excessive production of NO density (Lei et al., 2012; Knipp et al., 2017). This makes it an important and key parameter in quantifying the thermospheric energy budget during space weather events. Lu et al. (2010), using 7 years (2002–2008) of TIMED/SABER observations and TIEGCM simulation, showed that the global NO radiative energy output at 5.3 μm accounts for about 80% of the global Joule heating energy input during geomagnetic storm periods. Lin and Deng (2019) reported that NO cooling is strongly modulated by the particle precipitation with dominant contributions from electrons in the energy range of 1.4–3.1 keV. Other observations reveal that different solar wind drivers can lead to different IT responses due to local ionization in the thermosphere and that the solar wind and IT preconditioning may play important roles in affecting NO cooling emission (Verkhoglyadova et al., 2015).

In the present study, we investigate the thermospheric energy budget, with a particular emphasis on nitric oxide cooling emissions, during the extreme geomagnetic storms with a Dst index less than −350 nT during 2003–2004 using the TIEGCM simulations and TIMED-SABER satellite observations of nitric oxide infrared emission at 5.3 μm. This article is structured into four sections. Section 2 provides an introduction to the datasets and analysis methods used in this study. It includes the calculation of the solar wind energy input into the magnetosphere and subsequent energy dissipation mechanisms in addition to the brief information about different geomagnetic indices and interplanetary solar wind parameters used. The corresponding energy budget and possible causes are discussed in Section 3. We conclude this paper with a summary in Section 4.

2 Methodology, data acquisition, and analysis

2.1 Energetics of the solar wind and magnetosphere

The southward orientated IMF is an important condition for the solar wind energy transfer into Earth’s magnetosphere via magnetic reconnection (Koskinen and Tanskanen, 2002). The kinetic energy rate of the solar wind, with mass density ρ and speed V_sw, impinging on the magnetosphere is given as

$K{E}_{sw}=\frac{1}{2}\rho V_{sw}^{3}A,(3)$

where A is the cross section of the dayside magnetosphere, usually taken as 30 Re², where Re is the radius of Earth (Weiss et al., 1992). About 1%–7% of solar wind kinetic energy enters the magnetosphere (Ebihara et al., 2019).

There is no direct means of observations to quantify the amount of solar wind energy entering the magnetosphere (Koskinen and Tanskanen, 2002). However, several solar wind-derived proxies have been developed. Each proxy/function has slightly different properties depending on its purpose, and so, the absolute magnitude depends on the scaling (Akasofu, 1980; Koskinen and Tanskanen, 2002; Palmroth et al., 2004). In the present study, we use the well-known Akasofu (ϵ) parameter to quantify the solar wind–magnetosphere coupling. It represents the rate of energy input into the magnetosphere (Perreault and Akasofu, 1978). The Akasofu parameter (or the ϵ parameter) is given as (in SI unit)

$\mathrm{ϵ}\left(W\right)=\frac{4\pi }{{\mu }_o}v{B}^{2}si{n}^4\left(\frac{\theta }{2}\right)L_o^2,(4)$

where v is the solar wind speed, B is the interplanetary magnetic field, and θ is the clock angle $(\theta =ta{n}^{-1}(\frac{B_y}{B_z}))$ in the plane perpendicular to the Sun–Earth line and provides the reconnection efficiency. Hence, the rate of solar wind energy input into the magnetosphere varies depending on the solar wind and interplanetary field condition. When the orientation of the magnetosphere and IMF is antiparallel, the energy input rate is maximum. It decreases for a smaller clock angle. The scale parameter Lo is considered to be fixed at 7 Re under the assumption of the stationary daytime magnetopause (Perreault and Akasofu, 1978; Baker, 2000). The position of the daytime magnetopause varies with the solar wind dynamic pressure. The boundary of the Chapman–Ferraro magnetopause (L_cf) should be considered in determining the dayside magnetopause boundary. The Chapman–Ferraro magnetopause distance is calculated using the balance between kinetic plasma and magnetic pressure and is given as $L_{cf}={(B_o/4\pi \rho V_{sw}^2)}^{1/6}\mathit{R}\mathit{e}$ (Sibeck et al., 1991; MacMahon and Gonzalez, 1997).

2.2 Thermospheric/ionospheric energy dissipation

2.2.1 Joule heating power

The energy input into the MIT system is dissipated by the processes of Joule heating, auroral particle precipitation, and ring current apart from the radiative cooling emission. Joule heating is by far the dominant dissipation mechanism and is closely related to the geomagnetic activity level. Knipp et al. (2004) parametrized the Joule heating power by using the Dst index and polar cap (pc) index. The Dst index is interchangeable with the SYM-H index. The pc index is used as a proxy to measure the polar ionospheric electric field due to the solar wind impacts (Troshichev et al., 1986). Since the extreme storms considered in the present study occurred during October–November, we used global Joule heating power corresponding to the winter season, which is given as JH (GW) = 13.36|PC| + 5.08PC² + 0.47|Dst| + 0.0011Dst² (Knipp et al., 2004). We used hourly values of polar cap and SYM-H data (with the SYM-H index substituted for the Dst index) (Wanliss and Showalter, 2006). In addition, we also utilized the global Joule heating power from the TIEGCM simulations; the details about the calculations are given in Section 2.5.2.

2.3 Particle heating power

The particle heating power data are obtained from the Defense Meteorological Satellite Program (DMSP) F13 satellite observations. The DMSP satellite has an ion/electron precipitation spectrometer apart from other instruments. It measures the ions and electron precipitating flux from 30 eV to 30 keV in 20 logarithmic energy scales. The integrated ion or electron differential energy flux provides the total precipitating particle flux (Rich et al., 1985). The DMSP hemispheric power data are acquired from the Institute for Scientific Research, Boston College (Kevin Martin, private communication, December 2022).

2.3.1 Ring current power

The disturbance storm time (Dst) index is commonly used to estimate the strength of geomagnetic storms (Yokoyama and Kamide, 1997). It roughly represents the fluctuation in the horizontal component of Earth’s magnetic field and is inversely related to the energy content of the ring current (Dessler and Parker, 1959; Sckopke, 1966). Other current systems such as the magnetopause current also contribute to the Dst index. Consequently, the Dst value for solar wind needs to be ram pressure-corrected as (Burton et al., 1975)

$Ds{t}^{*}=Dst-b\sqrt{P}+c,(5)$

where P is the solar wind dynamic pressure and coefficients are b = 8.74 nT ${(nPa)}^{\frac{1}{2}}$ and c = 11.54 nT (Turner et al., 2001).

The ring current energy and its relationship with the Dst index are provided by the Dessler–Parker–Sckopke (DPS) equation (Dessler and Parker, 1959; Sckopke, 1966). It is closely related to the southward orientation of the IMF. The ring current injection rate (power) can be expressed in terms of the pressure-corrected Dst index (Akasofu, 1980) as

$P_{RC}\left(W\right)=-4\times 10^3\left(\frac{\partial Ds{t}^{*}}{\partial t}+\frac{Ds{t}^{*}}{\tau }\right).(6)$

The scaling factor 4 × 10³ is due to the assumption of the symmetric ring current in the dipole magnetic field (Akasofu, 1980). The first term within the bracket is proportional to the energy storage rate of the ring current. If the sign of the first term is negative (positive), it indicates energy stored (dissipated). The second term represents the ring current energy dissipation (Liemohn et al., 1999; Ebihara and Ejiri, 2000). The ring current dissipation power strongly depends on the value of the ring current life time (τ), which, in turn, depends on the value of the pressure-corrected Dst index. Different researchers have developed different methods to calculate the decay parameter (Alexeev et al., 1996; MacMahon and Gonzalez, 1997; Kamide et al., 1998a, b). Valdivia et al. (1996) suggested that the variation in decay time = 12.5/(1–0.0012 Dst), whereas MacMahon and Gonzalez (1997) proposed that the decay time is proportional to Dst^−1.5. Yokoyama and Kamide (1997) used a constant value of decay time as 4 h, 8 h, and 20 h for storms of different intensities. Similarly, Lu et al. (1998) used different values of τ depending on the value of the Dst index: τ = 4 h for Dst* < − 50 nT, τ = 8 h for −50 nT$<Ds{t}^{*}<-30$ nT, and τ = 20 h for Dst* > − 30 nT. On the other hand, ÓBrien and McPherron (2000) reported that the ring current decay time does not vary with the Dst index and depends on the interplanetary electric field due to the position of the magnetospheric convection boundary. In the present study, the procedure suggested by Lu et al. (1998) is used for estimating the decay time.

2.4 Selection of storms and solar/interplanetary and magnetic data

Since the TIMED-SABER satellite has become operational, three extreme geomagnetic storms have occurred with a Dst index of less than −350 nT. These events are (1) 28 October–01 November 2003, “the Halloween storm;” (2) 19–22 November 2003; and (3) 6–10 November 2004. The modified solar and magnetic data with a time resolution of 1 min are obtained from OmniWeb. The data with 1-min resolution are definitive of wind/SWE plasma shifting to the bow shock nose, which involves the combination of the data from bow shock-shifted Advanced Composition Explorer (ACE), wind, IMP-8, and Geotail spacecraft. The Akasofu parameter is obtained from the SuperMAG database, which uses the modified 1-min resolution data from OmniWeb. SuperMAG calculates the Akasofu parameter by assuming a stationary dayside magnetopause condition. It is to be noted that the solar wind and interplanetary data are not available for the most part of the 28 October−01 November 2003 storm. For this event, the solar wind plasma and magnetic field data are obtained from the study by Skoug et al. (2004) and converted to GSM coordinates. Skoug et al. (2004) used plasma measurements from Solar Wind Electron Proton Alpha Monitor (SWEPAM) and the magnetic field observations from magnetic field experiments (MAG) onboard the ACE spacecraft. The ACE spacecraft is located at L1 Lagrangian point (McComas et al., 1998; Smith et al., 1998). The SWEPAM analyzes measure ions and electrons, in the range of 250–35,700 eV/q and 2–1,370 eV, respectively. The velocity distribution functions for ions and electrons are derived from the measured counts. The momentum integral of the velocity distribution function is used to obtain density, velocity, and temperature. The SWEPAM ion instruments collect data in two modes: the normal “track” mode and search mode. Each mode takes approximately 64 s to obtain a complete measurement. In the track mode, the ions are measured at 40 energy scales in the range of 250–35,700 eV/q with 5% resolution, whereas 10%–12% energy resolution is used in the range of 26–17.900 eV for the search mode. During the October–November 2003 event, the solar wind tracking algorithm failed from 1241 UT on 28 October to 0051 UT on 31 October 2003. Only search mode data with energy up to 17.9 keV are available during this period. It could not cover the complete solar wind energy range. The uncertainties in the speed, density, and temperature are about 1.5%, 15%, and 20%, respectively, under typical solar wind conditions. However, the uncertainty is significantly higher for the search mode due to reduced energy resolution. Furthermore, the density obtained from SWEPAM at 06:00 UT on 29 October–00:40 UT 30 October is too low; the ion density obtained during the mentioned period is about a factor of 2–5 lower than the electron density obtained from the Plasma Wave Instrument (PWI) on the Geotail spacecraft (refer to Skoug et al. (2004) for more details on the solar wind plasma and magnetic field data during this event). The solar wind dynamic pressure (Pdyn) is calculated by using proton density (ρ) and solar wind speed V (Pdyn = ρV²).

2.5 Nitric oxide infrared radiative cooling emission

The NO 5.3-μm emission effectively converts the kinetic energy into radiative energy at an altitude of above 100 km (Kockarts, 1980). In the present study, we utilized SABER observations onboard the Thermosphere Ionosphere Mesosphere Energetic Dynamics satellite and the Thermosphere Ionosphere Electrodynamics General Circulation Model simulation results to investigate the thermospheric energy budget during extreme geomagnetic storm periods.

2.5.1 TIMED/SABER observation of nitric oxide radiative emission

SABER is one of the four instruments onboard the TIMED satellite. It covers the hemisphere asymmetrically from approximately 53° in one hemisphere to 83° in another due to the anti-sunward view. SABER is a limb sounder that scans Earth’s atmosphere from approximately 400 km to the surface and back in 53 s with a vertical resolution of approximately 0.4 km. It measures radiance in 10 distinct channels in the wavelength range of 2μm–16 μm that includes the two dominating cooling agents (nitric oxide at 5.3 μm and CO₂ at 15 μm) in the thermosphere apart from other atmospheric species and heating agents (Yee et al., 2003). The NO volume emission rate (Wm⁻³) is calculated by using an Abel inversion technique to the SABER-measured irradiance (Mlynczak et al., 2003, 2010; Mertens et al., 2009). The volume emission rate is integrated vertically at the altitude of 100–250 km to obtain the cooling flux (Wm⁻²). The NO cooling emission shows uncertainty higher than 15% (Mlynczak et al., 2010). In the present study, we used SABER version 2.0 data.

2.5.2 TIEGCM simulation

The National Center for Atmospheric Research (NCAR) TIEGCM is a physics-based first-principle, time-dependent, three-dimensional model (Roble et al., 1998; Richmond et al., 1999). It solves the energy and momentum including the coupled nonlinear, thermodynamic, and hydrodynamic continuity equations for the neutrals, ions, and wind self-consistently. We use TIEGCM v2.0 that uses a horizontal grid of 2.5° both in the geographic latitude and longitude. The vertical grid uses 57 pressure surfaces with a vertical resolution of $\frac{1}{4}$th the scale height covering the altitude of approximately 97 km–500 km. Different external forcing such as solar and magnetic forcing, tidal amplitudes, and phases from lower atmosphere are used as the driving sources. The F10.7 solar index is used as the parametrization of solar forcing, whereas geomagnetic forcing is obtained either from the Heelis model (Heelis et al., 1982) or the Weimer model (Weimer, 2005), which calculates the high-latitude precipitation and convection patterns. The high-latitude precipitation and convection patterns represent the geomagnetic forcing. The Heelis model is driven by the Kp index. The Weimer model takes the IMF By, Bz, solar wind density, and speed as input. The Kp index has a 3-h time resolution, while the Weimer model is based on the IMF conditions with a 5-min time resolution. Consequently, we employed the Weimer model in the present study. The tidal amplitudes and phases are used from the global-scale wave model (Hagan and Forbes, 2002). A temporal frequency of 20 min is used.

The TIEGCM uses the formulation of Kockarts (1980) to calculate the thermospheric nitric oxide emission (Wm⁻³), which is given as

$NO5.3\mu m=\frac{k_o\left[O\right]+k_{o_2}\left[O_2\right]}{k_o\left[O\right]+k_{o_2}\left[O_2\right]+A_{10}}h\nu A_{10}\left[NO\right]e^{-h\nu /KT},(7)$

where [O], [O₂], and [NO] represent the number densities of O, O₂, and NO, respectively. A₁₀ is Einstein’s coefficient (=13.3 s⁻¹), h is Planck’s constant, ν is the frequency of NO emission, K is the Boltzmann constant, and T is the neutral temperature. ko (=4.2 × 10⁻¹¹cm³s⁻¹; Hwang et al. (2003)) and ${\mathrm{k}}_{o_2}$ (=2.4 × 10⁻¹⁴cm³s⁻¹; Murphy et al. (1975)) are the reaction rate coefficients in collision with atomic and molecular oxygen density, respectively. In the present study, the TIEGCM data are sampled at the TIMED/SABER satellite measurement locations.

The TIEGCM calculates the Joule heating rate using the following equation (Lu et al., 1995):

$JH={\sigma }_p{\left(\vec{E}+\overrightarrow{u_n}\times \vec{B}\right)}^2,(8)$

where σ_p is the Pedersen conductivity, $\overrightarrow{u_n}$ is the neutral wind, $\vec{B}$ is the geomagnetic field, and $\vec{E}$ is the electric field. The TIEGCM assumes that the magnetic field lines are equipotential. It results in $\vec{E}\Vert =0$, and hence, $\vec{E}=\vec{E}\perp$. The Pedersen conductivity (σ_p), in The TIEGCM simulation, is calculated as proposed by Schunk and Nagy (2009) and is given as

${\sigma }_p=\frac{qe}{B}\left[O^{+}\frac{r_{O^{+}}}{1+r_{O^{+}}^2}+O_2^{+}\frac{r_{O_2}^{+}}{1+r_{{O_2}^{+}}^2}+N{O}^{+}\frac{r_{N{O}^{+}}}{1+r_{N{O}^{+}}^2}+N{e}^{+}\frac{re}{1+r{e}^2}\right],(9)$

where $r_{O^{+}}$, $r_{O_2^{+}}$, $r_{N{O}^{+}}$, and re are the ratios of the collision frequency to gyro-frequency of O⁺, ${\mathrm{O}}_2^{+}$, NO⁺, and e, respectively. The collision frequencies are calculated in collision with dominant atmospheric species O, O₂, and N₂. O⁺, ${\mathrm{O}}_2^{+}$, NO⁺, and Ne represent the number densities (m⁻³) of the respective species. The height-integrated Joule heating rate in the altitude region of 97–500 km is integrated along the magnetic latitude and longitude to obtain the global Joule heating power. Details on the analysis are presented in the study by Sarris et al. (2020, 2023) and references therein.

2.5.3 Thermospheric cooling power calculation

The nitric oxide power exiting the thermosphere is calculated using the method suggested by Mlynczak et al. (2005; 2007). The nitric oxide volume emission rate is altitudinally integrated from 100 km to 250 km to obtain the nitric oxide cooling flux. The cooling flux is zonally integrated into five-degree latitude bins with the assumption that the SABER flux is uniformly distributed over the longitudes. It is again meridionally integrated to obtain the total cooling power (W) (Mlynczak et al., 2005, 2007; M. Mlynczak, Private communication, December 2022).

To calculate the solar wind energy input and subsequent dissipation during different phases of the geomagnetic storm, we divided the total storm time duration into four phases: (1) pre-onset phase (time from onset to 24 h prior to the onset); (2) main phase (time from onset to the beginning of the recovery phase); (3) recovery phase 1 (beginning of the recovery phase to 24 h preceding the beginning of the recovery phase); and (4) recovery phase 2 (end of recovery phase 1 to 24 h preceding the end of recovery phase 1). In addition, we also considered the time duration in recovery phase 1 that is the same as the time duration from the beginning of the onset to the beginning of the recovery phase. The energy input and dissipation during different phases of storms are given in Table 1, Table 2, and Table 3 for 28 October–01 November 2003, 19–22 November 2003, and 6–10 November 2004 storms, respectively.

Table 1

Table 1. Total power input and dissipation during the 28 October–1 November 2003 storm.

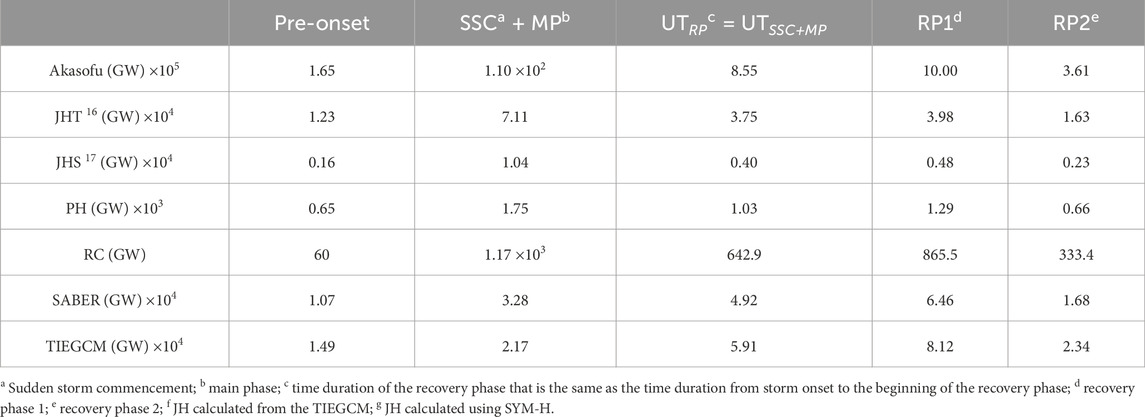

Table 2

Table 2. Total power input and dissipation during the 19–22 November 2003 storm.

Table 3

Table 3. Total power input and dissipation during the 6–10 November 2004 storm.

3 Results and discussion

We investigate the thermospheric energy budget during the extreme geomagnetic storms (Dst$<$ −350 nT) that occurred during 2003–2004 by using the TIEGCM simulations of nitric oxide 5.3-μm infrared emission, along with the TIMED/SABER satellite observations.

3.1 Storm events

3.1.1 Event#1: 28 October–01 November 2003

Figure 1 shows the (a) interplanetary magnetic field, (b) solar wind dynamic pressure and proton density, (c) solar wind speed, and (d) Dst/SYM-H index during the 28 October–01 November 2003 superstorm. The vertical dashed lines represent the onset time of the geomagnetic storm. This storm event is associated with two X-flares at approximately 11:10 UT on 28 October and 20:50 UT on 29 October 2003 and two large CMEs. The associated first CME resulted in the southward turning of the IMF Bz at approximately 6 UT on 29 November 2003, and correspondingly, the sudden storm commencement (SSC) can be noticed. The solar wind speed reached more than 2,000 km/s, which is one of the fastest solar winds ever directly measured in the space era (Skoug et al., 2004; Rosenqvist et al., 2005). The strong solar wind speed increased the proton temperature significantly higher than that observed during a typical CME storm (figure not shown). However, other parameters such as proton density and dynamic pressure were moderate. The SYM-H (Dst) index reached a minimum value of approximately −391 nT (−353 nT), which was observed more than 18 h after the storm onset (Figure 1D). The arrival of the second CME resulted in the southward movement of the IMF Bz at approximately 19 UT on 30 October 2003 with the solar wind speed exceeding 1,500 km/s. The proton density and the dynamic pressure reached the values of 15 cc⁻¹ and 20 nPa, respectively. The southward turning of IMF Bz indicated the commencement of the storm at approximately 19 UT on 30 October 2003, which can be observed from the SYM-H/Dst index. The minimum value of the SYM-H (Dst) index was approximately −432 nT (−383 nT) at approximately 23 UT on 30 October 2003. The second storm was more geoeffective and resulted in larger re-intensification than the first storm, considering the low value of the SYM-H/Dst index (Rosenqvist et al., 2005).

Figure 1

Figure 1. Solar wind variation during the 28 October–1 November 2003 storm. (A) Interplanetary magnetic field (Bx, By, and Bz), (B) proton density and dynamic pressure, (C) solar wind speed, and (D) Dst and SYM-H indexes. The vertical blue dashed lines represent the onset time of the storm.

The temporal variation in the corresponding energy input and dissipation during the 28 October–1 November 2003 storm is shown in Figure 2. It depicts the (a) Akasofu parameter, (b) Joule heating, auroral particle heating, and ring current power, and (c) orbit averaged NO cooling flux. The energy input and dissipation are calculated using the empirical formulations, as discussed above. The NO cooling fluxes are obtained from the TIMED-SABER satellite and the TIEGCM simulations. The vertical dashed blue lines represent the time of onset, recovery, and the time 24 h prior to onset. The vertical red dashed lines represent the time duration of the recovery phase (UT_RP) that is same as the time duration from the storm onset to the beginning of the recovery phase (UT_RP = UT_onset + UT_MP; MP = main phase). The unavailability of solar wind data during 29 October and most of 30 October 2003 makes it difficult to understand the temporal evolution of the Akasofu parameter during 29–30 October 2003. A significant enhancement in the Akasofu parameter occurred during the second storm (storm 2, 30 October) within 2–3 h of the commencement of the storm, reaching the maximum value of 2.5 × 10⁴ GW.

Figure 2

Figure 2. Time variation in the energy distribution during the 28 October–01 November 2003 storm. (A) Akasofu parameter, (B) Joule heating power from hourly SYM-H (black) and TIEGCM (red) observations, particle heating (blue) and ring current (green), and (C) orbit averaged NO cooling flux from SABER observations (black) and the TIEGCM simulation (red). The vertical blue dashed lines represent the time of onset–24 h, onset, recovery, and recovery + 24 h. The vertical red dashed lines represent the time of recovery that is the same as the duration of onset + main phase.

The response of the thermospheric Joule heating, auroral particle precipitation, and the ring current dissipation to the solar energy deposition is shown in Figure 2B. The Joule heating power, calculated using the SYM-H index, shows a sharp increase during 29–30 October 2003 with significant temporal fluctuations (hereafter, JHS denotes Joule heating calculated using hourly averaged SYM-H and PC and JHT denotes Joule heating from the TIEGCM). On the other hand, the global JHT does not show any appreciable enhancement. It can be attributed to the unreliable solar wind data during this period and subsequent calculation of the high-latitude electric field using the Weimer model. The Weimer model takes solar wind density, solar wind speed, and interplanetary magnetic fields (IMF By and IMF Bz) as the input parameters. Although the ion convection pattern and the cross polar cap potential (CPCP) are sensitive to IMF By, IMF Bz, and solar wind speed in the Weimer model, the CPCP is relatively insensitive to the solar wind density. In addition, the Weimer model can result in erroneous output, such as the electric potential patterns, for solar wind speed exceeding 900 km/s and IMF $>$20 nT (HAO, 2018). Although the CPCP does not exhibit any significant variation, the Weimer model strongly underestimates the storm-time electric field compared to the pre-event value (figure not shown). It would dictate the behavior of the Joule heating rate. The detailed analysis/discussion is beyond the scope of this study. The maximum JHT is approximately 650 GW, which is obtained at approximately 8 UT on 29 October 2003. The maximum value of JHS is approximately 2,750 GW during 29 October 2003. It is approximately 2,700 GW for the storm on 30 October 2003. On both days, the maximum Joule heating power is observed within 1–3 h of the storm commencement. Although the Joule heating power shows a significant difference in the magnitude, the maximum enhancement is observed almost at the same time, particularly during 29 October 2003. A delay of 2–3 h in the peak JHT is observed during 29 October 2003. Surprisingly, an unexpectedly low Joule heating power is observed during 30 October 2003. This difference in the Joule heating rates calculated using empirical formulation and the TIEGCM simulation could be because the electric field and conductivity used in the model may differ from actual observations. The auroral particle heating also shows an increase with a maximum value of 380 GW and 400 GW, respectively, at approximately 07 UT and 22 UT on 29 October 2003. The maximum value of the estimated ring current injection power is 165 GW found at 12 UT on 31 October 2003. Alex et al. (2006) reported an energy input and dissipation of the same order as the present study. The difference in the magnitude is due to different timescales used. The TIEGCM-simulated NO cooling flux shows good agreement with the satellite observations under magnetic quiet conditions with an average value of 0.6 mWm⁻² (Figure 2C). As the storm starts, the NO cooling flux increases. The SABER-observed NO flux shows a faster enhancement and faster recovery than that in the model results. The satellite observation peaks at approximately 2 UT on 30 October 2003 and at approximately 20 h after the commencement of the storm. It is approximately 4 h earlier than the simulation results. The model simulation predicts a significantly higher cooling flux (more than 60%) than the observations. The peak values are 2.9 mWm⁻² and 4.7 mWm⁻² for the SABER observation and model, respectively. As the storm starts to recover, both the cooling fluxes also fall off. However, the model-simulated flux, during the recovery phase, is still comparable with the peak SABER flux observed during the main phase. Before this storm completely recovers, another superstorm superimposed it. It resulted in a depletion of the horizontal magnetic field even higher than the previous depletion. The Dst index reached a minimum value of approximately −390 nT. It significantly modulated the magnetosphere–thermosphere–ionosphere system. In response to this storm, both the model-simulated and satellite-observed cooling fluxes were enhanced even higher than that in the previous storm. The satellite-observed flux peaked at approximately 4 UT on 31 October 2003 with a magnitude of 3.0 mWm⁻², whereas the TIEGCM-simulated cooling flux peaked at approximately 9 UT with a significantly higher value of 5.2 mW m⁻². The model results exhibit a slower response by approximately 4–5 h than the satellite observations. This difference in the response time can be attributed to the particle precipitation. The particles promptly react to external energy input with lower-energy electrons ($<$1 keV), which strongly impacts the thermospheric cooling and intravenously contributes to the upliftment of atmospheric density (Lin et al., 2019; Knipp et al., 2013, 2017). The aurora/particle precipitation in the TIEGCM simulation is calculated using the hemispheric power, which is parametrized with the IMF Bz and solar wind speed (HAO, 2018).

3.1.2 Event#2: 19–22 November 2003

The time history of the (a) interplanetary magnetic field, (b) proton density and dynamic pressure, (c) solar wind speed, and (d) Dst and SYM-H indices during 19–22 November 2003 storm is shown in Figure 3. The halo CMEs and associated M-class solar flares on 18 October 2003 triggered the strongest storm of solar cycle#23 (Srivastava, 2005). The IMF Bz turned southward at 08 UT on 20 November 2003 that reached a minimum value of −50 nT on the same day. The vertical blue line represents the onset of the storm. The proton density, dynamic pressure, and solar wind speed attained maximum values of 30 cc⁻¹, 25 nPa, and 750 km/s, respectively. The SYM-H (Dst) index decreased for approximately 11 h, reaching a minimum value of −490 (−473) nT at approximately 19 UT on 20 November 2003, followed by a long recovery phase.

Figure 3

Figure 3. Solar wind variation during the 19–22 November 2003 storm. (A) Interplanetary magnetic field (Bx, By, and Bz), (B) proton density and dynamic pressure, (C) solar wind speed, and (D) Dst and SYM-H indexes. The vertical blue dashed line indicates the onset of the storm.

The temporal variation in the (a) Akasofu parameter; (b) Joule heating, auroral particle precipitation, and ring current power; and (c) orbit averaged NO cooling flux during 19–22 November 2003 storm is shown in Figure 4. The Akasofu parameter shows a sharp increase with small temporal fluctuation as the storm starts. It takes approximately 7–8 h for the solar wind to transfer its maximum energy to the magnetosphere. The maximum calculated value of the Akasofu parameter is approximately 3.6 × 10⁴ GW. In response to the solar wind energy input, the JHS increased to 1,650 GW at approximately 20 UT on 20 November 2003. A significant enhancement is observed in the JHT. This value (2,850 GW) is about 60% higher than the JHS. In addition, it can be observed that the JHT exhibits both the faster enhancement and recovery. Nonetheless, peak Joule heating power is obtained almost at the same time. The auroral particle precipitation (maximum of 200 GW) and the ring current power (maximum of 180 GW) also increased almost at the same time. The thermospheric cooling flux, obtained from the TIEGCM simulations and SABER observations, increased as the storm intensified. Both the model and observations peak at approximately 2 UT on 21 November 2003, almost 20 h after the storm onset. The maximum NO cooling power lags by approximately 8–10 h to the peak Joule heating power. However, it can be observed that the satellite observation responds faster than the model simulation.

Figure 4

Figure 4. Time variation in the energy distribution during the 19–22 November 2003 storm. (A) Akasofu parameter, (B) Joule heating power from SYM-H (black) and the TIEGCM (red), particle heating (blue), and ring current (green), and (C) orbit averaged NO cooling flux from SABER observations (black) and the TIEGCM simulation (red). The vertical blue dashed lines represent the time of onset–24 h, onset, recovery, recovery + 24 h, and recovery + 48 h. The vertical red dashed line represents the time of recovery that is the same as the duration of onset + main phase.

3.1.3 Event#3: 06–10 November 2004

Figure 5 shows the interplanetary data and SYM-H/Dst index for the storm period 6–10 November 2004. It resulted due to a series of solar events that occurred during 4 November 2004 (Yermolaev et al., 2008). The solar wind shock reached Earth at approximately 10 UT on 7 November 2004. Because of it, the y-and z-components of the interplanetary magnetic field started to oscillate until approximately 23 UT. The IMF Bz remained southward for most of the period during 7–10 November (Figure 5A). The IMF By and Bz showed strong negative values of approximately 50 nT. The proton density and dynamic pressure increased abruptly. The solar wind speed remained elevated ($>$500 km/s) during the whole storm period. The proton density, dynamic pressure, and solar wind speed reached maximum values of 53 cc⁻¹, 60 nPa, and 830 km/s, respectively, during 7–8 November 2004 (Figures 5B,C). The variation in Earth’s horizontal magnetic field, in response to the southward orientation of IMF Bz at 20 UT on 7 November, 19:30 UT on 9 November, and 04:30 UT on 10 November 2004, can be observed from the SYM-H index (Figure 5D). The IMF Bz has a large magnitude of approximately −50 nT at approximately 23 UT on 7 November 2004, –34 nT at 20 UT on 9 November, and −26 nT at 2 UT on 10 November 2004. Correspondingly, the SYM-H (Dst) index reached minimum values of −395 (−374) nT at 6 UT on 8 November, −271 (−214) nT at 21 UT on 9 November, and −282 (−263) nT at 10 UT on 10 November. Since the present study focuses only on the storm with a Dst index less than −350 nT, the two intense storms of 9–10 November 2004 are not considered. These intense storms and related variations are considered the recovery phase.

Figure 5

Figure 5. Solar wind variation during the 6–10 November 2004 storm. (A) Interplanetary magnetic field (Bx, By, and Bz), (B) proton density and dynamic pressure, (C) solar wind speed, and (D) Dst and SYM-H indexes. The vertical blue dashed line represents the onset time of the storm.

Figure 6 shows the solar energy input and dissipation during 6–10 November 2004. The Akasofu parameter is shown in Figure 6A. As the storm commenced, a sudden increase in the Akasofu parameter within 1–2 h can be observed with maximum solar wind energy deposition into the magnetosphere occurring within 5–10 h of onset. The empirically calculated Joule heating power exhibits a temporal fluctuation (Figure 6B). The JHT shows a more smooth variation with a maximum value of approximately 3,000 GW at approximately 4 UT on 8 November 2004. The maximum JHS of 1,680 GW, 1,800 GW, and 1,910 GW are obtained at approximately 02 UT, 04 UT, and 06 UT on 8 November 2004, respectively. In addition, it can be observed that the Joule heating power during the recovery phase is comparable to that during the main phase, although the storm is less intense. The maximum JHS is approximately 2,600 GW at 21 UT on 9 November 2003, whereas it is approximately 1,500 GW for JHD, which peaks approximately 2 h later. The auroral particle heating and ring current dissipation also increase during the storm period (Figure 6B). The auroral particle heating (280 GW) is maximum at approximately 06 UT on 8 November 2004, whereas the ring current power (150 GW) is maximum at approximately 02–03 UT on 7 November 2004. The kinetic energy, Akasofu parameter, and the thermospheric/ionospheric dissipation of same orders have been reported earlier (Alex et al., 2006; DeLucas et al., 2007). Figure 6C shows the temporal variation in the orbit averaged NO cooling fluxes, as observed by the TIMED-SABER satellite and the TIEGCM simulation. The model result is slightly higher than that observed during the magnetic quiet period. The average values of the model results and observations are approximately 0.22 mWm⁻² and 0.12 mWm⁻², respectively. When the storm started, the NO flux intensified. The satellite observation shows a stronger enhancement and a faster recovery than the model result. A peak satellite measurement of 2.9 mWm⁻² is observed at 07 UT on 8 November 2004. The model result lags the observation by approximately 10 h with a slightly lower magnitude. The model result peaks at approximately 17 UT on the same day with a peak value of 2.5 mWm⁻². It is to be noted that the SABER observation of the peak NO flux lags the peak Joule heating power by approximately 2–5 h. The increase in the modeled result is lower than that in the satellite observations. The SABER cooling flux increases by more than an order of magnitude compared to the pre-onset value, whereas the model result increases by about 800%. The counter-reaction of the NO flux to the intense storms during the recovery phase of 9–10 November, with both the observed and modeled results reviving, is shown in Figure 6D. The model result and the satellite observation increase by more than 30% and decrease by 10%, respectively, of their main phase 1 values. The peak values are approximately 3.5 mWm⁻² and 2.8 mWm⁻² for the model simulations and observations, respectively.

Figure 6

Figure 6. Time variation in the energy distribution during the 6–10 November 2004 storm. (A) Akasofu parameter, (B) Joule heating power from SYM-H (black) and the TIEGCM simulation (red), particle heating (blue), and ring current (green), and (C) orbit averaged NO cooling flux from SABER observations (black) and the TIEGCM simulation (red). The vertical blue dashed lines represent the time of onset–24 h, onset, recovery, recovery + 24 h, and recovery + 48 h. The vertical red dashed line represents the time of recovery that is the same as the duration of the onset + main phase.

3.2 Comparison of energy distribution in the geomagnetic storms

The comparison of the energy distributions during the three geomagnetic storms mentioned above is shown in Figure 7. The top panels (Figures 7A–C) show the Dst and SYM-H indices. The vertical blue and red dashed lines indicate the time periods considered in calculating the total power. Although it is discussed in the previous sections and marked in the figure, we would like to mention it again. The left- and right-most vertical lines represent the 24 h prior to the onset and 24 h following recovery phase 1, respectively. The red dashed lines represent the time duration of the recovery phase (UT_RP; RP = recovery phase) that is the same as the time duration from the storm onset to the beginning of the recovery phase (UT_RP = UT_onset + UT_MP; MP = main phase). The corresponding energy distribution is enclosed within the red box. The bottom panels show the energy input into the thermosphere and thermospheric/ionospheric power dissipations. The total energy entering the magnetosphere and subsequent evolution of ionospheric/thermospheric energy dissipation during different phases of the 28 October–1 November 2003 geomagnetic storm are shown in Figure 7D. The solar wind data are not available from the onset of the storm on 29 October 2003 (storm 1) to some parts of the onset of the second storm on 30 October 2003 (storm 2). The Akasofu parameter shows a linear increase with the storm’s activity. However, it is unexpectedly high during pre-onset due to the elevated solar wind speed and proton density. The total values of the Akasofu parameter (9.1 × 10⁴ GW) are minimum during main phase 2, which lacks data during most of the period (the total value is the sum of the concerned parameter within the specified time duration). On the other hand, a maximum total Akasofu value (4.69 × 10⁵ GW) is observed during recovery phase 2. The higher value of the Akasofu parameter during storm 2 than during storm 1 can be attributed to the fact that the second storm was more geoeffective than the first storm (Rosenqvist et al., 2005). The Joule heating power, as calculated using hourly SYM-H (JHS), is lower during the pre-onset phase, whereas that obtained from the TIEGCM (JHT) is higher. The JHS showed a nonlinear variation with respect to the storm’s intensity. It increased by three times in magnitude during the main phase, reaching a maximum total value of 2.04 × 10⁴ GW that decreased as the storm progressed. Surprisingly, the total Joule heating power during the main phase of storm 2 is lower than that of storm 1, although storm 2 is stronger than storm 1. On the other hand, the JHT shows a decrease in storm 2 compared to storm 1. This surprising behavior can be attributed to the erroneous solar wind parameters and subsequent convection electric field calculation using the Weimer model. The auroral particle precipitation, during storm 1, shows a linear variation with the storm’s intensity with a maximum total value of 2.41 × 10³ GW observed during the main phase. The total auroral particle precipitation for storm 2 is minimum (356.6 GW) during the main phase of storm 2, which increases with the storm’s progression, and a total value of 2.113 × 10³ GW is achieved during recovery phase 1. Similar variation in the ring current injection power can also be observed with a minimum value during the recovery phase of storm 1. The total SABER observed and the total modeled cooling power are almost the same ($\sim 0.172\times 10^4$ GW) during the pre-onset phase. They undergo significant enhancements of about an order of magnitude during the storm period, with both reaching peaks in the recovery phase of storm 1. The total modeled power (9.42 × 10⁴ GW) is more than double the total observation (4.6 × 10⁴ GW). During storm 2, the total minimum power is observed during the main phase (1.24 × 10⁴ GW for SABER and 2.51 × 10⁴ GW for the model). It increases by about five times before achieving the peak during recovery phase 1 with total values of 5.46 × 10⁴ GW and 10.02 × 10⁴ GW, respectively, for SABER and the TIEGCM simulation (Figure 7D). The total solar wind energy input and the dissipation processes during different phases of the 19–22 November 2003 storm are shown in Figure 7E. It can be observed that the Akasofu parameter, Joule heating power, auroral particle precipitation, and ring current injection follow the progression of the storm with peaks during the main phase. The maximum total value of the Akasofu (1.1 × 10⁷ GW) parameter is observed during the main phase, which decreases as the storm recedes. The Joule heating power also exhibits similar behavior with peak values during recovery phase 1. The peak values for the JHS and JHT are 1.03 × 10⁴ and 7.1 × 10⁴ GW, respectively, compared to the pre-event values of 1.54 × 10³ and 1.23 × 10⁴ GW. The JHS and JHT increased by about 6–7 times. The peak values are 1.75 × 10³ GW and 449 GW for auroral particle precipitation and ring current injection rate, respectively, compared to 650.7 GW and 146 GW during pre-onset. The cooling power shows a peak during the recovery phase. It can be observed that the SABER observations undergo a slightly higher enhancement than that of the model simulation. The total maximum cooling power is 6.46 × 10⁴ GW and 8.12 × 10⁴ GW, respectively, for the SABER observation and model study, whereas they are 1.07 × 10⁴ GW and 1.49 × 10⁴ GW during the pre-onset period. Similar variations in the dissipation processes during 6–10 November 2004 are shown in Figure 7F with the peak aurora precipitation (2.069 × 10³ GW) and the ring current dissipation (865 GW) during recovery phase 2. The Akasofu parameter and the Joule heating power are maximum during the main phase. The total value of the Akasofu parameter is 1.1 × 10⁷ GW, which is about two orders of magnitude higher than the pre-onset value of 3.24 × 10⁵ GW. A similar increase is also observed in the JHS and JHT. The JHS reached a maximum total value of 2.5 × 10⁴ GW during the main phase compared to the pre-onset value of 1.03 × 10⁴ GW, whereas the JHT increases by about 6 times from 1.3 × 10⁴ to approximately 7.2 × 10⁴ GW during the main phase. An intense storm superimposed on the recovery phase of the storm. Consequently, the Akasofu parameter and all the Joule heating power undergo significant enhancement. These values are comparable to their respective main phase magnitude. The cooling power also shows similar variation with a peak during the recovery phase with a maximum total power of 4.52 × 10⁴ GW for SABER and 5.38 × 10⁴ GW for the TIEGCM simulation (Figure 7F).

Figure 7

Figure 7. Top panels: Time variation in Dst and SYM-H indexes during (A) 28 October–1 November 2003, (B) 19–22 November 2003, and (C) 6–10 November 2004. Bottom panels: Energy propagation/dissipation during (D) 28 October–1 November 2003, (E) 19–22 November 2003, and (F) 6–10 November 2004. Magenta circle: Akasofu parameter; blue diamond: Joule heating power from SYM-H (JHS); violet diamond: Joule heating power from the TIEGCM (JHT); green square: auroral particle precipitation; green diamond: ring current; black circle: SABER-observed NO flux; red circle: TIEGCM-simulated NO flux. The parameters within the red box are during the time of recovery that is the same as the duration of the onset + main phase. SSC, sudden storm commencement; RP, recovery phase; RP1, recovery phase 1; RP2, recovery phase 2. See text for details.

The superstorms of 19–22 November 2003 (SYM-H = −490 nT) and the main phase 1 (SYM-H = −391 nT) of 28 October−1 November 2003 are, respectively, the strongest and weakest storms among all, as observed from the SYM-H index. Although the Joule heating power peaks during main phases of the storms, it does not strictly follow the storm’s intensity. Since the maximum Joule heating power is observed during the main phases, we particularly emphasize on the main phases of the storm as far as the Joule heating power is concerned. The maximum total (2.04 × 10⁴ GW) and minimum total (3.4 × 10³ GW) Joule heating powers, as calculated using SYM-H (JHS), are, respectively, found during main phase 1 (SYM-H = −391 nT) and main phase 2 (SYM-H = −432 nT) of the 28 October–1 November 2003 storm. Similarly, the JHT has a maximum total value of 7.3 × 10⁴ GW during 6–10 November 2004 (SYM-H = −395 nT) and minimum total value of 496 GW during main phase 2 of the 28 October–1 November 2003 storm (SYM-H = −432 nT). The magnitude of the Joule heating power depends on the method by which it is calculated. The total magnitude of the Akasofu parameter is 1.25 × 10⁷ GW and total JHT is 1.4 × 10⁵ GW during 19–22 November 2003. Similarly, they are, respectively, approximately 1.69 × 10⁷ GW and 2.88 × 10⁵ GW during 6–10 November 2004. It suggests that the Joule heating power during extreme storms accounts for about 1% of the energy input; less than a percent is available for the auroral ionosphere, which is in conformity with the results obtained by Vichare et al. (2005) and MacMahon and Gonzalez (1997) for intense storms. Note that earlier studies report an order of 10% fraction of energy input into the magnetosphere, which is dissipated via Joule heating and auroral power during intense storms (Guo et al., 2012; Turner et al., 2009; and references therein). Alex et al. (2006) reported that the Joule heating dissipation power, using the AE index as a proxy, accounted for about 4.5%, 4.9%, and 5.7% of energy input on 29 October, 30 October, and 20 November 2003, respectively. Note that the energy deposited into the magnetosphere via the formation of field-aligned current, magnetospheric tail current, energy carried away by the plasmoids, and the post-plasmoid plasma sheet outflow are not considered in the present study, which appear to be a major portion of energy dissipation (Alex et al., 2006; Baker et al., 2001). The large caveat observed in the present study can be attributed to the empirical formulations used.

The energy input is highly variable at a timescale of an hour, particularly during the main phase of the geomagnetic storm (Verkhoglyadova et al., 2017). The Epsilon (Akasofu) parameter can add to a significant amount of uncertainty, owing to the scale factor (see Koskinen and Tanskanen, 2002 for detailed discussion). The Joule heating power calculated using the formulation proposed by Knipp et al. (2004) is the multiple regression fit to the integrated Joule heating values derived from the assimilative mapping of ionospheric electrodynamics (AMIE). It is expected to have scarcity of data points at the extreme end of super geomagnetic storms. Furthermore, it does not include the neutral wind effects and small-scale variabilities of the electric field that considerably add to the Joule heating power (Knipp et al., 2004). The Joule heating power from the TIEGCM simulation, in the present study, uses high-latitude electric fields and convection patterns from the Weimer model (Weimer, 2005). The Weimer modeled Joule heating rate can be significantly different (about a factor of 2) from other calculations and is less sensitive to solar wind drivers (Verkhoglyadova et al., 2017; Huang et al., 2012). One of the limitations to the Weimer model is that it neglects the cups heating, and the electric potential patterns become unrealistic for high-speed solar wind (V_sw > 900 km/s) and high magnitude ($>$20 nT) of the interplanetary magnetic field (HAO, 2018), adding up to a higher uncertainty in the model calculation of the Joule heating rate. Furthermore, the selection of the lower-boundary tidal driving plays important roles in affecting the ionosphere–thermosphere system up to the F-layer (Vichare et al., 2012). The DMSP particle precipitations have also well-known uncertainties, as discussed by Emery et al. (2008, 2012). The ring current power calculation strongly depends on the chosen decay time (Alex et al., 2006). In addition, the TIEGCM calculation of NO cooling emission has also strong discrepancy with the observations, although it agrees quiet well for daily averaged values (Qian et al., 2010; Sheng et al., 2017; Chen and Lei, 2018; Li et al., 2018; 2019; Walterscheid et al., 2023).

The total cooling power from SABER observation roughly follows the strength of the storm, with maximum values (6.4 × 10⁴ GW) during 19–22 November 2003 and minimum values (4.52 × 10⁴ GW) during 6–10 November 2004, whereas no similar variation is observed in the modeled power. The total modeled power is maximum during storm 2 of 28 October–1 November 2003 and minimum during 6–10 November 2004. The difference in the variation in cooling power with respect to the Joule heating power can be attributed to the different timescales used and the pre-conditioning of the thermosphere (Verkhoglyadova et al., 2016; Bag, 2018). The total power radiated by the NO cooling process is maximum during the 28 October−01 November 2003 storm, as calculated from the model (3.0 × 10⁵ GW) and satellite observation (1.8 × 10⁵ GW). Minimum radiative power is observed during 6–10 November 2004 for both the model (1.2 × 10⁵ GW) and satellite observation (1.0 × 10⁵ GW). The TIEGCM simulation predicts, on average, a power of 1.87 × 10⁵ GW exiting the thermosphere during a superstorm. It is about 40% higher than the satellite observation.

Figure 8 shows the scatter plot between the Akasofu parameter with (a) Joule heating power obtained from the TIEGCM, (b) Joule heating power calculated using SYM-H, (c) auroral particle precipitation, and (d) ring current dissipation power. It also displays the scatter plots during different geomagnetic storm phases. The Akasofu parameter exhibits a strong positive correlation with the Joule heating power (r = 0.75), as obtained from the TIEGCM simulation. A slightly lower correlation is observed for the Joule heating power calculated using SYM-H (r = 0.73), followed by ring current dissipation (r = 0.67). The auroral particle precipitation shows the lowest correlation with solar wind energy input into the magnetosphere. The higher correlation with the Joule heating could be due to the fact that it is by far the dominating dissipation process of energy input into the magnetosphere–ionosphere–thermosphere system (Kozyra et al., 1998; Lu et al., 1998) and that the nitric oxide cooling accounts for about 80% of Joule heating energy during geomagnetic storms (Lu et al., 2010).

Figure 8

Figure 8. Scatter plot between the Akasofu parameter and (A) Joule heating power from the TIEGCM, (B) Joule heating power using SYM-H, (C) auroral particle precipitation, and (D) ring current power during different phases of geomagnetic storms.

The TIEGCM simulation agrees very well with the observations during the pre-onset period. The TIEGCM results increase higher than the observations during the geomagnetic period. Furthermore, the satellite observation exhibits a higher correlation (r = 0.35) with the Joule heating power calculated using SYM-H, where time lag is not considered (Figure 9A). A similar higher correlation can also be observed between the satellite-observed NO cooling power and the TIEGCM-simulated Joule heating power (Figure 9B). On the other hand, the TIEGCM simulated cooling power shows less correlation with the JHS and JHT (r = 0.10 for JHS and r = −0.16 for JHT), as shown in Figure9A–B. The consideration of time lag increases the correlation between the Joule heating and NO power (figure not shown). The correlation coefficient (r) is 0.76 for JHS and SABER observations, whereas it is about 0.75 for JHS and TIEGCM cooling flux. Furthermore, the correlation coefficient decreased significantly when the TIEGCM-simulated Joule heating rate (JHT) is used. The correlation coefficients are, respectively, 0.65 and 0.63 for JHT and SABER-observed flux and JHT and TIEGCM-calculated flux. These lower correlations, due to the inclusion of JHT, can be attributed to the unexpectedly low JHT during main phase 1 of the 28 October–1 November 2003 storm. The correlation coefficients, respectively, become 0.927 and 0.91 for JHT with SABER-observed flux, and JHT with TIEGCM-simulated flux when main phase 1 of the 28 October–1 November 2003 storm is excluded. These values agree very well with the earlier study by Lu et al. (2010). Lu et al. (2010) reported the cross-correlation coefficient, between NO cooling and the averaged, time-shifted Joule heating, in the range of 0.87–0.97 with a lag time of 10 h. The lower values of correlations between JHS and SABER-observed flux and JHS and TIEGCM flux could be due to the calculation of JHS using empirical formulation. The phase-wise correlation, between the NO cooling flux and Joule heating, shows a strong positive correlation (average r = 0.93) during the main phase (with the exclusion of main phase 1 of 28 October–1 November 2003), followed by recovery phase 1 (average r = 0.81).

Figure 9

Figure 9. Scatter plot between (A) NO cooling power and Joule heating obtained using SYM-H and (B) NO cooling power and Joule heating obtained from the TIEGCM simulation (circle: SABER observation; diamond: TIEGCM simulation).

Figure 10 shows the correlation between the duration of the main phase with the modeled and satellite-observed NO power during the main phase (Figure 10A) and recovery phase (Figure 10B). Both the satellite observations and model simulations of cooling power demonstrate a strong positive correlation with correlation coefficients of 0.96 and 0.59, respectively, during the main phase. The satellite observations of cooling power show a relatively stronger negative correlation (r = −0.49) than the modeled power (r = −0.12) during the recovery phase. Discrepancies between the model simulations of NO cooling emission and the satellite observations have been reported earlier during intense storms (Sheng et al., 2017; Chen and Lei, 2018; Li et al., 2019; Walterscheid et al., 2023). It suggests that the observation displays a faster response and faster recovery during extreme geomagnetic storms.

Figure 10

Figure 10. Scatter plot between the phase duration and NO cooling power calculated using SYM-H during the (A) main phase and (B) recovery phase.

3.3 Summary

We selected three superstorms with a Dst index less than −350 nT to study the thermospheric energy budget during 2003–2004. A particular consideration is given to the thermospheric cooling emission by nitric oxide via a wavelength of 5.3 μm because of its well-known thermostat effect. The nitric oxide radiative emission data are obtained from SABER observations onboard the TIMED satellite and the TIEGCM simulations. Different energy sources for magnetospheric energy injection and the thermospheric dissipation processes are calculated using space-borne and ground-based measurements and empirical formulations. The kinetic energy impinging on Earth’s magnetosphere, Joule heating, and the ring current injection rate are calculated using empirical formulations and TIEGCM simulations. The Akasofu parameter, which represents the solar wind energy transfer into Earth’s magnetosphere, is obtained from the SuperMAG database for two events and estimated for one event (28 October–1 November 2003). The auroral particle precipitation is from the DMSP F13 satellite. The nitric oxide volume emission rates, in the altitude region of 100–250 km, are integrated to obtain the cooling flux. The cooling flux is then integrated zonally and meridionally to estimate the nitric oxide cooling power exiting the thermosphere. The salient features obtained from this investigation are as follows: (I) the TIMED/SABER satellite observed that nitric oxide cooling flux responds faster to the solar wind energy input than that by the TIEGCM simulation; (II) the nitric oxide cooling power increases by an order of magnitude during storm time, with respect to the pre-onset value, with maximum power radiated during the recovery phase; (III) the Joule heating rates calculated from different sources show similar temporal variations with significant difference in the magnitude; (IV) the cooling power strongly depends on the duration of the storm main phase and is independent of the storm’s intensity; (V) the TIMED/SABER satellite observations show that, on average, nitric oxide cooling power of 1.4 × 10⁵ GW exits the thermosphere during a typical superstorm, which is about 40% less than that predicted by the TIEGCM simulation.
