Recent results and future perspectives with solid targets at LUNA

The stellar evolution and chemical make-up of the Universe are determined by nuclear reactions occurring in a wide variety of stellar sites. Precise determinations of the cross sections of these reactions are crucial for the calculation of reaction rates and for the development of stellar evolution models. The Laboratory for Underground Nuclear Astrophysics (LUNA) collaboration has been at the forefront of the direct measurement of nuclear reactions at the low energies of astrophysical interest for the last 35 years. The many significant results achieved at LUNA have been made possible due to the low background conditions uniquely available thanks to its location deep underground at the Laboratori Nazionali del Gran Sasso. Another key aspect of these successes is due to the experience of the LUNA collaboration in the production and characterization of a variety of solid targets used in reaction measurements. In this review, the main production techniques of solid targets are described, as well as the common methods adopted for target degradation monitoring. We also present the results of recent measurements using these targets and the future plans of the LUNA collaboration for measurements using solid targets at the LUNA400 kV and the new Ion Beam Facility (IBF) 3.5 MV are also presented.

1 Introduction

A comprehensive understanding of the processes that dictate a star’s life cycle requires a collaborative effort across various fields, including astronomical observations, theoretical stellar modeling, and experimental nuclear physics. Nuclear astrophysics aims to connect these different fields, to better understand the stellar evolution and the subsequent impact on the chemical make-up of the Universe. In particular, nuclear physics contributes to the measurement of the cross sections of reactions that occur in stellar environments. In quiescent scenarios, nuclear reactions serve a dual function. Firstly, reactions produce the energy required to fight against the gravitational collapse of the star, a battle that rages throughout the star’s long life. Furthermore, nuclear reactions are the mechanism by which all elements in the periodic table are synthesized. Direct measurements of the nuclear reaction cross sections are therefore crucial to better model these stellar environments so that we can better understand the stellar and chemical evolution of the Universe. At the energies of interest for astrophysics, the cross sections of the reactions involved are often at the level of nanobarn or lower and therefore difficult to measure. Measurements at surface laboratories can be extremely challenging, mainly due to the high environmental (radioactivity and muonic components) background present above ground. In order to reduce this background, the LUNA experiment was installed underground at INFN Laboratori Nazionali del Gran Sasso (LNGS) (Italy). The natural shielding of 1,400 m of rocks (3,800 m of water equivalent), reduces the muon and neutron components of the cosmic background by a factor of 10⁶ and 10³ respectively, with respect to Earth’s surface, allowing measurements not feasible in surface laboratories because of low signal to noise ratio Cavanna and Prati (2018). Many of these reactions have involved solid targets whose composition and thickness must be well known and must withstand the intense beams of the LUNA accelerators. The success of many experimental campaigns has been dependent on the development of techniques for the production and monitoring of these targets, which has been achieved for a wide range of nuclei of interest for reaction studies.

Different accelerators have been used at LUNA in the last 35 years. A 50 kV machine Greife et al. (1994), now de-commissioned, was mainly used to study hydrogen burning reactions relevant to the Sun, and produced pioneering results (e.g., Junker et al., 1998). In 2001, a 400 kV machine was installed and is still in operation today, with a focus on the reactions part of the Carbon-Nitrogen-Oxygen (CNO) and NeNa cycles in Asymptotic Giant Branch (AGB) stars (Ananna et al., 2021; Masha et al., 2023). The LUNA400 kV accelerator (Figure 1) is a commercial single-ended electrostatic accelerator, that can provide stable and intense (⟨I⟩ = 200 µA) proton or alpha beams with high energy resolution (30 eV) Formicola et al. (2003). The beam from the LUNA400 kV machine can be focused either onto a windowless extended gas target or a solid target, allowing for a range of measurements to be performed. Very recently, the LUNA collaboration entered into a new phase with the installation of a 3.5 MV accelerator. This machine is an Inline Cockcroft Walton accelerator, able to provide ion beams of H⁺, ⁴He⁺ and ¹²C⁺ and ¹²C⁺⁺ in the energy range from 0.35 MeV to 3.5 MeV Sen et al. (2019). With this machine, the LUNA collaboration will study nuclear reactions important for advanced phases of stellar evolution, such as helium and carbon burning (Ferraro et al., 2021).

FIGURE 1

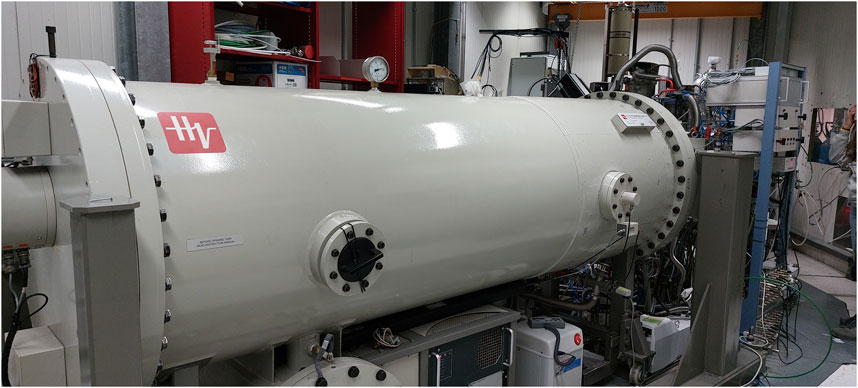

FIGURE 1. The LUNA400 kV accelerator.

In this review, several techniques to produce and characterize solid targets will be presented, together with the most recent measurements performed at LUNA irradiating solid targets. Furthermore, the future developments required for the next phase of solid target measurements at LUNA using the LUNA400 kV and new 3.5 MV Bellotti facility will be presented.

2 Solid targets in nuclear astrophysics

At the LUNA400 kV, both gaseous and solid targets can be irradiated for nuclear astrophysics measurements. Solid targets have the advantage of a higher average density compared to gaseous targets, typically by an order of magnitude, in addition to the practical advantage of more compact experimental setups than typical gaseous extended targets. The solid targets used at LUNA have been produced using several different techniques, e. g. evaporation, reactive sputtering, oxidation, and implantation Imbriani et al. (2005). The production technique depends on the target nucleus under study and its chemical behavior. In all production methods, the target material is generally deposited on a metallic disk made with a high atomic number material, e. g., tantalum, gold, or copper. At LUNA, 0.25 mm thick tantalum disks with a 4 cm diameter have often been used because they are less expensive and easier to machine with respect to other options. The Coulomb barrier for these elements is so high that it is very unlikely to generate reactions with the beam projectiles, ideal for suppression of background from the backing material. Nevertheless, light element impurities (e. g., deuterium, oxygen, fluorine) can be present in the backing, generating some beam induced background events. In order to minimize the surface contamination, backings are rinsed with isopropyl alcohol and with a 2% solution of detergent in an ultrasonic bath and then they are left for several hours in a solution with citric acid at 5% to 10% with 1% H₂O₂ added. To prevent carbon deposition on target during beam irradiation, a phenomenon called carbon build-up, the beam passes through a cold trap made of a 1 m long copper tube cooled with liquid nitrogen, which extends along the beam line and up close to the target Di Leva et al. (2014). This allows contaminants to freeze out on the copper, suppressing the build-up of impurities on the target during irradiation.

The average density of solid targets generally varies between 5×10¹⁷ atoms/cm² and 2×10¹⁸ atoms/cm². It is crucial that target characteristics, such as the target thickness and target composition, are evaluated with high precision in order to reduce systematic uncertainties in the final cross section determination. The reaction cross section σ(E) can be extracted from a measurement using the Eq. 1:

$Y=\underset{E_b-\mathrm{\Delta }E}{\overset{E_b}{\int }}\frac{\sigma \left(E\right)}{{ϵ}_{\text{eff}}\left(E\right)}\mathrm{d}E,(1)$

where Y is the experimental yield, namely the number of emitted particles per projectile, E_b the beam energy, ϵ_eff(E) the effective stopping power, and ΔE the projectile energy loss in the target. The effective stopping power depends on the target composition, as explained in Bragg’s addition rule parametrized as in Eq. 2:

${ϵ}_{\text{eff}}\left(E\right)={ϵ}_a+{\displaystyle \sum _a}\frac{N_i}{N_a}{ϵ}_i,(2)$

where $\frac{N_i}{N_a}$ is the ratio between inactive and active nuclei, and ϵ_a and ϵ_i are the stopping powers of the corresponding (active and inactive) pure materials.

One drawback of the use of solid targets is their possible deterioration due to the high beam powers, of about 100 W incident on the target, and can occur rapidly over a short timescale. This effect can result in a change in target characteristics such as the density profile, thickness, or stoichiometry that can affect the determination of the cross section if not correctly accounted for. In order to reduce the heating of targets from beam irradiation, backings are water cooled by de-ionized water chilled to temperatures of approximately 5°C. Moreover, a wobbling system installed along the beam line induces an oscillatory motion of the beam spot, increasing the irradiation surface and reducing the power density applied to a single area of the target surface.

Beyond these implementations, the target is monitored throughout the experimental measurement with several experimental techniques, to gauge the condition of the target. A typical online analysis usually employed at LUNA is the so-called resonance scan technique, or Nuclear Resonant Reaction Analysis (NRRA), which is described in detail in Rolfs and Rodney (1988). It consists in exploiting a well known narrow resonance of the reaction under study. The variation of the beam energy in an interval around the energy of the resonance populates the energy deeper and deeper in the target. The excitation function obtained can be parametrized in terms of the resonance strength ωγ, target thickness ΔE, and initial beam energy E_p, with a double arctangent shape as in Eq. 3:

$\begin{array}{ll}\hfill Y\left(E_p\right)& =\frac{{\lambda }^2}{2\pi }\omega \gamma \frac{M+m}{M}\frac{1}{ϵ}\left[\arctan \left(\frac{E_p-E_R}{{\mathrm{\Gamma }}_1/2}\right)\right.\hfill \\ \hfill & \left.-\arctan \left(\frac{E_p-E_R-\mathrm{\Delta }E}{{\mathrm{\Gamma }}_2/2}\right)\right],\hfill \end{array}(3)$

where the footer R is the quantity that has been calculated at the resonance energy, and the mass ratio (M is the mass of the target nuclei, m is the mass of the projectile) takes into account that the stopping power ϵ is usually given in the laboratory system. One example of fit of the excitation function after the resonance scan of the ¹³C(p,γ)¹⁴N is shown in Figure 2.

FIGURE 2

FIGURE 2. Example of excitation function after the E_R = 1,748 keV resonance scan of the ¹³C(p,γ)¹⁴N reaction. The fit is represented by the red curve and the parameters as indicated in Eq. 3 are shown in the figure.

There are some cases where no resonance can be populated in the dynamic range of the accelerator. In that case, an innovative and equivalent approach, called γ-shape analysis, can be used. This technique is described in Ciani et al. (2020). Briefly, it is based on the fact that if no resonances are populated, the main contribution to the reaction comes from the direct capture process A(x,γ)B. Due to beam energy losses with increasing depth within the target, from E_p to E_p − ΔE, in this energy range both the cross section and stopping power can vary as a function of the projectile energy. The γ-rays emitted depend on the beam energy by the relation in Eq. 4 (here Doppler and recoil effects are assumed negligible):

$E_{\gamma }=E_{\text{c.m.}}+Q(4)$

In an infinitesimal layer of thickness dE, the infinitesimal yield dY can be evaluated as in Eq. 5:

$\mathrm{d}Y\left(E,E+\mathrm{d}E\right)=\frac{\sigma \left(E\right)}{ϵ\left(E\right)}\mathrm{d}E(5)$

Therefore the shape of a primary γ-ray transition acquired with a high energy resolution detector is governed by the behavior of the reaction cross section σ(E) over the energy range covered by the incident beam as it loses energy traversing the target. Also in this case the fit of the primary transition provides information on the target thickness and stoichiometry. Further analysis can be performed offline to confirm and crosscheck the online results in terms of stoichiometry by Ion Beam Analysis techniques, such as Elastic Recoil Detection Analysis (ERDA) or Rutherford Backscattering Spectrometry (RBS) Nastasi et al. (2014).

3 Evaporation of carbon targets

Carbon targets have been recently used at LUNA for the ¹³C(α,n)¹⁶O Ciani et al. (2021) and ^12/13C(p,γ)^13/14N Skowronski et al. (2023a) measurements. These were produced by evaporating graphite onto 4 cm diameter tantalum backings. Depending on the target nuclei of the reaction to be measured, the graphite was either natural, with a nominal ¹²C concentration of 98.9%, or enriched in ¹³C to a concentration of 99%.

Due to the high melting point of graphite (3,600°C) the evaporation process was conducted using the electron gun technique, employing the Leybold UNIVEX 350 vacuum evaporator at ATOMKI, the Institute for Nuclear Research located in Debrecen, Hungary. The vacuum chamber is shown in Figure 3. The vacuum enclosure of the evaporator comprises a copper liquefaction container, a modifiable arm employed to grasp the tantalum disk positioned at a distance of 10 cm from the liquefaction container, and an electron gun, which produces electrons via thermo-electric effect. The electron beam was properly focused on a carbon pellet inserted in the copper container. The latter was then heated allowing direct evaporation of carbon onto the Ta backing. A quartz oscillator fixed within the vacuum enclosure, at a distance of 15 cm from the liquefaction container, was employed to oversee the evaporation process and give a first rough estimate of the target thicknesses. The key concept behind this is that the ¹³C powder evaporates isotropically and is deposited also on the quartz. The oscillation frequency will drop as the crystal’s mass is increased by the material being deposited on it. An electronic instrument continuously reads the frequency and performs appropriate mathematical functions to convert that frequency data to thickness data, both instantaneous rate and thickness Ohring (1992).

FIGURE 3

FIGURE 3. The vacuum chamber of the evaporator. All the main components are indicated by coloured squares: in white the hole where the electron beam comes from, in red the melting pot of the material, in green the nipper where the backing is held, in light blue the quartz used to monitor the evaporation process. The reader can find further information on the working principle of the quartz in the text.

The target thickness obtained through this methodology ranged between 500 and 800 Å.

Targets were characterized immediately after production using the NRRA technique at the 2.0 MV Medium-Current Plus Tandetron Accelerator installed at ATOMKI (Csedreki et al., 2020), by exploiting the E_p = (1747.6 ± 9) keV narrow (Γ = (135 ± 8) eV) resonance of the ¹³C(p,γ)¹⁴N reaction (Q = 7,550.6 keV) Zeps et al. (1995). Target characterization was performed before and after irradiation by the LUNA proton beam. After irradiation, it was possible to characterize both the beam spot and off-spot areas of the target, to assess the target degradation experienced during the measurement. The main limitation of this technique is target characterization could only be performed at the beginning and at the end of the experiment since the resonance of interest is out of the dynamic energy range of the LUNA400 kV accelerator. In order to monitor the target condition during the experiment, the γ-shape analysis, described in section 2 was therefore used.

All of the evaporated carbon targets showed great stability under proton irradiation. Target degradation only started to become significant at approximately 10 C of accumulated proton charge, with targets able to withstand irradiation up to a total of 80 C accumulated proton charge. In contrast, target degradation was significantly faster under alpha irradiation. The γ-shape analysis showed a 30% reduction in the yield following approximately 3 C of accumulated charge.

3.1 ^12/13C(p,γ)^13/14N

The ¹²C(p,γ)¹³N (Q = 1,943.5 keV) and the ¹³C(p,γ)¹⁴N (Q = 7,550.6 keV) reactions are important to study the mixing phenomena inside both Red Giant Branch (RGB) and AGB stars. The nuclei produced in the hydrogen burning regions of these stars are usually transported to the stellar surface through convective motions. The mixing is particularly important for AGB stars which undergo several dredge-up cycles Herwig (2005), during which most of the hydrogen burning products enter inside the convective region of the star and are then pushed towards the stellar surface. Nevertheless, contributions other than the convective ones are needed to explain the observed elemental abundance inside the stellar atmosphere Busso et al. (2007). Many different hypotheses have been proposed Aerts et al. (2014), but none of them are able to completely explain the observed surface abundances.

The ^12/13C(p,γ)^13/14N reactions are a useful tool to constrain these hypotheses. Since the stellar surface ¹²C/¹³C ratio is a well-known observable, knowledge of the precise equilibrium ratio inside the hydrogen burning region at different temperatures can help improve stellar models. However, the literature uncertainty of the ^12/13C(p,γ)^13/14N reaction rates remains very high [∼20% Angulo et al. (1999), Xu et al. (2013)]. In order to reduce the uncertainty at the temperatures of interest for the RGB and AGB stars, both of these two reactions have been recently measured at LUNA.

In order to control and characterize the various systematic uncertainties, two different, but complementary setups were adopted for the measurements. One setup was based on a HPGe detector in close geometry, whereas the other setup utilized a high efficiency Bismuth Germanium Oxide (BGO) scintillator detector Skowronski et al. (2023b). The high energy resolution of the HPGe allowed all the many transitions of the reaction to be studied and also enabled the use of the γ-shape technique to characterize the target throughout the measurement. The technique was used to extract both the information regarding the target thickness and also to derive the cross section of the reactions. The target information was first tuned with the NRRA measurements, then the fit was performed leaving the cross section as a free parameter. Two examples of the fit are shown in Figure 4. The setup utilizing the BGO scintillator facilitated measurements at lower proton energies due to the high efficiency of the BGO detector. In the case of the ¹³C(p,γ)¹⁴N reaction, total absorption spectroscopy was applied. The cross section could easily be extracted as the reaction Q-value of 7,551 MeV, meaning that the sum-peak of interest lay in a region of the sum spectrum free from any background contributions. In contrast, the ¹²C(p,γ)¹³N reaction has a Q-value of 1,943 MeV, and the sum-peak lay in a region affected by the internal background of the BGO, and the cross section could not be easily extracted. Consequently, the cross section was studied using the activation technique, since ¹³N is β⁺ unstable Skowronski et al. (2023b). This technique resulted in a drastic reduction in the background by exploiting the 511 keV coincidences.

FIGURE 4

FIGURE 4. The γ-shape analysis fits for the ¹²C(p,γ)¹³N reaction (A) and the ¹³C(p,γ)¹⁴N reaction (B) at 130 keV and 330 keV, respectively. The lined regions show the direct capture contribution, whereas the dotted one shows the amount of resonant contribution to the cross section.

All the measurements were successfully performed and precise cross section values in both the RGB and AGB regions of interest were published in Skowronski et al. (2023a). The astrophysical impact on the mixing phenomena is currently under study and will be published in a devoted paper.

3.2 ¹³C(α,n)¹⁶O

¹³C(α,n)¹⁶O is the main source of neutrons required for the synthesis of 90 ≤ A ≤ 204 elements in the Universe through the slow neutron capture process. The low neutron flux produced by ¹³C(α,n)¹⁶O, results in the average time for an unstable isotope to decay being significantly smaller than the average time required for further neutron captures, such that neutron capture occurs only on isotopes in the valley of stability Bisterzo et al. (2015). Low mass $(<3M_{\odot })$ Asymptotic Giant Branch stars are the most relevant stellar sites where ¹³C(α,n)¹⁶O is the source of s-process neutrons. A¹³C pocket forms between the intermediate He layer (where the 3 α process forms ¹²C) and the external H layer (where after ¹²C(p,γ)¹³N, ¹³C is formed by β⁻ decay of ¹³N). During so-called thermal pulsing periods Straniero et al. (2006); Gallino et al. (1998), the ¹³C pocket reacts with the surrounding alpha particles at typical temperatures of 90 MK producing a slow neutron flux of N_n ≈ 1 × 10⁷ neutrons/cm³ in long periods of 10⁴ years Käppeler et al. (2011).

To properly account for the s-process neutron budget, an accurate determination of the ¹³C(α,n)¹⁶O stellar reaction rate is required. Several direct measurements have previously been performed Sekharan et al. (1967), Davids (1968), Bair and Haas (1973), Kellogg et al. (1989), Drotleff et al. (1993), Harissopulos et al. (2005), Heil et al. (2008). These measurements were all performed in surface laboratories so that natural background limited the investigations to energies approaching the Gamow window, E_G (150 keV < E_G < 230 keV) and affected the final precision achievable.

In parallel, also different indirect techniques have been used. For example, in Trippella and Cognata (2017), the asymptotic normalization coefficient (ANC) and the Trojan Horse Method have been combined for an independent evaluation of the astrophysical factor.

Recently, both LUNA Ciani et al. (2021) and Jinping Underground experiment for Nuclear Astrophysics (JUNA) Gao et al. (2022) pushed measurements of the ¹³C(α,n)¹⁶O reaction to lower energies, approaching the Gamow window, thanks to the low background environment of deep underground laboratories. As a consequence, both the accuracy and the precision of extrapolations to lower energies, required by stellar models, were increased.

In particular, the LUNA measurement of ¹³C(α,n)¹⁶O was performed using the LUNA400 kV accelerator with a high intensity (I ∼ 150 μA) He⁺ beam impinging on evaporated ¹³C targets. The neutron detection array, described in detail by Csedreki et al. (2021), consisted of 18 ³He proportional counters installed in two concentric rings around the reaction chamber in a polyethylene moderator. To reduce the intrinsic background of the detectors, which in deep underground laboratories can be a major contributor to the detection sensitivity [see, e. g., Alimonti et al. (1998)], detectors with stainless steel walls were employed instead of the standard aluminum walls. Moreover, the use of pulse shape discrimination allowed for a further reduction of the background to 1.3 ± 0.2 counts/h through the identification of detected particles Balibrea-Correa et al. (2018). This background is about two orders of magnitude lower with respect to experiments in surface laboratories.

Two detector array configurations were employed; a vertical array with a multi-target chamber for a faster target characterization in the first campaign, and a horizontal array with a single target chamber, to maximize detection efficiency. The array configurations were evaluated using GEANT4 simulations and validated with experimental measurements using the activation technique with the ⁵¹V(p,n)⁵¹Cr reaction and with a calibrated AmBe source. The detection efficiency achieved at the relevant neutron energies, between 2 and 2.5 MeV, was (38 ± 3) % and (34 ± 3) % for the horizontal and vertical configurations respectively Csedreki et al. (2021). During the measurement campaign, 100 targets were irradiated for a total accumulated charge of 300 C.

Data taking at LUNA consisted of long α-beam runs with accumulated charges of $\approx 1\text{C}$ per run, interspersed by short proton-beam runs with the moderator opened and HPGe detector in close geometry, with typical accumulated charges of 0.2 C. The target degradation was checked using gamma shape analysis during the proton runs, by the ¹³C(p,γ)¹⁴N reaction with the HPGe detector. Thanks to the impressive background suppression by the Gran Sasso massif (the muon component of the cosmic ray is reduced by a factor of 10⁶ and the neutron component by a factor of 10³) and by using a novel approach to target degradation monitoring, the LUNA collaboration measured the ¹³C(α,n)¹⁶O reaction cross section in the energy range 230 < E_c.m. < 305 keV, approaching the high energy edge of the Gamow window. Notably, the achieved uncertainty was 20% lower than in previous measurements Ciani et al. (2021). Measured cross sections were included in an Monte Carlo (MC) R-matrix analysis, together with most recent direct measurements results (Drotleff et al., 1993; Harissopulos et al., 2005; Heil et al., 2008). Further details can be found in Ciani et al. (2021). The results of the LUNA measurements are summarized in Figure 5 together with the most recent literature data and the R-matrix fit.

FIGURE 5

FIGURE 5. S(E)-factor of the ¹³C(α,n)¹⁶O reaction. Different data sets are indicated by different styles and colors as indicated in the legend. All the data in the plot are direct data, except from Trippella and Cognata (2017) that used the indirect technique of the Trojan Horse Method. Figure is adapted from Ciani et al. (2021) and more recent data from Gao et al. (2022) have been added.

It is worth noting that the R-matrix calculation is strongly dominated by the large uncertainties of other datasets (e.g., Drotleff et al., 1993; Heil et al., 2008) Therefore in the near future LUNA collaboration is planning to extend the measurement in the energy range 400 < E_α < 900 keV to provide ad unique dataset with reduced and well controlled systematic uncertainties.

The astrophysical reaction rate per particle pair $⟨\sigma v⟩$ as a function of stellar temperature was calculated by integrating the R-matrix cross section. Thanks to the excellent quality of the data, the reaction rate at T = 0.1 GK was evaluated with an overall uncertainty of approximately 15%. In particular, the reaction rate was considered at −95% uncertainty, where more ¹³C survives and is subsequently burned at a higher temperature (∼200 MK) in a convective shell powered by the following thermal pulse. This generates a second neutron burst characterized by higher neutron density and lower exposure. For stars of nearly solar composition (metallicity Z = 0.02, and Y = 0.27), this causes considerable variations of some isotopic abundances. In particular, isotopes close-by branching points that are sensitive to the neutron density are strongly influenced. In particular ²⁰⁵Pb, and ¹⁵²Gd are reduced by 15% and ⁶⁰Fe might increase by 105% as described in Ciani et al. (2021).

4 Evaporation of sodium and lithium targets

Sodium and lithium targets, produced by evaporation, have also been used by the LUNA collaboration in several measurements. The melting points of sodium and lithium are significantly lower than that of carbon (97°C and 180°C, respectively), and therefore they do not require heating using the electron gun process discussed in the previous section. Instead, the sample material is heated under vacuum in a crucible. The evaporated material is then deposited onto the backing which is mounted on top of the crucible. In general, heating is slower and more controlled using this process compared to heating using the electron gun. In this section, the use of both sodium and lithium targets at LUNA are further discussed, including the measurements in which they have been utilized.

4.1 Lithium targets

The discrepancy in the lithium abundance between astronomical observations and theoretical calculations is a long-standing open question in nuclear astrophysics. This discrepancy is not isolated to one astrophysical scenario but instead is a broad problem in nuclear astrophysics which is impacted by various nucleosynthesis mechanisms. One aspect of this broad discrepancy between theory and observations is known as the cosmological lithium problem, which refers to the observation that the ⁷Li abundance of metal-poor stars in the galactic halo is approximately 3 times lower than the predicted Big Bang Nucleosynthesis (BBN) abundance as described in Tanabashi et al. (2018). Another point of tension between theory and observation is in the ⁶Li/⁷Li isotopic ratio. The observed Solar System isotopic ratio of 0.08 Lodders (2003) is significantly larger than the predicted BBN ratio which is of the order of 10^–5, with it suggested that less than half of the lithium in the Solar system was produced by BBN but instead is produced from stellar sources such as red giants, low mass asymptotic giant branch stars, or novae. In this context, it has been suggested to use the ⁶Li/⁷Li isotopic ratio as a tool to constrain non-standard lithium production mechanisms (Prantzos, N. 2012). One crucial reaction which directly impacts the ratio between the two lithium isotopes is the ⁶Li(p,γ)⁷Be (Q = 5,606 keV) reaction that converts ⁶Li to ⁷Li, following the decay from ⁷Be. However, the cross section of this reaction was uncertain, with a new, previously unobserved resonance at E_c.m. = 195 keV suggested in a paper by He et al. (2013). To investigate the existence of this resonance, the ⁶Li(p,γ)⁷Be reaction was the subject of an experimental campaign at LUNA, using solid lithium targets, which is described in detail by Piatti et al. (2020). The targets were produced by evaporating 95% enriched lithium compounds, such as lithium oxide (⁶Li₂O) or lithium tungstate ⁶Li₂WO₄ onto tantalum backings. The average nominal target thickness was 50 μg cm⁻². Target stability was monitored by comparing the experimental yield during periodic irradiation (after the accumulation of 10 C) at a fixed beam energy, E_p = 290 keV. The yield in the observed Region Of Interest (ROI) remained constant for ⁶Li₂O, opposed to the ⁶Li₂WO₄ targets, where a decrease of approximately 20% was observed. Following the measurement at LUNA, the target thickness and profile were independently evaluated using the NRRA and ERDA techniques at the HZDR laboratory (Dresda, Germany).

The γ-rays emitted from the ⁶Li(p,γ)⁷Be reaction were detected using a HPGe detector in close geometry, in addition to alpha and ³He particles from the ⁶Li(p,α)³He reaction. The cross section of the ⁶Li(p,α)³He reaction was known to 5% precision prior to the experiment, allowing verification of the ⁶Li(p,γ)⁷Be cross section relative to the ⁶Li(p,α)³He cross section. The ⁶Li(p,γ)⁷Be cross section was determined in the energy range from 60 to 350 keV with statistical and systematic uncertainties of 2% and 13% respectively. This precision was sufficient to conclusively exclude the existence of the resonance at 195 keV. In addition to this, the stellar reaction rate was reduced with respect to previous compilations [33% lower than Xu et al. (2013)], and the accuracy was improved by 10%. The LUNA results have recently been confirmed by an indirect determination of the S(E) factor with the asymptotic normalization coefficient method Kiss et al. (2021) and by calculation of Dubovichenko et al. (2022). The astrophysical factor S(E) as a function of the center of mass energy for the different targets used in the experiment is shown in Figure 6.

FIGURE 6

FIGURE 6. Astrophysical S(E)- factor extracted for different targets used in the LUNA campaign. LUNA results are in agreement using different targets with different stoichiometry and with theoretical calculation by Gnech and Marcucci (2019), showing a monotonic energy dependence, excluding the presence of the resonance at E_p = 195 keV.

4.2 Sodium targets

Sodium is primarily involved in the neon-sodium (NeNa) cycle of hydrogen burning. This cycle can take place in many important astrophysical environments with T ≥ 0.05 GK, such as in the H-shell of red giants and AGB stars, novae, and in the cores of massive stars. Nucleosynthesis involving sodium is also significant for the production of higher mass isotopes. Proton capture on ²³Na determines either the closure of the NeNa cycle through the (p, α) reaction or a leak of cycle material towards the Mg-Al cycle via the (p, γ) radiative capture Hale et al. (2004). The rate of these two reactions affects the final yields of the involved nuclides and the extent of sodium destruction in the stellar environment. More accurate knowledge of this latter process could prove crucial in a greater understanding of Globular Clusters (GC). GC are tight spherical distributions of old gravitationally bound stars, orbiting in the extended halos of most spiral galaxies. They constitute a rather unique probe of galactic and stellar evolution theory Gratton et al. (2012), but their formation and peculiar chemical evolution are still not completely understood Gratton et al. (2019). Their most striking feature is the presence of multiple stellar populations Carretta, E. et al. (2010); Piotto et al. (2007) showing strong star-to-star variations in light elements abundances. In particular, secondary generation stars appear to be depleted in C and O, enriched in He, N, and Na, but have a rather constant [Fe/H], proving that a contribution to their formation from supernovae-processed material is in most cases unlikely (Renzini et al., 2015).

To explain such chemical signatures, several scenarios have been proposed as the origin of second generation stars’ composition. These range from fast rotating massive stars Krause et al. (2013), to a single supermassive star Denissenkov and Weiss (2004) and AGB stars D’Ercole et al. (2008), D’Antona et al. (2016). However, recent observational constraints have excluded the majority of these scenarios Renzini et al. (2015), leaving AGB stars as the most suitable candidate polluters, in a scenario also known as self-enrichment. In AGB stars with M$\ge 4M_{\odot }$ the NeNa cycle may be onset together with the hot-CNO cycle at the basis of the convective envelope, in a process known as Hot Bottom Burning (HBB). When the convective envelope reaches down to the H-burning shell, all the processed material can be dredged up to the stellar surface. This material is ejected into the interstellar medium, from which the next-generation of stars is later born. The main problem with this scenario is the observed O-Na anti-correlation. Observations of GC stars have revealed that they are O-poor and Na-rich, which cannot be reproduced by AGB stellar models. One possible solution to this long-standing problem, suggested by many authors (Ventura and D’Antona, 2006; Renzini et al., 2015), would be a decrease in the ²³Na(p,α)²⁰Ne reaction rate by a factor $\approx$ 4 to 5 than currently adopted from Angulo et al. (1999). This would increase the temperature range where Na is destroyed faster than O, producing the observed anti-correlation in AGB models without affecting other successes of these models such as the proton capture production of Al, Si, and K (Ventura et al., 2012). LUNA experimental campaigns dedicated to the study of the competing²³Na(p,γ)²⁴Mg (Q = (11,692.69 ± 0.01) keV) and ²³Na(p,α)²⁰Ne (Q = (2,376.133 ± 0.002) keV) reactions was conducted to explore this theory further. These measurements are presented in the following sections.

4.2.1 ²³Na(p,γ)²⁴Mg

²³Na is the only stable isotope of sodium, so no enrichment is required during target production. In previous studies, targets have been produced by either implantation or by evaporation. Sodium targets produced by implantation have been reported by several authors (Seuthe et al., 1987; Brown et al., 2009; Cesaratto, 2011). The targets were produced by raster scanning a²³Na ion beam over the surface of a backing disk, typically at energies between 10 and 30 keV. Several materials have been used as backings, but the best results in terms of homogeneity profile, high sodium concentration, and stability are nickel Seuthe et al. (1987) and copper Brown et al. (2009). A more recent attempt to produce targets by implantation by Cesaratto (2011) failed to produce targets with sufficient sodium concentrations or homogeneous target profiles using several different backing materials.

Evaporated targets have shown better performance in terms of target stability and reproducibility in target production. These targets were produced at ATOMKI evaporating sodium compounds onto Ta backings. The choice of the sodium compound used to produce the target requires consideration of several factors, including stoichiometry, ease of production, and target stability. The majority of sodium salts are also hygroscopic, i. e., the stoichiometry of the target changes when exposed to humidity. This requires careful heating procedures and can affect the reproducibility of targets when certain compounds are used. In the ²³Na(p,γ)²⁴Mg measurement at LUNA, targets were produced using three different target materials, NaCl, Na₂WO₄ and Na₂SiO₃. The best target properties were obtained using Na₂WO₄. Characterization of targets was conducted by NRRA using the strong resonance at E_p = 309 keV (ωγ = (105 ± 19) meV) in the ²³Na(p,γ)²⁴Mg reaction. The typical target thickness was 50 μg cm⁻², and the typical accumulated charge on each target was 10 C–30 C.

The ²³Na(p,γ)²⁴Mg reaction can populate many excited states of the compound nucleus, but only a few are relevant for the determination of the astrophysical reaction rate (Wang et al., 2012). In stellar environments with temperatures up to 1 GK, the reaction rate is predominantly influenced by the non-resonant cross section and two narrow resonances located at lower energies (E_p = 140 keV and 251 keV). These resonances play a significant role in shaping the overall reaction rate and subsequent nucleosynthesis processes in stellar scenarios. The strengths of both of these resonances were measured at LUNA using a proton beam impinging on Na₂WO₄ targets Boeltzig et al. (2019). Two complementary detection approaches were employed for the measurement. For the weaker 144 keV resonance, a 4π BGO detector with high efficiency was used. For the stronger 251 keV resonance, a high-resolution HPGe detector was employed. The resonance strength determined for the 140 keV resonance was $\omega \gamma =1.46_{-0.53}^{+0.58}\mathrm{n}\mathrm{e}\mathrm{V}$ (68% CL) and for the 251 keV resonance was ωγ = (482 ± 82) µeV. For more details, please see Boeltzig (2016).

4.2.2 ²³Na(p,α)²⁰Ne

First studies of the resonances of astrophysical interest in the ²³Na + p system were performed by Zyskind et al. (1981) and Görres et al. (1989). The latter was among the first to directly search for a resonance around E_lab = 144 keV, which is thought to dominate the ²³Na(p,α)²⁰Ne reaction rate at temperatures relevant for globular cluster nucleosynthesis. However, only tentative upper limits to the resonance strength have been placed by different studies, depending on the value of the unknown proton momentum transfer value I_p. The current recommended rate, obtained assuming I_p = 2, is ωγ ≤ 2.8 neV (Hale et al. (2004). Indeed, the Boeltzig et al. (2019) measurement of ωγ for the (p, γ) channel suggests values of I_p = 2 or 3. Recent work by Marshall et al. (2023) has found a different energy for the excited state involved in the resonant capture, thus shifting the energy of the resonance in the center of mass from E_c.m. = 138 keV down to 133 keV. The authors suggest that this could also have an impact on the (p, γ) channel reaction rate. Moreover, the higher lying resonance around 170 keV, which has a contribution only for the (p, α) channel, was slightly moved from 169.5 to 168.1 keV center-of-mass energy by Marshall et al. (2023). Considering the very low upper limit to the E_c.m. = 133 keV resonance strength, the expected rate is too low to be observed from surface laboratories, due to the poor signal-to-background ratio.

In the near future, the ELDAR (burning questions on the origin of the Elements in the Lives and Deaths of stARs) UKRI ERC StG (EP/X019381/1) will study the ²³Na(p,α)²⁰Ne reaction at the LUNA400 kV facility. A newly designed LUNA setup optimized for the underground detection of alpha particles using silicon detectors has been developed. The setup will be commissioned in the near future. The following experimental campaign will aim at reducing the uncertainties on the ²³Na(p,α)²⁰Ne cross section and finally determine the contribution of the E_c.m. = 133 keV resonance to the reaction rate by measuring its strength.

5 Anodic oxidation of oxygen targets

Solid oxygen targets can be produced by anodic oxidation of tantalum backings in water. This technique is well-known for producing targets with a precise stoichiometry (Ta₂O₅), and homogeneous thickness. Tantalum disks are cleaned in a bath of 20% citric acid solution in water for 1 h at 90 °C and then mounted in the anodizing apparatus. The anodization setup is described in Caciolli et al. (2012) and a detail is shown in Figure 7. A gold coated basket acts as a cathode by the connection with a Direct Current (DC) power supply. This is controlled by Labview software using a Proportional–Integral-Derivative (PID) controller. The Ta backing acts as the cathode and is grounded. The solution to be anodized is poured onto the backing and the basket is put in contact with the liquid, closing the electric circuit. This generates a current in the water, sputtering oxygen ions onto the Ta backing.

FIGURE 7

FIGURE 7. Detail of the anodization setup, view from top. The Ta backing is mounted in the Teflon holder and the golden anode basket is moved in the vicinity of the backing.

The final target thickness x depends linearly on the applied voltage V according to a phenomenological relationship found by Vermilyea (1953). Due to the thin-film interference, the target changes color as a function of the thickness, allowing an online qualitative thickness estimation. The solution used for target production depends on the reaction to be measured. In Table 1 the main reactions studied with this typology of targets are listed, together with the solution used for the target production.

TABLE 1

TABLE 1. Reaction measured at LUNA with anodized oxygen target with the corresponding solution used in the production.

Doping both ¹⁷O and ¹⁶O targets with a well known percentage of enriched ¹⁸O water allows target monitoring by NRRA, using a thick-target yield approach. The narrow resonance at E_p = 151 keV (ωγ = (1.0 ± 0.1) meV) was used. Periodic scans at different levels of accumulated charge demonstrated that this typology of the target is able to withstand the intense beams provided at LUNA (I = 200 µA). Degradation corresponding to a decrease in the target thickness of no more than 20% was observed after irradiation of more than 25 C of accumulated charge. Several proton and alpha capture reactions, listed in Table 1, have been successfully measured at LUNA only thanks to the stability of the oxygen targets under intense irradiation and the low background conditions available at LNGS.

These measured reactions are crucial to exploit the CNO cycle in many different stellar scenarios, and over a wide temperature range (20–1,000 MK), as described in several papers (e.g., (Wiescher et al., 1980; Palmerini et al., 2013 or Clarkson and Herwig, 2020). One example is the observation of oxygen isotopes in evolved giant stars, which provide important information on the mixing processes taking place in stellar interiors Abia et al. (2017), induced by convection, rotation, and magnetic fields Busso et al. (2010). Oxygen isotopic ratios can also be used to determine the efficiency of these mixing processes and are critical in the classification of stardust oxide and silicate grains that were originally condensed in AGB stars, supernovae, and novae Lugaro et al. (2017). Knowledge of the cross sections and the resonance strengths populated in the temperature range is critical to significantly reduce uncertainties on the reaction rates in the temperature region of interest. The main recent results and the ongoing measurements by the LUNA collaboration are illustrated in the following sections.

5.1 Measurement with ${}^{17}$O oxygen targets

The ¹⁷O(p,α)¹⁴N and ¹⁷O(p,γ)¹⁸F reactions compete in both AGB stars and in novae explosions, and knowledge of their cross sections is key for the determination of the branching ratio between cycle II and III of the CNO cycle in these stellar environments. Depending on the scenario, either the 65 keV or the 183 keV resonance of the ¹⁸F compound nucleus dominates the reaction rates. The study of the low energy resonances for both reactions, with the aim to reduce the total uncertainty on reaction rates, has been a key aim of the LUNA collaboration.

An array of nine silicon detectors in close geometry was developed for the measurement of the α-channel, and taking advantage of the charged particles background reduction at LNGS, the strength of the E_c.m. = 65 keV resonance was directly measured and found to be ωγ = (10.0 ± 1.4 ± 0.7) neV, almost a factor of two higher than previous estimations done by Sergi et al. (2010) and Sergi et al. (2015) using the Trojan Horse method. Further details on the analysis are reported in Bruno et al. (2016). Using the rate obtained from the new resonance strength, a very good agreement between predictions from intermediate-mass AGB stars and observations in Group-II silicate grains has been obtained. The γ channel was measured using a large-volume HPGe detector in close geometry with the target. The E_c.m. = 183 keV resonance strength was measured by Di Leva et al. (2014) with an unprecedented low uncertainty ωγ = (1.67 ± 12) μeV. In addition to this resonance strength, several previously unobserved transitions were observed, aiding in the improvement of nova models. Lower energies that are more significant for AGB scenarios were not able to be studied during this campaign due to the use of a HPGe. In particular, the ¹⁷O(p,γ)¹⁸F reaction rate at temperatures between 20 and 100 MK, relevant in the H burning shell of AGB stars, is dominated by a poorly constrained resonance at E_c.m. = 65 keV. To date, this resonance has only been evaluated by Fox et al. (2005) via indirect methods.

Recently, a new high sensitivity setup, based on a BGO detector with a 3-layer shielding (BPE-Lead-BPE), has been designed that increases the detection efficiency and reduces the intrinsic background with the aim to directly measure this resonance for the first time Piatti, D. and Ciani, G.F. (2023). Further details can be found in Skowronski et al. (2023b). Analysis on the E_c.m. = 65 keV is presently ongoing and results will be submitted soon.

5.2 Measurement with ${}^{18}$O oxygen targets

The ¹⁸O(p,α)¹⁵N reaction plays a crucial role in the production of the stable ¹⁵N, ¹⁸O, ¹⁹F isotopes which can be used to trace the mixing and nucleosynthesis processes occurring inside AGB stars and novae. At LUNA, this reaction has been studied in Bruno et al. (2019), using the same setup employed for the ¹⁷O(p,α)¹⁴N, in the energy range 60$<$ E_p < 360 keV, the lowest energy for this reaction achieved to date. The E_c.m. = 90 keV resonance was found to be a factor of 5 higher than the previously adopted value, and a new, previously unobserved state at E_c.m. = 106 keV was required to reproduce the trend of data at low energies. These results significantly reduced the uncertainty in the stellar rate of the ¹⁸O(p,α)¹⁵N reaction.

In stellar scenarios, the ¹⁸O(p,γ)¹⁹F reaction competes with the ¹⁸O(p,α)¹⁵N reaction, and an experimental measurement of this reaction was also required in order to determine the ratio of these competing branches. In two separate experimental campaigns, the LUNA collaboration studied the ¹⁸O(p,γ)¹⁹F reactions across two different energy ranges using two different experimental setups. In Best et al. (2019), the resonance strength of the resonance at E_c.m. = 90 keV was measured using a 4π BGO detector, obtaining a value of (0.53 ± 0.07)  neV. This result was compatible with the previous upper limit in literature, concluding a negligible contribution of this resonance to the stellar reaction rate. In Pantaleo et al. (2021), a higher energy range was studied using the same target with a HPGe detector at 55°, shielded with 15 cm of lead. In this work the resonances at E_p = 151, 215, 274 and 334 keV, previously measured only in surface experiments, were investigated, with the observation of numerous, previously unobserved primary transitions. The stellar reaction rate was re-evaluated, including all resonances measured across both campaigns, with no significant difference with respect to previous scenarios since all the new transitions found are too narrow to contribute to the rate.

5.3 Measurement with ${}^{16}$O oxygen targets

The ¹⁶O(p,γ)¹⁷F reaction plays a fundamental role in the Hot Bottom Burning process of more massive AGB stars. In these stars, the temperature at the base of the convective envelope may reach up to 100 MK and the interplay between H-burning and convective mixing produces important structural changes, the most striking being a substantial increase of the stellar luminosity. At the energies of astrophysical interest, between 20 and 120 keV, the ¹⁶O(p,γ)¹⁷F reaction (Q = 600.27 keV) proceeds through direct capture either to the ground state or to the first excited state, E_x = 495.33 keV, of the unstable isotope ¹⁷F (t_1/2 = 64.49 s). Angular distributions for the two direct capture gammas have previously been measured in the energy range 0.778–1.840 MeV Chow et al. (1975), Burtebayev et al. (2003), which found that the DC to first excited state transition is strongly anisotropic, and peaks at 90°, while the capture to the ground state is approximately isotropic.

The ¹⁶O(p,γ)¹⁷F reaction has been the subject of several experimental campaigns by different experimental groups, with several different experimental techniques employed in the measurements. This includes the use of thin transmission solid targets Chow et al. (1975), thick solid targets Burtebayev et al. (2003), gas targets Morlock et al. (1997), experiments in inverse kinematics Becker et al. (1982), and the activation method Hester et al. (1958). Measurements were also made by Tanner (1959) and Rolfs (1973). However, there are issues with the stopping power values used by Tanner, and Rolfs normalized their results to Tanner’s, therefore, these data sets were discarded in the 2021 review of the existing data by Iliadis et al. (2021). The state of the art is shown in Figure 8.

FIGURE 8

FIGURE 8. Data for the ¹⁶O(p,γ)¹⁷F cross section up to 1 MeV. The shaded band indicates the Gamow peak, going from 20 up to 120 keV, depending on the astrophysical considered scenario.

So far, the lowest energy range examined was by Hester et al. (1958), which measured the S(E)-factor in the energy range between 135 and 160 keV, with an average uncertainty of 30%. At higher energies, there is a lack of data between 160 and 360 keV that makes an extrapolation towards the Gamow window difficult. A measurement of the ¹⁶O(p,γ)¹⁷F reaction by the LUNA group is currently underway to address this lack of data, and aid extrapolations to lower energies. This measurement utilizes ionized oxygen targets made with ultra-pure natural water doped with a well-controlled quantity of ¹⁸O enriched water. Two different experimental approaches will be employed: prompt-gamma detection and the activation technique. The prompt-gamma approach will enable the individual measurement of the contributions corresponding to the transitions to the ground state and the 495.33 keV excited state of ¹⁷F, and the measurement of the angular distribution of emitted γ-rays. The activation measurements will provide the total cross section, free from any angular distribution effects or environmental background. Combining the results obtained with the two approaches will reduce the overall systematic uncertainties.

6 Future perspectives with sputtered and implanted targets

The installation of the 3.5 MV accelerator at the LNGS Bellotti Ion Beam Facility, is an exciting milestone for the LUNA collaboration and offers the ability to address many open questions in nuclear astrophysics. Proton, alpha, and carbon beams will be available, shown in Table 2 adapted from Sen et al. (2019), covering energy ranges not previously accessible at LUNA. The new accelerator and experimental setup are expected to introduce new challenges for solid target measurements. One challenge is the increased power incident on the target, up to 1,000 W compared to the 100 W for the LUNA 400 kV, which is expected to accelerate target degradation. The increased beam energy of LUNA MV may also open new channels of beam induced background, currently not observed at the LUNA 400 kV. To address these challenges, new target typologies are under development in addition to the deep characterization of the purity of the produced targets to better understand any possible background contributions. In parallel, an alternative technique for producing sodium targets is currently under development for future measurement at LUNA 400 kV.

TABLE 2

TABLE 2. Maximum Beam intensity on target for different beam species at the 3.5 MV Bellotti Ion Beam Facility.

6.1 Nitrogen targets

A new measurement of the ¹⁴N(p,γ)¹⁵O reaction will be the first activity performed and the new 3.5 MV Singletron^®of the LNGS Bellotti Ion Beam Facility. The ¹⁴N(p,γ)¹⁵O is the slowest reaction in the CNO cycle and therefore is essential in estimating the lifetime of massive stars as well as determining the CNO neutrino flux from the Sun, which has been recently observed for the first time by the Borexino collaboration (Appel et al., 2022). Despite the efforts of many groups over the years, including pioneering underground measurements made by the LUNA collaboration, e. g., by Formicola et al. (2004), this reaction remains the predominant source of uncertainty when determining solar chemical composition from the direct CNO neutrino flux measurement. The collaboration will measure this reaction at higher energies than the previous study conducted at the LUNA400 kV accelerator. This measurement will present new experimental challenges, primarily from the beam-induced background of several reactions at the higher energies of the LUNA MV. The ¹⁹F(p,αγ)¹⁶O reaction is anticipated to largest challenge, as fluorine is a common contaminant in tantalum backing, and this reaction has a well-known resonance at E_p = 340 keV. This resonance produces a sharp peak at 6.13 MeV, very close to the 6.17 MeV secondary peak of interest in the ¹⁴N(p,γ)¹⁵O reaction. The ¹⁵N(p,αγ)¹²C reaction is also expected to be a significant source of beam induced background, coming from the 0.5% of isotopic abundance of ¹⁵N in natural nitrogen. This produces a broad peak at 4.4 MeV in the γ-rays spectrum, hampering the sensitivity to the primary γ-rays of the ¹⁴N(p,γ)¹⁵O reaction.

Solid targets have primarily been produced via the reactive Magnetron sputtering of Nitride coatings, typically TiN, onto Tantalum backings. This method has proved to produce targets with excellent stability against irradiation with high beam powers and a low concentration of impurities. The higher beam energies achievable at the new facility has motivated the development of new targets produced by sputtering Tantalum Nitride (TaN) coatings using isotopically enriched (99.99%) ¹⁴N gas. The switch to a higher Z material is required to reduce the neutron background, in order not to perturb the low background environment where the facility is located at the Hall B of LNGS. However, this switch is anticipated to result in the increase of beam induced background from the aforementioned ¹⁵N(p,αγ)¹²C reaction. The Laboratori Nazionali di Legnaro (LNL) are involved in target development and production of isotopically enriched TaN targets using a dedicated apparatus based on close field reactive magnetron sputtering technology.

6.2 Sodium targets

The LUNA collaboration is currently in the process of exploring new production procedures for sodium targets in collaboration with LNL, for the measurement of the ²³Na(p,α)²⁰Ne reaction. One of the major challenges to the production of sodium targets is the hygroscopic behavior of sodium salts, see section 4.2.1 for further details. New procedures for the production of evaporated and sputtered targets on Ta backings using sodium tungstate (Na₂WO₄) and sodium niobate (NaNbO₃) are primarily focused on reducing the sensitivity of targets to humidity and improving stability under beam irradiation. The first samples are currently being analyzed and characterized at the LUNA400 kV facility at LNGS. A technical paper on the performance of these new targets under an intense proton beam will be available within the end of next year. A picture of a sputtered target sample with very promising stability and purity is shown in Figure 9.

FIGURE 9

FIGURE 9. First sample of a²³Na target on Tantalum backing produced at LNL and currently under characterization at LNGS.

7 Conclusion

In this review, we have reported several production techniques for different solid targets that have been used at LUNA, together with the main processes adopted for target characterization and monitoring. Thanks to the huge experience of the LUNA collaboration in handling solid targets, a large number of measurements relevant to a wide range of stellar scenarios significant for stellar evolution have been performed during the 30 years of experiment life.

High purity and enriched evaporated carbon targets have been used for ^12/13C(p,γ)^13/14N and ¹³C(α,n)¹⁶O cross section measurements. The accurate techniques used for target monitoring were crucial for pushing the measurements to the lowest energy point ever directly measured achieving the uncertainties required for astrophysical models.

Thanks to the use of ionized oxygen targets, several proton and alpha burning processes on the three stable oxygen isotopes have been evaluated, providing unprecedented results for what concerns oxygen isotopes ratio in AGB and novae scenario.A long study has been performed on sodium targets during the ²³Na(p,γ)²⁴Mg LUNA campaign. The deep knowledge acquired will be combined with new improved techniques to produce more stable sodium targets for the next measurements in the ELDAR project.

Solid targets will continue to play a significant role in future measurements for the LUNA collaboration and the research for further improvements is currently underway to address the challenges presented by the higher power and energy of the new LUNA MV facility.
