The high energy X-ray probe (HEX-P): probing the physics of the X-ray corona in active galactic nuclei

The hard X-ray emission in active galactic nuclei (AGN) and black hole X-ray binaries is thought to be produced by a hot cloud of electrons referred to as the corona. This emission, commonly described by a power law with a high-energy cutoff, is suggestive of Comptonization by thermal electrons. While several hypotheses have been proposed to explain the origin, geometry, and composition of the corona, we still lack a clear understanding of this fundamental component. NuSTAR has been playing a key role improving our knowledge of X-ray coronæ thanks to its unprecedented sensitivity above 10 keV. However, these constraints are limited to bright, nearby sources. The High Energy X-ray Probe (HEX-P) is a probe-class mission concept combining high spatial resolution X-ray imaging and broad spectral coverage (0.2–80 keV) with a sensitivity superior to current facilities. In this paper, we highlight the major role that HEX-P will play in further advancing our insights of X-ray coronæ notably in AGN. We demonstrate how HEX-P will measure key properties and track the temporal evolution of coronæ in unobscured AGN. This will allow us to determine their electron distribution and test the dominant emission mechanisms. Furthermore, we show how HEX-P will accurately estimate the coronal properties of obscured AGN in the local Universe, helping address fundamental questions about AGN unification. In addition, HEX-P will characterize coronæ in a large sample of luminous quasars at cosmological redshifts for the first time and track the evolution of coronæ in transient systems in real time. We also demonstrate how HEX-P will enable estimating the coronal geometry using spectral-timing techniques. HEX-P will thus be essential to understand the evolution and growth of black holes over a broad range of mass, distance, and luminosity, and will help uncover the black holes’ role in shaping the Universe.

1 Introduction

Active galactic nuclei (AGN) are known to be prolific X-ray emitters. The hard X-rays from AGN are thought to be generated through Compton scattering of thermal UV-soft X-ray seed photons from the accretion disk by a hot electron plasma located in the vicinity of the black hole, known as the corona (e.g., Vaiana and Rosner, 1978; Rybicki and Lightman, 1979; Haardt and Maraschi, 1991; 1993). The resulting X-ray continuum spectrum is usually approximated by a power law of photon index Γ, with a high-energy cutoff (E _cut) at tens to hundreds of keV (e.g., Fabian et al., 2017; Tortosa et al., 2018; 2023). Within the Comptonization framework, Γ and E _cut can be mapped into the electron temperature¹ (kT_e) and the coronal optical depth (τ) plane (see, e.g., Titarchuk and Lyubarskij, 1995; Zdziarski et al., 1996; Beloborodov, 1999; Petrucci et al., 2001a; b; Middei et al., 2019). The X-ray corona thus holds key information about the physical processes occurring near the supermassive black hole (SMBH), offering insights into the energetic phenomena associated with AGN. Understanding the physics of the X-ray corona in AGN is crucial for unraveling the accretion process, comprehending the origin of the emission from AGN, studying black hole feedback and its impact on galaxy evolution, probing strong gravity regimes, and investigating magnetic fields and particle acceleration.

1.1 The geometry of the X-ray corona

Constraining the geometry (e.g., size and location) of the X-ray corona offers an opportunity to test models for the formation of the corona as each mechanism predicts a distinct geometry. For example, the “two-phase” corona model proposed by Haardt and Maraschi (1991) predicts an extended corona. In contrast, within the framework of the failed jet model proposed by Ghisellini et al. (2004), the corona is expected to be compact. To date, the most promising constraints come from microlensing variability. The microlensing of quasars by stellar components in the lensing galaxy results in a complex magnification pattern (e.g., Wambsganss, 2006). The relative motion of the lensed quasar, the galaxy and its stellar components, and the observer leads to uncorrelated variability. The variability amplitude depends significantly on the size of the emitting region, with a larger amplitude from a smaller emitting region. Thus, the size of the source region can be estimated by modelling the light curve of a lensed quasar (e.g., Chartas et al., 2002; Kochanek et al., 2007; Chartas et al., 2009; Mosquera et al., 2013; Chartas et al., 2016). Reis and Miller (2013) compiled measurements of the X-ray-emitting region in lensed quasars and found the sizes range from ∼ one to tens of gravitational radii (r_g = GM_BH/c², where G is the gravitational constant, M_BH is the mass of the black hole, and c the speed of light). We highlight that current results are based on only a few strongly lensed quasars.

X-ray spectral and spectral-timing properties of nearby bright Seyfert galaxies, notably the detection of X-ray reverberation lags, led to the similar conclusion that the X-ray source is compact and lies within a few gravitational radii of the black hole (Fabian et al., 2009; De Marco et al., 2013; Cackett et al., 2014; Emmanoulopoulos et al., 2014; Uttley et al., 2014; Kara et al., 2016). Modelling the continuum optical-to-X-ray spectral energy distribution (SED) of a few bright Seyfert galaxies also yields similar estimates of the corona size (e.g., Done et al., 2013; Petrucci et al., 2013; Porquet et al., 2019). This has been recently applied also to a bright quasar at intermediate redshift (Kammoun et al., 2023). Further evidence of a small physical size of the corona emerges from varying obscuration of the corona by clouds in the broad line region (e.g., Risaliti et al., 2011; Sanfrutos et al., 2013; Gallo et al., 2021). These results motivated the adoption of the lamp-post geometry to describe the disk–corona system, where the X-ray corona is assumed to be a point-like source located on the symmetry axis of the disk (e.g., Matt et al., 1991; Martocchia and Matt, 1996; Miniutti and Fabian, 2004). Such a geometry could be physically realized by collisions and shocks within an ejection flow or a failed jet (e.g., Henri and Pelletier, 1991; Henri and Petrucci, 1997; Ghisellini et al., 2004), and has been assumed in detailed models for the calculation of reflection spectra (e.g., Dauser et al., 2013; García et al., 2014; Niedźwiecki et al., 2016; Ingram et al., 2019; Mastroserio et al., 2021; Dovčiak et al., 2022). We note that recently several works are considering a variety of more realistic 3D coronal geometries (e.g., Wilkins et al., 2016; Gonzalez et al., 2017; Zhang W. et al., 2019).

Several works have adopted an approach similar to the one of Soltan (1982) to constrain the radiative efficiency (η) of accreting SMBHs (e.g., Fabian and Iwasawa, 1999; Yu and Tremaine, 2002; Marconi et al., 2004; Shankar et al., 2004; 2009; 2020; Raimundo and Fabian, 2009; Raimundo et al., 2012; Aversa et al., 2015; Zhang and Lu, 2017). This cosmology-independent approach enables constraining the radiative efficiency by comparing the energy density of quasar/AGN radiation with the local mean SMBH mass density. All these works resulted in constraining η to be larger than 0.1. More recently, Shankar et al. (2020) favor η ∼ 0.12–0.2 which is in line with spinning SMBH, suggesting an average spin value larger than $\sim 0.5$. For these spin values half of the accretion disk emission is produced within the inner 20 r_g (see, e.g., Agol and Krolik, 2000; Dovčiak et al., 2022). The inner edge of the accretion disk is thus required to extend close to the black hole. Consequently, the bulk of the emission should be emitted from a compact region, which is in agreement with the results obtained from X-ray observations.

1.2 The heating and cooling mechanisms of the X-ray corona

While the heating mechanism of the corona is still uncertain, magnetic reconnection has been suggested to play an important role (e.g., Galeev et al., 1979; Di Matteo et al., 1997; Merloni and Fabian, 2001a; b; Sironi and Beloborodov, 2020; Sridhar et al., 2021; 2023; Gupta et al., 2023). Within this scenario, the magnetized coronæ could generate cyclo/synchrotron radiation that can be observed in the radio/mm band (e.g., Laor and Behar, 2008; Inoue and Doi, 2014; Panessa et al., 2019). In fact, low levels of radio emission has been almost ubiquitously detected in radio-quiet AGN. In many cases, the emitting region is unresolved and associated with a compact, sub-kpc nuclear region (see, e.g., Smith et al., 2016; Panessa et al., 2019, and references therein). Given the expected physical size of the X-ray emitting region, the coronal mm-wave synchrotron emission is expected to be self-absorbed, and it would therefore be more easily detectable in the mm than in the radio. The size (R) of the self-absorbed synchrotron source decreases with frequency following R ∝ ν^−7/4. Thus, the synchrotron emission from an X-ray corona sized source would peak at $\sim 100\mathrm{G}\mathrm{H}\mathrm{z}$ (e.g., Raginski and Laor, 2016; Inoue and Doi, 2018). Several observational studies hint towards a coronal origin of the mm-wave nuclear emission in non-jetted AGN (e.g., Behar et al., 2015; 2018; Doi and Inoue, 2016; Inoue and Doi, 2018; Kawamuro et al., 2022; 2023; Petrucci et al., 2023). In particular, correlations between mm continuum emission and X-ray emission have been found in various samples of AGN, with an average ratio between the $\sim 100-200\mathrm{G}\mathrm{H}\mathrm{z}$ and X-ray continuum of $\sim 10^{-5}-10^{-4}$ (Behar et al., 2015; 2018; Kawamuro et al., 2022; Ricci et al., 2023). Interestingly, this relation is consistent with what has been observed in coronally active stars (Guedel and Benz, 1993), which are magnetically heated, similar to what is expected for AGN coronæ, further supporting the proposed coronal origin for the 100–200 GHz continuum emission, and in turn the idea that the corona is magnetically heated.

A physically compact X-ray corona is expected to be radiatively compact, meaning that the luminosity to radius ratio (L/R_c) is large. The compactness is usually described by the dimensionless parameter $\ell =\frac{L}{R_{\mathrm{c}}}\frac{{\sigma }_{\mathrm{T}}}{m_{\mathrm{e}}{c}^3}$, where σ_T is the Thompson scattering cross section and m_e is the electron mass (Guilbert et al., 1983). For large values of ℓ, the number density of the high-energy photons can lead to electron-positron pair production due to photon-photon collisions. In this case, feeding the corona with more energy will lead to the production of more particles to share the energy, which will limit the increase of the temperature of the corona and prevent pair production from becoming a runaway process and exceed annihilation. This can be assimilated to an ℓ-dependent thermostat (Svensson, 1984; Zdziarski and Lightman, 1985; Stern et al., 1995). Observational constraints on the coronal parameters so far obtained are in agreement with the hypothesis that pair production and annihilation may act as an effective thermostat controlling the coronal temperature (Fabian et al., 2015; 2017). It is common to assume that the coronal plasma is thermal. However, several AGN show electron temperatures that are much lower than expected for a purely thermal pair plasma (see, e.g., Baloković et al., 2015; Ursini et al., 2016; Kara et al., 2017; Tortosa et al., 2018; Reeves et al., 2021; Bertola et al., 2022). These low temperatures could be indicative of a hybrid plasma composed of a mixture of thermal and non-thermal particles (Ghisellini et al., 1993; Zdziarski et al., 1993; Fabian et al., 2017). Only a small fraction of non-thermal electrons with energy above 1 MeV would be needed to result in runaway pair production. In this case, the cooled pairs share the energy which reduces the temperature of the corona.

It is common to model the Comptonization spectrum using a phenomenological power law with a high energy cutoff. Various physical models are also used and all of them describe the current data equally well. These models differ in their assumptions for the spectrum of the seed photons and the geometry of the Comptonizing region. Various analytic Comptonization models such as CompTT (Titarchuk, 1994) and CompPS (Poutanen and Svensson, 1996) are used, allowing different simple geometries. Recently, more physically self-consistent calculations such as EQPAIR (Coppi, 1999), BELM (Belmont et al., 2008), MoCa (Tamborra et al., 2018), and MONK (Zhang W. et al., 2019) include a variety of geometries, hybrid coronæ, and polarization.

1.3 Observational constraints

The unprecedented sensitivity of NuSTAR (Harrison et al., 2013) above 10 keV has been instrumental to study the hard X-ray spectra of AGN. NuSTAR enabled high-energy cut-off measurements from single epoch observations for a relatively large sample of local (Ballantyne et al., 2014; Matt et al., 2014; Baloković et al., 2015; 2020; Ricci et al., 2017; Tortosa et al., 2018; Akylas and Georgantopoulos, 2021; Kamraj et al., 2022; Tortosa et al., 2023) and intermediate-redshift AGN for the first time (see, e.g., Kammoun et al., 2017; 2023; Lanzuisi et al., 2019; Bertola et al., 2022; Marinucci et al., 2022b, and references therein). It should be mentioned that previous studies (with BeppoSAX, RXTE, INTEGRAL, etc.) allowed these measurements for a much smaller sample of the brightest nearby AGN (e.g., Nicastro et al., 2000; Petrucci et al., 2004; Malizia et al., 2014; Lubiński et al., 2016). NuSTAR observations allowed us not only to constrain the coronal temperature by accurately measuring values of E _cut, but also to probe its variability (e.g., Ballantyne et al., 2014; Zoghbi et al., 2017) the origin of which remains unclear.

The Swift/BAT AGN sample comprises all AGN detected by the all-sky 14–195 keV BAT survey (Baumgartner et al., 2013; Oh et al., 2018). Ricci et al. (2017) have estimated a median high-energy cutoff of local unobscured AGN (i.e., $\log \left(N_{\mathrm{H}}/{\mathrm{c}\mathrm{m}}^{-2}\right)<22$) of E_cut = 210 ± 36 keV. Ricci et al. (2018) subsequently found evidence for an inverse correlation between E _cut and Eddington ratio (λ_Edd) where the median E _cut increases from E_cut = 160 ± 41 keV to E_cut = 370 ± 51 keV considering AGN with λ_Edd larger and smaller than 0.1, respectively. This could be suggestive that the properties of the X-ray corona evolve with the accretion rate. More recently, Kamraj et al. (2022) included NuSTAR observations of this sample and estimated the mean electron temperature to be kT_e = 84 ± 9 keV, which is consistent with the values reported previously in the literature. However, the authors were not able to recover the correlation between the electron temperature and any of the accretion parameters. It is worth mentioning that differences in coronal spectra may be expected between obscured and unobscured AGN, within the framework of the orientation-based unified model of AGN (Antonucci, 1993; Urry and Padovani, 1995), especially if the corona has a net velocity perpendicular to the accretion disk (most likely related to jet formation; see, e.g., Malzac et al., 2001; Markoff et al., 2005). However, Baloković et al. (2020) estimated a median E_cut = 290 ± 20 keV for a sample of 130 local obscured AGN, consistent within the current large uncertainties with the values found by Ricci et al. (2017) for unobscured AGN.

More recently, the launch of the Imaging X-ray Polarimetry Explorer (IXPE; Weisskopf et al., 2022) has enabled studies of X-ray polarization in AGN for the first time (in the 2–8 keV range). X-ray polarization is a powerful technique to explore the geometry of the X-ray emitting region (see, e.g., Schnittman and Krolik, 2010; Beheshtipour et al., 2017; Tamborra et al., 2018; Zhang W. et al., 2019). So far, a total of four non-blazar AGN have been observed (NGC 4151, MCG–05-23-16, the Circinus galaxy, and IC 4329A). Only upper limits could be determined for MCG–05-23-16 (Marinucci et al., 2022b; Tagliacozzo et al., 2023) and IC 4329A (Ingram et al., 2023), which are not conclusive on the geometry of the X-ray source. The Circinus galaxy shows a polarization of 28 ± 7 per cent (at 68 per cent confidence level), with a polarization angle of 18° ± 5°, roughly perpendicular to the radio jet (Ursini et al., 2023). Given the large obscuration in this source, this polarization is most likely due to reflection off cold material in the torus (e.g., Ghisellini et al., 1994; Goosmann and Matt, 2011; Marin et al., 2018; Ratheesh et al., 2021) and cannot be interpreted as the intrinsic polarization of the X-ray source. As for NGC 4151, a polarization of 4.9 ± 1.1 per cent with a polarization angle of 86° ± 7° (at the 68 per cent confidence level) are reported by Gianolli et al. (2023). This is consistent with a radially extended source of polarization that is perpendicular to the radio jet, i.e., parallel to the accretion disk. Similar results have also been observed in the black hole X-ray binary Cygnus X-1 (Krawczynski et al., 2022).

The High-Energy X-ray Probe (HEX-P; Madsen et al., 2023; in preparation) will address many of the open questions related to the physics of the X-ray corona in AGN. In this paper, we showcase how HEX-P will play a major role in advancing our understanding of the physics of the X-ray coronæ in AGN. In Section 2 we briefly present the properties of the mission. Characterisations of the X-ray coronæ in unobscured and obscured AGN with HEX-P are discussed in Section 3 and Section 4, respectively. Section 5 shows how studying the X-ray coronæ in high-redshift quasars will be possible with HEX-P. Section 6 addresses the capabilities of HEX-P in studying the X-ray coronæ of transient sources. Section 7 demonstrates how HEX-P will allow us to better constrain the coronal geometry. Finally, we present a summary and a brief discussion in Section 9.

2 Mission design

HEX-P is a probe-class mission concept that offers sensitive broad-band coverage (0.2–80 keV) of the X-ray spectrum with exceptional spectral, timing, and angular capabilities. It features two high-energy telescopes (HETs) that focus hard X-rays, and one low-energy telescope (LET) that focuses lower energy X-rays.

The LET consists of a segmented mirror assembly coated with Ir on monocrystalline silicon that achieves a half power diameter of 3.5″, and a low-energy DEPFET detector, of the same type as the Wide Field Imager (WFI; Meidinger et al., 2020) onboard Athena (Nandra et al., 2013). It has 512 × 512 pixels that cover a field of view of 11.3′× 11.3′. It has an effective passband of 0.2–20 keV, and a full frame readout time of 2 ms, which can be operated in a 128 and 64 channel window mode for higher count-rates to mitigate pile-up and faster readout. Pile-up effects remain below an acceptable limit of $\sim 1\%$ for fluxes up to $\sim 100$ mCrab in the smallest window configuration. Excising the core of the PSF, a common practice in X-ray astronomy, will allow for observations of brighter sources, with a typical loss of up to $\sim 60\%$ of the total photon counts.

The HET consists of two co-aligned telescopes and detector modules. The optics are made of Ni-electroformed full shell mirror substrates, leveraging the heritage of XMM-Newton (Jansen et al., 2001), and coated with Pt/C and W/Si multilayers for an effective passband of 2–80 keV. The high-energy detectors are of the same type as flown on NuSTAR (Harrison et al., 2013), and they consist of 16 CZT sensors per focal plane, tiled 4 × 4, for a total of 128 × 128 pixels spanning a slightly larger field of view than the LET, 13.4′× 13.4′.

The broad X-ray band pass and superior sensitivity will provide a unique opportunity to study the X-ray corona physics across a wide range of energies, luminosity, and dynamical regimes.

2.1 Simulations

All the simulations presented here were produced with a set of response files that represent the observatory performance based on current best estimates (see Madsen et al., 2023; in preparation). The effective area is derived from a ray-trace of the mirror design including obscuration by all known structures. The detector responses are based on simulations performed by the respective hardware groups, with an optical blocking filter for the LET and a Be window and thermal insulation for the HET. The LET background was derived from a GEANT4 simulation (Eraerds et al., 2021) of the WFI instrument, and the HET background was derived from a GEANT4 simulation of the NuSTAR instrument; both simulations assume HEX-P is orbiting at the first Earth-Sun Lagrangian point (L1).

3 Physics of the corona in unobscured AGN

Unobscured AGN $(\log \left(N_{\mathrm{H}}/\mathrm{c}{\mathrm{m}}^{-\mathrm{2}}\right)<22)$ with their clean view of the central engine have provided most of the knowledge we have today regarding AGN coronæ, as outlined in Section 1. The view of the whole Comptonization spectrum, and of the X-ray reflection arising from the interaction with the disk, is what makes X-ray observations of unobscured AGN so valuable. The constraints provided on these sources are key as we move towards refining our picture of AGN coronæ with HEX-P.

NuSTAR observations of unobscured AGN have provided many coronal temperature measurements, which are consistent with the runaway pair production scenario discussed above. Interestingly, in some AGN the coronal temperatures have been found to be much lower than what would be expected for pair-regulated thermal coronæ. One likely explanation for this is that the energy distribution of the electrons in the corona is not entirely thermal but has a non-thermal contribution. Such a hybrid corona would have a lower observed coronal temperature as the non-thermal high energy electrons create pairs even when the bulk of the electrons have lower temperatures.

The hybrid nature of the electron distribution can be detected directly from the X-ray spectrum. Comptonization from thermal electrons results in a power-law like X-ray continuum with a fairly abrupt cut-off at high energies. Consequently, an addition of non-thermal electrons, following a power-law like distribution beyond the thermal peak, leads to an increase in hard X-rays, as there are now electrons with even higher energies. This additional hard X-ray emission beyond the thermal cut-off is usually referred to as a “hard tail”.

Using these differences in the resulting Comptonization spectrum, i.e., the X-ray continuum, some evidence has been found in black hole X-ray binaries that the X-ray continuum is caused by hybrid Comptonization (e.g., Cadolle Bel et al., 2006; Cangemi et al., 2021; Zdziarski et al., 2021). The presence of hybrid Comptonization in AGN has been widely hypothesized but a direct detection of the hard tail itself is beyond the capabilities of current and proposed future instruments. HEX-P, however, will allow indirect confirmation of the presence of hybrid Comptonization in AGN and determine the strength of its contribution.

There are two primary methods to indirectly detect hybrid Comptonization: one relies on the reflection spectrum of the high energy continuum (García et al., 2015, see also Section 9), and the other tests temperature regulation by electron-positron pair production. The latter case can be made by studying the evolution of a source with unusually low coronal temperature over a period of time. If the source is variable, we can study the evolution of its compactness and coronal temperature with time. If the coronal temperature is set by pair production and the accretion geometry remains unchanged² then as the source flux increases, the coronal temperature will decrease. If, on the other hand, the coronal temperature is not regulated by pairs then the temperature may not change or change in a different fashion. If we see the expected trend of lower coronal temperature with increased flux, and if the observed coronal temperatures are much lower than expected for thermal Comptonization, that would be strongly indicative of hybrid Comptonization. The findings can then also be compared to theoretical predictions. In rare cases, this is already possible with today’s instrumentation for some of the brightest X-ray binaries (see Buisson et al., 2019, for an example), but has remained out of reach for AGN. For the observations to yield meaningful constraints our measurements need to be more accurate at low fluxes than is possible with current instruments. However, HEX-P is able to obtain much tighter constraints on the coronal temperatures due to its low background at high energies (Figure 1, left), enabling a high-quality study of coronal temperature variations in AGN for the first time.

FIGURE 1

FIGURE 1. Left: Simulated LET (red) and HET (black) spectra of Ark 564, assuming Γ =2.48, kT_e =13 keV and an exposure time of 90 ks. The figure also shows the background levels of NuSTAR (grey) and HEX-P-HET (blue): the background of HEX-P is significantly lower than that of NuSTAR. Right: Corona compactness as function of electron temperature. The blue circles correspond to simulated observations of Ark 564 with HEX-P at five different flux levels and five different coronal temperatures from 15 to 10 keV (see text). For clarity, uncertainities in the compactness of Ark 564 are not plotted. The grey empty circles represent typical estimates of kT_e from other AGN performed with NuSTAR.

To demonstrate this, we explored the feasibility of a study with HEX-P that targets the evolution of the coronal temperature in the bright, local narrow-line Seyfert 1 galaxy Ark 564. Ark 564 is ideally suited for such a study as it exhibits a low measured coronal temperature (Kara et al., 2017; Lewin et al., 2022) as well as observed coronal temperature and flux variations (Barua et al., 2020). Our HEX-P simulations of Ark 564 are based on the absorbed 2–10 keV fluxes observed with RXTE over a 4-year period ranging from 1999 to 2003 and our simulations are further assuming a scenario where the coronal size remains unchanged with luminosity³. During this period the observed 2–10 keV flux varies between 1.0–5.0 × 10⁻¹¹ erg s⁻¹ cm⁻² (Rivers et al., 2013). We simulate spectra at five evenly spaced levels within the observed flux range assuming a model that consists of a thermal Comptonization continuum and its associated reflection spectrum, both of which are treated with the relativistic reflection model relxilllpcP (Dauser et al., 2020). The second lowest flux level of 2.0 × 10⁻¹¹ erg s⁻¹ cm⁻² corresponds very well to the 2018 joint XMM-Newton + NuSTAR observations of the source, which were studied in detail in Lewin et al. (2022). We therefore adopt the spectral parameters from their detailed modeling for this flux level (Table 3 in their paper), in particular they have determined that Γ = 2.48 and kT_e = 14.7 keV at this particular flux level. Then as we vary the flux level, we not only adjust the normalization of our spectral model but also evolve the photon index from 2.40 to 2.56 to mimic a softer-when-brighter effect and the coronal temperature from 15.1 to 10.0 keV to have the coronal evolve mildly with flux, the reflection parameters are kept unchanged. To determine how much exposure time was needed at each flux level, we simulated spectra with increasingly longer exposure times until we were able to recover the coronal temperature with an accuracy of ±2.5 keV or better at 90% confidence. From the simulations, we found that a study of Ark 564 with HEX-P with a total exposure time of 445 ks targeting the source at different flux levels will constrain the coronal temperature to $\le 2.5$ keV and could yield important data points in the compactness-temperature plane (blue points, Figure 1, right). At higher flux levels it is easy for us to exceed the accuracy requirement of 2.5 keV and the error bars are therefore smaller. We note here that accuracy of the coronal temperature constraint for a certain simulated exposure time is model-dependent, where more complex models lead to less accurate constraints.

To place the findings from the Ark 564 study into the context of the wider population of radio-quiet, unobscured AGN, ideally a few similar studies of other sources would also be conducted. Suitable study targets display large variability on timescales of weeks to months and possess a low coronal temperature, several of such sources have already been identified. Together, with the findings from one-time observation of unobscured AGN and high redshift targets, this will highlight whether Ark 564 is special in any way or whether its coronal variations can be considered representative for the population as a whole.

The much lower background of HEX-P at higher energies and the therefore much improved constraints on the spectral shape in this energy range with shorter exposure times will likely not only lead to a better understanding of hybrid Comptonization, but also to a more accurate spectral decomposition of unobscured AGN. This aspect is studied in more detail in Piotrowska et al. (2023).

4 Physics of the corona in obscured AGN

Within the framework of the orientation-based unified model for AGN (Antonucci, 1993), differences in coronal spectra between obscured $(\log \left(N_{\mathrm{H}}/\mathrm{c}{\mathrm{m}}^{-\mathrm{2}}\right)\ge 22)$ and unobscured AGN could be expected if the corona has significant velocity perpendicular to the accretion disk, possibly related to jet formation (Beloborodov, 1999; Markoff et al., 2005; Liu et al., 2014). Hard X-rays $(\ge 15\mathrm{k}\mathrm{e}\mathrm{V})$ are essential to study the intrinsic properties of obscured AGN, as the obscuring material is optically thin to these photons. Constraints on coronæ in obscured AGN remain extremely scarce in the literature despite the prevalence of obscured AGN both in the local universe and, particularly, at high redshift (50%–75% of the population; Hickox and Alexander, 2018). A few constraints based on data from non-focusing hard X-ray instruments are available from, e.g., BeppoSAX (Dadina, 2007), Suzaku (Tazaki et al., 2011), INTEGRAL (de Rosa et al., 2012), Swift/BAT (Ricci et al., 2018), or a combination thereof (Molina et al., 2013). However, the cutoff of the power-law continuum at high energies, E _cut, has been well constrained using NuSTAR data for only about a dozen bright, obscured AGN (e.g., Baloković et al., 2015; Fabian et al., 2017; Buisson et al., 2018; Tortosa et al., 2018; Ursini et al., 2019), while larger samples representative of the obscured AGN population provide ensemble-level constraints mostly based on short NuSTAR observations with limited photon statistics (Baloković et al., 2020). In addition to E _cut, we note that constraining the photon index in obscured AGN is crucial to study the intrinsic AGN spectrum and understand the accretion process.

Thanks to its low background, and broad-band energy coverage, HEX-P will provide better constraints on the properties of the X-ray corona in obscured AGN. We performed simulations of various configurations of absorbed AGN to test the capabilities of HEX-P in constraining coronal parameters, assuming uniform exposure times of 100 ks (typical exposure for the planned HEX-P surveys; see Civano et al., 2023). We used the borus02 model (Baloković et al., 2018), which self-consistently computes the reprocessed emission from a sphere with conical cutouts at both poles, approximating a torus with variable covering factor. We considered a torus with a half-opening angle of 45° and an inclination of 60°. We also considered a photon index of the incident power law of Γ = [1.6, 1.9, 2.2], and a high-energy cutoff E_cut = [50, 150, 300] keV. The incident luminosity was estimated to match the average values observed by Ricci et al. (2017) for z = 0.02 and z = 0.5, resulting in unabsorbed 2–10 keV luminosities in the range 10^42.9–45.5 erg s⁻¹. We considered three values for the column densities $\log \left(N_{\mathrm{H}}/{\mathrm{c}\mathrm{m}}^{-2}\right)=[\mathrm{22,23,24}]$. For simplicity, we assume a homogeneous torus with the line-of-sight column density equal to the equatorial value. In addition, the soft X-ray spectrum in obscured AGN is typically characterized by the emission from photoionized gas in the narrow line region. For simplicity, we include a soft APEC component, which is commonly used in the literature to model this emission in absorbed AGN. For this component we assume a temperature of 0.9 keV and a normalization that is equal to 10% that of the power law, as typically seen in local AGN (see, e.g., Kammoun et al., 2020). The total model results observed 2–10 keV fluxes in the range 2.5–8.5 × 10⁻¹² erg s⁻¹ cm⁻² Figure 2 shows example HEX-P spectra for an intermediate configuration for all the simulated N_H values, assuming Γ = 1.9, and E_cut = 150 keV, for z = 0.02 and z = 0.5 (left and right panels, respectively). Figure 3 shows the E _cut-vs-Γ contours at the 3σ confidence level for all the configurations considered. HEX-P accurately measures the photon index over a broad range of parameters. The uncertainty on Γ is larger for higher column densities, since increasing amounts of absorption limits the access to the power law portion of the continuum to increasingly hard X-rays. This yields larger uncertainties on E _cut as well. The uncertainty on E _cut also increases with increasing E _cut; only lower limits could be estimated for E_cut = 300 keV. We note that the observed flux decreases by a factor of $\sim 3$ between z = 0.02 and z = 0.5, which lead to an increase in the uncertainty on the parameters higher redshift. For comparison with current facilities, we simulate a joint 30-ks XMM-Newton plus 100-ks NuSTAR (accounting for both modules, FPMA and FPMB) observation, which are typical exposures with these facilities. For all cases, we adopt z = 0.02 as it results in tighter constraints than the z = 0.5 case. The Γ − E_cut constraints are shown as black dotted contours in Figure 3, demonstrating the improvements enabled by HEX-P. We note that, for the flux levels of these sources and the exposure time, many of these sources will be easily detected in the HEX-P surveys (see Civano et al., 2023).

FIGURE 2

FIGURE 2. Simulated LET (red) and HET (black) spectra of an absorbed AGN at z =0.02 (left) and z =0.5 (right), assuming $\log \left(N_{\mathrm{H}}/{\mathrm{c}\mathrm{m}}^{-2}\right)=\mathrm{22,23,24}$ (top to bottom), Γ =1.9, E_cut =150 keV, and an exposure time of 100 ks. The grey dotted lines represent the power law components, the grey dashed lines represent the neutral reflection component, and the grey dash-dotted lines represent the thermal component.

FIGURE 3

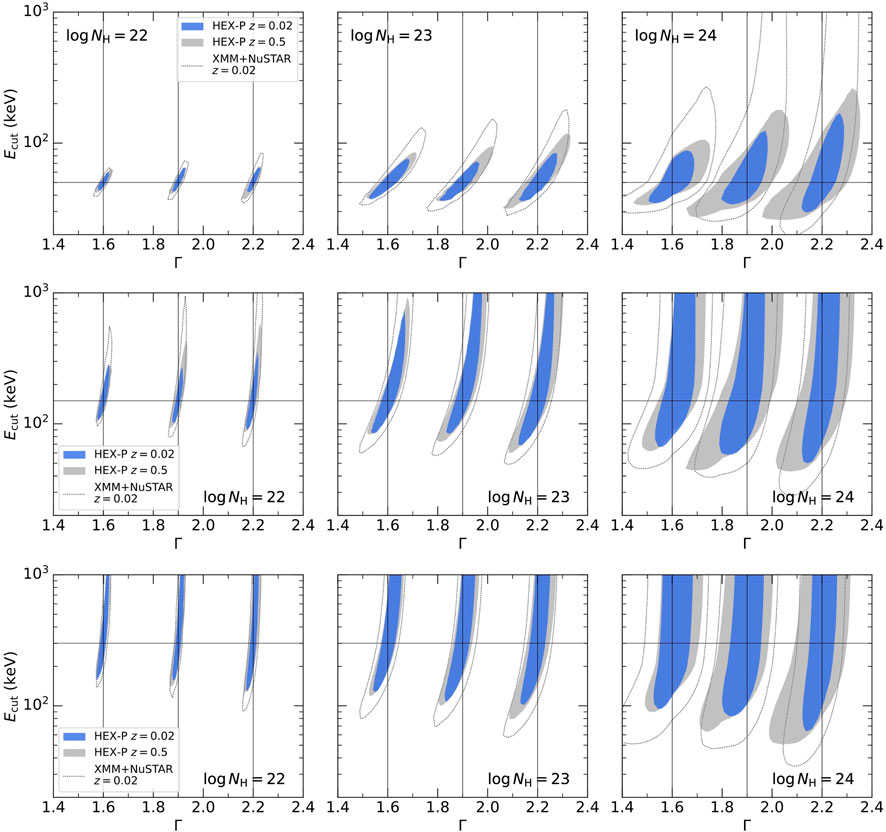

FIGURE 3. Γ − E_cut contour plots (3σ confidence level) for z =0.02 and 0.5 (blue and grey contours, respectively) assuming $\log \left(N_{\mathrm{H}}/{\mathrm{c}\mathrm{m}}^{-2}\right)=[\mathrm{22,23,24}]$ (left to right), E_cut =50, 150, and 300 keV (top to bottom), and simulating a 100-ks HEX-P observation. The black dotted contours correspond to the 3σ confidence level constraints for a source at z = 0.02 with 30-ks exposure by XMM-Newton combined with a 100-ks exposure by NuSTAR (including both modules, FPMA and FPMB). Horizontal and vertical lines indicate the input values of Γ and E _cut, respectively.

We would like to note that our borus02 model is setup in coupled mode in which the line-of-sight and global column densities scale together. The reflection component will be higher at higher line-of-sight column densities, possibly contributing to the increased uncertainties in the higher N_H regime that we show in Figure 3. To definitively test this would require knowledge of the dependence between global column density and a wide range of different physical AGN parameters as well as a wide range of different model prescriptions for the obscurer, which is outside the scope of the current work. It is also worth mentioning that near and above the Compton-thick regime, the measurement of the energy cut-off is degenerate with the assumed obscurer model. Different obscurer geometries have different Compton-scattering behaviour, altering the reprocessed spectrum up to 400 keV (e.g., Buchner et al., 2019; 2021). Thus the obscurer geometry and the energy cut-off are degenerate. Merely assuming an obscurer geometry may bias the energy cut-off measurement. Here, for simplicity, a fixed obscurer model (borus02) was used for generating and modeling the data. The complex task of inferring the true obscurer geometry and the true energy cut-off thus would have to be achieved simultaneously, but this is beyond the scope of this paper. Boorman et al. (in prep.) discusses HEX − P′s ability to infer torus geometries in heavily obscured AGN in more detail.

5 Physics of the corona in intermediate-/high-redshift quasars

The high-energy cutoff in the X-ray spectrum (at tens to hundreds keV) can be directly linked to the properties of the corona. Thanks to NuSTAR, whose hard X-ray sensitivity is orders of magnitude better than previous missions, a large sample of AGN were observed with unprecedented data quality at hard X-rays. The majority of the observed sources are AGN with low luminosity (L_{2–10 keV} = 10⁴²–10⁴⁴ erg s⁻¹; see, e.g., Kamraj et al., 2018; Ricci et al., 2018; Baloković et al., 2020), so they are in a region of the kT_e − ℓ plane where a broad range of E_cut is allowed within the framework of the runaway pair production hypothesis. This can be seen in the left panel of Figure 4 (we assume here E_cut = 2 kT_e, R_c ∼10 r_g, and coronal luminosity L_c = L_{0.1–200 keV} ∼4 × L_{2–10 keV}). Furthermore, most of these sources are in the nearby Universe (z < 0.1, Figure 4, right). Therefore, only lower limits to their cutoff energy were measured at 90% confidence level due to the limited bandpass in the rest frame of local sources ($<$80 keV), covered by NuSTAR.

FIGURE 4

FIGURE 4. High-energy cutoff of AGN as a function of 2–10 keV luminosity (left) and redshift (right) by NuSTAR (light blue circles) and non-focusing telescopes (gray squares), based on Bertola et al. (2022). The pair-production forbidden regions assuming different coronal geometries are plotted in orange (hemisphere) and yellow (slab). So far, E _cut was only measured in three quasars at z >1 (red stars). E _cut is not constrained for most of the low-redshift and low-luminosity AGN.

On the contrary, high-redshift (z ≥ 1) radio-quiet quasars (mostly with luminosity L_{2–10 keV} > 10⁴⁵ erg s⁻¹) are ideal sources to constrain high-energy cutoffs thanks to the limited allowed E_cut range on the kT_e − ℓ plane (assuming kT_e is indeed limited by runaway pair production; see Figure 4, left) and the cosmological redshifting of E_cut to the NuSTAR observable band. Therefore, they constitute a promising sample to constrain the AGN coronal properties at high luminosity and test the runaway pair production theory. So far, only three z > 1 quasars were observed with NuSTAR and had their high-energy cutoffs constrained (Lanzuisi et al., 2019; Bertola et al., 2022; Figure 4, right). All three quasars (with L_{2–10 keV} > 3 × 10⁴⁵ erg s⁻¹) were found below the critical line on the kT_e − ℓ plane as per pair-production models expectations, though note the large uncertainties for two of the sources which leave ambiguous results (Figure 4, left). The well constrained cutoff energies of the three high-z quasars (λ_Edd > 0.1) were 1.5–2.5 times lower than the 160 keV measured by Ricci et al. (2018) for sources with high Eddington ratio. Therefore, observing high-redshift quasars, where the coronal properties could be well constrained, is crucial to study the possible evolution of the corona with the accretion parameters such as the accretion rate and the SMBH mass.

Despite the recent progress in constraining the coronal properties of high-redshift, high-luminosity quasars, the observations are extremely time-consuming. A total of ∼375 ks NuSTAR and 150 ks XMM observations were spent on the above three sources. The long exposures required in these observations lead to a strong limitation in constraining AGN coronal properties statistically.

HEX-P, with larger effective area, lower background, and broad band coverage, is well suited to efficiently study the coronal properties of high-redshift, high-luminosity quasars. We compare the 140 ks NuSTAR+ 69 ks XMM-Newton observation of 2MASS J1614346 + 470,420 (z = 1.86) from Lanzuisi et al. (2019) to a simulated 140 ks HEX-P observation in Figure 5. Note that L1 orbit of HEX-P implies that the HEX-P observation would take half the total observatory time compared to the NuSTAR observation, since NuSTAR is in low-Earth orbit and does not re-point during Earth occultations. The 90% confidence level constraints on E _cut are ${106}_{-40}^{+100}$ keV from NuSTAR + XMM-Newton and ${103}_{-20}^{+30}$ keV from the simulated HEX-P spectra, implying significantly improved constraints on E _cut by HEX-P in the same exposure time and half the clock time. The high-energy cutoff and the photon index contours (at 68%, 90%, and 99% confidence levels) derived from NuSTAR + XMM-Newton and simulated HEX-P spectra are plotted in the right panel of Figure 5. The contours show that HEX-P can constrain E _cut at high confidence.

FIGURE 5

FIGURE 5. Left, upper panel: 140 ks NuSTAR (blue) and 69 ks XMM-Newton (red) spectra of 2MASS J1614346 + 470,420 at z 1.86 (adapted from Lanzuisi et al., 2019). Left, lower panel: 140 ks HEX-P simulation of the same quasar (HET in black, LET in red). Right: contours of E _cut and photon index of the NuSTAR + XMM-Newton observations (red, green, and blue correspond to 68%, 90%, and 99% confidence level, respectively) and HEX-P simulations (dark yellow, yellow, and light yellow correspond to 68%, 90%, and 99% confidence level, respectively).

HEX-P will not only provide better constraints on AGN coronal properties but it will also efficiently probe AGN coronæ in a large sample of high-redshift, high-luminosity quasars. We demonstrate the constraining power of HEX-P for coronal cutoff energy measurements of intermediate-/high-redshift, high-luminosity quasars. We simulated nine HEX-P observations of quasars with 50 ks exposures assuming an input 2–10 keV flux of F_{2–10 keV} = 10^–12 erg s⁻¹ cm⁻². We note that cosmic X-ray background population synthesis models predict ∼ 200 quasars at z > 1 with such flux level (see, e.g., Gilli et al., 2007). The input redshifts range goes from z = 0.65 to z = 4.5, so that their 2–10 keV intrinsic luminosity range over $\log \left(L_{2-10\text{\hspace{0.17em}keV}}/\mathrm{e}\mathrm{r}\mathrm{g}{s}^{-1}\right)=$ 45.25–47.25. We simulated source spectra assuming a cutoff power law with a Galactic absorption of 10²⁰ cm⁻² and photon index of Γ = 1.90. We simulated three different high-energy cutoffs, E_cut = 50, 100, and 200 keV, to explore the parameter space. Assuming the same supermassive black hole mass, log (M_BH/M_⊙) = 9.2 and a 2–10 keV luminosity to bolometric luminosity conversion factor of 20 (e.g., Vasudevan and Fabian, 2007; Lusso et al., 2012), the Eddington ratios of the sample range over λ_Edd = 0.2–20.

Figure 6 shows the E_cut − Γ contours measured from the simulated spectra of the quasars with different redshifts and different high-energy cutoffs. The best-fit high-energy cutoffs of each simulated spectrum with its 90% confidence level uncertainties are indicated on the upper right corner of each panel. As expected, E_cut is better constrained at higher redshift thanks to the cosmological redshifting, given the fact that we conserve the flux (F_{2–10 keV} = 10^–12 erg s⁻¹ cm⁻²) of each simulated source at different redshifts. Likewise, sources with E_cut = 50 keV are better constrained than higher E_cut sources at all redshifts due to the band coverage of HEX-P. We found that it is difficult to constrain the high-energy cutoff of intermediate redshifts (z < 1.1) sources with E_cut = 200 keV in a 50 ks exposure.

FIGURE 6

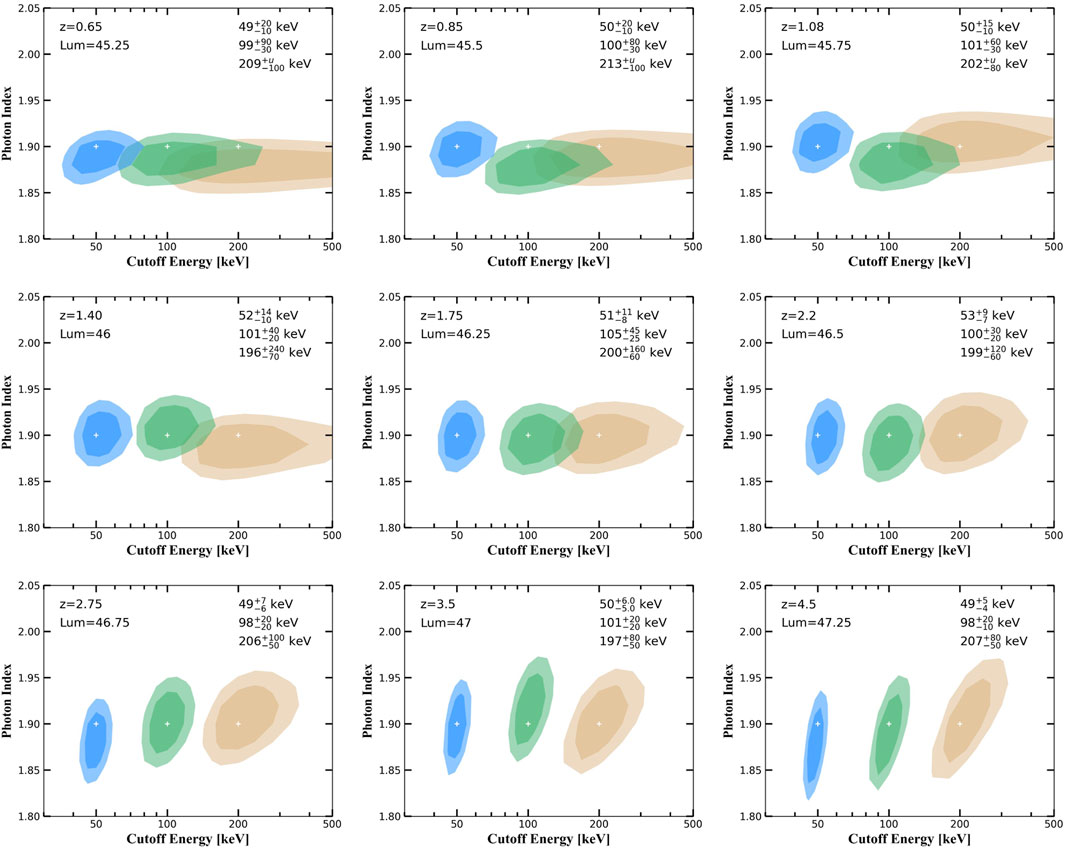

FIGURE 6. E_cut − Γ contour plots (68% and 90% confidence levels) measured from the simulated spectra of the quasars with different redshifts (0.65< z <4.5), assuming an input 2–10 keV flux of 1×10⁻¹² erg s⁻¹ cm⁻² and a HEX-P exposure of 50 ks We simulated three set of high-energy cutoff for each source, E_cut = 50, 100, and 200 keV (blue, green, and yellow). The white crosses indicate the input values. The best-fit value of each spectrum with its 90% confidence level uncertainty is indicated on the upper right corner of each panel.

We tested the E_cut constrained by HEX-P assuming different photon indices (Γ = 1.60, 1.90, and 2.20) under a few redshifts (z = 0.85, 1.40, 2.20, and 3.50) assuming the same flux as above. The results are reported in Table 1. We found that harder photon index provides better constraints on E_cut than softer photon index at all redshifts because more high energy photons are obtained for harder photon indices and a given 2–10 keV flux. The differences of the constraints on E_cut between softer and harder photon indices are much larger at lower redshifts than at higher redshifts. Nevertheless, HEX-P could constrain the E_cut in most circumstances even for the sources with quite soft photon index, Γ = 2.20.

TABLE 1

TABLE 1. Constraints on the high-energy cutoff with different photon indices under different redshifts.

eROSITA (Predehl et al., 2021) observations will provide an all-sky survey of X-ray sources, which will be the deepest survey in the soft X-rays ever performed. With the ongoing SDSS and DESI surveys, and future Euclid, 4MOST, Subaru Prime Focus Spectrograph, and SPHEREx spectroscopic surveys, a large number of high-redshift, high-luminosity, radio-quiet AGN are expected to be discovered prior to the launch of HEX-P. The combination of these large surveys should therefore provide a large sample of high-redshift quasars for HEX-P coronal physics studies in the next decade.

6 Physics of the corona in transient sources: changing-look/changing-state AGN and tidal disruption events

The growing number of time-domain surveys across the electromagnetic spectrum are revealing extreme variability in the accretion process onto supermassive black holes. These objects break from the standard stochastic variability seen in steadily accreting AGN, and thus provide a unique window into the formation, stability, and heating of the corona.

Changing-look AGN (CLAGN; also often referred to as changing-state AGN) show rapid changes between optical spectral types through either the appearance or disappearance of broad emission lines on timescales of months to years (for a recent review, see Ricci and Trakhtenbrot, 2022). These sources challenge the classic unified model for AGN, whereby the appearance of broad emission lines is solely a function of viewing angle. Instead, the change between optical spectral types is often coupled with an associated increase or decrease in the observed optical and X-ray flux, suggesting that the accretion rate is another key factor in AGN unification (e.g., Elitzur et al., 2014). The driving mechanism behind these changing-look events is still under debate, with theories including state transitions reminiscent of the behavior in black hole binaries (Noda and Done, 2018; Ruan et al., 2019), radiation pressure disk instabilities (Sniegowska et al., 2020), propagating cooling fronts linked to changes in the magnetic torques in the innermost regions of the accretion flow (Ross et al., 2018; Stern et al., 2018), and transient events like tidal disruption events (TDEs; e.g., Merloni et al., 2015; Ricci et al., 2020).

Although CLAGN are still a relatively rare phenomenon with only about 100 such systems known to date, they provide unique insights into the dynamic behavior of the inner accretion flow and unveil physics that is impossible to probe in standard steady-state AGN. One extreme example is evidenced by the recent discovery of the disappearance and recreation of the X-ray corona in 1 ES 1927 + 654. In late 2017, the source underwent one of the fastest changing-look events to date, whereby broad emission lines were caught forming on timescales of months (Trakhtenbrot et al., 2019). Shortly after the start of the changing-look event, X-ray observations of 1 ES 1927 + 654 revealed negligible hard X-ray emission, indicating that the X-ray corona had vanished in this source (Ricci et al., 2020; 2021). The corona began to reappear as the source brightened in the X-ray, although it remained extremely soft compared to standard AGN (Γ ≈ 3–3.5; Ricci et al., 2021; Masterson et al., 2022). Two competing theories have been suggested to explain the behavior in this kind of system: a TDE occurring in an AGN (Ricci et al., 2020), or an inversion in the magnetic flux polarity (Scepi et al., 2021; Laha et al., 2022). Both theories can effectively cut off the energy supply to the corona, leading to its destruction.

As a unique opportunity to witness, for the first time, the formation of the corona in an AGN, there have been extensive X-ray resources used to study this enigmatic outburst of 1ES 1927 + 654. To date, NICER has observed the target for more than 1 Ms, and there have been 8 simultaneous XMM-Newton/NuSTAR monitoring periods, totalling more than 400 ks with each telescope. NuSTAR observations have been crucial for disentangling the soft photon index and low cutoff energy as the corona formed, which is not possible with either XMM-Newton or NICER alone due to their limited bandpasses. However, both XMM-Newton and NICER have been critical to unlocking information about the inner accretion flow with their soft X-ray spectra, including providing crucial information about rapid variability of the soft X-ray flux and the broad 1 keV line, that was recently linked to reflection from the inner disk (Masterson et al., 2022). To fully understand this system therefore requires a broad bandpass, which is provided by a single observatory in HEX-P.

To assess the contributions HEX-P can make to our understanding of the corona in CLAGN, we simulated the three different phases in the outburst of 1ES 1927 + 654 as would be seen with the LET and HET on HEX-P. For each phase, we simulated HEX-P spectra using the best-fitting XMM-Newton/NuSTAR models from Masterson et al. (2022) with six exposure times ranging from 10 to 150 ks The model used for each phase, along with the key coronal parameters used in the simulations, are given in Table 2. Figure 7 shows the resulting constraints on key coronal parameters Γ and E_cut for each evolutionary phase, as well as constraints on kT_bb of the dominant thermal component in the early super-soft phase (in which constraints on E_cut were not possible given the super-soft nature of the source). We compare these constraints to the ones achieved by 50-ks joint XMM-Newton/NuSTAR observations, which vary with the changing spectral shape and flux of the source. We find that HEX-P can reach similar constraints as from joint XMM-Newton/NuSTAR observations in a fraction of the exposure time. These simulations show that HEX-P could probe the evolution of the cutoff energy and photon index on roughly 10–25 ks timescales, meaning that either the source could be visited relatively frequently to track the evolution over weeks-months timescales, or that a single long stare could be broken into many 10–25 ks segments in which the evolution of Γ and E_cut could be studied. The X-ray flux of 1ES 1927 + 654 varied by an order of magnitude in timescales as short as 8 h while the corona was in the process of forming (Ricci et al., 2020), which would allow HEX-P to provide unprecedented constraints on the evolution of the temperature and compactness of a newly forming corona for the first time. Since the discovery of 1ES 1927 + 654, other sources with similarly dramatic X-ray variability have been discovered (e.g., a repeating TDE discovered by eROSITA, which shows a repetitive creation and collapse of the X-ray corona; Liu et al., 2023).

TABLE 2

TABLE 2. Spectral models and parameters used in simulations of 1ES 1927 + 654 with HEX-P.

FIGURE 7

FIGURE 7. Top: X-ray light curve of 1 ES 1927 + 654 from Masterson et al. (2022), including 7 simultaneous XMM-Newton/NuSTAR observations and ∼ 500 NICER observations. The pre-outburst X-ray luminosity is shown as an orange dashed line, and the Eddington luminosity for a 10⁶ M_⊙ black hole is shown as a green dot-dashed line. The three evolutionary phases are indicated with vertical black dotted lines. The three XMM-Newton/NuSTAR epochs simulated with HEX-P are shown with grey boxes. Bottom: Fractional uncertainty on Γ, E_cut, and kT_bb for HEX-P simulations of the changing-look AGN 1 ES 1927 + 654 in three different evolutionary stages during its 2018–2021 outburst. The left-most panel shows simulations during the early super-soft phase (June 2018/Epoch 1), the middle panel shows simulations during the peak X-ray luminosity phase (Nov. 2019/Epoch 4), and the right panel shows simulations during the return to the post-outburst phase (Jan. 2021/Epoch 7). For each evolutionary phase, we simulated 25 spectra for 6 different HEX-P exposure times based on the best-fit XMM-Newton/NuSTAR model from Masterson et al. (2022). The blue dashed lines show the joint XMM-Newton/NuSTAR constraints on Γ and E_cut (or kT_bb for the early super-soft state, in which the cutoff energy cannot be constrained), which can be reached with HEX-P with much shorter exposure times (10–25 ks). The spectral models and key coronal parameters used to simulate the HEX-P spectra are given in Table 2.

Moreover, non-jetted TDEs present another opportunity to witness the formation of the corona around SMBHs, and HEX-P will play a major role in improving our understanding of various aspects of TDEs. Although detailed simulations go beyond the scope of the current manuscript, we highlight some of these science cases below. The majority of X-ray emitting, non-jetted TDEs show dominant thermal emission, presumably from the accretion disk, but a handful of sources have shown evidence for the formation of a corona in late-time (∼ few years after ignition) X-ray observations (e.g., Wevers et al., 2021; Yao et al., 2022). As TDEs are believed to transition from super-to sub-Eddington when the mass fallback rate drops as stellar debris is accreted, they are another powerful probe of how the corona evolves with changes to the accretion state. A correlation between the Eddington ratio and X-ray spectral state has been already observed in a (small) sample study (Wevers, 2020), with a slope that is remarkably similar to that seen in AGN samples (see, e.g., Lusso and Risaliti, 2016). HEX-P studies will enable constraints on the formation and evolution of the corona while simultaneously constraining the high-energy cutoff energy over a wide range of accretion rates in individual SMBHs. This direct probe the disk-corona connection during different accretion states will allow for a comparison to state transitions in black hole binaries (Remillard and McClintock, 2006) and serve as a test of the scale-invariant nature of accretion.

X-ray observations of TDEs can also provide independent estimates of SMBH masses and spins, which are otherwise difficult to probe in dormant SMBHs. Detailed X-ray spectral modelling of the thermal continuum in TDEs can provide constraints on the mass and the spin of the central black hole (e.g., Wen et al., 2020). With its wide energy coverage, HEX-P will be able to advance this technique by mitigating the inherent uncertainties and bias introduced by the presence of an X-ray corona. Furthermore, X-ray variability is also a powerful probe of SMBH properties. In particular, the SMBH spin can be estimated through the detection of X-ray quasi-periodic oscillations and/or disk precession (e.g., Pasham et al., 2019), and the SMBH mass can be measured with the break frequency of the power spectral distribution (PSD) (McHardy et al., 2006). In TDEs, the PSD behaviour has been shown to change with Eddington ratio (Saxton et al., 2012; Wevers et al., 2021), and hence can provide an independent estimate of the SMBH mass in TDEs. Additionally, if TDEs form a corona at late times when the accretion rate has dropped and the disk is geometrically thin, then the Fe Kα line can be used to constrain the corona geometry and SMBH spin (e.g., Yao et al., 2022). Thanks to its broad energy coverage, high throughput, low background, and L1 orbit permitting long observations, HEX-P will be able to improve our understanding of TDEs using all of these techniques. This will provide several independent mass and spin measurements of quiescent black holes, which would add invaluable information to constrain the demographics of quiescent low mass SMBHs $(<10^7{M}_{\odot })$ that is not readily available through other means.

7 Coronal geometry

One of the key advances in recent years has been the ability to measure the location, geometry and structure of the corona using X-ray reflection and reverberation from the inner regions of the accretion disk. Determining the structure of the corona in this way places important constraints on the mechanism by which the corona is formed and energized by the accretion flow, for example, distinguishing between a corona that is formed in a jet or failed jet, from a corona that is formed over the surface of the inner accretion disk.

In addition to understanding the physics of the corona itself, measurements of the location and geometry of the corona are important to validate assumptions that underpin the use of X-ray reflection spectroscopy to measure fundamental properties of the black hole, such as its spin (Fabian et al., 1989; Dauser et al., 2013; Risaliti et al., 2013; Mallick et al., 2022). One of the predominant techniques employed to measure black hole spin is based upon identifying the innermost radius of the accretion disk (assumed to coincide with the innermost stable circular orbit, ISCO) from the extremal redshift detected in emission lines (namely, the iron K line) within the reflection spectrum (see Brenneman and Reynolds, 2006; Reynolds, 2021; Piotrowska et al., 2023). The intensity of the reflection and the line emission profile, however, depends upon the geometry of the corona, which provides the primary source of illumination. Typically, either a point source (or “lamppost”) is assumed, or a phenomenological power law is used to model the emissivity profile of the disk (i.e., the intensity of the reflected flux as a function of radius). If the model corona or power law over-predicts reflection from the inner disk, the corona is at a greater height or is more extended than assumed in the model, and it is possible that the spin of the black hole is underestimated (Fabian et al., 2014). First-hand measurements of the location and geometry of the corona reduce this systematic uncertainty and the degeneracy that arises between extended coronæ and low spins.

HEX-P will enable measurements of the location, geometry and structure of the corona via both broadband X-ray spectroscopy and timing. The former is based upon direct measurement of the emissivity profile of the disk from the reflection observed in time-averaged X-ray spectra. The latter technique utilizes the light travel time between the corona and disk as variations in the luminosity of the primary X-ray emission reverberate off of the accretion disk. In addition, further constrains on the geometry of the X-ray corona are available from X-ray polarisation measurements, which can distinguish between X-ray emission from a compact corona, a corona associated with a jet, or an extended slab-like corona extending over the inner accretion disk (see, e.g., Marinucci et al., 2022a; Gianolli et al., 2023; Tagliacozzo et al., 2023; Ursini et al., 2023).

7.1 Measurements of the corona via X-ray spectroscopy

The emissivity profile of the disk is encoded in the profile of the relativistically broadened emission lines. The emission line we observe is the line emission integrated over the entire disk, and is comprised of photons experiencing different Doppler shifts and gravitational redshifts, which vary as a function of position on the disk. This means that it is possible to fit the observed line profile as the sum of contributions from different radii on the disk, and the relative contribution of the line model from each radius provides a measurement of the emissivity profile (Wilkins and Fabian, 2011). The measured profile can then be compared to theoretical predictions for the illumination of the disk by coronæ with different geometries and at different locations (Wilkins and Fabian, 2012; Dauser et al., 2013). Alternatively, a geometry can be assumed for the corona (usually a point source, or lamppost), and a model can be fit directly to full reflection spectrum to make a measurement of the coronal parameters; namely, the height of the corona for the lamppost (Dauser et al., 2016). The emissivity profile of the disk is sensitive to the coronal height in the case of a lamppost geometry, or to the radial extent of the corona if it were extended over the surface of the disk (Wilkins and Fabian, 2012).

A further measurement of the corona comes from the ratio of the reflected flux to the flux of the continuum that is observed directly from the corona, referred to as the reflection fraction (Wilkins and Gallo, 2015; Dauser et al., 2016). In the case of an isotropically emitting point source above an infinite accretion disk in a flat spacetime, we expect a reflection fraction R_f = 1, since exactly half of the emission from the corona is emitted downwards to illuminate the disk, and half is emitted upwards to escape to be observed as the continuum. Light bending around the black hole causes a greater fraction of the rays to be focused towards the inner accretion disk, enhancing the reflection fraction relative to the continuum when the corona is confined to a more compact region of space, closer to the black hole, providing another probe of the compactness of the corona (Fabian et al., 2012; Parker et al., 2014; Walton et al., 2021). On the other hand, the reflection fraction can be reduced below unity if it is outflowing at a mildly relativistic velocity (for example, if the corona is part of a jet or failed jet). In this case, the coronal emission is relativistically beamed away from the accretion disk, enhancing the fraction of rays that are able to escape to be observed as part of the continuum (Beloborodov, 1999; Gonzalez et al., 2017). The broad bandpass of HEX-P is vital to obtain an accurate measurement of the total reflection fraction. In addition, by combining measurements of the reflection fraction with measurements of the relativistically broadened iron K line and the associated reverberation time lags, HEX-P will be able to obtain measurements of the location, the geometry, and the motion of the X-ray emitting coronæ around black holes.

7.2 X-ray reverberation from the inner accretion disk

The measurement of X-ray reverberation time lags adds a further dimension to the picture of the corona. The reflection and line emission from the accretion disk responds to short-timescale changes in luminosity of the primary X-ray emission from the corona. There is, however, a time delay between variations in the continuum and the correlated variations in the reflection due to the additional light travel time between the corona and disk (Fabian et al., 2009; Uttley et al., 2014). In the sample of AGN in which reverberation has been detected, the measured time delays are short and correspond to the light crossing time across distances of between approximately one and ten gravitational radii (this is approximately equal to the radial co-ordinate of the event horizon of a maximally spinning black hole). Such short time delays indicate that the corona must be compact and confined to a small region of space close to the black hole and innermost accretion flow (e.g., De Marco et al., 2013; Kara et al., 2016; Mallick et al., 2021). The reverberation time scale is primarily sensitive to the scale height of the corona above the disk (Wilkins and Fabian, 2013; Cackett et al., 2014). In recent years, there have also been advances in simultaneously modelling the X-ray spectrum and time lag measurements under the assumption of a point-like corona, using models such as reltrans (Ingram et al., 2019). With simultaneous fitting, it is possible to obtain simultaneous constraints on both the height of the corona and the mass of the black hole (e.g., Mastroserio et al., 2020).

HEX-P measurements of X-ray reflection and reverberation were simulated for nearby AGN, typical of those in which reverberation from the inner disk has been detected (e.g., Kara et al., 2015; 2016; Mallick et al., 2021). These are predominantly narrow line Seyfert 1 (NLS1) AGN (Gallo, 2006), which show strong, relativistically broadened iron K lines from the inner accretion disk and a high degree of short-timescale variability in their X-ray light curves (see, e.g., Gallo, 2018, for a review). The observations were simulated from a full spectral-timing reverberation model, which begins with general relativistic ray tracing calculations between a point-like corona, the accretion disk, and the observer, using the CUDAKerr code of Wilkins and Fabian (2012) and Wilkins et al. (2016). These ray tracing calculations self-consistently predict the illumination of the disk by the corona, and the energy shifts and time delays of the observed reflection and reverberation in the form of the impulse response function (Reynolds and Begelman, 1997; Cackett et al., 2014; Uttley et al., 2014). The response function is then convolved with the xillver model for the reflection spectrum produced in the rest frame of the material in the disk (García et al., 2013) to predict the full spectral-timing response. The simulations generate the observed X-ray spectrum (including the instrumental background), and the light curves that would be observed in different energy bands, folded through the response functions of the HEX-P telescopes and detectors, allowing measurements of the spectrum and time lags to be conducted as they would be for real observations.

The left panel of Figure 8 shows the simulated broadband X-ray spectrum and time lag spectrum for a typical Seyfert-like AGN displaying X-ray reverberation for a deep 500 ks observation with HEX-P. Reverberation is simulated around a maximally spinning (a = 0.998) black hole with a mass of 10⁷ M_⊙ at a redshift of z = 0.025. The observed flux is equivalent to accretion at 0.3 times the Eddington limit, and 5 per cent of the total bolometric luminosity is produced by the corona. Parameters of the corona and accretion disk are selected to be representative of the typical reflection spectra observed in nearby AGN (e.g., Jiang et al., 2018; Mallick et al., 2018). The X-ray spectrum shows the characteristic features of X-ray reflection from the inner disk: a) the iron K line around 6.4 keV, with an extended redshifted wing comprised of the line photons emitted from the innermost radii of the accretion disk; b) the Compton hump around 20 keV; and c) a soft excess formed as soft X-ray lines are blended together by relativistic broadening. The ability to simultaneously measure the soft X-ray band, the broad iron K line, and the Compton hump will allow HEX-P observations to unambiguously separate reflection from the accretion disk from other spectral components (e.g., Walton et al., 2014).

FIGURE 8

FIGURE 8. Left: Simulated 500 ks HEX-P observation of a typical nearby AGN, showing X-ray reflection and reverberation from the inner accretion disk. The top panel shows the simulated X-ray spectra obtained with the LET and HET. The relativistically broadened iron K line (around 6.4 keV) and Compton hump (around 25 kev) that are characteristic of reflection from the inner disk are clearly visible. The bottom panel shows the measured time lag vs. energy spectrum, which shows the relative time at which different energy bands respond as variations in the continuum emission reverberate off the disk. The energy bands dominated by reflection from the disk (the soft X-ray excess, below 1 keV, the broad iron line, and the Compton hump) lag behind the bands dominated by the primary continuum observed directly from the corona. This time delay arises from the additional light travel time between the corona and accretion disk, and is a sensitive probe of the location and geometry of the corona. Right: Simulated iron K reverberation lag measurements as a function of black hole mass for a simulated sample of AGN based upon the BASS sample. For each simulated AGN, the mass, luminosity, and redshift are representative of the real sample, and the remaining parameters of the black hole, disk, and corona are drawn from random distributions. Each of the simulated AGN is observed for 300 ks with HEX-P. Error bars on the black hole mass values assume mass measurements can be made via optical reverberation, and correspond to a representative uncertainty of 0.15 dex.

The characteristic form of the reflection spectrum is also evident in the time lag spectrum. The energy bands dominated by reprocessed emission from the disk, namely, the soft excess, the iron K line, and the Compton hump, are seen to respond to variations at later times than the energy bands dominated by continuum emission observed directly from the corona (1.5–3 keV and 8–10 keV). The broad bandpass covered by the combination of the LET and HET on HEX-P, combined with the available effective area, mean that HEX-P is sensitive to reverberation time lags across the full range of the reflection spectrum. It will be possible to measure the differential time lag between the redshifted wing of the iron K line, which arises from the inner disk, closer to the black hole and corona, and the 6.4 keV core of the iron K line from larger radii. The difference in time lag between the inner and outer disk is a sensitive probe of the structure of the corona (Wilkins et al., 2016). HEX-P will be able to routinely measure the reverberation time delays associated with the Compton hump, only hints of which have so far appeared in NuSTAR observations (Kara et al., 2015; Zoghbi et al., 2017).

7.3 Simulation of HEX-P reverberation measurements

To demonstrate the sensitivity of HEX-P to X-ray reverberation and its effectiveness in measuring the structure of the corona across the supermassive black hole mass spectrum, iron K reverberation measurements were simulated for a sample representative of the 25 brightest nearby AGN in the BASS catalog, each observed for 300 ks with HEX-P. For each of these simulated AGN, the mass, bolometric luminosity, redshift and absorption were drawn from the BASS catalog (Koss et al., 2022). The remaining parameters of the black hole, accretion disk and corona were drawn randomly from distributions representing the reverberation sample (since detailed spectral analyses are not available for all of the BASS AGN⁴). The reverberation measurement was simulated as described above, predicting the time lag vs. Fourier frequency that would be measured by HEX-P between the continuum-dominated 1.2–4 keV band and the 4–7 keV iron K band. We select the frequency bin with the highest signal-to-noise (i.e., the ratio between the lag and the lag uncertainty) as the representative iron K lag value.

The right panel of Figure 8 shows the simulated iron K reverberation lag measurements as a function of black hole mass for the BASS AGN sample, compared to the equivalent measurements made in a sample of nearby Seyfert galaxies using XMM-Newton (Kara et al., 2016). HEX-P will significantly detect reverberation in the iron K line and trace the relationship between the reverberation time lag and the mass of the black hole. From these simulations, we expect that HEX-P will be able to measure iron K lags in a sample of AGN between redshifts of z = 0.005 and z = 0.14, with bolometric luminosities between 3 × 10⁴³ and 10⁴⁶ erg s⁻¹ (assuming 5 per cent of this is emitted across the broad 0.1–100 keV X-ray band). The simulations show that iron K lags will be measured to high precision, with a median uncertainty of 13 per cent across the sample from 300 ks observations. Longer observations of around 500 ks will enable an additional reverberation measurement to be made in the Compton hump to constrain the broadband time lag spectrum, to which more detailed reverberation models can be fit (as demonstrated in the left panel).⁵

Notably, HEX-P will also be able to detect reverberation around the most massive black holes in the sample (≳ 10⁸ M_⊙), where the reverberation timescale is expected to be longer (if it scales simply with the gravitational radius around the black hole). The ability to measure long-timescale lags using common Fourier techniques (Uttley et al., 2014) is limited by the duration of continuous light curves that can be obtained. The highly elliptical orbit of XMM-Newton limits individual observations, and hence individual light curve segments, to $\sim 125$ ks. At its L1 orbit, HEX-P will be able to perform much longer continuous exposures (in principle up to 12 days), greatly lengthening the timescales that can be probed. Combined with the fact that the highest mass AGN are some of the brightest in the BASS sample, iron K reverberation is expected to be detected at high significance.

8 Black hole X-ray binary coronæ

This work has focused on coronæ in the vicinity of extragalactic SMBHs, primarily observed through hard X-ray emission from AGN. However, Galactic black hole X-ray binaries (BHXRBs) can be viewed broadly as scaled-down versions of AGN, particularly from the point of view of the compact regions close to the BH (Falcke et al., 2004; Körding et al., 2006; McHardy et al., 2006; Walton et al., 2012). Many BHXRBs–those with low-mass companion stars–are transient sources, undergoing outbursts lasting weeks to years, during which they display a full repertoire of accretion states and regularly exceed X-ray fluxes of 1 Crab (see, e.g., Remillard and McClintock, 2006; Tetarenko et al., 2016). Given the broad dynamical range one can probe via studies of BHXRBs, much can be learned about the long-term behaviour and evolution of AGN through observations possible on human timescales. In addition, the high fluxes of outbursting BHXRBs allow for characterization of the broadband X-ray continuum with exquisite detail, making them a primary target for HEX-P.

As briefly discussed in Section 3, today’s X-ray observatories already allow us to probe the coronal temperatures of BHXRBs as they decrease with increasing source flux (Buisson et al., 2019; Cangemi et al., 2021; Zdziarski et al., 2021), and these measurements have contributed greatly to our understanding of BH coronæ. However, degeneracies remain in the broadband X-ray continuum emission and geometry of BHXRB coronæ, as well as the AGN ones, and this has been a hindrance to reflection studies aimed at characterizing the inner accretion flow and measuring BH spin. With its broadband coverage, large collecting area, and high energy sensitivity, HEX-P will: (i) break degeneracies in the geometry of the irradiating corona intrinsic to reflection models; and (ii) measure deviations from purely thermal Comptonization models, allowing explicit constraints on the non-thermal fraction of BHXRB coronæ. The broadband spectral coverage of HEX-P in the 0.2–80 keV range, combined with its high-energy sensitivity (owing to low X-ray background) will be especially powerful in constraining the weaker power law emission in BHXRB soft states, advancing coronal constraints spanning orders of magnitude in luminosity and across the spectral states. We refer the reader to Connors et al. (2023) for a full description of HEX-P simulations of BHXRB coronæ.

9 Discussion and conclusion

In this paper, we show the advances that HEX-P will make in understanding the physics of the X-ray corona in different types of AGN, ranging from local Seyferts to quasars at cosmological redshifts. The broad passband, large effective area, low background, and the ability to have continuous long exposures will enable addressing many open questions regarding the physics of the X-ray corona in AGN. HEX-P will allow an accurate estimate of the continuum emission spectrum of the corona by measuring the photon index and the high-energy cutoff. Assuming a certain geometry, these parameters can then be mapped into optical depth and electron temperature within the framework of Comptonization (see, e.g., Middei et al., 2019). We demonstrate how HEX-P will improve our understanding of the electron distribution in AGN coronæ, measure coronal properties of obscured sources, and extend these analyses to z ≥ 1. Furthermore, we show that HEX-P will track variations of bright transient events such as CLAGN and TDEs on timescales of a few hours. HEX-P will allow us to study the properties of the X-ray corona and probe the innermost regions of the accretion disk via reverberation mapping. This will be crucial for understanding how the corona interacts with the accretion disk, studying disk reflection and consequently measure the BH spin in AGN over a broad range of mass and luminosity, and probing AGN feedback (see Piotrowska et al., 2023). Furthermore, HEX-P will allow a detailed study of obscuration in AGN and identify the fraction of Compton-thick AGN in deep surveys (see Boorman et al., 2023; Civano et al., 2023). All this will help achieving a more complete picture of how SMBHs grow and evolve across cosmic time, and the role they play in galaxy evolution.

Simultaneous observations with LET and HET, covering the 0.2–80 keV range, will allow an accurate measurement of E _cut up to $\sim 1\mathrm{M}\mathrm{e}\mathrm{V}$ in bright sources where ionized disk reflection is important. This has been discussed in detail by García et al. (2015) who showed that the soft part of the reflection spectrum, rich in fluorescent lines and atomic features, depends strongly on the properties of the corona, illuminating the accretion disk. García et al. (2015) demonstrated this in the case of joint NuSTAR and Suzaku spectra. Here, we revisit the analysis presented by those authors for HEX-P. We consider a simple spectrum comprised of neutral Galactic absorption (TBabs; Wilms et al., 2000) and a power law plus ionized reflection (relxill; Dauser et al., 2013; García et al., 2014). In XSPEC parlance, the model is written as: $\mathtt{M}odel=TBabs\times relxill$. We assume a Galactic absorption N_H = 5 × 10²⁰ cm⁻². As for the reflection component, we assume a photon index Γ = 2, a black hole spin a* = 0.998, a disk ionization parameter $\log \left(\xi /\mathrm{e}\mathrm{r}\mathrm{g}cm{s}^{-1}\right)=1.5$, an inclination i = 45°, a disk emissivity index q = 3, and an iron abundance equal to the solar value. García et al. (2015) used similar parameters except for the reflection fraction which they assumed to be R_f = 3. This enhances the reflection features in the spectrum. We choose a more conservative value of R_f = 1. We then simulate 100-ks observations of HEX-P for E _cut ranging between 50 keV and 1 MeV for 2–10 keV flux levels of 1 mCrab, 10 mCrab, 100 mCrab, and 500 mCrab. These simulations are intended to represent a wide range of Galactic and extragalactic accreting black holes. We fit the simulated spectra using only the HET and by using both LET and HET simultaneously. Similarly to García et al. (2015), we find that HEX-P will allow us to accurately estimate E _cut up to $\sim 1\mathrm{M}\mathrm{e}\mathrm{V}$ for bright sources (Figure 9). In addition, we also find that the inclusion of LET significantly reduces the uncertainty on E _cut. We note that these results assume that the soft X-ray excess is in totality caused by the ionized relativistic reflection from the inner parts of the disk. In fact, the nature of this excess is still a matter of debate as it has been suggested that it could also be caused by the presence of a warm optically thick corona (e.g., Petrucci et al., 2018; 2020). Studying the effect of such model on the properties of the hot corona is beyond the scope of this paper.

FIGURE 9

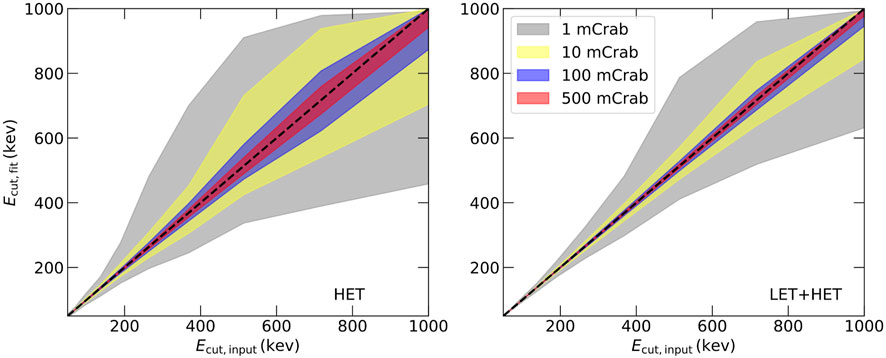

FIGURE 9. Results of fitting HEX-P simulations assuming relativistic reflection, by employing only HET (left) and by adding the soft X-rays LET + HET (right). The grey, yellow, blue, and red areas correspond to the 90% confidence level on estimating E _cut for observed flux levels of 1 mCrab, 10 mCrab, 100 mCrab, and 500 mCrab, respectively.

9.1 Synergies with other facilities

We have demonstrated the power of HEX-P as a stand-alone instrument to advance our understanding of the physics of X-ray coronæ in accreting black holes. However, simultaneous broadband X-ray and multi-wavelength coverage will provide a more comprehensive physical picture of accretion onto these objects. HEX-P will play an instrumental role in such studies thanks to its broad passband and high energy sensitivity as demonstrated throughout this paper. The ability to probe the emission from the X-ray corona for a variety of sources with a wide range of mass, luminosity, distance, and variability timescales will make HEX-P an essential tool to provide a comprehensive understanding of the behavior and physics of AGN coronæ, which is the dominant source of X-rays in the universe.

For example, the recent advancements made by IXPE, observing X-ray polarization in AGN for the first time, required a full characterization of the broadband X-ray spectrum. This has been ensured via simultaneous observations with XMM-Newton, NuSTAR, and Chandra. HEX-P will provide equivalent energy coverage to the combination of XMM-Newton/Chandra and NuSTAR, with significant improvements to the high energy sensitivity. HEX-P will be an essential complementary observatory to future X-ray polarization missions such as the X-ray Polarization Probe (XPP; Krawczynski et al., 2019; Jahoda et al., 2019) and the enhanced X-ray Timing and Polarimetry mission (eXTP; Zhang S. et al., 2019).

As mentioned earlier, a correlation between the hard X-ray emission and mm-band continuum has been observed in various samples of AGN (see, e.g., Behar et al., 2018; Kawamuro et al., 2022; Ricci et al., 2023). HEX-P will accurately measure the optical depth and temperature of the X-ray corona, as well as determine the fraction of non-thermal electrons producing the X-ray emission for a large sample of AGN. In coordination with ALMA and similar facilities, these parameters can then be used to model the continuum emission in the mm-band and probe the magnetic field powering the corona. HEX-P will also complement observations with the Square Kilometer Array and the next-generation of cosmic microwave background experiments (e.g., CMB-S4; Carlstrom et al., 2019; Abazajian et al., 2022).

Moreover, HEX-P will play a crucial part in connecting soft X-ray and soft gamma-ray (i.e., up to a few MeV) observations of BHXRBs. In particular, a primary science goal of the Compton Spectrometer and Imager (COSI; Tomsick et al., 2019), scheduled for launch in 2027 as a NASA Small Explorer (SMEX) mission, is to characterize the Galactic 511 keV positron annihilation line and the gamma-ray polarization of compact objects. COSI will be able to detect a broadened and redshifted pair line from pair-dominated coronæ. The broadband X-ray coverage of HEX-P will help constrain the continuum coronal emission, which will be important for modeling the higher energy emission and polarization measurements provided by COSI. HEX-P will also play a major role in constraining the X-ray emission from gamma-ray emitting AGN detected by COSI (see Marcotulli et al., 2023), which will probe the connection between the accretion disk and jets (Ajello et al., 2019), shedding yet more light on the nature of the X-ray corona.

Recent systematic studies of the optical night sky, such as All Sky Automated Survey for Super Novæ (ASASSN; Shappee et al., 2014), the Asteroid Terrestrial-impact Last Alert System (ATLAS; Tonry et al., 2018), and the Zwicky Transient Facility (ZTF; Bellm, 2014; Graham et al., 2019), are providing large numbers of Galactic and extragalactic transients, which are often associated with accretion onto compact objects. The discovery rate of nuclear transients with dramatic X-ray variability, similar to 1ES 1927 + 654, is expected to increase significantly in the next decade with the continued advance of large-scale, time-domain surveys in the optical (e.g., photometry from the Vera Rubin Observatory, spectroscopy from SDSS-V) and UV (e.g., ULTRASAT; Sagiv et al., 2014). Therefore, HEX-P will be well-positioned to make significant discoveries and contributions to the X-ray evolution and nature of the corona in transient accretion systems (as discussed in Section 6).

Finally, HEX-P will play a major role in the era of the high-resolution X-ray spectroscopy, with the development of microcalorimeters achieving a resolving power (E/ΔE) larger than 1,000 at energies up to 7 keV. The Resolve instrument on XRISM (Tashiro et al., 2018; XRISM Science Team, 2022) launched in August 2023, and the X-ray Integral Field Unit (X-IFU) on Athena (Nandra et al., 2013; Barret et al., 2023), expected to be launched in the late 2030s, will revolutionize our view of accretion onto compact objects. These instruments will probe the fine structure in absorption and emission from gas around accreting black holes. However, these gaseous structures are dictated by the hard ionizing X-rays, and the accurate measurements of such features will require a proper estimate of the underlying X-ray continuum out to tens of keV. This energy coverage can be provided by NuSTAR in the 2020s and HEX-P will extend and improve this coverage in the decades to come. In particular, HEX-P will be able to constrain the coronal emission and reflection spectrum at hard X-rays. This will be crucial for determining the illumination profile of the accretion disk by the X-ray corona, and accurately measuring BH spin for a broad range of mass and luminosity (see Piotrowska et al., 2023). Combining the resolving power of the future generation of microcalorimeters to the broad energy coverage of HEX-P will allow us to address important questions about black hole growth and evolution, and to understand the role of these objects in shaping the Universe.

9.2 Conclusion

We have demonstrated that HEX-P will provide an unprecedented look at the X-ray coronæ of accreting black holes with a main focus on AGN, thanks to its high sensitivity and broad energy coverage. The main results of the paper can be summarised as follows:

• HEX-P will accurately estimate the coronal properties of unobscured AGN. In particular, it will study evolution of coronal temperature in bright, variable AGN. This will allow us to measure the non-thermal fraction of electrons in AGN coronæ and test the runaway pair production hypothesis.

• HEX-P will also accurately estimate the coronal properties of obscured AGN up to z ∼ 0.5. This will be a crucial test of the orientation-based unified model of AGN.

• HEX-P will efficiently constrain the coronal properties of high-redshift quasars (z > 1.40) even with high energy cutoff up to 200 keV. HEX-P will also extend the estimates of the coronal properties of powerful quasars beyond cosmic noon up to z ≃ 4.5. This will allow us to study the evolution of the X-ray properties of AGN across cosmic times.

• HEX-P will play a major role in studying transient events such as CLAGN and TDEs. It will allow us to witness the destruction, formation, and evolution of the X-ray corona in these extreme events.

• Finally, the high sensitivity of HEX-P that extends to hard X-rays and the possibility of long continuous observations of bright AGN will enable accurate reverberation mapping of the innermost regions of the accretion disk. This will allow us to estimate the location of the corona and its illuminating profile over a broad mass range.

Data availability statement

The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.

Author contributions

EK: Methodology, Visualization, Writing–original draft, Writing–review and editing. AL: Visualization, Writing–original draft, Writing–review and editing. MM: Writing–original draft, Writing–review and editing. DWi: Writing–original draft, Writing–review and editing. XZ: Writing–original draft, Writing–review and editing. MB: Writing–original draft, Writing–review and editing. PB: Writing–original draft, Writing–review and editing. RC: Writing–original draft, Writing–review and editing. PC: Conceptualization, Writing–review and editing. AF: Writing–review and editing. JG: Writing–original draft, Writing–review and editing. KM: Writing–original draft. NR: Investigation, Writing–review and editing. NS: Writing–original draft, Writing–review and editing. DS: Writing–review and editing. JT: Writing–review and editing. TW: Writing–review and editing. DWa: Writing–review and editing. SB: Writing–review and editing. JB: Writing–review and editing, Writing–original draft. FC: Writing–review and editing. GL: Writing–review and editing. LM: Writing–review and editing. GM: Writing–review and editing. AM: Writing–review and editing. EN: Writing–review and editing. JP: Writing–review and editing. CR: Writing–review and editing. K-WW: Writing–review and editing. AZ: Writing–review and editing.

Funding

The author(s) declare financial support was received for the research, authorship, and/or publication of this article. LM is supported by the CITA National Fellowship. The work of DS was carried out at the Jet Propulsion Laboratory, California Institute of Technology, under a contract with NASA.

Acknowledgments

EK acknowledges financial support from the Centre National d’Etudes Spatiales (CNES). MB acknowledges support from the YCAA Prize Postdoctoral Fellowship. CR acknowledges support from Fondecyt Regular grant 1230345 and ANID BASAL project FB210003. XZ acknowledges NASA support under contract number 80NSSC22K0012.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.

The reviewer P-OP declared a past co-authorship with the authors SB, GM, and EK to the handling Editor.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Footnotes

¹The cutoff energy is commonly estimated to be $\sim 2-3$ times the electron temperature (Petrucci et al., 2001a).

²This can be assessed by studying the X-ray reflection spectrum.

³Our final conclusions do not depend on this assumption, as the coronal size can also be estimated from the spectral modeling.

⁴The probability distributions from which the parameter values are drawn were chosen to be consistent with the range of parameter values from the sub-set of the BASS AGN sample for which spectroscopic measurements are available, detailed at www.bass-survey.com and in Ricci et al. (2017).

⁵In Figure 8, the error bars on mass measurements assume that the mass can be measured by optical reverberation. We assume a representative uncertainty of 0.15 dex on the black hole mass, the median of those obtained by reverberation measurements in the Black Hole Mass Database (Bentz and Katz, 2015).
