Abstract
In this research, the Potential Field Source Surface–Wang–Sheeley–Arge (PFSS–WSA) solar wind model is used. This model consists of the Potential Field Source Surface (PFSS) coronal magnetic field extrapolation module and the Wang–Sheeley–Arge (WSA) solar wind velocity module. PFSS is implemented by the POT3D package deployed on Tianhe 1A supercomputer system. In order to obtain the three–dimensional (3D) distribution of the coronal magnetic field at different source surface radii (Rss), the model utilizes the Global Oscillation Network Group (GONG) photospheric magnetic field profiles for two Carrington rotations (CRs), CR2069 (in 2008) and CR2217 (in 2019), as the input data, with the source surface at Rss = 2Rs, Rss = 2.5Rs and Rss = 3Rs, respectively. Then the solar wind velocity, the coronal magnetic field expansion factor, and the minimum angular distance of the open magnetic field lines from the coronal hole boundary are estimated within the WSA module. The simulated solar wind speed is compared with the value for the corona extrapolated from the data observed near 1 AU, through the calculations of the mean square error (MSE), root mean square error (RMSE) and correlation coefficient (CC). Here we extrapolate the solar wind velocity at 1 AU back to the source surface via the Parker spiral. By comparing the evaluation metrics of the three source surface heights, we concluded that the solar source surface should be properly decreased with respect to Rss = 2.5Rs during the low solar activity phase of solar cycle 23.
1 Introduction
Among all the cosmic objects, the Sun has the most immediate and greatest impact on the Earth’s space environment. The solar phenomena that propagate from the surface of the Sun to the Earth can cause catastrophic space weather events, impacting the near-Earth space environment. Consequently, they can be hazardous for technology and human life, e.g., by threatening the safety of astronauts, affecting radio communications, disrupting theglobal positioning systems (GPS), and damaging satellites in orbit(Baker, 2002; Cao, 2012; Eastwood et al., 2017; Riley et al., 2018; Schwenn, 2006). Nowadays, human beings are highly dependent on the aerospace environment, radio communications, and GPS positioning, so it is increasingly necessary to understand and prepare for any potentially disastrous space weather events.
Therefore, the first requirement is to be able to monitor the space weather and forecast before the disaster occurs, which is indeed the goal for worldwide research (Robinson and Behnke, 2001). In recent years, the inversion studies of the 3D numerical model of coronal and interplanetary processes, based on mathematical physical methods, have been rapidly developed (Caplan et al., 2016; Feng et al., 2013; Feng et al., 2017; Feng et al., 2019; Mikić et al., 2018). The improvement of coronal and interplanetary 3D numerical models is and will continue to be an important topic in space weather for a long time (Feng et al., 2011; Gressl et al., 2014; Sahade et al., 2020).
We focus here on the solar magnetic field structure and the solar wind. The solar wind is a continuous stream of plasma emerging from the Sun carries an interplanetary magnetic field that shapes the large-scale fundamental structure of coronal interplanetary space and is the background for the propagation of other eruptive perturbation events. Forecasting the background solar wind is the basis for forecasting other coronal interplanetary outburst phenomena.
The commonly used solar wind models are the Wang–Sheeley (WS) model (Wang and Sheeley, 1990), the distance from the coronal hole boundary (DCHB) model (Riley et al., 2015), and the Wang–Sheeley–Arge (WSA) model (Arge et al., 2003). The WS model describes the quantitative relationship between velocity and the expansion factor . The DCHB model represents the connection between and (or the minimum angular distance of open magnetic field lines from the coronal hole boundary). The WSA model combines in the WS model and in the DCHB model. In our work, we mainly use the WSA model. The WSA model is an improved model based on the WS model and the DCHB model, which includes the potential field source surface (PFSS) model coupled with the Schatten’s current sheet model (Schatten, 1971), the empirical interplanetary velocity formulae, and a 1D kinematic interplanetary model.
The PFSS model is a coronal magnetic field model. It extrapolates the magnetic field of the photosphere onto a sphere with a “source surface.” Field lines that loop back down to the photosphere within the source surface form closed loops and are considered closed field lines. On the contrary, field lines that thread the source surface and extend above it, away from the Sun are considered open field lines. The source surface radius in a PFSS model is a free parameter (Arden et al., 2014). The radius of the source surface is important for the magnetic field simulation, which determines the size of the coronal hole area in the low coronal region. Increasing the source surface radius leads to less open flux and fewer and/or smaller coronal hole areas, while decreasing the source surface radius leads to more open flux and more and/or larger coronal hole areas (Arden et al., 2014; Riley et al., 2006). Usually, the radius of the source surface is assumed to obtain values within the interval of to 3 (Hoeksema et al., 1983). Taking the PFSS model used in this paper as an example, the interplanetary magnetic field polarity in the solar cycle 21 is consistent with the observed data when the source surface is used, but this is not a fixed value (Hoeksema et al., 1983; Hoeksema and Scherrer, 1986). In this paper, we determine that the value of gives consistent data based on an analysis we performed. Hoeksema et al. (1982) found that for solar cycle 21, , the structure of the interplanetary field observed on Earth agrees well with the structure of the low-latitude field at the source surface. Sun and Hoeksema. (2009) suggested that the source surface placed at is more appropriate for the minimum activity period of solar cycle 23. Lee et al. (2011) studied the minimum activity period of solar cycle 22 and solar cycle 23 and also concluded that the position of on the source surface needs to be adjusted downward. Arden et al. (2014) studied solar cycle 23 and solar cycle 24 and concluded that the position of on the source surface needs to be raised. Therefore, it is important to find an optimal source surface radius to simulate the magnetic field structure of the photosphere (Kruse et al., 2020).
The ordinary methods for solving potential field models include the spherical harmonics expansion method (Altschuler and Newkirk, 1969; Altschuler et al., 1977; Mackay and Yeates, 2012; Nikolj and Trichtchenko, 2012; Schulz et al., 1978; Schulz, 1997) and the finite difference method (Tóth, et al., 2011) and the least-squares method (Levine et al., 1982). In this paper, we solve the Laplace equation in a finite-difference numerical format to obtain the structure of the magnetic field at the source surface.
By using the PFSS model, the 3D distribution of the coronal magnetic field can be derived (Schatten et al., 1969; Schatten, 1971). By adding this magnetic field value into the formulae from the WSA model, physical parameters such as velocity (), coronal magnetic field expansion factor (), and minimum angular distance of open magnetic field lines from the coronal hole boundary () can be obtained. The measured solar wind velocity at the first Lagrangian point is then extrapolated back to the source surface by coordinate transformation and compared with the calculated physical parameters.
In this paper, the WSA solar wind model is investigated. This model takes the photospheric magnetic field approximation from the Global Oscillation Network Group (GONG) as the input lower boundary condition. In addition, the magnetograms we used are synchronic. The coronal magnetic field extrapolation is performed for CR2069 and CR2217 through the PFSS. We start with the field line tracing method to determine , and . The velocity formula derived from the WSA model is next used to calculate the physical parameters such as . The solar rotation does not change the speed of the solar wind, so it is possible to extrapolate the observed solar wind speed back to the source surface through the Parker spiral. Section 2 will introduce the PFSS model in detail. The effects of different on the magnetic field topography of the 3D coronal structure and the deduced , , and will be presented in Section 3. The simulated solar wind parameters for CR2069 (in 2008) and CR2217 (in 2019) are compared with the observed data in order to optimize the parameters. The effect of on the simulation results is also analyzed. Section 4 summarizes the research results and presents the outlook of our work.
2 Numerical model
2.1 The PFSS model
In this paper, the approximate solution of the solar corona magnetic field is calculated by using the PFSS model with GONG (NSO/GONG: Data Access) measurements of the photospheric magnetic field as the boundary condition. GONG has six stations around the world, and they are ground-based stations that use the helioseismological principle to study the solar interior and can satisfy the near-continuous observation of solar oscillations. The GONG obtains the magnetic field of the entire photospheric surface based on the full-disk magnetogram of the six stations on the photosphere. The magnetogram files used in our study were retrieved from https://gong2.nso.edu/archive/patch.pl?menutype=zeroPoint.
The PFSS model is usually used to solve for the coronal magnetic field. The PFSS model assumes that there is no current in the corona and only uses the radial component of the magnetic field (Altschuler and Newkirk, 1969). We start from the momentum equation of the ideal MHD theory and assume that the corona is in a quasi-static equilibrium and has low-plasma beta. Low-plasma beta means that the magnetic pressure dominates over plasma pressure. In the corona region, we also assume that the magnetic pressure dominates non-magnetic forces (such as gravity for example). By eliminating now in the momentum equation all the terms that become 0 based on these three assumptions, one ends up with only one term: . This implies that the corona is free of Lorentz forces. Now, we can substitute in this equation from Ampere’s Law ( ), and we end up with: . This equation has two solutions: the first one is that , which is known as the potential field approximation that becomes the PFSS solution. From this solution, we now substitute in Ampere’s Law and get . Assuming a scalar potential function with , then solving for can work out the magnetic field of the corona. With the divergence condition (), the Laplace equation of is . Assuming that the boundary conditions arewhere is the magnetic field, is the current density, , , and the source surface radius is the outer boundary for the potential model. The source surface is the spherical shell where the closed magnetic lines of force within the source surface exist and open magnetic lines of force outside the source surface. The source surface is defined as the surface where the potential becomes 0, and thereby the (open) magnetic field lines emerge orthogonal from this surface. Then, the function for the coronal magnetic field can be calculated.
The simulations of the PFSS approximation are performed employing the POT3D code, which solves the Laplace equation using the finite-difference numerical scheme. The finite-difference approach can match better with the data resolution than with the harmonic approach and can achieve better high resolution for localization (Caplan et al., 2021; Tóth, et al., 2011). Therefore, we use the finite-difference approach to solve the PFSS model. The reader is referred to Caplan et al. (2021) for a detailed understanding of the mathematical representation of PFSS and the solution in the finite-difference format.
We set the grid resolution of in POT3D to , where and have the same resolution as the input photospheric magnetic field. The three components of the coronal magnetic field , , and , as well as the corresponding coordinates , are calculated for CR2069 and CR2217 at the source surface radius , , and , respectively. The magnetic field components of , , and can be obtained through the transformation of spherical coordinates to Cartesian coordinates in the heliocentric Carrington coordinate system.
The POT3D code adopts the FORTRAN programming language with MPI parallel programming on high-performance clusters for efficiency (Caplan et al., 2021). We run the code in the Chinese supercomputing Tianjin Tianhe No.1A cluster environment Linux system (Wang and Yuan, 2021) (more details about the computer center are available at https://www.nscc–tj.cn/). The POT3D code was installed and configured following the accompanying README instructions.
The input of this code is an approximate map of the photospheric magnetic field in HDF5 and free parameter variables in the DAT format. The output includes three components of the magnetic field with , and in HDF5, the position information of the grid point, the time required for the operation, and the running log files. Then, we convert the three components of the magnetic field into TXT format for subsequent post-processing work.
2.2 The WSA model
By obtaining the magnetic field at the source surface, we can calculate , , and other parameters with the WSA empirical model (Arge et al., 2003). The DCHB model combines in the WS model with (Arge et al., 2003). First, the magnetic lines of force are traced from the surface of the Sun to determine the boundary of the coronal hole. If the magnetic lines eventually return to the surface of the Sun, the area is called the closed area; if the magnetic lines reach the source surface, the area is called the open area. When all grid points are traced, the boundary between the open and closed areas is marked as the boundary of the coronal hole. Then, the magnetic lines are traced downward from a certain altitude to the surface of the Sun to determine the location of the footpoint of the magnetic lines. Based on the location of the footpoint of the magnetic line, the minimum angular distance from the boundary of the coronal hole is calculated as (Yang et al., 2018). Through the following equation,substituting and , can be obtained. The solar wind velocity can be calculated fromwhere to are six free parameters. According to the previous research (Li et al., 2019; Yang et al., 2018), these parameters can be set as , , , , , , and for CR2069. Moreover, we wrote our own code to trace the field lines.
2.3 The solar wind speed at L1 extrapolated to the solar corona
With the PFSS model and the WSA empirical model, we can calculate the distribution of the solar wind velocity on the source surface of the corona. Before we compare the simulated with the measured velocity at 1AU, first, the measured at the first Lagrange point (L1) has to be extrapolated back to the corona. The heliocentric Carrington coordinate system (HECAR) used in the PFSS model has the origin at the center of the Sun, the Z-axis perpendicular to the solar equatorial plane, the X-axis pointing to the direction of Carrington longitude 0° on the solar equatorial plane, and the Y-axis defined by the right-hand rule (Thompson, 2006). The solar wind propagates radially into the heliosphere. Due to the rotation of the Sun, the trace consecutive solar wind parcels originating at the same solar source region left in space corresponds to a Parker spiral (Parker, 1958). The radial component ( ) of the observed interplanetary magnetic field (IMF) data is extrapolated back to the source surface along the Parker spiral, provided that the solar wind speed is constant and the magnetic flux is conserved. The relationship between the heliocentric longitude of the HECAR coordinate system back-projected to the source surface, and the actual longitude at point L1 iswhere and are the heliocentric distances between point L1 and the source surface, respectively; is the angular velocity of solar rotation; and is the measured solar wind speed at L1.
2.4 Statistical evaluation of continuous solar wind parameters
Statistical parameters such as the mean square error (MSE), root mean square error (RMSE), and correlation coefficient (CC) are selected for quantitative evaluation of the deduced solar wind parameters from the model.
The MSE reveals the error between the simulated data and the observed data (Allen, 1971), and the formula iswhere N is the number of simulated values, is the i-th simulated value, and is the i-th observed value.
The RMSE reflects the error between simulated and observed values (Chai and Draxler, 2014). Its formula is expressed aswhere N is the number of simulated values, is the i-th simulated value, and is the i-th observed value.
The CC represents the correlation between observed and simulated data (Asuero et al., 2006). The value of CC ranges from 1 to . The closer is CC to 0, the weaker the correlation is. The closer CC is to 1, the more positive correlation between observed and simulated data. If CC is closer to , it indicates that the observation data are negatively correlated with the simulation data. The formula for CC is given as:where and are the ensembles of simulated and observed data, respectively; is the covariance of simulation and observation; and and are the variances of simulated and observed results, respectively.
3 Numerical result
Based on the aforementioned models, the 3D coronal magnetic field structures where the source surface was placed at heights/radii , , and are simulated over the two Carrington rotation (CR) intervals CR2069 and CR2217 (Arden et al., 2014). Nominally, we set , where and are chosen to determine how the source surface height would vary when compared to the nominal case. The expansion factor and the distance to the coronal hole boundary are computed by field line tracing (Eq. 2). The parameter is obtained with the empirical velocity equation introduced in the WSA model (Eq. 3). Since CR2069 was during the low-solar activity phase of the solar cycle 23, the observations at the first Lagrange point receive few disturbances from the Sun. We believe that week CR2069 is representative, and we will analyze a large number of cycles during the low-solar activity phase of the solar cycle 23 in future. The results for CR2069 can better reflect the trend of the background solar wind. Thus, is simulated for CR2069 and compared with that of the solar wind observed near the Earth. Furthermore, the parameters are optimized and analyzed.
3.1 The inversion of the coronal magnetic field on the source surface at different radii
By using the POT3D code, we can obtain the extrapolated coronal magnetic field components , , and . The calculated is shown in Figure 1. Figure 1 exhibits the coronal magnetic field structure of CR2069 and CR2217 for the cases where the source surface was placed at heights , , and . The black lines represent the magnetic field line, and the arrow indicates the direction of the magnetic field. This suggests that the magnetic field lines connecting the surface of the Sun to the source surface come mainly from the polar regions. In addition, there are also several magnetic field lines at the solar surface with footpoints located at low latitudes. Through adjusting , the magnetic field extrapolation results reveal inconspicuous variations in coronal streamers, such that the figures are almost the same for each CR. This is, in general, still consistent with a reasonable model result for solar minima (Badman et al., 2020).
FIGURE 1

The calculated Bx components of the magnetic field for CR2069 at Rss = 2Rs(A), Rss = 2.5Rs(B), and Rss = 3Rs(C), and for CR2217 at Rss = 2Rs(D), Rss = 2.5Rs(E) and Rss = 3Rs(F). The black arrow line represents the magnetic line.
3.2 Calculations of the parameters at different
There are eight free parameters in the WSA model such as , , and . These eight parameters will vary with different model initiations, data sources, or the period under study. According to previous studies (Li et al., 2019; Yang et al., 2018), these parameters can be set as , , , , , , and . The magnetic field structure at as well as , , and distributions are then obtained for CR2069 (Figure 2) and CR2217 (Figure 3).

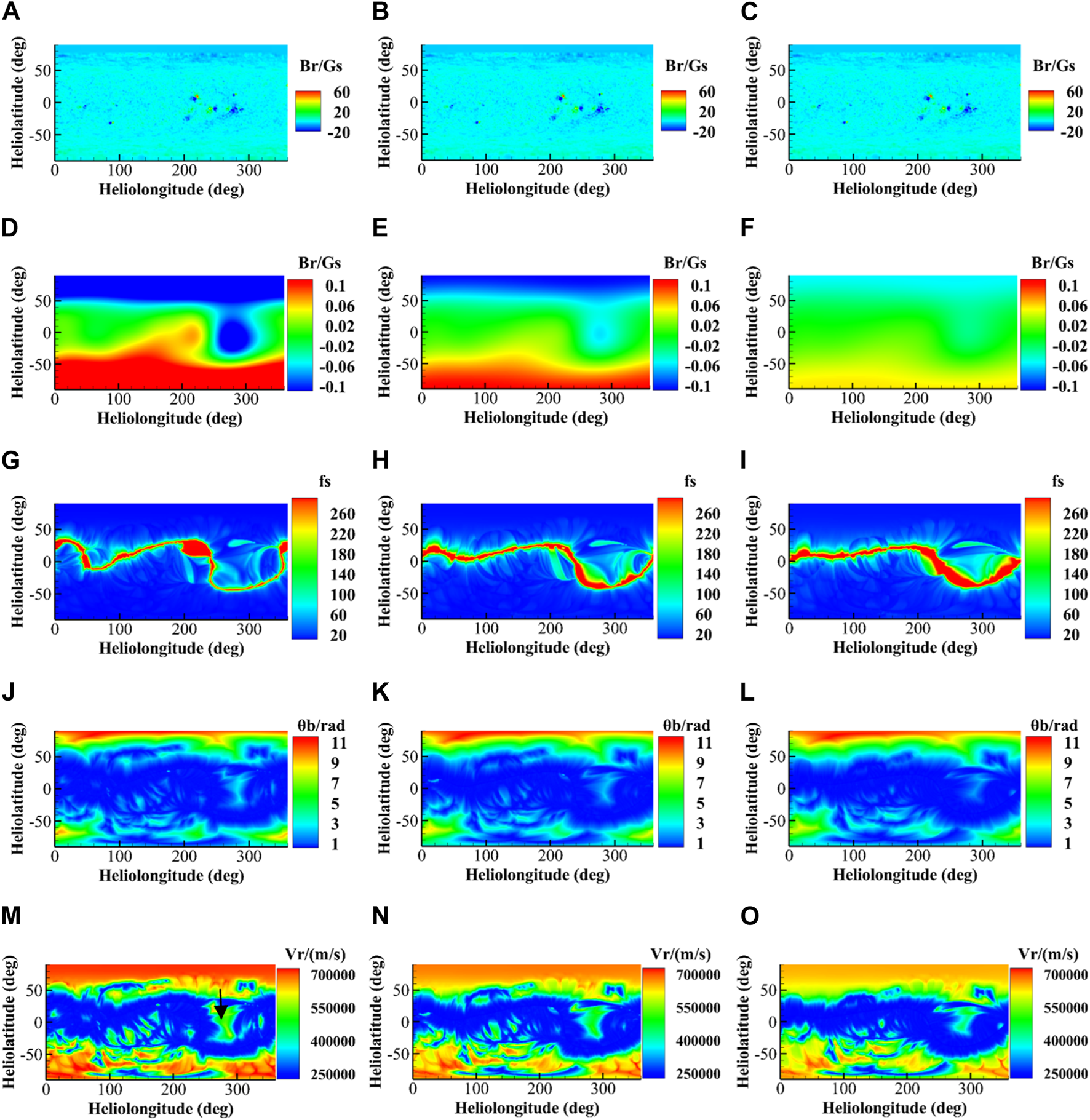

FIGURE 2

The solar wind parameters for CR2069. The abscissa is the longitude of the heliopause and the vertical coordinate is the latitude. The parameters from the first to fifth rows are the magnetic field Br at 1Rs(A–C), the magnetic field Br at 1Rss(D–F), the coronal magnetic field expansion factor fs(G–I), the minimum angular distance θb from the open magnetic line to the coronal hole (J–L), and the solar wind velocity Vr(M–O), respectively. The first column shows the parameters at Rss = 2Rs(A,D,G,J,M). The second column is the parameters when Rss = 2.5Rs(B,E,H,K,N). And the third column shows the parameters at Rss = 3Rs(C,F,I,L,O).

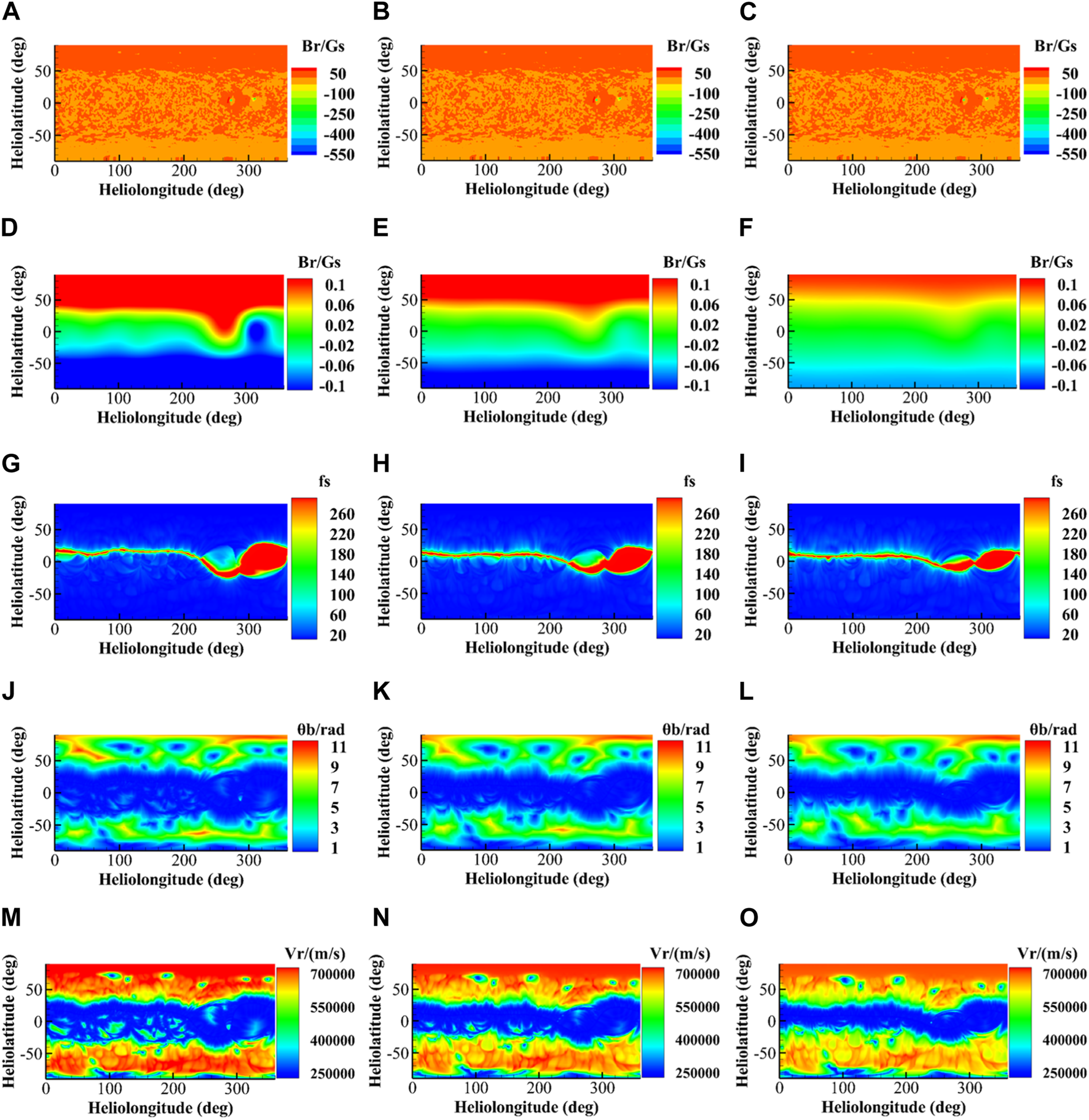

FIGURE 3

The solar wind parameters for CR2217. The abscissa is the longitude of the heliopause and the vertical coordinate is the latitude. The parameters from the first to fifth rows are the magnetic field Br at 1Rs(A–C), the magnetic field at (D–F), the coronal magnetic field expansion factor (G,–I), the minimum angular distance from the open magnetic line to the coronal hole (J–L), and the solar wind velocity Rss = 2Rs(M–O), respectively. The first column shows the parameters at (A,D,G,J,M). The second column is the parameters when Rss = 2.5Rs(B,E,H,K,N). And the third column shows the parameters at Rss = 3Rs (C,F,I,L,O).
In the fourth row of Figure 2, we can see that the magnetic field in the South Pole region extends north at longitude , and the magnetic field in the North Pole region extends south at longitude . This is because in 2008, the extension of polar coronal holes to low latitudes and independent coronal holes of low latitudes were more common (Wang et al., 2009). In the fourth row of Figure 3, the magnetic field in the North Pole region extends southward at longitude and in the South Pole region extends northward at longitude . This is similar to the phenomenon that coronal holes in the polar region extended to low latitudes in 2008. By comparing the polar magnetic field in Figures 2, 3, it can be seen that the magnetic field is evidently reversed. This is due to the solar magnetic polarity cycle changes, resulting in the reversal. In Figures 2, 3, low-latitude regions are covered by low-speed solar wind, while high-latitude regions are covered by high-speed solar wind. This corresponds to the structure of the magnetic line of force corresponding to Figure 1. In Figure 2M, we can see that a low-speed solar wind structure is formed at the longitude of and near the latitude of , which may be related to the pseudo-streamer. Although the foot of the pseudo-streamer is connected with coronal holes of the same polarity, its foot is also close to the boundary of the coronal hole, and the value of the magnetic flow tube θb is small, so it can form low-speed solar wind.
,
3yield the following results:
(1) The magnetic field at the source surface will decrease with increasing . Through the conservation of magnetic flux (e.g., conservation of the spherical integral of ), increasing will cause the attenuation of magnetic field intensity. Meanwhile, the number of open magnetic field lines that reach the source surface will reduce with increasing . The corresponding decrease in the open flux on the source surface further aggravates the decrease in the magnetic field intensity. This conclusion is consistent with that in several previous research studies (Arden et al., 2014; Asvestari et al., 2019; Asvestari et al., 2020; Badman et al., 2020; Lee et al., 2011; Panasenco et al., 2020).
(2) The parameters and vary slightly as increases, with decreasing most markedly at high latitudes and at middle and low latitudes. It indicates that the number of magnetic field lines reaching the source surface will decrease as the source surface elevates. In addition, the coronal hole thus shrinks, leading to a decrease in the value of . This conclusion is consistent with that of previous research as well (Arden et al., 2014; Asvestari et al., 2019; Asvestari et al., 2020; Badman et al., 2020; Lee et al., 2011; Panasenco et al., 2020).
(3) The solar wind velocity, , decreases with , which, in turn, is related to the changes of and .
3.3 Adjusting of WSA model parameters and their effects
According to a previous empirical model (Arge et al., 2003), the solar wind velocity can be calculated as Eq. 3. The reflects the effect of on , and reveal the influence of on . In the WSA model, the optimal values of , , and will change over time (Riley et al., 2015).
When the source surface radius for the CR2069, we set , , and . Then, we look for the best values of the parameters through adjusting , ,, and . According to previous studies (Li et al., 2019; Yang et al., 2018), we set , ,, and . Afterward, the effect of each parameter on the simulation results is analyzed by adjusting one variable each time, that is, , , , and . Then, the comparison between the observed and simulated at the source surface is shown inFigures 4, 5.

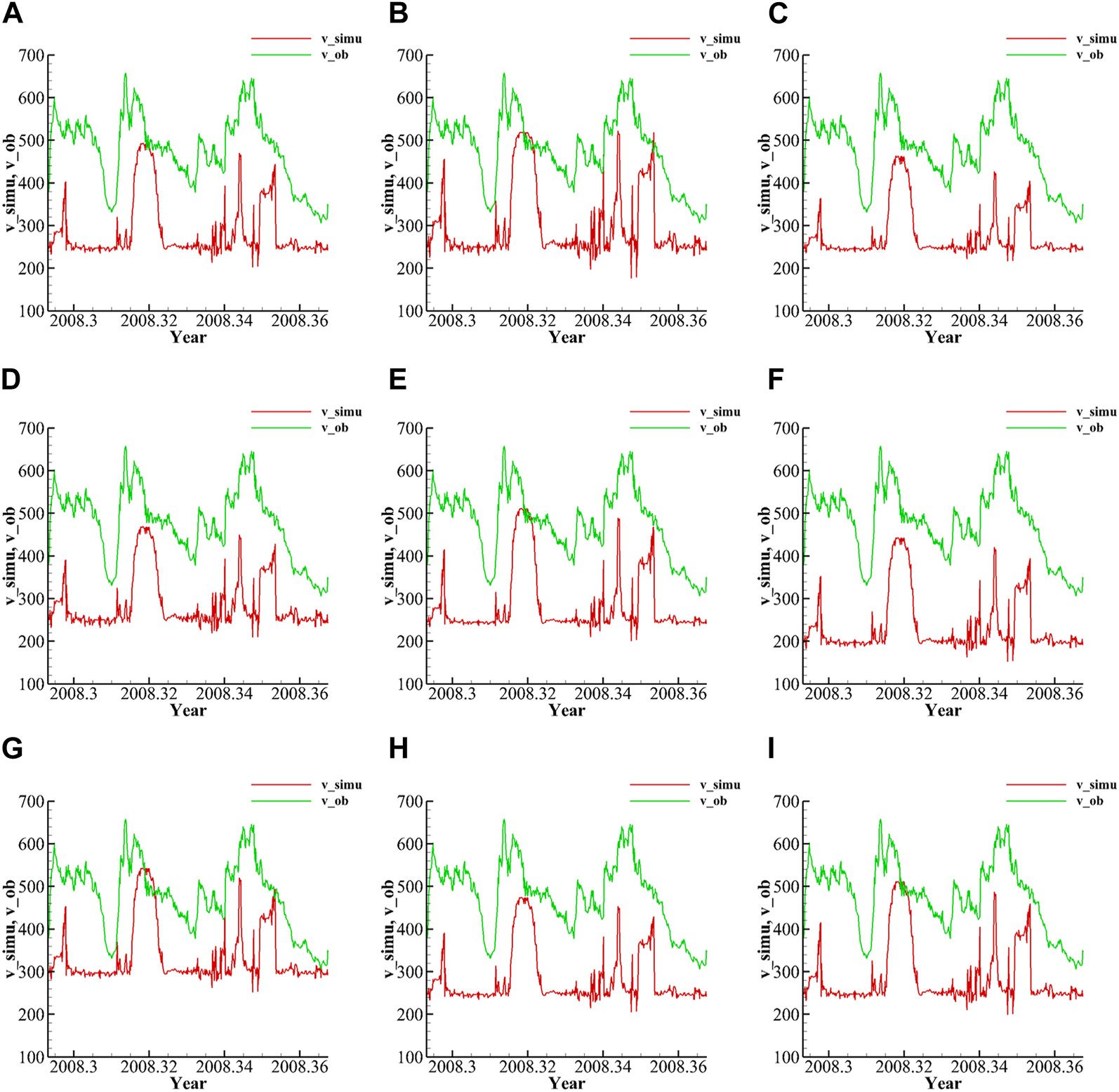

FIGURE 4

Comparison of the observed data and simulated results for different , , , and when . The horizontal coordinate is time (1/365 Day), and the ordinate is solar wind speed (km/s). The red line is the simulated solar wind speed, and the green line is the observed solar wind speed. (A) Comparison obtained from empirical parameter values with , , , and ; (B) when ; (C) when ; (D) when ; (E) when ; (F) when ; (G) when ; (H) when ; (I) when .
FIGURE 5

Simulated solar wind speed for different , , , and when . (A) The results obtained from empirical parameter values with, , , , and ; (B) when ; (C) when ; (D) when ; (E) when ; (F) when ; (G) when ; (H) when ; (I) when .
Figures 4, 5 reveal the following results: (1) a decrease in leads to an overall increase in at middle and low latitudes, and vice versa. However, the change in does not cause significant changes in over high latitudes. (2) A decrease in decreases at middle and low latitudes for faster solar wind and increases it for slower solar winds and vice versa for . However, the change in leads to an insignificant change in at high latitudes. (3) An increase in will result in an overall increase in , and a decrease in will result in the opposite. (4) The increase in will result in increment of the high-speed flow velocity, while a decrease in does the opposite. However, the variation in has little effect on the low-speed flow.
On the other hand, the variations in MSE, RMSE, and CC are monitored through adjusting different parameters (shown in Table 1). The simulation reveals the results as follows: (1). the decrease in will cause a reduction in MSE and RMSE, and an increase in CC, vice versa. (2). Decreasing will make MSE and RMSE smaller and CC larger, while increasing will do the opposite. (3). An increase in will reduce MSE and RMSE, but CC does not change with . (4). Increasing makes MSE and RMSE smaller, but CC does not change. Therefore, for further optimization, we will decrease and , and increase and based on the initial setting of , , , and .
TABLE 1
| MSE | RMSE | CC | ||||
|---|---|---|---|---|---|---|
| 0.8 | 1.05 | 240 | 675 | 44392.066 | 210.694 | 0.341 |
| 0.6 | 1.05 | 240 | 675 | 40552.506 | 201.377 | 0.354 |
| 1.0 | 1.05 | 240 | 675 | 47260.818 | 217.396 | 0.331 |
| 0.8 | 0.85 | 240 | 675 | 43115.790 | 207.643 | 0.354 |
| 0.8 | 1.25 | 240 | 675 | 45272.116 | 212.772 | 0.3330 |
| 0.8 | 1.05 | 190 | 675 | 66057.606 | 257.017 | 0.341 |
| 0.8 | 1.05 | 290 | 675 | 27726.526 | 166.513 | 0.341 |
| 0.8 | 1.05 | 240 | 625 | 45282.843 | 212.798 | 0.341 |
| 0.8 | 1.05 | 240 | 725 | 43575.541 | 208.748 | 0.341 |
Values of MSE, RMSE, and CC obtained through parameter tuning with .
3.4 Parameter tuning and quantitative evaluation of the WSA model
In this section, for CR2069 the parameters for the source surface radius are tuned and refined in order to find the local optimal solutions. The and have a significant impact on the results, which is that determines the extreme value of low–speed solar wind and determines the extreme value of high-speed solar wind. Thus, it can be adjusted through visual comparison (Li et al., 2019). Figure 4A shows that when , , , and , there is a significant difference between the simulated low velocity and the observed low velocity. Therefore, the low-speed flow is adjusted visually to to be consistent with the observation data and then to make the high-speed flow match the observation data, as shown in Figure 6.

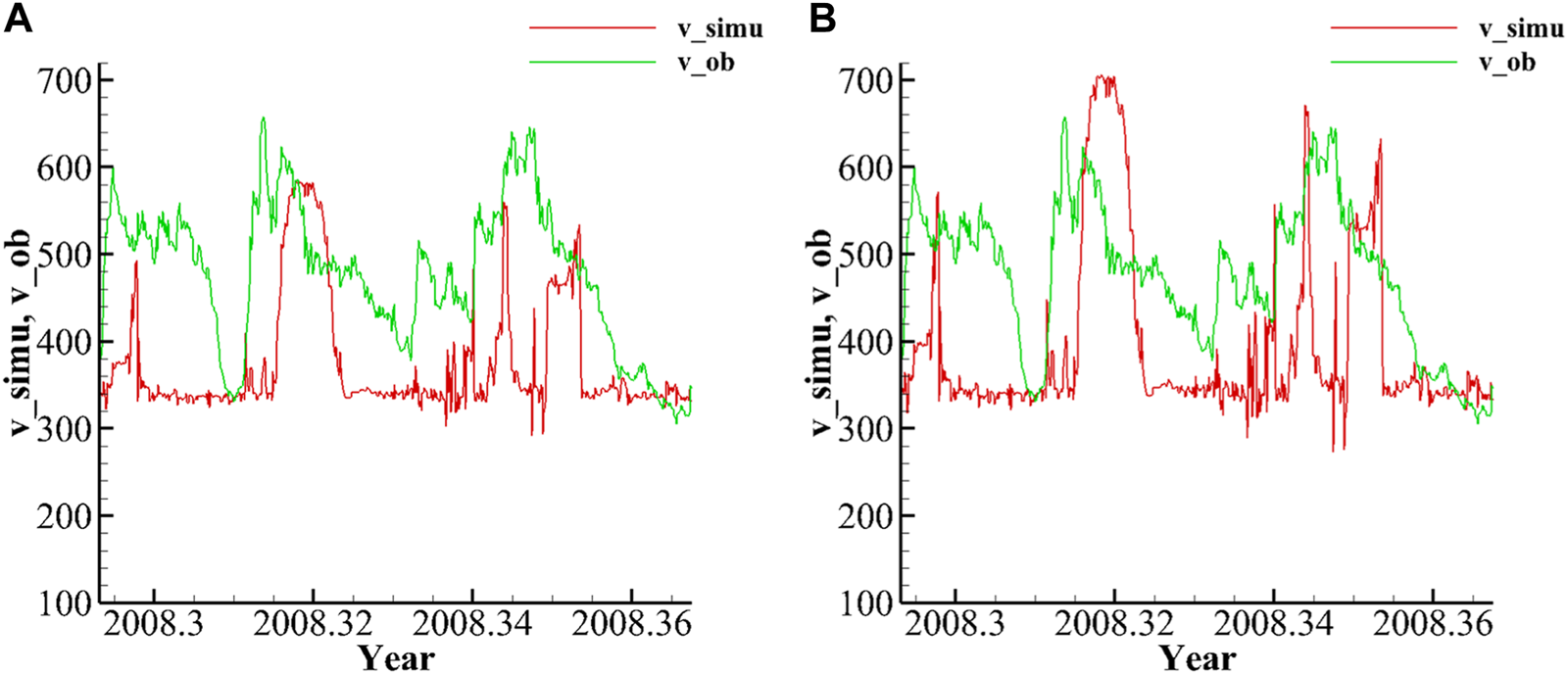

FIGURE 6

(A) Comparison of the observed solar wind speed with the simulated results with the adjustment of , , , and (A) and then , , , and (B), at .
To simplify the calculation, only parameters and will be tuned, with no change after the adjustment of and . The range of and is from 0 to 1.3 in the step of 0.05, with a total of 729 combinations. Then, the two-dimensional (2D) distribution of RMSE and CC with different and is given in Figure 7, in which we can find a rough parameter space with smaller RMSE and larger CC. In addition, the details of the good results are listed in Table 2. As shown in Figure 7, and correspond to RMSE between 80 and 100 with . When and , it corresponds to between 100 and 120, with . For decreasing or individually, the RMSE decreases and CC increases. However, when and change together, the RMSE and CC respond irregularly. Table 2 presents the best results among the 729 simulations, with smaller RMSE and larger CC. Considering the evaluation results, and and and are selected for the graph, as shown in Figure 8. The RMSE and CC values are significantly optimized through the tuning. From the comparison of Figures 8, 4A, it can be seen that the variation trend of solar wind speed in Figure 8 better agrees with the observation than that in Figure 4. Before and after tuning, RMSE decreased by approximately 135 and CC increased by approximately 0.09. There are two notable structures of solar wind high-speed flow in Figure 8, which originate from low-latitude high-speed flow near longitudes and . This is consistent with the research of Li et al. (2019). Our simulation results can reproduce these high-speed flows with lower peak velocities, but the duration of high-speed flows is consistent with the observed data, and the arrival time of high-speed flows is similar. The maximum velocity of the high-speed flow is evidently underestimated. On one hand, this could be because the tuning parameters have a certain limitation; on the other hand, it may be due to the quality of the observed photospheric magnetic field (Li et al., 2019), and the other limitation is the simplicity of the PFSS model itself.

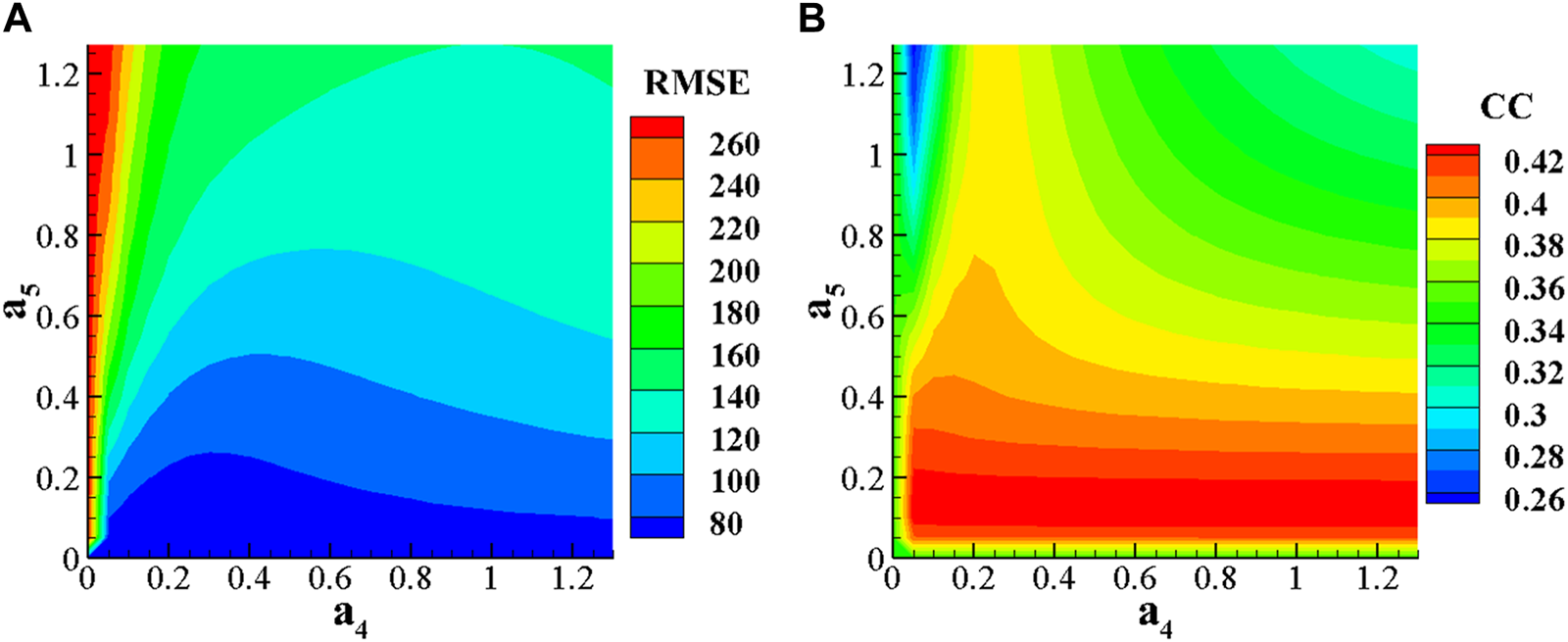

FIGURE 7

When , the 2D distribution of RMSE for and (A), and the 2D distribution of CC (B).
TABLE 2
| MSE | RMSE | CC | ||
|---|---|---|---|---|
| 0.15 | 0.1 | 5594.421 | 74.796 | 0.427 |
| 0.2 | 0.1 | 5539.490 | 74.428 | 0.427 |
| 0.25 | 0.1 | 5537.070 | 74.411 | 0.427 |
| 0.3 | 0.1 | 5559.790 | 74.564 | 0.427 |
| 0.35 | 0.1 | 5595.5550 | 74.803 | 0.427 |
| 0.4 | 0.1 | 5638.312 | 75.089 | 0.427 |
| 0.25 | 0.15 | 5610.501 | 74.903 | 0.426 |
| 0.3 | 0.15 | 5625.154 | 75.001 | 0.426 |
Values of MSE, RMSE, and CC through tuning of and at .
FIGURE 8

Simulated results through parameter tuning with . (A) Simulated solar wind speed when , , , and . (B) The simulated solar wind speed when , , , and . (C) Comparison of simulated solar wind speed with the observation, with , , , and . (D) The comparison of simulated solar wind speed with the observation, with , , , and .
3.5 Effect of on the WSA simulation results
From the previous studies, it is clear that the height of the source surface in the coronal magnetic field model affects the values of and (Arden et al., 2014; Hoeksema et al., 1983; Lee et al., 2011; Sun and Hoeksema. (2009)). Therefore, we set the source surface height as and to study the specific effects of source surface height variation on physical parameters (Arden et al., 2014; Kruse et al., 2021). The optimization steps are the same as in the case, through tuning , , , and . When , first set to make the low-velocity flow consistent with the observed data, and then, we set to ensure that the high-speed flow and the observed data match. Based on the fixed and , the adjustment range of and is from 0 to 1.3, with the step length of 0.05 and a total combination of 729 simulations. The 2D distribution plots of the RMSE and CC of and (Figures 9A, B) and the distribution table (Table 3) are analyzed. As mentioned in Section 3.4, the decrease in and will give better simulation results. Thus, we select and to produce Figure 9C.
FIGURE 9

(A) When , the 2D distribution of RMSE for and . (B) Two-dimensional distribution of CC for and . (C) When and , the comparison of simulated solar windspeed and observation.
TABLE 3
| MSE | RMSE | CC | ||
|---|---|---|---|---|
| 0.05 | 0.05 | 6067.411 | 77.894 | 0.558 |
| 0.1 | 0.05 | 6423.703 | 80.148 | 0.558 |
| 0.15 | 0.05 | 6649.321 | 81.543 | 0.557 |
| 0.2 | 0.05 | 6816.537 | 82.562 | 0.557 |
| 0.25 | 0.05 | 6950.108 | 83.367 | 0.557 |
| 0.3 | 0.05 | 7061.646 | 84.034 | 0.557 |
Values of MSE, RMSE, and CC through tuning of and at .
When , we can make a similar adjustment of and and then obtain the simulated results given by Figure 10. The 2D distributions of RMSE and CC for and are shown in Figures 10A, B, respectively, and the details of the distribution are exhibited in Table 4. In order to get smaller MSE and RMSE with larger CC, we apply and to obtain Figure 10C.
FIGURE 10

(A). When, Rss= 3Rs, the 2D distribution of RMSE for and a4 and a5(B). The 2D distribution of CC for and a4 and a5(C) When a4 = 0.25 and a5 = 0.15, the comparison of simulated solar wind speed and observation.
TABLE 4
| MSE | RMSE | CC | ||
|---|---|---|---|---|
| 0.25 | 0.15 | 6089.290 | 78.034 | 0.341 |
| 0.2 | 0.15 | 6095.570 | 78.074 | 0.340 |
| 0.2 | 0.1 | 6133.154 | 78.314 | 0.316 |
| 0.3 | 0.15 | 6136.634 | 78.337 | 0.341 |
| 0.25 | 0.1 | 6151.345 | 78.431 | 0.317 |
| 0.15 | 0.1 | 6158.378 | 78.475 | 0.315 |
Values of MSE, RMSE, and CC through tuning of and at .
It can be seen that the surface heights of the three sources all reproduce the two high-speed flows well, but the peak values and the duration of high-speed flows are not the same. When , the peak value of the high-speed flow is smaller relative to , but the change trend is relatively good. When and , the peak value of high-speed flow is relatively large, but it is worse than the trend of actual observation data. The reason for underestimating the peak of high-speed flow is the same as in Section 3.4.
Then, the comparison for the MSE, RMSE, and CC at , , and shows the following results: (1). when , the desirable value of RMSE is 78.034. When , the RMSE is relatively small, with a best value of 74.80. When , the value equals 77.90. Overall, the RMSE exhibits an unremarkable difference at different . (2). When , CC equals 0.34. When , CC is approximately 0.42. When , CC is approximately 0.55. It is notable that the CC is increasing with decreased . Thus, for the PFSS–WSA model, the reduction in can give better simulation results.
Arge and Pizzo. (2000) used the WSA-2000 model to forecast the results for 3 years before and after 1996. The CC between the predicted and observed values is 0.4, and the average relative error is 15%. Owens et al. (2005) used the observed magnetic map of NWO and the PFSS + SCS model to forecast the results from 1995 to 2002. The results show that the RMSE of different years ranges from to . Gressl et al. (2014) simulated the background solar wind in 2007 using three models: magnetohydrodynamic algorithm outside a sphere/magnetohydrodynamic algorithm outside a sphere (MAS/MAS), MAS/ENLIL, and Wang–Sheeley–Arge/ENLIL (WSA/ENLIL), in which MAS/MAS and MAS/ENLIL significantly overestimated the density of low-velocity flow. Yang et al. (2018) used the MHD model to improve the CC of each parameter. Li et al. (2019) used the MHD model to establish an automated method for systematic quantitative evaluation of simulation results. Compared with these models, the model in this paper adjusts very few parameters and can reproduce the structure of high-speed flow and reflect the variation of source surface height. In addition, when , the CC can reach 0.42, and the correlation is improved. We believe that the solar source surface should drop appropriately with respect to during the low-solar activity phase of the solar cycle 23. This is consistent with the findings of Lee et al. (2011).
4 Conclusion
In this paper, the PFSS–WSA solar wind model is investigated. This model consists of the PFSS coronal magnetic field extrapolation module and the WSA solar wind velocity module. The PFSS is implemented by the POT3D software package deployed on the Tianhe 1A supercomputer system. In our study, we use the GONG of CR2069 and CR2217 as an inner boundary condition to the PFSS model. It selects the source surface radii , , and to initialize the model, in order to obtain the 3D distribution of the coronal magnetic field at different . On this basis, the parameters of solar wind velocity , coronal magnetic field expansion factor , and minimum angular distance of open magnetic field lines from the coronal hole boundary , for the CRs CR2069 and CR2217 are solved within the WSA model.
First, we analyzed the effects of the four free parameters (, , , and ) in the WSA model on the solar wind velocity. The WSA simulated was compared with the observed data of L1, and we optimized the free parameters by RMSE, MSE, and CC. We found that when , we should decrease and and increase , and based on = 0.8, = 1.05, = 240.0 km/s, and = 675.0 km/s. After optimization, we finally adjusted the parameters to = 0.4, = 0.1, = 330.0 km/s, and = 1000.0 km/s. After obtaining the solar wind speed at , we optimized the free parameters at and . By comparing the evaluation metrics of the three source surface heights, we concluded that the solar source surface should be properly decreased with respect to during the low-solar activity phase of solar cycle 23. This is consistent with the findings of Lee et al. (2011).
However, our current result is highly preliminary. The simple method used to extrapolate the observed solar wind to the corona still needs to account for more complex interaction processes that occur during the propagation of solar wind and the disturbances from CMEs/solar flares through the interplanetary space. Likewise, we need to consider the stream interaction region (SIR), which has some work to take into account (Jian et al., 2015; Li et al., 2019). In addition, we also find that the traditional diagnostic indices, such as RMSE, MSE, and CC, may not reflect the error quality of the forecast comprehensively. Therefore, it is necessary to introduce other error indicators to jointly constrain the tuning process in our simulated results. These are the issues that need further in-depth investigation and improvement in future works.
5 Data access
The photospheric magnetic field data of CR2069 and CR2217 are available from the GONG (https://gong.nso.edu). The observed speed of the solar wind at L1 point comes from the OMNI database run by NASA (http://omniweb.gsfc.nasa.gov). The POT3D software package comes from GitHub (https://github.com/predsci/POT3D).
