Particle acceleration in an MHD-scale system of multiple current sheets

We investigate particle acceleration in an MHD-scale system of multiple current sheets by performing 2D and 3D MHD simulations combined with a test particle simulation. The system is unstable for the tearing-mode instability, and magnetic islands are produced by magnetic reconnection. Due to the interaction of magnetic islands, the system relaxes to a turbulent state. The 2D (3D) case both yield −5/3 (− 11/3 and −7/3) power-law spectra for magnetic and velocity fluctuations. Particles are efficiently energized by the generated turbulence, and form a power-law tail with an index of −2.2 and −4.2 in the energy distribution function for the 2D and 3D case, respectively. We find more energetic particles outside magnetic islands than inside. We observe super-diffusion in the 2D (∼ t^2.27) and 3D (∼ t^1.2) case in the energy space of energetic particles.

1 Introduction

Magnetic reconnection at a current sheet is a fundamental process in plasma physics (Biskamp, 1994; Yamada et al., 2010; Hesse and Cassak, 2020). Magnetic reconnection can be characterized as a topological change of anti-parallel magnetic fields where the frozen-in condition is broken. The reconnected magnetic field drags plasma away due to the magnetic tension force. The outflow speed roughly corresponds to the Alfvén speed. As a result of magnetic reconnection, two separated plasmas are mixed together.

It is thought that magnetic reconnection is capable of generating energetic particles (Blandford et al., 2017). Several mechanisms have been proposed so far: 1) Speiser (meandering) motion across anti-parallel magnetic fields directly accelerates particles by the inductive electric field (Speiser, 1965), 2) particles gain energy due to the conservation of the first adiabatic moment at the pileup region of magnetic field (Hoshino et al., 2001), 3) Fermi-type acceleration occurs due to the compressible and incompressible contraction of the magnetic islands (Drake et al., 2006; Oka et al., 2010; Zank et al., 2014; le Roux et al., 2015; Li et al., 2021). Several kinetic simulations show the existence of non-thermal particles forming a power-law tail in the energy distribution function associated with the evolution of magnetic reconnection (Dahlin et al., 2014; Guo et al., 2014; Sironi and Spitkovsky, 2014; Werner et al., 2016; Li et al., 2017; Arnold et al., 2021; Zhang et al., 2021).

Systems of multiple current sheets have been considered in recent years. The formation of multiple current sheets is common in the heliosphere. For instance, heliospheric current sheets (HCSs) (Smith, 2001) are usually stable in the solar wind, but are compressed at the heliospheric termination shock and can be unstable in the heliosheath. Spacecraft observations across sector boundaries often find multiple thin current sheets inside a HCS, and these can be interpreted as the folding of individual magnetic flux tubes (Crooker et al., 1993; Dahlburg and Karpen, 1995; Maiewski et al., 2020). Besides the heliosphere, pulsar winds also have a similar structure, and it is believed that the interaction of current sheets with the pulsar termination shock produces energetic particles and is responsible for conversion of Poynting dominated outflows to the observed radiation via energetic particles produced by the interaction (Lyubarsky, 2005; Nagata et al., 2008; Sironi and Spitkovsky, 2011; Cerutti and Giacinti, 2020; Lu et al., 2021).

When those current sheets become unstable, it is thought that the system produces several magnetic islands due to magnetic reconnection and then evolves into a turbulent state. Zhang and Ma (Zhang and Ma, 2011), Akramov and Baty (Akramov and Baty, 2017) performed MHD simulations of double current sheets and showed that growing magnetic islands interact with each other and then the system tends to be a turbulent state. Gingell et al. (2015), Burgess et al. (2016) performed 3D hybrid kinetic simulations of multiple current sheets. The system is unstable to the tearing-mode and drift-kink instability, and these instabilities drive the system to a turbulent state with a −7/3 index power-law spectrum for magnetic fluctuations.

Particle acceleration among multiple magnetic islands has been proposed as an efficient acceleration process. Zank et al. (Zank et al., 2014; Zank et al., 2015), le Roux et al. (2015) developed a gyrophase-averaged formulation, while under conditions of near isotropies, which reduces a Parker-like transport equation that includes the effects of the electric field induced by magnetic island reconnection and magnetic island contraction. This has been used to understand the flux of anomalous cosmic rays observed by Voyager spacecraft, which continuously increases in the downstream of the heliospheric termination shock. The model successfully reproduces the observed flux and shows that the energy spectrum becomes harder because of acceleration by magnetic islands in the downstream of a shock wave (Zank et al., 2015; Zhao et al., 2019). This has been also observed at interplanetary shock waves at five au (Zhao et al., 2018; Adhikari et al., 2019).

However, recent kinetic simulations of multiple current sheets for a non-relativistic plasma did not show very efficient particle acceleration as expected by models. Drake et al. (2010) performed 2D full PIC simulations of multiple current sheets and observed particle energization over a few decades in energy, but a power-law energy distribution did not form. 3D hybrid kinetic simulations were done by Burgess et al. (2016), and apparent particle acceleration of ions and pickup ions was not found. Nakanotani et al. (2021) investigated the interaction of current sheets with a shock wave and found an ion flux increase associated with the evolution of the tearing-mode instability of current sheets downstream of the shock wave. However, the power-law index of the energy spectrum was unchanged associated with the generation of multiple islands due to the tearing-mode instability. Note that particle acceleration in multiple current sheets of a relativistic electron-positron plasma has been shown to be efficient (Hoshino, 2012).

An important question that has yet to be fully answered is how efficient is particle acceleration on a larger scale, such as at MHD scales? Recently, Arnold et al. (2021) showed that electrons are efficiently accelerated by Fermi acceleration due to the coalescence of magnetic islands by using MHD simulations combined with a guiding-center approximation for the electrons and including kinetic effects of energetic electrons. They pointed out that standard PIC simulations yield only a short power-law tail which extends a decade in energy because of the limitation of the simulation size. This, therefoer, can be a reason why particle acceleration in previous studies of multiple current sheets is not as efficient as expected. We attempt to answer whether particle acceleration on a larger scale of multiple current sheets is efficient or not.

In this study, we combine MHD simulations and test particle simulations to investigate particle acceleration. This method has been used for several investigations of particle acceleration in magnetic reconnection and turbulence for non-relativistic (Matthaeus et al., 1984; Ambrosiano et al., 1988; Dmitruk et al., 2003; Dmitruk et al., 2004) and relativistic particles (Kowal et al., 2012; Pezzi et al., 2022). Although feedback from energetic particles on the MHD simulation is typically ignored, they provide valuable insight into particle acceleration on the MHD scale, which is not easily obtained from kinetic simulations due to computational limitations. A similar idea has been applied for test-particle electrons in hybrid kinetic simulations (Guo and Giacalone, 2010; Trotta et al., 2020). We perform 2D and 3D MHD simulations of multiple current sheets combined with test particle simulations.

This paper is organized as follows. In Section 2, we describe the scheme of an MHD simulation combined with a test particle simulation and initial conditions. Section 3 shows results of 2D and 3D simulations that present the evolution of multiple current sheets, particle acceleration, and particle diffusion in energy space. The last section provides some discussion and conclusions to show that particle acceleration in MHD-scale multiple current sheets is indeed efficient in both 2D and 3D systems.

2 Method: MHD + test particle simulation

We combine an MHD simulation with a test particle simulation to investigate particle acceleration in a system of multiple current sheets. We solve the following compressible ideal-MHD equations,

${\partial }_t\rho +\nabla \cdot \left(\rho \mathbf{V}\right)=0;(1)$

${\partial }_t\left(\rho \mathbf{V}\right)+\nabla \cdot \left(\rho \mathbf{V}\mathbf{V}+P^{\ast }-\mathbf{B}\mathbf{B}\right)=0;(2)$

${\partial }_{t}e+\nabla \cdot \left(h\mathbf{V}+\mathbf{E}\times \mathbf{B}\right)=0;(3)$

${\partial }_t\mathbf{B}+\nabla \times \mathbf{E}=0;(4)$

$P^{\ast }=P+\frac{1}{2}\left(\mathbf{B}\cdot \mathbf{B}\right);(5)$

$e=\frac{P}{\gamma -1}+\frac{1}{2}\rho \left(\mathbf{V}\cdot \mathbf{V}\right)+\frac{1}{2}\left(\mathbf{B}\cdot \mathbf{B}\right);(6)$

$h=\frac{\gamma }{\gamma -1}P+\frac{1}{2}\rho \left(\mathbf{V}\cdot \mathbf{V}\right);(7)$

$\mathbf{E}=-\mathbf{V}\times \mathbf{B}+\eta \mathbf{J},(8)$

where ρ is the plasma density, V plasma velocity, P plasma pressure, B magnetic field, E electric field, η artifitical magnetic resistivity, and J current density. γ is an adiabatic index, and we set γ = 5/3.

We use an MHD scheme proposed by Kawai (Kawai, 2013). The first spatial derivative is calculated by the sixth-order compact scheme, and time integration is done by the third-order total variation diminishing (TVD) Runge–Kutta scheme (Shu and Osher, 1988). The artifitial magnetic resistivity has the following form (Kawai, 2013),

$\eta =C_{\eta }\stackrel{̄}{\frac{1}{\rho c_s}\left|\sum _{l=1}^3\frac{{\partial }^4{\left|\mathbf{J}\right|}^2}{\partial {\chi }_l^4}\mathrm{\Delta }{\chi }_l^4{\mathrm{\Delta }}^3\right|},(9)$

where C_η is an dimensionless and arbitrary parameter, c_s the local sound speed, χ_l referes to the Cartesian coordinates in the l-direction, and Δχ_l is the lobal grid spacing in the l-direction. Here, we set $\mathrm{\Delta }=\sqrt{\mathrm{\Delta }{x}^2+\mathrm{\Delta }{y}^2+\mathrm{\Delta }{z}^2}$ Although this gives a excessive amount of magnetic resistivity compared to the form in (Kawai, 2013), the simulation tends to be numerical stable. The overbar denotes an approximate truncated Gaussian filter (Cook and Cabot, 2004). We use a fourth-order explicit scheme (Kawai and Lele, 2008) for the fourth derivative. The magnetic resistivity with this form automatically localizes in regions where the current density has a strong gradient, such as current sheets. Therefore, the resistivity tends to damp turbulence less than a constant magnetic resistivity. We also introduce an artificial bulk viscosity and mass diffusivity to capture a shock wave and contact discontinuity correctly (Kawai, 2013). We note that the divergence-free condition (∇ ⋅B = 0) is satisfied at around machine accuracy $(\sim 10^{-13})$ since we use a central-type finite difference scheme (Tóth, 2000; Kawai, 2013).

We introduce multiple current sheets in a periodic box. We assume the force-free condition for the current sheets (Bobrova et al., 2001; Nishimura et al., 2003; Du et al., 2020).

$B_x=B_0\tanh \left[\frac{d}{\pi L_0}\sin \left(\frac{\pi y}{d}\right)\right];(10)$

$B_y=0;(11)$

$B_z=B_0\sqrt{1+{\left(\frac{B_g}{B_0}\right)}^2-{\left(\frac{B_x}{B_0}\right)}^2},(12)$

where B₀ is the in-plane magnetic field, d is the distant between two neighboring current sheets, L₀ the half thickness of a current sheet, and B_g the background magnetic field. The plasma density and pressure are set to be uniform. We add small fluctuations δA_z in the z − componet of the vector potential to initiate magnetic reconnection at current sheets for 2D and 3D simulations,

$\begin{array}{ll}\hfill \delta A_z^{2D}& =\sum _{m_x=-5}^5\sum _{m_y=-5}^5\delta A_0\cos \hfill \\ \hfill & \times \left(m_x\frac{2\pi }{L_x}x+m_y\frac{2\pi }{L_y}y+{\varphi }^{2D}\left(m_x,m_y\right)\right);\hfill \end{array}(13)$

$\begin{array}{ll}\hfill \delta A_z^{3D}& =\sum _{m_x=-5}^5\sum _{m_y=-5}^5\sum _{m_z=-5}^5\delta A_0\cos \hfill \\ \hfill & \times \left(m_x\frac{2\pi }{L_x}x+m_y\frac{2\pi }{L_y}y+m_z\frac{2\pi }{L_z}+{\varphi }^{3D}\left(m_x,m_y,m_z\right)\right),\hfill \end{array}(14)$

where δA₀ is a constant value, and ϕ^2D and ϕ^3D are random phases for 2D and 3D simulations, respectively. We use δA₀ = 0.05 and 0.02 for the 2D and 3D case, respectively. We confirmed that the overall evolution of the current sheets was similar as uniform random fluctuations were used and, therefore, it does not depend on the choice of initial fluctuations.

The simulation parameters used in the MHD simulations are as follows. We use L₀ as the unit length of the simulation and the Alfvén speed v_A0 defined by $B=\sqrt{B_0^2+B_g^2}$ as the unit speed so that L₀ = 1 and v_A0 = 1. We also set the uniform plasma density to ρ₀ = 1. The size of the simulation box is L_x × L_y = 160L₀ × 40L₀ with the grid number N_x × N_y = 1,024 × 256 and L_x × L_y × L_z = 160L₀ × 40L₀ × 40L₀ with the grid number N_x × N_y × N_z = 1,024 × 256 × 256 for 2D and 3D simulations, respectively. The total plasma beta (β = β_i + β_e) corresponds to 1. Here, β_i and β_e are the ion and electron plasma beta, respectively. We set the parameter C_η = 2 for both 2D and 3D simulations. We put four current sheets in the box (d = 10L₀). The Courant-Friedrichs-Lewy (CFL) number is 0.5 and 0.25 for 2D and 3D simulations, respectively. In this study, we only consider cases without a background magnetic field (B_g = 0).

At the same time, we solve the following equation of motion in a normalized form for non-relativistic particles using the standard Buneman-Boris method,

$\frac{d\mathbf{v}}{dt}=\alpha \left(\mathbf{v}-\mathbf{V}\right)\times \mathbf{B}.(15)$

Here, α = T₀Ω_c where T₀ is the characteristic time scale of the MHD simulation and Ω_c is the cyclotron frequency of particles. The parameter α is an arbitrary and user-specified parameter since the system of the ideal MHD is scale-free, and we set α = 500. The same normalization used in the MHD simulation is applied to the equation of motion so that the particle energy is normalized by $E_0=m_p{v}_{A0}^2$ where m_p is the particle mass. The total number of particles is N_p = 5∗1,024∗256 and 1,024∗256∗256 for 2D and 3D simulations, respectively. We distribute particles uniformly in space, and they have a Maxwellian distribution in velocity with a temperature of T_p = 0.25. Here, we assume equal temperatures for ions and electrons. We introduce sub-cycles when calculating the equation of motion with a time step of Δt_p = Δt_MHD/250 where Δt_MHD is the time step calculated in the MHD simulation since the MHD time step can be larger than the cyclotron period. Although we do not have to specify if the test particle simulation in the MHD simulation is for electrons or ions, the parameter α = 500 can be appropriate for ions rather than electrons since α may become much larger for electrons on the scales of interest (Dmitruk et al., 2003).

3 Results

3.1 2D case

Multiple current sheets evolve into a turbulent state. Figure 1 shows the time evolution of the current density J_z from t = 0 to 300. The black lines show the magnetic field lines There are four current sheets located equidistant at the initial time. The added initial fluctuations initiate the tearing-mode instability, and we can see that magnetic reconnection occurs in the current sheets at t = 50. Since the phase of the fluctuations is random, the location of magnetic reconnection is also random. As the simulation proceeds, magnetic islands produced by magnetic reconnection grow in size and merge with each other in the same current sheet. When the size of magnetic islands is roughly equal to or larger than the initial current sheet distance (10L₀), magnetic islands start interacting (t = 150). We observe that regions outside the magnetic islands become turbulent. At the later time (t = 300), the size of merging islands becomes around 20L₀, and the system becomes turbulent.

FIGURE 1

FIGURE 1. Snapshots of the current density J_z in the 2D case at different times, t = 0, 50, 100, 150, 300 from top to bottom. Black lines represent the magnetic field lines (contour lines for the vector potential A_z).

The turbulence exhibits a −5/3 power-law in the magnetic and velocity fluctuations. Figure 2 shows the power spectrum density (PSD) of magnetic $(B=\sqrt{B_x^2+B_y^2+B_z^2})$ and velocity $(V=\sqrt{V_x^2+V_y^2+V_z^2})$ fluctuations in the z − direction averaged along the y − direction at t = 300. The power-law index of both PSDs can be fitted by − 5/3 over the range of k_z ∈ [0.02, 0.5]. The larger wavenumber region is damped, and this is because of dissipation due to the artificial magnetic resistivity and bulk viscosity included to stabilize the simulation. The normalized cross helicity $<{\sigma }_c>$ and normalized residual energy $<{\sigma }_r>$ (Zank et al., 2012) averaged over the simulation domain at t = 300 are 0.017 and −0.61, respectively. This suggests that the energy of velocity and magnetic fluctuations in forward and backward fluctuations is roughly equal, and the magnetic fluctuations are stronger than the velocity fluctuations. The PSDs also confirm that the later stage of the system is in a turbulent state.

FIGURE 2

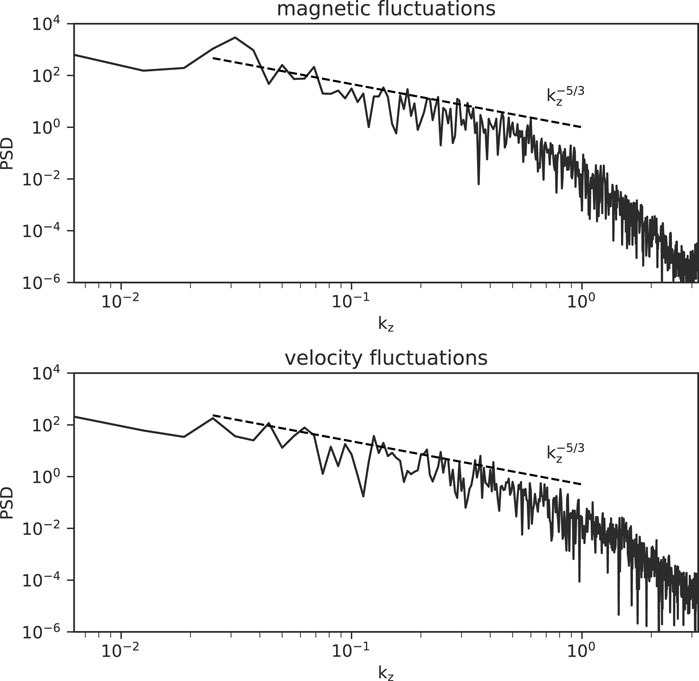

FIGURE 2. Power spectrum density of magnetic and velocity fluctuations of the 2D case at t = 300.

Non-thermal particles are produced during the evolution of the multiple current sheets into turbulence. Figure 3 shows the time evolution of the energy distribution function of particles. We use all particles in the simulation domain to calculate an energy distribution function. At t = 0, the distribution is Maxwellian with a temperature of T_p = 0.25. We can see that a non-thermal tail forms at t = 25 and 50. These times correspond to the onset of magnetic reconnection at current sheets. At later times, non-thermal particles are further produced especially after magnetic islands start interacting (t = 150), and also the distribution is heated. At the end of the simulation time (t = 300), the distribution has a clear non-thermal and power-law tail with an index of −2.2. The final distribution can be fitted by a Kappa distribution (Livadiotis and McComas, 2013),

$\begin{array}{ll}\hfill f\left(E\right)& =\frac{2N_{\kappa }\sqrt{E}}{\sqrt{\pi {\left(k_B{T}_{\kappa }\right)}^3}}\frac{\mathrm{\Gamma }\left(\kappa +1\right)}{{\left(\kappa -3/2\right)}^{3/2}\mathrm{\Gamma }\left(\kappa -1/2\right)}\hfill \\ \hfill & \times {\left[1+\frac{E}{k_B{T}_{\kappa }\left(\kappa -3/2\right)}\right]}^{-\left(\kappa +1\right)},\hfill \end{array}(16)$

where N_κ is the number of particles, k_B the Boltzmann constant, T_κ the kappa temperature, Γ the Gamma function, κ the Kappa (or power-law) index. The black dashed line is a Kappa distribution with a temperature of T_κ = 1.2 and κ = 2.2. We can clearly see that the power-law tail of the simulated energy distribution at t = 300 is fitted well by the Kappa distribution over the range of E ∈ [1, 100]. The maximum energy of accelerated particles is $\sim 300E_0$. Energetic particles are produced during the evolution from the onset of magnetic reconnection to turbulence, and the final distribution has a power-law tail with an index of −2.2.

FIGURE 3

FIGURE 3. Time evolution of the energy distribution of test particles in the 2D case. Black dashed line is a Kappa distribution with a temperature of T_κ = 1.2 and a Kappa index of κ = 2.2.

The location of energetic particles depends on the stage of the evolution of multiple current sheets. Figure 4 shows the time evolution of the energy density defined by,

$W\left(x,y\right)={\int }_{{\mathit{E}}_{\mathit{min}}}^{\infty }f\left(x,y,E\right)EdE,(17)$

where E_min is the minimum energy and we set E_min = 4, so that we count only energetic particles. These panels correspond to different times, t = 0, 50, 100, 150, 300 from top to bottom. The white lines are the magnetic fields lines. Note that the color scales are different at each time. It is obvious that there are no energetic particles at the initial time. After the onset of magnetic reconnection (t = 50), some energetic particles are produced along a current sheet. This acceleration is typical for magnetic reconnection (Oka et al., 2010; Arnold et al., 2021). As magnetic islands grow in size, we can see that energetic particles are trapped inside magnetic islands. At t = 150, when magnetic islands interact with each other, it seems that energetic particles are now present among the magnetic islands rather than trapped within them. This is more evident at the end of the simulation (t = 300), and the energy density outside the magnetic islands is much higher than inside. Therefore, we can conclude that energetic particles are initially accelerated inside current sheets and trapped inside magnetic islands, and then are released and further accelerated as magnetic islands start interacting with each other. The transport theory of Zank et al. (2014), le Roux et al. (2015) caputured the transport and acceleration of particles as they interact with multiple magnetic islands. Note that Hoshino (Hoshino, 2012) also observed that energetic particles locate outside of magnetic islands in the full PIC simulation of multiple current sheets.

FIGURE 4

FIGURE 4. Snapshots of the energy density of particles defined by $W={\int }_{E_0}^{\infty }f(x,y,E)dE$ in the 2D case at different times, t = 0, 50, 100, 150, 300. White lines corresponds to the magnetic field lines.

Particles are efficiently accelerated by turbulence. In Figure 5, the left-top panel shows the time evolution of the energy of a typically accelerated particle. The shaded regions denoted by (a)-(c) correspond to the other panels in Figure 5 The color scale in the panels (a)-(c) represents the particle energy. There are three major acceleration events, the first one is at t = 130 and the acceleration is a quick energization. As seen in the panel (a), the particle is accelerated by a reconnection outflow of a single current sheet. When the particle enters a current sheet, it is kicked and moves along the outflow. The second (t = 155) and third (t = 270) accelerations are formally similar and accelerated by turbulence. As mentioned early, the turbulence is produced by the interaction of magnetic islands, and it starts from T ∼ 150. The motion of the particle appears stochastic in the panels (b) and (c), and the acceleration time is gradual compared to the first acceleration. The slopes of the two acceleration times are consistent. The particle energy finally reaches E = 60. The particle trajectory indicates that, at first, a particle is energized in a single current sheet and then is further accelerated by turbulence produced by the interaction of magnetic islands.

FIGURE 5

FIGURE 5. A typical tranjectory of an accelerated particle in the 2D case. Top-left panel: time evolution of the particle energy, (A)-(C): particle trajectory (black line) and corresponding energy (color map) in the background of the current density J_z (grey scale). Times (A)-(C) correspond to the shaded region in the top-left panel.

The diffusion of energetic particles in energy space is super-diffusive. Figure 6 shows the mean square displacement (MSD) of the energy $<\mathrm{\Delta }{E}^2>$ of energetic particles (Vlahos et al., 2008; Sioulas et al., 2020). We only consider particles whose energy is larger than E = 4 since the motion of lower-energy particles may significantly change the MSD (Sioulas et al., 2020). The definition of $<\mathrm{\Delta }{E}^2>$ is as follows,

$<\mathrm{\Delta }{E}^2>=\frac{1}{N_p}\sum _{j=1}^{N_p}{\left|\mathrm{\Delta }E\left(t\right)\right|}^2,(18)$

where N_p is the number of energetic particles (E > 4). Here, ΔE(t) is the displacement of a particle energy, ΔE(t) = E(t) − E(0) where E(0) is the initial particle energy. However, since the number of energetc particles are few until t = 20 and $\sim 10^4$ at T ∼ 150 (not shown here), we only consider times after t = 150. The MSD of energy can be fitted by a power-law $<\mathrm{\Delta }{E}^2>\propto t^{a_E}$ with a power-law index of a_E = 2.27. This indicates that the energy transport is super-diffusive. Note that the index a_E < 1 corresponds to sub-diffusion and a_E = 1 to normal diffusion.

FIGURE 6

FIGURE 6. Mean square displacement of the energy of energetic particles (E > 4) for the 2D case. The balck dashed line is propotional to t^2.27.

3.2 3D case

Multiple current sheets in a 3D simulation box become turbulent via the tearing-mode instability. The 3D simulation uses the same conditions as the 2D simulation but the simulation box is extended in the z − direction by 40L₀ and we use a smaller value of the CFL number (c_CFL = 0.25). Figure 7 shows snapshots of the current density J_z at different times t = 0, 100, 150, 200. As in the 2D simulation, four current sheets are located inside the simulation box parallel to the x − z plane at t = 0. Small fluctuations are seen at t = 0 because of the initial fluctuations defined by Eq. 14. The initial fluctuations initiate the tearing-mode instability, and magnetic reconnection proceeds at the current sheets. The location for magnetic reconnection is also random like the 2D simulation. Although magnetic islands grow in size after the onset of magnetic reconnection, the shape of magnetic islands is not as clear as the magnetic islands in the 2D simulation. This is because magnetic reconnection occurs at random orientations and locations on the current sheets and magnetic islands merge with each other in the 3D simulation. Therefore, the evolution of current sheets is much more complicated in the 3D simulation. Due to the interaction of the destabilized current sheets, the system appears turbulent at t = 150. At the end of the simulation (t = 200), small scale fluctuations are more visible than at t = 150, and the system transits to a highly-turbulent state. The turbulence appears isotropic since there is no background magnetic field.

FIGURE 7

FIGURE 7. Time evolution (t = 0, 100, 150, 200) of the current density J_z in the 3D case.

The spectra of the magnetic and velocity fluctuations have the form of a −11/3 and −7/3 power-law, respectively. Figure 8 shows the PSD of magnetic (top panel) and velocity (bottom panel) fluctuations along the x − direction which is averaged over the y − z plane. The magnetic PSD exhibits a −11/3 power-law over the range of k_z ∈ [0.03, 0.6], and the larger wavenumber range is dissipated by the artificial dissipation effects (resistivity and bulk viscosity). On the other hand, the velocity PSD can be also fitted by a −5/3 power-law over the range k_z ∈ [0.03, 0.7]. The normalized cross helicity and residual energy are 8 × 10^–4 and −0.53, respectively. This indicates that the magnetic fluctuations dominate velocity fluctuations.

FIGURE 8

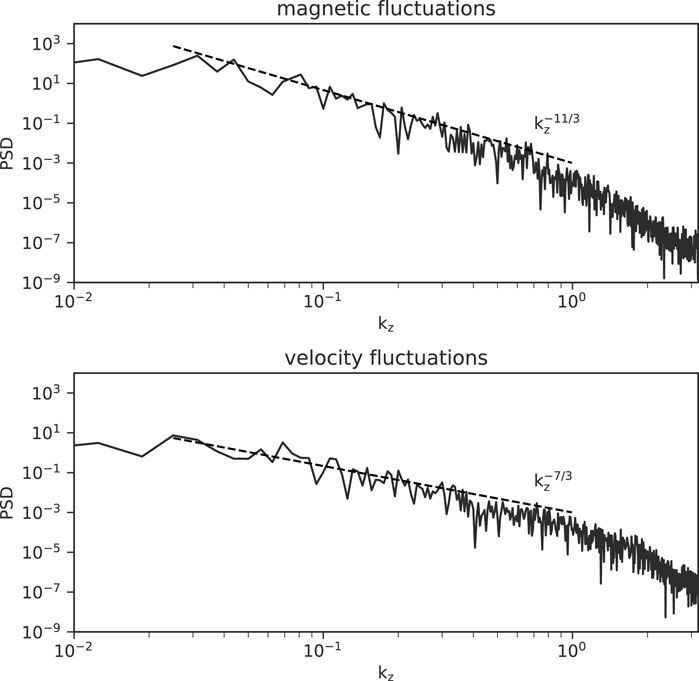

FIGURE 8. Power spectrum density of magnetic and velocity fluctuations of the 3D case at t = 200.

Non-thermal particles are produced during the evolution of the multiple current sheets and form a power-law tail. Figure 9 shows the energy distribution of test particles at different times corresponding to the color scale. After the onset of the magnetic reconnection, the existence of non-thermal particles is not as obvious as in the 2D simulation. The particles seem to be heated rather than accelerated. However, a power-law tail starts forming after the turbulence begins to be created (t ∼ 125). At the end of the simulation (t = 200), energetic particles are present and form a power-law tail with an index of 4.2. The entire distribution is roughly fitted by a Kappa distribution (Eq. 16) with a temperature of T_κ = 0.8 and a Kappa index of κ = 4.2. The maximum energy of accelerated particles is $\sim 100E_0$.

FIGURE 9

FIGURE 9. Time evolution of the energy distribution of test particles in the 3D case. The black dashed line is a Kappa distribution with a temperature of T_κ = 0.8 and a Kappa index of κ = 4.2.

Super-diffusion of energetic particles is observed in energy space. Figure 10 shows the time evolution of the energy MSD of energetic particles. We consider only particles whose energy is larger than 4. The number of particles is few until t = 50, therefore, we focus on later times. After magnetic islands start interacting with each other (t = 125), the MSD is fitted by ∝ t^1.2. This indicates that particle acceleration after the deveopment of the turbulence in the 3D system is super-diffusive.

FIGURE 10

FIGURE 10. Mean square displacement of the energy of energetic particles (E > 4) of the 3D case. The balck dashed line is propotional to t^1.2.

4 Discussion and conclusion

Although the evolution of multiple current sheets is different in the 2D and 3D simulations, both cases yield turbulence at the end of the simulation. In the 2D case, current sheets are unstable to the tearing-mode instabiliy, and magnetic islands are produced by magnetic reconnection. In the 3D case, magnetic reconnection occurs at random on current sheets (the x − z plane) and the evolution of magnetic islands differs along the z − direction. This makes the evolution of current sheets more complicated in the 3D case than in the 2D case. However, the system for both cases develops into a highly turbulent state at the end of the simulation.

The efficiency of particle acceleration in the 2D simulation is greater than that in the 3D simulation. While the power-law index of the energy distribution in the 2D case is −2.2, it is −4.2 in the 3D case. This simply implies that particle acceleration in the 2D case is more efficient than in the 3D case. The maximum particle energy in the 2D case (E_max ∼ 300E₀) is higher than that of the 3D case (E_max ∼ 100E₀). We note that the power-law tails extend to the maximum energies. The index of the observed super-diffusion in the 2D case (2.27) is higher than that in the 3D case (1.2). This also indicates that the 2D acceleration is more efficient than the 3D acceleration. We interpret this because in the 2D case particles can be more easily trapped in the turbulence than in the 3D case.

Compared to previous studies, an MHD scale system of multiple current sheets is an efficient acceleration site. Previous kinetic simulations (Drake et al., 2010; Burgess et al., 2016; Nakanotani et al., 2021) did not show significant particle acceleration, such as, 1) no power-law tail and 2) acceleration by a factor of a few decades only. However, as we have shown, particle acceleration in the both 2D and 3D cases forms a power-law tail and the acceleration is by a factor of more than 100. This corresponds to $\sim 2.5$ keV by assuming an Alfvén speed of 50 km/s, which is a typical value in the heliosheath. This energy range is lower than anomalous cosmic rays, we need pickup ion component to consider the evolution of anomalous cosmic rays. Since the Larmor radius of pickup ions can be still small compared to the simulation box size, we expect that the same acceleration mechanism may also occur for pickup ions.

Therefore, we conclude that particle acceleration in an MHD-scale system of multiple current sheets is efficient. Although it is possible to directly verify this by extending kinetic simulations to MHD-scale, it may not be realistic due to the current computational power. We comment that NI MHD in the presence of strong guide field predicts quasi-2D leading-order turbulence (Zank and Matthaeus, 1993; Zank et al., 2017), which may contribute to particle acceleration.

The particle acceleration observed in the 2D and 3D cases can be modeled by a fractional Fokker-Planck model, which is a generalization of a classical Fokker-Planck model. It is thought that super-diffusion in energy space is an indication of efficient particle acceleration and can be related to the formation of a power-law tail (Vlahos et al., 2004; Isliker et al., 2017; Isliker et al., 2019; Sioulas et al., 2020). There are several models for anomalous diffusion in energy space as well as real space using a fractional Fokker-Planck model to understand particle acceleration from the perspective of anomalous diffusion as often observed in space plasmas (Milovanov, 2001; Vlahos et al., 2004; Bian and Browning, 2008; Isliker et al., 2017; le Roux and Zank, 2021). In a future study, we will use a fractional Fokker-Planck model and compare it with several simulations by varying the background magnetic field.

We do not expect a plasma beta dependence on particle acceleration. Since the plasma beta does not strongly affect the tearing-mode instability (Landi et al., 2008), we assume that multiple current sheets develop into a turbulent state for various values of the plasma beta. Since the structure of magnetic reconnection appears to be turbulent in a low-beta plasma (Zenitani, 2015; Zenitani and Miyoshi, 2020), we anticipate that particles can be still efficiently accelerated by the turbulence in a way similar to that shown in our simulations.

Altough it is not addressed here, we expect that particle acceleration in turbulence on the strength of the background magnetic field. Several studies of magnetic reconnection show that particle acceleration becomes less efficient as the background magnetic field becomes strong (Fu et al., 2006; Wang et al., 2016; Werner and Uzdensky, 2017; Arnold et al., 2021). This can be because particle motion for Fermi acceleration is limited by the background magnetic field. In a system of multiple current sheets with a strong magnetic field, the initial acceleration by a single magnetic reconnection site becomes less efficient, and therefore the latter acceleration phase due to turbulence can be less efficient as well.

In conclusion, we have performed 2D and 3D MHD simulations of multiple current sheets combined with test particle simulations to investigate particle acceleration. In both cases, multiple current sheets are unstable to the tearing-mode instability and a turbulent state develops with power-law spectra for magnetic and velocity fluctuations. We observe the formation of magnetic islands because of magnetic reconnection during the transition. Non-thermal particles are efficiently produced due to turbulence generated by the interaction of magnetic islands. Their energy distribution can be fitted by a Kappa distribution with a Kappa index (or power-law index) of −2.2 and −4.2 for the 2D and 3D case, respectively. The efficient acceleration is consistent with the observed super-diffusion in the energy space for the both cases, which can be modeled by a fractional Fokker-Planck model.
