Fares M. Howari1†
Manish Sharma
Yousef Nazzal- 1College of Natural and Health Sciences, Zayed University, Abu Dhabi, United Arab Emirates
- 2UAE Space Agency, Abu Dhabi, United Arab Emirates
Recurring slope lineae (RSL) are small, dark, seasonal albedo features lengthening down “warm” Martian steep slopes. Their origin has been attributed to both liquid and dry processes, hence representing one of the major open science questions on present day Mars. In the present study, we report a catalog of previous literature and newly added RSL sites making a total of 940 sites globally on Mars along with the detailed geological and compositional investigation of the Hale and Asimov craters with their RSL features. We also estimate temperature and atmospheric water abundances in the study area, which are two of the main factors to explain the origin and formation of RSL. The study found that the Asimov crater’s local temperatures are high enough to allow either the melting of brines or deliquescence of calcium perchlorate and other salts during the HiRISE observation period and found the water vapor column to be nearly five times higher than those measured “before RSL appearance.” This supports the theory of deliquescence as one of the mechanisms for the regolith-atmosphere interaction and RSL formation in the studied crater, which suggests that minerals absorb moisture from the environment until the minerals dissolve in the absorbed water and yield a solution. We also used compact reconnaissance imaging spectrometer for Mars–derived browse products for a compositional study associated with RSL features hosting craters and surface characteristics of Mars.
1 Introduction
Recurring slope lineae (RSL) are dark, narrow features that appear frequently on low-albedo steep slopes on Mars (McEwen et al., 2011; Hargitai and Kereszturi, 2015). Such features are around 40% darker than nearby areas, originating from warm steep slopes and incrementally lengthening (McEwen et al., 2011). These features have three main properties: They gradually lengthen during warm seasons, disappear in colder periods, and recur annually (McEwen et al., 2011; McEwen et al., 2014; Stillman et al., 2014; Hargitai and Kereszturi, 2015). Sites of RSLs are continuing to be found in high-resolution images taken by the High-Resolution Imaging Science Experiment (HiRISE) onboard the Mars Reconnaissance Orbiter (MRO) (McEwen et al., 2011). The confirmed RSL sites have been noticed to lengthen, disappear, and reoccur, whereas candidate or potential sites lack evidence of these three noted features. These RSL sites generally have low-albedo exposed rocks. Previous studies on RSL in the equatorial region are most significant with warm seasons in Martian solar longitude (Ls) = 50°–200° (end of northern spring and whole summer season) on slopes facing north and in Ls = 200°–290° (mid northern autumn and early northern winter season) on southern facing slopes with a length of 100 m in Valles Marineris (McEwen et al., 2014).
RSL on Mars are hypothesized to originate from snow melting, deliquescence, dry flow, or shallow groundwater (Abotalib and Heggy, 2019). The RSL activity on sun-facing slopes, which are generally warmer, has convinced many to support the presence of volatile probably fresh water or brines (McEwen et al., 2011; Levy, 2012; Grimm et al., 2014; Ojha et al., 2014; Stillman et al., 2016). Experimental studies found that perchlorate and other salts in RSL could potentially form liquid brine via deliquescence with favorable environmental conditions (i.e., temperature, water vapor) (Zorzano et al., 2009; Gough et al., 2011; Fischer et al., 2014; Nuding et al., 2014; Nikolakakos and Whiteway, 2015; Nuding et al., 2015; Nuding et al., 2019). A Raman microscope equipped with an environmental cell was used to understand the water uptake properties of calcium perchlorate at RSL locations (Nuding et al., 2019), where the Raman spectra indicate that water uptake by salts may occur as relative humidity increases, which has directly impacted the atmospheric water cycle, causing particle growth, and thus triggering a dry granular flow (Nuding et al., 2019).
Other studies also have been conducted to investigate the source of water for RSL as water vapor from the Martian atmosphere through the deliquescence mechanism (McEwen et al., 2011; Leung and Rafkin, 2015; Rafkin et al., 2016; Pál and Kereszturi, 2020). The water vapor column on Mars varies according to numerous factors, including latitude and time of year. Another theory suggested is porous substrate wetting and capillary flow (Grimm et al., 2014). This suggests that, if a minimal amount of solution from the subsurface to the surface is found at RSL as a result of capillary draw, the surface volume of the solution reduces considerably, whereas a large solution volume could still take place in the subsurface (Grimm et al., 2014). However, the exact processes and origin of the hypothesized water remains uncertain.
Over the last decade, the level of information accessible about our neighboring planet and its history has increased dramatically, which enables us to further understand the geologic record of Mars in detail and gain insights into the evolving climate and geologic history of the planet. Several minerals were found, mapped with specific geological units, and used to comprehend geological processes. Alteration materials, including clay minerals, sulfates, carbonate, hydrated silica, and zeolite, have also been found on Mars, retaining evidence of the history of contact of water and rock in the crust (Ehlmann et al., 2008). The early Noachian units on Mars are shown to contain clay minerals, especially Fe/Mg phyllosilicates and chlorite (Mustard et al., 2008), which are indicative of early weathering environments with liquid water. Fe/Mg clays in late Noachian–early Hesperian paleolakes were also found in fans and deltas (e.g., the Jezero, Eberswalde, and Holden craters), probably as both detrital sediments and in situ diagenesis (Grant et al., 2008; Goudge et al., 2015). Whereas hydrated mineralogy in Noachian or Hesperian areas are found to be widespread in the highlands, only a small amount is observed in the smaller northern lowlands (Ehlmann et al., 2008; Mustard et al., 2008; Munaretto et al., 2020). Recently, for many RSL sites, CRISM research has found spectral profiles that indicate an occurrence of hydrated oxychloride salts (chlorates and/or perchlorates) (Ming et al., 2014). A catalog of previous literature’s sites and newly added RSL sites, making a total of 940 RSL sites, have been shown globally on Mars (Stillman et al., 2014) as shown in Figure 1A, whereas Figure 1B shows the confirmed RSL site observed in this study.
FIGURE 1. (A) Updated RSL sites from previous literature (Stillman et al., 2014) and new identified sites globally on Mars. In legend, tp stands for RSL site having two properties of RSL, whereas op stands for site having one property of RSL, which are described as candidate RSL sites. (B) temporal observation of the confirmed RSL site in the study.
In this paper, we perform a detailed geomorphological and compositional analysis of the Asimov and Hale craters, two well-established study areas having confirmed RSL sites, and investigate the atmospheric conditions and their role in RSL activity to understand their formation. This paper is arranged as follows. We first detail the study area in Section 2. Then we present the data and methodology in Section 3. We discuss the results in Section 4, which consists of weather cycling, geomorphological study, mineralogical mapping, and image interpretation. Section 5 is the discussion. We end with a conclusion on geomorphology and composition of these two well-established RSL hosting crater sites.
2 Study Area
Asimov is an 84-km diameter crater (47°S, 5°E) located in the heavily cratered plains in the southern ancient highlands of Mars (Morgan et al., 2011). It is distinguished from other craters in this region because it contains both a ring depression just within the crater rim and a pit near the center. Figure 2A is a Context Camera (CTX) mosaic image showing details of the internal part of the crater, which has an off-center depression and an annulus of valley systems. CRISM data observation footprints at Asimov crater are shown with red polygons. Figure 2B shows Mars Orbiter Laser Altimeter (MOLA) Digital Elevation Model (DEM) of the study region, showing total elevation difference in the crater of 3724 m. The topographical analysis shows the crater’s degraded rim in the northwest. Figure 2C shows the slope map of the study area, showing the RSL sites to be occurring around 22°–36° in the crater. A previous study by Morgan et al. (2011) shows the Asimov crater to be Noachian-aged, having material fill of Noachian–Hesperian age and a superimposed annulus of valleys encircling the margins of the crater floor. It is also regarded as one of the oldest exposed areas of the planet (Scott and Carr, 1978). There have been two confirmed RSL sites possessing RSL lengthening, fading, and recurrence properties, observed in the central pit and the southwest of crater. One candidate RSL site possessing two properties (lengthening + recurrence) and four RSL candidate sites having one property are observed in the Asimov crater HiRISE image as highlighted in Figure 2.
FIGURE 2. Asimov Crater, (A) CTX mosaic, (B) MOLA DEM and (C) Slope map. Red polygons are footprint of CRISM data coverage in the scene.
Hale crater is located at 35.7°S, 36.4°W in the vicinity of the junction of Uzboi Vallis and the northern edge of Argyre Basin in the southern hemisphere with a north–south diameter of 125 km and east–west diameter of 150 km. It is basically a complex crater with several terraces and a central peak (Melosh, 1989), estimated to be around 1 Ga in age (Jones et al., 2011). It has a clearly defined rim and terrace structure in some parts north of the crater. One confirmed RSL site (lengthening + fading + recurrence) and two candidate RSL sites with two properties (lengthening + recurrence) of RSL have been observed in the central peak, whereas two further candidate RSL sites having one property are observed in crater’s HiRISE image as shown. Figure 3A shows the CTX mosaic of Hale crater with several terraces and a central peak, whereas Figure 3B shows the MOLA DEM of Hale crater, revealing a total elevation difference of 5354 m. Figure 3C shows the slope map of the Hale crater showing the RSL sites to be occurring around 14°–28° in the crater.

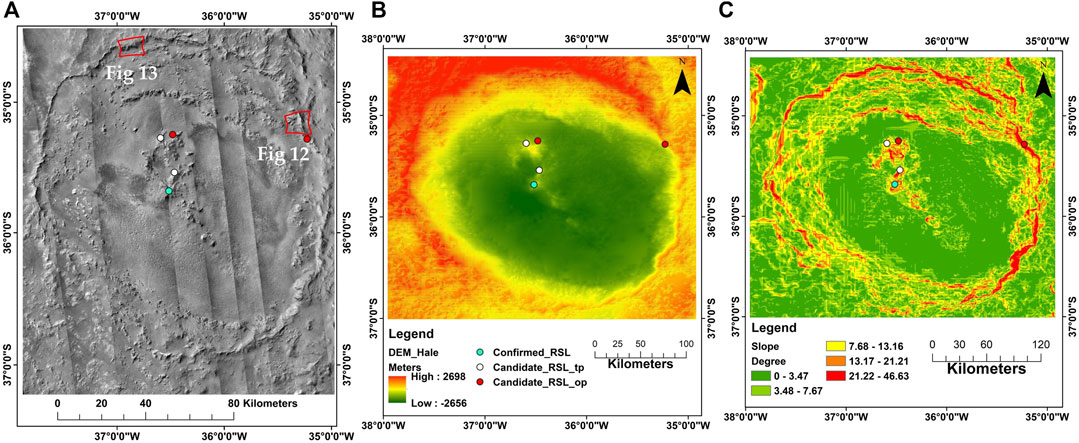

FIGURE 3. Hale crater (A) CTX mosaic image, (B) MOLA DEM, (C) Slope map. Red polygons are footprint of CRISM data coverage in the scene.
3 Data and Methodology
In this study, we used data from MRO HiRISE, CRISM, CTX, and Mars Global Surveyor (MGS) spacecraft MOLA data for comprehensive investigation of the RSL and their related atmospheric, geomorphological, and mineralogical parameters. The methodology used in this study is shown in Figure 4. With the help of its telescopic lens, HiRISE produces images with very fine detail. HiRISE data have a spatial resolution of 0.3 m/pixel (McEwen et al., 2011), which helped to investigate RSL activity in detail using HiVIEW: Image Viewer software specifically developed for handling HiRISE products. We also accessed the MOLA data set to investigate slope and elevation, using the slope tool in ArcGIS Software. MRO CTX has provided images that have been used to evaluate large-scale changes (tens of meters) to rapidly evaluate and record possible RSL activity (Malin et al., 2007). They have a spatial resolution of ∼5–6 m/pixel (Murchie, 2007). The Mars Climate Database (MCD) version 5.3 web interface has been used to study the surface temperature and water vapor column of the same Martian year and date when the HiRISE image of the Hale and Asimov craters was taken. The MCD is a set of simulations of Mars atmosphere meteorological patterns and has been validated using observational data (Francois et al., 1999; Millour et al., 2018). Martian atmosphere researchers utilize this database as a source for scientific investigation and designing future Mars missions (Howari et al., 2020). The MRO CRISM data has been gathering visible and shortwave infrared surface spectra (0.4–3.9 μm) since 2006 (Carter et al., 2013). Spectra from CRISM helps to understand the surface composition and identify the geological processes that have created iron and manganese-rich facies, evaporite, and hydrated deposits of minerals (Ehlmann et al., 2008; Mustard et al., 2008; Munaretto et al., 2020). A qualitative multiparametric understanding of the surface mineralogy is now possible with the help of CRISM browse products. FAL, CHL, IC2, FEM, and FM2 browse products are derived to study the composition in the Hale and Asimov craters. FAL is an improved infrared false color representation of the scene, whereas FEM and FM2 are used for mapping Fe minerals, particularly ferric and ferrous forms. IC2 shows information related to water or carbon dioxide frost or ice, whereas CHL shows information related to chloride deposits. The RGB band combination of these browse products and formulation defined by (Viviano et al., 2014) are as follows:
FIGURE 4. Flow chart of data and methodology used in the study.
3.1 RGB Band Combinations
1. FAL - (R = R2529; G = R1506; B = R1080).
2. FEM- (R = BD530_2; G = SH600_2; B= BDI1000VIS).
3. FM2- (R = BD530_2; G = BD920_2; B= BDI1000VIS).
4. IC2 - (R = R3920; G = BD1500_2; B= BD1435).
5. CHL - (R = ISLOPE1; G = BD3000; B= IRR2).
3.2 Formulations
1. BD530_2 (0.53 µm band depth) = 1-((R530))/((a*R614 + b*R440)),
2. SH600_2 (0.6 µm shoulder height) = 1-((a*R533 + b*716))/((R600)),
3. BD920_2 (0.92 µm band depth) = 1-((R920))/((a*R807 + b*R984)),
4. BD1435 (1.435 µm CO2 ice band depth) = 1-((R1435))/((a*R1370 + b*R1470)),
5. BD1500_2 (1.5 µm H2O ice band depth) = 1-((R1525))/((a*R1367 + b*R1808)),
6. BD3000 (3 µm H2O band depth) = 1-((R3000))/((R2530*(R2530/R2210))),
7. ISLOPE1 (Spectral slope 1) = 1-((R1815-R2530))/((W2530-W1815)),
8. IRR2 (IR ratio 2) =((R2530))/((R2210)),
9. BDI1000VIS = 1 µm integrated band depth; VNIR wavelengths.
R*** indicated reflectance at particular wavelength W**** (nm).
Calculation of spectral absorption depth is considered the most common parameter for mineralogical analysis, illustrated in Figure 5. Parameters a and b are the depth of the absorption (band depth), and are calculated (Clark and Roush, 1984) by
where
FIGURE 5. ƛc, λs, and λL derived to calculate a and b parameter used in CRISM browse product formulations: ƛc is the reflectance at the center wavelength, λs is the reflectance value at shorter wavelength, and λL is longer wavelength points along the continuum as shown in figure (Clark and Roush, 1984).
MCD data have a high level of confidence and have been widely validated. To retrieve the atmospheric water vapor content of the area, CRISM data could also have been evaluated (Smith et al., 2018). However, this did not occur in this study because of the limitation and unavailability of repeated data coverage. Previous study using CRISM data showed that the observed spurious signatures have systematic spectral noise behavior from CRISM ratioed spectra. Instead, with CRISM data, we are trying to correlate the current study with the RGB band combinations and atmospheric parameters.
4 Results
4.1 Weather Cycling and Geomorphology of Asimov and Hale Craters
Shapes of RSL and their attributes are defined by (Wray et al., 2011), which occur in each spring and summer, particularly on falling sides at sharp angles and equatorial pointing toward southern slopes (Wray et al., 2011; Runyon et al., 2014). To support the formation of RSL in earlier hypotheses (Malin et al., 2007; Chevrier and Rivera‐Valentin, 2012; Levy, 2012; McEwen et al., 2014; McEwen, 2015) in the identified craters requires additional atmospheric factors, i.e., abundance of water and temperature. These factors control the deliquescence-based processes. The water vapor column tells us about the total gaseous water contained in a vertical column of the atmosphere. As the relative humidity increases, visual growth and darkening are observed, which is caused by increased water uptake, confirmed by Raman spectroscopy equipped with an environmental cell (Nuding et al., 2019), which can be considered one of the triggering mechanisms of RSL.
In the Asimov crater, we studied surface temperature (K) and water vapor column (kg/m2) at Ls 142.7° (Figure 6C) for local Mars time 15:37 [the time of HiRISE-image ESP_028050_1330 acquisition (Figure 6A)] and at Ls 348.7° (Figure 6D) for local Mars time 14:23 [the time of HiRISE image ESP_032586_1440 acquisition (Figure 6B)], showing the RSL variation in Figure 6. At Ls 142.7° and Ls 348.7°, the temperature is found to increase from 158 k to 261 K (inside crater), whereas the water vapor column increases from 0.0013 kg/m2 to 0.0097 kg/m2. This notable fivefold water vapor increase in the crater not only indicates regolith-atmosphere interaction and high deliquescence potential in the surface and subsurface, it also suggests an active water cycle (Bhardwaj et al., 2019). These possibilities can be strengthened with corresponding HiRISE images with the same time of acquisition as the associated atmospheric parameters, which are shown in Figure 6. Thermal inertia could influence conditions for deliquescence outside the two target craters in their surroundings. RSL strongly favors the warmest times and places (although there are exceptions), suggesting but not requiring volatile activity. The other major observational argument for liquid water at RSL is the correlation between RSL activity and surface temperature through seasonality and/or slope orientation (McEwen et al., 2011; McEwen et al., 2014; Stillman et al., 2014; Stillman et al., 2016; Dundas et al., 2017; Stillman et al., 2017). Some observations point toward the possibility that RSL contains little or no liquid water. Edwards and Piqueux (2016) found that the thermal signature of RSL at Garni crater was consistent with no water and placed an upper limit of 3% on the RSL water content. However, Stillman et al. (2017) point out that none of the thermal observations are synchronous with a definite observation of active lineae.

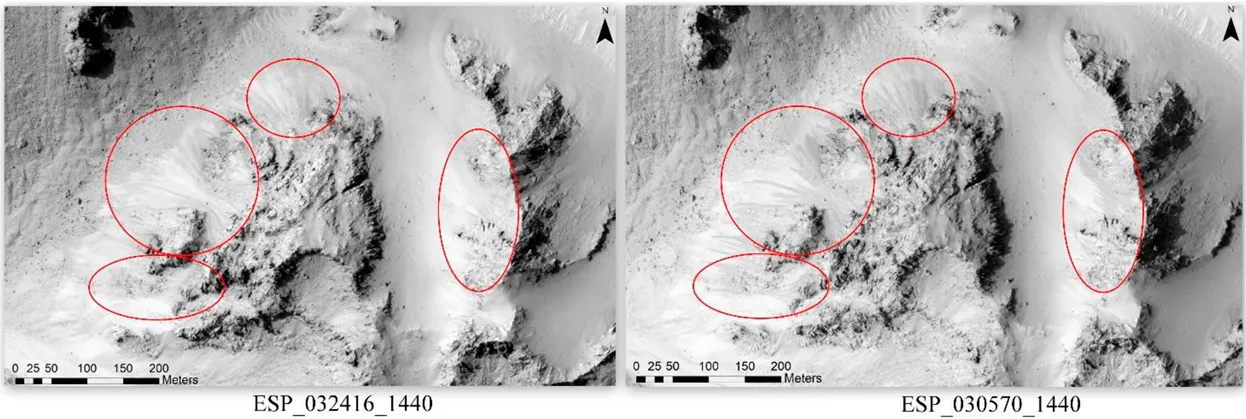

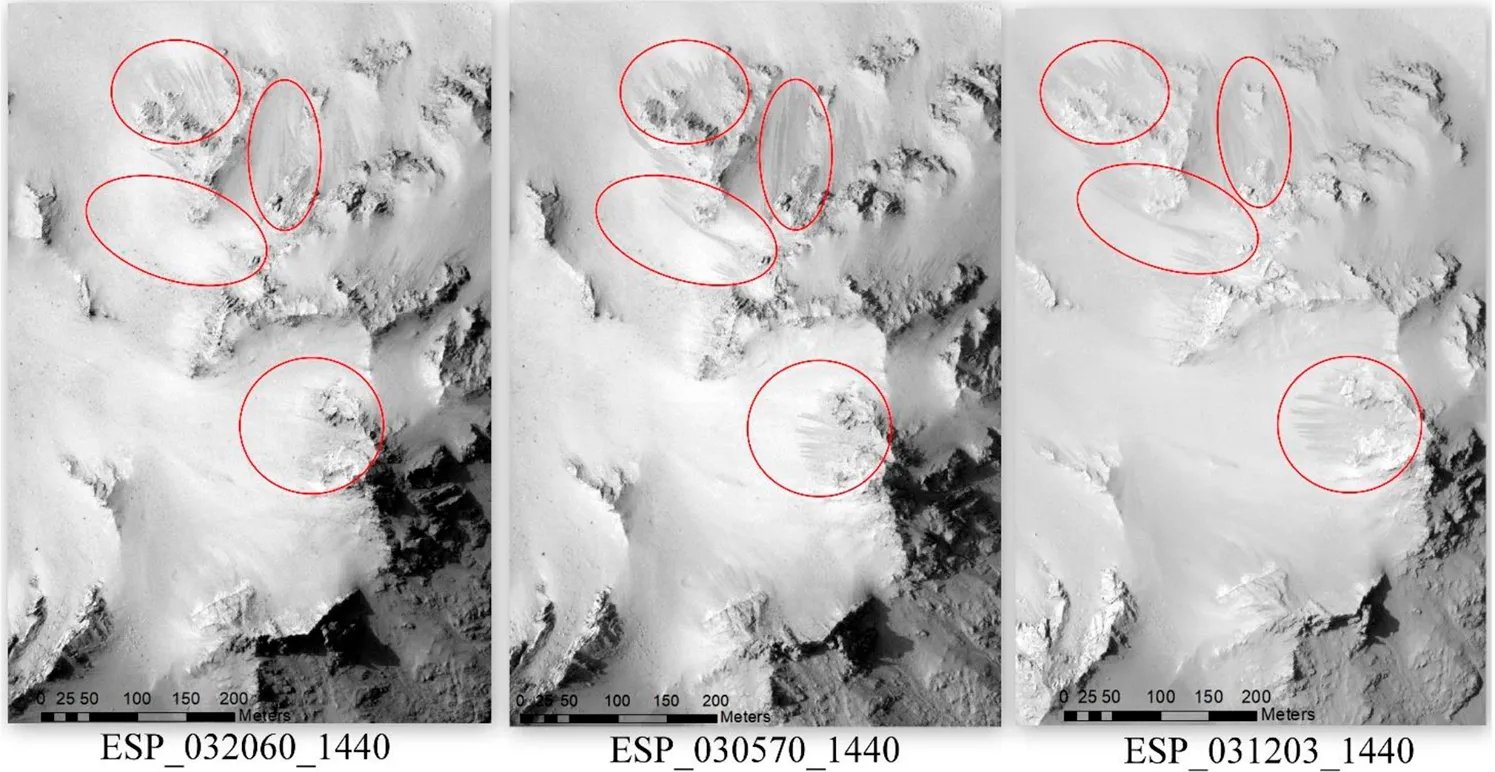

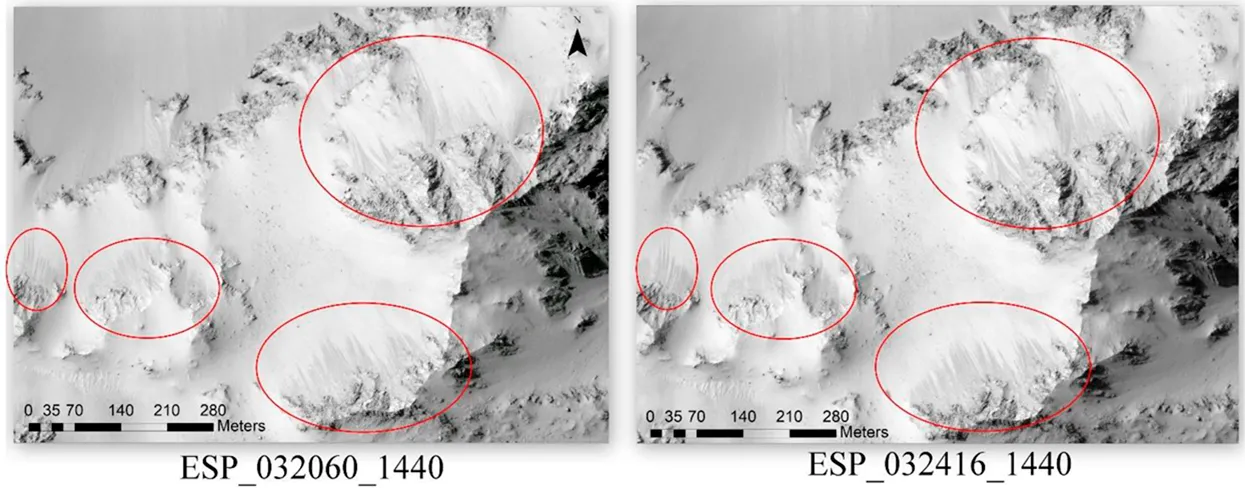

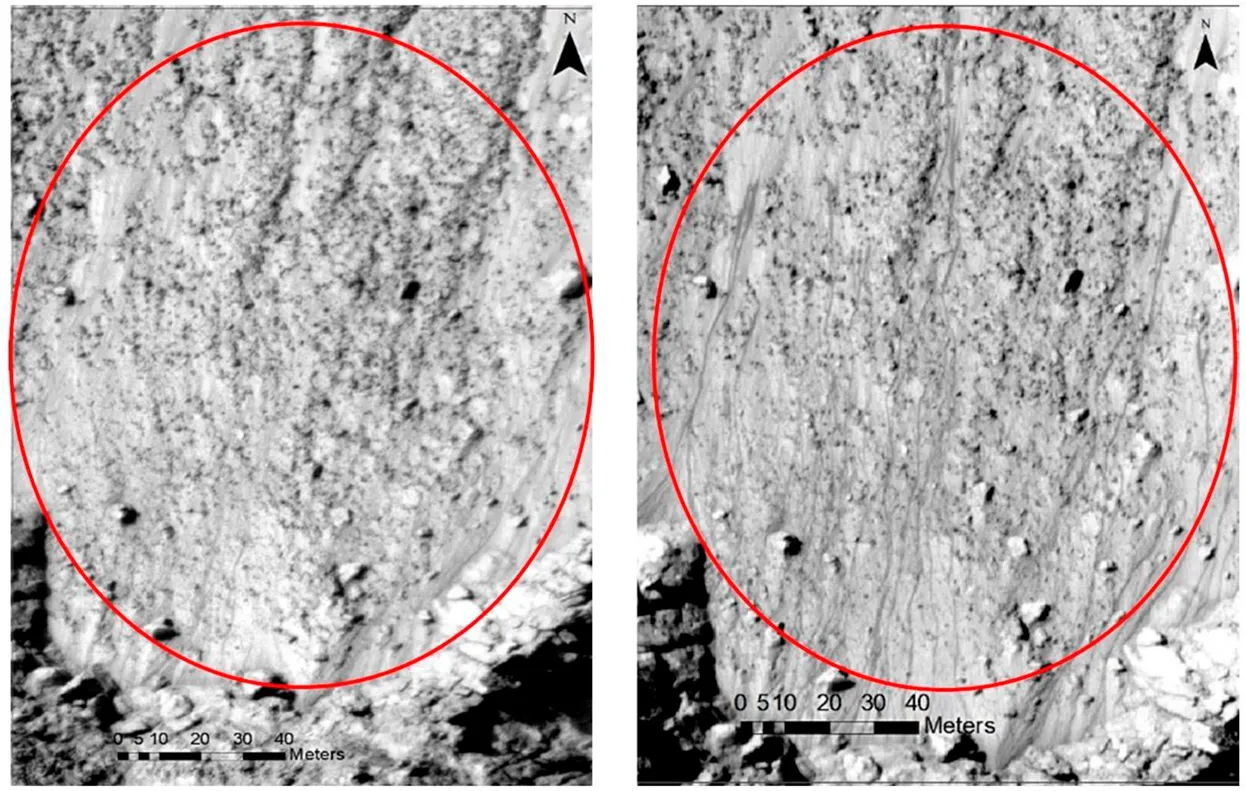

FIGURE 6. (A) and (B) are HiRISE data of Asimov crater at Ls 142.7° and Ls 348.7° to see RSL variation in the image, whereas (C) and (D) are the associated atmospheric parameters acting at the same time of HiRISE data acquisition on the surface of Mars.
The HiRISE images show the change in Hale crater RSL activity, and accordingly, atmospheric parameters are also studied. The atmospheric parameters are studied for RSL activity at Ls 243.5° (Figure 7C) for local Mars time 15:33 [the time of HiRISE image ESP_012663_1440 acquisition (Figure 7A)] and at Ls 329.5° (Figure 7D) for local Mars time 14:17 [the time of HiRISE image ESP_032126_1440 acquisition (Figure 7B)]. In Hale crater at Ls 243.5° and Ls 329.5°, the temperature is found to increase from 201 k to 271 K, whereas the water vapor column increases from 0.0017 to 0.0030 kg/m2. Other RSL observations in the study area are shown in Table 1.

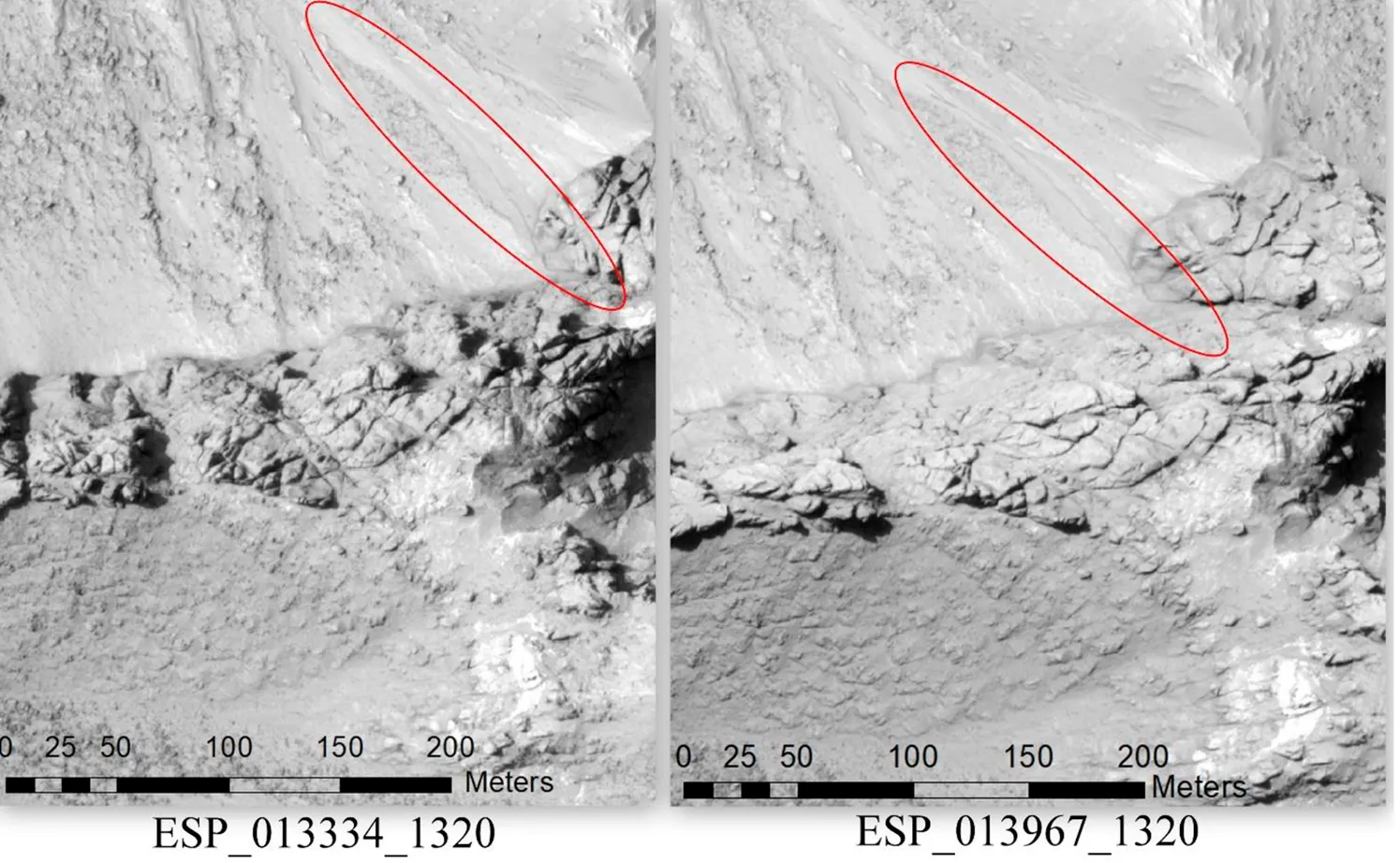

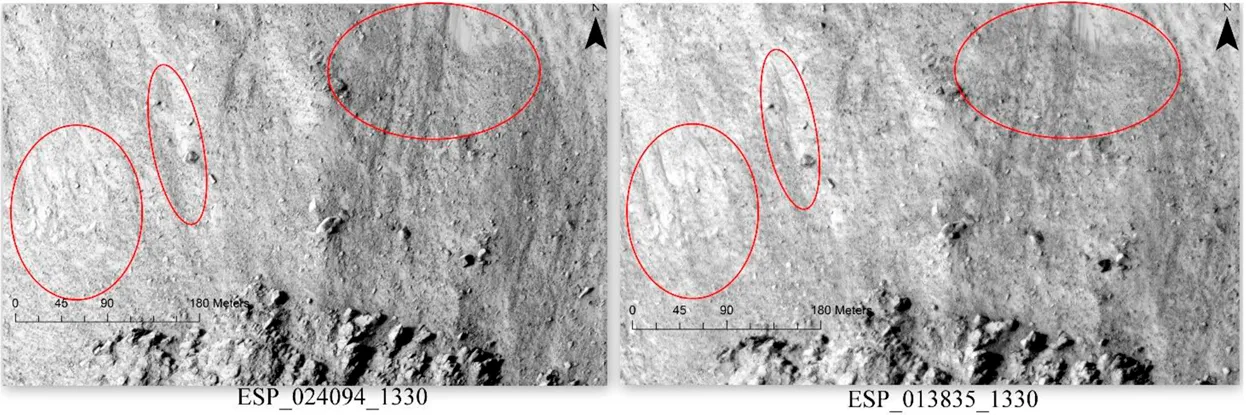

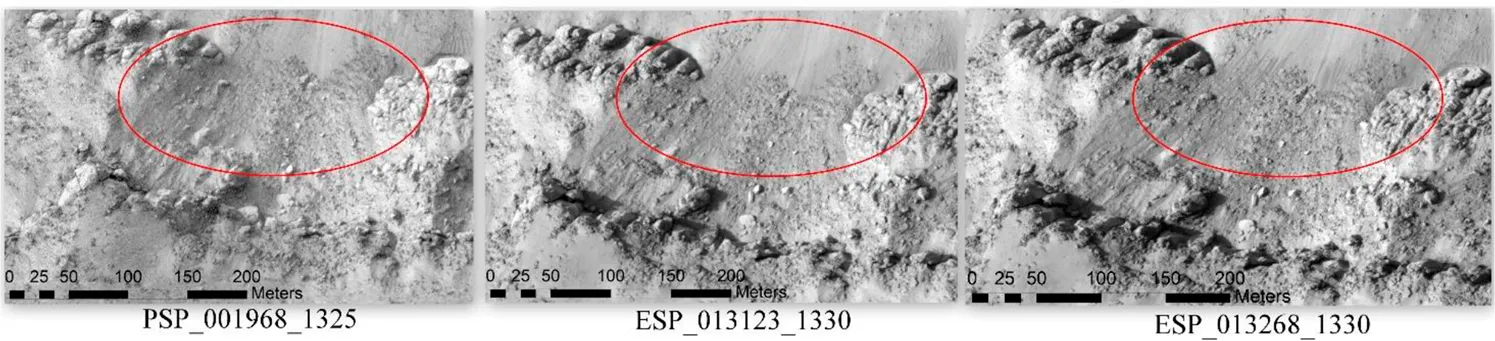

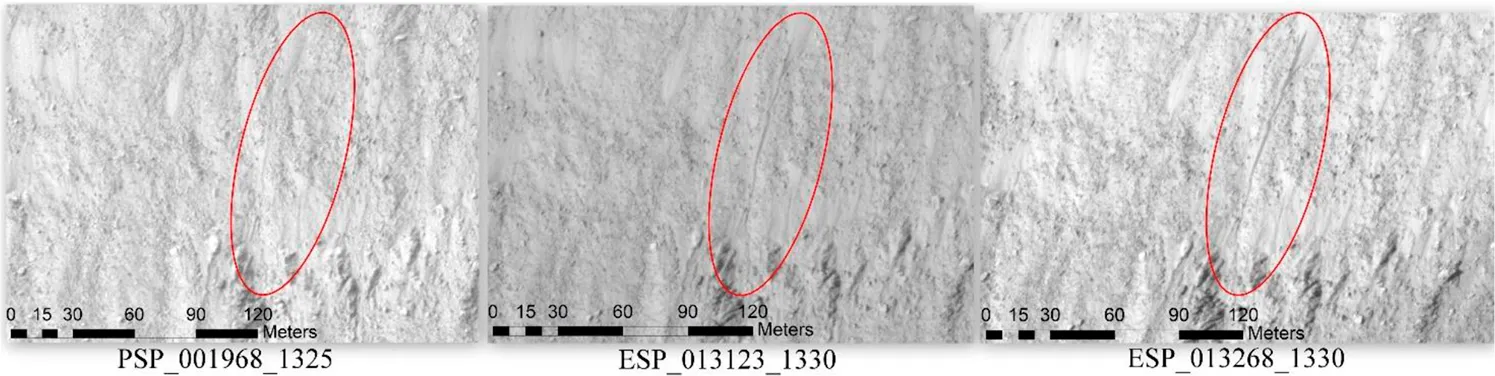

FIGURE 7. (A) and (B) are HiRISE data of Hale crater at Ls 243.5° and Ls 329.5° to see RSL activity, (C) and (D) are the associated atmospheric parameters acting at the same time of HiRISE data acquisition.
TABLE 1. RSL variation observed in Asimov and Hale crater.
The water vapor density could increase with temperature in the study area because of the impact of ice melting. Albedo is also expected to have an impact on the water vapor column. Schorghofer and Aharonson (2005) report in their modeling study that the average retreat of the ice due to the darkening could be 2.1 cm due to the albedo’s impact. Because of this, the output of water vapor is a thousand times larger than the current atmospheric water vapor column abundance. Similarly, variations in albedo and changes in surface humidity cause the intake or release of water vapor and ultimately impact ice. Surficial changes of albedo or humidity may occur on relatively short time scales, driving changes in the subsurface ice distribution.
4.1.1 Asimov Crater
We explored the geomorphic record of the highly degraded Asimov crater situated within the Noachis terra. Since its emplacement in the Noachian, this impact crater has been substantially infilled by sedimentary materials like other Noachian aged craters. However, Asimov crater infill is unique because it displays an annulus with different valleys adjacent to the crater wall (Morgan et al., 2011). Asimov crater was emplaced within the hilly cratered unit (Nhc) of the Southern Highlands and is interpreted as the planet’s oldest extensively exposed surface (Morgan et al., 2011). The crater surface is unique and intensely modified, loaded, and made up of a relatively flat unit, showing an annulus of disconnected valleys next to the inner sides of the crater rim. A collection of new, typical morphologies of alcoves, channels, and fans are superimposed on the lobate debris tongues (LDT). Detailed mapping of the various shapes of several LDTs also provides morphological evidence for viscous ice flows. Alcove, channel, and depositional fan are three morphological components used to describe gullies on Mars (Carter et al., 2013). Gullies are observed along the slope of the central depression systems and valleys although their external shape depends heavily on the slope part. South-facing gullies in Asimov crater are visibly developed and deeply engraved into the valley wall’s steep sides, whereas the northern slope gullies (equator facing) show morphological and substantial differences with respect to south-facing (polar-facing) gullies. The dendritic network of tributaries in the polar-facing gullies is incomplete on the equator-facing area and is considerably less cut into the wall of the valley. They are smaller in size than the crater’s major gullies. In the southern valley area, another form of gully is found, which is small in length and lies across the side of a dune-covered mountain. In this area, gullies consist only of channels. The distribution of gullies strongly indicates a climatic role. Sublimation to high obliquity levels of water and carbon dioxide ice from the polar areas would have also raised the atmospheric surface pressure (Costard et al., 2002) and atmosphere water vapor content (Mellon and Jakosky, 1995) and, thus, further facilitated the evolution of gullies. The detailed geological setting of Asimov crater, showing names of valleys and morphological parameters, is shown in Figure 8.
FIGURE 8. Geological setting of Asimov crater, showing names of valleys and morphological parameters within Asimov crater. The background image is a mosaic image of CTX (having ID D08_030239_1326_XN_47S355W, D12_032019_1327_XN_47S354W, F09_039140_1327_XN_47S354W, F10_039694_1325_XN_47S355W, and P15_006860_1327_XI_47S354W).
4.1.2 Hale Crater
To investigate the relation between Hale crater and its associated channels, the study explored the geomorphic features of the area mapped by Jones et al. (2011) utilizing data and images from the Thermal Emission Imaging System (THEMIS) (Christensen et al., 2004), the Mars Orbiter Laser Altimeter [MOLA, (Smith et al., 1999), the Mars Orbital Camera (MOC (Malin and Edgett, 2001)], the CTX, and the HiRISE. According to their geomorphological and thermophysical properties, Hale crater’s major geological units are identified as Hale ejecta types 1 (He1) and 2 (He2), ponded and pitted surface materials (Pp), rock formations (Er), irregular crater clusters (Icc), preexisting channels (Pc), intracrater dunes (Iad), and intercrater dunes (Ied), which are mapped at 1:500,000 scale (Jones et al., 2011). Hale crater geomorphology is presented in Figure 9, showing the major units.
FIGURE 9. Hale crater geomorphology and its associated ejecta mapped by (Jones et al., 2011). Uzboi Vallis is indicated by navy blue colors.
He1 stratigraphically overlays an exposed rock (Er) rough, blocky, resistant unit that makes up Hale’s wall terraces, crater rim, and central peak complex. Colluvium overlays a cliff-like structure, and gullies arise on its sides where there is a sharp rise or fall. Er seems smoother and more mature and without angular sides. The blocky shape inside the crater may develop from high shock pressures that caused rock rupture near the site of impact. Icc are arranged into overlapped crater chains with broken twill-weave patterns in the ejecta (Oberbeck and Morrison, 1973) radiating from Hale. These clusters of craters are known as secondary craters of Hale. They are mainly located northwest to northeast of Hale. In accordance with Herrick and Hessen (2006), the majority of the secondary craters are located inside the two identified ejectas. Channels inside Hale crater ejecta show a morphology regulated by the underlying topography, flowing up and around barriers. They are often immature and show primitive branching patterns. Wide channels underlying Hale’s ejecta and, thus, predating it, are described as Pc. Hale ejecta used such channels as conduits, moving material further from the primary cavity than would have been possible otherwise. The Iad is a mapping of aeolian dunes inside the crater; the Ied is an area of dunes on the ground outside the crater cavities.
4.2 Mineralogical Study and Image Interpretation
The CRISM instrument and high‐resolution imagers have significantly sharpened our understanding of Mars’ mineral analysis in terms of composition, setting, and global spatial distribution (Howari et al., 2021). CRISM data covers a small portion of the Asimov and Hale craters as shown by red polygons in Figure 2 and Figure 3, respectively. The strip of CRISM data also covers the candidate and confirmed RSL sites in Asimov crater. CRISM data browse products of the Asimov and Hale craters derived using the band combination and formulation (Viviano et al., 2014) are shown in Figures 10–13. CRISM images have been obtained from the Planetary Data System (PDS) at the most recent calibration level (MTRDR—Mapped Targeted Reduced Data Record). CRISM data covers a small portion of eastern and southwestern areas of Asimov crater for which footprints are shown in red polygons in Figure 2, and for the Hale crater, it is covering the Northern and Eastern parts of the crater as shown in red polygons in Figure 3.
FIGURE 10. CRISM Browse products results in eastern Asimov Crater. Footprints of data are shown with red polygons in Figure 2.
FIGURE 11. CRISM Browse products results in South-West Asimov Crater. Footprints of data are shown with red polygons in Figure 2.

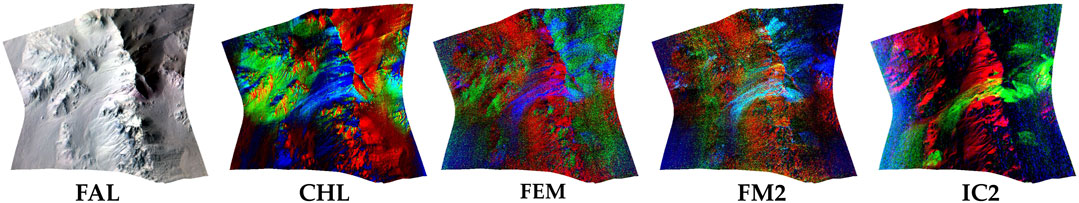

FIGURE 12. CRISM Browse products results in Eastern Hale Crater. Footprints of data are shown with red polygons in Figure 3.
FIGURE 13. CRISM Browse products results in Northern Hale Crater. Footprints of data are shown with red polygons in Figure 3.
Spectroscopic and lander data show large volcanic provinces composed of basalt and a surface that was hydrated (OH, H2O), with possible traces of other alteration minerals (Soderblom, 1992; Ehlmann and Edwards, 2014). The FEM browse product is more responsive to ferrous and ferric absorption as well as slopes that are negative and with compacted dust texture or dust coatings (Viviano et al., 2014). Reddish colors in FEM browse product show the nanophase of crystalline ferric oxide, whereas green colors are a product of textural effects in the scene, and bluish colors are often more mafic surfaces and dust free. FM2 is particularly sensitive to nanophase ferric oxide and crystalline-ferric or ferrous, olivine with pyroxene minerals. In the FM2 browse product, reddish colors show nanophase ferric oxide presence, whereas green colors indicate coarser grained iron-bearing minerals, especially low calcium-pyroxene, and bluish colors are mostly without dust or surfaces with more mafic minerals. The study explored IC2 browse products, in which CO2 frost or ice appears as blue colors displaying a sharp 1.435 μm absorption (Viviano et al., 2014), whereas water ice or frost appears as green because of strong 1.5 μm absorption. Reflectance at 3920 nm is used in the IC2 browse product to show ice-free surfaces as this particular reflectance is proxy for silicates, hence representing ice-free surfaces in red colors (Viviano et al., 2014). These were examined to learn more on the role of water or carbon dioxide frost or ice in the geodynamics of the Martian surface. CHL browse products reveal information related to chloride deposits revealed from the THEMIS sensor and hydrated mineral deposits. In the image, those surfaces have a relative positive near-infrared spectral profile and are comparatively dried up to represent the chlorides in blue colors, whereas the yellowish-to-green colors indicate hydrated minerals, especially phyllosilicates in the CHL browse product.
Asimov and Hale crater interpretations based on RGB color composite/browse products using the CRISM data are shown in Table 2. The minerals presented could give a proxy on the presence of water or their stability under Martian weather conditions. RSL are generally found in low-to-moderate albedo regions without significant dust deposits. CRISM data observation shows the investigated scene to have more mafic surfaces and be dust-free. However, dust is pervasive in Mars’ atmosphere, and thin or partial coatings are likely to occur on most surfaces, sometimes due to air fall. In general, during autumn and early winter (Ls ∼ 0°–140°), the content of atmospheric dust decreases to its lowest values (Lemmon et al., 2015). Outside the polar cap edge, dust storm activity is reduced at that time (Kass et al., 2016). Surface lifting inferred to be caused by dust-devil activity is principally observed in the northern hemisphere (Cantor et al., 2006). For RSL, this period also corresponds to both limited activity and activity favoring the northern hemisphere: gentle lengthening for the most active northern sites (Stillman et al., 2016) and modest activity compared with other Ls at some equatorial sites (Hargitai and Kereszturi, 2015). Fading compatible with progressive dust settling is also observed at that time at equatorial or southern latitudes.

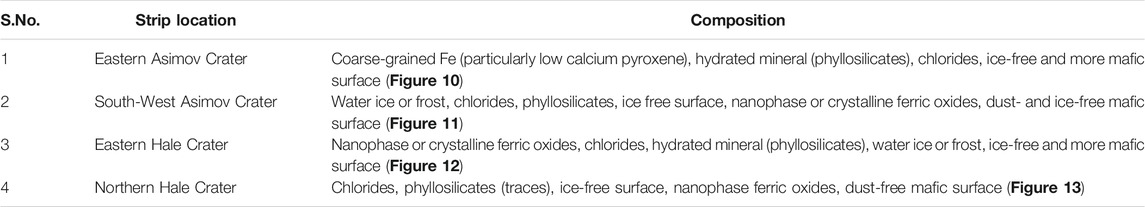

TABLE 2. Asimov and Hale Craters interpretation made on the basis of summary products derived using CRISM data as RGB color composite/browse product.
5 Discussion
In this section, detailed geomorphological and compositional analysis is presented with consideration about the atmospheric parameters with the aim to investigate the origin of RSL present in these craters. Characterizing the details of temperatures in the study area by giving humidity values or daily cycling of temperature and humidity is difficult. Because the unique temporal behavior of RSL was not recognized in earlier research, the HiRISE images were used for purposes other than deducing the annual cycling of temperature and humidity. Literature review indicates that RSL could be dry or only transiently wet at very cold temperatures (McEwen, 2018; Rivera-Valentín et al., 2020). However, other work suggests that putative deliquescent RSL sites could be habitable (Maus et al., 2020). Other temperature or season-dependent factors may influence sand movement and contribute to RSL seasonality. It is possible that local heating of slopes plays an important role in outcrop scale wind patterns. For RSL, in particular, it may be necessary to resolve the effects of topography at the scale of outcrops and local slopes (Newman et al., 2017). Additionally, temperature changes could influence the cohesion of sand, for instance, due to variations in the amount of adsorbed water (McEwen et al., 2011; Dundas et al., 2017).
The reported data and observations in the current paper could strengthen the hypothesis that the Asimov crater’s RSL formation is because of wet surface or subsurface deliquescence processes. Other observations reported in the literature are also in line; for example, the surface temperatures corresponding to RSL activity are above the freezing points for salty solutions, which can be as low as ∼200 K (Möhlmann and Thomsen, 2011; Martínez and Renno, 2013). However, explaining the source of sufficient water for seepage is extremely difficult in the present-day Martian environment (Mellon and Phillips, 2001; Dundas et al., 2017).
A previous observation by Nuding et al. (2019) shows that, with the increase in relative humidity increases, visual growth and darkening are observed, which are caused by increases in water uptake, also are confirmed by Raman spectroscopy equipped with an environmental cell (Nuding et al., 2019), which can be considered as one of the trigger mechanisms for RSL. In the Asimov crater, the surface temperature (K) and water vapor column observed to be increased from 158 k to 261 K (inside crater) consistently increased in water-vapor five times in the crater, which indicates regolith-atmosphere interaction and high deliquescence potential in the surface and subsurface, and it also suggests an active water cycle.
The RSL activity in the Hale crater and associated atmospheric parameters show the temperature to be increased and water vapor column. Previously studied results from thermal analysis establish that local temperatures are observed to be high enough to allow either the melting of brines or deliquescence of salts during the observation period. However, the slope and aspect distributions of RSL activity predicted for these processes are not consistent with the observations in the Hale crater, which is also seen in the current study. There was no significant relative albedo difference, which suggests that RSL at Hale crater are not caused by seeping water that reaches the surface, but are best explained by other hypothesis and mainly by dry flows of granular material. Ojha et al. (2015) detect temporally and spatially initial change in surface hydration linked with RSL activity. Perchlorates (chlorate) in situ presence on the surface of Mars is also confirmed at the Phoenix landing site, where visible water ice was also found (Chevrier et al., 2007). Recent evidence of perchlorates at RSL sites strengthens the hypothesis that at least some RSL are produced by liquid water flow (Mitchell and Christensen, 2016). The variations in RSL as the formation of liquid brine (water uptake with the increase of relative humidity) and calcium perchlorate particles undergo visual transformations as the relative humidity increases in the presence of water uptake. Heinz et al. (2016) report that highly deliquescent salts are known to exist on Mars and may temporarily trap atmospheric water in extremely small quantities, perhaps sufficient to darken the surface but not sufficient for seepage down slopes (Gough et al., 2019; Nuding et al., 2019). Some workers have speculated that small quantities of water could trigger granular flows [ 44, 63].
MarsWRF experimental simulations found that perchlorate and other salts in RSL could potentially form liquid brine via deliquescence with suitable environmental conditions (temperature, water vapor) (Nuding et al., 2019). MarsWRF (Toigo et al., 2012) is a numerical Martian atmospheric model explicitly simulating dynamical processes and parameterizing unresolved processes (e.g., radiative transfer, atmospheric phase changes, etc.). During those analyses, calcium perchlorate particles demonstrate water uptake and loss (Nuding et al., 2019). To understand the water uptake properties of calcium perchlorate at RSL locations, Raman microscope equipped with an environmental cell is used (Nuding et al., 2019). In their experiment, the Raman spectra indicate that water uptake is occurring as relative humidity is increased. Additionally, the calcium perchlorate particles undergo visual transformations (growth and darkening) as the relative humidity is increased, and the presence of water uptake is confirmed by Raman spectroscopy (Nuding et al., 2019), which supports the theory of deliquescence as one of mechanism for the regolith-atmosphere interaction and RSL formation.
In the future, spatial and spectral high‐resolution analyses of RSL sites will help to ascertain whether the origin and formation of RSL is a singular process on a global scale or instead consists of a range of processes. As RSL are found at many latitudes and geologic environments on Mars, it is possible that a range of RSL formation mechanisms exists. From the observations in this study, alternative hypotheses for RSL formation that do not involve significant surface or subsurface deliquescence of liquid flow should be further explored. Likewise, without the existence of significant amounts of brine, capillary wicking of brines to the surface may account for the apparent darkening of the surface (Grimm et al., 2014). In addition, granular flow due to lubrication of grains by a thin film of water (Möhlmann and Kereszturi, 2010; McEwen et al., 2011) is considered more plausible due to the relatively low demand of resources needed to initiate it.
6 Conclusion
In this work, we analyzed HiRISE, CRISM, CTX, and MOLA data to perform detailed geo-morphological and compositional analysis of the Hale and Asimov craters along with a detailed atmospheric analysis with the aim to investigate the origin of RSL present in these craters. A total of 940 candidate and confirmed RSL sites were mapped using previous literature and newly identified sites globally on Mars. The study concludes that, in Asimov crater, local temperatures are high enough to allow either the melting of brines or the deliquescence of salts during the HiRISE observation period because water vapor column values are observed to be nearly five times those measured before RSL appearance in the image as well as the slope and aspect distributions are consistent with the observations. This marked increase in water vapor indicates the possibility of surficial or subsurface deliquescence. Furthermore, the possible local cyclical interaction between the atmosphere and regolith could be described as the Martian water cycle. The composition of Asimov crater is found to be coarse-grained Fe, particularly low-calcium pyroxene. Nanophase or crystalline ferric oxides are also present in traces. Along with hydrated mineralogy (phyllosilicates), chlorides are also observed. In the eastern Asimov crater, traces of CO2 frost are also found, whereas water ice frost is observed in the southwest of Asimov crater where RSL sites exist. The surface is dust- and ice-free with more mafic content. In Hale crater, the slope and aspect distributions of RSL activity predicted are not consistent with observations. Based on the CRISM RGB band combination, the area was dust- and ice-free. However, the surround could have some ice. The investigated scene is observed to have a more mafic area, which is free of dust, hence dust not triggering the RSL appearance in the area.
The noted earlier finding suggests that RSL at Hale crater are not produced by seeping water, but are best explained by other hypothesis and mainly by dry flows of granular material. Hale crater is mostly composed of nanophase or crystalline ferric oxides along with chlorides and hydrated minerals. It also has water ice or frost and indicates the surface as dust- and ice-free and more mafic. Previous experimental study by researchers using the MarsWRF model also supports the theory of deliquescence as a major mechanism for the regolith-atmosphere interaction and RSL formation, which suggests that minerals absorb moisture from the environment until the minerals dissolve in the absorbed water and yield a solution, which is also supporting the current study.
Data Availability Statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Author Contributions
Supervision, FH; writing—original draft preparation, FH and MS; writing—review and editing, FH and MS; Conceptualization, MS; methodology, MS; Formal analysis, MS; software, MS; validation, FH, MS, CX, and YN; investigation, MS; visualization, MS; funding acquisition, FH, FA.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
The authors would like to extend our thanks and appreciation to Zayed University, Abu Dhabi, for providing the facility to carry out the research. The authors would like to thank Prof James Terry for reviewing and editing this manuscript. The authors would like to extend our thanks and appreciation to UAE Space Agency for funding this research Z01-2016-001.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fspas.2021.781166/full#supplementary-material
