ORIGINAL RESEARCH article

Front. Astron. Space Sci., 18 August 2021
Sec. Cosmology
This article is part of the Research Topic Loop Quantum Cosmology View all 12 articles

Anomalies in the Cosmic Microwave Background and Their Non-Gaussian Origin in Loop Quantum Cosmology

  • 1Department of Physics and Astronomy, Louisiana State University, Baton Rouge, LA, Unites States
  • 2Department of Physics, National Institute of Technology Karnataka, Surathkal, India

Anomalies in the cosmic microwave background (CMB) refer to features that have been observed, mostly at large angular scales, and which show some tension with the statistical predictions of the standard ΛCDM model. In this work, we focus our attention on power suppression, dipolar modulation, a preference for odd parity, and the tension in the lensing parameter AL. Though the statistical significance of each individual anomaly is inconclusive, collectively they are significant, and could indicate new physics beyond the ΛCDM model. In this article, we present a brief, but pedagogical introduction to CMB anomalies and propose a common origin in the context of loop quantum cosmology.

I Introduction

Observations of the cosmic microwave background (CMB) by the Planck satellite have revealed that the ΛCDM model together with the inflationary scenario checks nearly all the right boxes (Aghanim, 2018a; Akrami, 2018; Aghanim, 2020)—in the sense that it provides a detailed fit to the CMB spectrum based on a few free parameters (Aghanim, 2018a; Aghanim, 2019). The nearly scale-invariant power spectrum predicted by slow-roll inflation has been confirmed with a significance of more than 7σ (Aghanim, 2018b; Akrami, 2018). Further, observations are consistent with the near Gaussian nature of the primordial perturbations predicted by slow-roll inflation (Akrami, 2020).

But in spite of this success, several open questions remain. A prominent one concerns the past incompleteness of the inflationary scenario. As it is well known, general relativity, on which the inflationary scenario rests, breaks down as we approach the Planck regime. Loop quantum cosmology (LQC) uses the principles of loop quantum gravity to address this issue (Bojowald, 2001; Ashtekar et al., 2003; Mena Marugan, 2010; Ashtekar and Singh, 2011; Banerjee et al., 2012; Agullo et al., 2014; Agullo et al., 2017a). In LQC, the big bang singularity is replaced by a bounce (Ashtekar et al., 2006a; Ashtekar et al., 2006b; Ashtekar et al., 2007; Szulc, 2007; Szulc et al., 2007; Bentivegna and Pawlowski, 2008; Martin-Benito et al., 2008; Ashtekar and Wilson-Ewing, 2009a; Ashtekar and Wilson-Ewing, 2009b; Garay et al., 2010; Wilson-Ewing, 2010; Pawlowski and Ashtekar, 2012) which is triggered by quantum gravitational effects. This bounce by itself is not able to generate the primordial perturbations though, and it must be complemented with another mechanism. A natural strategy is to maintain the inflationary phase in the post-bounce era. In such a scenario, the goal of the bounce is, in addition to overcoming the difficulties arising from classical general relativity, to bring the Universe to an inflationary phase. Interestingly, although the inflationary phase is responsible for the primordial perturbations, certain features from the pre-inflationary bounce may survive if the inflationary era is not too long, and be imprinted in the CMB. Numerous studies have examined the way the bounce predicted by LQC modifies the primordial power spectra of scalar and tensor perturbations (Bojowald et al., 2009; Bojowald and Calcagni, 2011; Agullo et al., 2012; Agullo et al., 2013a; Agullo et al., 2013b; Fernández-Méndez et al., 2013; Fernández-Méndez et al.,2014; Agullo and Morris, 2015; Barrau et al., 2015; de Blas and Olmedo, 2016; Martínez and Olmedo, 2016; Ashtekar and Gupt, 2017; Agullo et al., 2017b; Castelló Gomar et al., 2017; Zhu et al., 2017; Agullo, 2018; Agullo et al., 2020a; Agullo et al., 2020b; Li et al., 2020a; Li et al., 2020b; Ashtekar et al., 2020; Navascués et al., 2020; Navascués and Mena Marugán, 2020; Martín-Benito et al., 2021) and the non-Gaussianity (Agullo, 2015; Agullo et al., 2018; Zhu et al., 2018; Sreenath et al., 2019) at large angular scales, and showed that at smaller scales in the CMB the predictions are indistinguishable from those of standard inflation with Bunch-Davies initial conditions. Hence, if at all early Universe scenarios such as LQC were to leave any imprints on the CMB, they would be expected at the longest observable scales, or equivalently, at the lowest angular multipoles.

It is for this reason that certain puzzling signatures which have been recently observed at large angular scales in the CMB become relevant (Akrami et al., 2019). These signatures, generically known as CMB anomalies, are features that are in conflict with the almost scale invariance predicted by inflation, or with the statistical isotropy and homogeneity assumed in the ΛCDM. In more detail, the anomalies observed by Planck include a lack of two-point correlations at large angular scales, a dipolar asymmetry, a preference for odd parity, alignment of low multipoles, a cold spot, etc. In addition, the Planck analysis has also found a preference for a larger value of the lensing parameter (Aghanim, 2018b) than it is expected. Some of these anomalies were already observed by the WMAP satellite and even by COBE. Hence, the consensus is that these signals are not due to unaccounted systematics. Put it simply, there is no debate about the fact that these are real features in the CMB [see e.g., (Schwarz et al., 2016)]. However, the statistical significance with which these features depart from the predictions of the ΛCDM model is, though non-negligible, inconclusive, and the debate is rather whether any of these features are significant enough to require the introduction of new physics. Recall that the ΛCDM only makes statistical predictions, and therefore none of these features are actually incompatible with ΛCDM. But if we accept the ΛCDM model, the observed features imply that we live in an uncommon realization of the underlying probability distribution. Another possibility is that some or all these features are signatures of new physics, and they are in fact expected signals in a suitable extension of the ΛCDM theory.

In recent work (Agullo et al., 2021a; Agullo et al., 2021b) we proposed that a cosmic bounce before inflation naturally changes the primordial probability distribution in such a way that, in a statistical sense, the observed features are not anomalous. The core of the idea is that a cosmic bounce generates strong correlations (non-Gaussianities) between the longest modes we observe in the sky and longer, super-horizon modes. We cannot observe directly these correlations since some of the modes involved have wave-lengths larger than the Hubble radius today. But these correlations produce indirect effects in observable modes, which can account for the observed anomalies. The goal of this article is to apply the general ideas introduced in (Agullo et al., 2021a; Agullo et al., 2021b) to LQC. We will also take the opportunity to provide a succinct and pedagogical introduction to CMB anomalies and the phenomenon of non-Gaussian modulation, addressed to the quantum cosmology community. See (Agullo and Morris, 2015; de Blas and Olmedo, 2016; Ashtekar and Gupt, 2017; Agullo et al., 2020a; Ashtekar et al., 2020; Agullo et al., 2020b) for other ideas to account for some of the features observed in the CMB within LQC. In particular, the companion article (Ashtekar et al., 2021) in this special issue, provides an interesting set of complementary ideas and perspectives on the way LQC can account for the CMB anomalies.

The plan of this article is as follows. In the next section, we discuss the basic principles behind quantifying temperature anisotropy and discuss the implications of statistical homogeneity and isotropy for CMB anisotropies. Then, we describe some of the anomalies observed by the Planck satellite, which point to a violation of the underlying assumption of statistical homogeneity and isotropy. In section III, we describe the mechanism behind the phenomenon of non-Gaussian modulation. In section IV, we provide a quick description of the evolution of perturbations in LQC and discuss the power spectrum and bispectrum generated therein. We then apply non-Gaussian modulation to LQC in section V and present our results. In this section, we describe how the presence of non-Gaussian modulation in LQC makes these anomalous features more likely to occur, in a way that they are no longer anomalous. Finally, in section VI, we conclude with a discussion of our results, its short comings, and future directions.

II Introduction to CMB Anomalies

The temperature T(n^) of the CMB as a function of the direction n^ is nearly uniform, making it convenient to split T(n^) into an isotropic part, the mean temperature T¯=14πdΩT(n^), and the anisotropic deviation from it

δTn^Tn^T¯T¯=mamYmn^,

where in the last equality we have decomposed the function δT(n^) in spherical harmonics Yℓm. [see, for instance, (Durrer, 2008; Weinberg, 2008)]. The mean temperature T¯ is a free parameter of the ΛCDM model, which is determined by observations. Our best measurement of T¯ comes from the FIRAS instrument in the COBE satellite, and is measured T¯=2.7260±0.0013K (Fixsen, 2009).

The ΛCDM model predicts only the statistical properties of the temperature map δT(n^) or, equivalently, of the coefficients am. Therefore, the quantities we want to extract from observations are the moments: ⟨amam⟩, amamam,, etc. There are theoretical reasons, further supported by observations, to argue that the probability distribution we are after is very close to Gaussian, in which case the simplest non-zero moment, ⟨amam⟩, is all we need (recall that a Gaussian distribution is completely characterized by the mean and the variance). Furthermore, the assumption of statistical homogeneity and isotropy, on which the ΛCDM model rests, implies that amam must be diagonal in and m, and m-independent

amam=Cδδmm.

In other words, homogeneity and isotropy imply that all information contained in the second moments can be codified in the m-independent coefficients C, for = 1, 2, 3, …. C is known as the angular power spectrum.

The equivalent statement in angular space is that the second moments of δT(n^), C(θ)δT(n^)δT(n^) can only depend on the angle θ between the two directions n^ and n^:

CθδTn^δT(n^)=14π2+1CPcosθ.

If the assumptions of statistical homogeneity and isotropy break down, then the simple characterization of the two-point correlations in terms of the simple quantity C or C(θ) becomes insufficient, and one would have to work with the full covariance matrix of am or δT(n^).

The angular power spectrum C is measured by averaging the data from satellites. But, what is the correct notion of average? Ideally, one would like to have different realizations of the probability distribution (that is, different universes) and take averages on them, which is closer to the way averages are measured in quantum systems. Another possibility is to take averages over the CMB temperature map observed from different locations in the Universe. The ergodic theorem relates both averages. Unfortunately, none of these two strategies is available at the practical level. Rather, what is done in practice is to take advantage of the m-independence of the power spectrum C, and obtain it by averaging over its value obtained from individual m’s (we actually observe δT(n^), but a simple computer code can translate the data to values of am). The limitation of this strategy is clear: we have 2 + 1 values of m for each multipole , and consequently the uncertainty about the value of C obtained in this way will be large for small values of . This uncertainty is known as cosmic variance, and it is quantified by ±2/(2+1)C. It is not difficult to translate this uncertainty to angular space, and the result is ± σ(C(θ)), with

σ2Cθ=18π22+1C2P2cosθ.

Cosmic variance is an intrinsic limitation of cosmological observations, and cannot be overcome by building more precise instruments. Therefore, in making predictions for C or C(θ), one needs to keep in mind this inherent uncertainty.

We now discuss the anomalous features that have been observed in CMB. The Planck team has carried out several tests to check the statistical isotropy of the CMB (Ade, 2014; Ade, 2016a; Akrami et al., 2019). The CMB is a spherical shell of radiation, which captures a spherical sample of the density perturbations at the time of decoupling in the early Universe. Hence, deviations from isotropy in the CMB sphere will signal deviation from statistical homogeneity or isotropy in the early Universe. Since, as emphasized above, the predictions from the ΛCDM model are statistical, a key aspect of the analysis is to quantify the statistical significance of any observed departure from the theory. In statistical parlance, this is known as hypothesis testing, wherein a null hypothesis, which in this case is the ΛCDM model, is compared with observations. The departure from the null hypothesis is often quantified in terms of the so called p-value. Given a null hypothesis, the p-value is the probability with which a certain phenomenon can occur. If the p-value of an observed feature is zero, the null hypothesis is automatically considered as incorrect. A very small value of the p-value, would rather rule out the hypothesis with a statistical significance given by 1 − p. The concept is visually illustrated in Figure 1: the p-value corresponds to the area of the shaded region.

FIGURE 1
www.frontiersin.org

FIGURE 1. Illustration of the concept of p-value. The figure shows the probability distribution of a certain observable X according to the null hypothesis in black. The value of X that is actually observed is shown in red. Although the expected value of X is zero, the observation is not incompatible with the theoretical prediction, given the statistical character of the later. The shaded area gives us the p-value of the observed value of X. As it is evident from the figure, a smaller p-value implies a larger departure from the null hypothesis.

In order to quantify an anomaly, the first step is to choose an observable of interest, which will serve as the indicator of the anomaly. Rather than analytically deriving the probability distribution of the chosen observable out of the theory, a task that may be difficult for some observables, in practice it is often more convenient to estimate the p-value numerically. This can be done by simulating a large number of random realizations of the CMB temperature map from the probability distribution of the ΛCDM model—using the best fit for the free parameters—and computing the p-value of the chosen observable from them. This is the way the Planck collaboration has evaluated the p-value of the anomalies discussed below (Ade, 2014; Ade, 2016b). For example, if only five simulations out of a thousand lead to a value of an observable which is at least as extreme as the observed value, they would report a p-value of 0.005 for that observation, or equivalently 0.5%. The anomalies considered in this article have p-value ≤ 1% (Schwarz et al., 2016). In the remaining part of this section, we briefly describe the anomalies that we consider in this article.

A Power Suppression

Data from the satellites COBE (Hinshaw et al., 1996), WMAP (Bennett et al., 2003) and Planck (Akrami et al., 2019), have consistently found a lack of two-point correlations at low multipoles, or at large angular scales, compared to what is expected in the ΛCDM model. Visually, this lack of correlations is evident in the real space two-point correlation function C(θ), shown in the right panel of Figure 2: for angles larger than 60°, the two-point function is surprisingly low. The WMAP team had come up with an appropriate observable to quantify this lack of power (Spergel et al., 2003). It is defined by

S1/2=11/2Cθ2dcosθ.

FIGURE 2
www.frontiersin.org

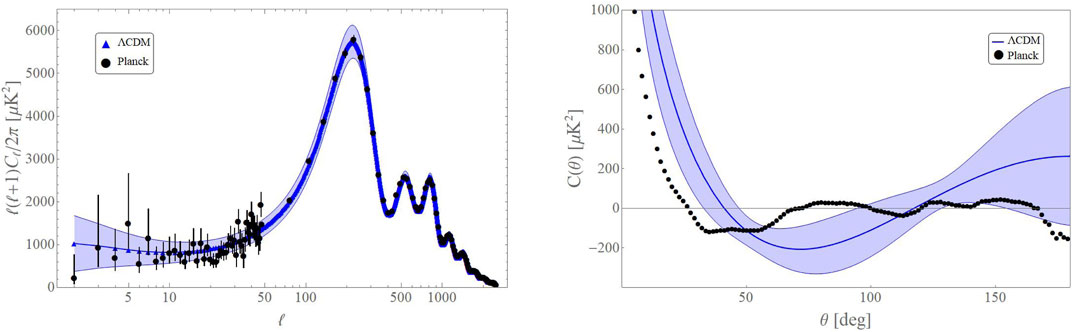

FIGURE 2. The TT power spectrum in the multipole (A) and angular space (B) generated in the standard model corresponding to the best fit parameters provided by Planck. The blue shaded region indicates the uncertainty due to cosmic variance. The black dots with error bars are the data from Planck. Note that the observed quadrupole is quite low compared to the prediction from the standard model, although it is compatible with the prediction within 1σ when we account for cosmic variance. The lack of power at large angular scales is more evident in the angular power spectrum, where the power is considerably low for angular scales greater than 60°. Furthermore, the amplitude of the predicted power is larger than the observed one by more than 1σ for the largest angular scales and for angles between ≈60° and 80°.

Its physical meaning is obvious: it captures the total amount of correlations squared (to avoid cancellations between positive and negative values of C(θ)) in angles θ > 60°. The ΛCDM model predicts S1/2 ≈ 42000 μK4, while the Planck satellite has reported a measured value1 of S1/2 = 1,209.2 μK4 (Akrami et al., 2019), which corresponds to a p-value less than 1% [≤0.5% according to (SchwarzSchwarz et al., 2016)]. Put in simpler terms, this p-value tells us that if we were able to observe one thousand universes ruled out by the ΛCDM model, only about a handful will show such a low value of S1/2.

B Dipolar Modulation Anomaly

A second important anomaly that has been also observed by multiple satellites, is the presence of a dipolar modulation of the entire CMB signal (Akrami et al., 2019). This dipole should not be confused with the multipole = 1. Rather, the anomaly makes reference to correlations between multipoles and + 1, which can be explained by a modulation of dipolar character, as we further discuss below.

Such modulation was first modeled mathematically in (Gordon et al., 2005), by adding a simple dipole to the temperature map as follows

Tn^=T0n^1+A1n^d^,

where T0(n^) is the unmodulated (statistically isotropic) temperature field, A1 is the amplitude of the modulation, and d^ its direction. It is easy to check that such modification affects not only the = 1 angular multipole, but actually all multipoles equally, and for this reason it is known as a scale-independent dipolar modulation. Its main effect is to create correlations between multipoles and + 1. Such correlations, as mentioned above, violate isotropy [see Appendix B of (Agullo et al., 2021b) for further details].

The Planck team has carried out a likelihood analysis of such modulation of the CMB, and arrived at constraints on the amplitude and direction of the dipolar modulation in different bins of multipoles . Surprisingly, the analysis has revealed a non-zero amplitude of the dipolar modulation only for low multipoles, in the bin ∈ [2, 64]. The amplitude reported in this bin is A1 ≈ 0.07 (Ade, 2016a), and the significance of the detection is greater than 3σ. This reveals, not only a significant deviation of the ΛCDM model, but also that the dipolar modulation is scale-dependent, since it only appears for low multipoles. Therefore, the simple model (Eq. 2.6) is insufficient to account for the observed modulation. Finding a mechanism to generate a scale-dependent dipolar modulation, without introducing other undesired effects, has challenged the imagination of theorists during the last decade (Dai et al., 2013).

C Parity Anomaly

Observations from both WMAP and Planck have found a preference for odd parity two-point correlations, as opposed to the predictions of the standard ΛCDM model, which predicts that the primordial perturbations generated in our Universe are parity neutral. The parity of the primordial perturbations can be studied by analyzing the multipoles in the range [2, 50], known as the Sachs-Wolfe plateau. This range of multipoles corresponds to long wavelength perturbations which entered the horizon in the recent past, and hence have been relatively unmodified by late time physics. The asymmetry in the parity can be quantified using the estimator

RTTmax=D+maxDmax,

where D±(max) quantify the sum of power contained in even (+) or odd (−) multipoles, up to max. More specifically, D±(max) are defined as

D±max=1tot±2,max±+12πC

where the + or − signs on the right refer to the fact that we include only even or odd multipoles in the sum, respectively, and tot± refers to the total number of multipoles in the sum. Figure 3 illustrates that CMB data in the multipole range of [2, 50] shows a clear preference for odd parity compared to the parity neutral, i.e., RTT(max) = 1, prediction of the standard model. Although this anomaly, as well as the anomaly in the lensing amplitude discussed in the next subsection, are not as severe as the previous ones due to their lower statistical significance (≲ 2σ), we will later argue that they may be related to the power suppression.

FIGURE 3
www.frontiersin.org

FIGURE 3. RTT(max) generated in the standard model (blue) along with 2σ shaded contours arising from cosmic variance. Black points are the observations by Planck. The observed value of RTT(max) for most points is lower than the predictions of the standard model by more than 1σ.

D Lensing Amplitude Anomaly

The cosmic microwave background radiation undergoes lensing by the intervening distribution of matter, as it propagates from the surface of last scattering to us. An important observable in the CMB, in addition to temperature and polarization, is the lensing potential. From the CMB maps, Planck has reconstructed the lensing potential and computed its power spectrum (Aghanim, 2018b). The effect of lensing is the smoothing of CMB power spectrum at small angular scales. The amount of smoothing observed in the CMB angular power spectrum should be consistent with the smoothing derived from the power spectrum of the lensing potential. In order to check this consistency, (Aghanim, 2018a), considered a test-parameter, known as the lensing parameter AL, that multiplies the lensing power spectrum. Theoretically, the value of lensing parameter should be AL = 1, and in fact Planck assumes this value during the process of parameter estimation. However, if AL is left as a free parameter, along with the six parameters of the ΛCDM model, in the Markov Chain Monte Carlo (MCMC) analysis, one finds that AL = 1.243 ± 0.096 for PlanckTT + lowE data, which is more than 2σ away from one. If the reconstructed lensing data is also used, along with Planck EE and TE data, then the lensing parameter is consistent with 1 within 2σ.

A key feature of the anomalies discussed above, except perhaps for the lensing anomaly, is that they appear clearly associated with the largest angular scales we can observe. This suggests a common origin in primordial physics for these diverse set of anomalies. The next section introduces a proposal for a mechanism that can provide such common origin, namely the phenomenon of non-Gaussian modulation. Together with the scale dependence introduced by the quantum bounce of LQC, this mechanism constitutes a promising candidate for the origin of the anomalies we have just described.

III Non-Gaussian Modulation

Temperature anisotropies in the CMB are a consequence of the evolution of photons and other constituents of the Universe in a perturbed spacetime. Since the observed anisotropies are small, δT/T¯105, perturbation theory is an appropriate tool. If the primordial perturbations in the metric generated in the early Universe were exactly linear,2 then only those perturbations with wavelengths smaller than the radius of the Hubble horizon today would be able to affect the CMB. On the contrary, non-linear effects, generically known as non-Gaussianity, couple modes of different wavelengths, and make it possible that primordial perturbations with wavelengths larger than the Hubble radius today can impact what we observe in the CMB (Schmidt and Kamionkowski, 2010; Jeong and Kamionkowski, 2012; Dai et al., 2013; Schmidt and Hui, 2013; Agullo, 2015; Adhikari et al., 2016). We will refer to this phenomenon as non-Gaussian modulation of the CMB. Since long wavelength, super-horizon modes do not evolve with time, we could treat them as spectator modes, whose role is to influence, or bias, sub-horizon modes.

Primordial perturbations are random variables with zero mean and a variance characterized by the two-point correlations discussed in the previous section. We will show that one consequence of the coupling between super-horizon and sub-horizon wavelengths is to modify the two-point correlation functions (Schmidt and Hui, 2013; Agullo, 2015; Adhikari et al., 2016). Though the mean value of the primordial perturbations is not modified, the variance is, in such a way that certain features in the CMB are more likely to be observed than in the absence of non-Gaussian correlations, and consequently they should not be considered as anomalous. In this section, we will describe the essential features of the mechanism of non-Gaussian modulation. We will split the discussion in two parts: in the first one, we will discuss the modulation of the primordial power spectrum due to non-Gaussian correlations with a spectator mode, and in the second part, we describe the effect of such a modulation on the CMB TT angular power spectrum.

A Non-Gaussian Modulation of Primordial Perturbations

We are interested in computing the two-point correlation function of the curvature perturbation RK for a mode k that is observable in the CMB, in the presence of a longer wavelength mode Rk, when both modes are correlated.

A convenient and general way to model the effects of non-Gaussian correlations, is to write the curvature perturbations at a given time t in terms of a Gaussian field RG as follows (Schmidt and Kamionkowski, 2010)

RK(t)=RKG(t)+12d3q(2π)3fNL(q,Kq)RqG(t)RkqG(t).

The convolution in the integral is the Fourier transform of a quadratic combination of RG in position space, and is the source of the non-Gaussian character of Rk(t), and the function fNL(K1,K2) contains the information about the strength and details of the non-Gaussianity. The goal of this equation is simply to parameterize the non-Gaussianity in a simple and tractable way, while the form of the function fNL(K1,K2) is expected to come from a concrete microscopic model of the early Universe.

Statistical isotropy and homogeneity implies that the function fNL(K1,K2) depends only on the modulus of the two wavenumbers involved, k1|k1| and k2|K2|, and on the (cosine of the) angle between them, μ: fNL(K1,K2)=fNL(k1,k2,μ). From it, the three-point correlation function is given by RK1RK2RK3=(2π)3δ(K1+K2+K3)BR(K1,K2,K3), where the bispectrum BR(K1,K2,K3) is

BR(K1,K2,K3)=fNL(K1,K2)[PR(K1)PR(K2)+PR(K2)PR(K3)+PR(K3)PR(K1)],

and PR(K) is the power spectrum of RG, defined as

RK1GRK2G*=(2π)3δ(K1K2)PR(K1).

The dimensionless power spectrum is defined as PR(K)=k3PR(K)/2π2.

Our goal is to compute the two-point function of RK in the presence of the spectator mode RK. Using (Eq. 3.1), one obtains

RK1RK2|Rq=RK1GRK2G+12d3q(2π)3fNL(q,K2q)RqGRK1qGRK2G*+12d3q(2π)3fNL(q,K2q)Rk1GRGqRGK2q+O(fNL2).

In order to evaluate the impact of the spectator modes RKG, it must be taken out of the statistical average

RK1RK2|Rq=(2π)3δ(K1K2)PR(K1)+fNL(K1,K2)12PR(K1)+PR(K2)Rq+.

where the trailing dots indicate terms that are higher order in non-Gaussianity, and will be subdominant.

It is interesting to note the following facts about the above expression. First of all, non-Gaussianity leads to a modulation of the primordial power spectrum, and the strength of modulation depends on both the size and shape of fNL(K1,K2), as well as the size of the spectator mode Rq. Secondly, statistical isotropy and homogeneity constrain the wavenumber of the spectator mode to be q=K1K2. In other words, this is the only mode that can affect the two-point correlation function between K1 and K2. Additionally, the effect of the modulation is to introduce “non-diagonal” elements in the two-point function, i.e., terms not proportional to δ(K1K2). But recall that such non-diagonal terms break homogeneity and isotropy. It is not surprising that we see deviations from these fundamental symmetries, since we are not averaging over the spectator mode: such average would make those terms disappear, since RqG=0. But, as it happens for the magnitude of the temperature anisotropies, the quantity that is more interesting for observations is the typical value of such term, and not only its statistical average.

B Non-Gaussian Modulation of CMB

The primordial perturbations RK are related to the CMB multipole coefficients aℓm through the relation

am=4πd3k(2π)3(i)Δ(k)Ym(k^)RK,

where Δ(k) are the CMB temperature transfer functions, which encode the post-inflationary evolution of the perturbations from the re-entry of perturbations into the horizon during late radiation domination till today. From this equation, one can compute the covariance matrix

amam=(4π)2d3k1(2π)3d3k2(2π)3(i)Δ(k1)Δ(k2)Ym*(k^1)Ym(k^2)RK1RK2|Rq,

which is obtained from the two-point functions of the curvature perturbations given in (Eq. 3.5). Upon expanding fNL in terms of Legendre polynomials, fNL(k1,q,μ)=LGL(k1,q)2L+12PL(μ), and using the multipole expansion RqG=LMRLMG(q)YLM(q^), one can write (Eq. 3.7) as (Agullo et al., 2021b)

amam=Cδδmm+(1)mLMALMCmmLM.

The above expression consists of two terms. The first term is the usual temperature power spectrum that is diagonal in and m. The second term arises from the non-Gaussian modulation and, as before, introduces non-diagonal terms. CmmLM are Clebsch-Gordan coefficients, and the information about the primordial non-Gaussianity is encoded in the coefficients

ALM=4(2π)3dk1k12dqq2(i)Δ(k1)Δ(k1)PR(k1)GL(k1,q)RLMG(q)×C00L0(2+1)(2+1)4π(2L+1).

These coefficients are known as bipolar spherical harmonic (BipoSH) coefficients (Hajian and Souradeep, 2003; Joshi et al., 2010). As we shall see, the BipoSH coefficients provide a convenient way to organize the effects of the non-Gaussian modulation.

The Clebsch-Gordan coefficients present in the above expressions enforce certain properties on the BipoSH coefficients. In particular, Clebsch-Gordan coefficients C1,m1,2,m2LM are nonzero only if 1 + 2L ≥ |12| and if M = m1 + m2. This, together with properties of the Clebsch-Gordan coefficient C00L0, implies that, if

i. L = 0, then 1 = 2

ii. L = 1, then |12| = 1

iii. L = 2, then |12| = 0, 2, etc.

Thus, a non-zero value of ALM for L = 0 can be absorbed in the diagonal angular power spectrum C. A non-zero value of ALM for L = 1 induces correlations between multipoles and + 1, or in other words, a dipolar modulation. L = 2 induces a quadrupolar modulation, etc. The presence of a large dipolar or higher multipole modulation would appear in the CMB as correlations between multipoles and + 1, which implies a departure from isotropy, as described in section II. This departure from isotropy is a consequence of the concrete realization of the spectator mode Rq in our local Universe. One would need to average among the observation of the CMB from distant places in the cosmos to conclude that such violation of isotropy is not fundamental, but rather the imprint of strong correlations with super-horizon modes Rq.

Two remarks are in order now.

i. The strength of non-Gaussian modulation is dictated by the size of fNL(k1, q, μ). But it is the dependence of fNL on μ, the cosine of the angle between K1 and q, what determines the relative size of the BipoSH coefficients for different L’s, i.e., the “shape” of the modulation. On the other hand, the dependence of fNL on the moduli k1 and q determines the -dependence of the modulation. The two multipoles should not be confused: the L-dependence dictates the shape of the modulation, while the -dependence controls the variation of the amplitude of the modulation at different angular scales in the CMB. The non-Gaussianity generated in slow-roll inflation is small and nearly scale-invariant. Hence, the strength of modulation generated is also quite small. Since the anomalies observed in the CMB are scale dependent, we need a scenario with a strongly scale-dependent and large non-Gaussianity. Such scale dependence is also needed to explain why we have not observed non-Gaussian correlations directly in the CMB, since a strong scale dependence can make these correlations large only when at least one super-horizon mode is involved. In such situation, we could only observe the indirect effects that the non-Gaussian correlations induce in the CMB.

ii. ALM given in (Eq. 3.9) depend on the mode RqG. Since, RqG is a random variable, we cannot predict the exact value of ALM. We can only compute the standard deviation of the BipoSH coefficients, i.e.

|ALM|2=12πdqq2PR(q)|CL(q)|21/2×C00L0(2+1)(2+1)4π(2L+1),

where

CL(q)2πdk1k12(i)Δ(k1)Δ(k1)PR(k1)GL(k1,q).

These are the typical values that the BipoSH coefficients are expected to take in the sky. If these values are large, the effects they entail should be expected in the CMB or, more precisely, they would have a large p-value and should not be considered anomalous.

IV Loop Quantum Cosmology

LQC describes the spacetime geometry in the quantum language of loop quantum gravity. As discussed before, we consider in this paper an early Universe sourced by a scalar field, which drives the Universe to an inflationary phase after the bounce. The bounce introduces a new physical scale to the problem, which can be defined either from the value of the energy density or from the Ricci scalar at the bounce. Perturbations, both scalar and tensor, are sensitive to this new scale, and their propagation across the bounce amplifies them, for the same reason that propagation across the inflationary phase does. As a consequence, perturbations reach the onset of inflation in an excited and non-Gaussian state, rather than the Bunch-Davies vacuum commonly postulated. These excitations lead to a strongly scale-dependent power spectrum and bispectrum of primordial perturbations. In this section, we will briefly review some of the essential features of perturbations generated in LQC, and in the next section we will describe how these features can account for the anomalous signals observed in the CMB. For further details, see (Ashtekar et al., 2006b; Agullo et al., 2012; Agullo et al., 2013a; Agullo et al., 2013b; Agullo and Morris, 2015; Agullo, 2018).

A Background Dynamics and Free Evolution of Perturbations

Consider a spatially flat Friedmann-Lemaitre-Robertson-Walker spacetime. We shall describe the perturbations following the dressed metric approach. This approach has been discussed in (Agullo et al., 2012; Agullo et al., 2013a; Agullo et al., 2013b; Agullo and Morris, 2015; Agullo et al., 2018) [for a recent review, see (Agullo et al., 2017a)] and we refer the reader to these references for details omitted here. For the purpose of this article, it suffices to say that we consider perturbations as test fields propagating on the background described by the effective equations of LQC (Taveras, 2008; Ashtekar and Singh, 2011; Agullo et al., 2017a). The essential features of perturbations generated in LQC can be summarized using Figure 4. The left panel of this figure plots a|R/6| as a function of time, where a refers to the scale factor and R is the Ricci scalar. In making this plot, we have worked with a scalar field governed by a quadratic potential, and minimally coupled to gravity. Similar results are obtained for other potentials (Bonga and Gupt, 2016a; Bonga and Gupt, 2016b; Zhu et al., 2017). Different solutions to the effective equations of LQC with a scalar field as the dominant source are parameterized by the value of the scalar field at the bounce. As we further discuss below, different choices of this quantity translate to different amounts of cosmic expansion from the bounce to the end of inflation. The Ricci scalar attains its largest value at the bounce, and its maximum value sets a characteristic scale in LQC denoted by kLQCa(tB)R(tB)/6a(tB)κρB, where tB indicates the time of the bounce and ρB is the energy density of the scalar field at the time of the bounce. As the inset in the plot shows, inflation occurs at late time, when a|R/6| grows exponentially fast. Regarding scalar perturbations, they are in an adiabatic regime before the bounce, and we choose them to start in an adiabatic vacuum at those early times [see e.g., (Agullo, 2015; Agullo and Morris, 2015; de Blas and Olmedo, 2016; Ashtekar and Gupt, 2017; Elizaga Navascués et al., 2019; Navascués et al., 2020; Martín-Benito et al., 2021) for other choices of initial state]. As perturbations evolve across the bounce, modes with wavenumbers kkLQC are excited. These excitations get further amplified as they cross the curvature scale during inflation. Wavenumbers that are ultraviolet compared to kLQC, k > kLQC, are not excited during the bounce, and remain in the adiabatic vacuum at the onset of inflation. Hence, only for those modes one recovers the familiar Bunch-Davies vacuum at the onset of inflation, while more infrared modes keep memory of the bounce. Consequently, as shown in Figure 4, the power spectrum of curvature perturbations shows a strong scale dependence at infrared scales, while approaches the more familiar scale-invariant shape for large k’s. In particular, we see that the power spectrum for infrared modes kkLQC is enhanced and oscillatory. In the extreme infrared limit, modes are neither excited during bounce nor during inflation, and this leads to a power spectrum which scales as k2. The scale at which these effects appear in the CMB depends on the physical size of the mode kLQC today, compared to the Hubble scale [recall that the physical wavenumber scales with time as kLQC/a(t)]. This depends on the expansion accumulated—i.e., the number of e-folds N—from the time of the bounce until the end of inflation. This is a free parameter in LQC. In this article, we investigate whether there is a value of N for which this model can explain the origin of the anomalies in the CMB.

FIGURE 4
www.frontiersin.org

FIGURE 4. Left: Evolution of the Ricci scalar in LQC. This plot corresponds to a solution of the effective equations with 71 e-folds of expansion between the bounce and the end of inflation. Right: Primordial power spectrum of perturbations starting in an adiabatic initial state before the bounce in LQC. The gray dots correspond to numerically-obtained data for individual values of k, while the continuous black line is the average of the grey dots. This plot is obtained for the background geometry showed in the left panel.

B Generation of Primordial Non-gaussianity

The dressed metric approach was extended beyond linear perturbation theory in (Agullo, 2018), and we provide here a short summary. Primordial curvature perturbations whose wavenumbers are comparable to or smaller than kLQC not only get excited, as described above, but also become non-Gaussian as they cross the bounce. The non-Gaussianity thus generated is further enhanced as the perturbations cross the horizon during inflation. Equal-time three-point functions are computed using time dependent perturbation theory, generalizing the pioneering calculations in (Maldacena, 2003) to bouncing geometries:

0|R^K1teR^K2teR^K3te|0=ititedt0|R^K1tR^K2tR^K3t,H^intt|0,

where H^int is the interaction Hamiltonian [whose lengthy expression can be found in (Agullo et al., 2018)], ti refers to the time at which initial conditions are imposed and te is the time at which the correlation is evaluated. Usually, te is chosen at the end of inflation, after all the three modes have crossed the Hubble radius. With the knowledge of the background dynamics and the initial conditions, we can exactly evaluate the three-point function and hence obtain the function fNL(K1,K2) which characterizes the non-Gaussianity. Our exact computations reveal that the non-Gaussianity generated in LQC is strongly scale-dependent, large and oscillatory, similar to the power spectrum. As for the power spectrum, the non-Gaussianity quickly approaches the inflationary result for wave numbers k > kLQC (Agullo, 2018; Sreenath et al., 2019), and in particular they become negligibly small when the moduli of the three wave numbers K1, K2 and K1K2 are larger than kLQC, in such a way that they are too small to be observed directly in the CMB. However, the non-Gaussianity becomes large when at least one of the modes involved is infrared, k < kLQC, or equivalently, when one of the modes has wavelength larger than the Hubble radius today. These are the correlations which can account for the CMB anomalies, as we argue in the next section.

The strong oscillatory character of the non-Gaussianity generated in LQC, makes it computationally difficult to obtain an exact evaluation of (Eq. 3.10). For this reason, in this work, rather than working with the exact numerically-evaluated non-Gaussianity, we shall work with an analytical approximation derived in (Agullo, 2018)

fNLk1,k2,k3fNLeαk1+k2+k3/kLQC,

where α = 0.647, fNL2750, and k3=k11+k22k12+2μk2k1. The value of α is determined from the behavior of the scale factor around the time of the bounce, while the amplitude fNL is determined from numerical simulations (Agullo, 2018). As showed in (Agullo, 2018), this expression provides a good approximation for the non-Gaussianity generated in LQC, and is significantly easier to manipulate. This approximation, however, neglects the oscillatory nature of fNL(k1, k2, μ) with k1 and k2. The oscillations will generically reduce the size of the effects we describe below. Therefore, the numbers obtained in the next section should be understood as an upper bound for the predictions of LQC, rather than an exact result. This is the main technical limitation of our analysis, and it arises from the highly oscillatory nature of the perturbations.

V Results

In this section, we shall put the previous results together and compute the root mean square value of the BipoSH coefficients generated in LQC from (Eq. 3.10). We will show that the BipoSH coefficients generated in this model are non-zero and have the appropriate magnitude and scale dependence as demanded by observations.

A Monopolar Modulation–Power Suppression

We first consider the monopolar term (L = 0). The properties of the Clebsch-Gordan coefficients for L = 0 impose the constraints = ′ and m = − m′. Therefore, the monopolar modulation introduces an isotropic shift in the value of C, although the shift can be different for different values of . More concretely, the modulated power spectrum Cmod is given by

Cmod=C11CA002+1.

Note that A00 can be either positive or negative, leading to an enhancement or suppression of Cmod with respect to C. As explained before, we cannot predict the exact value of A00. The interesting quantity is rather the root-mean-square value of the modulation:

σ02=1C2|A00|22+1=1C218π2dqq2PRq|C0q|2,

where C0(q) was defined in (Eq. 3.11). This quantity determines the typical size and scale dependence of the monopolar modulation expected in the CMB. A large value of σ0 would make deviations from the unmodulated power spectrum, C more likely to be observed in the CMB. The result of our calculations, using the power spectrum and the form of fNL(k1, q, μ) described in the previous section, is plotted in Figure 5.

FIGURE 5
www.frontiersin.org

FIGURE 5. Root-mean-square of the monopolar modulation σ0() generated in LQC. Note the dependence of σ0 on . The scale dependence introduced by the bounce in LQC makes the effects of the modulation significant only for ≲ 30.

We will assume that the probability distribution for the modulation is well approximated by a Gaussian, and hence completely characterized by σ0(). This is a reasonable approximation, since the deviations are expected to be of second order in non-Gaussianity, and therefore very small. With this probability distribution for the monopolar modulation, we can now investigate the connection with the power suppression observed in the CMB. In particular, we want to answer the following question: what is the p-value given the observed value of S1/2? We obtain that the probability to find S1/2 ≤ 1,209.2 once the non-Gaussian modulation is taken into account is approximately 16%. This is equivalent to saying that the observed suppression is around one standard deviation from the mean. Figure 6 shows the form of the T-T power spectrum for a simulation for which the monopolar modulation produces S1/2 in agreement with observation, along with the 1σ confidence contour arising from cosmic variance. For comparison, we provide the corresponding quantities arising from the standard model, as well as data from Planck (Aghanim, 2019).

FIGURE 6
www.frontiersin.org

FIGURE 6. Form of the modulated power spectrum for a typical value of the suppression. The figure shows that the monopolar modulation can account for the suppression of power at multipoles lower than ≈ 30 (A). In the (B), we also see that the suppression translates to a very low real space power spectrum C(θ) for θ ≥ 60°. The shaded region shows cosmic variance, and the black dots data from Planck.

These results show that, in presence of the LQC bounce occurring before inflation, a power suppression as the one we observe in the CMB should not be considered anomalous. It is important to emphasize the precise sense in which the suppression is explained: not because the theory predicts that we should observe a suppression in the CMB, but rather because the probability of observing such a suppression is much larger than in the standard ΛCDM model with Bunch-Davies initial conditions. In this sense, the resolution of the anomaly has precisely the same character as its origin: probabilistic.

An important check is to confirm that the non-Gaussian effects are not large enough to jeopardize the validity of the perturbative expansion on which the calculations rest. This question was explored in detail in Ref. (Agullo, 2018), confirming that, in LQC, perturbation theory does not break down when non-Gaussianity is included. Regarding the non-Gaussian modulation discussed in this paper, we find that the correction to the unmodulated angular power spectrum is not small, and it is in fact a significant fraction of the final result, particularly for the smallest multipoles. The relative contribution is, however, smaller than one in all our calculations. In quantitative terms, the relative contribution of the non-Gaussian modulation is of order fNLPR, which is smaller than one for fNL103. More importantly, higher order corrections introduce additional powers of the power spectrum PR1. So the next-to-leading-order correction to the non-Gaussian modulation is of order fNL(PR)3/2, which is negligible due to the smallness of PR. Therefore, our results are robust under the addition of higher perturbative corrections.

B Dipolar Modulation

Next, we discuss the effects of the L = 1, dipolar modulation, induced by the BipoSH coefficients, A+11M, and compare the results with those reported by Planck. As discussed in section IIB, the Planck team quantifies the dipolar modulation in terms of a scale-dependent amplitude A1() (Ade, 2016a), which can be related with the BipoSH coefficients A+11M as follows. First, define from A+11M the multipole coefficients m1M by

A+11Mm1MG+11,whereG+11C+C+12+12+34π3C,0,+1,010

is called a form factor. The m1M() defined above can take three values corresponding to M = −1, 0, +1, and in general, they depend on . From them, the amplitude of the dipolar modulation is defined as

A13213π|m11|2+|m10|2+|m11|2.

Hence, from the value of the root-mean-square of A+11M we can obtain the root-mean-square of A1(). It is given by the expression

A1=321π1Cmod+C+1mod12πdqq2PRq|C+11q|2,

where we have used the modulated (i.e., suppressed) Cmod since, as emphasized in (Ade, 2016a), the dipole amplitude must be evaluated relative to the observed angular power spectrum. Hence, the fact that the observed Cmod are smaller than the ones predicted by ΛCDM, increases the amplitude of the observed dipole. In this sense, the power suppression and the dipolar modulation are not completely independent. However, the amplitude of the dipole is ultimately dictated from the angular μ-dependence of the primordial non-Gaussianity fNL(k1, k2, μ).

The result for A1() is plotted in Figure 7. We find that the dipolar modulation is strongly scale-dependent, as a consequence of the scale-dependent nature of the non-Gaussianity. Although Planck observations for A1() are limited, in the sense that only its mean value in the range ∈ [2, 64] is reported, the order of magnitude and scale dependence agree with our results.

FIGURE 7
www.frontiersin.org

FIGURE 7. The dipole amplitude A1() generated in LQC. Planck reports a value of A1 ≈ 0.07 in the multipole bin ∈ [2, 64].

We have also checked that higher order multipolar modulations, L = 2, 4, … have amplitudes significantly smaller than the dipolar one (Agullo et al., 2018), and therefore additional modulations are not expected in the CMB according to LQC, in agreement with observations. Hence, interestingly, the form of fNL(k1, k2, μ) derived from LQC produces a hierarchy in the amplitude of the modulations which is dominated by a monopole, and a smaller dipole.

C Parity and Lensing Anomalies

In this subsection we briefly discuss the results for the parity and lensing anomalies. As discussed in previous sections, the statistical evidence for these two features is weaker than the power suppression and the dipolar anomaly. Nevertheless, it is interesting to see what the predictions of LQC are.

We find that the monopolar modulation induces also a preference for odd parity multipoles , in agreement with observations. After inspection, this fact is not surprising, and it is a consequence of the simple fact that, in a power suppressed angular power spectrum, the sum of (+1)2πCmod starting from = 2 is larger for odd multipoles, precisely because the sum starts at an even multipole—it would have been otherwise if the sum starts at = 1. Therefore, we find that in LQC there is a preference for odd-parity multipoles , as measured by RTT(max), and the result is a consequence of the power suppression. We report our result in Figure 8. For comparison, we provide the corresponding values obtained in the ΛCDM model and the observations made by Planck (Aghanim, 2019). Although the result for RTT(max) from LQC is closer to the data, the value of RTT(max) observed by Planck is smaller than what we find in LQC, but the significance of the deviation is modest. In the absence of a better estimator for the parity anomaly, it is not possible for us to make a more precise comparison.

FIGURE 8
www.frontiersin.org

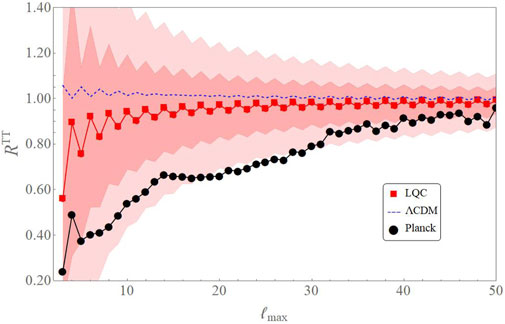

FIGURE 8. RTT(max) for the modulated spectrum generated in LQC (solid red). RTT(max) predicted in LQC shows a preference for odd parity for low multipoles, unlike the one in the standard model (dashed, blue).

Yet another effect of the power suppression caused by the monopolar modulation is the alleviation of the lensing tension. The relation between a power suppression and the lensing anomaly was discussed in (Ashtekar et al., 2020), also in the context of LQC, and our analysis confirms the relation. The value of AL is obtained from data by performing MCMC simulations involving the standard six free parameters, together with the lensing amplitude AL. We repeat the analysis with the modified probability distribution obtained from LQC, using TT + lowE data (Aghanim, 2019), and find that the marginalized mean value of the lensing parameter is AL = 1.20 ± 0.092. This value is 3.5% smaller than the result obtained from ΛCDM. This is a modest change. However, as shown in Figure 9, the joint probability distribution of τ-AL, with τ the optical depth, shows that the value of AL = 1 is within 2 standard deviations, and it is in this sense that the anomaly is alleviated. It should also be noted, however, that the marginalized mean value of the χ2 statistic, which is a measure of the difference between the predictions of the model and the data, scaled suitably by the expected error (Barlow, 1989), is larger for the modulated model by Δχ2 = 5.29. This lower value of the lensing parameter AL can be explained due to the slightly larger value of τ. This is because a larger value of τ implies a slightly larger value of the scalar amplitude As, which in turn leads to a smaller value of AL (Ashtekar et al., 2020).

FIGURE 9
www.frontiersin.org

FIGURE 9. Marginalised joint probability distribution of τ and AL obtained from MCMC simulation for the standard model and modulated LQC. As we can see, AL = 1 lies within the 2σ contour for the modulated model, thus bringing the lensing parameter closer to one.

VI Discussion

The success of any theory seeking to describe the unknown rests on two criteria: it should be consistent with known facts and at the same time be able to make new predictions. Loop quantum cosmology, as an effort to extend the ΛCDM model to the Planck regime, has met the first criterion since, when combined with inflation, it is able to overcome the limitations of general relativity and to produce a nearly scale-invariant power spectrum and bispectrum for almost all scales in the CMB. As far as the second aspect is concerned, LQC predicts that, if we consider adiabatic initial conditions for perturbations before the bounce, the primordial power spectrum and bispectrum deviate from scale invariance at wavenumbers kkLQC. The question is whether these features occur at scales that are observable today. If this is the case, then we may keep the hope to use observations to confirm some of the predictions of LQC, and to further refine the theory. It is with this second aspect in mind that we investigate the link between the enhanced and scale-dependent perturbations generated in LQC and the CMB anomalies.

CMB anomalies, as we discussed in section II, include several features that have been observed, mostly at large angular scales in the CMB. The genuineness of these features is not under dispute. However, if considered individually, the p-values of these features are not small enough to unambiguously establish a statistically significant departure from the standard model. In other words, the possibility that some of these features appear in the CMB in a Universe governed by the standard ΛCDM model is not negligible. However, the fact that all these seemingly distinct features occur together in our Universe imply that we either live in a rare realization of the probability distribution of the ΛCDM model, or that new physics is needed. In this paper, we have explored the second possibility in the context of LQC.

In this scenario, the cosmic bounce modifies the initial state of the Universe from which inflation and the ΛCDM model take over. The most relevant aspect comes from the fact that the bounce generates strong correlations between the longest wavelengths we can observe in the CMB and longer, super-horizon perturbations. These correlations, although cannot be observed directly in the CMB—because they involve at least one super-horizon mode—bias the form of the observed power spectrum. This bias translates in a higher probability for certain features to be realized in our CMB. We find it interesting that such an effect can simultaneously produce a suppression and a dipolar modulation in the sky, both compatible with observations. These two features were thought to be unrelated, and LQC provides a common origin for both of them. It is important to keep in mind that the origin of the anomalies is probabilistic, and the way LQC can account for them is by modifying the probability distribution. For instance, the dipole asymmetry does not arise in LQC as the result of breaking isotropy at the fundamental level, but rather because in a non-Gaussian Universe the size of the anisotropies expected to be found by a typical observer are larger than in a Gaussian theory.

In our calculation we have adjusted a free parameter in LQC, which controls the amount of expansion accumulated from the bounce to the end of inflation. The statement is, therefore, that there exist a value of this parameter for which the observed anomalies can originate from LQC (this value is ≈71 e-folds, and it includes the expansion during both the inflationary and the pre-inflationary epochs). Our calculations also involve some approximations and limitations, and in particular we have not been able to account precisely for the effects of the oscillations in the bispectrum. It would be desirable to investigate the way these oscillations convolve with the power spectrum and transfer functions in order to understand their effect on CMB. Furthermore, the data quantifying the anomalies is limited, as it is based on simple estimators such as S1/2 and the binned value of the dipolar amplitude A1(). Additional data, for instance coming from tensor modes, would allow a more precise comparison of our ideas with observations. But in spite of these limitations, we find remarkable that the bounce of LQC can produce effects in the CMB which are in good consonance with the observed anomalies, regarding both the order of magnitude of the amplitudes as well as their scale dependence. The possibility that the observed features are informing us about the Planck era of the cosmos is mind-blowing, and certainly deserves further attention. Our contribution should be considered as a first step in this direction.

Finally, in this work we have assumed adiabatic initial conditions for the scalar perturbations before the bounce, wherein the unmodulated primordial power spectrum generated in LQC is enhanced at super-horizon scales. There has been a proposal in LQC (Ashtekar and Gupt, 2017; Ashtekar et al., 2020) for different initial conditions, which leads to a suppressed power spectrum even before considering the non-Gaussian modulation. It would be interesting to combine both sets of ideas and compute the effect of non-Gaussian modulation in that model.

Data Availability Statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Author Contributions

All authors listed have made a substantial, direct, and intellectual contribution to the work and approved it for publication.

Funding

This work is supported by the NSF CAREER grant PHY-1552603, and by the Hearne Institute for Theoretical Physics. This paper is based on observations obtained from Planck (http://www.esa.int/Planck), an ESA science mission with instruments and contributions directly funded by ESA Member States, NASA, and Canada.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

We have benefited from discussions with A. Ashtekar, B. Bolliet, B. Gupt, J. Olmedo, J. Pullin, and P. Singh. We also thank the referees for constructive and useful comments on the first version of this article. This research was conducted with high performance computing resources provided by Louisiana State University (http://www.hpc.lsu.edu).

Footnotes

1The value of S1/2 varies a bit depending on the choice of map and the mask used.

2Strong non-linearities are important at late times in the Universe during structure formation, but not to explain the CMB.
