Cyclodextrin-assisted fluorescein decoration of gold nanoclusters for ratiometric and selective Hg2+ analysis

Introduction: The construction of nanomaterial-based ratiometric detection systems usually requires covalent modification, which undergoes reactive environments and may change the natural properties of supporting nanomaterials.

Methods: In this study, dualemissive and fluorescein-decorated gold nanoclusters (F-Au NCs) through cyclodextrin-supported host–guest interaction (non-covalent modification) are explored as ratiometric Hg²⁺ nanoprobes through d¹⁰–d¹⁰-interactioncaused fluorescence quenching of Au NCs.

Results and Discussion: The fluorescein decoration only provides a fluorescent internal reference but does not change the Hg²⁺-Au NCs affinity nature. Ratiometric and selective Hg²⁺ detection is achieved through the proposed F-Au NC probes with a limit of detection of 15 nM. The Hg²⁺ analysis in river water samples with small relative standard deviations validates the practical application of these probes.

Introduction

Ratiometric analysis with internal fluorescence reference has attracted growing attention due to its high sensitivity and accuracy (Huang et al., 2018; Park et al., 2020). Recently, the growth of nanoscience and nanotechnology has facilitated the development of versatile and functional nanomaterials for ratiometric analysis (Fu et al., 2022; Li et al., 2022; Li et al., 2017; Sun et al., 2023; Wu et al., 2024a; Wu et al., 2024b). For example, Zhang et al. (2022) reported the visualization of polymer–surfactant interaction with hyperbranched polyethyleneimine-encapsulated blue- and red-emitting gold nanoclusters (Au NCs). The linkage of fluorescent nanomaterials and fluorophores has permitted the construction of ratiometric detection systems for reactive oxygen species, small molecules, and metal ions (Duan et al., 2019; Liu et al., 2022; Wang et al., 2021; Wen et al., 2019; Wu et al., 2024b; Yang et al., 2020). These systems usually require covalent modification in reactive environments and may change the natural properties of supporting nanomaterials. The development of simple and effective modification strategies that do not require covalent bonds might benefit the construction of advanced nanomaterials.

Noncovalent interactions, including hydrogen bonding, electrostatic attraction, π–π interaction, and hydrophobic affinity, have been widely applied for designing functional nanoarchitectures with diverse applications (Ghosh et al., 2023; Ju et al., 2024; Peluso and Chankvetadze, 2022; Rap et al., 2024), In particular, host–guest interaction occurs through various noncovalent forces, such as hydrogen bonding, van der Waals forces, or π–π stacking, resulting in the guest molecule being bound within a binding pocket of the host (Sayed and Pal, 2021; Yang et al., 2018; Zhu et al., 2023). Without the involvement of a covalent bond, it supports a dynamic noncovalent association between a host molecule and a guest molecule and has been extensively used for material fabrication. For instance, Fu et al. (2020) reported the construction of a bola-type supra-amphiphile with aggregation-induced emission characteristics by integrating host–guest interaction and topological self-assembly and applied it for mimicking light-harvesting antenna. In addition, the host–guest interaction also allows cavity binding, which may alter the chemical reactivity of guest molecules. As referred to in Eelkema’s report, the transient host–guest complexation could regulate the enzymatic catalysis and control the hydrolysis of esters (van der Helm et al., 2022). Notice that the host–guest interaction does not change the chemical nature of substances; the combination of this specific interaction and target-responsive nanomaterials may permit the construction of ratiometric and selective detection systems with preserved recognition capability, which is theoretically feasible.

In recent decades, Au NC-based detection systems for metal ions, small molecules, DNA, RNA, and proteins have been widely explored because of their advantages of easy preparation, strong fluorescence, and tunable emission (Chen et al., 2015; Huang et al., 2007; Kurashige et al., 2016; Lu et al., 2020; Nasaruddin et al., 2018; Pyo et al., 2015; Shi et al., 2017; Yuan et al., 2017; Yuan et al., 2015; Yuan et al., 2011). As indicated in Duan et al. (2019) and Xie et al. (2010), Au NCs with surface Au(I) species are responsive to Hg²⁺ due to d¹⁰–d¹⁰ interaction. However, sole intensity change might suffer interference from matrix and cause instable signals. It is thus speculated that Au NC-decoration with built-in fluorophore by host–guest interaction might endow ratiometric and accurate Hg²⁺ sensing. However, environment-sensitive characteristics make Au NCs variable during covalent functionalization, indicating that noncovalent modification is more proper for Au NC functionalization. In this study, we attempt to demonstrate our assumption by constructing a ratiometric Au NC-based sensing system by integrating host–guest interaction (typical noncovalent modification strategy). As a proof-of-concept, we propose fluorescein-functionalized Au NCs (F-Au NCs) for ratiometrically detecting Hg²⁺. The decoration of fluorescein onto an Au NC surface was achieved by cyclodextrin (CD)-supported host–guest interaction. The addition of Hg²⁺ suppressed the orange emission of Au NCs, while the green emission of fluorescein only showed slight variation, leading to a ratiometric fluorescence response. The schematic illustration of Hg²⁺ detection using F-Au NCs probes is shown in Figure 1. The specificity of Hg²⁺-caused ratiometric response of F-Au NC probes was investigated with other metal ions as possible interferents. The limit of detection (LOD) toward Hg²⁺ was found to be 15 nM (S/N = 3). Moreover, the practical application of proposed F-Au NC probes was verified by accurate Hg²⁺ analysis in river water samples. This strategy of using noncovalent modification-supported surface functionalization should be generalizable to the functionalization of a wide range of nanomaterials and the construction of ratiometric detection systems.

Figure 1

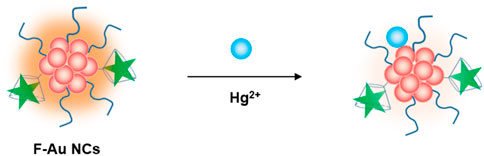

Figure 1. Schematic illustration of ratiometric Hg²⁺ detection with F-Au NC probes.

Methods

Materials, reagents, and instruments

Chloroauric acid tetrahydrate (HAuCl₄.4H₂O) was purchased from Damas-beta (Shanghai, China). Glutathione (GSH) was purchased from Shanghai Yuanye Bio-Technology Co. Ltd. (Shanghai, China). Mono-(6-mercapto-6-deoxy)-beta-cyclodextrin (β-CD-SH) was purchased from HWRK Chem. (Beijing, China). Potassium chloride (KCl), sodium chloride (NaCl), and sodium borohydride (NaBH₄) were purchased from Fuchen (Tianjin, China). Anhydrous calcium chloride (CaCl₂), hydrochloric acid (HCl), sodium hydroxide (NaOH), ethanol, and other chemicals were purchased from Beijing Chemical Reagent Company (Beijing, China). All chemicals used are analytical-reagent grade and used without further purification. All solutions were freshly prepared with deionized water (18.2 MΩ cm, Milli-Q, Millipore, Barnstead, CA, United States).

Transmission electron microscopy (TEM) images were collected with a HT7700 transmission electron microscope (Hitachi, Japan). UV–Vis absorption spectra were measured with a UV−3900H spectrophotometer (Shimadzu, Japan). Fluorescence spectra were obtained using an F-7000 fluorescence spectrophotometer (Hitachi, Japan). The pH values were measured with a benchtop pH meter (Orion plus, Thermo-Fisher, United States).

Synthesis of dual-emissive F-Au NCs

Dual-emissive F-Au NCs were prepared using a two-step strategy. First, CD-modified Au NCs (CD-Au NCs) were synthesized by a dual-ligand stabilization route based on our previous research with slight modification (Yang et al., 2018). Typically, freshly prepared HAuCl₄ (20 mM, 0.5 mL) and GSH (100 mM, 0.15 mL) were mixed, and 4.35 mL ultrapure water was added to make a 5.0-mL solution. The resultant mixture was stirred at 70°C for 24 h to yield GSH-capped Au NCs (GSH-Au NCs). Then, β-CD-SH was introduced into the solution, and the mixture was stirred at 50°C for 3 h to produce CD-Au NCs. The final concentration of β-CD-SH was 5 mM. The CD-Au NCs generated were filtered with a 10-KDa ultrafiltration tube (8,000 rpm, 10 min) to remove any unwanted thiol ligands and reactants. To prepare F-Au NCs, 30-mL CD-Au NC solution was mixed with 300 μL fluorescein (final concentration: 300 nM). After 2 h shaking at 30°C, the mixture was filtered with a 10-KDa ultrafiltration tube (8,000 rpm, 10 min) and dispersed in 10.0 mL solution and then stored at 4°C before use. The concentration of F-Au NCs was determined to be 0.25 mg/mL.

Sensitivity and selectivity measurement

For sensitivity evaluation, a serial of Hg²⁺ stock solutions were prepared. In Hg²⁺ detection assays, 750 μL ultrapure water was added into a 1.5-mL centrifuge tube containing 100 μL PB buffer (pH 7.4) and 100 μL F-Au NCs probes, and then 50 μL Hg²⁺ solution with various concentrations was added to make the final volume of 1 mL. After 5-min reaction at room temperature, the fluorescence emission spectra were collected by a F-7000 fluorescence spectrophotometer. For selectivity tests, 750 μL ultrapure water was added into a 1.5-mL centrifuge tube containing 100 μL PB buffer (pH 7.4) and 100 μL F-Au NC probes, and then 50 μL metal ion solution was added to make the final volume of 1 mL. The final concentration of all metal ions was 5.0 μM. After 5-min reaction at room temperature, the fluorescence emission spectra were collected by an F-7000 fluorescence spectrophotometer. For anti-interference assays, 700 μL ultrapure water was added into a 1.5-mL centrifuge tube containing 100 μL PB buffer and 100 μL F-Au NCs probes, and then 50 μL metal ion solution and 50 μL Hg²⁺ solution were added to make the final volume of 1 mL. After 5-min reaction at room temperature, the fluorescence emission spectra were collected by an F-7000 fluorescence spectrophotometer.

River water sample analysis

River water samples were obtained from the local Xiaoyue River in Yuandadu Park. The water samples obtained were first passed through a filter membrane with a pore size of 0.22 μm and were then ultrafiltered with a 3-KDa ultrafiltration tube to remove large aggregates or particles. To detect Hg²⁺ content, an 800-μL water sample was added into a 1.5-mL centrifuge tube containing 100 μL PB buffer (pH 7.4) and 100 μL F-Au NC probes to make the final volume of 1 mL. After 5-min reaction at room temperature, the fluorescence emission spectra were collected by an F-7000 fluorescence spectrophotometer. To conduct standard addition experiments, a 750-μL water sample was added to a 1.5-mL centrifuge tube containing 100 μL PB buffer (pH 7.4) and 100 μL F-Au NC probes, and then 50 μL Hg²⁺ solution was added to make the final volume of 1 mL. The final concentrations of added Hg²⁺ were 5.0 μM, 10.0 μM, and 15.0 μM. After 5-min reaction at room temperature, the fluorescence emission spectra were collected by an F-7000 fluorescence spectrophotometer.

Results and discussion

Synthesis and characterization of F-Au NCs

At the start, the dual-emissive F-Au NCs were synthesized based on a two-step protocol. That is, CD-Au NCs were first prepared, and the F-Au NCs were obtained after fluorescein decoration. As shown in Figure 2A, the maxima fluorescence excitation and emission wavelengths of CD-Au NCs were found at 421 nm and 570 nm, respectively. The fluorescence excitation and emission spectra were consistent with Yang et al. (2018). In addition, the UV–Vis absorption spectrum of CD-Au NCs showed a broad absorbance band at approximately 300–450 nm (Figure 2B). In comparison with GSH-Au NCs, CD-Au NCs showed stronger fluorescence without a change in the emission profile (Figure 2C). The fluorescence increment might be attributed to the CD modification-mediated increase of surface thiolate ligand density and the diminution the nonradiative transition. The TEM image indicates that the CD-Au NCs were spherical, with an average size of 2.4 ± 0.2 nm (Figures 2D, E). These results suggest the generation of CD-Au NCs. After fluorescein decoration, a new emission band centered at 514 nm was observed (Figure 2F), while the emission band centered at 567 nm was preserved, revealing the successful preparation of dual-emissive F-Au NCs.

Figure 2

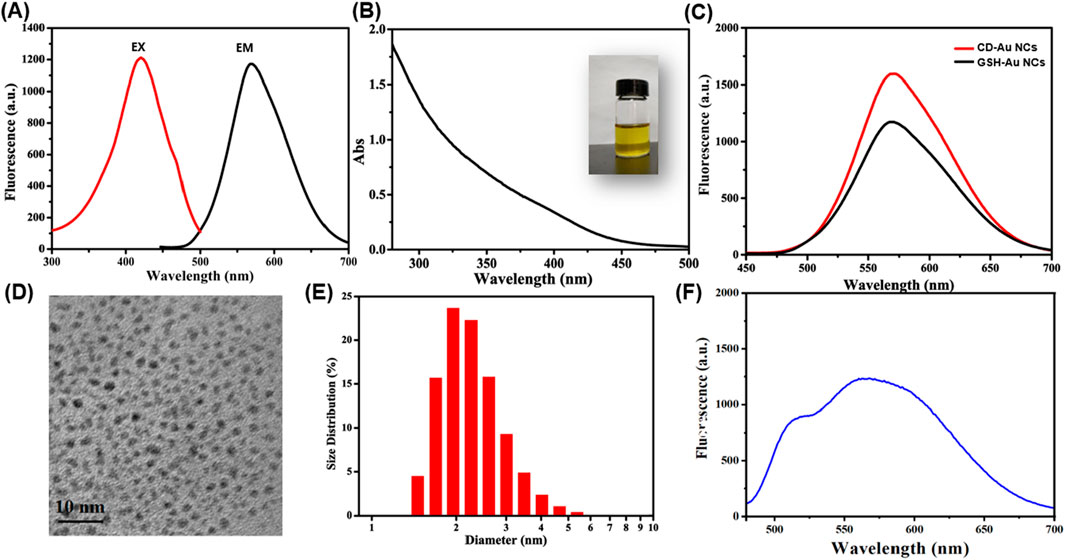

Figure 2. Fluorescence excitation and emission spectra (A) and UV–Vis absorption spectra (B) of CD-Au NCs. Inset image: photograph of CD-Au NCs solution under room light. (C) Fluorescence emission of GSH-Au NCs and CD-Au NCs. (D) TEM image of CD-Au NCs. (E) Statistic size distribution of CD-Au NCs. (F) Fluorescence emission of dual-emissive F-Au NCs.

Hg²⁺-induced ratiometric fluorescence variation

To investigate the fluorescence response of dual-emissive F-Au NCs toward Hg²⁺, the fluorescence emission spectra of F-Au NCs were obtained before and after the addition of Hg²⁺. As shown in Figure 3, the orange emission centered at 567 nm displayed a dramatic decrement (∼75%) during the introduction of Hg²⁺, indicating that Hg²⁺ can cause the fluorescence quenching of Au NCs. However, the green emission centered at 514 nm showed no distinct variation. The maintained green emission might act as an internal fluorescence reference for Hg²⁺ recognition. The emission profile of Au NCs showed no visible change with the addition of Hg²⁺, suggesting that the fluorescence quenching is not assigned to the generation of new Au NCs with different structure. It is well-known that Hg²⁺ can strongly bind to Au⁺ through d¹⁰–d¹⁰ interaction, which alters the electron transition and quenches the fluorescence of Au NCs (Xie et al., 2010). In general, partial Au(I) exists on the surface of thiolate-stabilized Au NCs, which is important for the emission character of Au NCs (Wang et al., 2023; Yuan et al., 2013). To understand the d¹⁰–d¹⁰-mediated Hg²⁺-Au⁺ interaction-induced fluorescence quenching, a strong reducing agent (NaBH₄) was introduced into the Hg²⁺-F-Au NC mixture. Interestingly, the fluorescence at approximately 567 nm showed visible recovery after the addition of NaBH₄. The recovered orange emission indicated that the Hg²⁺-induced fluorescence variation can be attributed to the Hg²⁺-Au⁺ d¹⁰–d¹⁰ interaction-supported fluorescence quenching of Au NCs. Additionally, we found that fluorescein emits strong green light compared to F-Au NCs, while the introduction of Hg²⁺ only caused the quenching of orange emission but did not enhance the green emission of adsorbed fluorescein. It can be seen that the UV–Vis absorption spectra of Au NCs displayed an overlap in the emission profile of fluorescein, leading to fluorescence resonance energy transfer between fluorescein and Au NCs. Despite the Hg²⁺-induced fluorescence quenching of Au NCs, the absorption character of Au NCs was not affected. Therefore, the fluorescence resonance energy transfer process was not suppressed, leading to the unchanged green emission. Hg²⁺-F-Au NC binding not only suppresses the orange emission of Au NCs through strong d¹⁰–d¹⁰ interaction but also maintains the green emission of fluorescein by reserving the fluorescence resonance energy transfer pathway, which endows a ratiometric and sensitive fluorescence response toward Hg²⁺.

Figure 3

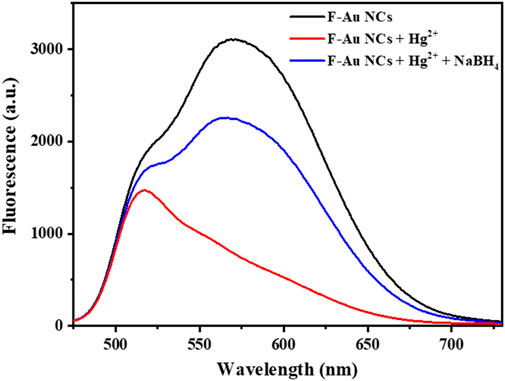

Figure 3. Fluorescence emission spectra of F-Au NCs without (black line) and with (red line) the addition of Hg²⁺ in the absence and presence (blue line) of NaBH₄.

Hg²⁺ sensing in aqueous media

Since the introduction of Hg²⁺ into dual-emissive F-Au NC solution caused ratiometric fluorescence variation, such a response might be able to be utilized for fluorometric Hg²⁺ detection by using F-Au NCs as the fluorescence reporters. Since fluorescein decoration is important to ratiometric variation, the fluorescein dosage was optimized to achieve sensitive Hg²⁺ detection. As shown in Figure 4A, the relative fluorescence ratio variation was monitored under different fluorescein dosage using R (R = (I₅₁₄/I₅₆₇)/(I₅₁₄/I₅₆₇)₀) as the reporting signal. It can be seen that the R value showed an increment with the increasing fluorescein concentration from 100 to 300 nM. However, it showed reverse trends when the fluorescein concentration was higher than 300 nM. A possible reason for this phenomenon is that the low fluorescein concentration cannot support effective green emission due to the fluorescence resonance energy transfer and thus shows a small R value only. However, ultrahigh fluorescein concentration contributes strong green emission and a large value of (I₅₁₄/_I567)₀. As a result, only a small R value is obtained with ultrahigh fluorescein concentration. In this case, 300 nM fluorescein was used for the decoration of Au NCs. In addition, the solution pH is also important to Hg²⁺ sensing. The fluorescein only shows strong emission under alkaline conditions, with only weak emission in an acidic environment. In addition, a Hg²⁺ dismutation reaction occurs in acidic conditions and forms Hg(OH)₂ in alkaline solution. Those pH-dependent factors can influence Hg²⁺ detection sensitivity. It was seen that the maximum R value occurred under pH 7.4 (Figure 4B), so the following experiments were conducted at pH 7.4 without further pH adjustment.

Figure 4

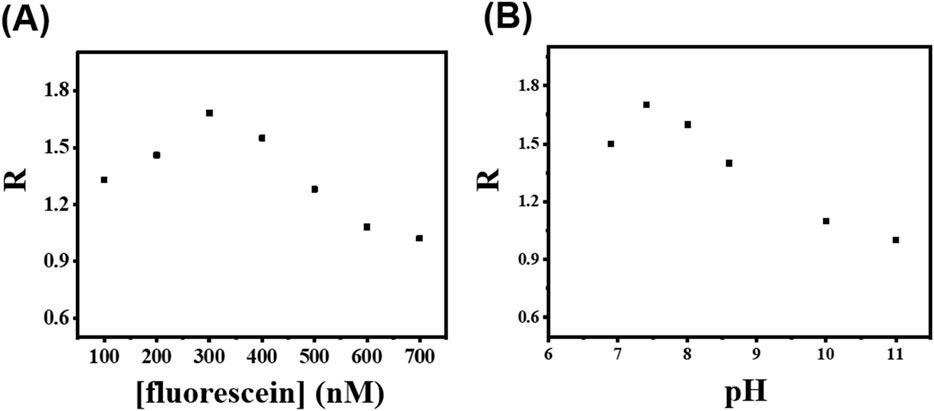

Figure 4. Optimization of Hg²⁺-sensing parameters. Fluorescence intensity ratio variation R (R = (I₅₁₄/I₅₆₇)/(I₅₁₄/I₅₆₇)₀) of F-Au NC solution with the addition of Hg²⁺ versus fluorescein decoration concentration (A) and reaction pH value (B).

The sensitivity evaluation toward Hg²⁺-sensing with F-Au NCs was first investigated based on ratiometric analysis. The fluorescence emission spectra of F-Au NC solution were recorded after the addition of Hg²⁺ with various concentrations. As shown in Figure 5A, the orange fluorescence (567 nm) of Au NCs gradually decreased with the increasing Hg²⁺ concentration without change of spectral shape. The maintained emission profile forms a Hg²⁺-F-Au NC complex rather than producing new Au NC components. Meanwhile, the green fluorescence was unchanged, resulting in the increased fluorescence intensity ratio of I₅₁₄/I₅₆₇. Using the R value as the reporting signal, a linear response relation was found with the Hg²⁺ concentration range from 0.1 to 15.0 μM. As manifested in Figure 5B, the R-value plots could be described with the linear equation y = 0.995 + K [Q] (R² = 0.996), where y is the R value, K is the corresponding fluorescence response constant, and [Q] is the Hg²⁺ concentration. Throughout the linear regression treatment, the fluorescence response constant K was calculated to be 1.72 × 10⁵ M^-1. The reproducibility of Hg²⁺ sensing was also investigated by ten repeated measurements of the Hg²⁺-induced fluorescence response of F-Au NCs. As displayed in Figure 5C, with 11 repeated measurements of 3.0 µM Hg²⁺-induced fluorescence changes, only a slight variation was observed in the R value, and a low relative standard deviation (RSD) value of 1.6% was obtained, suggesting the high reproducibility of proposed F-Au NC probes. The LOD toward Hg²⁺ by F-Au NC probes was determined to be 15 nM (S/N = 3). This LOD is comparable to many reported Hg²⁺ detection methods (Bharati Jaryal et al., 2024; Luo et al., 2021; Musikavanhu et al., 2024; Zhao et al., 2024).

Figure 5

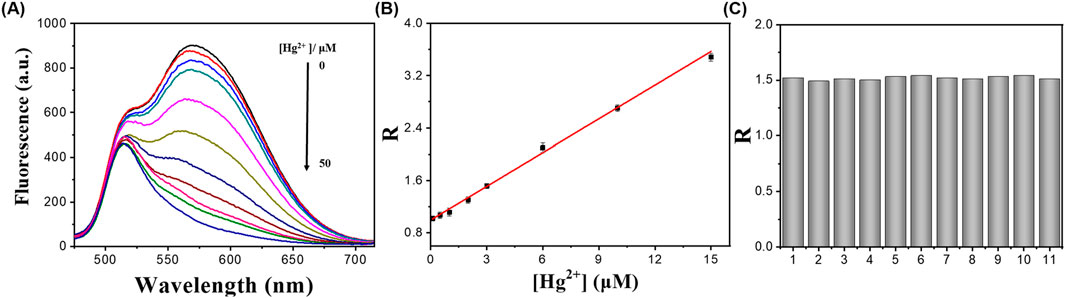

Figure 5. (A) Fluorescence emission spectra of F-Au NC solution upon adding Hg²⁺ with various concentrations. (B) Plots of fluorescence intensity ratio variation R (R = (I₅₁₄/I₅₆₇)/(I₅₁₄/I₅₆₇)₀) of F-Au NC solution versus Hg²⁺ concentrations. (C) Fluorescence intensity ratio variation R of 11 repeated measurements of F-Au NC solution toward 3.0 µM Hg²⁺.

To evaluate the proposed F-Au NCs probes, the selectivity assessment is important. To understand whether the Hg²⁺-induced ratiometric fluorescence change is specific, the fluorescence emission spectra of F-Au NC probes in the presence of Hg²⁺ and other possible interferents were measured. In this study, metal ions including K⁺, Ca²⁺, Fe³⁺, Co²⁺, Ni²⁺, Zn²⁺, Mg²⁺, Cr³⁺, and Al³⁺ were chosen for the specificity evaluation. The concentrations of Hg²⁺ and other metal ions were set at 5 µM. None of these metal ions could cause a comparable increment of R value as did Hg²⁺, indicating that the Hg²⁺-induced ratiometric variation of F-Au NC probes is selective. The Hg²⁺-induced ratiometric variation was not affected by the co-existence of various metal ions (Figure 6), even with the mixture of metal ions, further demonstrating the high specificity of Hg²⁺ detection with F-Au NC probes. The satisfying selectivity is largely ascribed to the strong Hg²⁺-Au⁺ d¹⁰–d¹⁰ interaction. Taken together, the F-Au NC probes enabled selective and reproducible Hg²⁺ detection, with comparable sensing performances compared to other reported probes.

Figure 6

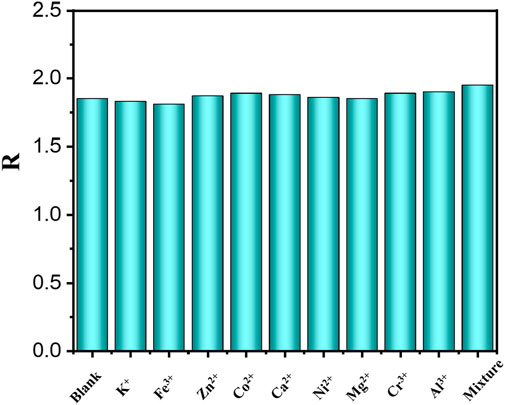

Figure 6. Fluorescence intensity ratio variation R (R = (I₅₁₄/I₅₆₇)/(I₅₁₄/I₅₆₇)₀) of F-Au NCs upon adding various metal ions in the presence of Hg²⁺.

Hg²⁺ analysis in river water and tap water samples

The favorable sensitivity and selectivity of F-Au NC probes suggest the possibility of Hg²⁺ analysis in real samples. In this study, the practical application of F-Au NC probes was verified by Hg²⁺ analysis in river- and tap-water samples. The collected river- or tap-water samples were first centrifuged-filtered to remove large aggregates. The Hg²⁺-induced signal variation was not detected in the river- or tap-water samples, indicating that the Hg²⁺ contents in both river- and tap-water were lower than the LOD of Au NC probes. Accuracy was validated using standard addition protocols. As shown in Table 1, the detected Hg²⁺ contents were generally consistent with those added, with recovery values close to 100% (98.0–102.0%). The RSD values were also small (≦ 2.8%, n = 5), further revealing the high accuracy of the proposed F-Au NC probes. It can be concluded that the proposed dual-emissive F-Au NC-based ratiometric system is applicable for Hg²⁺ detection in real water samples.

Table 1

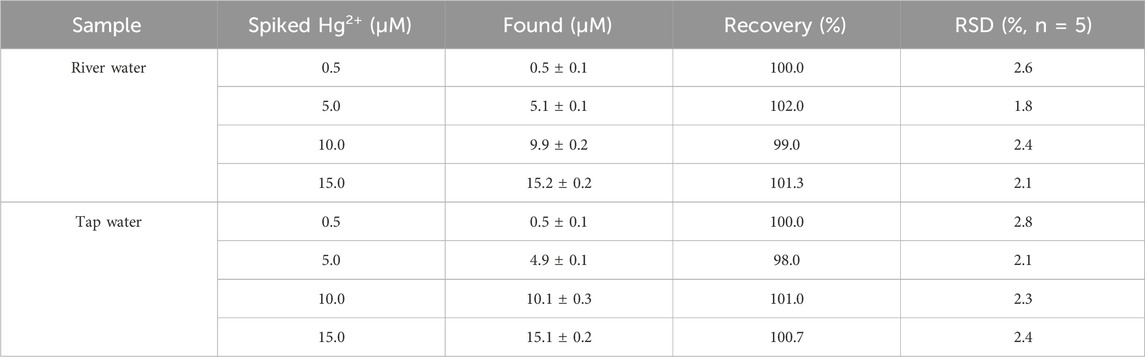

Table 1. Hg²⁺ analysis in Xiaoyue River water and tap water samples with the proposed F-Au NC probes.

Conclusion

We established a ratiometric Hg²⁺ detection platform based on dual-emissive F-Au NC probes. The CD-assisted fluorescein modification replies on host–guest interaction and does not change the reactivity of Au NCs. By integrating the Hg²⁺-Au⁺ d¹–-d¹⁰ interaction-mediated fluorescence quenching of Au NCs and fluorescein internal reference, the proposed platform enables a ratiometric and selective response toward Hg²⁺ over other metal ions. On the basis of F-Au NC probes, rapid Hg²⁺ perception with an LOD of 15 nM is achieved under optimized conditions. Practical application is also validated by accurate Hg²⁺ analysis in river-water samples. This study not only reports a ratiometric Hg²⁺ detection system but also demonstrates the preparation of functional Au NCs by utilizing host–guest interaction. Thus, the development of versatile Au NCs with designed functions for expected applications is possible by involving noncovalent modification.

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author contributions

SS: formal analysis, investigation, methodology, and writing–original draft. ZY: conceptualization, funding acquisition, supervision, validation, visualization, writing–original draft, and writing–review and editing.

Funding

The authors declare that financial support was received for the research, authorship, and/or publication of this article. This work was supported by the National Natural Science Foundation of China (22074005) and the Natural Science Foundation of Beijing Municipality (2202038).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The authors declare that no generative AI was used in the creation of this manuscript.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

Bharati Jaryal, V., Singh, R., Ali, S., Bououdina, M., and Gupta, N. (2024). Fabrication of a reversible fluorescence sensor based on nitrogen-sulfur Co-doped multiwalled carbon nanotubes for detection of mercury ions: experimental and DFT insights. ChemistrySelect 9 (36), e202400699. doi:10.1002/slct.202400699

CrossRef Full Text | Google Scholar

Chen, L.-Y., Wang, C.-W., Yuan, Z., and Chang, H.-T. (2015). Fluorescent gold nanoclusters: recent advances in sensing and imaging. Anal. Chem. 87 (1), 216–229. doi:10.1021/ac503636j

PubMed Abstract | CrossRef Full Text | Google Scholar

Duan, B., Wang, M., Li, Y., Jiang, S., Liu, Y., and Huang, Z. (2019). Dual-emitting zein-protected gold nanoclusters for ratiometric fluorescence detection of Hg²⁺/Ag⁺ ions in both aqueous solution and self-assembled protein film. New J. Chem. 43 (37), 14678–14683. doi:10.1039/C9NJ03524A

CrossRef Full Text | Google Scholar

Fu, L., Chen, Q., and Jia, L. (2022). Carbon dots and gold nanoclusters assisted construction of a ratiometric fluorescent biosensor for detection of Gram-negative bacteria. Food Chem. 374, 131750. doi:10.1016/j.foodchem.2021.131750

PubMed Abstract | CrossRef Full Text | Google Scholar

Fu, S., Su, X., Li, M., Song, S., Wang, L., Wang, D., et al. (2020). Controllable and diversiform topological morphologies of self-assembling supra-amphiphiles with aggregation-induced emission characteristics for mimicking light-harvesting antenna. Adv. Sci. 7 (20), 2001909. doi:10.1002/advs.202001909

PubMed Abstract | CrossRef Full Text | Google Scholar

Ghosh, S., Changotra, A., Petrone, D. A., Isomura, M., Carreira, E. M., and Sunoj, R. B. (2023). Role of noncovalent interactions in inducing high enantioselectivity in an alcohol reductive deoxygenation reaction involving a planar carbocationic intermediate. J. Am. Chem. Soc. 145 (5), 2884–2900. doi:10.1021/jacs.2c10975

PubMed Abstract | CrossRef Full Text | Google Scholar

Huang, C.-C., Yang, Z., Lee, K.-H., and Chang, H.-T. (2007). Synthesis of highly fluorescent gold nanoparticles for sensing mercury(II). Angew. Chem. Int. Ed. 46 (36), 6824–6828. doi:10.1002/anie.200700803

PubMed Abstract | CrossRef Full Text | Google Scholar

Huang, X., Song, J., Yung, B. C., Huang, X., Xiong, Y., and Chen, X. (2018). Ratiometric optical nanoprobes enable accurate molecular detection and imaging. Chem. Soc. Rev. 47 (8), 2873–2920. doi:10.1039/C7CS00612H

PubMed Abstract | CrossRef Full Text | Google Scholar

Ju, H., Wang, B., Li, M., Hao, J., Si, W., Song, S., et al. (2024). Tracking noncovalent interactions of π, π-hole, and ion in molecular complexes at the single-molecule level. J. Am. Chem. Soc. 146 (36), 25290–25298. doi:10.1021/jacs.4c09504

PubMed Abstract | CrossRef Full Text | Google Scholar

Kurashige, W., Niihori, Y., Sharma, S., and Negishi, Y. (2016). Precise synthesis, functionalization and application of thiolate-protected gold clusters. Coord. Chem. Rev. 320-321, 238–250. doi:10.1016/j.ccr.2016.02.013

CrossRef Full Text | Google Scholar

Li, S., Ma, Q., Wang, C., Yang, K., Hong, Z., Chen, Q., et al. (2022). Near-infrared II gold nanocluster assemblies with improved luminescence and biofate for in vivo ratiometric imaging of H₂S. Anal. Chem. 94 (5), 2641–2647. doi:10.1021/acs.analchem.1c05154

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, Z., Guo, S., Yuan, Z., and Lu, C. (2017). Carbon quantum dot-gold nanocluster nanosatellite for ratiometric fluorescence probe and imaging for hydrogen peroxide in living cells. Sens. Actuators, B 241, 821–827. doi:10.1016/j.snb.2016.10.134

CrossRef Full Text | Google Scholar

Liu, Y., Liu, Y., Zhang, J., Zheng, J., Yuan, Z., and Lu, C. (2022). Catechin-inspired gold nanocluster nanoprobe for selective and ratiometric dopamine detection via forming azamonardine. Spectrochimica Acta Part A Mol. Biomol. Spectrosc. 274, 121142. doi:10.1016/j.saa.2022.121142

PubMed Abstract | CrossRef Full Text | Google Scholar

Lu, F., Yang, H., Tang, Y., Yu, C.-J., Wang, G., Yuan, Z., et al. (2020). 11-Mercaptoundecanoic acid capped gold nanoclusters with unusual aggregation-enhanced emission for selective fluorometric hydrogen sulfide determination. Microchim. Acta 187 (4), 200. doi:10.1007/s00604-020-4159-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Luo, Q., Huang, Y., Lei, Z., Peng, J., Xu, D., Guo, X., et al. (2021). Wood-derived nanocellulose hydrogel incorporating gold nanoclusters using in situ multistep reactions for efficient sorption and sensitive detection of mercury ion. Industrial Crops Prod. 173, 114142. doi:10.1016/j.indcrop.2021.114142

CrossRef Full Text | Google Scholar

Musikavanhu, B., Huang, X., Ma, Q., Xue, Z., Feng, L., and Zhao, L. (2024). Rhodamine-benzothiazole-thiophene: a triangular molecular tool for simultaneous detection of Hg²⁺ and Cu²⁺. Microchem. J. 206, 111549. doi:10.1016/j.microc.2024.111549

CrossRef Full Text | Google Scholar

Nasaruddin, R. R., Chen, T., Yan, N., and Xie, J. (2018). Roles of thiolate ligands in the synthesis, properties and catalytic application of gold nanoclusters. Coord. Chem. Rev. 368, 60–79. doi:10.1016/j.ccr.2018.04.016

CrossRef Full Text | Google Scholar

Park, S.-H., Kwon, N., Lee, J.-H., Yoon, J., and Shin, I. (2020). Synthetic ratiometric fluorescent probes for detection of ions. Chem. Soc. Rev. 49 (1), 143–179. doi:10.1039/C9CS00243J

PubMed Abstract | CrossRef Full Text | Google Scholar

Peluso, P., and Chankvetadze, B. (2022). Recognition in the domain of molecular chirality: from noncovalent interactions to separation of enantiomers. Chem. Rev. 122 (16), 13235–13400. doi:10.1021/acs.chemrev.1c00846

PubMed Abstract | CrossRef Full Text | Google Scholar

Pyo, K., Thanthirige, V. D., Kwak, K., Pandurangan, P., Ramakrishna, G., and Lee, D. (2015). Ultrabright luminescence from gold nanoclusters: rigidifying the Au(I)–Thiolate shell. J. Am. Chem. Soc. 137 (25), 8244–8250. doi:10.1021/jacs.5b04210

PubMed Abstract | CrossRef Full Text | Google Scholar

Rap, D. B., Schrauwen, J. G. M., Redlich, B., and Brünken, S. (2024). Noncovalent interactions steer the formation of polycyclic aromatic hydrocarbons. J. Am. Chem. Soc. 146 (33), 23022–23033. doi:10.1021/jacs.4c03395

PubMed Abstract | CrossRef Full Text | Google Scholar

Sayed, M., and Pal, H. (2021). An overview from simple host–guest systems to progressively complex supramolecular assemblies. Phys. Chem. Chem. Phys. 23 (46), 26085–26107. doi:10.1039/D1CP03556H

PubMed Abstract | CrossRef Full Text | Google Scholar

Shi, L., Zhu, L., Guo, J., Zhang, L., Shi, Y., Zhang, Y., et al. (2017). Self-assembly of chiral gold clusters into crystalline nanocubes of exceptional optical activity. Angew. Chem. Int. Ed. 56 (48), 15397–15401. doi:10.1002/anie.201709827

PubMed Abstract | CrossRef Full Text | Google Scholar

Sun, Y., Zhou, Z., Peng, P., Shu, T., Su, L., and Zhang, X. (2023). Protein-directed Au(0)-rich gold nanoclusters as ratiometric luminescence sensors for auric ions via comproportionation-induced emission enhancement. Anal. Chem. 95 (14), 5886–5893. doi:10.1021/acs.analchem.2c04718

PubMed Abstract | CrossRef Full Text | Google Scholar

van der Helm, M. P., Li, G., Hartono, M., and Eelkema, R. (2022). Transient host–guest complexation to control catalytic activity. J. Am. Chem. Soc. 144 (21), 9465–9471. doi:10.1021/jacs.2c02695

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, D., Gao, X., Jia, J., Zhang, B., and Zou, G. (2023). Valence-State-engineered electrochemiluminescence from Au nanoclusters. ACS Nano 17 (1), 355–362. doi:10.1021/acsnano.2c08474

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, M., Chen, J., Jiang, S., Nie, Y., and Su, X. (2021). Rapid synthesis of dual proteins co-functionalized gold nanoclusters for ratiometric fluorescence sensing of polynucleotide kinase activity. Sens. Actuators, B 329, 129200. doi:10.1016/j.snb.2020.129200

CrossRef Full Text | Google Scholar

Wen, Z., Song, S., Hu, T., Wang, C., Qu, F., Wang, P., et al. (2019). A dual emission nanocomposite prepared from copper nanoclusters and carbon dots as a ratiometric fluorescent probe for sulfide and gaseous H₂S. Microchim. Acta 186 (4), 258. doi:10.1007/s00604-019-3295-y

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, H., Wang, Q., Dong, M., Liu, X., and Tang, Y. (2024a). pH-responsive dual-emission carbon dots for the ratiometric detection of organophosphorus pesticides in Brassica chinensis and Hg²⁺ in water. Food Chem. 454, 139755. doi:10.1016/j.foodchem.2024.139755

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, Y., Sun, L.-L., Han, H.-H., He, X.-P., Cao, W., and James, T. D. (2024b). Selective FRET nano probe based on carbon dots and naphthalimide–isatin for the ratiometric detection of peroxynitrite in drug-induced liver injury. Chem. Sci. 15 (2), 757–764. doi:10.1039/D3SC05010F

PubMed Abstract | CrossRef Full Text | Google Scholar

Xie, J., Zheng, Y., and Ying, J. Y. (2010). Highly selective and ultrasensitive detection of Hg2+ based on fluorescence quenching of Au nanoclusters by Hg2+–Au+ interactions. Chem. Commun. 46 (6), 961–963. doi:10.1039/B920748A

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, H., Lu, F., Sun, Y., Yuan, Z., and Lu, C. (2018). Fluorescent gold nanocluster-based sensor array for nitrophenol isomer discrimination via an integration of host–guest interaction and inner filter effect. Anal. Chem. 90 (21), 12846–12853. doi:10.1021/acs.analchem.8b03394

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, H., Yang, Y., Liu, S., Zhan, X., Zhou, H., Li, X., et al. (2020). Ratiometric and sensitive cyanide sensing using dual-emissive gold nanoclusters. Anal. Bioanal. Chem. 412 (23), 5819–5826. doi:10.1007/s00216-020-02806-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Yuan, Z., Du, Y., and He, Y. (2017). Hyperbranched polyamine assisted synthesis of dual-luminescent gold composite with pH responsive character. Methods Appl. Fluoresc. 5 (1), 014011. doi:10.1088/2050-6120/aa625d

PubMed Abstract | CrossRef Full Text | Google Scholar

Yuan, Z., Du, Y., Tseng, Y.-T., Peng, M., Cai, N., He, Y., et al. (2015). Fluorescent gold nanodots based sensor array for proteins discrimination. Anal. Chem. 87 (8), 4253–4259. doi:10.1021/ac5045302

PubMed Abstract | CrossRef Full Text | Google Scholar

Yuan, Z., Peng, M., He, Y., and Yeung, E. S. (2011). Functionalized fluorescent gold nanodots: synthesis and application for Pb²⁺ sensing. Chem. Commun. 47 (43), 11981–11983. doi:10.1039/c1cc14872a

PubMed Abstract | CrossRef Full Text | Google Scholar

Yuan, Z., Peng, M., Shi, L., Du, Y., Cai, N., He, Y., et al. (2013). Disassembly mediated fluorescence recovery of gold nanodots for selective sulfide sensing. Nanoscale 5 (11), 4683–4686. doi:10.1039/c2nr33202g

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, J., Liu, Y., Liu, Y., Liu, W., Lu, F., Yuan, Z., et al. (2022). Gold nanocluster-encapsulated hyperbranched polyethyleneimine for selective and ratiometric dopamine analyses by enhanced self-polymerization. Front. Chem. 10, 928607. doi:10.3389/fchem.2022.928607

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhao, C., Aziz, A., Lu, W., Xu, H., Asif, M., Shuang, S., et al. (2024). A turn-on anthraquinone-derived colorimetric and fluorometric dual-mode probe for highly selective Hg²⁺ determination and bioimaging in living organisms. J. Hazard. Mat. 479, 135694. doi:10.1016/j.jhazmat.2024.135694

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhu, H., Chen, L., Sun, B., Wang, M., Li, H., Stoddart, J. F., et al. (2023). Applications of macrocycle-based solid-state host–guest chemistry. Nat. Rev. Chem. 7 (11), 768–782. doi:10.1038/s41570-023-00531-9

PubMed Abstract | CrossRef Full Text | Google Scholar
