Raul Leal Faria Luiz1*
Rodrigo Caldas Menezes2
Sandro Antonio Pereira2
Raquel de Vasconcellos Carvalhaes de Oliveira3
Manoel Marques Evangelista Oliveira1*- 1Laboratory of Taxonomy, Biochemistry and Bioprospecting of Fungi, Oswaldo Cruz Institute, Oswaldo Cruz Foundation, Rio de Janeiro, Brazil
- 2Laboratory of Clinical Research on Dermatozoonoses in Domestic Animals, Evandro Chagas National Institute of Infectious Diseases, Oswaldo Cruz Foundation, Rio de Janeiro, Brazil
- 3Clinical Epidemiology Laboratory, Evandro Chagas National Institute of Infectious Diseases, Oswaldo Cruz Foundation, Rio de Janeiro, Brazil
Sporotrichosis is a chronic, cosmopolitan granulomatous mycosis that affects humans and animals. The infection is caused by the dimorphic fungi Sporothrix sp. The aims of the present study were to evaluate, standardize and validate a nested PCR technique using two DNA purification kits for the extraction of DNA from formalin fixed and paraffin-embedded tissues (FFPE) for Sporothrix sp. detection. FFPE mycological culture pellet samples of different Sporothrix species (S. chilensis, S. mexicana, S. pallida, S. globosa, S. brasiliensis and S. schenckii) were used as positive controls and clinical FFPE tissue samples of animals positive for Cryptococcus sp., Leishmania infantum and Histoplasma sp. were used as negative controls. Ten clinical FFPE skin samples from cats with sporotrichosis were used to validate the nested PCR. These samples were cut into two distinct paraffin sectioning protocols (5 and 16 μm thick). The paraffin sections were subjected to two different DNA extraction kits (chemical and thermal extractions). A nested PCR was performed on the extracted DNA to identify the genus Sporothrix. The chemical extraction protocol with the 5 μm thick paraffin section was more effective in extracting DNA from Sporothrix sp. from FFPE samples and the nested PCR technique showed the highest sensitivities (100% in the positive controls and of 50% in the skin samples of cats) and specificity (100%). Therefore, the nested PCR using this protocol has great potential to be applied in Sporothrix sp. diagnosis in FFPE samples of cats.
Introduction
Sporotrichosis is a chronic cosmopolitan granulomatous mycosis, caused by the thermodimorphic fungus of the genus Sporothrix, which affects humans and a wide variety of animals, especially cats and dogs (1–4). Since 1998, there has been a large number of cases of sporotrichosis in Rio de Janeiro. Approximately 5,000 cases of sporotrichosis in humans (1998–2015), 5113 cases in cats (1998–2018), and 244 in dogs (1998–2014) were registered at the Evandro Chagas National Institute of Infectious Diseases (INI) of the Oswaldo Cruz Foundation (Fiocruz), one of the main reference center for the treatment of the disease in Brazil (3, 5, 6). The classical transmission of sporotrichosis occurs via traumatic implantation of vegetal or organic matter of soil contaminated with Sporothrix sp. conidia into the skin (7). In addition, zoonotic transmission through infected animals can occur (8). In most cats and dogs, the infection is acquired after fights with other infected cats and a contaminated environment (3, 6). Sporotrichosis is caused by pathogenic species of Sporothrix, including S. brasiliensis, S. schenckii sensu stricto (s. str.), S. globosa, S. luriei, S. pallida, S. mexicana, and S. chilensis (9–15). S. schenckii and S. globosa are the species generally associated with the classical (non-zoonotic) transmission route, while the species S. brasiliensis is associated with zoonotic sporotrichosis transmitted by cats (11, 15–18) in Brazil, mainly in Rio de Janeiro (19, 20), and in Argentina (21) and Paraguay (22). Cats are the animal species most affected by sporotrichosis caused by S. brasiliensis. This disease can lead to death of cats and its main clinical signs in these animals are multiple skin nodules and ulcers, mucosal lesions, enlarged lymph nodes and respiratory signs (20). The transmission of S. brasiliensis from an infected cat to humans, cats and dogs occurs through the bite, scratch, or contact with the exudate of cutaneous lesions (22).
The reference standard method for diagnosing animal sporotrichosis is mycological culture from clinical samples, such as biopsies or exudate from animal skin lesions or nasal swabs, with a presumptive diagnosis using microscopic examinations, such as cytopathology and histopathology (23). However, fungal growth in culture may not be observed and there may be microbiological contamination. It is a laborious and often time-consuming methodology, in addition to requiring considerable knowledge for the correct morphological identification of fungal species (24, 25). Formalin-fixed and paraffin-embedded (FFPE) tissue specimens represent an extremely valuable sample source for prospective and retrospective studies (26). If mycological culture is not possible for logistical or technical reasons, and if there are no alternative samples available other than FFPE material, polymerase chain reaction (PCR)-based molecular diagnostic approaches may be used (27).
PCR methodologies have recently been developed with the aim of improving the sensitivity and specificity of diagnostic tests for sporotrichosis. In addition, PCR allows the rapid identification of pathogenic Sporothrix sp., which is critical for the early treatment of sick cats, increasing the chances of clinical cure and reducing the risk of zoonotic transmission of Sporothrix sp. by these animals (28, 29). For the molecular identification of Sporothrix sp., PCR-based methodologies such as RFLP (restriction fragment length polymorphism) (30, 31), RAPD (random amplified polymorphic DNA) (32), PCR M13 fingerprinting and PCR T3B fingerprinting (33–35), partial DNA sequencing of the transcription region internal ribosomal RNA (ITS) (36), partial DNA sequencing of the calmodulin (CAL) (11, 37, 38), β-tubulin (βtub) (37) and chitin synthase (CHS) region (11, 39), nested PCR (40, 41) and PCR targeting the topoisomerase II gene (42, 43) have been developed. In these methodologies, DNA sequences in genomic loci encoding proteins, such as CAL (11, 37, 38), βtub (37) and CHS (11), in addition to another biomarker such as the ITS region (36) are used as molecular markers to differentiate between Sporothrix species. In cats, some of these PCR-based techniques were successfully applied to detect Sporothrix sp. in fungal isolates obtained by culture of clinical fresh samples (16, 20, 44) or directly from fresh clinical samples (45, 46). Direct detection of Sporothrix in FFPE skin samples from cats was only described by Bernhardt et al. (47), who used a fungal broad-range PCR assay targeting the internal transcribed spacer 2 (ITS 2) followed by amplicon sequencing. However, the sensitivity of this test was not evaluated (47).
Obtaining high-quality and pure PCR products from DNA extracted from FFPE tissue is a difficult task, because, in general, DNA in this material is scarce, degraded and contains substances that inhibit the amplification reaction, such as formalin, or inhibit proteinase K used in the extraction procedure, such as xylene (48). Prior to this study, the detection of Sporothrix sp. DNA by nested PCR in FFPE tissue samples was investigated only once, but using human samples (49, 50). There is still no standardized and reproducible nested PCR methodology for the definitive diagnosis of animal sporotrichosis using FFPE tissues. The aims of the present study were: to analyze and standardize a nested PCR technique for the detection of Sporothrix sp. in FFPE Sporothrix spp. culture pellets, using two kits for DNA extraction (chemical and thermal extractions) and two different types of paraffin sections; to validate the results using clinical FFPE samples from cats; and to identify at the genus-level all pathogenic species of Sporothrix and clinical samples by nested PCR.
Methods
Samples
Pellets from isolates of six different reference strains of Sporothrix species characterized in previous studies were used (S. chilensis, S. mexicana, S. pallida, S. globosa, S. brasiliensis and S. schenckii) (33, 51–53). The pellets were obtained by centrifugation of mycological culture and subsequent fixation in 10% buffered formalin and embedding in paraffin (54). These paraffin blocks (FFPE) were prepared in 2019. FFPE tissue samples from mandibular lymph nodes of a Cryptococcus sp. positive cat, and from skin and spleen of Leishmania infantum and Histoplasma sp. positive dogs, respectively, were used to evaluate specificity and the occurrence of cross-reactions. These FFPE tissues were from 2013, 2016 and 2013, respectively. To validate our results, clinical FFPE skin samples from ten cats with diagnosis of sporotrichosis by the isolation of Sporothrix sp. in mycological culture were used. Two of these FFPE skin samples were from 2009, four samples were from 2015 and four samples were from 2017. These cats were randomly selected from the cohort treated at the Laboratory of Clinical Research in Dermatozoonosis in Domestic Animals, Evandro Chagas National Institute of Infectious Diseases, Oswaldo Cruz Foundation, Rio de Janeiro, Brazil, between 2009 and 2017. The samples were obtained by biopsy of the active lesions using a 3–4 mm punch and fixed in 10% neutral buffered formalin and embedded in paraffin. The mycological culture technique for isolation of Sporothrix sp. was performed as described by Rippon (7). The DNA of type strain of S. brasiliensis CBS120339 (formerly IPEC 16490) (11) was used as positive control in every PCR assay. To monitor possible contamination, reaction mixtures without DNA were performed in the first and nested PCRs as negative controls.
Preparation of FFPE Samples
Each paraffin block, including the blocks of negative control samples, was sectioned into two distinct paraffin sectioning protocols: (a) eight 5 μm thick sections (5 μm section) and (b) one 16 μm thick section (16 μm section), using a microtome. Weighing of the FFPE pellet samples was also performed in an analytical balance (Shimadzu, São Paulo, Brazil). The sections were submitted to DNA extraction from Sporothrix sp. as well as the other species of infectious agents (specificity and cross-reaction controls).
DNA Extraction From FFPE Samples
DNA was extracted from paraffin sections using two different commercial DNA extraction kits: (1) QIAamp® DSP DNA FFPE Tissue Kit (Qiagen, California, USA) in which the sections of FFPE samples were deparaffinized with xylene (chemical DNA extraction); and (2) ReliaPrepTM FFPE gDNA Miniprep System kit (Promega Corporation, Madison, USA) in which the sections of FFPE samples were deparaffinized with mineral oil and incubated at 80°C (thermal DNA extraction). The extraction steps followed all the manufacturer's instructions. After extraction, the extracted DNA was frozen at −30°C.
DNA Quantification
The DNA quantification from all FFPE samples was evaluated in the DNA extract using two parameters: (1) DNA concentration, using spectrophotometric measurement of absorbance at 260 nm wavelength (NanoDrop™ 2000c, Thermo Fisher Scientific, Waltham, USA); and (2) DNA purity, using an absorbance ratio of 260 nm to 280 nm (A260/A280), considering the range of 1.8–2.0 to be of good quality (55).
Nested PCR Assay
For the genus-level PCR identification of Sporothrix sp. in FFPE specimens, a nested PCR was performed according to a previously described method based on the amplification of the 18S ribosomal RNA (ITS) (40) with slight modifications (41).
A ready-to-use PCR master mix 2X solution was used (Promega Corporation, Madison, USA – Lot: 460191). PCR master mix contains 50 units/mL of Taq DNA polymerase supplied in a proprietary reaction buffer (pH 8.5), 400μM dATP, 400μM dGTP, 400μM dCTP, 400μM dTTP and 3mM MgCl2. For a 50 μL total reaction volume, reactions were standardized to obtain a final concentration of 100 to 120 ng of DNA. The reaction mixture of the first-round PCR consisted of 1–15 μL of DNA template, with final concentrations of 1X PCR master mix and 0, 2 μM of outer primers SS1 (5'-CTC GTT CGG CAC CTT ACA CG-3') and SS2 (5'-CGC TGC CAA AGC AAC GCG GG-3') (40). The reaction mixture of the nested PCR was identical, except that 3 μL of the first reaction product and the inner primer pair SS3 (5'-ACT CAC CAG GTC CAG ACA CGA TG-3') and SS4 (5'-CGC GGG CTA TTT AGC AGG TTA AG-3') (40) were used. The PCR reaction was performed in 0.5-mL thin-wall polypropylene tubes in a thermal cycler VeritiTM 96-Well Thermal Cycler (Thermo Fisher Scientific, Massachusetts, USA) under the following conditions: initial denaturation at 95°C for 5 min, followed by 40 cycles of 1 min denaturation at 95°C, hybridization for 1 min at 68°C and extension for 1 min at 72°C, and then final extension for 10 min at 72°C. PCR products were analyzed by electrophoresis on a 2% w/v agarose gel (Agarose Ultra PureTM, Thermo Fisher Scientific, Massachusetts, USA – Lot: 300647). DNA was stained with Blue Green Loading Dye I (LGC Biotecnologia, São Paulo, Brazil – Lot: 160919BT) and the amplicons were visualized on a LED K33-333 transilluminator (KASVI, Paraná, Brazil). The first round amplified a 305 bp fragment and the second one, a 152 bp fragment.
Statistical Analysis
The exploratory analysis used median, interquartile range, minimum and maximum to summarize the quantitative variables and absolute and relative frequencies to describe the qualitative variables. To compare the quantitative variables, Wilcoxon Signed-Rank Test and Wilcoxon Rank Sum Test were used. The quantitative DNA purity variable was categorized in pure and not pure, considering pure values between 1.8 and 2.0 of the A260/A280 ratio, and is optimal around 1.8 (55). The sensitivity value of positive samples by nested PCR was provided with the respective 95% confidence interval (CI). P < 0.05 indicate significant differences in the tests, however, due to the sample size, whenever possible, uncertainty measures (variability and CI) were also provided. Free software R version 4.0 was used for statistical analyses.
Results
The FFPE pellet samples were sectioned using both paraffin sectioning protocols (eight 5 μm thick sections and one 16 μm thick section). No statistical difference between the weights of the paraffin sectioning protocols was observed (p > 0.05). The median weight of the FFPE samples in the eight 5 μm thick sectioning protocol and in the single 16 μm thick section was 15.1 mg and 8.5 mg, respectively.
The comparison of the DNA extraction protocols in the FFPE mycological culture pellet samples based on the concentration and purity of the DNA using both paraffin sectioning protocols (5 and 16 μm) is shown in the Table 1A. There was no statistical difference in the DNA concentration between the extraction kits (p = 0.8203 in 5 μm and p = 1.000 in 16 μm). There was also no statistical difference in the DNA concentration between the tested sectioning protocols (Table 1A). The degree of purity of the extracted DNA was higher in the thermal DNA extraction protocol compared to the chemical extraction protocol using the 16 μm thick section (p = 0.009) (Table 1B).

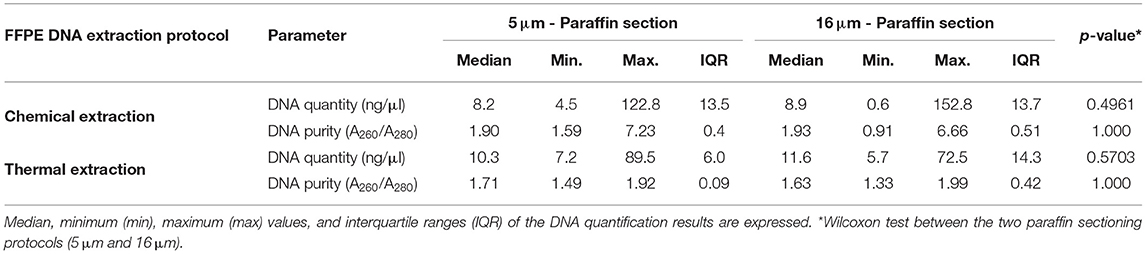

TABLE 1A. Comparison of chemical and thermal DNA extraction protocols in six FFPE pellet samples of Sporothrix sp. and negative controls, using the two paraffin sectioning protocols (5 μm and 16 μm), in relation to the DNA concentration (ng/μL) and the degree of DNA purity (A260/A280 nm ratio).
TABLE 1B. Comparison of chemical and thermal DNA extraction protocols in six FFPE pellet samples of Sporothrix sp. and negative controls, using the two paraffin sectioning protocols, in relation to the degree of DNA purity (A260/A280 nm ratio).
Using the chemical DNA extraction protocol, nested PCR technique was able to detect the 152bp fragment of all six Sporothrix species tested in FFPE pellet samples using both paraffin sectioning protocols (100% sensitivity) (Figure 1). The sensitivity of the thermal extraction in the 5 and 16 μm sectioning protocols was 83 and 50%, respectively (Table 1C). Both FFPE DNA extraction protocols showed 100% specificity for Sporothrix sp. and no cross-reactions were observed, demonstrated by the absence of amplified product in nested PCR in FFPE samples of Cryptococcus sp., Leishmania infantum and Histoplasma sp. (Figure 1). In clinical FFPE samples from cats, the comparison of the DNA extraction protocols and the sensitivity of nested PCR are shown in Tables 2A–C. There was no statistical difference in the DNA concentration between the extraction kits in clinical samples (p = 0.0483 in 5 μm and p = 0.4316 in 16 μm). The nested PCR technique showed 50% sensitivity in chemical extraction and 30% sensitivity in thermal DNA extraction at the 5 μm thick sectioning protocol (Table 2C). Two clinical FFPE samples from 2009 and three from 2015 tested negative by nested PCR in all paraffin sectioning and DNA extraction protocols. Four samples from 2017 and one sample from 2015 amplified in at least one of the paraffin sectioning or DNA extraction protocols.

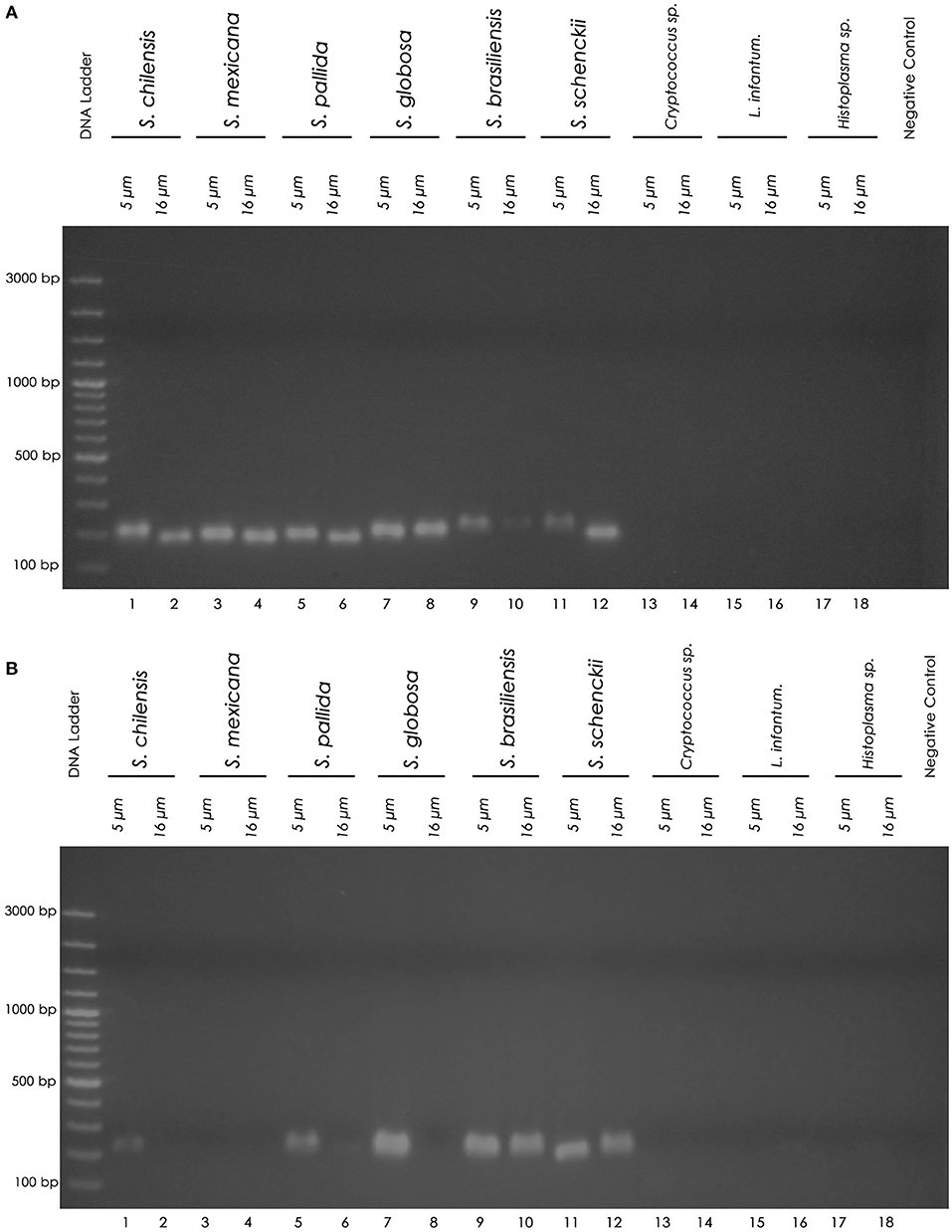

Figure 1. Nested PCR products on agarose gel. (A) Chemical DNA extraction. (B) Thermal DNA extraction. Left to right: Molecular marker DNA ladder, 100 bp (Fermentas). 1 (5 μm) and 2 (16 μm): S. chilensis; 3 (5 μm) and 4 (16 μm): S. mexicana; 5 (5 μm) and 6 (16 μm): S. pallida; 7 (5 μm) and 8 (16 μm): S. globosa; 9 (5 μm) and 10 (16 μm): S. brasiliensis; 11 (5 μm) and 12 (16 μm): S. schenckii; 13 (5 μm) and 14 (16 μm): Cryptococcus sp.; 15 (5 μm) and 16 (16 μm): L. infantum; 17 (5 μm) and 18 (16 μm): Histoplasma sp.; PCR negative control (sterile water). The nested PCR product is a 152 base pair (152 bp) amplicon.
TABLE 1C. Comparison of chemical and thermal DNA extraction protocols in six FFPE pellet samples of Sporothrix sp. and negative controls, using the two paraffin sectioning protocols (5 μm and 16 μm), in relation to positivity, method sensitivity and confidence interval (95% CI).
TABLE 2A. Comparison of chemical and thermal DNA extraction protocols in clinical FFPE skin samples from ten cats, using the two paraffin sectioning protocols (5 and 16 μm), in relation to the DNA concentration (ng/μL) and the degree of DNA purity (A260/A280 nm ratio).
TABLE 2B. Comparison of chemical and thermal DNA extraction protocols in clinical FFPE skin samples from ten cats, using the two paraffin sectioning protocols (5 and 16 μm), in relation to the degree of DNA purity (A260/A280 nm ratio).
TABLE 2C. Comparison of chemical and thermal DNA extraction protocols in clinical FFPE skin samples from ten cats, using the two paraffin sectioning protocols (5 and 16 μm), in relation to the positivity, method sensitivity and confidence interval (95% CI).
Discussion
FFPE tissues have several advantages for diagnostic purposes, as they are easy to handle and transport, their processing is low-cost and they can be stored for a long time at room temperature (26). However, obtaining DNA from this type of sample in sufficient quantity and quality using extraction techniques is a challenge (56). Several preanalytical factors can influence the analysis of nucleic acids in FFPE samples, such as biospecimen fixation, specimen size, block storage conditions, section thickness, section storage, and others (57). The 5 μm thick sections are commonly used in the analysis of different types of FFPE tissues (47, 58–63). The 16 μm thick sections were tested in this work as an alternative to produce samples with a smaller amount of paraffin, which contains PCR inhibitors (64), in an attempt to increase the sensitivity of the methods. In the present study, the chemical DNA extraction protocol demonstrated the best performance compared to the thermal protocol, mainly in 5 μm thick sectioning protocol.
Although the DNA concentration was similar in both extraction and paraffin sectioning protocols and the purest DNA was observed in thermal DNA extraction (16 μm section), the nested PCR assay demonstrated the superiority of the chemical DNA extraction protocol by the positivity observed in all FFPE pellet samples tested. The chemical extraction kit used in our study was also used by Sarnecka et al. (63) with FFPE tumor tissues. These authors obtained an amount of DNA similar to the present study (median of 13.20 ng/μL) and a DNA purity with the same median (A260/A280 = 1.90) in the 5 μm thick sectioning protocol. However, in the study of Sarnecka et al. (63), molecular analyzes were not performed and the performance of this kit was inferior to the other tested (automated extraction) (63). Higher DNA concentrations ranging from 12.3 to 618.9 ng were observed in another study with FFPE fungal samples using the same chemical DNA extraction kit with one 25 μm thick paraffin section and modifications such as longer incubation time with proteinase K and another cell lysis protocol (27).
In this work, the nested PCR methodology performed was similar to that described by Hu et al. (40) based on amplification of the 18S region of ribosomal RNA (ITS), using specific primers for Sporothrix sp. A semi-nested PCR methodology was developed for the diagnosis of human sporotrichosis in tissues embedded in paraffin with high sensitivity and specificity, but few cases were analyzed and there was a lack of details that make its reproducibility difficult (49). Also, the authors used the same chemical DNA extraction kit but it was not reported how the paraffin blocks were sectioned (49). Hu et al. (40) described a nested PCR assay for the detection of S. schenckii for diagnosing cutaneous sporotrichosis in frozen skin tissues (40). Based on them, Hayashi et al. (49) designed new primers that increased the sensitivity and specificity (100% and 98.7%, respectively) of their semi-nested PCR assay. In the present study, we used the same Sporothrix sp. specific primer sets, described by Hu et al. (40), and we were able to detect this fungus in FFPE samples.
Another important outcome in this work was the standardization of the methodology using a master mix solution to perform the PCR mixture, which facilitated the performance of the assays and the diagnosis of sporotrichosis in the clinical laboratory. The DNA yield from FFPE mycological culture pellet samples was considered ideal, as a standardization of the DNA concentration was performed in our study, but the highest degree of DNA purity was only 44.4%, within the purity criteria, observed in the thermal extraction protocol using the 16 μm sectioning protocol. This result may have been influenced by the low amount of material in the paraffin blocks. However, the nested PCR assay showed that even with low DNA purity in FFPE samples, it was possible to obtain high sensitivity and specificity. This indicates that in FFPE samples, the degree of DNA purity can be more variable than in fresh or frozen samples, with a range of purity larger than the one considered (A260/A280 = 1.8 – 2.0). Furthermore, the nested PCR was capable to identify at the genus-level all the pathogenic species of Sporothrix tested (S. chilensis, S. mexicana, S. pallida, S. globosa, S. brasiliensisand S. schenckii). Oliveira et al. (41) also used the same sets of primers to detect the Sporothrix sensu lato in cerebrospinal fluid, therefore, the nested amplification of the 18S rRNA gene fragment can detect all the Sporothrix species of the Sporothrix complex. In order to ensure no cross-reaction with other pathogens frequently found in feline and canine skin cases, Cryptococcus sp., Leishmania infantum and Histoplasma sp. FFPE tissue samples was included. As Sporothrix species have a large geographic distribution (65), this protocol can be applied in different regions of the world regardless of the species associated with the cases.
As Rio de Janeiro, Brazil is a hyperendemic region of sporotrichosis associated with feline zoonotic transmission, clinical FFPE samples from cats with sporotrichosis were used to validate our findings with the FFPE pellet samples. Some studies describe a high concentration of DNA extracted from paraffin blocks, but they differ in relation to the type of clinical sample tested, size of tissue embedded in paraffin, DNA extraction protocol and histological sections (66–69). Nechifor-Boilă et al. (67) considered the concentration of 100 ng/μL as an ideal cut-off point for a good DNA concentration in FFPE carcinoma samples. Our study with FFPE skin biopsy samples from cats with sporotrichosis showed a large variability in DNA concentration (0.10–73.70 ng/μL). However, our data corroborate with the previous study by Nechifor-Boilă et al. (67), since we validated our PCR method using a DNA concentration of 100–120 ng/μL, as the ideal one for the amplification of our target. In our validation study with clinical samples, the highest degree of purity was observed in FFPE tissues from cats using the chemical DNA extraction kit at the 16 μm paraffin sectioning protocol (50%) and the thermal DNA extraction kit at the 5 μm section (50%). Considering the clinical FFPE samples, negative results in the nested PCR were only observed in the oldest samples (from 2009 to 2015). Therefore, these negative results may have been influenced by the time of storage of these FFPE samples, because DNA degradation in FFPE samples increases considerably after 4–6 years of storage (70).
Despite the low DNA purity observed in the clinical samples, the nested PCR assay showed higher sensitivity in clinical FFPE samples from cats when using 5 μm paraffin sectioning protocol and the chemical extraction protocol (50% sensitivity). Ricci et al. (71) demonstrated PCR positivity of 74.2% in FFPE skin samples from patients with paracoccidioidomycosis, showing that in FFPE samples from skin lesions the sensitivity of the PCR technique is reduced. Our results were similar to Lysen et al. (70), who demonstrated PCR sensitivity of 54% for fungal identification from FFPE human tissues. Bernhardt et al. (47) detected DNA from Sporothrix in 2 of 52 (3.8%) FFPE skin samples from cats with histologically confirmed cutaneous and subcutaneous mycoses. Lau et al. (72) demonstrated higher sensitivity of a panfungal PCR assay in fresh frozen tissues compared to FFPE tissues for identifying different fungi in human and animal samples (fresh tissue: 96.8%; FFPE: 87.5% of culture-proven cases / fresh tissue: 100%; FFPE: 54.5% of histologically proven cases). The results of these authors (72) can be explained by the decreased quality, quantity, and size of DNA extracted from FFPE tissues compared to frozen tissues (73). However, FFPE samples can be preserved without refrigeration, making them easier to transport and store in areas with limited infrastructure and enable retrospective analysis (73, 74). In addition, due to maintenance, space, and labor requirements, storing FFPE tissues at room temperature for lengthy periods of time is more cost-effective than preserving frozen tissues at ultra-low temperatures (73, 74).
Despite the satisfactory results observed in our study by the nested PCR assay, it is necessary to search for alternatives to obtain FFPE samples with higher concentration and purity of DNA, such as the collection of a larger fragment from skin lesions of cats, in order to obtain a greater fungal load in these samples. Adjustments in DNA extraction protocols to reduce inhibitors and contaminants could also be pursued. Although we used specific primers for the amplification of the Sporothrix genus in combination with mycological culture, the standard reference method for the diagnosis of sporotrichosis, sequencing the amplicons would have improved our molecular analysis. Furthermore, the statistical tests may have been impaired due to the limited sample size.
In conclusion, the effective chemical DNA extraction of Sporothrix sp. DNA from FFPE samples using 5 μm thick paraffin sectioning protocol and the good sensitivity of the nested PCR assay indicates that the protocol herein presented have a great potential to be applied in Sporothrix sp. diagnosis in FFPE samples.
Data Availability Statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding authors.
Ethics Statement
The animal study was reviewed and the protocols in this study were approved by the Animal Use Ethics Committee of the Oswaldo Cruz Foundation (CEUA-FIOCRUZ permit numbers L-041/06; LW-25/11; LW-32/12; LW-14/16; LW-12/17 and LW-17/17). This commission was established by FIOCRUZ Deliberative Council Resolution No. 004/2010 of January 21, 2010, and CIAEP No.463/2015 in compliance with National Council of Animal Experimentation Control (CONCEA).
Author Contributions
RL, RM, and MO designed the study. RL carried out the experiments. RL, SP, and RM organized the database. RM and MO designed the methodology. RO performed the statistical analysis. SP, RO, and RM supervised the study. RM and MO raised funds. RL wrote the original draft. RL, RM, SP, RO, and MO reviewed and edited the manuscript. All authors contributed to the article and approved the submitted version.
Funding
This study was supported by the State Funding Agency Fundação Carlos Chagas Filho de Amparo à Pesquisa do Estado do Rio de Janeiro (FAPERJ - Grants: JCNE E-26/201.433/2021; JCNE E-26/203.301/2017; E-26/201.737/2019), Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq - Grant Proc. 409227/2016-1; Proc. 309682/2018-5; Proc. 312238/2020-7) and in part by the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior - Brasil (CAPES) - Finance Code 001.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher's Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
We thank Danielly Corrêa Moreira for performing the mycological culture of the Sporothrix species, Luiz Claudio Ferreira for performing the histological sections of the paraffin blocks and Luisa Helena Monteiro de Miranda (The University of Sydney) for proofreading the text in English. We also thank Stricto Sensu Graduate Program in Clinical Research in Infectious Diseases, Evandro Chagas National Institute of Infectious Diseases, Oswaldo Cruz Foundation.
