BRIEF RESEARCH REPORT article

Front. Vet. Sci., 23 October 2020
Sec. Veterinary Epidemiology and Economics
This article is part of the Research Topic Dairy Farm Management: Securing Animal Health, Well-being and Productivity View all 17 articles

Efficacy of a Lactobacillus-Based Teat Spray on Udder Health in Lactating Dairy Cows

\nJohn I. Alawneh,
John I. Alawneh1,2*Ameh S. James,Ameh S. James1,2Nancy PhillipsNancy Phillips1Brandon FraserBrandon Fraser1Karen JuryKaren Jury3Martin SoustMartin Soust3Timothy W. J. Olchowy,Timothy W. J. Olchowy1,4
  • 1School of Veterinary Science, The University of Queensland, Gatton, QLD, Australia
  • 2Good Clinical Practice Research Group, The University of Queensland, Gatton, QLD, Australia
  • 3Terragen Biotech Pty Ltd., Coolum Beach, QLD, Australia
  • 4Faculty of Veterinary Medicine, University of Calgary, Calgary, AB, Canada

Teat disinfection is a common pre- and post-milking mastitis prevention practice that is part of a mastitis control program in dairy herds. Commercially available teat disinfectants are generally chemical-based products. The use of these products has occasionally raised concerns about the risk of chemical residues in milk. An alternative treatment or prevention strategy based on probiotics has the potential to circumvent this risk. Two treatments were compared in a cross-over clinical trial in a single herd: a lactobacillus-based, post-milking teat spray (LACT), and a commercial iodine-based post-milking teat disinfectant product as (positive control, PC). The effect of the two treatments on cow somatic cell counts was quantified using a multivariate mixed-effects linear regression model with cow fitted as a random effect. The odds of teat end scores increasing from a low to a high score tended to be lower (OR = 0.74, 95% CI 0.54–1.01, P = 0.06) for cows receiving LACT treatment. On average, there was also a tendency for a lower somatic cell counts in the LACT treated cows (antilog of coefficient = 0.91, 95% CI 0.80–1.03, P = 0.13) compared with the PC treated cows. The application of the lactobacillus-based product to teats could reduce the rate of teat end scores progression from low to higher scores, and potentially improve teat end sphincter functions and udder health. Further, larger scale validation work is required to support the findings of the current study.

Introduction

Mastitis is the most prevalent production problem of animal welfare, production, and economic loss facing the dairy industry worldwide (1). The prevalence risk of mastitis is high (2, 3) and is influenced by animal (e.g., parity, stage of lactation), farm (e.g., herd-size, geographical location), and nutritional factors in the herd (1, 4). Teat canal and the integrity of teat-end tissue play a pivotal role against the introduction of mastitis-associated pathogens into the udder. Teat-end hyperkeratosis is the teat canal response to the forces imposed by milking. Milking machine and animal level factors can lead to severe teat-end hyperkeratosis and increase the roughness of the teat end (5, 6), and increase the risk of intra-mammary infections (IMI) by mastitis-causing pathogens in the herd (1, 6). Somatic cell counts (SCC) concentration in the milk is considered a biomarker of mammary gland inflammation and used as a proxy for IMIs (7, 8). A relative reduction in SCC while holding constant all other animal and herd-level risk factors, reflects a lower risk of exposure to IMIs (9). Reduced milk SCC is a reasonable indicator of effective mastitis management practices in the herd (10, 11).

Teat disinfection is a common mastitis prevention practice that has proven to be an excellent tool in the control of mastitis (1214). This practice has been associated with a lower incidence of new IMI, a reduction in bulk milk SCC and fewer teat skin abnormalities (9). Ideally teat products have disinfectant properties and do not cause any harmful changes to the health of the teat skin [National Mastitis Council (NMC), www.nmconline.org]. Teat disinfectant formulations often include skin conditioning agents: emollients (lanolin) or humectants (glycerine, propylene glycol, or polyvinylpyrridone) (15). Some formulations contain aloe and allantoin which have been shown to have skin-healing properties (16). Teat disinfection that effectively and safely reduces bacterial load on teat skin reduces the risk of mastitis in the herd (1719), improves teat skin condition (9), and reduces the risk of milk contamination (20). The observed efficacy of a teat disinfectant will vary depending on the production system, season, and the particular mastitis causing pathogens affecting the herd (18, 21, 22).

Gleeson et al. (17) conducted a study on two dairy farms in Ireland to explore udder health benefits of pre-milking teat disinfectant practice. In that study, bacterial numbers on teat skin were reduced and the practice was effective against environmental bacteria (Escherichia coli and Streptococcus uberis). Teat disinfection can also be a safe and effective method to reduce the incidence risk of mastitis caused by contagious pathogens such as Staphylococcus aureus (23, 24). However, it is less effective against environmental pathogens (15). A 2018 Australian study failed to demonstrate a benefit of iodine-based pre-milking teat disinfection (25). Treated multiparous animals had higher odds of clinical mastitis associated with environmental pathogens. Teat disinfection of primiparous animals did not reduce the odds of developing clinical mastitis compared to the untreated animals (Odd ratio [OR] = 1.31, 95% CI = 0.52–3.29). A combined pre- and post-milking teat disinfection program neither reduced the incidence of new IMI nor did it result in a reduction in SCC in a New Zealand dairy cattle study (9).

Commercially available teat disinfectants are generally chemical-based (iodophor, chlorhexidine) products (23). The use of these products has occasionally raised concerns about the risk of chemical residues in milk (2628). Lactic acid bacteria (LAB) are part of the healthy alimentary microbiota (29), and have been proposed as a potential alternative therapy for the control of bovine mastitis (30, 31). A liquid product containing a mixture of Lactobacillus organisms (LACT) was developed as a post-milking teat spray. Therefore, the objective of the present study was to evaluate the short-term effect of LACT on mammary health as defined by SCC and teat end score (TES). It was hypothesized that LACT would be at least as effective as a commercially available iodine-based post-milking teat disinfectant in improving udder health.

Materials and Methods

Study Design

This was a positive-controlled, randomized 2 × 3 cross-over study involving two experimental groups [LACT treated, positive control (PC) treated] and three treatment periods (Figure 1A). The study was conducted between 01 June and 26 July 2018 using the year-round calving University of Queensland-Gatton 230 milking cow research dairy herd. The herd is managed as two groups of milking cows typical of Queensland dairies: a combined fresh and early lactation group [up to 100 days in milk (DIM); fed a total mixed ration; n = 90]; and a second group comprising mid- and late lactation cows (>100 DIM; fed pasture and a mixed ration; n = 140). Grazing pasture consisted of a mixture of temperate and tropical plant species. Pasture supplemented with a silage-based mixed ration was sufficient to meet the maintenance and production requirements of a cow producing 25 L of milk per day. The experimental procedures were approved by the University of Queensland Animal Ethics Committee prior to the start of the study (Approval number: SVS/043/18/TERRAGEN).

FIGURE 1
www.frontiersin.org

Figure 1. Schemata of the study design (A), and the observed average teat end scores (B) and average somatic cell counts (C) with 95% confidence intervals as observed in the current study. Iodine-based (PC) group - black solid line and solid squares. Lactobacillus-based (LACT) group – black dashed line, white triangles. Treatment periods were between Study Days 1–7, 23–31, and 40–48. Washout periods were between study days 14–18, and 31–34.

The sample size required to evaluate changes in udder health (i.e., SCC), 13 cows, was based on the a priori assumptions for SCC of an alpha of 95%, a power of 90%, a common standard deviation of 20,000 cells/mL, a difference of 40,000 cells/mL and a correlation between group means of 0.1. For TES comparison, it was assumed that TES improvements (lower scores) would be associated with a decreased risk of mastitis in this herd. Sample size calculations determined that fifty cows would allow detection (with 95% confidence, power of 90%, pooled variance one teat end score, 1:1 ratio treatment to control sample size) of a difference of one teat end score (one to five scoring scale, see below) between the mean TES before and after LACT teat spray treatment. Therefore, the study sample size was 50 cows divided equally into the two experimental groups.

Animal Management

Cows were milked twice daily at 04:00 and 15:00 h in a double 14 rapid exit high line parallel parlor (GEA Westfalia™, Victoria, Australia). The automatic cup removal (ACR) system was set to detach milking clusters when milk flow decreased to 0.2 L/min. Milk-line vacuum pressure was checked during the milking of each turn of cows in the parlor. The vacuum pressure was maintained between 45 and 48 kPa by a variable frequency vacuum pump. To ensure a consistent milking routine, all milking staff received ongoing training in milking machine operation and milking protocols. Based on study farm animal health records, the estimated incidence risk of clinical mastitis in the source herd was, on average, 22% [95% confidence interval (CI) = 17–33%].

Teat End Scoring

The TES for each cow were determined by a single individual during a single milking session using the one to five TES scale adapted from Mein et al. (5): score 1 = normal with no apparent ring present at the teat end; score 2 = smooth and slightly rough ring; score 3 = rough ring; score 4 = very rough ring; score 5 = open lesions or scabs. The scorer was blinded to the treatment allocations to study animals. The TES were averaged (median) at the cow level. The median TES were used in subsequent analyses.

Selection of Study Animals

Fifty apparently healthy lactating dairy cows of mixed age, stage of lactation, and breed, were randomly selected (simple random sampling without replacement) from a pool of 60 eligible cows (median TES of 2 or less, apparently normal quarter milk, SCC <300,000 for at least the past 8 weeks, no history of systemic disease or clinical mastitis in the 8 weeks preceding the study start date) (Supplementary Table 1). Enrolled cows were managed, fed, and milked as per the routine farm practices with the exception that the study animals were maintained as separate groups from the main herd.

Experimental Design

The Lactobacillus based teat spray being evaluated was a proprietary liquid formulation (LACT; Lactolin™, Terragen Biotechnology Pty Ltd, Queensland, Australia) suitable for application as a post-milking teat spray. The preparation consisted of a mixture of three Lactobacillus spp. (Lactobacillus paracasei, L. buchneri, L. casei; minimum 106 cfu/mL of each strain) in saline (0.9%NaCl). This preparation was stored at 4°C until applied to the teats (without an emollient) using a hip mounted, hand operated mobile teat sprayer (HipSpray™, Ambic Equipment Ltd., Davies Way, Brisbane, Australia) set to deliver 10 mL per teat as per manufacturer instructions. The positive control treatment (PC) was a commercial, iodine-based, post-milking teat disinfectant (Dairy Power Mastidyne™ Iodophor 20 g/L available iodine, 2% free iodine, ECOLAB, Sydney, Australia) supplied as a 2-part concentrate and automatically mixed with potable water on an as needed basis for application to the teats using a spray wand. The product as applied consisted of three parts Dairy Power Mastidyne™ Iodophor teat sanitiser, eight parts cool potable water, and one-part Dairy Power Glysoft™ udder emollient 10% solution (ECOLAB, Sydney, Australia) as per the manufacturer instructions. The inline sprayer gun (AMBIC™, Davisway/DASCO, Victoria, Australia) was set to pump a volume of 10 mL per teat covering the entire teat as per manufacturer instructions.

Cows were assigned to groups using simple random sampling without replacement. Simple random sampling was also used to assign a specific teat treatment (either LACT or PC) to one of the two 25-cow study groups for the first and second 2-week long experimental periods. The third 2-week long experimental period was a replica of the second period (Figure 1A). The two groups of animals were milked separately with an abbreviated milking machine cleaning cycle run before and between the milkings. To minimize the risk of residual effect of the two treatments, each treatment period was separated by a minimum washout period of 48 h during which there were no applications of either treatments. This minimum washout period was based on an absence of detectable (qPCR) biological residues of the LACT organisms at 36 h post-treatment.

Composite milk samples (50 mL) were collected bi-weekly from each cow at the Monday and Friday morning milkings, preserved with Acticide L-Bronopol, and SCC determined by the Australian Herd Recording Services (Kenilworth, Queensland, Australia) using an automated cell counter (Fossomatic 5000, Foss Electric). Teat ends were evaluated and scored weekly.

Statistical Analysis

Summary statistics generated for continuous or categorical variables (as appropriate) included: mean, median, standard deviation (SD), first and third quartiles (1st and 3rd Q), minimum, maximum, counts and percentage, as appropriate. Chi-squared test was used to assess the homogeneity of TES count distribution between the treatment groups. The statistical analysis was conducted in R (43).

The association between the LACT and PC groups and TES was assessed using a multivariate, mixed effects, ordered logistic regression model. The analysis was performed at the quarter-level to allow the model to account for the repeated measurements in TES and clustering of teats within cows (the sampling unit, i.e., the udder quarters nested within the cow, i.e., the experimental unit). Square root transformation was applied to the study day to maintain the linearity of the modeled log odds across the study days and reduce the risk of violating the proportional odds assumption (see below). Statistical significance was declared at an alpha of 0.05 or less. The association between LACT and PC and individual cow SCC was quantified using a multivariate mixed-effects linear regression model with cow fitted as a random effect. Model building followed forward selection procedure. First order interaction terms were tested and were retained if interaction terms was significant at a likelihood ratio test P value of 0.05 or less. Models specification followed that described by St-Pierre (44) and took the following generic forms:

Somatic cell counts – animal level data [1]

yijk=Intercept+Treatmenti+Periodj+β1Time+Sik+ϵijk

Teat end scores – quarter level data [2]

yijmk=Intercept+Tretamenti+Periodj+β1Time+Quarterm+Smik+ϵijmk

Where yijk and yijmk denote the response observed at the cow and quarter levels, respectively for model [1] and [2], in periodj of treatmenti, and Sik and Simk are the random error term for the kth cow (or Quarterm nested within cow, respectively) in the ith treatment group. The outcome variable (SCC) was log transformed to stabilize the SCC variance and restore normality of the data. Study day was modeled as a polynomial (of the 4th order) variable with the order of the polynomial determined using the Akaike Information Criterion (AIC). The residuals (εijk and εijmk) of the random effect term were assumed to be normally distributed with a mean of zero, a variance of σ2, and an autoregressive correlation structure of the first order. Overall model fit was based on AIC, Bayesian information criterion (BIC) and visual assessment of Pearson's residuals against fitted values, Q-Q standardized residuals against standardized normal quantiles violated the normality assumption (32). The proportional odds assumption was checked visually by examining the vertical consistency of distances between any two of the orders TES scores (at the logit scale) within explanatory variable in the model. The overall effect of LACT and PC over the three treatment periods was further explored using least-squares means (LSM) prediction from the final mixed-effects linear model. (LSM means predictions were averaged predictions across all covariates in the model fixed at the reference levels). Statistical significance was declared at an alpha of 0.05 or less. Because SCC were log transformed, interpretation of the coefficient represents a unit change in log SCC. The antilog of each coefficient is interpreted as follows: for a continuous explanatory variable, the antilog of the coefficient represent a change in average (geometric mean) SCC for each unit change in the continuous variable. For a categorical variable, the antilog of the coefficient is the ratio of the means for each level of the categorical variable compared with the reference category. All analysis using ordinal (33), emmenas (34), visreg (35), nlme and lme4 (32, 36) statistical packages in R.

Results

The teat end scores of the cows in the LACT and PC groups followed a similar curvilinear trend (Figure 1B). The TES values were highest during the second of the three 2-week treatment periods. Overall, the LACT group was associated with fewer TES 4 (13%) and 5 (1%) and more TES 1 (7%), (χ2 29.042, df = 4, P < 0.01) compared to the PC group (15, 2, and 2%, respectively, Figure 1B and Supplementary Table 2). In parallel with the TES results, the SCC associated with both treatments followed a similar trend (Figure 1C).

The results from the multivariable model for TES are shown in Table 1. Holding the covariates at their reference, on average, the odds of a shift from low to high TES tended to be lower for cows in the LACT group compared to TES for cows in the PC group (OR = 0.74, 95% CI 0.54–1.01, P = 0.06; Table 1). The TES value of individual cows at baseline influenced the odds of observing a high TES during the study. Irrespective of treatment assignment, for each unit TES score above score 1 at baseline, the odds of TES changing from a low to a high score during the study increased ~3-fold (OR = 3.46, 95% 2.07–5.78, P < 0.01; Table 1).

TABLE 1
www.frontiersin.org

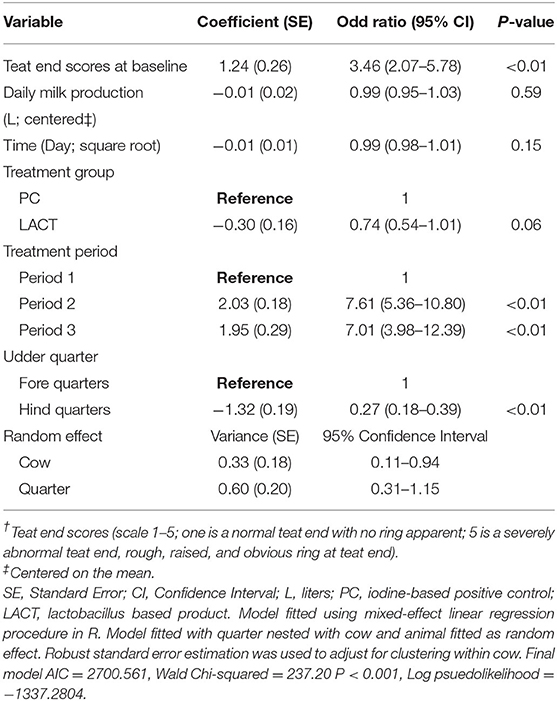

Table 1. Coefficient (standard errors) and odd ratios (95% confidence interval) from final multivariate mixed-effects ordered logistic regression model fitted on cows teat end scores (TES) for the study animals.

The results from the multivariable model for SCC are shown in Table 2. After controlling for the effect of TES at baseline, milk production, and holding the remaining covariates at their reference, on average, there was a tendency for SCC in the LACT group to be 9% lower (antilog of coefficient = 0.91, 95% CI 0.80–1.03, P = 0.13) compared to the PC group (Table 2). Across all three treatment periods, the average SCC for cows in the PC group was 14% higher (1.14, 95% CI = 0.97–1.33, P = 0.07; (Table 3 and Supplementary Figure 1) compared to the LACT treated cows.

TABLE 2
www.frontiersin.org

Table 2. Coefficient (standard errors) and antilog of the estimated coefficients (95% confidence interval) from final multivariate mixed-effects linear regression model fitted on individual cows somatic cell counts (SCC; 000's cells/mL) for the study animals.

TABLE 3
www.frontiersin.org

Table 3. Least-square means predictions (marginal means; at the log and antilog scales) and mean ratios obtained over the grid of predictors settings from linear mixed-effects model shown in Table 2.

Discussion

Our study evaluated the effect of a probiotic-based, post-milking teat skin spray on the health of the mammary glands using the proxy parameters of SCC and TES. This short-term crossover designed pilot study does support the hypothesis that the probiotic product was at least as effective as a commercial iodine-based post-milking teat disinfectant product. There were fewer abnormal TES in the LACT group. The odds of a TES shifting (throughout the study) from a lower to a higher score was lower for cows in the LACT group. Even though there was no statistically significant differences in the SCC values in response to the two treatments, when the effect of the explanatory variables was controlled, there was a trend to a lower mean SCC in the probiotic group.

The study did not identify any significant difference in TES between LACT and PC groups. Teat end scores for cows receiving either treatment followed a similar curvilinear trend. The odds of a reduction in the average TES did not differ between groups. There was a relatively increased number of chapped teat ends in the control group cows. This occurred despite the skin conditioning properties of this commercial product relative to the product under study. The conditioner and sanitizer components were mixed and used throughout the study as per manufacturer recommendations. The mixing system for the commercial product was serviced regularly by a qualified milking machine technician to ensure correct operation. However, no iodine analyses were performed on the final product as delivered to the cows. In contrast to treatment with the commercial product, cows receiving the probiotic product showed a strong propensity toward a lower risk of an increase in TES. This suggests the Lactobacillus-based product has a protective effect on teat ends. The pattern of change in SCC (tendency for reduced SCC in the LACT group) in this study is consistent with the reduction in subclinical mastitis in association with the use of a Lactobacilli spp. based teat treatment observed by Yu et al. (20). They suggested that the effect of the biologic-based treatment was to decrease the exposure of the teat to mastitis-associated bacteria by improving the microbial environment of the cow teat. The current study focused on the effect on milk SCC and did not investigate the potential effect on the microbiota of the teat.

The specific mechanisms responsible for the observed beneficial trends associated with the Lactobacillus-based product were not investigated in the present study, but several possibilities exist. If the organisms in the LACT group grow faster than mastitis causing pathogens, there may be fewer sites on the teat skin for pathogens to adhere or colonize thereby reducing the exposure risk to the udder (19, 37). The development of bovine mastitis has been associated with dysbiosis, an imbalance between the healthy microbiota of the mammary gland and mastitis causing pathogens (37). It is possible that the presence of the LACT organisms inhibited the development of any teat skin or mammary gland dysbiosis. The use of probiotics to minimize the risk of (or correct existing) dysbiosis has been proposed as a method to both reduce mastitis risk and the need for antimicrobial use (29). An additional potential protective effect may be the result of barrier-like biofilm properties of the organisms (20). Lactobacillus spp. have some characteristics needed for biofilm formation. They do colonize and are retained for long periods, a critical factor in preventing colonization by pathogenic bacteria (38). The role of the established resident microbiota of the teat skin and mammary gland and the potential changes to the microbiota in response to treatment were not investigated. Changes in TES and SCC in response to potential pathogen exposure were not investigated by culture or PCR based examination of epithelial surfaces or milk samples. This is a limitation of the current study and should be addressed in future and larger scale study. Therefore, the results presented in the current study should be interpreted with caution.

The product tested in this study contained live Lactobacilli organisms. This type of product offers advantages over those which do not contain living organisms (i.e., lactic acid, iodine, and other chemical products) as several mechanisms are in force: bacterial competition and/or displacement from an ecological niche(s), and production of anti-bacterial substances [bacteriocins such as lacticin (39)]. This product's characteristics may result in an ongoing effect in contrast to the one-time high dose exposure associated with commercial chemical based teat disinfectants; a high initial dose which may taper off below the threshold of efficacy. In addition, this type of product would benefit from the lack of harmful residues, a characteristic associated with GRAS (“generally regarded as safe”) organisms. The future role of lactobacillus-based udder health products is most likely as externally acting formulations. Intra-mammary infusion of these GRAS organisms has been associated with increases in SCC of the infused quarter, especially if the initial SCC of the quarter was quite low (40). Similar outcomes have been observed by others (15, 41). This effect was not observed in quarters with a pre-existing high SCC (IMI affected quarters). Cure rate of infected high SCC quarters following administration of the probiotic product (Lacto-bac; Lactobacillus acidophilus, Lactobacillus casei) was inferior to the antimicrobial treated group of cows. The authors did not provide any in vitro antibacterial test results so it is possible that these organisms were either not producing, or were producing insufficient amounts of bacteriocins.

One of the challenges of field studies is the inability to control factors that may have significant impact on the study outcomes. This study was no exception with the deterioration of weather conditions (dry, cold); and the lack of treatment of application in the washout phase, during the second treatment period that may have influenced the observed outcomes. With a few exceptions, dairy cows in Australia and New Zealand are not housed in barns. Outside of the time spent in a milking parlor (more often than not with open side walls), under shade structures (purpose-built and/or trees), or sheltering behind wind breaks, the cows are subjected to the weather conditions of the pasture/paddock. The cows in this study had access to partial protection offered by fixed sun shade structures and a modest wind break created by the side of a building. Dry cold weather conditions during the second treatment period were associated with higher SCC values and TES in both groups. The effect was greater in the PC group, but not statistically significant (Figure 1). Martins et al. (42) reported a similar increase in SCC and TES and described an increased growth rate of mastitis pathogens during the winter season. It is possible this lack of significant group differences in response to adverse weather was influenced by the sample size of the present study. In cold temperate climates, it is not uncommon for producers to use a “winter formulation” teat disinfectant to reduce the “teat end chapping effect” of the weather and reduce the risk of intra-mammary infection. Further comparative formulation studies would be required to test this potential effect and evaluate the value of a “winter formulation” under Australian conditions.

By their nature, preliminary, pilot or proof-of-concept type studies have limitations. This study is no exception with limitations being expected. The sample size may have been too small to detect significant differences in treatment effects. The short duration and relatively restricted exposure of cows to seasonal variations may have hidden potential long-term beneficial effects of the treatments. The purpose of the study was to test a hypothesis and determine if any potential benefit existed to support the conduct of a long term multiple season (hot and humid, cool, and dry) study. As the observational data from this pilot study was limited, it was not possible to determine if beneficial effects may develop over a longer term, such as a complete lactation, or when cows in both experimental groups are allowed to comingle (e.g., shared risk of exposure mastitis causing pathogens, homogenous animal management within groups). No cows developed any adverse reactions or illnesses, either local (mastitis) or systemic, during the course of the study supporting the general acceptance that this probiotic product is indeed appropriately categorized as GRAS when used in this manner. Finally, determination of the mechanisms underlying any beneficial effects require further laboratory and field studies. Enough evidence was acquired to encourage further investigation of the interaction of these organisms with the teat and udder microbiota.

Conclusions

Somatic cell counts followed a similar trend for cows receiving either lactobacillus based LACT product or iodine-based PC product. Overall, cows in the LACT group had fewer teat end scores of one, four, and five. The odds of an increase in the teat end scores and average somatic cell counts over the three treatment periods tended to be lower for cows treated with lactobacillus based product compared with the iodine-based PC treated cows. The results from this pilot study suggest that lactobacillus-based product treatment could improve teat end sphincter functions and udder health. Further, larger scale validation work is required to support the findings of the current study.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Ethics Statement

The animal study was reviewed and approved by the University of Queensland Animal Ethics Committee.

Author Contributions

JA study design, sample collection, sample processing, data analyses, and drafting of the manuscript. AJ data interpretation and drafting of the manuscript. NP and BF data collection. MS and KJ supply of LACT product and LACT product quality control. TO study design, data interpretation, and drafting of the manuscript. All authors contributed to the article and approved the submitted version.

Funding

The authors declare that this study received funding from Terragen Biotech Pty. Ltd., Australia. The funder was not involved in the study design, collection, analysis, and interpretation of data, the writing of this article or the decision to submit it for publication.

Conflict of Interest

KJ and MS were employed by the company Terragen Biotech Pty Ltd.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors would like to acknowledge the effort of the University of Queensland Dairy managements and workers and the contributions of Veterinary students that worked on this project.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fvets.2020.584436/full#supplementary-material

References

1. Barkema HW, von Keyserlingk MA, Kastelic JP, Lam TJ, Luby C, Roy JP, et al. Invited review: changes in the dairy industry affecting dairy cattle health and welfare. J Dairy Sci. (2015) 98:7426–45. doi: 10.3168/jds.2015-9377

PubMed Abstract | CrossRef Full Text | Google Scholar

2. McDougall S. Prevalence of clinical mastitis in 38 Waikato dairy herds in early lactation. N Z Vet J. (1999) 47:143–9. doi: 10.1080/00480169.1999.36131

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Ndahetuye JB, Persson Y, Nyman AK, Tukei M, Ongol MP, Bage R. Aetiology and prevalence of subclinical mastitis in dairy herds in peri-urban areas of Kigali in Rwanda. Trop Anim Health Prod. (2019) 51:2037–44. doi: 10.1007/s11250-019-01905-2

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Ruegg PL. New perspectives in udder health management. Vet Clin North Am Food Anim Pract. (2012) 28:149–63. doi: 10.1016/j.cvfa.2012.03.001

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Mein GA, Neijenhuis F, Morgan WF, Reinemann DJ, Hillerton JE, Baines JR, et al. Evaluation of bovine teat condition in commercial dairy herds: 1. Non-infectious factors. In: Proc. 2nd International Symposium on Mastitisand Milk Quality (2001).

Google Scholar

6. Pantoja JCF, Correia LBN, Rossi RS, Latosinski GS. Association between teat-end hyperkeratosis and mastitis in dairy cows: a systematic review. J Dairy Sci. (2020) 103:1843–55. doi: 10.3168/jds.2019-16811

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Schukken YH, Wilson DJ, Welcome F, Garrison-Tikofsky L, Gonzalez RN. Monitoring udder health and milk quality using somatic cell counts. Vet Res. (2003) 34:579–96. doi: 10.1051/vetres:2003028

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Souza FN, Cunha AF, Rosa DLSO, Brito MAV, Guimaraes AS, Mendonca LC, et al. Somatic cell count and mastitis pathogen detection in composite and single or duplicate quarter milk samples. Pesqui Vet Brasil. (2016) 36:811–8. doi: 10.1590/s0100-736x2016000900004

CrossRef Full Text | Google Scholar

9. Williamson JH, Lacy-Hulbert SJ. Effect of disinfecting teats post-milking or pre- and post-milking on intramammary infection and somatic cell count. N Z Vet J. (2013) 61:262–8. doi: 10.1080/00480169.2012.751576

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Boddie RL, Nickerson SC, Adkinson RW. Efficacies of chlorine dioxide and iodophor teat dips during experimental challenge with Staphylococcus aureus and Streptococcus agalactiae. J Dairy Sci. (2000) 83:2975–9. doi: 10.3168/jds.S0022-0302(00)75197-6

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Lago A, Bruno DR, Lopez-Benavides M, Leibowitz S. Short communication: efficacy of glycolic acid-based and iodine-based postmilking barrier teat disinfectants for prevention of new intramammary infections in dairy cattle. J Dairy Sci. (2016) 99:7467–72. doi: 10.3168/jds.2015-10666

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Hutton CT, Fox LK, Hancock DD. Mastitis control practices - differences between herds with high and low milk somatic-cell counts. J Dairy Sci. (1990) 73:1135–43. doi: 10.3168/jds.S0022-0302(90)78774-7

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Barkema HW, Schukken YH, Lam TJ, Beiboer ML, Benedictus G, Brand A. Management practices associated with low, medium, and high somatic cell counts in bulk milk. J Dairy Sci. (1998) 81:1917–27. doi: 10.3168/jds.S0022-0302(98)75764-9

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Fox LK, Gradle C, Dee A. Short communication: disinfectant containing a complex of skin conditioners. J Dairy Sci. (2006) 89:2539–41. doi: 10.3168/jds.S0022-0302(06)72329-3

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Pankey JW, Wildman EE, Drechsler PA, Hogan JS. Field trial evaluation of premilking teat disinfection. J Dairy Sci. (1987) 70:867–72. doi: 10.3168/jds.S0022-0302(87)80085-1

PubMed Abstract | CrossRef Full Text | Google Scholar

16. MacKay D, Miller AL. Nutritional support for wound healing. Altern Med Rev. (2003) 8:359–77.

PubMed Abstract | Google Scholar

17. Gleeson D, O'Brien B, Flynn J, O'Callaghan E, Galli F. Effect of pre-milking teat preparation procedures on the microbial count on teats prior to cluster application. Ir Vet J. (2009) 62:461–7. doi: 10.1186/2046-0481-62-7-461

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Fitzpatrick SR, Garvey M, Flynn J, Jordan K, Gleeson D. Are some teat disinfectant formulations more effective against specific bacteria isolated on teat skin than others? Acta Vet Scand. (2019) 61:21. doi: 10.1186/s13028-019-0455-3

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Svennesen L, Nielsen SS, Mahmmod YS, Kromker V, Pedersen K, Klaas IC. Association between teat skin colonization and intramammary infection with Staphylococcus aureus and Streptococcus agalactiae in herds with automatic milking systems. J Dairy Sci. (2019) 102:629–39. doi: 10.3168/jds.2018-15330

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Yu J, Ren Y, Xi X, Huang W, Zhang H. A novel lactobacilli-based teat disinfectant for improving bacterial communities in the milks of cow teats with subclinical mastitis. Front Microbiol. (2017) 8:1782. doi: 10.3389/fmicb.2017.01782

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Galton DM, Petersson LG, Merrill WG, Bandler DK, Shuster DE. Effects of premilking udder preparation on bacterial population, sediment, and iodine residue in milk. J Dairy Sci. (1984) 67:2580–9. doi: 10.3168/jds.S0022-0302(84)81616-1

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Gleeson D, Flynn J, Brien BO. Effect of pre-milking teat disinfection on new mastitis infection rates of dairy cows. Ir Vet J. (2018) 71:11. doi: 10.1186/s13620-018-0122-4

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Foret CJ, Corbellini C, Young S, Janowicz P. Efficacy of two iodine teat dips based on reduction of naturally occurring new intramammary infections. J Dairy Sci. (2005) 88:426–32. doi: 10.3168/jds.S0022-0302(05)72704-1

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Foret C, Aguero H, Janowicz P. Efficacy of two barrier iodine teat dips under natural exposure conditions. J Dairy Sci. (2006) 89:2279–85. doi: 10.3168/jds.S0022-0302(06)72299-8

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Rowe SM, Tranter WP, Laven RA. Effect of pre-milking teat disinfection on clinical mastitis incidence in a dairy herd in Northern Queensland, Australia. Aust Vet J. (2018) 96:69–75. doi: 10.1111/avj.12674

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Dahl L, Opsahl JA, Meltzer HM, Julshamn K. Iodine concentration in Norwegian milk and dairy products. Br J Nutr. (2003) 90:679–85. doi: 10.1079/BJN2003921

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Pearce EN, Pino S, He X, Bazrafshan HR, Lee SL, Braverman LE. Sources of dietary iodine: bread, cows' milk, and infant formula in the Boston area. J Clin Endocrinol Metab. (2004) 89:3421–4. doi: 10.1210/jc.2003-032002

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Castro SI, Berthiaume R, Robichaud A, Lacasse P. Effects of iodine intake and teat-dipping practices on milk iodine concentrations in dairy cows. J Dairy Sci. (2012) 95:213–20. doi: 10.3168/jds.2011-4679

PubMed Abstract | CrossRef Full Text | Google Scholar

29. Rainard P, Foucras G. A critical appraisal of probiotics for mastitis control. Front Vet Sci. (2018) 5:251. doi: 10.3389/fvets.2018.00251

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Tagg JR, Dierksen KP. Bacterial replacement therapy: adapting ‘germ warfare’ to infection prevention. Trends Biotechnol. (2003) 21:217–23. doi: 10.1016/S0167-7799(03)00085-4

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Soleimani NA, Kermanshahi RK, Yakhchali B, Sattari TN. Antagonistic activity of probiotic lactobacilli against Staphylococcus aureus isolated from bovine mastitis. Afri J Micr Res. (2010) 4:2169–73.

Google Scholar

32. Bates D, Maechler M. lme4: Linear Mixed-Effects Models Using S4 Classes (2010).

Google Scholar

33. Christensen RHB. Ordinal - Regression Models for Ordinal Data. R package version 2019.12-10 (2019). Available online at: https://CRAN.R-project.org/package=ordinal.

Google Scholar

34. Lenth R. emmeans: Estimated Marginal Means, Aka Least-Squares Means. R package version 1.4.8 (2020). Available online at: https://CRAN.R-project.org/package=emmeans".).

35. Breheny PBW. Visualization of regression models using visreg. R J. (2017) 9:56–71. doi: 10.32614/RJ-2017-046

CrossRef Full Text | Google Scholar

36. Bates D. lme4: Linear Mixed-Effects Models Using S4 Classes. R package version 0.99875–99879 (2007).

Google Scholar

37. Oikonomou G, Machado VS, Santisteban C, Schukken YH, Bicalho RC. Microbial diversity of bovine mastitic milk as described by pyrosequencing of metagenomic 16s rDNA. PLoS ONE. (2012) 7:e47671. doi: 10.1371/journal.pone.0047671

PubMed Abstract | CrossRef Full Text | Google Scholar

38. Salas-Jara MJ, Ilabaca A, Vega M, Garcia A. Biofilm forming lactobacillus: new challenges for the development of probiotics. Microorganisms. (2016) 4:35. doi: 10.3390/microorganisms4030035

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Klostermann K, Crispie F, Flynn J, Meaney WJ, Paul Ross R, Hill C. Efficacy of a teat dip containing the bacteriocin lacticin 3147 to eliminate Gram-positive pathogens associated with bovine mastitis. J Dairy Res. (2010) 77:231–8. doi: 10.1017/S0022029909990239

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Greene WA, Gano AM, Smith KL, Hogan JS, Todhunter DA. Comparison of probiotic and antibiotic intramammary therapy of cattle with elevated somatic cell counts. J Dairy Sci. (1991) 74:2976–81. doi: 10.3168/jds.S0022-0302(91)78483-X

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Woodward WD, Ward AC, Fox LK, Corbeil LB. Teat skin normal flora and colonization with mastitis pathogen inhibitors. Vet Microbiol. (1988) 17:357–65. doi: 10.1016/0378-1135(88)90049-1

PubMed Abstract | CrossRef Full Text | Google Scholar

42. Martins C, Pinheiro ESC, Gentilini M, Benavides ML, Santos MV. Efficacy of a high free iodine barrier teat disinfectant for the prevention of naturally occurring new intramammary infections and clinical mastitis in dairy cows. J Dairy Sci. (2017) 100:3930–9. doi: 10.3168/jds.2016-11193

CrossRef Full Text | Google Scholar

43. R Development Core Team. R: A Language and Environment for Statistical Computing. Vienna: R Foundation for Statistical Computing (2019).

Google Scholar

44. St-Pierre NR. Design and analysis of pen studies in the animal sciences. J Dairy Sci. (2007) 90:E87–99. doi: 10.3168/jds.2006-612

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: teat end scores, lactobacillus-based, dairy cattle, mastitis, somatic cell counts, udder health

Citation: Alawneh JI, James AS, Phillips N, Fraser B, Jury K, Soust M and Olchowy TWJ (2020) Efficacy of a Lactobacillus-Based Teat Spray on Udder Health in Lactating Dairy Cows. Front. Vet. Sci. 7:584436. doi: 10.3389/fvets.2020.584436

Received: 17 July 2020; Accepted: 08 September 2020;
Published: 23 October 2020.

Edited by:

Vinicius Machado, Texas Tech University, United States

Reviewed by:

Sarne De Vliegher, Ghent University, Belgium
Sam Rowe, The University of Sydney, Australia

Copyright © 2020 Alawneh, James, Phillips, Fraser, Jury, Soust and Olchowy. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: John I. Alawneh, j.alawneh@uq.edu.au

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
