Daniel L. Eisenson
Yu Hisadome
Michelle R. Santillan
Kazuhiko Yamada- Department of Surgery, The Johns Hopkins Hospital, Baltimore, MD, United States
Islet transplantation has emerged as a curative therapy for diabetes in select patients but remains rare due to shortage of suitable donor pancreases. Islet transplantation using porcine islets has long been proposed as a solution to this organ shortage. There have already been several small clinical trials using porcine islets in humans, but results have been mixed and further trials limited by calls for more rigorous pre-clinical data. Recent progress in heart and kidney xenograft transplant, including three studies of pig-to-human xenograft transplant, have recaptured popular imagination and renewed interest in clinical islet xenotransplantation. This review outlines immunologic barriers to islet transplantation, summarizes current strategies to overcome these barriers with a particular focus on approaches to induce tolerance, and describes an innovative strategy for treatment of diabetic nephropathy with composite islet-kidney transplantation.
Introduction
Nearly one in ten Americans suffers from diabetes mellitus. Unfortunately, incidence is increasing in the United States and across the globe (1, 2). Diabetes is a leading cause of both cardiovascular disease and end stage renal disease (ESRD) (3, 4), and carries particularly high short-term mortality in patients with hypoglycemic unawareness (5). Human islet transplantation has emerged as one effective treatment for diabetic patients with hypoglycemic unawareness (6), but this procedure is rare due, in part, to a shortage of deceased donor pancreases (7). Xenotransplantation using islets obtained from pigs may overcome this organ shortage and allow for broader application of islet transplantation.
There have already been several small clinical studies using porcine islets in humans (8–10), but results have been mixed and further trials limited by more recent consensus guidelines calling for more rigorous pre-clinical data (11). However, recent studies in pig-to-human heart and kidney xenograft transplantation have reignited public enthusiasm for xenotransplantation and may reopen debate about when to initiate clinical trials in islet xenograft transplantation (12–14). This review describes the current status of xeno islet transplantation, outlining immunologic barriers to islet transplantation, current strategies to overcome these barriers including genetic modification and novel immunosuppression, and innovative strategies to induce tolerance in xenotransplantation.
Immunologic barriers to islet xenotransplantation
Pig islets, like other porcine xenografts, precipitate vigorous immune responses in humans involving both innate and adaptive immune components (15). Innate barriers in pig-to-human transplantation include preformed natural antibodies to carbohydrate antigens on porcine endothelial cells, complement and coagulation system dysregulation due to species incompatibilities, and activation of macrophages and natural killer cells (16). In auto- and allotransplantation models of islet transplantation, islets injected into the portal vein trigger an immediate inflammatory response, known as instant blood-mediated inflammatory reaction (IBMIR) (17, 18). While the exact mechanism is unknown, IBMIR is believed to be triggered by tissue factor expressed on islets, which leads to activation of innate immune components including complement and coagulation systems and subsequent loss of islets (19, 20). In islet xenotransplantation, preformed antibody-binding and complement/coagulation dysregulation contribute to more robust IBMIR with greater islet losses (21, 22) as high as 70% in some studies (23).
The adaptive immune system represents another major barrier to the long-term viability of xenografts. Although it was initially believed that species incompatibilities between human leukocyte antigen (HLA) and swine leukocyte antigen (SLA) proteins would inhibit effective T cell activation as was seen in pig-to-mouse transplant models, in vitro and in vivo studies have since demonstrated that T cells are directly activated by SLA-TCR binding (24) and costimulatory interactions are not limited by the same pig-to-mouse species incompatibilities (25). T and B cells are also indirectly activated by pig antigens, leading to recruitment of macrophages and NK cells, and elicited antibody production (26, 27). Xenogeneic islets may be particularly vulnerable to T cell mediated rejection as studies have shown that prolonged survival of porcine xenografts in athymic mice (28) and prolonged islet survival using T cell targeted immunosuppression strategies (29). However, as is true in all pig-to-primate transplants, humoral immunity remains a critical obstacle to xenograft survival (30).
Strategies to overcome immune barriers: Encapsulation, genetic modification, and novel immunosuppression
Given these greater immunologic hurdles, several strategies have been developed and studied to prolong xenogeneic islet survival. These include innovative delivery systems with micro- and macro-encapsulation of islets, genetic modification of donor pigs to reduce immunogenicity, and novel immunosuppression using costimulatory blockade. Additionally, while portal vein infusion is the preferred injection site in human islet transplantation, injection sites are more varied in xenogeneic islet transplantation studies. There are not enough comparative studies to draw any conclusions about which injection site is superior, but we will discuss possible advantages of one site (renal subcapsular injection) in more detail later in this review (31, 32).
Innovative delivery systems: Islet encapsulation
Free islet transplantation is standard of care in allogeneic islet transplantation, but immunosuppression is required to achieve modest success in humans—which is associated with increased risks of infectious disease and malignancy—and results remain substandard in pig-to-primate xenotransplantation. Several groups have developed encapsulation technologies to protect islets from immune and inflammatory responses while allowing for uptake of nutrients and release of insulin. Proponents of encapsulation strategies argue that these technologies may prolong xenograft survival without immunosuppression. In broad strokes, these strategies include microencapsulation of islets in alginate matrix, and macro-encapsulation of immobilized islets in bilayered PTFE with a common oxygenation chamber (33). Encapsulated islets are subsequently transplanted in the peritoneal cavity. There have been nationally regulated clinical studies of microencapsulated islets in New Zealand and in Argentina, which confirmed the safety of this technique but failed to demonstrate meaningful clinical impact (34, 35). Macroencapsulation involves utilization of implantable devices with immobilized islets sharing a common oxygenated chamber. These technologies are less studied but there are some encouraging pre-clinical results, including pig-to-primate study in which microencapsulated islets reversed diabetes for 6 months in diabetic NHPs (36–38).
Genetic modification of pig donors
As mentioned earlier, innate immune barriers in pig-to-primate transplantation include preformed natural antibodies (Nabs) to porcine carbohydrate antigens as well as regulatory protein species incompatibilities that lead to dysregulation of complement and coagulation systems. In solid organ xenotransplantation, preformed antibody binding leads to hyperacute rejection of graft; in free islet xenotransplantation, preformed antibody binding leads to an amplified IBMIR with massive islet loss.
The most prevalent natural antibody targets the carbohydrate component (α-1,3-galactose, or “α-gal”) of a cell surface glycoprotein produced by an enzyme (α- 1,3-galactosyltransferase) that is not functional in humans or old-world primates (39). Accordingly, the creation of α-gal knockout (GalTKO) pigs represented a major breakthrough in the field of pig-to-primate transplantation (40–42), with improved xenograft survival in pig-to-primate heart and kidney pre-clinical studies (43–45). The impact of using GalTKO source pigs on xenograft survival in islet transplantation is less conclusive, which may be a function of changes in α-gal expression with islet maturation (46): studies using GalTKO adult pig islets demonstrate no benefit as compared to wild type adult pig islets (47), whereas studies using GalTKO neonatal islet cell clusters show increased rates of insulin independence (48). Other natural antibody targets include Neu5Gc made by the cytidine monophosphate-N-acetylneuraminic acid hydroxylase (CMAH) enzyme, and the blood group antigen SDa, made by β-1,4-N-acetyl-galactosaminyl transferase 2 (β4GALNT2) (49, 50). Cells from triple knockout (Gal, CMAH, and β4GALNT2 deficient) demonstrate reduced human antibody binding in vitro, but more studies are needed to determine whether elimination of all three genes is necessary in pig-to-primate solid organ and islet transplantation (51, 52).
Species incompatibilities between pig and human complement regulatory proteins pose another innate immune barrier to xenograft survival. These incompatibilities and the ensuing complement dysregulation may be circumvented through creation of “transgenic” pigs expressing human complement regulatory proteins, including hCD46, hCD55, and hCD59. Although expression of individual complement regulatory transgenes may not significantly reduce incidence of IBMIR (47), xenograft survival may be improved when combining carbohydrate antigen gene knockouts with complement regulatory transgenes: xenogeneic islets from multiply modified pigs (GalTKO + hCD55 + hCD59 or GalTKO + hCD39 + hCD46) demonstrated attenuated IBMIR and reduced islet loss (53, 54), and more recently, improved islet function and survival with insulin independence >1 year in a pig-to-baboon pre-clinical model (55). Although creation of multiply genetically modified pigs was challenging and prohibitively slow 20 years ago, the recent development of rapid gene editing tools including CRISPR-Cas9 has transformed production and availability of these multiply modified animals.
Novel immunosuppression
Advances in genetic engineering have enabled researchers to overcome key innate immune barriers in pig-to-primate transplantation, but vigorous B and T cell responses limit the long-term viability of xenografts. Standard immunosuppression regimens used in allotransplantation do not work in solid organ pig-to-primate xenotransplantation (56), as humoral immunity, which is difficult to control with standard immunosuppression regimens, plays a dominant role in rejection of xenografts. The CD40-CD154 pathway influences T cell-dependent antibody production, and modulation of this costimulatory interaction seems to be critical for rejection-free survival in heart and kidney xenograft transplantation (45, 56–58). Costimulation blockade has also proven important in pig-to-primate islet transplantation: immunosuppressive regimens including blockade of CD40-CD154 pathway are associated with prolonged islet survival and insulin independence in diabetic recipients (29, 55, 59, 60).
Unfortunately, anti-CD154 may be thrombogenic, raising concerns about the clinical applicability of these immunosuppression regimens (11, 61–63). Given these concerns, other groups have tried to replicate earlier results with regimens that do not include anti-CD154. Shin et al found that regimens replacing anti-CD154 with both tacrolimus and anti-CD40 (210R4) prolonged islet survival, although these regimens remained inferior to those containing anti-CD154 (64, 65). Higher doses of anti-CD40mAb may be needed to achieve the same results, as suggested by results from heart xenotransplantation studies (66). Another group has demonstrated prolonged islet survival with regimens targeting lymphocyte function-associated antigen 1 (LFA-1) instead of costimulation blockade (67). Although encouraging, additional studies using anti-LFA-1-based immunosuppression regimens are needed.
Strategies to overcome immune barriers: Tolerance induction
Despite remarkable progress with gene editing and new immunosuppression protocols, these studies suggest that the adaptive immune responses—particularly antibody-mediated rejection—continue to limit the long-term viability of these transplants. Accordingly, strategies to induce tolerance may be a necessary adjunct to immunosuppression in clinical xenotransplantation. The tolerance strategies discussed here include regulatory T cell (Treg) infusions, mixed hematopoietic cell chimerism, and thymus transplantation.
Induction of tolerance with Tregs in islet transplantation
Regulatory T cells (Tregs) have been shown to play a key role in preventing rejection of transplanted allografts (68) via prevention of effector T cell responses and even inhibition of innate immune responses (69). This organic peripheral tolerance, mediated by host Tregs, has given rise to a targeted strategy to induce tolerance with transfer of in vitro culture expanded Tregs (70). Recipient culture expanded Tregs, also called autologous polyclonal Tregs, have been shown to promote tolerance of co-transplanted islets across allogeneic barriers in mice and are under active investigation in clinical allogeneic islet transplant trials in humans (NCT03444064) (71).
Autologous polyclonal Tregs may also promote tolerance across xenogeneic barriers. Treg infusions have been shown to delay porcine islet xenograft rejection in mouse models through control of effector T cell function (72). However, results of large animal islet xenograft transplantation with autologous Tregs have been mixed: although some animals have been able to achieve insulin independence while on immunosuppression, cessation of immunosuppression leads to complete rejection of islet grafts (73). To date, pre-clinical and clinical studies of culture expanded Tregs in allogeneic and xenogeneic islet transplantation have failed to show durable tolerance and have failed to consistently achieve insulin independence. Still, autologous polyclonal Tregs remain attractive to investigators given their safety profile and promising data from mouse experiments: one of the only ongoing clinical trials in porcine islet xenotransplantation uses autologous polyclonal Tregs in patients with Type 1 DM (NCT03162237) (71).
Mixed hematopoietic cell chimerism
Another strategy to induce donor-specific immunologic tolerance involves combined organ and hematopoietic stem cell transplantation (HSCTx) from the same donor. When HSCTx is performed after non-myeloablative conditioning, donor hematopoietic cells coexist with recipient cells, resulting in “mixed” chimerism—in contrast to “full” chimerism, seen after myeloablative conditioning, where no hematopoietic cells of recipient origin are present and recipients may be at risk for immune-incompetence (74). This strategy has been used to achieve tolerance of allogeneic kidneys in multiple clinical studies (75–77), and has been shown to promote survival of allogeneic islets after withdrawal of immunosuppression in NHP pre-clinical models (78). However, it has proven more challenging to reproduce these results and establish mixed chimerism across xenogeneic barriers. Early studies demonstrated successful tolerance induction in pig-to-mouse transplantation models (79, 80), but xenogeneic cells are rapidly eliminated after HSCTx in pig-to-primate transplantation models (81, 82). There has been recent progress in this area. The insertion of a human macrophage inhibitory protein, hCD47, prevents phagocytosis of porcine hematopoietic stem cells and prolongs both chimerism and donor skin grafts in a pig-to-baboon skin transplant model after HSCTx (83). Additionally, injection of porcine hematopoietic stem cells directly into recipient bone marrow has also been shown to prolong chimerism and even achieve bone marrow engraftment in recipient NHPs (Figure 1) (84, 85). Combining these techniques may have synergistic effects, but chimerism is lost by 60 days after HSCTx. More work is needed to reliably establish mixed chimerism across xenogeneic barriers in large animal studies before this strategy can be applied to islet xenografts.

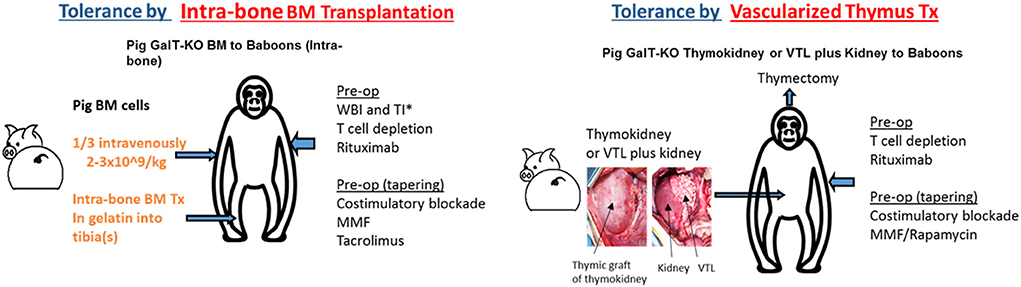

Figure 1. Two major strategies for the induction of tolerance of xenograft in the author's laboratory: (1) Intra-bone bone marrow transplantation followed by solid organ transplantation, (2) Co-transplantation of vascularized thymic grafts with solid organs.
Vascularized thymic graft transplantation
Although less studied in clinical transplantation, vascularized thymic graft transplantation has been shown to be a powerful strategy to induce tolerance in pre-clinical models. The thymus plays a critical role in deletion of autoreactive T cells, and so it was hypothesized that thymic tissue transplantation may promote tolerance via central deletion of donor-reactive T cells. This theory was validated in mouse models across allogeneic barriers, and subsequently validated in pig-to-mouse studies which demonstrated that transplantation of devascularized porcine thymic tissue enabled tolerance of porcine skin grafts via central deletion of pig-reactive T cells (86). However, devascularized thymic tissue was rapidly rejected in large animal models. To avert this prompt destruction of implanted thymic tissue before it was able to participate in tolerance induction, techniques were developed to transplant vascularized thymic tissue. These included (1) pre-vascularization of thymic tissue underneath donor kidney capsule with subsequent transplantation of composite thymus and kidney (“thymokidney”), and (2) tracing diminutive thymic vessels to their larger originating vessels, and transplanting thymic tissue with larger source vessels as a vascularized thymic lobe (Figure 1) (87, 88). Unlike previous attempts to induce tolerance in large animals using devascularized thymic tissue, these vascularized thymic grafts facilitated donor-specific tolerance across allogeneic and xenogeneic barriers (89–91). When GalTKO pigs first became available, the addition of vascularized thymic grafts to GalTKO pig-to-NHP kidney transplant extended kidney xenograft survival from 29 to 83 days (43). Combining vascularized thymic graft transplantation with novel immunosuppression including costimulatory blockade and CTLA4-Ig has yielded further improvements, with survivals now reliably >6 months using GalTKO pigs without additional genetic modifications (45).
Vascularized thymic graft co-transplantation has been demonstrated to be one of the most effective strategies to induce tolerance and prolong xenograft survival in pre-clinical pig-to-NHP studies and may be a key component of the first clinical trials in pig-to-human kidney transplantation. Indeed, this tolerance strategy was employed in two highly publicized pig-to-human kidney transplants in brain dead patients at New York University in 2021 (NYTimes, October 21st, 2021).
One of the challenges with islet transplantation for diabetes is that the morbidity associated with immunosuppression already limits the potential recipients: current data only supports human islet transplantation or pancreas transplantation for specific indications including hypoglycemic unawareness or concurrent renal disease. Accordingly, despite encouraging results with pig-to-NHP vascularized thymic grafts co-transplanted along with kidneys, thymic graft transplantation is invasive and may be difficult to justify in conjunction with porcine islets in patients with diabetes alone. As we will discuss in the next section, diabetic nephropathy presents a specific—and growing—indication for a new technique designed to combine islet-preservation and tolerance strategies.
Cure for diabetic nephropathy using composite islet-kidney + vascularized thymic lobe transplantation
Diabetes is a major cause of ESRD and is a risk factor for perioperative mortality and premature graft loss after kidney transplantation. The senior author of this review developed a strategy to cure both diabetes and end stage renal disease with transplantation of porcine composite islet-kidney along with vascularized thymic graft (Figure 2) (88–90). As detailed above, xenogeneic islets are susceptible to destruction by both innate and adaptive mechanisms. This strategy counters innate immune destruction of islets by circumventing the typical pathway that triggers IBMIR, which is amplified in xenogeneic islet transplantation, and takes advantage of the relative immune privilege of the kidney. Porcine islets are isolated and pre-vascularized under autologous renal capsule, with subsequent transplantation of composite islet-kidney (92). Preclinical allotransplantation studies in pigs and in NHPs have demonstrated that this procedure preserves islets, likely by limiting innate immune destruction: diabetes is cured in animals who undergo composite islet kidney transplantation, while animals who undergo conventional free islet injection with the same islet equivalents (IEQs) remain insulin dependent (93, 94). Combined islet-kidney transplantation for patients with diabetic nephropathy also allows for co-transplantation of vascularized thymic grafts, which is one of the most promising tolerance induction strategies in pig-to-NHP kidney xenograft transplantation and may effectively counter B and T cell-mediated islet destruction.
Figure 2. Composite Islet-Kidney preparation and transplantation.
On a practical level, this strategy tilts the risk-benefit calculus in favor of islet transplantation. Patients receiving kidney graft have already committed to lifelong immunosuppression, and so concerns about long-term consequences of immunosuppression are not relevant when considering co-transplantation of islets. Similarly, patients receiving kidney graft have already committed to an operation, and so may receive vascularized thymic grafts without need for an additional invasive procedure. Lastly, islets transplanted in islet-kidney grafts are localized and easy to remove with the kidney graft in the event of rejection, whereas free islets injected into the portal vein are diffusely engrafted throughout the liver and not amenable to removal. Ongoing research will confirm whether these approaches are specifically effective for pig-to-NHP islet transplantation, but combined islet-kidney xenograft transplantation for diabetic nephropathy is a promising strategy for a targeted population.
Conclusion
Clinical islet transplantation is limited by a relatively static supply of donor pancreases. Porcine islet xenotransplantation has long been proposed as a solution to this organ shortage, but enthusiasm for islet xenotransplantation waned in the face of mixed results from pre-clinical and early clinical studies. However, progress in the field of kidney and heart xenotransplantation with the development of rapid genome editing technologies, novel immunosuppression regimens, and even tolerance induction strategies has led to significant improvements in pig-to-NHP heart and kidney graft survival in recent years. As described in this review, these broader developments in xenotransplantation have contributed to specific improvements in pig-to-NHP islet xenograft transplantation, with recent studies demonstrating reversal of diabetes with costimulation-based immunosuppression protocols using islets obtained from multiply modified pigs (55).
Recent pig-to-human heart and kidney xenograft transplants have recaptured the popular imagination. As the transplant community nears clinical trials in pig-to-human heart and kidney xenograft transplantation (https://www.wsj.com/articles/fda-said-to-plan-pig-organ-transplant-clinical-trials-11656622411), there is renewed interest in clinical islet xenotransplantation. Given recent progress, there may be adequate pre-clinical efficacy and safety data to initiate select clinical trials within targeted patient populations, according to guidelines established by the International Xenotransplantation Association (11). The results of ongoing pre-clinical studies focusing on further genetic modifications of donor pigs, optimizing costimulation blockade without anti-CD154 mAb, and applying tolerance-inducing strategies to pre-clinical islet xenotransplantation will provide more clarity on the question of when islet xenotransplantation will become a viable clinical solution to diabetes.
Author contributions
DE: oversaw drafting of the review paper. YH and MS: participated in data analysis of the cited references. KY: oversaw outlining and finalizing the review paper. All authors contributed to the article and approved the submitted version.
Funding
This research was partially supported by NIH grant U01 AI152881.37.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher's note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
