Wastewater treatment plants (WWTP) are among the largest energy consumers in municipalities and cause high operating costs. At the same time, many WWTPs produce biogas and have immense untapped potential for the integration of heat pumps (HP). District heating operators are looking for new possibilities to diversify their heat production portfolio and to provide cheap and clean heat to their customers. In our work, we investigate the case study of the WWTP Gleisdorf (Austria) and propose a combination of biogas utilization and heat pump integration to deliver heat for all internal thermal processes as well as to a 1,000 m heat connection line (HCL) toward the district heating network. The net annual costs of different scenarios were calculated for economic comparison. Negative net annual costs mean net annual savings. The reference scenario (biogas combined heat and power, no HCL, no HP; net annual costs of −51,000 €/year) is compared with three different heat pump integration options (HP-IO). The HP-IOs are considering different hydraulic connections, flow temperatures, and heat exchanger placement. The HP-IO-1 focuses on the low-temperature internal demands, but proves to be too limited to balance out the high cost of the HCL. HP-IO-2 operates at higher temperatures (75°C) leading to the lowest efficiency, but ultimately achieving the lowest net annual costs (−57,700 €/years with a 750 kWth HP). HP-IO-3 uses a serial heating concept trying to take advantage of lower flow temperatures while also delivering heat to the district heating network. At 300–400 kWth this leads to net annual costs of −50,100 €/years. The price ratio of 0.5 (40 €/MWh selling price of heat to 80 €/MWh purchasing price of electricity) are varied to analyze the sensitivity of the results. HPs already play an increasing role in the district heating sector, using sewage water as a heat source. The combined analysis of biogas utilization, HP integration options and the thermal as well as electrical demands of WWTP and district heating networks allow the determination of the most viable option.

Introduction—What is the Problem

The conventional municipal biological wastewater treatment is an energy-intensive process. Vast amounts of potential energy (bound in carbon) and valuable nutrients (e.g., nitrogen and phosphorus) are destroyed by energy-intensive aeration.

The specific energy consumption highly depends on the size of WWTP, as shown in Table 1. The project ENERWATER provides a database collecting energy benchmarks of 473 WWTPs worldwide, of which 177 provide data on energy consumption and actual plant capacity.

TABLE 1
www.frontiersin.org

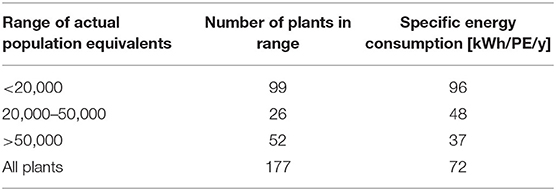

Table 1. Specific energy consumption in dependency of plant capacity in actual population equivalents (ENERWATER, 2018).

Self-Sufficiency Through Biogas CHP

There are two aspects in regard of energy balancing in WWTPs: On the one hand, self-sufficiency is the goal of each WWTPs; thus it is also the aim of the scientific community to achieve or improve self-sufficiency. Examples are the work of Jenicek et al. (2013), Wang et al. (2016), and Bertanza et al. (2018) who reported on how to achieve self-sufficiency, all focusing on different biogas fired combined heat and power plants (CHPs). On the other hand, the WWTP has the potential to provide energy to the energy network and thus exceeding self-sufficiency, especially if co-substrates are added as demonstrated by Aichinger et al. (2015) and Nowak et al. (2015). Gandiglio et al. (2017) has shown how to improve energy efficiency through co-substrates and a fuel cell as CHP equipment.

Exceeding self-sufficiency means, that additional heat and electricity is available for external consumers or future additional internal consumers. WWTPs have a strong focus on electrical efficiency. For thermal efficiency there is a lack of motivation for WWTP providers, due to heat surplus from biogas utilization. This is true if following boundary conditions are fulfilled: (a) there is an anaerobic digester producing biogas efficiently and (b) there is no sludge drying on site or other large thermal energy consumers (e.g., membrane distillation as in the case study). Usually, the leading thermal energy consumer is the digester that needs to maintain its temperature at 38°C for the anaerobic process if operated in mesophilic conditions. From an exergetic point of view, this would be ideal for low exergy technologies like solar thermal collectors or heat pumps. However, due to the heat surplus from biogas utilization such options are often not pursued.

One option is the increased interaction with the energy networks must be expanded in order to utilize those potentials. While connections to the electricity grid are existing, the connection to the gas grid is optional (either natural gas consumption or biomethane delivery). Further, the connection to the district heating network hardly exists. In the case study, which is introduced in section Case Study Gleisdorf a connection with the district heating network is analyzed.

The WWTP offers ideal internal infrastructural conditions to act as a turnstile between those different energy networks (gas, heat, and electricity). New technologies, systems, and business models are needed to achieve this goal. The combined assessment of WWTPs and energy networks is necessary to investigate synergies and to decide which technologies and systems are best from an energetical, economic, and ecological point of view. Thus, methods and tools are required to investigate, analyze, and evaluate future scenarios where WWTPs apply such technologies and systems. LCA (Life Cycle Assessment) is a suitable method to explore different technologies, product pathways, and energy utilizations. For instance, Pasqualino et al. (2009) applied LCA to compare different biogas utilizations and sludge applications or Piao et al. (2016) used LCA to compare different waste sludge disposal methods. In Godin et al. (2012) a new LCA approach was introduced called net environmental benefit (NEB) to account for the influent wastewater quality specifically. The DEST (Decision Support Tool) introduced in section General description of the Decision Support Tool DEST has been developed by the authors to allow a broad audience the investigation of the scenarios mentioned above.

Biogas utilization is usually done in a combined heat and power (CHP) plant and reduces the internal demand for electricity and heat. Flaring of biogas is necessary if the biogas production exceeds biogas demand. Shen et al. (2015) gave an overview of the biogas production and utilization at WWTP in the United States and found that <10% of WWTPs in the United States produce biogas and that most biogas is either flared or used internally. In Austria, the majority of WWTPs with a capacity of >20,000 PE have a digester and thus produce biogas (Assmann et al., 2019).

Pöschl et al. (2010) highlighted alternative biogas utilization measures-like biomethane injection into the natural gas grid, showing the increase of energy efficiency by means of upgrading biogas to a more valuable energy carrier (biomethane). The possible trend toward biomethane injection would require alternative heating equipment for the internal thermal demands of the WWTP.

Heat Pumps in the Context of WWTP and District Heating

HPs have received increased attention in the decarbonization of the space heating sector. The applications of HPs using sewage water as a heat source and space heating as heat sink are growing. Hepbasli et al. (2014) and Culha et al. (2015) give an overview of different HP systems in the wastewater area. Hepbasli et al. (2014) estimates around 500 such systems to be in operation worldwide. There is significant potential of HP in wastewater systems (sewage or WWTP effluent) as stated by paper covering Austria (Neugebauer et al., 2015; Kretschmer et al., 2016), Hungary (Somogyi et al., 2018), Netherlands (Frijns et al., 2013), or China (Chae and Kang, 2013).

Heat pumps using sewage water as heat source is increasingly interesting for district heating operators. Neugebauer et al. (2015) have shown the potential of heat pumps at WWTPs to provide heat to urban areas, considering the actual distances between WWTPs and dense/sparsely populated settlement areas and stated that it is feasible to reduce up to 17% of the global warming potential for space heating in Austria. Averfalk et al. (2017) have given a good overview of the operation experiences of large heat pumps installed in the 1980s. The majority of the installed heat capacity of 1,200 MWth uses sewage water as heat source. While the original reason for the installations was a Swedish electricity surplus from nuclear power, the aim nowadays is to use the existing capacity for stabilizing the increasingly fluctuating European electricity grid. Similarly, in a recent paper Terreros et al. (2020) investigated electricity market options for heat pumps in rural district heating networks in Austria. They found that with sewage water as heat source the heat generation cost for district-heating operators can be reduced by 27.5% if compared to a biomass boiler. The current study does not focus on the cost benefits of electricity market products, but rather on constant electricity prices.

Electricity Price

The electricity price is crucial for an economical operation of a HP. Figure 1 shows the trend of the electricity price of the last 5 years for non-household consumers between 500 and 2,000 MWh/years (Eurostat, 2020). Austria has a lower electricity price compared to the EU28 (109 €/MWh in the second half of 2019), while the neighboring countries Germany and Czechia represent the wide range of prices in the EU. The electricity price of the case study is discussed in section Case Study Gleisdorf. The WWTP of the case study consumes 1,040 MWh/year.

FIGURE 1
www.frontiersin.org

Figure 1. Electricity price incl. production and network cost excle. VAT and other recoverable taxes for the half-years 2015–2019 for non-household consumers between 500 and 2,000 MWh/year (Eurostat, 2020).

Materials and Methods

Case Study Gleisdorf

The WWTP Gleisdorf is located in the region of Styria, Austria, and has currently a designed capacity of 32,000 population equivalent (PE). The actual capacity is in average 29,183 PE based on the COD load in 2018 and exceeds the designed capacity at times. Thus, an expansion of the WWTP to 49,000 PE is in the pre-planning phase.

The daily influent water of 2018 was in average 6,420 m3/d with 545.5 mg/l COD, 50.8 mg/l nitrogen, and 9.0 mg/l phosphorous. The monthly temperatures of the influent water were between 9.4 (February) and 20.4°C (August) (details in Table 3).

The boundary conditions for the analysis was the expected plant outline from a pre-planning phase. Thus, the current equipment which will be decommissioned is not explained in detail. The WWTP has currently no primary treatment to recover primary sludge (e.g., sedimentation or micro sieve), but in the expansion process, primary sedimentation shall be installed with 1 h retention time and 268 m3 volume.

The main treatment has nitrification and denitrification in alternating operation in four aeration basins of 1,725 m3 plus a selector basin with 300 m3 totaling to 7,200 m3. There is no addition of carbon in the aeration basins as well as no co-substrates in the digester. Phosphorous precipitation is done with iron salts and the basins are equipped with surface aerators. The two secondary clarifiers with 2,430 m3 and 1,550 m3 are equipped with shield scrapers to remove excess sludge which is partly returned to the aeration basins or treated in the digester. The current digester has only 400 m3 but will be replaced with a new one, the volume of the digester has been defined in the base scenario with 1,312 m3.

The integration of a nitrogen removing technology (in the presented case through the thermal driven membrane technology membrane distillation) will be installed, recovering nitrogen as ammonia from the return water of the centrifuge. The membrane distillation is included in all scenarios to consider its thermal energy demand.

There is no natural gas grid connection at the WWTP. A biogas boiler converts the biogas to thermal energy. In the current state of the WWTP Gleisdorf, 11% of the biogas must be flared. The biogas boiler will be replaced by either a biogas CHP or a biogas boiler.

The electricity price of the WWTP is below the Austrian average (compare with Figure 1) and a 280 kWpeak photovoltaic plant on the compound is also influencing electricity costs, leading to the electricity prices used in the study as outlined in Table 5.

The district heating network in Gleisdorf is biomass-dominant (75% of produced heat) with natural gas as back-up (20%) and several solar thermal plants (5%). The district-heating network is adding new customers and requires additional heating capacities. Although the existing natural gas boilers still have open capacities in winter, the operators are committed to the goal of maintaining 80% renewable share in the short term and to achieving 100% renewable share in the long term. The district heating requires a minimal flow temperature of 70°C. Recent efforts to reduce the temperature of the return line led to an average temperature of 50°C. This improves the integration possibilities of waste heat from industries, solar heat, and heat pumps.

Methodological Approach

General Description of the Decision Support Tool (DEST)

The Decision Support Tool (DEST)1 is an openly available tool to jointly investigate WWTPs and energy networks, thus also is the basis for the presented concept within this paper. The DEST allows a detailed definition of an individual WWTP and the already connected or nearby energy networks (electricity grid, district heat network, and gas grid). It has a strong focus on the thermal balance, thus considering temperature levels and seasonal variability.

The tool requires input in four areas: (1) Definition of inlet data as daily average values, (2) Definition of applied technologies categorized in six clusters (primary treatment, secondary treatment, sludge treatment, energy conversion, nutrient recovery, and trace element elimination) including emerging technologies, (3) Definition of further specifications certain technologies may require, and (4) Definition of all three energy networks in terms of geographical distances, available energy load, or monthly demands as well as the purchase and selling price of all three energy types.

The wastewater treatment is calculated based on internationally well-known guidelines for the dimensioning of activated sludge treatment plants (DWA, 2016). The energy conversion is based on energy balances of electricity, heat (considering temperature levels), and gas. Similarly, mass balances for carbon (using the parameter COD—chemical oxygen demand) and nitrogen (considering its different forms) are made.

Economic analysis is done based on net annual costs. Investment costs are split into two types (construction and machines) and the annuity is calculated for both. Together with the yearly costs and revenues the net annual costs are calculated. For the ecological analysis, the greenhouse gas emissions (GHG) at the WWTP are considered (CO2, CH4, and N2O) but also the indirect emissions due to energy consumption.

The relevant methods used in the DEST to analyze energy-related scenarios are explained below.

Technical Data

All calculation are based on the parameters from Tables 2, 3 focusing on the energy concept including biogas utilization and heat pump integration.

TABLE 2
www.frontiersin.org

Table 2. Relevant parameters for energetic analysis.

TABLE 3
www.frontiersin.org

Table 3. Monthly energy demands and temperatures of the case study.

Heat Demand Calculation in DEST

The monthly(m) thermal demand of the digester is calculated based on the thermal energy balance as shown in Figure 2. It considers the inlet mass and temperature of the combined primary sludge from the primary sedimentation and excess sludge from the secondary sedimentation as well as heat losses to the ambient (Equation 1).

QDig,(m)=min*cpsludge*(TDig-Tin)*10003600+kDig*ADig                      *(TDig-Tamb,(m))*24*36001000    (1)

The membrane distillation requires constant thermal power. An internal heat exchanger preheats the inlet mass flow and thus reduces the external thermal demand. Consequently, the daily heat demand for the membrane distillation is calculated based on Equation (2).

QMD,(m)=mMD*cpwater*(Ttarget-Tpreheat)*10003600    (2)

The thermal energy demand of the WWTP (Table 3) has been considered in its seasonal variation. The space heating QBui, (m) has been derived from heat meters on site. The determination of the heat demand of the digester and membrane distillation is derived from Equations (1, 2). The district heating demand QDH, (m) are values from 2018 and were provided by the local district-heating operator.

FIGURE 2
www.frontiersin.org

Figure 2. Thermal energy balance of the digester.

Heat Pump Calculation in DEST

The thermal energy balance is performed on a monthly basis, thus accounting for the seasonal changes in heat demand and sewage temperature. The COP (co-efficient of performance) of the heat pump is calculated based on the Carnot cycle where the condensation (TCond) and evaporation temperature (TEva) of the refrigerant in the heat pump is considered (Equation 3). A constant Carnot efficiency (ηCarnot = 0.55) accounts for losses and inefficiencies of the heat pump and is thus the ratio of the real heat pump to the ideal Carnot cycle.

The temperature gradient between the cold and hot side of both the condensation and evaporation heat exchanger is defined with 5 Kelvin (ΔTHX). Thus, the condensation temperature (TCond) must be always 5 Kelvin (ΔTHX) higher than the flow temperature (TDistri) of the hydraulic distribution (Equation 4). The flow temperature depends on the HP-IO and varies between 60 and 75°C. The evaporation temperature TEva must be always ΔTHX lower than the temperature of the effluent water (TEfflu, (m)) (Equation 5). Due to the seasonal variation of the effluent water (Table 3) the COP(m) is also changing throughout the year.

COP(m)= TCondTCond-TEva,(m)*ηCarnot    (3)
TCond=TDistri+ΔTHX    (4)
TEva,(m)=TEfflu,(m)+ΔTHX    (5)

In the current version of the DEST, three heat pump integration options (HP-IO) have been implemented. Each HP-IO has advantages and disadvantages in regards to hydraulic flexibility and simplicity, electric efficiency and maximal thermal capacity. The HP-IOs are explained in section HP-IO-1—For Internal Usage Only. The target temperature of the heat pump must reach the required temperature of the heat consumers.

Method of Economic Calculation in DEST

For the findings of this study, the net annual costs of the heat connection line NCHCL, the CHP (or boiler) NCCHP and the heat pump NCHP have been summed up to the total energy-related net annual costs (NCEn) in Equation (6).

Negative net annual costs mean actual savings, positive net annual costs refer to actual costs.

NCEn=NCHCL+NCCHP+NCHP    (6)
NCx=Annuity Invest+ Annual Cost         -Annual Revenue    (7)
nnuity Invest=C*(1+i)n*i(1+i)n-1    (8)

Net annual costs of each equipment NCx are considering the annuity of the investment, the annual costs and the annual revenues. The investment (C) is broken down to annual costs considering interest rate (i) (3% for all investments) and operating lifetime (n) of the individual equipment (Table 4). The costs include the operating cost formulas from Table 4, the HP additionally includes costs for electricity consumption. The revenues from producing heat and electricity are calculated based on the energy balances of demand and supply and using the prices from Table 5. No investment subsidies are considered in the analysis.

TABLE 4
www.frontiersin.org

Table 4. Investment costs of relevant equipment.

TABLE 5
www.frontiersin.org

Table 5. Price ratios of electricity price to heat selling price.

Economic Data

All relevant investment costs, operating costs, and operating lifetimes have been summarized in Table 4. CHP costs functions were publicly available in a satisfying quality based on longtime experiences from existing biogas CHPs (ASUE, 2014, p. 11–16). The particular application of the heat pump with wastewater heat exchanger and digester heat exchanger made it necessary to make inquiries at manufacturers and engineering companies. Based thereon, the investment cost function was determined for the study.

To simplify the evaluation of price variations three price ratios have been defined and summarized in Table 5. The electricity prices in Austria have been around 100 €/MWh for non-household consumers in the last 5 years (Figure 1). The prices have risen to 109 €/MWh in the second half of 2019. The investigation of lower prices (80–100 €/MWh) is justified with the actual electricity prices of the WWTP Gleisdorf considering their electricity bill and internal cost calculation of a 280 kWpeak photovoltaic plant.

The heat selling price is used for internal and external use of heat produced by CHP, boiler, and HP. The electricity price is used for the CHP electricity production and the HP electricity consumption.

Solution Approach

Heat Connection Line (HCL)

In order to go beyond self-sufficiency, maximize energy potentials at the WWTP and provide renewable heat sources to the DH, a heat connection line between WWTP and DH is investigated.

The proposed heat connection line is 1,000 m long. It starts from the digester area at the WWTP Gleisdorf and ends at an identified hydraulic connection point at the district heating network (Figure 3).

FIGURE 3
www.frontiersin.org

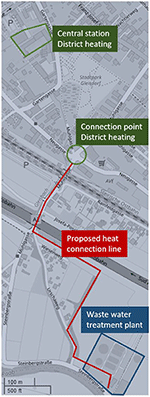

Figure 3. Heat connection line from wastewater treatment plant to the connection point of district heating network (OpenStreetMap, own drawing).

Heat from biogas utilization and a heat pump (using the effluent as a heat source) will be used to cover all internal WWTP heat demands and a certain share of the district heating demand.

Hydraulic Scheme of WWTP Thermal Network

The hydraulic scheme of the suggested concept is shown in Figure 4. A heat pump uses the effluent water as heat source to provide heat internally (HP-IO-1) or both internally and externally (HP-IO-2 and -3). The design flow temperature on the heat pump also varies depending of the HP-IO but is always between 60 and 75°C. All internal thermal demands (digester, buildings, and membrane distillation) can sufficiently be covered with 60°C flow temperature.

FIGURE 4
www.frontiersin.org

Figure 4. Flow sheet of the WWTP Gleisdorf with three heat pump integration options (HP-IO) and the corresponding usage of thermal heat from a CHP or biogas boiler (own drawing). HP-IO-1 HP for internal heat demand only, thus 60°C is sufficient. Heat from CHP/boiler covers remaining internal heat demand and provides rest to heat connection line. HP-IO-2 HP provides 75°C and can thus provide heat to internal and external heat demands. HP-IO-3 HP is operated at either 60, 65, or 70°C covering all internal heat demands and pre-heats the return of the district heat connection line to 55, 60, or 65°C. Note that only changes to HP-IO-3 are shown in the separate boxes of HP-IO-1 and- 2.

The required flow temperature of the DH is 70°C and the return temperature is 50°C. A hydraulic separation between the DH-network and the WWTP-network is necessary. Therefore, the WWTP-network must supply a temperature spread of 75/55°C.

HP-IO-1—for Internal Usage Only

The HP is designed to cover the heat demand of the WWTP. If the heat demand is not met, heat from the biogas utilization must cover the remaining demand. Surplus heat from the CHP is provided to the DH. The design and operation are simple. Low temperatures in the internal hydraulic distribution lead to a high COP of the HP. The hydraulic connection with the DH is simple. However, the size of the HP is limited to the internal demand of the WWTP.

HP-IO-2—Parallel Heating

The HP is designed to meet the temperature level of the DH directly. The temperature must reach at least the flow temperature of the DH (75°C), which leads to a low COP. On the other side, a large HP can be installed and the operation is flexible since there are no temperature constraints. Again, the hydraulic connection to the DH is rather simple.

HP-IO-3—Serial Heating

The HP is designed for internal usage plus preheating of the DH return line. The CHP heat must cover the remaining temperature increase for the DH. Thereby the HP serves as a leverage for the limited CHP heat. The higher the target temperature of the HP is, the more heat can be sold to the DH. Thus, three different target temperatures for HP are investigated (60/65/70°C). The hydraulic system is rather complex and the operation control must ensure all demands are met.

Results

Reference Scenario CHP

The reference scenario is the utilization of biogas in a CHP with neither a heat pump nor a heat connection line. Figure 5 shows the thermal energy balance of the reference scenario.

FIGURE 5
www.frontiersin.org

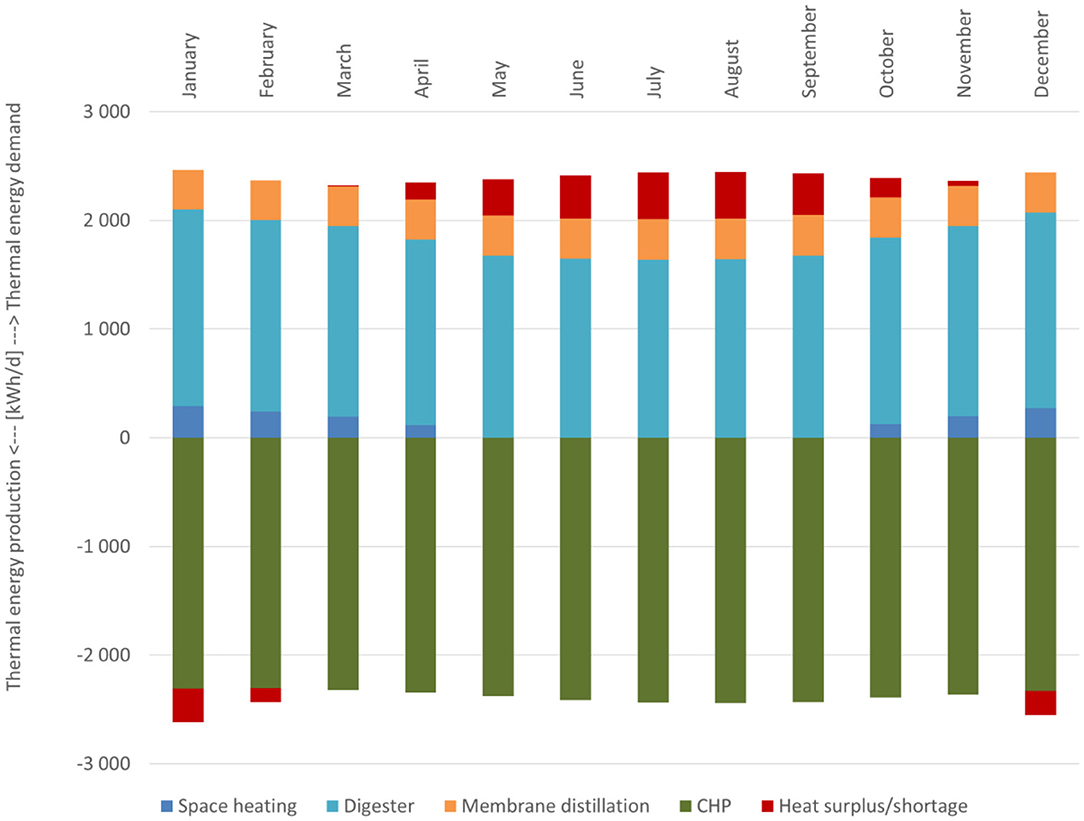

Figure 5. Thermal energy balance of reference scenario. Above x-axis … thermal energy demand [kWh/d]. Below x-axis … thermal energy production [kWh/d]. Heat surplus/shortage indicates imbalances.

The heat from the CHP covers 98% of the internal thermal demand. No additional heating equipment for the reference scenario is used for the remaining 2%, instead the remaining heating demand is covered by an electrical heater.

In the summer months 10% of the produced waste heat cannot be used and are thus subtracted from the revenues of the CHP. In Table 6 the net annual costs of CHP and heat connection line are shown. The CHP has different net annual costs due to different price ratios. The reason for the highest annual cost at the price ratio of 0.5 are the actual prices behind the ratios (as shown in Table 5). The ratio of 0.5 has the lowest prices, thus the highest costs for the CHP. Surplus heat in summer and heat shortage in winter lead to the actual net annual cost of the CHP (NCCHP).

TABLE 6
www.frontiersin.org

Table 6. Net annual cost (€/year) of CHP.

General Explanations of the Results

Figures 610 show the NCEn (Equation 6) for various HP-sizes in connection with the biogas utilization (CHP or boiler) and the HCL. The HCL is included in all scenarios. The available surplus heat from the reference scenario is usable due to the HCL. Heat shortage of the reference scenario is 13 kWth and is thus covered by all HP scenarios with a heating capacity ≥25 kWth. All figures will show negative net annual costs, which can be also seen as positive net annual savings.

FIGURE 6
www.frontiersin.org

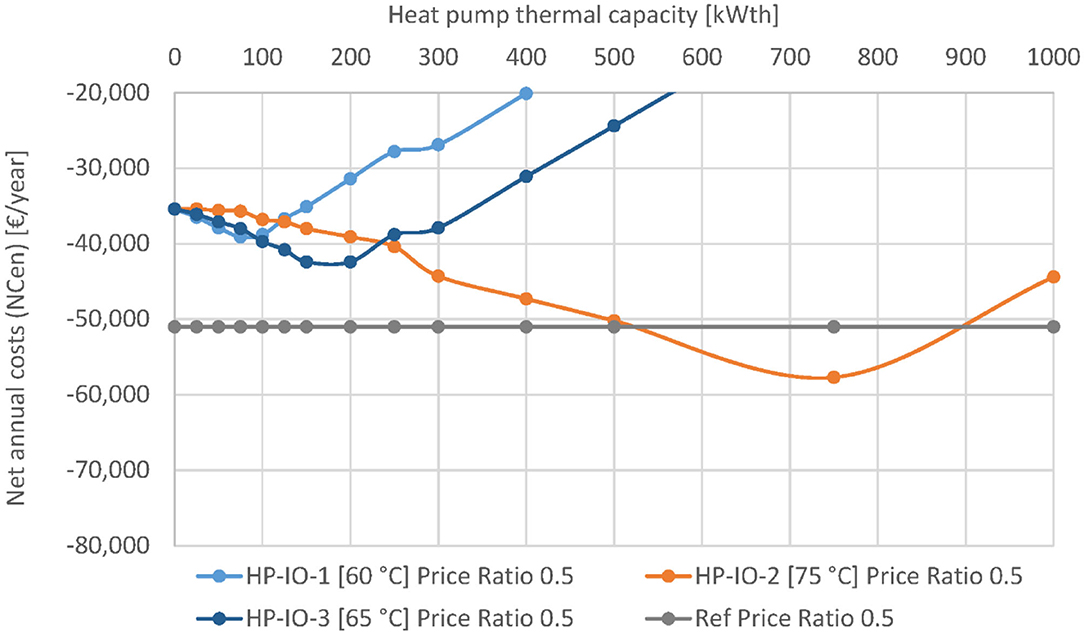

Figure 6. Net annual costs (NCEn) of three heat pump integration options at price ratio 0.5. Negative net annual costs are net annual savings.

If no heat pump is installed (0 kWth), the net annual costs at a price ratio of 0.5 are −33,800 €/year. (CHP Ref: −51,000; CHP Surplus heat usable: −2,900; HCL: +20,100). If the curve starting from the y-axis (no HP) is going downwards, the HP leads to additional savings. The optima for each HP-IO is the lowest net annual cost or the highest net annual savings, respectively. With the increasing size of the heat pump beyond the optima, the net annual costs are going up again. This trend continues for larger heat pump capacities not depicted in Figures 610. The reason for this trend is the decreasing utilization rate of the heat pump. The investment cost for the heat pump is increasing, while the revenue for selling the heat is limited by the actual monthly thermal energy demand.

The HP and HCL together are economically feasible if the total net annual cost is below the reference scenario.

Variation of Heat Pump Hydraulic Options (HP-IO)

Figure 6 shows the net annual costs of the three heat pump integration options (HP-IO) for various sizes between 0 (no) and 1,000 kWth heat pump thermal capacity at the price ratio of 0.5.

HP-IO-1 has the smallest optimum at 75 kWth with −39,000 €/year. This is due to the limited internal demand. HP-IO-2 has higher net annual costs compared to the other options between 0 and 200 kWth due to the worse COP because of the higher target temperature. However, the ideal thermal capacity for HP-IO-2 is 750 kWth resulting in the lowest net annual costs for all options (−57,700 €/year). HP-IO-3 has its optimum between 150 and 200 kWth (−42,400 €/year). At this size it benefits from the better efficiency compared to HP-IO-3 and the higher possible thermal capacity compared to HP-IO-1. At larger capacities, the HP-IO-2 is limited in providing heat to the DH due to only preheating the return line.

The comparison with the reference line shows, that only HP-IO-2 with 500–900 kWth can have lower net annual costs. This indicates the dominant factor of the HCL which is only evened out with a high HP capacity.

Variation of Target Temperature for HP-IO-3

Figure 7 shows the variation of the target temperature for HP-IO-3. Viable target temperatures are 60, 65, and 70°C leading to a preheating of 25, 50, and 75% of the DH flow, respectively (compare to Figure 4). Accordingly, the 70°C-option has the highest thermal capacity of 400 kWth, (−50,100 €/year) while the 60°C-option has an economic optimum of 100 kWth (−41,300 €/year). For comparison, the 65°C-option has already been show in Figure 6.

FIGURE 7
www.frontiersin.org

Figure 7. Net annual costs (NCEn) of HP-IO-3 at three different flow temperatures at price ratio 0.5. Negative net annual costs are net annual savings.

The reference line is only reached by the 70°C-option at 400 kWth HP capacity. Figure 7 shows the effect of the better COP at smaller HP sizes up to 100 kWth, but also indicate the limitation of the return line preheating at lower temperatures.

Effect of the Price Ratio

The price ratio plays a crucial role in the economic feasibility of the suggested concept. Figure 8 shows the HP-IO-3 at 65°C (50% preheating of DH return line) at the three different price ratios. The price ratios have different references as shown in Table 6.

FIGURE 8
www.frontiersin.org

Figure 8. Net annual costs (NCEn) of HP-IO-3 (65°C) at three different price ratios. Negative net annual costs are net annual savings.

At a price ratio of 0.4 the CHP performs best due to the high electricity price. This is also the reason why the HP is never economically feasible, even if the HCL would be already in place. For the price ratios 0.5 and 0.625 the optima are both at 200 kWth. However, only with a price ratio of 0.625 the suggested concept is better than the reference scenario (−58,800 €/year).

Figure 9 shows the 3 HP-IO at a price ratio of 0.625. Even with this favorable price ratio the HP-IO-1 does never perform better than the reference scenario. HP-IO-3 (65°C) (both shown in Figures 8, 9) has its optima at 200 kWth and HP-IO-2 at 750 kWth. Both options perform better than the reference scenario.

FIGURE 9
www.frontiersin.org

Figure 9. Net annual costs (NCEn) of three heat pump integration options at price ratio 0.625. Negative net annual costs are net annual savings.

Effect of Biogas Utilization Options

Figure 8 has shown the net annual costs for HP-IO-3 for three different price ratios There, the biogas is utilized in a biogas CHP which produces both electricity and thermal energy. Another option is the utilization in a biogas boiler into thermal energy. Figure 10 shows the net annual costs for HP-IO-3 (both sources in series, HP at 65°C) for the three different price ratios and biogas utilization in either biogas boiler or biogas CHP.

FIGURE 10
www.frontiersin.org

Figure 10. Net annual costs (NCEn) of the HP-IO-3 (both with 65°C) at three different price ratios and biogas utilization in either biogas boiler or biogas CHP. Negative net annual costs are net annual savings.

Generally, the higher the price ratio, the more favorable is the implementation of a HP and less favorable is the implementation of a CHP vs. a simple boiler. At Price Ratio 0.625 the biogas boiler is always more favorable. At Price Ratio 0.4 the CHP is always more favorable. At Price Ratio 0.5 the CHP is more favorable than the boiler from HP-size 25–150 kWth with a break-even-point at 200 kWth. From there on, the boiler is more favorable than the CHP.

This reveals a second consequence of the decision between CHP and boiler. As shown in Figure 4 (HP-IO-3), the HP preheats the return water of the DH to a defined temperature level. The thermal energy from CHP or the boiler ensures the required temperature of the DH is met. Thus, the more thermal energy the CHP or boiler provides, the more thermal energy can the HP provide. Since the CHP produces less thermal energy than the boiler, the HP is also limited in its heat delivery and has a smaller optimum of thermal capacity.

Discussion

The study investigated the economic feasibility of the case study Gleisdorf. The concept suggested a combination of biogas utilization and effluent water heat pump to provide thermal energy to internal heat demands and to a district heating network via a 1,000 m heat connection line. Three different heat-pump integration-options (HP-IO) were defined and investigated. The net annual cost of the energy relevant equipment (biogas utilization, heat pump, and heat connection line) were analyzed using the Decision Support Tool (DEST).

The aim of achieving high self-sufficiency of electrical and thermal energy via a biogas-CHP proofed to be still the best option in most scenarios. The relatively well-suited coverage of the thermal demand in the reference scenario (2% heat shortage in winter, 10% surplus heat in summer) means little surplus is available for selling to the DH (1,600–2,000 €/years). The inclusion of the membrane distillation in the case study led to this reduced surplus heat. In comparison with the annual net costs for the HCL (20,1000 €/years) means additional revenue must mainly come from the integration of a HP.

For HP integration, the price ratio must be at least 0.5 (in this case 40 €/MWh selling price of heat to 80 €/MWh purchasing price of electricity) to achieve economic savings. All scenarios with a price ratio of 0.4 (40/100) proofed to be not favorable.

The price ratio of 0.5 led to following results: Although HP-IO-2 (parallel heating) requires high temperatures (75°C) and thus a low COP, it achieves lower net annual cost compared to the reference scenario between 500 and 900 kWth HP capacity with a price ratio of 0.5 (−57,700 €/years at 750 kWth compared to −51,000 €/years). The HP-IO-3 (serial heating) was investigated in more detailed due to its more complex hydraulic concept. The trade-off between better COP and higher heating capacity was in favor of the latter. At 70°C flow temperature and a heat capacity between 300 and 400 kWth the net annual costs (−50,100 €/years) are similar to the reference scenario.

With the price ratio of 0.625 the HP-IO-2 and HP-IO-3 are both favored in comparison to the reference scenario. With 750 kWth the HP-IO-2 can achieve up to 73,100 €/years of additional savings. The HP-IO-1 is never favored in comparison to the reference scenario. Due to its limited size it cannot deliver sufficient heat to make up for the high costs of the HCL.

The biogas-CHP is still to be favored in comparison to a biogas-boiler at lower price ratios. The biogas–boilers would allow a higher leverage in the HP-IO-3 and thus increases the HP-optima from 150 to 250 kWth.

The proposed concept for the case study is currently further investigated. A price ratio of 0.6 is the most likely scenario and would allow an actual implementation. The usage of electricity market products as suggested by Terreros et al. (2020) can lead to further decrease of electricity costs. The costs of HCL might be reduced through the construction of a new rain water sewer and synergies in the construction through the overall expansion seem viable at this point.

Besides the economic calculations presented, the implementation of the suggested concept at the case study would have additional benefits: Thermal efficiency measures at the WWTP will receive higher attention, since it has a direct economic effect. The district heating network in Gleisdorf increases its flexibility. The WWTP can cover the heat demand of the summer months and thus avoid operations costs by shutting down biomass boilers completely. In the winter months the biogas utilization and heat pump can react flexibly to varying demand in the DH network.

There are technical, economical, and organizational challenges for a widespread application of the presented concept. Generally, the usage of wastewater as heat source for a heat pump is already proven, however not yet state-of-the-art for WWTPs. From the technical point of view, the wastewater heat exchanger integration in the effluent is easier than an alternative integration in the sewage, because the water is already purified, thus cleaning costs are reduced. However, the distance from the effluent to the next possible integration point of a district heating network is often farther away than the sewage.

Thus, the proximity as well as the operating temperatures and thermal load profile of the existing or potential new district heating networks are techno-economic limitations of the presented concept. The combined approach of examining the whole thermal network (biogas utilization and heat pump integration) can partly overcome these limitations, because higher temperatures can be reached and more heat can be transported. Future price developments of electricity purchase and on-site electricity production (for WWTP operators) and heat production costs (for district heating operators) will significantly affect the economic viability of the presented concept.

There are also organizational challenges for this and similar concepts. As stated before, the focus of the WWTP operators is to achieve self-sufficiency, which is usually achieved by the operation of a biogas-CHP. However, WWTP operators must embrace the idea of going beyond self-sufficiency in order to utilize the existing energy potentials on-site. Being challenged with many other developments affecting their operational and strategic planning, some WWTP operators will be reluctant to open up new fronts. Nevertheless, innovators will see the potential role of the WWTP in the future carbon-free energy system: Being the turnstile of water, electricity, heating, and gas network.

Data Availability Statement

The datasets generated for this study are available on request to the corresponding author.

Author Contributions

WG-G was the main author of the text. HS has drafted the first approach of the text and has revisioned the manuscript. CB worked on the method, problem statement, and solution approach of the text. SM worked on the DEST and on the case study. All authors contributed to the article and approved the submitted version.

Funding

The research presented here was part of the Austrian flagship project ThermaFLEX (FFG No.: 868852) and funded by the Austrian Climate and Energy Fund in the framework of the research initiative Green Energy Lab as part of the Austrian innovation campaign Vorzeigeregion Energie.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Abbreviations

CHP, combined heat and power; COD, chemical oxygen demand; COP, coefficient of performance; DEST, decision support tool; DH, district heating; DT, digester; GHG, greenhouse gas emissions; HP, heat pump; HP-IO, heat pump integration option; HCL, heat connection line; LCA, life cycle assessment; NEB, net environmental benefit; PE, populations equivalents; PT, primary treatment; WWTP, wastewater treatment plants.

Footnotes

1. ^Openly available Decision Support Tool (DEST) from the AR-HES-B project webpage www.ar-hes-b.aee-intec.at. The project “Energy storage, production and recovery of valuable substances in wastewater treatment plants” (AR-HES-B) has been funded by the Austrian Research Promotion Agency (FFG).

References

Aichinger, P., Wadhawan, T., Kuprian, M., Higgins, M., Ebner, C., Fimml, et al. (2015). Synergistic co-digestion of solid-organic-waste and municipal-sewage-sludge: 1 plus 1 equals more than 2 in terms of biogas production and solids reduction. Water Res. 87, 416–423. doi: 10.1016/j.watres.2015.07.033

CrossRef Full Text | Google Scholar

Assmann, M., Haberfellner-Veit, E., Laber, J., Lindtner, S., and Tschiesche, U. (2019). Branch Overview of the Austrian Wastewater Industry (Original title: Branchenbild der österreichischen Abwasserwirtschaft) 2020. Vienna: ÖWAV.

ASUE (2014). CHP Key Technical Data 2014/2015 (Original title: BHKW-Kenndaten 2014/2015). Berlin: ASUE.

Averfalk, H., Ingvarsson, P., Persson, U., Gong, M., and Werner, S. (2017). Large heat pumps in Swedish district heating systems. Renew. Sust. Energ. Rev. 79, 1275–1284. doi: 10.1016/j.rser.2017.05.135

CrossRef Full Text | Google Scholar

Bertanza, G., Canato, M., and Laera, G. (2018). Towards energy self-sufficiency and integral material recovery in waste water treatment plants: assessment of upgrading options. J. Clean. Prod. 170, 1206–1218. doi: 10.1016/j.jclepro.2017.09.228

CrossRef Full Text | Google Scholar

Chae, K.-J., and Kang, J. (2013). Estimating the energy independence of a municipal wastewater treatment plant incorporating green energy resources. Energy Convers. Manag. 75, 664–672. doi: 10.1016/j.enconman.2013.08.028

CrossRef Full Text | Google Scholar

Culha, O., Gunerhan, H., Biyik, E., Ekren, O., and Hepbasli, A. (2015). Heat exchanger applications in wastewater source heat pumps for buildings: a key review. Energy Build. 104, 215–232. doi: 10.1016/j.enbuild.2015.07.013

CrossRef Full Text | Google Scholar

DWA (2016). Arbeitsblatt DWA-A 131—Bemessung von einstufigen Belebungsanlagen. Hennef: DWA.

ENERWATER (2018). Enerwater Project Homepage. Energy Benchmarking Database. Available online at: http://www.enerwater.eu/energy-benchmarking-database/ (accessed July 10, 2020).

Eurostat (2020). Electricity Prices for Non-Household Consumers - Bi-Annual Data. Eurostat. Available online at: https://ec.europa.eu/eurostat/cache/metadata/en/nrg_pc_204_esms.htm (accessed July 15, 2020).

Frijns, J., Hofman, J., and Nederlof, M. (2013). The potential of (waste)water as energy carrier. Energy Convers. Manag. 65, 357–363. doi: 10.1016/j.enconman.2012.08.023

CrossRef Full Text | Google Scholar

Gandiglio, M., Lanzini, A., Soto, A., Leone, P., and Santarelli, M. (2017). Enhancing the energy efficiency of wastewater treatment plants through co-digestion and fuel cell systems. Front. Environ. Sci. 5:70. doi: 10.3389/fenvs.2017.00070

CrossRef Full Text | Google Scholar

Godin, D., Bouchard, C., and Vanrolleghem, P. (2012). Net environmental benefit: introducing a new LCA approach on wastewater treatment systems. Water Sci. Technol. 65, 1624–1631. doi: 10.2166/wst.2012.056

PubMed Abstract | CrossRef Full Text | Google Scholar

Hepbasli, A., Biyik, E., Ekren, O., Gunerhan, H., and Araz, M. (2014). A key review of wastewater source heat pump (WWSHP) systems. Energy Convers. Manag. 88, 700–722. doi: 10.1016/j.enconman.2014.08.065

CrossRef Full Text | Google Scholar

Jenicek, P., Kutil, J., Benes, O., Todt, V., Zabranska, J., and Dohanyos, M. (2013). Energy self-sufficient sewage wastewater treatment plants: is optimized anaerobic sludge digestion the key? Water Sci. Technol. 68, 1739–1744. doi: 10.2166/wst.2013.423

PubMed Abstract | CrossRef Full Text | Google Scholar

Kretschmer, F., Simperler, L., and Ertl, T. (2016). Analysing wastewater temperature development in a sewer system as a basis for the evaluation of wastewater heat recovery potentials. Energy Build. 128, 639–648. doi: 10.1016/j.enbuild.2016.07.024

CrossRef Full Text | Google Scholar

Neugebauer, G., Kretschmer, F., Kollmann, R., Narodoslawsky, M., Ertl, T., and Stoeglehner, G. (2015). Mapping thermal energy resource potentials from wastewater treatment plants. Sustainability 7, 12988–13010. doi: 10.3390/su71012988

CrossRef Full Text | Google Scholar

Nowak, O., Enderle, P., and Varbanov, P. (2015). Ways to optimize the energy balance of municipal wastewater systems: lessons learned from Austrian applications. J. Clean. Prod. 88, 125–131. doi: 10.1016/j.jclepro.2014.08.068

CrossRef Full Text | Google Scholar

Pasqualino, J., Meneses, M., Abella, M., and Castells, F. (2009). LCA as a decision support tool for the environmental improvement of the operation of a municipal wastewater treatment plant. Environ. Sci. Technol. 43, 3300–3307. doi: 10.1021/es802056r

CrossRef Full Text | Google Scholar

Piao, W., Kim, Y., Kim, H., Kim, M., and Kim, C. (2016). Life cycle assessment and economic efficiency analysis of integrated management of wastewater treatment plants. J. Clean. Prod. 113, 325–337. doi: 10.1016/j.jclepro.2015.11.012

CrossRef Full Text | Google Scholar

Pöschl, M., Ward, S., and Owende, P. (2010). Evaluation of energy efficiency of various biogas production and utilization pathways. Appl. Energy 87, 3305–3321. doi: 10.1016/j.apenergy.2010.05.011

CrossRef Full Text | Google Scholar

Shen, Y., Linville, J., Urgun-Demirtas, M., Mintz, M., and Snyder, S. (2015). An overview of biogas production and utilization at full-scale wastewater treatment plants (WWTPs) in the United States: challenges and opportunities towards energy-neutral WWTPs. Renew. Sustain. Energy Rev. 50, 346–362. doi: 10.1016/j.rser.2015.04.129

CrossRef Full Text | Google Scholar

Somogyi, V., Sebestyén, V., and Domokos, E. (2018). Assessment of wastewater heat potential for district heating in Hungary. Energy 163, 712–721. doi: 10.1016/j.energy.2018.07.157

CrossRef Full Text | Google Scholar

Terreros, O., Spreitzhofer, J., Basciotti, D., Schmidt, R., Esterl, T., Pober, M., Kerschbaumer, M., and Ziegler, M. (2020). Electricity market options for heat pumps in rural district heating networks in Austria. Energy 196:116875. doi: 10.1016/j.energy.2019.116875

CrossRef Full Text | Google Scholar

Wang, H., Yang, Y., Keller, A., Li, X., Feng, S., Dong, Y.-n., and Li, F. (2016). Comparative analysis of energy intensity and carbon emissions in wastewater treatment in USA, Germany, China and South Africa. Appl. Energy 184, 873–881. doi: 10.1016/j.apenergy.2016.07.061

CrossRef Full Text | Google Scholar

Keywords: sector coupling, biogas, heat pump, energy network, wastewater treatment plant (WWTP)

Citation: Gruber-Glatzl W, Brunner C, Meitz S and Schnitzer H (2020) From the Wastewater Treatment Plant to the Turnstiles of Urban Water and District Heating Networks. Front. Sustain. Cities 2:523698. doi: 10.3389/frsc.2020.523698

Received: 30 December 2019; Accepted: 03 November 2020;
Published: 27 November 2020.

Edited by:

Sergio Ulgiati, University of Naples Parthenope, Italy

Reviewed by:

Marta Gandiglio, Politecnico di Torino, Italy
Laleh Yerushalmi, Concordia University, Canada

Copyright © 2020 Gruber-Glatzl, Brunner, Meitz and Schnitzer. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Wolfgang Gruber-Glatzl, w.gruber-glatzl@aee.at

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
