Ambient particulate pollution originating from plastic contaminates air, including indoor and urban environments. The recent discovery of ambient microplastic (MP) particles of a size capable of depositing in the thoracic region of the airway, if inhaled, has raised concern for public exposure and health impacts following lessons learned from other particle domains. Current microplastic exposure estimates are relatively low compared to total ambient particulate matter, but optimal analytical techniques and therefore data for risk and health impact assessments are lacking. In the absence of such an evidence base, this paper explores paradigms, metrics and dose-response curves developed in other particle domains as a starting point for predicting whether microplastic are of concern. Bio-persistence, presence of reactive sites and soluble toxicants are likely key properties in microplastic toxicity, but these are not measured in environmental studies and hence are challenging to interpret in exposure. Data from a MP inhalation study in rats is available but the study was conducted using conditions that do not replicate the known human health effects of PM2.5 or surrogate exposures: compromised, aged animal models are recommended to investigate potential parallels between MPs and PM2.5. One of these parallels is provided by tire wear particles (TWP), which form part of current ambient PM and are sometimes regarded as microplastic. A connection to epidemiological studies where PM filters are still available is recommended and consequently analytical advances are required. In summary, established particle domains and existing paradigms provide valuable insight and data that can be used to predict MP toxicity, and direct study design and key properties to consider in this emerging field.
Introduction
Microplastic particles (MPs) are comprised of diverse synthetic organic polymeric materials, varying by shape, size, density, weathering state, and chemical and/or microbial load. They originate from a variety of sources (plastic items and synthetic textiles) and activities and contaminate all of Earth's spheres. In air, their concentrations can range from <1 to 1,000 s per cubic meter (m3). The most frequently observed polymers in air are polyethylene and polyethylene terephthalate, with polypropylene, polystyrene, polyamide, and epoxy resin particles also commonly observed. Most studies find that fragments are the predominant shape, followed by fibers, however, all these variables depend on the sample type, environment, geographical location, and analytical methodology employed (1–4).
Another source of synthetic polymeric aerosols is non-exhaust vehicle emissions. Non-metallic and semi-metallic brake pads may include synthetic polymers in the composite material, and the majority of a (synthetic) tire is comprised of synthetic polymer (e.g., styrene butadiene styrene). Several studies estimate that 3–7% of the particulate air pollution fraction <2.5 μm aerodynamic diameter (PM2.5) consists of tire and brake wear [review: (5)] but there is considerable debate over whether these particles should be considered MPs (6). Many authors refer to tire wear particles (TWP) as MP due to its (semi-) synthetic polymer structure, solid state, insolubility, and particle size range (i.e., <1,000 μm). In the environment, however, pure TWP are rarely found. Instead, hybrid particles consisting of tire and road wear particles are present (7).
Irrespectively, MPs form part of the complex and dynamic particulate matter (PM) exposure profile. Acute and long-term exposure to the PM2.5 fraction is associated with increased mortality in cardiovascular and respiratory diseases (8, 9). Both PM2.5 and PM10 are associated with increased mortality from all causes, cardiovascular disease, respiratory disease, and lung cancer. Associations remain below the current WHO guideline exposure level of 10 μg/m3 for PM2.5 (8). Since the first study on the link between acute mortality and PM2.5 (10), several hundred studies have been published which have led to the estimate that an increase of 10 μg/m3 PM2.5 increases the risk of (premature) mortality by 1% (9).
Although MPs are claimed to be abundant in the environment, few studies are available that allow for an estimation of their relative contribution to PM2.5 or PM10 exposure, hence the potential role of MP in premature mortality and non-communicable disease is poorly understood. Irrespective of this, within environmental and occupational particle exposures, there are sub-fractions that are likely to be more harmful than others, such as transition metals in PM10 (11–13), which contributes very little to mass. Here, the concentration of transition metals can be seen as the biologically effective dose (BED) [review: (14, 15)]. It is therefore important to determine whether inhaled MPs share a common Mode of Action (MoA) with other inhaled particles or are of disproportionate concern and why. This paper explores the application of existing particle paradigms to MP in the lung environment and, more specifically, investigates the hypothesis that its action may be already part of the ambient particulate air pollution.
Principles in Particle Toxicology
Over the past 50 years, scientific principles of particle toxicology have been developed in important particle domains reflecting occupational and, later, environmental exposures. Research in coal mine dust (16, 17), respirable crystalline silica (18), asbestos and man-made mineral fibers (19, 20), ambient PM, poorly soluble low toxicity particles such as TiO2 (21, 22), and engineered nanomaterials (23, 24) has helped define the physicochemical properties and dosimetric factors that influence the pathways leading to particle-triggered adverse outcomes (summarized in Table 1). The most important properties and factors are also interconnected. For example, the crucial “retained dose” in the lung following inhalation is equivalent to deposition (dependent on dimension and shape) minus what has been eliminated by defense (macrophage clearance) and/or dissolution (durability). Whilst all properties are important, some are more important in specific particle domains, such as shape/dimension and bio durability in the fiber domain and surface area in the engineered nanomaterials domain.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/868822/fpubh-10-868822-HTML/image_m/fpubh-10-868822-t001.jpg)

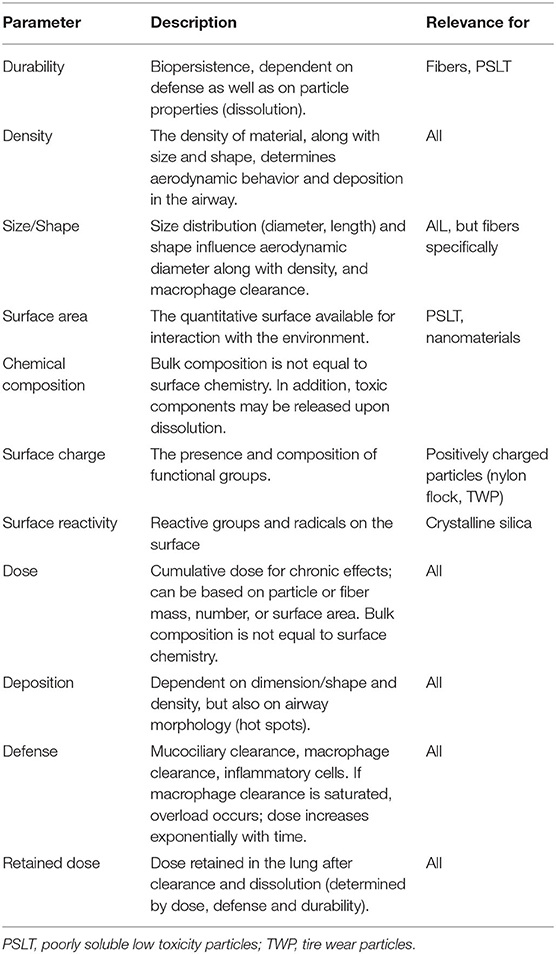

Table 1. Parameters and factors that play a major role in the biological response upon particle inhalation.
In the concept of BED, surface, composition, and size/dimension are integrated, where intrinsic reactivity is a multiplier of surface area, depending on the material the particle is made of. In addition, lessons from asbestos and manmade vitreous fibers (MMVF) inform us that, for fibers, length is important and so “shape” needs to be included as a factor. Furthermore, studies on PM10 welding fumes, etc., have shown that many particles are complex, containing soluble components that can have considerable toxic potential. Finally, the duration the particle is likely to persist and avoid clearance determines the length of time that the BED is applied to the biological system (see “Durability,” Table 1); thus, a bio persistence factor is required (14). Taking these factors together, the paradigm that could predict the toxicity of an unknown particle consists of three main attributes for the biologically effective dose:
1. Surface attribute = surface area (SA) × specific surface reactivity (i.e., reactivity per unit SA) × surface availability (not all surface area is available for biological interaction)
2. Dimension attribute = length – diameter (mainly length if greater than a critical length), and when combined with density, influences aerodynamic behavior, deposition and thus exposure
3. Composition attribute = volume × specific volumetric reactivity (i.e., the toxic material per unit volume) × availability (= release rate i.e., amount per unit time)
It is logical to assume that the effects of inhaled MPs in the airway are driven by the same set of particle properties. The challenge is to find those properties that are crucial to describe and regulate its effects along the concept of BED.
Microplastic Inhalation Exposure
Of the published studies on airborne MP which employed an analytical technique capable of distinguishing between plastics to calculate concentrations, just 10 were found for urban and indoor environments. These environments are considered most relevant to population exposure due to population density and the proportion of time spent indoors, and hence were used. The key details of these studies and characteristics of observed MP are summarized in Supplementary Table 1. The study by Soltani et al. (25), whilst on indoor deposition rather than air, calculates an inhalation exposure concentration estimate and is thus included. Most studies have focused on outdoor air, with 30% analyzing indoor air and 20% analyzing both outdoor and indoor samples.
Polyethylene and polyester/polyethylene terephthalate were equally found to be the most common polymers in studies. One of these studies only targets polycarbonate and polyethylene terephthalate (26) and therefore may not be representative of all polymers present. The study which focused on an emission source (synthetic nails/nail salon) found the acrylic nail material to be most common in both indoor and outdoor air (27). Eighty per cent of the studies found fragments and irregular shapes to be most common, not fibers as are often predicted.
Observed concentrations generally increased with increased instrument limits of detection, as expected. Higher concentrations were on the order of 100 s (2–4) to 1,000 s (1, 2) of MPs per cubic meter of air and most studies found the majority of particles to be distributed in the smaller size classes. Few studies explicitly estimate exposure. Chen et al. (28) estimate nail salon employees to be exposed to 260 MPs per day. However, if inhaled, these particles are likely to deposit in the upper airways and be swallowed due to the particle sizes being >25 μm. Just two studies used a method with a limit of detection below 10 μm (1, 4), which is relevant to human exposure in the central and lower airways and subsequent adverse health outcomes. In impactor samples (>2.5 μm and 2.5–1.0 μm aerodynamic diameter) collected near Bremen City, Germany, Kernchen et al. (4) found 67% of observed MP were below 10 μm in size, giving an exposure concentration of 60/m3. If normal adult minute ventilation is between 5 and 8 liters per minute, this results in an inhalation exposure estimate of 432–691 MPs per day. In a PM10 sample collected from an urban roadside site in London, UK, Levermore et al. (1) found 52% of observed MP were between 5 and 10 μm in size, resulting in an inhalation exposure estimate of 9,367–14,988 MPs per day. Whilst both studies adopt similar analytical methods and observe comparative proportions of <10 μm size classes and polyethylene, they are collected in different environments, which could explain the order of magnitude difference in concentration. Using high-density polyethylene (0.97 g/cm3) as a worst-case representative polymer from these studies, the volume of a 10 μm sphere, and the highest particle number exposure estimates for each study, worst-case mass concentration inhalation exposure estimates are 0.67–14.54 μg/day. It is important to highlight that those studies which do not analyze an aerodynamic fraction, collected by an aerodynamic size selective sampler, observe a very broad and coarse size distribution. Those studies which analyze a sample collected with an aerodynamic size selective sampler (1, 4) observe a narrower size distribution, with a modal size around 10 μm (1).
Some data is emerging to suggest MP is inhaled into the lung, through the analysis of lung tissue digestates (27, 29). Most of the MP observed in these studies are relatively large compared to what is expected (i.e., a median size of 10 μm or below). Whilst there is a small chance that these particles were inhaled from the environment, one would expect to see a greater abundance of smaller MP for the anatomical regions studied and hence more data is needed to draw conclusions from these observations. Additionally, in situ analyses, such as via spectral imaging, will strengthen this, such as the method applied by Chen et al. (28) which detected a cellulose fiber in a lung tumor tissue section.
In general, exposure to ambient MPs is largely unknown and has possibly been either underestimated or overestimated due to analytical challenges and sampling methodologies that are often incompatible with routine ambient PM sampling. The assessment of MPs in PM filters is a first step toward assessment of the respirable fraction in ambient air. There is still a great body of work to do to understand the size distribution of airborne MP, which requires physicists, chemists, engineers, and environmental scientists. Furthermore, whilst properties such as size, shape/dimension and bulk composition are often measured and reported, other metrics intrinsic to a structure-activity paradigm, such as the concentration of soluble impurities, presence of reactive sites or surface area are not. Laboratory-based experiments can begin to rank the toxicological importance of the various properties of MP, however, without knowledge on how these relate to environmental exposures, one cannot conclude the level of risk.
Particle Bio-Persistence and Adverse Outcomes
An array of lung cells generate inflammatory mediators and intracellular ROS upon exposure to diesel exhaust particles and PM (30) and also to MP model particles (31, 32). In vivo, acute inflammation is immediately followed by resolution and tissue repair, mediated through specialized pro-resolving mediators (SPMs) and type 2 cytokines and cells, including M2 macrophages and Th2 lymphocytes. For biopersistent particles and fibers in the lung, dose-dependent inflammation can progress to a type 2 inflammation, which eventually promotes interstitial fibrosis, granuloma formation, and tumorigenesis (reviewed in: 24). Recent studies also reveal the involvement of regulatory T-cells in the subsequent pathogenesis caused by inhaled particulates and therefore a long-term immune response is considered to be part of the long-term outcome (33). The persistence of MPs is thus considered a highly relevant property to consider in MP toxicology. Synthetic fibers (polypropylene, polyethylene, and polycarbonate) showed no dissolution, no significant changes to surface area and very slight weight gain following a 180 day in vitro leaching test in physiological fluid (Gamble's Solution), suggesting they may persist in vivo (34). However, respirable para-aramid fibers are considered a low risk since they have been observed to shorten in the lung and undergo rapid clearance in in vivo experimental studies. It has been hypothesized that lung fluid coats the fibers, catalyzing enzymatic attack and enabling biodegradation of inhaled p-aramid fibers in the lungs (35). Degradation has also been observed for inhaled polypropylene fibers in rats, which increased with exposure concentration and time (36). Whether this is apparent for other synthetic fibers is largely unknown and experiments are needed to assess their solubility, considering pH and enzymes. What is noteworthy, is that cellulose fibers were found to be more persistent than p-aramid fibers in vivo (37), and thus manmade cellulose fibers should be included in synthetic fiber hazard assessments. The inhalation of elevated levels of respirable plastic dust in occupational settings has been linked to interstitial lung diseases (38). Whether this pathogenicity is due to biopersistence and particle overload or the positive charges on the nitrogen atoms of nylon flock (39) remains untested.
Given the substantial variation within and between particle domains and MPs in their size, shape, aspect ratio, rigidity, and other physicochemical properties, it is rational to assume that their interaction with the immune system in the lung will differ within and from one another. The physicochemical properties of a particle govern the composition of the protein corona it acquires in biological fluids, which in turn affects bioavailability and fate in vivo. Since these properties vary by polymer, it is difficult to predict the behavior of a material in vivo (40). However, there are common disease phenotypes among different particles, fibers, and nanomaterials (Table 2). Therefore, whilst the molecular initiating events may differ, it is likely that some particulates share a similar adverse outcome pathway, such as inflammation > chronic inflammation and aberrant repair > fibrosis (33).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/868822/fpubh-10-868822-HTML/image_m/fpubh-10-868822-t002.jpg)
Table 2. Typical exposures, health outcomes, and current exposure standards for different particle domains.
Inhalation Studies With Microplastic Particles or Surrogates
Despite being a recognized component of PM for longer, whether ambient tire wear proportionally contributes to the effects of PM2.5 is still being determined. Available in vivo toxicity data, obtained using TWP collected at a road simulator laboratory, suggest that inhaled TWP exert only mild respiratory toxicity (41). Female Sprague Dawley (SD) rats (n = 10/treatment group) were exposed to TWP at 10, 40, or 100 μg/m3 via nose-only inhalation for 6 h/day for 28 days and toxicity was assessed following OECD guidelines (TG 412). No TWP-related effects were observed on survival, clinical observations, body or organ weights, gross pathology, food consumption, immune system endpoints, serum chemistry, or biochemical markers of inflammation or cytotoxicity (41). Unfortunately, PM2.5 was not used as a reference, although this was part of the study hypothesis, and only diesel exhaust particles and mineral particles such as TiO2 and SiO2 were used in a separate study-arm investigating bronchoalveolar lavage (BAL) after intratracheal instillation (41). Based on the NOAEL level from the TWP study (55 μg/m3), and exposure estimates for TWP, this group of investigators propose that a margin of exposure of 400–700 is present between the current PM2.5 standard and TWP exposure (42, 43).
Important to note is that health effects due to ambient PM exposure are observed mainly in sensitive subgroups within human populations and in animal models mimicking such populations (44). Nearly all reported in vivo studies on toxicological responses to ambient PM and/or standards produced no or low responses in normal laboratory animals compared to effects seen in humans. Therefore, spontaneously hypertensive (SH) rats and APO E−/− deficient mice have been used to model acute respiratory and cardiovascular responses to ambient PM (see Supplementary Table 2), whereas OECD protocols prescribe the use of normal rats or mice.
A selection of animal inhalation studies with ambient PM or surrogates have been included in Supplementary Table 2 to illustrate that responses in compromised animals mimic cardiovascular effects such as blood pressure, heart rate variability and systemic inflammation observed in humans in epidemiological studies. However, the concentrations needed to induce systemic effects with ambient air particles are usually higher in (compromised) rats than in man (Supplementary Table 2). As a benchmark, intratracheal instillation of 1,000 μg, but not 200 and 500 μg, PM2.5 suspension in aged SHR rats led to pulmonary and systemic events (45), whereas instillation of 100 μg of PM2.5 suspension in humans led to significant cellular responses in the BAL fluid (11). This underscores the fact that no current animal models reflect human sensitivity to inhaled fine particles.
Therefore, it is no surprise that studies with normal animals, according to OECD protocols, have shown little effects for higher concentrations of polymer, tire and road wear particles (see Supplementary Table 2) and pharmaceutical acrylic ester polymers (data not shown). However, rats exposed to polystyrene nanoparticle mass concentrations similar to those of TWP (20, 50 and 100 μg/m3) for 6 h per day, 5 days/week for 2 weeks showed a statistically significant decrease in hematological parameters, including white blood cell and lymphocyte counts, and a statistically significant increase in percent and number of eosinophils, but only in female rats (32). Effects on lung lavage were less pronounced, due to high variation, but a potential inflammatory and fibrotic response was observed from the lowest concentration of PS nanoparticles at 22 μg/m3 (32). The retained dose per rat (5–34 μg/day) (32) is similar to the alveolar burden in ultra-fine (50 nm) carbon particle studies (45, 46), estimated at 10.6 μg or 5.5 × 1011 ultra-fine carbon particles. It is evident that MP inhalation studies (Supplementary Table 2) used longer exposure times than used for PM2.5 and focused on sub-chronic effects in the lung; however, the exposure concentrations used are not dissimilar from the PM studies in compromised animals. Thus, a retained dose-based read across is plausible for the inflammatory outcomes in the lung. Effects in compromised animals remains to be studied.
Exposure to Particle-Chemical Mixtures
In both PM2.5 and PM10 epidemiological studies, black carbon has been identified as a separate descriptor of health effects (47, 48) and reduced exposure is recommended. Whilst not directly toxic, toxicological studies suggest that black carbon may operate as a universal carrier of toxic species, providing a mechanism of entry to the human body and transport to target tissues. Low concentrations of components absorbed on the particle surface may actually be the driver of the adverse response. In this context it has been shown that metals and quinones on the particles surface are crucial for initiating an inflammatory response (11) in humans and DNA damage (49) in rats exposed to PM. In addition, bacterial endotoxin (LPS), which is a well-known initiator of inflammatory cascade, is commonly adsorbed on PM, although most prominent in PM10 and less in PM2.5 (50).
Such a carrier mechanism can be easily assumed for substances absorbed on or contained in MPs, following inhalation. Several different synthetic polymers have been shown to carry different toxic metals (51, 52), including redox-active Cu-ions. The absorption of metals on MPs has also been shown to affect the kinetics and toxicity of both metals and particles in Daphna magnia (53) and Zebrafish embryos (54), but little data using human target cells are available. Bradney et al. (55) discussed the potential mechanisms and evidence by which trace elements (including metals) can achieve a different ADME when carried by MP but had no specific outcome for inhaled MPs. A recent review by Hahladakis et al. (56) provides an overview of all potential chemical additives present in plastics. While this overview focused on migration, release and fate of additives, no attention is given as to the additive effect of such components to particle toxicity. From other particle domains, including PM, we know such can be a very important trigger of the inflammatory response such as through redox mechanisms or surface reactivity (49). It also needs to be recognized that in some cases the role of contaminants has been overestimated. Well-designed inhalation studies showed that the role of polycyclic aromatic hydrocarbons carried by diesel exhaust particles was much less important for toxicity than initially assumed (57, 58).
The absorption of external contaminants on airborne MPs is an area which requires research and modeling. Thermodynamic modeling has shown that at least in the aquatic environment, MP contributes a negligible amount of chemicals to biota, relative to the environment and uptake via natural pray, mostly due to their low concentrations and therefore low likelihood of an organism encountering one relative to pray (59, 60). Studies in ambient PM have shown that particles aggregate and agglomerate during formation and transport and particle composition is determined by condensation and colliding and merging of primary and secondary particles even during the day (61). Based on these observations and the occurrence of many particle types that can be considered as MPs (e.g., tire wear, fibrous fragments) studies are needed to evaluate whether ambient MPs may act as a vector or form particle complexes, which increase exposure and may enhance particle activity, such as for ambient PM. This should be considered for total suspended MP, since inhaled MP > 10 μm in aerodynamic diameter may still deposit in the upper airways.
Considering Microplastic As Part Of PM2.5
Another approach to explore potential MP-driven health effects is to study the MP content in PM2.5 or PM10 filters of exposure studies that have been used in epidemiological studies. Levermore et al. (1) showed that both virgin and environmental MPs (>2 μm) can be detected via Raman spectral images. Application of this technique to available filter samples could give an estimate on the percentage of MP in those samples for comparison with available estimates (42, 43). The health impact of that presence could be calculated via the proportion of PM10 or PM2.5 and associated health risks (top-down approach) or via the rat toxicity data of TWP (42) or model polymers [e.g., (32)], which can be considered as bottom-up. The top-down approach would be based on many samples from all over the globe that are linked to both acute and chronic mortality due to PM. The assumption that the effect is based on the mass or number proportion is simply based on assuming that the best metric of health effects of PM is mass/m3.
As an example, if 0.1% of the mass on PM filters is microplastic, the proportionate mortality rate at 10 μg/m3 increase would be 1%/1,000 = 0.001%, instead of 1% as observed for PM2.5 (9). Even though this number is small, the recent analysis by Schwartz et al. (62) on individuals continually exposed to low PM levels found this led to 14,000 premature deaths per year per 1 μg/m3 in the USA. Extrapolating this to MP (and 0.1 % of mass) would still lead to significant numbers at the current average PM exposure. Of course, this is with limitations, since it assumes proportional linearity in the toxicity of different PM sources, but it provides a start.
In summary, MPs likely have similar hazards to other particle domains, such as ambient PM, PSLTs and engineered nanomaterials. However, in the absence of inhalation exposure assessments, the level of risk is uncertain. Either way, plastic is a source of PM10 and PM2.5, which are regulated on a (total) mass basis only. Thus, a better understanding of MP sources and quantification of emissions will determine whether and where interventions are needed to ultimately reduce PM10/2.5 exposure and future disease burdens. The concept of BED provides a conceptual basis for read-across. The concept may provide a framework for filling in knowledge gaps for MP such as (gravimetric) exposure, particle dimensions and surface activity in lung response.
Author Contributions
SW and PB contributed equally to the conception and design of the article, the acquisition, evaluation and interpretation of the data and the drafting and editing of the manuscript. Both authors contributed to the article and approved the submitted version.
Funding
SW was supported by the Medical Research Council (MRC) Centre for Environment and Health and is a member of the Health Protection Research Unit in Environmental Exposures and Hazards, a partnership between UK Health Security Agency (UKHSA) and Imperial College London which was funded by the National Institute for Health Research (NIHR). The views expressed are those of the author and not necessarily those of the MRC, NIHR, and UKHSA. PB is consultant toxicologist at Nanoconsult and professor in Particle Toxicology at University of Dusseldorf, and the work that led to this paper was funded by the International Council of Chemical Associations (ICCA). Nanoconsult is also a partner of the Dutch Zon-MW program MOMENTUM.
Conflict of Interest
PB is managing director of Nanoconsult and, in this function, has received funding from ICCA to conduct a microplastic read-across analysis. However, the outcomes of this analysis are not congruent to the vision of ICCA.
The remaining author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher's Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpubh.2022.868822/full#supplementary-material
