Peipei Wang
Xinqi Zheng1,2*- 1School of Information Engineering, China University of Geosciences, Beijing, China
- 2Technology Innovation Center for Territory Spatial Big-Data, MNR of China, Beijing, China
- 3School of Economic and Management, China University of Geosciences, Beijing, China
The COVID-19 epidemic has caused more than 6.4 million deaths to date and has become a hot topic of interest in different disciplines. According to bibliometric analysis, more than 340,000 articles have been published on the COVID-19 epidemic from the beginning of the epidemic until recently. Modeling infectious diseases can provide critical planning and analytical tools for outbreak control and public health research, especially from a spatio-temporal perspective. However, there has not been a comprehensive review of the developing process of spatio-temporal dynamic models. Therefore, the aim of this study is to provide a comprehensive review of these spatio-temporal dynamic models for dealing with COVID-19, focusing on the different model scales. We first summarized several data used in the spatio-temporal modeling of the COVID-19, and then, through literature review and summary, we found that the existing COVID-19 spatio-temporal models can be divided into two categories: macro-dynamic models and micro-dynamic models. Typical representatives of these two types of models are compartmental and metapopulation models, cellular automata (CA), and agent-based models (ABM). Our results show that the modeling results are not accurate enough due to the unavailability of the fine-grained dataset of COVID-19. Furthermore, although many models have been developed, many of them focus on short-term prediction of disease outbreaks and lack medium- and long-term predictions. Therefore, future research needs to integrate macroscopic and microscopic models to build adaptive spatio-temporal dynamic simulation models for the medium and long term (from months to years) and to make sound inferences and recommendations about epidemic development in the context of medical discoveries, which will be the next phase of new challenges and trends to be addressed. In addition, there is still a gap in research on collecting fine-grained spatial-temporal big data based on cloud platforms and crowdsourcing technologies to establishing world model to battle the epidemic.
Introduction
The prevention and control of infectious diseases is a major topic in the field of public health all over the world. Research on the mechanism and development of infectious diseases in space is an important task for infectious diseases researchers (1). Human beings live in an increasingly interconnected world, and thanks to the convenient flights, both humans and pathogens can be brought to any city in any country (2, 3). During the spread of infectious diseases, the spatial movement of individuals will cause changes in the number of infections in different regions, which will lead to the spread of infectious diseases in large area (4, 5). To describing the spreading laws and process trends of infectious diseases in space, it is necessary to use the theory of spatial dynamics modeling to reflect the spatio-temporal characteristics and internal information of infectious diseases, and to provide theoretical guidance and policy evaluation for the prevention and control of infectious diseases (6).
The dynamics of infectious diseases is an important method to theoretically and quantitatively study the epidemic law of infectious diseases (7, 8). It is based on the characteristics of population growth, the law of disease occurrence and transmission through the population and other relevant factors to establish a mathematical model that can reflect the dynamic characteristics of infectious diseases. The dynamics characteristic model based on qualitative and quantitative analysis and numerical simulation can reveal its epidemic law, predicting its changing trend, and analyze its epidemic reasons and key factors. Ultimately, dynamic models could seek the optimal prevention and control strategy, and provide theoretical and quantitative basis for people to make prevention and control decisions (9). Compared with traditional biostatistics methods, the dynamic methods can better reflect the epidemic law in terms of the transmission mechanism of the disease, so that people can understand some global states in the epidemic process (10, 11). The combination and complementation of infectious disease dynamics, biostatistics, computer simulation and other methods have enabled people to have a more in-depth and comprehensive understanding of the laws of epidemic disease, making the established theories and prevention strategies more reliable and practical (12, 13).
Neither traditional Ordinary Differential Equations (ODEs), time-lag ODEs or statistical methods nor clinical case studies consider the spatial diffusion of individuals (14). In the face of highly contagious and highly pathogenic infectious diseases such as COVID-19, from the Delta variant to the Omicron variant, each mutation of COVID-19 will trigger a new round of prevention and control tensions (15). Behind the vigorous prevention and control, it has caused immeasurable losses to the normal life of the people and social and economic development (16, 17). For COVID-19, the spatial movement of individual groups is a key factor leading to the rapid spread of infectious diseases (4, 18). Therefore, the study of spatial diffusion models can better reflect the spread dynamics of COVID-19 in time and space. It is worth mentioning that the impact of medical indicators on the modeling of the spatio-temporal dynamics of COVID-19 spread varies at different stages of its development. In the early stage of the epidemic, the speed and scale of the spread of the epidemic are largely depended on the ability of testing and reporting and hospital treatment capacity (19). In the mid-term, medical parameters (including incubation period (20), reproductive number (21), mortality rate (22), etc.) can be promoted with the help of the abundant epidemic statistical data of the public health departments to provide a basis for parameter selection and optimization of the spatio-temporal dynamics evolution of infectious diseases. Late-stage data is abundant, combined with medical interventions (vaccination, virus detection, etc.), which can provide the possibility for precise prediction of spatio-temporal dynamics modeling (23).
As COVID-19 continues to evolve, the number of models studying its spatio-temporal changes has exploded. A study on geospatial technologies (24) looked at COVID-19 from an interdisciplinary perspective and reviewed relevant academic results published up to the end of May 2020, while a research review (25) reviewed the literature published up to the end of September 2020, points to geospatial analysis in COVID-19 research and highlights current trends and research gaps. In a paper published in 2020, we extend the previous forecast period and accuracy with the help of Logistic and Artificial Intelligence (AI) (26). The publication of this paper attracted the attention of many peers and became a hot and highly cited paper on the Web of Science (WOS). At the same time, many deep learning methods have been used for COVID-19 prediction and spatio-temporal feature processing. Researchers investigated the performance of the Random Forest (RF) machine learning algorithm in estimating the near future case numbers for 190 countries in the world (27). Jin et al. (28) study the spatial-temporal characteristics of the epidemic development at the provincial-level in mainland China and the civic-level in Hubei Province. And Karadayi et al. (29) proposed a hybrid deep learning framework to solve the unsupervised anomaly detection problem in multivariate spatio-temporal data. However, based on our research and tracking of international research progress, we found that in the summary of the COVID-19 evolution prediction model, the spatio-temporal dynamic model with large development space and application prospects has not been well summarized. For humanity to better respond to COVID-19, it is necessary to review the progress that has been made and recommend further research to enable more people to work together in public relations to help deliver a targeted response to COVID-19 as quickly as possible measures.
This study will further integrate the spatial model of COVID-19 based on previous research, focusing on the analysis of the spatio-temporal model related to COVID-19, so as to facilitate readers to sort out. This paper classifies and summarizes the COVID-19 spatio-temporal dynamics model. According to the modeling basis and modeling principles, macro-dynamic models and micro-dynamic models (Table 1) are summarized. Macro-dynamic models usually include compartmental models and metapopulation models. The population is divided into several compartments, which represent different diseases states of the population, and mathematical methods are used to establish its dynamic equations to simulate and study the process of transmission dynamics. The latter are mainly based on Cellular Automaton (CA) and Agent Based Modeling (ABM). An individual is thought of in a population as a cellular unit or agent consisting of a limited set of rules of state and behavior. By defining the corresponding behavior of the individual to the etiology, the mobile behavior of individual in the space and the interaction between the individual behavior rules, the behavior of complex systems such as infectious diseases that evolve from the cause, host, and environment can be simulated. In addition, the collection and organization of spatio-temporal big data is the basis for establishing spatio-temporal dynamics models of infectious diseases, and is also the cornerstones of studying spatio-temporal dynamics models. Here, we review different efforts to model the spread of COVID-19, which should stimulate new thinking and facilitate the integration of geographic information and computer technology into infectious diseases modeling and control. Our main research objectives will to be:
(1) To review the application of spatio-temporal big data in spatial modeling of COVID-19.
(2) Classify the infectious disease transmission model into macro and micro models, analyze the advantages and disadvantages of various modeling methods, and highlight current spatio-temporal modeling methods.
(3) Analyze the role of spatio-temporal modeling in COVID-19 research by comparing the results of model modeling at different scales.
(4) Highlight current research trends and gaps of COVID-19 spatio-temporal modeling.
Our research contributions are as follows:
(1) Due to previous experience, more studies are carried out with the help of existing models, but less new models are developed. Because people's judgment of the epidemic is that “short and smooth” approach is needed, the development of new models is blocked. At present, all relevant models proposed by researchers can be concluded as macro-dynamics model and micro-dynamics model.
(2) Future research direction of spatio-temporal dynamics model of infectious diseases should be to introduce multi-level and multi-scale integrated epidemic spatio-temporal dynamics model with big data and intelligent computing. Moreover, these models are adaptive, that is, they can quickly simulate and predict adaptability according to the situation of different countries and provide quick reference for management and control decisions.
(3) The integration of macro and micro models and adaptive medium and long term (from months to year) spatio-temporal dynamic simulation decision support model combined with medical conclusions will be new challenges and trends to be addressed in the next stage.

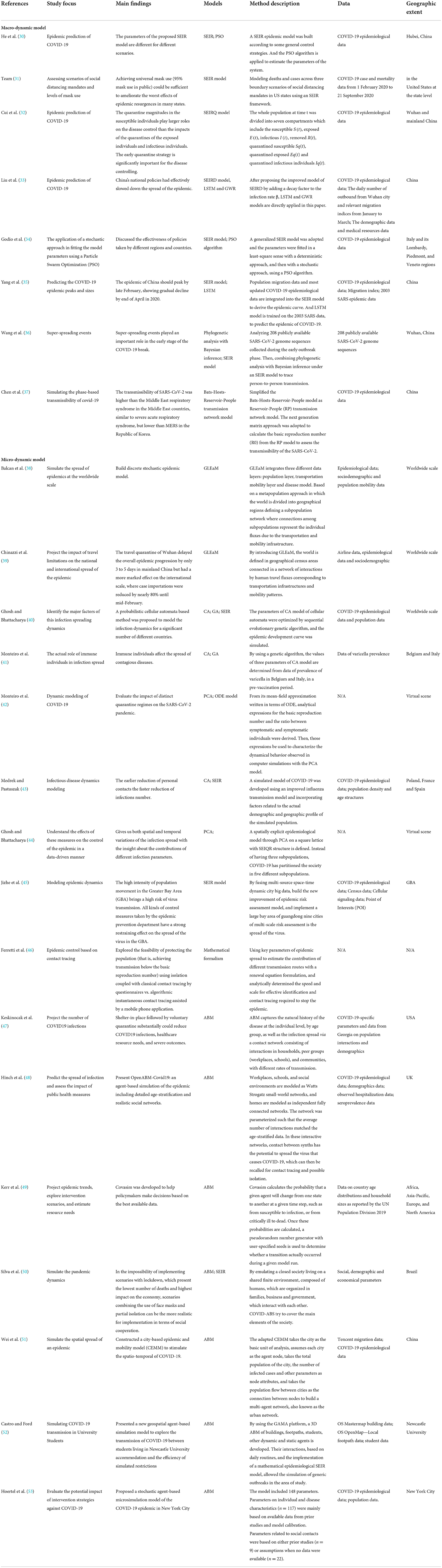

Table 1. References to macro- and micro-dynamic simulation models of COVID-19 are grouped according to research focus, main research findings, models, method description, data, and geographic scope.
These contributions may have been mentioned by some researchers, but have not been explicitly proposed or formally published. Through literature analysis, we systematize and display them, so that more people can further study them during or after the epidemic, and provide scientific and technological support for the next major infectious disease epidemic that may be encountered by mankind.
In the subsequent sections, this article will list the spatio-temporal big data sets collected by various researchers since the outbreak of COVID-19 firstly, and explain the data basis of spatio-temporal dynamic model modeling. From the above-mentioned model classification and induction ideas, the spatio-temporal dynamics models of COVID-19 are summarized, and finally research directions for future infectious disease dynamics modeling are proposed.
Methodology
Data sources
Since the outbreak of the COVID-19 at the end of 2019, large number of studies on the spread of COVID-19 based on infectious disease dynamic models have been carried out around the world. To review the scope of this paper, we use the following steps to identify relevant literature for this review. First, we searched on the WOS and Google Scholar databases with the subject items (COVID- 19 OR SARSCOV-2) AND (spatial OR temporal OR spatial analysis OR space-time OR Geospatial) AND (model OR simulate OR simulation OR evaluate OR dynamic) and (transmission or propagation or spread). The literature data retrieval and setting conditions are shown in Table 2. Further, we conducted a reference search, if any, outside the scope of the database. Considering the origin of the outbreak at the end of 2019, we limited the literature search to between 2019 and 2022. The search was first conducted on April 5, 2022 and updated on August 24, 2022. We include published or peer-reviewed journal articles based on modeling of COVID-19 spatio-temporal dynamics.

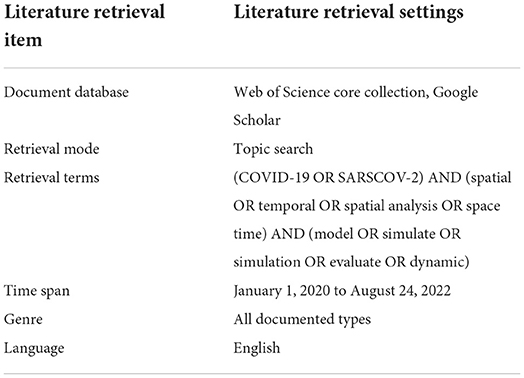

Table 2. Literature data retrieval condition settings such as document database, retrieval mode, retrieval terms, time span, genre and language in this study.
The progress of research selection is shown in Figure 1. According to our retrieval strategy, 1,712 papers were retrieved and categorized according to research data, scale and modeling methods, namely spatio-temporal big data, macro-dynamic modeling and micro-dynamic modeling. These studies are used for practical prevention of different stages in different countries and regions, and provide scientific weapons for human beings to resist the spread of disease.

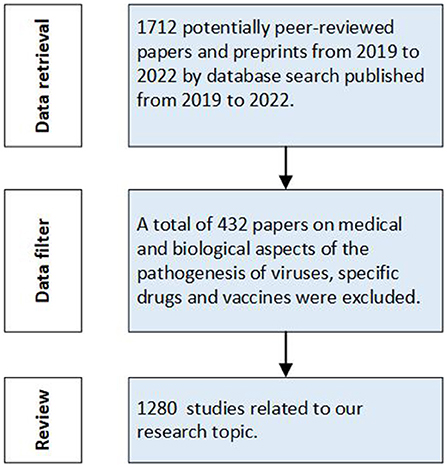

Figure 1. Study selection progress (Articles retrieved on August 24, 2022). Data retrieval was conducted firstly to select relative papers from 2019–2022. Then we filtered the retrieval data and reviewed the studies related to our research topic.
Eligibility criteria
Articles were considered eligible for inclusion if they extensively described techniques or reviews related to the modeling of spatio-temporal dynamics during the spread of COVID-19. We included articles in English published during the COVID-19 outbreak from 2019 to 2022, considering both qualitative and quantitative research types of manuscript. In addition, it is worth noting that papers that study some of the pathogenic mechanism of viruses, specific drugs and vaccines from a medical and biological perspectives have been removed from our study selection. Articles that were not peer-reviewed (e.g., letters, editorials, and comments) were considered ineligible for inclusion.
Results
We mainly identified records that related to spatio-temporal big data and dynamic models of COVID-19 and made typical models of macro-dynamic and micro-dynamic models of COVID-19. Macro models usually include compartmental models and metapopulation models. Compartmental model treats the population as homogeneous mixing, while metapopulation model divides the population into several subgroups. A typical representation of micro models is an individual-based model, which treats individuals in a population as cells or agents consisting of a finite set of states and behavior rules. Primary related datasets and model summary can be analyzed below.
Primary related datasets
The spatio-temporal dynamics modeling of infectious disease transmission mainly relies on spatio-temporal big data, which provide the data basis for the modeling, monitoring, forecasting and early warning of infectious disease transmission, and provide strong decision support for epidemic prevention and control and the resumption of work and production in more provinces and cities. Therefore, before reviewing and summarizing the modeling of spatio-temporal dynamics of infectious diseases, we first summarized and classified the spatio-temporal data of COVID-19 commonly used in these articles.
According to the characteristics and uses of the data, this paper divides the existing spatio-temporal big data of COVID-19 into three categories, epidemic statistical data, location-based data, and Non-pharmaceutical Interventions (NPIs) data. Epidemic statistical data is mainly used to support the calculation of basic indicators of the epidemic, and can be used to support the spatial and temporal statistical analysis of the epidemic and the visual analysis based on Geographic Information System (GIS), etc. The spatio-temporal location big data mainly includes Origin-to-Destination (OD) data, cellular network signaling data, and traffic network data provided by major operators such public data sets are mainly used to analyze the changes and migration of the epidemic in the spatial dimension. NPIs data mainly includes case identification, contact tracing and related measures, environmental protection measures, health care and public health capabilities, social distance, travel restrictions, etc., which can be used to measure the confrontation between society and government and the effectiveness and spatial effect of a series of NPIs for the rapid spread of COVID-19. Table 3 lists common data sources for these three types of data, as well as the corresponding indicators they provided.

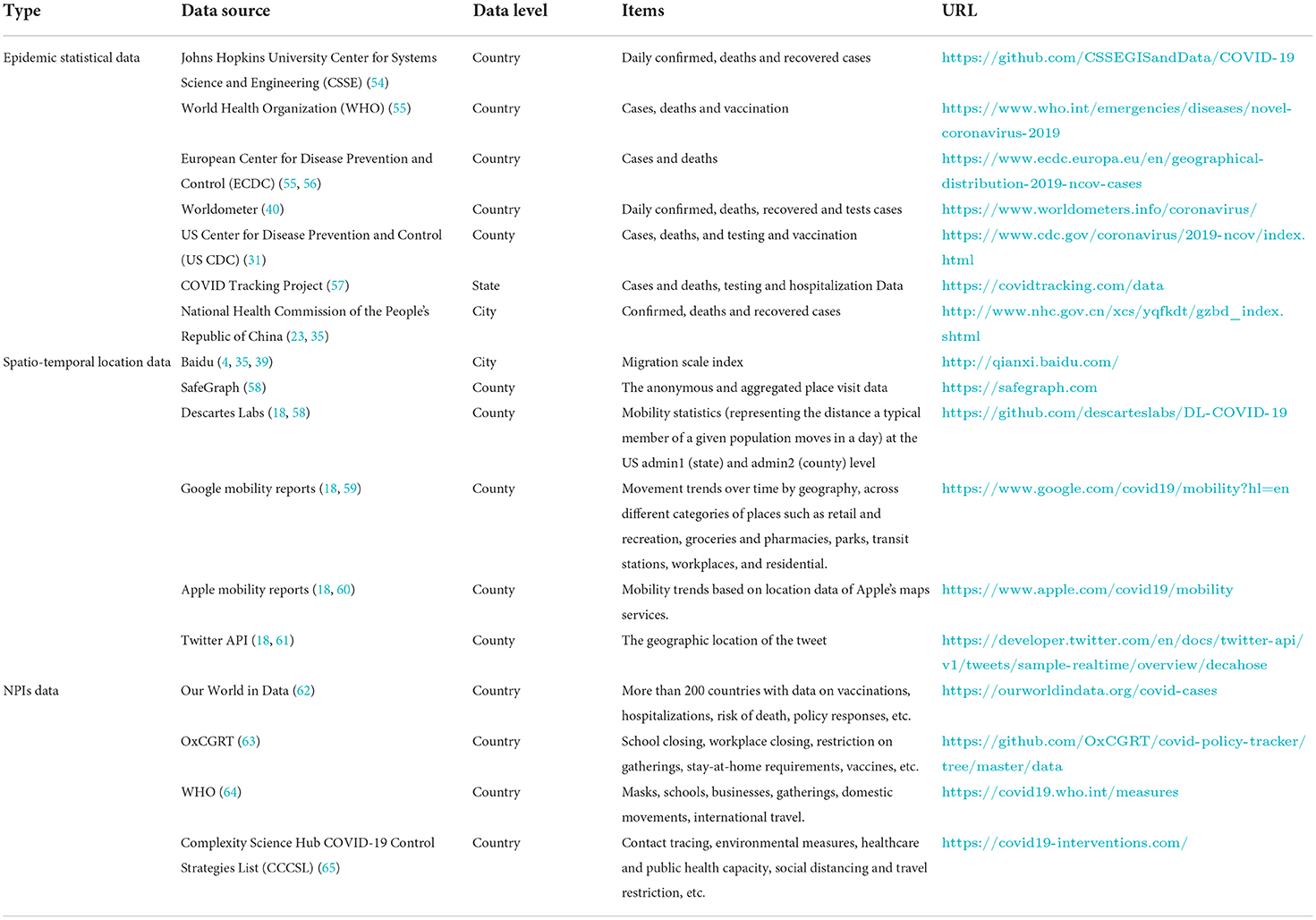

Table 3. Grouping of COVID-19 spatio-temporal dataset sources into epidemic statistical data, spatio-temporal location data and NIPs data.
Epidemic statistical data
COVID-19 epidemic statistical data have been successfully applied to various epidemic prediction models in the early stage of the epidemic, and most of the early epidemic prediction models were data-driven (66, 67). Commonly used epidemiological statistics are global and country-wide, including indicators such as the number of confirmed cases, the number of death cases, the number of recovered cases, the number of tests, and the number of vaccinations, etc. By counting the number of confirmed epidemics in various regions, statistical models and mathematical models are used to predict the development trends of future epidemic (68, 69). For example, Yang et al. (35) derived the epidemic curve by integrating the latest epidemiological data and the population migration data and founded a 5-day delay would triple the size of the outbreak in mainland China. Wang et al. (54) applied the coupled mathematical model Logistic and machine learning Prephet prediction method to predict the development trend of COVID-19 in countries such as the world, Brazil, Russia, India, Peru, and Indonesia based on the statistical data collected by Johns Hopkins University. Analysis of the forecast curve shows that the response measures taken by countries in early March 2020 controlled the spread of the epidemic to a certain extent (26).
Location-based data
The proliferation of mobile devices has made it easier to access location-based data of COVID-19. Researchers can construct COVID-19 spatio-temporal data sets based on cellular signaling data provided by major operators, thereby mining OD data and using it to analyze the spatio-temporal spread of the epidemic (70). For example, Gao et al. (58) derived data from SafeGraph and modeled the relationship between changes in population mobility and the diagnosis rate of COVID-19. Hou et al. (5) combined human mobility and social media big data to model the spread of COVID-19 and the spread of risk. Public epidemic prevention and control services based on spatio-temporal location big data make cities more intelligent. GIS and big data technology play an important role in the rapid aggregation of multi-source big data, rapid visualization of epidemic information, spatial tracking of confirmed cases, regional transmission prediction, epidemic risk, and spatial division of prevention and control levels. It can balance the supply and demand management of material resources, eliminate social emotional panic, and provide solid spatial information support for epidemic prevention and control decision-making, measure formulation and effect evaluation (71).
In the current era of globalization, the flow of people, vehicles and logistics has shown explosive growth, making public epidemic prevention and control a global challenge. These data are typical spatio-temporal data, so the whole society urgently needs to develop public epidemic prevention and control services based on spatio-temporal location big data.
NPIs data
In the early stages of a pandemic, in the absence of vaccines or effective treatments, NPIs are essential. However, some of these measures have caused significant damage to social development and the national economy. NPIs such as isolation, school closures, social distancing, and wearing masks do reduce the spread of the outbreak, but the potential degree of mitigation is unclear, especially the relationship proportions of these interventions. Minimizing the impact of the epidemic and its impact on people's lives is a scientific issue that needs to be explored. Scholars and related public health institutions have collected and established a series of data sets of NPIs measures, including case identification, contact tracing and related measures, environmental measures, health care and public health capacity, resource allocation, normal life, risk communication, social distance and travel restrictions, etc.
Model summary
Through the review of the spatiotemporal dynamic propagation model in the previous section, we conclude that macro models usually include compartmental models and metapopulation models. Compartmental model treats the population as homogeneous mixing, while metapopulation model divides the population into several subgroups, as is illustrated in Figure 2. A typical representation of micro models is an individual-based model, which treats individuals in a population as cells or agents consisting of a finite set of states and behavior rules.

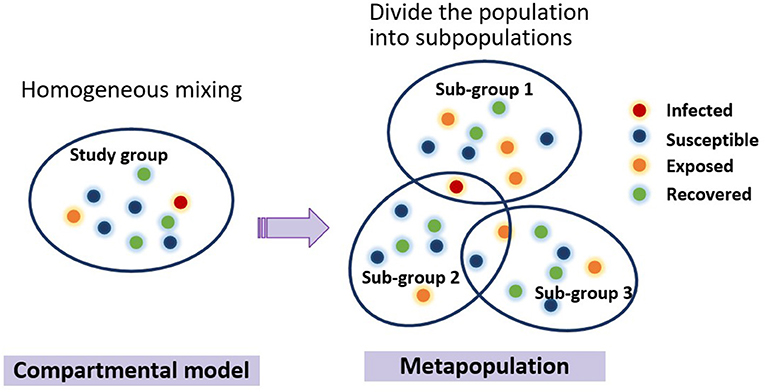

Figure 2. Evolution of the typical macro-dynamic models. Each circle represents an individual, and different color of the circle signifies different type of people. Compartmental model treats the population as homogeneous mixing, while metapopulation model divides the population into several subgroups. People can come and go between populations, and the compartmental model can be used to simulate the internal transmission process of infectious diseases within populations.
Macro-dynamic model
Compartmental model. In the historical development of epidemic dynamics modeling, Ross's study on malaria and Kermack and Mckendrick's study on epidemic transmission models are two important milestones (72, 73). The SIR compartmental model and its variants, such as SEIR and SIRS, are traditional compartmental models widely used to estimate the effective reproduction number and predict epidemic peak duration or inflection points, which constitute the mainstream of epidemic dynamics research (74–76). In the compartment model, different compartments are established to represent people in different disease states, and differential equations are established to study the transmission dynamics of the disease. For example, S, I and R in the SIR model represent three groups of people: susceptible, infected and recovered people, respectively.
In response to COVID-19, He et al. (30) established the SEIR model of COVID-19 based on general control strategies such as hospitals, isolation and external input, and used the model to simulate and predict the evolution of the epidemic in Hubei Province, China. Institute for Health Metrics and Evaluation (IHME), a COVID-19 modeling team at the University of Washington, constructed a SEIR model to predict the number of COVID-19 deaths in the United States from September 22, 2020 to February 28, 2021 based on data from February 1 to September 21 (31). In order to classify the disease status of the population and analyze the transmission dynamics of infection more accurately, many variants of SEIR model have been proposed by researchers, such as SEIRQ (32), SEIRQD (33), which Q and D represents quarantine and deaths, respectively. However, the virus infection rate and other parameters in those models are usually constant. It is difficult to model the spread of COVID-19 and predict the epidemic trend accurately, with 0.9448 R2 and 0.1 MAPE of the cumulative confirmed cases respectively. In order to solve this problem, scholars have proposed a series of methods to dynamically update and correct the parameters. Using the Particle Swarm Optimization (PSO) algorithm to solve the parameters of the SEIR model, Godio et al. (34) analyzed different scenarios of the evolution of COVID-19 in Italy, and the results showed that each region of Italy will reach the peak of the epidemic by mid-May 2020. In this method, provided models that fitted the observed data with good accuracy, although the stochastic approach has, in general, a slightly lower error. A hybrid model of SEIRD and ARIMA was also established to predict the development curve of the epidemic. The use of ARIMA model eliminates the residual of the dynamic model, improves the accuracy of the prediction of infectious diseases by the compartmental model, and prolongs the prediction period (13, 77). In addition, some scholars have combined several prevention and control measures with the SEIR model to derive epidemiological curves and evaluate the impact of various prevention and control measures on the development of the epidemic. Yang et al. integrated the migration data of Wuhan, Hubei province around January 23, 2020 into the SEIR model, and found that the epidemic in China should peak at the end of February and gradually decline at the end of April, 2020. A delay of 5 days in shutting down Wuhan could triple the size of the outbreak in mainland China (35).
After reading and summarizing the warehouse model and its variants proposed by existing researchers, the author made a graphical summary of all possible variants, roughly shown in Figure 3. A major flaw in these models, however, is their homogeneity mixing assumption, which assumes that individuals in the same compartment are in complete contact with each other and that they are equally likely to be infected by any one of the infected. It may be possible for a single small group, while if the population is larger, the internal spatial and social relationship structure tend to be more complex, and interpersonal interactions have a distinct individual orientation, such as family, friends and colleagues, or contact frequency between doctors and patients is significantly higher than the others, then this assumption would not work anymore. During the spread of COVID-19, it is found that a considerable number of infections have occurred in community or work unit, and a single infected person can infect a large number of people, which is the so-called “super spreader” phenomenon, which is significantly different from the transmission process of free environment (36).

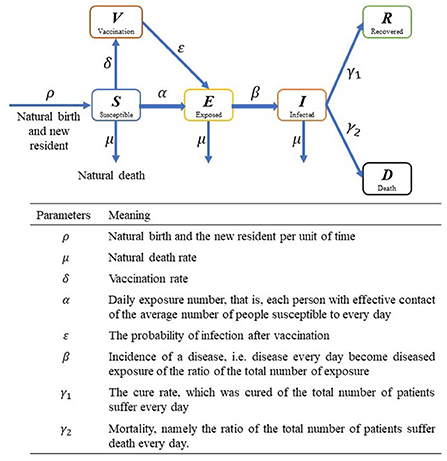

Figure 3. Illustration of compartmental model. S, E, I, R, D and V represent susceptible, exposed, infected, recovered, death and vaccination people, respectively.
Metapopulation model. The metapopulation model was originally derived from the field of bioecology and was mainly used to simulate the migration behavior of individuals between populations (78, 79), and were an extension of the compartmental model which is introduced into modeling the spread of infectious diseases (80–84). The main idea of the metapopulation model is to divide the population into several subgroups, namely the metapopulation, between which people can be allowed to travel, and within the metapopulation, the compartmental model can be used to simulate the transmission process of infectious diseases within the metapopulation. For example, the population of a country or region can be divided into cities, and the city can be further divided into communities.
Based on the Bats-Hosts-Reservoir-People transmission network, Chen et al. (37) constructed a transmission dynamics model of COVID-19 with metapopulations and multiple pathways, and calculated the transmission capacity of COVID-19 by stages in each province basically, thus realizing the phased transmission capacity assessment of COVID-19. Chinazzi et al. (38) applied the Global Epidemic and Mobility project (GLEaM) to analyze global subpopulations centered on transportation hubs, such as airports based on migration data from airports around the world. The subgroups are connected through population movement and individual travel (39). The SEIR model was constructed within each subpopulation to simulate the international spread of COVID-19, covering more than 3,200 subpopulations in about 200 countries and territories. They calculated the outbreak of unconstrained travel and compared the impact of travel restrictions on the epidemic with actual travel restrictions, and the epidemiological modeling results showed that for 90% of China, travel restrictions had an impact on the epidemiological trajectory unless transmission was reduced by more than 50% simultaneously within the community. It considers different transportation and interaction layers and distinguishes the mobility modeling from the dynamical process mediated by the human dynamics. This allows the integration of different processes of social contagion that are not necessarily of biological origin but occurs taking advantage of the individuals mobility such as information spreading, social behavior, etc. GLEaM has proved to be very flexible and we are working to make the GLEaM platform available to the scientific community at large.
The metapopulation model overcomes the shortcomings of the completely mixed hypothesis of compartmental model to a certain extent, but it is still a kind of macroscopic and relatively rough model that cannot describe the complex individual behavior patterns of infectious disease transmission, such as the movement rule of individuals in space and the behavior of responding to disease.
Micro-dynamic model
The individual-based model is a microscopic simulation model, which mainly includes CA and ABM based models. This modeling idea treats individuals in a population as cells or agents composed of a set of finite states and behavior rules. In general, the evolution behavior of such a complex infectious disease system consisting of virus, host and environment is simulated by defining rules such as individual response behavior to virus, individual movement behavior in space, and interaction behavior between individuals.
CA model. A typical CA model is defined on a grid. The grid of each point represents a cell in space and a finite state. Evolution rules apply to each cell and proceed simultaneously. The simple evolution of the cell unit simulates the complex dynamic evolution of the entire system. Traditional CA can be expressed by the following formula: , where represents the cellular state of cell k at time t+1, represents the cellular state of cell k at time t, represents the neighborhood cellular state of cell k at time t, and f represents the transformation function of cell from the state at time t to the state at time t+1. The main framework of CA model is illustrated in Figure 4.

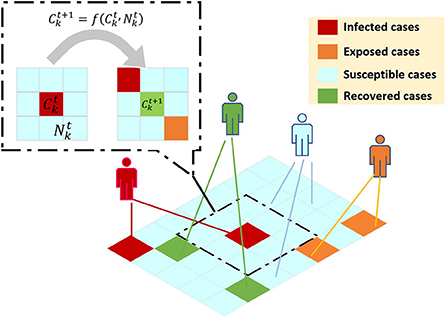

Figure 4. CA model to simulate the epidemic transmission based on virtual geographic grids. represents the cellular state of cell k at time t+1, represents the cellular state of cell k at time t, represents the neighborhood cellular state of cell k at time t, and f represents the transformation function of cell from the state at time t to the state at time t+1.
CA has been used in many studies to model different aspects of epidemics. It has been widely used to model the disease spread of influenza and various vector-borne diseases, such as dengue (85–88). A neighborhood condition is an important aspect in the CA. The most used neighborhood conditions are (i) Neumann's neighborhood condition, (ii) Moore's neighborhood condition, (iii) Extended neighborhood condition, and (iv) Random interactions. Coupled with these neighborhood conditions, various models such as SEIR, SEIRS, SEIRD, and SEIRQD have been studied with the help of CA to model the spatial growth of epidemics (89, 90). Currently, CA has gained a lot of momentum in the studies of COVID-19 (40, 91, 92). Various advanced studies with Genetic algorithms and network models have been done for COVID-19 data (93–95). For example, Indian scholars used sequence evolutionary genetic algorithms to optimize the parameters of the CA model and simulate the development curve of COVID-19 (40, 41), this methodology can predict the varicella prevalence (with average relative error of 2–4%) in Belgium and Italy. The impact of different isolation systems on disease transmission was studied using Probabilistic Cellular Automaton (PCA) to simulate the spread of COVID-19 (42, 43), and the values of the basic reproduction number and the ratio and obtained in these simulations are similar to those found in real-world observations. However, these methods have two limitations. First, existing model do not take into account the effects of time correlation, and the prediction effects of the existing forms of continuous time series data are not ideal. None of the above models take into account the complex behavior of cells in the process of disease transmission, nor do they discuss the impact of various factors such as population movement on disease transmission, and fail to achieve the purpose of effective prediction. On the other hand, most of the existing CA-based infectious disease simulations are based on virtual geographic grids (simulation data), as is shown in Figure 4. Each small box or cell in the grid can be occupied by one person (44) rather than a real house or residential area. Although they can simulate the impact of policy changes on the spread of epidemics, they cannot, much less predict the spread of epidemics in actual areas.
Based on the data of confirmed COVID-19 cases, combined with cellular signaling data and spatial environmental data, spatial clustering analysis, factor analysis, and regression analysis were used to explore the spatio-temporal clustering characteristics of COVID-19 street scale in Chongqing, and analyze its influencing factors (96). Xia et al. combined with the spatio-temporal big data and epidemic dynamics models of multi-source cities in the Greater Bay Area (GBA), calculated the infection parameters (R0) of different communities in the city, corrected the SEIR model, constructed a suitable GBA and improved the regional model. Finally, the spread of COVID-19 in the GBA and the effectiveness of various epidemic prevention and control measures were evaluated and simulated (45). Xu et al. (97) collected and collated epidemiological data at the individual level, and identified them by geocoding to better monitor and predict the spread of infections at the spatial level. Ponce-de-Leon et al. (98) have developed a cross-referencing GIS that provides integrated datasets for managing, retrieving, visualizing and analyzing time series data from Spain's regularly updated population movement network and daily reports of COVID-19 cases. These models are based on CA or its variants to study the spread of infectious diseases at the spatial level. Current approaches for CA model transformation rule mining are micro-based and consider only the interactions between local meta-cellular units. However, in the real world, macroscopic factors, such as people wearing masks, keeping social distance, quarantine policies adopted by the government, vaccination and other measures, and medical resources in hospitals during an outbreak, will have a non-negligible impact on the transformation of microscopic meta-cellular units during the spread of an epidemic.
ABM model. Compared with the CA model, the ABM model is an abstraction of real society, considering the movement of individuals in space and the social relationships between individuals. The ABM model is flexible, with individuals in the model autonomously changing their behaviors based on the environment and becoming more sensitive to government control. Moreover, the model is highly scalable and suitable for modeling and analyzing the spread of infectious diseases in different scenarios. Like we described in Figure 5, many researchers have used social contact networks to constrain the social activities and spatial distribution of individuals when modeling, and have achieved good performance (46, 47), the model estimated R0 = 2.0 in the early stages of the epidemic in China. The contributions to R0 included 46% from pre-symptomatic individuals (before showing symptoms), 38% from symptomatic individuals, 6% from asymptomatic individuals (who never show symptoms), and 10% from environmentally mediated transmission via contamination. Based on this method, the Los Alamos National Laboratory in the United States developed an EpiSimS simulation tool, which is suitable for simulating the spread of diseases in cities with a population of 1 million (99). EpiSimS generates virtual cities based on real demographic data to simulate the spread of diseases in cities. Eubank et al. (100) used EpiSimS to study the spread of the epidemic after terrorists used smallpox to attack Portland.

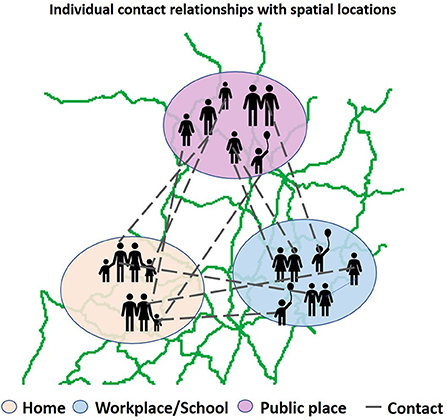

Figure 5. Agent based model to simulate epidemic transmission in real network. The broken line indicates interactions between agents in various places (home, workplace, school, public place).
To response to COVID-19, better respond to ongoing epidemics and use computational models to predict the spread of infections and evaluate the impact of public health measures. Covid-tracing applications and research could track the risk of COVID-19 cases. For example, one study (101) aims to introduces a data-driven method to dynamically model infection risk of international ports of imported COVID-19 cases. The results show that the proposed method can track the risk of the imported COVID-19 of the main cruise ports worldwide. Hinch et al. (48) established OpenABM, an agent-based epidemic simulation model that can evaluate NPIs, including manual and digital contact tracing and vaccination procedures. It can simulate a population of 1 million in seconds per day, allowing parameter sweeping and inference based on formal statistical models, by performing a two-dimensional grid search across the prevalence at which a national lockdown was implemented (calibrated to 1.55%) and the reduction in daily contacts under lockdown (calibrated to 0.33 of pre-lockdown levels, it showed similar results to values reported from the first wave in the UK. Kerr et al. (49) build a Covasim model to predict pandemic trends, intervention options, and Estimated resource requirements. While the model correctly predicted the trend in cases, it underestimated the number of deaths, although the observations were still within the 80% forecast interval.
To make the predictions more accurate, Silva et al. (50) proposed a new SEIR (susceptible exposure-infection-recovery) agent-based COVID-ABS model, which aims to simulate pandemic dynamics using agent societies that simulate people, businesses, and governments, and seven simulation scenarios were conducted and it was concluded that a scenario with the fewest fatalities and the greatest economic impact could not be achieved in a lockdown scenario, and a combination of masks and partial isolation may be more realistic in terms of social cooperation. The results showed that COVID-ABS approach was capable to effectively simulate social intervention scenarios in line with the results presented in the literature. Another study (102) proposed an agent-based model and an implementation strategy for a technology-based contact tracing smart application, and explored the interaction between different adoption rates of contact tracing applications, different levels of detection capabilities, and behavioral factors role to assess the impact on the epidemic. This model can study specific factors between virus, host and environment at the micro level, and it is convenient to study specific factors researchers focus on. Its main disadvantage is low computational efficiency (38). To solve this problem, Wang et al. (51) supposed that each city is an agent with attributes such as urban population, number of infections, inter-city migration as links between nodes, thereby establishing a multi-agent urban network to simulate the inter-city communication process of COVID-19 among Chinese cities. The overall adapted city-based epidemic and mobility model (CEMM) they proposed has higher R2 and lower standard errors than CEMM, especially for cities outside Hubei Province, and the highest fitting accuracy (R2) reached 0.854 for all cities in China. Cuevas developed an agent based model to simulate the transmission risks in facilities, and proposed an agent-based model to simulate the spread of SARS-CoV-2 on a city scale. Researchers also proposed some new geospatial agent-based simulation model to explore the relation between the transmission of COVID-19 and intervention strategies (52, 53), the variation of each model parameter value by 20% had limited impact on outcome estimates (i.e., < 4,000 per 100,000 for incidence and 11 per 100,000 for mortality), suggesting the robustness of the results. And the developed ABM could help university managers to respond to current and future epidemics and plan effective responses to keep safe as many students as possible.
Prospective research directions
Due to the important role of spatio-temporal dynamics modeling in depicting the spread of infectious diseases and deepening the understanding of the characteristics of epidemic diseases, as well as the generation and support of spatio-temporal big data of infectious diseases, large number of COVID-19 dynamics models have been proposed, effectively guiding the actual work of epidemic prevention and control all over the world. It can be seen from the above research progress that the researchers used the compartmental model, metapopulation model and individual-based model to predict the epidemic trend, evaluate the NIPs and analyze the influencing factors of the epidemic. These studies have provided decision-making support for scientific response to the epidemic, but also raised some new challenges. We summarize the prospective future research direction below and illustrated in Figure 6.

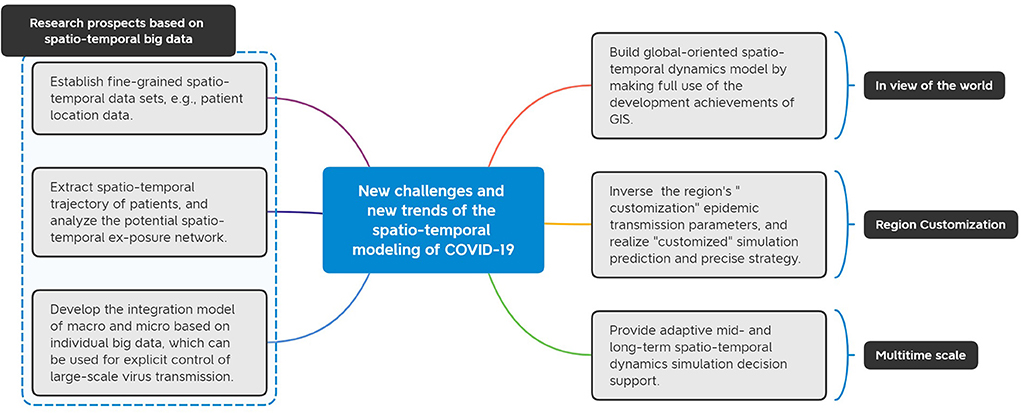

Figure 6. Prospects for future research on COVID-19 spatio-temporal dynamics models. The challenges and trends of building global-level models, making regional customized forecasts, providing multi-time-scale decision support, and developing model reproducibility based on spatiotemporal big data are prospected.
(1) Establish a fine-grained spatio-temporal data set.
Data quality is a major limitation in modeling the spatio-temporal dynamics of infectious diseases and largely determines the effectiveness of modeling. Among the articles we analyzed, there were certain differences in the sources, acquisition and collation methods of COVID-19 data. Some researchers have pointed out that existing spatio-temporal big data of COVID-19 has some shortcomings, including statistical bias by test criteria, test methods and detection rates (103) and the omission of location-based case data (104). However, people tend to have more detailed expectations for dynamic modeling, such as the hope of simulating the development of the epidemic at the micro-scale and proposing precise intervention policies and suggestions, which makes the establishment of fine-grained spatial data integration an important prerequisite for accurate modeling of infectious diseases, especially location-based patient data. Therefore, for the public health sector, more fine-grained spatio-temporal data sets play a crucial and decisive role in dynamic modeling and are an important basis for dynamic modeling. With the development of cloud computing and crowdsourced data technology, it is possible to collect timely, trusted, and fine-grained large-scale epidemic datasets intelligently (105, 106).
(2) Extract the spatio-temporal trajectory of the patient.
The three elements of the spread of infectious diseases are the source of infection, the route of transmission and the susceptible population. Since the outbreak of COVID-19, some countries such as China have entered a stage of normalized epidemic prevention and control (107). Conventional epidemic prevention and control needs to quickly track the epidemic space, find the source of infection, cut off the transmission route, and control the epidemic with the least human and material resources. Therefore, how to build a spatio-temporal dynamics model, extract the spatio-temporal trajectory of patients in reverse, and analyze the potential spatio-temporal exposure network is another major challenge for infectious diseases dynamics modeling.
(3) Build a macro-micro fusion model based on individual big data.
As we summarized in this paper, macroscopic models are more suitable for simulating and describing the overall spread of the epidemic on a large scale, providing an effective reference for macroscopic decision-making, while ignoring individual behavioral responses to the disease. The micro model introduces the participation of individual behaviors to simulate the evolution of the on a small scale, but the calculation cost is high and the calculation parameters are complex. In the future, with the improvement of big data infrastructure and establishment of fine-grained individual big data (such as spatio-temporal location big data) (71, 108), the fact that some maps, like Amap, could be publicly published required taking special care with certain privacy concerns by reaching the optimal trade-off between public entitlement to being informed and the right to personal privacy. Therefore, it is possible to realize the integrated research of macro and micro models, and to study the effective interaction, mutual influence and restriction. Furthermore, based on visualization tools, this integrated model can be used to explicitly control the large-scale transmission of the virus.
(4) Establish a global-oriented spatio-temporal dynamics model.
This study reviews the application of a variety of dynamic models in infectious disease modeling of COVID-19, and argues that dynamic models in different disciplines have their own advantages and disadvantages, and are suitable for different modeling scales. The spatio-temporal dynamics model not only needs to consider the propagation characteristics of space, but also need to explore its spatio-temporal development law. In the current era of big data, the spatio-temporal changes in information collection methods and fine-grained data, as well as the development of machine learning and data driven, make it possible to build a spatio-temporal infectious disease dynamics model that is interdisciplinary and oriented to a global perspective (109). Future research on the dynamics model of infectious diseases should consider the complexity requirements of the transmission and prevention and control processes. On the basis of strengthening the rapid recognition and prevention and control of infectious diseases, promoting the real-time sharing of epidemic information and exploring the combined application of multiple models, it is necessary to make full use of the development achievements of GIS (24), computer science and intelligent frontier technologies (27, 110). Thus, to provide theoretical support and data support for public health decision-making and policy makers. As can be seen from the COVID-19 pandemic, infectious diseases in today's world are a serious challenge. Studying the COVID-19 pandemic as a global issue, developing a system dynamic model to study global issues, and conducting causal analysis will help countries control the epidemic.
(5) Realize “customized” simulation prediction and precise strategy.
Epidemic prediction is one of the most important methods of epidemic prevention and control. Affected by the national conditions of various countries and the actual epidemic prevention policies of different regions, the spread of the epidemic in different regions and cities is also different. The spatio-temporal dynamic integrated model is based on historical epidemic data, inverts a specific area, and obtains the “customization” epidemic transmission parameters in the area, in order to simulate and predict the epidemic situation after fighting against secondary or other types of infectious diseases in the area. This requires that compared with current machine learning methods that focus on short-term epidemic scale for accurate prediction, deep learning methods based on spatio-temporal characterization should focus more on extrapolating the medium- and long-term trends of disease development, simulating and evaluating the effects of different interventions, and revealing some hidden features of the disease transmission process, that is, not to accurately predict the future scale of infection as a single modeling purpose, but more so as a key planning method that can be used for intervention strategy deployment and regulation decisions in epidemics. The future research direction of epidemic spatio-temporal dynamics model should be to introduce a multi-layer and multi-scale integrated model of epidemic spatio-temporal dynamics with big data and intelligent computing, and to realize “customized” simulation prediction and precise strategy by strengthening the research and development of meso-dynamic model (27).
(6) Provide adaptive mid- and long-term spatio-temporal dynamics simulation decision support.
Furthermore, in the face of so many infectious disease models, there is urgent need to develop widely applicable and public modeling tools and platforms, especially spatially explicit modeling tools based on GIS (71). This tool can not only provide for researchers with a verifiable scientific research platform, but also provide a convenient scientific model for public health departments and policy makers, become an auxiliary means of daily decision-making, and promote the process of public health scientific decision-making. Therefore, an adaptive mid- and long-term (from months to year) spatio-temporal dynamics simulation decision support model combined with medical conclusions will be a technical problem to be tackled in the next stage.
(7) Improve the reusability of spatio-temporal propagation model.
Although some studies have published source code, the exact specification of the methods and parameters required to reproduce these results is opaque and thus the results are not reproducible (23, 111). Studying the spatio-temporal transmission model of COVID-19 infectious diseases is not only to provide suggestions for the modeling of the spread of COVID-19, but more importantly, to provide scientific and technological support and model reference for other major public health emergencies, and to help the simulation and prediction after the outbreak of other types of infectious diseases. Therefore, it is necessary to improve the reusability of the spatio-temporal propagation model.
Discussion and conclusion
This study aims to reveal the modeling methods and trends of COVID-19 spatio-temporal transmission from the perspective of literature induction, and divide the spatio-temporal dynamic modeling models of COVID-19 into macro modeling and micro modeling at the research scale. On the basis of previous reviews, our current research further expand on the previous review and further integrate spatial models of COVID-19, focusing on analyzing spatio-temporal modeling models related to COVID-19. Our innovation is to fill in the gaps in the spatio-temporal dynamic modeling of COVID-19 review studies, review the development of this field, and recommend further research to enable more people to work together in public health prevention and control, and help to provide targeted responses to COVID-19 as soon as possible.
Geographical Information Science (GIScience) must be considered in promoting spatio-temporal dynamic modeling, whether it is macro model or micro model. GIScience provides a new tool to promote public health, helps us to understand the world around us by capturing, quantifying and deploying the wealth of geographical information available. Traditional geographic methods have many limitations in this regard, as people move a lot in their daily lives and interact with dynamic environments in complex ways. With advanced geospatial technologies such as mobile tracking and sensing and the GIScience method, we can know when people are affected by what environment, and accurately measure the degree of environmental impact on people's health and the spread of disease. GIScience has been used to do a lot of research on COVID-19-related research, such as studying the impact of human movement on the spread of COVID-19 (112), identifying the spatio-temporal patterns of COVID-19 risk and its association with different built environment characteristics (113–115), spatial analysis of the impact of urban geometry and sociodemographic characteristics on COVID-19 (116). Some study (115) explores the spatial patterns of COVID-19 transmission and its key determinants could provide a deeper understanding of the evolution of the COVID-19 pandemic, another research (117) successfully developed a vector field approach to evaluate the environmental exposure at the population level. However, with its focus on crunching vast amounts of data, it can sometimes lose track of the human factor: how people interact with their environment at an individual level, and what that means for them. This is what GIScience should focus on when it is combined with public health in the future. In the reflection of this review, we believe that in order to respond to the COVID-19 global pandemic, positive measures should be taken from an interdisciplinary perspective, through international solidarity and cooperation, and from a global perspective (118, 119). However, it turns out that although this starting point is good, it will cause certain contradictions at the political level (120).
Our research also has some limitations. First, we mostly focus on modeling the spread of the epidemic at present, and post-epidemic spatio-temporal modeling is also a very important aspect (121). Second, with the development of information technology, geospatial data is growing by at least 20% per year (122) and accessibility is increasing year by year. In the face of these data, how to establish a GIS online application that is convenient for public tasks is also an important way to show the results of the dynamic modeling of spatio-temporal propagation, due to the difficulty of data acquisition, we have not made a unified induction here. Also, in our spatio-temporal dynamic modeling study of COVID-19, we only used Google Scholar and the WOS database. Our search period was 32 months (January 2020–August 2022) and articles published thereafter are not included in this review. In addition, we only consider articles published in English. Therefore, there is an article that, while it satisfies other eligibility criteria, has had to be excluded due to language reasons. According to the performance of major infectious disease in the past, the spread of epidemics in time and space has obvious differences due to different environmental factors (123–125), medical conditions (23), government decisions (126, 127), social systems (128, 129), etc. The impact analysis of the model is also an important aspect. In the macro- and micro-models reviewed in this paper, although they are covered to a certain extent, they are not comprehensive enough.
To the best of our knowledge, this is one of the first systematic reviews of the spatio-temporal modeling of COVID-19 related research. Our work does not only provide an overview of how macro-dynamic and micro-dynamic models was used so far but also provides pointers on how those method and GIScience could be more efficiently used in COVID-19-related works and other public health issues in the coming days. Our study also sheds light on analyzing the progressive relationship between the models and their strengths and weaknesses. The inductive study of these models and results analysis have important implications for our understanding of the transmission dynamics of the COVID-19 pandemic and for developing prevention and control strategies to contain the spread and progression of the disease. In the early stage of the COVID-19 outbreak, most dynamics modeling studies were based on public health data and global flight data to simulate the spread and change of the epidemic on a global and national scale from a macro-modeling perspective. Although this simulation can give a rough prediction of epidemic development in a short time, it cannot achieve accurate simulation on a small scale. Therefore, a model based on population division was proposed to achieve more accurate macro modeling. With the development of computer technology and the disclosure of mobile phone signaling data by major operators, researchers have carried out some micro studies based on these fine-grained data. Individual-based modeling provides the possibility to evaluate the dynamic modeling of social contact and social relationship structure on the spread of infectious diseases.
The dynamic modeling method can better reflect the epidemic law from the transmission mechanism of the disease and can consider the global status in the epidemic process. The methods of infectious disease dynamics, biostatistics and computer simulation are combined to deepen the understanding of the epidemic law of infectious diseases, and make the established model and prevention strategy more consistent with the reality. Meanwhile, we have noticed that each model has its own advantages and disadvantages. Without the premise of practical application, we cannot say that the more complex the model will perform better. Because simple models often contain fewer parameters, and complex models often contain more parameters, the uncertainty of the model is increased from the determination of parameters. In addition, micro-models are not necessarily better than macro-models, because micro-models often require large computing resources, which is also a non-negligible challenge for modeling. The mechanism and parameter selection of micro and macro models need to be further studied in our next research.
