- 1Pharmacy Department, Changshu Hospital Affiliated to Soochow University, Changshu No.1 People’s Hospital, Changshu, China
- 2Central Laboratory, Changshu Hospital Affiliated to Soochow University, Changshu No.1 People’s Hospital, Changshu, China
- 3School of Biology and Food Engineering, Changshu Institute of Technology, Changshu, China
- 4Suzhou Qifan Agricultural Technology Co., Ltd, Changshu, China
Introduction: Scutellaria barbata D. Don is a widely cultivated Chinese herbal medicine known for its medicinal properties. However, differences in the spatial distribution of metabolites, accumulation patterns of flavonoids, and pharmacological activities between the aerial parts and roots of S. barbata still remain unclear, posing challenges for its standardized cultivation and quality control. This study aimed to elucidate the quality differences between these plant parts and clarify their seasonal variations.
Methods: The chemical profiles were qualitatively analyzed by UPLC-QTOF-MS/MS. The accumulation patterns of total flavonoids, scutellarin and baicalin in different parts of S. barbata were quantitatively analyzed by UV and HPLC respectively. The differences of pharmacological efficacy were evaluated by antioxidant assays and CCK-8 assay.
Results: In this research, there were 46 compounds identified in S. barbata that included 44 flavonoids. The aerial parts primarily accumulate flavonoids with 4′-hydroxyl group, while the root mainly accumulate flavonoids without this group. Additionally, the accumulation and variation of flavonoid components were seasonally dependent, with the aerial parts reaching peak content in spring during vigorous vegetative growth and the roots accumulating most flavonoids in autumn. The extracts from both parts exhibited antioxidant activity and inhibitory effects on cancer cell proliferation, with notable differences between them.
Discussion: This study provides valuable insights into the quality differences and seasonal dynamics of the different parts of S. barbata, offering a reference for standardized harvesting and quality control.
1 Introduction
The therapeutic effects of medicinal plants are primarily attributed to the endogenous bioactive ingredients, most of which are secondary metabolites (Rogerio et al., 2010; Chen et al., 2024). The secondary metabolites in medicinal plants are diverse, accumulating in specific organs and exhibiting distinct distribution patterns. For instance, in Astragalus membranaceus, dihydroflavones, isoflavones, and flavones are predominantly found in the aerial parts, whereas saponins are primarily concentrated in the roots (Li et al., 2019; Gao et al., 2024). In addition, the accumulation of active ingredients in medicinal plants varies with the growth and development of the plants. For example, the young leaves of Mitragyna speciosa (Korth.) Havil. contain significantly higher levels of medicinally beneficial alkaloids, which decrease as the leaves mature (Kong et al., 2017; Veeramohan et al., 2023). Flavonoids, as active ingredients in many species of medicinal plants, exhibit organ-specific distribution, and their accumulation varies with the plant’s development (del Baño et al., 2004; Xu et al., 2018b; Bouyahya et al., 2022; Ali Reza et al., 2023). Therefore, a comprehensive study of the distribution differences and accumulation patterns of flavonoids in medicinal plants can provide valuable insights for selecting medicinal parts and improving the quality control of medicinal materials.
Scutellaria barbata is a perennial herb belonging to the genus Scutellaria in the family Lamiaceae. Its dried whole herb, known as Ban-zhi-lian (BZL) in traditional Chinese medicine, is widely used in clinical practice. It is recognized for its properties of expelling toxins, cooling, dispersing blood stasis, and promoting diuresis. Clinically, it is used to treat throat swelling and pain, injuries from falls, and bite wounds from snakes or insects (Chinese Pharmacopoeia Commission, 2020). Pharmaceutical research indicates that BZL extract exhibits a range of activities, including anticancer, anti-inflammatory, and antibacterial effects (Sato et al., 2000; Xu et al., 2013; Wu et al., 2022). BZL extract is rich in flavonoids, and researchers have currently isolated more than 50 flavonoid compounds with diverse structures from the extract (Wang et al., 2020). Most of the flavonoids isolated from BZL exhibit significant bioactivity. For instance, scutellarin can inhibit the proliferation of breast cancer stem cells, while baicalin improves insulin resistance and regulates liver glucose metabolism (Xu et al., 2018a; Ma et al., 2024). Therefore, flavonoids are used as one of the key criteria for the quality evaluation of BZL in the Chinese Pharmacopoeia and other related studies (Chinese Pharmacopoeia Commission, 2020).
As the demand for BZL continues to increase year by year, the BZL currently available on the market is primarily sourced from artificial cultivation. Because the aboveground parts of S. barbata can regreen multiple times a year, the aboveground parts of artificially cultivated S. barbata are often harvested several times annually for use as medicinal materials. In addition, during artificial cultivation, the harvested parts of S. barbata are often inconsistent across different batches. For example, some batches only contain the aerial parts, while others contain both the aboveground parts and roots. Previous studies have shown that the harvest time can significantly impact the quality of Chinese medicinal materials. The types and accumulation of active ingredients also vary greatly among different plant organs (Zeng et al., 2017; Hazrati et al., 2024). Therefore, non-standard harvesting methods may result in quality differences between batches of BZL. To our knowledge, research on the distribution and accumulation patterns of flavonoids in the aerial parts and roots of S. barbata is lacking. Additionally, there is a lack of comprehensive bioactivity assessment for different parts of S. barbata. This gap hinders the effective quality control of S. barbata through standardized cultivation and harvesting practices.
This study first identified the chemical components of the aerial parts and roots of S. barbata using high-performance liquid chromatography (HPLC)–quadrupole time-of-flight (QTOF)–tandem mass spectrometry (MS/MS) to compare the chemical profiles of these two parts. After that, the metabolic change pattern of the total flavonoids and the key active flavonoids in both parts were investigated. Building on these findings, the study further detected the antioxidant properties and cancer cell proliferation inhibition of the aerial part extract and root extracts to gain preliminary insights into their quality differences. These insights provide a theoretical foundation for the standardized harvesting and quality control of artificially cultivated S. barbata.
2 Materials and methods
2.1 Plant materials
From March 9 to December 14, 2023, the entire S. barbata was collected biweekly from the Qi Fan Agricultural Technology Co., Ltd., planting base. The collected samples were washed and divided into aerial parts (mainly leaves and stems) and roots. These samples were then dried according to the methods outlined in the Chinese Pharmacopoeia (Chinese Pharmacopoeia Commission, 2020).
2.2 Chemicals and reagents
Baicalin and scutellarin, the reference standards, were obtained from Baoji Herbest Bio-Tech Co., Ltd. (Shannxi, China). The purity of each compound was determined to be over 98% through the HPLC analysis. Methanol for chromatography was obtained from Merck (Darmstadt, Germany). Chromatography-grade water was obtained from Watsons (Hong Kong, China). All other reagents were of analytical grade and obtained from Nanjing Chemical Regents Co., Ltd. (Nanjing, China).
2.3 Chemical profile qualitative analysis by UHPLC–QTOF–MS/MS
Chromatographic separation was performed using a Waters ACQUITY UPLC (Waters, Milford, MA, USA). An ACQUITY UPLC BEH-C18 column (2.1 × 150 mm, 1.7 μm; Waters, Wexford, Ireland) was utilized for analysis at 30°C. The mobile phase for chromatographic separation consisted of a mixture of 0.1% formic acid–water (A) and methanol (B). The flow rate was 0.3 mL/min, with the following gradient conditions: 0–20 min, 5%–25% (B); 20–25 min, 25%–30% (B); 25–35 min, 30%–95%; 35–37 min, 95%–95%; and 37–40 min, 95%–5%. The injection volume was 5 μL. Qualitative analysis was conducted using the AB SCIEX Triple TOF 5600 system (AB SCIEX Technologies, Redwood City, CA, USA) in both negative and positive ion modes. The mass range was set from 100 to 2,000 m/z, and the electrospray ionization temperature was set to 50°C. The nebulizer gas pressure and ion spray voltage were 60 psi and 4.5 kV, respectively. The collision energy was −35 V for negative ion mode and 40 V for positive ion mode.
2.4 Quantitative analysis of total flavonoids by UV spectrophotometry
The standard curve of scutellarin and baicalin was established according to the Chinese Pharmacopoeia (2020 edition) for the quantitative analysis of total flavonoids in the aerial parts and roots of S. barbata, respectively. For sample preparation, approximately 1 g of powdered aerial parts of S. barbata (sieved through a No. 3 sieve) was placed in a Soxhlet extractor and extracted with petroleum ether (60°C–90°C) at a 1:100 material-to-liquid ratio. The mixture was refluxed at 82°C until colorless, after which the ether solution was discarded, and the residue was extracted with methanol until colorless. The extract was diluted to 100 mL with methanol, followed by further dilution of 1 mL of the solution to 50 mL. The absorbance was measured using an ultraviolet (UV) spectrophotometer at 335 nm. Root samples were directly extracted with methanol without prior treatment with petroleum ether, following the same procedure as for the aerial parts. The absorbance was measured at 278 nm.
2.5 Quantitative analysis of flavonoids by high-performance liquid chromatography
An HPLC method was developed to quantify scutellarin in the aerial parts and baicalin in the roots of S. barbata. All samples were analyzed using an Agilent Series 1260 LC system (Agilent Technologies, Cambridge, MA, USA). Chromatographic separation was performed with a mobile phase consisting of 0.1% formic acid in water (A) and methanol (B) under the following gradient conditions: 0–5 min, 15%–25% (B); 5–10 min, 25%–30% (B); 10–20 min, 30%–40% (B); 20–30 min, 40%–40% (B); 30–40 min, 40%–55% (B); 40–55 min, 55%–70% (B); 55–65 min, 70%–95% (B); 65–70 min, 95%–95% (B); 70–75 min, 95%–15% (B); and 75–78 min, 15%–15% (B). The detection wavelengths were set at 335 nm for the aerial parts and 278 nm for the roots. The column temperature was kept at 25°C, with a flow rate of 1 mL/min and an injection volume of 20 μL.
2.6 Method validation
Method validation was conducted following our previous research with slight modifications (Xu et al., 2018b). The validation process included analysis of the linear regression curve, limit of detection (LOD), limit of quantification (LOQ), repeatability, intra-day and inter-day stability, and recovery. Calibration curves were constructed using a series of standard solutions at appropriate concentrations. The LOD and LOQ were determined based on signal-to-noise (S/N) ratios of 3 and 10, respectively.
Precision was evaluated by analyzing standard solutions in six replicates for both intra-day and inter-day variability. To assess repeatability, six different sample solutions were prepared from the same root and aerial part samples collected on April 20, and the results were expressed as relative standard deviation (RSD). Stability was assessed by storing the sample solutions at 25°C and analyzing them at 0 hours, 2 hours, 4 hours, 6 hours, 8 hours, 12 hours, 24 hours, 48 hours, and 72 hours. For recovery validation, six replicates of root samples (collected on April 20) were added with baicalin for extraction and recovery assessment, while six replicates of aerial part samples (collected on April 20) were added with scutellarin. The results of method validation for HPLC and UV spectrophotometry are shown in Supplementary Table S1. The calibration curves are presented in Supplementary Figure S1.
2.7 Antioxidant assays
2.7.1 ABTS scavenging assay
The ABTS scavenging assay was performed to evaluate the antioxidant activity, following a previously reported method with modifications (Cheng et al., 2022). The ABTS stock solution was prepared and diluted to achieve an absorbance of approximately 0.7 at 734 nm. The BZL extracts were mixed with the diluted ABTS solution and incubated in the dark at 30°C for 30 min. The absorbance of the mixture was measured at 734 nm to determine the antioxidant activity. The ABTS radical scavenging activity was calculated as follows:
where A1, A0, and A2 are the absorbance values of the samples [or L-Ascorbic acid (Vc)], the control, and the blank without ABTS, respectively.
2.7.2 DPPH scavenging assay
The antioxidant activity was also assessed using the DPPH scavenging assay with slight modifications (Cheng et al., 2022). The sample extract (0.5 mL) was mixed with 6 mL of DPPH solution (0.1 mmol/L) and allowed to react at room temperature for 30 min. The reaction was protected from light. The absorbance of the mixture was measured at 517 nm to determine antioxidant activity. The DPPH radical scavenging activity was calculated as follows:
where A0 presents the absorbance of the control, A1 presents the absorbance of samples (or Vc), and A2 presents the absorbance of the blank without DPPH.
2.8 CCK-8 assay
Human colorectal cancer cell lines HT-29 and HCT116, as well as the human breast cancer cell line MDA-MB-468, were kindly provided by the Stem Cell Bank of the Chinese Academy of Sciences (Shanghai, China). The colorectal cancer cells were maintained in McCoy’s 5A medium (Gibco™) supplemented with 10% fetal bovine serum (FBS; KM0502, Ozfan, Nanjing, Jiangsu, China) and 1% penicillin/streptomycin (Beyotime Biotechnology, Shanghai, China). The breast cancer cells were maintained in a dedicated cell culture medium (CM-0290B, Procell, Wuhan, Hubei, China).
Cancer cells in the exponential growth phase were seeded into 96-well plates at a density of 5 × 103 cells per well. After 24 hours, the cells were treated with S. barbata extracts at various concentrations: 0 μg/mL, 12.5 μg/mL, 25 μg/mL, 50 μg/mL, 100 μg/mL, 200 μg/mL, 400 μg/mL, 600 μg/mL, and 800 μg/mL. Each concentration had six replicates. Following the 72-hour incubation, 10 μL of Cell Counting Kit-8 (CCK-8) solution was added to each well, and the cells were incubated for an additional 2 hours. The IC50 of the extracts was determined by measuring the optical density at 450 nm using a microplate reader and plotting the dose–response curve.
3 Results and discussion
3.1 Phenotypic changes and biomass accumulation patterns of S. barbata at different growth stages
The phenotypic change in the aerial parts of S. barbata and the mass ratio of the aerial part to the root over 1 year are shown in Figures 1, 2, respectively. The aerial parts of S. barbata started to grow in early March. From March to early May, the biomass ratio of the aerial part to the root gradually increased, indicating vigorous growth and rapid biomass accumulation in the aerial parts during this time. However, from May onward, this ratio began to gradually decrease. Through observation, it was discovered that S. barbata entered the flowering period and began reproductive growth at this time, and after that, the aerial parts gradually withered. At the beginning of August, the aboveground parts underwent a second round of vigorous growth. By mid-October, they withered again. Although the aerial parts of S. barbata exhibited regrowth in November and December, the biomass accumulation during this time significantly slowed down compared to that in spring.
Figure 1. Morphology of the aerial parts of Scutellaria barbata at different stages over 1 year. (A–K) Morphological changes of the aerial parts of S. barbata from greening to withering during the first growth cycle (from March to July). (L) Morphology of the aerial parts during the second round of vigorous growth. (M) Morphology of the aerial parts during the third round of vigorous growth.
Figure 2. Changes in the mass ratio between the aerial parts and roots of Scutellaria barbata at different growth stages.
3.2 Comparative analysis of the spatial distribution of metabolites in S. barbata
Previous studies have isolated and identified various chemical components in S. barbata, but the differences in chemical composition between its aerial parts and roots remain unclear (Wang et al., 2020). In this study, UV–VIS spectroscopy was employed to scan the extract solutions of both parts. As illustrated in Figure 3, the aerial extract exhibited three distinct absorption peaks at 215 nm, 278 nm, and 335 nm, while the root extract showed only two prominent peaks at 218 nm and 278 nm. These differences in UV absorption spectra suggested that the chemical compositions of the aerial parts and roots of S. barbata were distinct.
Figure 3. UV–Visible wavelength spectra of Scutellaria barbata extracts and representative flavonoid compounds. (A) Spectrum of the aerial part extract of S. barbata. (B) Spectrum of the root extract of S. barbata. (C) Spectrum of scutellarin. (D) Spectrum of baicalin.
HPLC–QTOF–MS/MS was also employed to elucidate the differences in chemical profiles between the aerial parts and roots of S. barbata. There were marked differences in the total ion chromatograms (TICs) between the aerial parts and roots, indicating significant variations in their chemical compositions, consistent with the UV–VIS spectroscopy results (Figure 4). Upon analyzing the mass spectrometry data, a total of 46 compounds were identified in both parts of S. barbata (Table 1), mainly flavonoids and phenylethanol glycosides (Nos. 13 and 15). Among these, eight compounds were common to both the aerial parts and roots, including isocarthamidin-7-O-glucuronide, carthamidin-7-O-glucuronide, scutellarin, acteoside, 5,7,4′-trihydroxy-6-methoxy flavanone, 5,7,4′-trihydroxy-8-methoxy flavanone, isomer of isocarthamidin-7-O-glucuronide, and isomer of carthamidin-7-O-glucuronide. Fourteen compounds were found exclusively in the aerial parts, while 24 compounds were detected only in the roots of S. barbata (Figure 5A, Table 1). As depicted in Figures 5B, C, the aerial parts of S. barbata mainly accumulated 4′-hydroxyflavones such as scutellarin and luteolin 7-O-glucuronide, whereas the roots primarily accumulated specialized flavonoids lacking a 4′-OH group on their B-rings, such as baicalin and wogonoside. Similarly, our previous study revealed that the roots of Scutellaria baicalensis also accumulated large amounts of flavonoids without the 4′-OH group (Xu et al., 2018b). The flavonoid distribution in the aerial parts and roots of S. barbata is similar to the spatial distribution patterns of flavones in S. baicalensis. Research has shown that S. baicalensis possesses an evolved pathway for the biosynthesis of specific, bioactive 4′-deoxyflavones in its roots, involving enzymes such as flavone synthase II-2, cinnamic acid-specific coenzyme A ligase-7, and chalcone synthase-2 (Zhao et al., 2016). These genes are highly expressed in the roots of S. baicalensis, leading to the accumulation of flavonoids lacking hydroxylation at the 4′ position of the B-ring. Since S. barbata and S. baicalensis are closely related species in the same genus, it is likely that a similar flavonoid without a 4′-OH group biosynthetic pathway exists in the roots of S. barbata. This pathway may run parallel to the classic flavone biosynthesis and specifically produce flavonoids that lack 4′-OH groups.
Figure 4. The representative TIC of Scutellaria barbata extracts on UHPLC–QTOF–MS. (A) Aerial part of S. barbata. (B) Root of S. barbata. The peak numbers in the TIC graph are consistent with those in Table 1. TIC, total ion chromatogram; UHPLC–QTOF–MS, ultra-high-performance liquid chromatography–quadrupole time-of-flight–mass spectrometry.

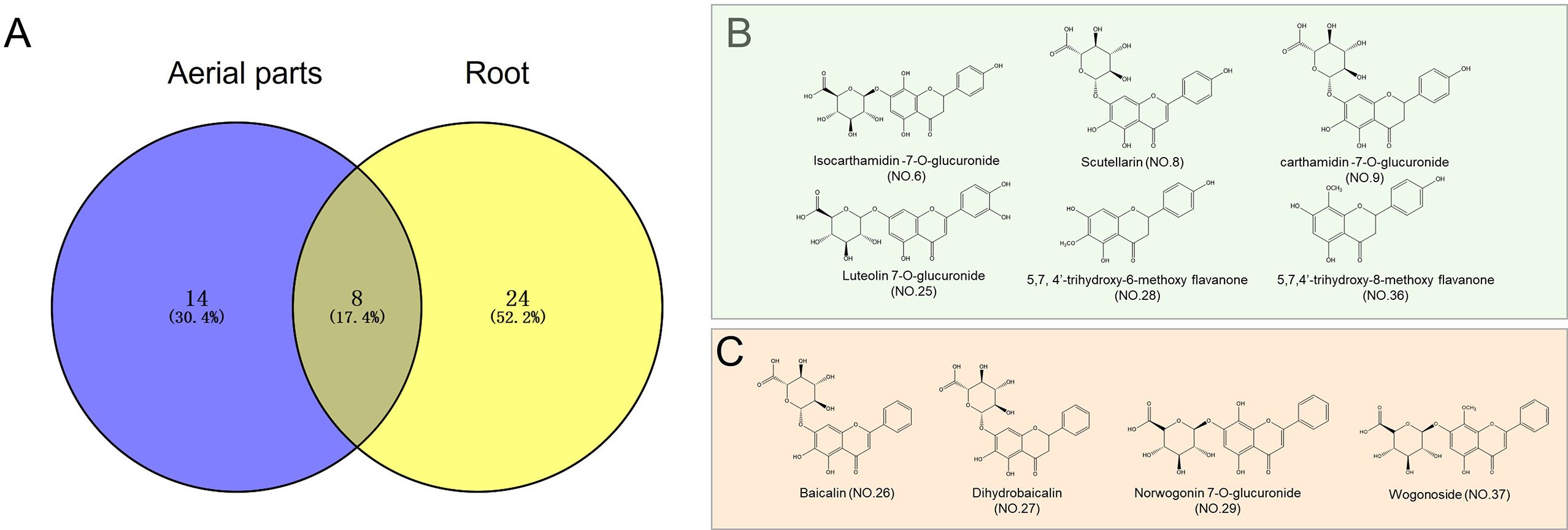

Figure 5. Distribution of the identified compounds in Scutellaria barbata and the chemical structures of representative compounds. (A) Venn diagram showing the distribution of identified compounds in S. barbata. (B) Chemical structures of the main flavonoids identified in the aerial parts of S. barbata. (C) Chemical structures of the main flavonoids identified in the roots of S. barbata.
3.3 Seasonal dynamics of quality-related flavonoids in S. barbata
The accumulation of total flavonoids in the aerial parts and roots of S. barbata was quantitatively analyzed at different periods over 1 year, as shown in Figures 6A, B. The total flavonoid content in the aerial parts ranged from 10.99 ± 0.15 mg/g (collected on October 11) to 25.87 ± 0.91 mg/g (collected on March 22), while in the roots, it varied from 36.65 ± 1.12 mg/g (collected on December 14) to 73.38 ± 1.56 mg/g (collected on October 25). The accumulation of flavonoids in the aerial parts varied significantly across different growth stages. From early March to late April, when S. barbata primarily engaged in vegetative growth, the flavonoid content in the aerial parts was high and relatively stable. During May, the flowering period, there was a rapid decrease in flavonoid accumulation in the aerial parts. This may be due to the anthocyanidins and other flavonoids derived from the common biosynthetic pathway and share the same precursors (Li et al., 2016). The inhibition of flavonoid synthesis in vegetative organs leads to an increased accumulation of anthocyanidins in reproductive organs (Lim et al., 2016). From June to August, as the aboveground parts began to wither, the contents of flavonoids initially increased and subsequently decreased. In early September and early November, the aboveground parts regrew, and flavonoid accumulation exhibited a similar pattern. However, the peak levels during these later stages (samples from September 10 and November 8) were lower than those observed during the initial vegetative growth phase (sample from March 22).
Figure 6. The accumulation patterns of quality-related flavonoids in Scutellaria barbata. (A) The contents of total flavonoids in aerial parts of S. barbata at different collection dates. (B) The contents of total flavonoids in roots of S. barbata at different collection dates. (C) The contents of scutellarin in aerial parts of S. barbata at different collection dates. (D) The contents of baicalin in roots of S. barbata at different collection dates.
Changes in flavonoid accumulation may be related to the intensity and duration of daylight. Light, particularly UV radiation, can cause DNA damage and other cellular injuries in plants (Banerjee et al., 2024). Flavonoids act as effective UV filters, protecting plant cells by absorbing and dissipating UV radiation (Hichri et al., 2011; Ferreyra et al., 2021; Cao et al., 2024). Numerous studies have shown that UV radiation is a key environmental signal that triggers flavonoid synthesis in plants (Liu et al., 2015; Henry-Kirk et al., 2018; Xie et al., 2020). Plants grown under high-light conditions or longer daylight periods typically accumulated more flavonoids compared to those grown in shaded or low-light environments (Götz et al., 2010; Deng et al., 2012). S. barbata primarily grows from March to August, during the spring and summer months. The high abundance of flavonoids during this period likely helps protect the leaves against the increasing light duration and UV intensity (Brunetti et al., 2013). In contrast, the subsequent greening periods in September and November, which occur during autumn and winter, coincide with shorter days and lower light intensity, reducing the need for UV protection. This seasonal variation may explain the differences in flavonoid accumulation observed during the vegetative growth stages of S. barbata at different times over 1 year.
Scutellarin is a quality marker for S. barbata as stipulated in the Chinese Pharmacopoeia. This study further analyzed the accumulation pattern of scutellarin in aerial parts of S. barbata across different growth stages. As shown in Figure 6C, the content of scutellarin in the aerial parts ranged from 2.41 ± 0.10 mg/g (collected on December 14) to 9.00 ± 0.32 mg/g (collected on March 22). The accumulation pattern of scutellarin in the aerial parts of S. barbata was consistent with that of total flavonoid. Scutellarin levels peaked in late March and gradually declined as the plant entered its flowering period. Following the end of reproductive growth, the content of scutellarin in S. barbata increased again, reaching another peak in August. The results indicated that the scutellarin content in the aerial parts of S. barbata exceeded the Chinese Pharmacopoeia’s requirement (not less than 0.20%) at almost all development stages. However, the total flavonoid content in S. barbata meets the Chinese Pharmacopoeia standards (not less than 1.50%) only when the aerial parts grow vigorously.
This study found that the total flavonoid content in the roots of S. barbata ranged from 36.65 ± 1.12 mg/g (collected on December 14) to 73.38 ± 1.56 mg/g (collected on October 25). The accumulation pattern of total flavonoids in the roots differed significantly from that in the aerial parts. From February to July, while the total flavonoid content in the aerial parts underwent dramatic changes, the content in the roots only fluctuated slightly. However, from August to December, the accumulation of total flavonoids in the roots underwent two times distinct increases. This metabolic shift may be a response to environmental stress through nutrient reallocation. Reduced light hours, decreasing temperatures, and decreased water availability are common in autumn. In roots, flavonoids can stabilize cell membranes and mitigate oxidative stress induced by low temperatures, aiding in cold acclimation (Genzel et al., 2021; Song et al., 2023). The accumulated flavonoids may also improve drought resistance by maintaining cellular osmotic balance and protecting cells from dehydration (Nakabayashi et al., 2014; Zuo et al., 2024). Additionally, during the withering period, plants undergo metabolic reconstruction, leading to the accumulation of secondary metabolites in the roots (Zeng et al., 2017; Liu et al., 2020). These factors may contribute to the accumulation of total flavonoids in the roots of S. barbata in the fall.
The chemical profiles of S. barbata roots and aerial parts differ significantly, yet the Chinese Pharmacopoeia does not define specific chemical components for assessing the quality of roots. In this study, baicalin (No. 26 in Figure 4B) was identified as a major component in the roots of S. barbata. Previous studies have indicated that baicalin can exhibit significant pharmacological activity and serve as a quality marker for S. baicalensis, a root-based Chinese medicinal material (Zhang et al., 2023; Wang et al., 2024; Chinese Pharmacopoeia Commission, 2020). Therefore, the accumulation pattern of baicalin in the roots was examined to gain insights into the quality changes of S. barbata. The content of baicalin in S. barbata roots varied from 4.29 ± 0.14 mg/g (collected on December 14) to 10.92 ± 0.48 mg/g (collected on September 23). Figure 6D illustrates that the accumulation pattern of baicalin in the roots of S. barbata was inversely related to that of scutellarin in the aerial parts. The scutellarin was primarily accumulated during the vigorous growth of the aerial parts in spring, while baicalin in the roots of S. barbata reached the highest accumulation level when the aerial parts grew slowly in autumn.
The findings indicated that the aerial parts of S. barbata could be harvested several times annually. To enhance biomass accumulation and comply with the Chinese Pharmacopoeia’s standards for total flavonoid and scutellarin content, it is recommended to harvest the aerial parts of S. barbata during the vigorous growth periods in March, April, June, early September, and early November. When roots are needed, harvesting should take place in the autumn season from August to November to maximize the flavonoid accumulation in the roots of S. barbata.
3.4 Comparative analysis of the pharmacodynamic activities of the aerial parts and roots of S. barbata
We observed distinct differences in the chemical profiles of the aerial and underground parts of S. barbata, but the variation in their pharmacodynamic activities remained unclear. Previous studies have demonstrated that S. barbata extracts exhibit strong antioxidant activity and inhibit cancer cell proliferation (Chen et al., 2020; Liu et al., 2022). Therefore, a functional analysis was performed to assess the in vitro antioxidant and cytotoxic activities of the different parts of S. barbata. Figures 7A, B illustrate that both the aerial parts extracts (DS) and root extracts (DX) of S. barbata exhibited good antioxidant activity. This activity was concentration-dependent with the total flavonoids in the extracts. The DX demonstrated stronger free radical scavenging activity than that of DS, regardless of whether assessed using the DPPH or ABTS method. To evaluate the differences in the effects of DS and DX on cancer cell proliferation, CCK-8 assays were performed. HT-29 and MDA-MB-468 cells were treated with DS and DX, respectively, resulting in a dose-dependent decrease in cell viability (Figures 7C, D). The IC50 of DX in MDA-MB-468 cells was lower than that of DS. However, DS exhibited a greater cytotoxic activity than DX in HT-29 cells.
Figure 7. Comparative activities of extracts from the aerial parts and roots of Scutellaria barbata. (A) DPPH free radical scavenging activity. (B) ABTS free radical scavenging activity. (C) Inhibitory activity on breast cancer cell proliferation. (D) Inhibitory activity on colon cancer cell proliferation. 0730, sample collected on July 30; 0910, sample collected on September 10; DS, aerial part extract of S. barbata; DX, root extract of S. barbata.
The biological activity of a compound is closely linked to its structure. While flavonoids share a similar core structure, their activities differ due to variations in the types, numbers, and positions of functional groups on core structures. In this study, we found that although both the aerial parts and roots of S. barbata were rich in flavonoids, the type and concentration of these flavonoids differ significantly. The primary flavonoids in the aerial parts were isocarthamidin-7-O-glucuronide, scutellarin, carthamidin-7-O-glucuronide, luteolin-7-O-glucuronide, 5,7,4′-trihydroxy-6-methoxy flavanone, 5,7,4′-trihydroxy-8-methoxy flavanone, while those in the roots were predominantly baicalin, dihydrobaicalin, norwogonin-7-O-glucuronide, and wogonoside. Research suggests that the hydroxyl group on the B-ring (C-4′) is more effective for enzyme inhibition, while the hydroxyl group on the A-ring (C-6) is more effective for antioxidant activity. Scutellarin and apigenin, which own the hydroxyl group on the B-ring (C-4′), contribute more to overall enzyme inhibition, while baicalin with no hydroxyl group on the B-ring (C-4′) is a key component to the antioxidant activity of S. baicalensis extracts (Li et al., 2018). Yang et al. found that, despite owned structural similarity, baicalin and scutellarin promoted glucose disposal in adipocytes through differential regulation of the AKT pathway, with scutellarin showing much more favorable binding energy to Akt (−29.81 kcal/mol) compared to baicalin (4.04 kcal/mol) (Yang et al., 2017). The IC50 of baicalin is approximately twice that of scutellarin, suggesting that the 4′-hydroxyl group plays a positive role in urease inhibition (Yu et al., 2015). While these studies do not completely clarify the differences in efficacy between the aerial parts and roots of S. barbata, it is evident that their distinct chemical compositions lead to varying biological activities and pharmacological mechanisms. This aligns with the multi-component, multi-target therapeutic mechanisms characteristic of traditional Chinese medicine. Therefore, it is essential to precisely specify the harvesting parts of S. barbata and control the proportion of different parts to ensure the quality and consistency of the medicinal material.
Conclusion
This study elucidated the distinct chemical profiles and accumulation patterns of flavonoids in the aerial parts and roots of S. barbata. The findings demonstrated that the aerial parts could be harvested during periods of vigorous growth in spring and early autumn to maximize flavonoid content, while the roots should be harvested in autumn to ensure high flavonoid accumulation. The study also highlighted significant differences in antioxidant and anticancer activities between the aerial parts and roots, likely linked to their unique chemical compositions. These results underscore the importance of specifying harvesting periods and plant parts to ensure consistent quality in S. barbata. The insights would contribute to the development of standardized harvesting protocols and quality control measures for S. barbata.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding authors.
Author contributions
YC: Conceptualization, Formal analysis, Investigation, Validation, Visualization, Writing – original draft. WC: Data curation, Formal analysis, Investigation, Writing – original draft. RG: Data curation, Formal analysis, Investigation, Writing – original draft. RC: Data curation, Resources, Supervision, Writing – original draft. XL: Conceptualization, Resources, Supervision, Writing – original draft. DQ: Conceptualization, Project administration, Resources, Supervision, Writing – review & editing. JX: Conceptualization, Funding acquisition, Project administration, Resources, Writing – review & editing.
Funding
The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This work was supported by the National Natural Science Foundation of China (82003885), the Suzhou science and technology plan project (SNG2022027) and Jiangsu Agricultural Science and Technology Innovation Funds (CX(23)3100).
Conflict of interest
Author XL was employed by the company Suzhou Qifan Agricultural Technology Co., Ltd.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2024.1497664/full#supplementary-material
Supplementary Figure 1 | Calibration curves for the quantitative analysis of flavonoids in S. barbata. (A) Calibration curve for the quantification of total flavonoids in the aerial parts of S. barbata by UV spectrophotometry. (B) Calibration curve for the quantification of total flavonoids in the roots of S. barbata by UV spectrophotometry. (C) Calibration curve for the quantification of scutellarin in the aerial parts of S. barbata by HPLC. (D) Calibration curve for the quantification of baicalin in the roots of S. barbata by HPLC.
Supplementary Figure 2 | The TIC chromatogram of S. barbata extracts on UHPLC-QTOF-MS in positive ion model. (A) Aerial part of S. barbate. (B) root of S. barbate.
Supplementary Figure 3 | The representative TIC chromatogram of S. barbata collected at different date in negative ion model. (A) Aerial part of S. barbate collected on November 8. (B) Aerial part of S. barbate collected on April 20. (C) Root of S. barbate collected on April 20 or November 8. (D) Root of S. barbate collected on April 20.
References
Ali Reza, A. S. M., Nasrin, M. S., Hossen, M. A., Rahman, M. A., Jantan, I., Haque, M. A., et al. (2023). Mechanistic insight into immunomodulatory effects of food-functioned plant secondary metabolites. Crit. Rev. Food Sci. Nutr. 63, 5546–5576. doi: 10.1080/10408398.2021.2021138
Banerjee, S., Agarwal, P., Choudhury, S. R., Roy, S. (2024). MYB4, a member of R2R3-subfamily of MYB transcription factor functions as a repressor of key genes involved in flavonoid biosynthesis and repair of UV-B induced DNA double strand breaks in Arabidopsis. Plant Physiol. Biochem. 211, 108698. doi: 10.1016/j.plaphy.2024.108698
Bouyahya, A., Guaouguaou, F.-E., El Omari, N., El Menyiy, N., Balahbib, A., El-Shazly, M., et al. (2022). Anti-inflammatory and analgesic properties of Moroccan medicinal plants: Phytochemistry, in vitro and in vivo investigations, mechanism insights, clinical evidences and perspectives. J. Pharm. Anal. 12, 35–57. doi: 10.1016/j.jpha.2021.07.004
Brunetti, C., Di Ferdinando, M., Fini, A., Pollastri, S., Tattini, M. (2013). Flavonoids as antioxidants and developmental regulators: relative significance in plants and humans. Int. J. Mol. Sci. 14, 3540–3555. doi: 10.3390/ijms14023540
Cao, Y., Mei, Y., Zhang, R., Zhong, Z., Yang, X., Xu, C., et al. (2024). Transcriptional regulation of flavonol biosynthesis in plants. Hortic. Res. 11, uhae043. doi: 10.1093/hr/uhae043
Chen, X., Bahramimehr, F., Shahhamzehei, N., Fu, H., Lin, S., Wang, H., et al. (2024). Anti-aging effects of medicinal plants and their rapid screening using the nematode Caenorhabditis elegans. Phytomedicine 129, 155665. doi: 10.1016/j.phymed.2024.155665
Chen, Q., Rahman, K., Wang, S.-J., Zhou, S., Zhang, H. (2020). Scutellaria barbata: A review on chemical constituents, pharmacological activities and clinical applications. Curr. Pharm. Des. 26, 160–175. doi: 10.2174/1381612825666191216124310
Cheng, Y., Zhang, Y., Sun, H., Huang, D., Jiang, B., Xu, J. (2022). Optimization of ultrasonic-assisted total flavonoids extraction from flower of Albizia julibrissin durazz. by response surface methodology for characterization of chemical profile and evaluation of antioxidant and tyrosinase inhibitory activities. AJBB 18, 100–117. doi: 10.3844/ajbbsp.2022.100.117
Chinese Pharmacopoeia Commission. (2020). Pharmacopoeia of the People’s Republic of China. 2015th Edn (Beijing: Chinese Medical Science and Technology Press).
del Baño, M. J., Lorente, J., Castillo, J., Benavente-García, O., Marín, M. P., Del Río, J. A., et al. (2004). Flavonoid distribution during the development of leaves, flowers, stems, and roots of Rosmarinus officinalis. postulation of a biosynthetic pathway. J. Agric. Food Chem. 52, 4987–4992. doi: 10.1021/jf040078p
Deng, B., Shang, X., Fang, S., Li, Q., Fu, X., Su, J. (2012). Integrated effects of light intensity and fertilization on growth and flavonoid accumulation in Cyclocarya paliurus. J. Agric. Food Chem. 60, 6286–6292. doi: 10.1021/jf301525s
Ferreyra, M. L. F., Serra, P., Casati, P. (2021). Recent advances on the roles of flavonoids as plant protective molecules after UV and high light exposure. Physiol. Plant 173, 736–749. doi: 10.1111/ppl.13543
Gao, Y., Huang, R., Qiu, Y., Liu, Y., Chen, L. (2024). Characterization of the chemical composition of different parts of Dolichos lablab L. and revelation of its anti-ulcerative colitis effects by modulating the gut microbiota and host metabolism. J. Ethnopharmacol 322, 117629. doi: 10.1016/j.jep.2023.117629
Genzel, F., Dicke, M. D., Junker-Frohn, L. V., Neuwohner, A., Thiele, B., Putz, A., et al. (2021). Impact of moderate cold and salt stress on the accumulation of antioxidant flavonoids in the leaves of two capsicum cultivars. J. Agric. Food Chem. 69, 6431–6443. doi: 10.1021/acs.jafc.1c00908
Götz, M., Albert, A., Stich, S., Heller, W., Scherb, H., Krins, A., et al. (2010). PAR modulation of the UV-dependent levels of flavonoid metabolites in Arabidopsis thaliana (L.) Heynh. leaf rosettes: cumulative effects after a whole vegetative growth period. Protoplasma 243, 95–103. doi: 10.1007/s00709-009-0064-5
Hazrati, S., Mousavi, Z., Nicola, S. (2024). Harvest time optimization for medicinal and aromatic plant secondary metabolites. Plant Physiol. Biochem. 212, 108735. doi: 10.1016/j.plaphy.2024.108735
Henry-Kirk, R. A., Plunkett, B., Hall, M., McGhie, T., Allan, A. C., Wargent, J. J., et al. (2018). Solar UV light regulates flavonoid metabolism in apple (Malus x domestica). Plant Cell Environ. 41, 675–688. doi: 10.1111/pce.13125
Hichri, I., Barrieu, F., Bogs, J., Kappel, C., Delrot, S., Lauvergeat, V. (2011). Recent advances in the transcriptional regulation of the flavonoid biosynthetic pathway. J. Exp. Bot. 62, 2465–2483. doi: 10.1093/jxb/erq442
Kong, D., Li, Y., Bai, M., Deng, Y., Liang, G., Wu, H. (2017). A comparative study of the dynamic accumulation of polyphenol components and the changes in their antioxidant activities in diploid and tetraploid Lonicera japonica. Plant Physiol. Biochem. 112, 87–96. doi: 10.1016/j.plaphy.2016.12.027
Li, P., Dong, Q., Ge, S., He, X., Verdier, J., Li, D., et al. (2016). Metabolic engineering of proanthocyanidin production by repressing the isoflavone pathways and redirecting anthocyanidin precursor flux in legume. Plant Biotechnol. J. 14, 1604–1618. doi: 10.1111/pbi.12524
Li, Y., Guo, S., Zhu, Y., Yan, H., Qian, D.-W., Wang, H.-Q., et al. (2019). Comparative analysis of twenty-five compounds in different parts of Astragalus membranaceus var. mongholicus and Astragalus membranaceus by UPLC-MS/MS. J. Pharm. Anal. 9, 392–399. doi: 10.1016/j.jpha.2019.06.002
Li, R., Song, W., Qiao, X., Liu, j., Liang, H., Ye, M. (2015). Chemical profiling of Scutellaria barbata by ultra high performance liquid chromatography coupled with hybrid quadrupole-orbitrap mass spectrometry. J. Chin. Pharm. Sci. 24, 635–646. doi: 10.5246/jcps.2015.10.081
Li, K., Yao, F., Xue, Q., Fan, H., Yang, L., Li, X., et al. (2018). Inhibitory effects against α-glucosidase and α-amylase of the flavonoids-rich extract from Scutellaria baicalensis shoots and interpretation of structure-activity relationship of its eight flavonoids by a refined assign-score method. Chem. Cent J. 12, 82. doi: 10.1186/s13065-018-0445-y
Lim, S.-H., You, M.-K., Kim, D.-H., Kim, J. K., Lee, J.-Y., Ha, S.-H. (2016). RNAi-mediated suppression of dihydroflavonol 4-reductase in tobacco allows fine-tuning of flower color and flux through the flavonoid biosynthetic pathway. Plant Physiol. Biochem. 109, 482–490. doi: 10.1016/j.plaphy.2016.10.028
Liu, L., Gregan, S., Winefield, C., Jordan, B. (2015). From UVR8 to flavonol synthase: UV-B-induced gene expression in Sauvignon blanc grape berry. Plant Cell Environ. 38, 905–919. doi: 10.1111/pce.12349
Liu, L., Liu, T., Tao, W., Liao, N., Yan, Q., Li, L., et al. (2022). Flavonoids from Scutellaria barbata D. Don exert antitumor activity in colorectal cancer through inhibited autophagy and promoted apoptosis via ATF4/sestrin2 pathway. Phytomedicine 99, 154007. doi: 10.1016/j.phymed.2022.154007
Liu, P., Weng, R., Xu, Y., Feng, Y., He, L., Qian, Y., et al. (2020). Metabolic changes in different tissues of garlic plant during growth. J. Agric. Food Chem. 68, 12467–12475. doi: 10.1021/acs.jafc.0c04178
Ma, H., Yue, G. G.-L., Lee, J. K.-M., Gao, S., Yuen, K.-K., Cheng, W., et al. (2024). Scutellarin, a flavonoid compound from Scutellaria barbata, suppresses growth of breast cancer stem cells in vitro and in tumor-bearing mice. Phytomedicine 128, 155418. doi: 10.1016/j.phymed.2024.155418
Nakabayashi, R., Yonekura-Sakakibara, K., Urano, K., Suzuki, M., Yamada, Y., Nishizawa, T., et al. (2014). Enhancement of oxidative and drought tolerance in Arabidopsis by overaccumulation of antioxidant flavonoids. Plant J. 77, 367–379. doi: 10.1111/tpj.12388
Rogerio, A. P., Sá-Nunes, A., Faccioli, L. H. (2010). The activity of medicinal plants and secondary metabolites on eosinophilic inflammation. Pharmacol. Res. 62, 298–307. doi: 10.1016/j.phrs.2010.04.005
Sato, Y., Suzaki, S., Nishikawa, T., Kihara, M., Shibata, H., Higuti, T. (2000). Phytochemical flavones isolated from Scutellaria barbata and antibacterial activity against methicillin-resistant Staphylococcus aureus. J. Ethnopharmacol 72, 483–488. doi: 10.1016/s0378-8741(00)00265-8
Song, Z., Lai, X., Chen, H., Wang, L., Yao, Y., Chen, W., et al. (2023). MaC2H2-like regulates chilling stress response of “Fenjiao” banana by modulating flavonoid synthesis and fatty acid desaturation. Food Chem. 419, 136089. doi: 10.1016/j.foodchem.2023.136089
Veeramohan, R., Zamani, A. I., Azizan, K. A., Goh, H.-H., Aizat, W. M., Razak, M. F. A., et al. (2023). Comparative metabolomics analysis reveals alkaloid repertoires in young and mature Mitragyna speciosa (Korth.) Havil. Leaves. PloS One 18, e0283147. doi: 10.1371/journal.pone.0283147
Wang, L., Chen, W., Li, M., Zhang, F., Chen, K., Chen, W. (2020). A review of the ethnopharmacology, phytochemistry, pharmacology, and quality control of Scutellaria barbata D. Don. J. Ethnopharmacol 254, 112260. doi: 10.1016/j.jep.2019.112260
Wang, R., Wang, C., Lu, L., Yuan, F., He, F. (2024). Baicalin and baicalein in modulating tumor microenvironment for cancer treatment: A comprehensive review with future perspectives. Pharmacol. Res. 199, 107032. doi: 10.1016/j.phrs.2023.107032
Wu, X., Xu, N., Ye, Z., Zhao, Q., Liu, J., Li, J., et al. (2022). Polysaccharide from Scutellaria barbata D. Don attenuates inflammatory response and microbial dysbiosis in ulcerative colitis mice. Int. J. Biol. Macromol 206, 1–9. doi: 10.1016/j.ijbiomac.2022.02.119
Xie, L., Cao, Y., Zhao, Z., Ren, C., Xing, M., Wu, B., et al. (2020). Involvement of MdUGT75B1 and MdUGT71B1 in flavonol galactoside/glucoside biosynthesis in apple fruit. Food Chem. 312, 126124. doi: 10.1016/j.foodchem.2019.126124
Xu, J., Li, Y., Lou, M., Xia, W., Liu, Q., Xie, G., et al. (2018a). Baicalin regulates SirT1/STAT3 pathway and restrains excessive hepatic glucose production. Pharmacol. Res. 136, 62–73. doi: 10.1016/j.phrs.2018.08.018
Xu, J., Yu, Y., Shi, R., Xie, G., Zhu, Y., Wu, G., et al. (2018b). Organ-Specific Metabolic Shifts of Flavonoids in Scutellaria baicalensis at Different Growth and Development Stages. Molecules 23, 428. doi: 10.3390/molecules23020428
Xu, H., Yu, J., Sun, Y., Xu, X., Li, L., Xue, M., et al. (2013). Scutellaria barbata D. Don extract synergizes the antitumor effects of low dose 5-fluorouracil through induction of apoptosis and metabolism. Phytomedicine 20, 897–903. doi: 10.1016/j.phymed.2013.03.025
Yang, L.-L., Xiao, N., Liu, J., Liu, K., Liu, B., Li, P., et al. (2017). Differential regulation of baicalin and scutellarin on AMPK and Akt in promoting adipose cell glucose disposal. Biochim. Biophys. Acta Mol. Basis Dis. 1863, 598–606. doi: 10.1016/j.bbadis.2016.11.024
Yu, X.-D., Zheng, R.-B., Xie, J.-H., Su, J.-Y., Huang, X.-Q., Wang, Y.-H., et al. (2015). Biological evaluation and molecular docking of baicalin and scutellarin as Helicobacter pylori urease inhibitors. J. Ethnopharmacol 162, 69–78. doi: 10.1016/j.jep.2014.12.041
Zeng, H., Su, S., Xiang, X., Sha, X., Zhu, Z., Wang, Y., et al. (2017). Comparative Analysis of the Major Chemical Constituents in Salvia miltiorrhiza Roots, Stems, Leaves and Flowers during Different Growth Periods by UPLC-TQ-MS/MS and HPLC-ELSD Methods. Molecules 22, 771. doi: 10.3390/molecules22050771
Zhang, T., Deng, W., Deng, Y., Liu, Y., Xiao, S., Luo, Y., et al. (2023). Mechanisms of ferroptosis regulating oxidative stress and energy metabolism in myocardial ischemia-reperfusion injury and a novel perspective of natural plant active ingredients for its treatment. BioMed. Pharmacother. 165, 114706. doi: 10.1016/j.biopha.2023.114706
Zhao, Q., Zhang, Y., Wang, G., Hill, L., Weng, J.-K., Chen, X.-Y., et al. (2016). A specialized flavone biosynthetic pathway has evolved in the medicinal plant, Scutellaria baicalensis. Sci. Adv. 2, e1501780. doi: 10.1126/sciadv.1501780
