Stenotrophomonas rhizophila Ep2.2 inhibits growth of Botrytis cinerea through the emission of volatile organic compounds, restricts leaf infection and primes defense genes

The bacterium Stenotrophomonas rhizophila is known to be beneficial for plants and has been frequently isolated from the rhizosphere of crops. In the present work, we isolated from the phyllosphere of an ornamental plant an epiphytic strain of S. rhizophila that we named Ep2.2 and investigated its possible application in crop protection. Compared to S. maltophilia LMG 958, a well-known plant beneficial species which behaves as opportunistic human pathogen, S. rhizophila Ep2.2 showed distinctive features, such as different motility, a generally reduced capacity to use carbon sources, a greater sensitivity to fusidic acid and potassium tellurite, and the inability to grow at the human body temperature. S. rhizophila Ep2.2 was able to inhibit in vitro growth of the plant pathogenic fungi Alternaria alternata and Botrytis cinerea through the emission of volatile compounds. Simultaneous PTR-MS and GC-MS analyses revealed the emission, by S. rhizophila Ep2.2, of volatile organic compounds (VOCs) with well-documented antifungal activity, such as furans, sulphur-containing compounds and terpenes. When sprayed on tomato leaves and plants, S. rhizophila Ep2.2 was able to restrict B. cinerea infection and to prime the expression of Pti5, GluA and PR1 plant defense genes.

1 Introduction

Plant-associated microbes that collectively constitute the plant microbiota can live inside plants as endophytes, or populate as epiphytes on the surface of roots, leaves and other organs (Bulgarelli et al., 2013; Berg et al., 2014). The plant microbiota affects deeply plant growth, productivity and resistance to stresses (Berg et al., 2017). However, it has been demonstrated that crops may display reduced microbial diversity as compared to their wild relatives, probably because this trait was impoverished by the domestication process to which they were subjected (Martínez-Romero et al., 2020). For these reasons, the plant microbiota has become the central target of emerging biotechnological strategies aimed at improving yields and resilience of crops: microbiome engineering, microbiome management and microbiome-based products are believed to represent promising alternatives to reduce chemical inputs in agriculture (Berg et al., 2017; Arif et al., 2020; Ke et al., 2021; Malacrinò et al., 2022). The plant microbiota is a precious source of novel beneficial microbes that may be used in agriculture as biofertilizers, biostimulants, biological control agents (BCAs) (El-Saadony et al., 2022), or as source of microbes that may be assembled in artificial (synthetic) consortia to reconstruct the structure and function of impaired plant microbiomes (Arif et al., 2020).

Among the microbes possessing the ability to improve plant performance and health, plant growth-promoting rhizobacteria (PGPR) are probably the most known category. PGPR can increase the availability of nutrients and synthesize phytohormones thereby promoting plant growth, or they may produce antimicrobial compounds and prime immune responses thereby improving resistance to pathogens (Mauch-Mani et al., 2017; Tabassum et al., 2017; El-Saadony et al., 2022). Volatile organic compounds (VOCs) emitted by beneficial microbes can affect the mechanisms of plant tolerance to abiotic (Liu and Zhang, 2015; Brilli et al., 2019) and biotic stresses (Enebe and Babalola, 2019; Thankappan et al., 2022). For instance, VOCs emitted by PGPR can inhibit the growth of plant pathogenic fungi and bacteria either directly (Raio et al., 2020) or indirectly by activating plant defenses (Brilli et al., 2019; Liu and Brettell, 2019). Studies have also shown how VOCs emitted by a single bacterial strain can simultaneously inhibit pathogen growth and induce plant defense (Sharifi and Ryu, 2016).

Therefore, to reduce our dependence on agrochemicals, the identification, isolation and characterization of novel plant-associated beneficial microbes is strongly demanded. In the present work, we have investigated a novel strain of the Gram-negative bacterium Stenotrophomonas rhizophila that we isolated from the phyllosphere of Hibiscus syriacus plants and named Ep2.2.

S. rhizophila belongs to the class of Gammaproteobacteria, order Xanthomonadales, family Xanthomonadaceae. The genus Stenotrophomonas was first described for the species S. maltophilia, formerly known as Pseudomonas maltophilia and subsequently Xanthomonas maltophilia (Palleroni and Bradbury, 1993). S. maltophilia was used as an efficient biocontrol agent for a long time, until it was found to behave as an opportunistic human pathogen in immunocompromised patients (Ryan et al., 2009; Berg and Martinez, 2015). For this reason, S. rhizophila has attracted increasing attention in recent years as a harmless alternative for biotechnological applications (Berg and Martinez, 2015). S. rhizophila was identified for the first time in the rhizosphere of rape and potato plants (Wolf et al., 2002) and reported to colonize roots behaving as endophyte in plants (Berg and Martinez, 2015). However, S. rhizophila appears to be a ubiquitous bacterium, since isolates have been collected not only from plants but also from very different environments, such as marine environments and underground archeological sites (Rivas-Garcia et al., 2019; Cuzman et al., 2023). S. rhizophila possesses plant growth-promoting ability and biocontrol properties against phytopathogens, but its mode of action has often remained elusive (Kai et al., 2007; Ryan et al., 2009; Schmidt et al., 2012; Maurer et al., 2013; Reyes-Perez et al., 2019; Rivas-Garcia et al., 2019).

Here, the phyllosphere epiphytic strain Ep2.2 of S. rhizophila was characterized biochemically and metabolically in comparison to S. maltophilia, and its biocontrol activity against different fungal plant pathogens was assessed. By coupling Proton Transfer Reaction – Quadrupole Mass Spectrometer (PTR-MS) and Gas Chromatography–Mass Spectrometry (GC-MS) analyses, we thoroughly analyzed in vitro the complex blend of VOCs produced by S. rhizophila Ep2.2, in order to identify those having antifungal activity. Then, we analyzed the ability of S. rhizophila Ep2.2 to restrict B. cinerea infection on tomato leaves and to prime plant defense genes.

2 Materials and methods

2.1 Isolation and identification of the epiphytic strain Ep2.2 of Stenotrophomonas rhizophila

Hibiscus syriacus plant samples were collected during a survey on the cultivable bacterial population inhabiting ornamental plants. The survey was carried out in 2012 in a commercial nursery located in Pistoia, Italy, by sampling one plant per species. Ten grams of leaves, stems and buds were suspended in 90 mL of a solution containing 1% peptone and 1% Tween 90, and shaken at 200 rpm for one hour at room temperature. Three suspensions were prepared, bulked and then spread as 100 µL aliquots onto the surface of nutrient glucose agar (NGA) medium amended with cycloheximide (200 ppm). Plates were incubated at 25 ± 2°C for one week, after that bacterial colonies of different morphology were picked up and streaked (at least twice) on NGA medium for purification. Pure cultures were suspended in 30% glycerol solution and maintained at -80°C until this work was carried out.

The S. rhizophila strain that we named Ep2.2 was identified by 16S rDNA amplification with the primers fD1 (5’–GAGTTTGATCCTGGCTCAG–3’) and rP1/rP2 (5’– GGYTACCTTGTTACGACTT–3’; Y=C/T) (Pious and Thyvalappil, 2009) according to the protocol described by Krimi et al. (2016). The amplified 16S rDNA fragment was analyzed for similarity by comparing to known nucleotide sequences present in the NCBI GenBank database by BLASTn search (http://blast.ncbi.nlm.nih.gov/). The taxonomical affiliation was also determined by aligning the S. rhizophila Ep2.2 16S rDNA sequence to 16S rDNA sequences available in the NCBI database belonging to six Stenotrophomonas species, three Xanthomonas species, and Xylella fastidiosa. The evolutionary history was inferred using the Neighbor-Joining method (Saitou and Nei, 1987). The evolutionary distances were computed using the Maximum Composite Likelihood method (Tamura et al., 2004) and expressed in the units of the number of base substitutions per site. Evolutionary analyses were conducted in MEGA 6 (Tamura et al., 2013). The S. rhizophila Ep2.2 16S rDNA sequence was deposited in the EMBL/GenBank/DDBJ nucleotide databases under the accession number MZ841807. S. rhizophila Ep2.2 is included in the microbial collection of the IPSP-CNR (Sesto Fiorentino, Italy).

2.2 Biochemical and metabolic characterization of Stenotrophomonas rhizophila Ep2.2

S. rhizophila Ep2.2 was assessed for Gram reaction by the KOH test (Buck, 1982), for catalase and oxidase activities (Schaad et al., 2001), for siderophore production on King agar B medium (Sigma-Aldrich, MO, USA) following the procedure of Mikiciński et al. (2016), and for glucanase activity on tryptic soy agar medium (Sigma-Aldrich, MO, USA) amended with glucane 0.1%. Proteolytic, lipolytic and chitinolytic activity tests were performed on skim milk agar, LB agar (Sigma-Aldrich, MO, USA) amended with 1% Tween 40, and Chitin azure medium (Sigma-Aldrich, MO, USA), respectively. Exopolysaccharide (EPS) production was assayed by using the protocol described by Tallgren et al. (1999). The ability to grow at 4, 30, 37 and 40°C was assessed in LB medium after one week of incubation. 1-aminocyclopropane-1-carboxylic acid (ACC) deaminase activity was detected by means of M9 minimal medium with ACC as unique N source (Penrose and Glick, 2003). The ability to solubilize P was verified by using the NPRBB growth medium (Nautiyal, 1999). Indole-3-acetic acid (IAA) production was tested on LB medium amended with L-triptophan according to Bric et al. (1991). The bacterial strains used as reference for the different biochemical tests are reported in Supplementary Table S1.

Swimming, swarming and twitching motility, and ability to form biofilm, were determined according to Déziel et al. (2001). Motility was assessed in comparison to S. maltophilia LMG 958, Xanthomonas campestris pv. campestris Xcc1, Erwinia amylovora E1 and Agrobacterium tumefaciens C58. The biofilm production assay was modified to be performed in microtiter plates (Costar assay plate, Corning, NY, USA).

The metabolic profile of S. rhizophila Ep2.2 was analyzed with the BIOLOG system by using GEN III MicroPlate (Catalog No. 1030, Rigel, Italy), according to the protocol provided by the manufacturer (BIOLOG, USA). The GEN III MicroPlate includes 94 phenotypic tests: 71 carbon source utilization assays and 23 chemical sensitivity assays, and allows identifying bacteria at the species level. The analysis of the metabolic fingerprint was performed by incubating at 30°C for 75 h in the OmniLog device (BIOLOG, USA), which yields colorimetric curves indicating utilization of the carbon sources or resistance to inhibitory chemicals, as a result of cell respiration. Respiration causes reduction of a tetrazolium redox dye and formation of purple color. The test was carried out in comparison with S. maltophilia type strain LMG 958 in order to highlight metabolic differences with S. rhizophila Ep2.2.

2.3 In vitro estimation of the antagonistic activity of Stenotrophomonas rhizophila Ep2.2 against fungal plant pathogens

The antagonistic activity of S. rhizophila Ep2.2 was evaluated by dual culture assay against four fungal plant pathogens: Alternaria alternata, Botrytis cinerea, Fusarium oxysporum f. sp. lycopersici and Rhizoctonia solani. Briefly, 5 mm plugs were cut from the margin of fresh fungal colonies grown on potato dextrose agar (PDA; VWR Chemicals, Belgium) medium and placed in the middle of Petri dishes containing the same medium. Two 50 µL aliquots of S. rhizophila Ep2.2 suspension (OD_{600 nm} = 0.1, corresponding to 1x10⁸ cells/mL) were streaked at the two opposite sides of the fungal plug. The plates were incubated at 26°C for six days before measuring fungal colony diameters and comparing to control cultures grown in the absence of S. rhizophila Ep2.2.

Subsequently, to demonstrate the inhibitory role of volatile compounds produced by S. rhizophila Ep2.2 on B. cinerea growth, Petri dishes, prepared as described above, were either sealed with three layers of parafilm or kept unsealed, and incubated at 26°C for 2, 3 or 7 days. Diameters of fungal colonies grown both on sealed and unsealed plates were then measured and compared.

In order to exclude inhibition by diffusible molecules, a culture filtrate of S. rhizophila Ep2.2 was prepared and tested against B. cinerea as described below. S. rhizophila Ep2.2 was grown on Nutrient Broth (Scharlab S.L., Spain) amended with 2.5 g/L glucose (NGB) on an orbital shaker at 25 ± 2°C, 120 rpm, for 48 h. The bacterial suspension was then centrifuged at 10,000 rpm for 10 min. and the supernatant was then collected and sterilized through a Millipore 0.2 µm filter. The sterile filtrate (1.5 mL) was mixed with 15 mL of PDA cooled at 55°C. After medium solidification, a 0.5 mm agar plug was cut from the margin of a colony of B. cinerea grown on PDA and placed in the middle of the Petri dish. The test was conducted in triplicate. B. cinerea was grown on unamended PDA as a control. Plates were incubated at 26°C for 4 days after that the inhibitory activity was evaluated by measuring the diameter of B. cinerea colonies.

2.4 In vitro assessment of the inhibitory activity of volatile compounds from Stenotrophomonas rhizophila Ep2.2 on the growth of phytopathogenic fungi

Two-compartment 92-mm-diameter Petri dishes with ventilation cams and common headspace (Sarstedt, Nümbrecht, Germany) were used to determine the inhibiting activity of volatile compounds produced by S. rhizophila Ep2.2 against the four different phytopathogenic fungi listed in the previous paragraph. An aliquot (7 mL) of agarized NGB medium (NGA) was poured into one of the two compartments of the plate, while 7 mL of PDA medium were poured into the other compartment. Once dried, 50 μL of S. rhizophila Ep2.2 bacterial suspension (OD_{600 nm} = 0.1) were spread on NGA medium, whereas a 5-mm diameter plug was cut from the edge of the fungal colony grown on PDA and placed at the center of the other compartment containing PDA. As a control, two-compartment plates containing non-inoculated NGA and fungus-inoculated PDA were used. Inoculated plates were sealed with 3 layers of parafilm to prevent dispersion of volatile compounds, and the inhibitory activity on phytopathogenic fungi was evaluated by measuring the colony diameter after 3 days of incubation at 26°C. Four replicates per each S. rhizophila Ep2.2-fungus combination were analyzed.

2.5 In vitro analysis of volatile organic compounds (VOCs) emitted by Stenotrophomonas rhizophila Ep2.2

2.5.1 Bacterial culture preparation

S. rhizophila Ep2.2 was grown on NGA plates at 26°C for 48 h. Bacterial cells were scraped from the agar surface and suspended in 0.8% NaCl to obtain 1x10⁸ CFU mL⁻¹ suspensions (OD_{600 nm} = 0.1). An aliquot of 500 μL of each suspension was added to 500 mL airtight flasks containing 50 mL of NGA medium. All the flasks were then incubated at 26°C for 48 h before PTR-MS and GC-MS analyses.

2.5.2 PTR-MS analysis

Emission of VOCs from S. rhizophila Ep2.2 was screened in real-time by PTR-MS through direct air sampling of the flask headspace above the bacterial culture, with a PTR-MS instrument (Ionicon Analytic GmbH, Innsbruck, Austria). In particular, VOCs were detected following chemical ionization between molecules of H₃O⁺ (produced at high density in an ion source) and those of VOCs present into the headspace air and having a proton affinity higher than that of H₂O (= 166 kcal mol^-1). Proton transfer reaction occurred in a drift tube under constant conditions of pressure (= 2.2 mbar), temperature (= 50°C) and electrical field (600 v cm^-2), thus resulting in an ionization energy E/N = 130 Td (Lindinger et al., 1998). All the protonated ions related to VOCs and/or fragment of VOCs were analyzed with a duty cycle of 200 s spanning from m/z 20 to 220 m/z 20 with a dwell time = 1 s for each single m/z. An amount of 6 full cycles were completed for each analyzed flask, during which the 100 mL min^-1 of the headspace air was sampled by PTR-MS and simultaneously replaced within the flasks with the same amount of VOC-free air produced by a customized zero air generator. All the 6 cycles recorded from one flask headspace were averaged within one single measurement, and the different measurements were replicated nine times in two independent experiments. In addition, the headspace of four flasks containing only NGA medium were measured by PTR-MS and the resulting averaged value was subtracted to those of the flasks containing S. rhizophila Ep2.2 (Brilli et al., 2019; Raio et al., 2020).

2.5.3 GC-MS analysis

An external pump (Pocket Pump SKC Inc., PA, USA) was used to sample 100 mL of the flask headspace air above the S. rhizophila Ep2.2 culture at a flow rate of 50 mL min⁻¹ in a cartridge filled with 200 mg of Tenax GC^® (Markes International, Ltd, Llantrisant, UK). After sampling, all the cartridges were thermally-desorbed for 15 min at 280°C with a helium flow rate of 50 mL min⁻¹ (Markes International, Series 2 Unity) and VOCs were transferred into a cold trap rapidly heated from 10°C to 280°C. Subsequently, VOCs were separated and further identified with a 7890A gas chromatograph coupled with a 5975C mass detector (GC–MS, Agilent Technologies, Wilmington, USA) through fast injection onto a capillary column (ZB-1, 60 m × 0.25 mm I.D. × 0.25 μm film of polymethylsiloxane; Phenomenex, Inc. Torrance, CA, USA) via a transfer line heated at 200°C. In particular, peak integration and identification of VOCs were performed through ChemStation software (Agilent Technologies, Wilmington, USA) through comparison of the retention times and the fragmentation patterns listed in the NIST11 database of mass spectra. Furthermore, the identified VOCs were quantified by using an external standard calibration procedure obtained by means of calibrated gas cylinders of different VOCs (Rapparini et al., 2004; Baraldi et al., 2019).

2.6 Ability of Stenotrophomonas rhizophila Ep2.2 to protect tomato leaves against Botrytis cinerea infection

Solanum lycopersicum cv. Micro-Tom and cv. Marmande plants were grown in a growth room under LED lights (photoperiod 12/12 h) as previously described (Baccelli et al., 2022). The ability of S. rhizophila Ep2.2 to protect from B. cinerea infection was first tested on Micro-Tom leaves detached from plants during their second month of growth. A number of 10-13 mature and healthy leaves (selected among the 3^rd to the 5^th leaf) were cut from different undamaged plants and placed into 90 mm-Petri dishes containing a filter paper disc soaked with 1 mL sterile water to ensure high internal relative humidity (RH) conditions during incubations. S. rhizophila Ep2.2 was grown overnight in NGB medium at 28°C, centrifuged at low speed, washed twice in 10 mM MgCl₂, and finally suspended in 10 mM MgCl₂ (OD_{600 nm} = 0.1) for leaf treatment. Treatments were performed by spraying the lower (abaxial) surface of a leaf with approximately 300 μL of bacterial suspension with a 10-mL pump atomizer. Control leaves were sprayed with 10 mM MgCl₂. All the plates were sealed with parafilm and incubated at 21°C (day)/18°C (night), photoperiod 12/12 h (100 μmol m² s⁻¹) for 48 h, after that B. cinerea strain B05.10 was inoculated. For pathogen inoculation, conidia were collected from 15-20 day-old B. cinerea cultures grown in PDA under a light/dark regime (Schumacher, 2017; Baccelli et al., 2022). Conidia were suspended in potato dextrose broth (PDB, Laboratorios Conda S.A., Spain) at the concentration of 1x10⁶ conidia/mL and inoculated on leaves by applying one, or two, 10-µL droplets on each side of the midrib on the abaxial leaf surface. All the plates were sealed once again with parafilm and incubated as described above. Necrotic lesions caused by B. cinerea infection were measured after 3 days of incubation. The protective effect shown by S. rhizophila Ep2.2 against B. cinerea was validated on whole plants by using the tomato cv. Marmande. Plants were sprayed 2 weeks after germination on the adaxial leaf surfaces with S. rhizophila Ep2.2 as described above, incubated 48 h under high RH conditions, and subsequently inoculated on the adaxial surface of two opposite leaves (2^nd and 3^rd) with a drop of a conidial suspension prepared as already described. Lesions were measured after 3 days of incubation.

2.7 Gene expression analyses in tomato leaves treated with Stenotrophomonas rhizophila Ep2.2

The expression of plant defense genes was analyzed by RT-qPCR to investigate the ability of S. rhizophila Ep2.2 to induce localized resistance in leaves. The analyses were designed to reveal either the ability of S. rhizophila Ep2.2 to induce directly defense genes before infection, or prime them for a quicker/boosted induction during B. cinerea B05.10 infection. Leaves from different 5-week-old S. lycopersicum cv. Micro-Tom plants were detached and treated as follows: a) leaves were spray-treated on their abaxial surface either with S. rhizophila Ep2.2 (OD_{600 nm} = 0.1 in 10 mM MgCl₂), or with 10 mM MgCl₂ as control, and then incubated for 48 h (samples named as “S. rhizophila” and “control”, respectively, at 48 hours post treatment, hpt); b) leaves were spray-treated on their abaxial surface with either S. rhizophila Ep2.2, or 10mM MgCl₂ as control, incubated for 48 h, and subsequently inoculated with 10-µL droplets (3-6 per leaf) of 1x10⁶ B. cinerea conidia/mL in PDB (samples named as “S. rhizophila + B.cinerea” and “control + B. cinerea”, respectively, at 6 or 24 h post infection, hpi); c) leaves were spray-treated on their abaxial surface with either S. rhizophila Ep2.2, or 10 mM MgCl₂ as control, incubated for 48 h, and subsequently mock inoculated with 10-µL droplets (3-6 per leaf) of PDB (samples named as “S. rhizophila + mock” and “control + mock”, respectively, at 6 and 24 hpi). Each biological replicate consisted of two leaves belonging to different plants, and three biological replicate per condition were prepared. Leaves were incubated into 90 mm-Petri dishes as described in the previous paragraph and frozen in liquid nitrogen upon sampling. To check that the treatments were leading to the expected reduction in disease symptoms, some “control + B. cinerea” and “S. rhizophila + B. cinerea” leaves were inoculated with a single 10-µL drop of conidial suspension prepared as described above and kept incubating for a longer period (96 hpi). Lesion diameters were then measured.

For RNA extraction, leaves were ground in liquid nitrogen and total RNA was extracted by using RNeasy Plant Mini Kit with buffer RLT (Qiagen, Italy) (Baccelli et al., 2022). The extracted RNA was quantified in a Qubit fluorometer (Thermo Fisher Scientific, MA, USA) and its integrity verified by agarose gel electrophoresis. Amplification Grade DNase I (Sigma-Aldrich) was used to degrade traces of contaminating DNA before reverse-transcription, which was performed with Maxima First Strand cDNA Synthesis Kit (Thermo Fisher Scientific, MA, USA). qRT-PCRs were performed in a StepOne Real-Time PCR System (Applied Biosystems, Thermo Fisher Scientific Inc. Waltham, MA, USA) by using Fast SYBR™ Green Master Mix (Applied Biosystems, Vilnius, Lithuania) as described in Baccelli et al. (2022).

The following genes were analyzed: Proteinase inhibitor II (PIN2), β-1,3-glucanase A (GluA), Pathogenesis-related protein 1 (PR1), 1-aminocyclopropane- 1-carboxylate oxidase 1 (ACO1), Pathogenesis-related genes transcriptional activator (PTI5), Lipoxygenase A (Lox1.1), and Polygalacturonase inhibitor protein (PGIP). The genes were selected based on their known modulation occurring during B. cinerea infection in tomato cv. Micro-Tom (Baccelli et al., 2022). Gene locus IDs and primer sequences are reported in Baccelli et al. (2022). Relative gene expression values were calculated by using the 2^-ΔΔC_T method as described in Livak and Schmittgen (2001) after melting curve analysis and amplification plot comparisons. Actin-7 was used as the endogenous reference gene for transcript normalization (Baccelli et al., 2022). Three biological replicates and two technical replicates were analyzed per each condition.

2.8 Statistical analyses

Motility of bacterial strains was analyzed by one-way ANOVA with Tukey–Kramer multiple comparison post-test (p ≤ 0.05) by performing the analysis separately per each time point. Data concerning colony and lesion diameters were analyzed by unpaired t-test (S. rhizophila-treated vs. control) and considered significant at p ≤ 0.05. Relative gene expression values were analyzed by unpaired t-test (48 hpt) or one-way ANOVA with Tukey–Kramer multiple comparison post-test (6 and 24 hpi) after normality check, and considered significantly different at p ≤ 0.05. Analyses were performed in GraphPad Prism 9 (GraphPad Software Inc., CA, USA).

3 Results

3.1 Identification and characterization of the epiphytic strain Ep2.2 of Stenotrophomonas rhizophila

The bacterial strain that we named Ep2.2 was isolated from aboveground organs of a H. syriacus plant, as described in materials and methods. The analysis of 16S rDNA sequence (GenBank acc. no. MZ841807) allowed identifying the strain as S. rhizophila (99.78% nucleotide identity). The phylogenetic analysis clustered Ep2.2 with the reference S. rhizophila strain e-p10, clearly separating them from other Stenotrophomonas and Xanthomonas species (Figure 1).

FIGURE 1

Figure 1 Phylogenetic tree showing the evolutionary relationships of the strain Ep2.2 identified by 16S rDNA sequencing as Stenotrophomonas rhizophila. The neighbor-joining analysis was performed by using 16S rDNA sequences available in the NCBI database: Stenotrophomonas rhizophila e-p10 (acc. no. NR_121739.1), Stenotrophomonas bentonitica BII-R7 (acc. no. NR_157765.1), Stenotrophomonas malthophilia LMG 958 (acc. no. NR_119220.1), Stenotrophomonas chelatiphaga LPM-5 (acc. no. NR_116366.1), Stenotrophomonas tumulicola T5916-2-1b (acc. no. NR_148818.1), Stenotrophomonas panacihumi MK06 (acc. no. NR_117406.1), Xanthomonas arboricola LMG 747 (acc. no. NR_125714.1), Xanthomonas campestris ATCC 33913 (acc. no. NR_074936.1), Xanthomonas vesicatoria ATCC 35937 (acc. no. NR_026388.1), and Xylella fastidiosa subsp. multiplex PL.788 (acc. no. NR_041783.1) (outgroup). The optimal tree with the sum of branch length = 0.08281655 is shown. The percentage of replicate trees in which the associated taxa clustered together in the bootstrap test (1000 replicates) are shown next to the branches (Felsenstein, 1985). The tree is drawn to scale, with branch lengths in the same units as those of the evolutionary distances used to infer the phylogenetic tree.

S. rhizophila Ep2.2 developed on NGA medium as a pale-yellow glistening bacterial colony, with entire margins. The pure isolate was Gram negative, catalase and oxidase positive, and unable to grow at 4°C and 37°C. The strain showed proteolytic, lipolytic and chitinolytic activities but it did not produce β-glucanases (Table 1). S. rhizophila Ep2.2 was also unable to produce siderophores, extracellular polymeric substances (EPS), indole-3-acetic acid (IAA), ACC deaminase, and to solubilize phosphate (Table 1). S. rhizophila Ep2.2 displayed a marked ability to form biofilm, similarly to S. maltophilia LMG 958, as well as significant swimming and swarming abilities which were comparable, although statistically different, to those of other tested bacterial species (Figure 2). In particular, S. rhizophila Ep2.2 showed higher swimming and swarming abilities, and lower twitching ability than S. maltophilia LMG 958 (Figure 2).

TABLE 1

Table 1 Biochemical and physiological characteristics of Stenotrophomonas rhizophila strain Ep2.2 and Stenotrophomonas malthophilia LMG 958 reference strain.

FIGURE 2

Figure 2 Motility of Stenotrophomonas rhizophila strain Ep2.2. Swimming (A), swarming (B), and twitching (C) abilities were compared to S. maltophilia, Xanthomonas campestris pv. campestris, Erwinia amylovora and Agrobacterium tumefaciens. Colony diameters (mean ± SEM, n = 4) were measured after 24 and 168 hours (i.e. 7 days) of incubation at 26°C. Different letters indicate statistically significant differences within each time point as determined by one-way ANOVA (p ≤ 0.05).

The metabolic profile of S. rhizophila Ep2.2 was unambiguously different from that of S. maltophilia LMG 958 (Figure 3). In general, the metabolic response of S. rhizophila Ep2.2 was slower or reduced in comparison to S. maltophilia LMG 958, except for D-trehalose, β-Methyl-D-Glucoside, and D-galactose on which S. maltophilia Ep2.2 displayed a better utilization capacity (Figure 3: wells A4, B4, and C4, respectively). However, unlike S. maltophilia LMG 958, S. rhizophila Ep2.2 either did not or barely utilize N-acetyl-β-D-mannosamine, D-fructose, 3-methyl glucose, D-fucose, L-fucose, L-rhamnose, inosine, D-glucose-6-phosphate, D-fructose-6-phosphate, D-serine, L-arginine, L-aspartic acid, L-glutamic acid, D-galacturonic acid, L-galactonic acid lactone, D-gluconic acid, D-glucuronic acid, glucuronamide, D-lactic acid methyl ester, α-Hydroxy-Butyric Acid, and α-Keto-Butyric Acid (Figure 3: wells B7, C3, C5, C6, C7, C8, C9, D6, D7, D9, E4, E5, E6, F2, F3, F4, F5, F6, G3, H3, and H5, respectively). S. rhizophila Ep2.2 resulted more sensitive to fusidic acid and potassium tellurite (Figure 3: wells C11 and G12). Noteworthy, the sensitivity to NaCl, previously known to discriminate S. rhizophila from S. maltophilia (Wolf et al., 2002), was similar between the two Stenotrophomonas strains tested here (i.e. tolerance to 1 and 4% NaCl; sensitivity to 8% NaCl) (Figure 3: wells B10-12). Moreover, both S. rhizophila and S. maltophilia strains showed sensitivity to minocycline (Figure 3: well D12). Distinct metabolic curves were observed concerning growth at pH 5, and regarding utilization of dextrin, sucrose, D-turanose, L-histidine, L-serine, L-lactic acid and Tween 40 (Figure 3: wells A12, A2, A7, A8, E7, E9, G4, and H1).

FIGURE 3

Figure 3 Metabolic profiling of S. rhizophila Ep2.2 (red curve) and S. malthophilia LMG 958 (green curve) as resulting by the colorimetric curves produced with the OmniLog device. The two species were grown in GEN III MicroPlates (BIOLOG) for 75 hours at 30°C. Measurements were performed every 15 min. The curves indicate utilization of the carbon sources or resistance to the inhibitory chemicals. Columns 1-9, carbon source utilization assays; Columns 10-12, chemical sensitivity assays. Details on the microplate content are shown in Supplementary Figure S5 and commented in the Results section 3.1.

3.2 Stenotrophomonas rhizophila Ep2.2 inhibits growth of fungal plant pathogens in vitro

The inhibitory activity of S. rhizophila Ep2.2 was assessed against four fungal plant pathogens able to infect tomato plants: B. cinerea, A. alternata, F. oxysporum f. sp. lycopersici and R. solani. Two different methods were used: dual culture assay, where both S. rhizophila Ep2.2 and the pathogenic fungus were grown on the same PDA medium (in a Petri dish not sealed with parafilm), and a two-compartment assay where S. rhizophila Ep2.2 and the pathogenic fungus were grown physically separated, each one on its appropriate medium (NGA and PDA, respectively), while the headspace containing volatile compounds was shared. The two-compartment Petri dish was sealed with parafilm.

The dual culture assay highlighted a mild inhibitory activity of S. rhizophila Ep2.2 against A. alternata (~11% growth reduction), whereas B. cinerea, R. solani and F. oxysporum f. sp. lycopersici were not significantly affected by the presence of S. rhizophila Ep2.2 after 6 days of growth on PDA medium (Figure 4).

FIGURE 4

Figure 4 Dual culture assays against fungal tomato pathogens. Botrytis cinerea (A), Alternaria alternata (B), Fusarium oxysporum f. sp. lycopersici (C) and Rhizoctonia solani (D) were grown in the presence of S. rhizophila Ep2.2 in Petri dishes not sealed with parafilm. Colony diameters were measured after 6 days of growth at 26°C. Values are reported as mean ± SD, n = 3. The experiment with B. cinerea was repeated with similar results. Asterisks indicate statistically significant differences at p < 0.01 (**); ns, not significant.

In contrast, when the two-compartment assay was performed, the growth of both B. cinerea and A. alternata was markedly inhibited by S. rhizophila Ep2.2 (~62% and ~28% growth reduction, respectively), whereas no significant reduction was detectable for R. solani and F. oxysporum f. sp. lycopersici (Figure 5). These results highlighted a role for volatile compounds in inhibiting the growth of microbial pathogens, especially B. cinerea (Figures 4, 5 and Supplementary Figure S2).

FIGURE 5

Figure 5 Effect of volatile compounds from S. rhizophila Ep2.2 on the growth of fungal tomato pathogens in vitro. Botrytis cinerea (A), Alternaria alternata (B), Fusarium oxysporum f. sp. lycopersici (C) and Rhizoctonia solani (D). The assay was conducted in two-compartment Petri dishes sealed with parafilm. Colony diameters were measured after 3 days of growth at 26°C. Values are reported as mean ± SD, n = 4. The test with B. cinerea was repeated and similar results were obtained. Asterisks indicate statistically significant differences at p < 0.01 (**) or p < 0.0001 (****); ns, not significant. Representative pictures are included as Supplementary Figure S2.

In order to confirm this clue, the dual culture assay between S. rhizophila Ep2.2 and B. cinerea was repeated by sealing the plates with parafilm, and B. cinerea growth was measured after 48, 72 and 168 h by comparing sealed with unsealed plates. As shown in Figure 6, whereas B. cinerea was not significantly affected by S. rhizophila Ep2.2 in unsealed plates, its growth was significantly inhibited in parafilm-sealed plates (Figure 6). In addition, when a culture filtrate from S. rhizophila Ep2.2 was produced and tested again B. cinerea no significant reduction in growth was observed as compared to control (Supplementary Figure S1). This result excluded an inhibitory role of diffusible molecules released by the bacterium into the medium. Overall, these results suggested the production by S. rhizophila Ep.2.2 of volatile compounds able to inhibit the growth of fungal plant pathogens (A. alternata and B. cinerea) and B. cinerea was exclusively inhibited by these compounds.

FIGURE 6

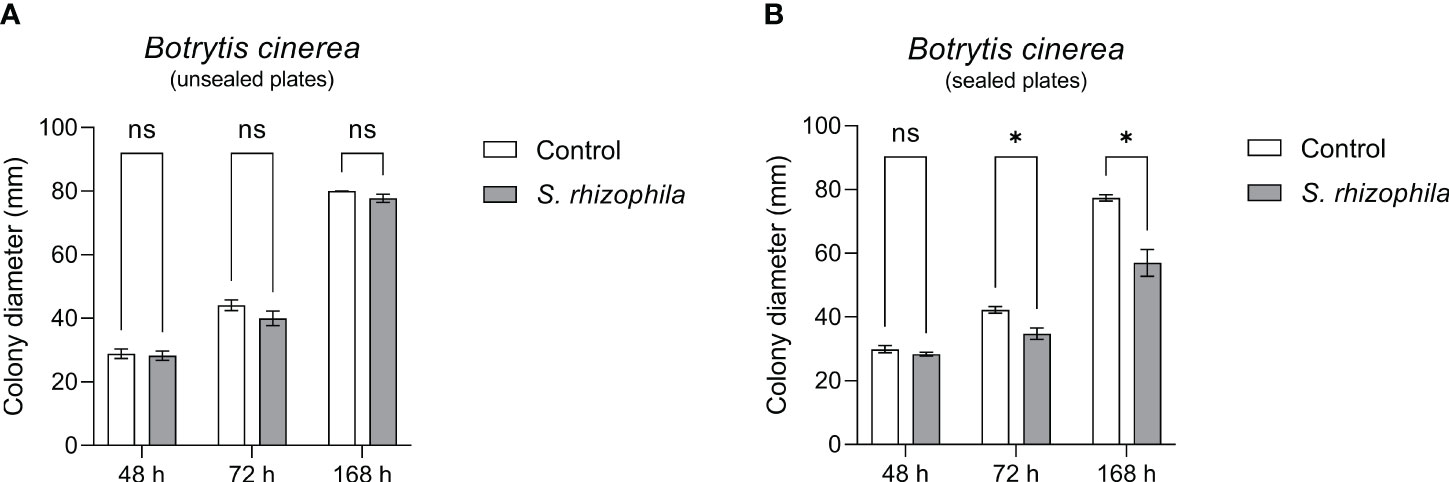

Figure 6 Dual culture assays against Botrytis cinerea in Petri dishes unsealed (A) and sealed (B) with parafilm. Colony diameters were measured after 48, 72 and 168 hours of growth at 26°C. Values are reported as mean ± SEM, n = 4. Asterisks indicate statistically significant differences at p ≤ 0.05 (*); ns, not significant.

3.3 Headspace analysis of VOCs emitted in vitro by Stenotrophomonas rhizophila Ep2.2

Real-time screening by PTR-MS of VOCs present in the headspace of axenic cultures of S. rhizophila revealed a complex blend, although 10 protonated ions represented 97.9% of the total (Table 2 and Supplementary Table S2). In particular, three protonated ions resulted to be mainly present: m/z = 33 (32.3 ± 4.9%), which was unambiguously assigned to methanol, followed by m/z = 97 (30.1 ± 43.3%) and m/z = 49 (21.8 ± 13.8%). Because of the high relative humidity of the headspace, the abundant presence of methanol generated a small percentage of a water-clustered methanol (i.e. methanol-H₂O) detectable at m/z = 51 (2.0 ± 15.7%). Simultaneous GC-MS analysis of the same samples (Supplementary Table S3) allowed identifying the protonated ion m/z = 97 as 2, 4-dimethyl furan, whereas m/z = 49 was assigned to methanethiol (Table 2). Among the VOCs emitted in higher percentage, other sulphur containing compounds such as dimethyl sulfide (DMS) and dimethyl disulfide (DMDS) were detected by PTR-MS at m/z = 63 and at m/z = 95, respectively, as confirmed by GC-MS identification (Table 2 and Supplementary Table S3). Moreover, the PTR-MS analysis detected a protonated ion at m/z 99 (4.0 ± 52.2%) that we assigned to a fragment of hexanoic acid rather than to hexenals, based on previous analyses (Bergamaschi et al., 2015) and because we did not detect the fragment at m/z 81, which is typically produced from the fragmentation of hexenals following proton transfer reaction (Brilli et al., 2011). We assigned to hexanals the protonated ion at m/z 101 due to the concomitant presence of m/z 83 (Supplementary Table S3), which is its main fragment (Brilli et al., 2011).

TABLE 2

Table 2 The 10 most abundant protonated ions related to VOCs and/or fragments of VOCs detected by PTR-QMS from axenic cultures of Stenotrophomonas rhizophila Ep2.2, which represent ~ 98% of the overall blend of VOCs.

Complementary analysis by GC-MS, which has different sensitivity and selectivity than PTR-MS, highlighted the capacity of S. rhizophila to emit a wide variety of VOCs belonging to different chemical classes (Figure 7). Among those, the most abundant VOCs resulted to be the haloalkane trichloromethane (26.0 ± 15.7%), the alkanes 2,4-dimethyl heptane (9.5 ± 8.8%) and 4-methyl octane (8.0 ± 9.1%), followed by furans (furan = 2.4 ± 8.4% and 2,4-dimethyl furan = 3.0 ± 31.2%) and the organosulfur compound dimethyl sulfide (3.2 ± 8.9%). Terpenes, such as α- and β-pinene, camphene, and Δ-3-carene were present in very small percentage (< 0.1%) (Supplementary Table S3).

FIGURE 7

Figure 7 Mean abundance of different chemical classes of VOCs emitted by axenic cultures of Stenotrophomonas rhizophila Ep2.2 as identified by GC-MS analysis. In particular, % values are: Alkanes = 56.97%; Alkenes = 3.36%; Arenes = 0.27%; Carboxylic acid = 0.03%; Furans = 5.49%; Haloalkanes = 26.04%; Ketones = 2.62%; Organosulfur compounds = 3.42%; Aldehydes = 1.26%; Terpenes = 0.02%.

3.4 Stenotrophomonas rhizophila Ep2.2 restricts Botrytis cinerea infection and primes defense genes in tomato leaves

To assess the ability of S. rhizophila Ep2.2 to protect plant tissues against B. cinerea infection, leaves from tomato cv. Micro-Tom were detached, sprayed with S. rhizophila Ep2.2, incubated for 48 h under high RH conditions, and subsequently inoculated with B. cinerea conidia. As shown in Figure 8, the treatment with S. rhizophila Ep2.2 strongly reduced B. cinerea colonization of leaf tissues. The disease severity, as determined by the lesion size diameters, was significantly reduced after three days of incubation (~50%). After four days, the lesion size reduction was even greater (Supplementary Figure S3). The protective effect induced by S. rhizophila Ep2.2 against B. cinerea was clearly reproducible on whole tomato plants of a different cultivar (Marmande) (Supplementary Figure S4).

FIGURE 8

Figure 8 S. rhizophila Ep2.2 protects tomato leaves from B. cinerea infection. Tomato cv. Micro-Tom leaves were treated with a bacterial suspension of S. rhizophila Ep2.2 and inoculated 48 hours later with B. cinerea (10-µL drops of 1×10⁶ conidia/mL). Lesions caused by B. cinerea were measured after 3 days of incubation (mean ± SEM, n = 12-13) (A). Asterisks indicate statistically significant differences at p < 0.001 (***). Pictures were taken on the same day (B); upper line, control leaves infected with B. cinerea; lower line, leaves treated with S. rhizophila Ep2.2 and infected with B. cinerea. The experiment was performed three times with similar results.

A gene expression analysis was performed to investigate the contribution of induced resistance to the protective effect shown by S. rhizophila Ep2.2 against B. cinerea infection in tomato leaves. This analysis was designed to highlight either the local induction of plant defense genes before infection, or their quicker or stronger expression upon infection (i.e. defense priming). Genes were selected based on their involvement in defense responses to B. cinerea as reported in Baccelli et al. (2022). Before RNA extraction, the outcome of B. cinerea infection was verified to make sure that leaf samples were displaying increased protection against B. cinerea infection (Supplementary Figure S3).

After 48 h following treatment with S. rhizophila, and prior to B. cinerea inoculation, no significant changes in the expression of defense genes were detectable in tomato leaves compared to control (Figure 9A). In contrast, 6 h after B. cinerea inoculation (Figure 9B), a significant up-regulation of the Pti5 gene was detectable only in tomato leaves previously treated with S. rhizophila (“S. rhizophila + B. cinerea” samples) (Figure 9B), thus indicating a quick response to pathogen infection in S. rhizophila-treated leaves. After 24 h, all the genes investigated were significantly modulated by the infection (24 hpi) with the exclusion of Pin2, whose levels remained unaltered (Figure 9C). The GluA gene was significantly up-regulated in B. cinerea-infected tomato leaves regardless of S. rhizophila treatment, although in S. rhizophila-treated leaves the expression level was significantly higher (Figure 9C), indicating a stronger response to pathogen infection in leaves pre-treated with S. rhizophila. In contrast, the Pti5 gene was up-regulated to a lower extent by B. cinerea infection in the leaves pre-treated with S. rhizophila (Figure 9C). The Lox1.1 gene was strongly downregulated by the infection with B. cinerea, whereas PGIP and Aco1 genes were significantly upregulated, irrespective of the treatment with S. rhizophila. After 24 h, the PR1 gene was significantly up-regulated only in the leaves pre-treated with S. rhizophila (i.e. “S. rhizophila + Mock” and “S. rhizophila + B. cinerea”) (Figure 9C), whereas no significant up-regulation was detectable in B. cinerea infected leaves which were not treated with S. rhizophila (“control + B. cinerea”), indicating that the beneficial bacterium was able to enhance PR1 gene expression.

FIGURE 9

Figure 9 Expression of defense genes in Solanum lycopersicum cv. Micro-Tom leaves sprayed with S. rhizophila Ep2.2 (A) and subsequently inoculated with B. cinerea conidia (B, C). Mock infections were performed with potato dextrose broth (PDB). hpt, hours post treatment; hpi, hours post infection. Genes analyzed by RT-qPCR: PIN2 (Proteinase inhibitor II), GluA (β-1,3-glucanase (A)) PTI5 (Pathogenesis-related genes transcriptional activator 5), Lox1.1 (Lipoxygenase A), PGIP (Polygalacturonase inhibitor protein), ACO1 (1-aminocyclopropane-1-carboxylate oxidase 1), PR1 (Pathogenesis-related protein 1). Actin-7 was used as the endogenous reference gene for transcript normalization. Control [in (A)] or control + mock at 6 or 24 hpi [in (B, C) respectively] samples were used as calibrators (grey bar) for relative gene expression calculations. Mean fold change values ± SEM are shown (n = 3). Statistical analysis per each gene at each specific time point was performed by one-way ANOVA. Significant differences are marked by different letters (p ≤ 0.05); ns, not significant.

Overall, the gene expression analyses suggested that inoculation with S. rhizophila did not cause major changes in gene expression in healthy tomato leaves, with the exception of PR1 gene up-regulation at late time points (24 hpi, i.e. 72 h after S. rhizophila inoculation on leaves, Figure 9C). However, the treatment with S. rhizophila led to the early up-regulation of the Pti5 gene (6 hpi) and to the enhanced up-regulation of GluA and PR1 genes (24 hpi) during infection with B. cinerea.

4 Discussion

With the present work, we provide a thorough biochemical and metabolic characterization of a novel phyllosphere epiphytic strain of S. rhizophila and show how this bacterium can protect tomato leaves from infection by B. cinerea, a polyphagous pathogenic fungus able to infect hundreds of plant species on their above-ground organs (Dean et al., 2012).

A well-known distinctive feature of S. rhizophila is the inability to grow at the human body temperature, a trait that has been explained with the lack of heat-shock genes and the probable activation of suicide mechanisms occurring at high temperatures (Alavi et al., 2014). In accordance with this evidence, the S. rhizophila strain Ep2.2 that we isolated with this work was unable to grow at 37°C or 40°C, unlike we observed for S. maltophilia LMG 958.

S. rhizophila Ep2.2 showed higher swimming and swarming abilities than S. maltophilia LMG 958, but lower twitching ability. Bacterial swimming and swarming motilities are powered by rotating flagella, whereas twitching is powered by the extension and retraction of type IV pili (Kearns, 2010). Motility in plant-associated bacteria is important for survival and host colonization (Turnbull et al., 2001). A comparative genomic analysis carried out to detect genes and functions useful to differentiate plant beneficial and human pathogenic Stenotrophomonas strains evidenced several genes responsible for motility in S. rhizophila (Alavi et al., 2014), supporting both rhizosphere and phylloplane competency. It is reasonable to hypothesize here that the marked swimming and swarming abilities displayed by S. rhizophila Ep2.2 can be related to its epiphytic lifestyle.

Our metabolic profiling of S. rhizophila Ep2.2 provided new insights on the chemical sensitivity and capability of this bacterium to use various carbon sources. The sensitivity to NaCl, previously reported to be lower for S. rhizophila (Wolf et al., 2002), was instead similar between S. rhizophila Ep2.2 and S. malthophilia LMG 958: both strains were able to tolerate 1% and 4% NaCl, while they were negatively affected by 8% NaCl. In addition, both strains displayed sensitivity to minocycline, a tetracycline antibiotic used to treat S. malthophilia infections in humans (Hand et al., 2016). In contrast, S. rhizophila Ep2.2 was more sensitive to fusidic acid and potassium tellurite than S. malthophilia LMG 958. It is worth nothing here that our results confirm the high tolerance of S. malthophilia to tellurite (Pages et al., 2008).

In the carbon source utilization assays, S. rhizophila Ep2.2 generally showed a slower response to several tests and a reduced utilization ability as compared to S. malthophilia LMG 958. However, S. rhizophila Ep2.2 showed better utilization capacity for D-trehalose, β-Methyl-D-Glucoside and D-galactose. The result of trehalose utilization is noteworthy, since a previous genomic comparison between the two species pointed to the ThuA gene, encoding an enzyme involved in trehalose utilization, as characteristic of the species S. rhizophila, being absent in S. malthophilia (Pinski et al., 2020). Therefore, we may assume that the ThuA gene is responsible for the difference in D-trehalose utilization that we observed.

Overall, the biochemical and metabolic data confirmed the genetic identification of S. rhizophila Ep2.2 while revealed differences and similarities between S. rhizophila and S. maltophilia never been reported so far.

In this work, we also analyzed the potential of S. rhizophila Ep2.2 to protect tomato plants from pathogens. To do so, we first performed analyses in vitro by focusing on four fungal pathogens. The antifungal activity of the species S. rhizophila has been known since its first identification (Wolf et al., 2002), and several studies have suggested the involvement of VOCs (Kai et al., 2007; Cernava et al., 2015; Reyes-Perez et al., 2019; Rivas-Garcia et al., 2019). Here, we clearly demonstrate that VOCs produced by S. rhizophila Ep2.2 not only contribute to the antifungal activity against A. alternata, but are the only determinants of the activity against B. cinerea in vitro. This is consistent with Rojas-Solís et al. (2018), whose study led to a similar conclusion concerning the antifungal activity of S. maltophilia against B. cinerea.

In this regard, we thoroughly screened VOC emissions from S. rhizophila Ep2.2 by combining PTR-MS and GC-MS analyses. The capability of PTR-MS to detect a wide range of VOCs in real-time was complemented by that of GC-MS. This because while PTR-MS enables the analysis of VOCs by avoiding preselection bias, it cannot distinguish VOCs and/or fragments of VOCs having the same molecular weight. On the other hand, the selectivity of both the sampling adsorbent materials and the gas chromatography column limits the variety of VOCs to be analyzed, especially those having a low molecular weight (for instance methanol), although recognition by mass spectrometry allows identification of ambiguous protonated ions related to VOCs (Sharifi et al., 2022). In accordance with Shestivska et al. (2015), our PTR-MS analysis confirmed methanol to be among the most abundant VOCs within the blend produced by S. rhizophila Ep2.2. Bacteria commonly emit methanol as a product mainly resulting from metabolic processes of demethoxylation of cellular polysaccharides (Mincer and Aicher, 2016; Misztal et al., 2018). Likewise, abundant emission of alkanes and haloalkanes detected by GC-MS could be a general feature of S. rhizophila Ep2.2 metabolism (Ladygina et al., 2006; Klähn et al., 2014; Weigold et al., 2016). Among the main protonated ions detected by PTR-MS within the VOC blend, 2,4-dimethyl furan was found in the highest percentage, and it was unambiguously identified by GC-MS analysis. The antifungal activity of dimethyl furan emitted by bacteria has been recently demonstrated against various fungal plant pathogens (Lin et al., 2021). Moreover, both PTR-MS and GC-MS analyses confirmed the emission of DMS and DMDS by S. rhizophila Ep2.2. We assigned to methanethiol the protonated ion m/z 49, which was recorded by PTR-MS as one of the main constituents of the VOC blend, although it was not detected by the GC-MS analysis. Since methanethiol had been detected by the same GC-MS system in a previous investigation as a highly abundant VOC emitted by Pseudomonas chlororaphis (Raio et al., 2020), we believe that the low sensitivity of our GC column for sulphur compounds may have limited its detection in the present study case. All these sulphur-containing VOCs emitted by S. rhizophila Ep2.2 may show toxicity against plant pathogens due to the bonding of S-functional groups to reactive sites in fungi (Baerlocher et al., 1999; Groenhagen et al., 2013). In particular, DMS has been demonstrated to have antifungal activity both in vitro (Wang et al., 2013) and in vivo when fumigated to plants (Li et al., 2010). We also detected, by both PTR-MS and GC-MS, trace emissions of terpenes (i.e. monoterpenes) from S. rhizophila Ep2.2. Terpenes play biological and ecological roles in bacteria to cope with different (a)biotic stresses, and may act as infochemicals in mediating microbial interactions (Avalos et al., 2022). Bacterial terpenes (i.e. β-pinene) can also show inhibitory activity against fungi (Song et al., 2015). Our PTR-MS analysis also detected, among the main VOCs emitted by S. rhizophila Ep2.2, a small percentage of hexanals which possess antifungal activity (Zhang et al., 2021). Therefore, the synergy of furans, sulphur containing VOCs and terpenes can explain the high antifungal activity shown by S. rhizophila Ep2.2 against A. alternata and B. cinerea in vitro.

The novel information we provide on the blend of VOCs emitted by S. rhizophila highlights a species-specific inhibitory activity of S. rhizophila against various pathogenic fungi (Kai et al., 2007). The blend of VOCs we detected can be the result of specific peculiarities of the S. rhizophila Ep2.2 strain (Lo Cantore et al., 2015), as well as be influenced by the growth medium and conditions used in this study (Blom et al., 2011). In fact, with respect to the study of Shestivska et al. (2015), we cultured S. rhizophila on nutrient glucose agar (NGA) medium rather than Mueller-Hinton broth (MHB) liquid medium, incubated at 26°C rather than 30°C, and for a longer period of time. However, our analytical instrumentation and assay contribute to the complete characterization of the VOC profile emitted by S. rhizophila, as we employed both a different absorbent material and GC-column type than that of Shestivska et al. (2015), as well as a PTR-MS rather than a selected ion flow tube mass spectrometry (SIFT-MS) having a different sensitivity for VOCs, in addition to avoid problems related to the use of solvents (Kai et al., 2007).

When sprayed on tomato leaves and plants, S. rhizophila Ep2.2 was able to restrict B. cinerea colonization. Beneficial microbes are known to stimulate the plant’s immune system for enhanced defense responses to pathogen infection (Pieterse et al., 2014; Syed Ab Rahman et al., 2018). Induced resistance in plants may involve both direct elicitation of defenses ahead of infection and their quicker/stronger activation upon infection. This latter phenomenon is termed “defense priming” (Mauch-Mani et al., 2017). Beneficial bacteria may produce and release various molecules with resistance-inducing/priming activity (Pieterse et al., 2014; Mauch-Mani et al., 2017). Our PTR-MS analysis indicated for instance the production of hexanoic acid, a well-known priming compound able to enhance resistance in B. cinerea-infected tomato plants (Aranega-Bou et al., 2014).

The detached leaf assay used here appears to be a reliable system to reveal both gene expression changes and resistance induction. Control leaves, in fact, responded to B. cinerea at the gene expression level in a similar manner to what previously observed on plants and were also similarly susceptible to infection (Baccelli et al., 2022). The gene expression analyses demonstrate that leaf inoculation with S. rhizophila Ep2.2 induces resistance in leaves. In particular, while defense genes were not pre-activated by S. rhizophila before B. cinerea infection, these were up-regulated either more quickly (Pti5 gene) or to a higher extent (GluA and PR1 genes) during B. cinerea infection. This suggests that leaves were primed by S. rhizophila for an enhanced pathogen defense (Martinez-Medina et al., 2016).

B. cinerea is a necrotrophic plant pathogen able to enter the host trough stomata or by penetrating directly the cuticle (Bi et al., 2023). In the early phases of infection, B. cinerea produces molecules able to promote plant cell death; subsequently (24-48 hpi), the fungus has to defend itself from the attack of plant antimicrobial compounds to spread further into the plant tissues (Bi et al., 2023). The genes analyzed in this study are all known to be involved in defense signaling or encode antifungal enzymes in tomato (Baccelli et al., 2022). PR1 expression is considered as a marker of salicylic acid (SA)-dependent defenses and has been also associated to priming to both necrotrophic and biotrophic pathogens (Mauch-Mani et al., 2017). The Pti5 gene, which was primed 6 h following infection with B. cinerea in our experiment, encodes a transcription factor that has been reported to accelerate pathogen-induced expression of defense-related genes, among those the Glucanase B and PR1 genes (He et al., 2001; Wang et al., 2021). In Arabidopsis, the expression of Pti5 gene from tomato has been reported to activate the SA-regulated genes PR1 and PR2 (β-1,3-glucanase) (Gu et al., 2002). Noteworthy, our results actually showed enhanced transcription of β-1,3-glucanase A (GluA) and PR1 genes 24 h after B. cinerea infection, allowing to hypothesize a link between the early expression of Pti5 and the subsequent enhanced expression of the SA-associated genes GluA and PR1 in S. rhizophila primed plants. This picture is consistent with former studies that indicate a role for SA-dependent defenses in restricting B. cinerea infection in tomato and Arabidopsis (Zimmerli et al., 2001; Achuo et al., 2004).

The resistance-inducing ability of Stenotrophomonas spp. in plants has been scarcely studied so far. Root colonization with S. maltophilia SBP-9 was found to increase resistance to F. graminearum infection in wheat plants by enhancing the activity of antioxidant enzymes and β-1,3-glucanases (Singh and Jha, 2017), suggesting the induction of priming. More recently, soil inoculation with S. rhizophila SR80 was reported to increase resistance to F. pseudograminearum in wheat by boosting the expression of defense-related genes during pathogen infection (Liu et al., 2021). Our results clearly show that tomato leaves inoculated with S. rhizophila were more protected from B. cinerea infection, and this was likely due to a primed state that allowed quicker and stronger expression of defense genes. Despite we cannot exclude that the emission of antifungal VOCs by S. rhizophila may have contributed to hinder leaf colonization by B. cinerea, the occurrence of defense priming at the gene expression level was demonstrated, and it is tempting to speculate that some VOCs produced by S. rhizophila may act as priming-inducing stimuli.

5 Conclusion

To safeguard yields, we need to protect our crops from stresses and diseases. New eco-friendly approaches are currently strongly demanded for this purpose, such as those employing beneficial microbes that crops may have lost either during domestication or because of intensive agricultural practices. With this study, we highlight the potential of a phyllosphere epiphytic strain of S. rhizophila isolated from an ornamental plant as foliar inoculant to control leaf infection in crops, specifically in tomato. Our results reveal the production of antifungal VOCs by S. rhizophila Ep2.2 and a priming effect at the gene expression level that may contribute to inhibit pathogen growth and host colonization.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author. The 16S rDNA sequence of the strain Ep2.2 was deposited in NCBI, accession number MZ841807.

Author contributions

AR and IB conceived and designed the present study. IB and XC conceived the main project. AR, FB, LN, RB, FO, CP and IB carried out the experiments and collected data. IB and FB analyzed data and prepared figures and tables. AR, FB and IB wrote the initial draft. All authors provided their feedbacks during manuscript preparation. All authors contributed to the article and approved the submitted version.

Funding

This work was funded by the National Research Council of Italy (CNR) in the context of the Cooperative Programme between CNR and the Ministry of Science and Technology of China (MOST), project call year 2020, joint project between IB (at CNR-IPSP, no. 13004) and XC (at Guizhou University, National Key Research and Development Program of China no. 2021YFE0107700).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2023.1235669/full#supplementary-material
