ORIGINAL RESEARCH article

Front. Plant Sci., 30 May 2023
Sec. Plant Pathogen Interactions
This article is part of the Research Topic Plant-parasitic Nematode and Plant Interaction under Abiotic and Biotic Stresses View all 7 articles

Virulent and attenuated strains of Trichoderma citrinoviride mediated resistance and biological control mechanism in tomato

Di ZhaoDi Zhao1Dan ShenDan Shen2Haiyan FanHaiyan Fan2Xiaofeng ZhuXiaofeng Zhu2Yuanyuan WangYuanyuan Wang3Yuxi DuanYuxi Duan2Lijie Chen*Lijie Chen2*
  • 1Analysis and Testing Center, Shenyang Agricultural University, Shenyang, China
  • 2College of Plant Protection, Shenyang Agricultural University, Shenyang, China
  • 3College of Life Science and Technology, Shenyang Agricultural University, Shenyang, China

Introduction: Root-knot nematode disease is one of the world's most serious vegetable crop diseases. In recent years, Trichoderma spp. has been widely used in root-knot nematode disease control as a biological control agent.

Methods: Virulent and attenuated strains of Trichoderma citrinoviride mediated resistance and biological control mechanism in tomato were determined.

Results: Preliminary experiments found differences in nematicidal virulence among Trichoderma citrinoviride. The 24-hour corrected mortality rate of the virulent strainT1910 was as high as 92.37%, with an LC50 of 0.5585 against the second juveniles (J2s) of Meloidogyne incognita. And the attenuated strain TC9 was 23.01%, the LC50 was 2.0615, so the virulent strain T1910 had a more substantial effect on the J2s than the attenuated strain. We found that the strong virulent strain T1910 have a good control effect on M. incognita by the pot experiment of tomato than that of the attenuated virulent strain TC9,especially the J2 and J4 numbers were inhibited inside the root knots of tomato. Theinhibition rates of virulent strains reached 85.22% and 76.91%, followed by attenuatedstrain TC9, which were 63.16% and 59.17%, respectively. To reveal the differences intomato defense pathways induced by different virulent strains, qRT-PCR was further usedto detect changes in the expression of inducement-related genes. The results showed thatthe TC9 was significantly upregulated at 5dpi, LOX1, PR1, and PDF1.2. The PR5 gene ofthe virulent strain T1910 was highly upregulated, and the JA pathway was activated laterbut weaker than the attenuated strain. The results of this study revealed that thebiocontrol mechanism of T. citrinoviride as poison killing through the virulent strain T1910 and induced resistance to M. incognita through attenuated strain, although virulence degradation also has an induced resistance effect. Moreover, the attenuated strain TC9 stimulated tomato immune response earlier than the virulent strain by nematode-associated molecular pattern-triggered (NAMP).

Discussion: Therefore, the research elucidated the mechanism of multiple control of Trichoderma spp. against M. incognita.

1 Introduction

Plant parasitic nematodes are one of the major biotic stress factors wreaking havoc on agricultural and horticultural crops around the world, resulting in a dramatic drop in vegetable crop production. Diseases caused by plant pathogenic nematodes (PPN) have gradually become the second major category of diseases in agricultural production, among them, M. incognita is widely studied species with significant importance in reducing the yield of vegetable crops (Abd-Elgawad and Askary, 2018). Notably, these nematodes can benefit from parasitism in various crops such as grain, oil, vegetables, and fruits. It is estimated that the worldwide average crop loss due to pathogenic nematodes is 12.6% annually, equivalent to $215.77 billion (Reynolds et al., 2011). Due to the severe environmental pollution caused by chemical insecticides, the research and development of efficient and environmentally friendly biogenic insecticides have become a significant research focus (Chen and Song, 2021; Xie et al., 2022). Trichoderma spp. is an important biocontrol fungus that has been successfully applied to control many nematode diseases. Its biocontrol mechanisms include competition, hyperparasitism, induced resistance, and antibiotics, and almost all of them may be involved in the biocontrol process of nematodes (Contreras-Cornejo et al., 2015; Kumar and Khurana, 2021). Substances such as cellular hydrolases, antibiotics, vitamins, polysaccharides, and organic acids in Trichoderma fermentation fluid are high toxicity to nematodes. Importantly, they can destroy nematode cells through different mechanisms, or other metabolites enter nematodes, such as alkaloids that can inhibit necessary enzymes or act as DNA embedding agents (Tanaka et al., 2007). Notably, some flavonoids condense soluble cellular proteins, including essential enzymes, by forming complexes or rupturing cell membranes to inhibit nucleic acid synthesis (Plaper et al., 2003; Tsuchiya, 2015).

The biological control mechanisms of Trichoderma spp. are slightly different between the plants. Studies have shown that plants induce nematode-associated molecular pattern-triggered (NAMP) immunity in response to nematode infection through ROS, MAPK, jasmonic acid (JA), and salicylic acid (SA) signaling pathways (Fujimoto et al., 2011; Molinari et al., 2014; Fan et al., 2015; Sidonskaya et al., 2016; Song et al., 2017). Additionally, Trichoderma spp. can activate the plant defense system by releasing an activator that triggers the activation pathways of plant transcription factors and the expression of genes related to biotic and abiotic stress resistance (Shoresh et al., 2010; Sikora et al., 2014). Trichoderma spp. can also trigger SAR-related biochemical pathways and activate the expression of SA-dependent disease-related proteins, including PR-1, PR-5, and NPR1(Alfano et al., 2007; Arie et al., 2010; Mathys et al., 2012; Yoshioka et al., 2012). Furthermore, a unique pathway by which Trichoderma spp. colonizes plant roots to induce defense responses is based on the plant hormones jasmonate (JA) and ethylene (ET) as signaling molecules (Martínez-Medina et al., 2017). It has also been suggested that Trichoderma spp. induces reactive oxygen species (RBOH1) production, and this may be a significant defense strategy during plant growth after nematode invasion (Medeiros et al., 2017). However, how Trichoderma spp. regulate these hormones and other signaling pathways to exhibit inhibitory effects on root-knot nematodes has not been thoroughly studied.

Our team previously screened T.citrinoviride Snef1910 from 890 fungal strains and found it had a good biocontrol effect in field experiments. T.citrinoviride Snef1910 showed high virulence against J2s of M. incognita. Furthermore, T. citrinoviride Snef1910 significantly inhibited egg hatching with the hatching inhibition percentages of 90.27, 77.50, and 67.06% at 48, 72, and 96 h after the treatment, respectively. In the field experiment, the biocontrol application showed that the control efficacy of T. citrinoviride Snef1910 against root-knot nematode was more than 50%. Meanwhile, T. citrinoviride Snef1910 increased the tomato plant biomass. Moreover, strain Snef1910 showed significant antagonistic activity in vitro towards other pathogens that caused plant diseases in wheat, cotton, melon and other plants (Fan et al., 2020). So, T. citrinoviride is one of the potential biological control agent against root-knot nematode, M. incognita. Therefore, this study elucidated the mechanism of T.citrinoviride against by investigating the nematocidal activity of virulent and attenuated strains of T.citrinoviride, pot experiments and the expression levels of marker genes of each plant defense response pathway detected by fluorescence quantitative PCR. In doing so, we aim to provide a theoretical basis for developing biocontrol agents of T.citrinoviride in the future.

2 Materials and methods

2.1 Collection and isolation of Trichoderma citrinoviride isolates

In the present study, the virulent strains T1910 and attenuated strains TC9 were isolated from the original strains of T.citrinoviride Snef1910 (Fan et al., 2020) by UV-chemical mutagenesis, which differed in virulence from M. incognita. The spore suspension of T.citrinoviride (1×107) was sucked into the 90 mm petri dish and placed under the UV lamp that had been preheated for 30 minutes. After 3 minutes of irradiation, 4 mL of the spore suspension of the strain screened by UV mutagenesis was prepared for DES (1 ml + 0.5 ml absolute ethanol) mutagenesis and incubated at 180 rpm for 30 min with shaking. The reaction was terminated with 0.5 ml of 25% sodium thiosulfate (Na2S2O3), and the strains of T.citrinoviride solution was evenly coated on 2% water AGAR plates for cultivation. After the spores grew out, the subsequent tests were carried out (Zhao et al., 2016). All the above strains were stored in Nematology Institute of Northern China, Shenyang Agricultural University.

2.2 Reparation of liquid medium of T.citrinoviride isolates

T. citrinoviride spores and mycelia cultured on PDA plates were inoculated in a triangle flask containing PD liquid medium aseptically and incubated at 25°C and 120 RPM for 7 days by shaking. The mycelia and spores were removed by filtration with a filter device equipped with a 0.22 μm filter membrane to prepare the fermentation broth of different strains of T.citrinoviride. The liquid medium of T.citrinoviride spore was obtained as follows. First, 5 ml sterile water was added to the colonies, and the spores on the surface were washed off gently. Then, the spore suspension was put in 50 ml sterilized conical flask that had been placed with the sterile glass ball in advance, after sufficient oscillation with sterilized cotton wool to filter and sterile water flushing residue 2-3 times, eventually make the concentration of spore was 108 cfu/ml (Zhao et al., 2016).

2.3 Nematode culture and infection assays

A pure culture of M. incognita was maintained in tobacco roots grown under pot culture conditions (28± 2°C) at the Institute of Northern Nematode, Shenyang Agricultural University. Second-stage juveniles (J2s) of M. incognita were inoculated into the one-month-old tomato seedlings, and regular watering was done to maintain the optimum moisture level for plant growth. Seedlings were uprooted 30 days post-inoculation of nematodes, and the roots were gently washed in tap water to remove the adhering soil particles. Egg masses of M. incognita were collected from the roots with the help of forceps under a stereo-zoom microscope. Gathered egg masses were placed in a modified Baermann funnel setup for 3 to 5 days to obtain the uniformly hatched J2s. Finally, after estimating the population density of these juveniles under a stereo-zoom microscope, they were used for further experiments (Zhao et al., 2016).

Morphologically and biochemically characterized T.citrinoviride isolates were tested for their in vitro efficacy against M. incognita. About 100 J2s of M. incognita were placed in sterile 24-well plates containing 200 μl fermentation broth of T.citrinoviride. And the liquid medium of T.citrinoviride isolates (108 cfu/ml) were taken at the rate of 0.05 µl and mixed with 1 ml water and applied to the M. incognita. Each treatment was replicated 3 times in a completely randomized design (CRD). The 24-well plates were incubated at room temperature (28 ± 2°C), and observations on dead juveniles were recorded at 24 h under a stereo zoom microscope. The mortality rate and corrected mortality rate of nematodes were calculated. Furthermore, the NaOH stimulation method was used to determine the survival of J2 of M. incognita.

Nematode mortality/=Number of dead nematodesNumber of nematodes tested×100
Corrected mortality/=Treated nematode mortality Control nematode mortality1  Control nematode mortality×100

Approximately 4-week-old tomato seedlings were transplanted into the mud pots (15 cm dia × 30 cm height) filled with 1 kg of sterilized soil. After the establishment of seedlings in the pots, second-stage juveniles of M. incognita were inoculated around the plant’s root zone by removing the top soil layer. The temperature of the pot experiment was 25°C ± 3°C. Three days after inoculating nematodes, a fermentation broth of virulent and attenuated strains of T.citrinoviride isolates was applied to the rhizosphere region of the plant. Plants inoculated with nematode alone served as untreated control. Treatments were arranged in CRD with 3 replicates per treatment. Plants were watered regularly to the field capacity. Finally, 5, 10, and 15 dpi after nematode inoculation, plants were uprooted carefully and assessed for their growth parameters and the population of nematodes. The gall index is shown in Table 1. Then the root of tomato reactive oxygen species staining were evaluated. CMH2DCFDA (C6827) molecular probe was prepared with phosphate buffer (PB), and the root was incubated with CM-H2DCFDA (10 μM) and treated at 4°C for 90 min. The samples were washed with KCl (0.1 mM) and CaCl (0.1 mM) to remove excess CM-H2DCFDA. Samples were stored at room temperature for 1 h before being photographed with an Olympus C-5050 digital camera.

TABLE 1
www.frontiersin.org

Table 1 The classification of the Gall index.

Control efficacy/=Control root knot index  Treated root gall indexControl root knot index×100

2.4 RNA isolation and quantitative real-time PCR

In order to analyze the differences in control effects of virulent and attenuated strains of T.citrinoviride against M. incognita, q-PCR was used to detect the expression of defense genes in tomato stimulated by T.citrinoviride. The expression levels of auxin related genes ARF1, reactive oxygen species related genes RBOH1, jasmonic acid related genes LOX1, salicylic acid related genes PR1, PR5 and NPR1 and jasmonic acid pathway related genes PDF1.2 were detected to reveal the induction and resistance mechanism from the view of defense genes. To provide some basic data for the theoretical research on how T. citrinoviride regulate these hormones and other signaling pathways to exhibit inhibitory effects on root-knot nematodes in vegetables.

Primers sequence of tomato genes related to induction-resistance pathway of real-time fluorescence quantitative PCR were synthesized by Shanghai Shenggong Bioengineering Technology Co., LTD., and the length of the primers was 80-300 bp. In this study, gene-specific primers were designed according to the reference sequences of ARF1, RBOH1, LOX1, PR1, PR5, NPR1, and PDF1.2 in NCBI which be stimulated by T.citrinoviride, as shown in Table 2.

TABLE 2
www.frontiersin.org

Table 2 Primer sequences of genes related to inducing resistance pathway in tomato.

The J2s of M. incognita were inoculated around the root zone of the tomato and treated with sterile water (CK+ RKN), fermentation broth of virulent strains (T1910 + RKN), and fermentation broth of attenuated strain (TC9 + RKN). At 5, 10, and 15 dpi, the whole tomato roots were washed with water, dried with filter paper, labeled, and stored in a refrigerator at -20°C until used. Three tomato plants were treated as one treatment, each repeated three times.

qRT-PCR analysis of nematode resistance gene. Total RNA was extracted from tomato roots (four biological replicates per treatment) using HiScript® II Q Select RT SuperMix for qPCR (+ gDNA wiper) (Nanjing Norvezan Biotechnology Co., LTD.). The cDNA was constructed from 1µg RNA of each sample after treatment with RNase DNase I (Kangwei Century Company) using the HiScript III 1st Strand cDNA Synthesis Kit (+gDNA Wiper) (Nanjing Norvezan Biotechnology Co., LTD.) along with the manufacturer’s instructions(CW0588S). The reaction was performed in 25 μL containing 1 μL cDNA (10 ng), 0.5 μL of each specific primer (10 pM) (previously designed by Abbasi et al. (Abbasi et al., 2019). The reaction program including 95° C for 3 min followed by 40 cycles (95° C/30 s, 55° C/45 s, and 72° C/30 s), with the final extension step (72° C/3 min). The results were presented as a relative increase or decrease in the expression of the target gene relative to the internal gene (TUB). Changes were calculated using REST software(Pfaffl et al., 2002). The results were determined by using the 2-ΔΔCt method (Schmittgen and Livak, 2008). The correctness of the amplified products was judged by the melting curve. Furthermore, the samples of each treatment were repeated three times.

2.5 Data analysis

IBM SPSS Statistics 25.0 software was used for statistical analysis. Data were analysed on absolute values using ANOVA to test the efficiency of T.citrinoviride isolates against M. incognita population tested in vitro, pot culture and field studies. The means were analysed by Least Square Difference (LSD) and separated using Tukey’s HSD test at P≤ 0.001.

3 Results and analysis

3.1 In vitro effect of T.citrinoviride strains against M. incognita juveniles

Our team previously screened T.citrinoviride Snef1910 from 890 fungal strains and found it had a good biocontrol effect in field experiments (Fan et al., 2020). However, the effect of T.citrinoviride strains against J2 were found to be unstable in the process of in-depth research. T.citrinoviride strain T1910 showed high activity against J2. The corrected mortality rate reached 80.71% at 24 h after treatment and 100% at 48 h with increased time (LC50 = 0.5585). However, the activity of the attenuating strain TC9 against J2 was low, and the corrected mortality rate was only 21.26% at 24 h and 43.61% at 48 h, with LC50 = 2.0615. In this study, two strains of T.citrinoviride screened by UV-chemical mutagenesis showed significant differences in toxicity against J2, which were named virulent strain T1910 and attenuated strain TC9. Additionally, these strains were used to further study the biological control mechanisms of T.citrinoviride (Figure 1).

FIGURE 1
www.frontiersin.org

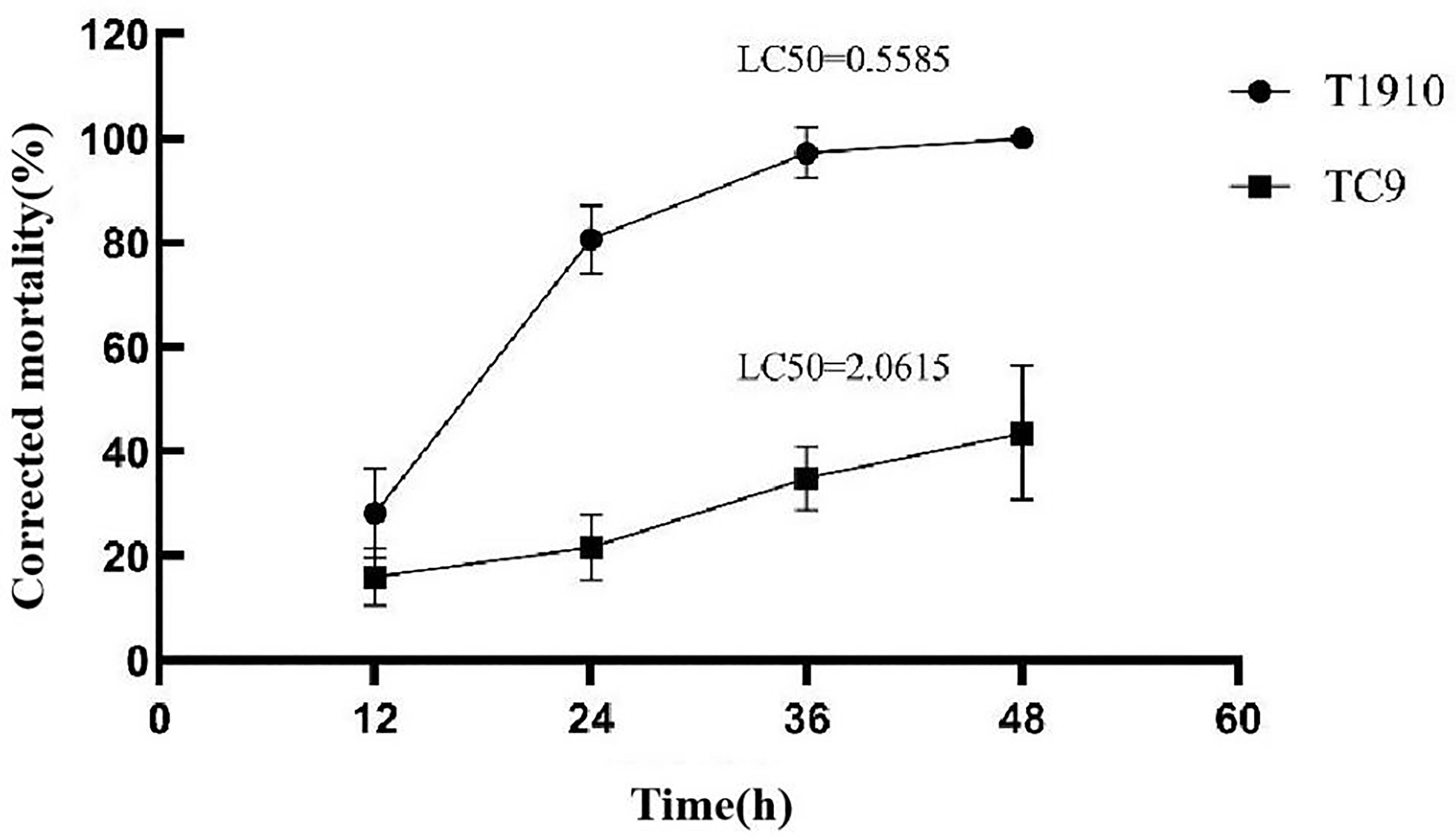

Figure 1 The corrected mortality rate and the LC50 of virulent strains T1910 and attenuating strain TC9 to M. incognita J2 at different times.

Using light microscopy, we observed that the anatomy of the J2 of M. incognita was disrupted following different strains (Figure 2). The results of the microscopy indicated that the nematode was in a good state in sterile water at 48 h. Still, in the fermentation broth of virulent strain T1910, the target nematode J2 was rigid. The body was chaotic, organs were decomposed, body walls were leaked, and serious vacuolation was observed in the body. However, the target nematodes died in the fermentation broth of the attenuated strain TC9. Still, there was no apparent decomposition in the worm body, and the nematodes’ surface structure, cuticle, and coelom were intact.

FIGURE 2
www.frontiersin.org

Figure 2 The M. incognita J2 died under the treatment of T.citrinoviride. (A, B) The throat and middle and back of the body of M. incognita treated with T1910. (C, D) The throat and the middle and back of the body of M. incognita treated with TC9. (E) The M. incognita J2 died under H2O treatment. (F) Contact test of each treatment.

After 24 h at 25°C, the J2 of M. incognita was observed to be entangled and heavily parasitized by mycelium treated with the spore suspension of virulent strain T1910. The worm’s body became rigid and lost vitality. The body wall was destroyed with many bubbles in the body, and the contents leaked. A few of the target nematode J2 worms treated with the conidial suspension of the attenuated strain TC9 were trapped by mycelia, unable to move, but still survived, and no bubbles were formed in the body (Figure 3).

FIGURE 3
www.frontiersin.org

Figure 3 The effect of J2 of M. incognita being hyperparasitismed by virulent strain T1910 and attenuated strain TC9, after 24 h at 25°C. (A) The J2 of M. incognita was observed to be entangled and heavily parasitized by mycelium treated with the spore suspension of virulent strain T1910. (B) A few of the J2 of M. incognita treated with the conidial suspension of the attenuated strain TC9 were trapped by mycelia, unable to move, but still survived, and no bubbles were formed in the body.

3.2 Effect of virulent and attenuated strain of T.citrinoviride on M. incognita population and growth of tomato plants under pot culture conditions

The pot experiment results showed that compared with the control, the number of nematodes in the tomato root system was significantly reduced at 10 dpi and 15 dpi by virulent and attenuated strains of T.citrinoviride. The inhibition rates of virulent strains reached 85.22% and 76.91%, respectively, followed by attenuated strain TC9, which were 63.16% and 59.17%, respectively. As root-knot nematodes developed from J2 to J3, J4, and adult, both virulent and attenuated strains could significantly inhibit the infection and development of nematodes on tomato roots. Compared with the attenuated strain TC9, the virulent strain T1910 significantly inhibited the invasion of J2 and the development of J4 (Figures 4, 5).

FIGURE 4
www.frontiersin.org

Figure 4 The number of root-knot nematodes in different stages in tomato roots treated with different virulent strains at different times. Different letters indicate significant differences (T-test with P<0.05): a or b indicates the significant differences in the J2 stage; A or B indicates the significant difference in the J3 stage; α or β indicates the significant difference in the J4 stage; ϵ or θ indicates the significant difference in adult females. Same as below females.

FIGURE 5
www.frontiersin.org

Figure 5 Nematode infection in tomato root system under each treatment at 5dpi. (A) virulent strains T1910 (B) attenuating strain TC9 (C) H2O.

Meanwhile, the reactive oxygen species staining assay showed that virulent strain T1910 could activate the burst of reactive oxygen species in plant roots more than attenuated strain TC9 (Figure 6).

FIGURE 6
www.frontiersin.org

Figure 6 Reactive oxygen fluorescence staining of tomato roots after be treated by T.citrinoviride. (A) and (B) virulent strains T1910. (C) and (D) attenuating strain TC9. (E) and (F) H2O.

To further verify the control effect of virulent and attenuated strains on southern root-knot nematodes, the changes in the number of root knots of nematodes were measured in a tomato pot experiment. Compared with the control group, the number of root knots of tomato roots was significantly reduced by 10 dpi and 15 dpi treatment with virulent strain T1910, and the control effect was 76.59% and 77.39%, respectively. However, treatment with attenuated strain TC9 also reduced root-knot formation. However, this effect was insignificant (Table 3). The experiment result shows that even though the virulence of T.citrinoviride was degraded, the immune stimulation and growth promotion effects still significant by the research of induce resistance through fermentation broth to stimulate the immune pathway of tomato to resist M. incognita infection.

TABLE 3
www.frontiersin.org

Table 3 Gall index and control efficiency of T.citrinoviride strains.

3.3 Expression analysis of genes related to the resistance of tomato to M. incognita induced by virulent and attenuated strains of T.citrinoviride

Results of the study revealed that the cell free culture filtrate of virulent and attenuated strains enhanced the mortality of M. incognita juveniles. Among the different isolates tested, the attenuated strains of T.citrinoviride TC9 at its 100 per cent concentration recorded about 43.61% of juvenile mortality after an exposure period of 48 h. It has been evident from the present study that there are other bio-control mechanisms. Therefore, the gene expression analysis of nematode resistance induced by virulent and attenuated strains of T.citrinoviride in tomato have been further studied. Notably, the expression of auxin-related gene ARF1, reactive oxygen species-related gene RBOH1, ester oxygenase related gene LOX1, salicylic acid-related genes PR1, PR5, NPR1, and jasmonic acid-related gene PDF1.2 was further measured to explore the biological control mechanism of T.citrinoviride induced tomato against M. incognita.

At 5 dpi, only the PR5 gene was significantly upregulated in virulent strain T1910, which was 51.6 times higher than that of the control, while LOX1, PR1, and PDF1.2 genes were significantly upregulated in attenuated strain TC9. At 15 dpi, ARF1, RBOH1, LOX1, PR1, PR5, NPR1, and PDF1.2 genes of virulent strain T1910 were significantly upregulated, and PR5 was still the highest, which was 123.9 times of the control. LOX1 and PDF1.2 genes of virulent strain TC9 were still significantly upregulated, but PR1 was not significantly upregulated. However, PR5 was significantly upregulated up to 62.8 times (Figure 7). Our research suggests that the attenuated strain TC9 stimulated both the SA and JA signaling pathways at the early stage of inoculation, thus inhibiting the infection and development of nematodes. In contrast, the virulent strain only stimulated the SA signaling pathway at the early stage and the JA pathway at the later stage.

FIGURE 7
www.frontiersin.org

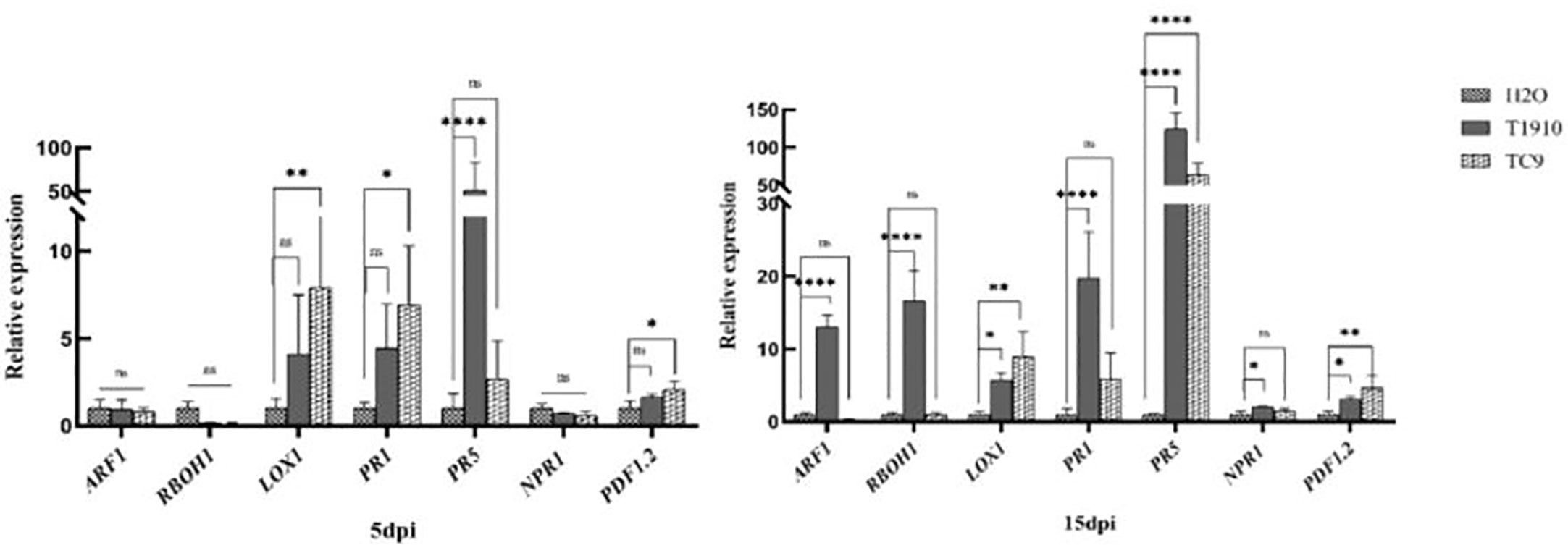

Figure 7 Relative gene expression in response to induced by T1910 and TC9. The asterisk (*), (**), (****) indicate P < 0.05, P < 0.01, and P < 0.0001 (t-test) for each treatment versus control (five replicates). And the expanded form of "ns" is “not statistically”.

4 Discussion

The current study demonstrated the in vitro mortality rate of M. incognita juveniles using two strains of T.citrinoviride. It was found that the fermentation broth of the virulent strain T1910 was the most active against J2 of M.incognita., while the fermentation broth of the attenuated strain TC9 was less virulent. In this process, it was found that the body wall of the poisoned nematodes was thinner, and bubbles were formed in the body. These phenomena may result from the degradation of the body wall by protease or chitinase in the fermentation broth or the contact of metabolites in the fermentation broth. In addition, when nematodes were wounded by mycelium, the body wall leaked, which was the function of heavy parasitism and secondary metabolites. Hadavi (2008) found that hydrolases produced by Trichoderma could inhibit nematodes and eggs to varying degrees. Jiao et al. (2015) found that two strains of T. harzianum were beter than T. viride in their activity to M.incognita. Also, the cuticle of juveniles and shell of eggs were digested eggs hatching delayed, and the intestinal cavity of larvae showed vacuolation. Likewise, the pot experiment investigated the biocontrol effect of T.citrinoviride on M. incognita. Both virulent strain T1910 and attenuated strain TC9, showed significant growth-promoting effects on tomatoes and inhibited the number of root knots. The attenuated strain TC9 had the most significant growth-promoting effect, and T1910 had an optimal ability to reduce the number of root knots. The results of reactive oxygen species fluorescence labeling staining showed that both wild-type and attenuated strains could stimulate the burst of reactive oxygen species, and virulent strain T1910 exhibited more robust activation activity and brighter fluorescence than attenuated strain TC9. Therefore, these results indicate that different virulence strains of T.citrinoviride play a particular role in the biological control of nematode diseases. However, the modes of action may differ, and it has the potential for biological control.

The biocontrol mechanisms of T.citrinoviride include competition, hyperparasitism, induced resistance, and antibiotics, and almost all of them may be involved in the biocontrol of nematodes (Contreras-Cornejo et al., 2015). Substances such as cell hydrolases, antibiotics, vitamins, polysaccharides, and organic acids in Trichoderma fermentation fluid are highly virous to nematodes. They can destroy nematode cells through different mechanisms or use their metabolites to enter nematodes, such as alkaloids that can inhibit necessary enzymes or act as DNA embedding agents(Tanaka et al., 2007). Some flavonoids condense soluble cellular proteins, including essential enzymes, by forming complexes or rupturing cell membranes to inhibit nucleic acid synthesis (Tariqjaveed et al., 2021). Based on different virulence strains of T.citrinoviride, the nematocidal activity, hyperparasitism activity, growth promotion, and inducement and resistance of the two strains were detected, and the biocontrol mechanism was studied from multiple perspectives.

In the gene expression tests, it was found that the virulent strain T1910 induced PR1 at the early stage of nematode infection (5dpi), and the root tissues of tomato provided a rapid SA-regulated defense response to protect the roots from RKN invasion (Martínez-Medina et al., 2017). In the late stage (15dpi), auxin was significantly activated, including reactive oxygen species, LOX1, PR1, PR5, and NPR1 markers of the SA pathway, and the PDF1.2 gene related to the JA pathway. The accumulation of auxin was associated with controlling plant growth and related to the change in cell REDOX status, including the activation of NADPH oxidase and cell wall peroxidase to generate oxidative bursts. Simultaneously, the high expression of ester oxygenase caused the peroxidation of membrane lipids and induced the burst of reactive oxygen species to provide the appropriate defense response (Considine and Foyer, 2014). These results indicated that the JA-regulated defense pathway of virulent strains was not induced at the early stage of nematode development. Additionally, the virulent strains caused SA, JA pathways, and reactive oxygen species to resist nematode reproduction and secondary invasion during the breeding period.

The attenuated strain TC9 activated ester oxygenase LOX1, SA gene PR1, and JA pathway-related gene PDF1.2 at the infection-development stage (5dpi) and strongly induced LOX1, PR5 and PDF1.2 at the breeding stage (15dpi). The high expression of PR1 and PR5 indicated that the attenuated strain also induced SA defense in plants and regulated the JA defense pathway through a lipid oxidation reaction. This phenomenon showed that the attenuated strain induced and successfully stimulated a strong ISR response. Furthermore, its protective effect depended on enhancing the JA defense mechanism against nematode invasion. Therefore, the JA pathway was the primary defense strategy of attenuated strain against RKN (Selim et al., 2014).

The attenuated strain TC9 of Trichoderma spp. had a weakened killing effect on J2 of M. incognita, but it still had a field control effect on M. incognita in tomato. However, the results show that the mechanism is still unclear by promoting tomato growth and enhancing immunity against nematode infection. Importantly, this study explored from the viewpoint of defense gene expression and found that the attenuated strain significantly stimulated the JA pathway. Therefore, the JA pathway may regulate systemic resistance in tomatoes, but the specific regulatory mechanism needs further study.

Root-knot nematode is one of the most significant diseases of crops in the world, especially tomato and other vegetables are its main hosts. At present, the biological control is very promising to root-knot nematode. There are many kinds of Trichoderma spp. in the world, which may also antagonize nematodes by complex and diverse mechanisms except competition. The application of Trichoderma spp. has been found effective in reducing root-knot nematode populations infesting vegetable crops (Khan et al., 2018). In this study, the potential mechanism of T.citrinoviride in the prevention and control of root-knot nematode was studied by evaluation of J2s efficacy in vitro, pot culture and expression analysis of genes. T. citrinoviride could be used as a potential biological control agent against root-knot nematode, M. incognita.

Data availability statement

The original contributions presented in the study are included in the article/supplementary material. Further inquiries can be directed to the corresponding author.

Author contributions

DZ: Methodology, Data analysis and Writing. DS: Provision of study materials. HF: Validation. XZ: Data Curation. YW: Formal analysis. YD: Review and Editing. LC: Writing, Conceptualization and Funding acquisition. All authors contributed to the article and approved the submitted version.

Funding

This work was supported by the National Parasitic Resources Center NPRC-2019-194-30 and the Educational Commission of Liaoning Province, China. Study on Industrialization of Trichoderma biocontrol based on biochar, under Grant number LSNZD202003. The authors thank AiMi Academic Services (www.aimieditor.com) for English language editing and review services.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

Abbasi, S., Safaie, N., Sadeghi, A., Shams-bakhsh, M. (2019). Streptomyces strains induce resistance to Fusarium oxysporum f. sp. lycopersici race 3 in tomato through different molecular mechanisms. Front. Microbiol. 10. doi: 10.3389/fmicb.2019.01505

PubMed Abstract | CrossRef Full Text | Google Scholar

Abd-Elgawad, M. M. M., Askary, T. H. (2018). Fungal and bacterial nematicides in integrated nematode management strategies. Egyptian J. Biol. Pest Control. 28, 74. doi: 10.1186/s41938-018-0080-x

CrossRef Full Text | Google Scholar

Alfano, G., Ivey, M., Cakir, C., Bos, J., Miller, S. A., Madden, L. V., et al. (2007). Systemic modulation of gene expression in tomato by trichoderma hamatum 382. Phytopathol. 97 (4), 429–437. doi: 10.1094/phyto-97-4-0429

CrossRef Full Text | Google Scholar

Arie, T., Masuta, C., Uehara, T., Sugiyama, S., Matsuura, H. (2010). Resistant and susceptible responses in tomato to cyst nematode are differentially regulated by salicylic acid. Plant Cell Physiol. 51 (9), 1524–1536. doi: 10.1093/pcp/pcq109

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, J. X., Song, B. A. (2021). Natural nematicidal active compounds: recent research progress and outlook. J. Integr. Agriculture. 20 (8), 17. doi: 10.1016/S2095-3119(21)63617-1

CrossRef Full Text | Google Scholar

Considine, M. J., Foyer, C. H. (2014). Redox regulation of plant development. Antioxidants Redox Signaling 21, 1305–1326. doi: 10.1089/ars.2013.5665

PubMed Abstract | CrossRef Full Text | Google Scholar

Contreras-Cornejo, H. A., López-Bucio, JesúsS., Méndez-Bravo, A., Macías-Rodríguez, L., López-Bucio, José (2015). Mitogen-activated protein kinase 6 and ethylene and auxin signaling pathways are involved in arabidopsis root-system architecture alterations by Trichoderma atroviride. Mol. Plant-Microbe Interactions. 28 (6), 701–710. doi: 10.1094/MPMI-01-15-0005-R

CrossRef Full Text | Google Scholar

Fan, J. W., Hu, C. L., Zhang, L. N., Li, Z. L., Zhao, F. K., Wang, S. H. (2015). Jasmonic acid mediates tomato’s response to root knot nematodes. J. Plant Growth Regulation. 34, 196–205. doi: 10.1007/s00344-014-9457-6

CrossRef Full Text | Google Scholar

Fan, H., Yao, M., Wang, H., Zhao, D., Chen, L. (2020). Isolation and effect of Trichoderma citrinoviride Snef1910 for the biological control of root-knot nematode. BMC Microbiol. 20 (1), 299. doi: 10.1186/s12866-020-01984-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Fujimoto, T., Tomitaka, Y., Abe, H., Tsuda, S., Futai, K., Mizukubo, T. (2011). Expression profile of jasmonic acid-induced genes and the induced resistance against the root-knot nematode in tomato plants (Solanum lycopersicum) after foliar treatment with methyl jasmonate. J. Plant Physiol. 168 (10), 1084–1097. doi: 10.1016/j.jplph.2010.12.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Hadavi, N. S. (2008). Biological control of the root-knot nematode Meloidogyne javanica by Trichoderma harzianum. Soil Biol. Biochem. 40 (8), 2016–2020. doi: 10.1016/j.soilbio.2008.03.011

CrossRef Full Text | Google Scholar

Jiao, J., Han, B. J., Wang, Y. Y., Zhu, X. F., DuanY., X., Chen, L. J. (2015). Identification of Trichoderma and its toxicity to Meloidogyne incognita. Plant Protection. 41 (02), 64–69. doi: 10.3969/j.issn.0529-1542.2015.02.011

CrossRef Full Text | Google Scholar

Khan, M. R., Ahmad, I., Ahamad, F. (2018). Effect of pure culture and culture filtrates of Trichoderma species on root-knot nematode, Meloidogyne incognita infesting tomato. Indian Phytopathol. 71 (2), 265–274. doi: 10.1007/s42360-018-0031-1

CrossRef Full Text | Google Scholar

Kumar, N., Khurana, S. (2021). Trichoderma-plant-pathogen interactions for benefit of agriculture and environment. In Biocontrol Agents Secondary Metabolites, pp. 41–63. doi: 10.1016/B978-0-12-822919-4.00003-X

CrossRef Full Text | Google Scholar

Martínez-Medina, A., Fernandez, I., Lok, G. B., Pozo, M. J., Pieterse, C., Wees, S. (2017). Shifting from priming of salicylic acid- to jasmonic acid-regulated defences by Trichoderma protects tomato against the root knot nematode Meloidogyne incognita. New Phytologist. 213 (3), 1363–1377. doi: 10.1111/nph.14251

CrossRef Full Text | Google Scholar

Mathys, J., Cremer, K. D., Timmermans, P., Kerckhove, S. V., Lievens, B., Vanhaecke, M., et al. (2012). Genome-wide characterization of ISR induced in Arabidopsis thaliana by Trichoderma hamatum T-382 against Botrytis cinerea infection. Front. Plant Sci. 3 (108). doi: 10.3389/fpls.2012.00108

PubMed Abstract | CrossRef Full Text | Google Scholar

Medeiros, H. A. D., de Araújo Filho, J. V., Freitas, L. G. D., Castillo, P., Rubio, MaríaBelén, Hermosa, R., et al. (2017). Tomato progeny inherit resistance to the nematode Meloidogyne javanica linked to plant growth induced by the biocontrol fungus Trichoderma atroviride. Sci. Rep. 7 (40216), 1–13. doi: 10.1038/srep40216

PubMed Abstract | CrossRef Full Text | Google Scholar

Molinari, S., Fanelli, E., Leonetti, P. (2014). Expression of tomato salicylic acid (sa)-responsive pathogenesis-related genes in mi-1-mediated and sa-induced resistance to root-knot nematodes. Mol. Plant Pathol. 15, 255–264. doi: 10.1111/mpp.12085

PubMed Abstract | CrossRef Full Text | Google Scholar

Pfaffl, M. W., Horgan, G. W., Dempfle, L. (2002). Relative expression software tool (REST) for group-wise comparison and statistical analysis of relative expression results in real-time PCR. Nucleic Acids Res. 30 (9), e36. doi: 10.1093/nar/30.9.e36

PubMed Abstract | CrossRef Full Text | Google Scholar

Plaper, A., Golob, M., Hafner, I., Oblak, M., Šolmajer, T., Jerala, R. (2003). Characterization of quercetin binding site on DNA gyrase. Biochem. Biophys. Res. Commun. 306 (2), 530–536. doi: 10.1016/S0006-291X(03)01006-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Reynolds, A. M., Dutta, T. K., Curtis, R. H. C., Powers, S. J., Gaur, H. S., Kerry, B. R. (2011). Chemotaxis can take plant-parasitic nematodes to the source of a chemo-attractant via the shortest possible routes. J. R. Soc. Interface. 8 (57), 568–577. doi: 10.1098/rsif.2010.0417

PubMed Abstract | CrossRef Full Text | Google Scholar

Schmittgen, T. D., Livak, K. J. (2008). Analyzing real-time PCR data by the comparative CT method. Nat. Protoc. 3, 1101–1108. doi: 10.1038/nprot.2008.73

PubMed Abstract | CrossRef Full Text | Google Scholar

Shoresh, M., Harman, G. E., Mastouri, F. (2010). Induced systemic resistance and plant responses to fungal biocontrol agents. Annu. Rev. Phytopathol. 48 (1), 21–43. doi: 10.1146/annurev-phyto-073009-114450

PubMed Abstract | CrossRef Full Text | Google Scholar

Sidonskaya, Schweighofer, Shubchynskyy, Kammerhofer, Hofmann, Wieczorek, et al. (2016). Plant resistance against the parasitic nematode heterodera schachtii is mediated by mpk3 and mpk6 kinases, which are controlled by the mapk phosphatase AP2C1 in arabidopsis. J. Exp. botany. 67 (1), 107–118. doi: 10.1093/jxb/erv440

CrossRef Full Text | Google Scholar

Sikora, R. A., Sorial, M. E., Dababat, A. A., Mahdy, M. E., Selim, M. E. (2014). Biological and chemical dependent systemic resistance and their significance for the control of root-knot nematodes. Nematol. 00 (8), 1–11. doi: 10.1163/15685411-00002818

CrossRef Full Text | Google Scholar

Song, L. X., Xu, X. C., Wang, F. N., Wang, Y., Xi, X. J., Kai, S., et al. (2017). Brassinosteroids act as a positive regulator for resistance against root-knot nematode involving respiratory burst oxidase homolog-dependent activation of mapks in tomato. Plant Cell Environment. 41, 1113–1125. doi: 10.1111/pce.12952

PubMed Abstract | CrossRef Full Text | Google Scholar

Tanaka, J., Silva, C., Ferreira, I., Machado, G., Leon, L. L., Oliveira, A. (2007). Antileishmanial activity of indole alkaloids from Aspidosperma ramiflorum. Phytomed Int. J. Phytother Phytopharmacol 14 (6), 377–380. doi: 10.1016/j.phymed.2006.09.002

CrossRef Full Text | Google Scholar

Tariqjaveed, M., Farooq, T., Al-Hazmi, A. S., Hussain, M. D., Rehman, A. U. (2021). Role of Trichoderma as a biocontrol agent (BCA) of phytoparasitic nematodes and plant growth inducer. J. Invertebrate Pathol. 183, 107626. doi: 10.1016/j.jip.2021.107626

CrossRef Full Text | Google Scholar

Tsuchiya, H. (2015). Membrane interactions of phytochemicals as their molecular mechanism applicable to the discovery of drug leads from plants. Molecules. 20 (10), 18923–18966. doi: 10.3390/molecules201018923

PubMed Abstract | CrossRef Full Text | Google Scholar

Xie, Z. Y., Lu, P. Y., Ning, A. Q., Liu, X. Y., Wang, J. L., Zhang, J., et al. (2022). Contact toxicity of two essential oils extracted from Ajania against Ditylenchus destructor. Chin. J. Biol. Control. 38 (3), 549–554. doi: 10.16409/j.cnki.2095-039x.2021.07.012

CrossRef Full Text | Google Scholar

Yoshioka, Y., Ichikawa, H., Naznin, H. A., Kogure, A., Hyakumachi, M. (2012). Systemic resistance induced in Arabidopsis thaliana by Trichoderma asperellum SKT-1, a microbial pesticide of seedborne diseases of rice. Pest Manage. Sci. 68, 60–66. doi: 10.1002/ps.2220

CrossRef Full Text | Google Scholar

Zhao, D., Zhu, F., Lu, X. P., Wang, Y. Y., Zhu, X. F., Duan, Y. X., et al. (2016). Mutation breeding for high and low toxic strains of Simplicillium chinense (Snef5). J. Shenyang Agric. University. 47 (5), 602–607. doi: 10.3969/j.issn.1000-1700.2016.05.014

CrossRef Full Text | Google Scholar
