Development of Wide-Compatible Indica Lines by Pyramiding Multiple Neutral Alleles of Indica–Japonica Hybrid Sterility Loci

Since the development of indica hybrid rice in the 1970s, great success has been achieved in hybrid rice production in China and around the world. The utilization of inter-subspecific indica–japonica hybrid rice has always been considered due to its stronger heterosis characteristics. However, indica–japonica hybrids face a serious problem of sterility, which hinders the exploitation of their heterosis. In the past decades, the genetic basis of indica–japonica hybrid sterility has been well studied. It was found that in sterile indica–japonica hybrids, female sterility was mainly controlled by the S5 locus and male sterility by the Sa, Sb, Sc, Sd, and Se loci. In this study, we developed wide-compatible indica lines (WCILs) by pyramiding multiple neutral (n) alleles of the hybrid sterility loci. First, we identified Sⁿ alleles of the loci in single-segment substitution lines (SSSLs) in the genetic background of indica Huajingxian 74 (HJX74). Then, the Sⁿ alleles of S5, Sb, Sc, Sd, and Se loci in SSSLs were pyramided in the HJX74 genetic background. The WCILs carrying Sⁿ alleles at the S5, Sb, Sc, Sd, and Se loci showed wide compatibility with indica and japonica rice varieties. Therefore, the WCILs will be used to develop inter-subspecific indica–japonica hybrid rice with normal fertility.

Introduction

Asian cultivated rice (Oryza sativa L.) is the staple food for more than half of the world’s population (Fukagawa and Ziska, 2019). The breeding of high-yielding varieties is essential for maintaining global food security (Peng et al., 2008; Khush, 2013). Since the 1970s, indica hybrid rice has been successfully developed in China and around the world (Yuan and Virmani, 1988; Cheng et al., 2007). However, the heterosis of intra-subspecific hybrid rice is limited, resulting in a yield plateau for production of hybrid rice (Peng et al., 2004; Cheng et al., 2007). There is great heterosis in inter-subspecific hybrids, and exploiting this heterosis has long been considered a promising approach to further increase the yield potential of rice (Khush, 2013; Zhang et al., 2021). However, the severe sterility associated with indica–japonica hybrid hinders the utilization of heterosis (Ikehashi and Araki, 1986; Ouyang and Zhang, 2018; Zhang, 2020, 2022).

The sterility of hybrids produced by crossing indica and japonica rice varieties can be attributed to female or embryo sac sterility and male or pollen sterility. The female sterility in hybrid is mainly controlled by the S5 locus, which was mapped on chromosome 6 (Ikehashi and Araki, 1986; Yanagihara et al., 1995; Ji et al., 2005; Qiu et al., 2005). The male sterility in hybrid is mainly controlled by Sa, Sb, Sc, Sd, and Se loci (Zhang and Lu, 1989, 1993; Zhang et al., 1993, 1994). Using molecular markers, Sa was found to be located on chromosome 1 (Zhuang et al., 1999; Su and Liu, 2003), Sb on chromosome 5 (Zhuang et al., 2002; Li et al., 2006), Sc on chromosome 3 (Zhang and Zhang, 2001; Yang et al., 2004), Sd on chromosome 1 (Li et al., 2008), and Se on chromosome 12 (Zhu et al., 2008). The S5, Sa, and Sc genes were then cloned and functionally analyzed (Chen et al., 2008; Long et al., 2008; Yang et al., 2012; Shen et al., 2017). The genetic model of hybrid sterility is the one-locus sporo-gametophytic interaction model (Ikehashi and Araki, 1986; Zhang and Lu, 1993; Zhang, 2020). In this genetic model, it is assumed that indica varieties have Sⁱ allele, and japonica varieties have S^j allele at the loci. At the S5 locus, the interaction between Sⁱ and S^j causes the abortion of female gametes carrying S^j allele (Ikehashi and Araki, 1986). At the Sa, Sb, Sc, Sd, and Se loci, the interaction between Sⁱ and S^j causes the abortion of male gametes carrying S^j allele (Zhang and Lu, 1993). At these loci, some varieties carry Sⁿ, a neutral allele, and the allelic interaction between Sⁱ/Sⁿ and S^j/Sⁿ cannot cause the abortion of any gamete (Ikehashi and Araki, 1986; Zhang and Lu, 1993; Yang et al., 2012; Shen et al., 2017; Xie et al., 2017). The understanding of the genetic and molecular mechanisms of sterility in indica–japonica hybrids has laid the foundation for overcoming hybrid sterility.

With the development of molecular breeding technology, the concept of “breeding by design” was proposed (Peleman and van der Voort, 2003). To implement the strategy of rice breeding by design, a library of single-segment substitution lines (SSSLs) in rice was constructed by using 43 accessions from seven species of AA genome as donors of chromosome substitution segments in the genetic background of Huajingxian 74 (HJX74), an elite indica variety from south China. A total of 2,360 HJX74-SSSLs have been included in the library, which contains rich genetic resources for rice breeding techniques (Zhang et al., 2004; Xi et al., 2006; He et al., 2017; Zhao et al., 2019; Zhang, 2021). The HJX74-SSSL library was used as a platform for designing new rice cultivars, and several cytoplasmic male sterility (CMS), maintainer, and restorer lines were developed (Dai et al., 2015, 2016; Luan et al., 2019). Therefore, target chromosome-segment substitution is a way to breeding by design in rice (Zhang, 2021).

With the understanding of the genetic and molecular mechanisms of indica–japonica hybrid sterility and the development of molecular breeding techniques, the breeding strategies for developing inter-subspecific indica–japonica hybrid rice were proposed (Zhang, 2020, 2022). One strategy for overcoming the hybrid sterility of indica–japonica rice is to develop indica-compatible japonica lines (ICJLs) (Zhang and Lu, 1999; Zhang, 2020). Recently, the ICJLs were developed by pyramiding Sⁱ allele at the Sb, Sc, Sd, and Se loci and Sⁿ allele at the S5 locus in japonica genetic background by marker-assisted selection (MAS). The ICJLs are compatible with indica but incompatible with japonica in pollen fertility and spikelet fertility (Guo et al., 2016). Another strategy for overcoming the hybrid sterility of indica–japonica rice is to develop wide-compatible indica lines (WCILs) (Zhang, 2020, 2022). Herein, we report the development of WCILs using the HJX74-SSSL library. By pyramiding Sⁿ allele at the S5, Sb, Sc, Sd, and Se loci in the HJX74 genetic background, the obtained WCILs were compatible with both indica and japonica rice in pollen fertility and spikelet fertility. The breeding of WCILs provides a technique to develop inter-subspecific indica–japonica hybrid rice.

Materials and Methods

Plant Materials and Field Trials

Seven SSSLs carrying the Sc gene for hybrid male sterility in their chromosome substitution segments and seven SSSLs carrying the S5 gene for hybrid female sterility in their chromosome substitution segments were selected from the HXJ74-SSSL library (Supplementary Table 1). A set of indica and japonica varieties were used as testers to test the hybrid fertility. The genotypes of Sa, Sb, Sc, Sd, and Se loci for hybrid male sterility and S5 locus for hybrid female sterility have been identified in some of the testers. It was found that at these six loci, the indica variety Guang-lu-ai 4 (GLA4) carried the Sⁱ alleles, while the japonica variety Taichung 65 (T65) carried the S^j alleles (Zhang et al., 1994; Guo et al., 2016). All the study samples were planted from 2008 to 2019 at the farm of South China Agricultural University, Guangzhou (23°07′N, 113°15′E). These plants were planted in two cropping seasons each year, with the first cropping season (FCS) running from late February to mid-July and the second cropping season (SCS) running from late July to mid-November. Seeds were sown in seedbeds, and seedlings were transplanted into the field. Field management, including irrigation, fertilization, and pest control, followed normal agricultural practices.

Genotyping by Molecular Markers

The SSR markers were selected on the rice microsatellite maps (McCouch et al., 2002; Zhang et al., 2007). The functional markers of the S5 gene were selected to identify the genotypes at the S5 loci (Sundaram et al., 2010; Du et al., 2011; Yang et al., 2012; Guo et al., 2016). Markers linked with the Sa, Sb, Sc, Sd, Se, and S5 loci were selected from the published studies (Yang et al., 2004, 2012; Li et al., 2006, 2008; Chen et al., 2008; Long et al., 2008; Zhu et al., 2008). New molecular markers were developed in this study (Supplementary Table 2). The PCR products were separated into 6% non-denaturing polyacrylamide gels (Panaud et al., 1996; Li et al., 2006).

Phenotyping of Fertility and Agronomic Traits

To check pollen fertility, nine mature flowers were collected from the upper third of panicles during the flowering stage and fixed in FAA solution. Pollens were stained with the 1% I₂-KI solution containing 0.1% (w/v) iodine and 1% (w/v) potassium iodide. Pollens were divided into normal pollens and sterile pollens, which were further divided into stained abortive pollens (stained but small size) and empty abortive pollens (small size and empty) (Zhang and Lu, 1989). Three panicles per plant and 10–12 plants per line were used to examine the spikelet fertility, and 20–40 plants per line were used to investigate the agronomic traits.

Statistical Analysis

For statistical analysis, the percentage data were converted to the square root of the arcsine values. Student’s t-test was used to compare the data between the two groups. The Dunnett t-test was used to compare multiple groups with the control group. The least significance range (LSR) was used for the multiple range test among the multiple groups. The chi-square (χ²) test was performed to detect the distorted segregation of three genotypes in F₂ populations according to the Mendelian ratio of 1:2:1. SPSS statistics 23.0 and Origin Pro 9.0 were used for data analysis and charting¹.

Results

Genotypes of Sa, Sb, Sc, Sd, Se, and S5 Loci in Huajingxian 74

To identify the genotypes of Sa, Sb, Sc, Sd, Se, and S5 loci associated with hybrid sterility, HJX74 was test crossed with T65, a japonica variety with S^j alleles at these six loci, and GLA4, an indica variety with Sⁱ alleles at these six loci (Zhang et al., 1994; Guo et al., 2016). The F₁ hybrids obtained from the cross of T65/GLA4 showed severe sterility, where the pollen fertility was only 20.51% and spikelet fertility was only 5.89%. In contrast, the F₁ hybrid of the HJX74/GLA4 cross showed normal pollen fertility and spikelet fertility of 92.39% and 93.39%, respectively. In the F₁ hybrids obtained from the cross of HJX74/T65, the pollen fertility was 72.89% and the spikelet fertility was 61.58%, which were significantly higher than those of T65/GLA4 and significantly lower than those of HJX74/GLA4 hybrids (Figure 1A). The results showed that the hybrid of HJX74/T65 exhibited partial pollen sterility and partial spikelet sterility.

FIGURE 1

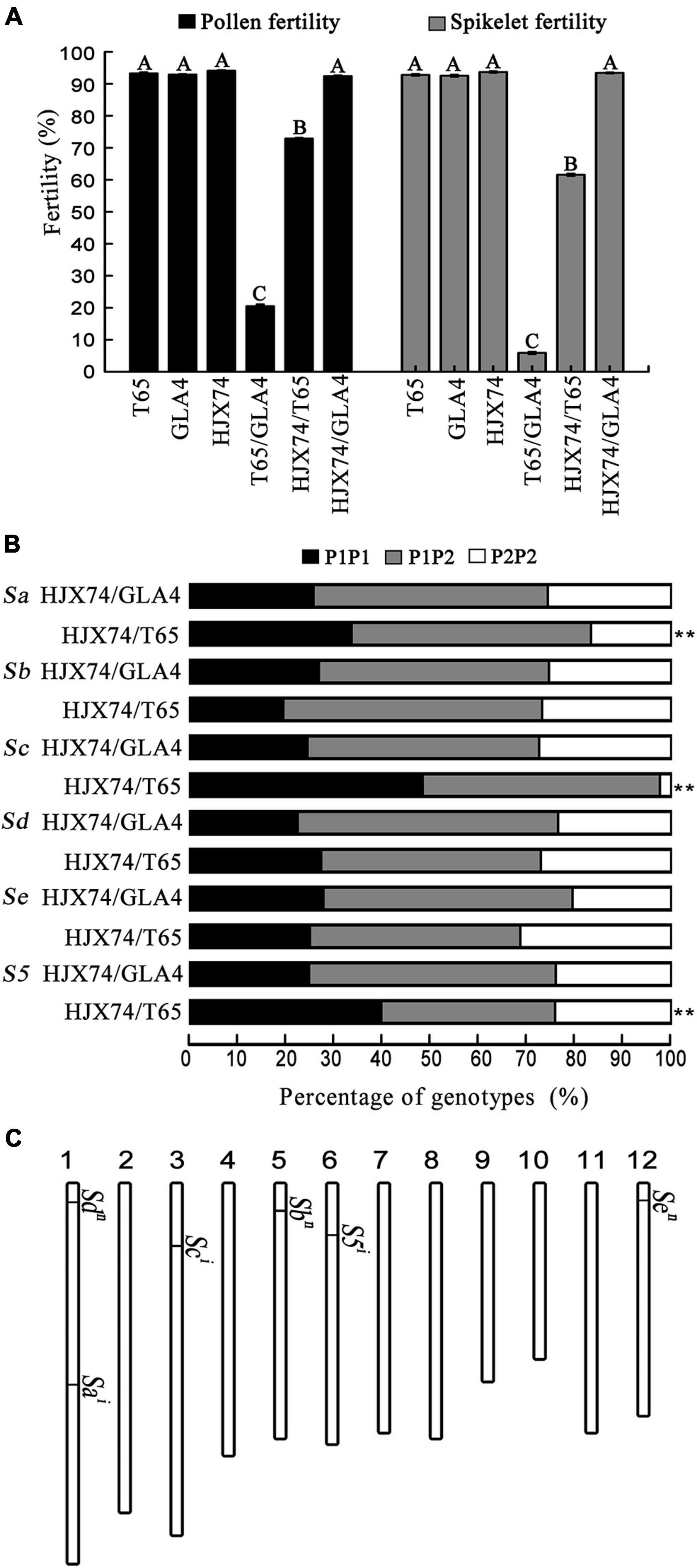

Figure 1. Genotypes of hybrid sterility loci Sa, Sb, Sc, Sd, Se, and S5 in HJX74. (A) Pollen and spikelet fertility of three parents and their F₁ hybrids. (B) Ratios of genotypes at Sa, Sb, Sc, Sd, Se, and S5 loci in the F₂ populations from the crosses between HJX74 and testers Taichung 65 (T65) and Guang-lu-ai 4 (GLA4). (C) Chromosome location and genotypes of the genes at the Sa, Sb, Sc, Sd, Se, and S5 loci in HJX74. Vertical bars represent rice chromosomes. P1P1, Genotypes of HJX74; P1P2, Heterozygous genotype; P2P2, Genotype of testers T65 (S^j/S^j) or GLA4 (Sⁱ/Sⁱ). Capital letters indicate statistical differences at the 0.01 probability level.

The molecular markers linked to the Sa, Sb, Sc, Sd, Se, and S5 loci were used to investigate genotype segregation in the F₂ populations obtained from the crosses of HJX74/GLA4 and HJX74/T65. At the Sb, Sd, and Se loci, the genotype segregation of F₂ populations from both crosses fit the Mendelian ratio of 1:2:1. At the Sa, Sc, and S5 loci, distorted segregation of the genotypes was detected in the F₂ population of HJX74/T65 but not in the genotypes of HJX74/GLA4. At the Sa locus, the genotype ratios of Sa^HJX74/Sa^HJX74, Sa^HJX74/Sa^T65, and Sa^T65/Sa^T65 were 68:100:33, which significantly distorted from the Mendelian ratio of 1:2:1. At the Sc locus, the genotype ratios of Sc^HJX74/Sc^HJX74, Sc^HJX74/Sc^T65, and Sc^T65/Sc^T65 were 69:70:3, which significantly distorted from the Mendelian ratio. Distorted segregation was also detected at the S5 locus, where the genotype ratios of S5^HJX74/S5^HJX74, S5^HJX74/S5^T65, and S5^T65/S5^T65 were found to be 72:65:43 (Figure 1B). In addition, HJX74 was tested using a group of indica and japonica testers. The results showed that distorted segregation was detected only at the Sa, Sc, and S5 loci in the crosses of HJX74/japonica testers (Supplementary Table 3).

These results indicated that HJX74 carried Sⁱ/Sⁱ at the Sa, Sc, and S5 loci and Sⁿ/Sⁿ at the Sb, Sd, and Se loci (Figure 1C). At the Sa and Sc loci, the allele interaction between Sⁱ of HJX74 and S^j of japonica testers caused the abortion of male gametes carrying S^j in hybrids, resulting in the significant reduction of plants with S^j/S^j in the F₂ populations. At the S5 locus, the allele interaction between S5ⁱ of HJX74 and S5^j of japonica testers caused the abortion of female gametes carrying S5^j in hybrids, resulting in the significant reduction of plants with S5^j/S5^j in the F₂ populations. At the Sb, Sd, and Se loci, allele interaction between Sⁿ of HJX74 and S^j of japonica testers or Sⁱ of indica testers could not cause the abortion of any gamete in hybrids, and genotype segregation in the F₂ populations fit the Mendelian ratio of 1:2:1 (Supplementary Table 3). In addition, compared with the Sc locus, the Sa locus showed weak distorted segregation, where χ²_(1:2:1) = 34.00–62.27 in the five segregation populations of the Sc locus, while χ²_(1:2:1) = 9.36–12.19 in the three segregation populations of the Sa locus (Supplementary Table 3). The results showed that the hybrid male sterility caused by the interaction between Sⁱ and S^j at the Sa locus was weaker than that at the Sc locus.

Genotypes of the Sc Locus in the Substitution Segments of Single-Segment Substitution Lines

To screen the Scⁿ gene, seven SSSLs carrying the Sc locus on the substitution segments obtained from different donors were selected from the HJX74-SSSL library (Supplementary Table 1). The pollen fertility of F₁ hybrids from the crosses between the SSSLs and HJX74 was over 90% (Figure 2A). The SSSLs were then tested with three indica testers and three japonica testers. Four SSSLs (01-03, 05-03, 06-03, and 14-03) and HJX74 showed significantly higher pollen fertility in their F₁ hybrids with indica testers than those obtained with japonica testers. In contrast, the other three SSSLs (11-03, 22-03, and 27-03) did not show a significant difference in the pollen fertility of F₁ hybrids between the crosses with indica and japonica testers (Figure 2B). Two SSSLs (06-03 and 27-03) were then selected to detect the segregation of Sc genotypes in F₂ populations obtained from the crosses with T65. In the F₂ population of the T65/27-03 cross, the Sc genotypes of T65/T65, T65/27-03, and 27-03/27-03 segregated in the ratios of 40:83:53, which fit the Mendelian ratio of 1:2:1. In contrast, in the F₂ population of the T65/06-03 cross, the genotype ratios of T65/T65, T65/06-03, and 06-03/06-03 were 23:64:69, which significantly distorted from the Mendelian ratio (Figure 2C). These results indicated that at the Sc locus, SSSLs 11-03, 22-03, and 27-03 carried the Sⁿ allele, while 01-03, 05-03, 06-03, and 14-03 carried the Sⁱ allele.

FIGURE 2

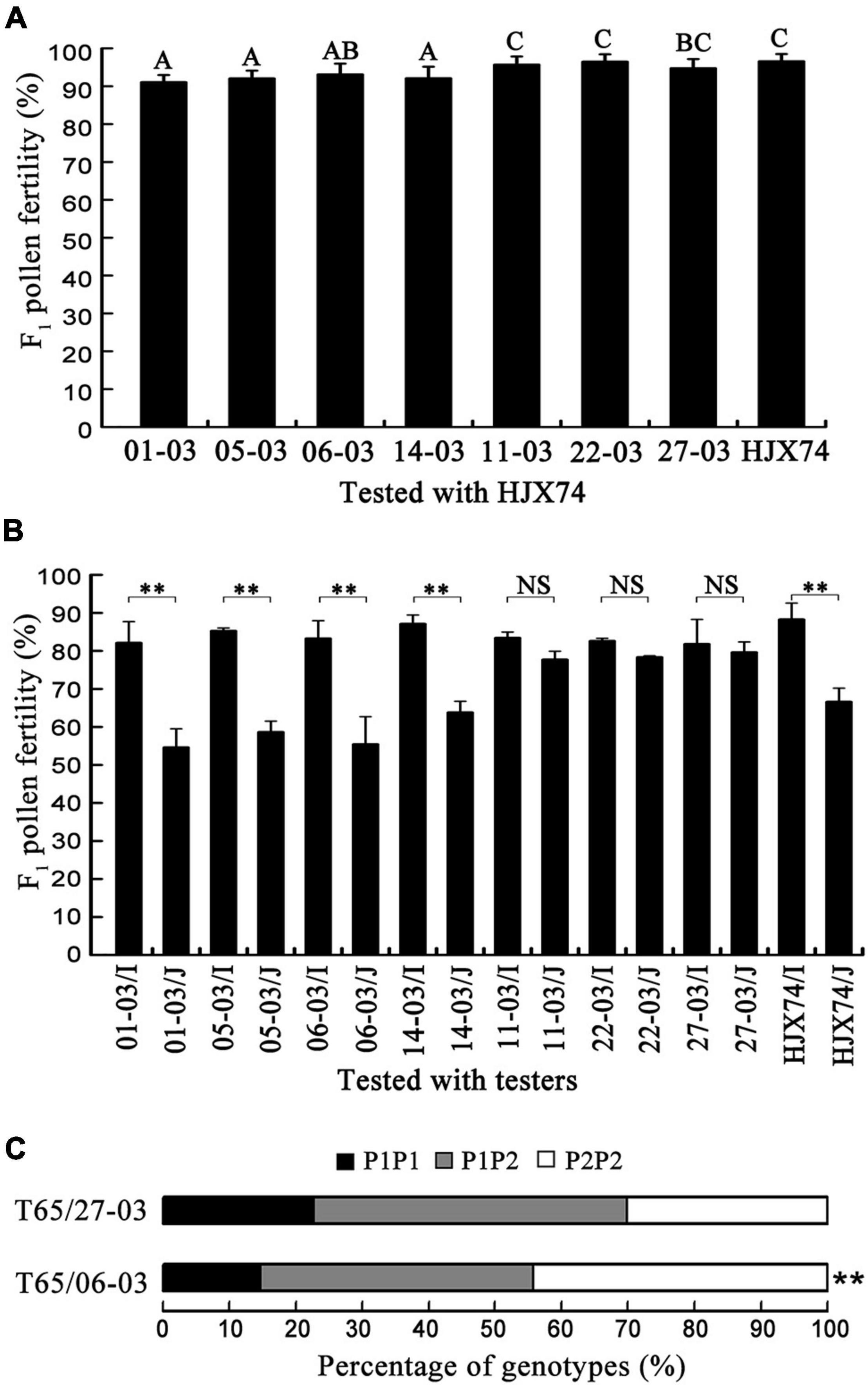

Figure 2. Genotypes and genetic effects of the Sc gene on chromosomal substitution segments of SSSLs with the HJX74 genetic background. (A) Pollen fertility of F₁ hybrids from crosses between SSSLs and HJX74. (B) Pollen fertility of F₁ hybrids from crosses between SSSLs and testers. I, indica testers; J, japonica testers. (C) Segregation ratios of Sc genotypes in F₂ populations from crosses between SSSLs and T65. P1P1, Genotype of T65 (S^j/S^j); P1P2, Heterozygous genotypes; P2P2, Genotypes of SSSLs. ^**, Significant difference at 0.01 probability level. NS, No significance.

Genotypes of the S5 Locus in the Substitution Segments of Single-Segment Substitution Lines

To screen the S5ⁿ gene, seven SSSLs carrying the S5 locus in the substitution segments obtained from different donors were selected from the HJX74-SSSL library (Supplementary Table 1). The genotypes of the S5 locus in the SSSLs were detected by functional markers. The results showed that in the substitution segments, three SSSLs (04-06, 13-06, and 14-06) carried S5ⁱ, one SSSL (10-06) carried S5^j, and the other three SSSLs (21-06, 23-06, and 27-06) carried S5ⁿ (Supplementary Table 4).

Five genotypes of the S5 locus were obtained from the F₁ hybrids crossed by seven SSSLs (Supplementary Table 5). The pollen fertility of hybrids was normal in all crosses, ranging from 93.04 to 94.42%. The spikelet fertility of S5ⁱ/S5ⁱ, S5ⁱ/S5ⁿ, S5ⁿ/S5^j, and S5ⁿ/S5ⁿ genotypes was normal (from 89.84% to 91.28%), but that of S5ⁱ/S5^j genotype from the crosses between 10-06 carrying S5^j/S5^j and SSSLs carrying S5ⁱ/S5ⁱ was only 68.34%, which was significantly lower than the spikelet fertility of the other four genotypes (Figure 3A and Supplementary Table 5). The segregation of S5 genotypes in F₂ populations obtained from three heterozygous genotypes, S5ⁿ/S5^j, S5ⁿ/S5ⁱ, and S5^j/S5ⁱ, was detected by using the functional markers of the S5 gene. Distorted segregation was detected in the S5^j/S5ⁱ segregation population produced from the crosses between 10-06 carrying S5^j/S5^j and SSSLs carrying S5ⁱ/S5ⁱ, but was not detected in the segregation populations of S5ⁿ/S5^j from 21-06/10-06 and of S5ⁿ/S5ⁱ from 21-06/13-06 (Figure 3B).

FIGURE 3

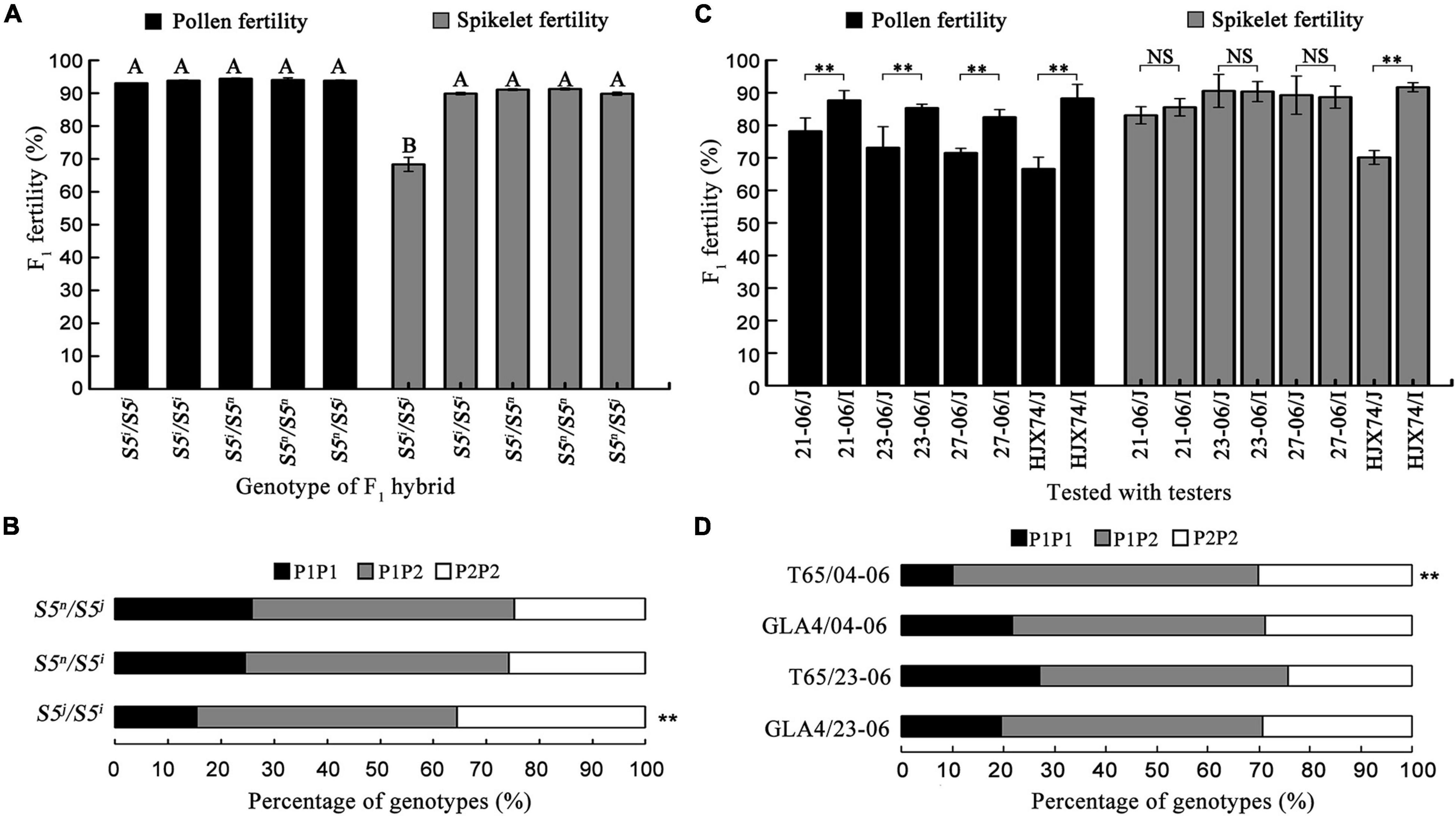

Figure 3. Genotypes and genetic effects of the S5 gene on chromosomal substitution segments of SSSLs with the HJX74 genetic background. (A) Pollen fertility and spikelet fertility in F₁ hybrids from the crosses between SSSLs and different S5 genotypes. (B) Segregation ratios of S5 genotypes in F₂ populations from different crosses. (C) Pollen fertility and spikelet fertility in F₁ hybrids from crosses between SSSLs (21-06, 23-06, and 27-06) and testers. I, indica testers; J, japonica testers. Capital letters indicate statistical differences at the 0.01 probability level. (D) Segregation ratios of S5 genotypes in F₂ populations from crosses between SSSLs and testers. P1P1, Genotype of tester; P1P2, Heterozygous genotypes; P2P2, Genotypes of SSSLs. ^**, Significant difference at 0.01 probability level. NS, No significance.

The three SSSLs with S5ⁿ, 21-06, 23-06, and 27-06, were tested for their wide compatibility by crossing with indica and japonica testers. The F₁ hybrids from all crosses showed high spikelet fertility, from 80.28% to 95.05%. As a control, the spikelet fertility of F₁ hybrids in HJX74/japonica testers was 70.13% (Figure 3C). In addition, distorted segregation of the S5 locus was detected in the F₂ population of T65/04-06, but was not detected in the F₂ populations of the other three crosses, that is, GLA4/04-06, T65/23-06, and GLA4/23-06 (Figure 3D). These results showed that the three SSSLs (21-06, 23-06, and 27-06) were compatible with indica testers and japonica testers in spikelet fertility as a result of their carrying S5ⁿ locus.

Pyramiding of Sⁿ Alleles at the Sc and S5 Loci in the Huajingxian 74 Genetic Background

Three SSSLs (11-03, 22-03, and 27-03) with the Scⁿ gene and three SSSLs (21-06, 23-06, and 27-06) with the S5ⁿ gene were selected to pyramid the two Sⁿ genes in the HJX74 genetic background. Three SSSLs with Scⁿ were crossed with three SSSLs with S5ⁿ, respectively. In the segregating populations, the plants carrying Scⁿ and S5ⁿ loci were selected. Nine pyramiding lines were developed, which carried Scⁿ and S5ⁿ loci from different donors and Sbⁿ, Sdⁿ, and Seⁿ in the HJX74 genetic background (Figure 4A and Supplementary Table 6). Therefore, the nine pyramiding lines thus obtained were WCILs.

FIGURE 4

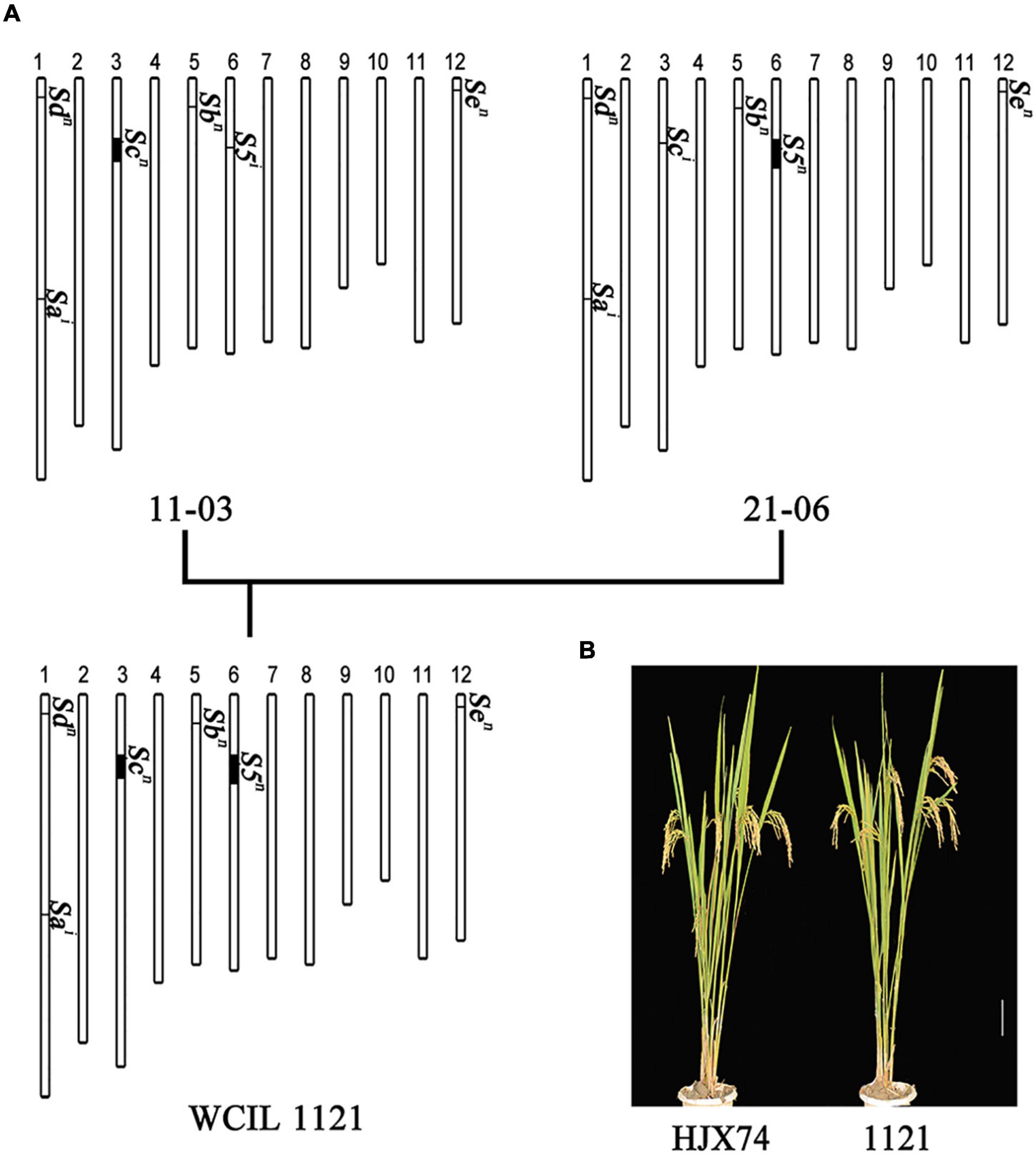

Figure 4. Pyramiding of Sⁿ genes at the Sc and S5 loci in the HJX74 genetic background. (A) Development of WCIL 1121 by pyramiding of Scⁿ in the substitution segment of SSSL 11-03 and S5ⁿ in the substitution segment of SSSL 21-06. Scale bar, 2 cm. Vertical bars represent rice chromosomes. Deep parts represent the substitution segments from donors and light parts represent the genetic background of HJX74. (B) Plant types of WCIL 1121 and HJX74. Scale bar, 10 cm.

In the nine WCILs, the plant type was similar to HJX74 (Figure 4B). In addition, no significant difference between HJX74 and WCILs was found in the majority of the investigated traits, including heading date, plant height, width of flag leaf, length of flag leaf, grain length, grain width, and grain weight (Supplementary Table 7).

Compatibility of Wide-Compatible indica Lines

To evaluate the compatibility of nine WCILs, the WCILs were test crossed with six indica testers and five japonica testers (Supplementary Tables 8–11). When tested with indica tester group, F₁ hybrids of nine WCILs showed normal pollen fertility and spikelet fertility, with no significant difference when compared to HJX74. When tested with the japonica tester group, nine WCILs showed significantly higher F₁ pollen fertility and spikelet fertility when compared to HJX74 (Figure 5). These results indicated that the WCILs showed wide compatibility, producing high pollen fertility and spikelet fertility in their F₁ hybrids with both indica and japonica rice varieties.

FIGURE 5

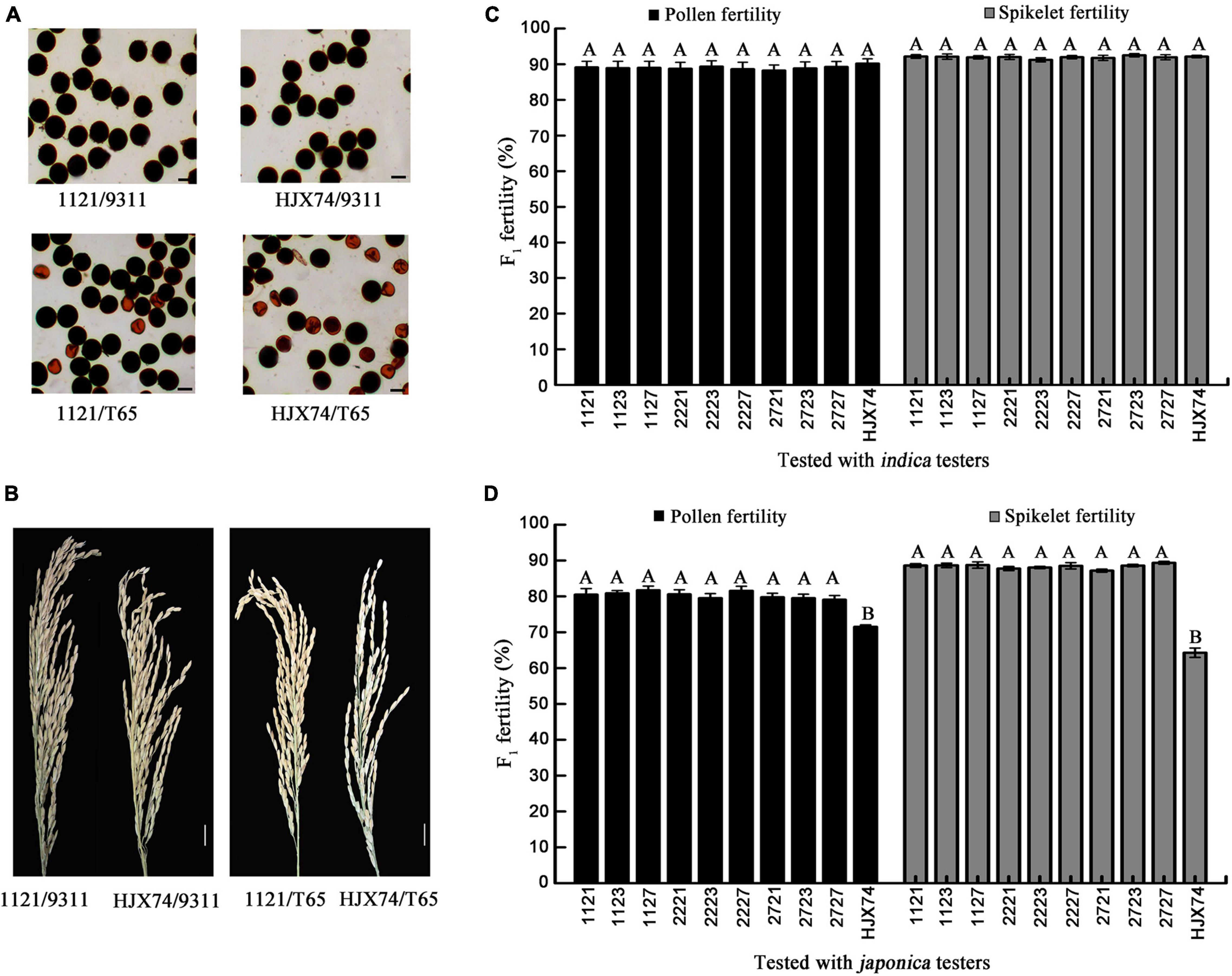

Figure 5. Compatibility of WCILs. (A) Pollen grains stained by I₂-KI solution in F₁ hybrids of four crosses. Scale bar, 30 μm. (B) Spikelet fertility of the panicles in F₁ hybrids. Scale bar, 2 cm. (C) Pollen fertility and spikelet fertility of the F₁ hybrids from the crosses between WCILs (HJX74 as control) and indica testers (See Supplementary Tables 8–9). (D) Pollen fertility and spikelet fertility of the F₁ hybrids from the crosses between WCILs (HJX74 as control) and japonica testers (See Supplementary Tables 10–11). The information about nine WCILs (1121, 1123, 1127, 2221, 2223, 2227, 2721, 2723, and 2727) is given in Supplementary Table 6. HJX74 is a recipient of SSSLs. The 9311 is an indica tester. T65 is a japonica tester. Capital letters indicate statistical differences at the 0.01 probability level.

Although the WCILs showed significantly higher F₁ pollen fertility when tested with japonica testers, the F₁ pollen fertility was still lower when tested with indica testers (Figures 5C,D). To identify the problem, the genotype segregation at the Sa, Sb, Sc, Sd, Se, and S5 loci in F₂ populations was examined with molecular markers linked with these loci. No distorted segregation at the Sb, Sc, Sd, Se, and S5 loci was found in all the detected F₂ populations, further confirming the fact that the alleles of the Sb, Sc, Sd, Se, and S5 loci in WCILs were Sⁿ. However, significantly distorted segregation was detected at the Sa locus in all four populations (Supplementary Table 12). These results verified that WCILs carried the Saⁱ gene in the HJX74 genetic background, and the interaction between Saⁱ from WCILs and Sa^j from japonica testers caused some male gametes with Sa^j to become abortive in F₁ hybrids obtained from the crosses of WCILs with japonica testers.

Three indica lines, GLA4 carrying the genotype of Saⁱ, Sbⁱ, Scⁱ, Sdⁱ, Seⁱ, and S5ⁱ, HJX74 carrying the genotype of Saⁱ, Sbⁿ, Scⁱ, Sdⁿ, Seⁿ, and S5ⁱ, and WCIL 2223 carrying the genotype of Saⁱ, Sbⁿ, Scⁿ, Sdⁿ, Seⁿ, and S5ⁿ, were selected to test their compatibility with eight japonica varieties of different ecotypes. In the F₁ hybrids of GLA4 with eight japonica varieties, pollen fertility was 13.24–90.68% with an average of 46.94%, and spikelet fertility was 5.89–92.95% with an average of 44.40%. In the F₁ hybrids of HJX74 with eight japonica varieties, pollen fertility was 75.19–95.74% with an average of 85.37%, and spikelet fertility was 58.34–93.90% with an average of 74.69%. On comparison of data, pollen fertility was 82.35–95.79% with an average of 88.82%, and spikelet fertility was 89.19–94.29% with an average of 91.73% in the F₁ hybrids of WCIL 2223 with the eight japonica varieties (Supplementary Table 13). The results showed that WCIL 2223 had higher and wider compatibility with japonica varieties than GLA4 and HJX74. The pollen fertility and spikelet fertility in F₁ hybrids of WCIL with various japonica varieties were normal or near normal.

Discussion

Sterility or Compatibility of Hybrids Between indica and japonica Subspecies Is a Complex Trait

In the past decades, the genetic basis of indica–japonica hybrid sterility has been understood. In indica–japonica hybrid sterility, the S5 locus was found to be responsible for female sterility, and the Sa, Sb, Sc, Sd, and Se loci were responsible for male sterility. Following the tri-allele pattern and the one-locus sporo-gametophytic interaction model, the allele interaction between Sⁱ and S^j leads to the abortion of male or female gametes carrying S^j, whereas the allele interaction between Sⁿ and Sⁱ or S^j does not lead to the abortion of any gamete (Zhang, 2020, 2022). Thus, the sterility or compatibility of hybrids between indica and japonica subspecies is a complex trait that is controlled by multiple genes. Due to the diversity of indica and japonica rice varieties, the genotypes of hybrid sterility vary greatly among different varieties, particularly modern varieties, resulting in different crossing combinations with different degrees of hybrid sterility. In addition, the effects of alleles obtained from different donors are quantitatively different, resulting in the continuous variation of fertility at a single locus (Zhang et al., 1993, 1994). The molecular basis of allele diversity has been revealed by the cloned genes of S5 (Chen et al., 2008; Yang et al., 2012), Sa (Long et al., 2008; Xie et al., 2017), and Sc (Shen et al., 2017). In this study, we found that HJX74, the recipient of SSSLs, carried the Sⁿ allele at the Sb, Sd, and Se loci but the Sⁱ allele at the S5, Sa, and Sc loci (Figure 1). In addition, the effect of Saⁱ was weaker than that of Scⁱ in HJX74 (Supplementary Table 3). The identification of genotypes that lead to hybrid sterility provided a prerequisite for improving the compatibility of HJX74.

Hybrid Sterility in indica–japonica Rice Can Be Overcome by Developing ICJLs and Wide-Compatible indica Lines

Based on the tri-allele pattern and the one-locus sporo-gametophytic interaction model, the indica–japonica hybrid sterility can be overcome by developing ICJLs and WCILs (Zhang and Lu, 1999; Zhang, 2020, 2022). ICJLs can be developed by transferring the Sⁱ allele from indica to japonica rice. In hybrids between indica varieties having Sⁱ allele and ICJLs having Sⁱ allele in japonica genetic background, the Sⁱ/Sⁱ genotype cannot cause the abortion of any gamete. In a previous study, we transferred the Sⁱ allele from indica donors to the japonica T65 variety to develop ICJLs, which carry the Sⁱ allele at hybrid sterility loci in the japonica genetic background. The result was that ICJLs were compatible with indica but incompatible with japonica rice (Guo et al., 2016). In another method, WCILs can be developed by transferring the Sⁿ allele from donors to indica rice. In hybrids between WCILs having Sⁿ allele in indica genetic background and japonica varieties having S^j allele, the Sⁿ/S^j genotype cannot cause the abortion of any gamete. In this study, we pyramided the Sⁿ allele of SSSLs to develop WCILs, which carry Sⁿ allele in indica HJX74 genetic background. The result was that WCILs showed wide compatibility, which was compatible with both indica and japonica rice varieties (Figures 4, 5). These results showed that the breeding of ICJLs and WCILs is practicable and that the indica–japonica hybrid sterility could be overcome by using ICJLs and WCILs.

The Single-Segment Substitution Line Library Is a Powerful Platform for Developing Wide-Compatible indica Lines

The development of WCILs requires pyramiding Sⁿ alleles of multiple hybrid sterility loci to improve compatibility. The breeding of WCILs is a challenging task because it is a time-consuming and laborious technique. First, the Sⁿ alleles of the S5, Sa, Sb, Sc, Sd, and Se loci need to be identified and selected from a wide range of genetic resources. Second, Sⁿ alleles of multiple loci need to be pyramided in an indica genetic background by MAS. In addition, WCILs need to have improved traits to be used as parents of indica–japonica hybrid rice. Over the past two decades, we have constructed a HJX74-SSSL library, which is used as a platform for rice design (Zhang, 2021). Using this platform, a series of CMS, maintainer, and restorer lines were developed (Dai et al., 2015, 2016; Luan et al., 2019). In this study, we identified Sⁿ alleles at the S5, Sb, Sc, Sd, and Se loci from the HJX74-SSSL library. Since HJX74, the recipient of SSSLs, carried the Sⁿ alleles at Sb, Sd, and Se loci, but the Sⁱ alleles at S5, Sa, and Sc loci, the SSSLs carrying S5ⁿ or Scⁿ alleles were selected from the HJX74-SSSL library (Figures 2, 3). The Scⁿ and S5ⁿ of the SSSLs were then pyramided in the HJX74 genetic background. Nine WCILs carrying Sⁿ alleles at the S5, Sb, Sc, Sd, and Se loci in the HJX74 genetic background were developed (Figures 4, 5). The results show that the HJX74-SSSL library is a powerful platform for developing WCILs possessing the complex trait of wide compatibility.

Wide-Compatible indica Lines Will Be Used to Develop indica–japonica Hybrid Rice

It is believed that inter-subspecific hybrids have stronger heterosis than intra-subspecific hybrids (Fu et al., 2014; Birchler, 2015). Therefore, the exploitation of inter-subspecific heterosis for the production of improved rice varieties has long been considered (Cheng et al., 2007; Zhang, 2020). The main obstacle in utilizing inter-subspecific heterosis in rice is the indica–japonica hybrid sterility. In this study, WCILs were developed using the HJX74-SSSL platform. The WCILs had compatibility with a wide range of japonica varieties (Figure 5 and Supplementary Table 13). Therefore, the development of WCILs is an effective approach to overcoming the problem of indica–japonica hybrid sterility in breeding practice. By further improving their fertility restoration ability, WCILs can be improved to produce wide-compatible indica restorer lines (WCIRLs). Using the HJX74-SSSL platform, a series of WCIRLs is being developed and will be used to develop indica–japonica hybrid rice by crossing with japonica male sterile lines. Therefore, it is expected that indica–japonica hybrid rice will be the rice of next generation (Zhang, 2022).

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author/s.

Author Contributions

GZ designed and supervised the work, analyzed the data and wrote the manuscript. JG, YL, and LX performed most of the experiments and compiled the experimental data. TY, JZ, ZD, GT, KS, XL, WY, and QT conducted a part of the experiments. HZ, RZ, and SW prepared the experimental materials and supervised some experiments. All authors read and approved the final manuscript.

Funding

This work was supported by grants from the major program of transgenic new variety breeding in China (grant no. 2009ZX08009005) and the National Natural Science Foundation of China (grant nos. 91435207 and 31801449).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2022.890568/full#supplementary-material

Footnote

1. ^ https://www.originlab.com

References

Birchler, J. A. (2015). Heterosis: the genetic basis of hybrid vigour. Nat. Plants 1:15020. doi: 10.1038/nplants.2015.20

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, J., Ding, J., Ouyang, Y., Du, H., Yang, J., Cheng, K., et al. (2008). A triallelic system of S5 is a major regulator of the reproductive barrier and compatibility of indica-japonica hybrids in rice. Proc. Natl. Acad. Sci. U.S.A. 105, 11436–11441. doi: 10.1073/pnas.0804761105

CrossRef Full Text | Google Scholar

Cheng, S., Cao, L., Zhuang, J., Chen, S., Zhan, X., Fan, Y., et al. (2007). Super hybrid rice breeding in China: achievements and prospects. J. Integr. Plant Biol. 49, 805–810. doi: 10.1111/j.1744-7909.2007.00514.x

CrossRef Full Text | Google Scholar

Dai, Z., Lu, Q., Luan, X., Cai, J., Zhu, H., Liu, Z., et al. (2015). Development of a platform for breeding by design of CMS lines based on an SSSL library in rice (Oryza sativa L.). Euphytica 205, 63–72. doi: 10.1007/s10681-015-1384-5

CrossRef Full Text | Google Scholar

Dai, Z., Lu, Q., Luan, X., Ouyang, L., Guo, J., Liang, J., et al. (2016). Development of a platform for breeding by design of CMS restorer lines based on an SSSL library in rice (Oryza sativa L.). Breed. Sci. 66, 768–775. doi: 10.1270/jsbbs.16044

CrossRef Full Text | Google Scholar

Du, H., Ouyang, Y., Zhang, C., and Zhang, Q. (2011). Complex evolution of S5, a major reproductive barrier regulator, in the cultivated rice Oryza sativa and its wild relatives. New Phytol. 191, 275–287. doi: 10.1111/j.1469-8137.2011.03691.x

CrossRef Full Text | Google Scholar

Fu, D., Xiao, M., Hayward, A., Fu, Y., Liu, G., Jiang, G., et al. (2014). Utilization of crop heterosis: a review. Euphytica 197, 161–173. doi: 10.1007/s10681-014-1103-7

CrossRef Full Text | Google Scholar

Fukagawa, N. K., and Ziska, L. H. (2019). Rice: importance for global nutrition. J. Nutr. Sci. Vitaminol. 65, S2–S3. doi: 10.3177/jnsv.65.S2

CrossRef Full Text | Google Scholar

Guo, J., Xu, X., Li, W., Zhu, W., Zhu, H., Liu, Z., et al. (2016). Overcoming inter-subspecific hybrid sterility in rice by developing indica-compatible japonica lines. Sci. Rep. 6:26878. doi: 10.1038/srep.26878

CrossRef Full Text | Google Scholar

He, N., Wu, R., Pan, X., Peng, L., Sun, K., Zou, T., et al. (2017). Development and trait evaluation of chromosome single-segment substitution lines of O. meridionalis in the background of O. sativa. Euphytica 213:281. doi: 10.1007/s10681-017-2072-4

CrossRef Full Text | Google Scholar

Ikehashi, H., and Araki, H. (1986). “Genetics of F1 sterility in remote crosses in rice,” in Proceedings of the 1st Rice Genetics Symposium: Rice Genetics (Manila: International Rice Research Institute), 119–130. doi: 10.1142/9789812814265_0011

CrossRef Full Text | Google Scholar

Ji, Q., Lu, J., Chao, Q., Gu, M., and Xu, M. (2005). Delimiting a rice wide-compatibility gene S5n to a 50 kb region. Theor. Appl. Genet. 111, 1495–1503. doi: 10.1007/s00122-005-0078-0

CrossRef Full Text | Google Scholar

Khush, G. S. (2013). Strategies for increasing the yield potential of cereals: case of rice as an example. Plant Breed. 132, 433–436. doi: 10.1111/pbr.1991

CrossRef Full Text | Google Scholar

Li, W., Zeng, R., Zhang, Z., Ding, X., and Zhang, G. (2006). Fine mapping of locus S-b for F1 pollen sterility in rice (Oryza sativa L.). Chin. Sci. Bull. 51, 675–680. doi: 10.1007/s11434-006-0675-6

CrossRef Full Text | Google Scholar

Li, W., Zeng, R., Zhang, Z., Ding, X., and Zhang, G. (2008). Identification and fine mapping of S-d, a new locus conferring the partial pollen sterility of intersubspecific F1 hybrids in rice (Oryza sativa L.). Theor. Appl. Genet. 116, 915–922. doi: 10.1007/s00122-008-0723-5

CrossRef Full Text | Google Scholar

Long, Y., Zhao, L., Niu, B., Su, J., Wu, H., Chen, Y., et al. (2008). Hybrid male sterility in rice controlled by interaction between divergent alleles of two adjacent genes. Proc. Natl. Acad. Sci. U.S.A. 105, 18871–18876. doi: 10.1073/pnas.0810108105

CrossRef Full Text | Google Scholar

Luan, X., Dai, Z., Yang, W., Tan, Q., Lu, Q., Guo, J., et al. (2019). Breeding by design of CMS lines on the platform of SSSL library in rice. Mol. Breed. 39:126. doi: 10.1007/s11032-019-1028-x

CrossRef Full Text | Google Scholar

McCouch, S. R., Teytelman, L., Xu, Y., Lobos, K. B., Clare, K., Walton, M., et al. (2002). Development and mapping of 2240 new SSR markers for rice (Oryza sativa L.). DNA Res. 9, 199–207. doi: 10.1093/dnares/9.6.199

CrossRef Full Text | Google Scholar

Ouyang, Y., and Zhang, Q. (2018). The molecular and evolutionary basis of reproductive isolation in plants. J. Genet. Genomics 45, 613–620. doi: 10.1016/j.jgg.2018.10.004

CrossRef Full Text | Google Scholar

Panaud, O., Chen, X., and McCouch, S. R. (1996). Development of microsatellite markers and characterization of simple sequence length polymorphism (SSLP) in rice (Oryza sativa L.). Mol. Gen. Genet. 252, 597–607. doi: 10.1007/bf02172406

CrossRef Full Text | Google Scholar

Peleman, J. D., and van der Voort, J. R. (2003). Breeding by design. Trends Plant Sci. 8, 330–334. doi: 10.1016/S1360-1385(03)00134-1

CrossRef Full Text | Google Scholar

Peng, S., Khush, G. S., Virk, P., Tang, Q., and Zou, Y. (2008). Progress in ideotype breeding to increase rice yield potential. Field Crops Res. 108, 32–38. doi: 10.1016/j.fcr.2008.04.001

CrossRef Full Text | Google Scholar

Peng, S., Laza, R. C., Visperas, R. M., Khush, G. S., Virk, P., and Zhu, D. (2004). “Rice: progress in breaking the yield ceiling “new directions for a diverse planet”,” in Proceedings of the 4th International Crop Science Congress, Brisbane, Qld.

Google Scholar

Qiu, S. Q., Liu, K., Jiang, J. X., Song, X., Xu, C. G., Li, X. H., et al. (2005). Delimitation of the rice wide compatibility gene S5n to a 40-kb DNA fragment. Theor. Appl. Genet. 111, 1080–1086. doi: 10.1007/s00122-005-0033-0

CrossRef Full Text | Google Scholar

Shen, R., Wang, L., Liu, X., Wu, J., Jin, W., Zhao, X., et al. (2017). Genomic structural variation-mediated allelic suppression causes hybrid male sterility in rice. Nat. Commun. 8:1310. doi: 10.1038/s41467-017-01400-y

CrossRef Full Text | Google Scholar

Su, J., and Liu, Y. (2003). Fine mapping and cloning of the gene S-a for F1 pollen sterility in cultivated rice (Oryza sativa L.). Mol. Plant Breed. 1, 757–758.

Google Scholar

Sundaram, R. M., Sakthivel, K., Hariprasad, A. S., Ramesha, M. S., Viraktamath, B. C., Neeraja, C. N., et al. (2010). Development and validation of a PCR-based functional marker system for the major wide-compatible gene locus S5 in rice. Mol. Breed. 26, 719–727. doi: 10.1007/s11032-010-9482-5

CrossRef Full Text | Google Scholar

Xi, Z., He, F., Zeng, R., Zhang, Z., Ding, X., Li, W., et al. (2006). Development of a wide population of chromosome single-segment substitution lines in the genetic background of an elite cultivar of rice (Oryza sativa L.). Genome 49, 476–484. doi: 10.1139/g06-005

CrossRef Full Text | Google Scholar

Xie, Y., Niu, B., Long, Y., Li, G., Tang, J., Zhang, Y., et al. (2017). Suppression or knockout of SaF/SaM overcomes the Sa-mediated hybrid male sterility in rice. J. Integr. Plant Biol. 59, 669–679. doi: 10.1111/jipb.12564

CrossRef Full Text | Google Scholar

Yanagihara, S., Mccouch, S. R., Ishikawa, K., Ogi, Y., Maruyama, K., and Ikehashi, H. (1995). Molecular analysis of the inheritance of the S-5 locus, conferring wide compatibility in indica/japonica hybrids of rice (Oryza sativa L.). Theor. Appl. Genet. 90, 182–188. doi: 10.1007/BF00222200

CrossRef Full Text | Google Scholar

Yang, C., Chen, Z., Zhuang, C., Mei, M., and Liu, Y. (2004). Genetic and physical fine-mapping of the Sc locus conferring indica-japonica hybrid sterility in rice (Oryza sativa L.). Chin. Sci. Bull. 49, 1718–1721. doi: 10.1007/BF03184305

CrossRef Full Text | Google Scholar

Yang, J., Zhao, X., Cheng, K., Du, H., Ouyang, Y., Chen, J., et al. (2012). A killer-protector system regulates both hybrid sterility and segregation distortion in rice. Science 337, 1336–1340. doi: 10.1126/science.1223702

CrossRef Full Text | Google Scholar

Yuan, L., and Virmani, S. (1988). “Status of hybrid rice research and development,” in Hybrid Rice (Manila: Internationa Rice Research Institute), 7–24.

Google Scholar

Zhang, G. (2020). Prospects of utilization of inter-subspecific heterosis between indica and japonica rice. J. Integr. Agr. 19, 1–10. doi: 10.1016/S2095-3119(19)62843-1

CrossRef Full Text | Google Scholar

Zhang, G. (2021). Target chromosome-segment substitution: a way to breeding by design in rice. Crop J. 9, 658–668. doi: 10.1016/j.cj.2021.03.001

CrossRef Full Text | Google Scholar

Zhang, G. (2022). The next generation of rice: inter-subspecific indica-japonica hybrid rice. Front. Plant Sci. 13:857896. doi: 10.3389/fpls.2022.857896

CrossRef Full Text | Google Scholar

Zhang, G., and Lu, Y. (1989). Genetic studies of the hybrid sterility in cultivated rice (Oryza sativa). I. Diallel analysis of the hybrid sterility among isogenic F1 sterile lines. Chin. J. Rice Sci. 3, 97–101.

Google Scholar

Zhang, G., and Lu, Y. (1993). Genetic studies of the hybrid sterility in cultivated rice (Oryza sativa). II. A genic model for F1 pollen sterility. Acta Genet. Sin. 20, 222–228.

Google Scholar

Zhang, G., and Lu, Y. (1999). Breeding of the indica-compatible japonica lines and their use in the breeding of super-high-yield hybrid rice. Hybrid Rice 14, 3–5.

Google Scholar

Zhang, G., Lu, Y., Liu, G., Yang, J., and Zhang, H. (1993). Genetic studies on the hybrid sterility in cultivated rice (Oryza sativa). III. Allele differentiation of F1 pollen sterility in different types of varieties. Acta Genet. Sin. 20, 541–551.

Google Scholar

Zhang, G., Lu, Y., Zhang, H., Yang, J., and Liu, G. (1994). Genetic studies on the hybrid sterility in cultivated rice (Oryza sativa). IV. Genotypes for F1 pollen sterility. Acta Genet. Sin. 21, 34–41.

Google Scholar

Zhang, G., Zeng, R., Zhang, Z., Ding, X., Li, W., Liu, G., et al. (2004). The construction of a library of single segment substitution lines in rice (Oryza sativa L.). Rice Genet. Newsl. 21, 85–87.

Google Scholar

Zhang, S., Huang, X., and Han, B. (2021). Understanding the genetic basis of rice heterosis: advances and prospects. Crop J. 9, 688–692. doi: 10.1016/j.cj.2021.03.011

CrossRef Full Text | Google Scholar

Zhang, Z., Deng, Y., Tan, J., Hu, S., Yu, J., and Xue, Q. (2007). A genome-wide microsatellite polymorphism database for the indica and japonica rice. DNA Res. 14, 37–45. doi: 10.1093/dnares/dsm005

CrossRef Full Text | Google Scholar

Zhang, Z., and Zhang, G. (2001). Fine mapping of the S-c locus and marker-assisted selection using PCR markers in rice. Acta Agron. Sin. 27, 704–709.

Google Scholar

Zhao, H., Sun, L., Xiong, T., Wang, Z., Liao, Y., Zou, T., et al. (2019). Genetic characterization of the chromosome single-segment substitution lines of O. glumaepatula and O. barthii and identification of QTLs for yield-related traits. Mol. Breed. 39:51. doi: 10.1007/s11032-019-0960-0

CrossRef Full Text | Google Scholar

Zhu, W., Li, W., Ding, X., Zhang, Z., Zeng, R., Zhu, H., et al. (2008). Preliminary identification of F1 pollen sterility gene S-e in Oryza sativa. J. South China Agri. Univ. 29, 1–5.

Google Scholar

Zhuang, C., Mei, M., Zhang, G., and Lu, Y. (2002). Chromosome mapping of the S-b locus for F1 pollen sterility in cultivated rice (Oryza sativa L.) with RAPD markers. Acta Genet. Sin. 29, 700–705. doi: 10.1088/1009-1963/11/5/313

CrossRef Full Text | Google Scholar

Zhuang, C., Zhang, G., Mei, M., and Lu, Y. (1999). Molecular mapping of the S-a locus for F1 pollen sterility in cultivated rice (Oryza sativa L.). Acta Genet. Sin. 26, 213–218.

Google Scholar
