Trends in Apomixis Research: The 10 Most Cited Research Articles Published in the Pregenomic and Genomic Eras

Apomixis, or asexual reproduction by seed, represents an easy shortcut for life cycle renewal based on maternal embryo production without ploidy reduction (meiosis) and ploidy restitution (syngamy). Although the first studies officially published on this topic in scientific journals date back to the early 1930s, the identification and introduction of genes involved in asexual reproduction in species of agronomic interest still represent a major challenge. Through a bibliometric analysis of the research programs implemented in apomixis over the last 40 years, the present study was aimed to discuss not only the main findings achieved but also the investigational methods and model species used. We split the critical survey of the most cited original articles into pregenomic and genomic eras to identify potential trends and depict scenarios that have emerged in the scientific community working on apomixis, as well as to determine any correlation between the exponential increase in acquired basic knowledge and the development of advanced analytical technologies. This review found a substantial stagnation in the use of the same model species, with few exceptions, for at least 40 years. In contrast, the development of new molecular techniques, genomic platforms, and repositories has directly affected the approaches used in research, which has been directed toward an increasingly focused study of the genetic and epigenetic determinants of apomixis.

Introduction

Apomixis is highly desirable in agriculture as a reproductive strategy for cloning plants by seeds (Nogler, 1984). Because embryos derive from the parthenogenic development of apomeiotic egg cells, apomixis results in offspring that are exact genetic replicas of the parent. Introgression of apomixis from wild relatives to crop species and transformation of sexual genotypes into apomictically reproducing ones are long-held goals of plant breeding. It is generally accepted that the introduction of apomixis into agronomically important crops has revolutionary implications for agriculture. In recent years, many scientists have speculated on the isolation of genes controlling key steps of the apomictic pathway. Moreover, several papers have postulated the production of engineered plants exhibiting apomictic-like phenotypes. However, in model species only some features of apomixis have been genetically engineered and none of the major crop plants has been edited or bred for apomixis (for review see Albertini et al. (2010), Pupilli and Barcaccia (2012), Vijverberg et al. (2019), Hojsgaard (2020), Ozias-Akins and Conner (2020), Scheben and Hojsgaard (2020), Schmidt (2020)). The only exception is represented by a very recent case concerning the transfer of the PAR allele from an apomictic dandelion to a sexual lettuce to induce egg cell division without fertilization (Underwood et al., 2022). Consequently, even in the modern era of functional genomics and systems biology, understanding the genetic control and molecular regulation of apomixis in plants appears much more complicated than expected.

This contribution addresses a critical review of the most cited articles published on apomixis in the pregenomic era (1980–2000) and genomic era (2001–2021). In genomics, the pregenomic and genomic eras refer to the time periods before and after the completion of the Human Genome Project. The working draft of the human genome was announced in 2000, and the papers describing it were published in February 2001 (Venter et al., 2001). Since then, the complete genomes of many reference organisms have been produced. These four decades are characterized by many scientific breakthroughs and methodological revolutions (e.g., availability of whole-genome and transcriptome assemblies, next-generation sequencing platforms, genome-editing tools and new breeding techniques). A massive set of cytological and ecological information, along with genetic and molecular data, has been collected mainly in model species (i.e., Boechera holboellii, Hieracium spp., Hypericum perforatum, Paspalum spp., Ranunculus spp., Taraxacum officinale), while Arabidopsis has often been used to elucidate the mechanisms of apomeiosis, parthenogenesis and apomixis. Several genes involved in the formation of unreduced embryo sacs and egg cells or responsible for the autonomous development of the embryo and endosperm have been cloned and characterized, but none of them were isolated in crop species (Pupilli and Barcaccia, 2012; Vijverberg et al., 2019; Hojsgaard, 2020; Ozias-Akins and Conner, 2020; Scheben and Hojsgaard, 2020; Schmidt, 2020). Hence, after four decades of substantial studies conducted in several laboratories with model plants, the asexual reproductive strategy called “gametophytic apomixis” still appears to be an unsolved puzzle. This situation has resulted in a loss of confidence by the major seed companies, making it difficult to acquire funds for conducting research on apomixis.

However, some novel views and original concepts are emerging. Noteworthy is the analogy between the Y-chromosome and apomixis-bearing chromosomes. Comparative genomic analyses have revealed common features such as the repression of recombination events, accumulation of transposable elements and degeneration of genes, from the most primitive to the most advanced evolutionary terms. Another emerging aspect is the link between apomixis and gene-specific silencing mechanisms, likely based on chromatin remodeling factors or transacting and heterochromatic interfering RNAs involved in both transcriptional and posttranscriptional gene regulation. More recently, merging lines of evidence regarding the role of auxin in cell fate specification of embryo sac and egg cell development have been reported in Arabidopsis, and some hypotheses have been postulated. From an evolutionary point of view, apomixis may now be regarded as a consequence of sexual failure rather than as a step toward clonal success (Albertini et al., 2019). Overall, these findings strengthen the hypothesis that apomixis as a whole may have evolved multiple times in angiosperm evolution following different developmental pathways deviating to different extents from sexuality (Barcaccia et al., 2020).

Here, the most cited publications on apomixis with the greatest potential impact on the scientific community working on this asexual mode of reproduction were analyzed. The goal was to make explicit their theoretical advances and/or practical applications and to depict the main trends in apomixis that have emerged from 20 years of studies in either the pregenomic or the genomic time period.

Bibliometric Analysis

A bibliometric analysis of the studies related to apomixis was conducted in December 2021 based on Scopus database, and the search was limited to articles [LIMIT-TO (DOCTYPE, “ar”)] published between 1980 and 2021 in journals [LIMIT-TO (SRCTYPE, “j”)] written in the English language [LIMIT-TO (LANGUAGE, “English”)]. We first compared the results obtained by searching “apomixis” exclusively in the article title (TITLE) or considering the title, abstract, and keywords (TITLE-ABS-KEY). The former approach, more conservative, identified 280 articles (77 before 2000 and 203 after 2000). However, limiting the search for the term “apomixis” to the title alone led to the exclusion of several articles entirely related to asexual reproduction in plants. Conversely, extending the search of the term “apomixis” to the abstract and keywords increased the number of articles identified to 1,571, of which 377 were published before 2000 and 1,195 were published after 2000. However, some of these articles were not fully consistent with the topic. Considering that, from a practical point of view, it is challenging to manually double check the content of 1,571 articles, we analyzed the first 100 articles of each time frame (200 in total) to provide an estimated percentage of off-topic studies. A total of 12 and 11 articles from 1980–2000 and 2001–2021, respectively, were not related to apomixis in plants, as they mainly dealt with apomixis-like reproduction mechanisms in the animal kingdom. The geographical origin of these articles was random, and it is therefore quite unlikely that they could have an impact on the statistics presented in this study.

Based on these considerations, even if the second approach (i.e., searching “apomixis” within the title, abstract, or keywords) led to an overestimation of studies on apomixis, it was undoubtedly more comprehensive and was therefore employed for the selection of articles (Supplementary Tables 1, 2). Heatmapper was then used to visualize the geographical distribution of the contributors (Babicki et al., 2016; Figure 1A).

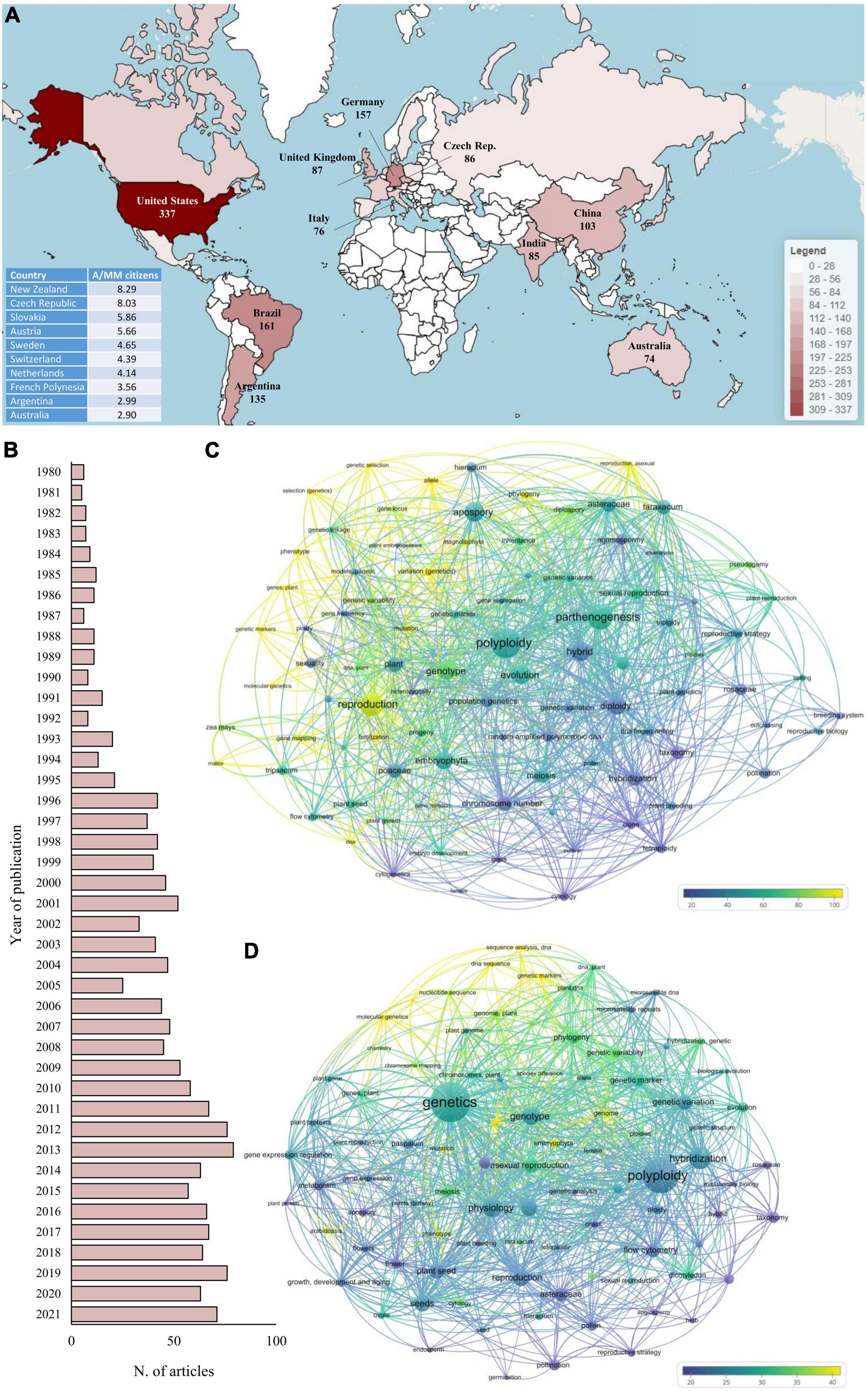

FIGURE 1

Figure 1. Bibliometric analysis of the studies related to apomixis retrieved from the Scopus database, where the search was limited to articles published in English-based journals between 1980 and 2021. The search of the term “apomixis” was limited to the title, abstract and keywords. (A) The 10 countries with the highest number of contributions (in terms of published articles) to apomixis. The bottom left table indicates the top 10 countries with the highest number of articles per million citizens A/MM. (B) Contributions to apomixis by year. (C,D) Co-occurrence network analysis of the 100 most used keywords in apomixis-related articles published in 1980–2000 and 2001–2021, respectively. The font size of each keyword is proportional to the number of times the keyword has been used within the articles considered, while the color scale is based on the average number of citations received by the documents in which each specific keyword occurs.

Historically, the United States, Brazil and Germany represent the countries with the highest number of contributions in the field of apomixis. They alone contributed 41.6% of all articles published in the last 40 years on this topic, with 655 articles out of 1,571. Even restricting the analysis to the last 10 years (2012–2021), these first three positions remain unchanged, confirming, in absolute terms, the consolidated leadership of these countries in this research area. Clearly, normalizing these data according to the number of researchers working in the natural sciences fields would provide a more precise idea of the efforts made by each country in this specific topic. However, retrieving this type of data is quite challenging, if not impossible. Instead, an attempt to normalize the data was made by considering the population of each country. In this case, the pattern was completely reversed, and countries such as New Zealand and the Czechia showed an article/citizen ratio four to ten times higher than that of the United States, Brazil and Germany.

In terms of time trends, the number of annual publications increased from 6 in 1980 to 75 in 2021, with a peak in 2013 (79), demonstrating a growing interest of researchers in this topic (Figure 1B). Notably, 22% (344) of all articles published in the last 40 years have been published in the last 5 years (2017–2021).

The keywords were also analyzed using a co-occurrence network analysis tool in VOSviewer software (van Eck and Waltman, 2010). To understand the dynamic change in their usage, the analysis was split into two sections considering the 100 most used keywords from 1980 to 2000 and from 2001 to 2021 (Figures 1C,D, respectively). The two keyword-based networks were organized considering both the use frequency of each keyword (as a function of the font size, namely, the larger the font size is, the greater the number of times the keyword has been used) and the average number of citations received by the documents in which each specific keyword occurred. Notably, excluding “apomixes,” the most used keyword in the last two decades was “genetics.” On the contrary, “genetics” never appeared in the ranking of the 100 most used keywords before 2000. However, in both periods, the articles containing keywords related to the field of genetics and molecular biology (e.g., “allele,” “genome,” “genetic markers,” and “DNA sequence”) were always the ones with the highest number of citations, highlighting the crucial role played by these two branches of biology in the study of apomixis. Apart from some laboratory analyses, i.e., cytometry, transversely used in the studies within the last 40 years, the use of keywords also reflected the evolution of the molecular methods used. From 1980 to 2000, the most popular keywords in the molecular genetics field were “allele,” “mutation” and “gene mapping,” while after 2000, studies were characterized by terms such as “genome,” “gene expression” and “microsatellite DNA.” The spread of capillary sequencers, NGS platforms and qPCR instruments at the turn of the century has shifted the focus of research toward more targeted and effective approaches to identifying the genetic determinants of apomixis.

Although not sufficiently exhaustive, the number of normalized citations per year (i.e., average number of citations/year) was used as an evaluation parameter in the choice and discussion of the most impactful articles on this topic. The absolute number of citations was not used, because it would have penalized the articles published in recent years. Finally, when choosing the most impactful articles (based on the average number of citations/year), we applied an additional filter based on consistency with the topic under consideration. As an example, the study by Silveira et al. (2009) is one of the articles with the highest average number of citations/year, but it does not provide information aimed at understanding apomictic mechanisms (i.e., it provides a list of reference genes to be used as control genes in qPCRs). For this reason, it was not included in the articles discussed in this review. Twenty articles were finally selected, 10 for each period.

Pregenomic Era

Considering the 10 selected articles before 2000, we found that Arabidopsis thaliana, together with Taraxacum, represents the most studied plant species for scientific research on this topic. In the case of Arabidopsis, the scientific approaches used were commonly classical forward or reverse genetics with the analysis of mutants, gene mapping and functional characterization of candidate genes. Conversely, in Taraxacum, as in other species listed in the articles considered (i.e., Erigeron annuus, Pennisetum squamulatum or Hieracium spp.), more descriptive approaches were applied. In particular, microscopy, histology, flow cytometry, analysis of seed germination, plant genotyping by means of molecular markers (SSR, RAPD, AFLP or SCAR) have been frequently exploited. These tools were particularly useful to study the inheritance of apomixis, infer phylogenetic relationships between apomictic species or perform genetic mapping (Table 1).

TABLE 1

Table 1. List of the 10 most cited publications on apomixis between 1980 and 2000 and between 2001 and 2021.

Concerning basic research on the possible molecular mechanisms underlying apomixis, it is worth mentioning the efforts of Kiyosue et al. (1999). They isolated a mutation in Arabidopsis, f644, that allows for replication of the central cell and subsequent endosperm development without fertilization. By using a map-based strategy, the authors cloned and sequenced the F644 gene and showed that it encodes a SET-domain polycomb protein. The latter, in turn, is the identical protein codified by MEDEA (MEA), a pivotal gene whose maternally derived allele is required for embryogenesis. These findings demonstrated the functions for plant polycomb proteins in the suppression of central cell proliferation and endosperm development. In another article, Chaudhury et al. (1997) analyzed other Arabidopsis mutants, fis1, fis2 and fis3, in which certain processes of seed development were uncoupled from the double-fertilization event that occurs after pollination. The authors proposed a model in which the FIS1-FIS2-FIS3 interaction blocks endosperm development by acting in different stages of seed development. Their proposal assumed that this process in wild-type plants is initiated by a pollination-induced inactivation of the FIS1–FIS2–FIS3 complex (Chaudhury et al., 1997). The high number of citations per year reflects the importance of these two articles.

Another highly cited article, representing a milestone in apomixis research, is the contribution by Carman in 1997. He analyzed around 460 families of angiosperms and validated the hypothesis that the partial-to-complete replacement of meiosis by embryo sac formation in apomictic and polysporic species results from asynchronously expressed duplicated genes that control female development (Carman, 1997). Also, Carman further suggested that asexual reproduction in apomicts preserves primary genomes whilst sexual reproduction in polysporic and polyembryonic polyploids accelerates paleopolyploidization. Paleopolyploidization may sometimes eliminate the gene duplications required for apomixis while retaining those duplications required for polyspory or polyembryony.

Among the various scientific contributions listed in Table 1 are the studies that have provided screening tools to determine the reproductive pathways in monocotyledons and dicotyledons. An emblematic example is the work of Matzk et al. The authors analyzed seed samples collected from 32 monocot and dicot species (apomicts along with obligate and facultative sexuals) via flow cytometry. Based on the cytometry estimates, they proposed a novel screen for the route of reproduction based on the ploidy levels of embryo and endosperm nuclei from mature seeds (Matzk et al., 2000).

The use of molecular markers for mapping gene loci involved in apomictic phenomena represents one of the most used approaches in the pregenomic era. For example, Ozias-Akins et al. by analyzing an interspecific hybrid population of 397 individuals that were segregated for apomixis and sexuality, identified 13 predictive markers (Ozias-Akins et al., 1998). Twelve of the 13 markers strictly cosegregated with aposporous embryo sac development, clearly defining a contiguous apospory-specific genomic region in which no genetic recombination was detected. Noyes and Rieseberg investigated the genetic basis of agamospermy in a segregating population of 130 F1 hybrids obtained from a cross between triploid agamospermous Erigeron annuus (2n = 27) and sexual diploid E. strigosus (2n = 18) (Noyes and Rieseberg, 2000). By means of linkage analyses performed on 387 segregating amplified fragment length polymorphisms (AFLPs), they found that four closely linked markers with polysomic inheritance were significantly associated with parthenogenesis. Moreover, they identified 11 co-segregating markers with univalent inheritance completely associated with diplospory.

Cytological analyses based on microscopy represent another essential tool in the study of apomixis. This is the case for the contribution by Koltunow in Hieracium and that of Goldenberg and Shepherd in the Melastomataceae family. In the first case, Koltunow et al. performed a detailed cytological study of two distinct and nearly obligate species, H. aurantiacum and H. piloselloides. Also, they compared apomixis with seed formation in a sexual species to define the cellular basis for apomixis. In the light of this, they described novel features previously unrecorded in apomictic members of this genus and provided the basis for further molecular, cell biological and mechanistic studies investigating the control of apomixis (Koltunow et al., 1998). In the second study, controlled pollinations and observations of pollen tube growth, pollen fertility and cytological data were studied in 11 species of Melastomataceae (Goldenberg and Shepherd, 1998). The apomictic species had lower pollen fertility than the sexual ones, showing that low pollen fertility may be a useful indicator of apomixis if analyzed using careful sampling supplemented by emasculation experiments. The apomictic species also showed meiotic irregularities that were probably related to hybridization, polyploidy and low pollen fertility.

In Taraxacum, the inheritance of apomixis was studied in narrow crosses between diploid sexuals and triploid apomicts from the Taraxacum section Ruderalia, and the reproductive mode of the offspring was investigated. Of the 26 allozyme-confirmed F1 hybrids, diploids were significantly less frequent than triploids (Tas and Van Dijk, 1999). Seed set was not observed in any of the diploids, but it was observed in one-third of the triploid hybrids and in all the tetraploid hybrids. In a second article, the same authors crossed diploid sexual plants with four non-apomictic diploid and 10 non-apomictic triploid hybrids (obtained in a previous study) and analyzed the resulting progenies. The authors identified different types of progenies and concluded that elements of apomixis, diplospory and parthenogenesis can be uncoupled. This result is inconsistent with the single-locus model for apomixis in Taraxacum and suggests that several loci are involved in the genetic control of apomixis in Taraxacum (Van Dijk et al., 1999).

Genomic Era

Pennisetum, Taraxacum and especially Arabidopsis continue to play a major role in post-2000 studies. In particular, Arabidopsis has been at the center of tremendous advances in our understanding of several fields, providing valuable information regarding the role of some candidate genes controlling apomixis. However, it should also be noted that crop species, such as corn and citrus, are starting to be studied. The identification of key genes involved in apomictic mechanisms in polyploids or interspecific hybrids has only been possible due to the introduction of genetic engineering techniques and sequencing platforms. Moreover, differently from the pregenomic era, the most cited articles in the post-2000 era almost exclusively addressed the functional characterization of genes and the ad hoc constitution of mutants. Finally, new hypotheses were proposed on the role of epigenetics, DNA methylation, miRNAs or siRNAs in reproductive mechanisms.

One of the milestones in the genetic study of apomixis is represented by the identification of the DYAD/SWITCH1 (SWI1) locus, a regulator of meiotic chromosome organization, whose dyad allele leads to unreduced female gamete formation (apomeiosis). Most of the fertile diploid ovules were successfully fertilized by haploid pollen producing triploid seeds in dyad plants (Ravi et al., 2008). Another Arabidopsis mutant producing functional diploid gametes genetically identical to their mother was generated by combining three different mutations that worked to fully replace meiosis with a mitotic-like division. In particular, the mutated alleles characterizing the MiMe mutant (i.e., MItosis instead of MEiosis) were osd1, Atspo11-1 and Atrec8. The latter two led to a mitotic-like first meiotic division (by affecting the homologous recombination and the orientation of sister chromatids), while osd1 prevented the second meiotic division. In contrast to the dyad mutation, both male and female gametes were unreduced such that selfed MiMe progeny were commonly tetraploid, while backcrossing diploid MiMe and wild-type plants produced triploid plants regardless of the use of male or female MiMe gametes (D’Erfurth et al., 2009). Further upstream, AGO9, a member of the ARGONAUTE family that is known to interact with miRNAs and siRNAs, was found to regulate early cell specification in the ovule. In particular, mutations in AGO9 lead to the production of multiple abnormal somatic cells, some of which are able to initiate gametogenesis without undergoing meiosis (Olmedo-Monfil et al., 2010). When a single cell undergoes meiosis, it gives rise to a functional haploid megaspore. Also, identical results were obtained by mutating SUPPRESSOR OF GENE SILENCING 3 (SGS3) and RNA-DEPENDENT RNA POLYMERASE 6 (RDR6). The latter converts the ssRNA precursors of trans-acting siRNAs (ta-siRNAs) into dsRNA, while SGS3 encodes an RNA-binding protein involved in the same pathway.

Strong homology of the components involved in silencing via DNA methylation was established between Arabidopsis and maize. Six loci that are specifically downregulated in ovules of apomictic plants were identified in maize-Tripsacum hybrids. Four of them encode chromatin-modifying enzymes (CMEs) that have been predicted (CHR106, DMT103, and DMT105) or shown (DMT102) to regulate DNA methylation. More precisely, CHR106 participates in the maintenance of methylation at both CG and non-CG sites, while the DNA methyltransferases DMT102, DMT105 and DMT103 act redundantly to maintain non-CG methylation. The set of deregulated genes also included hdt104, a member of the plant-specific histone deacetylase family, and hon101, a histone H1 linker protein gene. Specifically, loss-of-function alleles for dmt102 and dmt103, homologous to the Arabidopsis CHROMOMETHYLASE and DOMAINS REARRANGED METHYLTRANSFERASE families, revealed apomictic phenotypes with unreduced gametes and the formation of multiple embryo sacs in the ovule (Garcia-Aguilar et al., 2010). Subsequent homology with Arabidopsis was identified as a dominant mutation resulting in the formation of functionally unreduced gametes in maize. AGO104 is related to Arabidopsis AGO9; however, while AGO9 acts to repress germ cell fate in somatic tissues, AGO104 acts to repress somatic fate in germ cells. AGO104 accumulates specifically in somatic cells surrounding the female meiocyte, suggesting a mobile signal rather than cell-autonomous control. Furthermore, AGO104 is necessary for non-CG methylation of centromeric and knob-repeat DNA and influences the transcription of many targets in the ovaries, with a strong effect on centromeric repeats (Singh et al., 2011). Another perspective affecting the onset of DNA methylation was reported for dandelions. Environmental stresses can trigger methylation changes, which may have evolutionary consequences, even in the absence of sequence variation. These changes are evidence that specific stresses can trigger specific methylation changes and that most of the induced changes are faithfully transmitted to offspring (Verhoeven et al., 2010). Further studies on dandelions substantiated the role of the methylation polymorphism during functional flowering time, confirming that epigenetic variation contributes to heritable phenotypic divergence in ecologically relevant traits in natural plant populations (Wilschut et al., 2016). Therefore, epigenetic variation plays a key role in the adaptive potential of populations to rapidly face changing environments or when genetic variation is limited. Additionally, a transcriptomic analysis supported the hypothesis of multiple evolutionary origins of apomixis and a possible link with hybridization was noted in an ancient hybrid of Boechera exhibiting a diplosporous type of apomixis (Sharbel et al., 2010). Apomixis-specific gene expression was characterized by a significant overrepresentation of transcription factor activity, showing that apomeiosis is associated with downregulation at the megaspore mother cell stage. On the other hand, apospory in Pennisetum squamulatum, a member of the Poaceae family, segregates via a single dominant locus transmitted by a large, hemizygous, non-recombining chromosomal region, the apospory-specific genomic region (ASGR). The ASGR contains multiple copies of the PsASGR-BABY BOOM-like (PsASGR-BBML) gene, a member of the BBM-like subgroup of the APETALA 2/ETHYLENE RESPONSE FACTOR (AP2/ERF) DNA-binding domain family. Additionally, the function of the PsASGR-BBML transgene was discovered: this gene is expressed in egg cells before fertilization and induces both parthenogenesis and the production of haploid offspring in sexual pearl millet (Conner et al., 2015). While the studies reported thus far have focused on gametophytic apomixis, asexual reproduction in the Citrus genus is largely based on sporophytic apomixis. Accessions of primitive, wild relative and cultivated Citrus species have been sequenced to shed light on the genetic locus responsible for polyembryony, resulting in 11 candidate genes. One of them, CitRWP, is expressed at higher levels in ovules of polyembryonic cultivars (Wang et al., 2017). CitRWP, also denoted Cg4g018970, encodes an RWP-RK domain similar to the Arabidopsis RKD family of proteins and acts as a regulator of egg cell-related genes. The extensive transcriptomic analysis by Wang et al. led to important insights suggesting that nucellar embryogenesis and sexual reproduction may employ similar genes or pathways.

Conclusion

Apomixis has aroused great scientific and intellectual curiosity, leading to an exponential increase in research studies. The prospect of introducing apomixis “as a whole” in crop species still remains the main goal, but the attempt to engineer species of agronomic interest has been unsuccessful. In terms of model species, the scenario has remained broadly unchanged since the 1980s: most studies are conducted on a few species, although in recent years, there have been some attempts to extend this research to agronomically important crops. In terms of methodologies, few clear differences were found between the pregenomic and genomic eras. The use of genetic engineering and sequencing platforms has begun to spread in the study of apomixis, but some methodologies, including flow cytometry and microscopy, still represent important research activities. Identification of the master regulatory switch triggering apomixis in sexual crops is a goal for plant breeders. The massive number of studies conducted in apomixis in the last 40 years requires a critical analysis aimed at integrating all the information produced. A new scenario is taking shape, and the exponential accumulation of knowledge related to apomictic mechanisms in model species is finally reaching application potential: genome editing. It is still too early to predict whether this new technology represents the beginning of a new era, but it would not be surprising to see that the 10 most cited articles in the next 20 years mainly concern the use of genomic editing approaches to transfer what has been learned thus far in model species into crops.

Author Contributions

All authors listed have made a substantial, direct, and intellectual contribution to the work, and approved it for publication.

Funding

This study is part of the Mechanisms of Apomictic Development (MAD) project, under the Marie Sklodowska-Curie and Innovation Staff Exchange (Grant No. 872417) and funded by the EU H2020 Research and Innovation Program.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2022.878074/full#supplementary-material

References

Albertini, E., Barcaccia, G., Carman, J. G., and Pupilli, F. (2019). Did apomixis evolve from sex or was it the other way around? J. Exp. Bot. 70, 2951–2964. doi: 10.1093/jxb/erz109

PubMed Abstract | CrossRef Full Text | Google Scholar

Albertini, E., Barcaccia, G., Mazzucato, A., Sharbel, T. F., and Falcinelli, M. (2010). “Apomixis in the era of biotechnology,” in Plant Developmental Biology - Biotechnological Perspectives, eds E. C. Pua and M. R. Davey (Berlin: Springer Berlin Heidelberg), 405–436. doi: 10.1007/978-3-642-02301-9_20

CrossRef Full Text | Google Scholar

Babicki, S., Arndt, D., Marcu, A., Liang, Y., Grant, J. R., Maciejewski, A., et al. (2016). Heatmapper: web-enabled heat mapping for all. Nucleic Acids Res. 44, W147–W153. doi: 10.1093/nar/gkw419

PubMed Abstract | CrossRef Full Text | Google Scholar

Barcaccia, G., Palumbo, F., Sgorbati, S., Albertini, E., and Pupilli, F. (2020). A reappraisal of the evolutionary and developmental pathway of apomixis and its genetic control in angiosperms. Genes 11:859. doi: 10.3390/genes11080859

PubMed Abstract | CrossRef Full Text | Google Scholar

Carman, J. G. (1997). Asynchronous expression of duplicate genes in angiosperms may cause apomixis, bispory, tetraspory, and polyembryony. Biol. J. Linn. Soc. 61, 51–94. doi: 10.1006/bijl.1996.0118

CrossRef Full Text | Google Scholar

Chaudhury, A. M., Ming, L., Miller, C., Craig, S., Dennis, E. S., and Peacock, W. J. (1997). Fertilization-independent seed development in Arabidopsis thaliana. Proc. Natl. Acad. Sci. U S A. 94, 4223–4228. doi: 10.1073/pnas.94.8.4223

PubMed Abstract | CrossRef Full Text | Google Scholar

Conner, J. A., Mookkan, M., Huo, H., Chae, K., and Ozias-Akins, P. (2015). A parthenogenesis gene of apomict origin elicits embryo formation from unfertilized eggs in a sexual plant. Proc. Natl. Acad. Sci. U S A. 112, 11205–11210. doi: 10.1073/pnas.1505856112

PubMed Abstract | CrossRef Full Text | Google Scholar

D’Erfurth, I., Jolivet, S., Froger, N., Catrice, O., Novatchkova, M., and Mercier, R. (2009). Turning meiosis into mitosis. PLoS Biol. 7:e1000124. doi: 10.1371/journal.pbio.1000124

PubMed Abstract | CrossRef Full Text | Google Scholar

Garcia-Aguilar, M., Michaud, C., Leblanc, O., and Grimanelli, D. (2010). Inactivation of a DNA methylation pathway in maize reproductive organs results in apomixis-like phenotypes. Plant Cell 22, 3249–3267. doi: 10.1105/tpc.109.072181

PubMed Abstract | CrossRef Full Text | Google Scholar

Goldenberg, R., and Shepherd, G. J. (1998). Studies on the reproductive biology of Melastomataceae in “cerrado” vegetation. Plant Syst. Evol. 211, 13–29. doi: 10.1007/BF00984909

CrossRef Full Text | Google Scholar

Hojsgaard, D. (2020). Apomixis technology: separating the wheat from the chaff. Genes 11, 411. doi: 10.3390/genes11040411

PubMed Abstract | CrossRef Full Text | Google Scholar

Kiyosue, T., Ohad, N., Yadegari, R., Hannon, M., Dinneny, J., Wells, D., et al. (1999). Control of fertilization-independent endosperm development by the MEDEA polycomb gene in Arabidopsis. Proc. Natl. Acad. Sci. U S A. 96, 4186–4191. doi: 10.1073/pnas.96.7.4186

PubMed Abstract | CrossRef Full Text | Google Scholar

Koltunow, A. M., Johnson, S. D., and Bicknell, R. A. (1998). Sexual and apomictic development in Hieracium. Sex. Plant Reprod. 11, 213–230. doi: 10.1007/s004970050144

CrossRef Full Text | Google Scholar

Matzk, F., Meister, A., and Schubert, I. (2000). An efficient screen for reproductive pathways using mature seeds of monocots and dicots. Plant J. 21, 97–108. doi: 10.1046/j.1365-313X.2000.00647.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Nogler, G. A. (1984). “Gametophytic Apomixis,” in Embryology of Angiosperms, ed. B. M. Johri (Berlin: Springer-Verlag), 475–518. doi: 10.1007/978-3-642-69302-1_10

CrossRef Full Text | Google Scholar

Noyes, R. D., and Rieseberg, L. H. (2000). Two independent loci control agamospermy (apomixis) in the triploid flowering plant Erigeron annuus. Genetics 155, 379–390. doi: 10.1093/genetics/155.1.379

PubMed Abstract | CrossRef Full Text | Google Scholar

Olmedo-Monfil, V., Durán-Figueroa, N., Arteaga-Vázquez, M., Demesa-Arévalo, E., Autran, D., Grimanelli, D., et al. (2010). Control of female gamete formation by a small RNA pathway in Arabidopsis. Nature 464, 628–632. doi: 10.1038/nature08828

CrossRef Full Text | Google Scholar

Ozias-Akins, P., and Conner, J. A. (2020). Clonal reproduction through seeds in sight for crops. Trends Genet. 36, 215–226. doi: 10.1016/j.tig.2019.12.006

PubMed Abstract | CrossRef Full Text | Google Scholar

Ozias-Akins, P., Roche, D., and Hanna, W. W. (1998). Tight clustering and hemizygosity of apomixis-linked molecular markers in Pennisetum squamulatum implies genetic control of apospory by a divergent locus that may have no allelic form in sexual genotypes. Proc. Natl. Acad. Sci. U S A. 95, 5127–5132. doi: 10.1073/pnas.95.9.5127

PubMed Abstract | CrossRef Full Text | Google Scholar

Pupilli, F., and Barcaccia, G. (2012). Cloning plants by seeds: inheritance models and candidate genes to increase fundamental knowledge for engineering apomixis in sexual crops. J. Biotechnol. 159, 291–311. doi: 10.1016/j.jbiotec.2011.08.028

PubMed Abstract | CrossRef Full Text | Google Scholar

Ravi, M., Marimuthu, M. P. A., and Siddiqi, I. (2008). Gamete formation without meiosis in Arabidopsis. Nature 451, 1121–1124. doi: 10.1038/nature06557

PubMed Abstract | CrossRef Full Text | Google Scholar

Scheben, A., and Hojsgaard, D. (2020). Can we use gene-editing to induce apomixis in sexual plants? Genes 11:781. doi: 10.3390/genes11070781

PubMed Abstract | CrossRef Full Text | Google Scholar

Schmidt, A. (2020). Controlling apomixis: shared features and distinct characteristics of gene regulation. Genes 11:329. doi: 10.3390/genes11030329

PubMed Abstract | CrossRef Full Text | Google Scholar

Sharbel, T. F., Voigt, M. L., Corral, J. M., Galla, G., Kumlehn, J., Klukas, C., et al. (2010). Apomictic and sexual ovules of Boechera display heterochronic global gene expression patterns. Plant Cell 22, 655–671. doi: 10.1105/tpc.109.072223

PubMed Abstract | CrossRef Full Text | Google Scholar

Silveira, R. D., Alves-Ferreira, M., Guimarães, L. A., Da Silva, F. R., and Carneiro, V. T. D. C. (2009). Selection of reference genes for quantitative real-time PCR expression studies in the apomictic and sexual grass Brachiaria brizantha. BMC Plant Biol. 9:84. doi: 10.1186/1471-2229-9-84

PubMed Abstract | CrossRef Full Text | Google Scholar

Singh, M., Goel, S., Meeley, R. B., Dantec, C., Parrinello, H., Michaud, C., et al. (2011). Production of viable gametes without meiosis in maize deficient for an ARGONAUTE protein. Plant Cell 23, 443–458. doi: 10.1105/tpc.110.079020

PubMed Abstract | CrossRef Full Text | Google Scholar

Tas, I. C. Q., and Van Dijk, P. J. (1999). Crosses between sexual and apomictic dandelions (Taraxacum). I. The inheritance of apomixis. Heredity 83, 707–714.

Google Scholar

Underwood, C. J., Vijverberg, K., Rigola, D., Okamoto, S., Oplaat, C., Camp, R. H. M. O., et al. (2022). A PARTHENOGENESIS allele from apomictic dandelion can induce egg cell division without fertilization in lettuce. Nat. Genet. 54, 84–93. doi: 10.1038/s41588-021-00984-y

PubMed Abstract | CrossRef Full Text | Google Scholar

Van Dijk, P. J., Tas, I. C. Q., Falque, M., and Bakx-Schotman, T. (1999). Crosses between sexual and apomictic dandelions (Taraxacum). II. The breakdown of apomixis. Heredity 83, 715–721. doi: 10.1046/j.1365-2540.1999.00620.x

PubMed Abstract | CrossRef Full Text | Google Scholar

van Eck, N. J., and Waltman, L. (2010). Software survey: VOSviewer, a computer program for bibliometric mapping. Scientometrics 84, 523–538. doi: 10.1007/s11192-009-0146-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Venter, C. J., Adams, M. D., Myers, E. W., Li, P. W., Mural, R. J., Sutton, G. G., et al. (2001). The sequence of the human genome. Science 291, 1304–1351. doi: 10.1126/science.1058040

PubMed Abstract | CrossRef Full Text | Google Scholar

Verhoeven, K. J. F., Jansen, J. J., van Dijk, P. J., and Biere, A. (2010). Stress-induced DNA methylation changes and their heritability in asexual dandelions. New Phytol. 185, 1108–1118. doi: 10.1111/j.1469-8137.2009.03121.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Vijverberg, K., Ozias-Akins, P., and Schranz, M. E. (2019). Identifying and engineering genes for parthenogenesis in plants. Front. Plant Sci. 10:128. doi: 10.3389/fpls.2019.00128

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, X., Xu, Y., Zhang, S., Cao, L., Huang, Y., Cheng, J., et al. (2017). Genomic analyses of primitive, wild and cultivated citrus provide insights into asexual reproduction. Nat. Genet. 49, 765–772. doi: 10.1038/ng.3839

PubMed Abstract | CrossRef Full Text | Google Scholar

Wilschut, R. A., Oplaat, C., Snoek, L. B., Kirschner, J., and Verhoeven, K. J. F. (2016). Natural epigenetic variation contributes to heritable flowering divergence in a widespread asexual dandelion lineage. Mol. Ecol. 25, 1759–1768. doi: 10.1111/mec.13502

PubMed Abstract | CrossRef Full Text | Google Scholar
