Rim Hamza
Edelín Roque
Concepción Gómez-Mena
Francisco Madueño
José Pío Beltrán
Luis A. Cañas- Department of Plant Development and Hormone Action, Instituto de Biología Molecular y Celular de Plantas (CSIC-Universitat Politècnica de València), Ciudad Politécnica de la Innovación, Valencia, Spain
Redox homeostasis has been linked to proper anther and pollen development. Accordingly, plant cells have developed several Reactive Oxygen Species (ROS)-scavenging mechanisms to maintain the redox balance. Hemopexins constitute one of these mechanisms preventing heme-associated oxidative stress in animals, fungi, and plants. Pisum sativum ENDOTHECIUM 1 (PsEND1) is a pea anther-specific gene that encodes a protein containing four hemopexin domains. We report the functional characterization of PsEND1 and the identification in its promoter region of cis-regulatory elements that are essential for the specific expression in anthers. PsEND1 promoter deletion analysis revealed that a putative CArG-like regulatory motif is necessary to confer promoter activity in developing anthers. Our data suggest that PsEND1 might be a hemopexin regulated by a MADS-box protein. PsEND1 gene silencing in pea, and its overexpression in heterologous systems, result in similar defects in the anthers consisting of precocious tapetum degradation and the impairment of pollen development. Such alterations were associated to the production of superoxide anion and altered activity of ROS-scavenging enzymes. Our findings demonstrate that PsEND1 is essential for pollen development by modulating ROS levels during the differentiation of the anther tissues surrounding the microsporocytes.
Introduction
Anthers development is a critical step in plant reproduction as it is required for male gametophytes generation and fertility. Anthers are composed of three outer layers (epidermis, middle layer, and endothecium) and an inner cell layer (tapetum) surrounding the microsporocytes. Pollen production requires coordinated development of sporophytic and gametophytic tissues (Parish and Li, 2010; Chang et al., 2011; Hafidh et al., 2016; Fu et al., 2020). Haploid microspores are generated from pollen mother cells (PMC) through meiosis; then, two successive mitoses lead to the formation of binucleate and trinucleate mature pollen grains. During this process, the tapetum undergoes programmed cell death (PCD), providing the enzymes required for the release of the microspores from the tetrads, nutrients for pollen development and maturation and components for the pollen wall (Wilson and Zhang, 2009; Zhu et al., 2011; Zheng et al., 2020). Thus, the production of viable pollen grains requires a fine timing of tapetum degradation involving several key intracellular factors. Reactive oxygen species (ROS) have been shown to play an essential role in tapetum function and PCD in Arabidopsis and rice (Hu et al., 2011; Luo et al., 2013; Yi et al., 2016). For instance, high ROS levels in rice resulted in male sterility due to a delayed tapetum degradation (Hu et al., 2011; Luo et al., 2013), while low levels lead to early tapetum degradation (Xie et al., 2014). In both cases, the imbalance of ROS levels caused severe impairment of pollen development. Redox homeostasis is also critical for the regulation of different plant biological processes, including cell proliferation and differentiation (Zafra et al., 2010; Schippers et al., 2016; Huang et al., 2019; Lodde et al., 2021).
ROS are present in cells both in ionic and molecular states. Hydroxyl radical.OH and superoxide anion O2⋅– represent the ionic state, while the molecular state consists mainly of singlet oxygen 1O2 and hydrogen peroxide H2O2. O2⋅– is the precursor of different ROS and can be dismutated to H2O2 by the superoxide dismutase (SOD). Hydrogen peroxide is considered the most important ROS due to its high stability in the cell with a half-life of 10–3 s (Mittler, 2017; Mhamdi and van Breusegem, 2018). It can be transported through the cell membrane via aquaporins causing long-distance damage and participating in cell signaling (Miller et al., 2010; Lodde et al., 2021). ⋅OH is the most reactive ROS, and it can react with all biological molecules. However, it has a very short half-life, and thus, can only act locally at the cells where it is produced.
Cells have developed a diverse arsenal of mechanisms to deal with oxidative stress. ROS-scavenging mechanisms may be classified into two types: enzymatic and non-enzymatic. The enzymatic mechanisms rely on three main enzymes: superoxide dismutases (SOD), peroxidases and catalases (Arora et al., 2002; Huang et al., 2019; Lodde et al., 2021). The non-enzymatic mechanisms use low mass antioxidant molecules such as glutathione, ascorbic acid and flavonoids.
Pisum sativum ENDOTHECIUM 1 (PsEND1) is a pea (Pisum sativum L.) anther-specific gene displaying very early expression in the anther primordium and during anther development (Gómez et al., 2004). PsEND1 promoter drives heterologous gene expression exclusively to the anthers, being equally active in dicots and monocots (Gómez et al., 2004; Roque et al., 2007, 2019; Briones et al., 2020). A −2.7 Kb region of PsEND1 promoter has been used to drive the expression of the cytotoxic ribonuclease barnase gene (Hartley, 1988). PsEND1 promoter was used to generate male-sterile plants by cell ablation of specific anther tissues, preventing the production of mature pollen grains in different ornamental (Kalanchoe, Pelargonium) and crops species (tomato, oilseed rape, tobacco, rice, wheat, poplar) (Roque et al., 2019; Briones et al., 2020). This ability makes PsEND1 promoter a valuable tool for biotechnological applications, such as the production of hybrids, the elimination of allergenic pollen or gene containment.
PsEND1 encodes a protein (25.7 KDa; Genbank accession number: AAM12036.1) containing four copies of a hemopexin-type conserved repeat (Beltrán et al., 2007). Hemopexins are heme-scavenging proteins preventing heme-associated oxidative stress in animals, fungi and plants. Heme is an electron transfer molecule of vital importance in several biological processes involving proteins associated with redox activity, such as peroxidases and hemopexins. However, free heme can be highly toxic for cells generating ROS (Vercellotti et al., 1994; Jeney et al., 2002; Kumar and Bandyopadhyay, 2005; Tolosano et al., 2010; Gáll et al., 2018). PsEND1 shows 72.17% sequence homology with the atypical pea storage protein PsPA2 (Higgins et al., 1987; Vigeoles et al., 2008; Robinson and Domoney, 2021) while it does not seem to have any homolog in A. thaliana. The role of hemopexins during anthers development has only been reported for the rice OsHFP gene (Chattopadhyay et al., 2015). It has been suggested that the heme-binding properties of OsHFP could regulate PCD in the anther tissues of rice through the regulation of ROS levels (Chattopadhyay et al., 2015).
In this work, we have functionally characterized the PsEND1 gene of pea. Our findings suggest that PsEND1 might be a target of MADS-domain transcription factors, playing an essential role during pollen development. The importance of this gene lies in its function as a ROS-scavenger during the differentiation of the anther tissues surrounding the microsporocytes.
Materials and Methods
Plant Material and Growth Conditions
Arabidopsis thaliana cv. Columbia plants were grown in the greenhouse under long-day conditions (16 h light/8 h dark) at 21°C. Pisum sativum cv. Bonneville, Nicotiana benthamiana, and Nicotiana tabacum cv. Xhanti plants were grown in the greenhouse under long-day conditions (16 h light/8 h dark) at 22°C (day) and 18°C (night).
Promoter Sequence Analyses
PsEND1 promoter region (Genbank accession number: AY324651) was analyzed in search for regulatory elements using the online software PLACE (Higo et al., 1999). We used the promoter region −986/−6, which is sufficient to direct the spatio-temporal expression of PsEND1.
Promoter Cloning and Site-Directed Mutagenesis
The PsEND1 promoter fragments were cloned in the plasmid pKGWFS7.0 and transcriptionally fused to the uidA reporter gene. Site-directed mutagenesis of the CArG-like motif was performed using the QuikChange II Site-directed mutagenesis kit (Agilent) according to the manufacturer instructions and using the primers END1mutF and END1mutR (Supplementary Table 1).
GUS Staining
Floral tissues were infiltrated using three vacuum pulses of 5 min in GUS assay buffer [0.1 M NaH2PO4, 10 mM Na2EDTA.H2O, 0.5 M K3Fe(CN)6, 0.1% Triton X-100 and 0.3% 5-bromo-4-chloro-3-indolyl β-D-glucuronide (X-Gluc)] and incubated in this solution at 37°C for 16 h. Afterward, de-staining was carried out using successive washes with ethanol at 50, 70, and 90%. Subsequently, stained flowers were observed under a stereoscope (Leica MZ16F). GUS-positive zones were identified as those colored in blue.
Subcellular Localization
The coding sequence of PsEND1 was cloned in the plasmid pEarlyGate104 downstream the CaMV35S promoter and transcriptionally fused to the Yellow Fluorescent Protein (YFP). The construct was transformed into Agrobacterium tumefaciens strain C58C1. The transformed bacteria were used to transform leaves of Nicotiana benthamiana transiently. After 3 days, the leaves were infiltrated with an aniline blue solution (0.005% Aniline Blue in potassium phosphate buffer 70 mM, pH 9.0). Ten min later, fluorescence was detected in the leaves under a confocal microscope (AxioObserver 780, Zeiss).
Prediction of PsEND1 3D Structure and Heme Binding Motifs
Prediction of PsEND1 3D structure was performed using the online tool swissmodel.expasy.org using the crystal structure of hemopexin fold protein CP4 from cowpea (SMTL ID: 3oyo.1; Gaur et al., 2011) as a template. The predicted 3D structure was visualized using the software Chimera (Pettersen et al., 2004) and the heme binding motifs using the online server HeMoQuest1 (George et al., 2020). This online interface detects transient heme binding nonapeptide motifs.
Virus-Induced Gene Silencing
We used the plasmids pCAPE1 and pCAPE2 as vectors for gene silencing (Constantin et al., 2004). A fragment of the PsEND1 coding sequence was amplified by PCR using the primers VIGSEND1F and VIGSEND1R (Supplementary Table 1) and cloned in the vector pCAPE2. The construct was transferred to the Agrobacterium tumefaciens strain C58C1. Pisum sativum cv. Bonneville 2-week-old plants were infiltrated as described by Constantin et al. (2004).
Gene Expression Analyses by qRT-PCR
RNA was extracted using the E.Z.N.A.® Plant RNA Kit (Omega Bio-tek) according to the manufacturer instructions. Two micrograms of total RNA were treated with DNase I (Thermo Scientific) following the manufacturer protocol. The first strand of cDNA was synthesized using 1 μg of treated RNA with the PrimescriptTM RT-PCR kit (TAKARA, Tokyo, Japan). qRT-PCR was performed in a 7,500 Fast Real-time PCR System (Applied Biosystems, Foster City, CA, United States) using 20 ng of template cDNA mixed with EvaGreen® Master Mix (Cultek, Madrid, Spain). For PsEND1 expression analysis in the VIGS-PsEND1 plants, we used the primers qEND1VIGSF and qEND1VIGSR (Supplementary Table 1). The constitutive gene PsEF1 was used to normalize according to the 2ΔΔCt method (Livak and Schmittgen, 2001).
Pollen Viability Assay
Pollen was recovered from pre-dehiscent anthers under a stereomicroscope and incubated with Alexander stain at 50°C for 2 min (Alexander, 1969). The slides were later observed under an optical microscope (Leica DM5000).
Overexpression of PsEND1 in Arabidopsis thaliana and Nicotiana tabacum
The coding sequence of PsEND1 was cloned downstream of the strong promoter CaMV35S in the plasmids pK2GW7. The construct was then transformed into the Agrobacterium strains C58C1 and LBA4404 to transform A. thaliana and N. tabacum, respectively. A. thaliana plants were transformed using the flower dip method (Zhang et al., 2006). Seeds of the transformed plants were recovered and germinated on a kanamycin selective medium. Tobacco plants were transformed as previously described (Hamza et al., 2018). Genomic DNA was extracted from the obtained plants using the E.Z.N.A.® Plant DNA Kit (Omega Bio-tek). The integration of the transgenic DNA was checked by PCR using the primers PsEND1ATG and PsEND1STOP (Supplementary Table 1).
Superoxide Anion Detection
In order to detect superoxide anion (O2⋅–) accumulation, Arabidopsis seedlings were immersed in a 0.2% w/v NBT solution in sodium phosphate buffer (pH 7.5). NBT reacts with superoxide anion forming a dark blue insoluble formazan compound. The seedlings were incubated overnight at room temperature, then the solution was discarded, and the seedlings were washed several times with 70% ethanol until complete removal of the chlorophyll.
TdT-Mediated dUTP Nick-End Labeling Assay
TdT-mediated dUTP Nick-End Labeling (TUNEL) assay was performed with the DeadENDTMFluoremetric TUNEL System kit (Promega) according to the manufacturer instructions. Samples were analyzed with a fluorescent microscope (Leica DM5000). Cells were stained with propidium iodide (1 μ/ml).
Histological Sectioning
Flowers of Pisum sativum and Arabidopsis thaliana were fixed in formaldehyde/acetic acid/ethanol (10%:5%:50%). The flowers that were intended for the TUNEL assay were embedded in paraffin, while the rest of the samples were embedded in synthetic resin (Leica). The samples were later sectioned and stained either with 1% Toluidine Blue or with 1 μg/ml 2-(4-aminophenyl)-1H-indole-6-carboxamidine (DAPI). Toluidine blue stained sections were imaged by light microscopy, while DAPI stained slides were observed by fluorescence microscopy (Leica DM5000).
Superoxide Dismutase and Peroxidase Activity
To measure SOD and PRX activity, pea flowers of each developmental stage were collected from different plants and mixed to form pools, as the level of gene silencing varies between plants. VIGS and control flowers were collected simultaneously. Frozen flowers of pea or leaves of A. thaliana and N. tabacum were ground in liquid nitrogen to a fine powder and homogenized in 500 μl of ice-cold extraction buffer (0.1 M Tris pH 7.0, 0.1% ascorbic acid, 0.1% L-cysteine, 0.5 M sucrose and 10 mg/ml PVP). The mixture was then centrifuged for 15 min at 4°C, and the supernatant was recovered. The total protein content of the crude extract was determined by the Bradford method (Bradford, 1976). The activity of SOD was determined using 5 μl of crude extract mixed with 200 μl of SOD buffer (PBS 50 mM pH 7.6, 0.1 mM EDTA, 50 mM sodium carbonate, 12 mM L-methionine, 10 μM riboflavin, 50 μM NBT in PBS 50 mM pH 7.6). The mixture was incubated for 10 min at room temperature under white light, and absorbance was measured at 560 nm. One unit of SOD activity is defined as the amount of enzyme required to inhibit 50% of the NBT photoreduction. PRX activity was measured adding 5 μl of crude extract to 200 μl PRX buffer (0.85 mM hydrogen peroxide in HEPES pH 7.0, 0.125 M 4-aminoantipyrene, 8.1 mg/ml phenol). The change in absorbance at 510 nm was measured for 2 min. Horseradish peroxidase at different known concentrations was used as a reference to generate a standard curve.
Statistical Analyses
Statistical analyses were performed with the GraphPad Prism 9 software. ANOVA test was used to analyze the SOD and PRX activity assays in A. thaliana and N. tabacum, while t-test was used to compare enzymatic activity in pea flowers between the VIGS-PsEND1 flowers and the control.
Results
Characterization and Functional Analysis of the PsEND1 Promoter
In a first approach, we have corroborated that the −986/−6 region of the PsEND1 promoter is able to drive a strong anther-specific expression of the uidA (GUS) reporter gene in Arabidopsis. In silico analysis of this promoter region, using the online software PLACE, detected several putative regulatory motifs (Supplementary Table 2). Among these, we focused on the transcription factor binding DNA motifs associated to specific gene expression in anthers: GTGANTG10 (−799/−795; −794/−790; −693/−599; −597/−593; −81/−77) (Rogers et al., 2001) and Pollen1lellat2 (−607/−602; −551/−546) (Bate and Twell, 1998; Filichkin et al., 2004). In addition, we paid special interest to the DNA sequences recognized by transcription factors containing MADS-box domains, termed CArG motifs (Shore and Sharrocks, 1995; Riechmann and Meyerowitz, 1997; Folter and Angenent, 2006). We found three CARGCW8GAT motifs (Tang and Perry, 2003; CWWWWWWWWG at positions −375/−366; −247/−238; −57/−48 (Figure 1). We also included in our analysis a regulatory element previously described (Gómez et al., 2004) as a putative CArG-like motif (CCATTTTGG; −112/−104).
Figure 1. Deletion analysis of the PsEND1 promoter. (A) Promoter regions used in the different constructs (C1–C7). The regulatory motifs related to the specific expression in anthers, GTGANTG10 and Pollen1lellat2, are highlighted in green and blue, respectively. CARG-like motifs are highlighted in pink and purple. (B) GUS staining of Arabidopsis thaliana flowers carrying the construct C4. (C) Gus staining of A. thaliana flowers carrying the construct C5. (D) Gus staining of A. thaliana flowers carrying the construct C7.
To identify the minimal promoter region sufficient to drive PsEND1 anther-specific expression, we performed several promoter-reporter (uidA, GUS) constructs. The successive deletions contained the fragments −986/−6 (C1), −685/−6 (C2), −426/−6 (C3), −366/−6 (C4), and −309/−6 (C5) (Figure 1A). Arabidopsis thaliana plants were transformed with each of these constructs. The inflorescent apices from several primary (T0) transgenic plants were analyzed using flowers at different stages of development. The flowers of the Arabidopsis plants that contained the constructs C1 to C4 (Figure 1B) showed GUS staining in the anthers since the early stages of development. GUS staining was qualitatively high when all of these sequential deletions of the PsEND1 promoter were used. However, no GUS signal was detected in the flowers of the transgenic plants transformed with the C5 construct (Figure 1C).
We tested whether the regulatory motif at position −112/−104 (CCATTTTGG), described by Gómez et al. (2004) as a putative CArG-like motif, might be critical for PsEND1 gene expression. For this purpose, we generated a construct in which an internal fragment containing this motif was removed. The flowers of Arabidopsis plants harboring this construct did not show any GUS activity. This indicates that the CArG-like box motif (Gómez et al., 2004) present in the deleted fragment could be essential for PsEND1 expression, at least within the context of the −366/−6 promoter. To confirm the importance of this regulatory element for the spatio-temporal expression pattern of the PsEND1 gene, we performed a site-directed mutagenesis strategy. The CCATTTTGG sequence was converted into GGATTTTGG, thus lacking the conserved motif CArG. The Arabidopsis flowers harboring the mutated PsEND1promoter did not show any GUS staining in their anthers (Figure 1D). These findings confirm the importance of the putative CArG-like element for the regulation of PsEND1expression.
Subcellular Localization of PsEND1
In previous studies (Gómez et al., 2004), PsEND1 protein was immunolocalized in the anther tissues, but its subcellular localization was not determined. To investigate the subcellular localization of PsEND1protein, the PsEND1 coding sequence was transcriptionally fused to the Yellow Fluorescent Protein (YFP). PsEND1 YFP-tagged protein was transiently expressed in Nicotiana benthamiana leaves. PsEND1 was detected by confocal microscopy in the cytoplasm and in plasmodesmata. Localization in plasmodesmata was confirmed by co-localization with aniline blue, a plasmodesmata marker (Figure 2).
Figure 2. Subcellular localization of PsEND1 in Nicotiana benthamiana leaves as observed by confocal microscopy. (A) Plasmodesmata stained by aniline blue (red). (B) Localization of PsEND1 fused to YFP (green). (C) Co-localization of plasmodesmata and PsEND1. The yellow dots indicate the co-localization of both fluorescent signals.
Prediction of PsEND1 3D Structure and Heme Binding Motifs
As previously described, PsEND1 presents four hemopexin domains (Supplementary Figure 2A; Beltrán et al., 2007). In silico 3D modeling based on the template of the cowpea, hemopexin fold protein showed that the hemopexin domains form a beta-propeller typical of hemopexins, surrounding a hollow shaft (Supplementary Figure 2B). This structure was described in different hemopexins (Paoli et al., 1999; Gaur et al., 2010; Chattopadhyay et al., 2012) and is thought to be responsible for binding heme groups (Paoli et al., 1999). Transient heme binding motifs were predicted using the online software HeMoQuest. Eight heme binding motifs were detected (Supplementary Figure 2C). These putative heme binding motifs were located on the PsEND1 3D model (Supplementary Figure 2D).
Virus Induced Gene Silencing of PsEND1 in Pea
To investigate the function of PsEND1, we generated pea plants with reduced levels of the gene, using Virus Induced Gene Silencing (VIGS) technology. As a negative control, we used the pCAPE1 vector. We analyzed nine independent VIGS-PsEND1 lines and observed that the expression of PsEND1 was highly reduced, ranging from 47 to 99% (Figure 3A). The majority of the flowers of the partially silenced plants presented a varying number of white anthers that appeared to contain few pollen grains (Figure 3B). Some anthers from silenced plants were also smaller in size. We recovered the pollen from control and VIGS-PsEND1 plants and assessed its viability using Alexander’s stain (Alexander, 1969). Alexander’s stain colors aborted pollen grains blue-green and non-aborted pollen grains magenta-red. While the control plants showed over 98% viable pollen, the partially silenced plants contained between 16 and 91% aborted pollen (Figures 3C,D).
Figure 3. Phenotypic characterization of VIGS-PsEND1 pea flowers. (A) Expression of PsEND1 in flower buds of different VIGS plants. (B) Detail of the stamens of wild type (upper) and VIGS-PsEND1 (bottom) plants. The anthers of the VIGS-PsEND1 plants showed a white color and small size. (C) Percentage of viable pollen in the wild type and VIGS-PsEND1 plants. (D) Alexander’s staining of pollen; wild type (upper) and VIGS plant (bottom). Viable pollen protoplasm is stained pink, while dead pollen is stained blue. Histological sections of wild type (E–G) and VIGS-PsEND1 (H–J) pea flowers. (E,H) 3 mm flowers, (F,I) 5 mm flowers, (G,J) 7 mm flowers. Arrows in (E–H) indicate the presence of tapetal cells. Scale bars in (E–J) correspond to 100 μm. (K–P) Detection of DNA fragmentation by TUNEL assays of pea anthers of the wild type (K–M) and VIGS-PsEND1 anthers (N–P). Cell wall or membranes showed red fluorescence and the positive apoptotic nuclei stained with TUNEL were deep green.
To further study the effect of PsEND1downregulation on pea anthers, we embedded flowers at different developmental stages and sizes in resin and performed histological cross-sections (Figures 3E–J). We observed that at the stage of 3 mm, the control anthers showed a thin layer of tapetal cells and round-shaped PMC where the cytoplasm is close to the membrane (Figure 3E). However, in the VIGS-PsEND1 anthers, both the tapetal cells and PMC are swollen, and their cytoplasms shrunk (Figure 3H). At 5 mm stage, while in the control anthers, the pollen is normally formed and the tapetum is still present (Figure 3F), in the VIGS-PsEND1 anthers, the tapetum has been degraded, and pollen grains seem to have collapsed and had been replaced by an amorphous mass (Figure 3I). Moreover, the endothecium has started to show secondary thickening and lignification, characteristics which were not observed in the control anthers. Later, at 7 mm size, the VIGS-PsEND1 anthers presented no tapetal cells; the pollen was either collapsed or altered (Figure 3G), while the control still showing an intact tapetum and normal pollen cells (Figure 3J).
To analyze the effect of PsEND1 gene silencing on tapetum development, we performed a TUNEL assay to visualize the cleavage of nuclear DNA (Figures 3K–P). In the VIGS-PsEND1 anthers, we were able to detect chromatin fragmentation, the hallmark of PCD, in the tapetum of 5 mm flowers (Figure 3N). The fluorescent signal was maintained through stages of 6 mm (Figure 3O) and 7 mm (Figure 3P) in some locules. However, in the control anthers, no chromatin degradation could be detected at stages of 5 mm (Figure 3K) and 6 mm (Figure 3L). The first signal of PCD was detected in the 7 mm stage (Figure 3M). Therefore, while in the control anthers this process appears to be brief and initiated at late microspore state (7 mm flower), in the VIGS-PsEND1 flowers, it seems to occur earlier and at a slow pace.
Different studies have shown that anther development and tapetum degeneration are highly sensitive to ROS balance (Hu et al., 2011; Xie et al., 2014; Yi et al., 2016; Jacobowitz et al., 2019; Zheng et al., 2019). ROS concentration in anther tissues is dynamic and finely regulated by several ROS-scavenging mechanisms in which participate enzymes such as peroxidases (PRX) and SOD. With the aim to investigate how PsEND1 levels impact the enzymes involved in ROS regulation, we measured SOD and PRX activities in the VIGS-PsEND1 pea flowers at four flower developmental stages (1–4 mm length flowers) (Figure 4). We found that in the control flowers, PRX and SOD activity follows antagonist patterns, varying during the development of the flower. When PRX activity increased (Figure 4B), SOD activity decreased (Figure 4A). In the VIGS-PsEND1 flowers, at early stages, we observed a decreased SOD activity compared to the control, while PRX activity was increased. A dramatic reduction of SOD activity was observed at the flower sizes of 1 and 3 mm. While in the WT, SOD activity varied along developmental stages, in the VIGS-PsEND1 flowers, the activity remains almost stable and low at the different flower developmental stages.

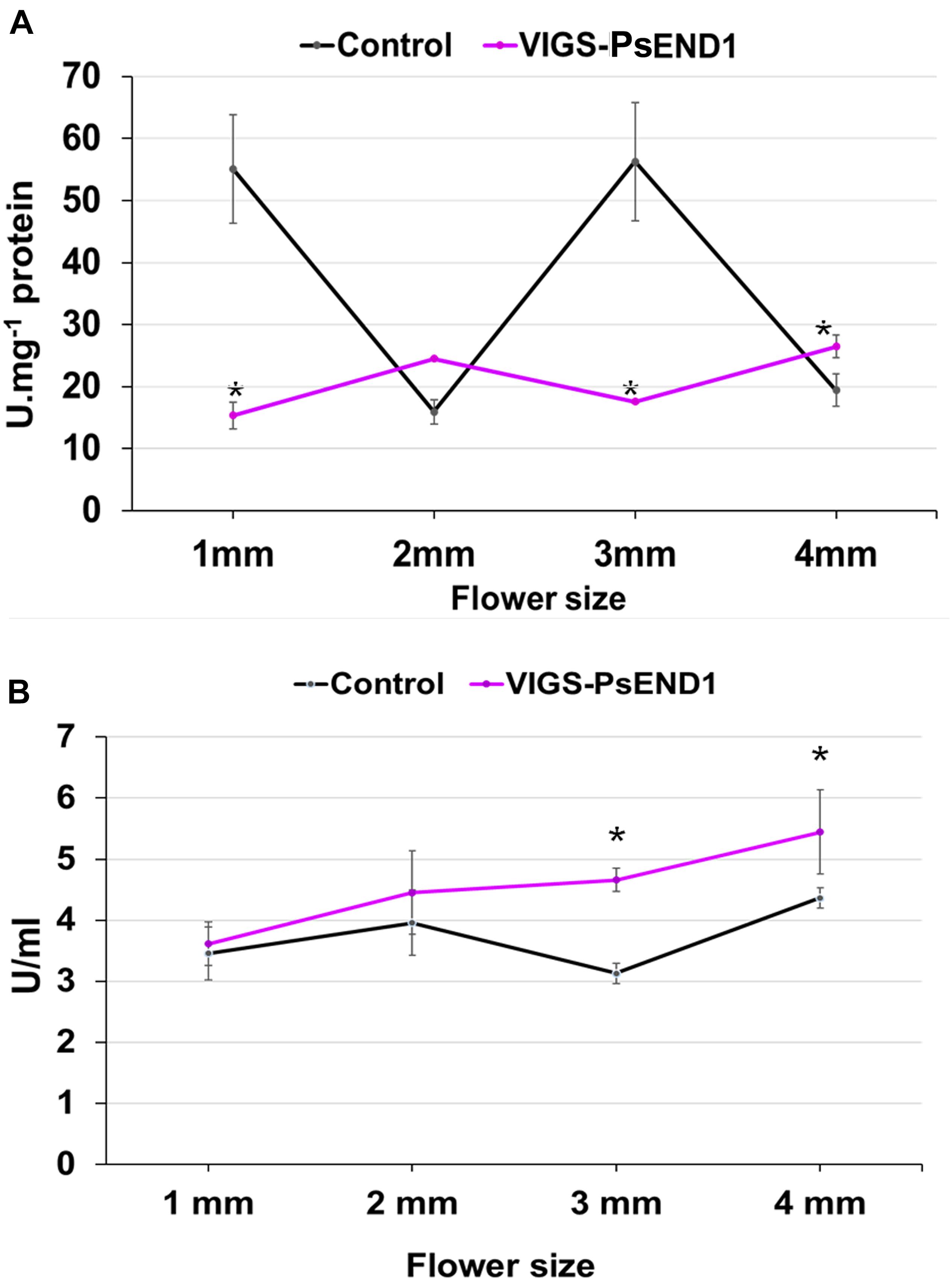

Figure 4. Superoxide dismutase and peroxidase activity in transgenic pea plants. (A) SOD activity in control and VIGS-PsEND1 flowers at different developmental stages. SOD activity is significantly reduced in the VIGS-PsEND1 flowers. (B) Peroxidase activity in control and VIGS-PsEND1 flowers at different developmental stages. At stages 3 and 4 mm, peroxidase activity increases in the VIGS-PsEND1 plants compared to the control. *p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001.
Overexpression of PsEND1 in Arabidopsis thaliana and Nicotiana tabacum
To further study PsEND1 function, we expressed the gene under the control of the strong constitutive promoter CaMV35S in Arabidopsis thaliana and Nicotiana tabacum, two plant species containing no PsEND1 homologs in their genomes.
A. thaliana transformed seeds were grown on selective media. After germination, some seedlings developed to a similar size to the control ones, while others remained small and presented a dark color (Figures 5A,B). To investigate if these changes might be due to ROS accumulation, we stained the seedlings with NBT. The overexpressing plants showed an accumulation of superoxide radical O2⋅– as shown by the intense staining of the rosette leaves (Figures 5C–E). It is noteworthy to mention that the most affected plants in size and development presented the highest O2⋅– levels (Figures 5D,E). Several transgenic plants were later acclimatized in the greenhouse, although the smaller plants did not grow and died. The rest of the plants managed to grow but were smaller in size than the control ones.
Figure 5. PsEND1 ectopic expression in Arabidopsis plants. (A–F) Vegetative phenotype of 2-weeks-old Arabidopsis seedlings from the wild-type (A) and 35S:PsEND1 plants (B). (C–E) Detection of reactive oxygen species (ROS) production in Arabidopsis thaliana seedlings overexpressing PsEND1 by Nitroblue tetrazolium (NBT) staining. (F–H) Floral phenotypes of A. thaliana plants overexpressing PsEND1 (the petals and sepals have been removed). (F) Wild type flower. (G) 35S:PsEND1 flower showing early dehiscence (white arrow). (H) 35S:PsEND1 flower showing collapsed, arrow-shaped anthers. (I–K) Histological sections of anthers stained with toluidine blue. (I) Wild type flower anther showing a layer of intact tapetal cells and no endothecium secondary thickening. (J) Cross-section of a 35S:PsEND1 anther showing a disrupted septum and stomium secondary thickening of the endothecium and degenerated tapetum. (K) Cross-section of an arrow-shaped 35S:PsEND1 anther where the pollen cells were replaced by an amorphous mass and the tapetal cell layer is absent. (L–M) Cross-section of wild type (L) and 35S:PsEND1 anthers (M) of the same flower size, stained with DAPI and observed under a fluorescence microscope. (L) Cross-section of a wild type anther, presenting binucleate pollen (inset) and an intact tapetum. (M) Cross-section of a 35S:PsEND1 anther, with trinucleate pollen (inset) and no tapetal cell layer. (N) The collapsed locules of the 35S:PsEND1 anthers presenting an intense yellow colored amorphous mass. En, endotecium; T, tapetum; Bp, bicellular pollen; vn, vegetative nucleus; gn, generative nucleus. Bars in (A,B) represent 1 cm.
The flowers of the 35S:PsEND1 plants showed two types of developmental anther defects that coexist in the same plants: early anther dehiscence or complete anther collapse. In pre-anthesis flowers, at an early stage where the stamens were still shorter than the style, some anthers were already dehiscent (Figure 5G). The second type corresponds to flowers that showed collapsed stamens, with short filaments and arrow-shaped anthers with an intense yellow color (Figure 5H). These flowers were embedded in resin and stained with toluidine blue to visualize the effect on the internal structure of the anthers (Figures 5I–K). The histological analysis confirmed the macroscopic observations. In the anthers that seemed to have precocious dehiscence, the septum and the stomium have already been disrupted, thus liberating the pollen (Figure 5J). Moreover, the endothecium showed secondary thickening, and the tapetum was absent. Mutant flowers were compared to the wild type ones (Figure 5I) at the same stage. The developmental stage of the flowers was determined by the development of the carpel. The floral sections were subsequently stained with DAPI. We observed that the pollen grains of the dehiscent transformed anthers were mature and trinucleate (Figure 5M), while the pollen grains of the control flowers were still binucleate (Figure 5N). The anthers of transgenic flowers had an accelerated development leading to early dehiscence and pollen maturation. Arrow-shaped anthers of transgenic flowers were also sectioned and observed. Their locules were surrounded by a single cell layer corresponding to the epidermis, while the endothecium and the tapetum were absent. Inside the locules, the anthers presented an intense yellow colored amorphous mass instead of the pollen cells (Figures 5K,N), probably due to an accumulation of flavonoids. At early stages, the anthers were similar to the wild type, being the first alterations observed at the stage of meiocytes, previous to the formation of tetrads. Indeed, tetrads could not be observed in the more affected anthers; the last stage observed being the meiocyte one. After this stage, the PMC and the tapetum degenerated (Supplementary Figure 1).
We also overexpressed PsEND1 in Nicotiana tabacum. Only a few plantlets were regenerated because most of the calli failed to differentiate. Most of them remained small and did not succeed to root (Figure 6A). Three plants were acclimatized in the greenhouse. Similarly to what was observed with A. thaliana plants, these transgenic tobacco plants were smaller than the control ones (Figure 6B), and some of the transgenic flowers presented smaller anthers or anthers formed by only two locules (Figure 6C). We recovered the pollen of these anthers and stained it with Alexander’s stain. We found that this pollen was non-viable (Figure 6D).
Figure 6. Phenotypes of transgenic tobacco plants overexpressing PsEND1. (A) Tobacco plants 8 weeks after transformation. The control plant (left) has elongated and rooted and are ready to be acclimatized. The transgenic plants (right) are still much smaller and have not elongated nor rooted, yet. (B) Wild type (WT) and transgenic (Nt1, Nt2, and Nt3) tobacco plants 1 week after acclimatization in the greenhouse. The transgenic plants are smaller than the control. (C) Anthers of the transgenic plants (right) are smaller and lack two locules. (D) Alexander’s staining of pollen grains from the control (left) and transgenic tobacco plants (right). Viable pollen is round-shaped and stained in pink.
We then analyzed SOD and peroxidase activity in the rosette of A. thaliana and the leaves of N. tabacum overexpressing PsEND1. Similarly, in the overexpressing transgenic Arabidopsis and tobacco plants, SOD activity (Figures 7A,B) decreased, and PRX activity (Figures 7C,D) increased. This effect was stronger in the tobacco plant Nt.1, which was the most altered in size.

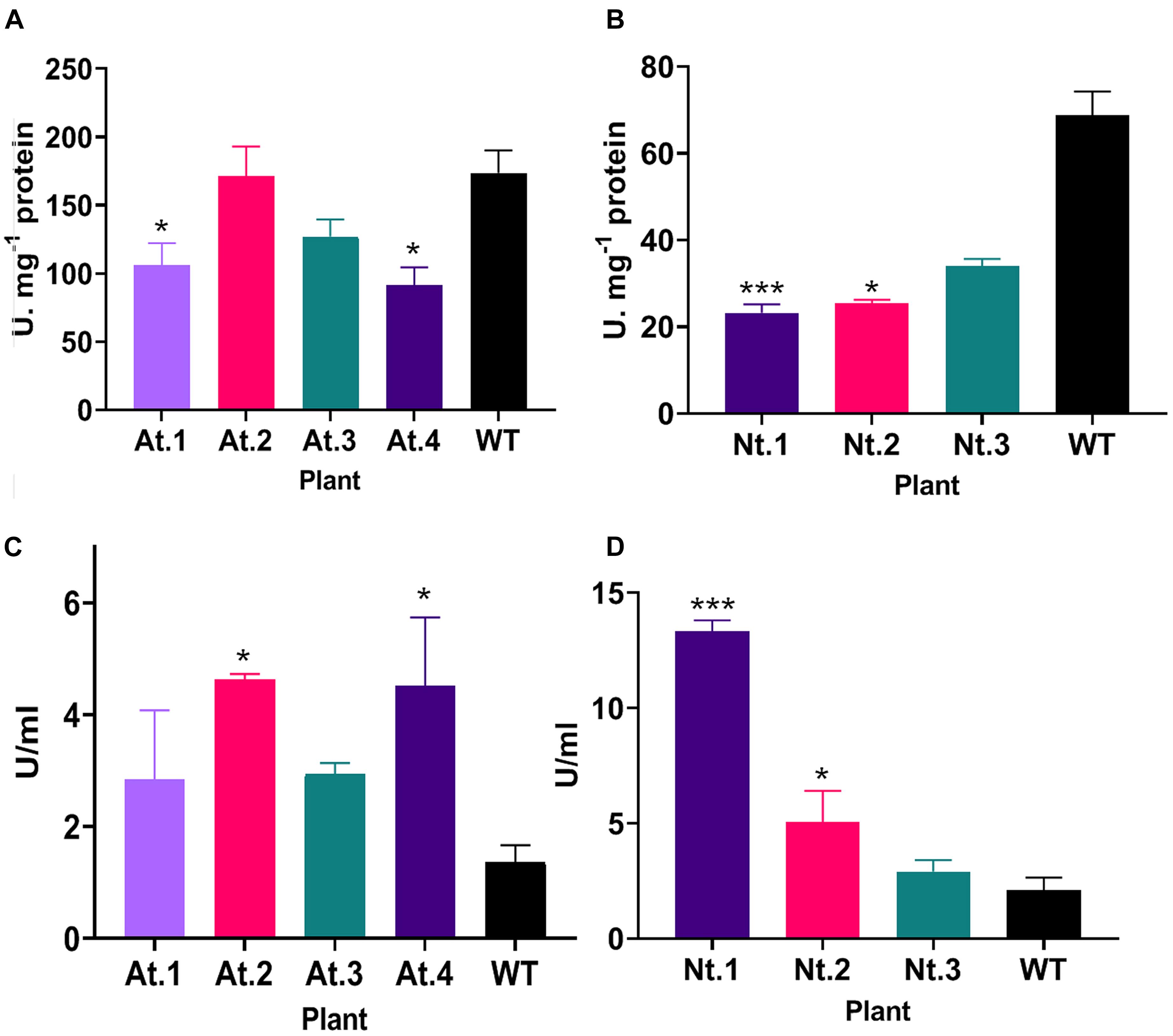

Figure 7. Superoxide dismutase and peroxidase activity in transgenic Arabidopsis thaliana and Nicotiana tabacum plants. (A) SOD activity in transgenic A. thaliana plants. Plants At.1 and At.4 show a significant decrease in SOD activity compared to the wild type. (B) SOD activity in transgenic N. tabacum plants. The transgenic plants Nt.1 and Nt.2 show a significant decrease in SOD activity compared to the wild type. (C) Peroxidase activity in transgenic A. thaliana plants. Plants At.2 and At.4 show a significant increase in peroxidase activity compared to the wild type. (D) Peroxidase activity in transgenic N. tabacum plants. The transgenic plants Nt.1 and Nt.2 show a significant increase in peroxidase activity compared to the wild type. *p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001.
Discussion
The Hemopexin-Like Protein PsEND1 Is a Putative Target of MADS-Box Transcription Factors
The PsEND1 promoter deletion analysis showed in this work indicates that a region of approximately 0.3 kb (−366 to −6) upstream of the transcriptional start site contains the PsEND1 minimal promoter. Deleted sequences between C4 and C5 constructs (from −336 to −309) comprises different TF-binding sites as well as different common regulatory elements to eukaryotes and plants, such as the DOF (DOFCOREZM) (Yanagisawa and Schmidt, 1999; Yanagisawa, 2000) and MYC (MYCCONSENSUSAT) (Chinnusamy et al., 2003, 2004; Oh et al., 2005). These TFs binding elements seem to be essential for PsEND1 regulation in the context of the −366 to −6 domain. This defined minimal promoter region (−366 to −6) contains a transcription binding DNA motif associated with the specific gene expression in anthers (GTGANTG10) (Rogers et al., 2001), two CARGCW8GAT motifs (Tang and Perry, 2003; Folter and Angenent, 2006) and a putative CArG-like motif (Gómez et al., 2004; Figure 1A). The absence of GUS staining in the anthers of the Arabidopsis plants containing the construct C5 (−309 to −6) may be explained by a possible cooperative protein-protein interaction between MADS-domain proteins with other transcription factors. One of the CARGCW8GAT (−247 to −238) motifs falls in the vicinity of the removed TF binding sites from −366 to −309. It has been suggested that the presence of other transcription factor binding sites in the proximity of CArG-box motifs could be essential for MADS-domain proteins interactions and, consequently, target gene regulation (Aerts et al., 2018).
We demonstrated that the CArG-like regulatory motif present at the position −112 to −104 (CCATTTTGG; Gómez et al., 2004) is essential to confer promoter activity in developing anthers. MADS-box proteins possess similar DNA-binding specificities, although some differences between each protein exist in this regard (Folter and Angenent, 2006). This DNA-binding site is termed CArG motif with the overall consensus CC(A/T)6GG (Shore and Sharrocks, 1995; Riechmann and Meyerowitz, 1997; Folter and Angenent, 2006), recently renamed perfect CArG-box (Aerts et al., 2018). Several variants of this sequence have been recognized as regulatory motifs for binding to some MADS-domain proteins (Folter and Angenent, 2006; Aerts et al., 2018). These motifs still conserve the DNA-binding properties of the MADS domain proteins as long as the mismatches do not eliminate either the C or G sequences flanking the A/T core. The A/T core can include C or G and may be formed by six to eight nucleotides (Gómez-Mena et al., 2005; Folter and Angenent, 2006). Besides, it has been reported that the most chosen DNA binding motif of MADS-box proteins was a CArG-box with an NAA extension comparing with a perfect CArG-box (Folter and Angenent, 2006; Aerts et al., 2018). The sequences CCATTTTGG found in the 5’ PsEND1 sequence is an almost perfect CArG motif. It features the typical dyad symmetry ending as CC and GG but differs from the rest since it has five nucleotides in the A/T core instead of six. However, this CArG-like regulatory motif (Gómez et al., 2004) contains an extension NAA: CC(CA/T)5GGGAA at position 13. CArG-box has 10 positions, being the first C, the position 1 and the last G, the defined position 10 (Aerts et al., 2018). It has been demonstrated that there is a preference for adenines at positions 12 and 13, thus extending the consensus motif of a perfect CArG-box to CC(A/T)6GGNAA (Aerts et al., 2018). Therefore, the sequence CC(CA/T)5GGGAA found in the 5′ region of the pea PsEND1 gene might be a new CArG-box regulatory motif variant.
In summary, the flexibility of the CArG-box sequences recognized by MADS target genes, the early specific expression of PsEND1 in the anther primordia and the results showed in this work suggest that PsEND1 could be a target of the MADS-domain proteins that specify the stamen identity in Pisum sativum. Further experiments will be needed to confirm that the Pisum MADS-box proteins that confer stamen identity can interact with this putative CArG-box regulatory motif. Interestingly, the rice hemopexin fold protein gene (OsHFP) promoter also presents a CArG-like regulatory element essential for its specific expression in anthers (Chattopadhyay et al., 2012). In line with this, the C-function MADS-box gene MADS3 has been related to the promoter of a ROS-scavenging gene in rice (Hu et al., 2011). Accordingly, our data suggest that PsEND1 could be a hemopexin regulated by a MADS-box protein, modulating redox homeostasis during early anther development in pea.
PsEND1 Is Essential for Proper Pollen Development in Pisum sativum
In this work, we have shown that PsEND1 is of major importance for the development of pollen and the surrounding tissues. PsEND1 expression begins at an early stage of anther development, in the stamen primordium. Later, it is expressed in the primary parietal cells, precursor cells of the endothecium, middle layer, and tapetum tissues (Gómez et al., 2004). At this stage, these cells are contiguous with the primary sporogenous cell lineage, and PsEND1 is participating in the modulation of ROS in the cells that will differentiate into different sporophytic tissues, including the tapetum. Therefore, its downregulation affects the development and degeneration of the tapetal cells and causes the abortion of pollen. The tapetum is a transitory apoptotic tissue that provides nutrients to microspores. Hence, a functional tapetum is essential for the proper development of microspores. In fact, different male-sterile mutants present tapetum ablation or affected tapetum (Mariani et al., 1990; Goldberg et al., 1993; Sanders et al., 1999; Kawanabe et al., 2006; Parish and Li, 2010; García et al., 2017). Tapetum PCD occurs at late microsporogenesis stages. The precise timing of this process is of vital importance for pollen development (Ko et al., 2017; Sun et al., 2018; Bai et al., 2019; Gao et al., 2019; Shukla et al., 2019; Xu et al., 2019; Zheng et al., 2019; Lei and Liu, 2020; Mondol et al., 2020). In this context, different studies have demonstrated that the arrest of tapetum development at early stages results in meiotic cell cycle arrest and meiocytes maturation failure (Murmu et al., 2010; Cui et al., 2018). Accordingly, our findings show that PsEND1 plays an essential role in the synchronization of tapetum degeneration and, thus, in the development of viable pollen grains in Pisum sativum.
PsEND1 Participates in Pollen Development Through the Modulation of Redox Homeostasis
Through in silico 3D modeling, we have shown that PsEND1 presents the typical beta-propeller structure responsible for heme binding in the hemopexins (Paoli et al., 1999). The presence of eight possible heme binding motifs in the PsEND1 protein has been predicted using the online HeMoQuest software, which shows a high level of accuracy (92%) in identifying heme binding motifs (George et al., 2020). Taken together, these results suggest that PsEND1 possesses the biochemical capacity of binding heme and, consequently, could participate in redox modulation.
The overexpression of PsEND1 in Arabidopsis seedlings produces an accumulation of superoxide anion O2⋅– supporting its implication in ROS modulation. Previous studies have linked heme with ROS scavenging enzymes. For instance, in Saccahromyces cerevisiae it had been shown that heme regulates the expression of SOD (Pinkham et al., 1997). Moreover, it has been demonstrated that the expression of the rice Hemopexin OsHFP in E. coli affects the expression of a SOD isozyme (Chattopadhyay et al., 2015). Accordingly, the downregulation of PsEND1 in pea and its ectopic overexpression in A. thaliana and tobacco affected the enzymatic activities of SOD and peroxidase. Additionally, Arabidopsis plants overexpressing PsEND1 accumulated flavonoids in their anthers, which are also ROS-scavenging molecules. This confirms that PsEND1 interferes with different ROS-scavenging mechanisms involved in the maintenance of balanced redox levels. ROS have been shown to play an essential role in tapetum development and PCD in model dicots and rice (Hu et al., 2011; Xie et al., 2014; Yi et al., 2016; Jacobowitz et al., 2019; Zheng et al., 2019). Several studies have shown that the loss of redox balance, either by an increase or a decrease in ROS, impairs tapetum degradation and pollen development (Hu et al., 2011; Luo et al., 2013; Xie et al., 2014). For instance, in tomato (Yan et al., 2020) and rice (Yi et al., 2016) it has been found that a decrease in ROS levels caused a delay in tapetum degradation. Nonetheless, in wheat, an excess of ROS levels has been associated with delayed tapetum degeneration (Liu et al., 2018). These studies are in agreement with the anther defects observed here by downregulation or overexpression of PsEND1 in different species.
In Arabidopsis, it has been shown that the apoplastic class III peroxidases (PRX9 and PRX40) are required for the correct development of the anthers. prx9-1 and prx40-2 mutants showed defects similar to those observed in the VIGS-PsEND1 anthers, with swollen tapetal cells at early meiosis stages and aborted pollen (Jacobowitz et al., 2019). It is also noteworthy that this class of peroxidases have also been found in pollen cells and, therefore, could play an essential role in their development (Sankaranarayanan et al., 2020). In tobacco and tomato plants, the manipulation of the expression of Rbohs proteins, which are involved in ROS regulation, resulted in the impairment of tapetal degradation and pollen development. Similarly over-accumulation of ROS in rice anthers generated premature initiation of tapetum PCD and pollen abortion (Zheng et al., 2019). These results are in accordance with the phenotype observed in the VIGS-PsEND1 anthers where we detected by TUNEL assay the early degradation of the tapetum cells, leading to pollen abortion.
It is noteworthy that in the pea VIGS-PsEND1 and A. thaliana 35S:PsEND1 flowers, the first defects in pollen are observed approximately at the same stage: when the PMC are undergoing the first meiosis. Indeed, ROS have been suggested, for a long time, to play a role in cell cycle progression as an intrinsic signal (Ho and Dowdy, 2002; Jorgensen and Tyers, 2004). For instance, Reichheld et al. (1999) have shown that oxidative stress affect cell divisions and SOD expression in Nicotiana tabacum both in plant cell culture and plants. Moreover, it has been shown that in Arabidopsis embryogenic roots, the G1 phase is accelerated in the oxidized state and slowed in the reduced state (de Simone et al., 2017). Our findings are in accordance with these results. Under the oxidative stress caused by the overexpression of PsEND1 in Arabidopsis and after the early meiosis stage, the PMC and surrounding tissues (tapetum and endothecium) either degenerated and collapsed or presented an accelerated development leading to early pollen maturation, tapetum degradation and endothecium lignification. In plants, studies have shown that there is a tightly regulated gradient of ROS during the development of the pollen and throughout the meiosis (Zafra et al., 2010; Xu et al., 2019). In pea, the regulation of ROS and the activity of antioxidant enzymes in flowers have not been described previously. In our work, we determined the activity of two of the major ROS detoxifying enzymes: SOD and PRX, during the early anther developmental stages. Interestingly, the activity of both enzymes is altered at the same stage in the VIGS-PsEND1 flowers, where the depletory effects on tapetum and PMC are observed (stage 3 mm). These findings confirm that the fine quantitative and spatio-temporal regulation of redox homeostasis at early anther developmental stages and, especially at the start of meiosis, is critical for the correct development of anther tissues and proper pollen development.
Subcellular localization of hemopexins has not been described in plants before. Our work is the first to report the localization of a plant hemopexin in plasmodesmata. These channels allow the communication between neighboring cells as well as distantly located cells through the symplastic pathway (Ding et al., 2003; Cilia and Jackson, 2004; Heinlein and Epel, 2004). They are responsible for transporting non-cell-autonomous signaling molecules such as transcription factors, small RNAs or ROS (Haywood et al., 2002; Heinlein, 2002; Wu et al., 2002; Sager and Lee, 2018). Also, due to their proximity to the cell wall, it has been suggested by previous studies that plasmodesmata act as a bridge between the symplastic and apoplastic compartments (Stahl and Simon, 2013). In plants, peroxidases are heme-containing enzymes that have been found in the apoplast, where they participate in redox homeostasis. PsEND1 localization suggests that this protein might interact directly or indirectly with peroxidases to modulate ROS levels and transport through plasmodesmata.
During early pollen development stages, plasmodesmata exist at the junction of different tissues: middle layer-tapetum, between tapetum cells, tapetum- PMC and between pre-meiotic PMC (Steer, 1977; Radice et al., 2008; Sager and Lee, 2014). This connection permits the feeding of the developing PMC by the tapetum. This would explain the effect of PsEND1 expression alteration on tapetum and pollen cells even though the gene is not expressed in these cells. H2O2, which is produced in the apoplast by dismutation of O2⋅–, is the most stable ROS, with a half-life of 10–3 s (Mittler, 2017; Mhamdi and van Breusegem, 2018). Then, it can be transported through the plasma membrane and participate in cell signaling or cause long-distance damage (Bienert et al., 2006; Lodde et al., 2021). PsEND1 is expressed since very early developmental stages of the anthers in the cell layers neighboring those that will produce the tapetum and pollen. Thus, PsEND1 might be participating in the communication among cell layers modulating ROS accumulation during the early stages of anther development.
Taken together, our results indicate that PsEND1 is a central player in the maintenance of balanced redox levels during anther development. Further studies with fine monitoring of heme levels, ROS and oxidants production would provide further insight into the biochemical mechanisms by which PsEND1 modulates redox homeostasis in the anthers.
Data Availability Statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author/s.
Author Contributions
RH, ER, and CG-M performed the experiments. RH, ER, CG-M, FM, JB, and LC conceived the experiments and analyzed the data. LC and CG-M wrote the grants that funded this work. RH, ER, and LC wrote the manuscript. All authors read and approved the final version of this manuscript.
Funding
This work was funded by the grants PID2019-106060RB-I00 and RTI2018-094280-100 from the Spanish Ministry of Science and Innovation (MICINN).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
We acknowledge the support of the publication fee by the CSIC Open Access Publication Support Initiative through its Unit of Information Resources for Research (URICI).
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2021.765277/full#supplementary-material
Supplementary Figure 1 | Comparative cross-sections of WT and 35S:PsEND1 Arabidopsis thaliana flowers stained with toluidine blue. (A) Wild type; (B,C) 35S:PsEND1. At the first stages of development, we do not observe differences between anthers in (A,B), while at the stage of meiocytes (C) most of the anthers have collapsed. After this stage, the pollen mother cells and the tapetum degenerate.
Supplementary Figure 2 | PsEND1 sequence and predicted 3D structure showing the heme binding sites. (A) PsEND1 sequence, the hemopexin motifs are highlighted in blue boxes. (B) Predicted PsEND1 3D structure. Cyan: Hemopexin domain at position 4–55; Pink: Hemopexin domain at position 62–112; Orange: Hemopexin domain at position 118–165; Green: Hemopexin domain at position 171–222. (C) Heme binding motifs predicted by the software HeMoQuest. (D) PsEND1 3D model showing the localization of eight heme binding motifs predicted by the software HeMoQuest. The predicted heme binding sites are represented by spheres of different colors.
