Cross Talk between H2O2 and Interacting Signal Molecules under Plant Stress Response

Saxena, Ina; Srikanth, Sandhya; Chen, Zhong

doi:10.3389/fpls.2016.00570

REVIEW article

Front. Plant Sci., 28 April 2016

Sec. Plant Physiology

Volume 7 - 2016 | https://doi.org/10.3389/fpls.2016.00570

This article is part of the Research Topic Recent insights into the double role of hydrogen peroxide in plants View all 21 articles

Cross Talk between H₂O₂ and Interacting Signal Molecules under Plant Stress Response

$\r\nIna Saxena$ Ina Saxena

Sandhya Srikanth

Zhong Chen^*

Natural Sciences and Science Education, National Institute of Education, Nanyang Technological University, Singapore, Singapore

It is well established that oxidative stress is an important cause of cellular damage. During stress conditions, plants have evolved regulatory mechanisms to adapt to various environmental stresses. One of the consequences of stress is an increase in the cellular concentration of reactive oxygen species, which is subsequently converted to H₂O₂. H₂O₂ is continuously produced as the byproduct of oxidative plant aerobic metabolism. Organelles with a high oxidizing metabolic activity or with an intense rate of electron flow, such as chloroplasts, mitochondria, or peroxisomes are major sources of H₂O₂ production. H₂O₂ acts as a versatile molecule because of its dual role in cells. Under normal conditions, H₂O₂ immerges as an important factor during many biological processes. It has been established that it acts as a secondary messenger in signal transduction networks. In this review, we discuss potential roles of H₂O₂ and other signaling molecules during various stress responses.

Introduction

In plants, reactive oxygen species (ROS) are continuously produced in different cellular compartments as byproducts of various metabolic pathways such as respiration and photosynthesis. All aerobic organisms use molecular oxygen as terminal oxidant during respiration. Oxygen is neither very reactive nor harmful, but it has the potential to be only partially reduced, leading to the formation of very reactive and therefore toxic intermediates like singlet oxygen (₁O₂), superoxide radical ( $O_{2}^{• -}$ ), hydrogen peroxide (H₂O₂) and hydroxyl radical (∙OH). All ROS are extremely reactive, causing damage to membranes and other cellular components. ROS also have strong affinities toward membrane, DNA, proteins, carbohydrates and lipids in plant cells (Anjum et al., 2015; Jajic et al., 2015). Hence, these molecules are constantly scavenged by different non-enzymatic and enzymatic detoxification mechanisms that are often confined to particular compartments (Alscher et al., 1997). It is important to remove ROS from the plant system in order to abate stress response, taking also into account that the final consequence of an eventual disequilibrium due to adverse environmental factors is the rapid increase of intracellular ROS levels, the so-called “oxidative burst" (Sharma et al., 2012). However, the balance between frequent production and scavenging of ROS may be disturbed by a number of adverse environmental factors such as light, temperature, drought, salinity, cold, heavy metal ions, UV exposure and water (Boyer, 1982). The usual external stress factors that affect ROS production in plants can be biotic (executed by other organisms) or abiotic (arising from changes in chemical of physical environment). However, in plants the constant regulation of the ROS concentration, including H₂O₂, is controlled by the enzymes such as catalase (CAT), ascorbate peroxidase (APX), glutathione peroxidase (GPX), glutathione S-transferases (GSTs), glutathione reductase (GR), and peroxyredoxin; and non-enzymatic compounds, like ascorbate, glutathione (GSH), α-tocopherol and flavonoids (Kapoor et al., 2015).

Recent studies have elucidated that under different stress conditions, plants react in a very complex manner which includes various physiological and cellular changes (Atkinson and Urwin, 2012). In order to combat stress response, plants use various signaling mechanisms derived from hormonal regulations. Nevertheless, recent studies indicate that plants also make use of ROS as signaling molecules for regulating development and various physiological responses. There is also increasing focus on ROS production and its integration with various hormonal signaling pathway in regulation of plant growth and stress tolerance (Xia et al., 2015).

Amongst all, superoxide and H₂O₂ are two ROS that have been given more importance in recent studies. The main focus of this review is on H₂O₂. H₂O₂ is freely diffusible across membranes, which enables it to diffuse the damage. It is relatively long lived and it acts as a central player in stress signal transduction pathways (Møller et al., 2007). Thenard was the first in 1818 to isolate H₂O₂ which later came across as a cell damaging molecule when accumulated at higher concentrations in the cell (Plaine, 1955). In early 90 s Ievinsh and Tiberg also predicted the role of H₂O₂ as a signaling molecule (Ievinsh and Tiberg, 1995). Based on earlier studies, it is certain that H₂O₂ is part of oxidative metabolism and is involved in various metabolism and signaling cascades which are essential for plant growth and development, such as development of root hair, reinforcement of plant cell wall, xylem differentiation, resistance enhancement, cell wall structural cross linking and cell wall loosening in stomatal control (Dempsey and Klessig, 1995).

H₂O₂ being a versatile molecule acts as an important signal at normal levels, whereas under abiotic or biotic stress conditions it induces oxidative stress. Its unique property of stability and less reactivity differentiates H₂O₂ from the rest of the ROS molecules (Yang and Poovaiah, 2002; Quan et al., 2008), thus making it a good signaling molecule. In plants, H₂O₂ works as a key factor in non-toxic level concentration. As a signaling molecule, it shows tolerance to biotic and abiotic stress by getting involved in various pathways (Mittler et al., 2004; Reczek and Chandel, 2015). At toxic concentration levels H₂O₂ showed involvement in programmed cell death (PCD; Dat et al., 2003). In a recent article, the dual nature of H₂O₂ has been studied where 600 μM H₂O₂ treatment caused an increase in the vase life of hybrid lily “Manissa,” while an increase in concentrations resulted in negative effects (Liao et al., 2012).

Several studies have indicated that H₂O₂ interplays with other signaling molecules such as abscisic acid (ABA) and ethylene which are important for plant development and senescence (Jubany-Mari et al., 2009; Chen et al., 2012). Table 1 shows recent studies unveiling the mechanism by which H₂O₂ is involved in various biological processes. A recent study indicated the involvement of nitric oxide (NO) and H₂O₂ in salicylic acid (SA)-induced salvianolic acid B production in Salvia miltiorrhiza cell culture. Increase in H₂O₂ production has been observed by SA despite being inhibited by IMD (an inhibitor of NADPH oxidase) or DMTU (a quencher of H₂O₂) which further increases NO production and Sal B accumulation (Guo et al., 2014). In mung bean seedlings SA also plays roles in adventitious root formation and its effect on H₂O₂ accumulation has been observed. It has been concluded from the study that H₂O₂ accumulation acts as a downstream process in regulation with SA induced adventitious root formation (Yang et al., 2013).

TABLE 1

TABLE 1. Recent studies showing the interrelation between H₂O₂ and its interaction with signaling molecules.

H₂O₂ pretreatment in maize leaves significantly increased ABA content (Terzi et al., 2014). Pre-treatment of sodium nitroprusside (SNP) and SA in wheat seedlings decreased the effect of osmotic stress. It was also observed that pre-treatment of seedlings with methylene blue (a guanylatecyclase inhibitor) diminished the protective effects of both SA and SNP. Therefore, it is concluded that protective effect may only be limited to NO (Alavi et al., 2014). Another study on jasmonate revealed that 12-oxo phytodienoic acid is involved in reduced H₂O₂ accumulation (Taki-Nakano et al., 2014). Yang (2014), proposed a model describing three pathways in modulating the transcription factor AtERF73/HRE1 which includes ethylene dependent, ethylene-independent/H₂O₂-dependent pathway, and an ethylene and H₂O₂-independent pathway. This study also proposes involvement of H₂O₂ and ethylene in AtERF73/HRE1 and ADH1 gene expression under stress. There is another study stating the involvement of ethylene in H₂O₂ accumulation during PCD (de Jong et al., 2002). In drought stress, calcium-dependent protein kinase (CPK8) has been involved in ABA-mediated stomatal regulation via CAT3 (CPK8-interacting protein) activity. It also has been observed that cpk8 and cat3 plants showed reduced CAT activity and higher H₂O₂ accumulation (Zou et al., 2015).

Guo et al. (2014) studied the possibility of SA involvement in H₂O₂ and NO induced salvianolic acid B accumulation; where the main function of NO is to downstream SA signaling which results in reduced oxidative stress (Alavi et al., 2014). Exogenous application of H₂O₂ and its induction in high light showed different effects on gene expression (Olemiec et al., 2014). It was shown that H₂O₂ could be involved in the signaling of plant growth regulators such as ethephon (Chen et al., 2012). The application of ethephon results in an elevation in H₂O₂ levels, which is accompanied by the increased expression of sweet potato CAT.

H₂O₂ Production in Plant Cells and its Reactivity in Different Cellular Compartments

H₂O₂ is produced in photosynthesizing cells, majorly in peroxisomes (photosynthetic carbon oxidation cycle) and minorly in choroloplast, mitochondria (respiratory electron transport chain) (Figure 1), the endoplasmic reticulum (ER), nucleus and plasma membranes (del Río et al., 2006; Bhattacharjee, 2012). Peroxisomes and chloroplasts may accumulate 30–100 times higher H₂O₂ as compared to mitochondria (Hossain et al., 2015). H₂O₂ production occurs during the oxidative burst when reduction of molecular oxygen (O₂) into superoxide anion ( $O_{2}^{• -}$ ) occurs (Sutherland, 1991). At the cell wall this $O_{2}^{• -}$ undergoes spontaneous dismutation at a higher rate and at an acidic pH. Nicotinamide adenine dinucleotide (NADH) undergoes oxidation to form NAD⁺ by cell wall peroxidase with further reduction of O₂ to $O_{2}^{• -}$ resulting in the production of O₂ and H₂O₂ (Bhattacharjee, 2005). In apoplast, amine oxidase and germin-like oxidase have been proposed to generate H₂O₂ (Bolwell and Wojtaszek, 1997). Cell membrane NADPH-dependent oxidase serves as a H₂O₂ source. H₂O₂ production occurs in the cell via reaction between the oxygen molecules (O₂), forming superoxide anion ( $O_{2}^{• -}$ ). During the stress response O₂ is reduced to $O_{2}^{• -}$ which undergoes spontaneous dismutation (Sutherland, 1991). $O_{2}^{• -}$ is also catalyzed and reduced by superoxide dismutase (SOD) and protein kinase C (PKC) to form H₂O₂ (Scandalios, 1993). SOD enzyme catalyzes $O_{2}^{• -}$ which mainly occurs in cytosol, chloroplast and mitochondria (Scandalios, 1993). Rather than superoxide disproportionation, H₂O₂ is also produced by $O_{2}^{• -}$ reduction by reductants such as ferredoxins, thiols, ascorbate (Asada and Takahashi, 1987). PKC also shows involvement in H₂O₂ production. OH is produced in the reaction of H₂O₂ with Fe²⁺ (Arora et al., 2002). To maintain the balance between H₂O₂-scavenging enzymes and SODs, equilibrium for H₂O₂ concentration in cells should be attained (Mittler et al., 2004).

FIGURE 1

FIGURE 1. Production of hydrogen peroxide (H₂O₂) in plant cells and their reactivity in various cellular components. (A) H₂O₂ production in Chloroplast at the site of PSI and PSII. (B) H₂O₂ production in Peroxisomes. XOD (Xanthine oxidase), GOX (glycolate oxidase). (C) H₂O₂ production in Mitochondria. (D) H₂O₂ production in Apoplast (Figure modified from Jajic et al., 2015).

H₂O₂ production in chloroplasts originates from several locations and occurs mainly in Chl associated with the photosynthetic electron transport chain (PET) which is the primary source of O₂. In chloroplast, molecular oxygen (O₂) uptake is associated with photoreduction of O₂ to superoxide radical ( $O_{2}^{• -}$ ). Singlet oxygen (₁O₂) is produced by energy transfer to triplet oxygen (₃O₂) in photosystem II (PSII). Photosystem II excitation results in the oxidation of water (H₂O) to O₂ (Figure 1A). The reductant formed by this process donates electrons (e^–) to plastoquinone (PQ). These e^– eventually passes through the cytochrome f (Cyt f) complex, plastocyanin (PC), and then to photosystem I (PSI). The PET chain includes a number of enzymes on the reducing (acceptor) side of photo system I (PSI): Fe–S centers, reduced thioredoxin (TRX), and ferredoxin. When ferredoxin (Fd) is over reduced during photosynthesis electron transfer, electron may be transferred from photosystem I (PSI) to O₂ to form $O_{2}^{• -}$ by the process called Mehler reaction. The $O_{2}^{• -}$ formed then undergoes dismutation to hydrogen peroxide (H₂O₂) either spontaneously or facilitated by SOD (Figure 1A).

In plants, the main function of peroxisome is photorespiration which involves O₂ uptake (light-mediated) and the emission of CO₂ in simulation with H₂O₂ formation (Dat et al., 2000). H₂O₂ production in peroxisome results from the oxygenase activity of ribulose-1,5-bisphosphate carboxylase/oxygenase (RuBisCO) (Noctor et al., 1999). It is being stated that plants exposed to favorable conditions for oxygenation are more subjected to produce H₂O₂ (Foyer and Noctor, 2000). H₂O₂ is generated during the oxidation of glycolate in the C2 cycle of peroxisomes (Figure 1B). Production of H₂O₂ is attributed to the matrix-localized enzyme, xanthine oxidase (XOD), which catalyses the oxidation of xanthine or hypoxanthine to uric acid, and is a well-known producer of $O_{2}^{• -}$ in the process. This $O_{2}^{• -}$ is then converted into H₂O₂ by Cu, Zn-SOD (Figure 1B) (Corpas et al., 2001). An NAD(P)H-dependent $O_{2}^{• -}$ production site which uses $O_{2}^{• -}$ as an electron acceptor is present in the peroxisomal membrane and it releases the $O_{2}^{• -}$ into the cytosol. This site appears to be formed by a small ETC which is composed of a flavoprotein NADH and Cyt b (del Río et al., 2006).

Two major mitochondrial sites for superoxide radical production in electron transport chain are cytochrome bc1 complex and NAD(P)H dehydrogenases (Moller, 2001). The mitochondrial respiratory electron transport (RET) harbors electrons with sufficient free energy to directly reduce O_2, which is considered as a primary source of H₂O₂ generation (Figure 1C). This direct reduction of O₂ to $O_{2}^{• -}$ takes place in the flavoprotein region of the NADH dehydrogenase segment, which is responsible for the O₂ consumption. During RET, the oxygen radical is markedly enhanced in the presence of antimycin A, which blocks the electron flow after ubiquinone (UQ). Autooxidation of reduced UQ results in the production of $O_{2}^{• -}$ which is a major precursor of H₂O₂ production in UQ location of the RET. Completely reduced UQ donates e^– to cytochrome c (Cyt c) and leaves an unstable, highly reducing semiquinone species, which would normally reduce cytochrome b (Cyt b), which instead reduces the O₂ to $O_{2}^{• -}$ (Figure 1C). This $O_{2}^{• -}$ is further reduced by manganese SOD (Mn-SOD) dismutation to H₂O₂ (Moller, 2001).

Some other sources of H₂O₂ production are plasma membrane, cytoplasm and the extracellular matrix (ECM). There are various enzymes responsible for H₂O₂ production in plasma membrane (Vianello and Macri, 1991). H₂O₂ production in cytoplasm occurs by the electron transport chain which is associated with the ER. This oxidation and hydroxylation process involve cytochrome P450 and cytochrome P450 reductase whereas, fatty acid desaturation involves cytochrome b₅ and cytochrome b₅ reductase, which donate electrons for H₂O₂ formation (Bartosz, 1997; Mittler et al., 2004).

Studies have shown that NADPH oxidase at the plasma membrane in the plant cell is involved in plant defense reactions to pathogen attack (Torres et al., 2002) and in response to various abiotic stresses (Kwak et al., 2003). The NADPH-dependent oxidase system sometimes referred to as rboh (for respiratory burst oxidase homolog), similar to that present in mammalian neutrophils, has received the most attention. It catalyzes the production of $O_{2}^{• -}$ by one-electron reduction of oxygen using NADPH as the electron donor (Desikan et al., 2003; Mahalingam and Federoff, 2003; Apel and Hirt, 2004). The superoxide anion radical is most likely located in the apoplastic space and is converted to H₂O₂ either spontaneously or by extracellular SOD (Karpinska et al., 2001; Bolwell et al., 2002) (Figure 1D). There are other plant species which NADPH oxidase or rboh genes have been cloned (Desikan et al., 2003).

Abscisic Acid and Interaction with H₂O₂

Abscisic acid is one of the crucial phytohormones which play important roles under various environmental cues. It accumulates as a response to stressful environmental conditions such as dehydration, cold temperature or shortened day length. The application of ABA plays fundamental role in different physiological processes and biological pathways such as seed dormancy and delay in germination, development of seeds, promotion of stomatal closure, embryo morphogenesis, synthesis of storage proteins and lipids, leaf senescence and also defense against pathogen (Swamy and Smith, 1999).

It has been reported that the ABA signaling pathway is identified as a central regulator of abiotic stress response in plants, triggering major changes in gene expression and adaptive physiological responses (Figure 2). Recently, MAPK (mitogen activated protein kinase) cascades have also been shown to be implicated in ABA signaling. External ABA treated plants induced the transcriptional regulations, protein accumulation and stability, and kinase activity of several components of distinct MAPK signaling cascades in many plant species. These existing evidences suggest that MAPK cascades are actively involved in several ABA responses, including abiotic stress defense mechanisms and guard cell signaling (Zhang et al., 2007; Jammes et al., 2009; Zong et al., 2009). Rodriguez et al. (2010) reported that the MAPK cascade is activated by the exogenous H₂O₂ which in turn is mediated by the hormones like ABA, Jasmonic acid (JA) and SA.

FIGURE 2

FIGURE 2. Schematic representation of H₂O₂ generation in various intra-and extra cellular sites and its involvement in the various signaling pathways associated with the regulation of defense gene expression in plant cells. ABA is extensively associated with wide range of abiotic stress signals and administers with growth and development processes in plants. In contrast to ABA, other phytohormones such as SA, GA, JA, and ethylene have significant role during biotic stress tolerance in plants. Nevertheless, ABA is an important signaling molecule in H₂O₂ production and activating the MAPK cascade by interacting with other plant hormones.

In plants, MAPK cascades are generally organized pathways in which the upstream activated MAPK kinase kinase (MAPKKK) undergoes the sequential phosphorylation and subsequent activation of downstream MAPK kinases (MAPKKs) and MAPKs. This MAPK cascades translate incoming environmental signals into post-translational modifications of target proteins that ultimately reorganize gene expression and stress adaptation. In Arabidopsis, H₂O₂ activates the MAPKs (MPK3 and MPK6) via the MAPK kinase kinase (MAPKKK) ANP1 (Kovtun et al., 2000). MKP2 is a key regulator of the MPK3 and MPK6 networks that are involved in controlling both abiotic and biotic stress responses (Zhou et al. (2012). Treatment with ABA in Arabidopsis plants induced the transcriptional regulation of MPK3, MPK5, MPK7, MPK18, MPK20, MKK9, MAPKKK1 (ANP1), MAPKKK10 (MEKK3), MAPKKK14, MAPKKK15, MAPKKK16, MAPKKK17, MAPKKK18, MAPKKK19, Raf6, Raf12, and Raf35 (Menges et al., 2008; Wang et al., 2011) signifying a promising role in ABA signaling. Recently, Jammes et al. (2009) used a cell type-specific functional genomics approach and identified that the MAPKs, MPK9 and MPK12 were preferentially expressed in guard cells. It was also reported that MPK12 were activated by ABA and H₂O₂. MPK9 and MPK12 mediate ABA signals in guard cells (Montillet et al., 2013). In Arabidopsis, a T-DNA oxi1 null mutant is impaired in the activation of the two MAPKs, MPK3 and MPK6, upon oxidative stress (Rentel et al., 2004), suggesting that serine/threonine kinase OXI1 functions downstream of ROS but upstream of the MAPK module. H₂O₂ also increases the expression of the Arabidopsis nucleoside diphosphate (NDP) kinase 2 (Moon et al., 2003). H₂O₂ accumulation was reduced by the over expression of At-NDPK2 and enhanced tolerance to multiple stresses, including cold, salt, and oxidative stress. Moreover, the MAPKs, MPK3 and MPK6 are activated by H₂O₂ induced NDPK2. Gechev et al. (2005) identified a transcription factor ANAC42 and reported that it was highly regulated by H₂O₂ which in turn is achieved through OXI1/MPK3 and MPK6 activation (Figure 2). Interestingly, ANAC42 plays a role in senescence and H₂O₂ induced PCD (Fujii, 2014). Also, the MAPKKK can interact directly with WRKY53, a transcription factor that involved in senescence induced PCD (Figure 2), thus bypassing the downstream kinases (Miao et al., 2006). Nevertheless, it is clear from the past reports that MPK3 and MPK6 are two important integrating points of signals from cellular developmental programs and the external environment changes (Wang et al., 2008). Even though most of the connections between ABA and MAPKs are poorly understood, it is evident that these pathways are part of the complex cellular signaling network of plants to integrate various environmental signals (Danquah et al., 2014).

One of the most important functions of ABA is to induce stomatal closure by reducing the turgor of guard cells under water deficit. There is evidence that H₂O₂ may function as an intermediate in ABA signaling in Vicia faba guard cells (Pei et al., 2000). There are reports which suggest that H₂O₂ is one of the major ROS and plays an important role as a second messenger in ABA induced stomatal closure (Pei et al., 2000; Miao et al., 2006). While ABA induced the synthesis of H₂O₂ and superoxide under stressful condition and caused oxidative stress (Guan et al., 2000). However, ABA is a natural growth regulator which accumulates in plants under plant stress conditions (Zheng et al., 2010). Results of (Zhang et al., 2001) provide evidence for H₂O₂ involvement in ABA induced stomatal movement in V. faba. Major findings of this study showed stomatal closure by exogenous application of H₂O₂ with ABA whereas, reverse action of H₂O₂ generation by scavenging its activity results in reduced stomatal closure (Guan et al., 2000). Overproduction of ABA induces H₂O₂ accumulation which enhances the stomatal closure by activating plasma membrane calcium channels (Pei et al., 2000). Plasma membrane-located NADPH oxidases Atrboh D and Atrboh F were found to be required for ABA-induced stomatal ROS production (Kwak et al., 2003). It has been reported that during oxidative burst, NADPH oxidase can trigger Ca²⁺, and mitogen-activated protein kinase (MAPK) signaling pathways as well as suppress the hormone signal transfer routes such as SA, JA, and ethylene (Overmyer et al., 2003; Evans et al., 2005) (Figure 2). Abiotic stress condition enhances ABA/gibberellic acid (GA) ratio supporting DELLA protein accumulation which in turn lowers H₂O₂ levels (Considine and Foyer, 2014). In rice seeds, ABA decreased ROS production, which leads to a repression of ascorbate and GA accumulation (Ye et al., 2012). It was also reported that H₂O₂ is involved in GA/ABA signaling in barley aleurone cells (Ishibashi et al., 2012). Calcium and calmodulin (CaM)-dependent protein kinase (CCaMK) belongs to calcium/CaM-dependent protein kinase superfamily (Harmon et al., 2000); activation by free Ca²⁺ and Ca²⁺ bound to CaM has been indicated to be involved in ABA signaling during abiotic stress responses (Yang et al., 2011) and ABA-induced antioxidant defense by functioning upstream of ABA-activated MAPK (Shi et al., 2014).

These available pieces of evidence clearly indicate that the ABA is a key hormone in inducing abiotic stress responses. Downstream events mediated by MAPK cascade, alterations in Ca²⁺ fluxes and the activation of ion channels changes the redox state of the cell. All these actions lead to transcriptional reprogramming, which results in target gene expression such as cell death specific nucleases and proteases, and eventually PCD (Figure 2). Most of the genes (NADPH oxidases, SOD and extracellular peroxidases) expressed in the early signals are involved in the ROS generation, essential for triggering PCD. While other genes are responsible for maintaining ROS levels (CAT and APXs) (Gadjev et al., 2008) (Figure 2).

Calcium and Interaction with H₂O₂

Calcium (Ca²⁺) is important for robust cell wall formation. It is also crucial for the root system and in young, growing cells. Alteration in Ca²⁺ level is observed under shifting environmental conditions, including changes in light, temperature, and drought (Mahajan and Tuteja, 2005). Ca²⁺ is significant for cross-linking acidic pectin residues and permeability of the plasma membrane. As a secondary messenger, Ca²⁺ concentration is balanced by storing it in vacuoles and is released whenever necessary (Mahajan and Tuteja, 2005). It is indispensable for all important signaling pathways. Plant signaling network has the capability to alter its functioning under various environmental challenges. The plant cell primary response under stress condition is a modification in plasma membrane permeability leading to calcium and proton influx that appears to be necessary and sufficient for the induction of H₂O₂ (Pei et al., 2000). Plant metabolism involves various Ca²⁺/CaM proteins having different functions out of which some are involved in H₂O₂ signaling such as NAD kinase (Harding et al., 1997). CAT is also important for H₂O₂ regulation and its deficiency can lead to H₂O₂ accumulation (Gechev et al., 2004). H₂O₂ and Ca²⁺ interrelation study has been shown by Yang and Poovaiah (2002) in Arabidopsis. Another study on Arabidopsis seedlings suggests the role of H₂O₂ in biphasic Ca²⁺ elevation, with the first peak located in cotyledons and the second in the root (Rentel and Knight, 2004). The antioxidant system may also be considered as a target of Ca²⁺ influence, for example, the efficiency of H₂O₂ scavenging in Arabidopsis plants depends on the peroxisomal Ca²⁺ concentration (Costa et al., 2010).

Continuous Ca²⁺ invasion is most importantly required for H₂O₂ accumulation which also activates NADPH oxidase located in the plasma membrane (Lamb and Dixon, 1997). There is another study suggesting the role of biphasic (Ca²⁺) and H₂O₂ in aequorin tobacco cell culture’s expression (Lecourieux et al., 2002). Pollen tube growth has been enhanced by H₂O₂ regulated spermidine oxidase, which also induces Ca²⁺ channel (Wu et al., 2010). H₂O₂ involvements in Ca²⁺ influx via Ca²⁺ permeable channel and partial stomatal closure were observed in the study (Pei et al., 2000). Significant induction in nuclear and cytosolic Ca²⁺ level by free sphingoid Long Chain Base (LCB) sphinganine has been observed in simulation with decreased accumulation of H₂O₂ in tobacco cells (Lachaud et al., 2011). Later studies have revealed that CAT can scavenge H₂O₂ production which is likely mediated by Ca²⁺ homeostasis in Arabidopsis (Suzuki et al., 2011). In this case, cytoplasmic Ca²⁺ was shown to bind to rboh at the N-terminal region and thus to promote the activation of rboh and produce H₂O₂ (Takeda et al., 2008). H₂O₂ mediated rapid gene expression (LeCDPK1) in tomato leaves has been observed (Chico et al., 2002) whereas, H₂O₂ treatment in wheat plant also leads to enhanced responsiveness in eight out of 20 studied calcium-dependent protein kinase (CDPKs) (Li et al., 2008). Induction in gene expression (GST1) by Ca²⁺response in association with H₂O₂ may be due to changes in redox balance (Rentel and Knight, 2004).

Nitric Oxide and Interaction with H₂O₂

Increasing evidence based on experiments has shown a vital role of NO in protecting plants against stress conditions (Wink et al., 1993). It is generated in higher plants through oxidative (arginine or hydroxylamine-dependent) and reductive (nitrate-dependent) pathways (Gupta et al., 2011). NO being part of various physiological processes in plant system makes it one of the major signaling molecules. Initially NO was considered to be a toxic gas. However, this idea changed after the discovery of the signaling role of NO in regulating the cardiovascular system (Skovgaarda et al., 2005). One of the major areas in the study of NO is its involvement in coordinating several defense responses during both biotic and abiotic stress conditions in the plants. In the past 2 decades, much focus was given to NO related studies toward its role in plant defense system under oxidative stress. Studies on adaptive mechanisms of plants have shown an increased basal level of NO in water and heat stressed plants, suggesting its importance in abating stress (Leshem and Haramaty, 1996; Leshem et al., 1998). The defensive mechanism of NO in plants under oxidative stress is associated with its ability to function as an antioxidant by directly scavenging the ROS, thus reducing cellular damage (Romero-puertas and Sandalio, 2016) and acting as a signaling molecule which eventually results in changes in gene expression (Lamattina et al., 2003).

A study focused on H₂O₂ generation in simultaneous correlation with NO production was shown during the hypersensitive response (HR) in which both cooperates to trigger hypersensitive cell death (Delledonne et al., 2001). The function of NO is tightly linked to ROS and it has a half-life of only a few seconds, once produced, interacts rapidly with ROS, giving rise to a number of reactive nitrogen species, such as nitrogen dioxide (NO₂), which degrades to nitrite and nitrate in aqueous solutions (Neill et al., 2008; Bellin et al., 2013). There were studies showing involvement of both NO and H₂O₂ in bacterially induced PCD in soybean where both signals work synergistically (Delledonne et al., 1998) and in Arabidopsis they work as additive (Clarke et al., 2000). H₂O₂ formation may occur via superoxide radical ( $O_{2}^{• -}$ ). There is a probability that NO reacts with $O_{2}^{• -}$ to form highly reactive peroxynitrite anion ONOO- and subsequent cellular effects may then be induced by peroxynitrite (Bellin et al., 2013).

In mammals, NO has been shown to react with glutathione to form S-nitrosoglutathione (GSNO) which serves as a systemic source of NO and a similar situation has been suggested for plants (Durner and Klessig, 1999). It is clear that both H₂O₂ and NO can mediate transcription, but the involved processes remain unclear. There is a possibility of both H₂O₂ and NO having a direct effect on transcription factors by S-nitrosylation and oxidation of cysteine. A recent study suggests characterization of redox-sensitive factor in yeast where H₂O₂ oxidation alters the activity of this protein (Delaunay et al., 2000). Phosphorylation of cascade such as the mitogen-activated protein kinases (MAPK) is suggested to play another important role on H₂O₂ and NO. There is another study on tobacco Bright Yellow-2 (TBY-2) cells, suggesting an involvement of both H₂O₂ and NO in the activation of PCD, and treatment of scavenger for both the signaling molecules restores the cell viability (De Pinto et al., 2006).

In a new study, the cloning of rice NOE1, a gene whose knockout enhances NO production, revealed that this is indeed the rice CAT OsCATC (Lin et al., 2011). Increase in leaf H₂O₂ content leads to a characterization of mutant NOE1 which in turn leads to nitrate reductase (NR) dependent NO production. Increased H₂O₂ concentrations provoked by ABA may in turn trigger NO generation by NR and nitrogen oxide synthase (NOS)-like enzymes (Neill et al., 2008). NO accumulation under abiotic stress is similar to the events seen in H₂O₂ production (Wang et al., 2014). In Arabidopsis, both H₂O₂ and NO showed similar function which influences the induction and reduction in root growth stimulated by various concentrations of nucleotides (Clark et al., 2010). He et al. (2013) reported that NO and H₂O₂ are also involved in the stimulation of stomatal closure in Arabidopsis in response to ultraviolet-B exposure. Exclusion of H₂O₂ with antioxidants or inhibition of its synthesis by inhibiting NADPH oxidase activity prevents NO generation and stomatal closure. Wang et al. indicated the idea that H₂O₂-induced synthesis of NO might be mediated by MPK6 in Arabidopsis (Wang et al., 2010).

Salicylic Acid and Interaction with H₂O₂

Salicylic acid is one of the key phytohormones involved in both abiotic (Kunihiro et al., 2011; Drzewiecka et al., 2012; Liu et al., 2012) and biotic (Vlot et al., 2008; Dempsey et al., 2011) stress adaptation. The discovery of the salicylate role in thermotolerance during potato tissue culture research was mere coincidence. Inclusion of the artificial SA analog acetyl salicylic acid (ASA) in the culture medium of microplants of potato (Solanum tuberosum L.) causes potentially useful effects such as tuberization. It has been shown to play a central role as a signaling molecule involved in both local defense reactions and in the induction of systemic resistance (Durner and Klessig, 1999; Herrera-Vásquez et al., 2015). Another important aspect is gene regulation of antifungal hydrolases by SA, such as pathogenesis-related (PR) encoding PR1 and PR proteins which target to the plant cell wall (Durner and Klessig, 1999). Reduced synthesis of SA in transgenic plants due to disruption of SA pathways results in vulnerability toward fungal (Phytophtora parasitica, Cercospora nicotianae), bacterial (Pseudomonas syringae), and viral (tobacco mosaic virus) pathogens (Delaney et al., 1994).

There are various reports suggesting involvement of SA in various biotic and abiotic stresses (Wan et al., 2012; Miura and Tada, 2014; Herrera-Vásquez et al., 2015). Various environmental factors such as temperature, salinity, drought and high light exposure are responsible for ROS generation in cell organelles (peroxisomes, chloroplast) (Apel and Hirt, 2004; Holuigue et al., 2007). SA can be directly or indirectly involved in signaling pathways and interplays with ROS and GSH in stressed plants (Mateo et al., 2006; Lee and Park, 2010; Herrera-Vásquez et al., 2015). Under drought stress, increased level of SA has been observed in oat plants (Sánchez-Martín et al., 2015), whereas another study also stated the same condition in peroxisome and chloroplast for the gene cat2 knockout (Chaouch et al., 2010) and thylakoidal ascorbate PRX gene silencing (Maruta et al., 2012; Noshi et al., 2012), respectively. H₂O₂ stimulated PCD, SA accumulation and sesquiterpene production in cultured cell suspensions of Aquilaria sinensis (Liu et al., 2014). H₂O₂ production induced SA up-regulated the mRNA transcription of heat shock protein (Hsp) genes through AtHsfA2, a key component of acquiring thermotolerance in Arabidopsis (Nie et al., 2015).

Salicylic acid and H₂O₂ interrelation is suggested by Leon, since the pathway involved benzoic acid (the immediate precursor of SA) leads to activation of benzoic acid 2-hydroxylase which is H₂O₂ dependent (León et al., 1995). Relative pathway of this case suggest that H₂O₂ production in cell organelles (peroxisome and chloroplast) induces SA synthesis, and leads to protective mechanism such as stomatal closure and cell death. Salicylate can increase H₂O₂ levels in plant tissues (Rao et al., 1997; Dat et al., 1998), on the contrary SA accumulation can be induced by elevated H₂O₂ levels (Chamnongpol et al., 1998). The germination of sid2 seeds under high salinity is hypersensitive to H₂O₂, but the physiological concentrations of SA modulate antioxidant activity to prevent oxidative damage (Lee et al., 2010). There is another study suggesting exogenous application of SA relieves Cd toxicity by reducing the H₂O₂ accumulation in root apoplasts of the legumes Phaseolus aureus and Vicia sativa (Zhang et al., 2011).

The HR to pathogens exhibits an early ‘oxidative burst’ of superoxide which rapidly dismutates to H₂O₂. This mechanism involves key interactive roles for SA and H₂O₂, as the HR was impaired in tobacco plants with an H₂O₂-inducible SA-hydroxylase transgene (Mur et al., 1997). It is considered that mammalian plasma membrane NADPH oxidase is a homolog of oxidative stress enzyme (Keller et al., 1998) and it may be that this enzyme is potentiated by SA (Kauss and Jeblick, 1996). Increased accumulation of SA and enhancement in H₂O₂ concentration in simultaneous pathogenesis gene induction were observed in GR1 dependent glutathione (Mhamdi et al., 2010).

Ascorbic Acid and Interaction with H₂O₂

Ascorbic acid (AsA) is a critical water soluble phytohormone found in plant and animals (Levine, 1986; Sies and Stahl, 1995). It acts as a signal for plant growth and development, and regulates cell division, growth and signal transduction (Kerk and Feldman, 1995; Smirnoff and Wheeler, 2000). In the mitochondria plants synthesize AsA which is then transported to other parts of the plants (Shao et al., 2008). There can be a direct or indirect reaction of H₂O₂ with AsA, which is catalyzed by APX. APX is responsible for scavenging H₂O₂ hyperaccumulation found in higher plants (cytosol, chloroplast and mitochondria) (Mittler and Zilinskas, 1991).

H₂O₂ detoxification can be done by various antioxidants in peroxisomes such as CAT in the matrix, APX and monodehydroascorbate reductase (MDAR) in association with AsA, resulting in a decrease in the accumulation of H₂O₂ (Yamaguchi et al., 1995; Karyotou and Donaldson, 2005). In the chloroplast stroma, where the pH is higher during the day time, there is a consequence of AsA consumption during H₂O₂ reduction. A rate limiting amount of dehydroascorbate reductase (DHAR) efficiently catalyzes the recycling of AsA. The signaling function of H₂O₂ in guard cells is controlled by the rate of its production and the rate of its removal, in which AsA and DHAR play a critical role. The slower responsiveness of guard cells of DHAR over expressing tobacco allows more ozone to diffuse into the leaf interior (Chen and Gallie, 2004). However, the increase of AsA content in all cells and consequent increase in their ability to detoxify entered ozone, reduce the oxidative load of the leaf (i.e., lower levels of foliar and apoplectic H₂O₂). From past reports, it is clear that the oxidative stress induced ROS level increases monodehydroascorbate (MDA) accumulation which is being converted into L-ascorbate (AsA) and dehydroascorbate (DHA) (Figure 3A). The accumulated H₂O₂ is reduced to H₂O by oxidation of AsA to MDA radical, which is catalyzed by APX. The MDHA is subsequently reduced back to AsA by either ferredoxin reduction or NAD(P)H catalyzed monodehydroascorbate reductase (MDHAR) (Sano et al., 2005). In GPX cycle, similar to APX, GPX uses GSH as a reducing agent to detoxify H₂O₂ to H₂O. In addition to GPX, the organellar redox state is regulated by different enzymatic antioxidants like GR, MDHAR in addition to GPX. Disproportionation in L-ascorbate and MDHA is maintained by GSH (Venkatesh and Park, 2014) (Figure 3A).

FIGURE 3

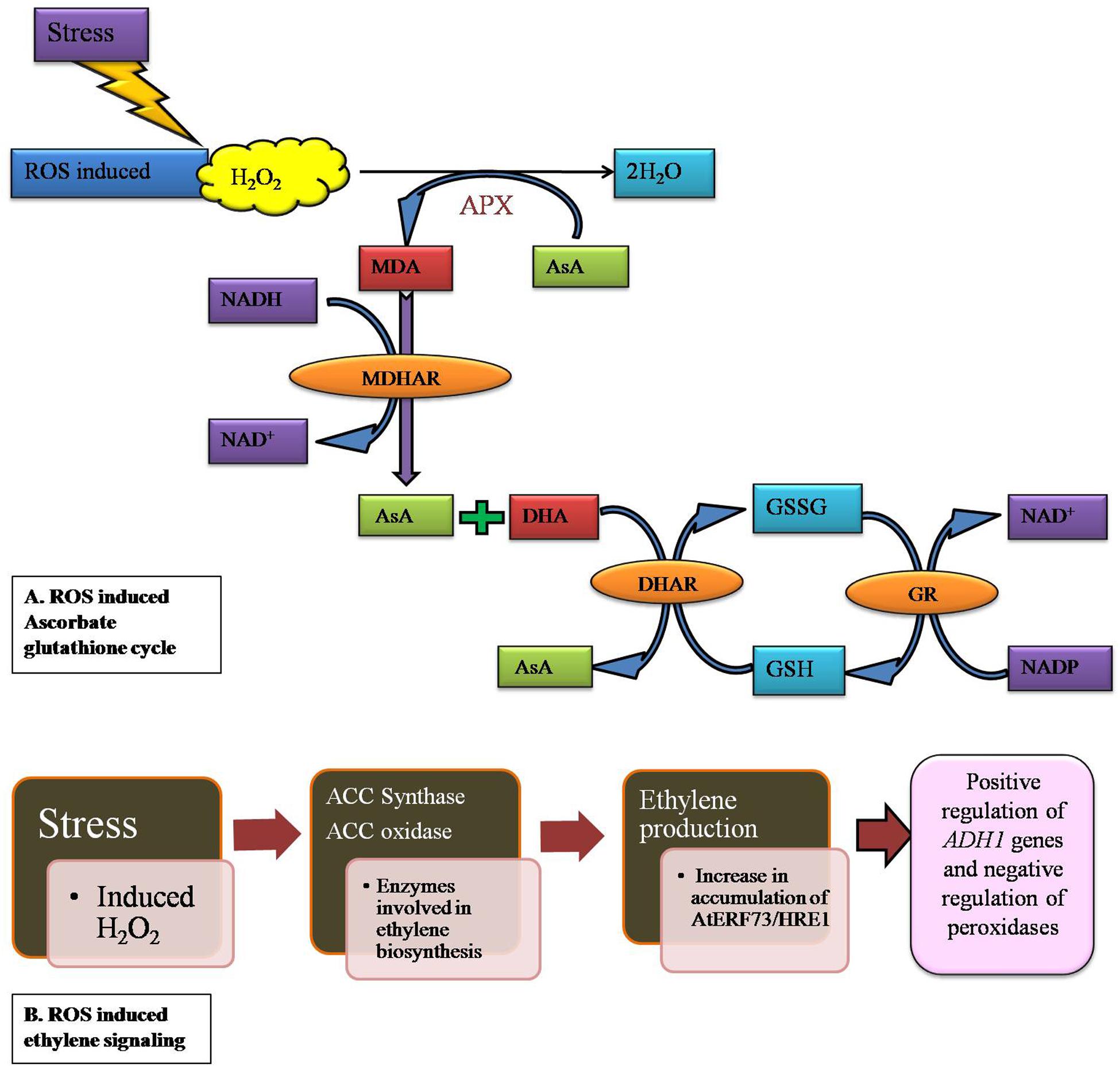

FIGURE 3. H₂O₂ induced antioxidant mechanism in plants which involved in detoxification process. (A) Plants synthesize ascorbic acid in the mitochondria and transported to other parts of the plants. Ascorbate peroxidase (APX) uses AsA as a substrate to reduce H₂O₂ to H₂O in the ascorbate-glutathione cycle and generate mono dehydroascorbate (MHA), which further dissociate to AsA and dehydroascorbate (DHA). (B) Ethylene responsiveness in gene induction upon H₂O₂ accumulation in plant cells. Enzymes which involved in ethylene production activate an ethylene responsive group (AtERF73/HRE1). These genes are involved in negative regulation of peroxidases which in turn reduces H₂O₂ accumulation_.

Jasmonate and Interaction with H₂O₂

Phytohormones act as a major factor responsible for plant growth and development. Oxylipin is considered to be one of the most important signaling molecules, i.e., plant hormone JA. Due to the unique physiological properties and abundance, jasmonate and its derivate (methyl jasmonate) came into the limelight as bioactive in nature. Chloroplast membrane is considered to be the initial site for JA synthesis where membrane phospholipids acts as a source for alfa-linolenic acid (C18:3) and hexadecatrienoic acid (C16:3) production (Ishiguro et al., 2001). Major pathway for JA synthesis in plants is supposed to be an octadecanoid pathway with the involvement of alfa-linolenic acid as a substrate (Mueller et al., 1993).

The defensive mechanism of JA has been observed in tomato against tobacco hornworm larvae (Howe et al., 1996) whereas in Arabidopsis against the fly Bradysia (McConn et al., 1997). There are studies confirming the role of JA as protective agent against pathogen (Pythium mastophorum) attack in Arabidopsis (Vijayan et al., 1998). Hu et al. (2003), came across with the result that both H₂O₂ and JA are primary signaling molecules during the cellular response involved in saponin biosynthesis mediated by oligogalacturonic acid (OGA) which also leads to the H₂O₂ mediated upregulation of JA. JA derivate (methyl jasmonate) has also been studied for its involvement in the induction of H₂O₂ accumulation in parsley suspension-cultured cells (Kauss et al., 1994), whereas another study suggested its role in inducing defensive genes of tomato (Orozco-Cardenas et al., 2001).

Jasmonic acid induces glutathione, an important antioxidant for redox balance. Increased expression of nuclear factor erythroid 2-related factor 2 (NrF2) has also been observed, which reduces the ROS level induced by H₂O₂ (Taki-Nakano et al., 2014). In association with this study, increased expression of glutamyl cysteine ligase with an increase in NrF2 helps in regulating enzymes reducing oxidative stress (Bea et al., 2003).

Ethylene and Interaction with H₂O₂

Ethylene has long been regarded as a stress hormone (Morgan and Drew, 1997). It is not only involved in plant growth and development, but also involved in plant responses to biotic stress, such as pathogen attack; and abiotic stress, such as wounding, ozone, and salinity (Abeles et al., 1992; Wang et al., 2009). Ethylene regulates many different processes in plants and has shown response in defense mechanism as well (Ecker, 1995). In order to evaluate the defensive role of ethylene against various environmental conditions signal transduction pathways for ethylene has been studied with mutants.

The roles of ethylene have been established in damage control caused by virulent bacteria or fungal pathogens when it is being inoculated (Bent et al., 1992; Lund et al., 1998) but its importance against avirulent bacteria infected plants has yet to be proven (Bent et al., 1992). The most important signaling molecules in the ethylene pathway are ETR1 and EIN2 (Buer et al., 2006). Change in gene expression of the ethylene receptor (ETR1) results in reduced ethylene response (O’Malley et al., 2005).

Environmental stress affects many signaling pathways in plants which also includes an alternative pathway (AP). Despite slight evidence about H₂O₂ and ethylene playing roles in inducing AP, there is no clear picture of how these signaling molecules are inducing the AP under various environmental conditions. Results of Wang et al. (2010) showed the possibility of involvement of H₂O₂ and ethylene mediated induction of AP under salt stress as it shows activity in wild-type callus whereas no activity was observed with ETR1-3 callus. In recent years, an increasing number of positive results on ethylene toward mutants in Arabidopsis have confirmed its role in signaling pathways (Guo and Ecker, 2004). In another study H₂O₂ accumulation in simultaneous production of ethylene has been observed in tobacco plant stressed with ozone (Schraudner et al., 1998). In plants, oxygen-deficient conditions shifts energy metabolism from aerobic to anaerobic, which in turn adversely affects nutrient and water uptake. Eventually, hypoxiasignalling triggers the production of both hydrogen peroxide (H₂O₂) and ethylene. H₂O₂ and ethylene interplay has an effect on AtERF73/HRE1 and ADH1 expression during the early stages of hypoxia signaling in Arabidopsis. Hypoxia signaling induces the ethylene biosynthesis enzymes such as ACC synthase (ACS) and ACC oxidase (ACO) (Peng et al., 2005) (Figure 3B). Arabidopsis AtERF73/HRE1 is very similar to the rice Sub1A and SNORKEL genes, which belongs to the group VII ERF (ethylene responsive factor) subfamily. They play major roles in the submergence tolerance of lowland and deepwater rice (Hattori et al., 2009). According to Yang (2014), AtERF73/HRE1 positively regulates ADH1 genes as well as negatively regulates peroxidase and cytochrome P450 genes in hypoxia signaling (Figure 3B).

Conclusion

Increasing urge to identify the role of hydrogen peroxide as a signaling molecule has gathered the interest of researchers to focus their work on the mechanisms regulating the generation of hydrogen peroxide, and this is certainly an important growing area of research. Significant scientific effort in the last 10 years has determined the position of H₂O₂ in signal transduction networks in plants, demonstrating that it is essential for both the communication between external biotic and abiotic stimuli, and the control of developmentally regulated processes. There are many signaling pathways for H₂O₂ mediated stress and defense responses that have been studied, but it remains a large scope of additional research unexplored, which can further clarify the mechanism involved in these pathways. The focus should be imposed on a clear description of roles of endogenous compounds which modify the plant responses. It has been reported that the phytohormones like ABA, SA, JA, GA, and ethylene regulates the protective responses in plants under abiotic stress by involving in different H₂O₂ induced signaling. Despite of its regular activities in plant growth and development, ABA plays crucial role in H₂O₂ mediated stress cues. Zhang et al. (2007) indicated that ABA-induced H₂O₂ production mediates NO generation, which in turn, activates MAPK cascade and results in the over expression and up regulation in of antioxidant enzyme activities in ABA signaling. However, there are some contradictory roles of NO. According to Orozco-Cárdenas and Ryan (2002), NO has been shown to negatively modulate wound signaling in tomato plant blocking H₂O₂ production and proteinase inhibitor synthesis by JA, contradicting with previous study in which NO has been considered to show positive response in abiotic stress. Nevertheless, there are many studies suggesting H₂O₂ response in association with NO generation under biotic/abiotic stress (Delledonne et al., 2001; Romero-puertas and Sandalio, 2016).

Due to different results suggesting various roles of H₂O₂, it is important to focus future studies in getting a clear picture of signaling pathways during stress response in various conditions. Interactions between different signaling molecules and their biological functioning with the involvement in various pathways still needs to be cataloged. Another important aspect that should be focused on is the role and localization of enzymes, which are involved in signaling pathways. Some important factors for future research should be the identification of the site for H₂O₂ production in the cell and the major factors influencing its interaction with other signaling molecules.

Author Contributions

ZC initiated the project. SS produced the figures. IS, SS, and ZC wrote the manuscript. SS and ZC revised the manuscript.

Funding

MOE NTU Tier 1 Research Grant (RP 1/14 CZ) and NIE AcRF Research Grant (RI 3/13 CZ).

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
