- Department of Zoology, Acharya Narendra Dev College, University of Delhi, New Delhi, India
Introduction: Aedes aegypti, the vector of multiple arboviral diseases, is a prime health concern worldwide. The surge in Aedes-borne diseases emphasizes the urgent need for efficient vector control measures. Synthetic pesticides used traditionally, however, present environmental concerns and issues like resistance development, causing the use of higher chemical doses. Hence, alternate interventions like the use of insect growth regulators (diflubenzuron; DFB) show promise because of their unique mechanism of action and environmental safety. Nevertheless, mosquitoes have the potential to develop resistance to any chemical. Thus, the present study investigates the use of DFB in combination with verapamil (DFB-V; 1:10) as a possible mosquito intervention measure.
Methods: The effects of both DFB and DFB-V were assessed on the larval development, adult emergence and expression of detoxification enzymes, non-specific esterases, glutathione S-transferase (GST), acetylcholinesterase (AChE), and monooxygenases in laboratory-reared (AND-Ae. aegypti) and wild-caught (GVD-Ae. aegypti) strains of Ae. aegypti. The effects on the survival of non-target organisms were also investigated.
Results: The investigations showed that DFB-V treatment of the Ae. aegypti fourth instars caused a 1.16–1.37 fold higher adult emergence suppression than DFB alone, reducing the IE50 values. The DFB treatment increased β-esterases, AChE, and monooxygenases but reduced the GST and α-esterase levels. The effects enhanced with the use of DFB-V, causing a significant decrease in α-esterase (7.7-fold) and an increase in monooxygenases (7.8-fold) (p < 0.05) in AND-Ae. aegypti compared to the wild-caught strain. The variation in enzyme levels in the two strains may be due to the stress caused by insecticides of different chemical natures used in the fields. No negative effects were observed on the non-target organisms—Gambusia affinis, Mesocyclops thermocyclopoides, and Paramecium tetraurelia.
Conclusion: The studies showed the growth regulatory efficacy of DFB and probable role of GST and α-esterases in increasing the effects of DFB when synergized with verapamil. Further, the DFB-V combination did not result in any significant negative effects on the non-target organisms ascertaining its safe use. This is the first report unraveling the effects of the DFB–verapamil combination on the defense mechanism of Ae. aegypti. Further studies may assist in developing focused and eco-safe plans for managing Ae. aegypti populations effectively.
1 Introduction
Aedes aegypti is a cosmopolitan vector transmitting various human arboviral diseases such as dengue, Zika, chikungunya, and yellow fever. Though prevalent worldwide, it is predominant in tropical and subtropical regions, situated between 35°N and 35°S latitudes, because of the favorable climatic conditions of temperature and humidity. Over recent decades, Aedes-borne diseases have increased, accounting for severe health hazards and loss of human lives. Among these, dengue fever is the most rapidly spreading illness, spanning a geographic range of Southeast Asia to the United States and Western Pacific nations. As per reports, roughly 70% of the dengue cases have been reported from Asia, presumably because of the favorable climatic conditions (WHO, 2024). The lack of operative vaccines and effective medications against Aedes-borne illnesses, except for yellow fever, has made the situation grave. Hence, the only tactic to alleviate these illnesses is managing the Ae. aegypti population below the threshold limits by employing various intervention measures in and around human settlements.
The mosquito population has been habitually tackled by eliminating breeding sites, avoiding human-mosquito contact by use of mosquito repellents, and killing various stages of their life cycle via employment of synthetic chemicals in the form of spray, dust, mosquito coils, etc. (Bharati and Saha, 2018). However, the extensive and intermittent usage of these chemicals and the favorable selection of more resilient individuals in natural field populations have resulted in the development of resistance in mosquitoes, aggravating the associated issues (Kumar et al., 2002; 2004; Borase et al., 2013). Apart from these, the harmful effects of these chemicals on the environment and human health have diverted the attention of health workers and vector control programmers towards alternative and relatively safer insecticides. Among these insecticides, insect growth regulators (IGRs), the fourth-generation insecticides, are considered a viable and sustainable option to be used against mosquitoes. They impede the growth and development of insects and reduce reproductive fitness by either inhibiting the synthesis of cuticular or peritrophic matrix chitin or interfering with the endocrine functions in the insects (Doucet and Retnakaran, 2012). Furthermore, these compounds are deemed safe for the environment due to their specificity to the target organisms, posing minimal risks to non-target and beneficial biota (Zibadee et al., 2011).
Diflubenzuron (DFB), also known as dimilin, is a benzoylphenyl urea chitin synthesis inhibitor that obstructs the growth and development of insects. It is a commonly used mosquito larvicide that has been approved by the World Health Organisation due to its efficacy and environmental safety (Sankar and Kumar, 2023). The permitted use of DFB in drinking water at the recommended dosage of ≤0.25 mg/L has resulted in its frequent use in mosquito management programs. Various studies have demonstrated the control potential of diflubenzuron against different species of mosquitoes. These studies have shown that DFB caused effective inhibition of ecdysis in Aedes sp. larvae with residual activity (Chen et al., 2008), suppression of the Culex pipiens population (Pešić et al., 2022), and successful prevention of the Anopheles and Culex larval emergence leading to ∼80% reduction in larval density (Eltahir et al., 2018).
Nonetheless, mosquitoes possess the capability to develop resistance to different xenobiotics through various mechanisms, such as reduced cuticular penetration of insecticide, increased levels of detoxifying enzymes, and target-site insensitivity (Yao et al., 2017; Karunaratne et al., 2018). The development of DFB resistance has been recognized in Cx. pipiens through a variety of mechanisms, evidenced by changes in cuticle thickness, chitin content, and chitin-synthase 1 gene overexpression in the resistant strains (Belinato and Valle, 2015; Porretta et al., 2019; Guz et al., 2020; Lucchesi et al., 2022). In Italy, Cx. pipiens strain developed 32.5-fold DFB resistance after 2 years of intensive application, which increased dramatically to 128-fold after another year of application (Grigoraki et al., 2017). The studies revealed the occurrence of I1043M and I1043L mutations in the chitin synthase gene of the resistant population. In addition, the biochemical detoxification of toxins is one of the most significant and rapidly developed mechanisms to provide immunity in insects (Enayati et al., 2005). A few studies have also indicated the possible role of ATP-binding cassette (ABC) transporters in imparting diflubenzuron resistance (Porretta et al., 2008). It has been shown that efflux transporter, P-glycoproteins (P-gps), actively transport toxic molecules out of the cells, reducing the concentrations that reach the target and thus leading to resistance (Epis et al., 2014). One of the inhibitors of P-gp transporters, verapamil, is regarded as a DFB synergist with the potential to reduce the development of DFB resistance in insects (Kang et al., 2016).
Our preliminary studies have shown the considerable efficacy of the diflubenzuron-verapamil combination (DFB-V; 1:10) in enhancing the effects of DFB. The present study aimed to evaluate the effect of diflubenzuron and a diflubenzuron-verapamil combination (1:10) on the adult emergence, total proteins, and levels of detoxification enzymes of early fourth instar larvae of two strains of Ae. aegypti; laboratory-reared insecticide-susceptible (AND-Ae. aegypti) and wild-caught (GVD-Ae. aegypti). The inhibition of adult emergence and titers of different enzymes, glutathione-S transferase, acetylcholinesterase (AChE), non-specific esterases (α and β), and CYP450 monooxygenases, were determined in both the strains after treatments. Along with these, the effects of DFB and DFB-V were also assessed on the non-target organisms: Gambusia affinis, Mesocyclops thermocyclopoides, and Paramecium tetraurelia. These studies ascertain the possible use of verapamil with DFB as a synergist and could help devise an environmentally friendly strategy in vector control programs.
2 Materials and methods
2.1 Rearing of mosquitoes
The culture of Ae. aegypti had been maintained in a well-established rearing laboratory at Acharya Narendra Dev College, New Delhi, India. The mosquitoes were reared under controlled conditions of 28°C ± 1°C, 80% ± 5% relative humidity, and a 14:10 L:D photo-regime. The larvae were hatched in dechlorinated water taken in enamel trays (15 in × 15 in) and fed upon a 3:1 (w/w) mixture of dog biscuit and dry yeast powder (Warikoo and Kumar, 2013) for optimal development. Adults were allowed to emerge in the cloth cages containing water-soaked raisins in a Petri dish for feeding (Warikoo and Kumar, 2013). Female adults were provided periodic blood meals from albino rats sourced from the rearing house of the Department of Zoology set up for the purpose. The eggs were gathered on wet Whatman paper strips and hatched in dechlorinated water.
2.2 Chemicals required
The technical-grade diflubenzuron (DFB) with a purity level of 98.0% (CAS No. 35367-38-5) and verapamil with ≥99.0% purity (CAS No. 152-11-4) were obtained from Sigma-Aldrich, India.
2.3 Strains of Ae. aegypti used for investigations
(a) Laboratory-reared insecticide-susceptible strain (AND-Ae. aegypti): The strain was obtained in 2009 from the International Centre for Genetic Engineering and Biotechnology, New Delhi, India, and maintained in the laboratory without the selection pressure of any insecticide.
(b) Govindpuri strain of Ae. aegypti (GVD-Ae. aegypti): Larvae were collected from the fields of the Govindpuri locality of Southeast Delhi, India (28.534°N, 77.265°E) and brought to the laboratory for investigations.
2.4 Adult emergence inhibition studies with diflubenzuron and diflubenzuron-verapamil combination (DFB-V)
The adult emergence inhibition potential of DFB and DFB-V was estimated in accordance with the WHO protocol (WHO, 2005). The combination of DFB–verapamil was prepared in a 1:10 ratio selected after preliminary investigations. The early fourth instar larvae of Ae. aegypti were treated with a series of DFB/DFB-V concentrations ranging from 0.0625 µg/L to 16 µg/L for 24 h in three replicates. In each replicate, a total of 20 larvae were treated with a homogenous mixture of 1 mL of a specific concentration of DFB/DFB-V and 199 mL of distilled water. The surviving larvae were reared to record the adult emergence. Control sets were run simultaneously. The percent inhibition of adult emergence (IE%) was calculated as follows (Equation 1):
where T represents the percentage of adult emergence in treated sets, and C represents the percentage of adult emergence in the control set. The data were subjected to probit mortality-regression analysis by the SPSS 19.0 program, and IE50 dosages of diflubenzuron were computed along with other statistical parameters.
The synergistic potential of verapamil was calculated as per the formula (Equation 2) given below:
2.5 Biochemical characterization of detoxification enzymes
A total of fifty (50) early fourth instars of both the strains of Ae. aegypti were treated with the diflubenzuron alone and synergized DFB (DFB-V) at respective IE50 dosages. Twenty surviving larvae were randomly selected after 24 h of treatment and biochemically characterized for proteins and detoxifying enzymes using the standard WHO methodology (WHO, 1998), with a few modifications (Kona et al., 2018). Concurrent control assays were carried out.
2.5.1 Preparation of larval homogenate
Individually treated larva of each strain was homogenized in 200 µL of ice-cold autoclaved water, using a mini-homogenizer. Each larval homogenate was centrifuged at 4°C for 30 s at 17,000 × g. The supernatant was used to estimate proteins, glutathione S-transferase (GST), CYP450 monooxygenases, and non-specific esterases (α-esterases and β-esterases). The quantification of acetylcholinesterase was performed using the crude homogenate. The assays were conducted in three replicates. Each replicate consisted of 20 larvae, and each replicate was assayed twice.
2.5.2 Total proteins
Protein estimation in larvae of both the strains of Ae. aegypti treated with DFB or DFB-V was carried out using Bradford’s (1976) methodology. The supernatant from each treatment (10 µL) was pipetted into a microtiter plate to which 300 µL of the Bio-Rad protein reagent was added. The homogenate was replaced in blank and standard with water and bovine serum albumin (BSA), respectively. After incubation for 5 min, the plate was read at 570 nm using an ELISA plate reader. The protein standard curve was plotted, and the total proteins in the larva were determined in mg/mL.
2.5.3 GST activity
A mixture of 50 µL of 2 mM GSH (reduced glutathione) and 50 µL of 1 mM CDNB (1-chloro-2,4-dinitrobenzene) was taken in a microtiter plate and supplemented with the 20 µL of the larval homogenate supernatant. The absorbance was measured at 340 nm every minute for continuous 5 minutes (Brogden and Barber, 1990). The enzyme kinetics were computed, and GST activity was calculated as mol/min/mg of protein.
2.5.4 Non-specific esterase titers
10 µL of the homogenate supernatant of Ae. aegypti larvae after each treatment was taken in a microtiter plate and mixed with 200 µL of 3 mM solution of either α-naphthyl acetate or β-naphthyl acetate for respective α-esterase and β-esterase quantification. Subsequent to incubation for 15 min, a volume of 50 µL of freshly made 6.3 mM fast blue stain solution was added to each, which resulted in the color change. The absorbance was recorded at 570 nm (Brogden and Dickinson, 1983), and the esterase activity was calculated as nmol of naphthol/min/mg of protein. The standards for calculating α-esterase and β-esterase activity were run with corresponding α-naphthol or β-naphthol.
2.5.5 CYP450 monooxygenase levels
A 20 µL aliquot of the larval homogenate supernatant was taken in a microtiter plate and mixed with 80 µL of 0.625 M potassium phosphate buffer (pH 7.2). It was then added to 200 µL of a solution that contained one part of 0.25 M sodium acetate buffer (pH 5.0) and three parts of 8 mM methanolic solution of tetramethyl benzidine (TMBZ). Subsequently, 25 µL of 0.88 M hydrogen peroxide was added to it, and absorbance was measured at 650 nm after incubation for 10–15 min at ambient temperature. The monooxygenase activity was expressed as mmol/mg of protein.
2.5.6 Inhibition in AChE activity
Two replicates of 25 µL of the crude larval homogenate, placed in the microtiter plate, were supplemented with 145 µL of 0.017 M Triton X-100 and 10 µL of 0.01 M dithiobis 2-nitrobenzoic acid (DTNB). One replicate was mixed with 25 µL of 0.01 M acetylthiocholine iodide (ASCHI), while the other was supplemented with 25 µL of 0.01 M ASCHI + 0.1 M propoxur (500:1). The absorbance was measured at 405 nm after an incubation period of 1 h (Brogden and Barber, 1987).
The endpoint of the reaction was computed by dividing the AChE+propoxur activity by the AChE alone activity. The percent inhibition of acetylcholinesterase was calculated by the formula [100 − (100% × Endpoint)].
2.5.7 Statistical analysis
The Kolmogorov–Smirnov tests using SPSS 19 software were performed to check the normality of enzyme activities. The data obtained with different treatments were statistically analyzed by ANOVA (single-way variance analysis). Tukey’s all-pairwise multiple comparison test was used to compare the means to determine the statistical significance of data at p < 0.05.
2.6 Effect on non-target organisms
Three non-target organisms, G. affinis, M. thermocyclopoides, and P. tetraurelia, were collected from pond water in the South Delhi region of India. Care was taken to collect the active organisms in good health and of similar size. Each organism was treated with respective IE50 dosages of DFB and DFB-V for 24 h computed against Ae. aegypti fourth instar larvae. The organisms were added to a mixture of 249 mL of water and 1 mL of treatment dosage. G. affinis were treated in groups of 5, while M. thermocyclopoides and P. tetraurelia were treated in groups of 20 each. The effect of treatment was observed on the survival and morphological alteration of each organism. Each assay was carried out in three replicates. The control sets were run in parallel.
3 Results
3.1 Adult emergence inhibition studies
The adult emergence inhibition studies with DFB and DFB-V (1:10) against Ae. aegypti larvae showed dose-dependent efficacy; enhanced effects were obtained with DFB-V (Table 1; Figures 1, 2). Treatment of the Ae. aegypti fourth instars with DFB suppressed the adult emergence by 9.1%–100% with complete suppression at 16.0 µg/L, while DFB-V could inhibit the emergence completely at 8.0 µg/L. The DFB-V caused 1.16 and 1.37-fold higher suppression in laboratory-reared and wild-caught strains, respectively, than only DFB.
Table 1. Inhibition of adult emergence from the early fourth instar larvae of Aedes aegypti treated with diflubenzuron and diflubenzuron–verapamil (1:10).

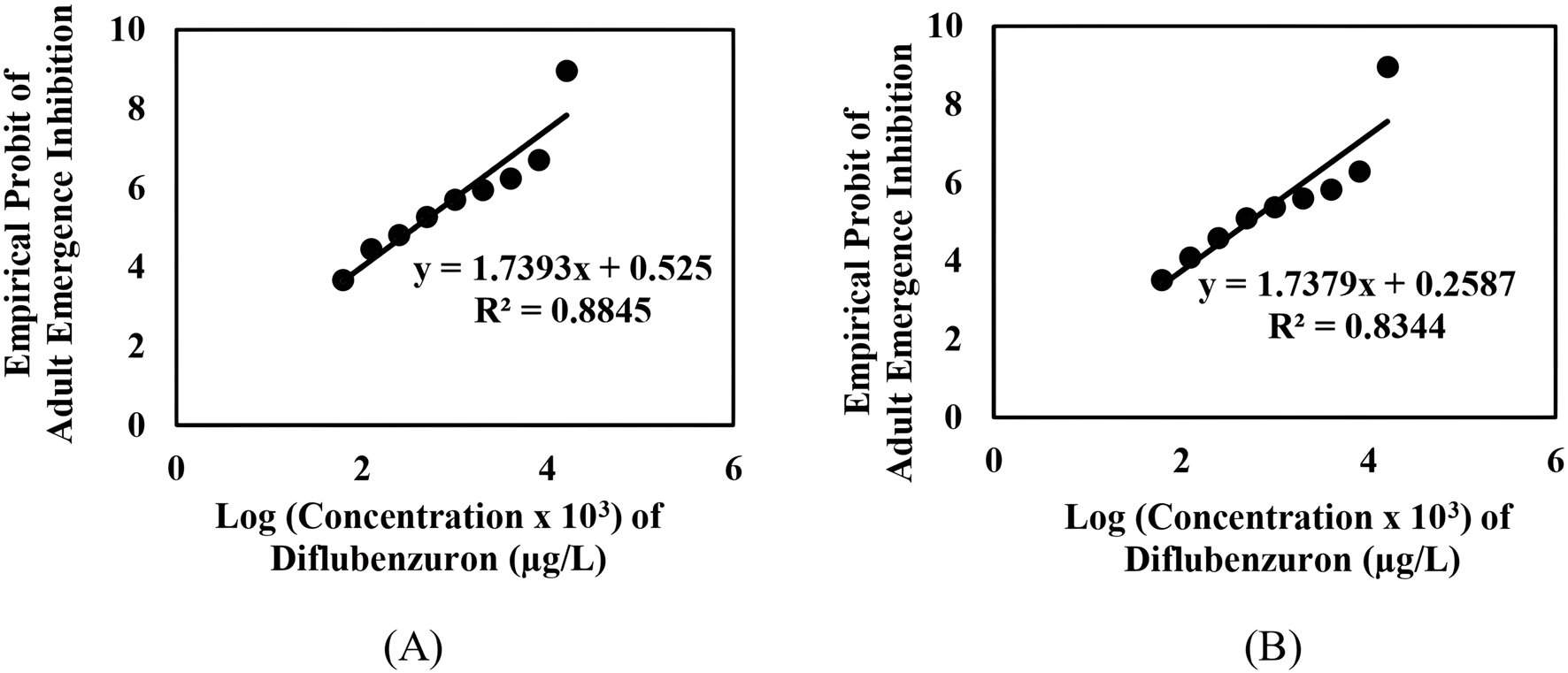

Figure 1. Inhibition of adult emergence in the early fourth instar larvae of Ae. aegypti when treated with different concentrations of diflubenzuron: (A) insecticide-susceptible, AND-Aedes aegypti strain, and (B) wild-caught, GVD-Aedes aegypti strain.
Figure 2. Inhibition of adult emergence in the early fourth instars of Aedes aegypti treated with different concentrations of diflubenzuron–verapamil (1:10): (A) insecticide-susceptible, AND-Ae. aegypti strain, and (B) wild-caught, GVD-Ae. aegypti strain.
3.2 Total protein reserves
The larvae of AND-Ae. aegypti had 2.44-fold (p < 0.05) higher protein content compared to the larvae of GVD-Ae. aegypti strain. The larval treatment with IE50 dosages of DFB caused insignificant changes in the protein content by 1.02-fold (p > 0.05) and 1.06-fold (p > 0.05), respectively. However, treatment with an IE50 dose of DFB-V significantly reduced the total protein content in both laboratory-reared and wild-caught strains by 2.25-fold (p < 0.05) compared to the control. The respective reductions were, however, 2.29-fold and 2.16-fold (p < 0.05) when compared to the DFB-treated larvae (Table 2). Note that the wild-caught strains had significantly lower levels of proteins than the laboratory strain, irrespective of the treatment.
Table 2. Protein content in early fourth instar larvae of Aedes aegypti treated with IE50 dose of diflubenzuron (DFB) and diflubenzuron + verapamil (DFB-V) (1:10) for 24 h.
3.3 GST activity
The total and specific GST activity was found to be significantly reduced in wild-caught larvae compared to the laboratory-reared larvae, whether untreated or treated (Tables 3–6). Treatment of AND-Ae. aegypti larvae with DFB and DFB-V showed significant 1.52-fold and 2.64-fold (p < 0.05) decreases in GST activity compared to the control group (Tables 3, 4; Figure 3A), while higher reductions of 3.98-fold and 6.94-fold (p < 0.05) were observed in the GVD-Ae. aegypti (Tables 5, 6; Figure 3A).
Table 3. Total activity of detoxifying enzymes in the early fourth instar larvae of the insecticide-susceptible strain of Aedes aegypti (AND-Ae. aegypti) treated with IE50 dosage of diflubenzuron (DFB) and diflubenzuron + verapamil (DFB-V) (1:10) for 24 h.
Table 4. Specific activity of detoxifying enzymes in the early fourth instar larvae of the insecticide-susceptible strain of Aedes aegypti (AND-Ae. aegypti) treated with IE50 dosage of diflubenzuron (DFB) and diflubenzuron + verapamil (DFB-V) (1:10) for 24 h.
Table 5. Total activity of detoxifying enzymes in the early fourth instar larvae of the wild-caught strain of Aedes aegypti (GVD-Ae. aegypti) treated with IE50 dosage of diflubenzuron (DFB) and diflubenzuron + verapamil (DFB-V) (1:10) for 24 h.
Table 6. Specific activity of detoxifying enzymes in the early fourth instar larvae of the wild-caught strain of Aedes aegypti (GVD-Aedes aegypti) treated with IE50 dosage of diflubenzuron (DFB) and diflubenzuron + verapamil (DFB-V) (1:10) for 24 h.

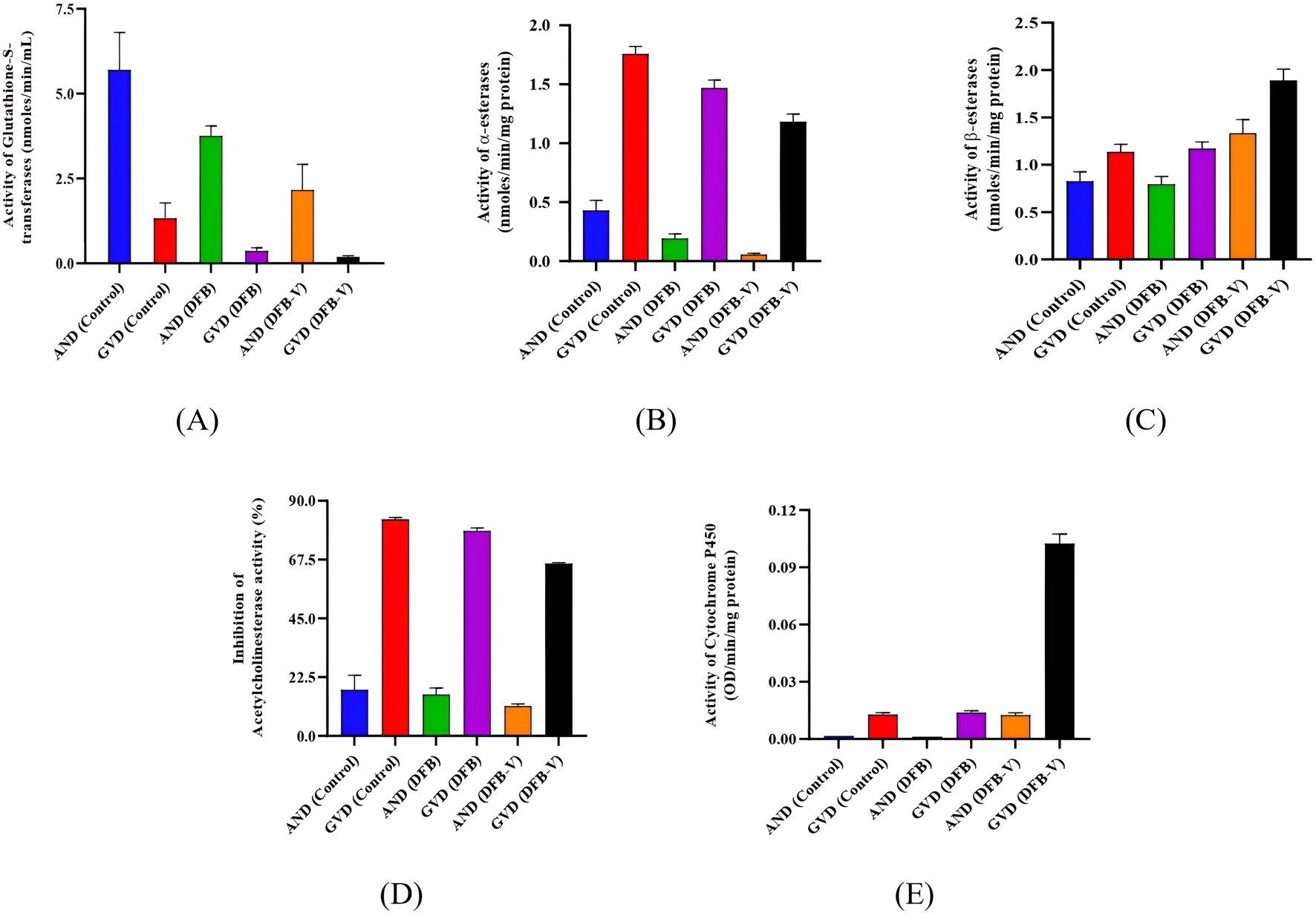

Figure 3. Specific activity of various detoxifying enzymes in the early fourth instars of AND-Ae. aegypti and GVD-Ae. aegypti strain of Ae. aegypti on exposure to IE50 of diflubenzuron and diflubenzuron–verapamil (1:10). (A) Glutathione S-transferase activity, (B) α-esterase activity, (C) β-esterase activity, (D) percentage acetylcholinesterase inhibition, and (E) CYP450 activity. AND = AND-Ae. aegypti strain, GVD = GVD-Ae. aegypti strain, DFB = Treatment with diflubenzuron, DFB-V = Treatment with diflubenzuron and verapamil (1:10).
3.4 α-esterase activity
The laboratory-reared susceptible strain (AND-Ae. aegypti) larvae showed a significant (p < 0.05) drop of 2.16-fold in α-esterase activity when exposed to diflubenzuron (Tables 3, 4). The activity further reduced to a pronounced 7.70-fold (p < 0.05) on treatment with the DFB-V compared to the control group (Figure 3B). On the other hand, the wild-caught strain, which had 4.08-fold higher α-esterase activities than the laboratory strain, showed a comparatively smaller reduction of 1.2-fold (p < 0.05) on treatment with DFB alone and a decrease of 1.49-fold (p < 0.05) on treatment with DFB-V (Tables 5, 6).
3.5 β-esterase activity
Notably, a contrasting augmented effect was observed on the activity of β-esterase in both the tested strains of Ae. aegypti. The AND-Ae. aegypti larvae showed almost similar activity of 1.04-fold (p > 0.05), while an increase of 1.62-fold (p < 0.05) in β-esterase activity was found when they were treated with DFB and DFB-V, respectively (Tables 3, 4; Figure 3C). However, the GVD-Ae. aegypti strain exhibited almost similar β-esterase activity of 1.03-fold (p > 0.05) on DFB treatment but a significant rise of 1.67-fold (p < 0.05) on DFB-V treatment. Like α-esterase and β-esterase levels were higher in the wild-caught strain than in the susceptible strain.
3.6 Percentage acetylcholinesterase inhibition
The control population of the wild-caught strain of Ae. aegypti showed a much higher percentage AChE inhibition than the susceptible strain. The inhibition of AChE activity however, decreased in both strains on larval treatment with DFB and DFB-V (Figure 3D). The AND-Ae. aegypti larvae showed a 1.11% and 1.54% (p > 0.05) decreased AChE inhibition with DFB and DFB-V treatment (Tables 3, 4). The percentage reductions recorded in GVD-Ae. aegypti larvae were 1.06% and 1.26% on treatment with DFB and DFB-V (p < 0.05), respectively.
3.7 CYP450 monooxygenases
Like esterases, the CYP450 levels were higher in GVD-Ae. aegypti larvae than the insecticide-susceptible larvae. The respective treatment of AND-Ae. aegypti larvae with DFB and DFB-V registered 1.33-fold reduced but 7.8-fold (p < 0.05) enhanced CYP450 monooxygenase activity (Tables 3, 4; Figure 3E). On the other hand, the GVD-Ae. aegypti strain exhibited a 1.08-fold (p > 0.05) and 8.00-fold (p < 0.05) increase in CYP450 activity by respective DFB and DFB-V treatment (Tables 5, 6).
3.8 Effect on non-target organisms
The treatment of non-target organisms, G. affinis, M. thermocyclopoides, and P. tetraurelia, with the respective IE50 values of DFB or DFB-V obtained for Ae. aegypti early fourth instar did not impart any negative effects on their survival, morphology, and behavior.
4 Discussion
The present study was an attempt to examine the possible use of verapamil along with DFB to increase its efficiency against Ae. aegypti. The potential of DFB alone as well as in combination with verapamil (1:10) was assessed on the adult emergence and detoxification enzymes of Ae. aegypti larvae. The effect was assessed against two strains of dengue vector: a wild-caught GVD-Ae. aegypti strain and an insecticide-susceptible AND-Aedes aegypti strain maintained in the laboratory to understand their defense system. The compounds were also evaluated on common non-target species.
The larval treatment with DFB significantly inhibited adult emergence in both strains of Ae. aegypti. Enhanced inhibition in the adult emergence was obtained with the use of DFB-verapamil (1:10), which indicates the synergistic effect of verapamil on DFB and the plausible use of the mixture to control a mosquito population. The results also showed higher inhibitory effects of DFB and DFB-V against the laboratory-reared susceptible strain compared to the wild-caught strain. This effect may possibly be due to the frequent and indiscriminate use of DFB and other toxicants in the fields, leading to the probable development of some extent of resistance. Furthermore, the higher effects of DFB-V against wild-caught larvae indicated higher synergism and the potential to reduce larval resistance. This could be helpful in managing DFB resistance in the field strains of Ae. aegypti and increasing DFB toxicity. The efficacy of DFB against Ae. aegypti has been demonstrated by Fansiri et al. (2022), who obtained an IE50 value of 2.41 µg/L, which is much higher than that obtained in the present study. Toxicity estimation of DFB against Anopheles quadrimaculatus revealed 86.7% larval mortality at 12.5 μg/L (Zhu et al., 2007). The literature, however, reports limited studies that signify the use of verapamil as a synergist of DFB. Porretta et al. (2008) reported efficient synergism of DFB with verapamil against Ae. caspius, causing a reduction in the LD50 value of diflubenzuron by 16.4-fold. Higher synergism obtained in the study may be ascribed to the variation in species, geographical location, and DFB resistance level of the strain.
The aberrant growth and development caused by exposure to a xenobiotic has been attributed to the altered levels and metabolism of various biochemical constituents present in an organism (Rodríguez-Ortega et al., 2003). The titer of major nutrients, such as proteins, carbohydrates, and fats, essential for an organism’s growth, development, and physiological functions is a good indicator of the metabolic state of organisms (Zhu et al., 2012). The present study estimated the protein levels in the larvae of Ae. aegypti treated with DFB/DFB-V to correlate them with the detoxifying enzyme levels.
The results revealed an insignificant increase in total protein in Ae. aegypti larvae on treatment with IE50 of diflubenzuron, which reduced significantly on DFB-V treatment. This suggests the potential of the verapamil–DFB combination to cause metabolic disruption that likely hindered the larvae’s growth and development. Furthermore, lower protein content in the larvae of the wild-caught strain than the laboratory strain may be due to continual exposure stress of chemicals in the fields. It has been suggested that DFB treatment can cause a decrease in total proteins due to increased biodegradation rates of proteins (Muthusamy et al., 2011), decreased enzyme activity, inhibited DNA synthesis (Hamouda, 2002), or DNA damage that shuts down essential genes responsible for protein production (El-Bermawy and Abulyazid, 1998).
Studies exploring the effects of DFB and DFB-V on the protein reserves of mosquitoes are not available in the literature. However, other IGRs have been tested against different insects, resulting in altered protein levels. Sublethal concentrations of lufenuron have reduced protein levels in Ae. aegypti (Panmei et al., 2021), Pectinophora gossypiella (Ahmed et al., 2012), and Glyphodes pyloalis (Piri Aliabadi et al., 2016). Likewise, inhibition of the protein content was recorded in the hemolymph of the fifth instar nymphs of Schistocerca gregaria when treated with three IGRs: pyriproxyfen, tebufenozide, and lufenuron (Ghoneim et al., 2012). In contrast, Linvy et al. (2018) found that application of methoxyfenozide (0.005–1 µg/5 µL acetone) significantly increased the total proteins in the hemolymph of Spodoptera mauritia larvae. The contrasting results could be due to variations in the IGR potency, sensitivity of species, immune system, or the treated developmental stage (Ghoneim et al., 2003).
Because all organisms have a defense mechanism to combat external stress by altering the expression of detoxification enzymes, the estimation of the activity of these enzymes becomes crucial to assess the capability of mosquitoes to bear this stress and perform normal physiological functions (Li and Liu, 2007). Hence, DFB- and DFB-verapamil-treated Ae. aegypti larvae were evaluated for the detoxification enzymes’ activities. The investigations showed variably increased activities of a few enzymes (β-esterases, CYP450), higher activity of AChE due to decreased inhibition, but a decrease in α-esterase and GST activities in Ae. aegypti larvae post-treatment. A higher impact on enzyme activity was observed with DFB-V than DFB alone and on the wild-caught larvae compared to the susceptible strain. It is suggested that higher tolerance to DFB and higher alterations in the enzyme levels of wild-caught strains may be caused by the changes in the activity of detoxifying enzymes already induced by the stress caused by other chemicals applied in the fields.
The present investigations showed the probable involvement of β-esterases, AChE, and CYP450 in detoxifying DFB. These observations are aligned with the reports of Anwar and Abd El-Mageed (2005), who found that diflubenzuron increased β-esterase activity in cotton leafworms, Spodoptera littoralis, while decreasing α-esterase activity. In contrast, Hamdy and Azab (2002) found that chlorfluazuron and hexaflumuron increased α-esterase enzyme activity in S. littoralis while decreasing β-esterase enzyme levels. However, increased levels of both non-specific esterases have been reported in Ae. aegypti after lufenuron treatment (Panmei et al., 2021) and in Spodoptera litura after methoxyfenozide treatment (Wang et al., 2009). Suppressed esterase levels have been observed in S. litura on exposure to the sublethal doses of lufenuron, tebufenozide, and flufenoxuron (Bakr et al., 2013; Ismail, 2020).
The significant decrease in the GST activity in both the AND-Ae. aegypti and GVD-Ae. aegypti strains on treatment with diflubenzuron and its synergized form indicates its non-involvement in detoxification of DFB. These results are in accordance with the studies performed in S. littoralis larvae exposed to lufenuron and chlorfluazuron (Abou-Taleb et al., 2015). They reported 38.6% and 45.6% suppressed GST activity in the larvae on respective treatment with 0.28 ppm and 0.62 ppm lufenuron. On the other hand, Panmei et al. (2021) showed a noticeable rise in GST activity in Ae. aegypti treated with lufenuron, indicating its possible role in lufenuron detoxification.
Unlike GST activity, 24 h of treatment with diflubenzuron increased CYP450 activity in the Ae. aegypti larvae of both the investigated strains, suggesting an effective and instant activation of the detoxification mechanism. In addition, decreased percentage inhibition of AChE in the treated larvae with respect to the control indicates the probable role of AChE in DFB detoxification. Similar observations have been recorded by Panmei et al. (2021) on lufenuron treatment of Ae. aegypti larvae, revealing a decreased percentage AChE inhibition and a rise in CYP450 levels. A similar rise in monooxygenases has been shown in Lucilia cuprina, the blowfly, on DFB exposure (Kotze et al., 1997). In contrast, lufenuron treatment (at LC25 level) increased the percentage AChE inhibition in S. littoralis larvae (Ismail, 2020). It is apparent that the lufenuron toxicity in Ae. aegypti larvae plausibly blocked the action potential in the neurons, leading to AChE inhibition.
The present results have shown that DFB alone or in combination with verapamil at IE50 values did not affect the survival of non-target organisms, G. affinis, M. thermocyclopoides, and P. tetraurelia. Numerous reports have suggested the safe use of DFB in the environment being non-toxic to non-target organisms, though a few studies have reported their toxic effects on fishes and invertebrates during acute and chronic exposures (Farlow et al., 1978; Abe et al., 2019; Moe et al., 2019). The impact assessment of DFB against aquatic insects—Corixa punctata and Notonecta glauca—and crustaceans—Anisops sardea, Plea minutissima, and Daphnia magna—revealed significant toxic effects on C. punctata and medium toxic effects on the rest (Seeradj et al., 2022). The toxic effects of DFB, however, depend upon the exposure duration, dosage used, and sensitivity of organisms.
The present study demonstrated the efficacy of DFB against laboratory and field strains of Ae. aegypti at very low dosages (0.37 µg/L; 0.63 µg/L), which were further reduced by the use of verapamil (0.32 µg/L; 0.46 µg/L). These doses are significantly low compared to the dosages recommended by WHO (0.25 mg/L) in potable water, which thus signifies DFB’s safe use in the environment.
5 Conclusion
The present study showed the effective use of the diflubenzuron–verapamil combination against Ae. aegypti larvae, which caused higher adult emergence inhibition than diflubenzuron alone. The higher effects of the DFB-V combination obtained against the wild strain indicate its efficient use for mosquito management. In addition, the differential activities of detoxifying enzymes in DFB- and DFB-V-treated Ae. aegypti larvae and the higher impacts obtained with DFB-V and on the wild-caught larvae propose the plausible use of verapamil along with diflubenzuron for imparting higher efficacy. Moreover, the non-toxicity of DFB and DFB-V against non-target organisms indicates their safe use in the environment.
Data availability statement
The original contributions presented in the study are included in the article/supplementary material; further inquiries can be directed to the corresponding author.
Ethics statement
The manuscript presents research on animals that do not require ethical approval for their study.
Author contributions
MS: conceptualization, data curation, investigation, and writing–original draft. DY: data curation and writing–original draft. SK: supervision and writing–review and editing.
Funding
The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. The research was funded by a grant (ID: 559/CSIRUGC NET DEC. 2018) received from the University Grants Commission (UGC), New Delhi.
Acknowledgments
The authors thank the Principal of Acharya Narendra Dev College, University of Delhi, India, for providing research infrastructure and facilities. The authors are grateful to the University Grants Commission (UGC) for funding this research.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
