External Immune Inhibitory Efficiency of External Secretions and Their Metabolic Profiling in Red Palm Weevil, Rhynchophorus ferrugineus (Coleoptera: Curculionidae)

Pu, Yu-Chen; Xiang, Hai-Jun; Liang, Xin-Yu; Wang, Yu; Hou, You-Ming; Fu, Lang; Wang, Rui

doi:10.3389/fphys.2019.01624

ORIGINAL RESEARCH article

Front. Physiol., 29 January 2020

Sec. Invertebrate Physiology

Volume 10 - 2019 | https://doi.org/10.3389/fphys.2019.01624

External Immune Inhibitory Efficiency of External Secretions and Their Metabolic Profiling in Red Palm Weevil, Rhynchophorus ferrugineus (Coleoptera: Curculionidae)

$\r\nYu-Chen Pu,$ Yu-Chen Pu^1,2

Hai-Jun Xiang^1,2

Xin-Yu Liang^1,2

Yu Wang^1,2

You-Ming Hou^1,2*

Lang Fu^1,2

Rui Wang^1,2

¹State Key Laboratory of Ecological Pest Control for Fujian and Taiwan Crops, Fujian Agriculture and Forestry University, Fuzhou, China
²Fujian Provincial Key Laboratory of Insect Ecology, College of Plant Protection, Fujian Agriculture and Forestry University, Fuzhou, China

External secretions play a vital role in external immune defense. However, the functions and components of these exudates are largely unknown in the red palm weevil, Rhynchophorus ferrugineus (Olivier) (Coleoptera: Curculionidae). In order to determine their role in external immunity, the immunosuppressive efficacy of the secretions in vitro against microbes, including bacteria and fungi, was clarified. In the present study, we found that these secretions had antimicrobial activity in vitro, implying external immunizing potency against pathogens. Surprisingly, all liquid phases of secretions could not significantly inhibit the growth of microbes in vitro compared to solid phases. To explain this phenomenon, the composition and emission differentia of secretions from the exocrine glands associated with different developmental stages, secretory regions, and phases were identified and analyzed based on metabonomics techniques. A total of more than 200 compounds, including quinines, phenols, aldehydes, acids, alcohols, saccharides, ketones, esters, amines, salts, ureas, and heterocycles, were identified in the secretions of larvae and adults. The liquid phase shared a number of metabolites with the solid phase, but the emission types and amounts were significantly different in the two phases, resulting in differences in external immunological activity. Tyrosine and p-benzoquinone were the dominant metabolites in all of the secretions, accounting for approximately 11.29% of emissions, with the portion in the solid phase being generally higher than that in the liquid phase. Moreover, only p-benzoquinone was entirely significantly upregulated in the solid phase compared to the liquid phase. Therefore, metabolome analysis suggested that p-benzoquinone, which may potentially be developed to be a valuable marker for determining external immunity, was considered to be the main substance responsible for external immune functions. This hypothesis was further demonstrated by the antimicrobial activity of p-benzoquinone.

Introduction

The invasive red palm weevil (RPW), Rhynchophorus ferrugineus (Olivier) (Coleoptera: Curculionidae), is considered to be one of the most devastating pests in a number of palm tree species. Many of these are widely cultivated cash crops species as well as garden ornamental trees in tropical and subtropical regions throughout the world (Cox, 1993; Hou et al., 2011; Tagliavia et al., 2014; Wan et al., 2015). In recent years, RPW infestations have tended to increase with each passing year, seriously affecting the economic and ornamental value of the plants (Al-Dosary et al., 2016). Recently, losses in global production of dates were estimated at 30% due to diseases and pests, which resulted in the Food and Agriculture Organization (FAO) designating the RPW as a category 1 pest on date palms in the Middle East (FAOSTAT, 2013). The annual loss in the Gulf region due to eradication of severely infested palms has been estimated to range from $1.74 million to $8.69 million at 1% and 5% infestations, respectively (El-Sabea et al., 2009; Al-Dosary et al., 2016). The weevil, which was initially detected in India as a pest of the coconut palm in 1891 (Lefroy, 1906; Vidyasagar, 1998) and of the date palm in 1917 (Brand, 1917), is now distributed in many countries and regions of Europe, Asia, Africa, and America (Al-Ajlan, 2008; Fiaboe et al., 2012; Giblin-Davis et al., 2013). As a result of increasing international trade during the 1980s, it was discovered in Zhongshan City, Guangdong Province, China, during the 1990s (Liu et al., 2009). Fujian and Taiwan provinces were identified as the sources of the invasion and were the hardest hit areas. From there, it rapidly spread to 13 other provinces and autonomous regions in China through infested planting material that was being transported mainly for ornamental purposes (Ju et al., 2006; Hou et al., 2011; Wang et al., 2015).

The larva of the RPW is a specialized borer that attacks the stem and the bases of the fronds, from which it can spread into the trunks, chewing up plant fibers and severely damaging the vascular system. As a result, the trees die soon after being attacked (Faleiro, 2006; Giblin-Davis et al., 2013; Al-Dosary et al., 2016). The early phase of damage is difficult to detect because the larvae remain concealed, making it impossible to be removed even after it has been discovered (Al-Dosary et al., 2016). It is understandable that the species has been classified as a quarantine pest in China (Wu et al., 2007) due to its devastating effects on palm trees. According to previous integrated pest management (IPM) strategies, there are several control methods (e.g., plant quarantine, pheromone trapping, chemical control, and cutting down and burning of infected palms) that have been used against the RPW with varying degrees of success (Faleiro, 2006; Al-Dosary et al., 2016). Among these, biological control, which is a major component of IPM that will continue to gain in popular usage in controlling pests in the future, is considered to have the most sustainable control potential. To date, a variety of pathogens, including Beauveria bassiana (Balsamo) Vuillemin (Verde et al., 2015), Metarhizium anisopliae (Metschn.) (Sun et al., 2016), Serratia marcescens Bizio (Pu and Hou, 2016), Bacillus thuringiensis Berliner (Pu et al., 2017b), and Steinernema carpocapsae (Weiser) (Llácer et al., 2009), have been isolated from naturally diseased dead RPW. Unfortunately, biocontrol procedures, particularly preparation of bacteria which are friendly to the environment and harmless to humans, have achieved less than ideal control efficiency when used against the RPW both in the field and in the laboratory (Pu et al., 2017a). This has led to a serious decrease in the use of biocontrol measures in attempts to control RPWs.

Various biotic and abiotic factors, including temperature, humidity, sunlight, concentration of pathogens, and the host itself, can limit and pose a challenge to the use of pathogenic organisms (Jaronski, 2010). Host immunity caused by exogenous invasion is crucial (Manachini et al., 2011; Hussain et al., 2015; Mastore et al., 2016). It is generally believed that internal immunity consisting of cellular and humoral defense mechanisms is an immediate and primary immune response of insects (Chu et al., 2013; Pu et al., 2017a). Nevertheless, another defensive strategy, external immunity, which is not viewed as an immune system component, is deployed to prevent pathogens from gaining entrance into the body (Otti et al., 2014; Pu et al., 2017a). External immune defense involves by definition any heritable trait acting outside an organism improving protection from pathogens, such as bacteria, fungi, viruses, and nematodes, or manipulating the composition of the microbial community in favor of the organism (Otti et al., 2014). This immune defensive system, which includes the cuticle and external secretions, constitutes an initial physical and chemical barrier to pathogens (Gołebiowski et al., 2008; Silva et al., 2016; Pu et al., 2017a).

These chemical defensive substances, which are a major element of external immunity in insects, are synthesized mainly through specialized exocrine glands and then released into external environments to exert immune functions in vitro (Gross et al., 2008; Li et al., 2013; Otti et al., 2014). Certain insect species, especially social or gregarious insects, are capable of secreting external exudates or volatiles (Otti et al., 2014; Wei et al., 2017). These external secretions consist of a number of chemical components, such as quinones (Joop et al., 2014), phenols (Qiang et al., 2006b), aldehydes (Gross et al., 2008; Ulrich et al., 2016), and lysozyme (Cotter et al., 2013). Previous research has shown that the external secretions of insects can inhibit the growth of a variety of pathogens in vitro, including gram-positive bacteria, gram-negative bacteria, and fungi (Li et al., 2009; Cotter et al., 2013; Pedrini et al., 2015; Ulrich et al., 2015). We speculate that these chemical mixtures may be able to initiate the insect’s immune functions to protect themselves by preventing the invasion of foreigner pathogens. Although evidence for the antimicrobial activity of such secretions exists, their role and importance in the context of immune defense is not well understood.

The accurate and timely surveillance of RPW infestation is an essential first step in developing a management strategy to control the weevils. The concealed nature of the pest usually results in failure to treat infestations in a timely manner, thereby exacerbating control efforts and allowing the pest to become established within its host (Hou et al., 2011; Wan et al., 2015). For this reason, the early detection of populations is critical. Because RPWs are known to aggregate, presumably mediated by weevil-produced or weevil-associated chemical cues, aggregation hazard characteristic has been studied in an attempt to develop a monitor or lure, and a case in point is the aggregation pheromone trap (Gunawardena and Bandarage, 1995; Muralidharan et al., 1999; Zada et al., 2002). There is sufficient evidence now to show that one of the functions of the external secretions is to cause specific behavioral responses to the insects themselves in addition to the defensive function (Pu et al., 2017a). These behavioral responses may include either an attractant (Liang, 1995; Olson et al., 2009; Weeks et al., 2013; Ulrich et al., 2015) or repellent effect (Liang, 1995; Ulrich et al., 2015).

Based on a pest’s predictability of behavioral actions when responding to its secretions, external immune secretions could potentially be used for field population density monitoring and mass trapping or be incorporated with insecticides to attract and kill the targeted insects (Ulrich et al., 2015; Pu et al., 2017a). On the other hand, many chemical secretions have repellent or irritant properties (Eisner, 1966; Blum, 1981). These may be possible candidates for repellents used to protect crops from pests (Liang, 1995; Pu et al., 2017a).

The RPW, as a gregarious pest, is confronted with the challenge of enormous microbial pressures from its environment. Under such living conditions, external immunity would seem to be more significant than internal immunity (Otti et al., 2014). To understand the role that external secretions play in external immunity through functional and metabolic analyses, we examined the inhibitory efficacy of RPW external secretions in vitro and then further analyzed the metabolome. Using this information, we further chose the key potential active chemical to determine and verify its antimicrobial activity. The present research discusses variation in the adaptive mechanism of invasive pests from the perspective of RPW defensive secretions and their role in external immunity. This study will contribute to our understanding of the immunity interactions that occur between the RPW and its pathogens, as well as elucidating the passive strategies employed by the RPW to avoid pathogenic infection. These results will aid in ongoing efforts to control the weevil in the field. It is also hoped that they will also provide the basis for a new concept and approach in the development of a pest inhibitor or behavioral interference agent which utilizes the immune system of the pest as a target.

Materials and Methods

Insects

A laboratory colony of RPW was established by collecting mature larvae, cocoons, and adults from infested date palm trees, Phoenix canariensis Chabaud, during July 2015, in the Xiamen City Botanical Garden (24.45°N, 118.10°E), Fujian Province, China. In the laboratory, larvae were provided with sugarcane for feeding and reared individually in Petri dishes (90 mm Ø) or 330-ml plastic bottles (after the seventh instar) at 27 ± 1°C, 75 ± 5% relative humidity (RH) and a photoperiod of constant darkness. After adults emerged, the sexes were paired, with each pair placed into a 330-ml plastic bottle with perforated lid, and fed with fresh sugarcane under the same conditions as larvae except for a 12:12-h (L:D) photoperiod. Subsequently, eggs were removed and transferred to moist absorbent cotton in Petri dishes (90 mm Ø).

Immune Challenge for Larvae and Adults

Several viable bacterial pathogens were previously isolated and identified from RPWs (Pu and Hou, 2016). Of these, B. thuringiensis HA (Pu et al., 2017b) was used as the pathogen to challenge larvae and adults in this study. Before pathogenic challenges were conducted, we sterilized the surface of tested insects with alcohol-dampened cotton. To avoid the invasion of pathogens into the body cavity as much as possible to thereby provoke external immunity and weaken internal immune response, we infected larvae between the intersegmental membranes and adults between the head and thorax. Infection was achieved through the septic injury method with a 0.1-mm Minutien pin dipped into a 2-ml suspension of B. thuringiensis. The bacteria were cultured at 30°C and shaken overnight at 200 rpm for 12 h with OD₆₀₀ = 1 on a nutrient broth (NB) medium (peptone 10 g, beef extract powder 3 g, NaCl 5 g, distilled water 1,000 ml, pH 7.2). Piercing was carried out in such a way as to minimize hemolymph loss with just the tip of the needle penetrating the cuticle, and in the majority of cases, there was no bleeding. After the challenge of the external immune system, we contacted the infected area with an inoculation needle and then applied it on a glass slide containing a drop of distilled water. The glass slide was placed under an optical microscope to check whether insects were successfully infected or not through observing the presence or absence of B. thuringiensis.

Collection of External Secretion Samples

Fourth-instar larvae (n = 90) and young virgin adults (7-day-old post-adult eclosion, n = 126) were randomly and averagely assigned to one of six experimental replications, respectively. The immunity treatment of bacteria challenge was designed as above to challenge the personal external immune defensive system. Collection of external secretions was according to the method described by Turlings et al. (1993). In order to avoid contamination of samples by microorganisms, this process was accomplished on a precleaned beach. Following immune treatment, larvae and adults of RPW were clamped lightly with forceps, forcing them to secrete a trace of exudates on sterile disposable polyethylene (PE) gloves. These secretions were then drawn up with a 10-μl pipette gun. Three types of secretory structures, including the larval oral cavity, larval abdominal anus, and abdominal anus of adults, produced observable exudates. We have referred to these secretions as oral secretions of larvae, abdominal secretions of larvae, and abdominal secretions of adults, respectively. With the above method, secretions from these three sources were collected separately (100 μl or 100 mg) and stored in sterilized 1.5-ml Eppendorf tubes. Secretions were then centrifuged at 10,000 rpm for 10 min at 4°C after 100 μl of sterile distilled water added to the tube. The hydrosoluble supernatant was transferred separately into a new sterilized tube, and the remaining insoluble precipitate rinsed three times. Stoste samples (crude extracts), liquid-phase samples (supernatants), and solid-phase samples (precipitates) were obtained using this process. All secretion samples were stored at −80°C to be further used in subsequent experiments.

Microbial Species Used in Inhibition Experiments

Two species of indicative bacteria, a gram-positive bacterium (Staphylococcus aureus) (Nanjing Biotechnology Co., Ltd., Nanjing, China) and a gram-negative bacterium (Escherichia coli DH5α) (Beijing TransGen Biotech Co., Ltd., Beijing, China), were used for evaluating the antimicrobial activity of the secretions in vitro. Two additional pathogenic microorganisms, including a bacterium (B. thuringiensis) and a fungus (M. anisopliae), were also used in the inhibition experiments.

S. aureus and E. coli were both inoculated by being added to a 50-ml Erlenmeyer flask containing 20 ml of Luria-Bertani (LB) liquid medium (tryptone 10 g, NaCl 10 g, yeast extract 5 g, distilled water 1,000 ml, pH 7.2) and then shaken at 200 rpm at 37°C until OD₆₀₀ = 0.6. B. thuringiensis was cultured under the same methods as S. aureus and E. coli, except that NB medium was used at 30°C. Following 1,000 × dilution, the final concentration of 10⁴ colony-forming unit (CFU)/ml was obtained.

M. anisopliae was grown on potato dextrose agar (PDA) plates (potato extract powder 5 g, glucose 20 g, agar 15 g, distilled water 1,000 ml, pH 6.0) and incubated at 25°C for 7 days. Conidia were harvested by scraping colonies with a disposable sterile blade. The conidial clumps were then suspended in sterile distilled water containing 0.01% Tween 80. The concentration of spore suspension was determined using a hemocytometer and adjusted to 10⁴ conidia/ml.

Verification of External Immune Function of Secretions

To measure the intensity of the external immune defense and verify the external immune function of the secretions, we followed the protocol described by Li et al. (2009), by measuring the diameter of the inhibition zones produced by RPW external secretions in a lawn of bacterial growth on LB agar medium (tryptone 10 g, NaCl 10 g, yeast extract 5 g, agar 15 g, distilled water 1,000 ml, pH 7.2) plates or fungal growth on PDA medium plates. Stoste samples and solid-phase samples were dissolved in 100 μl of methanol (Shanghai Sinopharm Chemical Reagent Co., Ltd., Shanghai, China) beforehand, while liquid-phase samples were diluted in 100 μl of sterile distilled water. Sterile 6-mm circular filter papers were impregnated with solutions of either secretion samples or control groups until saturated. Controls consisted of filter papers exposed to sterile water (negative control), methanol (negative control), or 50 μg/ml of tetracycline (positive control). After drying, the filter papers were placed in medium plates containing 50 μl of bacterial suspensions (10⁴ CFU/ml) or fungal suspensions (10⁴ conidia/mL) that had previously been uniformly spread over the surface using a sterile spreader. Plates for growing bacteria were kept at 37°C (S. aureus and E. coli) or 30°C (B. thuringiensis) and incubated for 12 h. Plates for growing fungi were maintained at 25°C for 72 h. Antimicrobial activity was indicated by a clear zone in the plate. Each sample was replicated technically three times.

To further determine the minimum inhibitory concentration (MIC) of secretion stostes required for S. aureus, E. coli, B. thuringiensis, and M. anisopliae inhibition, the microbial suspension (10⁴ CFU/ml or 10⁴ conidia/ml) and diluents of stoste (methanol as a control) diluted with methanol into 500.00, 250.00, 125.00, 62.50, and 31.25 μl/ml using the twofold dilution method were mixed with equal volumes and cultured for 2 h for bacteria or 24 h for fungi at the temperatures described above. After 2 or 24 h, an intermixture of 50 μl was uniformly spread over the entire surface of the agar medium. All plates were kept at the same conditions as above for 12 or 72 h. The minimal concentration was needed to suppress all microbial growth.

The Metabonomics Analysis of RPW External Secretions

Liquid-phase and solid-phase samples of secretions were submitted to Shanghai Bioclouds Biological Technology Co., Ltd., Shanghai, China, for untargeted metabolomics detection. Six groups (A, B, C, D, E, and F) of different samples (a total of 36 samples) were examined (A: liquid phase of larval oral secretions; B: solid phase of larval oral secretions; C: liquid phase of larval abdominal secretions; D: solid phase of larval abdominal secretions; E: liquid phase of adult abdominal secretions; and F: solid phase of adult abdominal secretions). Each sample of 30 mg was accurately weighed in a 1.5-ml centrifuge tube. The L-2-chlorophenylalanine (0.3 mg/ml) of 20 μl (internal standard), which was prepared using methanol, and the 600 μl methanol–water solution (v:v = 4: 1) were then added successively. After two small steel balls were added, the samples were placed in the refrigerator at −80°C for 2 min and then grinded at 60 Hz for 2 min. It was then distilled in an ice water bath using ultrasonic extraction and statically placed in −20°C for 30 min. A total of 400 μl of supernatant, which was volatilized and dried by using a centrifuge concentrating dryer, was transferred to a glass derivative bottle after the sample was centrifuged at 13,000 rpm for 15 min at 4°C. When the methoxamine hydrochloride pyridine (15 mg/ml) of 80 μl was added to a glass derivative bottle, followed by 2 min of vortex concussion, oximation reaction was performed for 90 min at 37°C in a concussion incubator. Eighty microliters of bis(trimethylsilyl)trifluoroacetamide (BSTFA) containing 1% trimethylchlorosilane (TMCS) and 20 μl of hexane were added and allowed to react for 60 min at 70°C after 2 min of vortex concussion. All samples were finally left at room temperature for 30 min to complete the metabolome analysis. The quality control (QC) sample consisted of isopycnic extract in all samples. The volume of each QC was the same as that of the sample.

We determined and quantified the chemical compound profiles of the secretions using gas chromatography–mass spectrometry (GC-MS). Secretion extracts were run on a 7980A gas chromatograph coupled to a 5975C mass spectrometer (Agilent, United States). One microliter of each sample was injected onto an HP-5MS capillary column (30 m × 0.25 mm × 0.25 μm, Agilent J&W Scientific, Folsom, CA, United States) using an Agilent G6500 CTC PAL autosampler. The injection was run in the pulsed splitless mode. The inlets were set at 280°C with a constant flow rate of 6.0 ml/min of helium as carrier gas. The GC oven initial temperature profile began at 60°C, ramping at 8°C/min to 125°C, and then increased to 190°C at 10°C/min to 210°C at 4°C/min, followed by a programed rate at 20°C/min to 310°C, and 310°C was finally maintained for 8.5 min. The electron impact ion source (EI, 70 eV) was operated in full-scan mode (m/z 50–600) with the MS source temperature at 230°C and MS Quad at 150°C. ChromaTOF 4.34 (LECO, St. Joseph, MI, United States) software was used to preprocess the original GC-MS data. Metabolites were identified by comparing their retention times (RTs) with the synthetic standards on the same column. The referenced mass spectra were from the Fiehn Library linked to ChromaTOF 4.34 and the NIST 11 Library (Scientific Instrument Services, Inc., Ringoes, NJ, United States). A three-dimensional data matrix in CSV file format was obtained. This included sample information, RT, metabolite name, and mass spectrum response intensity, but the internal standard and any known pseudo-positive peaks, such as peaks caused by noise, column bleed, and BSTFA derivatization procedure, were removed. Peak merging and deredundancy were also performed. The peak area normalization method was used to normalize the response intensity of the sample mass spectrum peak to generate the normalized data matrix. Multidimensional statistics and metabolic pathways focusing on total metabolites or differential metabolites (A vs. B; C vs. D; E vs. F; A vs. C; A vs. E; C vs. E; B vs. D; B vs. F; and D vs. F) were further analyzed to identify the role that external secretions play in the external immunity of RPWs.

Determination of the Antimicrobial Potency of p-Benzoquinone

White crystal powder of p-benzoquinone (PBQ) was obtained from J&K Scientific Ltd. (Beijing, China). The inhibitory activities of 10 mg/ml of PBQ against S. aureus, E. coli, B. thuringiensis, and M. anisopliae were validated and compared by determining the diameter of the inhibition zones. MIC was then determined by diluting 10 mg/ml of PBQ solution with sterile water into 10.00, 5.00, 2.50, 1.25, 0.64, 0.32, 0.16, 0.08, 0.04, 0.03, 0.02, and 0.01 mg/ml, respectively.

Data Analysis

SPSS 21.0 (IBM Inc., Chicago, IL, United States) statistical analysis software was used to process all data, and the SigmaPlot 12.0 (Systat Inc., San Jose, CA, United States) drawing program was used for constructing graphs. Comparisons for the inhibition zone diameter data were performed using one-way ANOVA as well as Tukey’s honestly significant difference (HSD) test for multiple comparisons (α = 0.05).

Orthogonal partial least squares discriminant analysis (OPLS-DA) was carried out to separate profiles of external secretions from the oral cavity and the abdomen from the two different developmental stages and sample phases and to visualize alterations among experimental groups, after mean centering and unit variance scaling, using SIMCA-P 14.1 (Umetrics AB, Umeå, Sweden). Variable importance in the projection (VIP), which ranks the overall contribution of each variable to the OPLS-DA model, was calculated. Variables with both VIP > 1.0 and P < 0.05 are considered relevant for group discrimination and the most influential for the model (Jansson et al., 2009; Wei et al., 2014). The bioinformatics cloud platform OmicsShare tools 3.0¹ (Gene Denovo Biotechnology Co., Ltd., Guangzhou, China) was used to screen all differential metabolites among samples and cluster analysis of differential metabolites, such as volcano plot and heatmap. To further interpret the biological significance associated with external immunity, we applied the Kyoto Encyclopedia of Genes and Genomes (KEGG) database to link these metabolites to metabolic pathways.

Results

Immunosuppressive Efficacy of External Secretions in vitro

Control filter papers treated with sterile water or methanol showed no inhibition of microbial growth, while the external secretions, as well as control filter papers treated with tetracycline, successfully inhibited growth of bacteria and fungi in vitro, including S. aureus, E. coli, B. thuringiensis, and M. anisopliae. Similar results were obtained in each of the different types of secretions tested. Both the stoste and solid-phase samples formed obvious inhibition zones, while the liquid-phase samples were much less evident. The extent of antimicrobial activity of stoste against S. aureus (larval oral secretions: F₂,₅₁ = 170.793, P < 0.001; larval abdominal secretions: F₂,₅₁ = 48.768, P < 0.001; adult abdominal secretions: F₂,₅₁ = 182.705, P < 0.001), E. coli (larval oral secretions: F₂,₅₁ = 1025.156, P < 0.001; larval abdominal secretions: F₂,₅₁ = 1049.238, P < 0.001; adult abdominal secretions: F₂,₅₁ = 833.978, P < 0.001), B. thuringiensis (larval oral secretions: F₂,₅₁ = 600.013, P < 0.001; larval abdominal secretions: F₂,₅₁ = 601.721, P < 0.001; adult abdominal secretions: F₂,₅₁ = 984.095, P < 0.001), or M. anisopliae (larval oral secretions: F₂,₅₁ = 99.362, P < 0.001; larval abdominal secretions: F₂,₅₁ = 86.678, P < 0.001; adult abdominal secretions: F₂,₅₁ = 127.443, P < 0.001) was all significantly higher than that in the solid phase (Figure 1). The results also demonstrated that the inhibition zones in E. coli formed by the solid phase (larval oral secretions: F₃,₆₈ = 281.970, P < 0.001; larval abdominal secretions: F₃,₆₈ = 237.387, P < 0.001; adult abdominal secretions: F₃,₆₈ = 318.144, P < 0.001) or stoste (larval oral secretions: F₃,₆₈ = 540.130, P < 0.001; larval abdominal secretions: F₃,₆₈ = 224.681, P < 0.001; adult abdominal secretions: F₃,₆₈ = 228.501, P < 0.001) were both significantly larger than those in S. aureus, B. thuringiensis, and M. anisopliae (Figure 1).

FIGURE 1

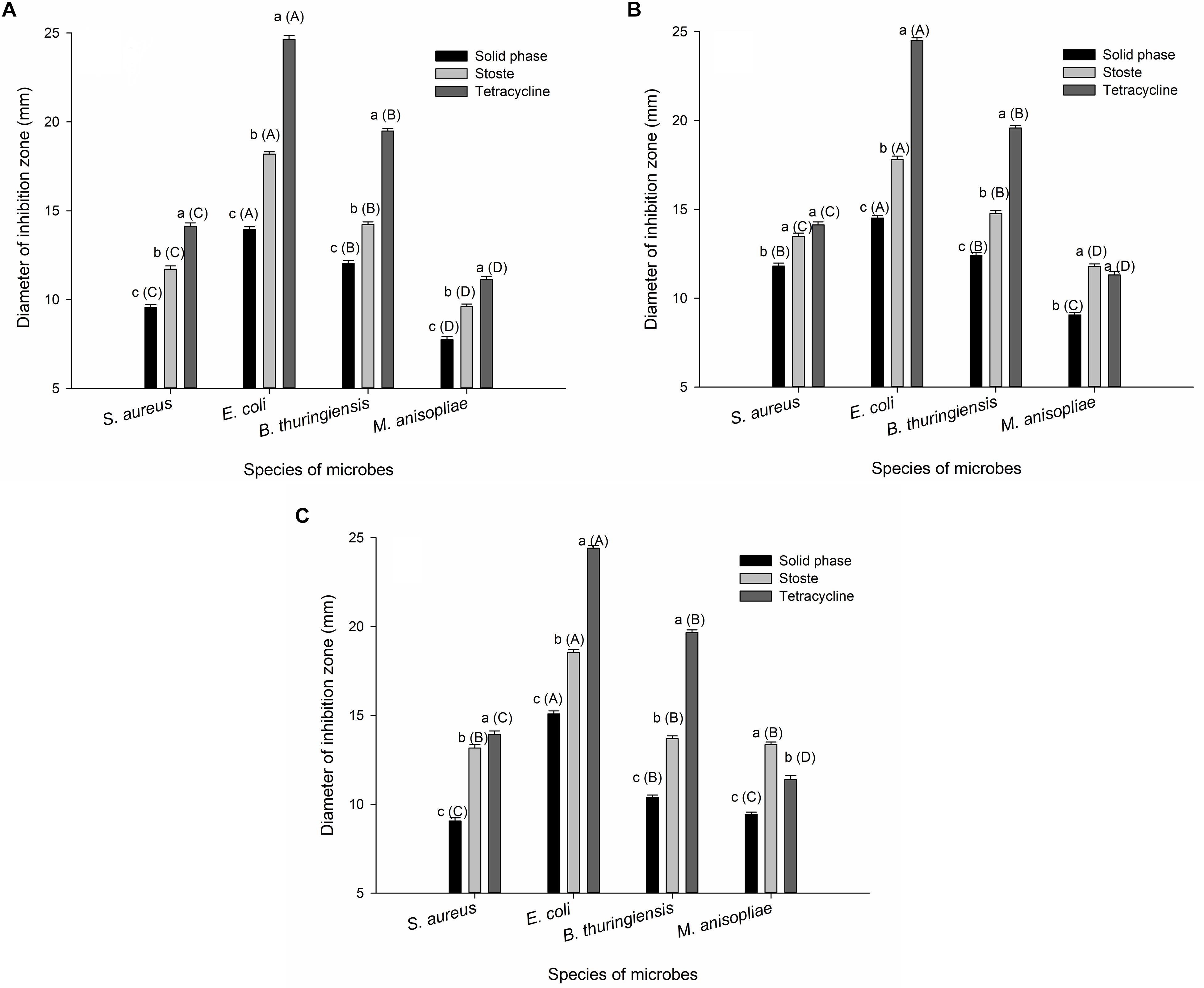

Figure 1. The diameter of the inhibition zone against microbes formed by (A) larval oral secretions, (B) larval abdominal secretions, and (C) adult abdominal secretions. The graph shows mean ± standard error. Different lowercase letters outside parentheses indicate significant difference among different treatments within the same tested microbe, while different uppercase letters inside parentheses indicate significant difference among different species of microbes under the same treatment, according to Tukey’s honestly significant difference (HSD) test of one-way ANOVA (P < 0.05).

Using the MIC of secretion stoste that exhibited inhibition of S. aureus, E. coli, B. thuringiensis, and M. anisopliae in vitro, we found that the degree of inhibition increased in all of the tested microbes when concentrations of the secretions were increased. The antimicrobial activity of larval oral secretions and adult abdominal secretions had similar inhibitory effects (MIC of 125.00, 62.50, 62.50, and 250.00 μl/ml, respectively), with both being greater than the larval abdominal secretions (MIC of 250.00, 125.00, 125.00, and 500.00 μl/ml, respectively) (Table 1).

TABLE 1

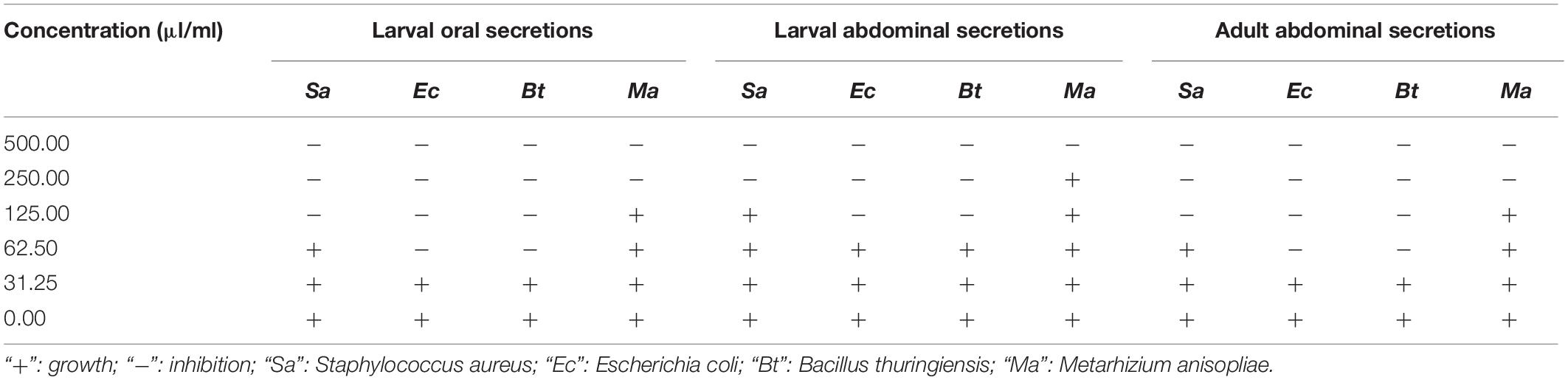

Table 1. Suppression of microbes exposed to secretions at various concentrations.

Chemical Components of External Immune Secretions From RPW

A total of more than 200 compounds, based on total ion current (TIC) chromatograms (Supplementary Figure S1), were identified in the secretions of RPW larvae and adults. Specifically, the components from six different types of samples (A to F) contained 259, 183, 206, 237, 235, and 132 chemical compounds, respectively. These compounds were mainly enriched quinones (PBQ, hydroquinone, 1-hydroxyanthraquinone, and acenaphthenequinone), phenols (m-cresol, phloroglucinol, 3-phenylcatechol, 4-vinylphenol, 4-nitrocatechol, α-tocopherol, 1,2,4-benzenetriol, 2-aminophenol, and 5-methylresorcinol) and aldehydes (octanal, phenylacetaldehyde, butyraldehyde, glutaraldehyde, farnesal, 2,5-dihydroxybenzaldehyde, trans-3,5-dimethoxy-4-hydroxycinnamaldehyde, and succinate semialdehyde). In addition to the three categories mentioned above, the following components were also present: acids, alcohols, saccharides, ketones, esters, amines, salts, ureas, and heterocycles (Table 2). Among the 51 predominant secretory chemicals found in either single or multiple types of samples, PBQ and tyrosine were the most common in all of the secretions, accounting for 11.29% of major secretion emissions, with the proportion in the solid phase being generally higher than that in the liquid phase (Table 2). Liquid-phase substances of larval oral secretions, larval abdominal secretions, and adult abdominal secretions were quantitatively characterized by having large amounts of β-mannosylglycerate (32.01%), lactic acid (22.09%), and urea (28.04%). Large amounts of tyrosine (15.73%), β-mannosylglycerate (18.35%), and uric acid (13.88%) were found in the solid phase (Table 2).

TABLE 2

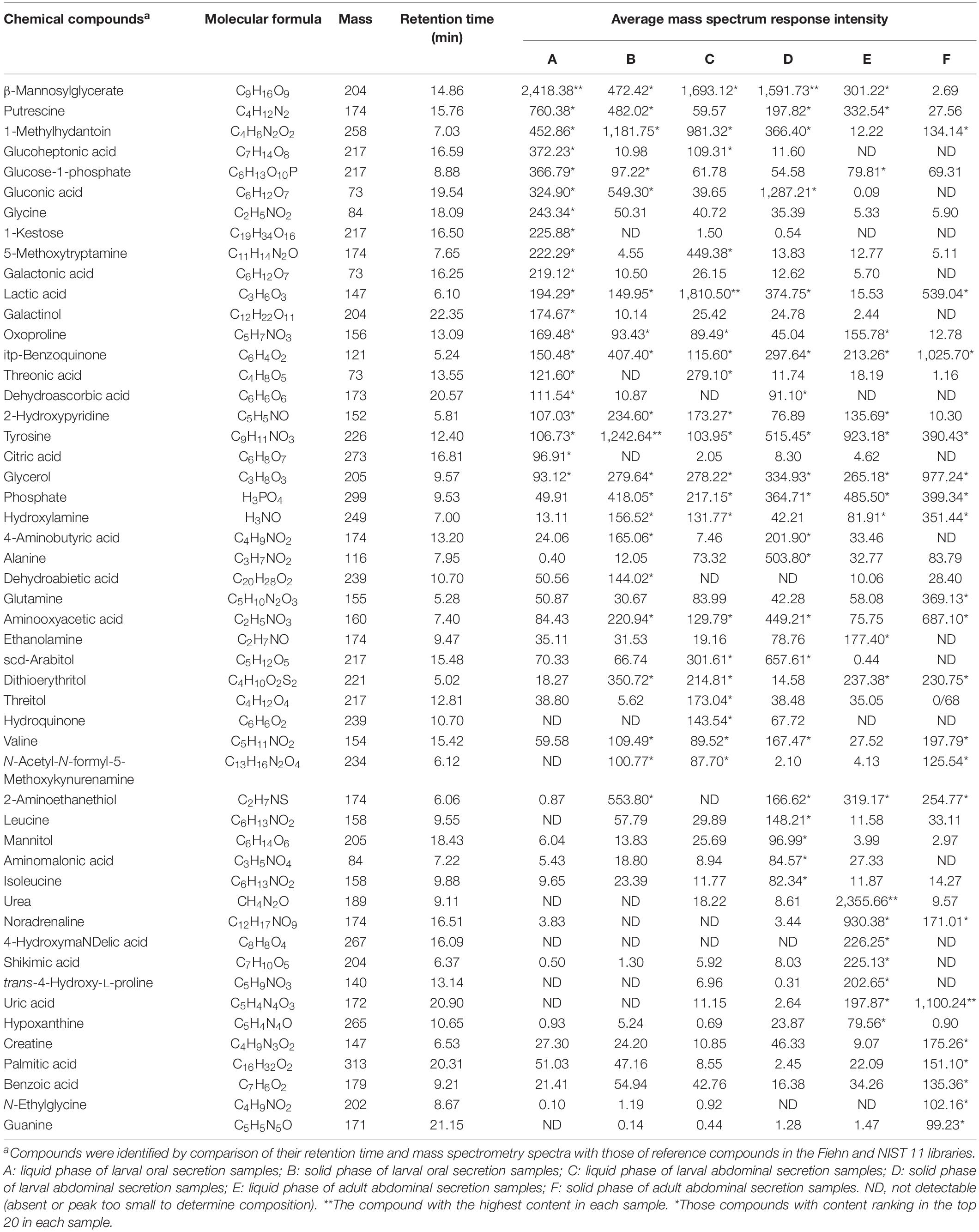

Table 2. Major chemical components of red palm weevil-associated mixtures, collected from the external secretions of larvae and adults.

Qualitative and quantitative analyses of metabolites additionally suggested that there was a substantial quantity of amino acids encoding proteins, including glycine, threonic acid, tyrosine, alanine, glutamine, valine, leucine, and isoleucine, in the external secretions produced by RPWs (Table 2). We also identified a small amount of phenylalanine, tryptophan, aspartic acid, asparagine, glutamic acid, lysine, serine, cysteine, proline, and histidine.

The score plot of OPLS-DA to identify the variations found in the external secretions obtained from RPWs at different developmental stages and phases and from different secretory structures was constructed from data obtained by running GC-MS of the secretory compounds. The secretory profiles differed significantly and fell into six distinct clusters, illustrating the increasing divergence from different types of secretions and different phases (Figure 2). OPLS-DA showed a model with seven components [model statistics: N = 40, K = 259, R2X(cum) = 0.695, R2Y(cum) = 0.899, Q2(cum) = 0.781]. The components clearly separated the data points for the three types of secretions and two phases and contributed 78% of the total variance (Figure 2). The importance of the variables (compounds) in the clusters was determined based on the VIP. Compounds with a VIP > 1.0 contributed heavily to the separation of groups. Glucoheptonic acid with a VIP of 1.33 would appear to be the most important compound among the different types of secretions and phase-related chemicals (Supplementary Figure S2).

FIGURE 2

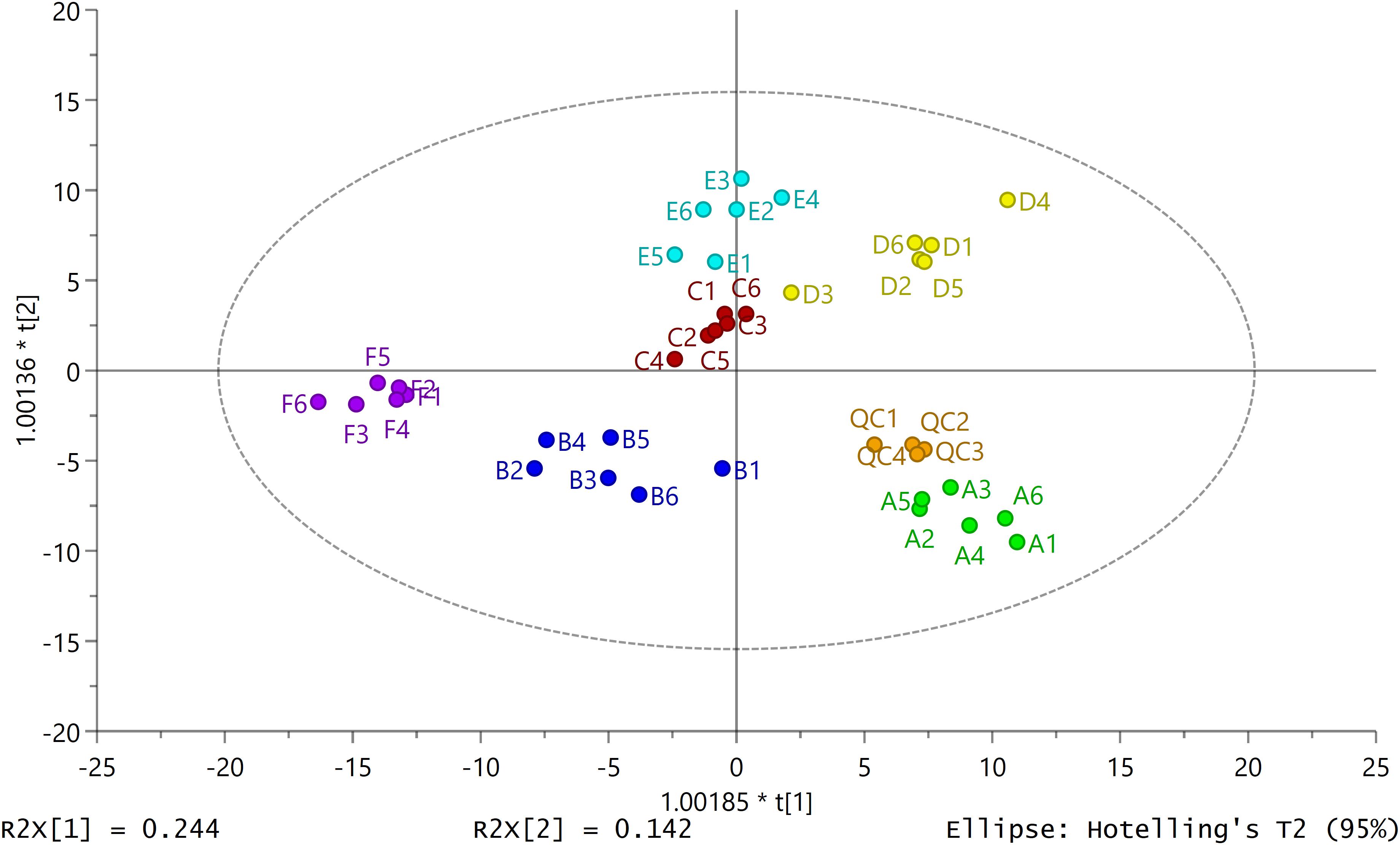

Figure 2. Secretion patterns produced by secretions from different body structures in red palm weevil larvae and adults. Two-dimensional orthogonal projection to latent structures discriminant analysis (2D OPLS-DA) score plot separating different types of secretion samples (A: liquid phase of larval oral secretions; B: solid phase of larval oral secretions; C: liquid phase of larval abdominal secretions; D: solid phase of larval abdominal secretions; E: liquid phase of adult abdominal secretions; F: solid phase of adult abdominal secretions; QC: quality control samples). Each dot with the same color represents the secretory profile of six biological replicates (N = 36) except QC samples (N = 4). The ellipse defines Hotelling’s T2 confidence region (95%).

Screening and Analysis of Differential Metabolites

It was evident from the above results that all solid phases of external secretions could significantly inhibit the growth of microbes in vitro, which plays an important role in external immunity. Liquid phases, however, did not (Figure 1), while the antimicrobial activity of different types of secretions also varied (Table 1). We wondered whether these results could be verified by differences in the chemical components of the secretions and in the metabolic phenotypes of individuals.

Differential metabolites were screened and analyzed to further clarify the immune active ingredients and key factors. We chose a total of 64 metabolites that were differentially expressed between the solid-phase groups relative to the liquid-phase groups and between any two types of secretions of the same phase. These alterations of representative metabolites are depicted as a heatmap (Figure 3), which shows two clades formed by six types of secretion samples plus two large clusters formed by differential metabolites. The metabolites in the larval oral secretions and adult abdominal secretions were the most similar in the liquid phases, while the larval abdominal secretions and adult abdominal secretions produced the most similar metabolites in the solid phases (Figure 3). In different phases, the metabolites were the closest only in the larval oral secretions (Figure 3).

FIGURE 3

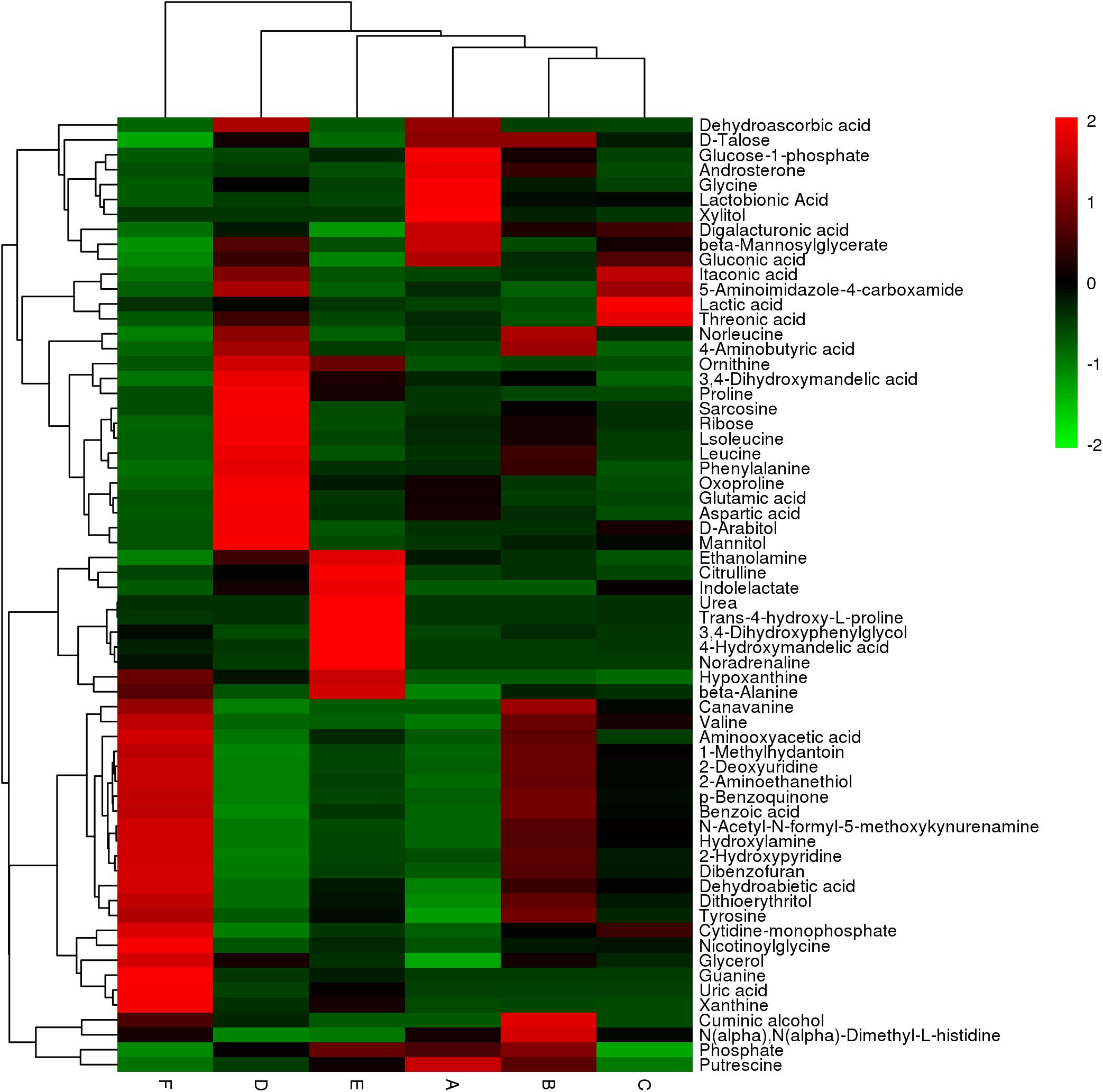

Figure 3. The hierarchical clustering heatmap showing changes in 64 representative differential metabolites between different types of secretions and their different phases in the six groups (A: liquid phase of larval oral secretions; B: solid phase of larval oral secretions; C: liquid phase of larval abdominal secretions; D: solid phase of larval abdominal secretions; E: liquid phase of adult abdominal secretions; F: solid phase of adult abdominal secretions). Each box represents a metabolite. The color, which shows the average normalized intensities of each metabolite, changing from green (downregulated) to red (upregulated) indicates higher levels of the metabolites. Each row indicates the levels of a specific metabolite in different samples, and each column indicates the levels for all of the differential metabolites in an individual sample. The upper dendrogram represents the cluster analysis results of different samples, and the left dendrogram represents the cluster analysis results of different metabolites. The colors correspond to the relative metabolite areas that were converted to Z-scores.

The differential metabolites that were significantly changed between any two types of secretions of the same phase or between the solid phase and the liquid phase of the same type of secretion are shown visually as volcano plots (Supplementary Figure S3). Compared with the liquid phases, the number of upregulated differential metabolites in the solid phases of the larval oral secretions, larval abdominal secretions, and adult abdominal secretions was 18, 19, and 16, respectively, whereas the number of downregulated differential metabolites was only 9, 4, and 13, respectively (Figure 4). The number of upregulated compounds exceeding the downregulated ones suggests that some substance(s) in the external secretions, especially in these upregulated differential metabolites, may play a key role in external immunity against pathogens.

FIGURE 4

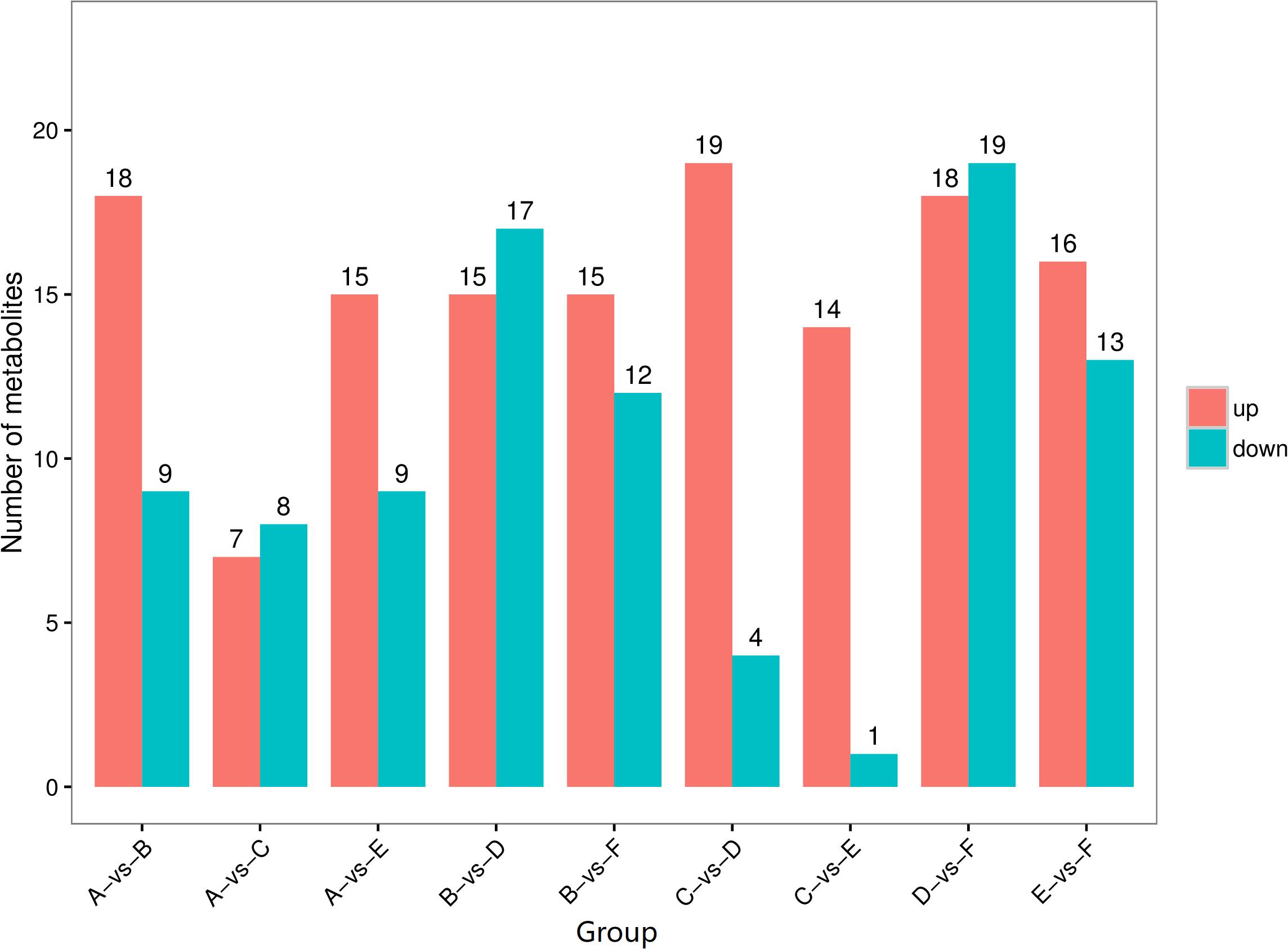

Figure 4. The number of differential metabolites presents in different external immunity secretion types and phases of red palms weevils. Red columns total the number of upregulated differential metabolites, and blue columns total the number of downregulated differential metabolites. (A) Liquid phase of larval oral secretions; (B) solid phase of larval oral secretions; (C) liquid phase of larval abdominal secretions; (D) solid phase of larval abdominal secretions; (E) liquid phase of adult abdominal secretions; (F) solid phase of adult abdominal secretions.

Five mutual altered metabolites—oxoproline, PBQ, valine, N-acetyl-N-formyl-5-methoxykynurenamine, and hydroxylamine—were found between the liquid and solid phases in different types of secretions. However, compared to that in the liquid phase, only PBQ was entirely and significantly upregulated in the solid phase. The upregulated multiples of the metabolite in larval oral secretions, larval abdominal secretions, and adult abdominal secretions were 2.92, 2.44, and 2.96, respectively (Table 3). A total of 11 mutual altered metabolites were found in every solid phase in each pair of secretion types. The amount of PBQ varied considerably in the different secretion types. It was downregulated 0.24-fold in larval oral secretions versus larval abdominal secretions; in larval oral secretions versus adult abdominal secretions, it was upregulated 1.25-fold; and in larval abdominal secretions versus adult abdominal secretion, it was upregulated 5.14-fold (Table 3). The average mass spectrum response intensity of PBQ was gradually and sequentially enhanced in the following order: solid phase of adult abdominal secretions (1,025.70), solid phase of larval oral secretions (407.40), solid phase of larval abdominal secretions (297.64), liquid phase of adult abdominal secretions (213.26), liquid phase of larval oral secretions (150.48), and liquid phase of larval abdominal secretions (115.60) (Table 1). No other common differential metabolites were characterized between the liquid phases. Four of the metabolites (N-acetyl-N-formyl-5-methoxykynurenamine, oxoproline, PBQ, and hydroxylamine) were further identified as common differentially expressed chemicals (Table 3). These results suggested that not only is PBQ likely to be a major immune active substance in RPW, but other components may also synergistically help to regulate their external immune efficacy against pathogens.

TABLE 3

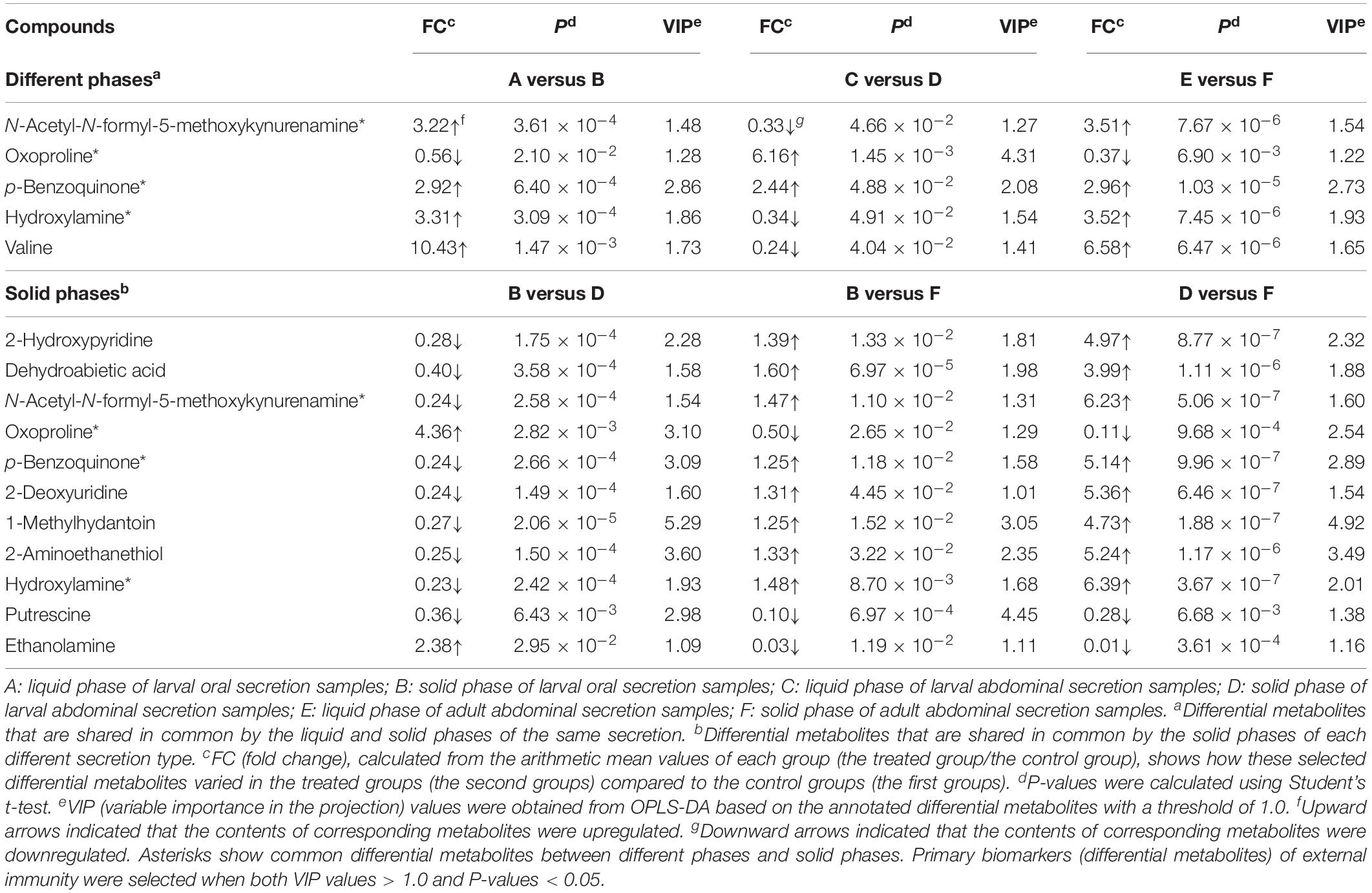

Table 3. Comparison of the mutual altered metabolites from red palm weevil secretion samples.

All differential metabolites were, for the most part, associated with one or more of the 32 pathways. External immunity biomarkers of RPW were significantly enriched into five metabolic pathways including arginine and proline metabolism (P < 0.0001); aminoacyl-tRNA biosynthesis (P = 0.0077); glutathione metabolism (P = 0.0108); phenylalanine, tyrosine, and tryptophan biosynthesis (P = 0.0162); and valine, leucine, and isoleucine biosynthesis (P = 0.0294) (Table 4). We noted that PBQ was produced by riboflavin metabolism and aminobenzoate degradation (Table 4 and Supplementary Figure S4). It can be biosynthesized by 4-carboxy-4-sulfoazobenzene, parathion, 4-nitrophenol-phosphate, or 1,2,4-benzenetriol through a series of enzyme reactions in vivo (Supplementary Figure S4). In addition, there were five pathways associated with tyrosine, the compound with the highest content, namely, glutathione metabolism; phenylalanine, tyrosine, and tryptophan biosynthesis; tyrosine metabolism; phenylalanine metabolism; and ubiquinone and other terpenoid-quinone biosynthesis (Table 4).

TABLE 4

Table 4. KEGG pathways of differential metabolites enriched in external immune defense which was aimed at secretions of red palm weevils.

Antimicrobial Activity of PBQ

The antimicrobial assays of PBQ demonstrated that there were significant differences among different species of microbes (F₃,₃₅₆ = 453.351, P < 0.001; Figure 5). The inhibitory activity against E. coli and M. anisopliae attained the highest level and the lowest level, respectively (Figure 5). The average diameter of the inhibition zones was 17.27 and 8.31 mm for E. coli and M. anisopliae, respectively (Figure 5). However, the degree of inhibition of growth of S. aureus and B. thuringiensis did not statistically differ (Figure 5). The MIC against S. aureus, E. coli, B. thuringiensis, and M. anisopliae was 0.04, 0.03, 0.04, and 0.16 mg/ml, respectively (Table 5). These results were basically consistent with immunosuppressive efficacy of external secretions produced by RPW, which further confirmed that PBQ was one of the key factors and main active ingredients in external secretions exerting external immune function.

FIGURE 5

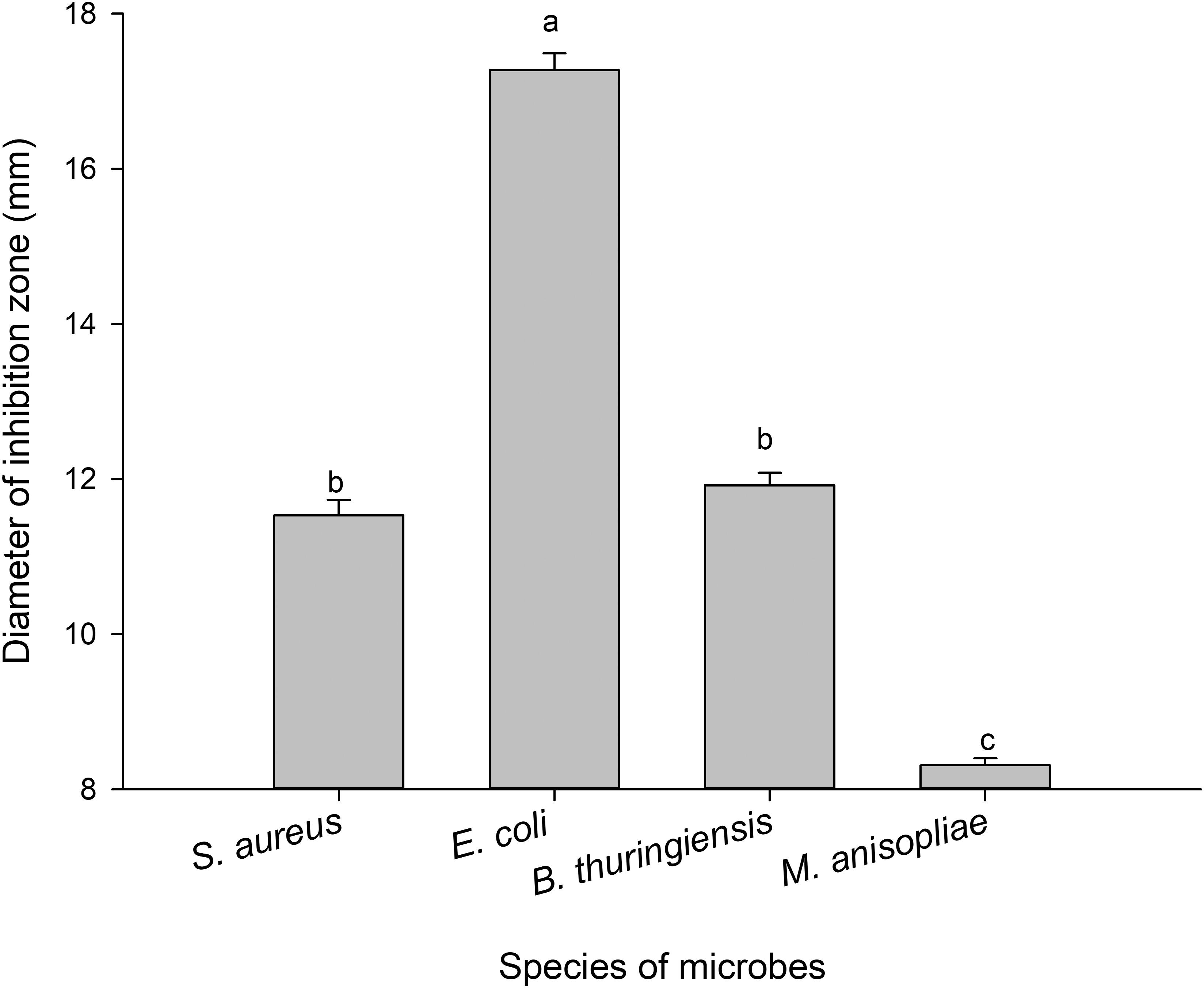

Figure 5. Diameters of inhibition zones against microbes produced by p-benzoquinone. The graph showing mean ± standard error was analyzed using one-way ANOVA followed by Tukey’s honestly significant difference (HSD) test. Bars with the same lowercase letters are not statistically different at P = 0.05.

TABLE 5

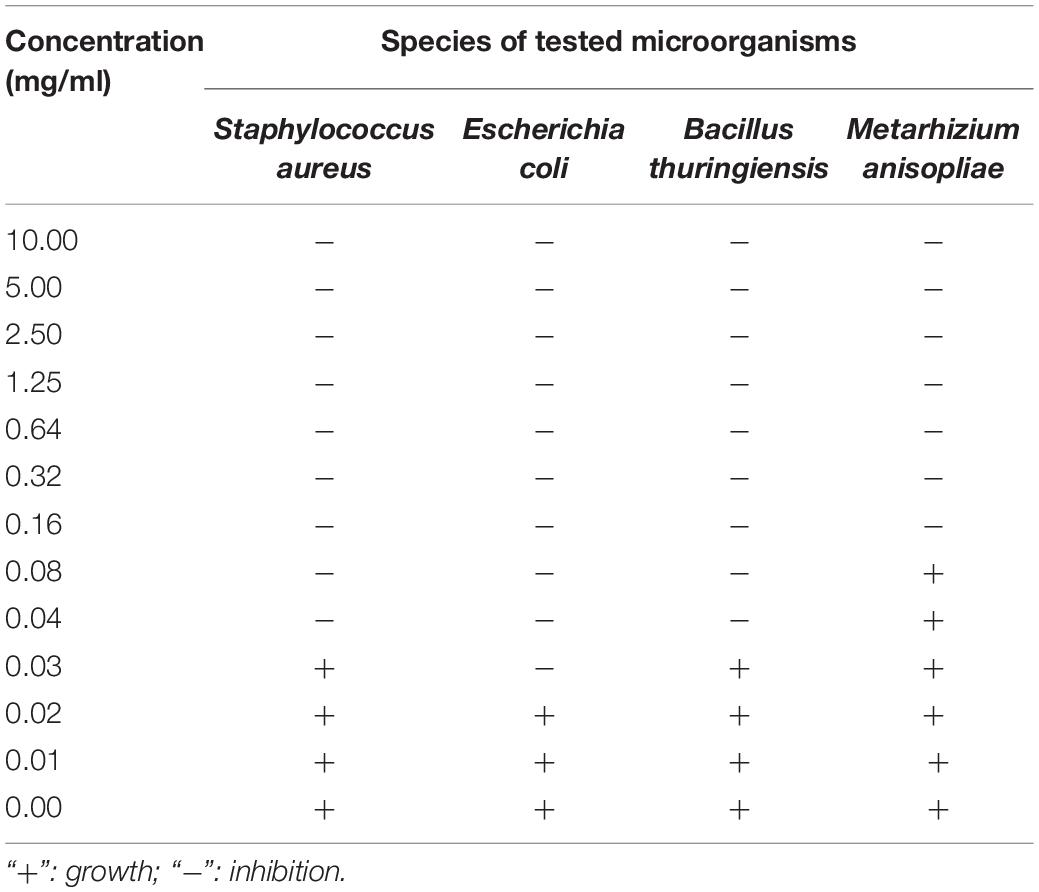

Table 5. Suppression of microbes exposed to p-benzoquinone at various concentrations.

Discussion

Previous studies have shown that the defensive secretions of a number of coleopteran species from several families, including Tenebrionidae, Silphidae, and Chrysomelidae, exhibited antimicrobial activity in vitro (Gross et al., 2008; Cotter et al., 2013; Li et al., 2013; Joop et al., 2014; Pedrini et al., 2015), although, to date, there have been no instances of this being reported in Curculionidae. The present study is the first to demonstrate the immune function of external secretions excreted from RPWs and to further analyze their components and immunologically active constituents. It is also one of a very few reports to study another primary immune system besides the innate internal immunity, i.e., external immunity, which is overlooked in most studies.

In addition to the insect innate barriers posed by the cuticle and internal immune system (Vilcinskas and Götz, 1999; Silva et al., 2016), other factors can limit the effectiveness of pathogens (Pu et al., 2017a). For instance, both ants (Gupta et al., 2015) and bees (Otti et al., 2014) exhibit an array of behavioral and biochemical defenses to prevent pathogenic infection. In some previous studies, insect external secretions were shown to inhibit both bacterial and fungal growth in vitro. Secretions from Tenebrio molitor can successfully inhibit E. coli, S. aureus, Candida albicans, and Aspergillus niger but cannot suppress the growth of Penicillium citrinum (Qiang et al., 2006a). The secretion of Blaps femoralis has been shown to have antibacterial activity against E. coli and S. aureus (Li et al., 2009). The antibacterial activity of the anal exudates was also confirmed in burying beetles (Cotter et al., 2013). Salicylaldehyde, released by larvae of the brassy willow leaf beetle, is toxic to B. thuringiensis (Gross et al., 2008). (E)-2-Hexenal, (E)-2-octenal, and (E)-2-decenal, three aldehydes from bed bug or stink bug scent glands, are fungistatic toward M. anisopliae (Sosa-Gomez et al., 1997; Ulrich et al., 2015). It is clear that these externally secreted compounds are involved in external immunity. Likewise, our results indicated that the external secretions of RPWs inhibited the in vitro growth of E. coli, S. aureus, B. thuringiensis, and M. anisopliae and may play an important part in disinfecting the RPW’s microenvironment consistent with the action of secretions.

It was reported that the antibacterial activity in larval salivary secretions of Polistes dominulus inhibited growth of the gram-positive bacteria Bacillus subtilis and the gram-negative bacteria E. coli (Turillllazzi et al., 2004). Since then, these insects have often been deemed to be one of the main sources of antimicrobial peptides, having broad-spectrum activity against pathogens, including bacteria, fungi, viruses, nematodes, and some parasites (Pu et al., 2017a; Sewify et al., 2017). Not only has our work established that the external secretions (oral cavity or abdomen) of RPW larvae and adults have antimicrobial activity, we also found a large number of amino acids encoding proteins in the secretions. We speculated that the RPW external immune secretions may contain antimicrobial proteins which can be explored further as a potential source of antimicrobial peptides. However, these will need to be further isolated, purified, and characterized. We were not able to successfully isolate effective antimicrobial peptides from the exocrine secretions in RPW in the present study. There is thus insufficient evidence for the antimicrobial activity of proteins at present. As shown in several studies on other insect species (Qiang et al., 2006a; Joop et al., 2014; Ulrich et al., 2015), the metabolite portion of the external secretions definitely has antimicrobial activity functions based on experimental evidence, e.g., the diameter of antimicrobial inhibition zones produced by some of the potential chemicals including PBQ.

The sensitivity of microorganisms can be attributed to the fact that gram-positive bacteria are surrounded by a cytoplasmic lipid membrane and lack the outer cell membrane which is present only in gram-negative bacteria (Gupta, 2000; Sewify et al., 2017). The absence of this outer membrane usually makes the bacteria vulnerable to the effect of antimicrobial peptides (Gupta, 2011). Interestingly, gram-negative bacteria, namely, E. coli, were more sensitive and had considerably larger zones of growth inhibition than gram-positive bacteria, namely, S. aureus, after being treated with the RPW secretions in this study. This result is somewhat similar to the findings reported for T. molitor (Qiang et al., 2006a), but contrary to those found for B. femoralis (Li et al., 2009). It is apparent that multiple factors are present in the secretions, besides antimicrobial peptides, that are capable of interacting with each other to vary their effect on different bacteria.

Li et al. (2009) reported that only the solid phase of B. femoralis secretions had bacteriostasis, while the liquid phase did not. Similarly, this phenomenon was also noted in our research. Our results showed that the active compounds that regulated external immunity were mainly concentrated in the solid phase. However, we did find that the solid phase was less responsive to bacteria and fungi than the stoste. In addition, a large assortment of chemicals and their relative amounts were identified and analyzed based on qualitative and quantitative analyses of metabonomics technology. These results, included in this study, further substantiate our supposition that external secretions do not rely on single components to exert their external immunity function but, instead, depend on synergy or antagonism between multiple components to strengthen or weaken their immunosuppressive efficacy. It is quite likely that the antimicrobial activity may be dependent on the interaction of multiple compounds, which may be mixtures of multiple compounds combined in definitive proportions.

Based on metabolome analysis and further antimicrobial functional validation of active components, we concluded that PBQ could be regarded as a key immune defensive secretion of RPWs in resisting the invasion of predators or parasites. This is very similar to the results found in several tenebrionid species. The main defensive secretions produced by Tribolium castaneum and Tribolium confusum were identified as a mixture of a variety of quinones, including methylquinone, ethylquinone, and benzoquinone, to inhibit the growth of pathogens or repel natural enemies (Alexander and Barton, 1943; Li et al., 2013; Joop et al., 2014; Pedrini et al., 2015; Khan et al., 2016). While Li et al. (2009) reported in another tenebrionid, B. femoralis, that 2-methyl-PBQ was one of three predominant secretory compounds. Likewise, it was reported that methyl-PBQ also played a major role in the defense of T. molitor (Qiang et al., 2006b).

Quinones, which are one of the major external defensive secretions, are highly reactive, unstable, and toxic and have recently had their biosynthetic pathway preliminarily defined (Pu et al., 2017a). Alkylated benzoquinones are formed by condensation reactions of esters, while PBQ is generated from aromatic rings of amino acids, including tyrosine and phenylalanine (Meinwald et al., 1966; Blum, 1981). In the glandular secretory cells, PBQs are in a form of phenolic β-glucoside contained in the more apical portion, which are then transferred to the inner part of the gland and form active quinones by a series of enzymatic reactions (Happ, 1968). However, the molecular basis for controlling the synthesis and secretion of these secretions remains to be determined, although our research on metabolic pathways in this study will further benefit our understanding of this process.

Insects tend to acquire immune substances directly from other individuals to enhance personal immunity (Otti et al., 2014; Khan et al., 2016), leading to fewer threats in the surrounding environment as a result of bacteriostasis of secretions (Joop et al., 2014; Otti et al., 2014). Therefore, individuals of some species can be attracted to the secretions, although, to some extent, secretions that include quinines, phenols, and aldehydes are toxic to individuals (Pu et al., 2017a). Arthropods have evolved a series of behaviors and mechanisms to reduce the autointoxicative effects of a variety of toxic compounds produced by their species for immune purposes (Blum, 1981). Tribolium beetles have the ability to partition the secretions away from the somatic cells, initially, by producing the secretions in cuticle-lined organelles and then retaining them in storage sacs that are formed from invaginations of the cuticle (Roth, 1943; Happ, 1968; Li et al., 2013). In addition, some individuals are known to alert their peers by chemical cues involving secretions to avoid being infected by pathogens (Liang, 1995).

In summary, external secretions including larval oral secretions, larval abdominal secretions, and adult abdominal secretions were collected from R. ferrugineus. Functional verification showed that these secretions exhibited potent antimicrobial activity against bacteria and fungi. After analysis of the components of the secretions, PBQ was considered to be the main active substance involved in this process through metabolic profiling. Based on the above analysis, the role that external secretions played in external immune defense was ultimately revealed. Studying the chemical ecology of RPW external immune secretions provides insight into relevant signaling cues, with direct implications for RPW management practices. However, to develop pest inhibitors or behavioral interfering agents for RPWs, the substances acting as the key function and necessary dosage will need to be further explored.

Data Availability Statement

The datasets for this study can be found in figshare: http://dx.doi.org/10.6084/m9.figshare.9804896.

Ethics Statement

Ethical review and approval was not required for the animal study because Rhynchophorus ferrugineus is exempted from above mentioned requirements.

Author Contributions

Y-CP and Y-MH designed the research. Y-CP, H-JX, YW, LF, and RW performed the research. Y-CP, H-JX, and X-YL analyzed the data. Y-CP, H-JX, and Y-MH wrote the manuscript. All authors have read and approved the final manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (U1705232), the National Key R&D Program of China (2017YFC1200605), the Fujian Science and Technology Special Project (2017NZ0003-1-6), and the Scientific Research Foundation of Graduate School of Fujian Agriculture and Forestry University (324-1122yb038).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We acknowledge Prof. Ming Sun (Huazhong Agricultural University, China) for providing the Bacillus thuringiensis HA strain used in this study and Dr. Cecil L. Smith (University of Georgia, United States) for assisting in the editing of the manuscript’s English language.
