Thin films of silicon nitride deposited at room temperature by non-reactive magnetron sputtering: radiofrequency power and deposition time influence on the formation of α-Si3N4 and its optical properties

Silicon nitride’s excellent electronic and optical properties have positioned it as an indispensable element in silicon-based photonic platforms and photonic quantum computing. Chemical Vapor Deposition (CVD) and Plasma Enhanced CVD (PECVD) techniques predominate in high-performance silicon nitride thin film manufacture. Unfortunately, Chemical Vapor Deposition and Plasma Enhanced CVD are expensive techniques that use hazardous gases and very high substrate temperatures. In this work, we used the sputtering technique to grow α-Si₃N₄ thin films at room temperature. We identified that by applying radiofrequency powers between 30 and 50 W combined with deposition times below 120 min, we could achieve the growth of silicon nitride (SiN_X) films with uniformly distributed crystalline particles, limited formation of clusters, and minimal alterations in atomic ordering. The Volmer-Weber model governs the film’s growth, which favors its continuity and surface roughness. The optical bandgaps of our SiN_X films ranged from 2.3 to 3.9 eV, and their RMS roughness never exceeded 4 nm. We observed a quasi-linear deposition rate concerning radiofrequency power and deposition time, whereby we were able to grow SiN_X films controllably and reproducibly with thicknesses ranging from 45 to 500 nm.

1 Introduction

Silicon nitride (SiN_X) is a relevant material for the scientific and industrial community. SiN_X is an inert ceramic material recognized for its high hardness as a bulk material (9 Mohs) [1]. As a thin film, SiN_X has values of hardness, tensile strength, compressive stress, and Young’s modulus of elasticity that range from 8–30 GPa [2, 3], 135–235 MPa [3], 0–1.6 GPa [2] and 100–360 GPa [1, 2] respectively. Likewise, SiN_X thin films exhibit a dielectric constant between 6 and 9, bandgap energy ($E_g$) in the range of 2.4–5.2 eV, considerable optical transmittance from 0.25 nm to 8 μm, and refractive index between 1.6 and 2.7 [1–4]. The electrical and optical properties that SiN_X exhibits when formed in a thin film have allowed its incorporation into microelectronics [3, 5–13] and photonics [14–20]—standing out in recent years as a potential alternative in silicon-based photonic platforms and photonic quantum computing [4, 20–25].

To obtain SiN_X thin films, chemical vapor deposition (CVD) techniques predominate, requiring high substrate temperatures [1, 2]. Substrate temperatures above 350°C favor the diffusion of incident species on the surface, thus promoting the morphological, optical, and electronic properties that allow SiN_X films to be incorporated into different functional devices. Unfortunately, not all substrates of interest can withstand high temperatures [3]. To solve the problem of high substrate temperatures, the community has used Plasma Enhanced CVD (PECVD) because it allows working with temperatures below 400°C. However, using low temperatures in PECVD causes an increment in the content of polluting hydrogen from the precursor gases, significantly affecting the films’ properties [1, 2]. Even with research focused on optimizing CVD and PECVD processes to work with lower temperatures and reduce hydrogen contamination [6–8, 17], the substrate temperatures continue to be high enough to limit the variety of useable substrates. In this vein, one of the greatest interests in working with low substrate temperatures is that this could favor the fabrication of devices that monolithically integrate SiN_X with temperature-sensitive materials [3, 16].

Sputtering techniques have some advantages over CVD techniques; therefore, they are a potential alternative to grow SiN_X thin films at low temperatures and without hydrogen contamination [16, 23, 26–31]. The sputtering techniques do not need toxic or volatile gases to deposit different materials. They present low deposition rates ($D_R$), especially when low RF powers are supplied [26, 32], and it allows for working with low substrate temperatures [18, 29–33]. However, the academic community inclines to study the growth of these films at temperatures high above ambient to improve their properties [14, 18, 23, 24, 31] because obtaining sputtered SiN_X thin films with significant properties is a complex task at room temperature.

Various research groups have studied the influence of parameters such as pressure [26], gas flow [14, 16, 18, 27, 28, 32], bias voltage, and electrical or radiofrequency power (RF-P) [14, 26, 29, 34, 35] on the optical and electrical properties of SiN_X thin films grown with diverse substrate temperatures. In all these studies, it has been observed that the final properties of SiN_X films strongly depend on the deposition parameters used [16, 26, 28, 29, 33]. However, the influence of radiofrequency power on the optical and microstructural properties of silicon nitride films is a poorly explored field, especially when using a Si₃N₄ target without reactive gases and at room temperature.

In this work, we present a study of the influence of radiofrequency power (RF-P) on the growth of SiN_X thin films by non-reactive magnetron sputtering at room temperature grown on glass, fused silica, and monocrystalline silicon substrates. It was determined that the deposited films present polycrystalline silicon nitride particles in their α phase (α-Si₃N₄) when RF-P ≤ 50 W and deposition time ($d_t$) ≤ 120 min are applied. On the other hand, increasing the value of one of both parameters favors the formation of polycrystalline conglomerates of α-Si₃N₄ on an amorphous matrix of SiN_X. It also improves the continuity and surface uniformity of the films. Finally, the increase in the optical absorbance of the films and the shift of their absorption edge to the near-infrared (NIR) are identified when working with RF-P ≥ 50 W. Based on the obtained results, we conclude that it is possible to grow thin films of SiN_X at room temperature exhibiting adequate structural, microstructural, and optical properties for its potential application in the construction of electronic and optoelectronic devices.

2 Materials and methods

2.1 Deposition procedure

In this work, we deposited SiN_X thin films by non-reactive magnetron sputtering-RF at room temperature. We used glass, fused silica, and high-resistance monocrystalline silicon (100) substrates to perform a complete optical and microstructural characterization of the films. Previous to the depositions, we cleaned the glass and fused silica substrates with our methodology, which consists of a cycle of 4 ultrasonic baths at room temperature and sequentially immersed for 5 min in 1) trichloroethylene to remove any grease, 2) methanol to remove trichloroethylene residues, 3) acetone to remove organic particles and 4) again methanol to remove acetone residue. As a final step, we use high-pressure carbon dioxide (CO₂) gas to dry and remove dust particles from the substrates prior to use [36, 37]. The films were also deposited on copper grids of 600 mesh to make an exhaustive nanostructural characterization using transmission electron microscopy.

We used high-purity argon (99.9%) as the working gas to pulverize a one-inch diameter silicon-rich α-Si₃N₄ (98% α-Si₃N₄) target. With a preliminary analysis, which we will explain in Section 3.1, we determined that we could obtain films with lower optical absorbance using a working pressure of 40 mTorr; therefore, this was the pressure we used for all our growth presented in this paper. Radiofrequency power (RF-P) was applied in multiples of 10 W within a range of 10–100 W to evaluate the influence of RF-P on our films’ optical, structural, and microstructural properties. The power density (${\rho }_P$) varied between 1.97 and 19.73 W/cm², increasing at a rate of 1.97 W/cm² for every 10 W applied. We worked with deposition times ($d_t$) in the range of 10–200 min. Meanwhile, the target-substrate distance in all depositions was 7.5 cm. The average deposition rate ($D_R$) for the samples made with RF-P = 30 W was 0.65 nm/min and increased non-linearly until reaching 6.2 nm/min for the films grown with RF-P = 90 W. Table 1 summarizes the deposition parameters of all the SiN_X thin films deposited and characterized in this work.

TABLE 1

TABLE 1. Deposition parameters used to grow our SiN_X thin films. The orange column indicates the $d_t$ of films deposited on glass substrates, and the purple column indicates the $d_t$ of films grown on silicon and fused silica substrates.

2.2 Sputtering and characterization equipment

Our RF magnetron sputtering equipment was built by the silicon photonics research group of the UNAM Institute of Physics (IFUNAM). As main characteristics, it has a small 4-L spherical deposition chamber that contains a circular cathode coupled to a 1-inch diameter flat magnetron with a NdFeB magnetic arrangement, a shutter, and a non-rotating substrate holder that allows the target distance to be varied. The equipment has a 13.56 MHz SEREN R301 radio frequency power source optimized with the combination of the SEREN AT3 Automatic Matching Network system and the SEREN MC2 Matching Network controller. This combination allows exceptional control of the RF-P, creating stable plasmas as low as 1 W and working pressures of 1 mTorr.

A JEOL JEM-2010F FastTEM transmission electron microscope (TEM) was used to characterize the structure of our films grown on copper grids. We obtained clear, high-resolution images (HRTEM) and electron diffraction patterns by operating the TEM with an accelerating voltage of 200 kV. Meanwhile, the meso- and microstructural characterization was made with our films grown on glass and monocrystalline silicon substrates. On the one hand, the morphology was studied using a JEOL-JSM-7800F ultra-high resolution scanning electron microscope (SEM) with Schottky field emission and operated with an accelerating voltage from 1 to 15 kV. The SEM was also used to cross-sectionally measure the thickness of our films grown on glass substrates and to qualitatively analyze the elemental composition of the films by energy-dispersive X-ray spectroscopy (EDS) using an X-ray detector adapted to the equipment and an accelerating voltage of 10 kV. On the other hand, the topography of our films was analyzed with a JEOL JSPM-4210 atomic force microscope (AFM) in tapping mode and a high-resolution Mikromasch NSC15 silicon tip with a radius of curvature <10 nm.

The optical transmittance/absorbance spectrum of films grown on glass and fused silica substrates was measured with an Agilent Cary UV-Vis-NIR spectrophotometer equipped with a deuterium lamp and a tungsten lamp that emits radiation in the ultraviolet regions (UV) and visible-near infrared (Vis-NIR) respectively. The instrument has a lamp and detector switch that automatically switches in 350 and 800 nm, respectively. All optical absorbance measurements were made with a normal angle of incidence, an optical range of 200–3,000 nm, and a resolution of 1 nm. The thickness and optical refractive index of our films grown on monocrystalline silicon substrates were measured with a Gaertner L117 nullity ellipsometer equipped with a λ = 632.8 nm Helium-Neon laser and a laser incidence angle of 70° with respect to the normal of the film.

Additionally, we deposited a film with RF-P = 70 W and $d_t$ = 200 min (70SiN200) on monocrystalline silicon whose thickness was conveniently large (∼528 nm) to chemically characterize it with a Nicolet iS50R FT-IR spectrometer in a range of 4,000 to 525 cm⁻¹. This technique allowed us to confirm the presence of SiN_X in our films by obtaining the infrared (IR) absorption band characteristic of the asymmetric stretching vibration mode of the atomic bonds of silicon and nitrogen (Si-N), whose maximum peak has been reported around between the 830 and 870 cm⁻¹ [16, 26, 34].

2.3 Specimens nomenclature

Each SiN_X thin film was named sequentially with the RF-P, the type of substrate, and the $d_t$ used to grow it. The abbreviation SiN, SiNsf or SiNsm was used to indicate that a certain film was deposited on a substrate of glass, fused silica, or monocrystalline silicon, respectively. For example, the film grown on glass with RF-P = 30 W and $d_t$ = 120 min was named 30SiN120. In order to name the three preliminary films of the investigation, deposited with different working pressure, the pressure was added after the $d_t$ separated by a hyphen; 50SiN80 film grown with a working pressure of 9 mTorr was designated as 50SiN80-9.

3 Results and discussion

3.1 Determination of the optimal chamber pressure

We first needed to establish a constant working pressure to investigate RF-P’s influence on our films’ properties. To determine what constant pressure we would use, we made three preliminary depositions at RF-P = 50 W and $d_t$ = 80 min, with pressures of 9, 20, and 40 mTorr (50SiN80-9, 50SiN80-20, and 50SiN80-40 respectively). The characterization of these three films allowed us to adjust the working pressure.

Figure 1 presents the morphologies of the films observed by TEM and HRTEM. The favored formation of crystalline nanometric particles is evidenced at the highest pressure of 40 mTorr, being lower at the two lower pressures. We believe this is because higher pressure enhances plasma densification by generating more Ar ions, increasing the number and possibly the energy of SiN_X “nano-chunks” ejected from the target and promoting their orderly interaction in the substrate, thus allowing a better diffusion of the energetic chunks, giving rise to a greater atomic ordering in the film.

FIGURE 1

FIGURE 1. Structural morphology characterized by TEM and HRTEM of preliminary films. 50SiN80-40 (A,D), 50SiN80-20 (B,E), and 50SiN80-9 (C,F). Higher magnification micrographs (D–F) demonstrate the presence of crystalline particles in the films, which is quite and easily noticeable in the 50SiN80-40 film.

Figure 1 micrographs were complemented with diffraction patterns obtained exclusively from the 50SiN80-40 film, which show a superposition of rings and points, as shown in Figure 2. These points show the existence of large particles that diffract in the same crystalline plane and have the same crystallographic orientation. On the other hand, the rings denote that the entire film is polycrystalline. Each ring represents a group of particles that diffract in crystal planes belonging to the same family but with different crystallographic orientations. The intense points on the rings indicate that some orientations are preferential. These diffraction patterns were indexed using the crystallographic information reported by Yang et al., determining that the crystalline structure of the particles in the film corresponds to the α phase of silicon nitride (α-Si₃N₄) [44]. The structural results of these films are both interesting and relevant since it has been widely reported in the literature that SiN_X thin films obtained by sputtering techniques at room temperature are amorphous [2, 18, 26, 29, 35], and the possibility that there may be a slight formation of crystalline Si₃N₄ particles on an amorphous matrix has been overlooked [34].

FIGURE 2

FIGURE 2. Indexed diffraction pattern of 50SiN80-40 film. The distance associated with each ring or point chosen corresponds to the reciprocal of the radius of the ring or the distance between the point and the center of the spot (green point) and represents the interplanar distance in real space of the crystalline planes that diffracted said ring or point. Each calculated distance was compared with the interplanar distances reported for the crystal planes of the α-Si₃N₄ and β-Si₃N₄ phases [38], found to be quite approximate to the interplanar distances of some α-Si₃N₄ planes highlighted to the left of the pattern. Below each calculated distance, we present the crystalline plane of the closest interplanar distance.

Figure 3 presents the optical absorbance of the three preliminary films. The 50SiN80-40 film shows the lowest absorbance, which we attribute to the presence of crystalline particles. Crystalline Si₃N₄ particles may not contribute to allowed energy states within the band gap of the film, helping to reduce its level of structural disorder and minimize the broadening of its valence (VB) and conduction (CB) band tails caused by a disordered structure and the presence of silicon and nitrogen dangling bonds. A structural disorder and dangling bonds increase the optical absorbance of the film, decrease its bandgap energy ($E_g$) and favor the shift of its absorption edge toward the NIR region [44]. The 50SiN80-40 film presents an absorption edge that starts at a shorter wavelength (λ) compared to the other two films (∼500 nm), implying that the film’s electronic transitions occur by absorbing higher energy photons, therefore, its $E_g$ is greater. These results were enough to consider that working with a pressure of 40 mTorr will allow obtaining films with structural and optical properties similar to 50SiN80-40 film, including the formation of crystalline particles and low optical absorbance. Therefore, the influence of the radiofrequency power was studied using the pressure parameter set at 40 mTorr.

FIGURE 3

FIGURE 3. Optical absorbance spectra ranging from 300 to 1,500 nm of the three preliminary SiN_X thin films.

3.2 Microstructural characterization

Various SiN_X thin films were grown on glass substrates, following the deposition parameters indicated in Table 1. We TEM analyzed the structural morphologies of these films. Micrograph Figure 4A reveals the presence of uniformly distributed crystalline particles with diameters less than 15 nm in the 30SiN80 film. A similar pattern is observed in the 30SiN120 film, but with larger particles not exceeding 30 nm in diameter. When deposition time ($d_t$) is increased to 160 min, particles of less than 10 nm in diameter and irregular shapes that do not exceed 250 nm appear. HRTEM analysis shows that these irregular shapes comprise crystalline particles that have grown to meet at their boundaries and coalesce, referred to as polycrystalline conglomerates. Micrographs Figures 4B, D provide examples of this kind of cluster.

FIGURE 4

FIGURE 4. Morphological micrographs of the films (A) 30SiN80, (B) 30SiN160, (C) 50SiN80, and (D) 50SiN120. Micrograph (C) shows that the coalescence of smaller particles forms large particles. Hence, when working with a higher $d_t$, conglomerates such as those presented in micrographs b and d can easily be formed.

Similar growth was observed in films grown with RF powers of 40 and 50 W. The 50SiN80 film did not present conglomerates but did show very close particles of variable sizes, all less than 40 nm in diameter. Micrograph Figure 4C shows that some of these particles meet at their boundaries and grow together. The 40SiN120 film showed similar behavior; only isolated particles with sizes up to 70 nm in diameter were formed. HRTEM micrographs indicate that these are also made up of smaller particles, similar to what is shown in micrograph Figure 4C. In the 50SiN120 and 50SiN160 films, the evaluation of polycrystalline particles by HRTEM was impossible due to their thicknesses reported in Table 3. Only conglomerates smaller than 1.2 μm were observed, larger in the 50SiN160, as shown in the Figure 4D micrograph. We used the Selected Area Diffraction (SAD) technique in the 50SiN120 and 50SiN160 films. The films showed diffraction patterns of their conglomerates, not individual particles, confirming crystalline particles’ absence or scant presence.

These preliminary results suggest that the formation of clusters is favored in two scenarios: 1) with the same RF-P but increasing the $d_t$, which makes it easier for more SiN_X “nano-chunks” to reach the substrate, promoting the growth of particles and their coalescence to form clusters with preferential crystallographic orientations, and 2) increasing the RF-P while keeping the $d_t$ constant, which optimizes the pulverization performance and, consequently, intensifies the number and energy of the incident SiN_X chunks on the substrate surface. The above propitiates the superficial diffusion of more nubs forming larger particles or conglomerates with the same or smaller $d_t$.

Both situations can perturb the crystallinity of the particles that make up the final film because the prolonged (case 1) or abundant (case 2) arrival of nobs can cause them to accumulate on each conglomerate or at its boundaries and not have enough energy or time to spread and adopt stable periodic positions, resulting in disorderly growth. The latter justifies why the 30SiN160 and 50SiN120 films stand out for the random presence of conglomerates in a matrix that is observed to be primarily amorphous, unlike the 30SiN120 and 50SiN80 films, and why in the 30SiN120, 40SiN120 and 50SiN120 films, in the order mentioned, a decrease in the presence of uniformly distributed particles is evidenced as the presence of conglomerates and the formation of an amorphous matrix increase.

In the films obtained with RF-P greater than 50 W and $d_t$ equal to or less than 80 min, conglomerates were formed that did not exceed 300 nm in diameter, as seen in micrographs Figures 5A, C. In this case, the situation is opposite to that described above. On the one hand, the formation of clusters decreased both in quantity and size as the RF-P increased. Many clusters appear on 60SiN80 and 70SiN80 films, but they are rare on 80SiN60 film and did not form on films obtained with RF-P equal to or greater than 90 W. On the other hand, working with larger $d_t$ did not favor the formation and growth of the conglomerates since the 80SiN20 film presented a vast formation of these with sizes smaller than 40 nm in diameter, while very few were formed in the 80SiN60 film. It is important to highlight that the conglomerates present in the 60SiN80, 70SiN40, and 80SiN20 films were created by the coalescence of a few particles and a crystallographic orientation predominated, as observed in micrograph Figure 5B. Their diffraction patterns of the 60SiN80 film, similar to that of Figure 6B, corroborated the above.

FIGURE 5

FIGURE 5. Morphological micrographs of the 60SiN80 (A,B), 70SiN80 (C), and 80SiN20 (D) films. Micrograph (B) is an HRTEM image of the in-box section in the 60SiN80 film conglomerate shown in micrograph (A). Micrograph (C) shows the distribution of clusters formed on the 70SiN80 film, and micrograph (D) shows nucleation zones with atomic ordering.

FIGURE 6

FIGURE 6. Indexed diffraction patterns of the (A) 30SiN80 and (B) 60SiN80 films are used as references to demonstrate the α-Si₃N₄ crystalline structure of the particles and conglomerates formed in the films of this investigation. The distance associated with each ring or point chosen is the reciprocal of the radius of the ring or the distance between the point and the center of the spot (green point) and represents the interplanar distance of the crystalline planes that diffracted said ring or point. They were pretty close to the interplanar distances of some α-Si₃N₄ planes highlighted to the left of the pattern [38]. Each calculated distance is associated with a crystalline plane whose interplanar distance is the one it most closely approximates.

Using HRTEM, films grown with RF-P > 50 W exhibited particles with diameters less than 5 nm and distant from clusters, as shown in micrograph Figure 5D. However, those particles were challenging to observe, especially on films grown with RF-P ≥ 80 W. We suspect this is because many ejected SiN_X nobs acquire high energy, embedding near their incidence positions or accumulating on the surface without having the possibility of diffusion to acquire stable positions. This phenomenon could inhibit the atomic ordering at the boundaries of already grown particles or the formation of new particles, which is why an amorphous structure prevails in these films.

Finally, a balance between RF-P and $d_t$, specifically 30–60 W and less than 120 min, allows obtaining films with uniformly distributed particles, minimal formation of clusters, and avoids significant alterations in atomic ordering. Films containing particles and clusters exhibited ring diffraction patterns where some intense points were also identified. These diffraction patterns were indexed using the crystallographic information of silicon nitride [38], and their crystalline structures were determined to correspond to α-Si₃N₄, as shown in Figure 6. The appearance of rings and points simultaneously in the diffraction patterns of the conglomerates supports the idea that the coalescence of polycrystalline particles forms them. Each ring is generated by a set of crystalline particles that diffract with the same plane but present different crystallographic orientations. The intense points indicate the existence of preferential crystallographic orientations. The diffraction pattern of the 30SiN80 film, Figure 6A, clearly illustrates the polycrystallinity of particles with various preferred crystallographic orientations, in contrast to the few that predominate in the 60SiN80 film of Figure 6B.

3.3 Chemical and elemental composition analysis

The infrared (IR) optical absorbance spectrum of the 70SiNsm200 film was obtained by FTIR spectroscopy and is shown in Figure 7. Two predominant IR absorption bands are observed; the first, with a maximum peak at 880 cm⁻¹, corresponds to the asymmetric stretching vibration mode of the chemical bonds between silicon and nitrogen (Si-N). The amplitude of this band is related to the film’s amorphicity level, and the number of dangling Si and N bonds generated, especially when a high RF-P is applied [41, 45]. A small shoulder at 965 cm⁻¹ is associated with Si-O bonds which may result from slight oxygen contamination due to environmental exposure or oxygen residue in the deposition chamber, even after high vacuum cleaning [39, 40]. It is known that silicon has high reactivity with oxygen, and surfaces exposed to the environment usually form native oxide layers [16].

FIGURE 7

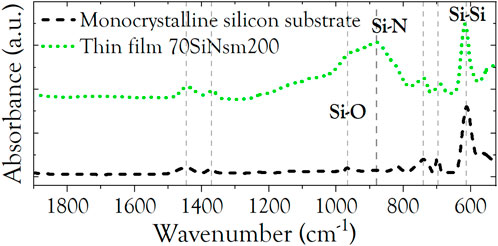

FIGURE 7. Infrared absorbance spectrum of the 70SiNsm200 film, the broad absorption band peaking at 880 cm⁻¹ corresponds to Si-N chemical bonds. The tall and narrow band centered at 610 cm⁻¹ is a contribution from the Si-Si bonds present in the silicon substrate.

On the other hand, the 70SiNsm200 film is not thick enough (530.7 nm) to minimize the contribution of the substrate to the absorbance spectrum obtained with this technique. For this reason, the second narrow absorption band, centered at 610 cm⁻¹, coincides with the IR absorption of the Si-Si bonds of the substrate [16]. The small bands that coincide in the spectra of the substrate and the film are caused by humidity inside the measurement chamber of the equipment. This chemical analysis complements the structural results, as it demonstrates that our films are indeed SiN_X by determining the presence of Si-N bonds in the film.

Table 2 summarizes the EDS measurements of the elemental composition of various films. Measurements of a pristine glass substrate and the magnetron anode are included to identify their constituent elements and correlate them with the film measurements. The N readings correspond to the films, and the presence of oxygen was confirmed, one part due to the substrate being glass, and the other as a contaminant, a result of the deposition process and the exposure of the film to the environment.

TABLE 2

TABLE 2. Atomic percentages of the elements detected by EDS in various SiN_X thin films, a glass substrate, and the magnetron anode. The anode has an N reading because it was measured after making the first depositions. N was deposited on its surface by the nearby pulverization of the target. Films grown on glass or monocrystalline silicon with their detected elements are highlighted with ocher or purple color, respectively.

In our measurements, the elements of the glass substrate appear in addition to Si (C, O, Na, Mg, Al, and Ca) because the electron beam passes through the film and excites the atoms on the surface of the substrate due to the low thicknesses of our films (less than 530.7 nm) and the high acceleration voltage applied. A slight contaminating presence of Fe, Cr, or Ni from the anode was detected since it is prone to pulverization, especially when working with high RF-P values. Since the substrates contain Si in their composition, this element is included in the measurement, which makes it impossible to determine the exact percentage of Si present in the film. This situation does not happen with N since this element is absent in the composition of the substrates and the anode of the magnetron.

The presence of silicon in all substrates limits the determination of exact values for the amount of Si and the stoichiometry in our films. However, given the low percentage of N compared to that of Si in almost all the samples and the tendency of various investigations to obtain predominantly Si-rich SiN_X thin films, even using a reactive environment with Ar and N₂ gases [16, 26, 27, 31, 32], we consider highly probable that our films grown in a non-reactive environment are also silicon-rich.

3.4 Morphological and topographic analysis

The morphology of all the films grown in this study is similar. The SEM observations present a uniform and granular surface formed by nanometer particles that grow together, as illustrated in Figure 8. The growth of the films is governed by the Volmer-Weber model, which is characterized by the formation of islands of material that coalesce at their borders, providing continuity and homogeneity to the film. From the zenithal plane, these islands are seen as particles.

FIGURE 8

FIGURE 8. Superficial morphology of the films (A) 50SiN80-40, (B) 60SiN80, and (C) 70SiN40. In the lower-left part of the 60SiN80 micrograph, one can see a dark area that we associate with a ditch in the glass substrate reproduced on the film.

Glass is known to have surface defects that influence the growth and properties of a film [41, 42]. We observed these defects’ influence on our films’ growth by means of SEM and AFM techniques. The reproduction of glass surface defects was noted in films deposited with a RF-P of 30 W, even at a high $d_t$ of 160 min. The above is because the low RF-P used generates little energy and affects the diffusion of the atoms on the surface, limiting their arrival to deep areas of the defects to create nucleation centers and cover them. As a result, the film becomes less uniform and has a reduced thickness; those films are thinner than 106 nm, as shown in Table 3. It should be noted that these limitations can be mitigated by increasing the RF-P, which improves the sputtering process sequentially, from plasma ionization to the absorption of ejected atoms, thus favoring the uniformity, continuity, and thickness of the films. Evidence of this is the films deposited with RF-P ≥ 40 W and $d_t$ ≤ 80 min. These present a continuous granular morphology with little or no reproduction of surface glass defects, as seen in Figure 8.

TABLE 3

TABLE 3. Average thicknesses of the SiN_X thin films measured by cross section in SEM or null ellipsometry (purple boxes). The thickness of the 70SiN200 film was very close to that of the 70SiNsm200 film (530.7 nm).

The morphology of the films formed on monocrystalline silicon substrates also presented granular continuous characteristics and no surface defects, results that were expected considering that they replicate the smooth surface of the substrate. The 30SiNsm80, 40SiNsm50, and 50SiNsm40 films, whose thicknesses are similar, 49.2, 52.6, and 54 nm, respectively, exhibited quite similar morphologies regarding continuity and grain size. Although it is likely that the surface roughnesses of these three films are also similar, it was not possible to characterize their topographies using AFM. We associate this with the possible low surface roughness that they may have due to the replica of the smooth surface of the substrate, which prevents an adequate interaction between the tip of the cantilever and the surface material to detect areas with significant height differences.

The topographies of our films, shown in Figure 9, show the presence of islands of material whose proximity, coalescence, and surface continuity are enhanced by increasing the RF-P. In fact, the growth of the films followed the Volmer-Weber model, as deduced from the morphological analysis. The RMS value of films decreases with increasing $d_t$, especially when combined with a RF-P threshold of 40–60 W. This observation is evidenced with the 40SiN120 and 60SiN80 films and those developed with RF-P = 50 W since they have a low surface roughness (RMS < 2.7 nm) that decreases even more when using a higher $d_t$.

FIGURE 9

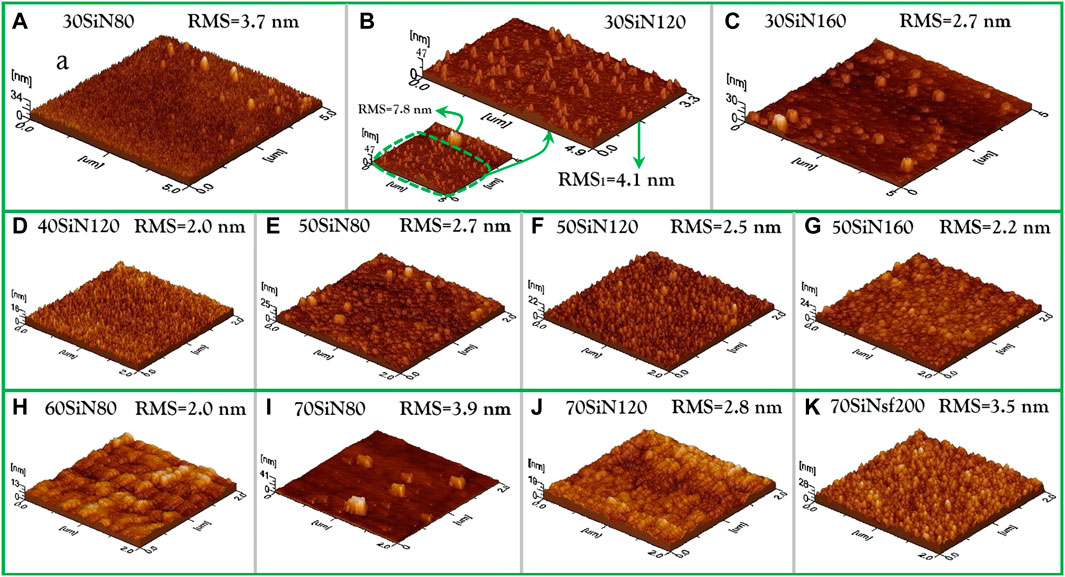

FIGURE 9. Topographic micrographs of several films grown in the investigation. The figure shows analysis areas of 4 and 25 μm². Each micrograph specifies the film to which it belongs and its RMS roughness (A) 30SiN80, (B) 30SiN120, (C) 30SiN160, (D) 40SiN120, (E) 50SiN80, (F) 50SiN120, (G) 50SiN160, (H) 60SiN80, (I) 70SiN80, (J) 70SiN120, (K) 70SiNsf200. In (B), the rectangular area is magnified to discard the enormous mountain of material from the RSM measurement because it is considered a surface defect of the glass substrate imaged on the film.

The phenomenon of low surface roughness occurs thanks to the constant incidence of nobs with enough energy to diffuse and reach the deep zones generated by the coalescence of the islands’ borders, thus favoring a superficial continuity with low roughness. In contrast, when RF-P = 30 W is used, the reduced energy of the incident nobs promotes low mobility, leading to zonal island growth with poor coalescence and limiting film uniformity and continuity. The high RMS roughness values support the above. Furthermore, the low surface roughness phenomenon is influenced by the reproducibility of glass surface defects in these extremely thin films (<105.3 nm). As seen in micrograph Figure 9B, a large mountain of substrate material generates a considerable variation in the RMS roughness of the analyzed area. Films developed with RF-P ≥ 70 W also show high RMS values (>2.7 nm). We consider that this happens because the incident atoms are highly energetic. At the same time, some diffuse better, favoring the film’s continuity, and others adsorb near their arrival points, favoring an elongated growth of the islands of coalesced material, as seen in the micrograph of Figure 9K.

3.5 Film thickness and deposition rates

The thickness of the films was determined by measuring the cross-section in the Scanning Electron Microscope (SEM) to carry out the optical characterization as shown in Figure 10B. Table 3 shows the average thicknesses of each film.

FIGURE 10

FIGURE 10. (A) Approximately linear relationship of the $D_R$ of the films grown with RF-P of 50 and 70 W. (B) Cross-sectional micrograph of 50SiN120 film. All film thicknesses reported in Table 3 were obtained following this procedure.

It was observed that the deposition rates ($D_R$) of the films generated with radiofrequency power of 50 and 70 W showed an almost linear relationship (Figure 10A), in line with what was reported in the literature [29, 34]. Based on the above, the possibility of using a linear $D_R$ to estimate the thickness of films with low RF-P was considered. In order to validate this hypothesis, SiN_X films were grown on monocrystalline silicon using the parameters detailed in Table 1. From the average $D_R$ of the 30SiN120 and 30SiN160 films, a thickness of 53.6 nm was estimated for the 30SiNsm80 film. However, analysis using nullity ellipsometry reported a slightly lower value of 49.2 nm.

Given this finding, it was reasonable to assume that two films grown with 40 and 50 W could yield a similar result. Therefore, deposition times ($d_t$) higher than those calculated were applied to achieve thicknesses of 50 nm in both films. It was found that the 40SiNsm50 and 50siNsm40 films had 52.6 and 54 nm thicknesses, respectively. This finding led us to determine that the $D_R$ using the magnetron sputtering technique is not totally linear. We conjecture that the initial formation of clusters could cause a slow initial growth of the film, which would increase until a considerable layer of material is deposited, then adopting an approximately linear trend, especially with high RF-P. However, it is still possible to estimate the $d_t$ to produce films with the desired thicknesses taking the linear trend of their $D_R$ as a reference, even if one wanted them to be less than 100 nm.

3.6 Optical properties

The optical absorbance of the films, measured by UV-Vis-NIR spectrophotometry, turns out to be low in the Vis-NIR region and is strongly influenced by the radiofrequency powers and the deposition times ($d_t$) used. It was observed that the films deposited with the same $d_t$ presented an increase in their absorbance and a more significant shift of their absorption band towards the NIR region when they were deposited with a higher RF-P.

Figure 11A compares the absorbance spectra of films deposited with a $d_t$ of 80 min and different RF-P. It should be noted that the films that show growth of crystalline particles (30SiN80, 40SiN80, and 50SiN80-40) have lower absorbance than those deposited with higher RF-P. This phenomenon is relevant since the particles favor a reduction in the film’s structural disorder and the amount of dangling silicon and nitrogen bonds.

FIGURE 11

FIGURE 11. Optical absorbance spectra of SiN_X thin films grown with (A) different RF-P and $d_t$ = 80 min, and (B) RF-P = 50 W and different $d_t$.

Contaminants such as oxygen and silicon dangling bonds give rise to allowed energy states inside the bandgap of the film, while N dangling bonds broaden the tails of their valence (VB) and conduction bands (BC). The above leads to a shift of the absorption edge towards the NIR, increasing the optical absorbance and decreasing the film’s bandgap energy ($E_g$) [16, 43, 44]. The structural disorder favors the formation of dangling bonds of Si and N, especially at the borders where the islands of material coalesce, giving continuity to the film and possibly increasing its presence when RF-P increases [44].

On the other hand, while the optical transmittance (T) is the product of a ratio between the transmitted ($I_T$) and incident ($I_o$) radiation intensities in the sample, the attenuation of $I_o$ indicates its optical absorbance (A) and Beer-Lambert ($I_T=I_o{e}^{-\alpha d}$) points out that said attenuation depends on the absorption coefficient α of the sample and the distance d traveled by the radiation when passing through it (the thickness in the case of a thin film). Thus, a total transmittance (100%) implies null absorbance, a transmittance of 10% corresponds to an absorbance of 1, and a zero transmittance indicates a total, infinite radiation absorbance. Due to the above, T and A can be related since they are based on a variation of radiation intensity but said relationship is inverse. A negative logarithmic decimal function (base 10) adequately models this inverse relationship. Therefore, it is true that $A=-Lo{g}_{10}\left|T\right|$. Using the previous expression, the relationship $T=I_t/I_o$ y and the Beer-Lambert law, it can be deduced that the absorbance of a sample depends directly on its thickness, in addition to its α, and is represented by $A=0.434\alpha d$ [45]. The above explains the increase in absorbance due to the increase in P-RF because it leads to thicker films and affects both absorbance and the absorption edge shift to NIR.

By comparing the absorbance spectra, as shown in Figure 11B, it is evident that the absorbance of the films also increases, and their absorption edge shifts towards the NIR when working with higher $d_t$ and the same RF-P. This phenomenon occurs because the thickness of the films increases, and the number of crystalline particles uniformly distributed decreases. This results in the predominant formation of crystalline conglomerates in a mostly amorphous matrix and increases the amount of silicon and nitrogen dangling bonds. Furthermore, the absorbance of 50SiN120 and 50SiN160 films shows a shoulder after 500 nm. This phenomenon is associated with the presence of dangling N bonds below the valence band tail of the film [44].

By using the absorbance and thickness of a film, it is possible to calculate the spectrum of its absorption coefficient ($\alpha$) to relate it to the energy of the interacting photons ($h\omega$) and thus make an estimation of its bandgap energy ($E_g$). The Tauc model is commonly used for this purpose in semiconductor materials. This model consists of linearly extrapolating the curve that models the expression ${\left(\alpha h\omega \right)}^{\gamma }$ versus $h\omega$ [45], where γ takes the value of 2 or 1/2 if the film material has a direct or indirect electronic transition, respectively. However, this model is susceptible to the data processing carried out by the one who calculates. Since the forbidden gaps vary considerably depending on the range of energies used for the extrapolation.

In this regard, Zanatta proposed a simple and efficient method to estimate the $E_g$ of semiconductor materials, whether amorphous or not. The method consists of fitting the spectrum of α with a sigmoid-Boltzmann function to determine the energy of the mean value between the minimum and maximum of α ($E_0^{Boltz}$) and the slope of the generated curve ($\delta E$). Using these values, the equation $E_g=E_0^{Boltz}-n_{dir-ind}^{Boltz}\times \delta E$ and the value of $n_{dir-ind}^{Boltz}$ corresponding to the type of material ($n_{dir}^{Boltz}\sim 0.3$ o $n_{ind}^{Boltz}\sim 4.3$ for a material with direct or indirect electronic transition, respectively), it is possible to estimate a reliable value for the $E_g$ of the film [45].

In this study, we use the model proposed by Zanatta. The calculated bandgap energies ($E_g$) are summarized in Table 4. Those films with a distribution of crystalline particles (RF-P ≤ 50 W and $d_t$ ≤ 80 min) exhibit higher $E_g$. The above is understandable if we consider that those films have a lower density of dangling Si and N bonds, which gives rise to less broadening of the tails of their valence and conduction bands.

TABLE 4

TABLE 4. $E_g$ of the SiN_X films estimated using the Zanatta model [45]. Note how the films grown on fused silica substrates have the highest $E_g$. The latter happens because such substrates absorb radiation with λ < 175 nm while a glass substrate absorbs radiation with λ < 285 nm. Using fused silica substrates allows obtaining absorbance spectra with more data contributing to the sigmoid-Boltzmann adjustment to estimate the $E_g$ more accurately.

A slight downward trend of the $E_g$ is observed as working with higher RF-Ps, fluctuating between 2.3 and 3.1 eV. This behavior is consistent with the increase in dangling Si and N bonds due to a more significant structural disorder in the film. Additionally, for RF-P > 60 W, the $E_g$ seems to follow an increasing trend. We believe this phenomenon results from a better continuity in the film due to the closer growth of material islands and their coalescence, which generates a lower density of dangling Si and N bonds.

4 Conclusion

In this study, we examined the growth of SiN_X thin films by radiofrequency-assisted non-reactive magnetron sputtering at room temperature using an almost stoichiometric Si₃N₄ target. We determined that it is possible to obtain silicon-rich SiN_X films with the formation of particles or polycrystalline conglomerates of α-Si₃N₄ that increase in size, either maintaining or losing atomic ordering, depending on the combination of RF-P and $d_t$ used.

We have identified a threshold between RF-P and $d_t$, specifically 30–50 W and less than 120 min, which allows the growth of films with uniformly distributed crystalline particles, limited formation of clusters, and with minimal alterations of their atomic ordering. The growth of the films is governed by the Volmer-Weber model, which favors its continuity and surface roughness. Both features are notable in films grown with a RF-P range of 30–50 W, as they show better continuity and a decrease in their RMS roughness at 2.7 nm if combined with longer deposition times.

On the other hand, the thickness of the films increases with the increase of the RF-P and the $d_t$. Through analysis and deduction, we conclude that the deposition rates ($D_R$) in magnetron sputtering present a non-linear trend in the initial growth of the films and subsequently acquire an approximately linear trend. However, it is feasible to consider an almost linear trend of $D_R$ to determine combinations of RF-P and $d_t$ that allow obtaining films with thicknesses greater than 100 nm with acceptable precision.

The increase in optical absorbance and the enhancement of the shift of the absorption edge towards the NIR are directly related to the density of dangling Si and N bonds, the stoichiometry, and the structural disorder of the film, and they occur when higher RF-P or $d_t$ are applied while keeping the other parameter constant. Likewise, the $E_g$ oscillates between 2.3 and 3.9 eV, being higher (above 3.3 eV) in the films grown with RF-P ≤ 50 W and $d_t$ ≤ 80 min, which present a notable distribution of crystalline particles. We estimate that our thin SiN_X films have significant potential for their application in the manufacture of electronic and optoelectronic devices. Furthermore, we consider it essential to carry out a structural and optical study on films with thicknesses less than 100 nm, especially since the parameters studied in this work are not the only ones that influence the growth and properties of silicon nitride in the form of a thin film.
