Topological polarisation states

Abstract
Polarisation states are described by spin expectation values, known as Stokes parameters, the trajectories of which in a rotationally symmetric system form a sphere named after Poincaré. Here, we show that the trajectories of broken rotational symmetric systems can exhibit distinct topological structures in polarisation states. We use a phase-shifter to form a polarisation circle $({\mathbb{S}}^1)$, which interferes with the original input due to the phase change of the output state upon rotation. By rotating the circle using a rotator, the trajectories become a polarisation torus $({\mathbb{S}}^1\times {\mathbb{S}}^1)$, which was experimentally confirmed in a simple setup using passive optical components together with the Mach–Zehnder interferometer. We also discuss the realisations of other topological features, such as a Möbius strip, a trefoil knot, Hopf links, and topological Dirac bosons, with a bulk-edge correspondence.

1 Introduction

Topology and quantum mechanics are inherently connected, and various exotic phenomena, such as the quantum Hall effect [1–6], spin Hall effect [7–9], topological insulator [10–14], and topological photonics [15–19], were predicted theoretically [1, 2, 4–8, 11, 12, 15] and discovered experimentally [3, 9, 13, 16, 17]. These topological orders [4–6, 10, 20–25] are different from thermodynamic spontaneous symmetry-breaking such as a superconducting phase-transition [23, 24, 26–30], which is characterised by opening an energy gap in the excitation spectrum to establish a long-range order [30–32], while electronic or photonic states have a continuous spectrum in a vacuum with full translational, time-reversal, and rotational symmetries [26–30, 33–35]. In a topological material [1, 2, 4–6, 8, 11, 12, 15, 36], an energy gap is formed in the bulk as an insulator, which has a different symmetry from that in a vacuum, such that the energy gap must be closed at the edge, the state of which is topologically protected against structural imperfections as a highly conductive metal to accommodate massless Dirac fermions [4–6, 22]. This bulk-edge correspondence [4–6, 22] is considered to be a generic feature of topological materials, the topological invariants of which are Chern numbers [37], obtained by integrating the Pancharatnam–Berry geometrical phase [38–41] of wavefunctions over the Brillouin zone [14, 42–44]. Thus, topological materials have unique topological band structures in the momentum space [14, 42, 43], rather than topological bonding configurations in the real space [45–55].

Here, we explore topological features in the polarisation space for spin states of coherent photons; that is, we consider topological aspects of polarisation states. The polarisation state is described by an SU(2) state, known as a Jones vector, which is a wavefunction of the spin state of photons [56–82]. The wavefunction obviously has the amplitude and the phase, which are described by the polar angle (θ) and the azimuthal angle (ϕ), respectively, to show the average spin values as a vector to represent the state on the Poincaré sphere [56–82]. In fact, we have recently demonstrated to realise an arbitrary polarised state by passive [81] and active [82] Poincaré rotators to execute an SU(2) rotation of the Lie groups [83–88] in the combination of a U(1) phase-shifter and a rotator. While considering the coherent polarisation state in the power normalised configuration space, the Poincaré sphere can be used with a unit radius (r) [60–62]. The Poincaré sphere with r = 1 is equivalent to the Bloch sphere [72, 74, 81, 82, 89, 90], which means that trajectories of the polarisation states upon controlling the amplitude and the phase form a two-dimensional (2D) sphere (${\mathbb{S}}^2$, the surface of a ball in 3D space), which is topologically trivial with the genus (g) of 0 with no hole, no knot, and no link.

However, there is one noticeable difference between Poincaré and Bloch spheres, i.e., the Bose–Einstein and Fermi–Dirac statistics for photons and an electron, respectively [23, 24, 61–63, 72–75, 78, 82, 91]. For photons, we can generate another photon with the same phase as that of an original photon via the stimulated emission process by using a polarisation-independent Er-doped fibre amplifier (EDFA) [60–67, 75, 78, 82]. This corresponds to an increase r without changing the angles of θ and ϕ, which is impossible to achieve for an electron due to the Pauli exclusion principle [92, 93]. The stimulated emission process requires a finite pumping power for the amplification, such that the process is not based on the norm-conserving unitary transformation [60, 63, 82]. Therefore, the amplification of coherent photons does not violate the no-cloning theorem [92, 93], which prohibits copying of a quantum state by a unitary transformation, because the prerequisite of the notion for non-cloning is not satisfied by the injection of the pumping power. Consequently, we consider a larger polarisation space, where the radius of the Poincaré sphere is not restricted to be unity, but the polar coordinate of (r, θ, ϕ) could span for the full 3D Euclidean space of Stokes parameters S = (S₁, S₂, S₃), which we term as the Stokes space. In the Stokes space, points with different r can be distinguishable, even if θ and ϕ are the same. This is not surprising because we are dealing with signals with different intensities as for the means of digital communications [60, 94–96], such as quadrature amplitude modulation (QAM), pulse amplitude modulation (PAM) for advanced multiplexing, and dual-polarisation quadrature-phase-shift-keying (DP-QPSK) [97, 98]. Stokes parameters [60–62] can be described by energy per bit (pJ/bit) or power (mW). Alternatively, they are also equivalent to the spin expectation values [75, 77], which are obtained by the Dirac constant of ℏ (the Planck constant of h, divided by 2π), multiplied with the number of photons per second, passing through the area perpendicular to the direction of the propagation, with the spin pointing towards x, y, and z directions, respectively. In this paper, we use power for the dimension of Stokes parameters for simplicity. In the Stokes space, considering the difference in intensities, we can explore topologically non-trivial trajectories for the pulse streams generated from a device with broken rotational symmetries in polarisation states.

As an example of non-trivial polarisation state in the Stokes space, we first describe how to realise a polarisation torus, ${\mathbb{T}}^2\cong {\mathbb{S}}^1\times {\mathbb{S}}^1$, where ${\mathbb{S}}^1$ is a 1D sphere that represents a polarisation circle, by using passive optical components based on a simple representation theory of U(2) ≅ U(1) × SU(2) states to account for controlling the intensities by the Mach–Zehnder interferometer. The comparison between the Stokes space and the Poincaré sphere is also discussed. Then, we show our experimental results to confirm the theoretical expectations to realise the polarisation torus, which is realised as a non-trivial topological structure as trajectories in the Stokes space. Novel non-transverse toroidal pulses have been recently observed out of meta-surfaces [99], while the mode of our polarisation torus is a standard fundamental mode in a single-mode fibre, and intensities together with phases are controlled to exhibit a torus as a set of points in the Stokes space. We discuss the possibilities on realising more complex topological manifolds as polarisation states in the Stokes space, such as the Möbius strip, Hopf links, and topological Dirac bosons, for the future. We also discuss the bulk-edge correspondence for these states and show that the topological invariance for the proposed topological polarisation states is the Euler number and the genus in the Stokes space for spin expectation values, obtained by the Gauss–Bonnet theorem [44], rather than the Chern number [37], determined by the Pancharatnam–Berry phase [38, 39] in the U(2) Hilbert space.

2 Theoretical designs

We consider the propagation of light in a single-mode fibre (SMF), such that only the fundamental spatial mode of a SMF is available [60]. It is also important to make sure that the coherence of the wave is maintained upon separating the wave and combining the waves for the interference. We have recently revisited the theoretical description [75, 78, 81, 82] for the coherent state of photons, emitted from a laser source, and confirmed that it should be treated as a many-body coherent state with the SU(2) degrees of freedom for polarisation [58–62, 68–74, 91]. The coherent state [63, 67, 75, 81, 82, 91] is characterised by the Gaussian distribution of the photon number, centred at the average number of photons per second, $⟨\widehat{N}⟩=N$, passing through the cross-section of the SMF. Practically, however, we do not have to employ creation and annihilation operators in coherent states for most of considerations in polarisation states [58–62, 68, 69], and a wavefunction

$|N,\gamma ,\delta \rangle =\sqrt{N}{\mathrm{e}}^{i\mathrm{\Phi }}|\gamma ,\delta \rangle (1)$

$=\sqrt{N}{\mathrm{e}}^{i\mathrm{\Phi }}\left(\begin{array}{c}\hfill \cos \left(\alpha \right)\hfill \\ \hfill {\mathrm{e}}^{i\delta }\sin \left(\alpha \right)\hfill \end{array}\right),(2)$

is enough to characterise the polarisation state on the Poincaré sphere [56–82], where Φ is the U (1) phase of the orbital wavefunction, γ = 2α is the polar angle measured from S₁, δ is the phase-shift measured from S₂, and α is the auxiliary angle for complex electric fields. Here, we have used horizontal (H) and vertical (V) bases as for the fundamental states to describe the polarisation, and the normalisation of the wavefunction (N) is related to the power intensity of the ray as P = ℏωN = S₀, where ω is the angular frequency and S₀ is the 0-th component of the Stokes parameter. The SU(2) nature of the polarisation is not affected by this normalisation, and it is straightforward to obtain the spin expectation values for photons as

$\langle \widehat{\mathbf{S}}\rangle =\hslash \langle \widehat{\mathit{\sigma }}\rangle =\hslash N\left(\begin{array}{c}\hfill \cos \gamma \hfill \\ \hfill \sin \gamma \cos \delta \hfill \\ \hfill \sin \gamma \sin \delta \hfill \end{array}\right),(3)$

where the spinor vector of $\widehat{\mathit{\sigma }}=({\sigma }_3,{\sigma }_1,{\sigma }_2)$ in HV bases is given by Pauli matrices

${\sigma }_1=\left(\begin{array}{cc}\hfill 0\hfill & \hfill 1\hfill \\ \hfill 1\hfill & \hfill 0\hfill \end{array}\right),{\sigma }_2=\left(\begin{array}{cc}\hfill 0\hfill & \hfill -i\hfill \\ \hfill i\hfill & \hfill 0\hfill \end{array}\right),{\sigma }_3=\left(\begin{array}{cc}\hfill 1\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill -1\hfill \end{array}\right),(4)$

forming the Lie algebra of $\mathfrak{s}\mathfrak{u}(2)$ [72, 74, 75, 81–86, 88]. Thus, the spin expectation values are related to the vectorial components of Stokes parameters as

$\mathbf{S}=\omega \langle \widehat{\mathbf{S}}\rangle =\hslash \omega \langle \widehat{\mathit{\sigma }}\rangle =\hslash \omega N\left(\begin{array}{c}\hfill \cos \gamma \hfill \\ \hfill \sin \gamma \cos \delta \hfill \\ \hfill \sin \gamma \sin \delta \hfill \end{array}\right),(5)$

in the unit of mW. Alternatively, we can consider a normalisation based on the power as

$|P,\gamma ,\delta \rangle =\sqrt{P}{\mathrm{e}}^{i\mathrm{\Phi }}|\gamma ,\delta \rangle (6)$

$=\sqrt{P}{\mathrm{e}}^{i\mathrm{\Phi }}\left(\begin{array}{c}\hfill \cos \left(\alpha \right)\hfill \\ \hfill {\mathrm{e}}^{i\delta }\sin \left(\alpha \right)\hfill \end{array}\right),(7)$

which we will employ, henceforth.

The exponential map [83–88] from the Lie algebra of $\mathfrak{s}\mathfrak{u}(2)$ to the Lie group of SU(2) is achieved by the unitary operator.

$\widehat{\mathcal{D}}\left(\widehat{\mathbf{n}},\delta \varphi \right)=\exp \left(-i\widehat{\mathit{\sigma }}\cdot \widehat{\mathbf{n}}\left(\frac{\delta \varphi }{2}\right)\right)(8)$

$=\mathbf{1}\cos \left(\frac{\delta \varphi }{2}\right)-i\widehat{\mathit{\sigma }}\cdot \widehat{\mathbf{n}}\sin \left(\frac{\delta \varphi }{2}\right),(9)$

where $\widehat{\mathbf{n}}$ is the unit vector in the Stokes space and δϕ is the rotation angle. The operation along the S₃ axis with ${\widehat{\mathbf{n}}}_{\mathbf{3}}=(\mathrm{0,0,1})$ is called a rotator, and the operation along the S₁ axis with ${\widehat{\mathbf{n}}}_{\mathbf{1}}=(\mathrm{1,0,0})$ is called a phase-shifter [60–62, 75, 80–82]. The rotation along ${\widehat{\mathbf{n}}}_{\mathbf{1}}=(\mathrm{1,0,0})$ corresponds to the propagation in media such as LiNbO₃ or quartz, which has eigenmodes with linear polarisation, and the phase-shift is achieved by the difference of the effective refractive indices for horizontal polarisation and vertical polarisation [68, 69]. The rotation along ${\widehat{\mathbf{n}}}_{\mathbf{3}}=(\mathrm{0,0,1})$ corresponds to the propagation in an optically active medium with circular polarisation, such as a C-cut (or Z-cut) quartz or a liquid crystal, and the rotation is achieved by the difference of the effective refractive indices for left and right circular polarisation [68, 69]. By combining a rotator and a phase-shifter, we could construct a Poincaré rotator, which allows an arbitrary rotation on the Poincaré sphere [80–82].

Historically, it was theoretically proven that three waveplates are enough to realise an arbitrary polarisation state [68–70], as demonstrated by an SU(2) gadget [100, 101]. We have recently demonstrated that four waveplates are easier to realise an arbitrary phase-shift solely by rotating one of the waveplates [81]. This corresponds to realise an SU(2) rotation of the wavefunction of |P, γ, δ⟩ and the physical observable of $⟨\widehat{\mathbf{S}}⟩$ rotated in SO(3). The SU(2) is an appropriate Lie group [83–88] for the polarisation [60–62, 75, 80–82], described by two complex numbers $(\mathbb{C})$ in a normalised wavefunction [56–82], ensured by the determinant of unity, while SO(3) is appropriate to describe a rotation of a vector, given by three real numbers $(\mathbb{R})$ for spin expectation values. The trajectories of the spin expectation values upon rotations form a sphere as a set of states, controlled by unitary operations [56–62, 81, 82]. The unitary operations mean that we cannot change the energy of photons, such that the radius of the sphere is fixed, ideally. In reality, for practical implementation, we have finite insertion loss to control the polarisation states in the Poincaré rotators or conventional optical components, such as half-/quarter-wave plates and rotators, which reduces the intensities. Even in these cases, as far as the loss is not significantly dependent on the polarisation, the topology of polarisation states remained the same, such that we can analyse the polarisation state on the Poincaré sphere. We could also introduce the gain by the polarisation-independent EDFA [82] to allow increasing the signal-to-noise ratio for polarimetry, but the polarisation states out of the devices are still accommodated on the sphere. In the case of the SU(2) rotations on the sphere with or without polarisation-independent loss or gain, the trajectories of the polarisation states are always on the sphere, which is topologically trivial.

Here, we consider using another degree of freedom together with SU(2) degrees of freedom, which is the U(1) phase of Φ = kz − ωt + Φ₀ for the orbital degree of freedom, where k = 2π/λ is the wavenumber for the wavelength of λ, z is the direction of the propagation along the SMF, and Φ₀ is the initial phase. The U(1) phase plays no role, if we take the quantum average of spin states, as shown previously, since it merely changes the global phase of the wavefunction. On the other hand, if we have another wave to compare the relative phase, the U(1) phase could play a significant role. For photons, this could be achieved simply by splitting the wave into two (or more) waves and introducing the relative phase change and recombining to allow the interferences. The U(1) phase is related to the number of photons, such that the interference induces changes in the number of photons, propagating to the SMF after the interference. This process allows controlling P (or equivalently N), which corresponds to change in the radius of the Poincaré sphere. There are several schemes to introduce the phase changes, and we consider one of the most simplest one, which just introduces the SU(2) operation to one of the waves. The SU(2) operation introduces the U(1) phase change, which is observable upon interferences. For example, one rotation on the Poincaré sphere of SO(3) induces the sign change of the SU(2) wavefunction because we expect

$\widehat{\mathcal{D}}\left(\widehat{\mathbf{n}},2\pi \right)=-\mathbf{1},(10)$

which induces the destructive interference to the original input wave. Mathematically, this results from the double covering of SU(2) to SO(3), which is described as $SU(2)/{\mathbb{S}}^0\cong SO(3)$, where ${\mathbb{S}}^0=\{-\mathbf{1},\mathbf{1}\}$ is the 0D sphere. We need to rotate the amount of 4π to expect a complete rotation in SU(2) with the identity of the operation, $\widehat{\mathcal{D}}(\widehat{\mathbf{n}},4\pi )=\mathbf{1}$. Upon the phase change towards the interference, we can introduce both dynamic and adiabatic phases through Hamiltonian (equivalently, rotators and phase-shifters) and geometrical configurations (Pancharatnam–Berry phase) [14, 38–44, 75, 81, 82]. In the following section, we will explain our practical deployment for realising non-trivial topological features as trajectories of polarisation states.

2.1 Polarisation interferometer

We explain the simple method to change the polarisation state together with the intensity in the Stokes space. We assume specific experimental parameters to make the argument easy to understand, but it is straightforward to change parameters and to construct more generic theories. First, we prepare the input wave with the power of P_in = 1.5 mW with the diagonally (D) polarised state, such that the input state of |Input⟩ is prepared as

$\left|P_{\text{in}},\frac{\pi }{2},0\right.⟩=\sqrt{\frac{P_{\text{in}}}{2}}\left(\begin{array}{c}\hfill 1\hfill \\ \hfill 1\hfill \end{array}\right).(11)$

Then, we split the input wave into two waves by using a polarisation-independent directional fibre-to-fibre coupler (FFC). We used the FFC of the splitting ratio of 90:10, which means that 90% of the signal is transmitted to the through port 3 and 10% is coupled to the tap port 4, when we inserted from the input port 1, while the isolated port 2 is not used. We define the coupling constant of α = 0.1 to account for the FFC, and the splitting is simply defined by a matrix operation,

$\left(\begin{array}{c}\hfill |\text{Port\hspace{0.17em}\hspace{0.17em}}3\rangle \hfill \\ \hfill |\text{Port\hspace{0.17em}}4\rangle \hfill \end{array}\right)=\left(\begin{array}{cc}\hfill \sqrt{1-\alpha }\hfill & \hfill -\sqrt{\alpha }\hfill \\ \hfill \sqrt{\alpha }\hfill & \hfill \sqrt{1-\alpha }\hfill \end{array}\right)\left(\begin{array}{c}\hfill |\text{Port\hspace{0.17em}\hspace{0.17em}}1\rangle \hfill \\ \hfill |\text{Port\hspace{0.17em}}2\rangle \hfill \end{array}\right),(12)$

where two components of polarisation states |P_in, π/2, 0⟩ is used for |Port 1⟩, and |Port 2⟩ is 0 = (0,0)^t, where ^t stands for the transpose of the vector. The output from the tap port 4 is used to manipulate its polarisation state by a phase-shifter,

$\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{1}},\delta {\varphi }_{\mathrm{p}}\right)=\mathbf{1}\cos \left(\frac{\delta {\varphi }_{\mathrm{p}}}{2}\right)-i{\widehat{\sigma }}_3\sin \left(\frac{\delta {\varphi }_{\mathrm{p}}}{2}\right),(13)$

which is the rotation along S₁ in the S₂–S₃ plane [81]. We defined the rotation angle of δϕ_p since this corresponds to the rotation along the poloidal direction, as we shall see as follows. We have previously shown that we can construct a passive phase-shifter by a combination of two quarter-wave plates (QWPs) and two half-wave plates (HWPs) [81]. The amount of rotation in SO(3) is determined by the physical angle of the rotation (δΨ_p) of one of the HWPs as δϕ_p = 4δΨ_p [81]. Then, the output state of the tap port 4 becomes

$|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{4}}^{\prime }\rangle =\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{1}},\delta {\varphi }_{\mathrm{p}}\right)|\text{Port\hspace{0.17em}\hspace{0.17em}}4\rangle ,(14)$

while the output from the through port 3 is preserved to keep its polarisation state as |Port 3′⟩ = |Port 3⟩. Then, we recombine the through port 3 and tap port 4 by the inverse arrangement,

$\left(\begin{array}{c}\hfill |\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{1}}^{\prime }\rangle \hfill \\ \hfill |\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{2}}^{\prime }\rangle \hfill \end{array}\right)=\left(\begin{array}{cc}\hfill \sqrt{1-\alpha }\hfill & \hfill \sqrt{\alpha }\hfill \\ \hfill -\sqrt{\alpha }\hfill & \hfill \sqrt{1-\alpha }\hfill \end{array}\right)\left(\begin{array}{c}\hfill |\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{3}}^{\prime }\rangle \hfill \\ \hfill |\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{4}}^{\prime }\rangle \hfill \end{array}\right),(15)$

to expect that the port 1′ is the main output, while the port 2′ is not used. Finally, the spin expectation values of |Port 1′⟩ are calculated, as shown in Figure 1.

FIGURE 1

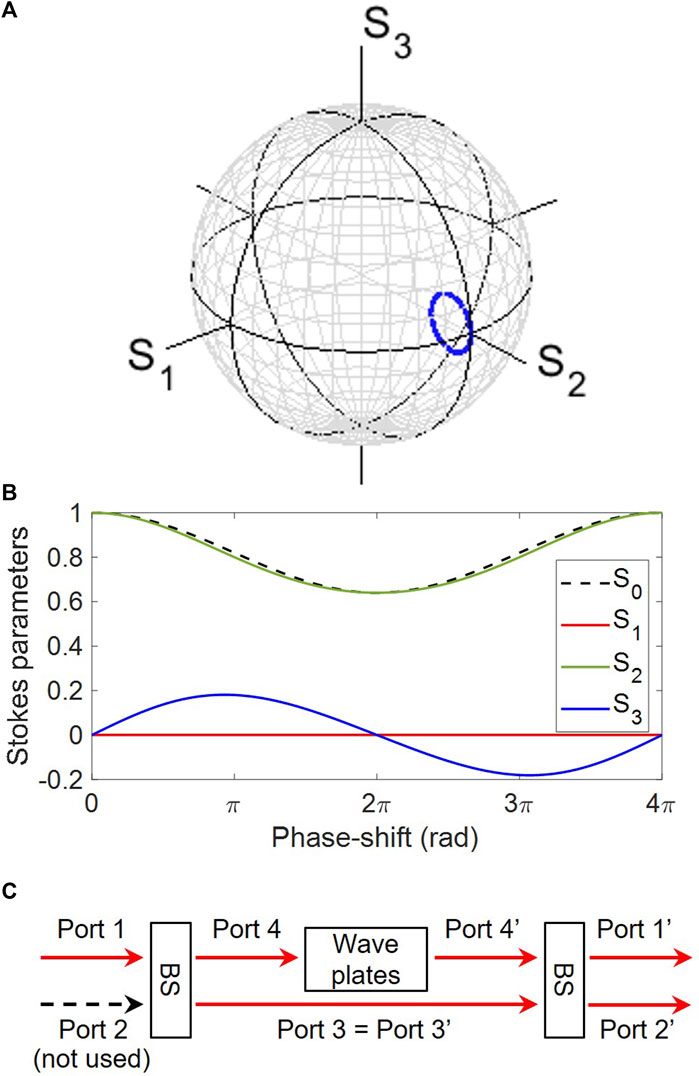

FIGURE 1. Calculated trajectories of polarisation states for the output from a polarisation interferometer. The input state is prepared to be a diagonally polarised state at S₂ = 1.0 on the normalised Poincaré sphere. (A) Stokes parameters, showing a polarisation circle (blue), which reduces its intensity upon the rotation. (B) Stokes parameters against the phase-shift by an SU(2) phase-shifter. The 2π-rotation minimises the intensity in the diagonally polarised state, and the 4π-rotation is required to come back to the original input state. (C) Schematic diagram of polarisation interferometer. The operation principle is based o the interference between beams with and without the phase-shift during the propagation.

We confirmed that the polarisation states are mostly located near the diagonally polarised state, |D⟩ since we assumed 90% of the input for the through port 3 is preserved. Without the phase-shift of the tap port 4, we confirmed that the polarisation state and the intensity are not affected by the input state. On the other hand, if we closely look at the circular trajectory, we confirm that the trajectory is inside the original Poincaré sphere, which means that the radius, corresponding to the intensity, is successfully decreased. The reduction in energy is confirmed in S₀ (Figure 1B), which becomes minimum at δϕ_p = 2π for the rotation of the tap port 4, where the polarisation state is purely diagonally polarised. This results from the double covering of SU(2) to SO(3), discussed previously [75]. The circular rotation means that the input state of |D⟩ returns to the original state in the SO(3) space; however, in the real physical space, it is enough for the complex electric field for the linearly polarised diagonal state to rotate only for the rotation angle of π to become the diagonal state upon the rotation. This means that the electric field will be flipped to change the sign, which is not visible on the original Poincaré sphere. On the other hand, this sign change is observable by using the portion of the original input wave, which is the role of the transmitted wave through port 3. The destructive interference becomes maximum at δϕ_p = 2π, yielding the minimum of S₀. The entire trajectory requires the 4π-rotation to close, as expected for the SU(2) group, and it became a polarisation circle $({\mathbb{S}}^1)$, which resides in the S₂–S₃ plane. The operation process corresponds to a Mach–Zehnder interferometer with a polarisation control, associated with a phase-shift, and we term it polarisation interferometer (Figure 2). The poloidal polarisation circle is realised after the second FFC as shown in Figure 2.

FIGURE 2

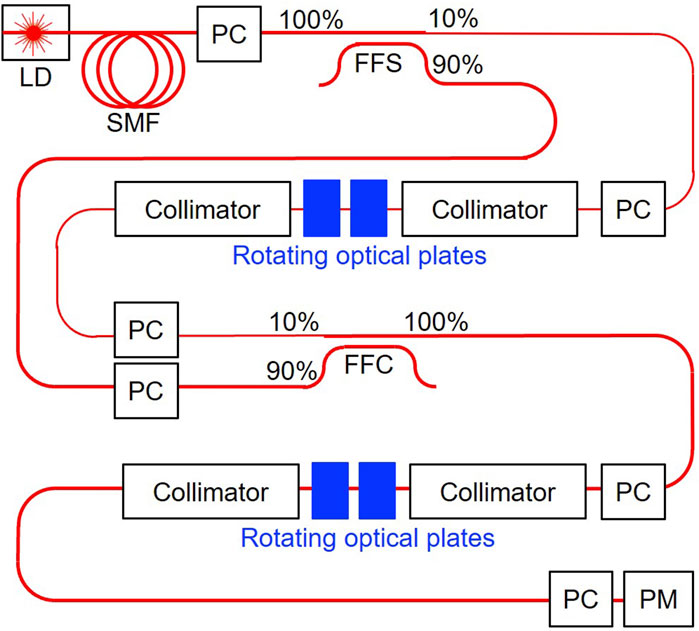

FIGURE 2. Polarisation interferometer to realise topologically non-trivial polarisation states in the Stokes space. Rotating optical plates were used to change the spin states of SU(2) as well as the orbital U(1) phase for the bypassed wave. These phase changes are observed upon interferences with the preserved input states, thus allowing changes in intensities for the output state. Abbreviations are as follows: LD, laser diode; SMF, single-mode fibre; PC, polarisation controller; FFS, fibre-to-fibre splitter; PM, polarimeter.

We acquire a scheme to control the radius of the polarisation states, simply by mechanically rotating a HWP, which corresponds to the change in the intensity. The total energy must be conserved upon the linear operations, and the reduced intensity exits from the isolated port 2′, which is terminated. Consequently, the output intensity from the output port 1′ could be reduced upon addition to our polarisation interferometer. Thus, if we focus on the output waves, the system is not only based on unitary operations but also allows a loss mechanism to reduce the radius, the direction of which is perpendicular to the surface of the sphere along polar and azimuthal directions, controlled by θ and ϕ for the polar coordinate or by γ and δ in the HV bases. In this sense, our system is non-Hermitian, and the original rotational symmetry of the polarisation state is also broken to expect a loss in a particular direction. In this way, we obtain a method to potentially scan an entire Euclidean coordinate in the Stokes space inside the original Poincaré sphere, spanned by the radius of the input wave. Due to the 3D nature of the Stokes space, we can consider various topologically non-trivial structures, which we will explore as follows.

2.2 Polarisation torus design

As the first non-trivial topological structure of polarisation states, we explain how to construct a polarisation torus as a set of polarisation states in the Stokes space. In topology, a torus is made of ${\mathbb{T}}^2\cong {\mathbb{S}}^1\times {\mathbb{S}}^1$, which requires topological groups to describe two circular rotations, orthogonal to each other. In the previous subsection, we constructed rotators to describe the rotation along the poloidal direction, and therefore, we just need to add rotators to describe the rotations along the toroidal direction (Figure 3). This is achieved simply by applying a conventional rotator along the S₃ axis,

$\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{3}},\delta {\varphi }_{\mathrm{t}}\right)=\mathbf{1}\cos \left(\frac{\delta \varphi }{2}\right)-i{\widehat{\sigma }}_2\sin \left(\frac{\delta {\varphi }_{\mathrm{t}}}{2}\right),(16)$

where δϕ_t is the amount of rotation along the toroidal direction to the poloidal polarisation circle. We have previously shown that two successive operations of HWPs are equivalent to a proper rotator operation to form the SO(2) group [81] rather than a pseudo-rotator realised by one rotated HWP [60–62], and we just need to mechanically rotate one of the HWP to realise the target amount of rotation along the S₃ axis (the last part of rotating optical plates in Figure 2). The output polarisation state after the operation becomes

$|\mathrm{O}\mathrm{u}\mathrm{t}\mathrm{p}\mathrm{u}\mathrm{t}\rangle =\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{3}},\delta {\varphi }_{\mathrm{t}}\right)|{\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{1}}^{\prime }\rangle ,(17)$

and we can finally calculate the Stokes parameters from this output state (Figure 3).

FIGURE 3

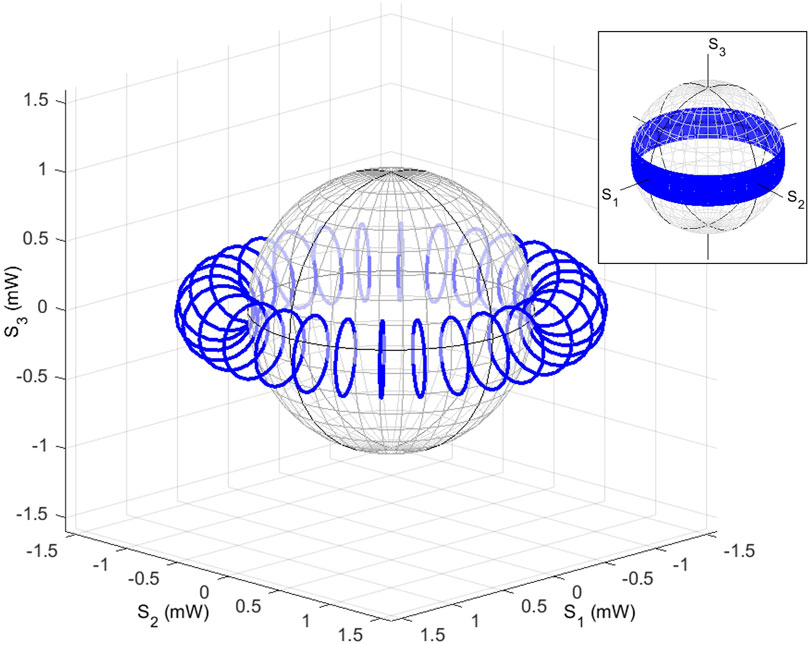

FIGURE 3. Construction of the polarisation torus calculated in the Stokes space. The intensity of the input state in the diagonally polarised state with the power of 1.5 mW was interfered in the polarisation interferometer to form a small circle in the S₂ − S₃ plane along the poloidal direction. Then, a rotator was used to rotate the circle in the S₁ − S₂ plane along the toroidal direction. The inset shows the same trajectories, shown on the Poincaré sphere.

We confirmed that the calculated vectorial components of Stokes parameters form a polarisation torus (Figures 4A–C), and the intensities of the output satisfy $S_0=\sqrt{S_1^2+S_2^2+S_3^2}$ since we consider a coherent state. As shown in the colour map of Figure 4A, S₀ depends on the location in the torus, and thus, we could realise a non-trivial topological structure with g = 1. For the definition of a torus, the states inside the torus are empty, as observed in Figure 4C. It is also evident that the torus is compact and so closed as a set, such that even if we extend the amount of rotations for δϕ_p and δϕ_t beyond 4π and 2π, respectively, we cannot generate new polarisation states outside the torus. It is also evident from the construction of the torus that $\widehat{\mathcal{D}}({\widehat{\mathbf{n}}}_{\mathbf{1}},\delta {\varphi }_{\mathrm{p}})$ and $\widehat{\mathcal{D}}({\widehat{\mathbf{n}}}_{\mathbf{3}},\delta {\varphi }_{\mathrm{t}})$ from $U(1)\cong {\mathbb{S}}^1$ groups, such that the two successive operations could be performed by one operation, and the inverse of a rotation could be defined. This was also true for a spherically symmetric Poincaré sphere, where the rotator and the phase-shifter are physical realisations of Lie group operations of SU(2) [75, 81, 82]. In the present case, the torus is realised upon the interference to reduce its intensity, which is a non-reversal process, such that these rotational operations must be completed before the interference occurred. As far as rotations are made before the interference, we can consider alternative operations. For example, we could first rotate the polarisation state of the input along the S₃ axis to control along the toroidal direction, and then, we could split it into two waves to allow the poloidal rotation.

FIGURE 4

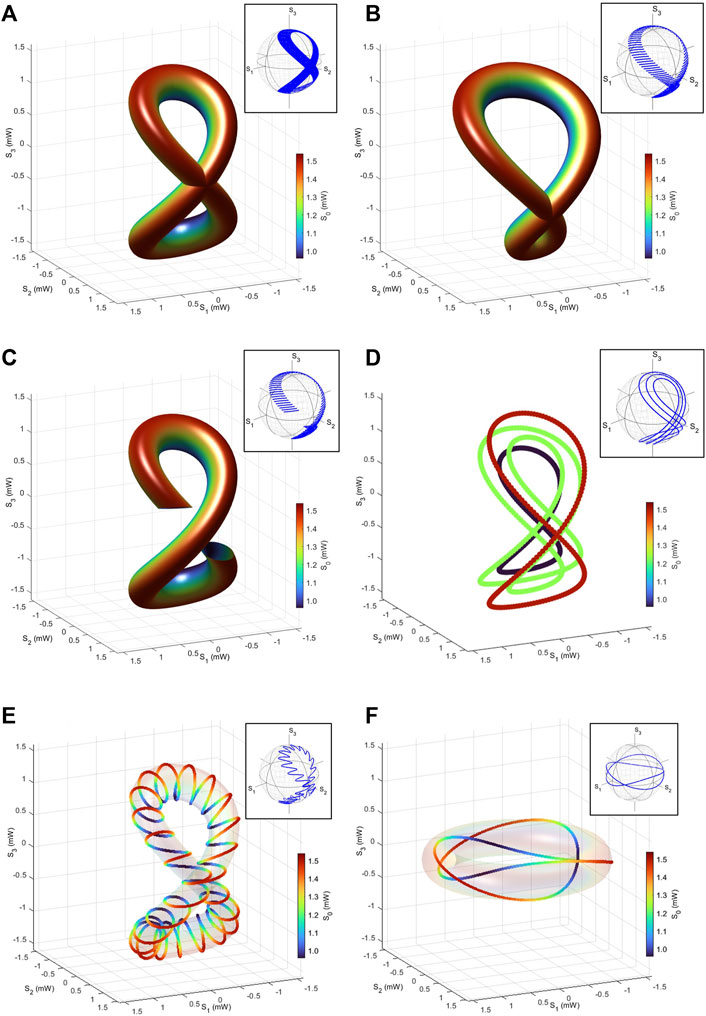

FIGURE 4. Polarisation torus in the Stokes space. The input state to the polarisation interferometer is in the diagonally polarised state with a power of 1.5 mW. The output power is controlled upon the interference, together with the polar angle and the phase, affected by rotating waveplates. The Stokes parameters, (S₀, S₁, S₂, S₃), of output states were calculated by using a simple representation theory of U(2) ≅ U(1) × SU(2). (A) Stokes parameters are shown for various poloidal and toroidal rotation angles. (B) Toroidal states, seen from the top of the S₃ axis. (C) Poloidal states, as a cross-section of the torus, perpendicular to the toroidal plane. The inset shows the polarisation torus collapsed on the Poincaré sphere. The calculated Stokes parameters for the polarisation torus were mapped onto the Poincaré sphere after the normalisations at each point. The torus becomes a belt with no information of the intensity on the Poincaré sphere.

We have also plotted the calculated Stokes parameters on the Poincaré sphere after normalisation at each output state (the inset of Figure 4A). In this case, we cannot discuss differences in relative intensities, and the trajectories of the torus collapsed to form a belt on the Poincaré sphere with no width. The mapping corresponds to a projection from ${\mathbb{R}}^3$ to ${\mathbb{S}}^2$, and the information on the radius, corresponding to N or P, will disappear. One can always consider this mapping from a torus to a belt, but this ends up considering non-trivial topological structures in ${\mathbb{R}}^3$. We will return to this point when we discuss the Chern number [37], the Pancharatnam–Berry phase [38, 39], and the Gauss–Bonnet theorem [44] towards the end of this paper. Here, we emphasize the non-trivial topological feature that appeared in the Stokes space, which uses ${\mathbb{R}}^3$ in SO(3) rather than ${\mathbb{C}}^2$ for U(2) wavefunctions, and for bosons, it is meaningful to consider the difference in N due to their Bose–Einstein statistics.

As shown in Figures 5A–F, we have also calculated the polarisation torus by using the rotated QWP as the final rotation in Figure 2 instead of the rotator. In this case, the trajectories by a rotated QWP for the input of the D-state assume an “8”-like structure with two holes [81], such that the rotation of the polarisation circle of Figure 1A upon the rotated QWP forms two toruses (Figure 5A). Unfortunately, this structure is not a torus of g = 2, but it is simply two toruses of g = 1 overlapping each other, since the simple moves of the circle intersect near the D-state. As shown in Figure 5C, the trajectories have cross-sections, such that the topological feature is closed. In order to claim that the structure is a torus of g = 2, the inside of the structure must be a complete hollow without intersections. By introducing an ellipticity for the input polarisation state, we can introduce the asymmetry for the “8”-like structure (Figure 5B) with a larger hole and a smaller hole [70]. However, this asymmetry also has intersections to separate the hollows. Nevertheless, closed links, made by trajectories of polarisation states, are located on the surface of the torus (g = 2) without intersections, as shown in Figures 5D, E. Figure 5D was drawn for four values of the phase-shifters, while the QWP was fully rotated for each link. In experiments, we have confirmed the trajectories of Figure 5D for the input of the diagonally polarised state. Figure 5E was obtained by gradual rotations of QWP while phase-shifting at the interferometer. In this example, 25 rotations were made by phase-shifters to rotate the torus of g = 2, locally long the poloidal direction, while the entire link is closed at the diagonally polarised state. Similarly, we can realise a trefoil knot [55, 102, 103] by closing the link on the surface of the torus (g = 1), while phase-shifting in the interferometer (Figure 5F).

FIGURE 5

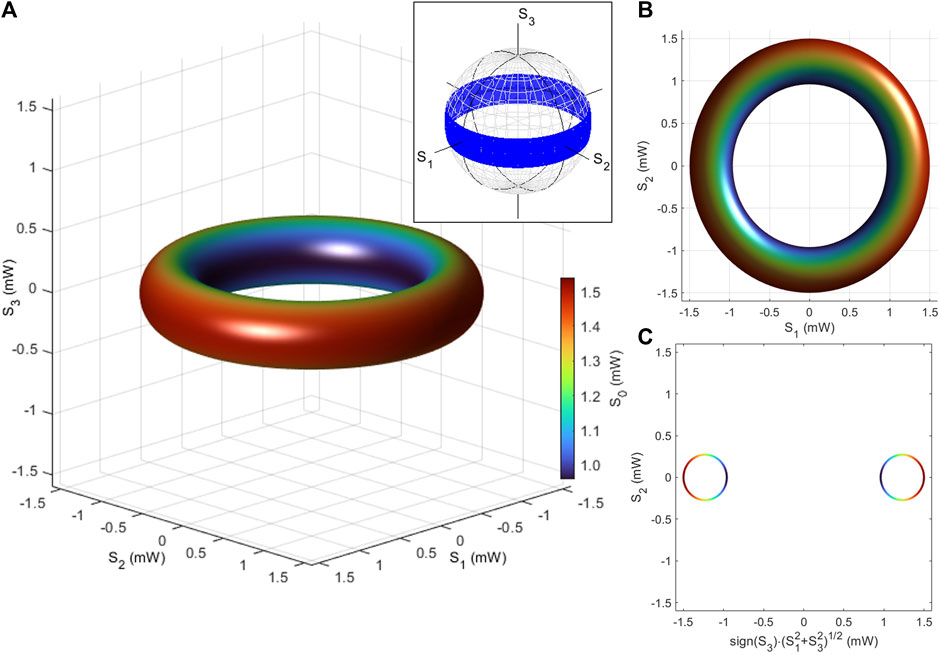

FIGURE 5. Coupled polarisation torus. Stokes parameters were calculated, using a rotated quarter-wave plate, applied to a polarisation circle. Two holes are visible, but the structure is based on two connected toruses with the genus of 1. Trajectories of polarisation states for the input of (A) diagonally linear polarised states and (B) elliptically polarised state at α = π/4 and δ = π/8. Symmetric trajectories showing a character of 8 are shown in (A), while asymmetric trajectories are shown in (B). (C) Approximately 80% of drawing for trajectories of (A) to show just before the intersections. Due to the intersections, the topology of (A) cannot be a torus of g = 2. (D) Trajectories of (A) for fewer parameters at the interferometer. (E) Trajectories of polarisation states by combining phase-shifts and rotations of quarter-wave plates at the same time to allow 25 rotations. The connected link covers the torus of g = 2. (F) Trefoil knot by using a half-wave plate, instead of a quarter-wave plate. The trefoil knot covers the torus of g = 1. The insets show the trajectories of polarisation states on the Poincaré sphere.

3 Experimental results

Our experiments were conducted in a fibre-based system, together with short-distance free space optics, as shown in Figure 2. A frequency-locked distributed-feedback (DFB) laser diode (LD) with a wavelength of 1533 nm was used and coupled to a SMF. The polarisation of the input wave was adjusted to the D-state by a birefringent polarisation controller (PC), and the input power was 1.8 mW. Then, the input wave was inserted into the polarisation interferometer, as explained previously, with 2 FFSs and rotating optical plates, and the output from the interferometer was further controlled by the next rotating optical plates. At each step, the polarisation states of the fibre were adjusted by PCs, and the final output wave was examined by a polarimeter to observe the Stokes parameters [81].

3.1 Observation of polarisation torus

The experimental Stokes parameters are shown in Figure 6. We have set δϕ_p at 0, π, 2π, and 3π, which corresponds to the rotation of HWP δΨ_p at 0, π/4, π/2, and 3π/4, respectively. At each δϕ_p, we have mechanically rotated the HWP of the rotator to change δϕ_t and obtained the trajectories by recording the Stokes parameters using PM, while rotating physically. As expected, from the proper rotator operation of two successive operations of HWPs to form SO(2) [81], each trajectory is a circle, located parallel to the S₁–S₂ plane (Figure 6B). On the other hand, the change in δϕ_p corresponds to the rotation along the poloidal direction, and the intensity has been changed upon the interference, which is confirmed by the small empty region in the cross-section of the torus (Figure 6C). The maximum output power was 1.5 mW, such that the minimum insertion loss was about 0.8 dB, and the overall feature of the observed polarisation torus is in reasonable agreement with the calculated results (Figure 3).

FIGURE 6

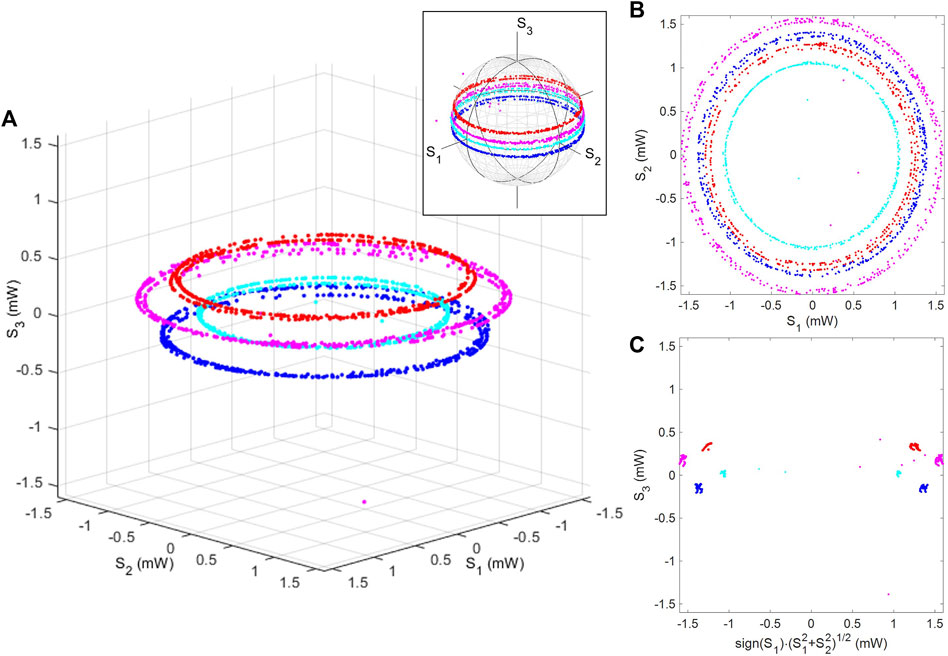

FIGURE 6. Polarisation torus in the Stokes space. Stokes parameters for coherent photons out of the polarisation interferometer were plotted. After setting the poloidal rotation angle, four trajectories (red, magenta, blue, and cyan in colours) were obtained at each angle by mechanically rotating the half-wave plate to change the toroidal angle. Stokes parameters are shown (A) in the 3D Stokes space, (B) from the top of the S₃ axis, and (C) as a cross-section perpendicular to the toroidal plane. The insets show the trajectories of polarisation states on the Poincaré sphere.

Now, we can provide more details on the realisation of the polarisation torus based on the U(2) theory along with our experimental preparations of HWPs and QWPs. We explain the free space operations in the polarisation interferometer of Figure 2. We specify the alignment of these waveplates by the angle of the fast axis (FA), measured from the horizon seen from the detector side (opposite to the LD source side) of the plates [75, 81]. In our convention, we assume that the angle is 0, if the FA is aligned horizontally, and equivalently, the slow axis (SA) is aligned vertically, and the direction of rotation is positive, if it is rotated anti-clock-wise, as seen from the top of the detector side. The first free space operations were conducted by a sequential application of QWP (whose FA is aligned to −pi/4), HWP (aligned horizontally), HWP (rotated δΨ_p), and finally QWP (whose FA is aligned to pi/4), and these operations are given by

$\begin{array}{ccc}\hfill |\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{4}}^{\prime }\rangle =& \hfill & \widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{2}},\pi /2\right)\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{3}},2\delta {\mathrm{\Psi }}_{\mathrm{p}}\right)\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{1}},\pi \right)\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{3}},-2\delta {\mathrm{\Psi }}_{\mathrm{p}}\right)\hfill \\ \hfill & \hfill & \widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{1}},\pi \right)\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{2}},-\pi /2\right)|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{4}\rangle ,\hfill \end{array}(18)$

whose operations are equivalent to $\widehat{\mathcal{D}}({\widehat{\mathbf{n}}}_{\mathbf{1}},\delta {\varphi }_{\mathrm{p}})$, and the physical rotation of π for δΨ_p is enough to realise the equivalent rotation of 4π for δϕ_p along the poloidal direction.

Similarly, the second free space operation can be decomposed into two sequential operations of the HWP (aligned horizontally) and HWP (rotated δΨ_t),

$\begin{array}{ccc}\hfill |\mathrm{O}\mathrm{u}\mathrm{t}\mathrm{p}\mathrm{u}\mathrm{t}\rangle & =\hfill & \widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{3}},2\delta {\mathrm{\Psi }}_{\mathrm{t}}\right)\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{1}},\pi \right)\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{3}},-2\delta {\mathrm{\Psi }}_{\mathrm{t}}\right)\hfill \\ \hfill & \hfill & \widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{1}},\pi \right)|{\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{1}}^{\prime }\rangle ,\hfill \end{array}(19)$

to realise the proper SO(2) rotation [81] by $\widehat{\mathcal{D}}({\widehat{\mathbf{n}}}_{\mathbf{3}},\delta {\varphi }_{\mathrm{t}})$, and the physical rotation of π/2 for δΨ_t is enough to realise the equivalent rotation of 2π for δϕ_t along the toroidal direction.

3.2 Rotated polarisation torus

A torus is obviously a topological structure, such that it is expected that the topological structure is strong against distortions. As the first step to confirm the topological robustness, we have inserted the additional QWP with its FA rotated π/4 towards the end of the device, such that the output becomes

$|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{4}}^{\prime }\rangle =\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{2}},\pi /2\right)\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{1}},\delta {\varphi }_{\mathrm{p}}\right)|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{4}\rangle ,(20)$

which means that the polarisation states should be rotated along the S₂ axis with the amount of π/2, and consequently, the S₁–S₂ plane is rotated to be the S₂–S₃ plane. The experimental results on the rotated torus are shown in Figure 7. We confirmed that the structure of the torus remained unchanged in the Stokes space upon the rotation, while the toroidal direction is now located parallel to the S₂–S₃ plane.

FIGURE 7

FIGURE 7. Rotated polarisation torus. The quarter-wave plate, whose fast axis was aligned to the diagonal direction, was inserted. Stokes parameters are shown (A) in the 3D Stokes space, (B) from the top of the S₃ axis, and (C) as a cross-section, perpendicular to the toroidal plane. We confirmed that the torus was rotated π/2, such that the toroidal direction is parallel to the S₂–S₃ plane. The inset shows the trajectories of polarisation states on the Poincaré sphere.

Similarly, we have also confirmed that the rotation along the S₁ axis preserves the topological structure of the torus. This was realised by adding the QWP with its FA aligned horizontally, and the expected output state becomes

$|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{4}}^{\prime }\rangle =\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{1}},\pi /2\right)\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{1}},\delta {\varphi }_{\mathrm{p}}\right)|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{4}\rangle ,(21)$

and the experimental results are shown in Figure 8. In this case, the principal axis of the toroidal rotation is along the S₂ axis, which is orthogonal to the axes of previous toruses (Figures 6, 7). Therefore, the torus was not distorted upon the applications of rotated QWPs.

FIGURE 8

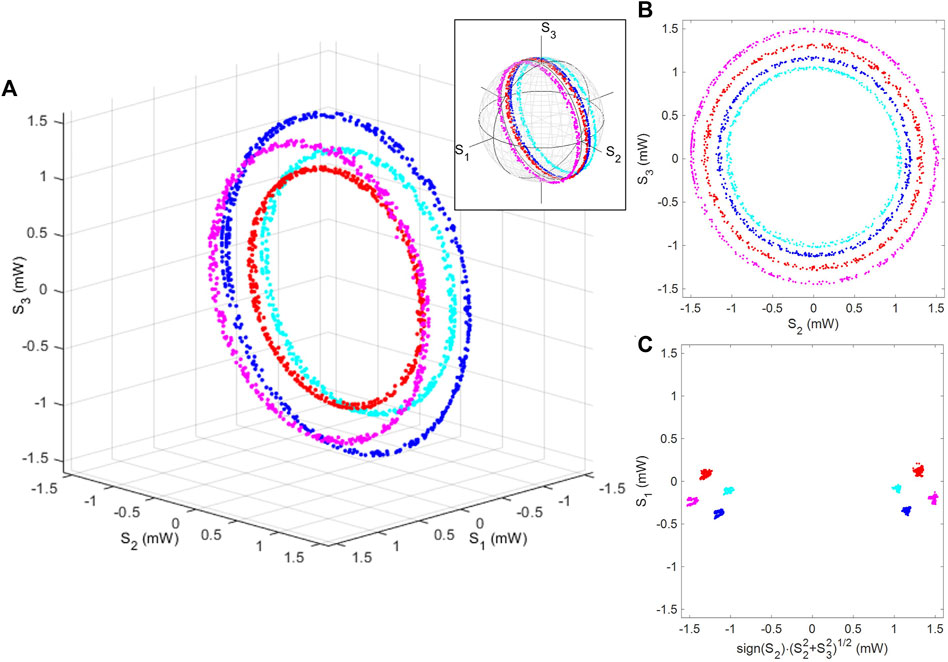

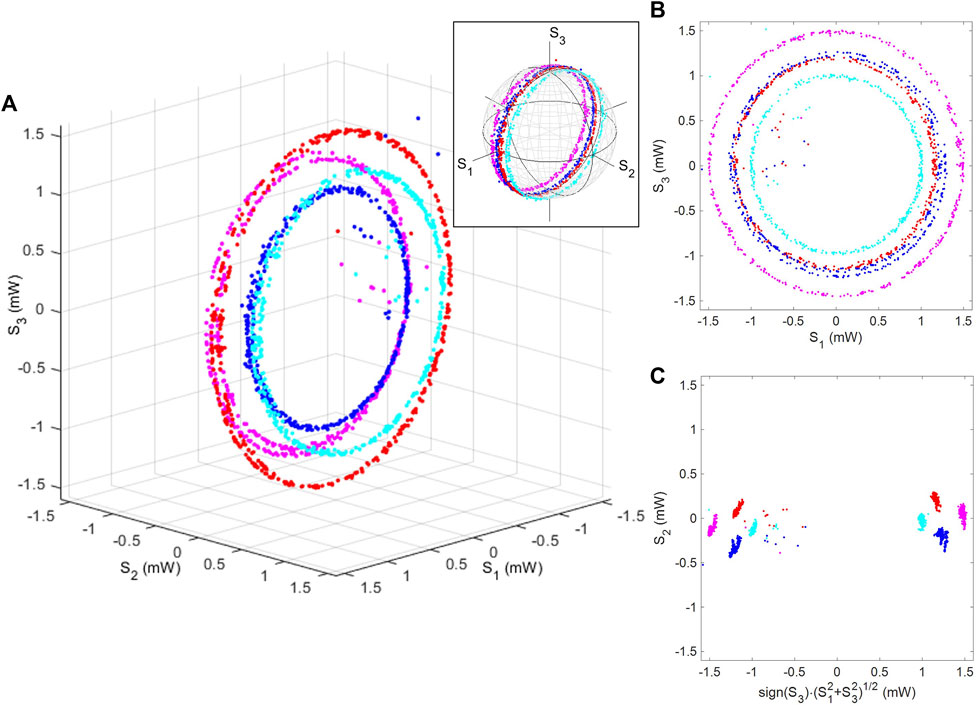

FIGURE 8. Rotated polarisation torus. The quarter-wave plate, whose fast axis was aligned horizontally, was inserted. Stokes parameters are shown (A) in the 3D Stokes space, (B) from the top of the S₃ axis, and (C) as a cross-section, perpendicular to the toroidal plane. We confirmed that the topological structure of the torus was not changed upon the rotation. The inset shows the trajectories of polarisation states on the Poincaré sphere.

Theoretically, the phase-shifter and the rotator merely rotate Stokes parameters upon the application of $\widehat{\mathcal{D}}(\widehat{\mathbf{n}},\delta \varphi )$, such that it results in rotations of the vectorial point (S₁, S₂, S₃) along some direction $\widehat{\mathbf{n}}$ with the amount of δϕ. This linear and unitary operation cannot change the topology of a set of points in the Stokes space, such that a torus or a sphere would be transferred to the same topological structure, respectively, without changing its genus.

3.3 Double-connected toruses

We have also tried to realise the double-connected toruses with g = 1 by a rotated QWP. Here, we expect the output state of

$|\mathrm{O}\mathrm{u}\mathrm{t}\mathrm{p}\mathrm{u}\mathrm{t}\rangle =\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{3}},2\delta {\mathit{\Psi }}_{\mathrm{t}}\right)\widehat{\mathcal{D}}({\widehat{\mathbf{n}}}_{\mathbf{1}},\pi /2)\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{3}},-2\delta {\mathit{\Psi }}_{\mathrm{t}}\right)|{\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{1}}^{\prime }\rangle ,(22)$

which makes two connected toruses. The corresponding experimental results are shown in Figure 9. This corresponds to the theoretical calculations of Figure 5D. As shown by the colour difference of Figure 5D, the intensities of each trajectory are different, meaning that the trajectories are not intersecting at the D-state, and therefore, the trajectories are located on the surface of the torus of g = 2. If we increase the number of steps for the poloidal control apart from 4 (Figure 9), the trajectories will be eventually filled, as we have discussed for Figures 5A–C. In order to overcome the closure of the surface, the linked trajectory to cover the surface of the torus of g = 2 (Figure 5E) is required. In our current experimental setup, it was difficult to confirm the trajectory of Figure 5E since we needed to manually rotate the waveplates physically, such that it was tough to allow correlated simultaneous rotations for both poloidal and toroidal directions. In order to allow these experiments, we need dynamic control of polarisation states by optical modulators. We are developing a dynamic polarisation controller by using an LiNbO₃ optical modulator [82]. It will be possible in the future to allow the complicated polarisation control by combining the proposed polarisation interferometer together with the dynamic Poincaré rotator.

FIGURE 9

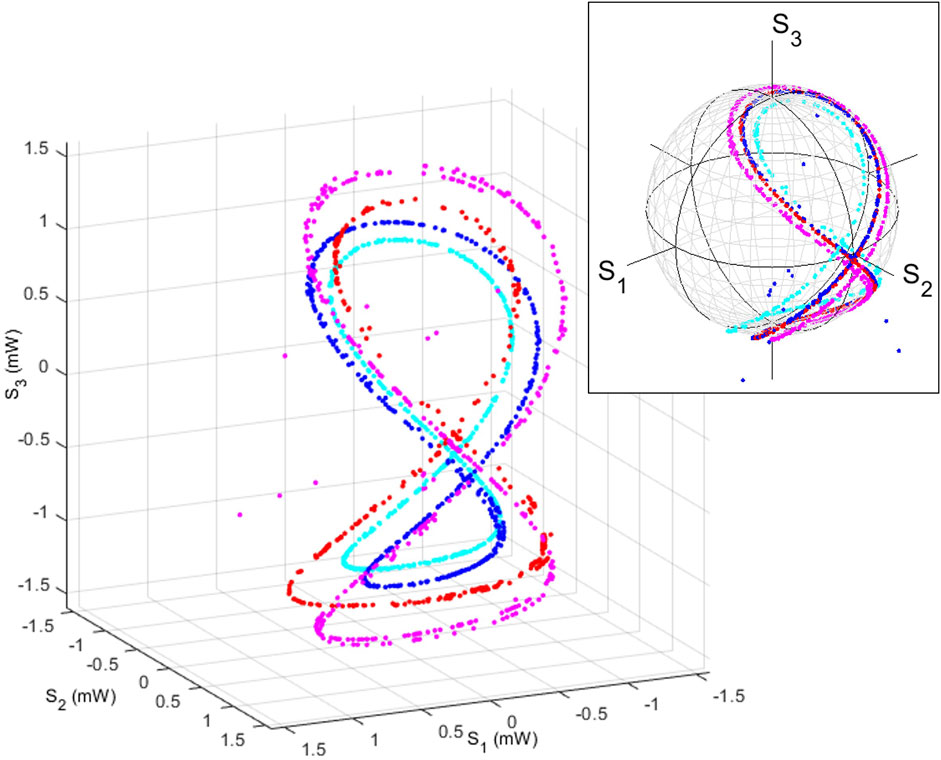

FIGURE 9. Double-connected toruses. The polarisation states were made by operating the states by using a rotated quarter-wave plate at the end of the polarisation interferometer. The sets are made of two connected toruses with the genus of 1. The inset shows the trajectories of polarisation states on the Poincaré sphere.

4 Discussions

We have shown polarisation torus is realised experimentally in the Stokes space, where each point represents the spin expectation value of photon coherent states. The observed polarisation states are standard coherent states, but the entire trajectories, realised by the polarisation interferometer, were topologically non-trivial, characterised by g = 1, and the topological states are stationary and stable over time. In our experimental setup, using waveplates, a dynamic control is difficult to achieve, limited by the mechanical rotations of waveplates. On the other hand, there are several exciting achievements to realise topologically non-trivial pulses of lights [99, 104, 105]. The toroidal pulse shape observed by Zdagkas et al. was realised by a tailored manipulation of the meta-surface [99]. Wang et al. realised the micro-cavity in the shape of a Möbius strip to find the notable impact of the Pancharatnam–Berry phase [104]. Li et al. realised a Möbius fibre ring laser to find frequency shifts and geometrical phases [105]. These developments are achieved by considering the dynamical evolution of lights rather than stationary polarisation states. Considering these developments, we also think dynamical evolutions are important to consider topological polarisation states. At this moment, we are developing polarisation modulators to manipulate polarisation states, dynamically [82]. It is also important to see the dynamical response of polarisation states because it is not easy to stabilise the phases of polarisation states against local changes of the environment such as ambient temperature and vibrations. Due to these practical disturbances, our experimental realisations of topological polarisation states are limited to toruses, as explained previously. Nevertheless, we can realise other topological non-trivial features as the polarisation states, as theoretically shown in the following section.

4.1 Möbius strip

We consider how to realise a Möbius strip in the Stokes space. A Möbius strip [41, 44, 48] is made of a strip with the one end, flipped for connecting to the other end. We consider the same setup as that shown in Figure 2, and we just need to change the optical components in the free space regions. For a Möbius strip, we need to prepare a line segment, rather than a circle (Figure 1), prepared for the torus. Such a line segment can be made by the simple phase-shift to the wave out of the tap port 4 by the phase-shift of $\widehat{\mathcal{D}}({\widehat{\mathbf{n}}}_{\mathbf{2}},\delta {\varphi }_{\mathrm{p}})$ along the S₂ axis. This operation will not change the input polarisation state of the D-state, while the phase is shifted, which changes the intensity of S₀. The line segment should be rotated for the toroidal direction along the S₁ axis, such that the operations become

$|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{4}}^{\prime }\rangle =\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{1}},\delta {\varphi }_{\mathrm{t}}\right)\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{2}},\delta {\varphi }_{\mathrm{p}}\right)|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{4}\rangle .(23)$

After these operations, the bypassed wave should be recombined by the subsequent FFC with the output from the through port 3. The combined wave should be rotated by the final rotator with the amount of δϕ_t, which is the same operation as that for the torus. The Stokes parameters were calculated from these U(2) wavefunctions, and the trajectories become the polarisation Möbius strip, as shown in Figure 10A. We can recognise a standard feature of a Möbius strip, designed in the Stokes space.

FIGURE 10

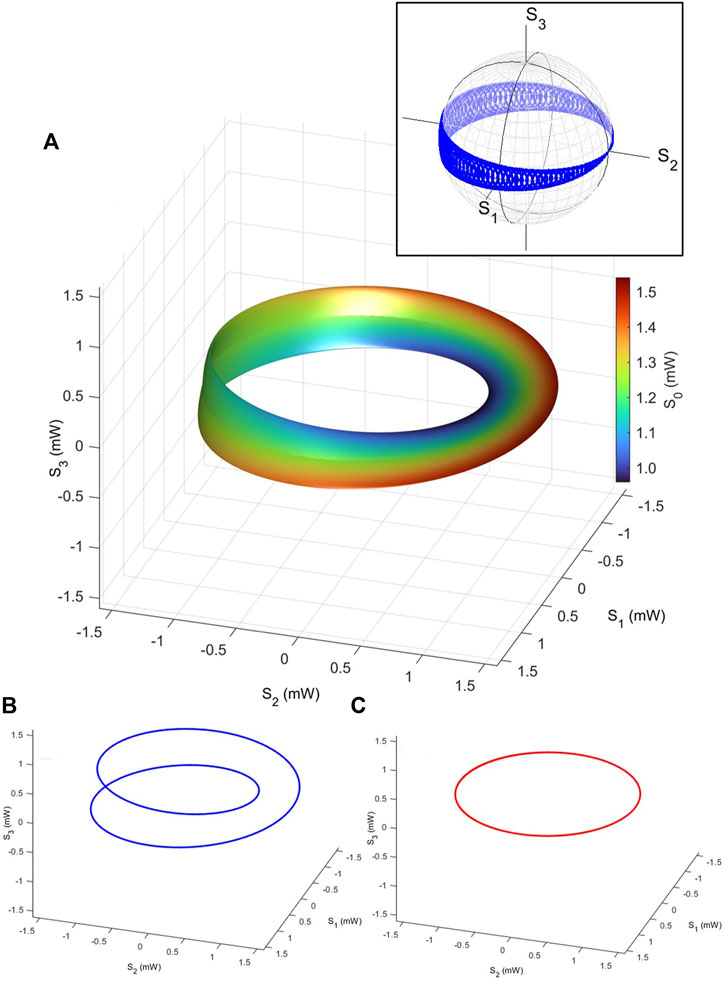

FIGURE 10. Polarisation Möbius strip. Stokes parameters were calculated, assuming the input of 1.5 mW to a polarisation interferometer. A line segment is made of the interference between the bypassed wave with the phase-shift and the original polarisation state at the through port. The segment was rotated by a rotator for the same amount of rotation with the angle for the toroidal rotation. This Möbius strip is right-handed, in the sense that it is made of the line segment, which rotates to the right, seen from the direction opposite to the toroidal rotation. (A) Set of polarisation states in the Stokes space, realised by the polarisation interferometer and rotators. The inset shows the trajectories of polarisation states on the Poincaré sphere. (B) Swapping of the edges of the Möbius strip. A trajectory of polarisation states at the poloidal angle of δϕ_p = 0 is shown, while the toroidal angle of δϕ_t was changed from 0 to 4π. The outer edge state becomes the inner edge state, after one rotation, and vice versa, after another subsequent rotation. (C) The centre line of the Möbius strip. A trajectory of polarisation states at the poloidal angle of δϕ_p = π becomes a polarisation circle, to keep the centre of the Möbius strip, while rotating.

In our original consideration for the torus, we have controlled δϕ_p from 0 to 4π, while δϕ_t was changed from 0 to 2π. These parameters also work for the Möbius strip, and this will cover the Möbius strip twice, due to the collapsing of the pore of the torus for the strip. Consequently, the half-rotation for δϕ_p is enough to realise the Möbius strip. It is even better to consider the quarter-rotation of δϕ_p from 0 to π, and instead, the double rotation of δϕ_t from 0 to 4π could be considered. In this case, it is easier to track the trajectory, controlled by δϕ_t. For example, if we start from the point, realised by δϕ_p = 0 and δϕ_t = 0, the original input state is recovered, which is located at the edge of the Möbius strip, and the intensity is maximised. Then, it is easy to see the trajectory (Figure 10B) of showing how δϕ_t changes the point, moving from the outer edge to the inner edge, and coming back to the original point upon the application of the 4π-rotation. On the other hand, if we start from δϕ_p = π and δϕ_t = 0, it is located at the centre of the Möbius strip, and the trajectory becomes the circle upon the change of δϕ_t from 0 to 2π, and it rotates twice upon the 4π-rotation (Figure 10C).

It is well-known that a Möbius strip cannot be assigned its orientation, which is evident from the fact that we cannot distinguish the front surface from the back surface. On the other hand, we can define its chirality, which depends on how the line segment could be connected upon rotations in our case. The Möbius strip, as shown in Figure 10, is defined to be right-handed because the line segment was rotated to the right side, seen from the direction, opposite to the toroidal rotation. Correspondingly, the left-handed Möbius strip could be considered, simply by the opposite rotation to yield

$|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{4}}^{\prime }\rangle =\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{1}},\delta {\varphi }_{\mathrm{t}}\right)\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{2}},-\delta {\varphi }_{\mathrm{p}}\right)|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{4}\rangle ,(24)$

which was used to calculate its Stokes parameters, as shown in Figure 11. If we focus on the trajectory of the edge, starting from the outer edge at δϕ_p = 0 and δϕ_t = 0, polarisation states rotate along the bottom (negative S₃), upon the toroidal direction, to arrive at the inner edge, and continue to go up to the top (positive S₃), towards going back to the original point. This is the opposite chirality to that of the right-handed Möbius strip, shown in Figure 10. Therefore, the chirality could be controlled, when we realise the Möbius strip by defining the sign of rotation to flip the line segment.

FIGURE 11

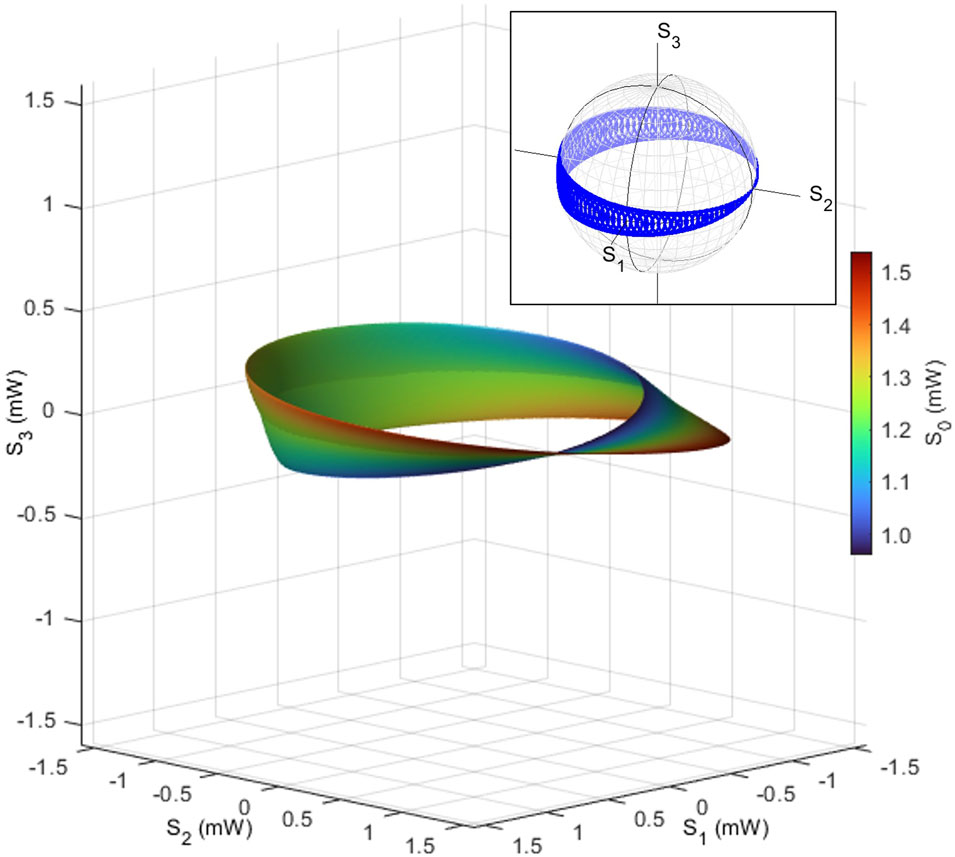

FIGURE 11. Left Möbius strip as polarisation states. Stokes parameters were calculated by considering the rotating segment to the left-handed direction, seen from the direction opposite to the toroidal rotation. The inset shows the trajectories of polarisation states on the Poincaré sphere.

4.2 Hopf links and other topological structures

Next, we consider realising a Hopf link using polarisation states. A Hopf link is made of two rings, which are completely disconnected, while one ring intersects with the other (Figure 12). We think it is impossible to realise it solely from 1 wavelength since we cannot allow two different points with different N (or equivalently, P), while keeping the same angles for γ and δ. Therefore, trajectories, controlled by the polarisation states, would be continuous in the Stokes space for 1 wavelength. However, if we allow wavelength-division multiplexing (WDM) in the SMF, we can separately manipulate polarisation states for multiple wavelengths, leading the way to realise optical Hopf links. We just need to adjust relative powers and polarisation states for both wavelengths by considering to establish the topology between two waves.

FIGURE 12

FIGURE 12. Polarisation Hopf links in the Stokes space. (A) The small circle is calculated for the wavelength of 1530 nm, realised by the polarisation interferometer. The large circle is realised by a phase-shifter for the wavelength of 1550 nm, and these two waves would be combined by a coupler. The inset shows the normalised polarisation states, shown on the Poincaré sphere. The blue (red) circles are for small (large) polarisation circles. (B) Heart-shaped polarisation circle with a Hopf link in the Stokes space. We assumed a 50:50 splitting of the input wave into the polarisation interferometer to realise the heart-like dip near the origin. The inset shows the normalised polarisation states, shown on the Poincaré sphere. The normalised polarisation circle (the blue line in the inset) covers the whole angle in the S₁–S₂ plane, while the intensity is modulated upon rotations.

As an example, we consider a polarisation circle realised by the polarisation interferometer, shown in Figure 2. Here, we assume 1 wavelength of approximately 1530 nm with the input power of 1.5 mW to be controlled by the polarisation interferometer. The output of the tap port 4 is now controlled as

$|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{4}}^{\prime }\rangle =\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{3}},\delta {\varphi }_{\mathrm{p}}\right)|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{4}\rangle ,(25)$

while we do not need to rotate along the toroidal direction, such that we do not insert any optical components in the second free space region. This will create a polarisation circle in the S₁–S₂ plane, perpendicular to the direction of S₃ (the small circle of Figure 12A). The polarisation circle in the Stokes space is a line segment in the normalised Poincaré sphere (the blue line in the inset of Figure 12A). Next, we just need to prepare another polarisation circle by using a different wavelength of approximately 1550 nm at the power of 1.0 mW, which could be controlled by proposed Poincaré rotators (phase-shifters to control δ) [81, 82], separately, to allow circular changes of polarisation states, located in the S₂–S₃ plane, perpendicular to the direction of S₁ (a large circle of Figure 12A). After constructing these waves in the SMFs, we can combine these by a polarisation-dependent FFC, with an appropriate power splitting ratio. These two polarisation circles do not touch each other in Stokes space, forming a Hopf link (Figure 12). On the other hand, if we plot these states by normalising Stokes parameters to have a unit radius, these two circles are connected (the inset of Figure 12). Therefore, it is important to distinguish the power difference of these waves.

Similarly, we have also calculated a Hopf link by assuming the different ratio of 50:50 (α = 0.5), as shown in Figure 12B, while the other parameters were the same as those for Figure 12A. In this case, the larger polarisation circle is realised upon the interference, due to the larger power, propagating into the tap port 4. As a consequence of the interference, the minimum output power could be 0, which is why the heart-like dip is realised near the origin of the Stokes space.

This heart shape affects the torus structure if the polarisation states are further controlled upon the toroidal rotation, as shown in Figure 13. Here, we have assumed the splitting of 50:50 (α = 0.5) for an input of the single wavelength at 1530 nm with the power of 1.5 mW. We expect that the heart-shaped polarisation circles are making trajectories upon rotations to the toroidal direction, with the amount of δϕ_t changed from 0 to 3π/2. Due to its feature, we call it a polarisation apple to have seed-like regions due to the heart-shaped dip near the origin. This is a remarkable difference between the mathematical overlapping of two circles upon rotations. In our case, we realise the circular heart-shaped circles upon the interference, such that the intensity near the origin becomes 0 due to the complete destructive interference between two separated waves with the sign change upon the SU(2) rotation.

FIGURE 13

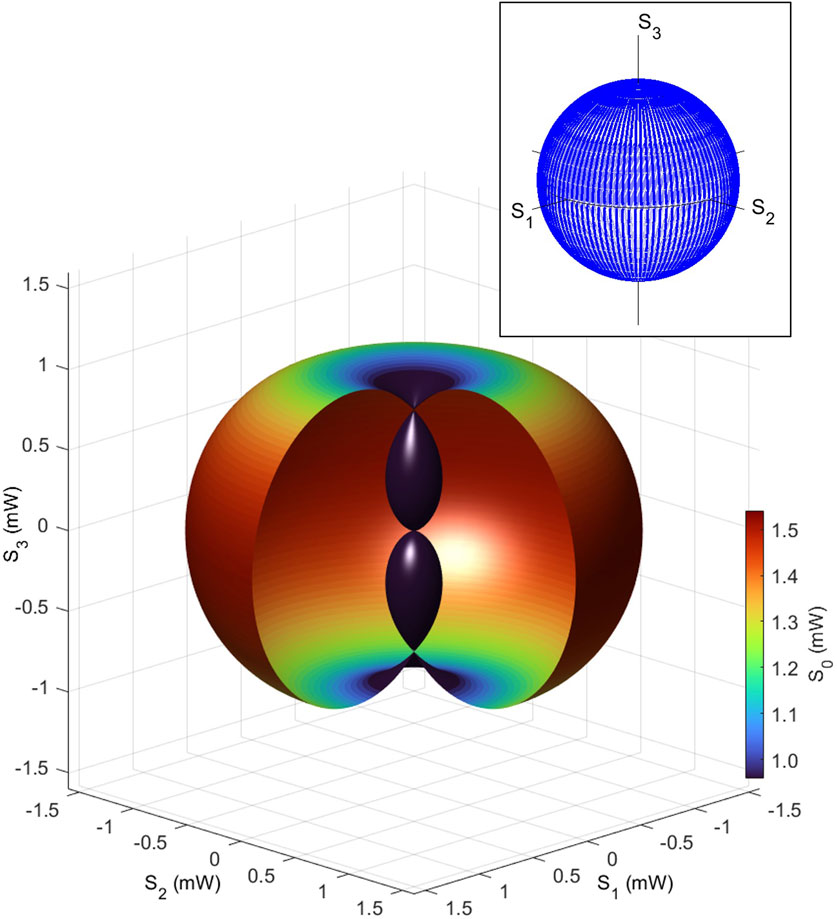

FIGURE 13. Polarisation apple in the Stokes space. The Stokes parameters were calculated for assuming 50:50 splitting at fibre couplers. The toroidal rotations from 0 to 3π/2 (rather than 2π) were assumed to have the seed-like dips near the origin, realised by the interferences. The inset shows the trajectories of polarisation states on the Poincaré sphere.

4.3 Bulk-edge correspondence and massless Dirac bosons

We have several topologically non-trivial structures as polarisation states in the Stokes space, compared with the Poincaré sphere. Polarisation results from spin expectation values [56–75, 77, 81, 82], such that the non-trivial polarisation states are determined by the broken rotational symmetry for the polarisation states. These topologically non-trivial features are robust against the rotationally symmetric disturbances. For example, the polarisation-independent loss in the SMF cannot change the topology of the polarisation states. Moreover, spherically symmetric operations of phase-shifters and rotators can rotate the topological structures such as toruses (Figures 6–8), Möbius strip (Figures 10, 11), and Hopf links (Figure 12), but still, the relative topology within these structures will be kept upon rotations. It is a polarisation-dependent loss to cut these topological features. Nevertheless, it is not so easy to change the topology since a simple insertion of a polariser, for example, will completely destroy the polarisation structure, ending up to be one point in the Stokes space. We need to make an optical scissor to allow an arbitral cutting of topological polarisation states. In order to reduce the intensity of the targeted polarisation states, we need to observe the polarisation states by using a polarimeter, which corresponds to observing the wavefunctions to expect the collapse of the wavefunction. For coherent photons, we can observe a bypassed contribution via a tap port, while keeping the contribution in the through port [82], but still we need to prepare a complicated photonic circuit to allow the splitting, delay, and manipulation of the loss. These difficulties result from robust correlations among the bits in the pulse stream to form non-trivial topological polarisation states. Here, we discuss how the broken symmetry in the bulk is corresponding to the edge state [4–6, 14, 22, 41–44]. More specifically, we return to the case of the polarisation torus and consider how the polarisation states could be connected to the original Poincaré sphere.

The torus is obviously distinct from the sphere because of the non-zero genus. For the pulse streams of light, coming out of the proposed device, which is the polarisation interferometer with the polarisation rotator (Figure 2), the Stokes parameters of the pulse represent one of the points on the polarisation torus, such that the pulse streams are considered to form the bulk state of the polarisation torus, characterised by g = 1. On the other hand, in the standard SMF with the rotational symmetry, the polarisation states are well-known to be characterised by the Poincaré sphere with g = 0 as a different bulk state. If we would like to connect the torus to the Poincaré sphere, we need to prepare the edge state, where the pore of the torus is closed, such that the polarisation circle (Figure 1A) is closed to be 1 point, which must be robust against disturbances to rotate the polarisation state.

We can generate such an edge state, simply by changing the rotations in the Stokes space. One practical implementation is to use the same setup of Figure 2, while we introduce the amplitude controller,

$\widehat{\mathcal{A}}\left(\delta {\varphi }_{\mathrm{p}}\right)=\mathbf{1}\cos \left(\frac{\delta {\varphi }_{\mathrm{p}}}{2}\right),(26)$

in the first free space region. The amplitude controller is not a unitary operator, such that this operator does not belong to a family of SU(2). It is an operator of U(2), except for the parameters, δϕ_p = π, 3π, ⋯, where the operator becomes 0, such that the norm is controlled upon the operation. The amplitude controller is made of polarisation splitters to change the amplitude of each polarisation state, independently, while each polarisation state would be inserted into a polarisation rotator [75, 81, 82] to change its polarisation in the S₁-S₂ plane, independently, picking up only the original polarisation state after the rotation, and finally recombining orthogonal polarisation states in a combiner. Alternatively, the amplitude controller is simply made of a polarisation-independent Mach–Zehnder interferometer to control the amplitudes for both polarisation components, simultaneously, while keeping the polarisation. The amplitude controller could also be defined as

$\widehat{\mathcal{B}}\left(\delta {\varphi }_{\mathrm{p}}\right)={\widehat{\sigma }}_1\sin \left(\frac{\delta {\varphi }_{\mathrm{p}}}{2}\right),(27)$

which accompanies a swapping of the polarisation states in addition to the polarisation rotation.

After the amplitude control of the contribution in the tap port 4, the output polarisation state is further controlled by a QWP, yielding

$|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{4}}^{\prime }\rangle =\widehat{\mathcal{D}}({\widehat{\mathbf{n}}}_{\mathbf{1}},\pi /2)\widehat{\mathcal{A}}\left(\delta {\varphi }_{\mathrm{t}}\right)|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{4}\rangle ,(28)$

which is combined with the contribution with the through port 3. Finally, the recombined state is rotated along the S₂ axis instead of the S₃ axis by the polarisation rotator

$|\mathrm{O}\mathrm{u}\mathrm{t}\mathrm{p}\mathrm{u}\mathrm{t}\rangle =\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{2}},\delta {\varphi }_{\mathrm{t}}\right)|{\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{1}}^{\prime }\rangle .(29)$

These operations will create a topological Dirac cone near the D-state. However, it is intriguing to illustrate it near the north pole (in our convention, the left circularly polarised state [75]), which could be achieved simply by a π/2-rotation along S₁. Alternatively, we can apply

$|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{4}}^{\prime }\rangle =\widehat{\mathcal{A}}\left(\delta {\varphi }_{\mathrm{t}}\right)|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{4}\rangle ,(30)$

to the tap port 4 without a QWP, while the through port 3 is phase-shifted by a QWP to be

$|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{3}}^{\prime }\rangle =\widehat{\mathcal{D}}({\widehat{\mathbf{n}}}_{\mathbf{1}},\pi /2)|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{3}\rangle ,(31)$

and then, the recombined states should be rotated along the S₃ axis, just like creating a torus before.

The calculated Stokes parameters in this way are shown in Figure 14, where a topological Dirac cone is recognised in the Stokes space. Bosonic Dirac bosons were previously discussed [106, 107] in realising a single-particle spectrum of a boson. Here, we are not discussing a single-particle energy spectrum in the momentum space. Instead, we are considering the many-body energy (S₀) of a bit in a pulse stream, generated from a device, and the change in energy is described against the spin expectation values rather than momentum for an energy band. Due to the coherent nature of bosons with no charge, photons in the same bit do not interact with each other, but the energy difference in S₀ could be considered the difference in number of photons in each bit. As shown in Figure 14A, the polarisation circle, generated by a rotator, is closed at the Dirac point, where the light cone is closed. At the Dirac point, the polarisation state is not changed upon rotations along the S₃ axis, such that this edge state to close the circle is topologically robust against rotations in the S₁–S₂ plane. We have also plotted the Dirac cone in the space for (S₀, S₁, S₂), as shown in Figure 14B. We confirmed the linear energy change, seen from S₀, against the radius of the polarisation circle in the plane, parallel to the S₁-S₂ plane. For the constant energy in S₀, or equivalently, for the same number of photons in a bit, the bit is characterised in the polarisation circle of the Dirac cone, which changes the helical spin expectation values (S₁, S₂) upon rotations by a rotator along the S₃ axis.

FIGURE 14

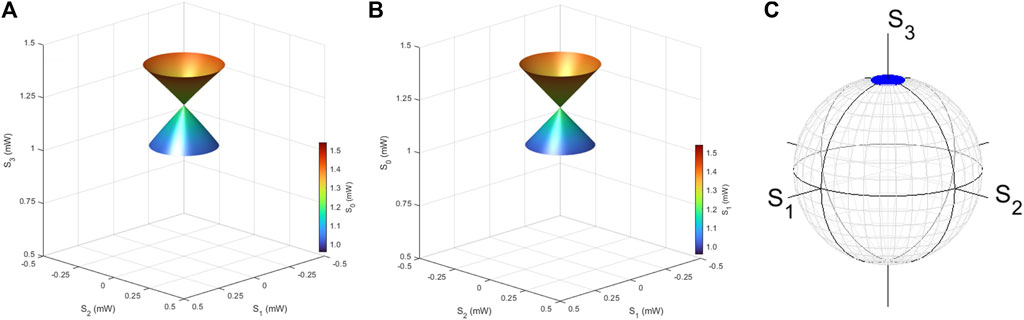

FIGURE 14. Topological Dirac bosons. Stokes parameters (S₀, S₁, S₂, S₃) were calculated for the output from the amplitude-controlled polarisation interferometer. (A) Dirac bosons in the vectorial space (S₁, S₂, S₃). The Dirac point at the centre of the light cone is robust against the rotation in the S₁–S₂ plane, such that a rotator along the S₃ axis cannot change the polarisation state at this point. (B) Dirac bosons in the vectorial space (S₀, S₁, S₂). The intensity of the light (S₀) is linearly controlled upon the S₃ direction, as a result of the interference, while S₀ is not affected upon the rotation in the S₁–S₂ plane, which induces a helical change of the polarisation state. (C) The trajectories of polarisation states are shown on the Poincaré sphere.

If we would like to change g = 1 of a torus to g = 0 of a sphere, it is inevitable to make such a Dirac point, where the polarisation state is robust against the rotations. We think the Dirac point corresponds to the edge state, while the polarisation torus and Poincaré sphere are bulk states. This is the bulk-edge correspondence [4–6, 14, 22, 41–44] for our topological polarisation states.

As an example, we have connected a polarisation torus to a Poincaré sphere via topological Dirac cones, as shown in Figure 15. Here, we have assumed the maximum power of 1.5, 1.05, and 0.75 mW for the polarisation torus, Dirac bosons, and the inner Poincaré sphere, respectively. The number of connected Dirac cones was 4 in this example, but it is not limited to this particular number. The number of edge states simply depended on our experimental setup and feasibility on how to close the pore generated in the torus. In the example of Figure 15A, the torus is continuously connected to four Dirac cones, with four Dirac points to close the pore, and the inner light cone is continuously connected to a Poincaré sphere with a smaller radius (S₀). The torus (g = 1) and the sphere (g = 0) describe different bulk states, respectively, while the Dirac points are edge states. Even if we rotate the whole structure in the 3D (S₁, S₂, S₃) space, the topology of these states will not be changed at all, and the polarisation-independent loss merely changes the scale (radius by S₀), such that the topology will not be changed, either. Consequently, these topological features in the Stokes space will be robust during the propagation in the SMF, regardless of the polarisation rotations and the loss.

FIGURE 15

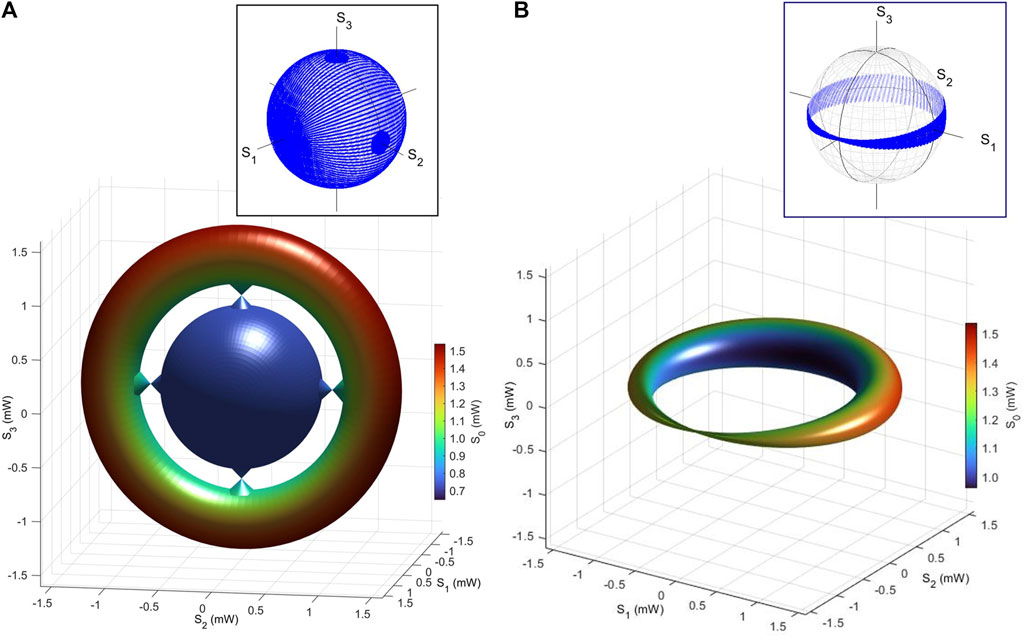

FIGURE 15. Bulk-edge correspondence for topological polarisation states. (A) Stokes parameters were calculated for the torus, Dirac cones, and the Poincaré sphere. The polarisation torus was connected by Dirac cones to the Poincaré sphere. It is inevitable to have a node of the polarisation circle at the Dirac point to change the genus from 1 to 0. (B) Closed polarisation torus. The phase-shift is introduced upon the toroidal rotation, which induces the destructive interference, leading to the Dirac point at the anti-diagonally polarised state. The insets show the trajectories of polarisation states on the Poincaré sphere.

Another method to close the torus is to introduce a phase-shift. For example, we can introduce a phase change upon the toroidal rotation as

$|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}{\mathrm{4}}^{\prime }\rangle =\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{2}},\delta {\varphi }_{\mathrm{t}}\right)\widehat{\mathcal{D}}\left({\widehat{\mathbf{n}}}_{\mathbf{1}},\delta {\varphi }_{\mathrm{p}}\right)|\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{4}\rangle ,(32)$

which induces the destructive rotation upon the toroidal rotation, leading to a generation of a Dirac point at the diagonally polarised state (Figure 15B). The structure of Figure 15B is not a torus anymore since the pore is closed, but we can introduce the toroidal phase change upon the dynamic operation [82]. Then, the polarisation torus can be dynamically switched to the conventional Poincaré sphere, continuously, along with the time evolution. By considering time as another coordinate, inspired by the time crystal [34, 35], we can dynamically switch polarisation structures with different genera. It is important to recognise that the edge must exist between different topological structures, and in order to close the torus continuously for the sphere, we need at least one Dirac point.

4.4 Chern number and Gauss–Bonnet theorems

We consider the topological invariance discussed in this paper. In the physics of topological materials, the Chern number [37] is the topological invariance to characterise the non-trivial quantum states. The Chern theorem [37] was established through a generalisation to $\mathbb{C}$ numbers for wavefunctions [1, 2, 4–6, 8, 11, 12, 14, 15, 36, 38–44], while the classical Gauss–Bonnet theorem is valid in $\mathbb{R}$ numbers. We focus on the polarisation torus to identify the topological invariance.

First, we evaluated the Chern number for the polarisation torus. To calculate the Chern number, we need to integrate the Pancharatnam–Berry phase of γ along a closed loop. We consider the poloidal rotation, as shown in Figure 2A, whose output state after the polarisation interferometer is given by

$|{\varphi }_{\mathrm{p}}\rangle =|{\mathrm{P}\mathrm{o}\mathrm{r}\mathrm{t}\mathrm{1}}^{\prime }\rangle ,(33)$

for the total rotation of ϕ_p, and we consider the small deviation of δϕ_p from ϕ_p, and the Berry connection [4–6, 38–41, 44] is defined by

$dA=\frac{\langle {\varphi }_{\mathrm{p}}|{\varphi }_{\mathrm{p}}+\delta {\varphi }_{\mathrm{p}}\rangle -\langle {\varphi }_{\mathrm{p}}|{\varphi }_{\mathrm{p}}\rangle }{\langle {\varphi }_{\mathrm{p}}|{\varphi }_{\mathrm{p}}\rangle }\equiv \langle \frac{\delta }{\delta {\varphi }_{\mathrm{p}}}\rangle \cdot \delta {\varphi }_{\mathrm{p}},(34)$

which yields the Pancharatnam–Berry phase as

$i\gamma =\oint dA(35)$

to give the Chern number

$C=\frac{\gamma }{2\pi }=\oint \frac{dA}{2\pi i},(36)$

which is the winding number for the wavefunction along the closed trajectory in the Hilbert space. We confirmed that the Chern number for the topological torus is 0 upon numerical calculations. This is confirmed on the normalised Poincaré sphere of Figure 4 (and the blue line in the inset of Figure 12A) because the circular rotation in the Stokes space along the radial direction (Figure 2A) simply corresponds to the line integration in the normalised Poincaré sphere, whose solid angle vanishes. Due to the uncertainty of 4π in solid angle and the nature of the 2-level systems, the Chern number of polarisation torus is given by integers $(\mathbb{Z})$; thus, we obtain $C\in \mathbb{Z}$. The line integration over the poloidal direction can be converted into the surface integration over the torus, such that the integer Chern number characterises the nature of the polarisation torus. This is exactly the same as that for the rotationally symmetric Poincaré sphere, such that we have no difference in the wavefunction, which is not surprising in the definition of the Berry connection, which is defined as the overlap of the normalised wavefunctions upon a trajectory over the phase space. If we take the integration contour over the toroidal direction, rather than the poloidal direction, the Pancharatnam–Berry phase becomes finite in agreement with the solid angle, defined by the toroidal trajectory. However, in this case, the toroidal loop cannot cover the whole surface of the torus, such that we cannot apply the Stokes theorem to characterise the topology of the torus. Consequently, it is reasonable to use the contour over the poloidal direction, and the Chern number of the torus is the same as that of the full sphere of the Poincaré sphere. Therefore, the normalised SU(2) wavefunction is not useful to characterise the polarisation torus, since the non-trivial nature of the polarisation torus in topology could be considered only when we take the variable radius of the U(2) wavefunction into account for the coherent many-body states with Bose–Einstein statistics.

In fact, the topological nature of the polarisation torus is appeared in the Stokes space, where the spin expectation values could take potentially any values in ${\mathbb{R}}^3$. For characterising the topology in the real space, we can use the Gauss–Bonnet theorem to obtain the Euler number,

$\chi =2\left(1-g\right)=\int \frac{dS}{2\pi }K,(37)$

where K is the product of the minimum and maximum curvatures on the surface and dS is the infinitesimal surface area. For the torus, the curvatures upon the toroidal direction change their sign, such that the integration becomes 0, yielding χ = 0 and g = 1. The values are completely different for a sphere to have χ = 2 and g = 0. Thus, the Euler number and the genus should be appropriate as topological invariants in the polarisation torus. Other topological features are also considered in ${\mathbb{R}}^3$, such that these numbers will be useful to consider polarisation states in the Stokes space.

5 Conclusion

We have shown that photons in the coherent states are described by the U(2) wavefunctions, and the spin expectation values, calculated in the wavefunction, span the three-dimensional Euclidean space, named the Stokes space, allowing to realise various non-trivial topological structures rather than the simple Poincaré sphere. We have proposed the polarisation interferometer to realise the polarisation torus and experimentally demonstrated the structure through the polarimetry. We have also shown that other topologically non-trivial structures, such as Möbius strip, Hopf links, and topological Dirac bosons. These topological structures in the Stokes space are characterised by the Euler number and genus rather than the Chern number since the spin expectation values are observable and the proposed topological structures are realised in real values rather than complex values of wavefunctions. We found that a bulk-edge correspondence is applicable to these topological features, and the torus and the sphere must be continuously connected, only when the Dirac point is realised at the edge to connect these structures in the Stokes space. Topological polarisation states are robust against rotations, phase-shifts, and polarisation-independent losses during the propagation in the single-mode fibre, such that these features can be transmitted without breaking topological correlations. The proposed topological structures are supported by the bosonic nature of photons, allowing many photons to occupy the same state, which has a remarkable difference in the fermionic Bloch state. The energy spectrum of proposed Dirac bosons is characterised by these coherent bosons, rather than the single-particle spectrum, and the linear dispersion of the energy in the bit will be observed against the helical polarisation. We think these topological polarisation states are generic features for coherent photons emitted from ubiquitous laser sources, such that we can consider various applications such as robust optical communications and fibre sensors against signal disturbances in harsh environments or future topological quantum computing using photons.

Data availability statement

The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.

Author contributions

The author confirms being the sole contributor of this work and has approved it for publication.

Funding

This work is supported by JSPS KAKENHI Grant Number JP 18K19958.

Acknowledgments

The author would like to express sincere thanks to Prof I. Tomita for continuous discussions and encouragements.

Conflict of interest

Author SS was employed by Hitachi, Ltd.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

1. Ando T. Theory of quantum transport in a two-dimensional electron system under magnetic fields II. single-site approximation under strong fields. J Phys Soc Jpn (1974) 36:1521–9. doi:10.1143/JPSJ.36.1521

CrossRef Full Text | Google Scholar

2. Ando T, Fowler AB, Stern F. Electronic properties of two-dimensional systems. Rev Mod Phys (1982) 54:437–672. doi:10.1103/RevModPhys.54.437

CrossRef Full Text | Google Scholar

3. v Klitzing K, Dorda G, Pepper M. New method for high-accuracy determination of the fine-structure constant based on quantized hall resistance. Phys Rev Lett (1980) 45:494–7. doi:10.1103/PhysRevLett.45.494

CrossRef Full Text | Google Scholar

4. Laughlin RB. Quantized Hall conductivity in two dimensions. Phys Rev B (1982) 23(R):5632–3. doi:10.1103/PhysRevB.23.5632

CrossRef Full Text | Google Scholar

5. Kohmoto M. Topological invariant and the quantization of the Hall conductance. Ann Phys (1985) 160:343–54. doi:10.1016/0003-4916(85)90148-4

CrossRef Full Text | Google Scholar

6. Hatsugai Y. Chern number and edge states in the integer quantum Hall effect. Phys Rev Lett (1993) 71:3697–700. doi:10.1103/PhysRevLett.71.3697

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Hirsch JE. Spin Hall effect. Phys Rev Lett (1999) 83:1834–7. doi:10.1103/PhysRevLett.83.1834

CrossRef Full Text | Google Scholar

8. Murakami S, Nagaosa N, Zhang SC. Spin-Hall insulator. Phys Rev Lett (2004) 93:156804. doi:10.1103/PhysRevLett.93.156804

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Wunderlich J, Kaestner B, Sinova J, Jungwirth T. Experimental observation of the spin-Hall effect in a two-dimensional spin-orbit coupled semiconductor system. Phys Rev Lett (2005) 94:047204. doi:10.1103/PhysRevLett.94.047204

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Haldane FDM. Model for a quantum Hall effect without Landau levels: Condensed-matter realization of the “parity anomaly”. Phys Rev Lett (1988) 61:2015–8. doi:10.1103/PhysRevLett.61.2015

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Kane CL, Mele EJ. z₂ topological order and the quantum spin hall effect. Phys Rev Lett (2005) 95:146802. doi:10.1103/PhysRevLett.95.146802

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Bernevig BA, Hughes TL, Zhang SC. Quantum spin hall effect and topological phase transition in HgTe quantum wells. Science (2006) 314:1757–61. doi:10.1126/science.1133734

PubMed Abstract | CrossRef Full Text | Google Scholar

13. König M, Wiedmann S, Bröne C, Roth A, Buhmann H, Molenkamp LW, et al. Quantum spin hall insulator state in HgTe quantum wells. Science (2007) 318:766–70. doi:10.1126/science.1148047

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Moore JE. The birth of topological insulators. Nat (2010) 464:194–8. doi:10.1038/nature08916

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Haldane FDM, Raghu S. Possible realization of directional optical waveguides in photonic crystals with broken time-reversal symmetry. Phys Rev Lett (2008) 100:013904. doi:10.1103/PhysRevLett.100.013904

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Wang Z, Chong Y, Joannopoulos JD, Solijačić M. Observation of unidirectional backscattering-immune topological electromagnetic states. Nat (2009) 461:772–5. doi:10.1038/nature08293

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Hafezi M, Mittal S, Fan J, Migdall A, Taylor JM. Imaging topological edge states in silicon photonics. Nat Photon (2013) 7:1001–5. doi:10.1038/NPHOTON.2013.274

CrossRef Full Text | Google Scholar

18. Lu L, Joannopoulos JD, Solijačić M. Topological photonics. Nat Photon (2014) 8:821–9. doi:10.1038/NPHOTON.2014.248

CrossRef Full Text | Google Scholar

19. Price H, Chong Y, Khanikaev A, Schomerus H, Maczewsky LJ, Kremer M, et al. Roadmap on topological photonics. J Phys Photon (2022) 4:032501. doi:10.1088/2515-7647/ac4ee4

CrossRef Full Text | Google Scholar

20. Berezinskii VL. Destruction of long-range order in one-dimensional and two-dimensional systems having a continuous symmetry group I. classical systems. Sov Phys JETP (1971) 32:493–500.

Google Scholar

21. Kosterlitz JM, Thouless DJ. Ordering, metastability and phase transitions in two-dimensional systems. J Phys C: Solid State Phys (1973) 6:1181–203. doi:10.1088/0022-3719/6/7/010

CrossRef Full Text | Google Scholar

22. Thouless DJ, Kohmoto M, Nightingale NP, den Nijs M. Quantized Hall conductance in a two-dimensional periodic potential. Phys Rev Lett (1982) 49:405–8. doi:10.1103/PhysRevLett.49.405

CrossRef Full Text | Google Scholar

23. Wen XG. Quantum field theory of many-body systems. Oxford: Oxford University Press (2004). doi:10.1093/acprofoso/9780199227259.001.0001

CrossRef Full Text | Google Scholar

24. Nagaosa N. Quantum field theory in condensed matter physics. Berlin, Heidelberg: Springer (1999). doi:10.1007/978-3-662-03774-4

CrossRef Full Text | Google Scholar

25. Ezawa ZF. Quantum Hall effects: Recent theoretical and experimental developments. New Jersey: World Scientific (2013).

Google Scholar

26. Nambu Y. Quasi-particles and gauge invariance in the theory of superconductivity. Phys Rev (1960) 117:648–63. doi:10.1103/PhysRev.117.648

CrossRef Full Text | Google Scholar

27. Anderson PW. Random-phase approximation in the theory of superconductivity. Phys Rev (1958) 112:1900–16. doi:10.1103/PhysRev.112.1900

CrossRef Full Text | Google Scholar

28. Goldstone J, Salam A, Weinberg S. Broken symmetries. Phy Rev (1962) 127:965–70. doi:10.1103/PhysRev.127.965

CrossRef Full Text | Google Scholar

29. Higgs PW. Broken symmetries and the masses of gauge bosons. Phys Lett (1962) 12:508–9. doi:10.1103/PhysRevLett.13.508

CrossRef Full Text | Google Scholar

30. Schrieffer JR. Theory of superconductivity. Boca Raton: CRC Press (1971). doi:10.1201/9780429495700

CrossRef Full Text | Google Scholar

31. Ginzburg VL, Landau LD. On the theory of superconductivity. J Exp Theor Phys (1950) 20:1064. doi:10.1016/c2013-0-01806-3

CrossRef Full Text | Google Scholar

32. Bardeen J, Cooper LN, Schrieffer JR. Theory of superconductivity. Phys Rev (1957) 108:1175–204. doi:10.1103/PhysRev.108.1175

CrossRef Full Text | Google Scholar

33. Coleman S. Aspects of symmetry. Cambridge: Cambridge University Press (1985).

Google Scholar

34. Shapere A, Wilczek F. Classical time crystals. Phys Rev Lett (2012) 109:160402. doi:10.1103/PhysRevLett.109.160402

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Wilczek F. Quantum time crystals. Phys Rev Lett (2012) 109:160401. doi:10.1103/PhysRevLett.109.160401

PubMed Abstract | CrossRef Full Text | Google Scholar

36. Armitage NP, Mele EJ, Vishwanath A. Weyl and Dirac semimetals in three-dimensional solids. Rev Mod Phys (2018) 90:015001. doi:10.1103/RevModPhys.90.015001

CrossRef Full Text | Google Scholar

37. Chern SS. Characteristic classes of hermitian manifolds. Ann Math (1946) 47:85–121. doi:10.2307/1969037

CrossRef Full Text | Google Scholar

38. Pancharatnam S. Generalized theory of interference, and its applications. Proc Indian Acad Sci Sect A (1956) XLIV:247–62. doi:10.1007/BF03046050

CrossRef Full Text | Google Scholar

39. Berry MV. Quantual phase factors accompanying adiabatic changes. Proc R Sco Lond A (1984) 392:45–57. doi:10.1098/rspa.1984.0023

CrossRef Full Text | Google Scholar

40. Tomita A, Cao RY. Observation of Berry’s topological phase by use of an optical fiber. Phys Rev Lett (1986) 57:937–40. doi:10.1103/PhysRevLett.57.937

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Cisowski C, Götte JB, Franke-Arnold S. Colloquium: Geometric phases of light: Insights from fiber bundle theory. Rev Mod Phys (2022) 94:031001. doi:10.1103/revmodphys.94.031001

CrossRef Full Text | Google Scholar

42. Hasan MZ, Kane CL. Colloquium: Topological insulators. Rev Mod Phys (2010) 82:3045–67. doi:10.1103/RevModPhys.82.3045

CrossRef Full Text | Google Scholar

43. Qi XL, Zhang SC. Topological insulators and superconductors. Rev Mod Phys (2011) 83:1057–110. doi:10.1103/RevModPhys.83.1057

CrossRef Full Text | Google Scholar

44. Nakahara M. Geometry, toplogy and physics. Bristol: Hilger (1990).

Google Scholar

45. Shirakawa H, Louis EJ, Macdirmid AG, Chiang CK, Heeger AJ. Synthesis of electrically conducting organic polymers: Halogen derivatives of polyacetylene, (CH)_x. J C S Chem Comm (1977) 578–80. doi:10.1039/C39770000578

CrossRef Full Text | Google Scholar

46. Kroto HW, Heath JR, O’Brien SC, Curl RF, Smalley RE. C₆₀: Buckminsterfullerene. Nat (1985) 318:162–3. doi:10.1038/318162a0

CrossRef Full Text | Google Scholar

47. Iijima S. Helical microtubules of graphitic carbon. Nature (1991) 354:56–8. doi:10.1038/354056a0

CrossRef Full Text | Google Scholar

48. Tanda S, Tsuneta T, Okajima Y, Inagaki K, Yamaya K, Hatakenaka N. A Möbius strip of single crystals. Nature (2002) 417:397–8. doi:10.1038/417397a

PubMed Abstract | CrossRef Full Text | Google Scholar

49. Novoselov KS, Geim AK, Morozov SV, Jiang D, Zhang Y, Dubonos SV, et al. Electric field effect in atomically thin carbon films. Science (2004) 306:666–9. doi:10.1126/science.1102896

PubMed Abstract | CrossRef Full Text | Google Scholar

50. Novoselov KS, Geim AK, Morozov SV, Jiang D, Katsnelson MI, Grigorieva IV, et al. Two-dimensional gas of massless Dirac fermions in graphene. Nature (2005) 438:197–200. doi:10.1038/nature04233

PubMed Abstract | CrossRef Full Text | Google Scholar

51. Fang L, Olson MA, Benítez D, Tkatchouk E, Wag , Stoddart JF. Mechanically bonded macromolecules. Chem Soc Rev (2010) 39:17–29. doi:10.1039/b917901a

PubMed Abstract | CrossRef Full Text | Google Scholar

52. Sunada T. Lecture on topological crystallography. Jpn J. Math. (2012) 7:1–39. doi:10.1007/s11537-012-1144-4

CrossRef Full Text | Google Scholar

53. Dabrowski-Tumanski P, Sulkowska JI. Topological knots and links in proteins. PNAS (2017) 114:3415–20. doi:10.1073/pnas.1615862114

PubMed Abstract | CrossRef Full Text | Google Scholar

54. Tomita I, Saito S. Lattice deformation on flat-band modulation in 3D hopf-linked carbon allotrope: Hopfene. Appl Phys Lett (2019) 115:083102. doi:10.1063/1.5118967

CrossRef Full Text | Google Scholar

55. Saito S, Tomita I. Topological carbon allotropes: Knotted molecules, carbon-nano-chain, chainmails, and hopfene. Mater Res Express (2020) 7:056301. doi:10.1088/2053-1591/ab8df3

CrossRef Full Text | Google Scholar

56. Stokes GG. On the composition and resolution of streams of polarized light from different sources. Trans Cambridge Phil Soc (1851) 9:399–416. doi:10.1017/CBO9780511702266.010

CrossRef Full Text | Google Scholar

57. Poincaré JH. Théorie mathématique de la lumière. In: Tome. Paris: G. Carré (1892).

Google Scholar

58. Born M, Wolf E. Principles of optics. Cambridge: Cambridge University Press (1999). doi:10.1017/9781108769914

CrossRef Full Text | Google Scholar

59. Jackson JD. Classical electrodynamics. New York: John Wiley & Sons (1999).

Google Scholar

60. Yariv Y, Yeh P. Photonics: Optical electronics in modern communications. Oxford: Oxford University Press (1997).

Google Scholar

61. Gil JJ, Ossikovski R. Polarized light and the mueller matrix approach. London: CRC Press (2016). doi:10.1201/b19711

CrossRef Full Text | Google Scholar

62. Goldstein DH. Polarized light. London: CRC Press (2011). doi:10.1201/b10436

CrossRef Full Text | Google Scholar

63. Parker MA. Physics of optoelectronics. Boca Raton: Taylor & Francis (2005). doi:10.1201/9781420027716

CrossRef Full Text | Google Scholar

64. Chuang SL. Physics of photonic devices. New York: John Wiley & SonsWiley (2009).

Google Scholar

65. Hecht E. Optics. Essex: Pearson Education (2017).

Google Scholar

66. Pedrotti FL, Pedrotti LM, Pedrotti LS. Introduction to optics. New York: Pearson Education (2007).

Google Scholar

67. Grynberg G, Aspect A, Fabre C. Introduction to quantum optics: From the semi-classical approach to quantized light. Cambridge: Cambridge University Press (2010).

Google Scholar

68. Jones RC. A new calculus for the treatment of optical systems i. description and discussion of the calculus. J Opt Soc Am (1941) 31:488–93. doi:10.1364/JOSA.31.000488

CrossRef Full Text | Google Scholar

69. Hurwitz H, Jones RC. A new calculus for the treatment of optical systems II. proof of three general equivalence theorems. J Opt Soc Am (1941) 31:493–9. doi:10.1364/JOSA.31.000493

CrossRef Full Text | Google Scholar

70. Salazar-Ariza K, Torres R. Trajectories on the Poincaré sphere of polarization states of a beam passing through a rotating linear retarder. J Opt Soc Am (2018) 35:65–72. doi:10.1364/josaa.35.000065

PubMed Abstract | CrossRef Full Text | Google Scholar

71. Fano U. A Stokes-parameter technique for the treatment of polarization in quantum mechanics. Phy Rev (1954) 93:121–3. doi:10.1103/PhysRev.93.121

CrossRef Full Text | Google Scholar

72. Baym G. Lectures on quantum mechanics. New York: Westview Press (1969).

Google Scholar

73. Sakurai JJ. Advanced quantum mechanics. New York: Addison-Wesley Publishing Company (1967).

Google Scholar

74. Sakurai JJ, Napolitano JJ. Modern quantum mechanics. Edinburgh: Pearson (2014).

Google Scholar

75. Saito S. Spin of photons: Nature of polarisation. arXiv (2023). p. 2303. doi:10.48550/arXiv.2303.1711217112

CrossRef Full Text

76. Saito S. Quantum commutation relationship for photonic orbital angular momentum. Front Phys (2023) 11:1225346. doi:10.3389/fphy.2023.1225346

CrossRef Full Text | Google Scholar

77. Saito S. Spin and orbital angular momentum of coherent photons in a waveguide. Front Phys (2023) 11:1225360. doi:10.3389/fphy.2023.1225360

CrossRef Full Text | Google Scholar

78. Saito S. Dirac equation for photons: Origin of polarisation. arXiv(2023) 2303. doi:10.48550/arXiv.2303.18196

CrossRef Full Text

79. Saito S. Special theory of relativity for a graded index fibre. Front Phys (2023) 11:1225387. doi:10.3389/fphy.2023.1225387

CrossRef Full Text | Google Scholar

80. Saito S. Poincaré rotator for vortexed photons. Front Phys (2021) 9:646228. doi:10.3389/fphy.2021.646228

CrossRef Full Text | Google Scholar

81. Saito S. SU(2) symmetry of coherent photons and application to poincaré rotator. Front Phys (2023) 11:1225419. doi:10.3389/fphy.2023.1225419

CrossRef Full Text | Google Scholar

82. Saito S. Macroscopic single-qubit operation for coherent photons (2023). arXiv 2304. doi:10.48550/arXiv.2304.00013

CrossRef Full Text

83. Stubhaug A. The mathematician sophus Lie - it was the audacity of my thinking. Berlin: Springer-Verlag (2002).

Google Scholar

84. Fulton W, Harris J. Representation theory: A first course. New York: Springer (2004).

Google Scholar

85. Hall BC. Lie groups, Lie algebras, and representations; an elementary introduction. Switzerland: Springer (2003).

Google Scholar

86. Pfeifer W. The Lie Algebras su(N) An Introduction. Berlin: Springer Basel AG (2003).

Google Scholar

87. Dirac PAM. The principle of quantum mechanics. Oxford: Oxford University Press (1930).

Google Scholar

88. Georgi H. Lie algebras in particle physics: From isospin to unified theories (Frontiers in physics). Massachusetts: Westview Press (1999).

Google Scholar

89. Arecchi FT, Courtens E, Gilmore R, Thomas H. Atomic coherent states in quantum optics. Phys Rev A (1972) 6:2211–37. doi:10.1103/PhysRevA.6.2211

CrossRef Full Text | Google Scholar

90. Narducci LM, Coulter CA, Bowden CM. Exact diffusion equation for a model for superradiant emission. Phys Rev A (1972) 6:829–45. doi:10.1103/PhysRevA.9.829

CrossRef Full Text | Google Scholar

91. Fox M. Quantum optics: An introduction. Oxford: Oxford University Press (2006).

Google Scholar

92. Wootters WK, Zurek WH. A single quantum cannot be cloned. Nat (1982) 299:802–3. doi:10.1038/299802a0

CrossRef Full Text | Google Scholar

93. Dieks D. Communication by EPR devices. Phys Lett A (1982) 92:271–2. doi:10.1016/0375-9601(82)90084-6

CrossRef Full Text | Google Scholar

94. Kikuchi K. Fundamentals of coherent optical fiber communications. J Light Technol (2016) 34:157–79. doi:10.1109/JLT.2015.2463719

CrossRef Full Text | Google Scholar

95. Debnath K, Thomson DJ, Zhang W, Khokhar AZ, Littlejohns C, Byers F, et al. All-silicon carrier accumulation modulator based on a lateral metal-oxide-semiconductor capacitor. Photon Res (2018) 6:373–9. doi:10.1364/PRJ.6.000373

CrossRef Full Text | Google Scholar

96. Zhang W, Debnath K, Chen B, Li K, Liu S, Ebert M, et al. High bandwidth capacitance efficient silicon MOS modulator. J Light Technol (2021) 39:201–7. doi:10.1109/JLT.2020.3026945

CrossRef Full Text | Google Scholar

97. Goi K, Kusaka H, Oka A, Ogawa K, Liow TY, Tu X, et al. 128-Gb/s DP-QPSK using low-loss monolithic silicon IQ modulator integrated with partial-rib polarization rotator. In: Optical fiber communication conference (OFC). San Francisco: Optica Publishing Group (2014). p. W1I–2. doi:10.1364/OFC.2014.W1I.2

CrossRef Full Text | Google Scholar

98. Doerr CR. Silicon photonic integration in telecommunications. Front Phys (2015) 3:37. doi:10.3389/fphy.2015.00037

CrossRef Full Text | Google Scholar

99. Zdagkas A, McDonnell C, Deng J, Shen Y, Li G, Ellenbogen T, et al. Observation of toroidal pulses of light. Nat Photon (2022) 16:523–8. doi:10.1038/s41566-022-01028-5

CrossRef Full Text | Google Scholar

100. Simon R, Mukunda N. Minimal three-component SU(2) gadget for polarization optics. Phys Lett (1990) 143:165–9. doi:10.1016/0375-9601(90)90732-4

CrossRef Full Text | Google Scholar

101. Schilling U, v Zanthier J, Agarwal GS. Measuring arbitrary-order coherences: Tomography of single-mode multiphoton polarization-entangled states. Phys Rev A (2010) 81:013826. doi:10.1103/PhysRevA.81.013826

CrossRef Full Text | Google Scholar

102. Pisanty E, Machado GJ, Vicuña-Hernández V, Picón A, Celi A, Torres JP, et al. Knotting fractional-order knots with the polarization state of light. Nat Photon (2019) 13:569–74. doi:10.1038/s41566-019-0450-2

CrossRef Full Text | Google Scholar

103. Oberti C, Ricca RL. Influence of winding number on vortex knots dynamics. Sci Rep (2019) 9:17284. doi:10.1038/s41598-019-53548-w

PubMed Abstract | CrossRef Full Text | Google Scholar

104. Wang J, Valligatla S, Yin Y, Schwarz L, Medina-Sánchez M, Baunack S, et al. Experimental observation of Berry phases in optical Möbius-strip microcavities. Nat Photon (2023) 17:120–5. doi:10.1038/s41566-022-01107-7

CrossRef Full Text | Google Scholar

105. Li S, Zhou J, Cheng Z, Feng Y. Polarization and longitudinal modes of Möbius fiber ring lasers. Optica (2022) 9:1394–400. doi:10.1364/OPTICA.474407

CrossRef Full Text | Google Scholar

106. Kumar PS, Herbut IF, Ganesh R. Dirac Hamiltonians for bosonic spectra. Phys Rev Res (2020) 2:033035. doi:10.1103/PhysRevResearch.2.033035

CrossRef Full Text | Google Scholar

107. Banerjee S, Fransson J, Black-Schaffer AM, Ågren H, Balatsky AV. Granular superconductor in a honeycomb lattice as a realization of bosonic Dirac material. Phy Rev B (2016) 93:134502. doi:10.1103/PhysRevB.93.134502

CrossRef Full Text | Google Scholar
