Development of holographic printed HOE recording technology with VHG-based FOV analysis for waveguide-type NED system

We propose a holographic printing–recording technology for near-eye display through volume holographic grating analysis in hologram recording and reconstruction. Most near-eye displays are designed based on waveguide-type and analog holographic optical elements, resulting in disruption of the uniformity of the image because of the difference between the initial recording conditions and the source image. This problem can be addressed using holographic printing technology to modulate different diffraction efficiencies for each holographic element. This study uses a digital HOE screen that can fabricate and reconstruct augmented reality images of 1.17”, 1.76”, and 2.35” in a field of view of 28.07°, 41.11°, and 53.13°, respectively, at a distance of 53.33 mm from the eye. Moreover, augmented images are realized with higher diffraction efficiency than conventional methods, simplifying the design and facilitating mass production of uniformed products using digital holographic printing technology.

1 Introduction

AR has gained widespread adoption in various industries, including gaming, education, healthcare, and manufacturing industries. Near-eye displays, such as smart glasses and headsets, have become more accessible and affordable, driving their increased usage. In particular, in the field of research on the development of optical devices, a lot of research is being conducted in the AR display field [1, 2]. There have been significant improvements in the optics of AR and near-eye displays [3]. Enhanced display resolutions, wider field of view (FOV), and improved image quality have resulted in more immersive and realistic AR experiences. Advancements in waveguide and diffractive optics have enabled sleeker designs and reduced the form factor of near-eye displays. This enables lightweight and portable designs. Manufacturers are focusing on creating lightweight and portable AR and near-eye display devices. These advancements enhance user comfort, enabling extended usage periods and making them suitable for various applications, including enterprise, entertainment, and consumer markets. A near-eye display (NED) with a transparent waveguide is one of the promising devices for this field [4, 5]. This type of NED can be divided into three main parts—the display source image, the in-coupler that can relay the source image to total internal reflection (TIR), and the out-coupler that transfers the relayed image information to the eye [6, 7]. These couplers typically comprise a diffractive optical element (DOE) and volume holographic grating (VHG). The DOE forms an angle of refraction by etching a grating on a material such as glass or plastic, and VHG is an optical element in which grating is applied to a medium using holography. Using these elements, a portable NED system can be designed to be lightweight and compact and is, therefore, extensively studied by suppliers like Microsoft, Meta, and Digilens that develop potable head-mounted display (HMD) devices such as augmented reality (AR) glass [8–10]. A waveguide-type NED system generally provides a field of view (FOV) of approximately 50°–54° [11, 12]. This factor prevents users from immersing themselves in realistic AR content because of the inconsistency of focus between the virtual image and the real world. However, in this case, it is a factor that provides a sufficiently large volume to be applied to a portable terminal. Even for portable devices, these factors can facilitate a large system volume. In the case of the DOE, the wavelengths of red, green, and blue for full-color display can cause color dispersion like a rainbow between diffraction angles as the direction of light is determined by the shape and distance of the grating pattern. This can be solved using a holographic optical element (HOE). In the case of the HOE, the propagation direction of light is determined by the spacing between grating patterns like the DOE. However, if the same wavelength as the hologram recording condition is used, multiple spots do not occur, and there is no chromatic aberration. However, uniformity cannot be guaranteed as the system is fabricated by an analog hologram recording method. Moreover, when the specifications change, the optical system must be redesigned, which is time consuming and expensive [13, 14]. In this paper, we propose optimal recording conditions by analyzing the selectivity and efficiency of images according to the digital hologram recording method by a waveguide-type NED system. Analog hologram recording refers to the traditional method of capturing and storing holographic information using optical techniques. In this process, a coherent light source, such as a laser, is split into two beams: the reference beam and the object beam. The object beam is directed toward the object or scene being recorded, and the scattered light from the object interacts with the reference beam to create an interference pattern. This interference pattern is captured on a holographic film or plate, which preserves the complex wavefront information of the object. On the other hand, digital hologram recording involves the use of digital sensors, such as charge-coupled devices (CCDs) or complementary metal-oxide-semiconductor (CMOS) cameras, to directly capture the interference pattern. Instead of using photographic film, the interference pattern is recorded as a series of intensity values or complex amplitudes, forming a digital hologram. The digital hologram can then be stored, processed, and reconstructed using computational algorithms. For this reason, with digital hologram recording methods, we can utilize various numerical computations on a computer to achieve the desired results. In addition, to improve the uniformity of AR images restored through the HOE, we present an optimized digital HOE recording method that uses holographic printing technology and a computer-generated hologram (CGH) pattern to control the varying diffraction efficiency for each holographic element (hogel) as a minimum recording unit.

Consequently, the proposed VHG recording method is proved to be effective in uniformly displaying AR contents of a large screen with reconstructed depth images from NED.

2 Methods

We use NED based on an HOE in this system. This system uses an HOE fabricated using holography as a screen. Therefore, an image focused at a close position in front of the eye is positioned at a deep position through the HOE screen having optical refractive power. This enables observers to enjoy comfortable video viewing and reduces the gap between the augmented video and the real world. Therefore, the depth of the image depends on the focal length of the HOE, and the FOV is related to the size of the screen and the focal length of the HOE. Therefore, when transmitting an image in a system using a waveguide, the size of the screen reflecting the image and the transmission angle determine the FOV of the system and the depth of the image. To transmit optical information using total reflection, Figure 1A shows the hologram recording method used for in-coupled HOE. Covestro’s photopolymer was selected as the holographic material. Air, photopolymer, and waveguide glass have different refractive indexes. Therefore, the TIR angle at the final input spot must be an acceptable critical angle value that can satisfy the condition. When we see the top left image in Figure 1A, the angle ${\theta }_{in}$ represents the hologram recording angle when creating the in-coupled HOE. When an image is input to this generated HOE under the reference beam conditions, it undergoes angular modulation by ${\theta }_{in}$. However, due to the difference in refractive indices between the waveguide glass and the photopolymer, an additional angle B′ arises. Therefore, the final image that propagates by total internal reflection (TIR) is given by ${\theta }_{in}$ + $\theta$'. If this angle is adjusted to satisfy the TIR condition, it becomes the TIR angle denoted as ${\theta }_{out}$ in the top right image in Figure 1A. We refer to this as ${\theta }_c$ in our study. Based on Snell’s law equation, the point at which the TIR angle ${\theta }_{in}$ becomes 90° and $\sin {\theta }_{in}$ becomes 1 is the critical value. The incident angle ${\theta }_{in}$ obtained here becomes the critical angle ${\theta }_c$, and when ${\theta }_c$ is rearranged, it can be ${\theta }_c={\sin }^{-1}\left(n_2/n_1\right)$, where $n_2$ is air with a refractive index of 1.000 in the 532 nm wavelength band, and n₁ is a photopolymer with a refractive index of 1.520. Therefore, ${\theta }_c=41.13\mathrm{°}$.

FIGURE 1

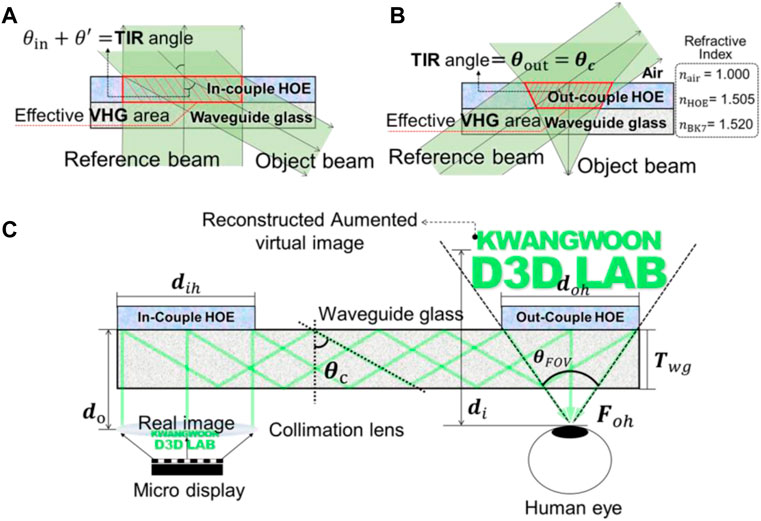

FIGURE 1. (A) Recording ray diagram for the in-coupled HOE. (B) Recording ray diagram for the out-coupled HOE. (C) Reconstructed AR virtual image from the holographic waveguide system.

In Figure 1A, the refractive index of the photopolymer should be considered because the object beam passes through the photopolymer and is incident on the glass. We denote this deviation value as $\theta$'. However, the refractive index of 0.015 from the waveguide glass has a deviation value of 0.56° as $\theta$'. Therefore, in this study, the refractive index of the photopolymer is not considered $\theta$' value, and ${\theta }_{in}$ of the in-coupled HOE is 45°, which is larger than the critical value ${\theta }_c$ of 41.13° for convenience of the recording setup. Figure 1B shows that the 45° relayed image is transmitted to the observer’s eye while acting as a transparent concave mirror. As shown in Figure 1C, it magnifies the image from the micro-display and reconstructs it at the depth position required by the user. The focal length $F_{oh}$ of the out-coupled HOE is a factor that determines the FOV of the system and the size and depth of the image. This is because the divergence or convergence angle increases as the focal length becomes shorter in the same size HOE. However, as it is not possible to fabricate an infinite image size for an immersive screen, it is necessary to analyze it to determine the maximum specifications within the range considering practical aspects. Before we used holographic printing solution, HOEs of 10cm², 15cm², and 20 cm² were fabricated, and the intensity distribution was measured by dividing them into six areas by resizing $d_{ih}$ and $d_{oh}$. The display source image used the same size as the size of each $d_{ih}$. The focal length of the three HOEs is all the same at 33.33mm, and the FOV was adjusted only with $d_{ih}$ and $d_{ih}$ sizes.

Figure 2A shows the results of measuring the intensity by dividing each HOE into areas to verify the uniformity of 10 cm², 15 cm², and 20 cm². The angles and intensities of the incident light for each area on the HOE surface are indicated. Through this simulation, it is observed that although the hologram is recorded using the entire surface of the HOE, the efficiency varies due to the different angles at which light illuminates the HOE surface for incoming spherical waves, such as in the case of the NED system. The focal length of the out-coupled HOE is defined as the TIR angle at which light enters at a 45° angle in a linear space, converging to a unit angle. Although the distance of the input image incident on the HOE is the same, different sizes of HOEs result in obtaining FOVs of 28.07°, 41.11°, and 53.13° for 10 cm², 15 cm², and 20 cm², respectively. Therefore, as can be seen from the simulation results, as the size of the out-coupled HOE increases, the converging angle toward the eye also increases. Thus, a large HOE designed to reconstruct an image with a large FOV will be created as a hologram with different diffraction efficiencies, as shown in the simulation results. Therefore, in order to compensate for the diffraction efficiency that varies with these angles, we record each area of the HOE surface using different optical powers for each area and perform angular compensation. As a result, the final reconstructed image can be uniformly restored. When recording holograms for HOE fabrication, we need to calculate the angular selectivity to determine the power. If the angular selectivity is large, it will accept a large amount of light, and if it is small, it will accept a small amount of light. The calculation is determined based on Eq. 1 [15]. This equation is based on Herwig Kogelnik’s coupled wave theory and explains the influence of the tilted grid in light’s Bragg diffraction in holographic restoration on the angle and wavelength sensitivity. FOVs of 28.07°, 41.11°, and 53.13° can be obtained. To select the reconstruction efficiency for each recording angle, which is different for each unit, as a compensation value, the HOE is recorded by the conventional analog method. Efficiency was measured for each unit by dividing the entire effective area into six regions and measuring the reconstructed beam diffracted in each area. The angle in the space of the straight line incident to the out-coupled HOE at 45°, which is the TIR angle, and the straight line where each unit converges as the focal length is defined as ${\theta }_r$. The equation for calculating the angle selectivity is determined from Eq. 1 [12]. This equation is based on Herwig Kogelnik’s coupled wave theory, and it is a theory about the effect of the tilted grating in the Bragg diffraction of light on the angle and wavelength sensitivity during hologram reconstruction imaging. This theory is an explanation of the conditions under Bragg diffraction. It shows that not only the angle and wavelength of the incoming light but also the refractive index and thickness of the material through which the light passes are affected. In the proposed NED system, not only glass as a waveguide material but also photopolymer as a holographic medium is involved in the shifting angle. For this reason, the system is designed based on the Kogelnik coupled wave theory [16, 17].

$∆\theta =-\frac{{\lambda }_o\sqrt{n^2-{\sin }^2{\theta }_r}}{T\sin {\theta }_r\cos {\theta }_r}.(1)$

FIGURE 2

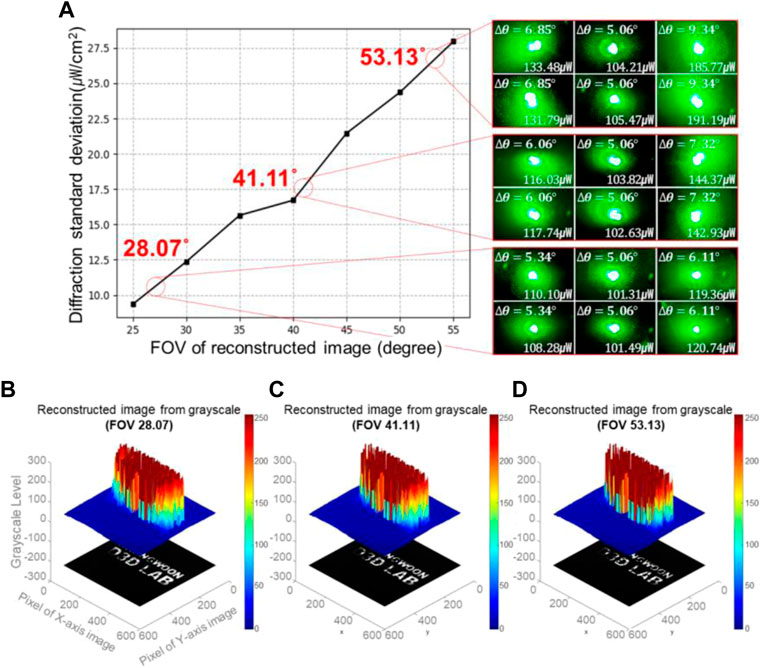

FIGURE 2. (A) Comparison of intensity for reconstructed images according to FOVs. (B) Angular distribution at 28.07° FOV. (C) Angular distribution at 41.11° FOV. (D) Angular distribution at 53.13° FOV.

For $n$ and $T$, 1.505 and 16 μm were applied, respectively, according to the index of the photopolymer datasheet. HOEs with FOVs of 28.07°, 41.11°, and 53.13° had deviations of 10, 17.5, and 27.5 μW, respectively. Figures 2B–(D) show the value normalized to the 255 level by converting the reconstructed image to grayscale. As the FOV increases from 28.07° to 53.13°, it can be observed that the deviation of ${\theta }_r$ of the image increases. This shows that the reconstruction deviation between the left and right parts of the image increases as the FOV increases. Therefore, to increase the FOV, it is necessary to make the amount of diffraction uniform in the entire area by varying the diffraction deviation according to the angle of the image away from the center [18].

Figure 3A shows the optical schematic for holographic printing. The two beams from the laser are divided into a reference beam and an object beam, respectively, using a beam splitter. The reference beam is incident at 45°, which is equal to the TIR angle in the NED. The object beam passes through a spatial filter consisting of an objective lens and a pinhole. The passing beam is incident on the spatial lighting modulator (SLM) using the collimated beam through the lens. This SLM has a resolution of 4,096 × 2,160 with a pixel size of 4 μm and generates a diffractive beam by modulating an incident collimated beam with a CGH generation pattern transmitted from a PC. Furthermore, it modulates each ${\theta }_o$ from the coordinates from $\left(x_1,y_1\right)$ to $\left(x_n,y_m\right)$ to the focal position. In this process, a DC term and a conjugate term that generates a twin image are generated by the hologram equation. So, we only use the first-order diffraction beam we want recorded on the film by inserting a mask into the telecentric lens. Each hogel is de-magnified with a telecentric lens of × 0.06 magnification. Subsequently, the CGH is recorded in $\mathrm{h}\left(x_1,y_1\right)$, which is a holographic material. After one hogel is recorded, it moves to the next coordinate using the X–Y stage and sequentially records up to $\mathrm{h}\left(x_n,y_m\right)$. Considering the beam width of the reference beam, the de-magnification ratio of the object beam is displayed in the SLM as a 0.5-μm square image for recording. Figure 3B shows the process of recording in hogel units from the CGH to the holographic material. The advantage of recording with hogel in a holographic printing system using CGH is that holograms have the feature that images can be reconstructed even if only a part of the interference pattern is used. Therefore, when the entire CGH is generated and then divided into hogel, each hogel can diffract light to a focal point. In addition, since the focal length and direction can be generated flexibly, it can be used as an optical element with the desired specifications if the CGH is used in a NED that requires a small screen size. The CGH interference pattern generation, which is the source image displayed on the SLM, was generated using the Rayleigh–Sommerfeld diffraction (RSD) integral. The RSD integral can be implemented with a simple integral equation, unlike other diffraction equations. This has the advantage of shortening the time in generating a CGH. The hologram is located in the ξ-η plane, and the coordinate value of the pth point is $p\left(x,y,z\right)$. As the diffractive beam must be gathered into one spot, coordinates are set as $x_p=y_p=z_p=0$, similar to a point source. Each point has a real-valued amplitude $a_p$ and a relative phase ${\varphi }_p$. A hologram $O\left(\xi ,\eta \right)$ with a complex amplitude distribution is determined by the superposition of object waves and can be written as follows:

$O\left(\xi ,\eta \right)={\displaystyle \sum _{p=1}^N}\frac{a_p}{r_p}\mathit{exp}\left\{j\left(k{r}_p+{\varphi }_p\right)\right\}.(2)$

FIGURE 3

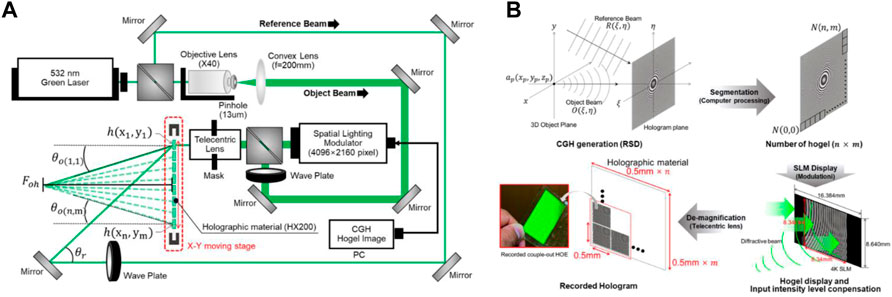

FIGURE 3. (A) Optical schematic of the holographic printing system. (B) Process of CGH generation and recording.

The reciprocal (wavenumber) $k$ of this wavelength is defined as $k=2\pi /\lambda$. The distance between the pth point of the object on the hologram and the position $\xi ,\eta$ on the hologram plane can be obtained as $r_p=\sqrt{{\left(\xi -x_p\right)}^2+{\left(\eta -y_p\right)}^2+{z_p}^2}$. As the reference beam of the NED is an incident in parallel, $R\left(\xi ,\eta \right)$ can be defined as $a_p\mathit{exp}\left\{-jk\left(\xi \sin {\theta }_{\xi }+\eta \sin {\theta }_{\eta }\right)\right\}$, where $a_p$ is the complex amplitude, and ${\theta }_{\xi }$ and ${\theta }_{\eta }$ are the reference light incidence angles on the $\xi$ and $\eta$ axes, respectively. Complex amplitude distribution on the hologram plane is formed by the interference of the object and reference waves and is expressed as $O\left(\xi ,\eta \right)+R\left(\xi ,\eta \right)$. The overall intensity pattern represents the light intensity distribution and is expressed as $I\left(\xi ,\eta \right)={\left|O+R\right|}^2={\left|O\right|}^2+{\left|R\right|}^2+R^{*}O+R{O}^{*}$. Although there are four terms on the right-hand side of the equation, only the third and fourth terms have interference information as a hologram. Therefore, when calculating a pattern using CGH, we can obtain $I\left(\xi ,\eta \right)$ using these two terms from Eq. 3 as follows:

$I\left(\xi ,\eta \right)={\displaystyle \sum _i^N}\frac{a_i}{r_i}\mathit{exp}\left(k{r}_i+k\xi \sin {\theta }_{\xi }+k\eta \sin {\theta }_{\eta }\right).(3)$

The CGH pattern produced using the aforestated formula is divided into $n$ parts horizontally and $m$ parts vertically. In this divided image, only a square image of 8.34 mm size is displayed on a rectangular SLM panel. The displayed image is directly incident on the telecentric lens and reduced by 0.06 times. This reduced hogel has a size of 0.5 mm². In the case of in-coupled HOE, it is incident as a plane wave and only needs to tilt at a 45° angle. Therefore, a CGH with a specific lens function need not be created, and only an 8.34 mm square, green background image was used for the display. In this study, digital HOE was recorded using the digital holographic printing system. Covestro’s photopolymer was utilized as the recording medium. A 532 nm laser was used, and an energy of 20 mJ/cm² was considered the optimal energy level within this wavelength range. Since the size of one hogel in this printing system is 0.5 mm², 0.5 mJ is the appropriate energy for each hogel. With a laser power consumption of 50 mW at the final recording stage of this holographic printing system, an exposure time of 0.1 s (10 Hz) was used for recording the CGH pattern. All HOEs with 10 cm², 15 cm², and 20 cm² are fabricated with a 20 mm focal length.

3 Results and discussion

Figure 4A shows the result of illuminating the reference light after printing without compensation for deviation in a general printing method. The deviation between the center and edge areas was severe at 53.15° rather than at the narrowest FOV of 28.07°. The average FOV efficiency decreased by 52.70%, 81.67%, and 92.34% in the order of 28.07°, 41.11°, and 53.13°, respectively. When we see the result of Figure 4A, it is evident that the three HOEs exhibit a decrease in surface uniformity. The central region of the HOEs shows an average power ranging from 200 uW to 240 uW, while the outermost region demonstrates a significant drop, reaching values below 40 uW. This indicates a reduction in output by more than 90%, highlighting the insufficient ability of the entire HOE surface to reproduce images uniformly. However, the improved HOEs, utilizing the proposed method, demonstrate a deviation in output degradation of less than 10% between the central and outermost regions. This showcases higher uniformity compared to images reproduced using conventional hologram recording methods.

FIGURE 4

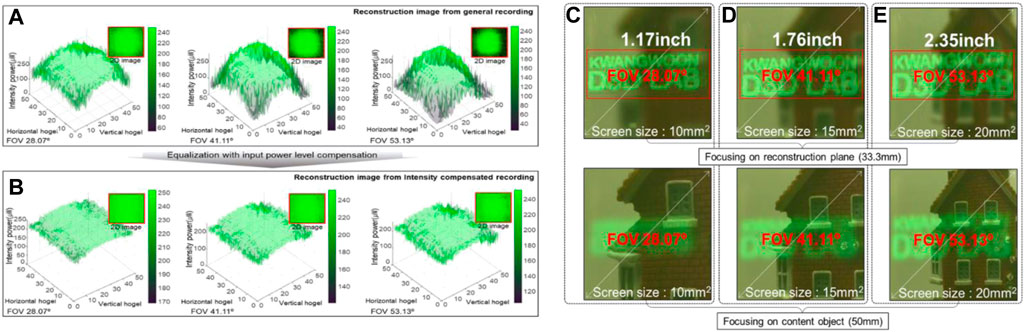

FIGURE 4. (A) Out-coupled HOE recorded with the general printing method. (B) Out-coupled HOE printed by compensating for the diffraction efficiency for each hogel angle. (C) Reconstructed image with 28.07° FOV and 10 mm² size of the out-coupled HOE. (D) Reconstructed image with 41.11° FOV and 15 mm² size of the out-coupled HOE. (E) Reconstructed image with 53.13° FOV and 20 mm² size of the out-coupled HOE.

Figure 4B shows the result of recording each hogel using varying light quantity, considering the aforementioned deviation. The image is an augmented image seen at the observer’s position when the green image was input as the source image, and the uniformity of the intensity distribution of the reconstructed image was analyzed by standardizing it to 255 levels. Figure 4B shows an entirely uniform result, unlike Figure 4A. Figure 4C shows the result of image reconstruction with the HOE recorded as a result of angle compensation using holographic printing technology. The HOE can be adjusted by using the CGH pattern to set the distance between the 3D object $\left(x_p,y_p,z_p\right)$ point and the hologram plane. The focal length was set to 20 mm. Each FOV was adjusted to the size of the screen, and the image was displayed to fill the width of each screen. Figures 4C, E show the reconstructed images using the out-coupled HOE of the NED system according to the FOV. Floating AR images with sizes of 21.65 mm (1.17”), 36.23 mm (1.76”), and 53.30 mm (2.35”) were displayed, respectively. Here, in-couple HOE and out-couple HOE used sizes of 10 cm², 15 cm², and 20 cm². If the camera focus is moved to the content object at the 50 mm position, the AR image is blurred. When the focus is moved to the 33.33 mm position, the image is displayed clearly. This shows that the image is reconstructed to the calculated depth.

4 Conclusion

We developed a uniform reconstruction method of the HOE screen by applying the holographic printing–recording technology as the HOE recording method of the NED system that fabricates compact and large FOV images. CGH was applied to the design of the in-coupler and out-coupler devices while developing the analog-type NED system for digital HOE printing. This showed the possibility of producing spherical and aspherical high-resolution optical devices using a holographic printing system with a stage. In addition, system imperfections caused by manual setup can be solved. However, several problems are yet to be solved. Although the problem of reconstruction efficiency caused by the incidence on the HOE screen at different recording angles during recording has been solved, as the size of the hogel cannot be made infinitely small, the limitation of resolution and reconstruction error caused by the fine boundary should be considered. If these problems are solved in the future, thin-film high-wide-angle refractive aspherical elements with the aforementioned advantages can be manufactured. This may lead to the development of portable devices that implement immersive AR content, such as HMD and head-up display manufacturing fields.
