Infrared and visible image fusion aims to integrate complementary information from the same scene images captured by different types of sensors into one image to obtain a fusion image with richer information. Recently, deep learning-based infrared and visible image fusion methods have been widely used. However, it is still a difficult problem how to maintain the edge detail information in the source images more effectively. To address this problem, we propose a novel infrared and visible image fusion method with edge detail implantation. The proposed method no longer improves the performance of edge details in the fused image through making the extracted features contain edge detail information like traditional methods, but by processing source image information and edge detail information separately, and supplementing edge details to the main framework. Technically, we propose a two-branch feature representation framework. One branch is used to directly extract features from the input source image, while the other is utilized to extract features of edge map. The edge detail branch mainly provides edge detail features for the source image input branch, ensuring that the output features contain rich edge detail information. In the fusion of multi-source features, we respectively fuse the source image features and the edge detail features, and use the fusion results of edge details to guide and enhance the fusion results of source image features so that they contain richer edge detail information. A large number of experimental results demonstrate the effectiveness of the proposed method.
1 Introduction
Due to the different imaging mechanisms, two types of images for the same scene often carry a large amount of complementary information. If these complementary information can be integrated into one image, it will help improve the comprehensiveness and accuracy of the image to describe the scene, which is conducive to the development of subsequent tasks. To this end, infrared and visible image fusion technology has been proposed and widely applied to computer vision fields with different tasks, such as object detection [1], face recognition [2], video surveillance [3] and so on.
In recent years, with the rapid development of deep learning, the research of fusion methods among diverse modal information has made significant progress [4-8]. As an important branch in the field of image fusion, infrared and visible image fusion has attracted the attention of researchers, and a series of effective methods have been proposed. These methods can be roughly divided into methods based on multi-scale transformations [9-11], sparse modeling [12-15], and deep learning [16, 17]. Multi-scale transformation based methods include pyramid transform [9], DWT [18], Contourlet transform (CT) [19], non-subsampled contourlet transform (NSCT) methods[20], etc. This kind of methods cannot achieve sparse expression of image because they use artificially constructed basis functions to represent images, limiting the visual quality improvement of fused images. Methods based on sparse modeling can solve the above problems by using an over-complete dictionary to represent images. However, these methods are difficult to mine the statistical information from large-scale training samples in an effective way, which limits the further improvement of their expression ability.
Among deep learning-based fusion methods, CNN-based methods are most common. At present, there are CNN-based infrared and visible image fusion as Cross-UNet-based [21], ResNet-based [22], GAN-based [23], Encoder-Decoder-based methods [24], etc. In view of the fact that CNNs cannot capture features over long distances, transformer-based infrared and visible image fusion method was proposed. However, since Transformer is designed based on attention mechanism, it has certain limitations in mining detailed information at the edges of the image. To solve the above problems, this paper proposes an infrared and visible image fusion method with edge detail implantation. In terms of feature extraction, the proposed method consists of two feature extraction branches: one is the feature extraction branch based on Transformer, and the other is the edge detail feature extraction branch based on CNN. The former takes infrared and visible source images as input, and the latter takes edge details detected from the source images as input. Information extracted by the latter is fed back to the former to compensate for the limitations of the transformer in extracting features.
In the feature implantation from CNN branch to the Transformer branch, an effective feature implantation method based on attention mechanism is designed, which not only considers the role of common information between different features in two branches, but also the complementary features extracted by CNN branch, realizing effective transmission of CNN features to Transformer branch. In terms of feature fusion, the features extracted from CNN branch and Transformer branch are fused respectively, and the fusion features of the CNN branch are used to guide the fusion features of the Transformer branch, so as to realize the fusion feature transfer from the CNN branch to the Transformer branch. It further compensates the shortcomings of the Transformer in feature extraction. The above method not only combine the advantages of CNN and Transformer in feature extraction into the whole framework, but also effectively enhances the representation ability of edge details, thereby improving the visual quality of the fusion results. In summary, the main contributions of this paper are as follows.
1) A method of infrared and visible image fusion with edge detail information implantation is proposed. This method uses two different branches based on Transformer and CNN to extract features from the input source images and the edge maps of the source images, and implants features extracted by CNN into the Transformer branch to make up for the shortcomings of Transformer in extracting edge details.
2) Based on attention mechanism, an information implantation method is designed, which realizes the injection of CNN branch information into Transformer, effectively making up for the shortcomings of Transformer in extracting features. In addition, the proposed method fuses the features obtained by CNN and Transformer branches respectively, and uses the fusion results of CNN branch to guide the fusion results of Transformer, further maintaining the edge details in fusion results.
3) In order to ensure that the features used to reconstruct fusion result are rich in edge details, we introduce an edge reconstruction block, and use edge detail information of the target image (fusion result) as a constraint to make the reconstruction result consistent with the target image, so as to ensure that feature to reconstruct the fusion result contains relevant information about edge details.
2 Related works
2.1 Infrared-visible image fusion
Infrared and visible image fusion is an important branch of fusion field. According to the previous introduction, current infrared and visible image fusion methods can be divided into fusion methods based on multi-scale transformation [25], sparse representation [26-29], and deep learning [30-32]. Multi-scale transformation based methods usually perform multi-scale decomposition of the input source image first, then fuse the decomposed coefficients, and finally apply the corresponding multi-scale inverse transformation to the fusion result to reconstruct the fusion image. These methods are simple to implement and has good stability. However, due to the use of fixed bases to represent the image information, their sparse expression ability is weak, which limits the improvement of fusion performance. Methods based on sparse representation were more popular 10 years ago. These methods can represent source images in a sparser way, obtaining better fusion performance than the former. However, these methods are difficult to mine statistical characteristics of features from large-scale training samples in an effective way, and thus still have limitations in representing image information.
In recent years, deep learning has been widely used in various image fusion tasks due to its powerful feature extraction and representation capabilities [33-38] without manually designing features and fusion strategies. In particular, Li et al. [31] proposed the DenseFuse infrared-visible image fusion framework, which combined the shallow and deep features of network by using dense blocks in the encoding process to extract richer source image features. In order to improve the fusion performance, Ma et al. [39] proposed a dual-confrontation DDcGAN fusion framework to further improve the performance of FusionGAN [23] when fusing infrared and visible images. Additionally, to more effectively maintain the edge details of the source image, Zhao et al. [40] used different encoders to extract high-frequency detail information and low-frequency information from the source images separately. Li et al. [22] proposed to use the detail preservation loss function and feature enhancement loss function in the residual structure network, combining with the two-stage training strategy to ensure that the fusion results contain rich detail information and significant information. Although the above CNN-based methods have achieved certain performance, they are still insufficient in maintaining edge detail information. In addition, CNNs cannot mine the relationship between features over long distances, which limits the further improvement of their performance.
2.2 Transformer based image fusion
Thanks to its excellent long-distance modeling capabilities, Transformers [41] has attracted the attention of researchers in image fusion. In particular, in order to establish the global dependence of image features, Ma et al. [42] proposed a residual fusion framework based on SwinTransformer for infrared and visible image fusion. This framework abandons traditional convolution operations and adopts an attention-based network structure. At the same time, a fusion strategy based on L1 norm is designed, which further improves the fusion quality. In order to obtain high-quality pan-sharpened remote sensing images, Bandara et al. [43] proposed a new hyperTransformer framework. This method transfers the high-resolution texture information in PAN images to LR-HSI image features by attention mechanism, avoiding the image spatial and spectral distortion caused by traditional fusion methods.
In order to combine the respective advantages of CNN and Transformer, Vs. et al. [44] proposed a transformer-based encoding and decoding structure, and used the dual-branch structure of CNN and Transformer to fuse image features. Although this method can obtain satisfactory fusion results, it does not consider the problem of maintaining the edge details of source images, resulting in the loss of source image detail information. Li et al. [45] combined the local features of the convolutional network with the global features of the transformer by alternately using CNN and Transformer in the network, overcoming the shortcomings of a single network and improving the visual quality of the fused image. Based on the multi-scale feature pyramid theory, Park et al. [46] proposed an image fusion method for dual-modality transformers. This method mines the complementary information between source images by estimating the non-correlated mapping relationship between features of the source images, so as to improve the extracted feature quality of the source images. Although the above methods have achieved a certain degree of performance improvement, they does not fully consider the problem of maintaining the edge detail of the source images, which still remains large improvement space of visual effect. Different from the above methods, this paper uses two parallel feature extraction branches, Transformer and CNN, to extract the features of input source images and edge details, respectively, and implant the features extracted by CNN into the Transformer branch. This method can not only effectively integrate the respective advantages of CNN and Transformer, but also avoid the loss of edge detail information.
3 Proposed method
3.1 Overview
The overall framework of the proposed method is shown in Figure 1. It consists of three parts: two-branch feature extraction (TBFE), edge detail feature implantation (EDFI), and edge detail guided feature fusion (EDGFF). TBFE is mainly used to obtain the features and edge details of the source images. In this process, we use Transformer-based network to extract source image features, while utilize CNN network to the extract edge detail features. EDFI is mainly used to inject edge detail features extracted from the CNN branch into the Transformer branch to make up for the Transformer’s shortcomings in extracting edge details. EDGFF uses the fused features of CNN branch to guide the fusion of Transformer branch, further highlighting the edge details in the fusion results.
3.2 Two-branch feature extraction
3.2.1 Transformer feature extraction branch
As shown in Figure 1, we use CNN and Transformer for TBFE, respectively, and the TBFEs for infrared and visible images have the same network structure. Since Transformer network has better feature relationship modeling ability for long-distance and can better describe the relationship between different features, we use Transformer branch to extract source image features. This branch takes the source image Xj (j = ir, vi) as the input, and first uses initial feature extraction block (IFEB) to obtain a shallow multi-channel feature map, which is convenient for subsequent Transformer feature extraction. The extracted features can be represented as:
where fifeb denotes the feature extraction operation of IFEB. In this paper, IFEB consists of three 3 × 3 convolutional layers and a ReLU activation function. We utilize Transformer to extract the global features of the obtained feature
where ft1 represents the first Transformer layer feature extraction operation, mainly composed of layer normalization (LN), multi-head self-attention layer (MSA) and multi-layer perceptron (MLP). Correspondingly, for the ith (i ≥ 2) Transformer layer, its output is
3.2.2 CNN feature extraction branch
Compared with Transformer, CNNs are better at describing underlying visual features such as image structure and texture. Therefore, this paper uses CNN branch to extract features of edge details. In order to obtain the edge detail information from the source images, we perform Gaussian smoothing filtering on the source image Xj to obtain smooth image, and use the source image information to differ from the smooth image to obtain the edge detail information:
where G is the Gaussian blur operation. Edge details obtained in this way contain high-frequency information of the source image, which can effectively depict the edge details. Compared with the gradient map extracted by gradient operator, Hj contains richer edge detail and texture information. Similar to the Transformer branch, we use IFEB to extract the underlying features of the edge detail map in CNN branch:
Besides, detailed features are further extracted by residual dense block (RDB). For the first RDB, its input is features of the edge detail map
where frdb1 represents the feature extraction operation of the first RDB. In this work, RDB is a feature extraction block composed of three convolutional layers, ReLU activation function and densely connected between them. Correspondingly, for the ith (i ≥ 2) RDB, its output is
3.3 Edge detail feature implantation
In order to make the extracted features in Transformer branch rich in edge detail, a two-stage feature compensation block (TFCB) is proposed, as shown in Figure 2. This module solves the problem that the Transformer branch is difficult to extract edge detail features by implanting local texture details of the image extracted by RDB into the Transformer branch. As for network structure, the module consists of two stages of feature compensation. The feature compensation in the first stage realizes the transmission of information by finding the correlation between
where Conv1×1 denotes 1 × 1 convolution. The first stage feature compensation process can be formulated as:
Where C is the dimension of
and
where σ represents the Sigmoid activation function. Output features of the ith information compensation module can be represented as:
The two-stage feature compensation strategy not only avoids the shortcomings of Transformer in extracting edge detail features, but also prevents the loss of edge detail features and improves the quality of features, which helps to reconstruct high-quality fusion results.
3.4 Edge details guided feature fusion
In order to effectively use the edge detail features of the CNN branch to supplement the features in the Transformer branch in fusion image reconstruction, this paper proposes a method to synthesize the edge detail fusion results of the CNN branch and the fusion results of the Transformer branch to jointly construct the final fusion results. In order to effectively fuse the multimodal features extracted by TBFE. We design a multi-scale complementary mask fusion (MCMF) module to ensure its effectiveness. As shown in Figure 3, MCMF concatenate the features
where Conv3×3 denotes 3 × 3 convolution and r is dilation rate.
The fusion feature can be expressed as:
where ⊙ denotes hadamard product. Similar to the fusion of Transformer features, the edge detail features
where Vfus is the edge detail of the target image, ∇ is the Laplace operator, and (i, j) is the pixel coordinates.
4 Loss function
To ensure high visual quality fusion results, we use the L1 loss shown in Eq. 14 to optimize the parameters in the RDB:
where
where
5 Experiments
5.1 Dataset
KAIST1 and FLIR2 are the two most commonly used datasets in the field of infrared and visible image fusion based on deep learning. Among them, there are 95,000 infrared and visible image pairs in the KAIST dataset and 14,452 image pairs in the FLIR dataset. In order to improve the generalization ability of the training model, 3,000 image pairs are randomly selected from the two datasets respectively, and a total of 6,000 image pairs from the training set of the proposed algorithm in this work. To verify the effectiveness of the method, 49 pairs of widely used infrared and visible images are randomly selected from the three datasets TNO3, VOT2020-RGBT4 and RoadScence5 to construct the test set in this work. Among them, 39 pairs of images are from TNO and VOT2020-RGBT datasets and 10 pairs of images are from the RoadScence dataset. The test samples are shown in Figure 4.
5.2 Training details
In the training phase, each infrared and visible image pair is randomly cropped into 140 × 140 image blocks to achieve data enhancement. In this work, Adam [47] is used as the optimizer of the network, the training batchsize is set to 4, and a total of 30 epochs are iterated. The initial value of learning rate is set to 1 × 10−4, and decays at the 5-th, 10-th, and 20-th epochs, respectively, with a decay rate of 0.5. The code of our method is implemented by using the PyTorch framework with NVIDIA GTX 3090, and the software environment is UBUNTU20.2, Python3.8 and PyTorch1.9.
5.3 Evaluation metrics
In order to objectively evaluate the fusion performance, six commonly used image fusion metrics are used in this work to assess the quality of fusion results from four perspectives. They are cross entropy (QCE) [48]; Entropy (QEN) [49]; gradient-based fusion performance (QAB∕F) [50]; Chen -Blum metric (QCB) [51],; Chen-Varshney metric (QCV) [52]and Structural similarity index measure (QSSIM) [53]. Among them, QCE and QEN are metrics based on information theory (QAB∕F) is a metrics based on image features, QCB and QCV are metrics based on human perception, and QSSIM is a metrics based on structural similarity of images. Among these six metrics, lower values for QCE and QCV indicate better quality of fusion results, while higher values for the other indicators indicate better fusion performance.
5.4 Comparison with state-of-the-arts
In order to verify the effectiveness of the proposed method, we compare our method with six advanced infrared and visible image fusion methods, including ADF [54], GTF [55], LatLRR [56], FusionGAN [23], SDNet [57], and RFN [22].
Figure 5 shows the fusion results of different methods on six groups of test images. In order to facilitate the fusion quality evaluation from the perspective of visual effect, we zoom in local area of the fusion results. It can be seen that the proposed method can not only preserve the salient information in the infrared image, but also maintain the edge detail information in the visible image. In detail, the outline of the infrared salient information is blurred, and the edge detail is not preserved enough in the fusion results obtained by FusionGAN, RNF, and ADF. In contrast, other methods effectively retain significant information, but the loss of spatial detail is more pronounced, as shown in the zoomed-in area of GTF fusion results. Similar phenomena can be observed in the remaining other fusion results. On the whole, the proposed method can more fully retain the significant edge detail information of the source images, and show better fusion performance. As for objective metrics, the proposed method has achieved excellent performance on QEN, QAB∕F, QCB, QCV and QSSIM, as shown in Table 1, which further verifies the effectiveness of our method.

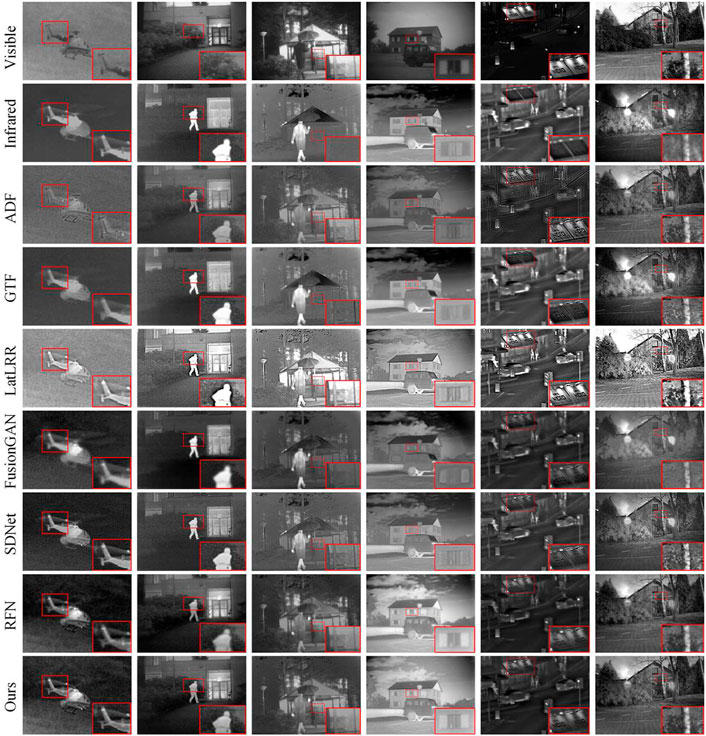

FIGURE 5. Fusion results of different methods on six pairs of images from TNO and VOT2020-RGBT datasets.

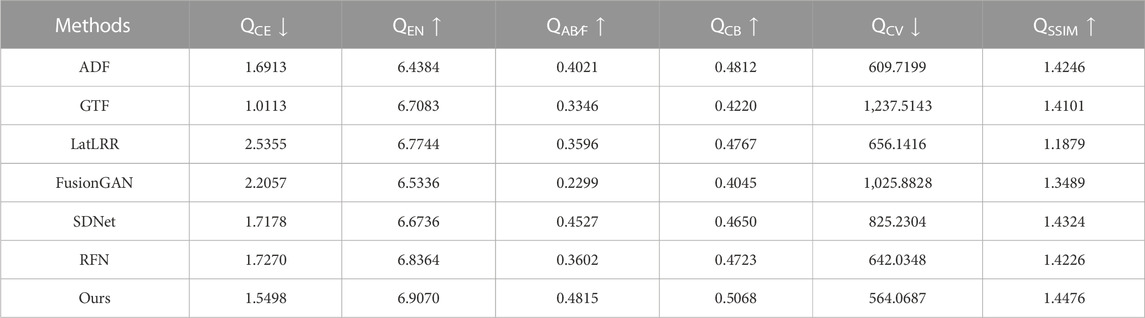

TABLE 1. Quantitative evaluation of different fusion methods on 39 pairs of images from TNO and VOT2020-RGBT datasets. The red font indicates the optimal results and the blue font indicates the sub-optimal results.
To further verify the effectiveness of the proposed method, we deploy the above comparison methods to the test data selected from the Roadscene. Figure 6 shows the fusion results of different fusion methods on five pairs of test images from Roadscene. Deep learning-based fusion methods (FusionGAN, SDNet, and RFN) have better visual performance than traditional fusion methods (ADF, GTF, and LatLRR). Traditional fusion methods are limited by hand-designed fusion rules, resulting in problems such as too bright, too dark, or loss of detail information. FusionGAN adopts the adversarial learning network structure and lacks constraints on spatial consistency, causing blurred edge details in the obtained fusion results, which affects the visual quality improvement of the fusion images. SDNet, considers the spatial gradient information in network design, so it has certain advantages in detail retention, but its ability of remaining texture information is weak. Similar problem exists in RFN., in contrast, our fusion results have two advantages. First, the significant information of the infrared image can be well retained, so that the fusion results can further highlight the target, which is conducive to subsequent tasks (such as target detection, instance segmentation, etc.). Second, more texture detail information can be retained, ensuring the quality of the fusion results to a certain extent. In order to evaluate the quality of the fused images more comprehensively, we use six commonly used objective evaluation metrics to evaluate the quality of the fused images. From Table 2, results of the proposed method reach the optimal on five indicators of QEN, QAB∕F, QCB, QCV, and QSSIM, which further proves the effectiveness and superiority of the proposed method.

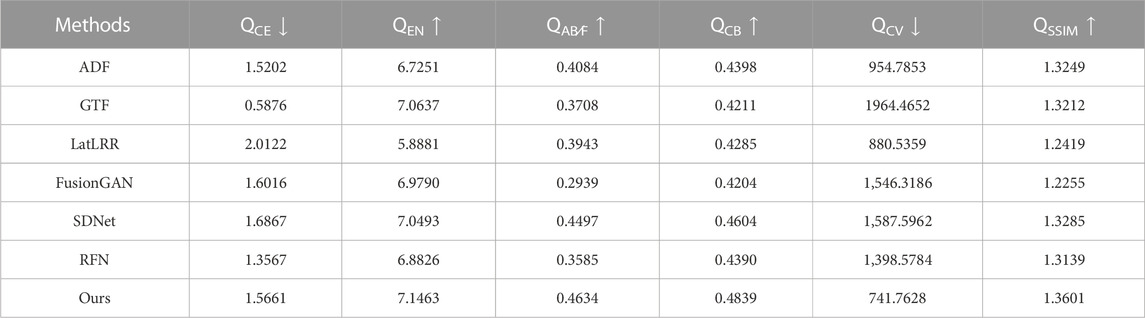

TABLE 2. Quantitative evaluation of different fusion methods on 10 pairs of images from RoadScence datasets. The red font indicates the optimal results and the blue font indicates the sub-optimal results.
5.5 Ablation study
In order to verify the influence of different components on the fusion performance of the proposed method, we apply ablation experiments on each module.
In the validation of the input of edge detail information, we use the source images instead of edge details as the input of CNN branch to verify the influence of edge details on fusion results (w/o Hj). In the implantation of edge detail feature, we use two-stage feature compensation block (TFCB) to compensate the information of the Transformer branch. In order to verify the effectiveness of edge detail feature implantation, we add the features of two branch to replace TFCB module (w/o TFCB). In edge detail-guided feature fusion, the multi-scale complementary mask fusion (MCMF) module is the key. To verify its effectiveness, MCMF is replaced by conventional feature channel concatenation and 1 × 1 convolution to achieve feature fusion (w/o MCMF). The target edge detail map Vfus is used to enrich the features of the reconstructed fusion result with edge detail information. To demonstrate its validity, we directly removes it from the model (w/o Vfus). The effectiveness of the above modules is tested on 39 pairs of images from TNO and VOT2020-RGBT. The effectiveness of the different components can be seen in Table 3.
5.6 Hyper-parameter analysis
The number of TFCBs determines the depth of the network, whose impact on the final performance can be seen in Table 4. When the number of TFCBs modules is three, the optimal result is obtained among the six evaluation indexes overall, so we set the number of TFCBs to three.
6 Conclusion
In order to effectively maintain the edge detail information of the source images, we propose a infrared and visible image fusion method with edge detail implantation, which adopts a two-branch feature representation framework. One branch is based on Transformer, which is mainly used to directly extract features from input source images. The other is CNN feature extraction branch, which is mainly used to extract image edge details features. Features extracted by CNN branch are implanted into the Transformer branch to alleviate the shortcomings of the Transformer branch in extracting edge detail features. In addition, so as to further ensure that the edge details of the source image can be effectively retained in the fusion results, a feature fusion method guided by edge details is proposed, which uses the fused edge detail features of CNN branch to guide the feature fusion of Transformer branch. A large number of experimental results prove the effectiveness of our method.
