The Shanghai High repetition rate XFEL and Extreme light facility (SHINE) is under construction and aims at generating X-rays between 0.4 and 25 keV with three FEL beamlines at repetition rates of up to 1 MHz. The soft X-ray FEL beamline, FEL-II, will be ready for commissioning in 2025. It is designed to cover the photon energy from 0.4 to 3 keV, in which the baselines of the FEL operation modes are self-amplified spontaneous emission (SASE), self-seeding, echo-enabled harmonic generation (EEHG), and polarization control. Therefore, a high repetition-rate external seed laser, large period length modulator, soft X-ray monochromator, planar undulator, and elliptically polarized undulator have been adopted in the FEL-II beamline. Several potentials such as an ultra-short pulse mode and a multi-color mode are also foreseeable without significant equipment changes in the follow-up operation. A dual-period undulator design is suggested for the echo-enabled harmonic generation (EEHG) commissioning, and it has great potential to break through the unreachable energy of the fully coherent X-ray in the future. The FEL-II beamline will deliver SASE radiation and fully coherent radiation in all the wavelengths of interest.
1 Introduction
Free-electron lasers (FELs) [1] hold a great capability to generate high intensity, ultra-short, tunable coherent radiation pulses [2, 3], opening up new frontiers of ultra-fast and ultra-small science at atomic length scales [4–6]. High gain FELs have been in operation for users with the great success of several operational facilities around the world, such as FLASH [7], LCLS [8], SACLA [9], FERMI [10], PAL-XFEL [11], European-XFEL ([12]), SwissFEL [13], and SXFEL [14, 15]. The spectral range of these FEL facilities is usually operating in the X-ray regime, which basically chooses self-amplified spontaneous emission (SASE) [16, 17] and external/self-seeding FELs [18–23] as the baseline operation modes. A SASE FEL has the advantages of a simple setup, technological maturity, and excellent transverse coherence, while it typically lacks temporal coherence. External/self-seeding FELs perfectly respond to the problem and provide nearly Fourier-transform limited pulses in the X-ray regime, which mainly includes high-gain harmonic generation (HGHG) [18, 19, 24], echo-enabled harmonic generation (EEHG) [20, 21, 25–30], and soft and hard X-ray self-seedings [22, 23, 31–36]. To further extend the FEL output performance and increase the flexibility of FEL facilities, more advanced FEL modes, such as cascading seeding, the fresh bunch technique, and polarization control have been demonstrated in FEL facilities and supported FEL user experiments.
The Shanghai High repetition rate XFEL and Extreme light facility, abbreviated as SHINE, aims to join the exclusive XFEL club as one of the most advanced user facilities by delivering femtosecond X-ray pulses with up to one million pulses per second. The SHINE is designed to deliver photons between 0.4 keV and 25 keV at a repetition rate as high as 1 MHz using a superconducting linear accelerator (LINAC) [37]. It consists of an 8 GeV CW superconducting RF Linac, 3 undulator beamlines, 3 X-ray beamlines, and 10 experimental stations in phase-I, and started its construction in April 2018. In this article, we briefly describe the three undulator beamline scheme designs shown in Figure 1, and mainly focus on the soft X-ray FEL beamline, i.e., FEL-II with several advanced FEL operation modes and a flexible schematic design.
FIGURE 1. Layout of the undulator system at the SHINE (top view). The undulator system, which is 400 m in total length in the underground tunnel, is located between the upstream switchyard system (shaft 2#) and the downstream beam dump beamline (shaft 3#). The FEL-I and FEL-II beamlines are in the same tunnel, while the FEL-III is in the other tunnel. The blue boxes are undulator sketches and the grey area denotes a concrete wall. Some areas are reserved for facility development in the future.
In front of the undulator beamlines at the SHINE, the nominal electron beam properties are as follows: the maximum electron beam energy is 8 GeV, the peak current is approximately 1500 A with a bunch charge of 100 pC, the normalized transverse emittance is 0.4–0.5 mm⋅mrad, the sliced energy spread is approximately 0.01%, and the maximum repetition rate is up to 1 MHz. For each undulator beamline of the SHINE, the photon energy coverage with different operating beam energies is presented in Figure 2. There are two hard X-ray FEL beamlines, FEL-I and FEL-III.

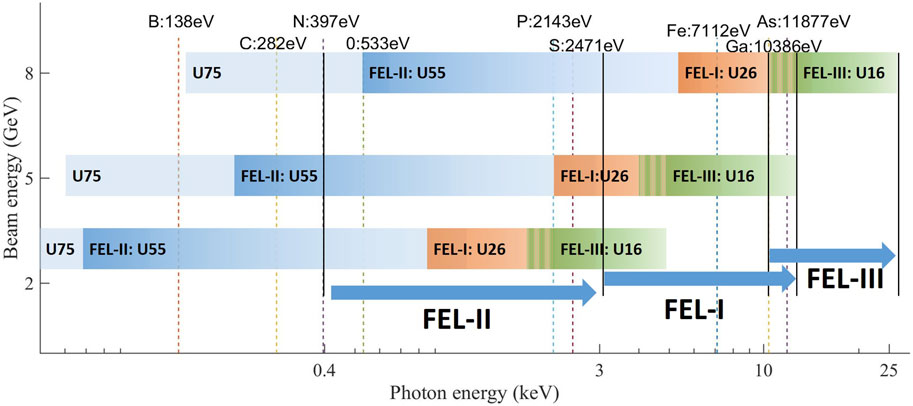

FIGURE 2. Photon energy coverage of the three undulator beamlines at the SHINE with the nominal beam parameter at the beam energy of 3 GeV, 5 GeV, and 8 GeV, respectively.
The FEL-I is designed to cover the photon energy range of 3–15 keV. The baseline FEL operation modes are SASE and self-seeding with horizontal polarization, in which the normal planar undulator with a 26 mm undulator period, 1.05 T maximum magnetic peak field, and a 4 m segment length will be used. The output FEL photon is approximately 1 × 1010 − 5 × 1011 per pulse with a pulse duration of ∼30 fs (FWHM) and up to a 1 MHz repetition rate and will be delivered to the end-stations, including the Hard X-ray Scattering and Spectroscopy End-station (HSS), the Coherent Diffraction End-station for Single Molecules and Particles (CDS), and the Station of Extreme Light (SEL).
The FEL-III is designed to cover the photon energy range of 10–25 keV, in which the superconducting planar undulator (vertical) with a 16 mm undulator period, 1.583 T maximum magnetic peak field, and a 4 m segment length is the first option. The baseline FEL modes of the FEL-III are SASE and hard X-ray self-seeding. It is a challenging task to develop a 4 m-length superconducting undulator with a maximum 1.583 T magnetic peak field. Hence, the alternative scheme design of the FEL-III that adopts an in-vacuum undulator with a 16 mm period length (IVU16) is also on standby to support FEL performance with a maximum 1.25 T magnetic peak field. The output FEL photon is approximately 2 × 109 − 8 × 1010 with a pulse duration of ∼30 fs (FWHM) and a repetition rate of up to 0.1 MHz, and will be delivered to the end-stations, including the Hard X-ray Spectroscopy End-station (HXS), the Serial Femtosecond Crystallography End-station (SFX), the Coherent Diffraction Imaging-Imaging End-station for Materials (CDE-IEM), and the High Energy Density physics end-station (HED).
The FEL-II is the beamline that delivers the softest radiation of all FEL beamlines and is designed to cover the photon energy range from 0.4 to 3 keV. Actually, if required by scientific users, FEL radiation with photon energy as low as 0.08 keV is also achievable. The output radiation will be delivered to the downstream four serial experimental stations, namely, the Soft X-ray Scattering and Spectroscopy end-station (SSS), the Coherent Diffraction imaging End-station-Imaging End-station for Biomaterials (CDE-IEB), the Atomic, Molecular and Optical science end-station (AMO), and the Spectrometer for Electronic Structure end-station (SES). For the scientific objectives of the four end-stations, they aspire to cover the photon energy range from 0.2 to 3 keV, with a pulse energy of 10–300 μJ, pulse duration of less than 50 fs, and a maximum repetition rate of ≥100 kHz. The SES hopes to cover photon energy as low as 0.1 keV for the Angle Resolved PhotoEmission Spectroscopy experiment (ARPES). The AMO and IEB have higher expectations for the single-shot pulse energy and IEB and SES even hope for fully coherent radiation and circularly polarized radiation.
The FEL-II is the most diversified FEL beamline of the three FEL beamlines and includes SASE, self-seeding, EEHG, polarization control, and several more advanced FEL modes. It is worth mentioning that some of the advanced FEL modes have been commissioned and demonstrated at the Shanghai soft X-ray Free-Electron Laser facility (SXFEL), including HGHG, EEHG, HGHG-HGHG cascading, EEHG-HGHG cascading, harmonic lasing, polarization control, and fast-switch [14, 15, 30, 38]. Furthermore, the soft X-ray monochromator for self-seeding has been also arranged at the SXFEL and online for further testing. Given the arrangement of the whole project, the FEL-II will be the first undulator beamline which will start beam transportation and FEL commissioning in the spring of 2025.
2 Baseline design of the FEL-II
The design of the FEL-II undulator beamline aims to realize and exceed the regular SASE FEL operation to offer a fully coherent FEL pulse and several novel modes of operation for scientific users such as ultra-short pulse, polarization control, and fast switch. The baseline FEL operation modes consist of SASE, self-seeding, external seeding, and polarization control. In order to match these, a unique feature of this beamline is that it selects several kinds of undulator types, including main radiation undulator, modulation undulator, dual-period undulator, and elliptically polarized undulator (EPU). Considering the complexity and flexibility, the undulator module has been optimized to improve the performance of the baselines and several advanced FEL modes, and the layout is shown in Figure 3. The period length of the main radiator is 55 mm with 32 modules and a module length of 4 m, of which the first 14 modules are dual-period undulators with a switchable period of 75 mm (abbr. U55 and U75/55). The modulator period in the front of the beamline is 180 mm, which satisfies the FEL resonant condition with an approximately 260 nm seed laser at the electron beam energy range of 5–8 GeV. The EPU period is 55 mm (EPU55) with the plan of the Apple-X type, which is located downstream of the main radiators U55s as an afterburner for polarization control. There are five chicanes inserted, of which the first three are used for EEHG operation in the modulator section and the last two are used for self-seeding operation. Beyond the baseline design above, harmonic lasing, fresh bunch, ultra-short pulse, and polarization fast switch are also under construction.
FIGURE 3. The FEL-II schematic layout at the SHINE. Three chicanes (black) and two modulators (green) are in the front, the following parts are two dual-period undulator sections (14*U75/55, claret) and two self-seeding chicanes (ss, black), then there is a long main radiator section (18*U55, red), and the last four undulators are elliptically polarized (EPUs) for afterburner (orange).
2.1 SASE
The standard SASE configuration is the most general and popular FEL mode and has been adopted widely in the world. We present the following numerical simulation results using a Gaussian beam with the nominal beam parameter, a single SASE pulse spectrum in the time domain, and a frequency domain evaluated with a representative 1.24 keV photon energy, i.e., the 1.0 nm wavelength in Figure 4. The saturation peak power is nearly 10 GW and the pulse energy is nearly 300 μJ. The pulse length is about 28 fs (FWHM), and the radiation bandwidth is 0.31% (FWHM). It corresponds to a time-bandwidth product of 260, which is 600 times larger than that of the transform-limit pulse with a Gaussian profile. The FEL spot size near the saturation point is 75 μm (FWHM) and the divergence angle is 11 μrad (FWHM), which means the transverse coherence of the M2 factor is 1.9. Meanwhile, we can calculate that the FEL pulse contains 2.5 × 1012 photons, corresponding to the peak brightness of 8.9 × 1031 (photons/s/mm2/mrad2/0.1%BW) and the average brightness of 2.2 × 1024 (photons/s/mm2/mrad2/0.1%BW) at 1 MHz repetition rate. The undulator tapering technique application after FEL saturation can significantly improve the FEL power and pulse energy further [39]. For the FEL-II, the undulator module quantity is enough for the undulator tapering, therefore pulse energy larger than 500 μJ and even to the 1 mJ level is possible for 1.24 keV. To illustrate the performance in the SASE mode, the FEL properties in the SASE mode for 0.4 keV, 0.6 keV, 0.9 keV, 2.0 keV, 2.5 keV, and 3.0 keV photon energies are also given, as shown in Table 1. It is worth mentioning that, in order to increase the delivery and acceptance efficiency downstream for the lower photon energy radiation, e.g., 0.4 keV, FEL pulse optimization with a smaller divergence would be a more valuable objective.

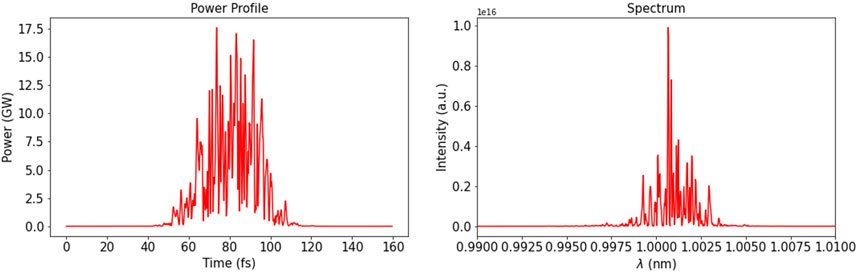

FIGURE 4. Simulation results for the SASE scheme at 1.24 keV: radiation pulse in the time domain (left) and single-shot spectrum (right).
TABLE 1. SASE FEL performance of different photon energies in the FEL-II.
2.2 Self-seeding
The X-ray radiation based on the SASE configuration is coherent spatially but lacks temporal coherence. The temporal and spectrum profiles exhibit a relatively wide bandwidth at the 0.1% level and a multi-spike structure characteristic of the SASE process due to the initial shot noise in the electron beam. The temporal coherence of SASE can be improved with the seeding technique that generates a narrow bandwidth pulse that is nearly Fourier transform-limited. External seeding and self-seeding technologies are configured in the FEL-II, which are used to cover the different photon energies. The self-seeding mode of the FEL-II is designed with a photon energy range of 0.6–1.5 keV and output spectral bandwidth of less than 0.02%. The layout of the soft X-ray self-seeding scheme (SXSS) is shown in Figure 5, which includes a two-stage self-seeding for sideband elimination, heat loading reduction, and high repetition rate operation.
FIGURE 5. Soft X-ray self-seeding schematic design for the FEL-II. The two-stage self-seeding scheme is presented here. The two same self-seeding systems including an electron by-pass chicane and photon monochromator are inserted in the undulator beamline and separate 32 main radiators into three sections, i.e., the SASE section, and the 1st and 2nd seeding sections.
Figure 6 illustrates the simulated self-seeding performances of 1.24 keV using a Gaussian beam. The saturation peak power is up to 15 GW with 390 μJ pulse energy. The spectrum bandwidth equals to 0.024% (FWHM), and the temporal duration is approximately 50 fs (FWHM), which gives a time-bandwidth product of 3.6, approximately 8 times larger than that of the transform-limited pulse with a Gaussian profile. The typical spot size and diffraction angle of the X-ray source are approximately 100 μm (FWHM) and 5.5 μrad (FWHM), respectively. With all the numbers, one can calculate that, the peak brilliance of FEL-II transmission-based self-seeding is 1.9 × 1033 (photons/s/mm2/mrad2/0.1%BW), at the photon energy of 1.24 keV. In order to suppress the side effect and mitigate the heat-loading on the granting, the two-stage SXSS mode can be operated.

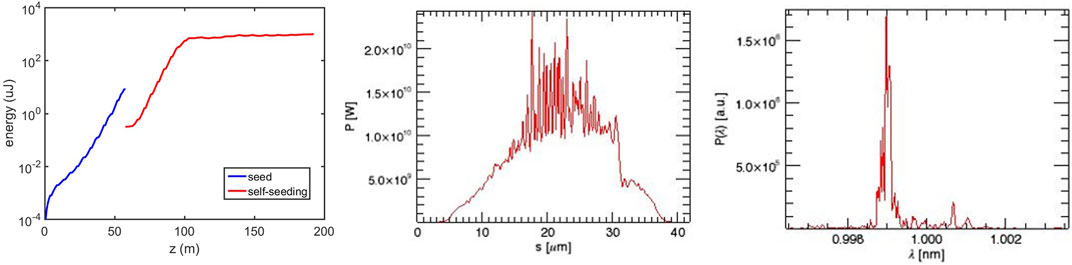

FIGURE 6. Simulation results for the SXSS scheme at 1.24 keV: the SXSS FEL pulse energy growth along the undulators beamline (left), output FEL pulse in the time domain (middle), and single-shot spectrum (right).
For the SXSS mode with the granting-based photon monochromator, the SXSS system combined with a chicane is inserted in the undulator section with a 4 m length. The system includes two mirror boxes located at the two wings of the chicane and uses the configuration of LCLS as a reference [32, 40]. The front spectral box located between the first two dipoles of the chicane, consists of a cylindrical VLS grating and a plane mirror. The incidence of the VLS granting is fixed at 89°. The central wavelength adjustment depends on the off-axis rotation of the plane mirror. The rear mirror box located between the last two dipoles of the chicane consists of two cylindrical mirrors for the radiation spot focusing and radially optical path returning. The system is quite compact with a 4 m length, and the maximum delay time is approximately 1.5 ps, which is a challenge for mechanical design.
As mentioned above, the resolution is expected to be larger than 5,000 at the range of 0.6–1.5 keV, and we adopt a blazed grating and an alternative holographic grating, covering the different photon energy, respectively. In order to further understand self-seeding, research and development has carried out on the monochromator system. At the end of 2022, the front box of the monochromator system based on the blazed grating has been installed at the beamline of the SXFEL facility and tested online. The test result presented a resolution larger than 5,300 at 520 eV. More detailed and systematic research is still ongoing.
2.3 EEHG
Besides the self-seeding technique, the external seeding technique is also employed in the FEL-II. The FEL radiation performances based on the external seeding technique, for example, temporal coherence, stability, and wavelength, are usually determined by the UV seed laser. Single-stage HGHG and EEHG are two basic operation modes. Different from the HGHG with relatively low harmonic up-conversion, the EEHG allows the up-conversion to higher harmonics and is capable of achieving higher than 50th harmonics. Theoretically, the 90th harmonics and even higher than 100th harmonics are possible to be produced, but it is difficult to achieve this experimentally due to the electron beam collective effects such as coherent synchrotron radiation (CSR), incoherent synchrotron radiation (ISR), and intra beam scattering (IBS). At the SXFEL facility, the 47th EEHG harmonic lasing has been demonstrated and passed the national acceptance, and the 54th harmonic lasing and the 61st harmonic signal have also been achieved during the commissioning. Thus, the baseline design for the EEHG mode at the FEL-II is to generate fully coherent radiation at the photon energy up to 0.25 keV (5.0 nm, 54th harmonic), and the realization of 0.4 keV (3 nm, 90th harmonics) is still desirable in the future.
The modulator and the UV seed laser parameters of the FEL-II for the EEHG design and simulation are listed in Table 2. The seed laser is able to induce an energy modulation in beam longitudinal phase space with a maximum of 8 times the modulation amplitude of the beam slice energy spread, which basically satisfies the HGHG and EEHG operation requirements. The modulator has 12 periods with a total length of 2.16 m, which is optimized as approximately 3 times the FEL gain length of the 266 nm radiation. The 10 fs slippage length within the modulator ensures that the fresh-slice-based EEHG-HGHG cascading configuration depending on an ultra-short seed laser is possible for operation in the future.
TABLE 2. Designed EEHG main parameters of the FEL-II.
Using a Gaussian beam, Figure 7 illustrates the performances of the 6 nm and 3 nm outputs at the FEL-II for the EEHG mode with the harmonic number of 43 and 85, respectively. The EEHG-43 results show that a radiation peak power of up to 9.6 GW can be reached with a pulse energy larger than 180 μJ. The pulse duration is approximately 20 fs (FWHM), and the spectrum is quite narrow with a single spike and bandwidth of 0.065% (FWHM), corresponding to a time-bandwidth product of approximately 0.64, which is about 1.5 times larger than that of the transform-limit pulse with a Gaussian profile. In addition, the EEHG-85 results show that the radiation power can reach 9.8 GW and the pulse energy is approximately 170 μJ. The pulse duration is approximately 20 fs (FWHM), and the relative spectral bandwidth is 0.033% (FWHM), corresponding to a time-bandwidth product of about 0.65. It is worth noting that the micro-bunching instability contributed by the beam collective effects degrades the output performances partly, which has been analyzed before, but not presented here [41, 42].

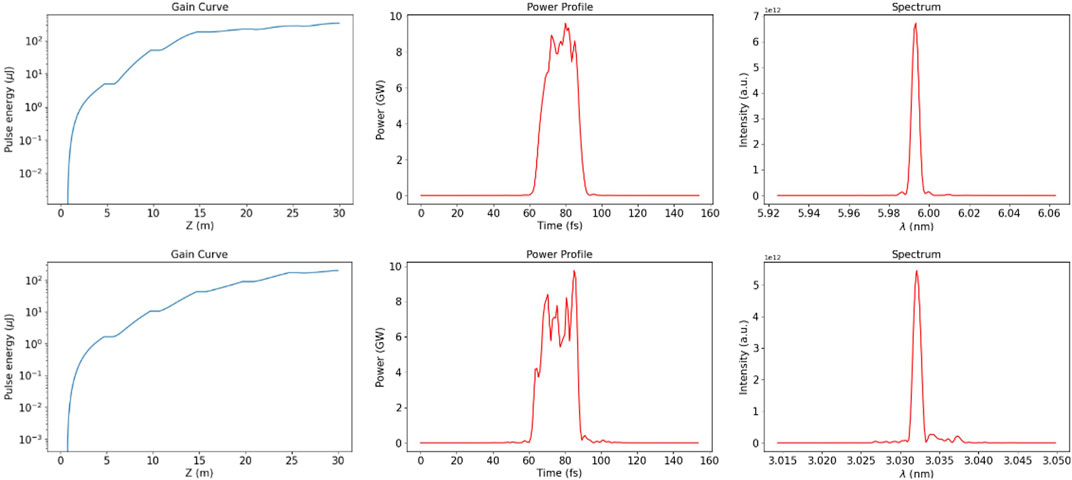

FIGURE 7. Simulation results of the 43rd and 85th harmonics of EEHG in the FEL-II: FEL pulse energy growth along the undulator (left), saturation FEL pulse (middle), and single-shot spectrum (right). The upper panel shows the 43rd harmonics, i.e., 6 nm wavelength, and the lower panel shows the 85th harmonics, i.e., 3 nm wavelength.
The radiation undulator used for the EEHG operation is mainly the dual-period undulator U75/U55. As shown in Figure 2, the relatively lower harmonics operation depends on U75 with lower beam energy and while U55 is mainly used for the higher harmonics. It is worth noting that the EEHG source point is much earlier than the other FEL operation modes inevitably. For the beamline and end station, increasing the acceptance and tolerance of the optical design has to be taken into consideration. We also tried to enlarge the electron beam size in the undulator to reduce the radiation divergence. Simultaneously, the undulator taper technique which is usually used to increase the FEL pulse energy, will be used to stretch the spot waist longitudinally. In order to improve the delivery efficiency further due to the optical diffraction, the aperture of the vacuum pipe and the undulator gap are expanded and limited to larger than the FEL-I design. In addition, the injection and extraction of the seed laser is also a challenging task that is still ongoing. Up to now, we have optimized the lattice and shortened the distance from laser injection to extraction further facing the challenge.
2.4 Afterburner
The main undulators adopt the plane-type undulator technique since it is more mature in terms of short periods, high magnetic field strength, and magnetic field error control. This is a benefit for FEL gain and reduces the cost of the device. However, the plane-type undulator provides a fixed polarization state which limits the user community. In order to obtain circularly polarized FEL radiation, a cross-plane undulator or an elliptically polarized undulator (EPU) might be the representative options. Consequently, we plan to install several EPU undulators in the form of afterburners downstream of the plane-type undulator section, so that the pre-clustered beam can emit near-saturated FEL radiation through the EPU undulators.
Polarized radiation based on EPU with a 55 mm undulator period length is designed to cover the same range of the SASE in the FEL-II with adjustable polarization. In order to ensure a relatively large photon energy range and flexibility, the advanced Apple-X type is taken into consideration. Figure 8 illustrates the polarization switch performances of 1.24 keV output, in which the reverse-taper technique is adopted. The reverse taper undulators are optimized to get maximum FEL power and high helicity purity. The maximum circular polarization is achieved with a reverse taper value of 0.8%, where the pulse energy is 720 μJ with about 96% degree of polarization.
FIGURE 8. EPU afterburner performances at the FEL-II.
3 Advanced FEL operation modes
In the previous section, the baseline configurations of the FEL-II undulator beamline, including SASE, self-seeding, EEHG, and polarization control were presented. However, our design work foresees physical and technical solutions which will allow significant performance enhancements without significant changes to the infrastructure and hardware. Several potentials such as ultra-short, coherent X-ray coverage expansion, multi-color, polarization fast-switch, high-power FEL, and high-brightness SASE are under consideration for the future. It is worth noting that different FEL operation modes will require different beam properties, therefore, more flexibility of the schematic design at the FEL-II is still under consideration to allow further development.
3.1 Ultra-short pulse
Besides the baseline configuration of X-ray pulses with several tens of fs pulse duration, the users also require femtosecond level (even to attosecond) X-ray pulses for time-resolved studies of atomic and molecular processes. According to current progress in normal conducting FELs, the main feasible methods for ultra-short pulse generation are low charge mode, emittance spoiler foil, dechirper, and enhanced SASE (ESASE) technique [43–48].
The method of low charge mode has been extensively applied in many FEL facilities. Due to relaxed space charge effects, the electron beam can be compressed to the fs level in low charge mode. For the SHINE, the operation modes based on the 10 pC beam and 20 pC beam have been taken into consideration. FEL simulations show that the FEL pulse with a pulse duration of less than 10 fs and peak power at the GW level is feasible. The second method uses an emittance spoiler in the second bunch compressor. It is worth stressing that the thermal loading of the spoiler foil determines the maximum operational repetition rate. The third method uses a dechirper in the front of the undulator, where transverse wake and longitudinal wake would induce the fresh slices and change the pulse length for lasing. Further, multi-time slice slippages by utilizing the small chicane in-between undulators would improve the FEL peak power to 10–100 GW-level after saturation. In addition, the ESASE technique could also compress the bunch length to the fs level. ESASE employs an ultra-short infrared laser pulse to manipulate the beam’s longitudinal phase space and imprint a very strong current enhancement on a small fraction of the electron beam. At the SHINE, with a currently available laser of 15 fs (FWHM) duration, 1.6 μm central wavelength, and 100 GW peak power, the peak current of the electron beam can be enhanced by approximately 7 times. These current spikes will generate ultra-short radiation pulses with a pulse duration of approximately 200 as and a peak power of about 70 GW in a 50 m long undulator in simulation. When using a shorter laser pulse with a 3 fs (FWHM) pulse duration, we can get a single spike X-ray pulse from the ESASE. The peak power exceeds 30 GW after a 40 m long undulator. The longitudinal coherence has also been improved due to the short pulse duration. The ultra-short ESASE radiation pulse is naturally locked to the optical laser, thus allowing a pump-probe experiment to be performed with high temporal resolution.
3.2 Harmonic lasing
The SHINE is constructed to cover the photon energy from 0.4 keV to 25 keV based on SASE mode, which is also capable to be less than 0.4 keV for the requirements of scientific research. However, the energy range of the fully coherent FEL modes is less than the SASE mode. It should be noted that there are two energy gaps that can not be covered, one of which is the approximate 1.5–4.5 keV range between SXSS and HXSS modes, and another one is the approximate 0.25–0.6 keV range between EEHG and SXSS modes. Several advanced FEL configurations can be attempted in the FEL-II beamline and are promising to cover the energy gaps. The higher harmonics up-conversion to 90th of the single-stage EEHG is relatively difficult to realize.
However, due to the configuration of the different undulator periods, harmonic lasing is a better way to expand the coherent X-ray coverage range. Usually, harmonic lasing is used for SASE-dependent harmonic lasing schemes based on two different undulator periods [49–51]. In order to expand the coherent X-ray coverage range, EEHG harmonic cascading can be operated at 0.25–0.6 keV, and self-seeding harmonic lasing can cover 1.5–4.5 keV [52]. Consequently, the full coverage of the coherent X-ray FEL can be expected due to the flexible infrastructure.
As shown in Figure 2, for the 5 GeV operation, the single stage EEHG with the 75 mm-period undulator easily generates the FEL output with a wavelength of 5–10 nm (≤0.25 keV), and the 2-3rd harmonic lasing with the 55 mm-period undulator is expected to cover the wavelength of 2–5 nm, i.e., 0.25–0.6 keV. For the SXSS harmonic lasing, the pure 55 mm-period undulator covers the coherent hard X-ray photon energy gap. Figure 2 tells us that the 55 mm-period undulator can cover photon energy of 0.54–6.0 keV for the 8 GeV operation. Therefore, the undulators upstream are used for the SXSS operation and generate the FEL output with a photon energy of 0.54–1.5 keV, and the 2-3rd harmonic lasing with the undulator downstream can cover the photon energy of 1.5–4.5 keV. In the simulation, we have seen a quasi-coherent X-ray generation within the two energy gaps connecting with the reverse taper technique, and the current setup has already offered the requirement of the harmonic lasing schemes.
3.3 EEHG-HGHG cascading
For the external seeding technique of the FEL-II at the SHINE, the baseline design is the EEHG operation with the highest harmonics of approximately 50. For the FEL simulation, higher harmonics are possible based on single-stage EEHG or EEHG-HGHG cascading. At the SXFEL facility, the EEHG-HGHG cascading scheme has been demonstrated experimentally [38]. For the single-stage EEHG, the 54th harmonics, i.e., 5nm, has been demonstrated and the higher harmonics commissioning is ongoing. Therefore, to cover the photon energy between 0.25 and 0.6 keV, and meet the needs of users, the advanced EEHG-HGHG cascading mode is an option with the fresh bunch technique. Figure 9 presents the current schematic layout which only requires a minor improvement for the EEHG-HGHG cascading operation. The first-stage EEHG will generate the FEL pulse with a 3–9 nm wavelength in U75s, which is the seed of the second-stage HGHG to generate the FEL pulse with a 1–3 nm wavelength in U55s. Figure 10 presents the EEHG-HGHG cascading simulation results, where the wavelength of the first-stage EEHG is 3 nm as a harmonic up-conversion of approximately 90 and the second-stage HGHG is 1 nm as a harmonic up-conversion of 3. The final output peak power of the 1 nm wavelength X-ray pulse is approximately 8 GW and the pulse energy is more than 100 μJ with a spectrum close to Fourier-transform-limited. For this scheme, a flat-top distribution of the current profile for the electron beam is required. The key point is an fs level time jitter which impacts the stability of the output FEL power significantly [42].

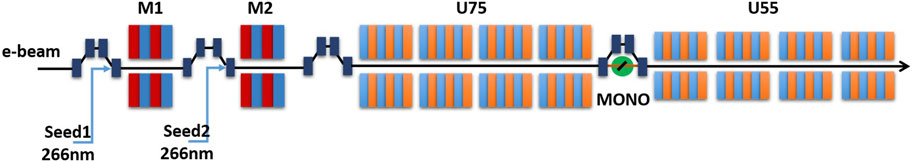

FIGURE 9. Advanced FEL configurations for coherent X-ray full coverage at the FEL-II. It mainly consists of the EEHG section (two seed lasers, two modulators, and three chicanes), U75 section, self-seeding section, and U55 section.

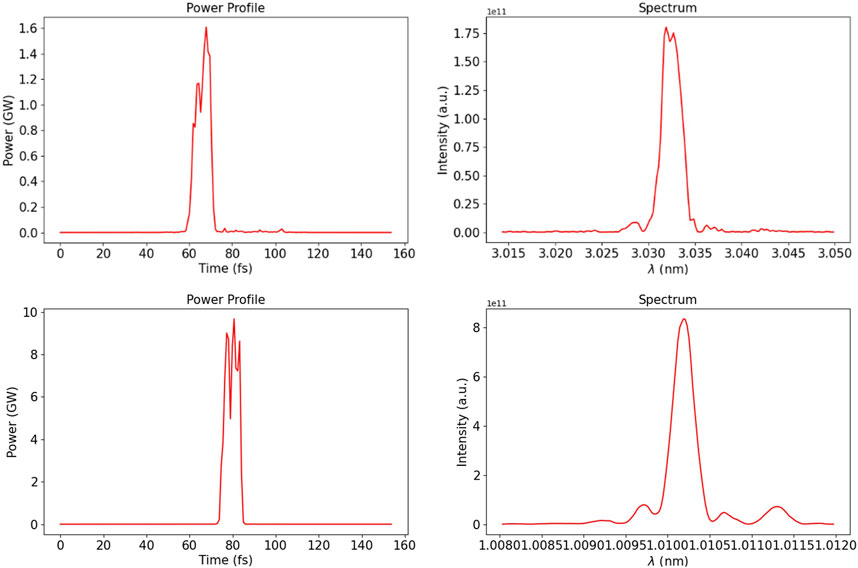

FIGURE 10. EEHG-HGHG cascading simulation results. The top two are the first-stage 90th EEHG with 3 nm wavelength and the bottom two are the second-stage 3rd HGHG with 1 nm wavelength.
3.4 Multi-color
In the past few years, several techniques for multi-color operation and spectral control of X-ray FELs have been developed worldwide. The key to achieving multi-color pulse generation is easily understood from the basic principles of FEL operation. The multi-color experiment usually employs de-chirpers, chicanes, and, of course, the central wavelengths of the FEL pulses can be independently tuned by simply changing the gaps of the undulator [53–62]. All the components will be established at the facility, thus it is very convenient for delivering multi-color and/or multi-pulse to the experimental stations. Because of the long undulator, one can display the powerful ability of multi-color operation at the SHINE.
3.5 HB-SASE
The high-brightness SASE (HB-SASE) technique can be applied to significantly improve the temporal coherence of SASE [63]. By inserting a series of small chicanes between the undulator segments of SASE, the slippage length between the FEL radiation and electron bunch can be artificially increased, giving a corresponding increase in coherence length and a narrowing output bandwidth. The HB-SASE technique does not require an external seeding source or X-ray photon optics and is applicable at any wavelength and repetition rate. In the SHINE design, the length of each undulator module is 5 m, and a delay sequence based on prime number increases is used. The delay induced by the first small chicane is approximately 36 nm, which is a little longer than the slippage length in one undulator module. The simulation shows that the peak power of the HB-SASE is comparable with the normal SASE. The longitudinal phase distribution of the HB-SASE is smoother, which results in a much narrower bandwidth of approximately 0.003%, approximately 20 times narrower than that of the normal SASE case.
3.6 Others
There are still several other advanced FEL operation modes on the way one of which is a high-power SASE a high-power SASE scheme. The basic method adopts the dechirper to kick the beam slice and generate multi-stage slippage between the beam slice and the FEL pulse, which could increase the FEL peak power to several times the saturation power. We are also working on the polarization fast-switch based on a fast-switch phase shifter. The fast-switch phase shifter with a length of less than 3 m and a 0.5 MHz switch frequency will be inserted between the four EPU undulators to continuously switch between the different polarization states. Simulation results show that two different polarization FEL pulses with higher than 90% polarization degree are theoretically achievable.
4 Summary
In summary, this article presents the physical design of the FEL-II undulator beamline at the SHINE, which is the first high repetition rate based hard X-ray FEL facility in China. The SHINE completed an international review of the physical design at the end of 2022, and this work in detail is presented first as a manuscript. We mainly introduce the FEL-II, which is the most diversified undulator beamline compared to the FEL-I and the FEL-III.
The baseline design mainly consisting of SASE, self-seeding, external seeding, and polarization control, will provide X-ray FEL pulses beyond the photon energy range from 0.4 to 3.0 keV with a repetition rate up to 1 MHz. Furthermore, the FEL-II is also designed to provide more flexible FEL output properties towards ultra-short pulse, coherent X-ray coverage expansion, multi-color, and so on. This beamline aims to be one of the most advanced FEL beamlines in the world and meet the needs of more scientific users. As the softest X-ray beamline of the SHINE, the commissioning and operation of the FEL-II beamline will be started firstly, and the comprehensive advance in engineering construction is urgent and important in the coming years. The research and development program, including the prototype construction of the undulator, the magnet device, and the beam measurement device, will be completed in 2023. After this, effective serial production and installation may start by 2024. After the installation, the FEL commissioning of the FEL-II beamline will start, and realize the first lasing by June 2025.
