Energy competition and pairing effect for the fission path with a microscopic model

We studied the fission barrier of ²³⁶U with a microscopic mean-field model employing Skyrme-type effective interaction. It has been known that the microscopic mean-field calculation had a trend of overestimating the fission barriers derived from the fission cross section, and our results were found to be in accord with it. To reveal a major factor of the discrepancy, we investigated various components of the Skyrme energy-density functional building of the fission barrier height by a static mean-field model, including nuclear pairing correlation. We found that the spin-orbit and pairing terms affected the fine structure of the fission barrier as a function of elongation of the nucleus. Therefore, we investigated the sensitivity of the fission barrier height on the pairing strength, considering the change of level density along the calculated fission path.

1 Introduction

Nuclear fission arises as a result of large-amplitude collective motion in which a nucleus transforms into two or more nuclei, releasing a huge amount of binding energy in the form of kinetic energies of particles produced. Theoretical description of nuclear fission with microscopic models has attracted great interests not only in fundamental physics but also in nuclear applications [1, 2]. The nuclear fission has been one of the core topics in nuclear physics for more than 70 years since it has been discovered accidentally by German scientists. As a recent topic in fundamental physics such as nuclear astrophysics, nuclear fission is one of the key issues to understand nucleosynthesis in the rapid neutron-capture process (r-process) proceeding in the neutron star merger and supernova explosion [3, 4]. In nuclear engineering applications, accurate knowledge on nuclear fission is essential for safely operating nuclear reactors and predicting fission product yields in the reactor [5, 6]. For this purpose, one is tempted to employ theoretical models that should be able to treat “any” fissioning nuclei, because the yields of fission fragments from the region of superheavy elements (the endpoint of the r-process) are recycled to the start points of the r-process [7]. However, it is almost impossible to directly investigate the reaction mechanism of nuclear fission experimentally because the time scale from the ground state to scission is very short, about $\approx 10^{-20}$ s. It is also difficult to carry out experiments on nuclear fission since fissioning nuclei are basically unstable ones, and this fact prevents us from getting highly accurate nuclear data in general. Therefore, theoretical approaches which can predict wide aspects of nuclear fission, by avoiding restrictions and assumptions as much as possible, are highly desired.

There are many kinds of theoretical models to describe unique structure of finite nuclear systems [8–11]. Nuclei are self-bound systems consisting of a few hundred nucleons at most, in each of which an average potential or mean-field is formed. In the mean-field, there is a shell structure which makes the distribution of single-particle energies spaced unequally, and in which the nucleons occupy single-particle orbitals according to the Pauli principle, like electrons in an atomic system. Furthermore, there is a pairing correlation in nuclei that couples two nucleons in the time-reversed states to form a Cooper pair as described by BCS theory similar to the correlation in condensed matter physics [12]. The nuclear pairing correlation makes fractional occupation probabilities of the orbitals in the mean-field and has an essential role in forming the nuclear structure, including its shape. The mean-field and the pairing correlation are fundamental features of nuclei, and they affect strongly the fission mechanisms [13, 14]. Since the structures of nuclei depend on mass number, the theoretical model to describe fission phenomena should be able to treat nuclei comprehensively regardless of the mass number. Therefore, microscopic mean-field models with modern effective interactions and a pairing correlation have often been employed to study nuclear structure and fission. The modern effective interaction can be written with nuclear densities, and then it is also called the energy density functional (EDF). Several types of EDFs have been proposed with different contexts, such as relativistic [15–17] or non-relativistic [18–20], finite-range [21] or zero-range force [22], and so on. Although the mean-field model calculation with the EDF needs huge computational resources, we have been able to perform the theoretical studies for the nuclei without symmetry restrictions due to the recent progress in computer science.

Furthermore, a beyond mean-field model is also proposed to describe precisely the dynamical phenomena such as nuclear fission. The time-dependent generator-coordinate-method (TDGCM) is one of the methods to restore the spontaneous symmetry breaking [23]. In the TDGCM approach, the many-body wave function composes of a continuous or linear superposition of the single-Slater wave function. The stochastic mean-field model is also a skillful method for incorporating the quantum fluctuation [24]. In the stochastic methods, the statistical assumption in the microscopic treatment supplies the quantum fluctuation in the initial state of nuclear dynamics, and its effects propagate in the time evolution. The calculations with the stochastic method show a qualitative trend of fission fragment yield and the distribution of total kinetic energy [25, 26].

The many studies with the mean-field model calculation have shown the mass asymmetric distributions of fission fragments due to the shell structure of nuclei as mentioned above. They are consistent with experimental results and this fact offers a rational reason to choose the mean-field model to describe nuclear fission. Potential energy surfaces (PESs) concerning multi-dimensional deformations of the fissioning nuclei are often calculated with the mean-field model to investigate the fission path from the stable or metastable state to scission [27–29]. The studies using static PESs with the deformation constraints for quadrupole and octupole moments have been known to correspond with the fission product yields successfully [30, 31]. Even though these studies do not include dynamical and diabatic effects, they are useful for predicting fission barrier height, fission fragment yields, and other fission quantities [32, 33]. The fission barrier height is used to evaluate the fission cross sections in terms of the Hauser-Feshbach theory. Although the fission cross sections can be estimated from the fission barrier height evaluated by the available experimental data, the accuracy of the fission barriers is insufficient when there are a few experimental data that disagree with each other, which is the case for actinide nuclei [34]. This is so since the experimental fission barriers were evaluated to reproduce the fission cross sections or fission probabilities by the statistical models, which include extra parameters such as optical potential and level density which are different from analysis to analysis, then they affect the deduced barrier heights. The situation is worse, of course, for nuclei where there is no fission barrier data obtained experimentally.

The study of PES is a typical approach to predict the fission barrier height and has been able to reproduce a characteristic barrier structure with the double humps [35, 36]. Simple liquid-drop models fail to produce the double-humped structure, and then the spin-orbit coupling force is essential to reproduce the structure [37, 38]. The mean-field model calculation can reproduce the double-humped fission barrier via a complex competition among energy terms in the EDF, which simultaneously describes the ground states of nuclei for a whole nuclear chart. Although UNEDF1 [39], optimized including fission isomers observables, provides lower fission barriers, the mean-field calculations [40–42] tend to overestimate the fission barrier heights derived from the analysis of neutron-induced fission cross section [34]. The purpose of this work is to reveal the reasons for the discrepancy between theoretical and derived fission barrier heights by analyzing various components of a microscopic EDF. For this aim, we calculate the PES of ²³⁶U as a function of quadrupole and octupole deformations using the mean-field model with Skyrme EDF and pairing correlation, and focus on the energy components of the fission barrier to analyze the energy competition on the fission path. We apply the constrained Skyrme Hartree-Fock plus BCS model (CSHF + BCS) [43] to the PES calculation and investigate how the pairing strength affects the fission barrier height, using the level density near the Fermi energy on the PES.

This paper is organized as follows. In Section 2 we present the mean-field model to investigate the PES, and show the energy components in the Skyrme EDF and pairing correlation. The results of PES calculations using three Skyrme EDFs are shown and discussed in Section 3. We focus on the double-humped barrier shape, its heights for each EDF result, the competition among energy terms, and the effects of pairing strength. Finally, summary and conclusion are shown in Section 4.

2 Mean-field model and energy components in the model

We employ the constrained Skyrme Hartree-Fock plus BCS (CSHF + BCS) model to calculate the PES of ²³⁶U as a function of the quadrupole and octupole moments. The PES is obtained as difference of energies between states for various values of the quadrupole and octupole moments and that of the ground state. In this section, we explain briefly the CSHF + BCS model, various terms of the Skyrme EDF, and the characters of three Skyrme parameter sets (SkM* [40], SLy4 [44], SkI3 [45]) and show the specific forms of the constraints and the pairing correlation.

We can obtain wave functions |Ψ⟩ of quantum systems from the variational principle $\delta ⟨\mathrm{\Psi }|\widehat{H}|\mathrm{\Psi }⟩=0$ where $\widehat{H}$ is Hamiltonian, in general. When the HF + BCS model is applied to the quantum many-body systems, the BCS state represented in the canonical basis is written as,

$|\mathrm{\Psi }\rangle \to |{\mathrm{\Psi }}_{\text{BCS}}\rangle =\prod _{k>0}\left(u_k+v_k{\widehat{a}}_k^{†}{\widehat{a}}_{\bar{k}}^{†}\right)|0\rangle ,(1)$

where the ${\widehat{a}}_k^{†}$ corresponds to the creation operator of a particle in a single-particle orbit having quantum numbers labeled by a subscript k. As usual, we choose the canonical-basis for the orbits in the BCS states, which diagonalizes the density matrix [46]. The $\bar{k}$ state means the time-reversed state of the k state. The symbols u_k and v_k are the usual BCS factors satisfying a normalization condition, $u_k^2+v_k^2=1$. The $v_k^2$ denotes the occupation provability of the k and $\bar{k}$ orbitals. We can derive HF + BCS equations from the variational condition $\delta ⟨{\mathrm{\Psi }}_{\text{BCS}}|\widehat{H}|{\mathrm{\Psi }}_{\text{BCS}}⟩=0$ adding a number constraint term to the Hamiltonian,

$\left\{\begin{array}{c}\left[\widehat{h},\rho \right]=0,\hfill \\ 2{\tilde{\epsilon }}_k{u}_k{v}_k+{\mathrm{\Delta }}_k\left(v_k^2-u_k^2\right)=0,k>0,\hfill \end{array}\right.(2)$

where $\widehat{h}$ and ρ denote the single-particle Hamiltonian and the diagonalized density matrix, respectively. The first equation is consistent with the HF equation and the second corresponds the gap equation of the BCS theory. The ${\tilde{\epsilon }}_k$ equals $\frac{1}{2}({\epsilon }_k+{\epsilon }_{\bar{k}})-\lambda$, where ɛ_k is a single-particle energy of k state and λ is the Fermi energy. In this work, the single-particle state |ϕ_k⟩ are represented in a three-dimensional Cartesian coordinate space; |ϕ_k⟩ → |ϕ_k(x, y, z, σ)⟩, where σ means the spin of a nucleon. The three-dimensional space is discretized in a cubic mesh Δx = Δy = Δz = 1 fm in a cuboid of 40 fm × 40 fm × 50 fm.

To calculate the PES as a function of quadrupole Q₂₀ and octupole Q₃₀ moments, we add constraints to the Hamiltonian as follows:

${\widehat{H}}^{\prime }=\widehat{H}+\sum _{l,m}{\lambda }_{lm}{\left({\widehat{Q}}_{lm}-Q_{lm}\right)}^2,(3)$

where l = 2, 3 are employed, and we take m = 0, 2 for l = 2 and m = 0, 1, 2, 3 for l = 3. The Q_lm is the expectation value $⟨{\widehat{Q}}_{lm}⟩$, and the ${\widehat{Q}}_{lm}$ is the operator such as ${\widehat{Q}}_{20}=r^2{Y}_{20}$ and ${\widehat{Q}}_{30}=r^3{Y}_{30}$, where Y_lm is the spherical harmonics. The PES was obtained by giving finite value for Q₂₀ and Q₃₀ and zero for Q_lm with m > 0.

We employed the Skyrme effective interactions [47] for the calculation of the EDF. The Skyrme EDF has about ten parameters tuned to reproduce the nuclear properties according to strategy of each parameter set. The total binding energy E_tot is calculated as the expectation value of the Hamiltonian including the Skyrme interaction with |Ψ_BCS⟩, and we decomposed the E_tot into seven terms:

$\begin{array}{ll}\hfill E_{\text{tot}}& =E_{\text{kin}}+E_{\text{Skyrme}}+E_{\text{Coul}}+E_{\text{pair}}\hfill \\ \hfill & =E_{\text{kin}}+E_{\text{t0}}+E_{\text{t}1\text{,\hspace{0.17em}t}2}+E_{\text{t}3}+E_{\text{ls}}+E_{\text{Coul}}+E_{\text{pair}},\hfill \end{array}(4)$

where E_kin, E_t0, E_{t1, t2}, E_t3, E_ls, E_Coul, and E_pair correspond to the kinetic, central, non-local, density-dependent, spin-orbit, Coulomb, and pairing energy terms. E_t0 is deduced from only δ(r) terms, E_{t1, t2} corresponds to the momentum-dependent terms, and E_t3 contains the density-dependent term: ρ^α, where the $\rho ={\sum }_{k>0}|v_k{|}^2(|{\varphi }_k{|}^2+|{\varphi }_{\bar{k}}{|}^2)$, and α > 0. In this work, the SkM* [40], SLy4 [44], and SkI3 [45] Skyrme parameter sets are employed to investigate the interaction-dependence of the fission path and the barrier structure. The Skyrme parameter sets differ in the protocol to decide each parameter set, although they basically describe the ground state properties (binding energy, charge radii, saturation density, and so on) for the stable nuclei with the magic numbers. The SkM* parameter set is tuned to reproduce the fission barrier height of ²⁴⁰Pu deduced by the empirical liquid drop model. The SLy4 parameter set is designed to describe the symmetric nuclear matter and pure neutron matter properties at the saturation point. For the SkI3 parameter set, the density dependence of the spin-orbit potential has been adjusted to be consistent with those of the relativistic mean-field model, which shows the isotope shifts in the Pb region. We investigate the fission path with these different EDFs to extract the important elements governing the fission barrier height.

For the pairing correlation, we employ the monopole-type pairing functional; the smoothed constant G model [48]. Although the pairing functional does not include the density dependent term such as Ref. [49], the pairing strength can be obtained self-consistently with the mean-field. The pairing energy E_pair and the pairing strength G_τ are:

$E_{\text{pair}}=-\sum _{k>0,\tau }{G}_{\tau }{u}_{k,\tau }^2{v}_{k,\tau }^2,G_{\tau }=g_{\tau }{f}_{\tau }^2\left({\epsilon }_{k,\tau }\right),(5)$

where f_τ is a cutoff function, and τ means neutron and proton, and ɛ_k is the single-particle energy of k orbital. Furthermore, the constant g_τ is self-consistently obtained by solving the continuously smoothed equations for the nucleon number conservation and the gap parameters simultaneously, in which the single-particle level densities are used:

$N_{\tau }={\int }_{-\infty }^{\infty }\left\{1-\frac{\epsilon -{\bar{\lambda }}_{\tau }}{\sqrt{{\left(\epsilon -{\bar{\lambda }}_{\tau }\right)}^2+f_{\tau }^2\left(\epsilon \right){\bar{\mathrm{\Delta }}}^2}}\right\}\bar{D}\left(\epsilon \right)d\epsilon ,(6)$

$\bar{\mathrm{\Delta }}=\frac{g_{\tau }}{2}\bar{\mathrm{\Delta }}{\int }_{-\infty }^{\infty }\frac{f_{\tau }^2\left(\epsilon \right)}{\sqrt{{\left(\epsilon -{\bar{\lambda }}_{\tau }\right)}^2+f_{\tau }^2\left(\epsilon \right){\bar{\mathrm{\Delta }}}^2}}\bar{D}\left(\epsilon \right)d\epsilon ,(7)$

where the $\bar{D}(\epsilon )$ is a single-particle level density of the Thomas–Fermi approximation, and $\bar{\mathrm{\Delta }}$ is the pairing gap and given by the empirical formula $\bar{\mathrm{\Delta }}=12A^{-1/2}$ MeV. Eq. 6 determines the Fermi energy ${\bar{\lambda }}_{\tau }$, while Eq. 7 determines the constant g_τ. For our analysis, the monopole pairing is more tractable than the density-dependent one, and we can easily see significance of the pairing correlation for the fission path.

3 Result

We first show the PESs of ²³⁶U obtained using three EDFs, and the fission barrier heights are compared with the data evaluated experimentally. Next, we decompose the PES to the energy terms in the Skyrme EDF and search for the major components to be in phase with the double-humped barrier structure. Finally, the sensitivity to pairing strength for the barrier heights is investigated.

3.1 Fission barrier calculated by the mean-field models

Figure 1 shows the PES of ²³⁶U as a function of Q₂₀ and Q₃₀ calculated with the SkM* parameter set. The dE is defined by the difference between the energies of the ground state and each configuration point in Q₂₀ and Q₃₀; dE(Q₂₀, Q₃₀) = E(Q₂₀, Q₃₀) − E(G.S.). The investigated ranges of Q₂₀ and Q₃₀ are [0 : 87] b and [0 : 65] b for all calculations. The nuclear density distributions in Figure 1 are those at the ground state, second minimum, mass symmetric (Q₃₀ = 0), and mass asymmetric (Q₃₀ ≠ 0) configurations. The solid line represents the lowest energies on the PES for nuclear elongation, which corresponds to the fission path in the mean-field model calculation, although the dashed line means the symmetric elongated configuration (Q₃₀ = 0). The calculated fission path having the finite octupole momentum corresponds to the fission fragment distribution with mass asymmetry as obtained in the measurements, which indicates the significance of the static PES in the study of fission phenomena.

FIGURE 1

FIGURE 1. The PES of ²³⁶U as a function of Q₂₀ and Q₃₀ using SkM* parameter set.

Figure 2 shows the energies on the PES of the symmetric deformation paths with Q₃₀ = 0 (left panel) and that along the calculated fission paths (right panel) using three Skyrme EDFs (SkM*, SLy4, SkI3). In each result, the double-humped barrier structures appear in both of the fission and symmetric deformation paths. We can see two characteristic barriers for all EDF results: the one noted as B_inner appears at slightly less than Q₂₀ = 20 b, and the second one noted as B_outer appears over Q₂₀ = 40 b. A similar barrier structure appears in the three EDFs calculations, although there are differences in the heights and slopes near B_outer. The effects of finite Q₃₀ is significant for the configuration having elongation larger than the second minimum. A remarkable reduction of B_outer due to the finite octupole momentum, namely, mass asymmetry, is also confirmed. As an example, the reduction on B_outer for SLy4 is indicated by an arrow in the right panel of Figure 2. The double-humped fission barriers and the reduction effects on B_outer by the mass asymmetry are reported in the early researches by Strutinsky [35, 36] and Möller [50] using other models. The calculated E(G.S.), B_inner, B_outer (Q₃₀ = 0), and B_outer (Q₃₀ ≠ 0) with SkM*, SLy4, and SkI3 EDFs together with the experimental and derived values are listed in Table 1. In the derived values, B_inner is lower than B_outer, while all calculations fail to reproduce this relation. Both the B_inner and B_outer (Q₃₀ ≠ 0) calculated with all Skyrme EDFs overestimate the derived values, although the amplitude of the overestimation is not constant for B_inner and B_outer, which might indicate the configuration dependence of the barrier.

FIGURE 2

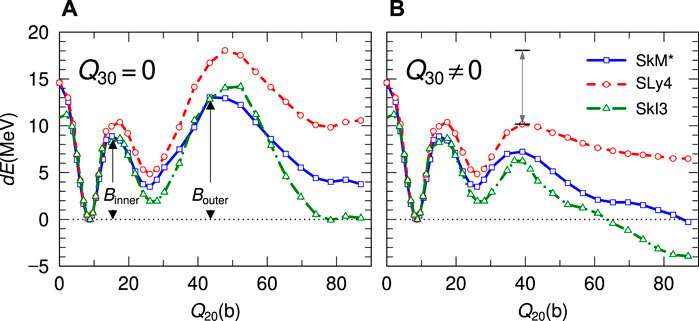

FIGURE 2. Energies of the symmetric path (A) and fission path (B) of ²³⁶U as functions of Q₂₀ for the three EDFs (SkM*, SLy4, and SkI3). The effect of mass asymmetry for SLy4 is indicated by the arrow in right panel.

TABLE 1

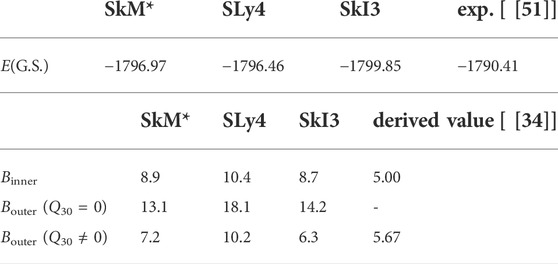

TABLE 1. Calculated ground state energies, fission barrier heights, experimental, and derived values (MeV) of²³⁶U.

3.2 Searching for energy components to form the barrier

Here, we decompose the PES along the fission path obtained in this work and investigate which energy term changes the fission barrier heights and how. The PES is decomposed into seven terms as in Eq. 4. Figure 3 shows the behaviors of the energy terms dE_x in SkM* EDF concerning Q₂₀, where dE_x(Q₂₀) = E_x(Q₂₀) − E_x(G.S.), and x is a subscript corresponding to those of Eq. 4. Even though the amplitudes of dE_t0 and dE_t3 are much larger than other energy terms, they are almost canceled out due to their opposite signs. The right panel in Figure 3 shows a complicated competition among the other energy terms. It is difficult to extract the small amplitude like B_inner or B_outer from the competition among large values shown in Figure 3. We focus on comparing the results with different EDFs since there might be a common mechanism to form a similar barrier structure from the energy competition in the EDF, as in Figure 2.

FIGURE 3

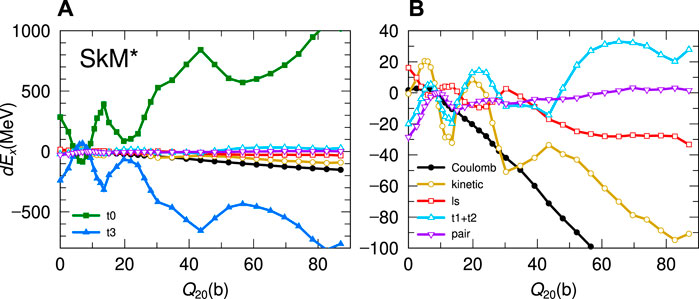

FIGURE 3. (A) Magnitude of the decomposed terms dE_x of ²³⁶U along the fission path as in Eq. 4. (B) The same as the left panel but excluding the dE_t0 and dE_t3 terms. They are represented as functions of Q₂₀. The symbols denote the followings: solid squares dE_t0, open triangles dE_{t1, t2}, solid triangles dE_t3, open circles dE_kin, solid circles dE_Coul, open squares dE_ls, and inverted open triangles dE_pair.

We compare here various components dE_x on the fission path calculated by the three EDFs to extract similarities and differences depending on the effective interactions. Furthermore, we wish to extract the component that forms the double-humped barrier structures specific to the fission barriers of the actinide nuclei. For this aim, we plot dE_kin + dE_t0 + dE_{t1, t2} + dE_t3, dE_Coul, dE_ls, and dE_pair in Figure 4. The upper left panel, exhibiting dE_kin + dE_t0 + dE_{t1, t2} + dE_t3, shows that relatively small difference among the results of the three EDFs in which this combination of dE_x’s increases for a large Q₂₀, corresponding to the increase of nuclear surface. On the other hand, in the upper right panel, it is seen that the dE_Coul does not depend much on the choice of EDFs, and decreases commonly toward a large Q₂₀ due to the enlarged distance between localized charge distributions. The bottom panels of Figure 4 show dE_ls and dE_pair. They have structures corresponding to the double-humped structure in the fission barrier. The arrows in the bottom panels indicate the positions of bumps and dips of the barriers. We can see a similar phase on bumps and dips of the fission barrier in the behavior of dE_ls. On the other hand, dE_pair has an opposite phase of the barrier structure as is known well from their dependence on the single-particle level densities. Therefore, we can conclude that dE_ls and dE_pair have significant roles in forming the fission barrier height from their dependence on the nuclear elongation.

FIGURE 4

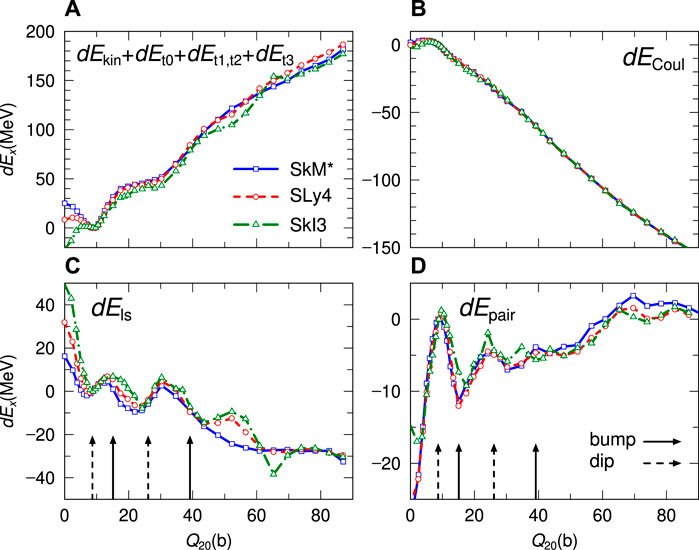

FIGURE 4. The dE_x on the fission path for the three EDFs (SkM*:solid, SLy4:dashed, SkI3:dashed-dotted) as functions of Q₂₀. (A,B) show the results of dE_x for dE_kin + dE_t0 + dE_{t1, t2} + dE_t3, and for dE_Coul, respectively. (C,D) show the results of dE_x for dE_ls and dE_pair. The solid and dashed arrows in the bottom panels indicate the positions of bumps and dips of the fission barriers.

3.3 Sensitivity of the fission barrier to the pairing strength

The comparison among the decomposed PESs for the three EDFs indicates that dE_ls and dE_pair play an important role to form the characteristic structure of the fission barrier. We investigate the sensitivity of the fission barrier heights to the pairing correlation by changing the pairing strength G. In our model, the pairing strength G is self-consistently calculated using the level density at each configuration. This G is the original pairing strength that can consistently deduce the pairing gap parameter with the empirical one. In the investigation, we only change the value of this original G by ± 20% and the changed G is fixed in the self-consistent calculation for each configuration at (Q₂₀, Q₃₀). Figure 5 shows the fission paths for the three EDFs with the enhanced and reduced values of G, where dE _{± 20%} = E _{± 20%}(Q₂₀) − E _{± 20%}(G.S.). For all results of EDFs, the enhanced value of G makes both of B_inner and B_outer smaller, and vice versa. Magnitude of the change in the dE brought by the change of the G parameter depends on the EDF. Moreover, the change in dE depends on Q₂₀, indicating configuration dependence of the effect of the pairing correlation. The barrier heights and E(G.S.) for each interaction are shown in Table 2. In all the cases investigated, it is concluded that enhancement of the pairing strength leads to better reproduction of the derived fission barrier heights.Furthermore, we compare the changes of pairing energy and local level densities ${\tilde{\rho }}_{\tau }$ near the Fermi energy as functions of Q₂₀. In this work, the ${\tilde{\rho }}_{\tau }$ is defined below:

${\tilde{\rho }}_{\tau }=\frac{1}{2\mathrm{\Delta }\epsilon }\sum _{i={\lambda }_{\tau }-\mathrm{\Delta }\epsilon }^{{\lambda }_{\tau }+\mathrm{\Delta }\epsilon }|v_i^{\tau }{|}^2,\tau =n,p,(8)$

where Δɛ is the energy window to count the single-particle states, and $v_i^{\tau }$ is the occupation probability of the counted states. We take Δɛ = 2.5 MeV which corresponds to the pairing cutoff energy. The ${\tilde{\rho }}_{\tau }$ can be evaluated at each Q₂₀. Figure 6 shows ΔE_pair (solid circles) and $\tilde{\rho }$ (open circles) evaluated with SkM*, where ΔE_pair is a difference between the pairing energies obtained from Eq. 5 with the original G and enhanced value of G; ΔE_pair = E_pair(orig.) − E_pair(+20%). We can see that the behavior of local level density ${\tilde{\rho }}_n+{\tilde{\rho }}_p$ corresponds to that of ΔE_pair. The difference between the effects of the pairing strength on B_inner and B_outer is deduced from the difference in local level density near the Fermi energy. The result indicates that the effects of elongation-dependent pairing correlation is essential to comprehend the barrier heights and the relation between B_inner and B_outer, and that the fission phenomena might bring the information on density dependence of pairing functional.

FIGURE 5

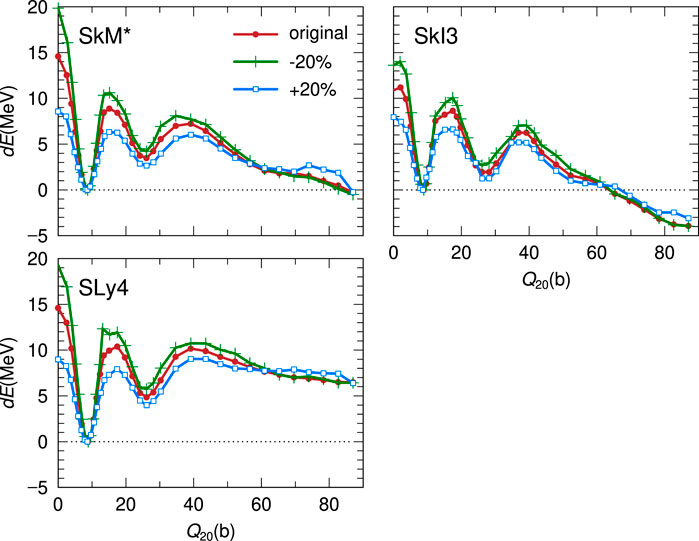

FIGURE 5. The dE on the fission paths of ²³⁶U for the three EDFs (SkM*, SLy4, SkI3) with the original strength of G (circle), − 20% G (cross), and + 20% G (square).

TABLE 2

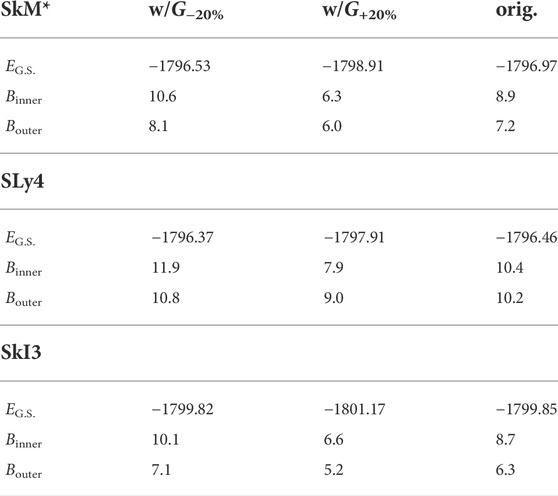

TABLE 2. E_G.S., B_inner, and B_outer in MeV along the fission path of²³⁶U for three EDFs and three values of pairing strength G.

FIGURE 6

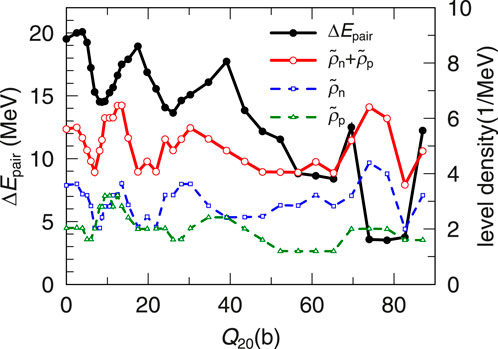

FIGURE 6. The local level densities $\tilde{\rho }$ for neutron and proton, and ΔE_pair along the fission path of ²³⁶U calculated with SkM*. The left and right vertical axes represent ΔE_pair, and $\tilde{\rho }$, respectively.

Finally, we investigate dependence of the decomposed energy terms obtained with SkM* on the change in the pairing strength G. The decomposed and the combination of energy terms are shown in Figure 7, where circle, cross, and open square symbols show the results obtained with G, 0.8G, and 1.2G, respectively. We can see very small changes in the combination: dE_kin + dE_t0 + dE_{t1, t2} + dE_t3, and in dE_Coul. Effects of the change in pairing strength are the best seen for dE_ls and dE_pair. For dE_ls, the effects of pairing strength appear near the arrows which correspond to fission barriers. These behaviors are consistent with the previous discussion. The peak structure in dE_ls is smeared out for results with 1.2G, while opposite trend is true for dE_pair by out of phase. By combining these two results, it leads to reduction of the fission barrier heights. Therefore, dE_ls and dE_pair contribute much to the barriers since they depend on the details of behaviors of single-particle states.

FIGURE 7

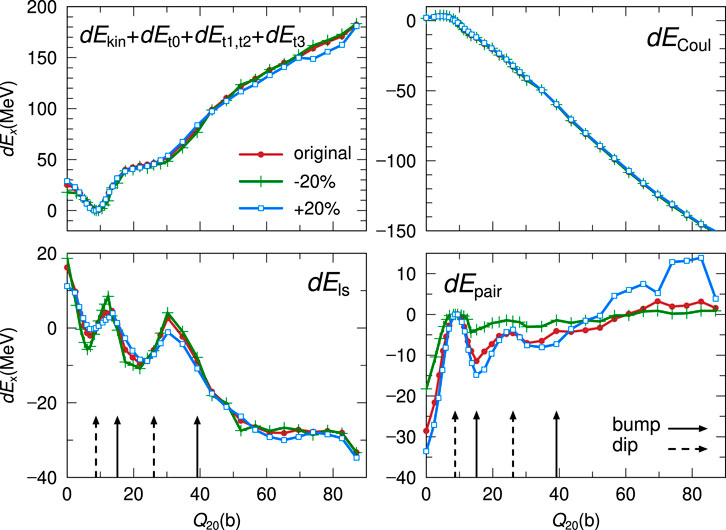

FIGURE 7. Same as Figure 4, but for SkM* with three choices of the pairing strength G.

4 Conclusion

We investigated the fission barrier structure of ²³⁶U using a constrained Skyrme HF + BCS model represented in the three-dimensional Cartesian coordinate space. The barrier structure was deduced from the potential energy surface (PES) obtained as a function of quadrupole Q₂₀ and octupole Q₃₀ moments. The fission path was estimated as the lowest energy path of the PES projected to Q₂₀ axis with a finite Q₃₀. We employed three Skyrme parameter sets (SkM*, SLy4, and SkI3) in this work to calculate the fission paths. We confirmed that the double-humped barrier structure of ²³⁶U arises, inclusion of the Q₃₀ degree-of-freedom reduces the height of the outer fission barrier B_outer significantly, and the calculated barrier heights are overestimated compared to the value estimated experimentally in all of the employed three EDFs.

To elucidate the major components to form the structure of the barrier, we decomposed the energy on the PES along the fission paths into seven energy terms of the Skyrme EDF. We found the complicated energy competition of the barrier in which the large components, the central and density-dependent terms, almost cancel each other, and role of the kinetic, non-local, spin-orbit, Coulomb, and pairing terms have been entangled. We searched for the combination of energy terms that differ among the three EDFs. The Coulomb term and the energy combination excluding the spin-orbit and pairing terms, have a small EDF dependence and change monotonically on the fission path. The changes of spin-orbit energy term dE_ls on the fission path are in phase with the bumps and dips of the barrier, and the pairing term dE_pair is in the opposite phase with them. Therefore, it can be expected that their competition will decide the characteristic structure of the double-humped fission barrier.

We also checked the sensitivity of the barrier structure on the pairing correlation by changing the pairing strength. It was found that fission barrier height decreases when the pairing strength is enhanced, and vice versa. Furthermore, we found that the change is not constant on the fission path. Nevertheless, enhanced pairing strength was able to realize a lower B_inner than an B_outer. It indicates a possibility of theoretically reproducing the fission barrier estimated experimentally by adjusting the pairing functional. To investigate the configuration dependence of the change of the fission barrier by changing the pairing correlation, we calculated the local level density, which counts the occupation probabilities near the Fermi energy related to the pairing correlation. The changes in the pairing energy on the fission path correspond well to the local level density behavior. Therefore, we expect that the internal nuclear structure strongly affects the fission barrier height through the spin-orbit force and pairing correlation.

We will investigate the fission phenomenon using static and dynamic models in future works. Furthermore, we will extend our model to the beyond mean-field models by including the stochastic effects on the initial state caused by temperature and the quantum tunneling penetration. To realize the extension of the theory, we will need to combine models which can treat different time-scale.

Data availability statement

The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.

Author contributions

KF, SE, and SC contributed to the conception and design of the study. KF, TI, and CI designed the proceed of the study and sections of the manuscript. KF and SE wrote the first draft of the manuscript. All authors contributed to manuscript revision and read and approved the submitted version.

Funding

This work was supported by Leading Initiative for Excellent Young Researchers, MEXT, Japan, and by Japan Society for the Promotion of Science (JSPS) KAKENHI Grant Number JP20K03943.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
