The transverse momentum distributions of deuterons and anti-deuterons in Au + Au collisions at
1 Introduction
A great opportunity to explore the properties of strongly interacting substances at extreme densities and temperatures was provided by heavy-ion collisions (HICs) at ultra-relativistic energies [1–5]. More investigation is warranted about the generation mechanism of the particles and fragments in the ultra-relativistic HICs, as it may provide important information on the quantum chromodynamics (QCD) phase transition from quark-gluon plasma (QGP) to hadron gas (HG) [6, 7]. In the past 2 decades, many experiments have been carried out at the Relativistic Heavy Ion Collider (RHIC) near the critical energy for the transition from hadronic matter to QGP [8]. The theoretical studies on the production of particles and anti-particles are been going on for years, for example, the coalescence model, thermal model and transport models [9–21]. In particular, the study of transport phenomena is very important for understanding many fundamental properties [22, 23]. The transverse momentum spectrum of particles produced in high-energy collisions is of great research value because it can provide us with key information about the dynamic freezing state of the interacting system [24]. In the dynamic freezing stage, the effective temperature is not the actual temperature, which describes the sum of the excitation degree of the interacting system and the influence of the lateral flow [25].
The underlying mechanism for the generation of light (anti-) nuclei in relativistic heavy ion collisions is still under investigation. The traditional phase space polymerization method can be widely applied to HICs in large beam energy range [26]. It is of great significance to study deuteron generation at RHIC energy using the traditional coalescence model. In addition, there is a strong correlation between the particle’s coordinates and momentum, and this correlation varies over time. Therefore, the time evolution of the parameter set (R0, P0) needs to be scanned within a reasonable range so that the coalescence process produces the same yield [26]. From these experiments, the effect of coalescent parameters on the (anti-)deuteron and its transverse momentum distribution can be observed. The inverse law correlation between R0 and P0 should be described in detail in the third section.
In this paper, the Ultra-relativistic Quantum Molecular Dynamics (UrQMD) transport model is adopted to produce the transverse momentum distributions of (anti-)deuterons in Au + Au collisions at
2 Ultra-relativistic quantum molecular dynamics transport model and the coalescence model
2.1 The UrQMD model
The UrQMD model is a microscopic multi-body transport method that can be used to study proton-proton (pp), proton-nucleus (pA) and nucleon-nucleus (AA) interactions in the energy range from SIS to LHC. The transport model is based on covariant propagation of color strings, constituent quarks, and double quarks (as string ends) with meson and baryon degrees of freedom [28]. It can combine different reaction mechanisms and give theoretical simulation results of various experimental observations. In this model, by introducing the formation time of hadrons produced by string fragments, the degree of freedom of subhadrons is entered [29–31]. They predominate in the early stages of heavy ion collisions (HICs) with high SPS and RHIC energies.
The UrQMD model and quantum molecular dynamics (QMD) model are based on the parallel principle: hadrons are represented by Gaussian wave packets in phase space, and the phase space of hadrons propagates according to Hamiltonian equations of motion [32],
Here,
This microscopic transport approach simulates multiple interactions of in-going and newly produced particles, the excitation and fragmentation of color strings and the formation and decay of hadronic resonances. For higher energies, the treatment of subhadronic degrees of freedom is very important. In the current model, these degrees of freedom enter by introducing the formation time of hadrons produced by string fragments. The phase transition to the quark-gluon state is not explicitly incorporated into the model dynamics. However, a detailed analysis of the model in equilibrium state gives an effective Hagedorn type equation of state [33].
In this paper, we mainly study the effect of the correlations between coordinate and momentum spaces on the yields and the transverse momentum distribution of deuteron and anti-deuteron with the cascade mode in the RHIC energy region. In the nextwork, we will focus on the influence of potential on production of light particles in this energy region.
2.2 The coalescence model
The coalescence model describes the formation of hadronic clusters in the kinetic freeze-out stage of a heavy-ion collision. A pair of final (anti-) nucleons with similar momentum can merge to form a deuteron or anti-deuteron with total momentum P [34]. In the calculation, we use a conventional phase space clustering model [35] to construct clusters, in which hadrons with relative distances less than R0 and relative momentum less than P0 are considered to belong to a cluster. As a rule of thumb, the parameter set (R0, P0) can be selected in the range of (3-4 fm, 0.25–0.35 GeV/c) to describe the experimental data of HICs [26]. In this article, we will investigate the effects of different set of R0 and P0 on the yield of (anti-)deuteron over the evolutional time.
3 Time evolution and transverse momentum distributions of the production of (Anti-)deuterons
3.1 The time evolution of (anti-)deuterons
The time dependence of the production of (anti-)deuterons in the mid-rapidity (|y| < 0.3) for 0, −,10% centrality should be considered since they might be produced by different mechanisms. The time evolution of the yield of (anti-)deuterons at

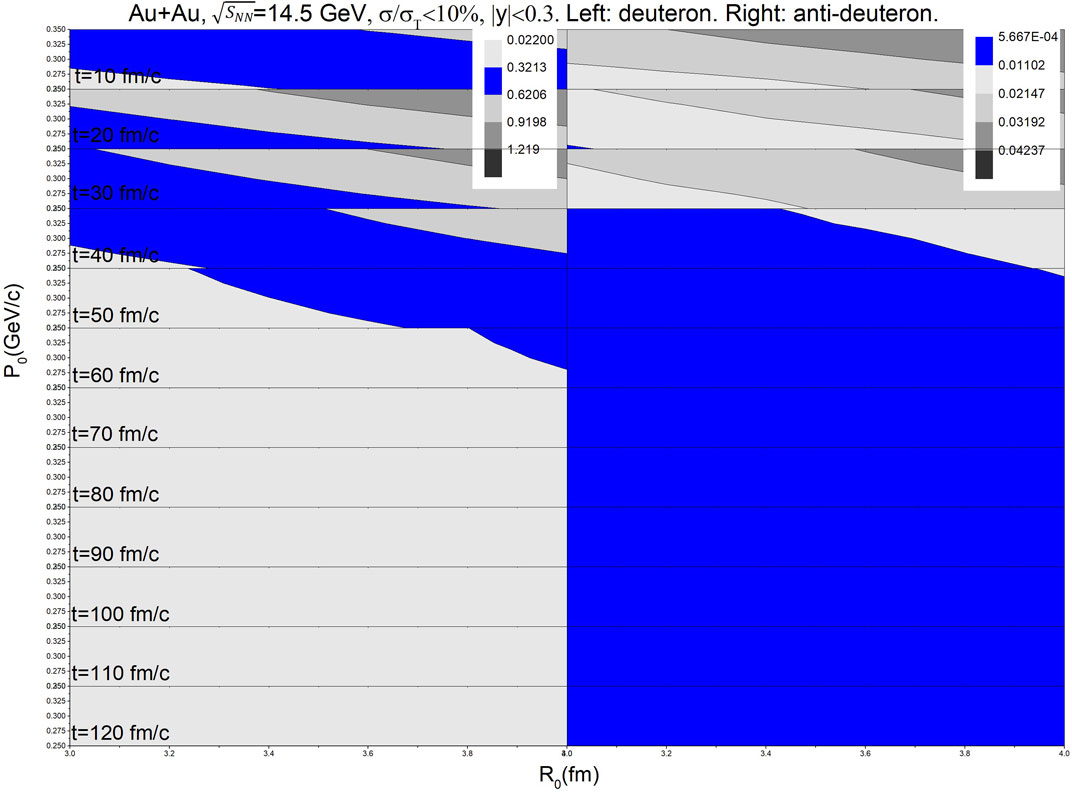

FIGURE 1. Time evolution of R0-P0 contour plots of (anti-)deuteron from the central Au + Au collisions at

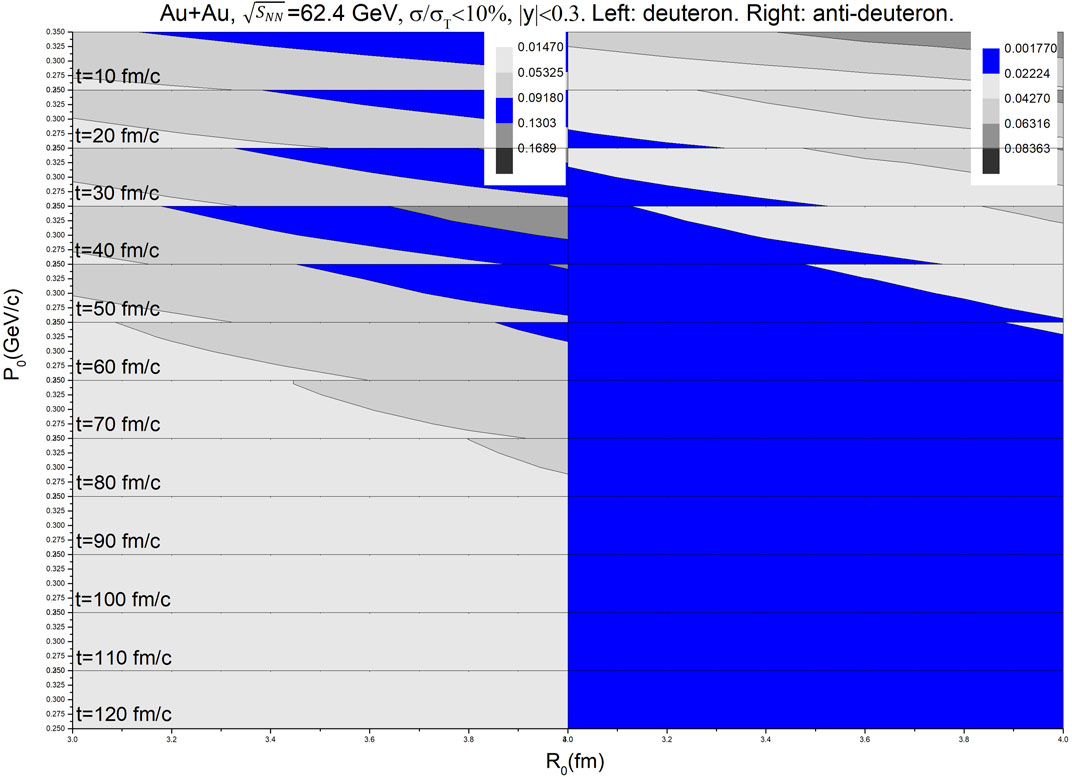

FIGURE 2. Time evolution of R0-P0 contour plots of (anti-)deuteron from the central Au + Au collisions at

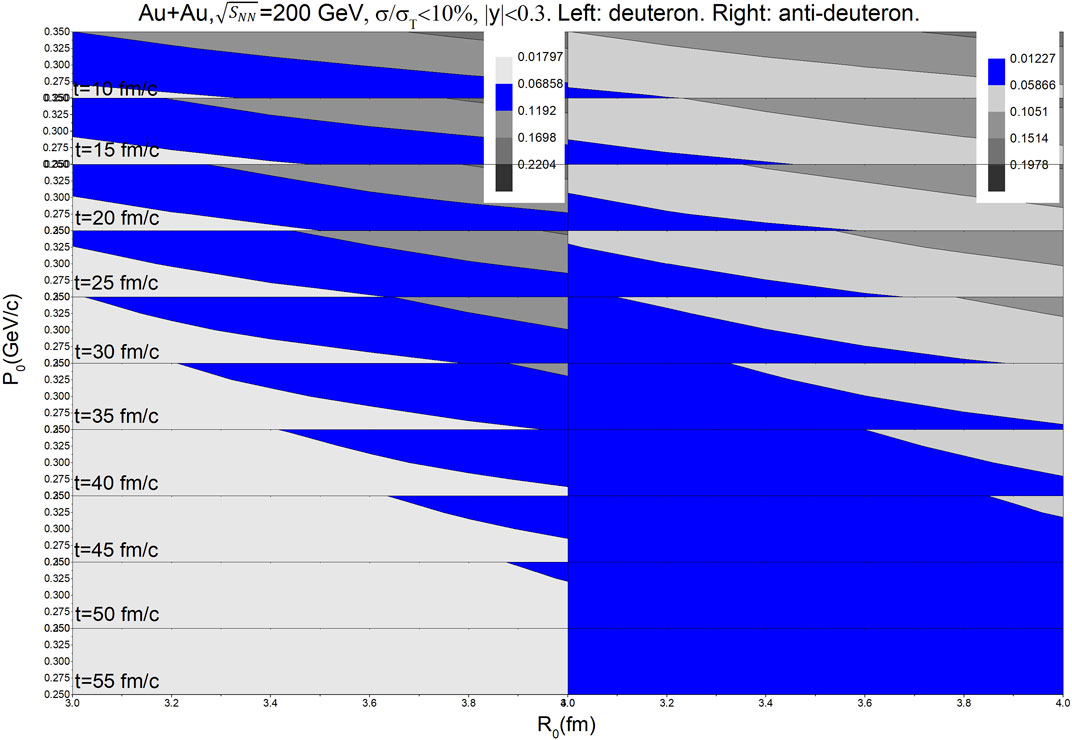

FIGURE 3. Time evolution of R0-P0 contour plots of (anti-)deuteron from the central Au + Au collisions at
Figure 4 show the yields of (anti-)deuterons as the time evolution in the 0, −,10% centrality Au + Au collisions at

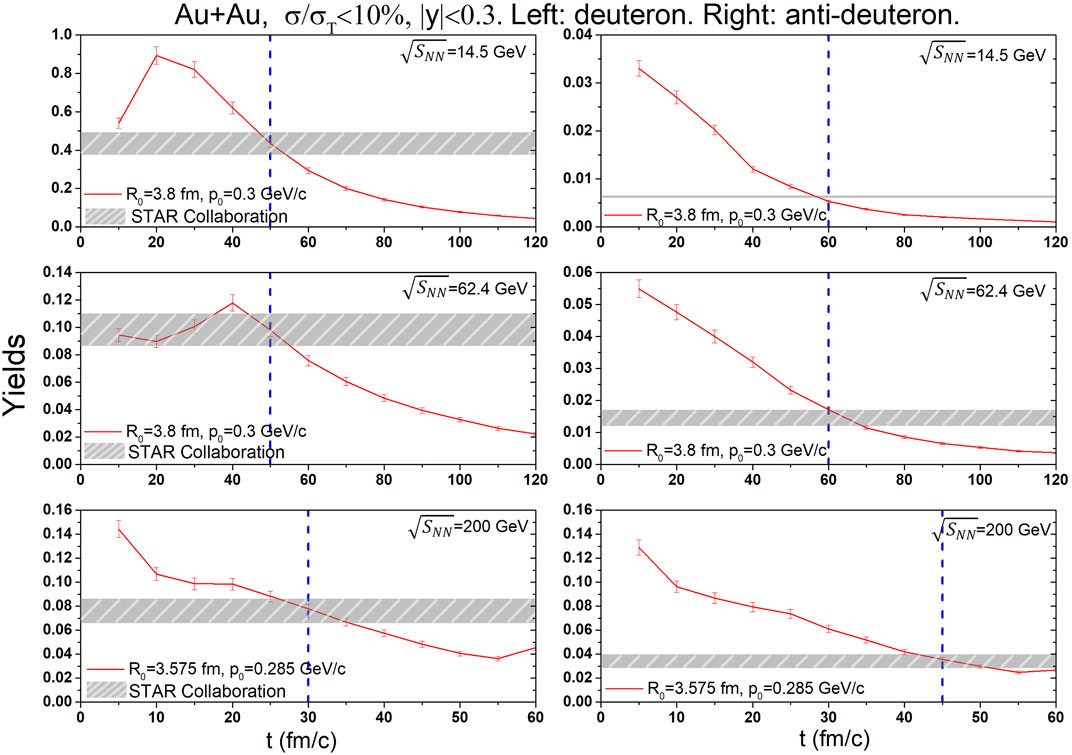

FIGURE 4. The yields of (anti-)deuterons as the time evolution in Au + Au collisions at
The scanning of R0 and P0 located in the colored regions of Figure 1, Figure 2 and Figure 3 is useful because they are reliable in the (anti-) deuteron data description of the mid-rapidity region. It is clear that the (anti-)deuteron production rate of RHIC can be well described by the cooperative method of UrQMD + coalescence if the UrQMD stop times are properly combined and the parameter set of (R0, P0) in the coalescence is chosen.
3.2 Transverse momentum distributions of (anti-)deuterons
Figures 5–7 show the transverse momentum spectra for deuterons at mid-rapidity (|y| < 0.3) in Au + Au collisions at

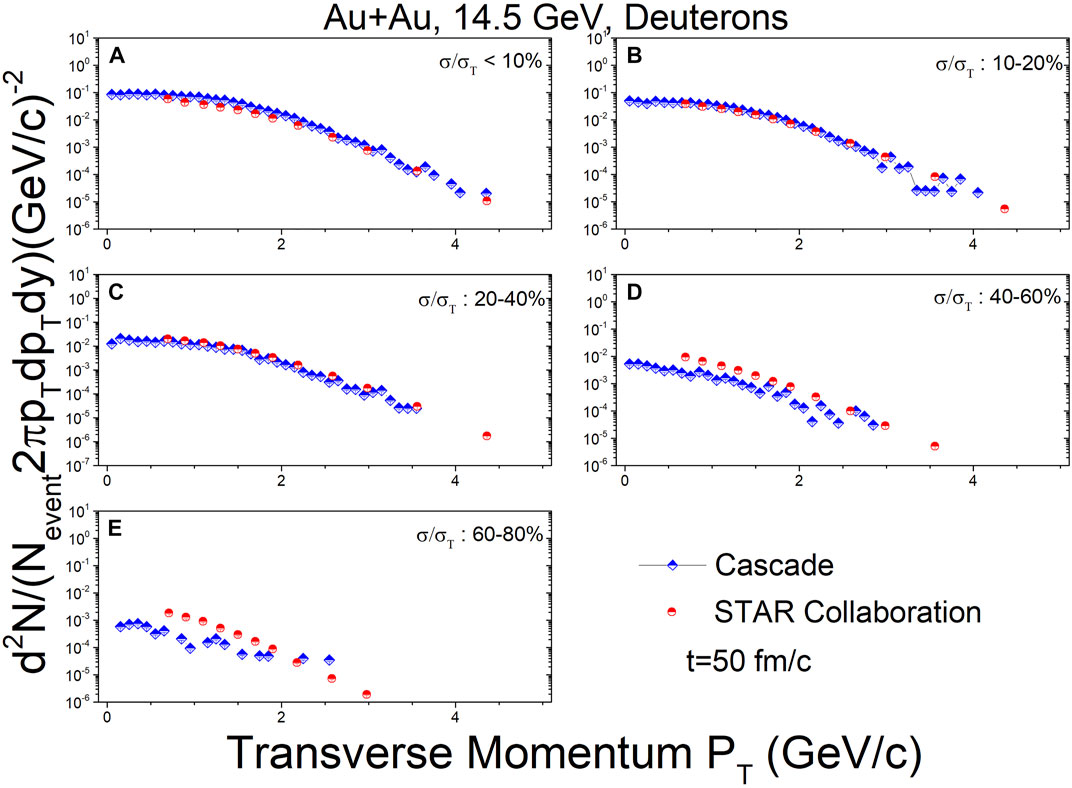

FIGURE 5. In the

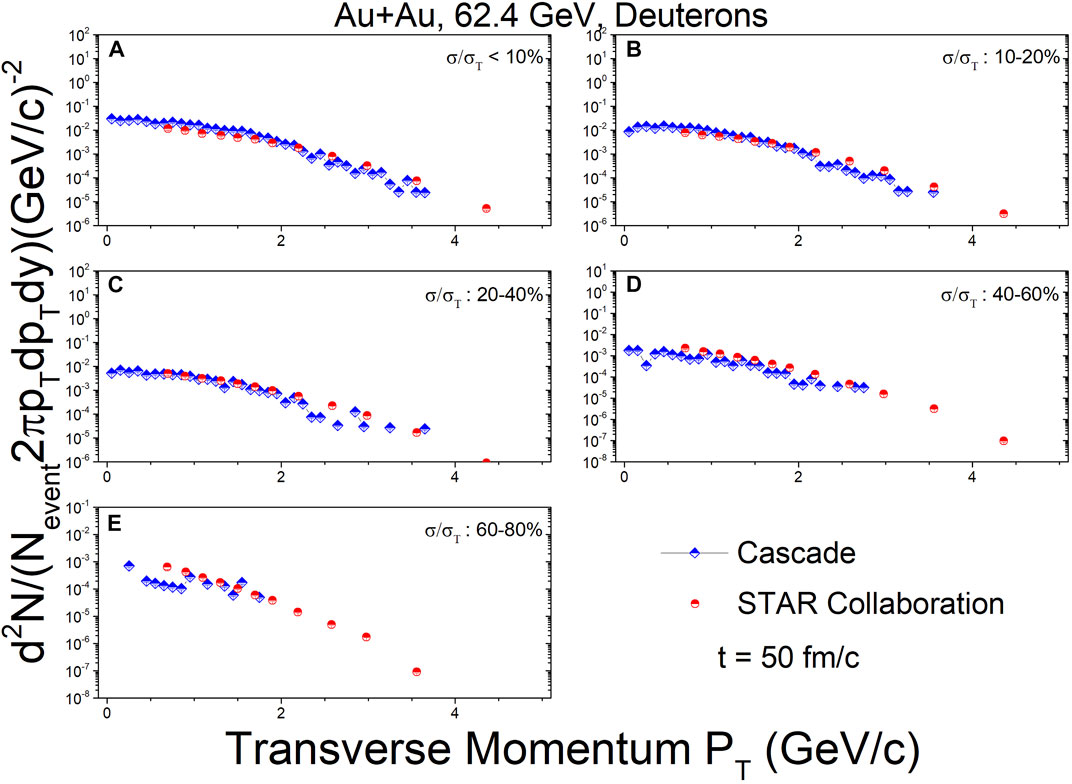

FIGURE 6. In the

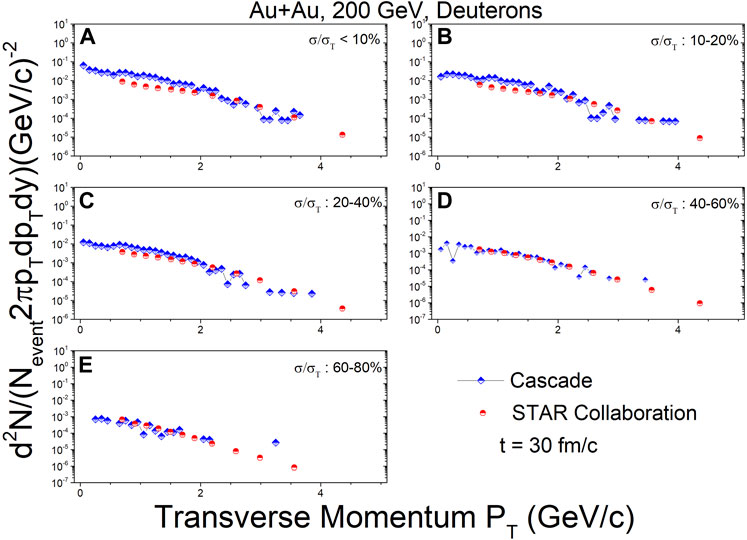

FIGURE 7. In the
Figures 8–10 show the transverse momentum spectra for anti-deuterons at mid-rapidity (|y| < 0.3) in Au + Au collisions at

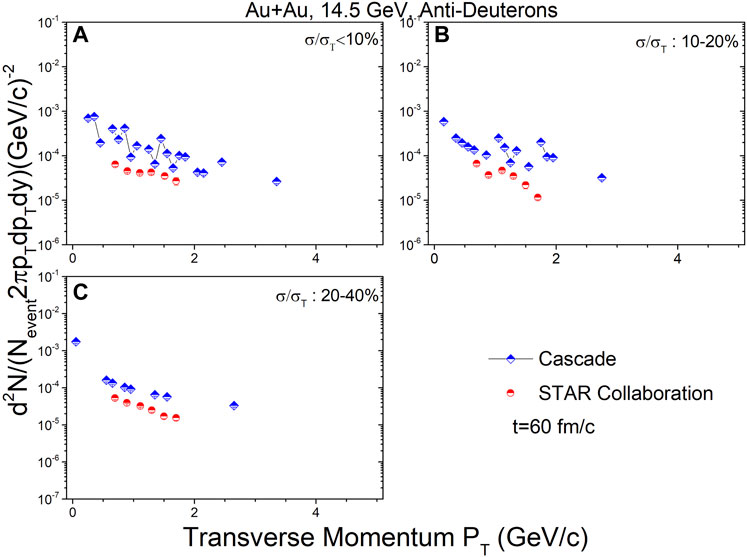

FIGURE 8. In the

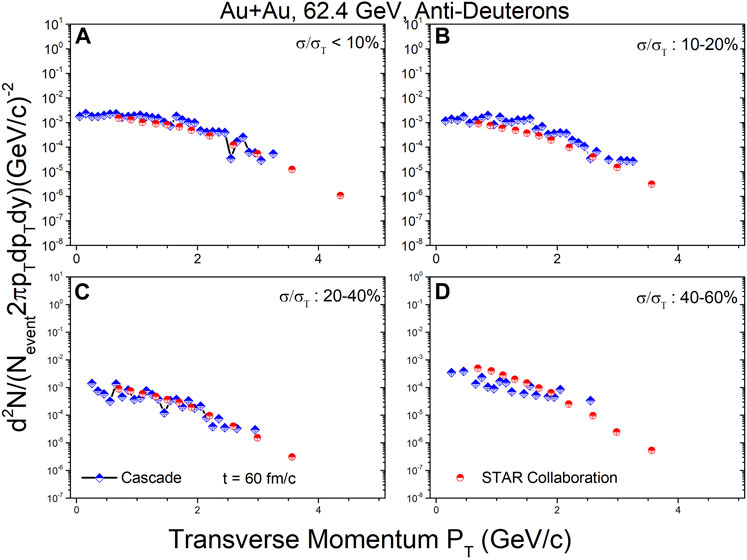

FIGURE 9. In the

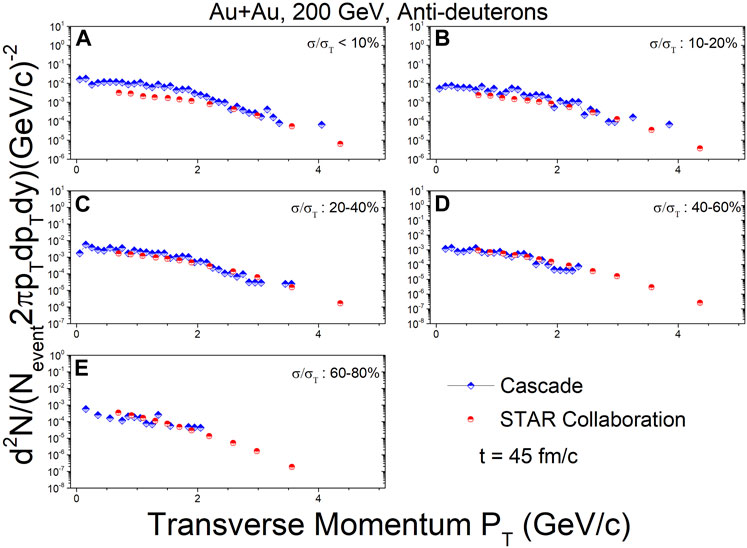

FIGURE 10. In the
4 Summary and outlook
In conclusion, we give the time evolution of the (anti-) deuteron in 0, −,10% center Au + Au collisions at
Data availability statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding authors.
Author contributions
Conceptualization, XZ; formal analysis, ZH; writing—original draft, YY; writing—review editing, XW.
Funding
This work was supported by the Natural Science Foundation of Guangxi Zhuangzu Autonomous Region of China under Grant Nos. 2021GXNSFAA196052, the Introduction of Doctoral Starting Funds of Scientific Research of Guangxi University of Chinese Medicine under Grant Nos. 2018BS024, and the Open Project of Guangxi Key Laboratory of Nuclear Physics and Nuclear Technology, No. NLK2020-03.
Acknowledgments
We are grateful to the C3S2 computing center in Huzhou University for calculation support. We thank Qingfeng Li and Pengcheng Li for valuable suggestions.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
