Tunable Single-Photon Scattering of a Giant Λ-type Atom in a SQUID-Chain Waveguide

We study single-photon scattering of an artificial giant Λ-type atom coupled to a superconducting quantum interference device (SQUID) chains waveguide at two points. In this circuit, the single-photon scattering rates are dependent on the atom-waveguide coupling strengths and the phase accumulated between two coupling points. By modulating the flux-dependent phase velocity in the SQUID-chain waveguide, the photon’s traveling time is changed, and the accumulating phase is adjusted simultaneously. We investigate the relationship between the scattering effect and the flux bias, which allows us to explore novel phenomena with the tunable traveling time in both Markovian and non-Markovian regimes, and to design novel quantum technologies such as quantum storage.

1 Introduction

In the last decades, research on superconducting quantum circuits has gone far forwards [1,2]. The superconducting quantum circuit is blessed with scalability, integrability, and flexibility interacting with other systems, making it a prospective platform for carrying on the quantum information and quantum compution missions [3-5]. The superconducting qubit can play a role as an artificial atom and then strongly coupled to microwave photons in circuit quantum electrodynamics (cQED) [6-17]. One can make the artificial atom’s scale comparable to wavelengths so that it goes beyond the dipole approximation [18]. Moreover, the artificial atoms can also couple with the field confined in a waveguide at several points, which behave as a giant atom [18]. In recent years, a giant atom system has been experimentally realized for the first time in an acoustic system, where a superconducting qubit coupled to a surface acoustic wave (SAW) via an interdigital transducer acts as a giant atom [19,20], the photonic version following [21,22]. In such giant atom systems, many striking effects were discovered [18]. For example, strongly frequency-dependent coupling between giant atoms and bosonic modes can be designed for realizing interference effects [23-26] between coupling points, which enables electromagnetically induced transparency (EIT) in a ladder configuration [27]. When the distance of the coupling points is too large, the Markovian approximation can no longer be applied to the whole system. The so-called non-Markovian effect [28] induced by the non-negligible travel time can cause some novel phenomena in giant-atom systems [29], such as non-exponential decay [30] and bound state in a continuum [31,32].

Waveguide quantum electrodynamics (wQED) [33] studies the interaction between an atom and continuum of electromagnetic modes confined in a 1D waveguide. WQED uses the transmission and reflection spectrum of the incident field to reveal the dynamics of the whole system and supports a theoretical basis for quantum networks. Because of recent experimental advances on giant atoms [19,20], wQED setups based on giant atoms have attracted considerable attention. For example, Ref. [34] proposed a decoherence-free waveguide with multiple giant atoms. In addition, an effective single-photon frequency conversion rate via a giant Λ-type atom can approach a unit combining with the Sagnac interferometer [35]. Compared to the two-level atom, the Λ-type three-level atom has two transition paths, which provide additional tunable spaces. Meanwhile, the circuit Λ-type atom has been demonstrated good tunability in experiments, as shown in Refs [36,37]. The combination of Λ-type atoms and giant atoms could be a promising way for quantum information processing, which will be explored in this paper. Very recently, Ref. [32] proposed tunable chiral bound states in a system composed of superconducting giant atoms and a Josephson photonic-crystal waveguide [38-42].

In this paper, we present a circuit giant Λ-type atom couples to the SQUID-chain waveguide. In contrast to previous works with a fixed length between two coupling points, we replace a typical SQUID-chain waveguide instead of a standard transmission line and achieve the in-situ tunability of traveling time. This tunability stems from the flux-dependent phase velocity of the SQUID-chain waveguide. By studying single-photon scattering in this system, we can understand the unique dynamics of the giant atom. Then, the tunable group velocity of this particular waveguide can be utilized to realize the tunable scattering rate. Furthermore, taking advantage of the tunability of this circuit, we explore the novel physical phenomena from Markovian to non-Markovian regimes and propose a promising protocol to store quantum information.

The paper is structured as follows. We begin in Section 2 with a brief introduction of the Hamiltonian of the whole system before turning to the detailed calculation of the single-photon process in the SQUID-chain waveguide in Section 3. Then, distinguishing scattering properties of this system from Markovian to Non-Markovian regimes and an application in quantum storage are discussed in Section 4. At last, we end with a conclusion in Section 5.

2 Model

We consider a giant Λ-type atom interacting with a 1D waveguide at two coupling points, as depicted in Figure 1. The Hamiltonian H is defined as

$H=H_a+H_w+H_{\text{int}},(1)$

where $H_a=\hslash {\sum }_{i=a,b,c}{\omega }_i|i⟩\langle ⟩⟨i|$ is the free Hamiltonian of the Λ-type atom, where |a⟩, |b⟩ and |c⟩ are the ground, excited and substable states, respectively. Such a Λ-type atom can be experimentally implemented in a circuit QED system, where a flux qubit couples to a coplanar waveguide (CPW) resonator with a resonant driving field [36,37].

FIGURE 1

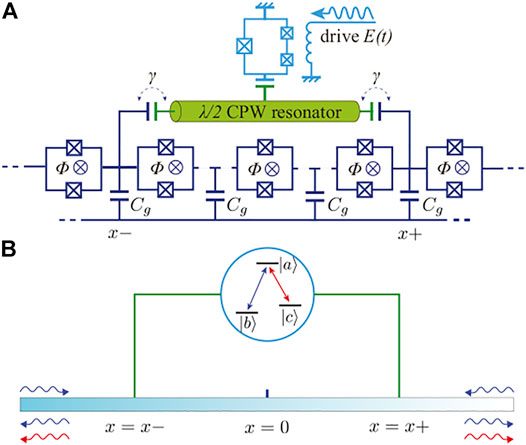

FIGURE 1. (A) Sketch of the circuit, a SQUID-chain waveguide (deep blue) capacitively coupled to a giant atom consisting of a flux qubit and a λ/2 CPW resonator at x_± two points, γ denoting coupling strength. (B) Schematic illustration of the whole system. The giant atom is Λ-type three-level system consisting of exicting state |a⟩, ground state |b⟩ and substable state |c⟩.

H_w describes a bidirectional waveguide where photons propagate equally in two directions. In our setup, the waveguide is a superconducting transmission line composed of identical SQUID loops. The interval between adjacent loops equals d₀, and a homogeneous magnetic field is applied vertically through every SQUID loop. The SQUID loop can be viewed as an effective inductance L_J parallel to the Josephson capacitance C_J. The Hamiltonian of SQUID chains can be quantized as [39]: $H_{sc}={\sum }_k{\omega }_k(a_k^{†}{a}_k+1/2)$, where $a_k(a_k^{†})$ is the annihilation (creation) operator of mode k. And the SQUID-chain waveguide has a dispersion relation form [32]:

${\omega }_k=\frac{1}{\sqrt{L_J{C}_g}}\sqrt{\frac{1-\cos \left(k{d}_0\right)}{C_J/C_g\left[1-\cos \left(k{d}_0\right)\right]+\frac{1}{2}}}.(2)$

For the effective inductance of SQUID, L_J is flux dependent, the photon’s group velocity v_g = dω/dk in the waveguide is, therefore, a tunable parameter. Assuming the waveguide length L → ∞, we obtain the continuum form of the Hamiltonian

$H_w=\int \hslash {\omega }_k{a}_{{\omega }_k}^{†}{a}_{{\omega }_k}d{\omega }_k.(3)$

H_int represents the coupling of two circuit systems and has the form, $H_{\text{int}}\propto \sqrt{{\tilde{\kappa }}_{ij}^{\pm }/2\pi }({\tilde{\sigma }}_{ij}{a}_k{e}^{ik{x}_{\pm }}+a_k^{†}{\tilde{\sigma }}_{ji}{e}^{-ik{x}_{\pm }})$, where ${\tilde{\sigma }}_{ij}=|i\rangle \langle j|$ is the transition operator of atom, and ${\tilde{\kappa }}_{ij}^{\pm }=\kappa |\langle i|a^{†}|j\rangle {|}^2$ denote the coupling strengths between the circuit Λ-type atom and the SQUID-chain waveguide, with κ being the decay rate of the resonator through two gate capacitances $C_J^{g_{\pm }}$ at two points x_± (details in Appendix A).

Although the whole system may reach the non-Markovian regime originating from two distant coupling points, the Markovian approximation is still valid at each local coupling point x_±. Consequently, the total Hamiltonian for the whole system can be written as

$\begin{array}{ll}\hfill H& =\hslash \sum _{i=a,b,c}{\omega }_i|i⟩⟩⟨\langle i|+\sum _{\alpha =\mathrm{1,2}}\int \hslash {\omega }_p{a}_{\alpha {\omega }_p}^{†}{a}_{\alpha {\omega }_p}d{\omega }_p\hfill \\ \hfill & +\sum _{\alpha =\mathrm{1,2}}\int \hslash \sqrt{\frac{{\gamma }_1}{4\pi }}\left[|b⟩⟩⟨\langle a|a_{\alpha {\omega }_k}^{†}\left(e^{-i{c}_{\alpha }{k}_{k}L/2}+e^{i{c}_{\alpha }{k}_{k}L/2}\right)\right.\hfill \\ \hfill & \left.+\mathrm{H}.\mathrm{c}.\right]d{\omega }_k+\sum _{\alpha =\mathrm{1,2}}\int \hslash \sqrt{\frac{{\gamma }_2}{4\pi }}\left[|c⟩⟩⟨\langle a|a_{\alpha {\omega }_q}^{†}\left(e^{-i{c}_{\alpha }{k}_{q}L/2}\right.\right.\hfill \\ \hfill & \left.\left.+e^{i{c}_{\alpha }{k}_{q}L/2}\right)+\mathrm{H}.\mathrm{c}.\right]d{\omega }_q.\hfill \end{array}(4)$

The terms on the right-hand side of the first line are the atom and field modes free energy, where |i⟩ and ω_i are the eigenstates of the atomic system and their energies, respectively. $a_{\alpha {\omega }_p}$ are photon field operators for the right (α = 1) and left-propagating (α = 2) photons, satisfying $[a_{\alpha {\omega }_p},a_{{\alpha }^{\prime }{\omega }_p^{\prime }}^{†}]={\delta }_{\alpha {\alpha }^{\prime }}\delta ({\omega }_p-{\omega }_p^{\prime })$, where ω_p represent the frequency of the mode. k_p is the wave vector corresponding to ω_p, satisfying ω_p = k_pv_g. The coupling terms in the last three lines have involved the phase difference between two coupling points at positions x_± = ±L/2. γ_i denote the radiative decay rates for two transition paths of the Λ-type level configuration, and they also represent the coupling strength, which is approximated as constants here over the relevant frequency range in the spirit of Weisskopf–Wigner theory.

3 Single-Photon Process in SQUID-Chain Waveguides

3.1 Dynamics of the Giant Atom

Firstly, the motion equations of the giant atom limited in the single-photon subspace can be studied by using the similar method introduced in Ref [29]. The total state of a Λ-type giant atom and the microwave field in the waveguide can be described by

$\begin{array}{ll}\hfill |\mathrm{\Phi }\left(t\right)\rangle & =C_a\left(t\right)|a,0\rangle +\sum _{\alpha =\mathrm{1,2}}\int d{\omega }_k{C}_{b\alpha k}\left(t\right)|b,1_k\rangle \hfill \\ \hfill & +\sum _{\alpha =\mathrm{1,2}}\int d{\omega }_q{C}_{c\alpha q}\left(t\right)|c,1_q\rangle ,\hfill \end{array}(5)$

where |0⟩ represents the vacuum state of the microwave filed in the SQUID-chain waveguide. The integral terms describe the state of a single photon propagating in the waveguide towards right α = 1 or left α = 2, with the giant atom in the ground state |b⟩ (or substable state |c⟩). Using the Schrödinger equation iℏ∂/∂t|Φ(t)⟩ = H|Φ(t)⟩, we obtain the differential equations for coefficients: C_a(t) being the probability amplitude of the giant atom in exicted state |a⟩, C_b1(2)k and C_c1(2)q denoting the photon spectrums in the transmission line with the giant atom staying in the ground state |b⟩ and the substable state |c⟩, respectively. The time evolution of C_a(t) is then turned to

$\begin{array}{ll}\hfill \frac{d{C}_a\left(t\right)}{dt}& =-i{\omega }_a{C}_a\left(t\right)-{\gamma }_1\left[C_a\left(t\right)\right.\hfill \\ \hfill & \left.+\mathrm{\Theta }\left(t-T\right)e^{-i{\omega }_{b}T}{C}_a\left(t-T\right)\right]-{\gamma }_2\left[C_a\left(t\right)+\mathrm{\Theta }\left(t-T\right)e^{-i{\omega }_{c}T}{C}_a\left(t-T\right)\right]\hfill \\ \hfill & -i\sqrt{\frac{{\gamma }_1{v}_g}{2}}{e}^{-i{\omega }_{b}t}\left[C_{b1}\left(-L/2-v_{g}t,0\right)+C_{b1}\left(L/2-v_{g}t,0\right)\right]\hfill \\ \hfill & -i\sqrt{\frac{{\gamma }_1{v}_g}{2}}{e}^{-i{\omega }_{b}t}\left[C_{b2}\left(-L/2+v_{g}t,0\right)+C_{b2}\left(L/2+v_{g}t,0\right)\right]\hfill \\ \hfill & -i\sqrt{\frac{{\gamma }_2{v}_g}{2}}{e}^{-i{\omega }_{c}t}\left[C_{c1}\left(-L/2-v_{g}t,0\right)+C_{c1}\left(L/2-v_{g}t,0\right)\right]\hfill \\ \hfill & -i\sqrt{\frac{{\gamma }_2{v}_g}{2}}{e}^{-i{\omega }_{c}t}\left[C_{c2}\left(-L/2+v_{g}t,0\right)+C_{c2}\left(L/2+v_{g}t,0\right)\right].\hfill \end{array}(6)$

The first term denotes free evolution. The following two terms show the atom relaxing process with γ_1,2 and feedback effect with C_a (t − T), where T = L/v_g is the delay time. Here, Θ(•) is the Heaviside step function showing the time-delay feedback between the coupling points. We introduced the notion $C_{b1(2)}(x,t)=\frac{1}{\sqrt{2\pi v_g}}\int d{\omega }_k{e}^{\pm i{\omega }_{k}x/v_g}{C}_{b1(2)k}(t)$ for describing photon distribution and time evolution. Then, the remaining four terms imply that the incident photon in both directions can excite the giant atom.

C_a(t) can be analytically solved and finally has the spectrum form expansion (details in Appendix A)

$\begin{array}{ll}\hfill C_a\left(t\right)& =\frac{1}{2\pi i}{\int }_{ϵ-i\infty }^{ϵ+i\infty }{C}_a\left(s\right)e^{st}ds\hfill \\ \hfill & =\frac{1}{2\pi i}\int ds\frac{C_a\left(0\right)e^{st}}{s+i{\omega }_a+{\gamma }_1{D}_1+{\gamma }_2{D}_2}\hfill \\ \hfill & -i\sqrt{\frac{{\gamma }_1}{4\pi }}\int ds\frac{C_{bs}\left(0\right)\left(e^{sT/2}+e^{-sT/2}\right)e^{st}{e}^{-i{\omega }_{b}t}}{s+i{\omega }_a+{\gamma }_1{D}_1+{\gamma }_2{D}_2}\hfill \\ \hfill & -i\sqrt{\frac{{\gamma }_2}{4\pi }}\int ds\frac{C_{cs}\left(0\right)\left(e^{sT/2}+e^{-sT/2}\right)e^{st}{e}^{-i{\omega }_{c}t}}{s+i{\omega }_a+{\gamma }_1{D}_1+{\gamma }_2{D}_2},\hfill \end{array}(7)$

where $D_{1(2)}=1+e^{-i{\omega }_{b(c)}T}{e}^{-sT}$ is the additional phase of the decay rate γ₁₍₂₎ due to the time-delay feedback effect. Here, we introduce the notations C_bs (0) = C_b1s (0) + C_b2s (0) and C_cs(0) = C_c1s (0) + C_c1s (0), denoting the initial photon of frequency ω_s in the waveguide incident from both direction.

3.2 Single-Photon Scattering

To study scattering properties of the giant atom, we set a right-propagating photon incident into the waveguide, whose frequency is centered at ω_k (C_b1k0 ≠ 0), with the giant atom initially being in the ground state. The dynamical evolution equation of the giant atom is then derived from Eq. 7,

$C_a\left(t\right)=-i\sqrt{\frac{{\gamma }_1}{4\pi }}\int ds\frac{C_{b1s}\left(0\right)\left(e^{sT/2}+e^{-sT/2}\right)e^{st}{e}^{-i{\omega }_{b}t}}{s+i{\omega }_a+{\gamma }_1{D}_1+{\gamma }_2{D}_2}.(8)$

In the long-time limit, the emission spectrum of outgoing photons can be obtained (details in Appendix B):

$C_{b1k}\left(\infty \right)=e^{-i{\omega }_{k}t}{C}_{b1k}\left(0\right)\left[1-\frac{{\gamma }_1\left[1+\cos \left({\omega }_{k}T\right)\right]}{i\left({\omega }_a-{\omega }_k\right)+{\gamma }_1\left(1+e^{i{\omega }_{k}T}\right)+{\gamma }_2\left(1+e^{i{\omega }_{q}T}\right)}\right],(9)$

$C_{b2k}\left(\infty \right)=e^{-i{\omega }_{k}t}{C}_{b1k}\left(0\right)\frac{-{\gamma }_1\left[1+\cos \left({\omega }_{k}T\right)\right]}{i\left({\omega }_a-{\omega }_k\right)+{\gamma }_1\left(1+e^{i{\omega }_{k}T}\right)+{\gamma }_2\left(1+e^{i{\omega }_{q}T}\right)},(10)$

$C_{c1q}\left(\infty \right)=e^{-i{\omega }_{k}t}{C}_{b1k}\left(0\right)\frac{-2\sqrt{{\gamma }_1{\gamma }_2}\cos \left({\omega }_{q}T/2\right)\cos \left({\omega }_{k}T/2\right)}{i\left({\omega }_a-{\omega }_k\right)+{\gamma }_1\left(1+e^{i{\omega }_{k}T}\right)+{\gamma }_2\left(1+e^{i{\omega }_{q}T}\right)},(11)$

where the ground state energy is set to zero ω_b = 0 with variable substitution ω_k = ω_q + ω_c. Then, we obtain the transmission rate T_k, the reflection rate R_k, and the forward conversion rate T_q,

$T_k=|\frac{C_{b1k}\left(\infty \right)}{C_{b1k}\left(0\right)}{|}^2=\frac{{\left({\omega }_k-{\omega }_a-{\gamma }_1\sin \left({\omega }_{k}T\right)-{\gamma }_2\sin \left({\omega }_{q}T\right)\right)}^2+{\gamma }_2^2{\left(1+\cos \left({\omega }_{q}T\right)\right)}^2}{{\left({\omega }_k-{\omega }_a-{\gamma }_1\sin \left({\omega }_{k}T\right)-{\gamma }_2\sin \left({\omega }_{q}T\right)\right)}^2+{\left[{\gamma }_1\left(1+\cos \left({\omega }_{k}T\right)\right)+{\gamma }_2\left(1+\cos \left({\omega }_{q}T\right)\right)\right]}^2},(12)$

$R_k=|\frac{C_{b2k}\left(\infty \right)}{C_{b1k}\left(0\right)}{|}^2=\frac{{\gamma }_1^2{\left(1+\cos \left({\omega }_{k}T\right)\right)}^2}{{\left({\omega }_k-{\omega }_a-{\gamma }_1\sin \left({\omega }_{k}T\right)-{\gamma }_2\sin \left({\omega }_{q}T\right)\right)}^2+{\left[{\gamma }_1\left(1+\cos \left({\omega }_{k}T\right)\right)+{\gamma }_2\left(1+\cos \left({\omega }_{q}T\right)\right)\right]}^2},(13)$

$T_q=|\frac{C_{c1q}\left(\infty \right)}{C_{b1k}\left(0\right)}{|}^2=\frac{4{\gamma }_1{\gamma }_2{\cos }^2\left({\omega }_{k}T/2\right){\cos }^2\left({\omega }_{q}T/2\right)}{{\left({\omega }_k-{\omega }_a-{\gamma }_1\sin \left({\omega }_{k}T\right)-{\gamma }_2\sin \left({\omega }_{q}T\right)\right)}^2+{\left[{\gamma }_1\left(1+\cos \left({\omega }_{k}T\right)\right)+{\gamma }_2\left(1+\cos \left({\omega }_{q}T\right)\right)\right]}^2}.(14)$

In contrast to small atoms, Eqs 12–14 imply that the giant atom has the corrected transition frequency Ω_a = ω_a + γ₁ sin(ω_kT) + γ₂ sin(ω_qT) and decay rate Γ₁₍₂₎ = γ₁₍₂₎(1 + cos(ω_k(q)T)) [43]. From Eq. 13, the conditions for total reflection, R_k = 1, can be obtained directly

$\begin{array}{ll}\hfill {\omega }_a-{\omega }_k+{\gamma }_1\sin \left({\omega }_{k}T\right)+{\gamma }_2\sin \left({\omega }_{q}T\right)& =0,\hfill \\ \hfill {\gamma }_2\left[1+\cos \left({\omega }_{q}T\right)\right]& =0.\hfill \end{array}(15)$

There are two ways to make the second condition satisfied. One is γ₂ = 0, which means the transition path |a⟩ → |c⟩ directly turned off. The other one is ω_qT = 2 (n + 1)π, which infers that the decay channel of |a⟩ → |c⟩ is suppressed by the destructive interference between coupling points [35]. Either of these two cases can cause that the Λ configuration atom could be reduced to a simple two-level atom. However, the first solution is trivial and will not be considered in our case. Then the two conditions in Eq. 15 can be rewritten as ω_k − ω_a = γ₁ sin (ω_cT) and ω_qT = 2 (n + 1)π. Here, we introduce the detuning, Δ = ω_k − ω_a, of the incident photon from the |a⟩ − |b⟩ transition. The total reflection conditions are written as Δ = γ₁ sin (ω_cT) and Δ = ω_c − ω_a + 2 (n + 1)π/T.

While the total transmission, T_k = 1 and R_k = T_q = 0, happens in the case of ω_kT = (2n + 1)π, no matter with ω_cT. Because of the nondirectional decay process of the excited atom, the forward nonelastic scattering photon strength is equal to the backward one. Thus, it is reasonable to set the frequency conversion rate to be twice the forward conversion rate, T_c = 2T_q. The fundamental source affecting the conversion rate is the ratio of the decay rates, i.e., γ₁/γ₂. For simplicity, we set γ₁/γ₂ = 1 and use γ regardless of the subscript in the context.

In Figure 2, we plot the scattering rates as the function of the scaled detuning Δ/γ and the scaled substable level frequency ω_c/γ, for ω_aT = 2000π, where ω_a/γ = 10,000 and T = 0.2π/γ. Figure 2A,B depict the reflection rates for the Markovian (γT = 0.2π) and non-Markovian (γT = 3π) regimes, respectively. Compared with Figure 2A,B shows two different features. First, there are additional small peaks at two sides of the primary maximum for the certain ω_c. Second, the frequency band of the total reflection is broadened. The giant atom can provide a wide spectrum window for the strong reflection in the non-Markovian regime. Figure 2C,D represent the single-photon transmittance and the frequency conversion rate, respectively, of the giant atom in the Markovian regime.

FIGURE 2

FIGURE 2. Scattering rates. (A), (C) and (D) depict the reflectance, transmittance, and frequency conversion rate of the incident ω_k photon, respectively, as a function of the normalized detuning Δ/γ and the substable state frequency ω_c/γ for γT = 0.2π. (B) shows the reflectance for γT = 3π. The white dashed curves in the colormaps depict trajectories of max [R_k(Δ)], min [T_k(Δ)], and max [T_c(Δ)] versus ω_c/γ, respectively, while the right plots show the maximum or minimun value of the corresponding rate versus ω_c/γ.

3.3 Tunable Traveling Time T

Based on the above investigation, it is clear that the single-photon scattering effect of the Λ-type giant atom is intensely affected by the two crucial phases, ω_kT and ω_cT. These phases are dependent on the atom’s energy level structure and the coupling points separation distance. Therefore, it is intuitive to control the spatial length between the coupling points for coherently tuning the phase. However, the spatial length is fixed once the circuit sample is fabricated. Here, we introduce the SQUID-chain transmission line, in which the photon’s phase velocity is flux-dependent. Although the spatial distance of two points in the waveguide is determined, changes in the photon’s phase velocity will change the cost time T for photons traveling between two fixed points, equivalent to the effective length and accumulated phase. Consequently, the effect will affect the dynamical evolution of this Λ-type giant atom as well as the scattering properties.

In addition to infinite length condition L → ∞, if the superconducting transmission line also satisfies following conditions [32]:

$d_0\ll {\lambda }_k\ll L,k\ll \frac{1}{d_0}\sqrt{\frac{C_g}{C_J}},(16)$

the dispersion relation Eq. 2 can be reduced to

${\omega }_{k0}\simeq \frac{k{d}_0}{\sqrt{L_J{C}_g}}=k{v}_J,(17)$

i.e., the phase velocity is $d_0/\sqrt{L_J{C}_g}$. The effective inductance of the SQUID is controlled by the magnetic field through it. Then the photon’s phase velocity v can be modulated by controlling the field through the SQUID loops

$v=\frac{d_0}{\sqrt{L_J{C}_g}}=\frac{d_0\sqrt{\cos \left(\pi \mathrm{\Phi }/{\mathrm{\Phi }}_0\right)}}{\sqrt{L_0{C}_g}}.(18)$

The change in phase velocity leads to the change of the traveling time of photons propagating between two points, so does the accumulating phase. We set the separation distance of the two coupling points as d = nd₀, i.e., n SQUIDs constituting the waveguide between the coupling points. Then, the traveling time of a photon is

$T=\frac{d}{v}=\frac{n\sqrt{L_0{C}_g}}{\sqrt{\cos \left(\pi \mathrm{\Phi }/{\mathrm{\Phi }}_0\right)}}.(19)$

By modulating the photon’s traveling time between two coupling points, we can explore some interesting applications that will be discussed in Section 4.

3.4 Experimental Feasibility

The linear dispersion relation (17) of the SQUID-chain waveguide is valid over a wide frequency domain ω_k < 10 GHz, when the circuit parameters are taken as [32]; [41,40]: L₀ = 0.2 nH, C_g = 0.4 fF, C_J = 90 fF, d₀ = 1 μm. The transition frequencies of the circuit Λ-type atom can be set to fall within the frequency domain. For example, we can take these parameters: ω_ac/2π = 6.4828 GHz, ω_ab/2π ≈ 6.48452 GHz under a driving field with the frequency ω_d/2π = 5.6466 GHz and the coupling strength Ω_d/2π = 1.46 MHz [37], where ω_ab(c) = ω_a − ω_b(c) is the transition frequency between |a⟩ and |b(c)⟩. The original traveling time now is T₀ ≈ 10^–9 s without the magnetic field. With normal reliable decay rates γ (∼MHz) for the capacitive coupling, we can realize γT changing from the regime of γT ≪ 1 to γT ≈ 1 theoretically. In other words, the whole system can transit to the non-Markovian regime from the Markovian regime gradually. Thus, taking advantage of this setup, we can study novel physical phenomena in both Markovian and Non-Markovian regimes. It also allows fine-grained operations.

4 Discussions

4.1 From Markovian to Non-markovian

For the sake of intuitively seeing the tunable scattering effects, we substitute Eq. 19 into Eq. 12–14 and obtain the relationship between the scattering rates and the flux bias as:

$T_k=\frac{{\left({\omega }_k-{\mathrm{\Omega }}_a\right)}^2+{\mathrm{\Gamma }}_2^2}{{\left({\omega }_k-{\mathrm{\Omega }}_a\right)}^2+{\left({\mathrm{\Gamma }}_1+{\mathrm{\Gamma }}_2\right)}^2},(20)$

$R_k=\frac{{\mathrm{\Gamma }}_1^2}{{\left({\omega }_k-{\mathrm{\Omega }}_a\right)}^2+{\left({\mathrm{\Gamma }}_1+{\mathrm{\Gamma }}_2\right)}^2},(21)$

$T_q=\frac{{\mathrm{\Gamma }}_1{\mathrm{\Gamma }}_2}{{\left({\omega }_k-{\mathrm{\Omega }}_a\right)}^2+{\left({\mathrm{\Gamma }}_1+{\mathrm{\Gamma }}_2\right)}^2},(22)$

where the corrected transition frequency ${\mathrm{\Omega }}_a={\omega }_a+{\gamma }_1\sin (\frac{n{\omega }_k\sqrt{L_0{C}_g}}{\sqrt{\cos (\pi \mathrm{\Phi }/{\mathrm{\Phi }}_0)}})+{\gamma }_2\sin (\frac{n{\omega }_q\sqrt{L_0{C}_g}}{\sqrt{\cos (\pi \mathrm{\Phi }/{\mathrm{\Phi }}_0)}})$ and decay rate ${\mathrm{\Gamma }}_{1(2)}={\gamma }_{1(2)}[1+\cos (\frac{n{\omega }_{k(q)}\sqrt{L_0{C}_g}}{\sqrt{\cos (\pi \mathrm{\Phi }/{\mathrm{\Phi }}_0)}})]$ are the functions of the flux bias. Then we plot the atom’s scattering effect to characterize their relationship.

First, we demonstrate the giant atom’s scattering characteristics R_k, T_k and T_c as the function of the external scaled magnetic flux Φ/Φ₀ and the scaled detuning from the excited state frequency Δ/γ in Figures 3A–C. The decay rates and the energy level structure of the giant atom are set to γ₁ = γ₂ = ω_c/10 = ω_a/10000. The original traveling time of the photon is set as T₀ = 0.001/γ. Figures 3A–C clearly show that the scattering rate is a single value around zero flux. While the flux is increasing, the frequency band of the rates is broadened, as discussed in Section 3.2. Continue to increase magnetic flux approaching 0.5Φ₀, the scattering rates begin violently oscillating, which implies γT > 1 in the non-Markovian regime. Then, the detailed scattering rates of the system near the white dashed line in Figures 3A–C are shown in Figures 3D–F. The shape of scattering rates spreading out like a water wave demonstrates their periodicity, which originates from the cosine function of the magnetic flux. The flux Φ_a along the white dashed line satisfies $T_a=1/\gamma =T_0/\sqrt{\cos (\pi {\mathrm{\Phi }}_a/{\mathrm{\Phi }}_0)}$, while the blue dashed line corresponds to Φ = 0. Therefore, the large region between the two white dashed lines is the parameter space of the Markovian regime, and the remaining edge areas are the parameter space of the non-Markovian regime. From the perspective of Figure 3, the adjustable ranges of the reflection rate and the transmission rate are 0, −,1. The total reflection case only happends in the non-Markovian regime. The frequency conversion rate varies from 0, −,0.5 as the flux changes, which is limited by the ratio of the decay rates.

FIGURE 3

FIGURE 3. Density plots showing the single-photon (A,D) reflection rate R_k (B,E) transmission rate T_k, and (C,F) frequency conversion rate T_c as a function of the detuning Δ/γ and flux Φ/Φ₀. In (A–C), the variation range of Φ is setted to be −0.5Φ₀ ∼ 0.5Φ₀ while (D–F) is −0.04Φ₀ + Φ_a ∼ 0.04Φ₀ + Φ_a with Φ_a satisfying $\gamma T_a=\gamma T_0/\sqrt{\cos (\pi {\mathrm{\Phi }}_a/{\mathrm{\Phi }}_0)}=1$.

Figures 4A–C show the scattering rates R_k, T_k and T_c along the cuts of dashed lines in Figures 3A–C versus the normalized detuning Δ/γ. Here, the red curve describes the scattering rates for γT = 1 (the cut of white dashed lines), and the blue dashed curve describes the scattering rates for γT = 0.001 (the cut of blue dashed lines). The reflection rate and the transmission rate are significantly affected by the traveling time T with the maximum reflection rate increasing and the minimum transmission rate decreasing, respectively, as shown in Figures 4A,B . Apart from the main peak around the zero detuning, some small peaks arise on two sides of the resonance point. In contrast, the peaks of the frequency conversion rates for two cases only exhibit a slight shift, as shown in Figure 4C.

FIGURE 4

FIGURE 4. The scatting process described by the reflectance R_k (A), transmittance T_k (B), and frequency conversion rate T_c (C) versus normalized detuning Δ/γ with γT = 0.001 (dashed bule line) and γT = 1 (solid red line).

Based on the facts presented in Figures 3, 4, we find that the maximum reflection rate in the non-Markovian regime is much bigger than the corresponding rate in the Markovian regime with a narrower peak width. Giant atoms prefer to intensely interact with the photon modes with certain frequencies because these photon modes were selected out in a “cavity” formed by the two coupling points of the artificial giant atom, which acts as resonant mirrors [44].

Distinguishing scattering properties in both Markovian and non-Markovian regimes can serve future quantum technologies. Excitingly, all of these are now implemented by using one setup, in which we only need to change the external magnetic field through the SQUID loops. In addition, our circuit allows observing the transition between these two regimes by only modulating the external field gradually from one to the other.

4.2 Application: Quantum Storage

The tunable traveling time in our Λ-type giant atom can also be used to store quantum information. Because the corrected decay rates Γ_i depend on the phases, we can find an unusual phase ω_cT, with which Γ₂ can reach the maximum value as well as Γ₁ at its minimum value. These tunable decay rates enable one to realize state transition between |b⟩ and |c⟩ in our system. For example, |b⟩ → |a⟩ → |c⟩ transitions can be achieved by switching off the decay Γ₁, when the atom is excited by an incident ω_k photon.

Recalling Eq. 7 with the initial values, C_a (0) = 1, C_bs (0), and C_cs(0) = 0, we obtain the atomic excitation

$C_a\left(t\right)=\frac{1}{2\pi i}\int ds\frac{e^{st}}{s+i{\omega }_a+{\gamma }_1{D}_1+{\gamma }_2{D}_2}.(23)$

The emission spectrum of outgoing photons in the long-time limit is

$C_{b\alpha k}\left(\infty \right)=\frac{e^{-i{\omega }_{k}t}\sqrt{{\gamma }_1/\pi }\cos \left({\omega }_{k}T/2\right)}{i\left({\omega }_a-{\omega }_k\right)+{\gamma }_1\left(1+e^{i{\omega }_{k}T}\right)+{\gamma }_2\left(1+e^{i{\omega }_{q}T}\right)},(24)$

$C_{c\alpha q}\left(\infty \right)=\frac{e^{-i{\omega }_{q}t}\sqrt{{\gamma }_2/\pi }\cos \left({\omega }_{q}T/2\right)}{i\left({\omega }_a-{\omega }_q\right)+{\gamma }_1\left(1+e^{i{\omega }_{k}T}\right)+{\gamma }_2\left(1+e^{i{\omega }_{q}T}\right)}.(25)$

When the phases satisfy the conditions, ω_kT₁ = ω_abT₁ = (2n + 1)π and ω_qT₁ = ω_acT₁ = 2nπ, the resonant photon with frequency ω_ab [C_bαk (∞)] vanishes corresponding to extreme depression of the decay path |a⟩ → |b⟩, while the conversion photon with frequency ω_ac [C_cαq (∞)] reaches the maximum corresponding to the enhancement of the decay from |a⟩ → |c⟩.

Using Residue theorem, we can derive $C_a(t)=L^{-1}[C_a(s)]={\sum }_{n}Res[C_a(s),s_n]e^{s_{n}t}$, where s_n is the root of the equation [29,45].

$s+i{\omega }_a+{\gamma }_1\left(1+e^{-i{\omega }_{b}T}{e}^{-sT}\right)+{\gamma }_2\left(1+e^{-i{\omega }_{c}T}{e}^{-sT}\right)=0.(26)$

Interestingly, when s_n is a purely imaginary number s_n = iω_s, there will be a mode s_n without decay which can survive in the-long time limit. Therefore, we have the stationary solution

$C_a\left(t\to \infty \right)=\frac{e^{-i{\omega }_{s}t}}{1-\left({\gamma }_1{e}^{-i{\omega }_{b}T}+{\gamma }_2{e}^{-i{\omega }_{c}T}\right)T{e}^{-i{\omega }_{s}T}},(27)$

which yields a dark state decoupled with the open transmission line.

If the giant atom is initially prepared in the excited state and the transition frequencies between levels satisfy ω_ac = ω_ab = (2n + 1)π/T, a dark-state mode, s_n = −iω_a, $C_a(t\to \infty )=\frac{e^{-i{\omega }_{a}t}}{1+({\gamma }_1+{\gamma }_2)T}$, exists. The fields in the transmission line have the form as

$\begin{array}{ll}\hfill C_b\left(x,t\right)& =\sqrt{\frac{{\gamma }_1}{2v_g}}{\left(-1\right)}^n{e}^{-i{\omega }_{a}t}2\cos \left(\frac{{\omega }_{ab}x}{v_g}\right)\hfill \\ \hfill & \times \mathrm{\Theta }\left(-x+L/2\right)\mathrm{\Theta }\left(x+L/2\right),\hfill \end{array}(28)$

$\begin{array}{ll}\hfill C_c\left(x,t\right)& =\sqrt{\frac{{\gamma }_2}{2v_g}}{\left(-1\right)}^n{e}^{-i{\omega }_{a}t}2\cos \left(\frac{{\omega }_{ac}x}{v_g}\right)\hfill \\ \hfill & \times \mathrm{\Theta }\left(-x+L/2\right)\mathrm{\Theta }\left(x+L/2\right),\hfill \end{array}(29)$

which are referring to continuum bound states [31,32]; [46,47]. Unlike the bound state protected by the energy gap [48-55], it derives from the destructive interference among the coupling points of the giant atom. Particularly, it can be created and relieved after introducing the adjustable traveling time. This method of preserving quantum information in an atom-waveguide bound state could be widely applied in quantum storage.

5 Conclusion

In this paper, we investigate a driven resonator-qubit giant Λ-type atom coupling to a SQUID-chain waveguide. By studying the scattering effect of individual photons on this giant atomic system, we explore both Markovian and non-Markovian phenomena caused by the interference effect between two coupling points. Due to the adjustable group velocity of the waveguide, the scattering effect of this artificial giant Λ-type atom to the incident microwave photon can show significant variation when we control the external magnetic field applied on SQUID loops in this particular waveguide. This in-situ modulation brings convenience to adjust the transmission of quantum information and provides more possibilities in future quantum technologies. Moreover, this setup can be realized in experiments using current state-of-the-art technologies for superconducting circuits [30]; [21,22]; [56].

6 APPENDIX

6.1 Derivation of the Giant Atom System

6.1.1 Artificial Λ-type Three-Level Atom

The artificial Λ-type giant atom can be realized in the design of the system of Ref. [36] in addition to one more coupling point in the waveguide-CPW resonator interface as shown in Figure 1A. The Hamiltonian of the qubit-resonator system is given by

$\begin{array}{ll}\hfill H_s& =\frac{\hslash }{2}{\omega }_q{\sigma }_z+\hslash {\omega }_r\left(a^{†}a+\frac{1}{2}\right)+\hslash g\left(a^{†}{\sigma }_{-}+a{\sigma }_{+}\right)\hfill \\ \hfill & +\hslash \left[\mathrm{\Omega }{\sigma }_{-}\exp \left(i{\omega }_{d}t\right)+{\mathrm{\Omega }}^{*}{\sigma }_{+}\exp \left(-i{\omega }_{d}t\right)\right],\hfill \end{array}(30)$

where σ_i are the pauli operators of the flux qubit with frequency ω_q. a^†(a) is the creation (annihilation) operator of the resonator ω_r photon. g denotes the coupling constant of the qubit and the resonator, while Ω is the Rabi frequency representing the amplitude of driving field E(t). This system has a set of polarition states |1⟩, |2⟩, |3⟩, and |4⟩, which can be approximated as [37]:

$\begin{array}{ll}\hfill |1\rangle & =-\sin \left(\frac{{\theta }_0}{2}\right)\widetilde{|e,0\rangle }+\cos \left(\frac{{\theta }_0}{2}\right)\widetilde{|g,0\rangle },\hfill \\ \hfill |2\rangle & =\cos \left(\frac{{\theta }_0}{2}\right)\widetilde{|e,0\rangle }+\sin \left(\frac{{\theta }_0}{2}\right)\widetilde{|g,0\rangle },\hfill \\ \hfill |3\rangle & =-\sin \left(\frac{{\theta }_1}{2}\right)\widetilde{|e,1\rangle }+\cos \left(\frac{{\theta }_1}{2}\right)\widetilde{|g,1\rangle },\hfill \\ \hfill |4\rangle & =\cos \left(\frac{{\theta }_1}{2}\right)\widetilde{|e,1\rangle }+\sin \left(\frac{{\theta }_1}{2}\right)\widetilde{|g,1\rangle },\hfill \end{array}(31)$

where the mixing angles θ₀ and θ₁ are given by tan (θ₀) = Ω_d/[(ω_q − χ) − ω_d] and tan (θ₁) = Ω_d/[ω_d − (ω_q − 3χ)], respectively. And we use the set of polariton states |1⟩, |2⟩ and |3⟩ to form a Λ-type system with the Hamiltonian $H_s={\sum }_j{\tilde{\omega }}_j|j\rangle \langle j|={\sum }_j{\tilde{\omega }}_j{\tilde{\sigma }}_{jj}$.

6.1.2 SQUID-Chain Waveguide

The SQUID-chain microwave transmission line model, as shown in Figure 1, can be described by the Hamiltonian

$H_0=\frac{1}{2}{\vec{Q}}^T{\widehat{C}}^{-1}\vec{Q}+{\vec{\mathrm{\Phi }}}^T{\widehat{L}}^{-1}\vec{\mathrm{\Phi }}=\sum _k{\omega }_k\left(a_k^{†}{a}_k+1/2\right),(32)$

where the charge and phase vectors have the form, ${\vec{Q}}^T=(Q_1,Q_2,\dots ,Q_N,\dots )$ and ${\vec{\mathrm{\Phi }}}^T=({\mathrm{\Phi }}_1,{\mathrm{\Phi }}_2,\dots ,{\mathrm{\Phi }}_N,\dots )$, respectively. $\widehat{C}$ and $\widehat{L}$ are the capacitance and inductance matrixes defined as [39]; [32].

$\widehat{C}=\left(\begin{array}{cccccc}\hfill C_J\hfill & \hfill -C_J\hfill & \hfill 0\hfill & \hfill \dots \hfill & \hfill \hfill & \hfill \hfill \\ \hfill -C_J\hfill & \hfill 2C_J+C_g\hfill & \hfill -C_J\hfill & \hfill 0\hfill & \hfill \dots \hfill & \hfill \hfill \\ \hfill 0\hfill & \hfill -C_J\hfill & \hfill 2C_J+C_g\hfill & \hfill -C_J\hfill & \hfill 0\hfill & \hfill \dots \hfill \\ \hfill ⋮\hfill & \hfill 0\hfill & \hfill \ddots \hfill & \hfill \ddots \hfill & \hfill \ddots \hfill & \hfill \ddots \hfill \end{array}\right),(33)$

and

${\widehat{L}}^{-1}=\left(\begin{array}{cccccc}\hfill \frac{1}{L_J}\hfill & \hfill -\frac{1}{L_J}\hfill & \hfill 0\hfill & \hfill \dots \hfill & \hfill \hfill & \hfill \hfill \\ \hfill -\frac{1}{L_J}\hfill & \hfill \frac{2}{L_J}\hfill & \hfill -\frac{1}{L_J}\hfill & \hfill 0\hfill & \hfill \dots \hfill & \hfill \hfill \\ \hfill 0\hfill & \hfill -\frac{1}{L_J}\hfill & \hfill \frac{2}{L_J}\hfill & \hfill -\frac{1}{L_J}\hfill & \hfill 0\hfill & \hfill \dots \hfill \\ \hfill ⋮\hfill & \hfill 0\hfill & \hfill \ddots \hfill & \hfill \ddots \hfill & \hfill \ddots \hfill & \hfill \ddots \hfill \end{array}\right),(34)$

respectively. The charge-density operator at the antinode position Q can be approximately, in the linear limit C_J = 0 [32], expressed as

$Q=-i{C}_g\sum _k\sqrt{\frac{\hslash {\omega }_k}{C_t}}\left(a_k^{†}{e}^{ikx}-a_k{e}^{-ikx}\right),(35)$

C_t = NC_g is the total capacitance of SQUID chains.

6.1.3 Coupling Between SQUID-Chain Waveguides and Artificial Λ-type Giant Atoms

The resonator-part Hamiltonian in the resonator-qubit system is written as

$H_r=\hslash {\omega }_r\left(a^{†}a+\frac{1}{2}\right)=\frac{Q_r^2}{2C}+\frac{{\mathrm{\Phi }}_r^2}{2L},(36)$

Q_r and Φ_r are the charge operator and the flux operator of the resonator, while C and L are the circuit characteristic capacitance and inductance, respectively. When a microwave field is incident, the Hamiltonian of the circuit resonator can be rewritten as

$H_r=\frac{{\left(Q_r+Q_e\right)}^2}{2C}+\frac{{\mathrm{\Phi }}_r^2}{2L}.(37)$

From Eq. 35, we know that the charge induced by the incident field is

$\begin{array}{ll}\hfill Q_e\left(\pm x\right)& =\frac{Q\left(\pm x\right)C_J^{g\pm }}{C_g}=-i\sum _k{C}_J^{g\pm }\sqrt{\frac{\hslash {\omega }_k}{C_t}}\hfill \\ \hfill & \times \left(a_k{e}^{ik{x}_{\pm }}-a_k^{†}{e}^{-ik{x}_{\pm }}\right).\hfill \end{array}(38)$

Expanding Eq. 37 as

$\begin{array}{ll}\hfill \frac{{\left(Q_r+Q_e\right)}^2}{2C}+\frac{{\mathrm{\Phi }}_r^2}{2L}& =\frac{Q_r^2}{2C}+\frac{{\mathrm{\Phi }}_r^2}{2L}+\frac{Q_e^2}{2C}+\frac{Q_r{Q}_e}{C}\hfill \\ \hfill & \approx \hslash {\omega }_r\left(a^{†}a+\frac{1}{2}\right)+\hslash \sum _{\pm }\sum _k\frac{C_J^{g\pm }}{C}\sqrt{\frac{C}{C_t}}\sqrt{\frac{{\omega }_k{\omega }_r}{2}}\left(a_k^{†}a{e}^{-ik{x}_{\pm }}\right.\hfill \\ \hfill & \left.+a_k{a}^{†}{e}^{ik{x}_{\pm }}\right),\hfill \end{array}(39)$

we obtain the radiative decay rate κ from the resonator to the waveguide, $\sqrt{{\kappa }_{\pm }/2\pi }=C_J^{g\pm }\sqrt{C{\omega }_k{\omega }_r/2C_t}/C_{\mathrm{\Sigma }}$.

Consequently, the total Hamiltonian of the system including the SQUID-chain waveguide and artificial Λ-type giant atom can be obtained as

$\begin{array}{ll}\hfill H& =H_a+H_w+H_{int}\hfill \\ \hfill & =\sum _j{\tilde{\omega }}_j{\tilde{\sigma }}_{jj}+\int d{\omega }_k{a}_k^{†}{a}_k\hfill \\ \hfill & +\sum _{x_{\pm }}\int d{\omega }_k\sum _{i,j}\sqrt{{\tilde{\kappa }}_{ij}^{\pm }/2\pi }\left({\tilde{\sigma }}_{ij}{a}_k{e}^{ik{x}_{\pm }}+a_k^{†}{\tilde{\sigma }}_{ji}{e}^{-ik{x}_{\pm }}\right),\hfill \end{array}(40)$

where ${\tilde{\kappa }}_{ij}^{\pm }=\kappa |\langle i|a^{†}|j\rangle {|}^2$ are equal to γ_i/2 in the main text.

6.2 Derivation of the Single-Photon Process

In this part, we briefly derive the photon distruibution and time evolution of the single-photon process. From the single-excitation wave function Eq. 5, we can substitute the state formula into the Schröndinger equation and obtain the dynamical equation for the giant atom

$\begin{array}{ll}\hfill \frac{d{C}_a\left(t\right)}{dt}& =-i{\omega }_a{C}_a\left(t\right)\hfill \\ \hfill & -i\sum _{\alpha =\mathrm{1,2}}\int \hslash \sqrt{\frac{{\gamma }_1}{4\pi }}{C}_{b\alpha k}\left(t\right)\left(e^{-i{c}_{\alpha }{\omega }_{k}T/2}+e^{i{c}_{\alpha }{\omega }_{k}T/2}\right)d{\omega }_k\hfill \\ \hfill & -i\sum _{\alpha =\mathrm{1,2}}\int \hslash \sqrt{\frac{{\gamma }_2}{4\pi }}{C}_{c\alpha q}\left(t\right)\left(e^{-i{c}_{\alpha }{\omega }_{q}T/2}+e^{i{c}_{\alpha }{\omega }_{q}T/2}\right)d{\omega }_q.\hfill \end{array}(41)$

The propogating photon fields in the transmission line can be written as

$\begin{array}{ll}\hfill \frac{d{C}_{b\alpha k\left(t\right)}}{dt}=& -i\left({\omega }_b+{\omega }_k\right)C_{b\alpha k}\left(t\right)\hfill \\ \hfill & -i\sqrt{\frac{{\gamma }_1}{4\pi }}{C}_a\left(t\right)\left(e^{-i{c}_{\alpha }{\omega }_{k}T/2}+e^{i{c}_{\alpha }{\omega }_{k}T/2}\right),\hfill \\ \hfill \frac{d{C}_{c\alpha q\left(t\right)}}{dt}=& -i\left({\omega }_c+{\omega }_q\right)C_{c\alpha q}\left(t\right)\hfill \\ \hfill & -i\sqrt{\frac{{\gamma }_2}{4\pi }}{C}_a\left(t\right)\left(e^{-i{c}_{\alpha }{\omega }_{q}T/2}+e^{i{c}_{\alpha }{\omega }_{q}T/2}\right).\hfill \end{array}(42)$

By integrating above equations, we can obtain Eq. 6. Then taking Laplace transform $C_a(s)={\int }_0^{\infty }{C}_a(t)e^{-st}dt$ and introducing the coupling strength $V_{1(2)}=\sqrt{{\gamma }_{1(2)}{v}_g/2}$, the differential equation can be simplified to

$\begin{array}{ll}\hfill s{C}_a\left(s\right)& -C_a\left(0\right)=-i{\omega }_a{C}_a\left(s\right)-D_1{C}_a\left(s\right)-D_2{C}_a\left(s\right)\hfill \\ \hfill & -i{V}_1\sqrt{\frac{2\pi }{v_g}}{e}^{-i{\omega }_{b}t}\left[C_{b1s}\left(0\right)+C_{b2s}\left(0\right)\right]\left(e^{sT/2}+e^{-sT/2}\right)\hfill \\ \hfill & -i{V}_2\sqrt{\frac{2\pi }{v_g}}{e}^{-i{\omega }_{c}t}\left[C_{c1s}\left(0\right)+C_{c2s}\left(0\right)\right]\left(e^{sT/2}+e^{-sT/2}\right).\hfill \end{array}(43)$

Here we set the right-propagating incident photon field C_b1k (0) ≠ 0, which frequency band is around ω_ab. With the giant atom initially being in the ground state, the probability amplitude of the exctied state is given by

$C_a\left(t\right)=-i\sqrt{\frac{{\gamma }_1}{4\pi }}\int ds\frac{C_{b1s}\left(0\right)\left(e^{sT/2}+e^{-sT/2}\right)e^{st}{e}^{-i{\omega }_{b}t}}{s+i{\omega }_a+{\gamma }_1{D}_1+{\gamma }_2{D}_2}.(44)$

From Eq. 42, we obtain the solutions of the forward-scattered field

$\begin{array}{ll}\hfill C_{b1k}\left(t\right)& =e^{-i\left({\omega }_b+{\omega }_k\right)t}\left[C_{b1k}\left(0\right)-\frac{{\gamma }_1}{4\pi }\left(e^{-i{\omega }_{k}T/2}+e^{i{\omega }_{k}T/2}\right)\right.\hfill \\ \hfill & \times \int ds\frac{C_{b1s}\left(0\right)\left(e^{sT/2}+e^{-sT/2}\right)e^{s{t}^{\prime }}{e}^{-i{\omega }_b{t}^{\prime }}}{s+i{\omega }_a+{\gamma }_1{D}_1+{\gamma }_2{D}_2}\hfill \\ \hfill & \times \left.{\int }_0^{t}d{t}^{\prime }{e}^{i\left({\omega }_b+{\omega }_k\right)t^{\prime }}\right],\hfill \end{array}(45)$

$\begin{array}{ll}\hfill C_{c1q}\left(t\right)& =e^{-i\left({\omega }_c+{\omega }_q\right)t}\left[-\sqrt{\frac{{\gamma }_1{\gamma }_2}{{\left(4\pi \right)}^2}}\left(e^{-i{\omega }_{q}T/2}+e^{i{\omega }_{q}T/2}\right)\right.\hfill \\ \hfill & \times \int ds\frac{C_{b1s}\left(0\right)\left(e^{sT/2}+e^{-sT/2}\right)e^{s{t}^{\prime }}{e}^{-i{\omega }_b{t}^{\prime }}}{s+i{\omega }_a+{\gamma }_1{D}_1+{\gamma }_2{D}_2}\hfill \\ \hfill & \times \left.{\int }_0^{t}d{t}^{\prime }{e}^{i\left({\omega }_c+{\omega }_q\right)t^{\prime }}\right],\hfill \end{array}(46)$

and the backward-scattered fields

$\begin{array}{ll}\hfill C_{b2k}\left(t\right)& =e^{-i\left({\omega }_b+{\omega }_k\right)t}\left[-\frac{{\gamma }_1}{4\pi }\left(e^{-i{\omega }_{k}T/2}+e^{i{\omega }_{k}T/2}\right)\right.\hfill \\ \hfill & \times \int ds\frac{C_{b1s}\left(0\right)\left(e^{sT/2}+e^{-sT/2}\right)e^{s{t}^{\prime }}{e}^{-i{\omega }_b{t}^{\prime }}}{s+i{\omega }_a+{\gamma }_1{D}_1+{\gamma }_2{D}_2}\hfill \\ \hfill & \times \left.{\int }_0^{t}d{t}^{\prime }{e}^{i\left({\omega }_b+{\omega }_k\right)t^{\prime }}\right],\hfill \end{array}(47)$

where $D_{1(2)}=1+e^{-i{\omega }_{b(c)}T}{e}^{-sT}$ is the phase of the decay rate sourced from the coupling points distance, defined in Sec.3.1 of the main text. After taking the long-time limit, we can finally solve the above integrations and obtain the scattering rates R_k, T_k and T_q in Eqs. 12–14.
