The Theoretical Study of Unexpected Magnetism in 2D Si-Doped AlN

In this study, the structural and magnetic properties of Si-doped bulk and 2D AlN were systematically investigated by first-principles calculations. Si atoms prefer to substitute Al atoms in both bulk and 2D AlN under N-rich growth conditions. In bulk AlN, Si dopants exhibit a non-magnetic state, uniform distribution, and a strong anisotropic diffusion energy barrier. In contrast to that, Si dopants prefer to form a buckling structure and exhibit a magnetic moment of 1 μ_B in 2D AlN. At a low Si concentration, Si atoms tend to get together with antiferromagnetic coupling between each other. However, the magnetic coupling among Si atoms changes to ferromagnetic coupling as Si concentration increases, due to the enhanced exchange splitting and delocalized impurity states. At the extreme doping limit, monolayer SiN, along with its analogs GeN and SnN, is a ferromagnetic semiconductor with a large band gap and high Curie temperature. These results indicate that 2D AlN doped by group IV atoms has potential applications in spintronic devices.

1 Introduction

Bridging semiconductor and magnetism is desirable to utilize charge and spin degrees of freedom simultaneously, thereby creating enhanced functionalities beyond conventional semiconductor devices [1, 2]. Diluted magnetic semiconductors (DMSs) have been realized by doping group III-V and II-VI compounds with a few percent of transition metal (TM) ions, whose magnetism arises from the ferromagnetic (FM) coupling between the electrons in the partially filled d or f orbitals [3, 4]. However, some nanomaterials without d or f electrons also exhibit magnetic behavior, which is called d₀ magnetism [5]. That unexpected magnetism arises from the increase in the Coulomb interactions/bandwidth ratio induced by the reduction of materials’ dimensions [6]. At present, d₀ magnetism is a fast-growing field and calls for important material developments [7].

Bulk aluminum nitride (AlN) in the wurtzite structure has a wide direct gap, a high breakdown field, and a high thermal conductivity [8]. In 2013, monolayer AlN with a hexagonal lattice was synthesized on single-crystal Ag (111) by plasma-assisted molecular beam epitaxy [9]. The band gap of 2D AlN can be modulated by in-plane strain or a transverse electric field [10]. Both bulk and 2D AlN have promising applications in optics, spintronics, optoelectronics, and as substrate materials [11]. In the past decades, room-temperature (RT) ferromagnetism in wurtzite AlN-based DMSs [12] has been recognized by doping transition metal (TM) dopants such as Mn [13], Cr [14], V [15], Fe [16], Co [17], Ni [18], Cu [19, 20], Zn [21], Ti [22], Ce [23], and Ag [24]. The unpaired d orbitals of TM dopants dominate the magnetic moment in AlN-based DMSs. The FM coupling between TM ions was explained by various models including double exchange [13–15, 22], superexchange exchange [23], p–d hybridization [16, 20, 24], and bound magnetic polaron models [18, 19, 21]. Besides TM ions, wurtzite AlN doped by alkali metals [25], Mg [26], and Ga [27] atoms also exhibit ferromagnetism, which was explained by the p–p hybridization interaction involving holes. In 2012, D. Pan et al reported the RT ferromagnetism in Si-doped wurtzite AlN films at a doping concentration of 0 ∼11% [28]. But that ferromagnetism was explained by the N vacancies, rather than external Si dopants [28].

On the other hand, monolayer AlN doped by TM atoms [29] and 1A or 2A main-group elements [30, 31] were also reported to have RT ferromagnetism. In previous research, silicon atoms can induce magnetic moments in monolayer AlN by surface adsorption [32], while the substituted Si will transfer to a non-magnetic (NM) state [32, 33]. However, Gupta et al. predicted that substituted Si could exhibit a magnetic moment in monolayer BN, which has a lattice structure similar to monolayer AlN [34]. Thus, the electronic and magnetic properties of Si dopants in both bulk and 2D AlN call for a comprehensive understanding due to a lack of relevant experiments. Both Si and AlN consist of earth-abundant elements and play a significant role in the semiconductor industry. Understanding the properties of the Si-doped AlN help expand their application prospect.

In this work, the preferred occupation, magnetic configuration, and diffusion of Si atoms in bulk and 2D AlN were investigated by first-principles calculations. We reveal that Si atoms tend to behave as NM-substituted dopants and distributed uniformly at low concentrations in bulk AlN. The easy diffusion direction of Si in bulk AlN is vertical to the (0001) crystal orientation. On the other hand, Si atoms prefer to substitute the Al atoms in a buckling structure with a magnetic moment in 2D AlN. The magnetic coupling between Si atoms changes from antiferromagnetic (AFM) to FM as the Si content increases. At the full Si substitution, monolayer SiN and its analogs GeN and SnN are 2D FM semiconductors.

2 Methodology

All the first-principles calculations were performed by the Vienna ab initio simulation package (VASP) [35, 36] with the projector augmented wave (PAW) [37] pseudopotentials and Perdew–Burke–Ernzerhof (PBE) [38] exchange-correlation functionals. The kinetic energy cutoff was set at 450 eV. The Brillouin zone integrations are performed with 6 × 6 × 4 and 9, ×, 9 × 1 Monkhorst–Pack k points mesh [39] for bulk and monolayer AlN, respectively. The crystal structure and atomic position are fully optimized with a force convergence threshold of 0.01 eV/Å. The band gap was modified by using Heyd–Scuseria–Ernzerhof (HSE) functionals [40].

The formation energy E_f is defined as follows:

$\begin{array}{c}\hfill E_f=E_{\text{Si\hspace{0.17em}}+\text{\hspace{0.17em}AlN}}-E_{\text{AlN}}-n_{\text{Al}}{\mu }_{\text{Al}}-n_{\text{N}}{\mu }_{\text{N}}-n_{\text{Si}}{\mu }_{\text{Si}},\end{array}(1)$

where E_AlN and E_Si+AlN are the total energy of intrinsic and Si-doped AlN, respectively; μ_Al and μ_N are the chemical potentials of the Al and N elements, respectively; and n is the negative or positive integer that represents the number of the removed or added atoms, respectively. In Al-rich growth conditions, μ_Al is equal to μ_Al [bulk], that is, energy per Al atom in face-centered Al substance. Meanwhile, μ_N is obtained by μ_N = μ_AlN − μ_Al [bulk], where μ_AlN is the energy per formula of AlN in bulk or monolayer AlN. Similarly, μ_N equals the energy per N atom in nitrogen molecules, and μ_Al = μ_AlN − μ_N [N₂] in N-rich conditions. It is noted that the different growth conditions will affect the E_f of substituted Si rather than interstitial Si because n_Al and n_N in Eq. 1 are zero in the latter case.

The magnetic materials can be described by the Heisenberg Hamiltonian:

$\begin{array}{c}\hfill H=-\sum _{i,j}{J}_{ij}{\mathbf{S}}_i\cdot {\mathbf{S}}_j.\end{array}(2)$

We considered interaction constants J_ij up to third nearest neighbors. We determined the J_ij through the relations between energy and spin configuration. Based on the Heisenberg Hamiltonian, the Monte Carlo (MC) simulations were performed by code MCsolver [41]. A 32 × 32 × 1 supercell is to estimate the Curie temperature T_c. We ran 10⁵ MC sweeps to reach the thermal equilibrium state, followed by 2 × 10⁵ MC sweeps for the averaging of magnetizations and energies.

3 Results and Discussion

3.1 Si Dopants in Bulk AlN

First, we obtained lattice constants a = 3.129 Å, c = 5.125 Å for bulk AlN, and a = 3.125 Å for monolayer, which are consistent with previous results [30, 31, 42].

We considered the doping of Si in bulk AlN. We placed a single Si atom into a large supercell with 288 atoms to simulate a dilute doping scenario in which the Si atom can be regarded as an isolated impurity (Figures 1A,B). We examined non-equivalent Si doping sites including the substitution of an Al atom (Si_Al) or a N atom (Si_N), the interstitial site with z coordination between two Al [labeled as Si_I,Al by Kroger–Vink notation] layers or N (Si_I,N) layers (Figure 2A). Frenkel defects (Si_Al − Al_I and Si_N − N_I) in which a Si atom occupies the Al or N site and repels the original Al or N atom to an adjacent interstitial site were also considered. We calculated the formation energies (E_f) of these doping configurations under Al- and N-rich growth conditions. The growth conditions will affect the E_f of substituted Si, rather than interstitial Si. Both non-magnetic and magnetic states of the Si atom were considered.

FIGURE 1

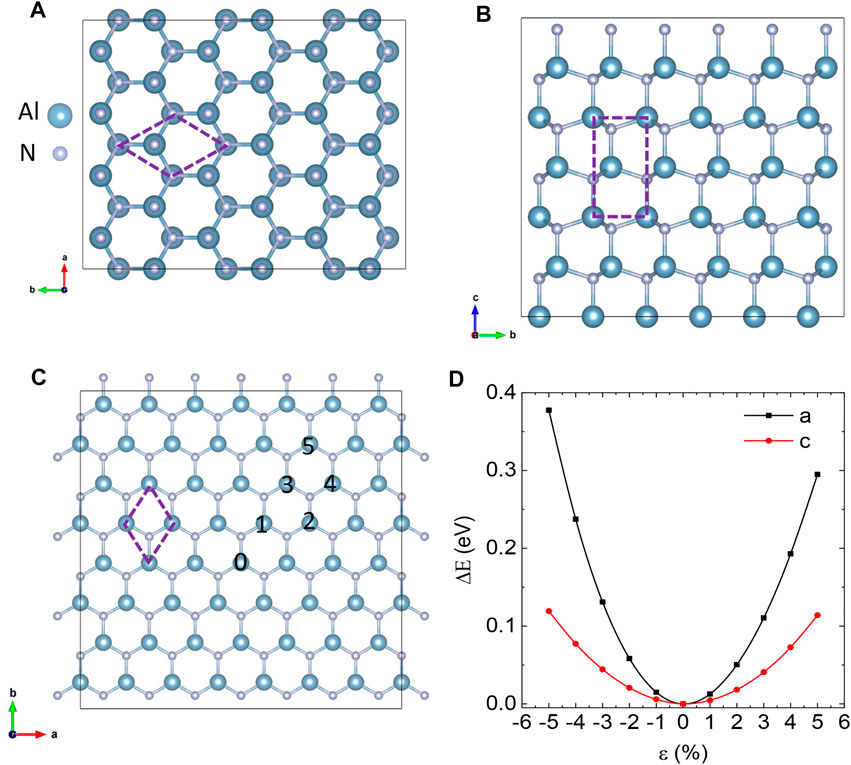

FIGURE 1. (A,B) Side views of bulk AlN along with the c and a axis. The primitive cell is labeled by dash lines. (C) Top view of monolayer AlN. A Si atom locates at 0 site and the other one can be at 1 ∼ 5 site. (D) The black and red lines represent the energy of the primitive cell of bulk AlN under strain along and vertical to the (0001) direction (the c axis), respectively. The energy of strain-free AlN was set to zero.

FIGURE 2

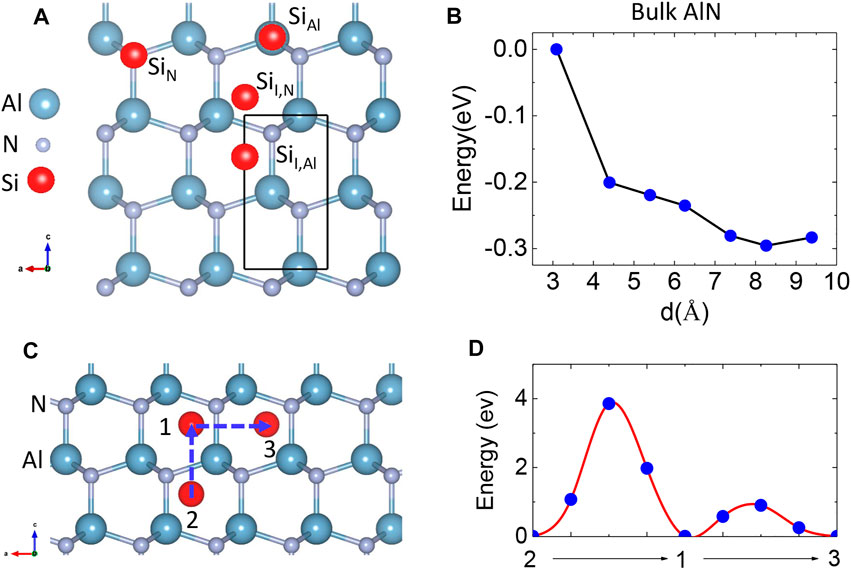

FIGURE 2. (A) Substituted Si_Al and Si_N sites; interstitial I_Al and I_N sites in bulk AlN. The sky blue, gray, and red balls represent Al, N, and Si atoms, respectively. (B) Total energy of Si-doped bulk AlN as a function of Si–Si separation. (C) The diffusion pathway of Si in bulk AlN. (D) Energy profile for a Si dopant diffusing parallel and vertical to the c axis.

The results of E_f are shown in Table 1. Si atoms at the Si_I,N site are not stable and transfer to the Si_I,Al site. In bulk AlN, Si atoms prefer to substitute Al atoms (Si_Al), due to that the atomic radius and electronegativity of Si atoms are more close to those of Al atoms than N atoms. The ground magnetic state of Si_Al is an NM state. The E_f of Si_Al is smaller under N-rich than under Al-rich growth conditions, which is consistent with the experiment that Si incorporation in AlN films is suppressed under Al-rich growth conditions [43]. The magnetic state of the Si_Al site is not stable and will transition to the NM state. We further calculated the density of states (DOS), which indicates that the Si_Al site gives an impurity band very close to the conduction band, similar to the behavior of Si dopants in GaN [44]. Thus, the Si_Al site is non-magnetic in bulk AlN because the unpaired electron is quite delocalized. Instead, the metastable Si_N configuration prefers a magnetic state, with a magnetic moment of 1 μ_B. If enough N-vacancies exist in wurtzite AlN [45], external Si dopants can form Si_N configurations and exhibit magnetism in bulk AlN, consistent with Pan’s experiment [28].

TABLE 1

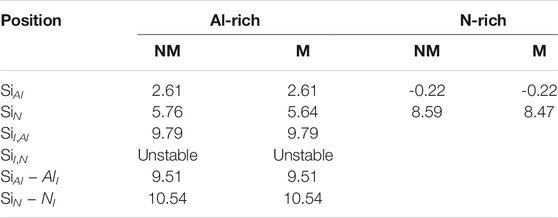

TABLE 1. Formation energies E_f (eV) of single Si atom in bulk AlN in the magnetic (M) and non-magnetic (NM) states under Al- or N-rich growth conditions.

The diffusion of Si atoms in bulk AlN can proceed through the interstitial Si_I,Al site. As bulk AlN has an anisotropic lattice, we considered Si diffusion along the pathway parallel (2 → 1) and vertical (1 → 3) to the [0001] direction, which was labeled as the c axis (Figure 2C). We estimated the diffusion barrier ΔE using the nudged elastic band (NEB) method [46]. The Si element has a larger ionic radius than Ga and N elements, so Si ions will extrude Al and N ions along the direction vertical to the diffusion pathway. We found that the energy of the unit cell of AlN increases more slowly under strain parallel to the c axis than strain vertical to the c axis (Figure 1D). Thus, the ΔE of path 1 → 3 is smaller than the ΔE of path 2 → 1 (Figure 2D) due to the smaller energy needed to extrude Al and N atoms. Thus, Si atoms prefer to diffuse vertical to the c axis in bulk AlN.

We introduced two Si_Al defects into the AlN supercell. The magnetic coupling between them can be NM, FM, or AFM. The total energy of AlN with two Si_Al defects is presented in Figure 2B. Both FM and AFM states will transition into NM states. The energy of AlN with two NM Si_Al defects decreases as the Si separation increases. Thus, Si atoms tend to act as NM dopants, distributed uniformly and diffuse vertically to the c axis in bulk AlN. That is consistent with experiments showing that Si incorporation in AlN is homogeneous under N-rich conditions [28, 43].

3.2 Si Dopants in 2D AlN

Next, we investigated the Si doping in 2D AlN. We put a single Si in a 6 × 6 × 1 supercell of monolayer AlN. We considered the substituted Si_Al and Si_N in buckling and planar structures, the adsorption of Si atoms on top of Al (Si_T,Al), N atoms (Si_T,N), hexagonal site (Si_H), and bridge site (Si_B) (Figure 3A). As shown in Table 2, the Si atom at the (Si_B) site is not stable and will transfer to the Si_T,N site. If we consider the Si in the NM state, the buckling Si_Al structure is not stable will transition to the planar Si_Al structure. We calculated the energy of Si_Al configuration at different buckling heights in the NM state while keeping all atoms fixed. The energy profile in Figure 3B shows that the NM Si_Al in the planar structure has the lowest energy.

FIGURE 3

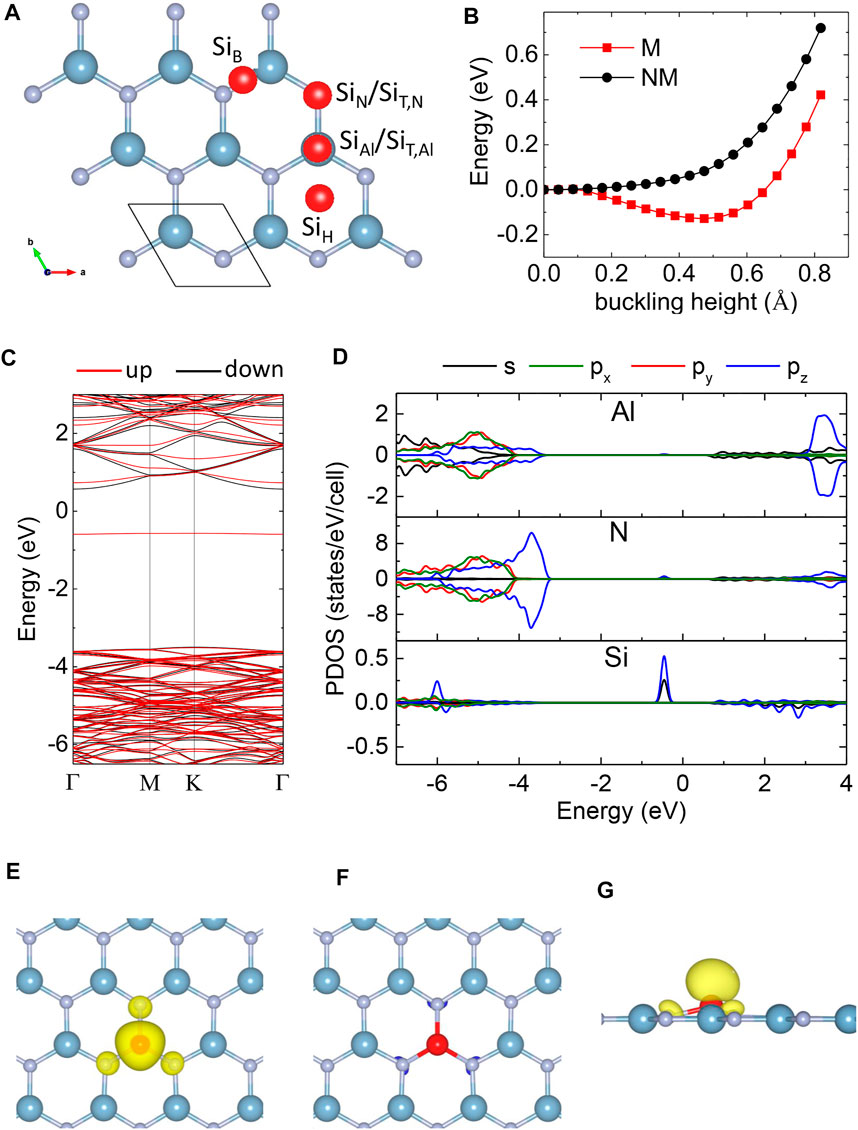

FIGURE 3. (A) Substituted Si_Al and Si_N; the adsorptional T_Al, T_N, B, and H sites in monolayer AlN. (B) The energy of Si_Al structure in magnetic (M) and non-magnetic (NM) states as a function of the buckling height. The energy of planar structure was set to zero. (C) Band structure and (D) projected density of states of buckling Si_Al structure. (E,F) The positive and negative spin densities of single-Si-doped monolayer AlN from the top view. (G) The same spin density from the side view. The isosurface of spin density is = 0.005 eV/ų.

TABLE 2

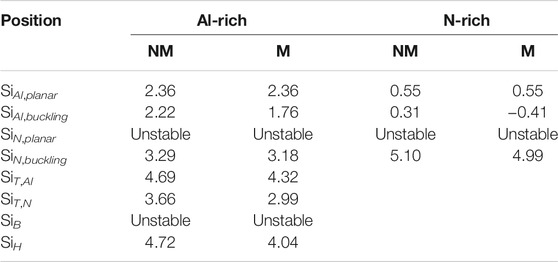

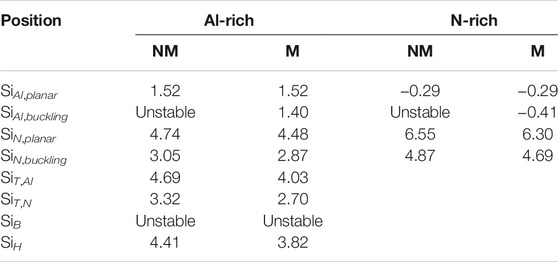

TABLE 2. Formation energies E_f (eV) of single Si atom in monolayer AlN in the magnetic (M) and non-magnetic (NM) states under Al- or N-rich growth conditions.

However, if we consider Si in a spin-polarized state, the buckling Si_Al structure becomes the most stable doping configuration (Table 2; Figure 3B). The optimized Si–N bond lengths are 1.697 Å and 1.749 Å in the plane and buckling Si_Al structures, respectively. As the ionic radius of the Si dopant is larger than that of the Al ion in Si-doped 2D AlN, the Si dopant prefers a buckling structure to release the strain and make the system energetically lower. That is similar to alkali metals which also form buckling Si_Al structures in monolayer AlN [47]. The stable Si_Al structure has a buckling height of 0.49 Å and a magnetic moment of 1 μ_B per Si atom.

Si_N and other adsorption configurations, which can induce a magnetic moment of 1 or 2 μ_B per Si atom, have much higher E_f (Table 2). Thus, the Si atom prefers to substitute the Al atom with a non-zero magnetic moment in the monolayer AlN.

Based on the HSE06 hybrid functional [40], the band structure and partial density of states (PDOS) of single-Si-doped monolayer AlN are displayed in Figures 3C, D. A diluted Si-doped AlN is still a semiconductor. The pristine AlN monolayer has D_3h symmetry, and the 2p states of the N atom split into a singlet p_z state and doubly degenerate states p_x and p_y with lower energy. The induced Si dopants in the Si_Al site deform the D_3h symmetry of the AlN lattice, resulting in small splitting between p_x and p_y states (Figure 3D). The PDOS of the Si-p and N-p orbitals overlapped at an energy of around −6 eV in the deep valence band (Figure 3D). The Si atom contributes three valence electrons to participate in the bonding with neighboring N-p orbitals, lifting an unpaired electron to form a dispersion-less impurity band in the spin-up channel within the band gap (Figure 3C). The asymmetric PDOS creates a magnetic moment of 1 μ_B per Si atom. Si-p_z and Si-s orbitals dominate the electronic states of the impurity band. The impurity band is a deep donor level, which is consistent with the n-type conductivity of Si-doped AlN in the experiment [28].

The spin density of Si_Al structures is displayed in Figures 3E,F. The negative spin density is insignificant compared to the positive spin density (Figure 3F). Spin density exhibits localization at the Si site. The nearest N neighbors around the Si dopant had a small contribution to the magnetic moment and exhibited an FM coupling with the Si dopant (Figure 3E). The Al atoms display virtually no spin polarization. We can conclude that the additional charge carriers due to Si doping promote ferromagnetism in monolayer AlN. The situation is similar to that of Cr-doped AlN nanowires with the ferromagnetic coupling of the Cr atoms [48].

We further decomposed magnetic moment origin. The p orbitals of Si dopants and the nearest-neighboring N atoms dominate the magnetic moments. The Si-s orbital and nearest-neighboring N-s orbital have a small contribution to the magnetic moments. That is different from Mg- or Ga-doped monolayer AlN where spin-polarized 2p orbitals of N neighbors around dopants dominate the magnetic moment [26, 27].

The diffusion of Si atoms in monolayer AlN can proceed along the direction vertical to or parallel to the AlN sheet. The former one can proceed between two equivalent Si_Al sites on the different sides of the AlN sheet (Figure 4A). We performed NEB calculations and allowed the atomic positions to be relaxed. The diffusion barrier △E is estimated at 0.11 eV (Figure 4B). The accurate energy profile of Si diffusion indicates that the planar Si_Al configuration is a metastable state (Figure 4B). If the initial buckling height was set to be small in the simulation of structure relaxation, one may finally predict a planar Si_Al configuration in spin-polarized calculations. That may be the reason for the difference between our results and previous work [32, 33]. The other diffusion pattern is through low-energy adsorption sites on the same side of the AlN sheet, which is Si_T,N − Si_H − Si_T,N pathway (Figure 4C). Through the NEB calculations, the optimized saddle point was still close to the H site. The diffusion barrier △E was estimated at 1.11 eV (Figure 4D), which is much larger than △E crossing the AlN sheet.

FIGURE 4

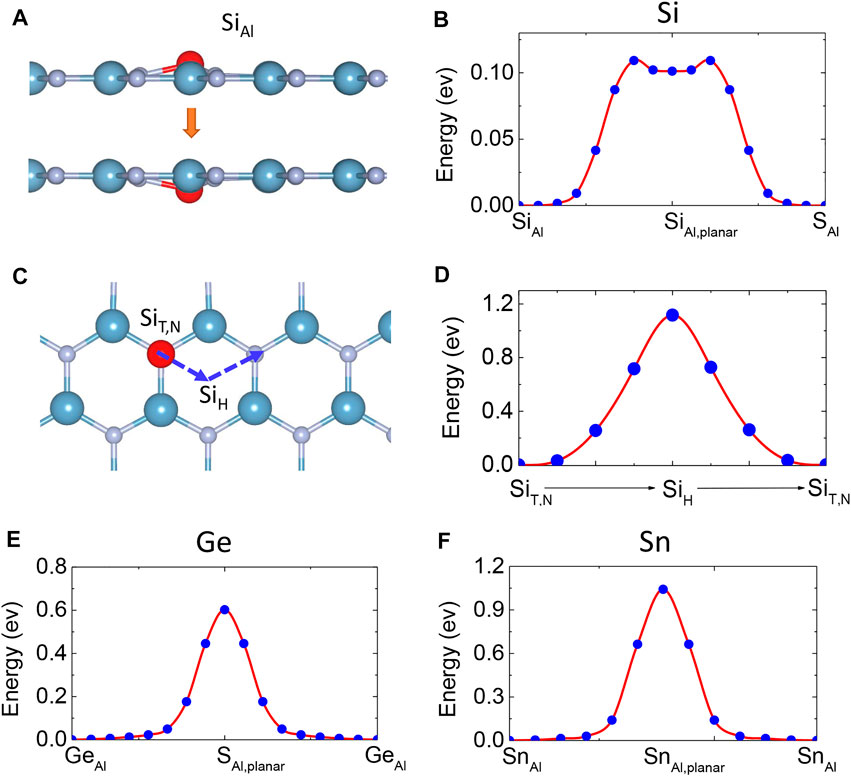

FIGURE 4. (A) Diffusion pathway of Si passing through the monolayer AlN. (B) Energy profiles for the diffusion path of Si. (C) Pathway and (D) energy profile of a Si dopant diffusing along the T_N-H-T_N pathway on the same side of monolayer AlN. (E) Energy profiles for the diffusion path of Ge and (F) Sn dopant passing through the monolayer AlN.

To investigate the magnetic coupling between the Si dopants in monolayer AlN, we introduced two Si_Al defects into a large rectangle supercell with 112 atoms with different Si–Si distances (Figure 1C). We further considered that two Si_Al defects can be on the same side or opposite sides of the AlN sheet. The energies of these structures in the NM, FM, and AFM states are shown in Figure 5C. We found that the magnetic coupling between Si atoms prefers an AFM state. At a large Si–Si separation, the structures containing two Si atoms on the same and opposite sides of the AlN sheet have similar energies. However, two Si_Al defects are likely to occur on the opposite sides of the AlN sheet at a small Si–Si distance. That structure can decrease the Coulomb repulsion between the unpaired electrons located on Si dopants. A Si atom had to overcome an energy barrier to get close to the other one. The energy barrier is about 0.03 and 0.015 eV for two Si atoms on the opposite sides and same sides of AlN sheet, respectively (Figure 5C). Moreover, considering the large diffusion barrier of Si along the AlN sheet (Figure 4D), Si atoms might keep a uniform distribution at a low doping concentration. Moreover, we calculated the electronic structure which indicates that monolayer AlN with two Si_Al defects is a semiconductor. 2D AlN has been grown on Ag (111) [9] or SiN substrate [49] which has a large influence on the properties of the AlN layer near the substrate. The Si doping on the top surfaces of AlN layers should produce the magnetic behaviors as the basal planes of multilayer AlN are bonded by a weak van der Waals force.

FIGURE 5

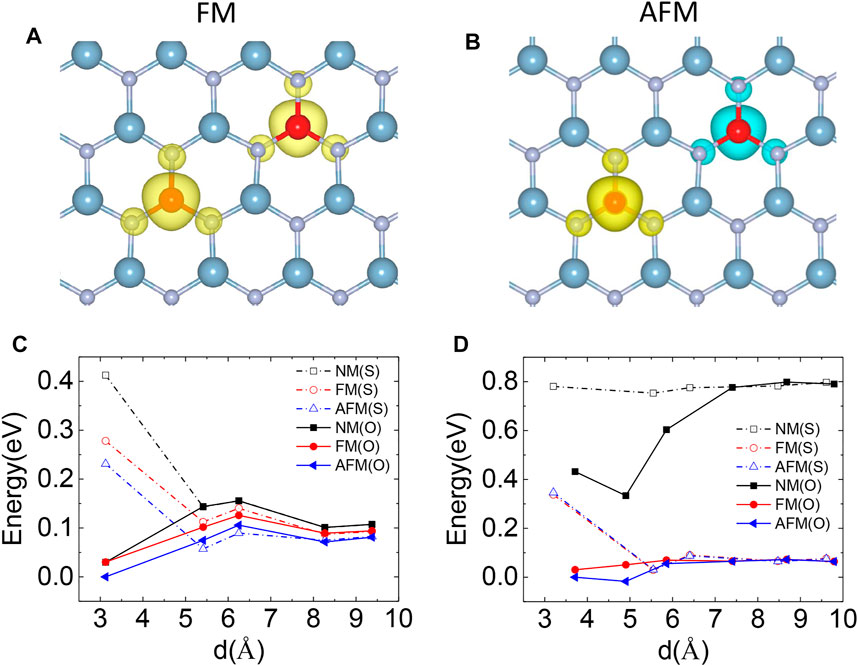

FIGURE 5. Representative spin density of monolayer AlN containing two Si_Al defects in (A) FM and (B) AFM states, at a Si–Si separation of 5.4 Å. The isosurface of spin density is = 0.005 eV/ų. The yellow and blue colors represent the positive and negative spin density, respectively. The energy of (C) monolayer AlN and (D) bilayer AlN with two Si_Al defects on the same (S) and opposite (O) side of AlN sheet as a function of Si–Si separation. The magnetic coupling between Si can be in NM, FM, and AFM states. The energy of two Si_Al defects with AFM coupling and the nearest distance was set to zero.

Si dopants should also exhibit magnetic moments in a few-layer AlN. We calculated the doping of Si in bilayer AlN with a stable AA’ stacking pattern [50]. We found that Si atoms also tend to substitute Al atoms in N-rich conditions and exhibit a magnetic moment of 1 μ_B per Si atom (Table 3). Two Si_Al defects on opposite sides of the bilayer AlN have lower energy (Figure 5D). Si atoms also tend to get close to each other in bilayer AlN, similar to Si dopants in monolayer AlN (Figure 5D).

TABLE 3

TABLE 3. Formation energies E_f (eV) of single Si atom in bilayer AlN in the magnetic (M) and non-magnetic (NM) states under Al- or N-rich growth conditions.

We noticed that the intrinsic defects of monolayer AlN, such as Al-vacancy and N-vacancy, can induce a non-zero magnetic monument [51]. We further found that the Al vacancy seems to have an AFM coupling with the Si dopants, thereby influencing the magnetic moment and magnetic coupling between the Si dopants. We will consider the effect of intrinsic defects on the magnetic properties of Si-doped AlN in later work.

3.3 Magnetic Phase Transition in Heavy Doped AlN

By fully substituting the Al of monolayer AlN by Si, we obtained monolayer SiN which adopts a hexagonal lattice with a lattice constant of 2.904 Å and a buckling height of 0.578 Å. We compared different spin configurations of monolayer SiN (Figure 8A) and identified the FM state as its ground state. Thus, in Si-doped monolayer AlN, there should be a phase transition from an AFM to an FM state as the Si content increases.

We adopted the Dalpian’s band structure model to explain such phase transition [52]. There are four valence electrons per Si atom. As shown in Figure 3D, up-spin Si-2p states have higher energy than down-spin Si-2p states. An unpaired electron of Si produces a magnetic moment of 1 μ_B in the monolayer AlN. We used the ɛ_↑, ɛ_↓, △_↑↑, and △_↑↓ to represent the energy of spin-up and spin-down Si-2p states, hopping matrix elements among the Si-2p states with the same spins and different spins, respectively. When the magnetic coupling between Si dopants is FM, as shown in Figure 6A. From a molecular mode, the hybridization between the down-spin Si-2p states of the neighboring Si dopant produces molecular levels:

$\begin{array}{c}\hfill {\epsilon }_{\downarrow +}={\epsilon }_{\downarrow }+|{\mathrm{\Delta }}_{\downarrow \downarrow }|,{\epsilon }_{\downarrow -}={\epsilon }_{\downarrow }-|{\mathrm{\Delta }}_{\downarrow \downarrow }|.\end{array}(3)$

As the down-spin Si-2p states are fully filled, there is no energy gain from such hybridization. On the other hand, hybridization between the partially filled up-spin Si-2p states leads to an energy gain of −2|Δ_↑↑|.

FIGURE 6

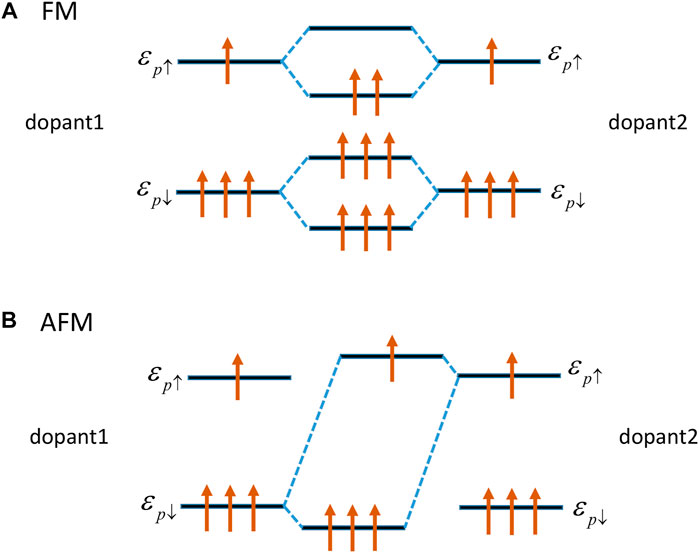

FIGURE 6. (A) FM interaction between the Si-2p states of same spin direction at the neighboring Si dopant. (B) The AFM interaction between the down-spin Si-2p states state and the up-spin Si-2p states of the neighboring Si dopant.

When the coupling between Si dopants is AFM, as shown in Figure 6B. The hybridization between the down-spin Si-2p states and the up-spin Si-2p states of the neighboring Si dopant produces molecular levels:

$\begin{array}{c}\hfill {\epsilon }_{\pm }=\frac{1}{2}\left({\epsilon }_{\uparrow }+{\epsilon }_{\downarrow }\right)\pm \sqrt{{\left(\frac{{\epsilon }_{\uparrow }-{\epsilon }_{\downarrow }}{2}\right)}^2+|{\mathrm{\Delta }}_{\uparrow \downarrow }{|}^2}.\end{array}(4)$

Similarly, the hybridization between the up-spin Si-2p states and the down-spin Si-2p states of the neighboring Si dopant will produce the same molecular levels. Moreover $|{\mathrm{\Delta }}_{\uparrow \downarrow }|\ll \frac{{\epsilon }_{\uparrow }-{\epsilon }_{\downarrow }}{2}$, such hybridizations lead to an energy gain of

$\begin{array}{c}\hfill 2\left[\left(3{\epsilon }_{-}+{\epsilon }_{+}\right)-\left(3{\epsilon }_{\downarrow }+{\epsilon }_{\uparrow }\right)\right]\cong -4\frac{|{\mathrm{\Delta }}_{\uparrow \downarrow }{|}^2}{{\epsilon }_{\uparrow }-{\epsilon }_{\downarrow }}.\end{array}(5)$

Thus, the energy difference between the FM and AFM states is given as $\mathrm{\Delta }{E}_{FM-AFM}=-2|{\mathrm{\Delta }}_{\uparrow \uparrow }|+4\frac{|{\mathrm{\Delta }}_{\uparrow \downarrow }{|}^2}{{\epsilon }_{\uparrow }-{\epsilon }_{\downarrow }}$.

At low Si concentration, the localized unpair p orbital of Si dopants leads to a small |△_↑↑|. Adding the small exchange splitting (ɛ_↑ − ɛ_↓) (Figure 3D), ΔE_FM−AFM is positive. Si-doped monolayer AlN exhibits the AFM state at low concentration. However, the lattice constant and the Si–Si distance of Si-doped AlN decrease as Si content increases. The unpaired p orbital of Si dopants becomes more delocalized and exchange splitting becomes large (Figure 7D), which results in the ground state of heavy Si-doped monolayer AlN changing to FM.

FIGURE 7

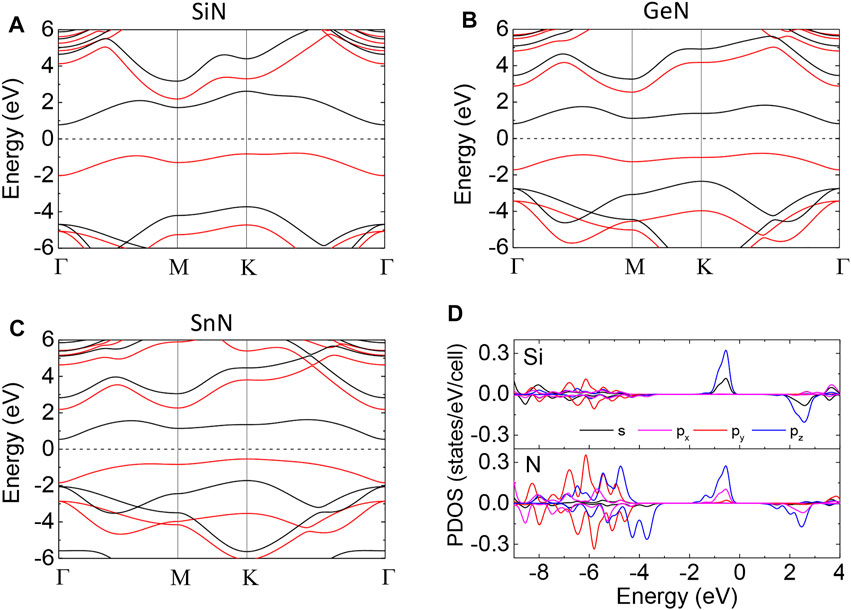

FIGURE 7. Band structure of monolayer (A) SiN, (B) GeN, and (C) SnN. The red and black lines represent the spin-up and spin-down bands, respectively. (D) The projected density of state of monolayer SiN.

3.4 Monolayer SiN: The Extreme Doping Limit

The HSE band structure of FM monolayer AlN is shown in Figure 7A, indicating that it is a 2D FM semiconductor with an indirect band gap of 1.556 eV, consistent with previous work [53]. We considered four possible magnetic configurations, including FM, AFM1, AFM2, and AFM3 configurations (Figures 8A–D). We expanded their energy by the Heisenberg Hamiltonian:

$E_{FM}=E_0-3J_1{S}^2-3J_2{S}^2-3J_3{S}^2(6)$

$E_{AFM1}=E_0+J_1{S}^2+J_2{S}^2-3J_3{S}^2(7)$

$E_{AFM2}=E_0+J_1{S}^2-J_2{S}^2+J_3{S}^2(8)$

$E_{AFM3}=E_0-J_1{S}^2+J_2{S}^2+J_3{S}^2,(9)$

where S is the spin per Si atom which was normalized to 1. J₁, J₂, and J₃ are the nearest-neighboring, next-nearest-neighboring and thirdly-nearest-neighboring exchange interaction constants, respectively. We calculated these interaction constants through the relations between energy and spin configuration, the results are given in Table 4. Through the Monte Carlo simulation, the Curie temperature T_c of monolayer SiN was estimated to be about 105 K (Figure 8E).

FIGURE 8

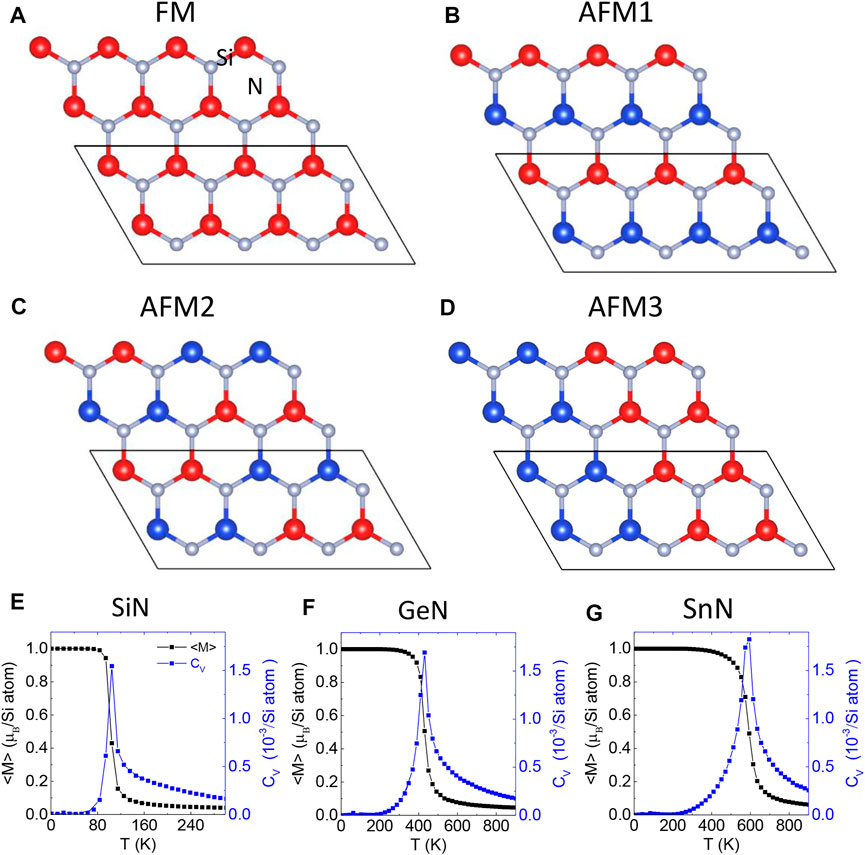

FIGURE 8. Monolayer XN (X = Si, Ge and Sn) in (A) FM, (B) AFM1, (C) AFM2, and (D) AFM3 states. Read and blue balls represent the Si atoms with up and down spin. (E–G) The averaged magnetization $<M>$ per Si atoms and specific heat C_v of monolayer SiN, GeN, and SnN as a function of temperature. The divergence point of C_v was used to identify the Curie temperature.

TABLE 4

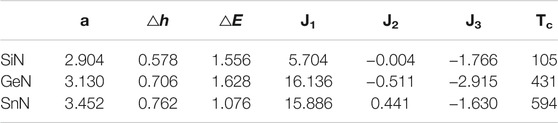

TABLE 4. Lattice constant a(Å), buckling height △h (Å), Band gap △E (eV), the nearest-neighboring, next-nearest-neighboring, thirdly-nearest-neighboring exchange interaction J₁, J₂ and J₃ (meV), and Curie temperature T_c (K) of monolayer SiN, GeN, and SnN.

We expanded current calculations to Ge- and Sn-doped monolayer AlN. First, we found that single Ge and Sn dopants also prefer a magnetic buckling Si_Al structure in monolayer AlN in the dilute doping scenario. The corresponding buckling height is 0.73 Å and 1.28 Å, respectively. Different from Si dopants, the Ge and Sn dopants in the planar Si_Al structure are a saddle point, rather than a metastable state through the NEB calculations (Figures 4E,F). The diffusion barriers vertical to the AlN sheet are 0.6 and 1.0 eV for Ge and Sn dopants, respectively. Second, monolayers GeN and SnN are also 2D ferromagnetic semiconductors, with a band gap of 1.628 and 1.076 eV, respectively (Figures 7B,C). Their exchange constants are given in Table 4. Their T_c is estimated as 431 and 594 K through MC simulation, respectively (Figures 8F,G).

4 Conclusion

In summary, using first-principles calculations, we predicted that Si atoms are likely to substitute Al atoms in both bulk AlN and 2D AlN under N-rich growth conditions. Si atoms exhibit non-magnetic dopants and distribute homogeneously in bulk AlN. The diffusion of Si occurs more easily in the vertical direction [0001] of bulk AlN. In monolayer and bilayer AlN, substituted Si dopants prefer to form a buckling structure, with a magnetic moment of 1 μ_B per Si atom. The diffusion barrier of Si atoms is large along the AlN sheet, which can prevent the formation of Si clusters. The magnetic coupling among Si dopants in 2D AlN changes from AFM to FM coupling when the Si content increases due to the enhanced exchange splitting and delocalized impurity states of Si dopants. In the full substitution, monolayer SiN along with GeN and SnN are 2D FM semiconductors with a large band gap and high Curie temperature.

Data Availability Statement

The original contributions presented in the study are included in the article/supplementary material; further inquiries can be directed to the corresponding author.

Author Contributions

WW performed the calculations and wrote the manuscript with input from all authors. WW and NK analyzed the data. YG carried out the implementation. YL supervised the project.

Funding

This work was supported by the National Natural Science Foundation of China (Nos. 11904312 and 11904313), the Scientific Research Foundation of the Higher Education of Hebei Province, China (No. BJ2020015), the Natural Science Foundation of Hebei Province (Nos. A2019203507 and A2020203027), and the Doctor Foundation Project of Yanshan University (No. BL19008).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

The numerical calculations in this paper have been done on the supercomputing system in the High Performance Computing Center of Yanshan University.
