On the Nature of Valence Charge and Spin Excitations via Multi-Orbital Hubbard Models for Infinite-Layer Nickelates

Building upon the recent progress on the intriguing underlying physics for the newly discovered infinite-layer nickelates, in this article we review an examination of valence charge and spin excitations via multi-orbital Hubbard models as way to determine the fundamental building blocks for Hamiltonians that can describe the low energy properties of infinite-layer nickelates. We summarize key results from density-functional approaches, and apply them to the study of x-ray absorption to determine the valence ground states of infinite-layer nickelates in their parent form, and show that a fundamental d⁹ configuration as in the cuprates is incompatible with a self-doped ground state having holes in both $d_{x^2-y^2}$ and a rare-earth-derived axial orbital. When doped, we determine that the rare-earth-derived orbitals empty and additional holes form low spin (S = 0) d⁸ Ni states, which can be well-described as a doped single-band Hubbard model. Using exact diagonalization for a 2-orbital model involving Ni and rare-earth orbitals, we find clear magnons at 1/2 filling that persist when doped, albeit with larger damping, and with a dependence on the precise orbital energy separation between the Ni- and rare-earth-derived orbitals. Taken together, a full two-band model for infinite-layer nickelates can well describe the valence charge and spin excitations observed experimentally.

1 Introduction

The discovery of experimental superconductivity in infinite-layer nickelates [1], 20 years after they were theoretically proposed [2], has unveiled new territory to probe the unknowns of unconventional superconductivity. The comparison between the superconducting nickelates to the cuprates has proven to be a rich area of inquiry. Significant progress has been made in the last 2 years, but many mysteries about this novel superconducting family remain unsolved. As pointed out early on [3], the bandstructure for LaNiO₂ while being primarily 3d⁹ Ni near the Fermi level has additional small Fermi pockets of largely axial character involving Ni $3d_{z^2}$ and La $5d_{z^2}$ orbitals. Including a Hubbard U on nickel splits the d⁹ states but still leaves itinerant states at the Fermi level, indicating that the parent compound for infinite-layer nickelate is not analogous to undoped CuO₂ as an antiferromagnetic Mott insulator. Moreover, the location of the centroid of the oxygen states in LaNiO₂ lies at lower energies than CuO₂ compounds, moving them closer to the boundary between Mott-Hubbard systems and charge-transfer insulators in the Zaanen-Sawatzky-Allen scheme [4]. While there is scant evidence that LaNiO₂ is antiferromagnetic, resonant inelastic x-ray scattering (RIXS) has clearly revealed propagating magnons, yielding a spin exchange energy ∼ 60 meV in the parent compound [5]. These excitations persist when doped, albeit with larger damping [5], in a way that is not too disimilar to paramagnon excitations in doped cuprates [6–8].

Thus there already is a rich amount of information from which an estimate for a fundamental low energy model Hamiltonian can be obtained and used to model the phase diagram of infinite-layer nickelates. In this article we review efforts to combine density functional approaches with cluster exact diagonalization to determine such a model. Specifically we utilize x-ray absorption (XAS) as a tool to determine valence charge states in the undoped and doped infinite-layer nickelates, arriving at a low-energy 2-orbital model Hamiltonian. We then perform calculations on finite-sized clusters to determine the dynamic spin structure factor in undoped and doped systems. Our results yield a consistent description of charge valence and spin excitation states in the infinite-layer nickelates, indicating that a 2-orbital model likely contains the fundamental ingredients needed to explore superconductivity and the rich phase diagram in these compounds.

2 Methods

2.1 Density Functional Theory

The electronic structure of the infinite-layer nickelates RNiO₂ have been evaluated using density functional theory (DFT) in the generalized gradient approximation (GGA) for the exchange-correlation functional as implemented in Quantum Espresso [9, 10]. The band structure near the Fermi energy that was obtained for NdNiO₂ is shown in Figures 1A, B.

FIGURE 1

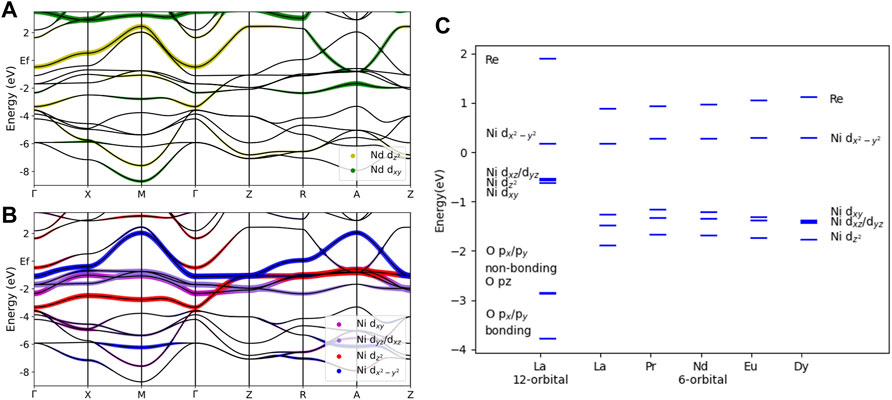

FIGURE 1. (A) DFT calculated band structure and projected Nd 5d orbital content for infinite-layer nickelate NdNiO₂. (B) DFT calculated band structure and projected Ni 3d orbital content for NdNiO₂. (C) Atomic energy level diagram for infinite-layer nickelates RNiO₂, where R = La, Pr, Nd, Eu, and Dy. On-site energies are obtained by 6-orbital and 12-orbital Wannier downfolding from DFT calculated band structures. All energy levels are relative to the Fermi level of the corresponding material.

To obtain a microscopic Hamiltonian and understand the atomic energy levels, we downfolded the bandstructure as implemented in Wannier90 [11] to obtain the tight-binding model parameters $t_{i,j}^{\mu ,\nu }$ as shown in Eq. 2 below. Two types of Wannier downfolding have been calculated: (Eq. 1) a 12-orbital model downfolding, which includes five Ni 3d orbitals, one R 5d orbital and six O 2p orbitals; and (Eq. 2) a 6-orbital model downfolding, which includes five Ni 3d orbitals and one R 5d orbital. For NdNiO₂, the bandstructure corresponding to the 6-orbital model spans an energy range from ∼ −3.5 eV to ∼ 2 eV, covering the most prominent low energy features. The bands below ∼ −3.5 eV for NdNiO₂ have predominantly oxygen orbital content. Figure 1C summarizes the atomic energy level diagram, which shows the on-site energies from the Wannier downfolding for a series of RNiO₂ materials (R = La, Pr, Nd, Eu or Dy).

2.2 X-Ray Absorption from Multi-Orbital Hubbard Hamiltonians

We focus on the Ni L-edge (2p → 3d) XAS utilizing a cluster model for monovalent NiO₂ containing five Ni 3d orbitals and six O 2p orbitals in a square-planar geometry, and three Ni 2p orbitals per unit cell in the atomic core, with hybridization parameters obtained from Wannier downfolding as described in the previous section. We evaluate the XAS κ for the absorption of a photon having momentum and polarization k_i, e_i, respectively, as

${\kappa }_{{\mathbf{e}}_i,{\mathrm{k}}_{\mathrm{i}}}\left(\omega \right)=\frac{1}{\pi Z}\sum _{i,\nu }{e}^{-\beta E_i}|{\left|\right.⟨\nu |{\widehat{D}}_{{\mathbf{k}}_i}\left({\mathbf{e}}_i\right)|i⟩\left|\right.|}^2\delta \left(\omega -\left(E_{\nu }-E_i\right)\right),(1)$

Here, Z is the partition function, E_{i,ν}, |{i, ν}⟩ are the energies and eigenstates of the initial (ground state) and XAS final states, respectively, obtained from exact diagonalization of the multi-orbital Hubbard model in the cluster Hilbert space. The multi-orbital Hubbard model can be compactly written as

$H=\sum _{i,j,\sigma }\sum _{\mu ,\nu }{t}_{i,j}^{\mu ,\nu }{d}_{i,\mu ,\sigma }^{†}{d}_{j,\nu ,\sigma }+\frac{1}{2}\sum _i\sum _{\mu ,\nu ,{\mu }^{\prime },{\nu }^{\prime }}\sum _{\sigma ,{\sigma }^{\prime }}{U}_{\mu ,\nu ,{\mu }^{\prime },{\nu }^{\prime }}{d}_{i,\mu ,\sigma }^{†}{d}_{i,\nu ,{\sigma }^{\prime }}^{†}{d}_{i,{\mu }^{\prime },{\sigma }^{\prime }}{d}_{i,{\nu }^{\prime },\sigma }.(2)$

Here i, j denote sites, σ, σ′ denote spin, and μ, ν, μ′, ν′ denote orbital indices. The operators $d_{i,\mu ,\sigma }^{†},d_{i,\mu ,\sigma }$ create, annihilate holes having spin σ in orbital μ at site i, and can represent valence, ligand, or core holes. The Coulomb matrix elements U are written in terms of Slater-Condon parameters pertaining to the valence hole and core hole states, which can be determined via a variety of methods or simply used as fitting parameters to x-ray spectra. Lastly $\widehat{D}$ is the dipole operator connecting Ni 2p core levels to Ni 3d states. Additional details about XAS can be found in various textbooks, i.e. Ref. [12]. As the Hilbert space scales exponentially with the number of orbitals in the unit cell, this technique is amenable to only small clusters. However, since XAS is a local probe of electronic structure, our computational approach is well suited to determine the effective low energy valence and spin states of Ni, as is well known in many other contexts.

2.3 Dynamic Spin Structure Factor

The dynamic spin structure factor has been shown to be an accurate approximation of the RIXS cross section of both Mott insulators and doped systems [6, 13]. The dynamical spin structure factor is defined as

$S\left(\mathbf{q},\omega \right)=\frac{1}{\pi }\mathrm{I}\mathrm{m}⟨G\left|{\rho }_{\mathbf{q}}^{\left(s\right)†}\frac{1}{\mathcal{H}-E_G-\omega -i\mathrm{\Gamma }}{\rho }_{\mathbf{q}}^{\left(s\right)}\right|G⟩,(3)$

where the spin density operator is given by ${\rho }_{\mathbf{q}}^{(s)}={\sum }_{\mathbf{i},\sigma }{s}_{\mathbf{i}\sigma }{e}^{i\mathbf{q}\cdot {\mathbf{r}}_{\mathbf{i}}}={\sum }_{\mathbf{k},\sigma }\sigma c_{\mathbf{k}+\mathbf{q},\sigma }^{†}{c}_{\mathbf{k}\sigma }$, and the 2-orbital nickelate model Hamiltonian is given by

$\mathcal{H}=\sum _{\mathbf{k},\sigma }\left({\epsilon }_{\mathbf{k}}^R{c}_{\mathbf{k}\sigma }^{†}{c}_{\mathbf{k}\sigma }+{\epsilon }_{\mathbf{k}}^{\text{Ni}}{d}_{\mathbf{k}\sigma }^{†}{d}_{\mathbf{k}\sigma }\right)+\frac{U}{N}\sum _{{\mathbf{k}}_1,{\mathbf{k}}_2,\mathbf{q}}{d}_{{\mathbf{k}}_1+\mathbf{q},\uparrow }^{†}{d}_{{\mathbf{k}}_2-\mathbf{q},\downarrow }^{†}{d}_{{\mathbf{k}}_2,\downarrow }{d}_{{\mathbf{k}}_1,\uparrow }+\sum _{\mathbf{k},\sigma }\left({\epsilon }_{\mathbf{k}}^{R-Ni}{c}_{\mathbf{k},\sigma }^{†}{d}_{\mathbf{k},\sigma }+\mathrm{H}.\mathrm{c}.\right),(4)$

where c_k $(c_{\mathbf{k}}^{†})$ operators represent the dispersive R 5d band and the d_k $(d_{\mathbf{k}}^{†})$ operators represent the Hubbard-like Ni 3d band. The details of ${\epsilon }_{\mathbf{k}}^R$, ${\epsilon }_{\mathbf{k}}^{\text{Ni}}$, and ${\epsilon }_{\mathbf{k}}^{\text{R-Ni}}$ are defined in Ref. [14] which proposed this form of the 2-orbital model. The hybridization between Ni and R in this 2-orbital model is shown visually by plotting only the subdominant orbital character in Figure 2. This hybridization results in the “self-doped” nature of the nickelates.

FIGURE 2

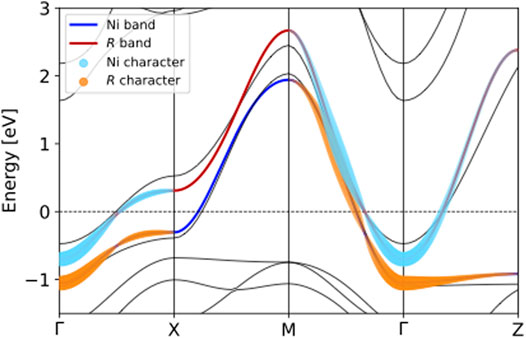

FIGURE 2. Hybridization of the 2-orbital model for NdNiO₂, as described in Eq. 4, showing subdominant Ni and R band character, respectively.

We evaluate the dynamic spin structure factor, S (q, ω), for the 2-orbital nickelate model using exact diagonalization (ED) on an 8-site (diamond-shaped) Betts cluster [15] with periodic boundary conditions, which suffers from finite-size effects but is sufficient for determining the magnon spectrum on the antiferromagnetic Brillouin zone boundary at (π/2, π/2). We take the value of the Hubbard U = 8 eV so that we get a reasonable estimate of J ∼ 80 meV. The eigenvalues and eigenvectors of the ED calculations were found using the Implicitly Restarted Lanczos Method from the ARnoldi PACKage (ARPACK), as implemented in SciPy Linalg library ([16], RRID: SCR_008058). The biconjugate gradient stabilized method was used to calculate S (q, ω).

3 Results

3.1 X-Ray Absorption Spectroscopy

3.1.1 Single-Site

The single site XAS is simulated using techniques mentioned in Sec. 2.2, where the Hilbert space is determined using only the 3d (valence) and 2p (core) orbitals of the Ni transition metal ion, without ligand 2p orbitals, and with open boundary conditions. The eigenenergies are obtained by diagonalizing the Hamiltonian and the XAS cross section is evaluated using Eq. (1).

We first calculate the multiplet XAS of the d⁹ electronic configuration of the Ni ion where the Slater-Condon, spin orbit coupling and crystal-field splitting parameters are taken from Ref. [17]. The results are plotted in Figure 3. Since the single site calculation does not include ligand orbitals in the Hilbert space, direct measurements of crystal field splitting of d orbitals energy levels are used without hybridization parameters obtained by Wannier downfolding from Ref. [18]. Although hybridization with ligands is not considered in this single-site calculation, it can still capture the difference in XAS between high-spin and low-spin ground state as described below. The Coulomb interaction for d⁹ ions is less relevant and the spectral lineshape is dominated by the spin orbit coupling of the core levels, showing a single peak for both the L₃ and L₂ edges with light polarization along the x-direction, and no absorption with light polarization along the z-direction, due to the orbital $d_{x^2-y^2}$ character of the holes in the d⁹ configuration. We then calculated the multiplet XAS on the d⁸ ion using the same parameters for a spin singlet (S = 0) and a spin triplet (S = 1) ground state. Similar to previous reports by Ref. [17], with light polarized along the z-direction, the intensity of the XAS peaks decrease in the low spin state, while the intensity remains the same order of magnitude for the high spin state. With light polarized along the x-direction, the high-spin ground state displays stronger intensity across a wide range of absorption energies, with more dipole-allowed transitions to excited states, compared to the singly degenerate, low-spin ground state.

FIGURE 3

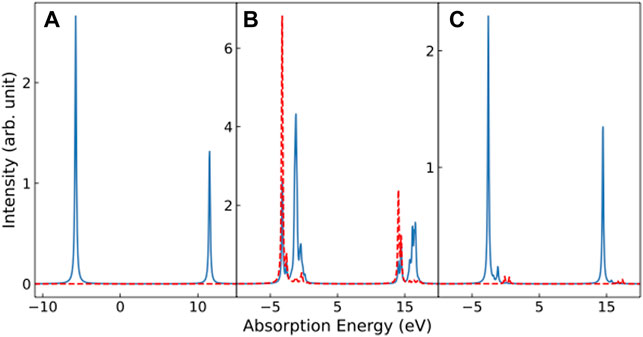

FIGURE 3. Multiplet XAS calculations for the single-site nickel ion. The absorption energy is measured with respect to the ground state of d⁹ ion. The solid line is the spectra measured with x-polarized light, and the dashed line is the spectra measured with z-polarized light. From left to right are spectra of (A) the d⁹ ion, (B) the d⁸ high-spin ion, and (C) the d⁸ low-spin ion.

We also simulated doped spectra as a linear combination of the d⁸ and d⁹ spectra, with the results plotted in Figure 4. Clearly, the high-spin d⁸ state produces spectra with a wide energy spread and additional multiplet peaks. A better comparison to experiment [17] can be made if the d⁸ ion is in the low-spin configuration, producing a less pronounced shoulder in addition to the main absorption peak from the dominant d⁹ configuration.

FIGURE 4

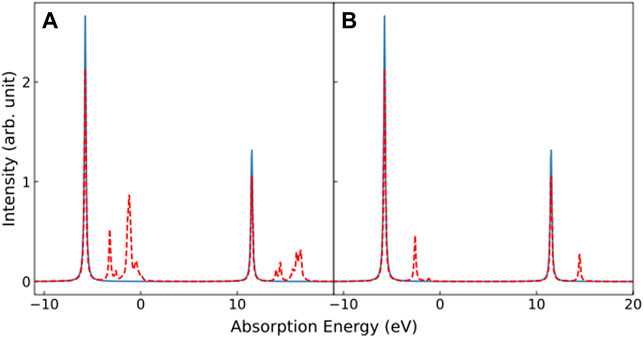

FIGURE 4. XAS spectra for the undoped d⁹ ion (solid line) and with 20% of the hole-doped d⁸ ion (dashed line) calculated for x-polarization. Panel (A) shows the results for doping with the d⁸ high-spin state, and panel (B) shows the results for doping with the d⁸ low-spin state.

3.1.2 Two-Site

The two-site XAS is simulated with a two-site, multi-orbital Hubbard model as described in Sec. 2.2 with periodic boundary conditions in contrast to section Sec. 3.1.1, with 11 orbitals for each site (unit cell NiO₂) in the initial state that includes six oxygen 2p orbitals and the five nickel 3d orbitals, and 14 orbitals for one of the cells in the final state, which includes an additional three core-level nickel 2p orbitals for the target atom. The eigenenergies and eigenstates are obtained by exact diagonalization of the model Hamiltonian and the XAS spectra are calculated using Eq. (1). Including the oxygen ligand orbitals in the model allows hybridization and charge transfer effects between oxygen 2p and Nickel 3d orbitals. The Ni-O hybridization will affect not only the effective energy levels of the Nickel 3d orbitals, but this also changes the effective band character, with oxygen ligand p orbital contributions to the valance and conduction bands, which will result in changes to the XAS lineshape compared to the single-site calculation in Sec. 3.1.1.

We performed multiplet calculations for a two-site, two-hole (nominally d⁹ nickel) and a two-site, three-hole (doped NiO₂ planes) cluster using effective parameters described in Sec. 3.1.1, and hopping parameters (t_pd, t_pdz, t_pdxy, t_pdxz, t_pdyz are 1.2, 0.3, 0.7, 0.8 and 0.8 eV, respectively) obtained by Wannier downfolding as described in Sec. 2.1. The inclusion of hybridization parameters allow us to modulate the strength of electron hopping between each orbital and the onsite energy, with the electrons distributed between the different orbitals based on the model Hamiltonian as described in Ref. [18]. These XAS spectra are shown in Figure 5. The two-site, two-hole XAS spectrum with x-polarization is similar to the single-site, d⁹ model, which was described in the previous section. When doped with one hole, the L₃ and L₂ edges split into three peaks due to Ni-O hybridization. These results are consistent with both the single-site calculation and the experimental results [17].

FIGURE 5

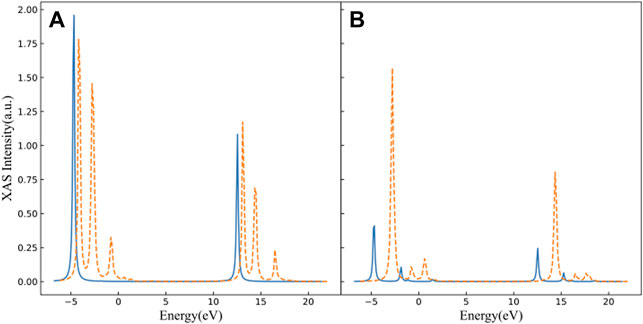

FIGURE 5. Multiplet calculations for two-site, two-hole (solid, blue line) and two-site, three-hole (dashed, orange) NiO₂ clusters. The absorption energy is measured from the ground state of the two-site, two-hole calculation. Panel (A) shows the XAS spectra in x-polarization; and panel (B) shows the XAS spectra in z-polarization.

3.2 Spin Structure Factor

Results for the dynamical spin structure factor calculated via exact diagonalization are plotted in Figure 6, showing a comparison of the 2-orbital model with two different values of the energy difference between Ni and R orbitals ${\epsilon }_{\mathbf{k}}^R-{\epsilon }_{\mathbf{k}}^{Ni}\equiv \mathrm{\Delta }$, and also results from a single-orbital model for the nickel oxide layer. “Half-filling” corresponds to eight electrons distributed among the 16 orbitals of the 2-orbital, 8A Betts cluster, or the eight orbitals of the 8A Betts cluster in the 1-orbital model for the Ni-O layer. The Ni-R energy difference and hybridization dictate the effective filling of the Ni band in the 2-orbital model. The doped calculation is performed with six electrons, corresponding to a nominal doping of ∼ 25%.

FIGURE 6

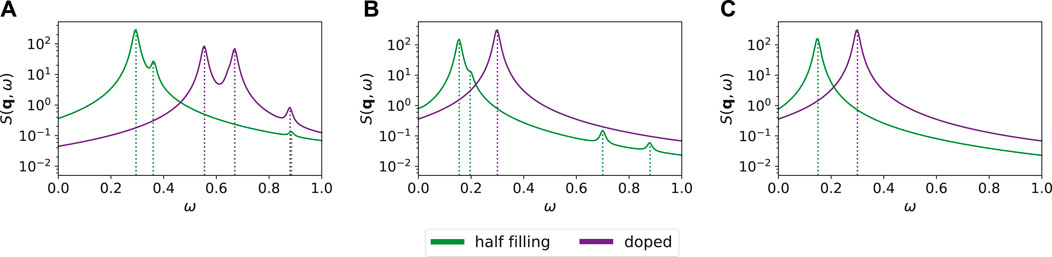

FIGURE 6. Comparison of S (q, ω) at $\mathbf{q}=\left(\frac{\pi }{2},\frac{\pi }{2}\right)$ between (A) the 2-orbital model with ${\epsilon }_{\mathbf{k}}^R-{\epsilon }_{\mathbf{k}}^{Ni}\equiv \mathrm{\Delta }$∼1 eV, (B) the 2-orbital model with Δ → Δ + U/2, and (C) the 1-orbital model that only includes the Ni layer. The dotted vertical lines in each plot show positions of energy eigenvalues (differences) broadened by Lorentzian convolution in the final spectrum. All energies are in eV with S (q, ω) shown on a log scale to enhance weaker features. The half-filling curve (green) in panel (A) aligns with the doped curves (purple) in panels (B) and (C) which correspond to 25% doping of the nickel layer, highlighting the “self-doping” influence of the rare-earth layer when Δ is small.

For the 2-orbital model, tuning the energy difference between Ni and R sites, Δ, plays a major role in the occupation of the R orbital, and hence the “self-doping” of the Ni layer. In Figure 6A, Δ ∼ 1 eV results in approximately two electrons occupying the R-sites at both overall half-filling and ∼$25$% doping, meaning the Ni layer retains a 25% “self-doping” offset. In contrast, panel Figure 6B shows the results for the 2-orbital model with a large offset of U/2 = 4 eV added to Δ, resulting in Δ ∼ 5 eV. Here, the R-site is almost completely empty and S (q, ω) looks very similar to results from the 1-orbital calculation shown in Figure 6C. Obviously, the infinite-layer nickelates live between these two extremes and Figure 6 gives us some clues as to how S (q, ω) is affected by the occupation of the R sites, with S(q, ω) extremely sensitive to the R and Ni occupations.

4 Discussion

In this paper we explored numerical simulations using DFT and ED to determine the underlying band structure, valence configuration, and dynamical spin response of model Hamiltonians aimed to describe infinite-layer nickelates. DFT for various R substituted nickelates was used to determine the parameters of an effective 2-orbital model including Ni 3$d_{x^2-y^2}$ and R 5d “axial” orbitals, where the effect of lower-lying oxygen orbitals is to modify the inter-orbital hybridizations. Cluster multiplet ED was used to determine that undoped nickelate has predominantly 3d⁹ valence which upon doping involves low-spin nickel 3d⁸ valence holes. These results indicate that undoped infinite-layer nickelate is “self-doped” away from half-filling Ni 3d⁹ via the presence of a finite electron concentration in the R layer compensating the holes in the Ni layer, the physics of doped nickelates may be described simply from the point of view of a one-band Hubbard-like model. Our consideration of the spin response indicates a close similarity of the paramagnon energies and intensities to one-band systems, in close analogy with the behavior seen in the cuprates.

Our ED calculations are limited to small clusters and therefore the effect of long-wavelength physics remains beyond our level of investigation. This may be particularly relevant to a discussion of the root cause of superconductivity and the competition between superconductivity and other intertwined phases, such as spin and/or charge stripes that are prevalent in both cuprate phase diagrams and numerical simulations of the single-band Hubbard model [19, 20]. Reference [21] reports density matrix renormalization group (DMRG) simulations of a similar 2-orbital model, and finds Luther-Emery behavior - coexistence of long-range superconducting and charge-density wave order - away from half-filling as in the 1D Hubbard model, while the undoped model does not contain long-range antiferromagnetic order, different than single-band Hubbard and more closely in-line with infinite-layer nickelates. The spin dynamics may be investigated using t-DMRG or other techniques, such as determinant quantum Monte Carlo [22]. This remains a topic of future interest.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author Contributions

EB performed ED calculations for S (q, ω), YH and KH performed ED calculations for XAS, CJ and EB performed DFT calculations for the nickelate bandstructure. BM, CJ, YC, and TD conceived the project. All authors contributed to the writing of the manuscript.

Funding

This work was supported by the U.S. Department of Energy (DOE), Office of Basic Energy Sciences, Division of Materials Sciences and Engineering. Computational work was performed on the Sherlock cluster at Stanford University and on resources of the National Energy Research Scientific Computing Center, supported by the U.S. DOE, Office of Science, under Contract no. DE-AC02-05CH11231.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

We would like to thank Yao Wang from Clemson University for helpful discussions about exact diagonalization and the 2-orbital nickelate model.
