A heterogeneous integrated self-powered IoT system of an LiNbO3 device and CMOS readout circuit

A self-powered IoT system with high integration, robust performance, and adaptability to complex environments is one of the current research hotspots. Piezoelectric materials have been widely used in pressure sensing and energy harvesting due to their stable output electrical properties. In this paper, a heterogeneous integrated self-powered IoT system based on a lithium niobate (LiNbO₃) piezoelectric device and CMOS readout circuit is proposed. The piezoelectric sensor is fabricated by depositing electrodes on the surface of the 36°Y-cut LiNbO₃ piezoelectric material. The sensitivity of the fabricated sensor is 17.5 mV/kPa. Based on the CSMC 0.18 μm BCD process, a ring voltage-controlled oscillator (VCO) based on the current starvation delay element is designed as a wireless data transmission unit. The oscillator has two tuning terminals, which can realize frequency alignment and voltage threshold judgment. Using photolithography, wire bonding technology, etc., the heterogeneous integration of the Si-based chip and LiNbO₃ piezoelectric device is realized. The experimental results show that below 1.8 V supply voltage, the oscillation frequency of the chip increases with the increase in the control terminal voltage, which provides an idea for solving the energy supply problem of an IoT system. This system has great application potential in the field of self-powered sensing.

1 Introduction

With the advent of the Internet of Things (IoT) era, sensor networks have gradually become a research hotspot. The traditional wired sensor network has the advantages of fast transmission rate and good robustness [1]. However, the power supply problem and existence of external wires limit its application in industrial, medical [2] and other fields. Therefore, wireless sensor networks are favored by researchers. At present, most wireless sensor systems require external power supply, while traditional batteries are bulky, short-lived and pollute the environment. An effective way to solve this problem is to obtain energy from nature, such as solar energy [3, 4], biological mechanical energy [5-7], ocean energy [8, 9], and convert it into electrical energy to achieve the self-powered IoT system [10, 11].

At present, energy harvesters based on the pyroelectric effect [12, 13] and photovoltaic effect [14] have been proposed, but their application scenarios are limited. The energy-harvesting system based on the triboelectric effect has also been widely used [15-17], although it has good output performance, but the output stability is poor. Since the piezoelectric effect was discovered in 1880, piezoelectric materials have been widely used in industrial, medical, military and other fields [18-20]. Based on the positive piezoelectric effect, piezoelectric materials can convert mechanical energy into electrical energy to drive electronic devices [21]. Since its charge is generated due to the asymmetry of the positive and negative charge centers inside the material, it has stable output performance. However, the electromechanical conversion efficiency of piezoelectric materials is low, while the power consumption of electronic devices is high. Technical solutions such as increasing the output power of piezoelectric devices [22-24] and reducing the power consumption of external readout circuits [25, 26] provide ideas for realizing self-powered supply for IoT systems, exploring applications in the human–computer interaction, health monitoring, and other fields. In addition, heterogeneous integration of piezoelectric devices with active electronic devices will contribute to more efficient, reliable, and portable self-powered IoT systems [27].

In this work, a heterogeneous integrated self-powered IoT system based on the LiNbO₃ piezoelectric device and low power CMOS readout circuit is introduced. The LiNbO₃ crystal is a good piezoelectric crystal with a small temperature coefficient, high electromechanical coupling coefficient, and stable performance. In this paper, the LiNbO₃ crystal is used as a piezoelectric material. In addition, a current-starved voltage-controlled oscillator (VCO) with low power consumption is designed in this paper. The circuit is implemented using the CSMC 0.18 μm BCD process. The designed ring VCO consumes 8.67 μW and has a center frequency of 13.56 MHz. It belongs to the ISM band and can be used to send information in a wireless way.

2 Design of the self-powered IoT system

2.1 System structure

The heterogeneous integrated self-powered IoT system proposed in this paper is composed of an LiNbO₃ piezoelectric device, voltage-doubling rectifier, and wireless transmission unit, as shown in Figure 1. The LiNbO₃ device has two functions: one is to convert external mechanical energy into electrical energy by rectifying and the other is to supply power for the wireless transmission unit; in addition, as a sensor, the output piezoelectric signal is connected to the wireless transmission unit, and frequency tuning can be performed. The wireless transmission unit is a ring VCO with dual-tuned terminals, which has low power consumption compared to the LC VCO.

FIGURE 1

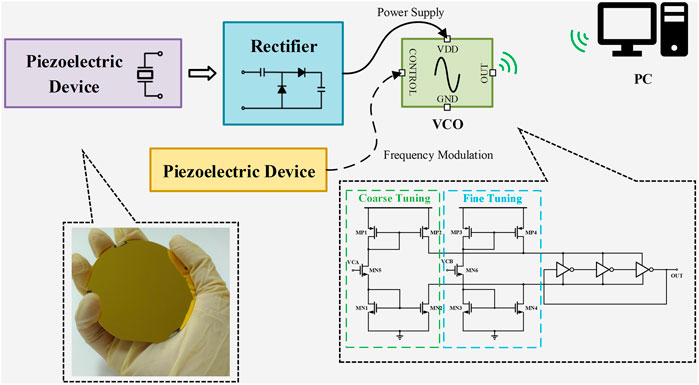

FIGURE 1. Structure diagram of the heterogeneous integrated self-powered IoT system. The piezoelectric device realizes energy harvesting through the rectifier and supplies power to the VCO, and the piezoelectric device is connected to the control terminal of the VCO to realize frequency modulation.

2.2 Piezoelectric device

When a pressure is applied to a piezoelectric material, the piezoelectric effect can be described by the piezoelectric constitutive equation:

$\left[\begin{array}{c}\hfill \delta \hfill \\ \hfill D\hfill \end{array}\right]=\left[\begin{array}{cc}\hfill S^E\hfill & \hfill d^t\hfill \\ \hfill d\hfill & \hfill {\epsilon }^T\hfill \end{array}\right]\left[\begin{array}{c}\hfill T\hfill \\ \hfill E\hfill \end{array}\right],(1)$

where δ is the strain, T is the stress, D is the electrical displacement, E is the electric field strength, S is the elastic modulus, ɛ is the dielectric constant, and d is the piezoelectric coefficient.

Piezoelectric crystals grow in long-range order, according to the crystal space lattice, and have no symmetry center, so they have piezoelectricity. As shown in Figure 2, the LiNbO₃ crystal is a trigonal crystal system at room temperature, which has the advantages of high Curie temperature [28] and strong piezoelectric and ferroelectric performances, and is widely used in the production of SAW devices, piezoelectric filters, transducers, laser modulators, etc. The LiNbO₃ crystal is anisotropic, and the piezoelectric effect is the strongest in the direction of 38.9°, that is, d₂₂ is the largest at this time [29]. The commercial LiNbO₃ crystal cutting direction close to it is 36°Y-cut. In this work, piezoelectric devices were fabricated by depositing Ti/Au on the surface of the 36°Y-cut LiNbO₃ piezoelectric crystal. When the piezoelectric device is pressed, positive charge is generated on one surface of the device, and correspondingly, a negative charge is generated on the other surface. Since the impedance of the external circuit is not infinite, electrons flow from one electrode to the other through the external circuit.

FIGURE 2

FIGURE 2. LiNbO₃ lattice structure and diagrams of internal and surface charges under pressure and release.

2.3 Wireless transmission unit

Usually, for the VCO, the change of voltage of the power supply and the control terminal will cause the frequency jitter. When the power supply voltage is stable, the LC VCO shows a sensitive frequency response to the change of the control terminal voltage, and it has less phase noise. However, the power consumption and area are also increased. For the self-powered IoT system, both frequency stability and power consumption need to be considered. Based on the low-power design requirements of the self-powered system, the wireless transmission unit uses a current-starved ring VCO to convert the pressure information on the sensor into frequency information and send it wirelessly. Current-starved ring oscillators control the frequency of oscillation by supplying current to the oscillator by mirroring the bias current. The delay time of a current-starved delay element can be expressed as [30]

$t_d=\frac{C_L\times V_{DD}}{K{\left(V_C-V_{TH}\right)}^2}.(2)$

where C_L is the load capacitance, V_DD is the supply voltage, K is the process parameters of transistors, V_C is the control voltage, and V_TH is the threshold voltage.

The frequency of the ring oscillator is related to the delay time of each inverter and the number of inverter stages, and the oscillation frequency can be expressed by the following formula:

$f=\frac{1}{2N\times t_d},(3)$

where N is the number of inverter stages and t_d is the delay time of each stage of the inverter. In order to reduce the power consumption of the system, the current of the three-stage inverter comes from the bias current source, and the operating frequency of the oscillator is reduced as well Tran and Dang [31]. The schematic of the oscillator is shown in Figure 3. The oscillator has two control terminals, which realize coarse tuning and fine tuning. The coarse-tuning terminal is used to stabilize the output frequency at the ISM frequency band. When the output reaches a certain threshold, the oscillator circuit is turned on and oscillates in a specific frequency band. The fine-tuning terminal is associated with voltage detection, which can change the frequency of the oscillator within a specific frequency band. Piezoelectric devices can be equivalent to a voltage source in series with a capacitor or a charge source in parallel with the capacitor. The gate resistance of the MOS transistor is large. According to the piezoelectric equivalent circuit, the piezoelectric element is connected to the gate of the transistor. At this time, the external load impedance is large, so the conversion of the charge signal can be realized. The stress condition can be characterized by the frequency and the output time. The designed chip has a low power consumption of 8.676 μW with a VDD of 1.8 V.

FIGURE 3

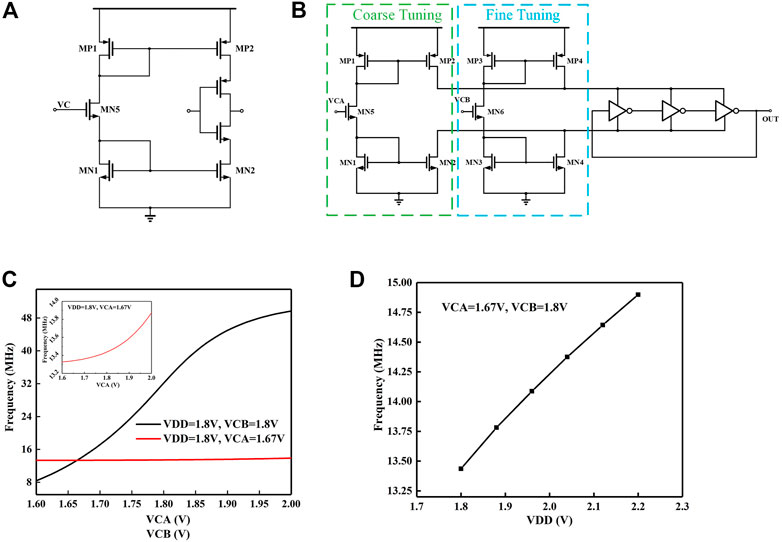

FIGURE 3. Low-power wireless information-sending unit. (A) Schematic of the current-starved delay element; (B) schematic of the low-power current-starved ring oscillator, and the circuit has coarse- and fine-tuning functions to achieve frequency alignment and threshold judgment, respectively; (C) simulation of the variation curve of oscillation frequency with VCA and VCB; and (D) simulation of the variation curve of oscillation frequency with VDD.

Figures 3C,D show the correspondence between oscillator frequency and VDD, VCA, and VCB. From Figure 3C, it can be concluded that the change of the output frequency is sensitive to the change of the coarse-tuning terminal VCA. In this paper, VCA is set to 1.67 V, and the corresponding output frequency is about 13.56 MHz. For VCB, the frequency variation range is 13.32–13.87 MHz, which belongs to the ISM frequency band, and the wireless sensor unit can transmit information wirelessly in this frequency band. As analyzed previously, the delay of each stage of the inverter is also related to VDD. As shown in Figure 3D, when VDD varies from 1.8 to 2.2 V, the output frequency changes from 13.44 to 14.90 MHz.

3 Results and discussion

The test environment for the electrical performance of the piezoelectric device is shown in Figure 4A. The piezoelectric device is subjected to pressure by a stepper motor, and the corresponding signal is collected using an electrometer (Keithley, 6514). The stepping motor is controlled using special software on the computer, and the pressure can be read out using the dynamometer (HANDPI, HP-500). The effective area of the sensor is 0.5 cm². Figures 4B,C show the change of open circuit voltage and charge of piezoelectric devices with time in the pressure range of 10–700 kPa. Both the output voltage and the charge increase with pressure. It is because the increase in pressure causes an increase in the electric dipole moment, creating a larger potential difference between the top and bottom electrodes. The sensor has robust output performance, and the sensitivity of the sensor is up to 17.5 mV/kPa, which can meet the need of wireless sensing.

FIGURE 4

FIGURE 4. (A) Test environment of the LiNbO₃ piezoelectric sensor; (B) open-circuit voltage of the sensor under different pressures; and (C) open-circuit voltage and charge of the sensor under different pressures.

The PCB test board of the chip is shown in Figure 5A. For the convenience of welding and testing, the chip is packaged in a QFN24 case. Figure 5B shows the curve of the oscillator output frequency as a function of VCA when VCA = 1.8 V and VDD = 1.8, 1.9, and 2.0 V. As VDD increases, the corresponding output frequency also increases. In addition, as shown in Figure 5C, we compared the test results and simulation results when VDD = 1.8 V and VCA = 1.8 V. Due to the existence of parasitic capacitances such as PCB and QFN cases, the frequency of chip testing is lower than that of simulation under the same conditions. As shown in Figure 5D, the 2.2-μF capacitor can be charged to 2.03 V within 50 s when pressed by the human hand. At this time, the energy stored in the capacitor is E_energy = 4.53 μJ. The power consumption of the oscillator is 8.67 μW, and the start-up time is only 191 ns, so it is enough to drive the oscillator. The results show that the heterogeneous integrated IoT system can collect the energy of the piezoelectric device, supply power to the chip within a certain period of time, and realize the reading of pressure information within this period.

FIGURE 5

FIGURE 5. Low-power wireless transmit unit tests. (A) PCB test board for the chip; (B) test for the variation curve of oscillation frequency with VDD; (C) comparison of simulation and test results of output frequency variation with VCA; and (D) charging of the capacitor as the device is pressed and released by the human hand.

4 Method for heterogeneous integration of piezoelectric devices and Si-based integrated circuits

In order to improve the integration of the heterogeneous integrated IoT system, a part of the area on the LiNbO₃ substrate is reserved as the active area in this work. This area integrates the voltage-doubling rectifier and the wireless transmission unit, and the other area is the Ti/Au electrode, which is used to extract the piezoelectric charge. The process and explosion diagram of the heterogeneous integrated sensing unit are shown in Figure 6, and the detailed steps are as follows: preparing the LiNbO₃ substrate; spin-coating the negative photoresist (AR-N 4340) on the top surface of the LiNbO₃ substrate, for which the speed and corresponding time are 1,000 rpm for 6 s and then 6,000 rpm for 20 s; prebaking for 2 min at 110°C; exposing for 40 s; post-baking for 4 min at 105°C; developing for 1 min; depositing Ti/Au electrodes for 20/200 nm on the top and bottom surfaces of LiNbO₃; and soaking in acetone to remove the photoresist. Then, through wire bonding, reflow soldering, etc., the Si-based chip is fixed on the surface of the wafer and coated with silica gel for protection.

FIGURE 6

FIGURE 6. Method for heterogeneous integration of piezoelectric devices and Si-based integrated circuits. (A) substrate preparing; (B) photoresist coating, exposure and development; (C) metal deposition & lift-off in acetone; (D) chip bonding and dispensing.

Inspired by the PCB, for the active area reserved in the heterogeneous integrated IoT system, part of the metal on the surface of the wafer is used as wiring by designing the pattern to realize the interconnection of components. It is worth noting that for the convenience of wiring, the bottom surface of the integrated unit is considered the positive electrode of the piezoelectric device, and the top surface is considered the negative electrode.

5 Conclusion

In conclusion, a heterogeneous integrated self-powered IoT system based on the LiNbO₃ piezoelectric material and CMOS readout circuit is proposed in this work. An LiNbO₃ piezoelectric sensor was fabricated by vapor-depositing electrodes on the surface of the LiNbO₃ piezoelectric material. The charge that the piezoelectric device can generate is 1,160 nC under the pressure of 700 kPa. The sensitivity of the sensor is up to 17.5 mV/kPa, which can meet the need of wireless sensing. Based on the CSMC 0.18 μm BCD process, a low-power VCO circuit was designed with a power consumption of 8.67 μW and can work in the 13.56 MHz ISM frequency band. Through lithography and other processes, the designed low-power chip is heterogeneously integrated with the LiNbO₃ piezoelectric material. This system can send data at regular intervals. It has significant advantages in high integration, high anti-interference, etc., which provides methods for the energy supply problem of an IoT system.
