Abstract
Topological semimetals have attracted wide attention due to their potential applications, such as electronic devices and electrocatalysis. Herein, based on the first-principles calculations and symmetry analysis, we first report that ternary compound pnnm-type LiRuO2 is a typical lantern-like nodal wall semimetal. Specifically, without considering spin-orbit coupling (SOC), one-dimensional (1D) two-fold degenerate bands on the ki = ±π (i = x, y) planes form the two-dimensional (2D) topological state (namely, nodal surface) under the constraint of multiple symmetry operations. In addition, the symmetry-enforced nodal network is formed on the kz = ±π planes. Finally, these nodal networks and nodal surfaces are coupled together to form lantern-like nodal walls. Remarkably, these topological states are protected by multiple symmetries, namely, nonsymmorphic two-fold screw-rotational symmetry [S2i (i = x, y)], time-reversal symmetry (T), inversion symmetry (I), glide plane symmetry (σz), and two-fold rotational symmetry (C2x/y). In addition, we further discuss the effect of spin-orbit coupling on the lantern-like nodal walls. We find that even if LiRuO2 contains S2z and T symmetries, these nodal surfaces and nodal networks are still broken. Then, due to the existence of I and T symmetries, Dirac nodal lines and Dirac points are formed in the low-energy region. Therefore, our work indicates that LiRuO2 is an excellent material platform for researching multiple topological states.
1 Introduction
Topological insulators (TIs) have attracted extensive attention in condensed matter physics due to the fact that they possess the Dirac cone feature on some specific surfaces [1–3]. Inspired by TIs, the researchers found that there exist multiple types of crossing points near the Fermi level in some electronic band structures with a metal feature. Under some symmetry operations, such as mirror plane symmetry, glide plane symmetry, and inversion/time-reversal symmetries, these crossing points generate topological states of different dimensions. It is well known that the high-dimensional fermions usually originate from topological states of a lower dimension. Among them, the most typical example is that the one-dimensional Weyl/Dirac nodal line [4–10] is actually formed by countless zero-dimensional Weyl/Dirac points [11–20]. In other words, a two-dimensional nodal surface [21–25] is made up of countless one-dimensional nodal lines. In this case, the classification of topological semimetals is greatly expanded. Thus, topological states with different dimensions exhibit a variety of interesting properties, such as opposite chirality [11–15], Fermi arc or drumhead-like surface states [4–10], and high surface density of states [26–29]. These properties make topological semimetals have important application prospects in electronic devices or electrocatalysis [e.g., hydrogen evolution reaction (HER) and N2 cleavage] [26–31].

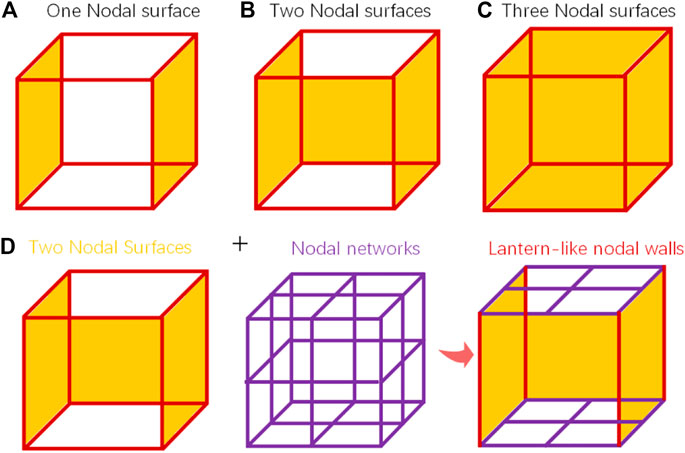

It is well known that with the increase of dimensions, topological fermions usually require higher symmetry operations. So far, the topological fermion with the highest dimension has been theoretically proved to be a two-dimensional nodal surface. Wu et al. [21] and Yu et al. [32] analyzed that there exist only three possible for nodal surfaces, namely one (a), two (b), or three (c) nodal surfaces, as shown in Figures 1A–C. At present, in electronic systems, a large number of topological nodal surface semimetals have been reported [21–35], such as hexagonal compounds XTiO2 (X = Li, Na, and K Rb) [22], Ti3Al family [23], quasi-one-dimensional half-metals XYZ3 (X = Ca, Rb, Y = Cr, Cu, and Z = Cl, I) [24], electride Ba4Al5 [25], and Sr5X3 (X = As, Sb, and Bi) [33]. We can find that more nodal surface semimetals only exist in one nodal surface, while reported two and three nodal surfaces are mainly concentrated in phonon systems [36–38]. Interestingly, in these phonon systems, Wang et al. [38] found that P42/nmc-type Li6WN4 material possesses a novel topological phase, namely ideal lantern-like phonons. This lantern-like phonon is composed of two nodal surfaces and two symmetry-enforced nodal networks, as shown in Figure 1D. To the best of our knowledge, this novel topological phase may not have been reported in electronic systems. Therefore, it is urgent to find the real materials with this topological state in the electronic system.
FIGURE 1
In this work, we first report that the synthesized ternary compound LiRuO2 possesses this novel type of topological state, namely lantern-like nodal wall. Specifically, in compound LiRuO2, there exist two-fold degenerate bands along k-paths X-S-R-U (kx = π) and Y-S-R-T (ky = π). Under the combined operation of S2x/y and T symmetries, these degenerate bands form two-dimensional nodal surfaces on kx = π and ky = π planes. In addition, a symmetry-enforced nodal network is formed on the kz = π surface due to the existence of a two-fold rotational symmetry (C2x/y) along the kx/y directions, glide plane (σz), inversion-reversal (I), and T symmetry. Finally, two nodal networks and two nodal surfaces form the lantern-like nodal wall. However, when spin-orbit coupling (SOC) is considered, the lantern-like nodal wall is broken and transformed into Dirac points (located at Z point) and Dirac nodal lines (on kz = 0 and ky = π planes) under IT symmetries.
2 Calculations and results
2.1 Crystal and electronic structures
Figures 2A,B show the crystal structure and the Brillouin zone (BZ) of LiRuO2. It possesses a typical orthorhombic structure and belongs to the space group Pnnm (No. 58). The primitive cell of LiRuO2 contains eight atoms [see 3) of Figure 2A], namely, two Li atoms at the 2c Wyckoff position (0,0, and 1/2), two Ru atoms at the 2a Wyckoff position (1/2, 1/2, and 1/2), and four O atoms at the 4 g Wyckoff position (0, 0.67, and 0.75). From the crystal structure, we can find that six O atoms form a tilted octahedron, and Ru atoms are contained in the body center, while Li atoms form a one-dimensional chain along the c-axis [see (I and 2) of Figure 2A]. In fact, LiRuO2 is the final configuration in which the abundant lithium ions are inserted into the anodic material RuO2. Specifically, researchers [39] have proved that RuO2 with a hexagonal structure is an excellent anode material. Then, RuO2 was ground into powder, mixed with Li in proportion, and placed in acetone and dibutyl phthalate to form the final lithium-ion battery LiRuO2 with an orthorhombic structure [see Figure 2C]. Interestingly, we find that LiRuO2 shows abundant degenerate bands near the Fermi level from its electronic band structure. As shown in Figure 2D, the k-paths Y-S-R-T-Y (kx = π), X-S-R-U-X (ky = π), and Z-U-R-T-Z (kz = π) are all two-fold degenerate bands, and these bands are mainly contributed by O atoms of octahedron and Ru atoms of body center, as shown in Figure 2E. Finally, these degenerate bands form a new type of lantern-like nodal wall under multiple symmetric operations.
FIGURE 2
2.2 Lantern-like nodal wall
Since the lantern-like nodal wall is composed of two nodal networks and two nodal surfaces, we will analyze the two topological states one by one from two aspects of symmetry operations and DFT calculations.
2.2.1 Analysis of symmetry
In space group (SG) 58, the symmetry operations contain: two-fold screw symmetries: , , inversion symmetry: , rotation symmetries: , , , mirror symmetry: , , , glide symmetries: , , , and T symmetry. Based on Yu et al.‘s report [32], when rotation [Ci (i = x, y, z)], glide plane (σi), I, and T symmetries are organized together, causing the formation of symmetry-enforced two-fold degenerate bands along high-symmetry-paths. According to the aforementioned symmetry operations, we can find that SG 58 can form symmetry-enforced nodal networks on kx/ky/kz = ±π planes. In addition, based on the work of Wu et al. [21], when the two-fold screw symmetry [S2i (i = x, y, z)] is combined with the T symmetry [namely, where is surface], 2D nodal surfaces can be formed in momentum space. Remarkably, SG 58 contains S2x and S2y and T symmetries, indicating a Kramer-like degeneracy can be formed on kx and ky = ±π planes. In other words, the nodal networks on kx/ky planes also belong to a part of the nodal surfaces are protected by [S2x/2yT].
2.2.2 Nodal networks

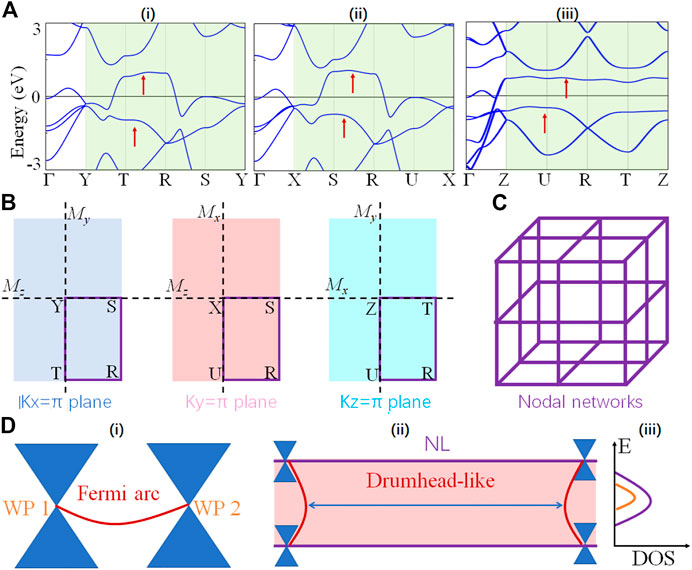

By DFT calculation, we find that the calculated results in LiRuO2 compound are consistent with the symmetry analysis. Specifically, as shown in Figure 3A, we can find that these bands along k-paths Г-Y, Г-X, Г-Z are single band. Based on group theoretic analysis, the irreducible representations of these single bands are {R1, R2, R3, and R4}. Finally, these single bands form symmetry-enforced two-fold degenerate bands [namely open nodal line] along k-paths Y-S-R-T-Y (kx = π), X-S-R-U-X (ky = π), and Z-U-R-T-Z (kz = π) [See Figure 3B]. In addition, the irreducible representations of these nodal lines on kx = π, ky = π, and kz = π are {R2, R4}, {R6, R8}, and R5, respectively. Due to the existence of Mx/y/z symmetries, these nodal lines finally form the nodal network on different surfaces, as shown in Figure 3C. Remarkably, based on the symmetry analysis and the following DFT verification, the nodal network on the kx/y planes actually belongs to part of the two nodal surfaces. It is well known that a pair of Weyl points of opposite chirality are connected by a one-dimensional Fermi arc, as shown in 1) of Figure 3D. For LiRuO2 compound, these nodal lines on kz = π are composed of countless zero-dimensional Weyl points. Thus, the surface state of nodal line is connected by countless one-dimensional Fermi arcs, namely drumhead-like surface state, as shown in 2) of Figure 3D. In this case, compared with the Weyl semimetals, the surfaces of nodal line semimetals possess higher density of states (DOSs), as shown in 3) of Figure 3D. Based on some reports of topological catalysis [26–31], high surface DOS [namely (001) surface] may possess potential application prospects for the catalytic performance.
FIGURE 3
2.2.3 Two nodal surfaces

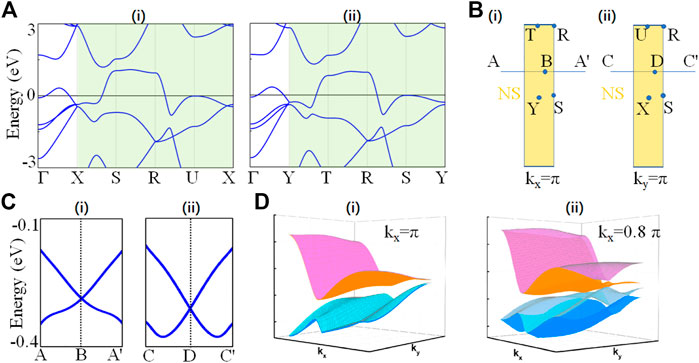

By symmetry analysis, the nodal lines on the kx = π/ky = π planes should belong to a part of two nodal surfaces. In this section, we verify the existence of two nodal surfaces by DFT calculation. Figure 4A shows the electronic band structure along the highly symmetric paths on the kx = π/ky = π planes. Then, we denote the midpoints of the T-S (R-Y) and X-R (U-S) paths as B and D [See Figure 4B]. Obviously, we can clearly observe that the two linear single bands cross at B and D points, as shown in Figure 4C. In other words, the whole surfaces of kx = π/ky = π are double degenerate bands. Furthermore, the three-dimensional dispersion bands on kx = π and kx = 0.8π planes are calculated, as shown in Figure 4D. We find that when on the kx = π plane, the two single bands are combined to form a curved double degenerate surface. On the contrary, the bands on the kx = 0.8π plane evolves into four curved single bands due to the absence of S2x symmetry. Therefore, the aforementioned DFT calculations fully confirm that the kx = π/ky = π planes are the double degenerate surfaces, which agree well with the results of the symmetry analysis. In addition, the surface states of zero-dimensional nodal points and one-dimensional nodal lines are one-dimensional Fermi arcs and two-dimensional drumhead-like, respectively. In other words, the dimension of the surface state is one dimension higher than that of the topological fermion. Since the highest dimension of the projected surface in three-dimensional materials is a two-dimensional surface, there is no surface state for nodal surface.
FIGURE 4
3 Discussions and conclusion

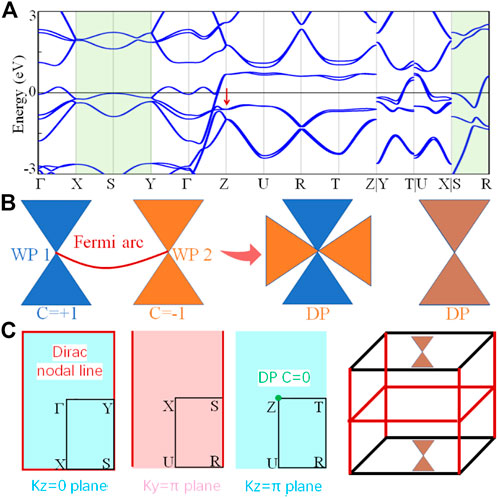

Before concluding the discussion, we also discuss the effect of SOC on the lantern-like nodal wall. As reported by Wu et al. [21], all types of topological nodal surfaces may be destroyed after considering SOC but may be retained in containing the combined nonsymmorphic two-fold screw-rotational and T symmetries. For LiRuO2 compound, we find that even if this material contains S2z and T symmetries, the two nodal surfaces and two nodal networks are broken, as shown in Figure 5A. Due to the existence of IT symmetries, Dirac points and Dirac nodal lines are finally formed on the high symmetric point Z and the k-paths X-S-Y (kz = 0), S-R (ky = π), respectively [See Figures 5B,C]. It is worth noting that these Dirac points and Dirac nodal lines are composed of a pair of Weyl points with opposite chirality (C = ±1). In other words, the Chern number of these Dirac states are 0 (C = 0). That is, these Dirac states do not have topologically protected Fermi arc and drumhead surface states.
FIGURE 5
In conclusion, we find that two nodal surfaces exist on the kx = ±π and ky = ±π planes of LiRuO2. These nodal surfaces are protected by nonsymmorphic two-fold screw-rotational (S2x/S2y) and T symmetries and are classified to the second class (class-II) of nodal surfaces. In addition, the symmetry-enforced nodal network is formed on the kz = ±π surfaces due to the existence of a two-fold rotational symmetry (C2x/y), glide plane (σz), inversion-reversal (I), and T symmetries. Finally, the two nodal networks and two nodal surfaces form the lantern-like nodal wall.
4 Calculation methods
In this work, the first-principles calculations were performed in the framework of density functional theory (DFT) by using the Vienna ab initio simulation package (VASP) [40, 41]. For ionic potentials, the generalized gradient approximation (GGA) of the Perdew–Burke–Ernzerhof (PBE) method is used [42]. The cutoff energy was adopted as 550 eV, and the Brillouin zone was sampled with Γ-centered k-point mesh of 9 × 9×11 for both structural optimization and self-consistent calculations. The energy convergence criteria were chosen as 10−5 eV. In addition, the DFT + U method was used to calculate the band structures of compound LiRuO2 (URu = 3eV) [43]. We find that the change of the electronic band structure is weak at different U values, which is similar to some of the previous reports [13, 44].
