Dynamic and high-speed measurement system for blade tip clearance of engine with optical comb

For blade tip clearance measurement, the optical measurement method has the characteristics of high precision, anti-electromagnetic interference, and non-contact measurement. A dynamic and high-speed blade tip clearance measurement system based on time stretch dispersive Fourier transform with the optical comb is proposed and demonstrated. The dynamic experiments are designed to verify the accuracy of the system. The results show that the measuring speed is up to 17.6 MHz and the measurement errors are less than 1 μm under dynamic conditions. The experiments prove that the system has the advantages of high measurement accuracy, high speed, and good repeatability. It can provide a new tool for engine health monitoring.

1 Introduction

The aero-engine, known as the Pearl of the industrial crown, is regarded as one of the leading technologies relating to industry development. Specifically, the blade is a critical component of the aero-engine. Working in a harsh environment for a long time, the blade will be affected by the air force generated by its separation force, air or gas flow. These forces will continuously affect the operating state of the blade [1]. Excessive tip clearance will reduce engine efficiency, consume more fuel, and even cause a surge. But the blade tip clearance is too small to cause friction between the blade and the inner wall of the casing, even affecting the operation safety of the engine. Therefore, in the production and application of the engine, it is necessary to monitor the blade tip clearance in real time to obtain the blade operation status. It would provide a strong guarantee for the safe operation of the aero-engine [2, 3]. Common measurement methods include non-optical measurement and optical measurement. The former mainly consists of the discharge probe measurement method, eddy current measurement method, microwave measuring method, and capacitance measurement method. The latter mainly includes reflection intensity measurement, and interference measurement [4–6].

The discharge probe method uses the DC discharge principle of the sensing probe to measure the tip clearance [7]. Sheard applied this method to the tip clearance measurement system of the engine [8]. Based on the principle of electromagnetic induction, the eddy current sensor obtains the tip clearance information by detecting the change of pick-up signal. The American HOOD company has developed two kinds of eddy current sensing probes, which can meet the requirements of different ambient temperatures [9]. The typical sensing probe can withstand 260°C, and the other sensing probe is equipped with an air cooling device, which can support temperatures above 1,000°C in the actual working environment. The microwave measurement method uses a microwave sensor to transmit a microwave signal to the blade, receives signals reflected from the blade tip, and analyzes blade tip clearance. Glenn Institute has developed a high-temperature microwave tip gap probe, which can meet the requirements of a 900°C high-temperature environment [10]. Capacitive measurement technology obtains the blade tip clearance by detecting the change of capacitance between the pole core of the sensor and the blade end face. A capacitance sensor has been developed for tip clearance measurement in harsh environments with a measurement range of 0.3–3 mm and a measurement accuracy of 15 μm [11, 12].

Due to the development of optical measurement and detection technology, researchers began to use optical fiber sensors for tip clearance measurement. Through the emission optical fiber, the reflection intensity detection type sensor probe irradiates the laser light on the blade end face to detect the optical signal reflected from the blade end face [13, 14]. An optical fiber blade tip clearance sensor for active clearance has been used, and the sampling rate is about 100 kHz, and its resolution ratio is better than 0.01 mm [15]. In addition, the China Electronics Technology Group Corporation and Tianjin University have made progress in this field [16, 17]. The interferometric measurement method is based on interferometric ranging technology and uses the common path interferometer as the detection system. The interferometer with this structure easily aligns the optical path and reduces the vibration impact of the mechanical design. A prototype was built and tested for monitoring tip clearances, and the spatial resolution of the sensor reaches 10 μm, and the measurement accuracy is up to 4 μm [18].

With the emergence and development of optical frequency comb, some new distance measurement methods have been proposed [19–21], and they are promising for blade tip clearance measurement. In this paper, we introduce a method of tip clearance measurement system based on time stretch dispersive Fourier transform (TSDFT). The steps machined at the top of the blade are used to verify the dynamic measurement accuracy at different rotating speeds. The experiment results show that the system has the characteristics of high measurement accuracy and good measurement repeatability, and it provides a new method for tip clearance measurement.

2 Measurement principles and experiments set up

The wideband spectral shape of the ultrashort optical pulse, which is a Fourier transform limited pulse, can be mapped onto the time-domain waveform [22, 23], when the pulse travels through a dispersive medium that has sufficiently large dispersion, the stretched pulse has the same shape as the spectrum intensity envelope [24]. In this process, the dispersive medium serves as a pulse stretcher to implement something similar to the Fourier transform, so the technology is called the time stretch dispersive Fourier transform [25]. It has been used for measuring Fast and continuous events because it overcomes the traditional optical instruments’ measurement rate limit.

The optical comb, whose pulse repetition rate and carrier-envelope offset frequency of mode-locked femtosecond laser are locked to reference frequency standard, has the characteristics of ultra-short pulse width, high repetition rate, wide spectrum, and ultra-high peak power [26]. The peculiar property of the optical comb makes the comb become an ideal light source for the measurement system of TSDFT. The dispersion elements can be implemented using a variety of optical devices, such as single-mode optical fiber, dispersion compensation fiber, chirped fiber Bragg gratings [27], spatially chirped dispersion systems (grating or prism pairs) [28], and multimode waveguide dispersion systems [29, 30]. Single-mode optical fiber with low loss and high mechanical stability is the simplest and most commonly used method to realize TSDFT [31]. Usually, several fiber amplifiers are added to the system to compensate for the loss of optical energy [32].

As shown in Figure 1, we describe the tip clearance measurement system principle based on TSDFT. Provided that there are no nonlinear phenomena, the femtosecond pulses can realize wavelength-to-time mapping in the system. The pulse emitted by the optical comb enters a Mach-Zehnder interferometer and is divided into two beams by the first optical fiber coupler (C1), whose beam splitting ratios are 1 percent and 99 percent; the one that has higher energy enters the measurement arm and is transmitted to the first port of the optical fiber circulator (CIR). A fiber focusing lens (FFL) connected to the second port of the circulator sends the measurement pulse to the blade tip and collects the reflected light pulse. The return pulse that carries the information of blade tip clearance d propagates to the third port of the circulator.

FIGURE 1

FIGURE 1. Schematic diagram of the tip clearance measurement system principle based on TSDFT. C: Coupler; CIR: Circulator; FD: Fiber delayer; FFL: Fiber focusing lens; EDFA: Erbium-doped fiber amplifier; SMF: Single-mode fiber; PD: Photodetector; DAP: Data acquisition and processing unit.

The other beam enters the reference arm, where a fiber delay line (FD) is placed to adjust the optical path to match that of the measurement arm, so the dispersion of the reference pulse and the measurement pulse from the third port is balanced when the two pulses converge at the second fiber coupler (C2). At the same time, the influence of pulse time jitter is avoided.

Before entering the dispersive medium, the confluent pulses are preamplified using an erbium-doped fiber amplifier (EDFA1). A roll of single-mode fiber (SMF) is applied to make the ultrashort pulses disperse into a wide pulse. The two pulses overlap and interfere in the time domain, and the interference signal consists of the time delay between the two pulses. The interference signal is amplified by the second erbium-doped fiber amplifier (EDFA2), and it is detected by a Photodetector (PD) and Sent to the data acquisition and processing unit (DAP) for signal processing.

The reference pulse and the measurement pulse can be respectively expressed as:

$E_r\left(t\right)=aE\left(t\right),E_t\left(t\right)=bE\left(t-\tau \right)(1)$

where E(t) and E (t-τ) is the electrical field. Where a and b are the power factors. The time-domain interference signal detected by photodetector can be expressed by:

$I\left(t\right)={\left(E_r\left(t\right)+E_t\left(t\right)\right)}^2=E^2\left(t\right)\left[a^2+b^2+2ab\cos \left(wt\right)\right](2)$

Where ω is the angular frequency and can be expressed as τ/β₂L [33], β₂ is the second-order dispersion coefficient, L is the fiber length, τ is the time delay of the measurement pulse relative to the reference pulse, and the time delay can be written as τ = 2πβ₂Lf, f is the frequency of the interference signal. It can be obtained by the Fourier transform of the interferogram. In the description of optical fiber parameters, the dispersion parameter D is Commonly used to represent dispersion, and the relation between D and β₂ is D = −2πcβ₂/λ², λ is the center wavelength of the optical pulse, c is the speed of light in vacuum. The blade tip clearance is explicitly given as d = cτ/2n_g, with n_g being the refractive index of air. Substitute τ into the above equation d turns to be:

$d=\frac{{\lambda }^2}{2n_g}\cdot \left|DL\right|\cdot f(3)$

According to Eq. 3, it can be found that the factors affecting the measurement range mainly include |DL| and f; the measurement range is limited by the bandwidth of the detector and acquisition card when |DL| are determined. On the other hand, the larger the |DL|, the greater the measurement range.

Figure 2 shows the experimental setup. In the experiment, a homemade optical comb has a repetition rate of 17.6 MHz, a center wavelength of 1559 nm, and average output power of 15 mw. The optical comb emits a pulse, and the system can complete one measurement, so the measurement rate is very high and equal to the repetition rate of the pulse. To eliminate the nonlinearity of femtosecond pulses in the fiber, the output power of the optical comb must be controlled [34]. The amount of dispersion per wavelength can be represented as the product of the group velocity dispersion parameter D and the fiber length L. The larger the product, the more obvious the pulse broadening; in our experimental setup, the product |DL| is 250 ps/nm. Because the higher-order dispersion is minimal, the effect of the higher-order dispersion is not considered in the experiment.

FIGURE 2

FIGURE 2. The experiment setup for tip clearance measurement system based on TSDFT.

The main factors affecting the clearance variation are rotor unbalance, casing deformation, thermal expansion, machining, and assembly accuracy. During the operation of an aero-engine, the change of tip clearance is very complicated due to the deformation of each component under different temperatures and stress, and it is difficult to assess the accuracy of the measurement. We design a verification experiment of dynamic measurement accuracy. As shown in the red box in Figure 2, the simulated blades are placed on a high-speed rotating motor, and the steps have different heights machined at the top of the blade. The height difference between the two faces of the step can be accurately calibrated under static conditions. The measurement line is marked in the center of the steps to ensure that the measurement position should be the same as possible under static and dynamic conditions. Because the two faces of the step are on the same blade, it can be considered to be affected equally when the blade tip is rotating at high speed.

The bandwidth of the photodetector is 18 GHz. Since the steps machined at the top of the blade have a smaller height, the sampling rate of data acquisition and processing unit is 2.6 GHz. But if the larger tip clearances are measured, a higher sampling rate acquisition card must be used. The environmental conditions are 20.0°C, 1013.2 h Pa, and 50.0% humidity. The group refractive index of air can be calculated as 1.0002694 based on the Ciddor formula [35]. The speed of light in vacuum c is 299792458 m/s.

3 Experimental results

The blade tip clearance is measured when the blade passes through the probe. Dynamic clearance measurement signals are shown in Figure 3. Figure 3A shows several consecutive clearance measurement signals when the blade tip rotates at high speed. Each cluster signal contains all the measured signals of a blade tip. We spread it out in the time domain, and all the signals of a blade tip are shown in Figure 3B. Continuing to spread, we get the signals of the two faces of the step in one blade tip in Figure 3C. It can be found simply that the frequency of the two signals has a slight difference.

FIGURE 3

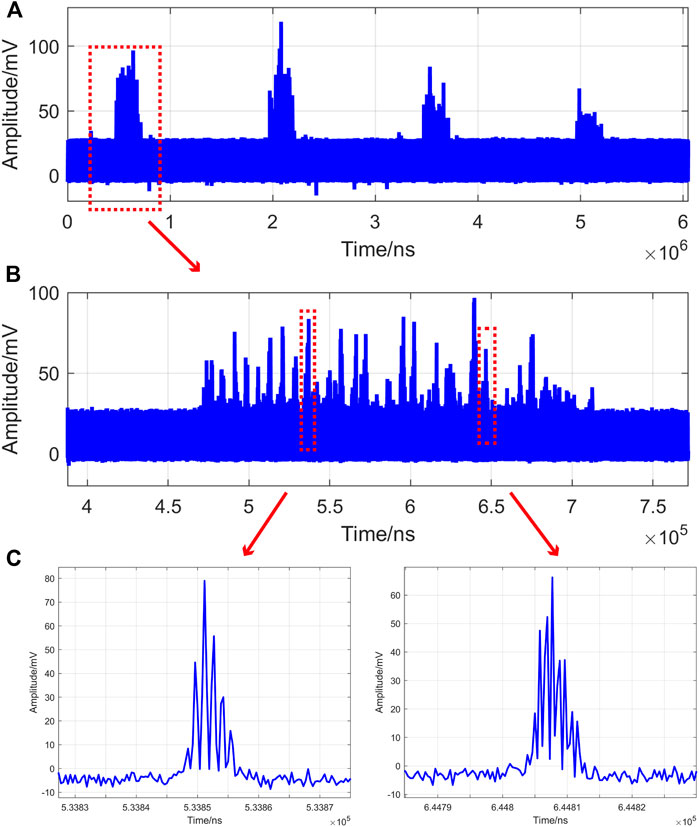

FIGURE 3. Dynamic clearance measurement signals. (A) The signals of several blade tips. (B) The signals of one blade tip. (C) The signals of the two faces of step in one blade tip.

For the time-domain signals in Figure 3C, we perform Fourier transform on it to obtain frequency-domain signals. Because the energy of measured light received is unstable and weak, the signals are usually not smooth and sharp enough to get the exact frequency of measurement signals. The frequency-domain clearance measurement signal is shown in Figure 4, after the signal is filtered and fitted, the exact frequency is obtained by peak-seeking operation, and we can calculate the value of the tip clearance according to Eq. 3.

FIGURE 4

FIGURE 4. Frequency-domain clearance measurement signal.

Figures 5A, B show the measurement results of two faces of step 1 and step 2 at the same rotation, respectively. The measured trajectory is a curve rather than a straight line because the step surface is a plane rather than a circular arc camber, so each measurement result on the same surface is not equal to the blade rotating. Another reason is the unevenness caused by machining.

FIGURE 5

FIGURE 5. (A) The results of two faces of step 1. (B) The results of two faces of step 2.

The calibration heights of step 1 and step 2 are 0.04988 mm and 0.10507 mm, respectively. In the experiment, we eliminate the outliers caused by the low signal-to-noise ratio and use the average of all face results as the measurement result. Compared with calibration results, the heights error of step 1 and step 2 are shown in Figure 6, when the rotation speed is from 500 RPM to 5000 RPM at 500 RPM intervals. The experimental results show that the measurement error is less than 1 μm.

FIGURE 6

FIGURE 6. The height error of step 1 and step 2 under different rotation speeds.

Ten times measurements were made at each rotation speed and used to calculate the repeatability. The repeatability of measurements of step 1 and step 2 are shown in Figure 7 with the rotation speed from 1000 RPM to 5000 RPM at 1000 RPM intervals. The results show that the measurement repeatability is also better than 1 μm. It is proved that the system has superior measurement repeatability.

FIGURE 7

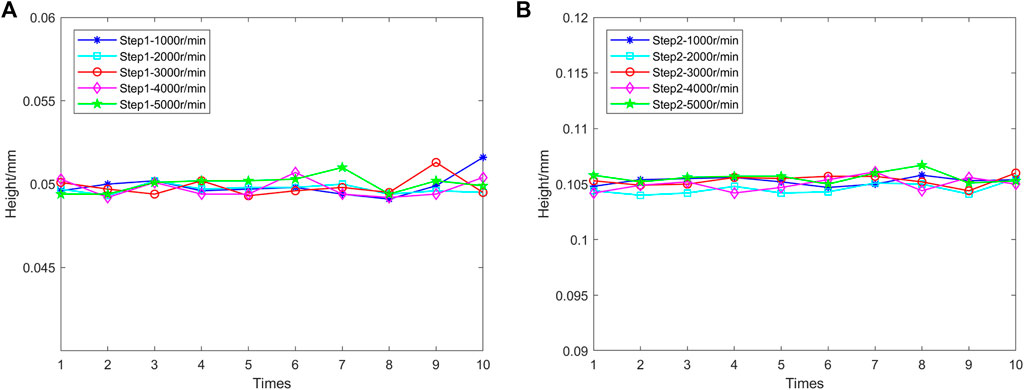

FIGURE 7. (A) The repeatability of measurements of step 1 under different rotation speeds. (B) The repeatability of measurements of step 2 under different rotation speeds.

4 Conclusion

In this paper, the system based on TSDFT is used to measure blade tip clearance variation When the blade rotates at high speed. The experimental results show that this system has the advantages of high measurement accuracy, high speed, and good repeatability. Furthermore, the data acquisition card’s sampling rate and the detector’s bandwidth are reduced. Up till now, the TSDFT has been widely used in various applications, such as microwave spectrum sensing measurement, real-time spectroscopy, ultra-fast continuous imaging, analog-to-digital conversion, non-linear kinetic, etc.
