Thermodynamics of the pseudogap in cuprates

The key thermodynamic characteristics of the pseudogap state in cuprate superconductors are reviewed. These include YBa₂Cu₃O_7−δ, Y_0.8Ca_0.2Ba₂Cu₃O_7−δ, YBa₂Cu₄O₈, Bi₂Sr₂CaCu₂O_8+δ, La_2−xSr_xCuO₄, and Tl₂Ba₂CuO₄. The electronic specific heat was extracted using a differential technique, and the evolution of the specific-heat coefficient γ and electronic entropy S as a function of temperature, doping, and magnetic field reveals a canonical behavior summarized by the following. The normal-state gap which opens in the pseudogap domain apparently remains open to the highest temperatures investigated. The gap decreases in magnitude with increasing doping and closes abruptly at a critical doping of p ≈ 0.19 holes/Cu, independent of temperature. In this picture, the pseudogap is separated from the pseudogap-free region of the phase diagram by a vertical line similar to the vertical line separating the incoherent and coherent antinodal quasiparticle states found in ARPES. The important role of fluctuations is evident by a diverging enhancement of γ(T) on either side of T_c, and this enables extraction of the mean-field transition temperature $T_{\text{c}}^{\text{mf}}>T_{\text{c}}$, defining a crescent of parapairing above T_c(p) which extends across the entire superconducting phase diagram and which is quite distinct from pseudogap phenomenology. The data are consistent with d-wave pairing and the BCS ratios are extracted, revealing canonical near-weak-coupling behavior across the over-doped region with a sudden suppression occurring at p ≈ 0.19 when the pseudogap sets in.

1 Introduction

The idea of a pseudogap in cuprates was suggested quite early by Friedel [1] to describe the suppression of susceptibility across the under-doped regime. However, the underlying physics of the pseudogap, observed in all hole-doped cuprates, still remains unresolved despite more than a quarter of a century of detailed study. More concerning still, there is still no agreement on the precise phase extent and phenomenology of the pseudogap [2]. What perhaps is agreed is that it represents a partial gap in the electronic density of states (DOS) which is asymmetric about E_F as evidenced by its dramatic effect on the thermoelectric power in under-doped cuprates [3]. Once, it was also generally agreed to be associated with the under-doped side of the phase diagram but now, researchers often describe a T*(p) line as a line which extends across the entire superconducting phase diagram, falling to zero as T_c → 0 at the end of the superconducting dome [4]. It also seems to be associated with a reconstruction of the Fermi surface (FS) from a large hole-like FS on the over-doped side to disconnected hole pockets on the under-doped side [3, 5, 6] though there remain significant questions in this interpretation especially for Tl₂Ba₂CuO₆ [7].

The electronic specific heat between 0 and 300 K probes the full spectrum of low-lying quasiparticle excitations over a Fermi window extending up to 100 meV and thus encompasses both the superconducting gap and the pseudogap. It is therefore an excellent probe of the pseudogap, its phase extent and its relation, or otherwise, to superconductivity. That is, provided it can be measured. Unfortunately, the total specific heat also includes a phonon contribution which, at temperatures of T_c and above, is up to 100 fold larger than the electronic specific heat. However, the extensive differential measurements and analysis of the late John Loram have enabled this separation of electronic and phonon terms [8], and it is these which we discuss here.

The technique is discussed elsewhere [9] but in short, the specific heat of the sample is measured relative to a reference sample which ideally is similar in structure and total number of atoms. In all the following work discussed, the reference samples were the same material as the samples but Zn substituted in order to suppress superconductivity. Thus, for example, YBa₂Cu₃O_7−δ is measured relative to YBa₂Cu_3−yZn_yO_7−δ with y = 0.21. In this way, the differential technique backs off most of the phonon contribution to the total specific heat and the residual phonon term is found to scale with the changing oxygen content, δ, thus allowing the bare electronic term to be directly extracted. The systems measured include YBa₂Cu₃O_7−δ, Y_0.8Ca_0.2Ba₂Cu₃O_7−δ, YBa₂Cu₄O₈, Bi₂Sr₂CaCu₂O_8+δ, La_2−xSr_xCuO₄, and Tl₂Ba₂CuO₄. A key result is the observation of entropy suppression, precisely mirroring the susceptibility suppression [1], that shows the pseudogap to be a gap in the quasiparticle spectrum and not just the spin spectrum [10, 11].

2 Doping dependence of specific heat and entropy

2.1 YBa₂Cu₃O_7−δ and YBa₂Cu₄O₈

The simplest and most ideal systems to study are YBa₂Cu₃O_7−δ (Y123) [8] and YBa₂Cu₄O₈ (Y124) [12], the first because it can be doped over a wide range in very small increments and the second because it is perhaps the most defect-free structure amongst the cuprates. Figure 1 shows the temperature dependence of (a) the electronic specific heat coefficient, γ ≡ C_P/T, and (b) the electronic entropy, $S\equiv {\int }_0^T\gamma \mathrm{d}T$, for both of these systems [12]. From here on, we omit the identifier “electronic” as all the thermodynamic functions quoted in the following are electronic and do not include any phonon component. For Y123, we show the data just for oxygen contents of 6.97 and 6.92, that is, nearly fully oxygenated Y123. These plots capture the essential pseudogap physics of the cuprates which will be seen to be canonical. Fully oxygenated Y123 happens to lie just at the doping point where the pseudogap closes, while Y124 is like under-doped Y123 in which the pseudogap is present. Three key features can be observed in these data:

FIGURE 1

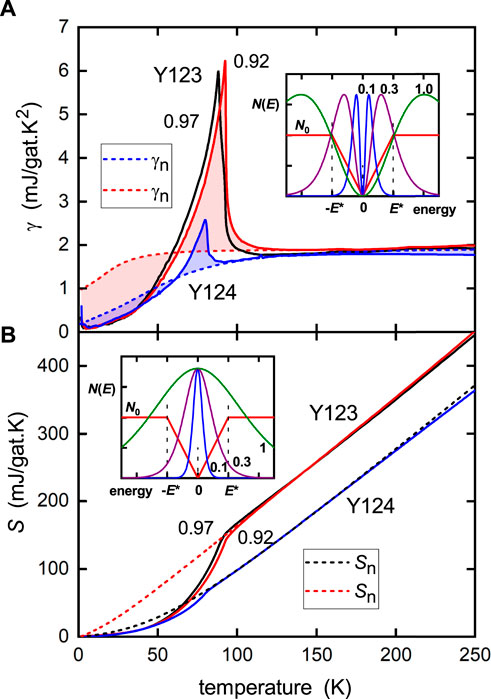

FIGURE 1. Electronic thermodynamic functions (A) γ(T) and (B) S(T) for YBa₂Cu₃O_7−δ and YBa₂Cu₄O₈ showing the canonical parallel downward shift in S(T) due to the pseudogap, while γ(T) returns to the same value at high T. The shaded regions in (A) between the observed γ(T) and γ_n(T) illustrate the equal-area entropy-balance rule, as discussed the text. The inserts in each panel show the Fermi windows for each function overlaid on a gapped density of states N(E). The blue, purple, and olive-green curves show the Fermi windows for temperatures k_BT = 0.1E*, 0.3E*, and 1.0E*, respectively. For S(T), the window has a single peak and always sees a gap at E_F, so the entropy is always suppressed while the gap remains. In contrast, for γ(T), the Fermi window is double peaked about E_F and so, at high enough temperature, the window does not see the gap and γ(T) returns to its bare value.

(i) Fully oxygenated Y123 exhibits a large jump in γ at T_c while, in Y124, the jump is strongly suppressed. This shows that compared with Y123, the density of pairs in the Y124 condensate is strongly diminished by the removal of the antinodal states by the pseudogap.

(ii) It is possible to infer the normal-state behavior in the absence of superconductivity using the method of entropy balance, or equal-area construction. Thus, in Figure 1A, the red dashed curve is the normal-state specific-heat coefficient, γ_n(T), corresponding to the solid red curve. The pink-shaded area between the two curves must be the same above and below the crossing point. There is some latitude in the construction, but it is quite constrained as it must be continuous with the measured behavior above T_c. For the fully oxygenated sample, γ_n(T) is constant, reflecting a fairly flat DOS in the neighborhood of E_F. This reveals that there is no pseudogap present in fully oxygenated Y123, but a small gap has already opened at oxygen 6.92 (red dashed curve) as reflected by the low-temperature downturn. Now, when we turn to Y124, the same construction (blue shading) shows γ_n(T) (blue dashed curve) to be rather strongly suppressed at low-T, thus highlighting a fully developed pseudogap in this more under-doped sample. Even so, there remains a small but finite residual γ_n at T = 0 and this reflects the Fermi arcs or pockets present in the under-doped cuprates which have been revealed in ARPES measurements on Bi2212 and La214 [13]. Integration of γ_n(T) gives the normal-state entropy S_n(T) shown by the red and black dashed curves in Figure 1B. The integrated area between S_n(T) and S(T) gives the superconducting condensation energy, U₀, which will be discussed later.

(iii) Perhaps, most notably, the data show that the γ(T) curves for Y123 and Y124 come together at high temperature, whereas the S(T) curve for Y124 is displaced downward in parallel fashion relative to that for Y123. This arises from the presence of the pseudogap and its persistence to very high temperature. To see this, the entropy for a weakly interacting Fermi liquid is considered [14]:

$S_{\text{n}}=-2k_B{\int }_{-\infty }^{\infty }\left[f\ln \left(f\right)+\left(1-f\right)\ln \left(1-f\right)\right]N\left(E\right)\mathrm{d}E,(1)$

where f(E) is the Fermi function and N(E) is the electronic DOS for one spin direction. This is just a weighted integral of the DOS with the “Fermi window” [f  ln(f) + (1 − f) ln (1 − f)]. This Fermi window for S(T) is shown as a function of E in the insert of Figure 1B for three different temperatures. It is single peaked at E_F and so a gap at E_F (illustrated by the triangular gap in the figure) is always seen by the entropy, even at high T so long as the gap remains. In contrast, for γ(T) ≡ ∂S/∂T, the Fermi window is necessarily double peaked about E_F, and at high enough temperature, it does not see the gap at E_F. As a consequence, γ(T) returns to its bare value, while S(T) is suppressed until, and only if, the gap closes. The fact that S(T) remains suppressed in Figure 1B shows that the gap persists to the highest temperature investigated (nearly 400 K). The magnitude of the gap, E*, can be read off from where the extrapolation of the high-T linear section of S(T) intercepts the y-axis. For the triangular gap shown, the intercept is 2 ln(2) k_BN₀E*V_M, where V_M is the molar volume. If the DOS is non-zero at E = 0 with value N₁, then the intercept is 2 ln(2) k_B(N₀ − N₁)E*V_M. As noted, such a finite value would reflect the presence of a small Fermi surface (arcs or pockets) [13], and this is confirmed by the non-zero value of γ_n (T = 0) for both Y123 and Y124 seen in Figure 1.

2.2 Y_0.8Ca_0.2Ba₂Cu₃O_7−δ

Ca doping in YBa₂Cu₃O_7−δ allows this system to be significantly over-doped at full oxygenation, with over-doped T_c reduced to about 45 K. This means that much of the superconducting phase diagram can be explored simply by changing δ by annealing and quenching [11]. For a 6-g sample, the mass change from deoxygenation is 144 mg, so δ can be measured rather accurately and even more accurately from the change in the residual phonon term of the specific heat. This system also benefits from the fact that the van Hove singularity (vHs) lies far below E_F and is not traversed until beyond the superconducting domain [15]. This is important as the proximity of the vHs in other cuprates somewhat confuses the interpretation of the entropy and its parallel shift at high T, as we will see. Figure 2 shows (a) γ(T) and (b) S(T) for YBa₂Cu₃O_7−δ over a range of doping states spanning the under- and over-doped regions [11].

FIGURE 2

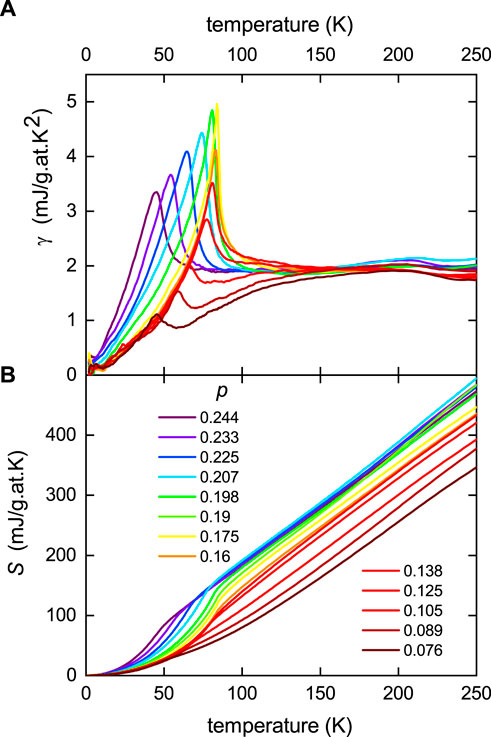

FIGURE 2. (A) Measured electronic specific heat coefficient, γ, for Y_0.8Ca_0.2Ba₂Cu₃O_7−δ reported by Loram et al. [11]; and (B) the electronic entropy calculated from γ in (A) by integration. The doping states span from under-doped p ≈ 0.07 to over-doped p ≈ 0.23 in small steps of approximately 0.01.

The same features noted previously for YBa₂Cu₃O_7−δ and YBa₂Cu₄O₈ are evident, but now, the systematic effect of doping reveals a progressive reduction in the jump Δγ/γ_c with under-doping and a progressive downward parallel shift in entropy at high T, indicating a growing pseudogap with under-doping. At the same time, the value of γ at high T remains essentially doping independent. At no point does the entropy recover to its bare value at high T, again showing that the pseudogap does not close with increasing T. γ(T) exhibits a linear slope at low T, consistent with d-wave pairing. In the under-doped region at low-T, these curves stack on top of each other, while in the over-doped region, they become increasingly steeper. This slope is proportional to 1/Δ₀, where Δ₀ is the amplitude of the d-wave gap as T → 0. Accordingly, it can be seen that the gap amplitude remains more or less constant in the under-doped region and falls in the over-doped region, just as found in systematic ARPES studies [16]. Values of Δ₀ (divided by 2.5) obtained in this way are summarized in Figure 3. The values of E* obtained from the y-axis intercept of the high-T linear entropy are also plotted. E* descends more or less linearly with doping, vanishing at p ≈ 0.19. Additionally, at this critical doping level, the values of Δγ/γ_c abruptly begin to fall as the pseudogap opens.

FIGURE 3

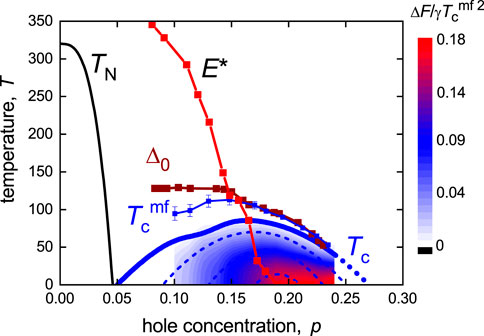

FIGURE 3. Summary of extracted data for Y_0.8Ca_0.2Ba₂Cu₃O_7−δ. The T_c(p) phase curve; the ground-state superconducting energy gap, Δ₀(p); and pseudogap energy, E*(p), all expressed in temperature units. The mean-field T_c, $T_{\text{c}}^{\text{mf}}(p)$ obtained from the entropy-balance analysis illustrated in Figure 4 is also shown. The false-color map shows the condensation free energy BCS ratio, $\mathrm{\Delta }F/{\gamma }_{\text{n}}{T}_{\text{c}}^{\text{mf}2}$ which for a d-wave order parameter should be 0.17 at T = 0. It is close to that value for all p ≥ p* = 0.19, but falls rapidly as the pseudogap opens for p < 0.19.

2.3 Fluctuations and mean-field T_c

Examination of the transition steps in γ(T) at T_c shown in Figures 1, 2 reveals that these transitions are not completely abrupt but show the effect of fluctuations above and below T_c. These arise because of the low superfluid density found in the cuprates which results in strong fluctuations in both amplitude and phase, setting in simultaneously well above T_c [17]. As a consequence, T_c is pushed significantly below its mean-field value, $T_{\text{c}}^{\text{mf}}$. These perturbations to γ(T) near T_c can be analyzed to calculate $T_{\text{c}}^{\text{mf}}$, and the method is illustrated in Figure 4 [17].

FIGURE 4

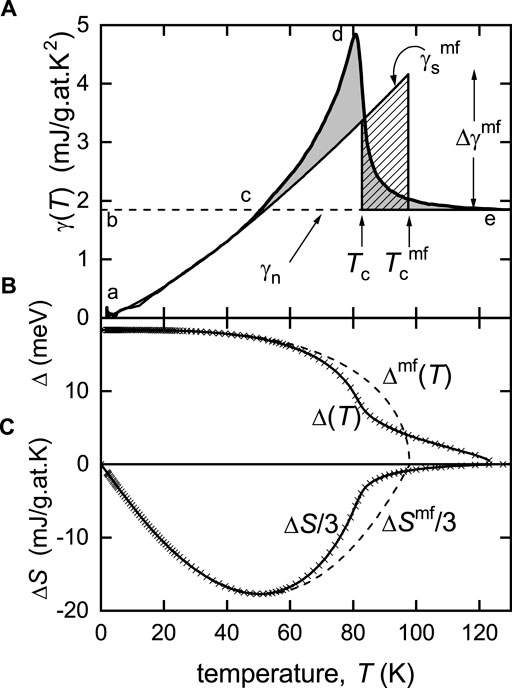

FIGURE 4. (A) Fluctuation analysis of the specific heat coefficient, γ(T), for Y_0.8Ca_0.2Ba₂Cu₃O_6.75 to determine the mean-field T_c value, $T_{\text{c}}^{\text{mf}}$, showing the deduced MF coefficient γ^mf and the symmetric fluctuation contribution (gray shading). By entropy balance, the hatched area equals the shaded area under the fluctuation term. (B) Solid curve: the SC energy gap Δ₀ calculated using Eq. 2 and dashed curve: its MF value, ${\mathrm{\Delta }}_0^{\text{mf}}$ calculated from γ^mf in (A). (C) Solid curve: the entropy difference ΔS = S_s − S_n calculated by integrating (γ − γ_n) from (A); dashed curve ΔS^mf calculated by integrating (γ^mf − γ_n) from (A).

Figure 4 shows the specific heat coefficient, γ(T), for Y_0.8Ca_0.2Ba₂Cu₃O_6.75. At this doping (p = 0.185), the pseudogap has just closed and the normal-state specific-heat coefficient γ_n(T) is essentially constant (dashed line). ${\gamma }_{\text{s}}^{\text{mf}}$ is the mean-field γ in the superconducting state deduced by entropy balance, namely, the area abc equals the area cde. Additionally, by entropy balance, the gray shaded area under the fluctuation contribution must equal the hatched area which therefore defines both $T_{\text{c}}^{\text{mf}}$ and Δγ^mf. This illustrates the method for extracting the mean-field parameters. For other doping states, γ_n(T) is no longer flat but the same construction equally applies. The values of $T_{\text{c}}^{\text{mf}}$ for different oxygen contents are plotted [17] in Figure 3 by the blue data points and error bars as annotated. In the under-doped region, T_c is depressed below $T_{\text{c}}^{\text{mf}}$ by up to 30 K. For Bi2212, the depression is higher still—up to 45 K. This is quantitatively consistent with conclusions drawn from both ARPES [18] and scanning tunneling spectroscopy measurements [19]. In contrast, a fluctuation analysis of intrinsic tunneling data in over-doped Bi2212 single crystals suggests somewhat smaller depression of 7–13 K [20]. It is notable that $T_{\text{c}}^{\text{mf}}$ tracks Δ₀/2.5 across the over-doped region, that is, nearly equal to the weak-coupling mean-field BCS value of Δ₀/2.14.

By integrating γ(T) − γ_n(T) in Figure 4A, we obtain ΔS = S_s − S_n and similarly for $\mathrm{\Delta }{S}^{\text{mf}}={\int }_0^T({\gamma }_{\text{s}}^{\text{mf}}-{\gamma }_{\text{n}})dT$. Values of ΔS and ΔS^mf are plotted in Figure 4C by the solid and dashed curves, respectively, where only every 4^th data point is shown from the experimental data. These may in turn be integrated to generate the condensation free energies ΔF(T) and ΔF^mf(T) [21]. The former, ΔF(T), at T = 0 is the condensation internal energy, U₀. Finally, we wish to construct the BCS ratio $U_0/\gamma T_{\text{c}}^2$, but as BCS is a mean-field theory, the appropriate T_c to use is the mean-field value which we have calculated. For d-wave weak-coupling superconductivity, this ratio should be 0.17.

These integrals were evaluated for all the doping states and the false-color plot in Figure 3 is $\Delta F/\gamma T_{\text{c}}^{\text{mf}2}$ plotted as a function of p and T. As shown previously [21], this BCS ratio sits close to 0.17 across the entire over-doped regime until p falls below p* ≈ 0.19 when the pseudogap opens and the ratio falls abruptly as spectral weight is removed by the pseudogap.

2.4 Pairing gap

Elsewhere [21], we have shown that starting from the BCS Hamiltonian one can deduce

$\begin{array}{ll}\hfill \zeta N\left(0\right)\mathrm{\Delta }{\left(T\right)}^2& =2\mathrm{\Delta }F\left(T\right)+T\mathrm{\Delta }S\left(T\right)\hfill \\ \hfill & \equiv 2\mathrm{\Delta }U\left(T\right)-T\mathrm{\Delta }S\left(T\right),\hfill \end{array}(2)$

where ζ = 1 for s-wave and 1/2 for d-wave and N (0) is obtained from the usual expression for the Sommerfeld “constant”

${\gamma }_{\text{n}}=\frac{2}{3}{\pi }^2{k}_{\text{B}}^2{N}_0\left(1+\lambda \right),(3)$

where λ is the usual electron–boson coupling parameter in the Eliashberg theory [22] and N₀ is the bare band DOS, un-renormalized by electron-boson or Coulomb effects. Thus, Eq. 2 expresses Δ(T) directly in terms of thermodynamic functions ΔF, ΔS = S_n − S_s, and ΔU = U_n − U_s, which we have calculated. We do not know the magnitude of λ in Eq. 3, so we relate N (0) to γ_n using Eq. 3 with λ = 0 recognizing then that deduced values of Δ(T) should be larger by the factor $\sqrt{1+\lambda }$. In this way, we have evaluated Δ(T) and Δ^mf(T), and these are plotted in Figure 4B.

Several points are worth noting: (i) first, Δ^mf(T) is found to follow almost precisely the BCS d-wave temperature dependence. This means that the cuprates are close to weak-coupling behavior as we have previously deduced [17], thus justifying the basic assumptions of our analysis. (ii) Second, with increasing temperature, Δ(T) starts to fall below Δ^mf(T) at the onset of SC fluctuations below T_c. At T_c, there is an inflection in Δ(T) which then remains finite and falls only slowly to zero above T_c, and indeed well above $T_{\text{c}}^{\text{mf}}$. As it does, it becomes less well defined due to the implicit square root in Eq. 2. So, the terminal point for a finite non-zero gap is not sharply defined. (iii) Third, at T_c, the coherent superconducting state vanishes and this finite residual “gap” reflects a fluctuation-induced loss, above T_c, of spectral weight in the DOS at E_F—as described in figure 10.2 in Larkin and Varlamov [23]. Here, it is only a partial gap but easily distinguishable from the partial gap that is the pseudogap. Similar results were also obtained for Bi2212, but the fluctuation domain was found to extend somewhat higher than in Y_0.8Ca_0.2Ba₂Cu₃O_7−δ [21].

2.5 La_2−xSr_xCuO₄

Turning now to La_2−xSr_xCuO₄, we illustrate the complicating role of a proximate vHs [24]. Figure 5 shows (a) γ(T) and (b) S(T) for this system over a rather broad range of doping values (annotated) [11], including some unpublished data. The most extremely over-doped data (x = 0.30, 0.35, and 0.45) are depicted by the dashed curves for ease of identification. As found for Y_0.8Ca_0.2Ba₂Cu₃O_7−δ, the γ(T) data come together at high temperature, although the convergence seems slower because of the broader doping range, and likewise the entropy curves, S(T), remain spread out at high T as a set of parallel straight lines which do not close at any temperature, consistent with a normal-state gap which never closes at elevated temperature. But at what doping level does the pseudogap finally close? The high-T linear portion is linear to the origin just above x = p = 0.17, so this would seem to be the general location of p_crit where the pseudogap closes. But, above this doping level, the curves continue to spread out in a parallel manner but now with negative curvature. This arises from the close proximity of the vHs, observed in ARPES to lie at x ≈ 0.21 [24]. The approach of the vHs is evident in γ(T) from the peaks (arrowed in Figure 5A) which migrate progressively toward T = 0 at the vHs crossing, which in these polycrystalline samples lies at 0.23. It is also evident in S(T) by the entropy rising to a maximum at x = 0.23 before falling again once the vHs moves into the unoccupied states above E_F. This peak should not be confused with the peak expected from normal-state pair dissociation above T_c within the so-called “pairon” model [4] of the pseudogap. Such a pair-dissociation peak would result in S(T) curves recovering their bare values at high temperature, which clearly they do not. It must be recalled that this peak is absent in Y_0.8Ca_0.2Ba₂Cu₃O_7−δ where the vHs is much further removed below E_F [15].

FIGURE 5

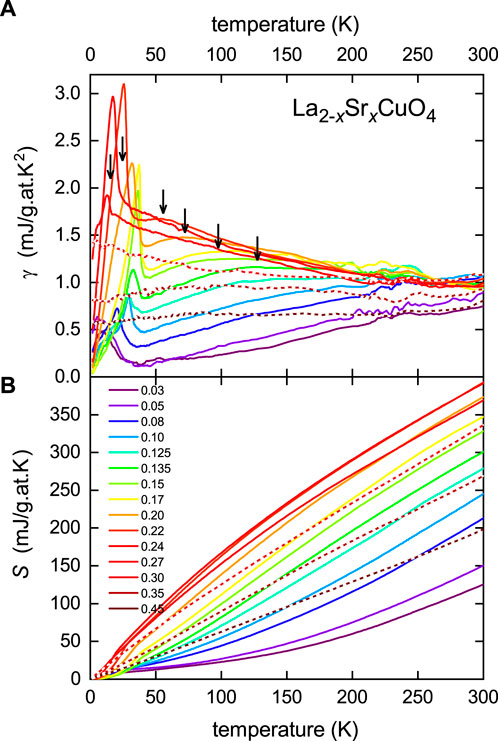

FIGURE 5. Measured thermodynamic data for La_2−xSr_xCuO₄. (A) γ(T) for x ranging from 0.03 to 0.45 (see color-coded legend). Curves for x = 0.30, 0.35, and 0.45 are dashed for ease of identification. The peaks associated with the proximate van Hove singularity are indicated by arrows. (B) The electronic entropy, S(T). Data partly from [11].

The vHs crossing point is easily identified in plots of γ(p, T) vs p at fixed T (such as 40 or 50 K). This passes through a more or less symmetric peak at x = 0.23 (as does the susceptibility [11]), the location of the vHs. Zhong et al. have calculated γ(p, 0) vs p from the ARPES-derived dispersion and the curves are essentially identical to the experimental data described previously, except theirs peak at x = 0.21. The small difference, 0.21 vs 0.23, for bulk samples is probably attributable to the use of epitaxial thin films in the former. This could, for example, be due to lattice strain or incomplete oxygenation in the latter.

2.6 Bi₂Sr₂CaCu₂O_8+δ

Similar behavior is observed in Bi2212. Differential specific heat measurements were carried out on three samples, namely, pure, Pb-substituted to enable excess doping, and Y-substituted to enable increased under-doping. Where the sample dopings overlapped, the data were in remarkable agreement [11]. We focus on the pure Bi₂Sr₂CaCu₂O_8+δ data which were fitted [25] in the normal state using a rigid ARPES-derived anti-bonding band dispersion reported by Kaminski et al. [26] together with the standard non-interacting Fermion model, Eq. 1, for calculating the entropy. The fits are excellent [25], but, for the sake of clarity and because they are so instructive, we show here only the calculated normal-state curves. Figure 6 shows these normal-state fits for (a) γ(T) and (b) S(T) plotted for the different doping levels investigated ranging from p = 0.129 to 0.209 as annotated in the legend. For Bi2212, the anti-bonding band vHs crossing occurs at p ≈ 0.23 as was found in the ARPES study by Kaminski et al. [26]. The fits of course quantify the separation, ΔE_vHs, of the vHs below E_F. The legend includes ΔE_vHs values for each doping level.

FIGURE 6

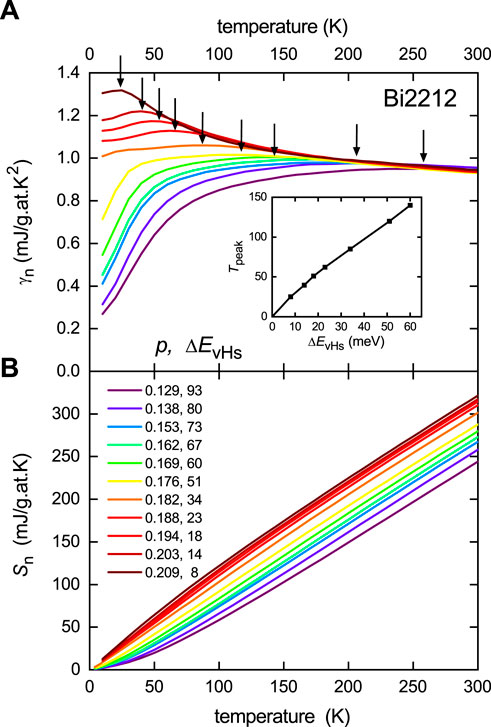

FIGURE 6. (A) Normal-state values of γ(T) fitted to the experimental data for Bi2212 [25] using the ARPES-derived dispersion of Kaminski et al. [26] and evaluated below T_c by entropy balance. The peaks associated with the proximate van Hove singularity are indicated by arrows. (B) The normal-state electronic entropy obtained by integrating γ_n(T) in (B). The different doping levels, p, are given in the legend along with the energy difference, ΔE_vHs, of the vHs below E_F in meV. The inset shows the dependence of the vHs peak temperature on ΔE_vHs.

The plots show, at high temperature, the same generic convergence of γ(T), combined with a parallel shift of S(T) that never closes. The entropy is linear to the origin at a doping of 0.18 or 0.19. This is where the pseudogap closes. Below this doping, the transition jump, Δγ_c, collapses rapidly confirming the opening of the pseudogap. The opening of the pseudogap is also seen in the onset of a suppression of γ(T) at low T. However, like La214, at higher doping, the entropy curves develop negative curvature and continue to shift to higher values in a parallel manner. Again, this is due to the approaching vHs which is seen more clearly in γ(T) by the local peaks which are arrowed in the figure and which push to increasingly lower temperature as the vHs is approached. The distance from the vHs is given in terms of the peak location, T_peak, by Δ_vHs ≈ 4.3k_BT_peak as shown in the inset to Figure 6A.

3 Field-dependent specific heat

The field dependence of the specific heat provides important additional information on the pseudogap. Crucially, the difference in total specific heat in zero field to that in applied field is free of any contribution from the phonon specific heat. A potential criticism of the extraction of the electronic specific heat from the much larger total specific heat in differential measurements is the possible mischaracterization of the residual phonon term. Differencing the field-dependent data totally removes that uncertainty and we are left exclusively with the bare electronic term. The use of differential measurements only serves to greatly increase the accuracy of the measurement of that field-dependent electronic term.

Furthermore, the field-dependent free energy enables the superfluid density, λ(T)⁻², to be extracted as follows. The change of free energy ΔF(H, T) = F(H, T) − F (0, T) can be analyzed in terms of the London model for the field-dependent magnetization [27]:

${\mu }_{0}M\left(H,T\right)=\frac{{\varphi }_0}{8\pi {\lambda }^2}\ln \left(2e^{2-2{\gamma }_E}\frac{H-H_{c1}}{H_{c2}}\right),(4)$

where γ_E is Euler’s constant (=0.5772). By integration with respect to H, then assuming H ≫ H_c1, this yields:

$\mathrm{\Delta }F\left(H,T\right)=-\frac{{\varphi }_{0}H}{8\pi {\lambda }^2\left(T\right)}\ln \left(2e^{1-2{\gamma }_E}\frac{H}{H_{c2}}\right).(5)$

Thus, by plotting ΔF(H, T)/H vs ln(H), one expects linear behavior with slope proportional to the superfluid density, ρ_s = λ⁻², and x-axis intercept giving ln(H_c2). Most of our samples are polycrystalline with near-random grain orientation, and so this expression needs to be modified to take into account anisotropy. Specifically, when the field is applied at angle θ to the crystalline c-axis, λ⁻² becomes ${({\lambda }_{ab}{\lambda }_c)}^{-1}\times \sqrt{\left.{\sin }^2\theta +{\gamma }_{\text{a}}^2{\cos }^2\theta \right]}$ and H_c2(θ) becomes $H_{c2\Vert ab}/\sqrt{\left.{\sin }^2\theta +{\gamma }_{\text{a}}^2{\cos }^2\theta \right]}$, where γ_a is the anisotropy factor γ_a = λ_c/λ_ab = ξ_ab/ξ_c. If we assume large anisotropy γ_a ≫ 1, then we may replace both occurrences of H in Eq. 5 with H cos θ and integrate 0 to π/2 to get the average response. This integrates exactly, and by changing H to B, we finally obtain:

$\mathrm{\Delta }F\left(B,T\right)=-\frac{2}{\pi }\frac{{\varphi }_{0}B{V}_{\text{M}}}{8\pi {\mu }_0{\lambda }^2\left(T\right)}\ln \left(4e^{-2{\gamma }_E}\frac{B}{B_{c2}}\right),(6)$

where V_M is the molar volume and ΔF is in units of J/mol. We now apply this analysis to Bi2212.

3.1 Bi₂Sr₂CaCu₂O_8+δ

Figure 7 shows (a) the experimental values of γ(T) for the same range of doping states as shown in Figure 6B, and (b) the difference, Δγ(13, T) = γ(13, T), − γ(0, T) in γ(T) at 13 T and that at 0 T. The abrupt effect of the opening of the pseudogap can be seen in both datasets by the collapse of the jump in γ at T_c starting at p = p* = 0.19. In the over-doped region above this doping level, the jump remains constant in height for both. This clearly shows that the sudden fall in Δγ_c at p* is not an artifact of the subtraction of the phonon contribution but is fundamental to the electronic behavior.

FIGURE 7

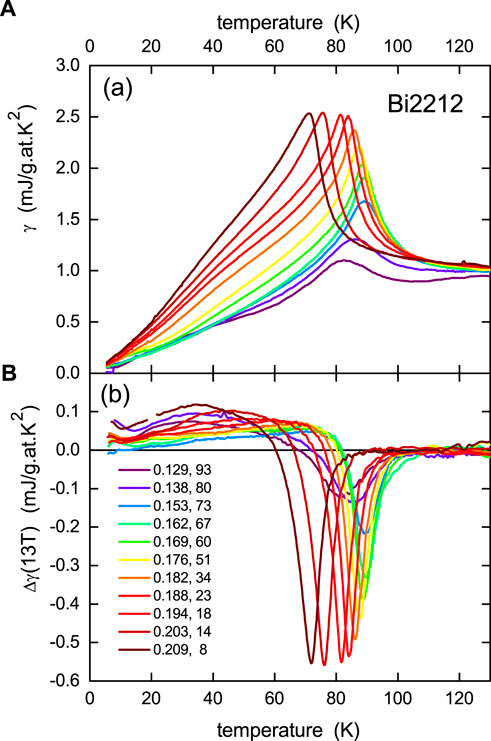

FIGURE 7. (A) Electronic specific heat coefficient, γ(T), measured for Bi₂Sr₂CaCu₂O_8+δ (Bi2212) for different doping levels, p, as annotated in the legend in the lower panel. The legend shows p and ΔE_vHs values as in Figure 6(B). Panel (B) shows the difference Δγ(13, T) = γ(13, T) − γ(0, T) between the specific heat coefficient at 13 T and that at 0 T. It is noted that the peaks in both γ(T) and Δγ [13] occurring at T_c remain of the same height above p* and then fall rapidly for p < p* = 0.19 as the pseudogap opens.

Δγ(H,T) may be integrated to obtain the field-dependent entropy and the free energy, ΔF(H, T), by integration again of the entropy. We find it preferable to perform just a single integration and obtain the free energy using the following generic thermodynamic relation:

$-\mathrm{\Delta }F\left(H,T\right)={\int }_{\tau }^{T}T\mathrm{\Delta }\gamma \left(H,T\right)\mathrm{d}T-T{\int }_{\tau }^T\mathrm{\Delta }\gamma \left(H,T\right)\mathrm{d}T,(7)$

where the first term is the electronic internal energy, − ΔU(H, T), and the second term is the electronic entropy term, TΔS(H, T). Ideally, the integrals in Eq. 7 are from τ = T_c down to some value of T < T_c. However, as noted, the cuprates are distinguished by strong fluctuations over quite a broad range around T_c, and as a consequence, the integrals must be performed from some temperature, τ, well above T_c, sufficiently above the range of superconducting fluctuations, where Δγ(H, τ), ΔF(H, τ), and ΔS(H, τ) have fallen to zero.

In Figure 7B, we linearly extrapolate Δγ(13, T) to zero at T = 0 from 20 K, integrate as in Eq. 7 to obtain the field-dependent state functions, and these are plotted in Figure 8.

FIGURE 8

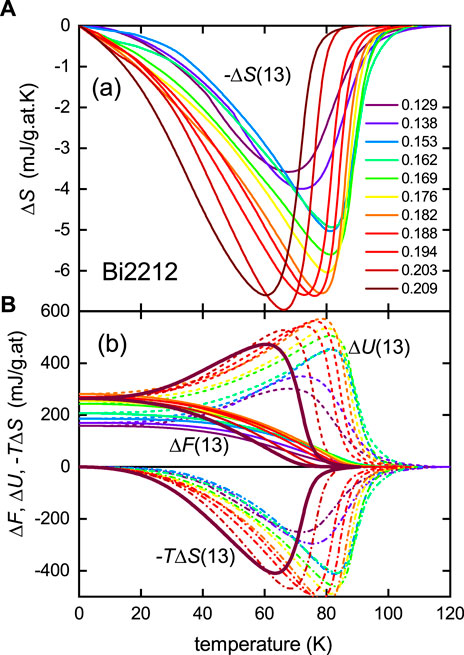

FIGURE 8. (A) Magnetic entropy, ΔS (13, T) = S (13, T) − S (0, T) obtained by integrating Δγ(13, T) = γ(13, T) − γ(0, T) from Figure 7B; (B) the magnetic free energy, ΔF (13,T) = F (13, T) − F (0, T), obtained using Eq. 7, and its internal energy and entropy components ΔU (13, T) (dashed curves) and − TΔS (13,T) (dash-dot curves) for Bi₂Sr₂CaCu₂O_8+δ. The heavy solid curves highlight the data for the highest doping level for ease of identification.

It is interesting that the effect of superconducting fluctuations in ΔU and TΔS extend to rather high temperatures, while these largely cancel in ΔF and thus extend over a much smaller range above T_c.

We use these data to calculate the superfluid density ${\rho }_{\text{s}}\equiv {\lambda }_{ab}^{-2}$ at T = 0 for each doping level, and these values are summarized in Figure 9 along with the wider set of results obtained previously for Bi₂Sr₂CaCu₂O_8+δ. In Figure 9A, we show values for the jump in γ at T_c for three different compositions of Bi2212 as annotated: Bi_2.1Sr_1.9CaCu₂O_8+δ, Bi_2.1Sr_1.9Ca_0.85Y_0.15Cu₂O_8+δ to extend to lower doping, and Bi_1.9Pb_0.2Sr_1.9CaCu₂O_8+δ to extend to higher doping. The green stars are Δγ^mf obtained from the entropy-balance analysis, while the orange data points are the magnetic jump Δγ [13]. All reveal an essentially constant value above p*, and all collapse abruptly as p falls below p* due to the opening of the pseudogap. The value of Δγ^mf/γ_n at T_c is 1.15, not much above the weak-coupling mean-field d-wave value of 0.95 and consistent with (using a strong-coupling Padamsee calculation [14] for d-wave superconductivity) a gap ratio of ${\mathrm{\Delta }}_0/k_{\text{B}}{T}_{\text{c}}^{\text{mf}}=2.34$, just a little higher than the BCS weak-coupling ratio of 2.14.

FIGURE 9

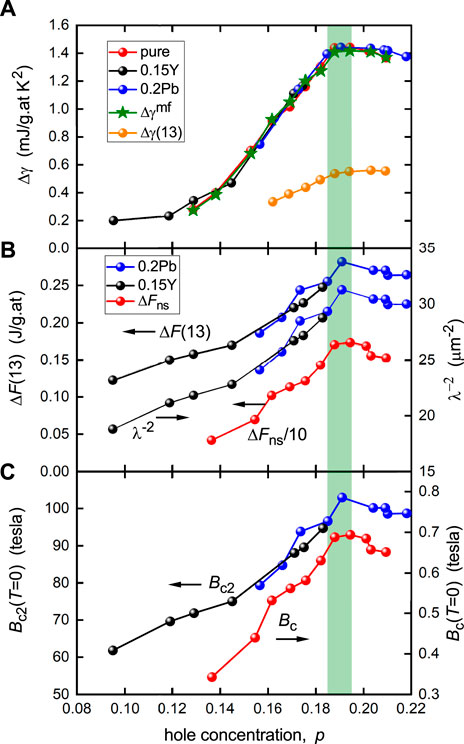

FIGURE 9. (A) Doping dependence of the jump in γ at T_c for three different compositions of Bi2212 as annotated. The mean-field value, Δγ^mf, obtained from a fluctuation analysis is also shown. (B) Magnetic free energy, ΔF (13, T = 0) = F (13, 0) − F (0, 0), as a function of doping and the resultant T = 0 superfluid density, ${\lambda }_0^{-2}$ obtained using Eq. 6. (C) Doping dependence of derived critical fields, B_c2, and the thermodynamic critical field, B_c.

Next, in Figure 9B, we show the calculated ground-state values of ${\lambda }_0^{-2}$ along with ΔF [13] and the condensation free energy ΔF_ns (0) at T = 0. The latter is, of course, identical to the condensation internal energy, U₀. Again, all parameters remain rather constant on the over-doped side and then fall abruptly starting at p*. This is crucially important because ${\lambda }_0^{-2}$ is a truly ground-state property. One prominent hypothesis for the pseudogap is that it arises from incoherent pairing above T_c [4, 28]. But at T = 0, all thermal fluctuations are quenched so such a model would mean the pseudogap is absent at T = 0. But the superfluid density shows that the pseudogap is always present in the ground state for p < p*.

Finally, in Figure 9C, we show the upper critical field B_c2 obtained from our field-dependent analysis using Eq. 6, as well as the thermodynamic critical field B_c obtained from the values of ΔF_ns shown in Figure 9B. Like all other thermodynamic parameters, both collapse below p* as the pseudogap opens. The maximum value of B_c2 = 105 T is reasonable and consistent with other independent measures [29].

3.2 Superfluid density in the over-doped region

Though the topic here is pseudogap thermodynamics, applicable only to under- and optimally doped cuprates, it is worth briefly refocusing on the superfluid density in the over-doped region. It has long been realized that over-doped physics is probably just as puzzling and unconventional as under-doped physics, and this is no better highlighted than in the unusual behavior of λ(0)⁻² which has widely been reported to fall along with T_c as doping increases toward the end of the superconducting dome [30–32]. The fall-off in both T_c and λ(0)⁻² on both sides of the dome has come to be known as the “boomerang effect” and λ(0)⁻² was shown to reach a sharp maximum at p* [32]. Renewed interest in this long-established result came more recently with the highly detailed studies of Božović et al. [33] on high-quality thin films of La_2−xSr_xCuO₄ which showed a linear decline in λ(0)⁻² with T_c across the entire over-doped region. However, the just-discussed field-dependent specific heat shows that for Bi2212, λ(0)⁻² remains largely constant in the over-doped region where p > p* (see Figure 9B), along with all the other properties plotted in Figure 9. Already, T_c has fallen from 92 K to 74 K with no significant fall-off in superfluid density. This is reassuring because, as shown previously, both Δγ^mf/γ_n and $U_0/{\gamma }_{\text{n}}{T}_{\text{c}}^{\text{mf\hspace{0.17em}}2}$ remain conventional (and close to their BCS ratios) in this over-doped region. It would surely be highly anomalous for ${\lambda }_0^{-2}(p)$ to be exceptional in its collapse. Interestingly, Dordovic and Homes [34] recently suggested that the boomerang effect may not be present in bulk samples. However, we note that the early muon spin relaxation studies on ${\lambda }_0^{-2}$ were in fact carried out on bulk samples. It is fair to say this remains an open question but it seems at least that in Bi2212, there is no observed suppression of superfluid density over nearly half of the over-doped region. Additionally, ac-susceptibility measurements on La_2−xSr_xCuO₄ also showed no fall-off in ${\lambda }_0^{-2}$ [35]. This remains a key point of investigation. It may well be that cuprates display a conventional over-doped behavior in all properties: ${\lambda }_0^{-2}$, Δγ, ${\mathrm{\Delta }}_0/k_{\text{B}}{T}_{\text{c}}^{\text{mf}}$, and U₀. If confirmed, this would reflect a great simplification of cuprate-phase behavior.

4 Discussion

The previous results summarize some of the more significant aspects of pseudogap thermodynamics. The key features are as follows: (i) the suppressed entropy associated with the opening of the pseudogap is never recovered at high temperature, thus implying the gap does not close at high temperature; (ii) the pseudogap closes abruptly at p = p* ≈ 0.19 holes/Cu, independent of temperature; (iii) accordingly, the pseudogap closes on a vertical line in the T-p phase diagram; (iv) this coincides with the vertical line found in ARPES separating incoherent antinodal (AN) states from coherent AN states [36]; (v) the pseudogap energy scale descends more or less linearly with doping from the scale of the nearest-neighbor exchange energy J at low doping to zero at p* [11]; (vi) rather conventional behavior is found beyond p* with the scaled ratios for the gap, the jump in γ and the condensation energy lying close to near-weak-coupling values and the superfluid density apparently remaining constant; (vii) the residual γ_n(T = 0), obtained from entropy balance fits, is qualitatively consistent with the presence of Fermi arcs or pockets lying between the AN pseudogaps. In short, the overall behavior is consistent with near-weak-coupling BCS-like behavior in the over-doped region with an independent but coexisting gap in the optimal and under-doped regions. This gap remains of unknown origin but it seems clearly associated with short-range spin-singlet correlations deriving its fundamental energy scale from J. One intriguing possibility is that these correlations suppress a Kondo, or heavy Fermion-like, build-up of spectral weight at the Fermi energy [37].

It is instructive to now place these findings in the context of calculations and other spectroscopies.

4.1 Theory and calculations

Loram [38] has examined a simple BCS-like model with a temperature-independent competing gap, E*, using an approach similar to that of Bilbro and MacMillan [39] where the superconducting gap and pseudogap are combined quadratically. Thus, the order parameter Δ′ is given by ${\mathrm{\Delta }}^{\prime }=\sqrt{{\mathrm{\Delta }}^2(T)-E^{*2}}$, where Δ(T) is the spectral superconducting gap which must be distinguished in such a model from the order parameter. E*(p) is taken to be a linearly descending function of p. This model reproduces all of the elements discussed previously—the parallel suppression of entropy at a high temperature, combined with suppression of the jump, Δγ at T_c. This was done for s-wave gaps, and so superconductivity is suppressed when Δ(T) = E* and this then defines the reduction of T_c with E*. For d-wave superconductivity, because the pseudogap forms around the antinodes leaving ungapped Fermi arcs or pockets, it is possible for superconductivity to persist even for the values of E* well exceeding Δ₀. Loram’s s-wave calculations have been extended to d-wave by Williams et al. [40].

As already noted, Storey et al. [25] have used the rigid tight-binding model of Kaminski et al. [26] derived from ARPES measurements on Bi2212 to calculate S(T) and γ(T) in both the normal and superconducting states using a self-consistent solution of the gap equation in the presence of a pseudogap with Fermi arcs. The fitting parameters were E*, the height, Δ_vHs, of the Fermi level above the vHs and the length of the Fermi arc. The fits were extremely faithful in the superconducting and normal states, including the progression of the small local peak in γ(T) arising from the nearby vHs. They reproduce the parallel shift in entropy as the pseudogap widens. Of course, the pseudogap model was necessarily somewhat arbitrary but these calculations were extended [41] to the very specific Yang–Rice–Zhang (YRZ) model of Fermi surface reconstruction [42] and shown to accurately reproduce key observed thermodynamic features. Two particular features of the YRZ model include (i) a very asymmetric gap about E_F which nicely accounts for the rapidly growing thermopower, Σ(p, T), in the under-doped region [3, 43], and (ii) the appearance of AN electron pockets in a small doping range close to the reconstruction point. These were shown to account for a double undulation of Σ(p,T) at low temperature when p ≈ 0.175 [3].

Many authors have interpreted the distinctive phase behavior of the cuprates in terms of a crossover from a Bose–Einstein condensate (BEC) to a BCS condensate [28, 44, 45, 46, 47, 48]. In this way, the pseudogap state is viewed as a (partially) paired state which condenses to a coherent paired state at T_c [4]. This, of course, explains amongst other things the reduced specific heat jump in the under-doped region because it lacks the pairing contribution which has already reduced the entropy from well above T_c [48]. Many detailed theoretical studies have pursued this line of thought. As noted, our principal objection lies in the expectation that such models, in the ground state, lose all memory of their precursor pairing state, where at T = 0, all thermal fluctuation is quenched and all pairs are condensed. In contrast, the experimental observation is that the pseudogap is still present at T = 0. An equally compelling objection is found at high temperature where, depending on the pair-binding energy, pairs should dissociate thus recovering the “lost” entropy [4]. Such a recovery is not found in the experimental data. In the context of BEC to BCS crossover, it was recently shown that the phase diagram may exhibit multiple pseudogaps [49]. This is of course quite possible, but we note that the previous thermodynamic studies show no evidence of multiple pseudogaps. One would expect to see closure of the smaller pseudogap at some threshold temperature with associated partial entropy recovery, prior to closure of the larger pseudogap at higher temperature, thus completing the entropy recovery. Multiple pseudogaps, if present, should also be seen in the c-axis infrared conductivity, located at distinct frequencies. Only two gaps are observed [50, 51]: the superconducting gap that opens at T_c resulting in a downshift in spectral weight, and the pseudogap, already present at 300 K, resulting in a canonical upward shift in spectral weight.

4.2 Comparison with other spectroscopies

In view of the continuing divergence of opinion regarding phenomenology, phase extent, and impact of the pseudogap, it is important to consider the thermodynamic data alongside other spectroscopies. Figure 10A shows our values of Δ₀(p) and E*(p) for Y_0.8Ca_0.2Ba₂Cu₃O_7−δ derived from specific heat measurements and compares these with those derived from (b) ARPES, (c) infrared optics, and (d) intrinsic tunneling. We now consider each of these spectroscopies in turn.

FIGURE 10

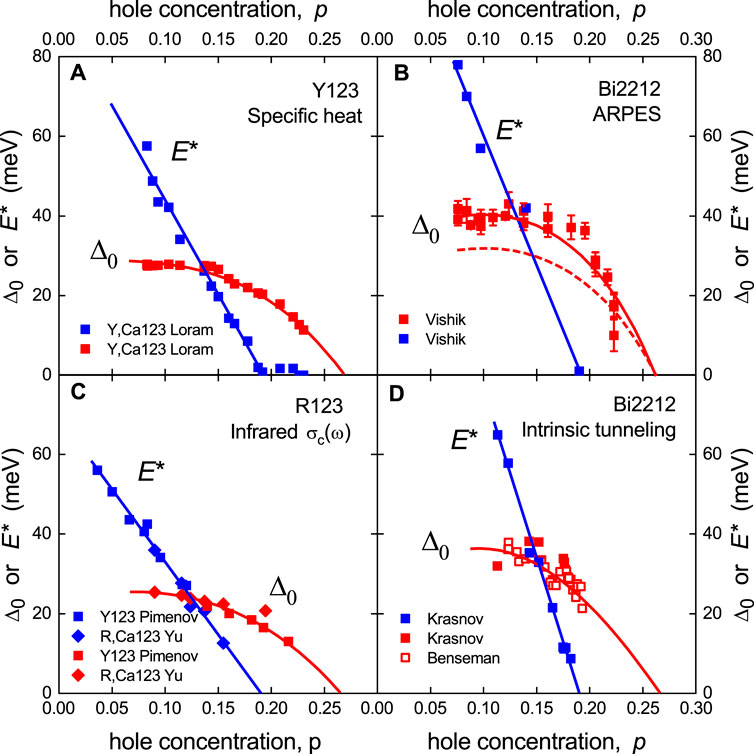

FIGURE 10. Doping-dependent values of Δ₀(p) (red symbols) and E*(p) (blue symbols) for (A) Y_0.8Ca_0.2Ba₂Cu₃O_7−δ derived from our specific heat measurements, (B) for Bi2212 derived from ARPES measurements [16], (C) for RBa₂Cu₃O_7−δ obtained from c-axis infrared measurements [52, 50], and (D) for Bi2212 from intrinsic tunneling measurements: squares [52] and open squares [20]. The solid curves and lines are guides to the eye. In panel (B), the red dashed curve represents the line of the Vishik data when we linearly extrapolate the pairing gap to the AN.

4.2.1 ARPES

ARPES measurements are mainly focused on Bi2212 (and, to a lesser extent, Bi2201 and Bi2223) because of the cleavability of these crystals. There are two key results from ARPES measurements on the cuprates that we wish to focus on. First, the observation of a very abrupt crossover at p = 0.19 from incoherent AN states for p < 0.19 to coherent AN states for p > 0.19. We pointed this out long ago for 100 K data [53], but a more recent study extending to room temperature showed this abrupt crossover to occur at p = 0.19, independent of temperature [36], that is, following a vertical line coincident with our vertical T*(p) line. We mention this because such a vertical T*(p) line is not recognized in the research community. The ARPES result adds credence to such a view.

The second important result from ARPES is the observation that in the under-doped region, the pseudogap forms on the Fermi surface around the AN location at temperatures well above T_c, leaving Fermi arcs or pockets nearer the nodes on which the superconducting gap opens at T_c. Some authors presume the AN gap to be the pairing gap [28], but such a conclusion is difficult to sustain in the light of ARPES measurements. For example, Vishik et al. [16] in figure 3 (b1)−(b3) show the k-dependent gap around the Fermi surface plotted as a function of (1/2)| cos k_x − cos k_y|. For a pure, single d-wave gap, such a plot would be a straight line. In their b1 and b2, the AN pseudogap is evident above T_c, much larger than the superconducting gap, Δ(k), which appears on the flanks of the pseudogap below T_c. Linear extrapolation of Δ(k) gives an amplitude (projected to the AN) of 33 meV in b1 (p = 0.0.097), 31 meV in b2 (p = 0.0.14), and 28 meV in b3 (p = 0.0.205). The pseudogap amplitudes at the AN can also be read off (and these do not change with the onset of superconductivity): 78 meV in figure 4(c) as in the reference (p = 0.0.076), 57 meV in b1, and 45 meV in b2. These pseudogap amplitudes are plotted in Figure 10B as blue squares, while the superconducting gap amplitudes, Δ₀, reported by Vishik are plotted as red squares. The trends with doping are very similar to the gaps inferred from specific heat. Curiously, the Δ₀ amplitudes reported in Ref. [16] are larger than the extrapolated values noted above. The red dashed curve reflects these latter values. There is even better agreement with the specific heat values, and we recall that Δ₀ determined from specific heat must yet be enhanced by the factor (1 + λ). (We note in passing that Figure 3 (b3) of Ref. [16] seems to suggest the persistence of the pseudogap at a doping of p = 0.205 as the blue data points at 82 K suggest a Fermi arc and a small AN gap above T_c. But this is just 2K above T_c = 80 K and is almost certainly the pairing gap which persists above T_c, as clearly shown by Kondo et al. [18]. The pairing gap in the near-node region does not persist far above T_c, while the AN pairing gap extends much further).

So we conclude from ARPES that the AN gap that stretches far above T_c is the pseudogap and the gap on the residual Fermi arcs that opens below T_c is the pairing gap. We quote from Ref. [16] “The sudden change in v_Δ at p = 0.19 is interpreted as the T = 0 endpoint of the pseudogap” (v_Δ is the velocity (∂Δ/∂k) parallel to the Fermi surface). Beyond p = 0.19, the Fermi arcs extend across the entire Fermi surface and the pairing gap forms on these commencing from just above, then below, T_c and extending fully out to the AN. Thus, if we focus only on the AN gap, in the under-doped region, it is the pseudogap, and for p > 0.19, the AN gap is the pairing gap, Δ(T), while around optimal doping, it could be either, depending on which is larger. If one chooses to focus only on the AN gap, one will infer a roughly linearly descending line of p-dependent gap values which vanish as T_c(p) vanishes. It is not uncommon in the field to select these AN gaps, and divide by k_B to obtain a T*(p) line which remains finite across the over-doped region and vanishes as T_c(p) vanishes—in distinct contrast to our vertical T* line. But these are gap energies not temperatures; they have no place on a p-T phase diagram and they represent two distinct gaps: E* when p is somewhat less than 0.19 and Δ₀ when p > 0.19.

4.2.2 Optics

There are also two key results from optics that we would emphasize. First, the frequency-dependent infrared conductivity, σ_c(ω), for R123 single crystals with electric field along the c-axis exhibits two distinct and often well-separated regions of loss of spectral weight (SW) associated with gaps opening on the Fermi surface [50, 51]. In the more under-doped region, there is a large-energy gap for which, already at 300 K, there is a suppression of sub-gap SW which continues to grow with decreasing temperature. This is the pseudogap and is located at ω_PG. Below T_c, there is an additional SW loss occurring below a lower energy feature, ω_SC, associated with the onset of superconductivity and the opening of a coherent pairing gap. The two distinct gaps can be tracked with doping and are plotted in Figure 10C by the blue and red squares, respectively. The doping evolution of these gaps is essentially the same as that inferred from the specific heat and ARPES. The AN pseudogap projects to disappear around p = 0.19, while the superconducting gap, Δ₀, changes little on the under-doped side and falls on the over-doped side, tracking T_c(p) downward, as we have already concluded.

The second distinct feature of these infrared measurements is that the pseudogap is characterized by a transfer of SW upward to energies above ω_PG [50]. In contrast, with the opening of the superconducting gap, SW is transferred downward into the zero-frequency delta function [50]. Moreover, the onset of pairing fluctuations above T_c also results in a downward shift of SW, not to zero frequency but to a low-frequency Drude peak [54]. Below T_c, this Drude peak is shifted, in turn, into the ω = 0 delta function. This, then, is the distinctive spectroscopic signature of the pseudogap vis à vis pairing—states below the pseudogap are shifted to higher energy. A pairing gap shifts SW downwards. For this reason alone, one may not interpret the large AN gap at low doping as a pairing gap.

4.2.3 Intrinsic tunneling spectroscopy

The final comparison here is with intrinsic tunneling spectroscopy (ITS), which in our view has been regrettably downplayed. Typically involving up to 20 bilayer stacks, intrinsic tunneling is arguably a bulk tunneling technique in comparison with scanning tunneling spectroscopy (STS) and ARPES which mainly probe the outer CuO₂ layer. Moreover, STS is compounded by the presence of spatial inhomogeneity and broadened coherence peaks, while ITS consistently reveals very sharp gap features [52, 55] and the presence of two gaps with very different doping and temperature dependences. For example, investigations on Bi₂(Sr_2−xLa_x)CuO_6+δ reveal a SC gap that closes at T_c with 2Δ₀/k_BT_c = 4.2, while the pseudogap remains fixed in value with increasing temperature [55]. With increasing doping, the pseudogap reduces in magnitude and falls to zero at p ≈ 0.20 holes/Cu. This phenomenology is consistent with what has been described throughout this article. In the case of Bi2212, the evolution of E* and Δ₀ with doping has been reported in detail by Krasnov et al. [52]. This system shows a behavior similar to the just-mentioned Bi2201, and the observed gap values are plotted in Figure 10D by the blue and red symbols, respectively. Here, each gap can be discerned, both when E* > Δ₀ and when E* < Δ₀. The detailed variation with doping is again consistent with all the other data shown in Figure 10, with the pseudogap falling steadily toward zero at p = 0.19. Such data have been questioned on the basis of overheating of the nanoscale mesas [56], but this can be addressed and eliminated [57, 58]. More recent intrinsic tunneling studies by Benseman et al. [20] have been carried out in closely spaced increments in doping. Their values of Δ₀ are also plotted in Figure 10D by the open red symbols. They confirm the Krasnov data, and again, the correspondence with the specific heat and other spectroscopies is apparent.

4.3 Impurity scattering and the pseudogap

The effect of impurity scattering on superconductivity in the cuprates holds an important place in HTS physics because of the d-wave order parameter. Scattering mixes the phases of Cooper pairs and therefore mixes positive and negative quadrants of the order parameter. The result is a rapidly suppressed T_c and an even more rapidly suppressed superfluid density [35]. In the unitary scattering limit, the suppression of T_c and λ⁻² is a purely thermodynamic process and the critical concentration of Zn, y_crit, for just suppressing superconductivity is a thermodynamic ground-state parameter. To justify this, we have previously shown the numerical agreement between S(T_c)/R and x_crit for Y_0.8Ca_0.2Ba₂Cu₃O_7−δ, Bi₂Sr₂CaCu₂O_8+δ, and La_2−xSr_xCuO₄ [35] across the superconducting phase diagram. As we have shown, this implies that superconductivity is destroyed when the density of unitary scatterers equals the pair density, that is, each scatterer breaks one pair [35].

Figure 11A shows this rapid suppression of the T_c(p) phase curve with Zn substitution in Y_0.8Ca_0.2Ba₂Cu₃O_7−δ [59]. Significantly, the rate of suppression is much higher in the under-doped region, thus resulting in an asymmetric collapse of the phase curve around p* ≈ 0.19. The last vestige of superconductivity at critical doping occurs at p*, clearly a special point in the phase diagram of the cuprates. This enhanced suppression in the under-doped region is due to the presence of the pseudogap and the associated reduced DOS. We follow our treatment given earlier [59]. The T_c reduction for elastic scattering in weak-coupling d-wave superconductors follows the Abrikosov–Gorkov (A-G) equation [60]. Thus

$-\ln \left(T_{\text{c}}/T_{\text{c0}}\right)=\mathrm{\Psi }\left[1/2+\mathrm{\Gamma }/\left(2\pi k_{\text{B}}{T}_{\text{c}}\right)\right]-\mathrm{\Psi }\left[1/2\right],(8)$

where Ψ[x] is the digamma function; T_c0 = T_c (y = 0); and for unitary scattering, Γ = n_i/(πN₀) is the pair-breaking scattering rate. Here, N₀ is the DOS per spin at the Fermi level and n_i = αy_ab/abc is the density of impurity scatterers with y_ab being the “planar” concentration of Zn atoms in the CuO₂ plane; α being the number of CuO₂ planes per unit cell; and a, b, and c being the lattice parameters. For La214, α = 1 and y_ab = y, while for Y123, α = 2 and y_ab = 3y/2. For weak coupling, the critical scattering rate for suppression of superconductivity is Γ_c = 0.412Δ₀₀ = αy_crit/(abcπN₀). Finally, the DOS is related to γ_n by the standard relation

${\gamma }_{\text{n}}=\left(2/3\right){\pi }^2{k}_{\text{B}}^2{N}_0(9)$

This is, of course, true only if N(E) is not strongly energy dependent. However, the essentially constant γ(T) at high temperature, largely independent of doping, gives some credibility to this assumption.

FIGURE 11

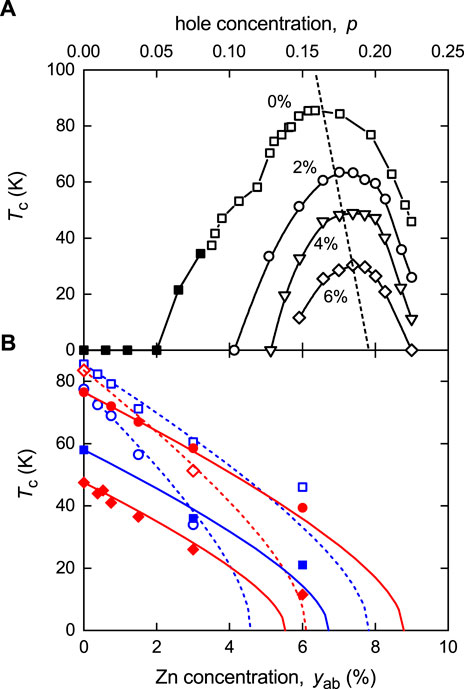

FIGURE 11. (A) T_c plotted as a function of hole concentration, p, for Zn-substituted Y_0.8Ca_0.2Ba₂(Cu,Zn)₃O_7−δ at 4 different Zn concentrations: 0%, 2%, 4%, and 6%. The dashed line is a guide to the eye showing the asymmetric collapse of the phase curve toward p* ≈ 0.19. (B) Data points show T_c as a function of planar Zn concentration, y_ab for fixed doping states. Open symbols are under-doped and filled are over-doped. For ease of identification, colors alternate blue, then red, and then blue again with increasing doping. The lines are T_c vs y_ab calculated using Eq. 8. Dashed curves are under-doped, and solid curves, over-doped.

The problem is then fully defined with no fitting parameters. The A-G equation can be linearized for small Γ to get the initial linear slope as follows

$T_{\text{c}}/T_{\text{c0}}=1-0.69\mathrm{\Gamma }/{\mathrm{\Gamma }}_{\text{c}}=1-\left(29\alpha /\left({\gamma }_{\text{n}}{\mathrm{\Delta }}_{00}\right)y_{ab}\right.,(10)$

where Δ₀₀ is the T = 0 amplitude of the d-wave gap when y_ab = 0 and where γ_n is expressed in J mol⁻¹ K⁻². As the scattering rate is inversely proportional to N₀, the role of the pseudogap is clear—as the AN gap opens, the DOS falls and the scattering rate increases. Observationally, γ_n is essentially constant, independent of doping, when p > 0.19 on the over-doped side, so the slope of T_c vs y_ab remains fixed on the over-doped side, as shown in Figure 11B. In contrast, it rises steeply on the under-doped side due to the presence of the pseudogap. Already at optimal doping, the curve has steepened showing that the pseudogap is present even there. The A-G equation is plotted by the curves shown in Figure 11B, where we have used for γ_n the quantity (S/T)_Tc which is the average value of γ_n between T = 0 and T_c. All curves for all dopings show a good fit to the data with no free fitting parameter. Similar results were found for Bi₂Sr₂CaCu₂O_8+δ [61] and La_2−xSr_xCuO₄ [59].

5 Conclusion

The results presented here summarize the key features of the thermodynamics of cuprate superconductors as they relate to the pseudogap. They reveal a unique and powerful insight into the essential physics, not only because the electronic specific heat captures all of the low-lying excitations but because the entropy always reflects the presence of a gap near the Fermi level, whether it be asymmetric about E_F or indeed lies within a Fermi window below E_F. Many spectroscopies will not see a normal-state gap at elevated temperature if the thermal energy, k_BT, well exceeds the gap magnitude. The entropy will always see it. This probably lies at the heart of many observations which mistakenly identify a pseudogap closing temperature, T*, that descends more or less linearly with doping. It is the pseudogap energy E* which descends and vanishes at p*, independent of temperature. As a consequence, the specific heat reveals a vertical line delimiting the pseudogap in the p-T phase diagram, mirroring the abrupt vertical line observed in ARPES separating incoherent states from coherent states at the antinodal zone boundary [36]. Such a conclusion is fundamentally important to cuprate physics and is essentially overlooked in the community despite additional support from 1/¹⁷T₁ data [62] and infrared optics. The proximity of the van Hove singularity in some over-doped cuprates complicates the interpretation unless the full complement of specific heat studies is considered over a wide range of cuprates, especially in Y_0.8Ca_0.2Ba₂Cu₃O_7−δ where the vHs is more distant. Even so, the vHs can be identified clearly and the vHs crossing distinguished from the closure of the pseudogap at p* even in Bi2212 and La214.

The essential thermodynamic features are captured in Figure 12 which shows a false-color contour plot of S/T (a) as observed, and (b) as would be observed if superconductivity could be suppressed, that is, the normal-state value, S_n/T. S_n is calculated using the equal-area entropy-balance construction which is illustrated in Figure 1A. First, the as-observed entropy shows just how weak the superconducting transition is in the under-doped region—there is barely a change in entropy at T_c, in stark contrast to the over-doped region where the onset of superconductivity is evidently very strong. Pairing fluctuations are also evident near the transition, as is the vertical T* line defining a vertical ridge extending to room temperature. This ridge is definitively accentuated in the normal-state projection shown in Figure 12B. It extends from T = 0 to room temperature (and as shown elsewhere up to 400 K [12]). Evidently, (∂S/∂p)_T diverges at p* as T → 0 and, using the appropriate Maxwell relation, (∂μ/∂T)_p also diverges, thus underscoring the possibility of a hidden quantum critical point under the superconducting dome. Finally, the square data points show the doping dependence of E* descending, not along a T*(p) line but, along an entropy contour. The pseudogap takes its energy scale from the magnitude of J but descends rapidly and vanishes abruptly at p*, causing all suppressed thermodynamic features to fully recover at that point: the jump in specific heat, the critical fields, the superfluid density, and the condensation energy. All this is captured in this entropy plot. Beyond p*, essentially conventional behavior is recovered in all these thermodynamic entities. Thermodynamics does not disclose the origins of the pseudogap and its potential relationship to high-T_c superconductivity, but it clearly defines the phenomenology and phase extent in a way that the collective research community is largely yet to embrace.

FIGURE 12

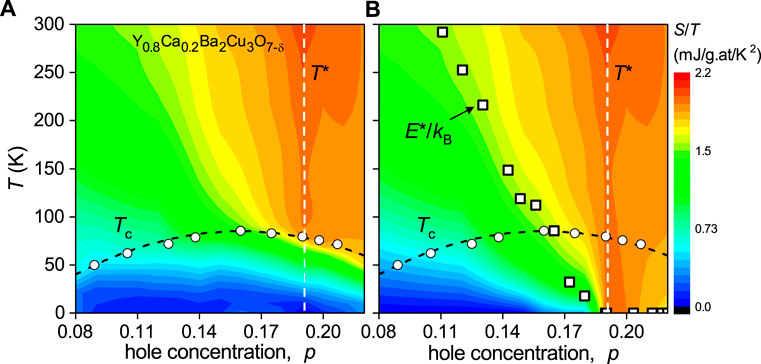

FIGURE 12. False-color maps in the p-T plane of S/T for Y_0.8Ca_0.2Ba₂Cu₃O_7−δ (A) as measured, including the superconducting and normal states, and (B) for the normal state only if superconductivity were suppressed. The latter is determined using the equal-area entropy-balance method as illustrated in Figure 1(A). The square data points in (B) are the pseudogap energy as determined from the y-axis intercept of the linear entropy at high temperature.

Author contributions

This article summarizes collaborative work between the authors and their Cambridge colleagues over several decades. JT wrote the manuscript.

Acknowledgments

The authors are deeply indebted to the late Dr John W. Loram who designed, built, and refined the differential specific heat equipment, undertook many of the measurements reported here, and developed or shared in the development of many of the ideas presented. His passing was too early, and he was a great friend and a stimulating colleague. Thanks are also due to our long-standing colleague John R. Cooper, who collaborated in much of the work presented here and who very helpfully critiqued the manuscript.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers.
