Negative Photoconductive Effects in Uncooled InAs Nanowire Photodetectors

One-dimensional, direct, and narrow band gap indium arsenide (InAs) nanowires (NWs) have been emerging with great potentials for the next-generation wide-spectrum photodetectors. In this study, metal–semiconductor–metal (MSM) structure InAs NW-based photodetectors were fabricated by transferring MBE-grown NWs onto a sapphire substrate via a mechanical stamping method. These NW detectors exhibit strong negative photoconductive (NPC) effects, which are likely caused by the carrier dynamics in the “core-shell” structure of the NWs. Specifically, under the irradiation of a 405 nm violet laser, the maximum I_dark/I_light ratio reaches ∼10² and the NPC gain reaches 10⁵ at a low bias voltage of 0.2 V. At room temperature, the rise and decay times of InAs NW devices are 0.005 and 2.645 s, respectively. These InAs NW devices with a high I_dark/I_light ratio and NPC gain can be potentially used in the field of vis/near-IR light communication in the future.

Introduction

In recent years, III-V semiconductor nanowires (NWs) have attracted great attention in the areas of wide-spectrum photodetectors with high photoconductive gain and fast response and have achieved tremendous progress [1–10]. Among them, indium arsenide (InAs) NWs are used as an alternative material for photodetectors because of their high electron mobility, intrinsic narrow band gap (0.35 eV), and other excellent properties [11–19]. In the meanwhile, InAs NWs also have a huge specific surface area and abundant surface defect states, which makes them outstand as an important role in photosensitive devices [20–26]. Interestingly, unlike other NWs that have a positive photoconductive (PPC) effect [17, 27, 28], the intrinsic InAs NWs have negative photoconductive (NPC) effects in contrast [29–31], that is, as the excitation power intensity increases, the photocurrent in the channel would gradually decrease, some of which is even cut off [29]. The main reason is that the indium at the outermost layer of the NW is easily oxidized in the air to form indium oxide, leading to numerous defect-trapping centers with the indium oxide (InO_x) simultaneously [30, 32]. It is often called as the photogating layer (PGL) [29]. So far, designs of most photodetectors based on NWs primarily aim to form a junction, in general, to achieve a larger net photocurrent, such as the Schottky junction [33, 34], p-n junction [17], or heterojunction [35, 36], by suppressing the dark current as much as possible. Among them, a typical design is the metal–semiconductor–metal (MSM) photodetector, which is realized by two back-to-back Schottky junctions. Recently, a new type of NW photodetector has been demonstrated to enhance the response through the ferroelectric field [37]. These detectors have extremely high responsivity due to the low dark current. The use of narrow band gap materials readily enables wide-spectrum detection and extends their applications, but it is difficult to achieve good responsivity at all wavelengths of interest [28, 30].

In this work, to explore the possibility of using InAs NWs as the broadband photodetectors, we propose an MSM photodetector based on InAs NWs grown by MBE. The response of the device under various wavelengths of laser irradiation is investigated. A considerable NPC effect is found, which is strongly dependent on the wavelengths of incidence. It can be largely attributed to the carrier redistribution dynamics in the intrinsic “core-shell” structure, consisting of the oxides on the crust of the NW and its interiors. Especially, under 405 nm laser irradiation, the detector has the largest I_dark/I_light ratio, responsivity, and response speed.

Experimental Section

The InAs NW array was grown on commercial p-type silicon (111) wafers by MBE [38]. To start the processing, InAs NWs were first transferred onto pre-cleaned sapphire substrates via a mechanical stamping method. Then, standard photolithography and electron beam evaporation were used to fabricate the source and drain metal electrodes. A film of Ti/Au with a thickness of 50/200 nm was deposited in sequence. After the metallization, the metal lift-off process was carried out and the sample was cleaned in the acetone and methanol solutions for removing the photoresist residuals. The as-fabricated InAs NW photodetector was checked by a scanning electron microscope (SEM) (Hitachi S-4800, Tokyo, Japan) and an atomic force microscope (AFM) (D3100, Veeco, New York, United States). The surface chemical composition was characterized using an X-ray photoelectron spectroscope (XPS) (Thermo Escalab 250Xi, Waltha). The optoelectronic properties of the fabricated NW devices were characterized using a Lake Shore TTPX probe station together with a Keithley 4200A-SCS semiconductor parameter analyzer. The modulated continuous wave (CW) laser was used as pulsed incident signals, which was coupled to a multimode tapered optical fiber and guided to the tip as an optical probe. The pulse width and intensity could be precisely tuned by the external modulator. The light spot shed on the sample was about 500 μm². The dynamic response of the device was obtained by measuring the current at each moment under a given fixed voltage. Moreover, all tests were carried out at room temperature and atmospheric pressure.

The SEM image of the as-grown NW sample is shown in Figure 1A, and the nominal length of the InAs NWs is about 5 µm. Figure 1B shows the three-dimensional schematic diagram of the device. Figure 1C presents a SEM image of an as-fabricated InAs NW photodetector device with the channel length about 1.8 µm and the diameter about 35 nm. Figure 1D shows the AFM image of the InAs NW photodetector. The corresponding cross-sectional line profile records the height variation across the InAs NW. The maximum height (35.6 nm) marked with a pair of inverted triangles can be taken to represent the actual nanowire diameter.

FIGURE 1

FIGURE 1. (A) SEM image of the as-grown InAs NWs to transfer. The scale bar is 5 μm; (B) 3D schematic diagram of the device structure; (C) SEM image and (D) AFM image of the as-fabricated InAs NW photodetector. The scale bar is 1 µm.

Results and Discussion

As shown in Figure 2A, typical I–V curves were obtained when the NW device was exposed to laser illumination at different wavelengths (405, 650, and 940 nm), at a power density of 500 mW/cm². Different from the conventional photoconductive photodetectors, our test results reveal that the photocurrent will decrease sharply as laser irradiation is shed on the NW device. It can be clearly found that the response of the nanowire detector to light becomes weaker as the wavelength of light irradiation increases. For the InAs NW photodetector with a physical size far smaller than the wavelength of incidence, refraction of photons may lead to a weak light absorption. This effect would get severer as the wavelength of incidence gets longer, which is one of the main factors for low photoresponse to the infrared light [39, 40]. In addition, the surface electron accumulation layer has a great influence on carrier transport, resulting in a lower detectivity in the infrared regime as well [41–44]. Here, the I_light is defined as the photocurrent under the illuminated state. The I_dark is defined as the dark current, and the net photocurrent (I_PC) is defined as I_PC = | I_light–I_dark |. Figure 2B shows the dark current to photocurrent ratio as a function of bias voltage at different wavelengths. Under different wavelengths of incidence, the maximum dark current to photocurrent ratios are ∼130 (405 nm), ∼25 (650 nm), and ∼1.5 (940 nm).

FIGURE 2

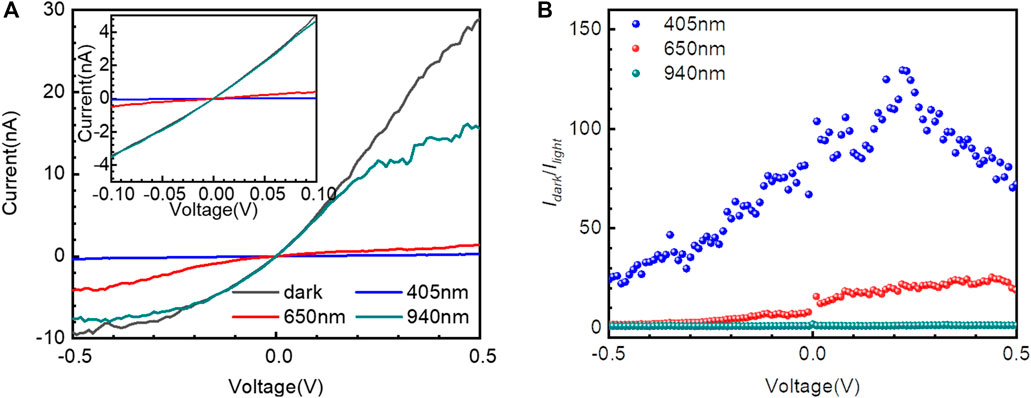

FIGURE 2. (A) I–V characteristics of the InAs NW photodetector device under 405 nm (blue), 650 nm (red), and 940 nm (dark green) illumination. The inset shows the zoom-in I–V curve swept from −0.1 to 0.1 V. The light intensity is 500 mW/cm². (B) The dark current to photocurrent ratio as a function of bias voltage under laser incidence with different wavelengths.

To further understand the photoresponse characteristic of these NW detectors, the dependence of device photocurrent to the laser irradiation intensities (0.1, 50, 150, and 500 mW/cm²) is investigated and depicted in Figure 3A. For a typical photodetector with a positive photoresponse, the photoconductive gain (G), defined as the number of charges collected by the electrodes due to the excitation by one photon, can be expressed as [17]

$G=\frac{I_{PC}}{e}\times \frac{hv}{P},$

where $h\text{ν}$ is the energy of an incident photon, e is the electron charge, and P is the light power absorbed by the InAs NW. However, for the anomalous photoresponse in this work, the negative photoconductive gain is defined as the number of carriers absorbed by NWs per incident photon. In order to compare better with other NW detectors, which conventionally have a positive photoresponse, we chose to adopt this similar definition. The only difference is that the gain is negative in this case. Under the assumption that light incident on the channel is absorbed completely, a negative gain of 2.8 × 10⁵ is obtained at 0.2 V.

FIGURE 3

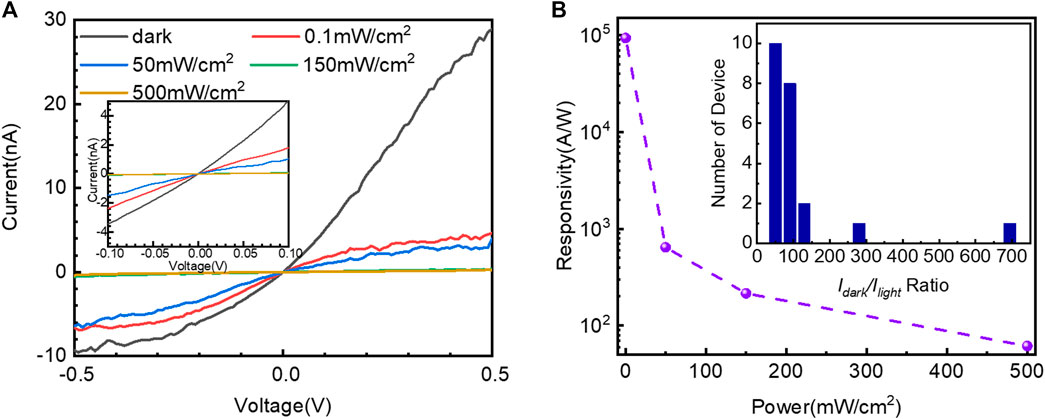

FIGURE 3. (A) I–V characteristics of the InAs NW photodetector under the 405 nm laser incidence at 0.1, 50, 150, and 500 mW/cm². The inset shows the zoom-in I–V curve swept from −0.1 to 0.1 V. (B) Responsivity as a function of the incident illumination intensity. The inset shows the histogram of the maximum I_dark/I_light ratio of 22 InAs NW photodetectors.

The photoresponsivity (R_λ) is a very important parameter for a photodetector, which can be calculated as follows [28]:

$R_{\lambda }=\frac{\left|I_{PC}\right|}{P},$

where I_PC is the net photocurrent and P is the light power absorbed by the NW. The responsivity of the device at a bias voltage of 0.5 V is shown in Figure 3B. The device exhibits a very large responsivity (closed to 10⁵ A/W) when the light intensity is reduced to 0.1 mW/cm², indicating a good sensitivity of the NW detector for weak signals. The inset shows the histogram distribution of the maximum I_dark/I_light ratio collected from 22 single InAs NW photodetectors. The devices all exhibit good negative photoelectric response, with the highest I_dark/I_light ratio of 700 being achieved.

The dynamic photoresponse is another important parameter to evaluate the performance of the detector. The time-resolved photoresponse of NW photodetectors is shown in Figure 4. The frequency of the modulation signal is set as 0.1 Hz, while the duty cycle is 50% and the light intensity is 150 mW/cm². The detector can work stably after dozens of complete cycles. The rise and decay time constants, defined as the time interval for the current rise from 10 to 90% of the peak value and vice versa, representing the response and recovery time, are found to be 0.005 and 2.645 s, respectively, indicating the fast response and the slow recovery of the device. Different from the positive photoresponse, although the negative photoresponse exhibits a relatively fast photocurrent response process, the photocurrent recovery process is relatively slow. The slow recovery of photocurrent is believed to be caused by the increase in the dynamic relaxation time of carriers because of the traps in the light-induced gating layer. By fitting the light recovery current according to the following equation [32]:

$I=I_0\left[1-\frac{A\exp \left(t_0-t\right)}{{\tau }_{rec1}}-\frac{B\exp \left(t_0-t\right)}{{\tau }_{rec2}}\right],$

${\tau }_{rec1}$and ${\tau }_{rec2}$ correspond to the lifetimes in the recombination processes. One is coming from the surface depletion region relaxation, and the other is a slow recovery process dominated by the trapping of carriers via defect states, which can be estimated to be about 0.245 s and 2.400 s, respectively, as shown in Figure 4B.

FIGURE 4

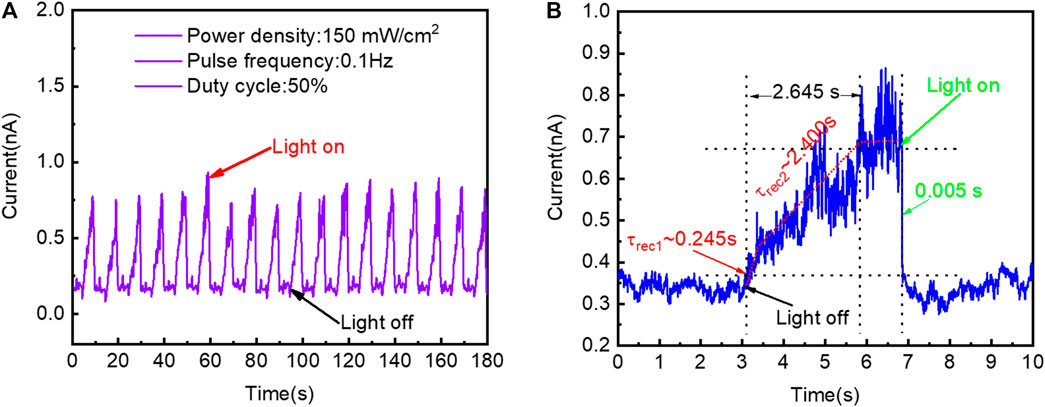

FIGURE 4. (A) Photoresponse of the NW photodetector under an illumination intensity of 150 mW/cm². The chopped pulse frequency is 0.1 Hz, and the duty cycle is 50%. (B) A high-resolution transient photoresponse of the device to a pulse incidence.

To further explain the NPC effect, the chemical composition of the nanowires was first tested and analyzed using the high-resolution XPS, as shown in Figure 5. From the spectra, three sharp peaks at 40.63, 443.99, and 531.14 eV can be observed, representing the As3d, In3d, and O1s peaks, respectively. Furthermore, the In3d characteristic doublet peaks are shown in Figure 5C. The In3d 5/2 and In3d 3/2 binding energies appear at 443.9 and 451.4 eV, respectively. These observations have clearly shown the existence of the oxidization layer as the InAs NW exposed to the air. When there is no light, the free electrons in the NW core are driven by an external electric field to form a current, which is the so-called dark current. Due to the numerous defects, the Fermi level of the NW surface is pinned, leading to an energy bending in both conduction and valence bands. Acting as the PGL, the oxide layer would trap photogenerated carriers through the surface states, leading to a loss in the number of the carriers [29]. Additionally, it is worthy to note that surface scattering and recombination processes will also cause a degradation of the electron mobility close to the surface of the nanowire [45]. Meanwhile, as the incident power is very low, the photogenerated carriers would also recombine in the collection process, all contributing to a sharp decrease in the channel current. The NW size may play a role in the redistribution of carriers as well. [45, 46].

FIGURE 5

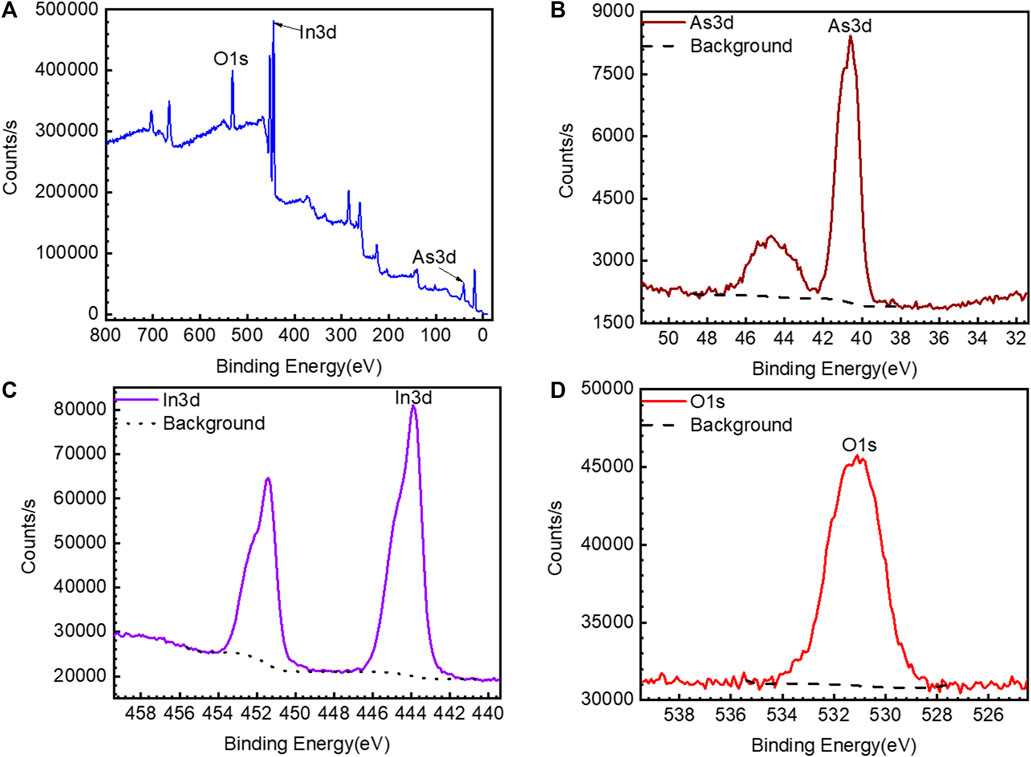

FIGURE 5. (A) High-resolution XPS spectra of InAs NWs. XPS spectra of (B) As3d and (C) In3d. (D) O1s for InAs NWs.

Conclusion

To conclude, InAs NWs have been grown on p-type silicon (111) wafers by MBE, and high-performance MSM photodetectors have been demonstrated. A high responsivity of approximately 10⁵ A/W, an NPC gain of over 10⁵, an I_dark/I_light ratio of more than 100, and a fast response time of less than 5 ms are obtained under normal temperature and pressure under 405 nm laser irradiation. Further analysis found that InAs nanowires are easily oxidized in the air, forming a gating layer, which can capture the photogenerated carriers in the nanowires. Moreover, this NW photodetector will pave a way to enable novel high-sensitivity broad-spectrum room-temperature detection.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, and further inquiries can be directed to the corresponding authors.

Author Contributions

YZ and DP conceived the idea and wrote part of the manuscript. XZ conducted the experiment and wrote the original version of the manuscript. XZ, YZ, and DP analyzed the results and prepared the figures. YZ proofread the manuscript. XY, JZ, and JL supervised the project. All authors have given approval to the final version of the manuscript.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
