Dipole-Fed Rectangular Dielectric Resonator Antennas for Magnetic Resonance Imaging at 7 T: The Impact of Quasi-Transverse Electric Modes on Transmit Field Distribution

Shortened dipole antennas based on rectangular dielectric blocks play an important role in ultrahigh field magnetic resonance imaging (UHF-MRI) radio frequency (RF) coil design. However, the generally assumed direct contact with the subject is difficult to maintain in typical in vivo settings. We have previously observed that certain dielectrically shortened dipole antennas can produce a substantially altered transmit field distribution with a very low transmit efficiency when the block and the sample are physically separated. Therefore, the aim of this study was to determine a) why certain designs of dielectrically shortened dipole antennas can produce an inefficient transmit field when the block and the sample are physically separated and b) how this depends on key parameters such as rectangular block geometry, dielectric constant, loading geometry, and RF feeding. In this work, two main types of quasi-transverse dielectric modes were found in different rectangular block geometries and interpreted as $T{E}_{11\delta }^z$ (MR efficient) and $T{E}_{1\delta \delta }^y$ (MR inefficient), and their impact on in vivo MRI experiments involving the human head, calf, and wrist was explored. This study shows, for the first time, why certain antennas preserve their transmit field efficiency despite physical separation from the sample. We conclude that the proposed approach has the potential to provide new insights into dipole antenna design for UHF-MRI.

1 Introduction

Ultrahigh field magnetic resonance imaging (UHF-MRI) in humans (magnetic field strength B₀ ≧ 7 T) can be challenging due to the short wavelength (about 12 cm) and increased radio frequency (RF) power deposition in the tissue [1]. Multichannel RF coil arrays, which are widely used to address these issues, allow for transmit field (B₁⁺) shimming to optimize the B₁⁺ homogeneity, thereby providing significant signal-to-noise ratio (SNR) gains and higher acceleration factors in parallel MRI [2–5]. Such multichannel arrays are typically built with loop elements. However, in recent years, it has been shown that dipole antennas can lead to significant B₁⁺ efficiency gains in deeper anatomical regions [6–9], and they also support curl-free current patterns that are crucial to approach the ultimate intrinsic SNR in UHF-MRI [10]. Increasing the number of channels in dipole antenna arrays requires modification to the single dipole antenna element geometry because the length of dipole antennas in free space (∼50 cm at 297.2 MHz) is not suitable for most in vivo MR applications.

Since the wavelength is inversely proportional to the square root of dielectric permittivity ε_r, one promising approach to shorten dipole antennas is to use a high ε_r medium [6, 11–13]. Unfortunately, the dimensions of dielectric blocks used in previous investigations were rather large, which made it difficult to use them as building blocks in very large dipole antenna arrays (e.g., 32, 64, or 128 elements). Most of the studies followed what Raaijmakers et al. suggested in their study [6], that is, the height should be at least ¼ of wavelength λ. Later, Ipek et al. [14] found that the optimal transmit field efficiency can be achieved for a block with 150 mm × 50 mm × 50 mm and ε_r between 90 and 110. Recently, Eigentler et al. [15] developed a self-grounded bowtie antenna, which was immersed in a small volume filled with deuterium oxide (D₂O), but they used quite a large water bolus to ensure a direct contact with a cuboid phantom.

All these reports [6, 13–15] assumed there was a direct contact between the dielectric block and the human body (or a phantom with a flat surface). Yet, such a contact is rather difficult to achieve for a solid, rectangular geometry, and it may not always be feasible in clinical settings. The curvature of the human head, for example, makes meeting this condition particularly difficult. Therefore, it is reasonable to assume that the dielectric block and various anatomical structures are physically separated. A detailed study, dedicated to this particular, realistic scenario, has not been conducted yet.

In a previous study, we observed that certain types of dielectrically shortened dipole antennas produced an efficient transmit field in the presence of a small air gap, while others did not [16]. We hypothesized that different dielectric modes can be induced within the rectangular block, thereby affecting the antenna performance; if a rectangular dielectric block is sufficiently large, dielectrically shortened dipole antennas can be interpreted as dipole-fed rectangular dielectric resonator antennas. Rectangular dielectric resonator antennas can be characterized by quasi-transverse electric modes [17–20], and UHF-MRI can be an excellent tool to visualize them if water is used as the dielectric medium [21, 22].

Therefore, the aim of this study was to determine: a) why certain dipole-fed dielectric resonator antennas preserve (and others do not) the transmit field distribution and efficiency when the block and the object are physically separated, b) which parameters play a critical role in this context, and c) to what extent different quasi-transverse electric modes can influence in vivo human MRI at 7 T.

2 Methods

Numerical electromagnetic field and specific absorption rate (SAR) simulations were performed using the finite-difference time-domain solver of Sim4Life (Sim4Life, Zurich, Switzerland). Copper elements were modeled as perfect electrical conductors. The excitation signal was of Gaussian type (center frequency = 297.2 MHz and bandwidth = 300 MHz). The grid was manually adjusted for all the components in the simulation. For conductors, dielectric blocks and ports, the smallest mesh cell was 2 mm (1 mm when the effect of the block/phantom physical separation was investigated; 0.2 mm for 0.5 mm gap for ε_r = 200), while for the phantoms it was 4 mm. The RF shield in the magnet and polymethylmethacrylate (PMMA) boxes were not included in the simulations. Two types of phantoms were used in the electromagnetic field simulations: a spherical one, which mimics the human head (radius = 85 mm, ε_r = 50.6, σ = 0.66 S/m), and a cuboid one (300 mm × 300 mm × 300 mm, ε_r = 34, σ = 0.47 S/m), which is more relevant for body applications, with dimensions identical to those used in previous studies [6, 13]. Moreover, both phantoms represent two different levels of curvature: a flat (cuboid) and a rounded one (spherical). For all the elements in the work, we used the transmit field efficiency defined as $B_1^{+}/\sqrt{P}$, where $P$ is the input power, and the SAR efficiency defined as $B_1^{+}/\sqrt{SA{R}_{10g}}$, where $SA{R}_{10g}$ is the maximum SAR averaged over 10g. The simulation results obtained using Sim4Life were normalized to 1 W input power.

The transmit field distribution within the spherical phantom was studied for different rectangular block geometries and different values of dielectric permittivity (ε_r = 35, 50, 80, 100, 150, 200, 300, and 500), assuming a 5-mm air gap between the block and the phantom. A constant conductivity value, close to the one for D₂O (σ = 0.065 S/m) [11], was used for all the blocks explored in this work. To identify the dielectric modes excited in a dipole-fed rectangular antenna, we used a coordinate system consistent with the commonly used convention (Figure 1). Note that in this work, we refer to the frame of reference from Figure 1 and not to the one typically used in MRI. Converting from the antenna frame of reference to the one for MRI requires the following transformation: x→z, y→x, and z→y.

FIGURE 1

FIGURE 1. (A) The frame of reference used to calculate the cutoff frequency and to determine the type of the dielectric mode that propagates across dielectric blocks. The following transformation from this system to the system of coordinates in MRI environment would have to be made: x = z, y = x, z = y). (B) Matching network diagram.

Each dielectric mode was described by three subscripts: m, n, and l. Additionally, one superscript (x, y, or z) was used to indicate the direction of propagation for a given quasi-transverse electric (TE) mode. The fraction δ means that the given index was equal to 0 (see [19]). The geometry of each rectangular block and each ε_r value was determined as follows: first, we found the dimensions of the smallest possible square geometry for which the $T{E}_{11\delta }$ mode was allowed to propagate according to the following formula [19]:

$f_{cutoff}=\frac{c}{2\pi \sqrt{{\mathit{ϵ}}_r}}\sqrt{{\left(\frac{\pi m}{a}\right)}^2+{\left(\frac{\pi n}{b}\right)}^2+{\left(\frac{\pi l}{d}\right)}^2}(1)$

where c is the velocity of light; m, n, and l are the dielectric mode indices ($\delta$ means that there is a fraction of a field half-cycle in the given direction); and a, b, and d are the block dimensions according to the coordinate system in Figure 1. For instance, to calculate the cutoff frequency using Eq. 1 for $T{E}_{11\delta }$ and $T{E}_{1\delta \delta }$ modes, the indices mln would be defined as 110 and 100, respectively. Note that if l = 0 (or if l = 0 and n = 0), Eq. 1 corresponds to the calculation of waveguide modes $T{E}_{11}$ (or $T{E}_{10}$) rather than the 3D resonance $T{E}_{111}$. Next, dimension a, which was critical to ensure that $T{E}_{11\delta }$ was allowed to propagate, was multiplied by a factor of 2. By doing so, we obtained initial values of a and b (a₀ and b₀), which were different for each ε_r (Table 1). The dimension a (a₀) was constant for each ε_r value: 35 (242 mm), 50 (202 mm), 80 (160 mm), 100 (144 mm), 150 (118 mm), 200 (102 mm), 300 (84 mm), and 500 (64 mm). Then, dimension b was varied as follows: b₀, 0.75b₀, 0.5b₀, and 0.25b₀. For these dimensions of b, we investigated the following d/b ratios: d/b = 1, 0.75, 0.25, and 0.125. According to Eq. 1, for b = b₀ and b = 0.75b₀, the cutoff frequency for $T{E}_{21\delta }$ was lower than the resonance frequency. However, the $T{E}_{21\delta }$ mode was not observed in any of the investigated blocks regardless of the ε_r value. For each ε_r value, the relative wavelength was calculated $\left({\lambda }_r\sim \raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$\sqrt{{\epsilon }_r}$}\right.\right)$, and the length of each dipole antenna was accordingly chosen: 42, 35, 28, 25, 20, 18, 14, 11, and 8 mm per dipole arm (5-mm distance between both arms) for ε_{rfrom 35} to 500. Half of the dipole antenna (copper wire, radius = 1 mm) was immersed in the dielectric medium, while the other half was in contact with air (Figure 1). Each antenna was tuned to 297.2 MHz and matched to 50 Ω using an LCC tuning/matching network (L-series, C-parallel, C-series).

TABLE 1

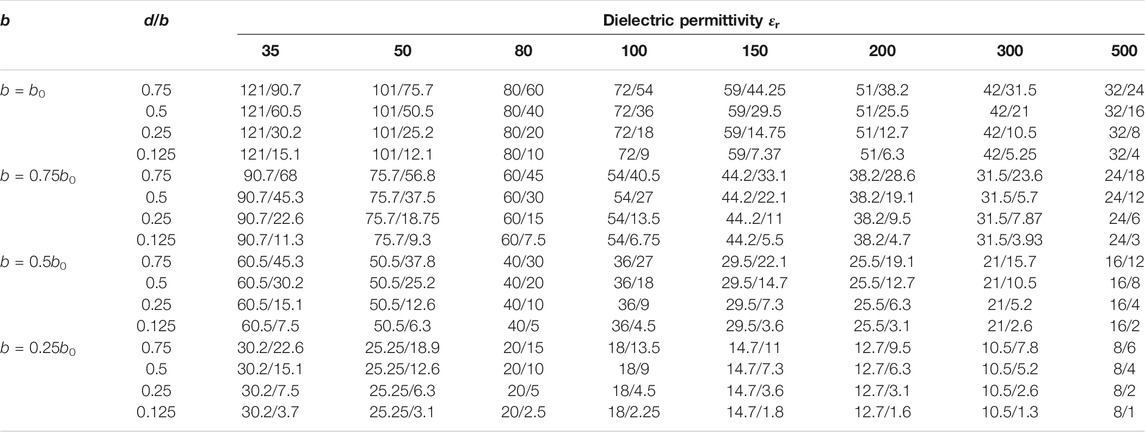

TABLE 1. The dimensions of rectangular blocks (in millimeters) used in simulations from Figure 2. The dimension a (a₀) was constant for each ε_r value: 35 (242 mm), 50 (202 mm), 80 (160 mm), 100 (144 mm), 150 (118 mm), 200 (102 mm), 300 (84 mm), and 500 (64 mm). Four variations of b (b₀, 0.75, 0.5b₀, and 0.25b₀) and for each b four d/b (0.75, 0.5, 0.25, and 0.125) ratios were investigated.

The transmit field efficiency in the spherical phantom could not be compared between all the blocks from Table 1 in a fair manner because higher ε_r values resulted in smaller blocks and shorter dipole antennas. For this purpose, a constant block geometry (a = 160 mm, b = 60 mm, and d = 7.5 mm) and dipole antenna length (28 mm per arm) was defined for all analyzed ε_r values. The dimensions were chosen so that such a block could be used as one of the elements in a close-fitting 8-channel transmit/receive array for brain imaging [11].

The effect of an air gap on the transmit field distribution in a cuboid phantom was studied for one larger block (0.75b₀, d/b = 0.75) for each ε_r value. The cuboid phantom was chosen for this purpose because it provided good coupling (flat surface) to the rectangular dielectric block; the transmit field distribution in the cuboid phantom was also benchmarked against the results obtained for the spherical phantom (rounded surface). Five different air gaps were studied: 1, 2, 3, 4, and 5 mm for all ε_r values. These simulations were extended by investigating the y-component of the magnetic field $\overrightarrow{H}$ (H_y) for one larger air gap (20 mm) for two low-ε_r blocks (35, 50) and one smaller air gap (0.5 mm) for one high-ε_r block (200). These results were compared to the ones obtained for the spherical phantom (5-mm air gap). The reason why the H-field was considered instead of the B-field was to refer to the previous study conducted by Ipek et al. [14], which focused on the case when there is a perfect direct contact between the block and a large cuboid phantom.

Plane wave simulations were conducted for six different wave number and electric field vector configurations with the following parameters: number of mesh cells = 681,000, excitation signal = Gaussian, center frequency = 297.2 MHz, and bandwidth = 300 MHz, amplitude = 1 V. The dielectric block (160 mm × 70 mm × 52.5 mm) was defined as the wave source according to the approach provided by Sim4Life, which is based on total-field/scattered-field (TF/SF) formulation (also called the plane-wave injector). In this method, only a certain region of the calculation domain, the total field region (the dielectric block in our case), propagates the plane wave.

Two dielectrically shortened dipole antennas (ε_r = 80) were designed, built, and evaluated in MR experiments: 160 mm × 70 mm × 52.5 mm (0.75b₀, d/b = 0.75) and 160 mm × 70 mm × 17.5 mm (0.75b₀, d/b = 0.25). The prototypes were built of a PMMA shell (wall thickness = 3 mm). The geometries were chosen so that different dielectric modes can be excited within the blocks. The reason for using ε_r = 80 was that water has an ε_r value close to 80 at 297.2 MHz. Water is readily available and easily imaged by MRI [22]. To visualize the dielectric modes within the different block geometries, deionized water was used, and the dipole antenna was tuned to 297.2 MHz and matched to 50 Ω.

MR experiments were conducted with a 7.0-T 68-cm bore scanner (Magnetom, Siemens Healthineers, Erlangen, Germany). A shielded cable trap, consisting of a capacitor soldered to the shield of the coaxial cable, was connected to each element and used in every experiment. MRI experiments were performed in one male subject (age = 29 years, BMI = 28.5 kg/m²), who had signed written consent approved by the local ethics committee, in three different regions of interest: head, calf, and wrist. It was not feasible to conduct additional experiments for other anatomical structures because the scanner used is dedicated to the human head. The goal was to investigate how different dielectric modes could propagate across various anatomical structures (with different loading geometries), given our prior knowledge on the differences between cuboid and spherical phantoms [16]. To visualize the magnetic field distribution within both blocks, standard gradient echo (GRE) imaging was used with the following parameters: repetition time (TR) = 8.6 ms, echo time (TE) = 4.0 ms, field of view (FOV) = 250 × 250 mm², slice thickness = 7.0 mm, number of averages = 2, FA = 15°, and reference transmit voltage = 5 V. For in vivo experiments, deionized water, which produced a very-high-intensity signal, compromising the in vivo image quality, was replaced by heavy water (D₂O, Sigma Aldrich, Germany), and a 2-mm acrylonitrile butadiene styrene board was placed between the block and the subject. In vivo images were acquired by 3D-GRE imaging with the following parameters: TR/TE = 6.5/2.82 ms, FOV = 256 × 240 mm², slice thickness = 1.0 mm, number of averages = 1, FA = 4°, and reference transmit voltage = 100 V. The acquisition parameters of the RF pulse sequence were used to scan each body part.

3 Results

To determine the effect of block geometry and dielectric permittivity on the transmit field distribution and efficiency within the spherical phantom, electromagnetic field simulations were performed (Figure 2). The transmit field distribution within the spherical phantom for d = 0.125b was the most consistent regardless of the combination of b/b₀ and ε_r. Moreover, d = 0.125b (for b = 0.5b₀ and b = 0.75b₀) resulted in the highest transmit field efficiency in the center of the phantom for all ε_r values. The most apparent change in the transmit field distribution (two-side lobes and almost no transmit field along the z-axis) and decrease in the transmit field efficiency was observed for d = 0.75b (b = b₀, b = 0.75b₀, and b = 0.5b₀) for all ε_r values (Figure 2). For d = 0.75b (b = 0.25b₀), that effect was still present, but for the higher-ε_r blocks (ε_r ≥ 200). A similar change in the transmit field pattern as for d = 0.75b was also observed for thinner blocks with d = 0.5b. This was especially prominent for higher ε_r (ε_r ≥ 150). Local SAR_10g values for each block are summarized in Table 2. Higher d/b ratios yielded lower SAR_10g values for narrower blocks (b = 0.25b₀ and b = 0.5b₀), excluding d/b = 0.75, for the highest-εr values (ε_r ≥ 200). For wider blocks (b = 0.75b₀ and b = b₀), SAR_10g was the highest for the thickest blocks (d/b = 0.75) excluding the lowest-ε_r values, 35 and 50 (the latter only for d/b = 0.5).

FIGURE 2

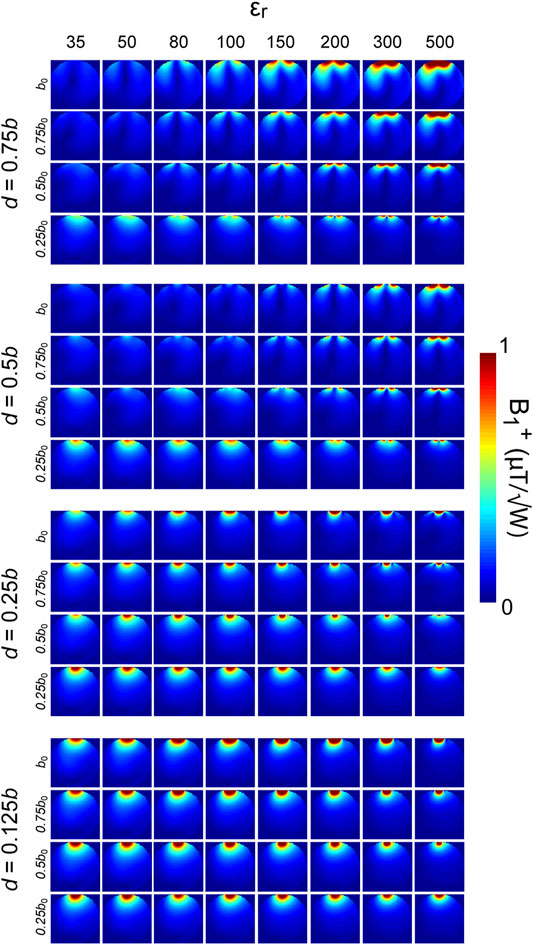

FIGURE 2. Transmit field distribution in the spherical phantom for various geometries (Table 1) of dipole-fed rectangular dielectric resonator antennas and dielectric permittivity ε_r (35, 50, 80, 100, 150, 200, 300, and 500). The distance between the bottom of the block and the phantom was 5 mm. Each column depicts different ε_r values. The figure was divided into four groups (starting from the top): d/b = 0.75, 0.5, 0.25, and 0.125. Each group consists of four rows: b = b₀, 0.75b₀, 0.5b₀, and 0.25b₀. Substantial differences in the transmit field pattern and efficiency can be observed between different geometries for a given ε_r, as well as for the same a/b/d ratio, but different ε_r values.

TABLE 2

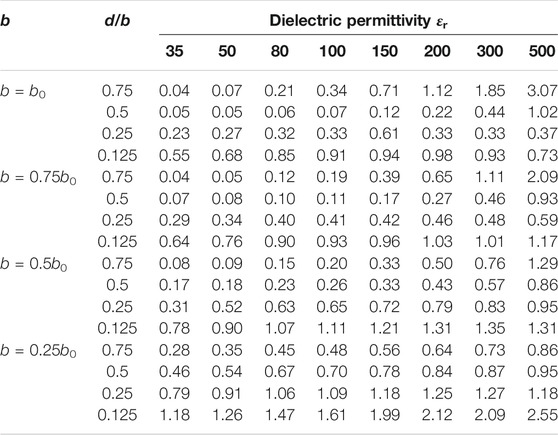

TABLE 2. Maximum local SAR_10g values in W/kg provided for the simulations from Figure 2. The exact dimensions of the blocks can be found in Table 1. In general, for lower b values (0.5b₀ and 0.25b₀), the thicker blocks yielded lower was the SAR_10g than their thinner counterparts. This trend changed for d/b = 0.75 for higher-ε_r blocks (300 and 500). For b = b₀, SAR_10g values for higher-ε_r blocks (200, 300, and 500) were found to be significantly higher for d/b = 0.75 than for d/b = 0.125.

To determine which ε_r provided the highest transmit field and SAR in the center of the spherical phantom, electromagnetic field simulations were performed using a constant block geometry and dipole antenna length (Figure 3). The electric field distribution was found to depend on ε_r of the block (Figure 3), and it was significantly different for higher-ε_r blocks (ε_r ≥ 200). The highest transmit field efficiency in the center of the phantom was obtained with ε_r = 300 (0.21 μT/√W) and ε_r = 200 (0.197 μT/√W), but at the cost of reduced SAR efficiency (0.103 μT/√W/kg and 0.126 μT/√W/kg). The highest SAR efficiency in the center was obtained with lower ε_r values: 0.149 μT/√W/kg for ε_r = 80, and 0.148 μT/√W/kg for ε_r = 50. The transmit efficiency (center of the phantom) with ε_r = 300 was higher by 33%, and the SAR efficiency was lower by 31% than with ε_r = 80. The transmit efficiency (center of the phantom) with ε_r = 200 was higher by 29%, and the SAR efficiency was lower by 15.5% than with ε_r = 80.

FIGURE 3

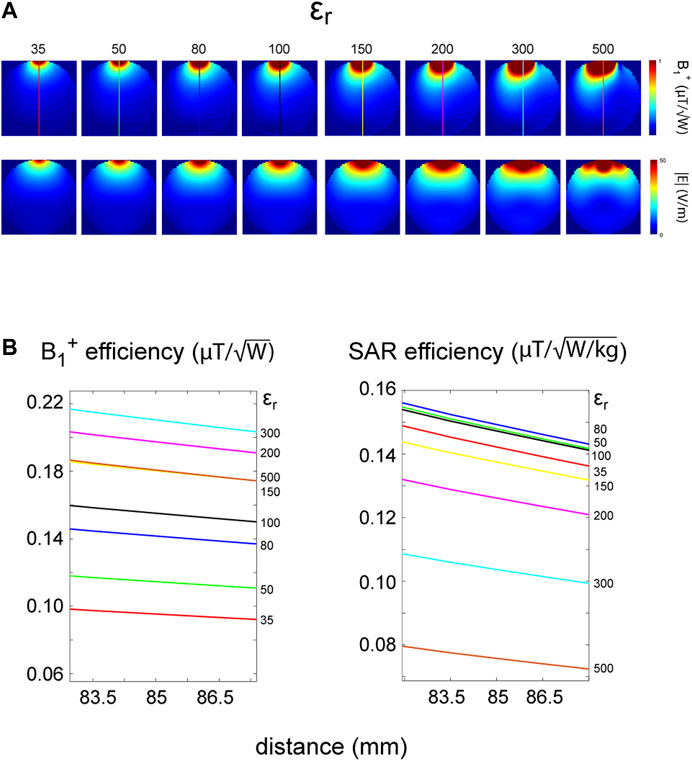

FIGURE 3. (A) Transmit field and electric field distribution within the spherical phantom for the constant block geometry (160 mm × 60 mm × 7.5 mm) and dipole antenna length as a function of dielectric permittivity ε_r (35, 50, 80, 100, 150, 200, 300, and 500). The air gap was 5 mm. (B) Transmit and SAR efficiency as functions of distance. The plots were zoomed in (85 mm on the x-axis corresponds to the center of the phantom) to better distinguish the differences between the blocks. The highest transmit field efficiency in the center of the phantom was obtained for ε_r = 300 (0.210 μT/√W) and ε_r = 200 (0.197 μT/√W) but at the cost of a reduced SAR efficiency (0.103 and 0.126 μT/√W/kg). The highest SAR efficiency in the center was obtained for lower ε_r values: 0.149 μT/√W/kg for ε_r = 80 and 0.148 μT/√W/kg for ε_r = 50. Note that in higher-ε_r blocks (300, 500), a higher-order mode $\left(T{E}_{12\delta }^z\right)$ was excited.

To investigate how physical separation between the dielectric block and the cuboid phantom can influence the transmit field pattern and efficiency, an air gap (1–5 mm) between the block and the phantom was assumed for one block geometry (b = 0.75b₀, d = 0.75b) for all ε_r (Figure 4). The larger block was chosen because it produced a highly inefficient transmit field in the spherical phantom (Figure 2, second row). It was found for lower ε_r values (35 and 50) that, despite the air gap, the transmit field pattern was very similar to the one obtained with a direct contact between the block and the cuboid phantom, albeit with slightly lower efficiency. For higher ε_r values (ε_r ≥ 80), a significant difference in the transmit field pattern and efficiency could be observed. For ε_r = 80, the effect was present with a 3-mm air gap, while for higher ε_r values (ε_r ≥ 200), a 1-mm air gap was already sufficient, and the observed effect was much more prominent.

FIGURE 4

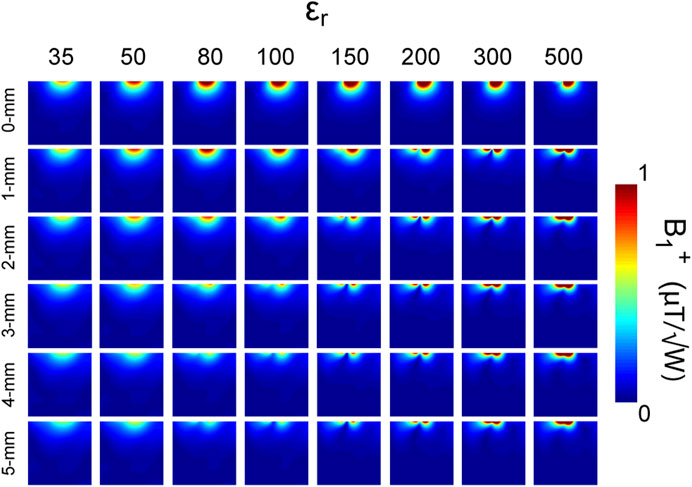

FIGURE 4. Transmit field distribution in the cuboid phantom as a function of dielectric permittivity of the block and the block/phantom physical separation. The geometry of one of the larger blocks was chosen (b = 0.75b₀, d/b = 0.75—Table 1). The effect of five different sizes of an air gap (1, 2, 3, 4, and 5 mm) was investigated for all ε_r values (35, 50, 80, 100, 150, 200, 300, and 500). No significant change was noted in the transmit field pattern for lower ε_r values (35, 50) when the antenna was moved 5 mm away from the phantom. The transmit field changed significantly for higher ε_r values. The higher the ε_r value of the block, the lower the “threshold” size of the air gap, for which the transmit field pattern changed along with a decreased efficiency.

The impact of block/phantom physical separation and phantom geometry was further investigated by simulating the y-component of the magnetic field (H_y). Increasing the distance between the phantom and the block by 20 mm for the two lower-ε_r (35, 50) blocks resulted in H_y being mostly contained within the blocks (Figure 5A). For higher ε_r (200), the effect was already prominent with a 0.5-mm air gap, showing that the distance between the block and the phantom for the given ε_r value significantly influenced the transmit field distribution. The results were compared to those obtained previously for the spherical phantom (5-mm air gap; Figure 5B): H_y was mostly contained within the low-ε_r blocks (ε_r = 35 and 50) for the spherical phantom, while for the cuboid phantom, H_y propagated toward the phantom despite the 5-mm air gap.

FIGURE 5

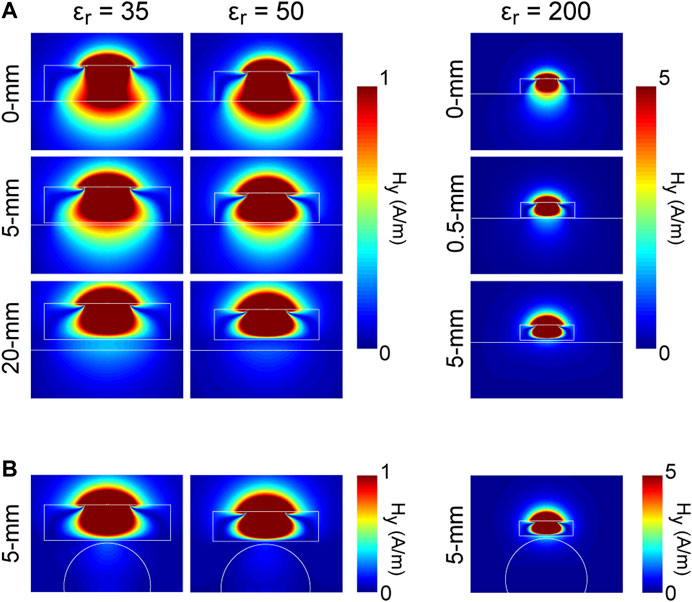

FIGURE 5. (A) The distribution of the y-component (in x–z plane) of the magnetic field (H_y) as a function of dielectric permittivity, phantom geometry, and block/phantom physical separation. White lines depict the boundaries of the blocks and the phantoms. For the direct contact case (cuboid phantom) as well as for smaller air gap (5-mm), H_y for lower-ε_r blocks (35, 50) coupled well to the phantom enabling the propagation of H-field in the z-direction. For the cuboid phantom (20-mm air gap) and lower-ε_r blocks, H_y was mostly confined within the blocks, especially for ε_r = 50. In the case of ε_r = 200, a similar effect was observed even with a 0.5-mm air gap. (B)H_y distribution in the cuboid phantom (5-mm air gap) was benchmarked against H_y distribution in the spherical phantom (5-mm air gap). The results showed that H_y distribution within the block (and therefore the transmit field efficiency) was significantly dependent on the loading geometry.

To investigate the transmit field distribution within different rectangular block geometries, PMMA boxes were filled with deionized water and imaged by gradient-recalled echo at low-flip angles. Based on the analysis of the simulated transmit field patterns and MR experiments (Figure 6), we interpreted the mode excited in the larger block (d = 0.75b) as $T{E}_{1\delta \delta }^y$. Using the same approach, we identified the mode in the smaller block (d = 0.25b). Our results indicated that two modes ($T{E}_{11\delta }^z$ and $T{E}_{1\delta \delta }^y$) were adjacent to each other and could be switched by changing the ratio of the block dimensions (d in this case).

FIGURE 6

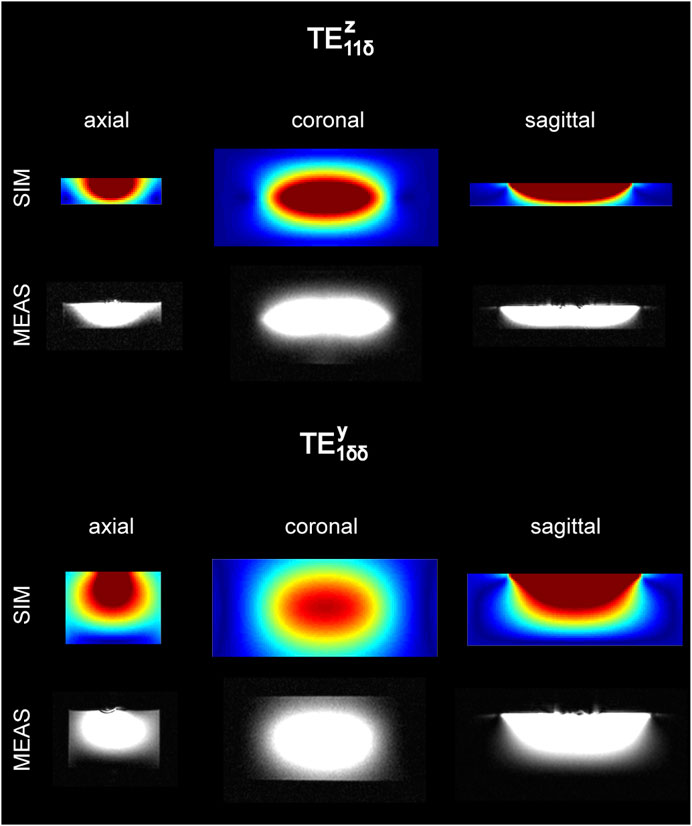

FIGURE 6. Visualization of dielectric modes: the comparison between the electromagnetic field simulations and magnetic resonance measurements for two elements: thinner one (d = 0.25b) and thicker one (d = 0.75b). The polymethylmethacrylate boxes were filled with deionized water, and their volumes were matched to the dimensions of the dielectric blocks described in the Methods section. Low-flip-angle gradient echo imaging was used. The simulations are in an excellent agreement with the measurements and show significantly different magnetic field distribution between the blocks. The mode that propagates within the thinner block was interpreted as $T{E}_{11\delta }^z$ and within the thicker one as $T{E}_{1\delta \delta }^y$. SIM stands for “Simulation” and MEAS for “Measurement”.

To understand the impact on an MRI experiment of the different dielectric modes that can be excited by a dielectrically shortened dipole antenna, in vivo studies were performed with one male subject. Two block geometries were investigated: d = 0.25b, d = 0.75b. In vivo images of the head, calf, and wrist were obtained (Figure 7). The thinner block provided highly superior image quality for all tissues compared to its thicker counterpart, which yielded very noisy images (very low to no SNR) for the brain, calf, and wrist. However, qualitative differences were apparent among the images obtained using the larger block, and the best image quality was obtained with the wrist, which provided a flatter surface. Significantly, lower image quality was noted for the calf while the lowest was for the head, the body part with the highest level of curvature in this study.

FIGURE 7

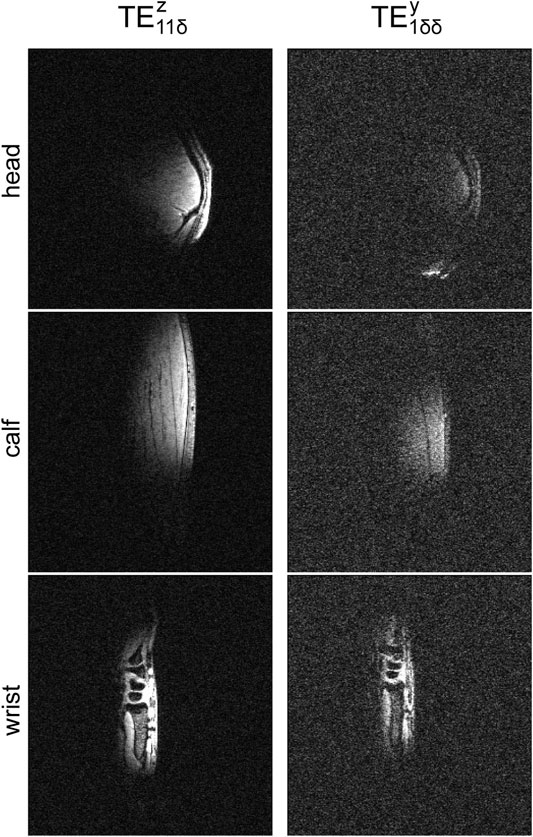

FIGURE 7. In vivo MRI experiments in one human male subject using two blocks: thinner (d/b = 0.25) and thicker one (d/b = 0.75). Three different regions of interest (head, calf, and wrist) were investigated. The quality of all the images was significantly compromised for the larger block (very noisy). The images obtained using the smaller block were superior, and all the tissues can be clearly delineated. Even though the quality of images (larger block) was very low, it can be observed that the quality of the image of the wrist (low level of curvature and almost flat surface) was the highest. The worst quality was noticed for the image of the head (high level of curvature). These results can be benchmarked against the ones obtained for the cuboid (wrist, Figure 5) and the spherical phantom (head, Figure 5). The images have the same absolute intensity.

To determine whether the larger block (160 mm × 70 mm × 52.5 mm) could still be used as an efficient RF antenna, plane-wave simulations for six different orientations of the magnetic field vector $\overrightarrow{H}$, the electric field vector $\overrightarrow{E}$, and the wave number vector $\overrightarrow{k}$ were performed (Figure 8). Different mutual orientations of these three vectors led to different magnetic field patterns in the spherical phantom. The mutual orientation of $\overrightarrow{H}$ and $\overrightarrow{E}$: E_z-k_x was consistent with dipole excitation and yielded a transmit field pattern similar to that in Figure 2. There were also other excitation schemes (E_y-k_x, E_x-k_y, and E_x-k_z) that, unlike E_z-k_x, provided efficient magnetic field in the spherical phantom.

FIGURE 8

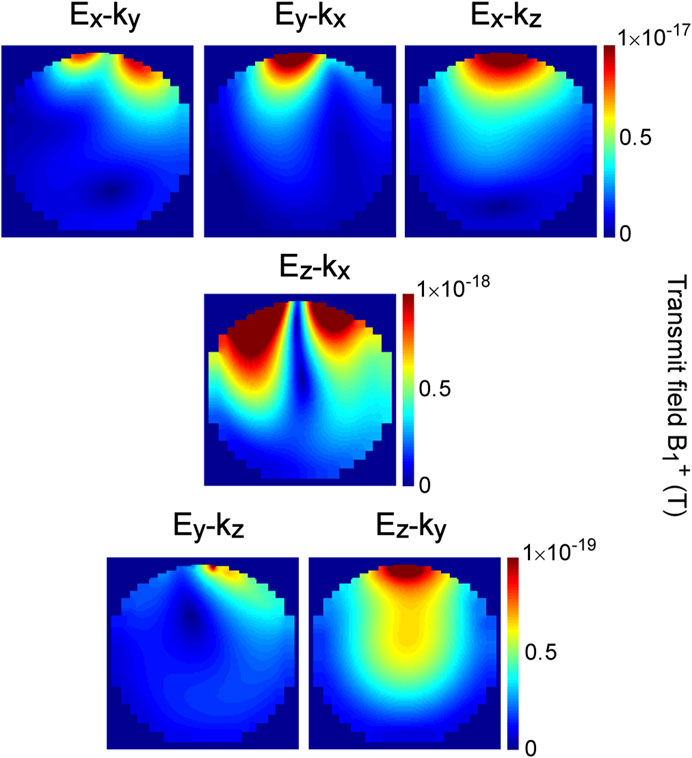

FIGURE 8. Plane-wave simulations: the transmit field distribution in the spherical phantom (5-mm air gap) for one dielectrically shortened dipole antenna (ε_r = 80, 160 mm × 70 mm × 52.5 mm). Six different transmit field patterns arise from six different orientations of the $\overrightarrow{H}$, $\overrightarrow{E}$, and $\overrightarrow{k}$ vectors: E_x-k_y, E_x-k_z, E_y-k_x, E_y-k_z, E_z-k_x, and E_z-k_y. We see that different coupling schemes can lead to the excitation of different (MR efficient or MR inefficient) dielectric modes for a given dielectric block. Different modes could propagate, for example, by coupling with a small loop coil (E_y-k_x), instead of a dipole antenna (E_z-k_x). Note that different color scales were assigned to each row of the figure.

4 Discussion

This study demonstrates for the first time why certain dipole-fed rectangular dielectric resonator antennas for MRI at 7 T can preserve (and others do not) the transmit field distribution and efficiency when the dielectric block and the sample are physically separated. We showed that different types of quasi-transverse electric modes, which were induced in the analyzed block geometries by dipole antennas, played the most critical role in this context: $T{E}_{11\delta }^z$ and $T{E}_{1\delta \delta }^y$. The approach used in this study constitutes an important extension of prior work [14], which focused on the analysis of the special case where there is a direct contact between a rectangular block and a large cuboid phantom: first, such a condition may not always be realistic: for example, human heads and other body parts have different curvatures, and therefore, a perfect direct contact between the body and a rectangular block is difficult, if not impossible, to achieve in general. Thus, instead of assuming a perfect contact between the dielectric block and phantom, the presence of air gaps is a more realistic consideration.

By using the term “quasi-$TE$ modes”, we have referred to Pan et al. [20], who reported on a negligibly weak E-field component which can be observed in the direction of propagation for $TE$ modes in rectangular dielectric resonator antennas. Moreover, the prefix “quasi” refers to a larger group of rectangular geometries which were studied in this work but not optimized to excite “pure” $TE$ modes. In such cases, a nonzero E-field component in the direction of propagation may be observed. The same applies to the distinction between $T{E}_{11\delta }^z$ and $T{E}_{1\delta \delta }^y$ modes. These modes can be identified based on the electromagnetic field patterns within a dielectric block (in principle, simulated vector fields are preferable to discern the intricacies between different geometries). To determine m, we looked into the magnetic field variation along the x-axis (Figure 6, coronal slice), and we found that a full-field maximum is contained within the block (indicating a sharp change in the magnetic field direction at the dielectric boundaries along the x-axis), yielding m = 1 for both blocks. To find n, we looked at the magnetic field variation along the y-axis (Figure 6, coronal slice). In the case of the $T{E}_{11\delta }^z$ mode, the field maximum was fully contained within the thinner block, that is, there was a sharp change in the magnetic field direction at the block boundaries along the y-axis. This resulted in no magnetic field leaking through the dielectric boundaries along the y-axis, and the field decreased to nearly zero at the edge of the block, resulting in n = 1. In this case, the magnetic field propagates along the z-axis through the dielectric wall, and the upper index z was used to better describe this mode. By increasing the dimension d of the block, decreased magnetic field variation along the y-axis can be observed, due to an increased contribution of the $T{E}_{10\delta }^y$ mode (n = 0 stands for no magnetic field variation in the y-direction), and a similar magnetic field pattern is found in rectangular waveguides for the $T{E}_{10}$ mode. In the case of the $T{E}_{10\delta }^y$ mode, the magnetic field is not contained within the block along the y-axis, that is, there is no change of magnetic field direction at the boundaries, and the magnetic field leaks through the dielectric walls in both directions along the y-axis and propagates down toward the sample. The upper index y therefore serves to indicate the change in the direction of magnetic field propagation for thicker blocks. This change of magnetic field pattern between thinner block and its thicker counterpart is similar to the transition between $T{E}_{11}$ and $T{E}_{10}$ in rectangular waveguides (see the subchapter “Rectangular waveguide” in “Transmission lines and waveguides” in Pozar’s [19] book). In this work, different, semi-arbitrarily chosen rectangular geometries were analyzed, and $T{E}_{10\delta }^y$ is considered to be a subcomponent of a larger group of $T{E}_{1\delta \delta }^y$ modes. We have introduced index δ to indicate that certain modes have insufficient purity to be interpreted as $T{E}_{10\delta }^y$ and contributions from both modes $T{E}_{11\delta }^z$ and $T{E}_{10\delta }^y$ can be very apparent (see Figure 1). None of the blocks analyzed in this study had index l equal to 1; however, it is clear (Figure 6, axial slice) that a fraction of magnetic field variation can be observed along the z-axis for both blocks, and we therefore assigned l = δ for both blocks.

Dipole-fed rectangular dielectric resonator antennas, in which the $T{E}_{11\delta }^z$ mode was excited, preserved their transmit field distribution and efficiency regardless of (a) any block/sample physical separation and (b) any level of curvature of the sample (for both phantom and in vivo experiments). Rectangular dielectric resonator antennas, in which the $T{E}_{1\delta \delta }^y$ mode was induced, performed poorly when the block was separated from the sample: a significantly altered transmit field distribution and low efficiency was observed. When $T{E}_{1\delta \delta }^y$ was excited, there were two general cases in which it produced an efficient transmit field: (a) a direct contact with the cuboid phantom (flat surface) regardless of the ε_r value of the block and (b) a fairly small block/phantom separation but only for low-ε_r blocks (35, 50). Here, condition (b) remains valid as long as the surface of the sample is flat: the resulting transmit field will be a function of the level of curvature of the sample, and it can substantially change when the surface approaches a rounded one (Figure 5B). In vivo experiments showed that the $T{E}_{1\delta \delta }^y$ mode, unlike $T{E}_{11\delta }^z$, led to substantially degraded image quality, highlighting the influence of dielectric block geometry and propagation of dielectric modes on the performance of dielectrically shortened dipole antennas. Further discussion on how different parameters can influence the antenna performance is given below.

The propagation of quasi-transverse dielectric modes depends mainly on the ratio of the block dimensions (Figure 1): a, b, and d (if the feeding type did not change; Figure 2) and on the feeding type (if the dimensions were constant; Figure 8). Our results show that when d was sufficiently smaller than b, a quasi-$T{E}^z$ mode was expected to propagate. However, when dimension d approaches b (even for d = 0.5b), the dominant mode shifts toward a quasi-$T{E}^y$ mode (Figure 2). The main dielectric modes observed in our experiments were interpreted as $T{E}_{11\delta }^z$ (MR efficient) and $T{E}_{1\delta \delta }^y$ (MR inefficient; Figure 6). There was a striking difference in performance between these modes, which had a major impact on in vivo experiments (Figure 7). This observation differs from the work of Ipek et al. [14], who reported only one type of mode $\left(T{E}_{1\delta 1}^y\right)$: this was possible due to the substantially different boundary conditions (perfect direct contact between the block and the cuboid phantom) in their experiments, leading to the situation in which electromagnetic wave is guided across different dielectric media (no high-/low-ε_r interface and less reflection). However, for the geometries studied here, $T{E}_{1\delta 1}^y$ was not allowed to propagate (only for the geometries with d/b = 0.75, the cutoff frequency was very close to 297.2 MHz (see Eq. 1).

We found that a relatively small d/b ratio (d = 0.5b and d = 0.75b; for ε_r = 500 even when d = 0.25b) results in an inefficient transmit field in the spherical phantom (Figure 2): high-ε_r blocks (ε_r ≥ 200) can produce an inefficient transmit field for much smaller d/b ratios than low-ε_r blocks (35, 50). This indicates that $T{E}_{1\delta \delta }^y$ can be excited using smaller a/b/d ratios with higher ε_r values, and block dimensions optimized for low ε_r values should not be linearly scaled for high-ε_r blocks because an inefficient dielectric mode can become more prominent, compromising the antenna performance. Using very “thin” blocks (d = 0.125b) can be advantageous in the context of transmit efficiency (Figure 2) in contrast to the previous report in which d = b for the case of a direct contact between the block and the cuboid phantom [14]. This is possible because the dimension d does not play a key role in excitation of the $T{E}_{11\delta }^z$ mode and can be significantly reduced. This finding can have important practical implication due to substantial space constraints within the MRI scanner bore and the general need for the “miniaturization” of dielectric blocks.

Note, however, that decreasing d can result in needing larger inductors to tune the antenna, which has an impact on the transmit field efficiency. Thinner blocks are also expected to yield higher SAR values than their thicker counterparts, excluding the wider blocks with b = b₀ and b = 0.75b₀, especially for higher ε_r values (ε_r ≥ 200). Therefore, certain tradeoffs would have to be considered and accepted depending on the application. If the block dimension d is properly chosen for a given a and b, the latter two play the key role in overall antenna performance. With d = 0.125b, the most efficient transmit field was observed with b = 0.5b₀ and b = 0.75b₀ (for d = 0.125b) for all ε_r values. The transmit field efficiency for b = 0.5b₀ was slightly higher (∼2.5%) than b = 0.75b₀. However, on average, 20% higher inductance was needed to tune the antennas with b = 0.5b₀. Losses associated with higher inductance were not included in the simulations, and they are expected to affect the transmit field efficiency. Moreover, the SAR efficiency for b = 0.5b₀ was ∼7.2% lower than that for b = 0.75b₀. Interestingly, according to Eq. 1, the cutoff frequency for the $T{E}_{11\delta }^z$ mode was almost identical to the resonance frequency of protons at 7.0 T for blocks with 0.75b₀.

Transmit field patterns for d = 0.75b (Figure 2) should not be confused with the pattern that would be expected for a standalone loop coil at 297.2 MHz. A transmit field pattern similar to the one for the loop coil can be obtained by replacing the dipole-with a loop-type excitation (see E_y-k_x excitation from Figure 8). Note that for the ratio d = 0.75b, the $T{E}^z$ mode turns into the $T{E}^y$ mode. The upper index indicates that the magnetic field propagates across the dielectric boundaries along the y-axis (almost no propagation along the z-axis; see Figure 6, axial view) and partially couples to the phantom placed below the block (the resulting transmit field will also strongly depend on the loading geometry; Figure 7). This applies to all the ε_r values (d = 0.75b) from Figure 2. The reason why the transmit field pattern for d = 0.75b in Figure 2 appears to be different for different ε_r values is due to the colorbar with a maximum value of 1 μT/√W chosen as the maximum value. For higher-ε_r values, the magnetic field concentration is higher within and in the vicinity of the block, resulting in a substantially higher transmit field in the peripheral regions of the phantom (note that we used a different scale for the simulations for ε_r = 200 in Figure 5). In the case of thinner blocks (e.g., d = 0.125b), the transmit field pattern in the phantom can be considered similar to the one for a standalone dipole antenna. However, in the blocks with d = 0.125b, according to Eq. 1, the $T{E}_{11\delta }$ mode can still be excited, and the electromagnetic field pattern within the block for d = 0.125b looks very similar to the one for d = 0.25b (see Figure 6, axial view).

The above considerations provide additional evidence why dielectric modes are critical in dielectrically shortened dipole antennas, given the fact that the particular b/b₀ and d/b ratio increments used in our study were chosen in an arbitrary fashion. Our data also suggest that the propagation of dielectric modes can become a limiting factor in miniaturization of rectangular dielectric blocks in UHF-MRI. We observed that a more efficient transmit field for dielectrically shortened dipole antennas can be achieved when, for a given geometry and ε_r, the cutoff frequency for the $T{E}_{11\delta }^z$ mode was lower (or close to) the Larmor’s frequency.

The effect of the dielectric permittivity of the block on the transmit field performance was analyzed by keeping the distance between the block and the spherical phantom constant (5 mm) along with the geometry of the block (a/b/d ratio) and dipole antenna (wire) length (Figure 3). The geometry was chosen such that it could be used as a building block of an 8-channel array [11]. Our data showed that as expected for higher ε_r values, the electromagnetic field is more concentrated near the block [23]. This led to higher transmit efficiency in the periphery for higher-ε_r blocks (especially for ε_r = 300 and 500, in which the $T{E}_{12\delta }^z$ mode was excited). However, the best performance in terms of transmit field efficiency among all the analyzed permittivity values in the center of the spherical phantom was found for ε_r = 300 and 200, which are ∼3× and ∼2× higher than those reported for the case of a direct contact between the block and the cuboid phantom [14]. This increase, however, was accompanied by a decreased SAR efficiency with higher ε_r values (Figure 3). The block with the best overall performance would therefore represent a trade-off between transmit and SAR efficiency. For example, with ε_r = 200, the transmit efficiency was higher by 29% and the SAR efficiency was lower by 15.5% than with ε_r = 80. The observed SAR increase for ε_r ≥ 300 is associated with the higher-order $T{E}_{12\delta }^z$ mode. This mode had a critical impact on the E-field pattern which was found in the spherical phantom (Figure 3). The lowest transmit efficiency was observed for the lowest ε_r values (35, 50). Note that these geometries were too small to allow propagation of efficient dielectric modes, indicating that dielectric modes play a critical role in the transmit field efficiency of dielectrically shortened dipole antennas. We further note that the observed higher transmit efficiency for higher-order modes $\left(T{E}_{12\delta }^z\right)$ has, to our knowledge, not been reported to-date for dielectrically shortened dipole antennas for UHF-MRI, and this aspect could be further investigated in the future.

The electromagnetic field simulations also showed that the larger rectangular dielectric block, which was coupled to the $T{E}_{1\delta \delta }^y$ mode using dipole feed placed on the top, could be still used as an efficient RF antenna (Figure 8). One way to couple to a different mode is to change the geometry of the block, and another solution is to change the feeding type. By conducting plane-wave simulations, we found other possible excitation schemes (different mutual orientations of the vectors $\overrightarrow{H}$, $\overrightarrow{E}$, and $\overrightarrow{k}$) that provided an efficient transmit field without any geometrical modifications of the block. Different modes could propagate for example by coupling with a small loop coil (E_y-k_x), instead of a dipole antenna (E_z-k_x; Figure 8). If a dipole antenna is the desired coupling mechanism, the geometry of the block should be designed according to the guidelines presented in this work, that is, to avoid geometries in which the $T{E}_{1\delta \delta }^y$ mode could propagate. However, as shown in Figure 8, this does not exclude certain block geometries from being used as an efficient RF antenna. We note that there could be other efficient feed mechanisms (or their combinations, given the fact that some of them are orthogonal) which could be used, for example, E_x-k_z (Figure 8) and should be investigated in the future [23–28].

The analysis of the transmit field produced within the cuboid phantom by bigger blocks (b = 0.75b₀, d = 0.75b) with ε_r values ranging from 35 to 500 showed that the distance between the block and the phantom for a given ε_r is critical for the transmit field pattern and efficiency (Figure 4). For each ε_r value, five different air gaps (1–5 mm) were investigated, and, despite the air gap, the transmit field pattern for lower ε_r values (35 and 50) was very similar to the one obtained with a direct contact between the block and the phantom, albeit with a slightly lower efficiency. For higher ε_r values (ε_r ≥ 80), we observed a significant difference in the transmit field pattern and efficiency dependent on the air gap size. For ε_r = 80, an altered transmit field pattern along with a decreased efficiency was present with a 3-mm air gap, while for higher ε_r values (ε_r ≥ 200) a 1-mm air gap was already sufficient, and the observed effect was much more prominent. This can be explained by the different ε_r values of the block. The higher the ε_r value, the higher the concentration of the electromagnetic field within the block and therefore the lower the coupling to the phantom (H_y remains well confined within the block).

Additional simulations demonstrated that a change in the transmit field pattern and efficiency (with H_y mostly confined within the block) can be still observed with lower ε_r values but requires larger air gaps (Figure 5). In general, the lower the ε_r value, the greater the “threshold” air gap size required to have H_y confined within the block and not significantly present in the phantom. In the case of higher ε_r values (200), the effect was even observed for smaller air gap (0.5 mm). The latter highlights the importance of this study because the “perfect direct contact” condition seems to be difficult to achieve in practice because even such tiny air gaps can influence antenna performance. Note that even with a direct contact for ε_r = 500, a slight change in the transmit field pattern can be already observed (Figure 4). The results obtained with the cuboid phantom (5-mm air gap) were compared to the data obtained with the spherical phantom (Figure 5). All the blocks included in the comparison supported the $T{E}_{1\delta \delta }^y$ mode and produced a very inefficient transmit field along with a substantially altered field pattern in the spherical phantom for each ε_r value. However, this was not the case for the cuboid phantom for ε_r = 35 and 50. This indicates that the geometry of loading can substantially affect block/phantom coupling and influence the transmit field of dielectrically shortened dipole antennas, as discussed further below.

As spherical and rectangular phantom geometries can be considered ideal experimental conditions that may not mimic the practical situation, we performed preliminary in vivo experiments involving one male subject, focusing on three different organs: the head, calf, and wrist (Figure 7). All the investigated anatomical structures had different levels of curvature: human head (high), calf (medium), and wrist (low, almost flat). Dielectric blocks with d = 0.25b and 0.75b were used. All the images obtained when using the thicker block were substantially inferior to the ones when using the thinner block. We observed subtle differences between the images obtained using the thicker block: the image of the wrist had the highest quality, while the image of the head was very noisy, with almost no anatomical details visible, and the calf image quality was intermediate. In vivo data can be compared with our simulations using spherical and cuboid phantoms; the wrist was similar to the flat surface of the cuboid phantom, and the head was obviously more rounded like the spherical phantom. Note that the thicker block used in the in vivo experiments was very close to the optimal design described by Ipek et al. [14], yet its performance was very low. To summarize, when anatomical structures can be considered flat with respect to the bottom surface of the rectangular block, such as the wrist, they can couple better to the antenna’s $T{E}_{1\delta \delta }^y$ mode than organs with curvature such as the head (or even the calf).

An arbitrarily chosen conductivity σ (constant for each block) can be considered one of the study’s limitations because σ is expected to increase with ε_r of the block. Therefore, the authors recommend to interpret with caution the results concerning transmit efficiency. This, however, is not expected to significantly influence the data obtained in the context of different dielectric modes and transmit field patterns which were affected by them. Also, we would like to point out that expected σ increase with ε_r should have a rather limited impact on future developments, given the fact that there are available technologies which enable manufacturing ceramic blocks with a very high ε_r value (range of thousands) along with a very low σ value of 0.001 S/m (roughly 60 times lower than the one used in this study).

In the context of our study, previous work can be divided into two groups: (a) reports in which different, mainly loop-coupled, dielectric structures were used with a clear motivation to induce desired dielectric modes [23–26, 28] and (b) reports in which dielectric structures were used solely for the purpose of shortening dipole antennas [6, 11, 13, 15, 29, 30]. In the case of (a), different types of dielectric modes were investigated, while in the case of (b), even if dielectric modes and their impact on antenna performance were considered by the authors, it was not mentioned in any of those reports. Based on our results, we believe that (a) and (b) should not be considered separately, and this is particularly apparent when the cutoff frequency for a given block geometry and ε_r is below the NMR frequency. In this study, we showed that dielectric modes play a key role in the antenna’s overall performance when the block is separated from the sample. Therefore, by treating such an element as a dipole-fed dielectric resonator antenna rather than dielectrically shortened dipole antenna, we highlight the impact of dielectric modes on overall performance of a dipole antenna. This aspect could be further investigated by looking into transmit field patterns produced by combinations of different dipole antenna geometries with different dielectric structures. We have already conducted a study [16], in which we investigated the elements developed by Winter et al. [11], Sanchez-Heredia et al. [13], and a scaled-version of Raaijmakers et al. [6], and we found that exactly the same types of modes demonstrated in this work were excited.

We conclude that the approach presented in this study can offer guidance and new insights into the design of rectangular dielectric resonator antennas for MRI at 7 T, given the growing number of such antenna designs for UHF-MRI [29–31]. These findings should also be relevant for geometries other than the rectangular ones and for higher Larmor frequencies than the one investigated in this study.
