- Clarendon Laboratory, Department of Physics, University of Oxford, Oxford, United Kingdom
Isoelectronic substitution is an ideal tuning parameter to alter electronic states and correlations in iron-based superconductors. As this substitution takes place outside the conducting Fe planes, the electronic behaviour is less affected by the impurity scattering experimentally and relevant key electronic parameters can be accessed. In this short review, I present the experimental progress made in understanding the electronic behaviour of the nematic electronic superconductors, FeSe1−xSx. A direct signature of the nematic electronic state is in-plane anisotropic distortion of the Fermi surface triggered by orbital ordering effects and electronic interactions that result in multi-band shifts detected by ARPES. Upon sulphur substitution, the electronic correlations and the Fermi velocities decrease in the tetragonal phase. Quantum oscillations are observed for the whole series in ultra-high magnetic fields and show a complex spectra due to the presence of many small orbits. Effective masses associated to the largest orbit display non-divergent behaviour at the nematic end point (x ∼ 0.175(5)), as opposed to critical spin-fluctuations in other iron pnictides. Magnetotransport behaviour has a strong deviation from the Fermi liquid behaviour and linear T resistivity is detected at low temperatures inside the nematic phase, where scattering from low energy spin-fluctuations are likely to be present. The superconductivity is not enhanced in FeSe1−xSx and there are no divergent electronic correlations at the nematic end point. These manifestations indicate a strong coupling with the lattice in FeSe1−xSx and a pairing mechanism likely promoted by spin fluctuations.
1 Introduction
Nematic electronic states have been suggested to play an important role in understanding the electronic behavior of high temperature superconductors like cuprates and iron-based superconductors, quantum Hall systems, and Sr3Ru2O7 [1]. Often the nematic electronic state breaks the rotational symmetry of a tetragonal plane lattice from four-fold symmetric (C4) down to two-fold symmetric (C2) [1]. This symmetry breaking is expected to have a number of consequences on the electronic properties leading to a series of effects involving anisotropic single-particle properties, showing a distorted Fermi surface (that can be triggered like a Pomeranchuk instability in the presence of interactions [2]), anisotropic spin-fluctuation spectra, and anisotropic transport properties that can lead to non-Fermi-liquid behavior [3]. Theoretically, in the proximity to a nematic quantum critical point, the nematic fluctuations with wave-vector q = 0 can enhance the critical temperature by pairing through the exchange of nematic fluctuations in all symmetry channels [4, 5]. In real systems, the nematic electronic phase is intimately coupled with the lattice. This coupling has significant consequences on the observed response, such as the presence of the tetragonal-to-orthorhombic structural transition at the same temperature where the nematic electronic order develops. This finite coupling of the electronic system with the lattice is expected to alter the response of the nematic critical fluctuations on superconductivity and the non-Fermi liquid power-law dependencies in transport [6–9].
Iron-based superconductors offer a unique playground to understand unconventional superconductivity and explore the normal competing electronic phases, such as nematic electronic phases and spin-density wave phases. Often the nematic and spin-density phases neighbor each other in the phase diagrams of iron-based superconductors, making it difficult to assess whether the spin or nematic fluctuations are the most relevant for stabilizing superconductivity [10]. A unique system, the chalcogenides FeSe1−xSx, provides an essential route to investigate the interplay between nematicity and superconductivity, in the absence of long-range magnetism. Furthermore, the isoelectronic substitution can access the experimental manifestations around a putative nematic critical point, undisturbed by the presence of a magnetic critical point, as found in other systems, like BaFe2(As1−xPx)2 [11]. The parent compound of this family, FeSe, displays a nematic electronic phase and a tetragonal-to-orthorhombic transition below 90 K [12] and no long range magnetic order was detected despite a rich spectrum of low and high-energy spin fluctuations [13–15].
The bulk superconductivity of FeSe has a relatively low critical temperature close to 9 K but it can be enhanced toward 40 K by applied external pressure [16, 17]. The nematic phase of FeSe is also suppressed at low pressures [16–19] before a new magnetic state is stabilized at high pressures [19, 20], that competes with the high-Tc phase [17]. Besides applied pressure, the bulk superconductivity of FeSe can be enhanced toward 40 K via the intercalation between the van der Waals layers of a molecular spacer [21], and by gating of thin flakes [22]. In a monolayer on FeSe, on a suitable substrate, the transition temperatures reach record values toward 65 K; a strong interfacial electron-phonon coupling and a charge transfer through the interface is proposed as a source for this two-dimensional high-Tc superconductivity [23, 24]. This effect is surprisingly absent in a monolayer of FeS [25] and in the absence of substrate in thin flakes of FeSe [26].
Isoelectronic substitution is a clean and efficient way to tune phase diagrams of iron-based superconductors, by gently suppressing the relevant electronic interactions and competing electronic phases with superconductivity, and to access quantum critical points [34]. For the FeSe family this is achieved by replacing elements with a similar number of electrons outside the Fe planes, using sulphur or tellurium ions on selenium ions sites. The availability of single crystals of these materials have allowed intense interest and study of their physical properties, summarized in recent reviews in Refs. 15, 35–37. Furthermore, by combining physical and chemical pressures, the relative position of the nematic electronic phase in relation to the spin-density wave phase can be varied and thus the influence of two competing electronic phases on superconductivity can be disentangled [38, 39]. The scope of this review is to summarize the recent experimental efforts in understanding the electronic behavior of FeSe1−xSx that can provide a unique insight into the role played by the nematicity, Fermi surfaces, proximity to a putative nematic critical point and electronic correlations in relation to superconductivity in the absence of any long-range magnetic order.
2 Phase Diagram of FeSe1−xSx
Figure 1A shows the phase diagram of FeSe1−xSx as a function of isoelectronic substitution with sulphur obtained from transport measurements. The isoelectronic substitution achieved by replacing selenium ions for sulfur ions outside the Fe plane causes an positive internal chemical pressure as these ions have different ionic radii (S2− is 1.70 Å compared with 1.87 Å for Se2−) [40, 41]. The nematic electronic phase of FeSe, due to its finite coupling with the underlying lattice, triggers a structural transition from a tetragonal to an orthorhombic phase at Ts [12]. This transition gives rise to a well-defined anomaly in the transport measurements (Figure 1C) that helps to build the nematic phase diagram and to identify the expected position of each measured single crystal inside the nematic phase, as shown in Figure 1A.

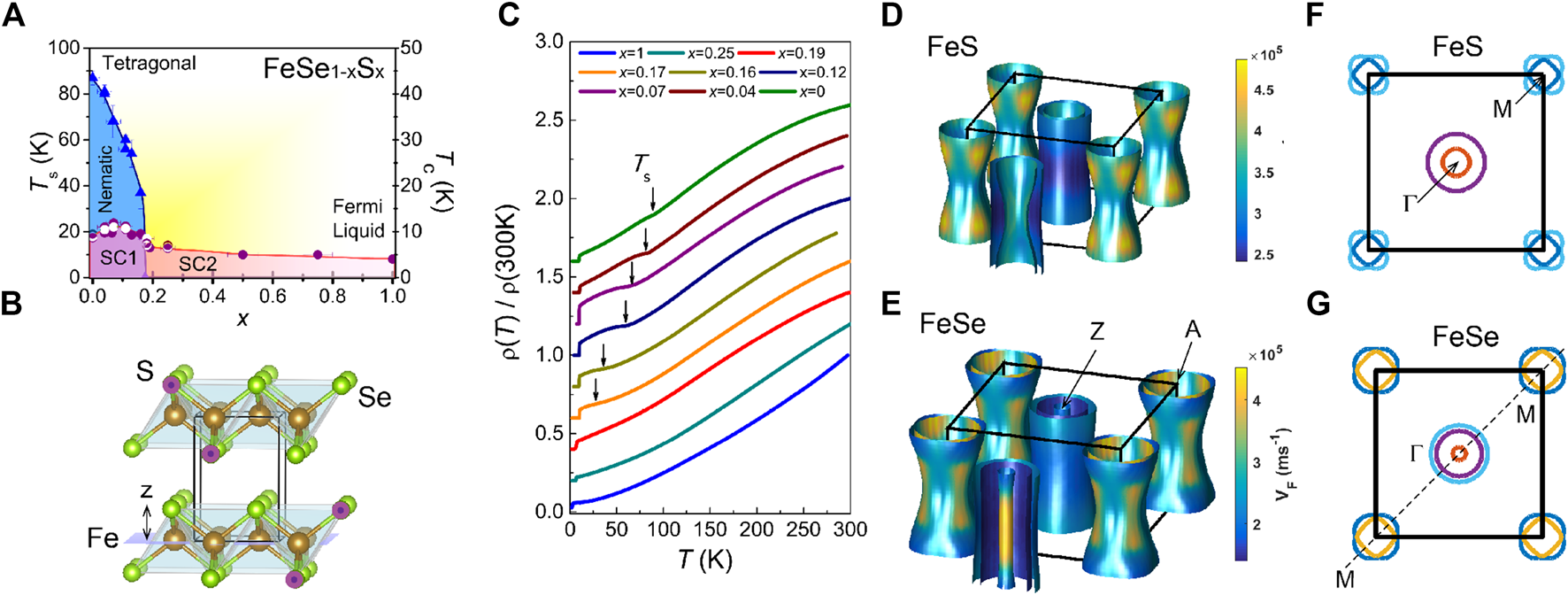

FIGURE 1. Phase diagram of FeSe1−xSx. (A) Phase diagram of FeSe1−xSx based on Ref. 27. (C) The resistivity vs. temperature of FeSe1−xSx normalized at room temperature, after Refs. 27–29. The data are shifted vertically and the arrows indicate the position of the nematic transition that coincides with the tetragonal to orthorhombic transition at Ts. This transition is better visualized using the first derivative of the resistivity, as discussed in Refs. 27, 28, 30. (B) The tetragonal unit cell of FeSe1−xSx (solid lines). FeSe1−xSx crystalizes in the P4/nmm space group (No.129) with atoms Fe: 2a (3/4,1/4,0) and Se: 2c (1/4,1/4, zSe). The position of the chalcogen above the Fe plane is indicated by the parameter z that affects significantly the band structure. Calculated Fermi surface using density functional theory (DFT using GGA approximation and spin-orbit coupling) of FeS in (D) and FeSe in (E) using experimental lattice parameters at room temperature for FeSe [31] and FeS [32, 33]). The Fermi surfaces are colored using the Fermi velocities indicated by the corresponding color bar. The middle hole band with lower velocity in FeSe has a dominant dxy character whereas the other hole and electron bands have mixed dxz/yz character. The high-symmetry cut of the Fermi surface in the
The isoelectronic substitution with sulfur in FeSe leads to the efficient suppression of the nematic electronic state, similarly to the effect of applied pressure [42] (Figure 1A). In contrast to applied pressure, the nematic phase can be completely suppressed with sulfur substitution and no spin-density wave phase was detected for any available single crystals. The lowest detected value of Ts is about 25 K, followed by an abrupt drop at the nematic end point (NEP) which occurs close to x ∼ 0.175(5), [27, 29, 40, 43, 44]. Thus, FeSe1−xSx family is unique and permits the exploration of the nematic electronic phase transition in the vicinity of a putative nematic critical point.
Inside the nematic phase, the superconducting transition temperature displays a small dome reaching Tc ∼ 11 K close to x ∼ 0.11, varying from 8.7 (3) K for FeSe inside the nematic phase toward 6.5–5 K just outside it [29, 30, 44, 45]. For higher x values inside the tetragonal phase, the superconductivity hardly changes reaching only 4.5 (5) K toward FeS [32, 33]. The suppression of the nematic phase transition in FeSe1−xSx coincides with a decrease in the superconducting transition temperature Tc close to NEP. STM studies have detected a rather abrupt change in the superconducting order parameter at the nematic phase boundaries, implying that different types of pairing may be operational inside (SC1) and outside the nematic phase (SC2), as shown in Figure 1A [30, 46]. Recently, it has been suggested theoretically that a topological transition associated with the creation of a Bogoliubov Fermi surface could occur as a function of x in FeSe1−xSx [47, 48].
In order to understand in depth the electronic properties of FeSe1−xSx a good knowledge of the exact composition and the sulfur variation in each batch is required. This can be challenging for techniques, like neutron-diffraction and muon spin rotation, that require a large mass of sample made of hundreds of small single crystals [49]. At room temperature FeSe1−xSx crystalizes in the P4/nmm space group (No. 129), as shown in Figure 1B. The lattice parameters of FeSe are a = 3.7651 Å, c = 5.5178 Å, zSe = 0.2672 [31] whereas FeS has a much smaller c axis (a = 3.6802 Å, c = 5.0307 Å, zS = 0.2523) [32, 33]. The lattice parameters measured by X-ray diffraction for each crystal of FeSe1−xSx can be used to determine the composition of each sample. Assuming the formation of a solid solution as a function of composition, the values of the lattice parameters at room temperature, p, (that can be a,b and c or zSe/S) for a certain composition x can be estimated using an empirical Vegard’s law px = xpS + (1 − x) pSe
2.1 Single Crystal Growth
Single crystals of FeSe1−xSx are normally grown by the KCl/AlCl3 chemical vapor transport method from the FeSe end toward x ∼ 0.4 [12, 29, 40, 43, 44, 50, 51]. The growth of higher concentrations and FeS was achieved using a hydrothermal reaction of iron powder with sulfide solution, which in general is a more invasive method and can lead to single crystals with higher concentration of impurities [29, 32, 33, 52]. Epitaxial thin films of FeSe1−xSx with x < 0.43 were grown via pulsed laser deposition [53]. A potential anomaly was observed in the resistivity curves for films with large x, suggested to be linked to a magnetic transition [53], but these findings have not been yet confirmed in single crystals [44, 53]. The exact x composition for samples in each batch is normally checked using compositional analysis using energy-dispersive X-ray spectroscopy (EDX) or electron-probe micro-analysis (EPMA) [12, 27, 44, 50, 53]. The nominal composition, xnom, used during the growth process is often smaller than the real composition x (by about 80%) and the higher the composition the larger degree of variation occurs within the same batch [44, 53]. For example, the phase diagrams of FeSe1−xSx reported in Refs. 54, 55 uses the nominal values xnom. Thus, the linear resistivity in 35T occurs inside the nematic phase, as the measured zero resistivity shows an anomaly at Ts ∼ 51 K for a nominal composition xnom ∼ 0.16 that would correspond around x ∼ 0.13 [28]. The residual resistivity ratio, defined as the ratio between room temperature resistivity and the resistivity at the onset of superconductivity, varies between 15 and 44 [27, 28] and it is often used as a proxy to assess the quality of each single crystal. In high magnetic field, quantum oscillations were observed for all composition of FeSe1−xSx reflecting their high quality with large mean free path (up to ∼350 Å) [27, 39]. For higher x composition, the mean free path decreases slightly and new hexagonal phases could be stabilized [27]. The superconductivity of Fe1+δSe can also be destroyed by very small changes in its stoichiometry [31].
3 Electronic Structure of FeSe1−xSx
The main features of the electronic structure of FeSe1−xSx can be understood by considering the two-dimensional square lattice of Fe ions, separated by Se/S atoms residing above and below the Fe layer, as shown in Figure 1B. Due to the strong bonding between the Fe-Fe and Fe-(Se/S) sites, an Fe atom can be placed inside the center of an almost perfect tetrahedron of Fe(Se/S)4 that determines the electronic properties of these materials. Band structure calculations show that the Fermi surface of FeSe1−xSx consists of well-separated hole pockets at the center of the Brillouin zone and electron pockets at the zone corners that form quasi-two dimensional Fermi surfaces, as shown in Figures 1D,E. The position of the chalcogen ion in relation to the Fe plane, z, affects significantly the predicted number and the orbital character of the hole bands, FeSe having an additional middle hole band with dxy character which is pushed below the Fermi level in FeS (Figures 1D,E). There are two predicted cylindrical electron bands which hardly change in shape across this series, similar to the isoelectronic series BaFe2(As1−xPx)2 [56]. The positive chemical pressure in FeSe1−xSx results in a lattice contraction and the reduction of the c axis [41] and it would bring the Fe(Se/S) layers closer together, increasing the bandwidth and potentially leading to the suppression of the electronic correlations [29, 57]. As discussed below, DFT calculations provide essential guide to understand the origin of the observed Fermi surfaces of FeSe1−xSx, but the size are smaller, the number of hole bands is reduced compared with calculations and the kz dependence is changed.
4 ARPES Studies of FeSe1−xSx
ARPES is highly suited for the exploration of FeSe1−xSx as these systems can be easily cleaved in-situ due to weak van der Waals bonds between the FeSe layers which also enable the development of devices of two-dimensional superconductors by mechanical exfoliation [22, 26]. Furthermore, ARPES studies can evaluate the role of orbital character on the nematic electronic states, as the matrix element effects affect the intensity of different bands with different orbital character. In certain conditions, ARPES spectra of iron-based superconductors does not show certain branches due to the underlying symmetry, in particular for the electron bands [59–61], as the intensity depends strongly on the polarisation of the incident beam as well as the incident photon energy. A representation of the orbital character of different pockets at high symmetry points is shown in Figure 2H.
FIGURE 2. Low-temperature ARPES data for FeSe1−xSx. Band dispersion around high symmetry points, (A)
Extensive experimental ARPES studies on FeSe found that system has many relevant electronic ingredients for a multiband system [35, 59, 62–66]. The experimental Fermi surface of FeSe is unusually small having 2 electron pockets and a single hole pocket (instead of 3), a factor 5 smaller than that predictions of the band-structure calculations (Figure 1E). Such a small Fermi surface could be sensitive to topological changes in magnetic fields or under applied strain. To bring the DFT calculated Fermi surfaces in agreement with experiments, band shifts need to be applied in opposite direction for hole and electrons of more than 200 meV for FeSe [62] and less than 100 meV for FeS [67]. Band shifts also occur at high temperatures inside the tetragonal phase of FeSe and these effects are caused by higher energy interactions [68] as well as the changes in the chemical potential [69], as found in many iron-based superconductors [70]. Furthermore, like many other iron chalcogenides, FeSe exhibits strong orbitally-dependent electronic correlations due to the larger band renormalization factor ∼7–9 of the dxy band compared with ∼3–4 for the dxz/yz band [62, 71]. These values are obtained by comparing the experimental band dispersion to those from DFT calculations in the tetragonal phase, as shown in Figure 1 [62, 71]. At high binding energies, ARPES spectra detected Hubbard-like bands suggesting the existence of incoherent many-body excitations originating from Fe 3d states, in addition to the renormalized quasiparticle bands near the Fermi level [63, 72]. Many high energy features of the observed ARPES data can be accounted for by considering the strong local Coulomb interactions on the spectral function via dynamical mean-field theory, including the formation of a Hubbard-like band [63, 72]. Another inherent challenge for ARPES studies inside the nematic phase is the likely presence of sample twinning (rotated by 90°), by cooling thorough the structural transition, and a lot of recent effort has been dedicated to address this issue by applying strain to FeSe [65, 66, 73].
4.1 Hole Pockets of FeSe1−xSx
The evolution of the hole pockets of FeSe1−xSx with x substitution for the two high symmetry points Z (at the top of the Brillouin zone) and

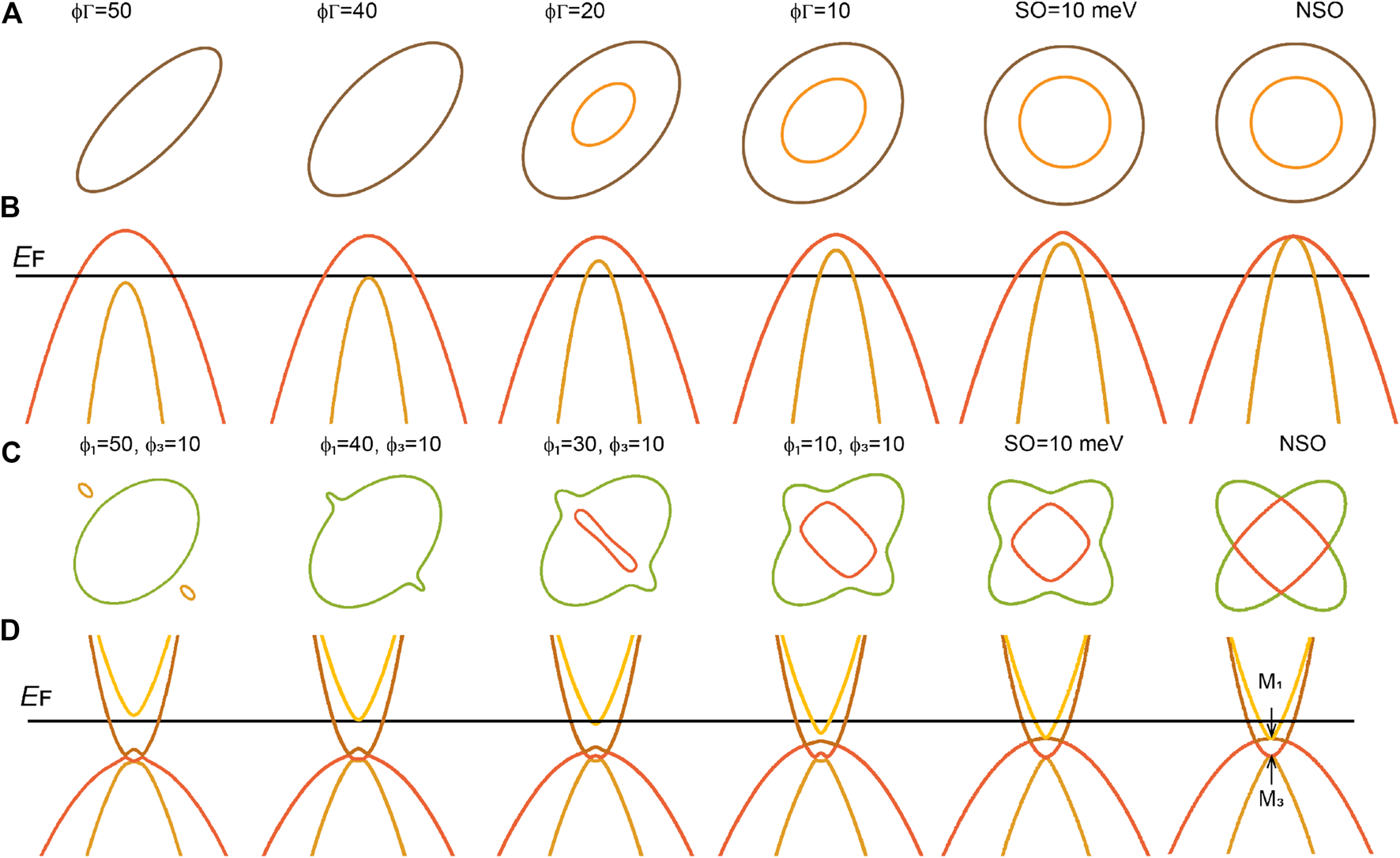

FIGURE 3. Simulations of the effect of nematicity on the ARPES data. Simulations of the Fermi surface maps and band dispersions in a nematic and tetragonal phase, as described in detail in Refs. 76, 77. This model parameters are adjusted to match the experimental data for the tetragonal x = 0.18 in Figures 2B,C and the spin-orbit coupling is considered as being 10 meV. The starting values used in simulations are
FIGURE 4. Low temperature parameters extracted from APRES data of FeSe1−xSx. (A) The variation of the low temperature splitting parameter,
The ARPES studies at the two high symmetry points using different incident energies allows for the evaluation of the kz hole dispersion of the cylindrical Fermi surfaces of FeSe1−xSx and the sensitivity of the second inner hole band to any band shifts inside the nematic phase. The inner hole band, which forms a small 3D inner hole pocket around the Z point, is observed in the tetragonal phase of FeSe but it is pushed below the Fermi level inside the nematic phase [62]. With sulfur substitution, the inner hole band is shifted gradually up and it crosses the Fermi level only at the Z point from x ∼ 0.11 [40] and grows in size at x ∼ 0.18. The inner hole band does not cross the Fermi level at the
4.2 Simulations of the Effect of Nematicity on the Low-Energy Electronic Structure
To understand the effect of nematicity and the orbital effects at each high symmetry point, simulations based on a model developed in Refs. 76, 77 for a single domain sample are shown in Figure 3. The parameters for the simulations are adjusted to match the ARPES experimental data for x = 0.18 in Figures 2B,C [29] and the other variable are listed in Figure 3. In the tetragonal phase of FeSe1−xSx, the hole Fermi surface are expected to be circular and C4 symmetric, originating from the dxz/yz bands, as shown in Figure 2E. In the absence of nematicity the two hole dispersions at the center of the Brillouin zone are expected to be split only by the spin-orbit coupling [76], as shown in Figure 3A. Experimentally, the band separation gives a spin-orbit of ∆so ∼ 13(3) meV for FeSe in the tetragonal phase at high temperatures and for the tetragonal x ∼ 0.18 at low temperatures [62, 63, 80]. As the nematic order is turned on,
4.3 Electron Pockets of FeSe1−xSx
Whereas the behavior of the hole bands is well understood and consistent between different experimental reports, the behavior of the electron bands remains a highly debated subject. The P4/nmm unit cell of tetragonal FeSe includes two Fe sites which are related by a glide symmetry [76] and ARPES measurements should detect electron bands emerging from two-crossed ellipses [58, 87], similar to other systems, such as LiFeAs or NaFeAs [80]. The electron pockets suffer a significant change inside the nematic phase and the relevance of different orbital contribution is still being debated. At the corner of the Brillouin zone (M and A point) in the tetragonal phase, there are two degenerate doublet states, M1 and M3, at the zone corner protected by the space-group symmetry, even when spin-orbit coupling is taken into account [76], as shown in Figures 3C,D. Therefore, any splitting and shifts of the bands at M (or A) would reduce the crystal symmetry in the presence of the spin-orbit coupling. The nematic order can be triggered by the development of the anisotropy in the on-site energies of the dxz and dyz orbitals (
Experimentally, in the tetragonal phase the inner electron band dispersions at M (or A) are expected to have dxz/dyz orbital character when probed along the diagonal of the Brillouin zone, as shown in Figure 2H. The outer electron band with dxy orbital character is harder to observe due to matrix element effects and the incident energy used (Figures 2C,J). This behavior is detected for the tetragonal FeSe1−xSx with x = 0.18 shown in Figure 2C; [29] and FeSe above Ts [40, 58, 62]. In the nematic phase, the changes for the electron bands are drastic, with M1 point shifting up whereas the M3 shifts down, and additional splitting could take place around these two degenerate points, as shown in Figure 2C. The energy separation between the two intense features at the M point below Ts (EDC cuts), is defined by ∆M which is ∼50 meV for bulk FeSe [62, 64, 89]. This splitting is much larger than what would be expected from DFT calculations simply taking into account its small orthorhombic distortion (∼5 meV) [62]. The elongated directions of the elliptical Fermi surfaces at the M point are rotated by 90° with respect to that at the
A direct signature of the nematicity is the in-plane distortion of the Fermi surface. Inside the nematic phase for the electron pockets this can be related to the development of the orbital polarisation ∆n = nxz−nyz. The orbitally dependent band shifts cause the inner sections of the electron pockets with dyz orbital character to contract whereas the dxz sections to expand, but forming a cross-shape due to effect of sample twinning, as shown in Figure 1F. The degree of anisotropy of the Fermi surface can be related to (kF−kF0)/kF0 [40]. where the kF-vector is that corresponding to the inner dyz portion of the electron pocket, and kF0 is the Fermi k-vector in the tetragonal phase for each compound. Figure 4B shows the evolution of the Fermi surface elongation with x substitution and indicates that the nematic phase is responsible for this in-plane distortions, which is completely suppressed in the tetragonal phase.
4.4 Comparison Between ARPES and QPI
The presence of both highly elongated and isotropic Fermi surfaces of FeSe1−xSx is likely to significantly influence other measurements. Scanning tunneling microscopy (STM) studies shows highly anisotropic quasiparticle interference (QPI) patterns inside the nematic state, becoming isotropic in the tetragonal phase [46, 78]. The resulting QPI spectra exhibit electron-like and hole-like dispersions along different directions (qa and qb, respectively) corresponding to the intraband back-scatterings in the electron bands at the Brillouin zone corner and in the hole band at the zone center, respectively. Thus, the QPI spectra reflect the evolution of the scattering processes across the series FeSe1−xSx.
To clarify the qualitative relation between the QPI branches and the band structure, the scattering q vectors from the intraband backscattering can be compared with the Fermi wavevector extracted directly from ARPES dispersions at the Fermi level, as shown in Figure 4C. The Fermi momenta of FeSe of a distorted deformed Fermi cylinder can be estimated from the scattering vectors at zero energy (q/2∼kF) to be ∼0.05 and 0.08 Å−1 for the hole band and ∼0.04 Å−1 for the electron band [37, 46]. On the other hand, the Fermi wavevector from ARPES for FeSe for the elliptical hole pocket at the
A direct comparison between ARPES and QPI data on FeSe1−xSx suggest that the scattering vectors in QPI are likely to correspond to the in-plane Fermi vectors at the center of the Brillouin zone (kz = 0). This is in agreement with the assignment of the scattering vectors in Ref. 78. They are less sensitive to kz dependent scattering processes outside of this plane, despite recent theoretical suggestions for FeSe [92], as the kF vectors at Z are much larger than the scattering vectors (q/2) extracted from QPI, as shown in Figure 4C. In the case of the electrons pockets, the QPI scattering vector is close to those of the small inner electron wave vector (∼0.02(1) Å−1) rather than to the long elongated axis of the ellipse (0.14 (1) Å−1), found in ARPES [35, 58]. Furthermore, the estimated Fermi energies from the QPI dispersions, for the hole bands are of 10–20 meV [46], in good agreement with the top of the hole band at the
The evolution of the QPI scattering vectors along one direction performed in a single domain of FeSe1−xSx have been associated to two scattering vectors along short elliptical axis in different scattering planes: qh2 at kz = 0 (
5 Quantum Oscillations in High Magnetic Fields
A powerful technique to access directly the Fermi surface of FeSe1−xSx is via quantum oscillations in very high magnetic fields and at low temperatures below 1.5 K [27, 42, 62, 95]. Quantum oscillations originate from the oscillations in the density of states in the presence of the Landau quantization of a metallic system in an applied magnetic field. The quantum oscillations are periodic in 1/B and the frequency of these oscillations relates directly to extremal areas of the Fermi surface via Osanger relation (
5.1 Comparison Between ARPES and Quantum Oscillations
As compared with ARPES, quantum oscillations are insensitive to surface states and the signal is dominated by the bulk response thus giving an unambiguous probe of the bulk Fermi surface. Furthermore, they have a much better k-space resolution of 103 of the area of the Brillouin zone that allows very accurate determination of the cross-section orbits on the Fermi surface, for a particular magnetic field orientation. However, the location of the orbits in the k-space is not easily known for multiband systems (Figures 1D–G) making the assignment of the potential frequencies for a multi-band system difficult. In these circumstances, the angular dependence of the observed orbits is used as a guide to assign the different orbits to Fermi surfaces as the minimum and maximum orbits will have different angular dependencies and it is expected that the cyclotron effective mass for the same band is likely to have similar values [42, 62]. Even in twinned samples, the quantum oscillations are likely to be unaffected as the cross-section areas originating from different domains would be the same, however, any differences only be noticeable at very high rotation angles where the quantum oscillation amplitude disappears. The experimental Fermi surface of FeSe1−xSx could potentially have four different sheets, that could generate up to seven or eight extremal orbits at the high symmetry points due the strong kz dependence, as shown in Figure 5D. In a system with many similar small orbits (with kF values below 0.08 Å) the expected frequencies would be found below 200 T. A clear separation between individual small frequencies is hampered by the limited magnetic field window (20–45 T) caused by the presence of superconductivity and large upper critical field (<20 T) (Figure 5A. This low frequency region is also affected by extrinsic effects in a fast Fourier transform (Figure 5C, such as the 1/f noise and the peak created by a background polynomial, making any reliable assignment of the small frequencies difficult.

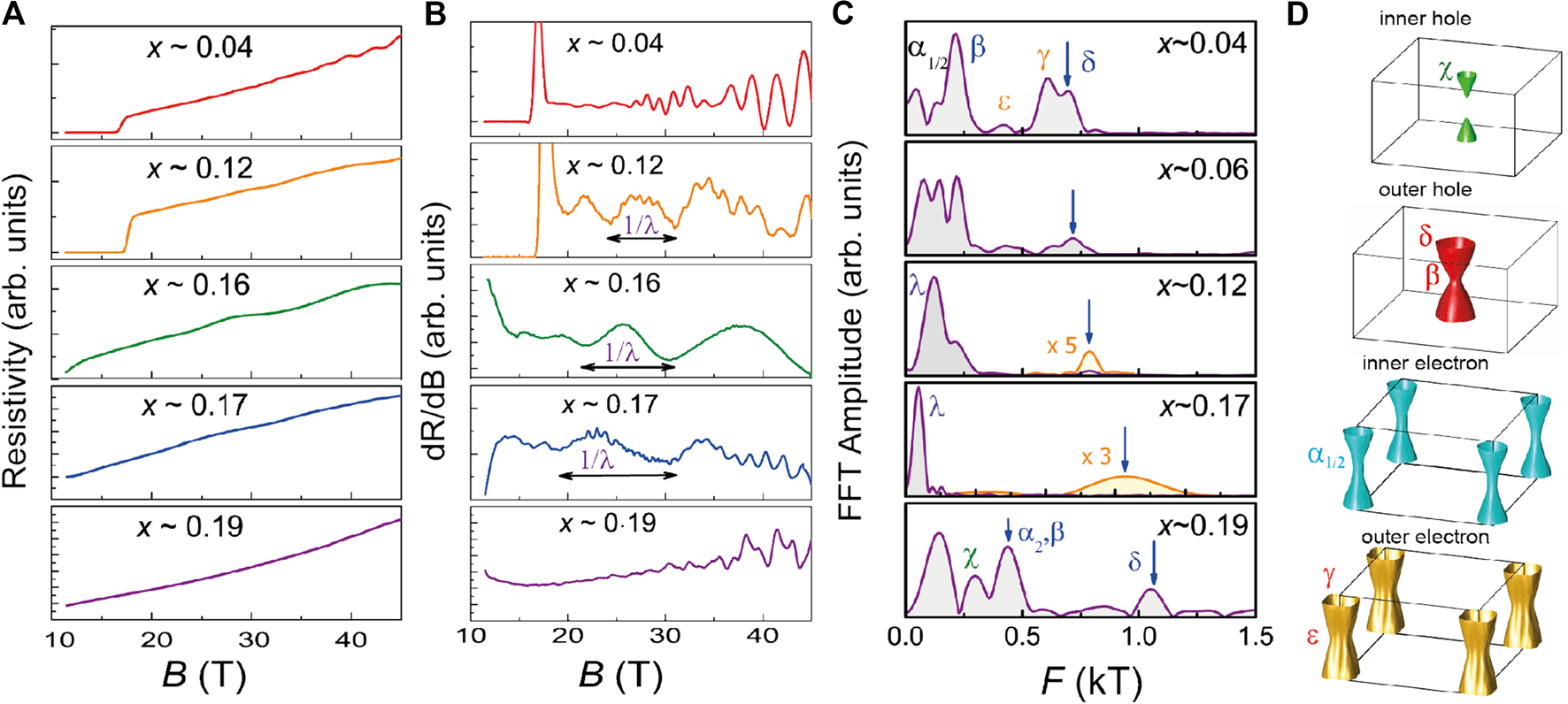

FIGURE 5. Quantum oscillations in FeSe1−xSx. (A) The in-plane longitudinal resistivity ρxx(B) as a function of magnetic field B for different compositions, x, measured at T ∼ 0.35 K (B) The oscillatory part of the resistivity visualized better by the first derivative of resistivity dρxx/dB, as a function of magnetic field from (A–F) at the lowest measured temperature. The horizontal line indicates the period of the low-frequency oscillations
An interesting insight into the origin of the quantum oscillation amplitudes was provided by magnetotransport and Hall effect in ultra-high magnetic fields up to 90 T in FeSe [98]. By comparing the changes in the relative amplitudes of the quantum oscillations of the
Quantum oscillations in iron-based superconductors detect clearly electron Fermi surfaces with lighter effective masses in LaFePO [99], LiFe(As/P) [100] and BaFe2As2 [56]. These orbits originate from inner and outer quasi-two dimensional cylinders due to the finite spin-orbit coupling, as depicted for FeSe1−xSx in Figure 3C. In FeSe, the orbital differentiation is much more pronounced than in iron pnictides, as the dxy band is involved in the formation of outer flower-shaped electron orbit (Figure 2H). This would lead to a much heavier orbitally averaged cyclotron mass of ∼7 me, associated with the outer electron orbit around the A point (γ orbit of ∼560 T) for FeSe, as shown in Figure 6A [42, 62]. Based on kF values at the A point determined from ARPES with Fermi vector values of 0.03 (1) and 0.19 (1) Å−1 [65], the area of a flower-shaped orbit would be ∼350 T (or ∼35% of γ orbit) whereas for a single ellipse pocket reaches only ∼190 T, which is or ∼66% smaller than the γ orbit from quantum oscillations. In ultra high magnetic fields, potential breakdown orbits could be generated by tunneling across the gaps created by the spin-orbit coupling, but the necessary magnetic fields are likely to be very large and the orbits would be smaller than that of the flower-shaped orbit [101]. The nematicity has a drastic effect on the electron bands and it can lead to highly elongated pockets with a very small inner electron band, as shown in Figure 3C. At 13 K, the inner band at the M point gets very close to the Fermi level within 3 meV for FeSe (within the experimental resolution). Thus, any small changes in the band positions relative to the chemical potential (1–2 meV) that could occur at low temperatures below 1.5 K and in high magnetic fields could potentially push the inner electron bands above the Fermi level at the M point and lead to single elliptical orbit or an elliptical pocket and two tiny electron pockets, as shown in Figure 3C.
FIGURE 6. Electronic correlations of FeSe1−xSx compared with BaFe2(AsxP1−x)2. (A) The quasiparticle effective masses of the high frequencies, γ and δ and the dominant low frequency, λ. Solid lines are guides to the eyes. Grey areas indicate either the nematic phase for FeSe1−xSx or the spin-density wave (SDW) for BaFe2(AsxP1−x)2. (B) Comparison between the Fermi liquid coefficient A and the effective masses for different compositions of FeSe1−xSx. The band masses of the δ orbit (from Ref. 27) are compared to A1/2, extracted from the low temperatures Fermi-liquid behavior, and shown as solid triangles (after Ref. 28). Data shown as open triangles were reported in Ref. 54 using nominal xnom values and they are shifted in x to smaller values (as indicated by horizontal arrows) to match the real concentration based on the values of Ts, as reported previously [27, 43]. The nematic end point (NEP) occurs close to x ∼ 0.175(5)[27, 43] and the solid thick lines are guides to the eye. The comparison between the effective mass of maximum orbit of the outer hole (at the Z point), δ, in FeSe1−xSx in (C) and the maximum orbit β of the outer electron band (at the A point) in tetragonal phase of BaFe2(AsxP1−x)2[56, 106] in (E) together with the evolution of the superconducting critical temperature, Tc in (D) and (F), respectively. The quantum oscillations data for FeS are from Ref. 96. A qualitative correlation is found between the Tc and the electronic correlations for the two systems, but superconductivity in the vicinity of the SDW is a fact 3 stronger than in FeSe1−xSx. Superconductivity is enhanced at the magnetic critical point in BaFe
Recent studies promotes the idea that FeSe would only have a single electron pocket in the corner of the Brillouin zone. For a peanut-like pocket at the A point [65] its area is almost a factor 3 smaller than the γ pocket in quantum oscillations, the change compensation of the system would be lost and the magnetotransport data of FeSe cannot be explained [98]. The proximity of the inner electron band to the Fermi level is highly sensitive to small energetic alterations within experimental resolution (∼3 meV), any differences in Fe stoichiometry, surface effects or the possible changes that can occur under applied uniaxial stress, as found for thin films of FeSe under strain from a substrate [91]). Thus, different scenarios related to the fate and the number of the electron pockets (Figure 3C) need to be considered, besides other theoretical reasons [65, 66, 102–104].
Figure 5C show the complex fast Fourier spectra of FeSe1−xSx due to the presence of multiple small Fermi surfaces areas. The signature associated with the inner electron band in quantum oscillations would be a peak in the Fast Fourier transform below 100 T. Previously, it was assumed that FeSe has a single cylindrical electron pocket, with areas varying between 50 T pocket for its minimum and 550 T (γ) for its maximum [42]. This variation would suggest a much more warped Fermi surface cylinder for the electron band (factor 10 between the two high symmetry areas), as compared with the hole band, for FeSe, in disagreement with the kz dependence determined from ARPES studies [35, 62, 65]. The quantum oscillations spectra could assign the lowest frequency below 100 T to the inner quasi-two dimensional electron pocket, whereas γ and ϵ around 440 T could correspond to the outer electron band (Figure 5D) [35, 62]. A small inner electron pocket is not easy to observe using spectroscopic techniques, nor does it have a large contribution to the density of states, but it plays an important role in magnetotransport due to its high mobility [40]. With sulfur substitution for small x < 0.09, quantum oscillations show similar features to those of FeSe, as shown in Figure 5C. As the nematic effects are progressively removed, the inner electron orbits would increase in size, reaching a value of 200 T in FeS [67].
5.2 Evolution of Fermi Surface Areas of FeSe1−xSx
The overall evolution of the Fermi surface of FeSe1−xSx implies that the majority of the cross-sectional areas expand as a function of chemical pressure, in particular the maximum orbits located at the top of the Brillouin zone, as shown in Figure 6G [27]. For the outer hole band (δ orbit), the increase in areas reflects the transition from an in-plane anisotropic to isotropic Fermi surface, as the ellipse transforms into a circle, and as the in-plane areas increase due to changes in the lattice parameters [29, 35, 40]. These trends are in contrast to the small Fermi surfaces observed under applied pressure in FeSe, suggested to result from Fermi surface reconstruction inside the spin-density phase [18]. However, the Fermi surfaces of FeSe1−xSx are severely reduced in size compared with those predicted by DFT calculations (varying from a factor of 5 for FeSe toward a factor 3 for x ∼ 0.17). This shrinking is an important consequence of strong orbitally-dependent inter- and intra-band electronic interactions, significantly large in iron chalcogenides [62, 105], but also found in many iron-based superconductors [56, 99]. These effects are suppressed once the bandwidth increases with sulfur substitution toward FeS [29] or with phosphorus substitution in BaFe2(AsxP1−x)2, as shown in Figures 6G,H [56]. The largest orbit detected in FeS is almost a factor 2 larger than for x ∼ 0.19 [67] but it is still a factor 2 smaller than that predicted by band structure, and band-shifts of 0.1 eV are required to bring experiment in agreement with DFT calculations [67]. The Fermi energies estimated from quantum oscillations of FeS have significantly increased to 27–102 meV [67], compared with 3–18 meV estimated for FeSe [42].
Transport measurements in a multi-band system like FeSe1−xSx are normally dominated by the pockets with the highest mobility carriers in a parallel resistor model. The magnetoresistance at low temperatures shows a prominent low frequency oscillation from x = 0.12 toward NEP (Figures 5A,B) [27]. Outside the nematic phase, the background magnetoresistance is almost quadratic in magnetic field and the dominant low-frequency oscillation has disappeared (Figure 5). This dominant low frequency is not detected at higher sulfur substitution or higher pressures beyond the nematic end point inside the tetragonal phase [27, 39]. In quantum oscillations, the disappearance of a frequency could be linked to a possible Liftshitz transition, which is a topological change of the Fermi surface in which the neck of a quasi-two dimensional is disconnected while the top of the cylinder expands such that the volume remains the same [107]. ARPES data indicate that a small inner 3D hole pocket centered at Z is expected to emerge from x ∼ 0.11, as shown in Figure 1. This small 3D pocket is supposed to grow in size with x, rather than to disappear. However, in high magnetic fields, this 3D hole pocket could become heavily spin-polarized and, therefore, one of its polarized sheet could disappear at the nematic phase boundaries. Another scenario can rely on the strong increase in the interlayer warping as a function of chemical or applied pressure, as the conducting layers come closer together when c axis decreases. DFT calculations of FeSe and FeS show indeed that the hole bands are highly sensitive to the position of the chalcogen atom above the Fe plane [29, 58, 62]. ARPES studies for the tetragonal x ∼ 0.18 suggest that the hole band at the
5.2 Electronic Correlations at a Putative Nematic Critical Point
The cyclotron-averaged effective masses of the quasiparticles for each extremal orbit can be extracted from the temperature dependence of the amplitude of the quantum oscillations [27, 110]. The quasiparticle masses associated with the largest hole orbit δ around the Z point increase slowly from 4.3(3) me toward a local maximum around x < 0.11 before the values continue to decrease outside the nematic phase to around 3.2 (5) me for x ∼ 0.19. In the end compound FeS, quantum oscillations have revealed very light effective masses ranging from 0.6–2.1 me [67, 95]. The overall trends shows that cyclotron masses are larger inside the nematic phase of FeSe1−xSx but they are getting lighter with the increasing bandwidth [57]. The reduction of the electronic correlations toward FeS is supported by the enhanced velocities from ARPES, shown in Figure 4E [29]. The effective mass of the prominent small frequency oscillation (λ) is small below 2 me. Due to its heavy mass and its possible proximity to the δ orbit, the γ orbit (with some orbitally averaged dxy character) cannot be detected over the entire range but it is expected to follow similar trends to the hole bands effective mass (δ) and to the electronic contribution to the specific heat (Figure 6A) [27, 30].
The nematic state of FeSe1−xSx is a correlated electronic state based on the quasiparticle effective masses. Interestingly, the electronic correlations assigned to the orbits with predominant dxz/dyz character (outer hole band, δ) follow similar trends as Tc, as shown in Figures 6C,D, suggesting that this quasi-two dimensional hole band is likely to play a dominant role in the pairing mechanism. The trends in the effective masses are in good agreement with those from specific heat studies on FeSe1−xSx that show a slight increase in the Sommerfeld coefficient (7–9 mJ/mol K) inside the nematic phase before being smoothly suppressed, without any enhancement at the nematic end point [30, 111, 112]. Additionally, the Fermi liquid behavior A1/2 coefficient extracted from the low temperature resistivity measurement has the same trends like the cyclotron mass [28], as shown in Figure 6, and it decreases slowly in the tetragonal phase [52]. Note that these values of the A1/2 coefficient agree with those reported in Ref. 54, once adjusted for the correct value of x based on the Ts of each sample, shown by the open triangle in Figure 6B.
To asses the nematic critical behavior in FeSe1−xSx, it is worth emphasizing that the electronic correlations and the orbitally averaged cyclotron masses do not show any divergence close to NEP (x ∼ 0.175(5)), as shown in Figure 6C [27]. Instead, the effective mass of FeSe1−xSx reaches the largest value deep inside the nematic phase, where the superconductivity is the strongest and the low-energy spin-fluctuations are expected to be the largest [44]. The lack of divergent effective masses at NEP points toward a finite coupling of the electronic system with the underlying lattice that can suppressed the critical nematic fluctuations, except along certain directions in FeSe1−xSx [6]. Nematic susceptibility as a function of chemical pressure suggest the possibility of having a nematic critical point in FeSe1−xSx [43]. However, at low temperatures there are no divergent electronic correlation in any of the measured quantities in the vicinity of the nematic end point, suggesting an important role for the coupling of the electronic system with the lattice in this system [27, 28].
Signatures of quantum criticality caused by diverging spin fluctuations were detected in quantum oscillations in BaFe2(As1−xPx)2, by approaching the spin-density wave phase from the tetragonal phase. The cyclotron effective mass of the outer electron bands increases from 1.8 to 3.5 me over a large compositional range (x = 0.4–1) in the tetragonal phase, as shown in Figure 6E [56, 106]. This enhancement of the effective mass in BaFe2(As1−xPx)2 correlates directly with the strong increase in the superconducting transition temperature. The quantum oscillations frequencies originate from the lighter electron bands in BaFe2(As1−xPx)2 and their frequencies get smaller as the system evolves from the metallic tetragonal phase toward the spin-density wave phase. These trends are similar to those expected for FeSe1−xSx. It is worth emphasizing that for both systems only the effective mass is reported, not the mass enhancement in relation to the band mass, due to the complexity involved in establishing the details of the correct band structure for the mixed isoelectronic systems. Figure 6 compares the effective masses for the two isoelectronic systems and it suggests that the relevant interactions that enhance the effective masses in FeSe1−xSx are the same that enhance superconductivity. These pairing interactions are strongest deep inside the nematic phase not at the nematic end point. Their origin could be the spin fluctuations in both systems and they are also likely to be responsible for the linear resistivity observed inside the nematic phase for FeSe1−xSx [28] and for BaFe2(As1−xPx)2 for x ∼ 0.33 [114]. The superconductivity is strongly enhanced in the proximity of a magnetic critical point in BaFe2(As1−xPx)2, as opposed to the small abrupt drop in Tc at the nematic end point FeSe1−xSx (see Figure 6D). This suggests that a strong nematoelastic effect suppresses the critical nematic fluctuations and the superconducting mechanism has a non-nematic origin in FeSe1−xSx [7].
5.3 The Nematic Susceptibility of FeSe1−xSx
A direct measurement to test for the existence of an intrinsic nematic electronic state is the determination of the nematic susceptibility, that is the related to the in-plane resistivity anisotropy under a small amount of external strain [114]. These type of studies have established that the tetragonal-to-orthorhombic structural transition in iron pnictides is driven by the electronic instability of the system [114]. The Curie-Weiss behavior of nematic susceptibility near a nematic transition is expected to display a generic mean-field behavior. The nematic fluctuations of the nematic order parameter, which couple linearly to the orthorhombic distortion via the nematoelastic coupling, are expected to be suppressed but this may not be the case if the nematic fluctuations are driven by the spin fluctuations [116]. The nematic susceptibility of Ba(Fe1−xCox)2As2 follows a Curie-Weiss dependence and the mean field nematic critical temperature closely tracks the actual structural transition temperature, being suppressed to zero at the optimal doping [114]. The divergence of the nematic susceptibility above Ts indicates the tendency toward an electronic nematic phase transition and the Weiss temperature indicates the strength of nematic fluctuations [114]. At a critical nematic point, the nematic susceptibility should diverge at zero temperature (in proportion to 1/T) and power law behaviors in temperature and composition are expected [116].
Nematic susceptibility measurements for FeSe and FeSe1−xSx [43, 62], [117] indicate a large divergence above the Ts, similar to what was previously observed in Ba(Fe1−xCox)2As2, but in the absence of magnetic order [114]. Nematic susceptibility of FeSe has an opposite sign to other pnictides [118], but similar to other chalcogenides, like FeTe [75], as the resistance along the a (AFM) direction is larger than that along b axis (FM direction). A sign-change in the in-plane anisotropy could be induced by the different scattering rates by spin fluctuations corresponding to different Fermi velocities at the hot-spots for electron- and hole-doped pnictides [119]. In FeSe, despite the lack of long-range magnetic order, the anisotropy of the in-plane resistance below Ts follows qualitatively a model assuming that the electrons are mainly scattered by magnetic fluctuations [117, 120]. Elastoresistance measurements in FeSe1−xSx superconductors found that the nematic transition temperature decreases with x [43], whereas the nematic fluctuations are strongly enhanced, similar to Ba(Fe1−xCox)2As2. The observation of strong nematic fluctuations is consistent with the presence of a nematic quantum critical point, but this observation is insufficient to determine whether these fluctuations are driven by quantum criticality. Static Raman susceptibility studies show similar trends to the nematic susceptibility, and additionally it was suggested the possible stabilization of stripe quadrupole order in FeSe1−xSx [121]. Future studies to establish a suitable power law of the nematic susceptibility are needed [116] in order to identify whether this point represent a critical point in FeSe1−xSx. However, the lack of divergent electronic correlations in quantum oscillations or enhanced superconductivity at the nematic end point suggest a strong suppression of critical fluctuations in FeSe1−xSx.
5.4 Magnetotransport Behaviour of FeSe1−xSx
In multi-band systems with different carrier mobilities, the magnetoresistivity components
FIGURE 7. Magnetotransport behaviour of FeSe1−xSx. (A) Longitudinal magnetoresistance,
5.5 Highly Mobile Small Carriers in FeSe1−xSx Beyond the Two-Band Model
A compensated two-carrier model can describe the behavior of the magnetoresistance and the Hall effect of FeSe1−xSx in the tetragonal phase [28, 98]. For a compensated metal, the sign of the Hall coefficient depends on the difference between the hole and electron carrier mobilities [98]. At high temperatures in the tetragonal phase, the Hall effect is linear and the Hall coefficient,
The orbital order significantly affects band shifts for the electron bands and it can generate very small pockets, as shown in Figure 3. The presence of the small number of highly mobile carrier was suggested to be linked to the Dirac-like dispersions in the nematic phase on some sections of the electron pockets [125, 128]. Large orbital-dependent shifts of ∆M ∼ 70 meV in FeSe thin films on SrTiO3 have been found to generate Dirac-like dispersion around the M point [88], but these shifts are much larger than those of ∆M ∼ 50 meV in bulk FeSe. Magnetotransport cannot distinguish whether there are two tiny electron-like pockets or one small electron pocket (Figure 3C for large
Significant changes in scattering could occur for a elongated nematic Fermi surface of FeSe1−xSx [35, 62]. Two scattering wave-vectors are detected by STM [46] suggesting different scattering processes along certain directions of an elongated ellipse [9]. A flower-shaped electron orbit would have a strongly varying angular velocity [129] and the scattering rate could vary strongly due to the changes of the orbital character on various sections induced by spin fluctuations [117, 130]. Hall effect in iron-based superconductors is also affected by the spin fluctuations that induce mixing of the electron and hole currents [131]. All these effects could lead to highly anisotropic scattering rates in FeSe1−xSx that are suppressed with x substitution. Indeed, in the tetragonal phase a single scattering process dominates the magnetotransport, as Kohler’s rule is obeyed [28]. Further theoretical work is needed to understand transport and magnetotransport data of FeSe1−xSx. Future models should account for anisotropic scattering and scattering of quasiparticles from the domain walls, when the nematic domain size (determined by the quenched disorder) is smaller than the normal state mean-free path [1].
FeSe1−xSx displays deviation from the Fermi liquid theory, expected for conventional metals, that affect the temperature and field dependencies of electron transport. The magnetoresistance of FeSe1−xSx increases significantly once a system enters the nematic state and shows an unusual temperature dependence that varies strongly with x, as shown in Figures 7A,B for FeSe. The temperature dependence of the resistivity slope in 34 T in FeSe changes sign at a characteristic temperature, T* below 14 K, and the Hall coefficient RH display a negative maximum, as shown in Figures 7B,D. Interestingly, T* seems to be the characteristic scale for low-energy spin fluctuations in FeSe1−xSx [44, 132, 133]. Magnetostriction measurements in magnetic field for FeSe showed that the lattice distortion continues to increase down to Tc, different from BaFe2As2, where there is a intimate connection between the magnetic order and structural distortion [121]. With sulfur substitution, T* shifts to a slightly higher temperature of ∼20 K, and eventually disappears in the tetragonal phase, as the low-energy spin fluctuations are completely suppressed [44, 134]. Changes in magnetotransport and in the resistivity slope occur from x ∼ 0.11 (Figure 7H) in the presence of the additional highly mobile 3D band, labeled as the nematic B phase [28]. It is clear that magnetic field could affect scattering inside the nematic phase that could be still dominated by spin fluctuations and it can spin polarize the multi-band small Fermi-surface of FeSe1−xSx. Further theoretical work will be required to explain the observed effects in magnetic fields and experimental studies in single domains crystals are needed to address the extrinsic scattering at the nematic domain boundaries.
5.6 Anomalous Transport Behavior
Linear resistivity at low temperatures is usually found near an antiferromagnetic critical point, such as in BaFe2(As1−xPx) [11] and reflect scattering induced by critical spin-fluctuations [135]. FeSe1−xSx has a low temperature region with a linear resistivity across the whole nematic phase below T* (using extrapolated in-plane high magnetic field data), as shown in Figures 7E,G. Low energy spin-fluctuations are present inside the nematic state in FeSe1−xSx [44, 132, 134], and μSR studies place FeSe near an itinerant antiferromagnetic quantum critical point at very low temperatures [136]. This region with linear T resistivity below T* occurs over a limited temperature regime and the Fermi-liquid behavior recovers below TFL and all compositions show quantum oscillations (Figures 7E–G) [27]. Deviations from Fermi-liquid behavior were also reported for FeSe [11] and linear T resistivity was detected in 35 T for xnom ∼ 0.16 with Ts ∼ 50 K, which corresponds to x ∼ 0.13 inside the nematic phase [37, 54]. Thus, all existing experimental transport data for FeSe1−xSx in high magnetic fields up to 45 T suggest that the low-temperature linear resistivity occurs inside the nematic phase, rather than at the nematic end point, and, as in the case of the electronic correlations and Tc, it is likely a manifestation of the spin fluctuation scattering mechanism inside the nematic phase FeSe1−xSx.
In the tetragonal phase of FeSe1−xSx the resistivity exponent seem to vary with temperature [28, 52] and a resistivity with T3/2 dependence is found over a large temperature range up to 120 K, in agreement with studies under pressure [39]. Theoretical models suggest that the exact temperature exponent of resistivity, in vicinity of nematic critical points is highly dependent on the presence of cold spots on different Fermi surfaces, due to the symmetry of the nematic order parameter [9, 137, 138] or due to the scattering from acoustic phonons [8] near the nematic end point. Near a Pomeranchuk instability the transport decay rate is linear in temperature everywhere on the Fermi surface except at cold spots on the Brillouin zone diagonal, leading to a resistivity proportional to T3/2 for a clean 2D system or to a linear T dependence in the presence of impurities [137]. Furthermore, the scale at which the crossover to Fermi liquid behavior occurs at low temperatures depends on the strength of the coupling to the lattice [6], responsible for the lack of divergent critical fluctuation at the nematic end point in FeSe1−xSx [27, 28, 39].
6 Superconductivity of FeSe1−xSx
The normal nematic electronic phase and the anomalous scattering of FeSe1−xSx affects significantly its superconducting state. The gap structure of FeSe is two-fold symmetric, reaching small values on the major axis of the elliptical hole pocket and it is changing its sign between the hole and the small electron pocket [78, 139]. While nematicity is an intrinsic property of the bulk FeSe1−xSx, nematic fluctuations may not be the primary force driving the superconducting pairing [140], despite the fact that the relative orthorhombic distortion is reduced as the superconductivity increases in FeSe1−xSx [111]. Neutron scattering have detected substantial stripe spin fluctuations that are enhanced abruptly inside the nematic phase and a sharp spin resonance develops in the superconducting state with an energy of ∼4 meV, consistent with an electron-boson coupling mode [141]. By de-twinning crystals of FeSe via a BaFe2As2 substrate, the neutron diffraction spectra reveal that the spin fluctuations are highly anisotropic [13]. Theoretically, low-energy spin excitation were suggested to be stabilized by the frustrated magnetism among the local Fe moments [86, 142] or antiferroquadrupolar state in FeSe [143]. These low-energy spin-fluctuations are likely to provide the pairing channel in FeSe [144, 145] and this can manifest via nesting of dyz sections of the hole and electron bands; the dxy portions do not participate in pairing due to the orbital selective strong correlation effects [78, 146]. In this scenario, a maximum gap on the Fermi surface sections with dyz character, and a small gap on sections with dxz or dxy character would occur, similar to experiments [78, 147]. Most of the thermodynamic and thermal conductivity studies of bulk FeSe in the superconducting phase have been modeled by accounting for two different nodeless superconducting gaps [148, 149]. The presence of nodes in the superconducting gap of FeSe has also been suggested by other studies [113, 150, 151]. The multi-gap superconductivity is preserved as a function of chemical pressure in FeSe1−xSx [112, 139], and tunneling experiments found that the vortex core anisotropy is strongly suppressed once Fermi surface becomes isotropic [151]. High-resolution thermal expansion showed a lack of coupling between the orthorhombic distortion and superconductivity in FeSe [12], whereas with increasing substitution toward x ∼ 0.15 the effect seems to be the opposite [111]. The jump in specific heat (∆Cel/γnTc) for different x varies slightly around 2, which is above the weak coupling limit of the BCS theory believed to be caused by the multi-band effects [112].
For isotropic isoelectronic iron-based superconductors, the height of pnictogen acts as a switch between high-Tc nodeless and low-Tc nodal pairings [152]. FeS, like other end member compounds, displays weak correlations and nodal superconductivity, similar to other systems like LaFePO and LiFeP [153–156], as the chalcogen position is closer to the iron planes compared to their isoelectronic sister-compounds, like LiFeAs. On the other hand for FeSe, there has been suggestions both of nodal and nodeless superconductivity [113, 157, 158, 159, 160]. Abrupt changes in the superconductivity occur at the nematic end point, potentially stabilized by different pairing channels inside and outside the nematic phase [30, 46]. There is no superconductivity enhancement at the nematic end point in FeSe1−xSx, suggesting the presence of a non-nematic pairing mechanism and/or the lack of divergent critical fluctuations, similar to the behavior of the quasiparticle effective masses [27, 39]. The coupling to the relevant lattice strain restrict the critical behavior only along certain high symmetry directions and this can affect the nematic critical fluctuations and do not enhance superconductivity [6, 7].
6.1 BCS-BEC Crossover of the Multiband FeSe1−xSx
FeSe1−xSx are multi-band systems with relatively small Fermi energies at low temperatures. There has been a lot of interest to asses whether these systems are candidates in the crossover regime between the BCS to the BEC state, expected for ∆SC/EF ≤ 1 [161, 162]. These effects have been suggested to occur in Fe1+ySexTe1−x, as the hole band as the
Another way to assess the proximity to the crossover is to check whether the size of the Cooper pair, given by the coherence length
7 Conclusion
FeSe1−xSx has opened an new area of exploration of the electronic nematic state and its role in the stabilization of the unconventional superconductivity. These systems are multi-band systems which are highly sensitive to orbitally-dependent electronic interactions that affect the evolution of the electronic structure with sulfur substitution. Fermi surface of FeSe1−xSx are mainly quasi-two dimensional warped cylinders but an additional 3D hole pocket is present with increasing sulfur concentration from x ∼ 0.11. The Fermi energies have a broad range, that generally increases with x substitution, but they are smaller for the inner electron and hole pockets, making them prone to electronic instabilities. The development of nematic electronic phase with strong anisotropic electronic structure influences the scattering and leads to unusual magnetoresistance inside the nematic phase. Linear resistivity and anomalous magnetotransport is detected inside the nematic phase and is likely to reflect the role played by the spin fluctuations in this regime. FeSe1−xSx show no signatures of enhanced Tc and divergent electronic correlations at the nematic end point, which are likely to be quenched by the finite coupling with the lattice. This coupling could also be the origin of the non-Fermi liquid behavior outside the nematic phase. The superconductivity of FeSe1−xSx has a small enhancement inside the nematic phase and a somehow abrupt change at the nematic end point. This behavior is different from the isoelectronic family BaFe2(As1−xPx)2 where quantum critical fluctuations enhance both superconductivity and effective masses of the quasiparticles on approaching the spin-density phase and linear resistivity is found at the magnetic critical point. The study of FeSe1−xSx compared with other isoelectronic iron-based superconductors emphasis the important role played by the magnetic rather than nematic fluctuations for enhancing superconductivity in iron-based superconductors.
