Mahrukh Babar1
Bilal Aslam1
Muhammad Naeem Faisal1
Abdul Malik2
Suhail Akhtar3
Sabiha Fatima4Wafa Majeed5
Asher Umer1
Muhammad Akmal Farooq5*- 1Institute of Physiology and Pharmacology, University of Agriculture, Faisalabad, Pakistan
- 2Department of Pharmaceutics, College of Pharmacy, King Saud University, Riyadh, Saudi Arabia
- 3Department of Biochemistry, A.T. Still University of Health Sciences, Kirksville, MO, United States
- 4Department of Clinical Laboratory Science, College of Applied Medical Sciences, King Saud University, Riyadh, Saudi Arabia
- 5Department of Pharmacy, University of Agriculture, Faisalabad, Pakistan
Introduction: Rheumatoid arthritis is an autoimmune disease that mainly causes joint damage. The patient experiences loss of appetite, pain, fever, and fatigue. The present study was designed to phytochemically characterize and evaluate the anti-arthritic activity of green-synthesized copper oxide (CuO) nanoparticles (NPs) using the hydroalcoholic extract of Bistorta amplexicaulis roots in an adjuvant-induced arthritic rat model.
Material and Methods: For this purpose, crude powdered plant material was used for proximate analysis, and the plant extract was assessed for qualitative phytochemical analysis, mineral contents, and flavonoid and phenolic contents, as well as quantitative phytochemical analysis through reversed-phase high-performance liquid chromatography (RP-HPLC) and Fourier-transform infrared (FTIR) spectroscopy. The in vitro antioxidant activity of both extracts was determined by the 2,2-diphenyl-1-picrylhydrazyl (DPPH) assay. The biosynthesized CuO NPs from the Bistorta amplexicaulis extract showed anti-arthritic activity due to the presence of flavonoids and phenols, which showed a pain reliever effect by blocking the cyclo-oxygenase enzyme and has immune suppressant activity, thus securing the joint from destruction. The nanoparticles were characterized by zeta size, zeta potential, scanning electron microscopy (SEM), and FTIR spectroscopy. Forty-eight albino rats were divided randomly into six treatment groups.
Results and Disscussion: The zeta size and zeta potential of the nanoparticles were 186.8 nm and −9.23 mV, respectively. Joint stiffness, spleen weight, thymus weight, and paw thickness showed a significant decrease after treatment with NPs. The hematological parameters such as red blood cells (RBCs) and hemoglobin showed a significant increase, while platelets and white blood cells (WBCs) showed a significant decrease in NP-treated groups. C-reactive protein (CRP), rheumatoid factor (RF), liver and kidney function biomarkers, tumor necrosis factor-α (TNF-α), and interleukin-6 (IL-6) levels showed a significant decrease at both low and high doses of green-synthesized CuO nanoparticles from the Bistorta amplexicaulis root extract. The final data were analyzed by one way and two-way analysis of variance (ANOVA) and Tukey’s multi-comparison test.
Conclusion: So, from this study, it was concluded that both the plant root extract and green-synthesized CuO nanoparticles have anti-arthritic potential, but CuO NPs showed remarkable results.
1 Introduction
Rheumatoid arthritis (RA) is the most common kind of autoimmune arthritis (Merola et al., 2018). It is a chronic autoimmune condition marked by intense joint inflammation, which eventually damages the bone along with the cartilage of joints (Calabresi et al., 2018). In the United Kingdom, 1% of the population is affected by RA, and it has an effect on both the life expectancy and quality of life (Uhlig and Kvien, 2005).
The clinical presentation of rheumatoid arthritis involves pain, swelling, and nodule formation in joints. As the disease progresses, swan neck, boutonniere, and Z deformity of thumb can also occur. Inflammation of the synovium (called synovitis), bone and cartilage erosion, and angiogenesis also occur.
The reason for rheumatoid arthritis is not clearly known, but some researchers believe that epigenetic modifications, smoking, gender, and certain bacterial species such as Porphyromonas gingivalis, which also causes gingivitis, lead to RA (Catrina et al., 2016). The abovementioned reasons, as well as synovial injury of joints, hyperplasia, and infection releasing cytokines and inflammation, also lead to the modification of auto-antigens, i.e., damaging self-cells by considering them non-self.
Different types of cells and substances within the joint area mediate this immune response (i.e., chemokines and cytokines). There is no specified test for the detection of rheumatoid arthritis, but the erythrocyte sedimentation rate, C-reactive proteins, and presence of the RA factor can help in its diagnosis (Heidari, 2011; Van Steenbergen et al., 2018).
Synovial inflammation is caused by a combination of events, including immune cell migration to the site of inflammation and a failure of inflammatory cellular death. Leukocyte recruitment mechanisms in the synovial vasculature allow T cells to invade the inflammatory area. Rolling, adhesion, and transmigration events must be coordinated for the leukocyte adhesion cascade to occur. Leukocytes specifically travel along the endothelium, become activated, get attached to endothelial cells, and then move to the target location. This migration of T cells may be enhanced in RA, which would lead to a greater invasion of the stratum synovium by pro-inflammatory cytokines (Mellado et al., 2015).
Rheumatoid factors (RFs) such as the anti-citrullinated protein antibody (ACPA) of immunoglobulin G (IgG) and immunoglobulin M (IgM) cause the secretion of cytokines through macrophages such as tumor necrosis factor-alpha (TNF-α), interleukin-1 (IL-1), and interleukin-6 (IL-6) (Smolen et al., 2016). They also result in the stimulation of fibroblasts, which assist in rank-L expression. Osteoclasts, which are bone-specific cells, cause bone erosion in the advanced stages of the disease. These fibroblasts also cause the secretion of proteases that cause cartilage to breakdown, which results in cartilage degradation. These fibroblasts can travel from joint to joint as in the case of RA, from one side of the hand to the other (also called symmetrical arthritis) (Chiu and Ritchlin, 2017). If this inflamed pannus production increases further, it results in the irreversible damage of the joints.
Currently, no drug can completely cure rheumatoid arthritis, but certain agents are available that can decrease the severity and progression of RA. Disease-modifying anti-rheumatic drugs are used primarily for treating RA. These drugs have severe adverse effects on the body, including peptic ulcer, gastroesophageal reflux disease (GERD), nephrotoxicity, cardiovascular complications, and hematological toxicity (Katchamart et al., 2010).
The objective of conventional and alternative therapy is to reduce pain and stiffness in the joints with fewer pharmacological adverse effects. Polygonum amplexicaule D. Don has a long history of usage for treating pain, fractures, cardiovascular and cerebrovascular illnesses, and other conditions. Formerly known as Polygonum amplexicaule, Bistorta amplexicaulis, commonly known as Anjbar in Pakistan, is renowned for its antioxidant, antibacterial, anticancer, antifungal, and cardioprotective properties. It is also used frequently in the treatment of mastitis (Dilshad et al., 2010). Additionally, it inhibits atherosclerosis and promotes osteoblastic cell growth in vitro (Xiang et al., 2011).
Both micro and nano-systems can increase the effectiveness of therapeutic interventions in many ways. They can quickly identify the disease and retort to disease conditions straightaway by acting at the site by refining the patient’s compliance (Janakiraman et al., 2018). Nanotechnology is a recent field of study that focuses on the synthesis, biomanipulation, and use of nanoscale/nano-complex pharmaceuticals for various disease treatments and clinical investigations. Nanoparticles can be synthesized through various methods. The physical and chemical method for producing nanoparticles is expensive and may also result in the production of toxicants. Their biological synthesis is cheap, easy to produce, and minimizes the chemical load on the atmosphere (Kumari et al., 2019).
Freund’s complete adjuvant (FCA) is a blend of mycobacteria, non-metabolizable mineral oil, and surfactants (Heilborn et al., 2007). FCA is assumed to be the most active adjuvant to increase immunological responses for an antigen (Stils, 2005). Arthritis induced by the sub-dermal injection of FCA in mice provides a valuable model of nociceptive behavior induced by inflammation (Chillingworth and Donaldson, 2003). The objective of this study was to determine the anti-arthritic potential of green-synthesized copper oxide nanoparticles (CuO NPs) using the B. amplexicaulis root extract as a reducing agent.
2 Materials and methods
2.1 Chemicals and test kits
All chemicals were acquired from Sigma-Aldrich, United States; Freund’s complete adjuvant from Wuhan Zokeyo Biotechnology, China; hydroxychloroquine from Macter International Limited, Karachi; and copper sulfate from Riedel-de Haen Chemicalien GmbH, Germany. All test kits used during the present study were acquired from QCA, Spain.
2.2 Plant collection and extract preparation
B. amplexicaulis was collected from Ayubia National Park, Murree, and was identified by Dr. Mansoor Hameed, Associate Professor at the University of Agriculture, Faisalabad, with herbarium sheet no. 1117-22. After collection, the roots were washed with distilled water three times and shade-dried. After 2 weeks, the roots were grinded to coarse powder using a grinder. The extract was prepared by the maceration method. In this method of extraction of roots, 10 mg of powdered roots was mixed in 100 mL of hydroalcoholic solution (70:30). Then, it was stirred continuously and left for 72 h at room temperature under occasional stirring. After 3 days, the mixture was filtered using Whatman’s filter paper no. 1. After filtration, the extract was stored in an airtight container in a refrigerator at 4°C (Zhang et al., 2020).
2.3 Phytochemical testing
The extract was tested for the presence of different phytochemicals such as phenols and flavonoids using the ferric chloride test and saponins using the foam test. These phytochemicals have been used in the management of different diseases such as pain and inflammation. These phytochemicals can form strong bonds with metal ions and can be used in the synthesis of nanoparticles (Faisal et al., 2022).
2.4 Proximate composition analysis
Raw powdered plant material was used to assess physicochemical properties such as dry weight, moisture content, total carbohydrate, crude protein, crude fat, and total ash to determine nutritive values according to the Association of Official Analytical Chemists procedure (Khan et al., 2010). The given formula was used to obtain the total amount of carbohydrates from the percentages of crude fiber, protein, lipids, and ash determined above:
Meanwhile, the concentration of elements in the prepared samples was determined using an atomic absorption spectrophotometer (Hitachi Polarized Zeeman AAS, Z-8200, Japan), following the conditions described in AOAC (1990).
2.5 Total flavonoid content
The total flavonoid content of the plant was determined using a calibration curve of catechin (R2 = 0.9835). The total flavonoid and phenolic content was measured by the Folin and Ciocalteu method. All readings were taken in triplicate and averaged (Figures 1A, B).

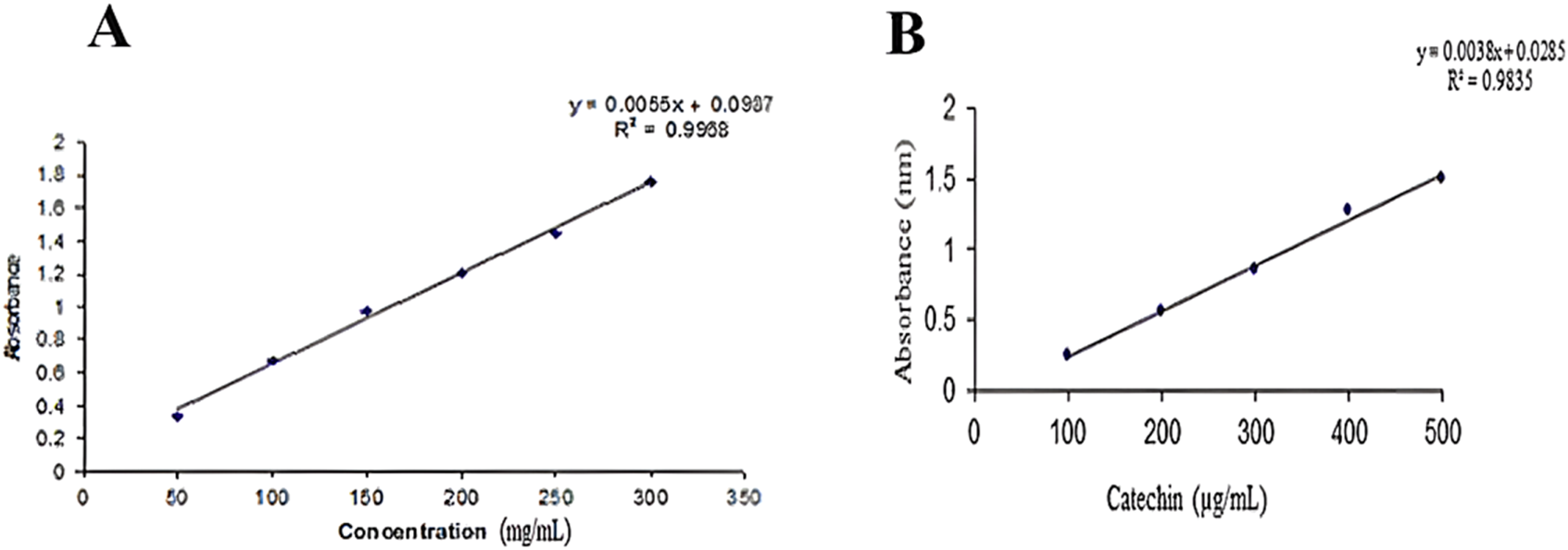

Figure 1. (A) Standard curve of gallic acid. (B) Standard curve of catechin.
2.6 Quantitative phytochemical analysis: reversed-phase high-performance liquid chromatography
A modified method suggested by Seal (2016) was adopted to analyze various bioactive compounds present in herbs.
2.7 Fourier-transform infrared spectroscopy
The B. amplexicaulis extract was subjected to FTIR analysis to detect different functional groups using an FTIR spectrometer (Spectrum Two™, PerkinElmer), accompanied with a detector (deuterated triglycine sulfate [DTGS]), germanium as a beam splitter, and connected to a window-based system (Spectrum, version 10.5.3) to identify different functional groups present in compounds.
2.8 2,2-Diphenyl-1-picrylhydrazyl assay
The ability of the plant extract to scavenge 2,2-diphenyl-1-picrylhydrazyl (DPPH) was assessed using a modified technique previously described (Ilavarasan et al., 2006). DPPH solution (0.002%) was freshly prepared in methanol with ascorbic acid as a standard solution. A measure of 2 mL of various concentrations of the plant extract and standard was combined with approximately 0.5 mL of the DPPH solution. After 15 min at room temperature, the absorbance at 517 nm was measured. The same reagent amounts, excluding the plant extract, were used to produce a blank solution. The formula was used to compute the percentage of inhibition after measuring absorbencies in triplicate.
2.9 Synthesis of CuO nanoparticles
A co-precipitation method was used for the synthesis of CuO NPs. A measure of 5 mM copper sulfate solution was prepared by adding 0.79 g of copper sulfate to 1,000 mL distilled water under continuous stirring. A measure of 100 mL of the copper sulfate solution was added to a beaker and placed on a magnetic stirrer. Then, approximately 10 mL of the hydroalcoholic plant extract was added to the above solution and stirred at 60 rpm at 60°C for approximately 1 h. The solution was centrifuged at 6,000 rpm for approximately 5 min at 6°C. The supernatant was discarded, and pellets were washed with distilled water three times. The pellets were poured into a Petri dish and dried in a hot air oven at 85°C for 3 h. Then, the dried pellets were ground to fine powder and stored in an airtight container. A shift in color from light blue to dark gray indicated the formation of CuO NPs Figure 2.

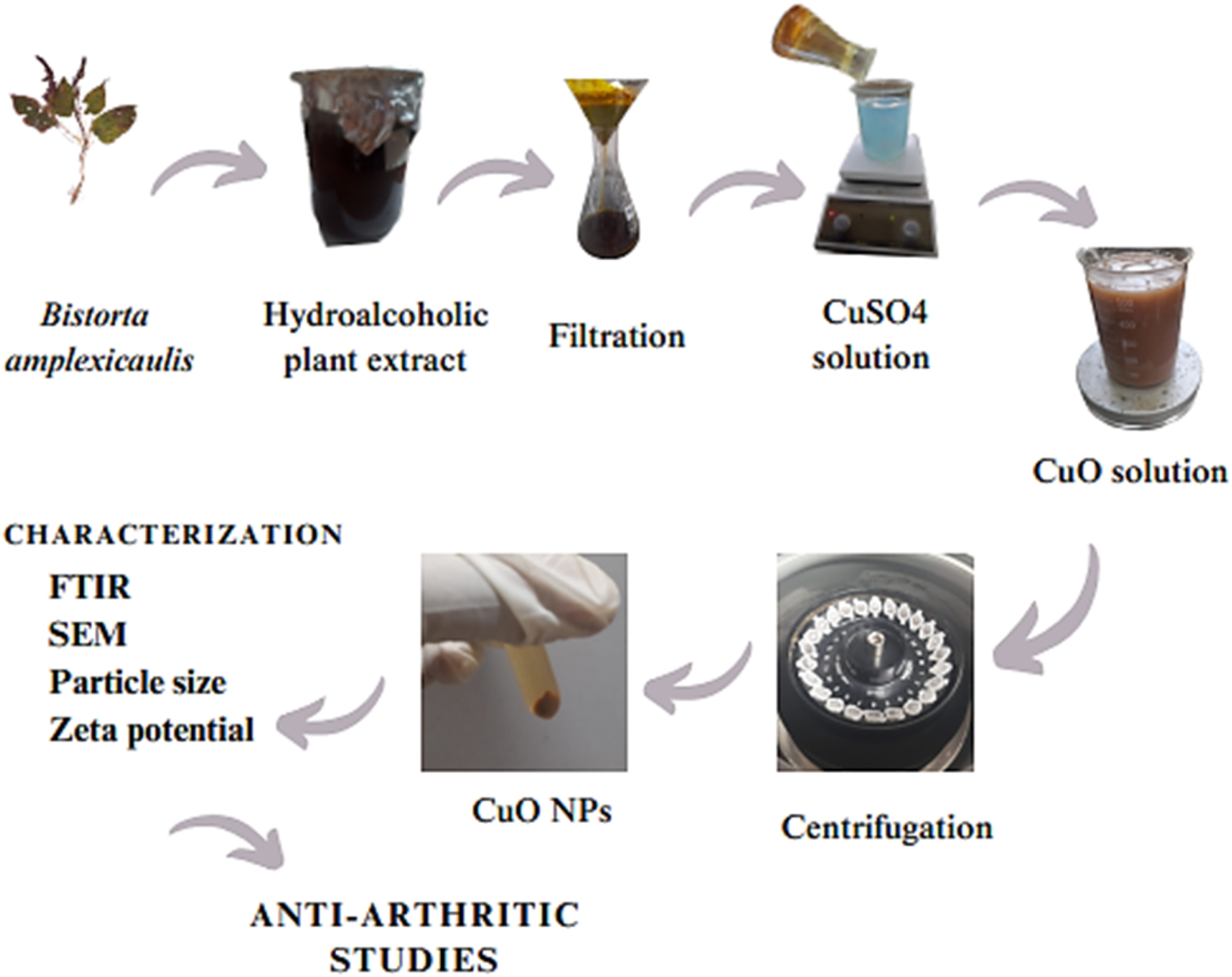

Figure 2. Step-by-step flowchart of the synthesis of CuO nanoparticles.
2.10 Characterization of nanoparticles
Copper oxide nanoparticles were characterized by FTIR spectroscopy, scanning electron microscopy (SEM), and particle size and zeta potential analysis.
2.11 FTIR spectroscopy of CuO NPs
Copper oxide nanoparticles were subjected to FTIR analysis using an FTIR spectrophotometer (Spectrum Two™, PerkinElmer) accompanied with a detector (deuterated triglycine sulfate), a beam splitter, and a window-based system to detect different functional groups in the sample. For this purpose, 10 mg of the lyophilized sample was encapsulated in 100 mg of KBr pellet, and the sample was loaded in an FTIR spectroscope with a range of 4,000–500 cm−1.
2.12 SEM analysis
A measure of 50 mg of green-synthesized copper oxide nanoparticles using B. amplexicaulis roots were subjected to SEM analysis from the nanomaterial laboratory, physics department, Government College University, Faisalabad, for the determination of surface topography.
2.13 Particle size and zeta potential
Approximately 1 mL of CuO nanoparticles synthesized using B. amplexicaulis roots were used for the measurement of their zeta size by the dynamic light scattering procedure (Mujokoro et al., 2020).
2.14 In vivo study design
Healthy albino Wistar rats of 6–8 weeks of age, weighing approximately 250–300 g, were used for this study. A total of 48 rats were used in this experimental trial and kept in cages in the animal house of the University of Agriculture, Faisalabad. Permission was sought from the Institutional Bioethical and Biosafety Committee (D. No. 1852/ORIC; dated: 30-03-2023) prior to the experiment. The rats were acclimatized for 1 week before the start of experiment. During this time, adequate food and water were provided to the rats (Figure 3).

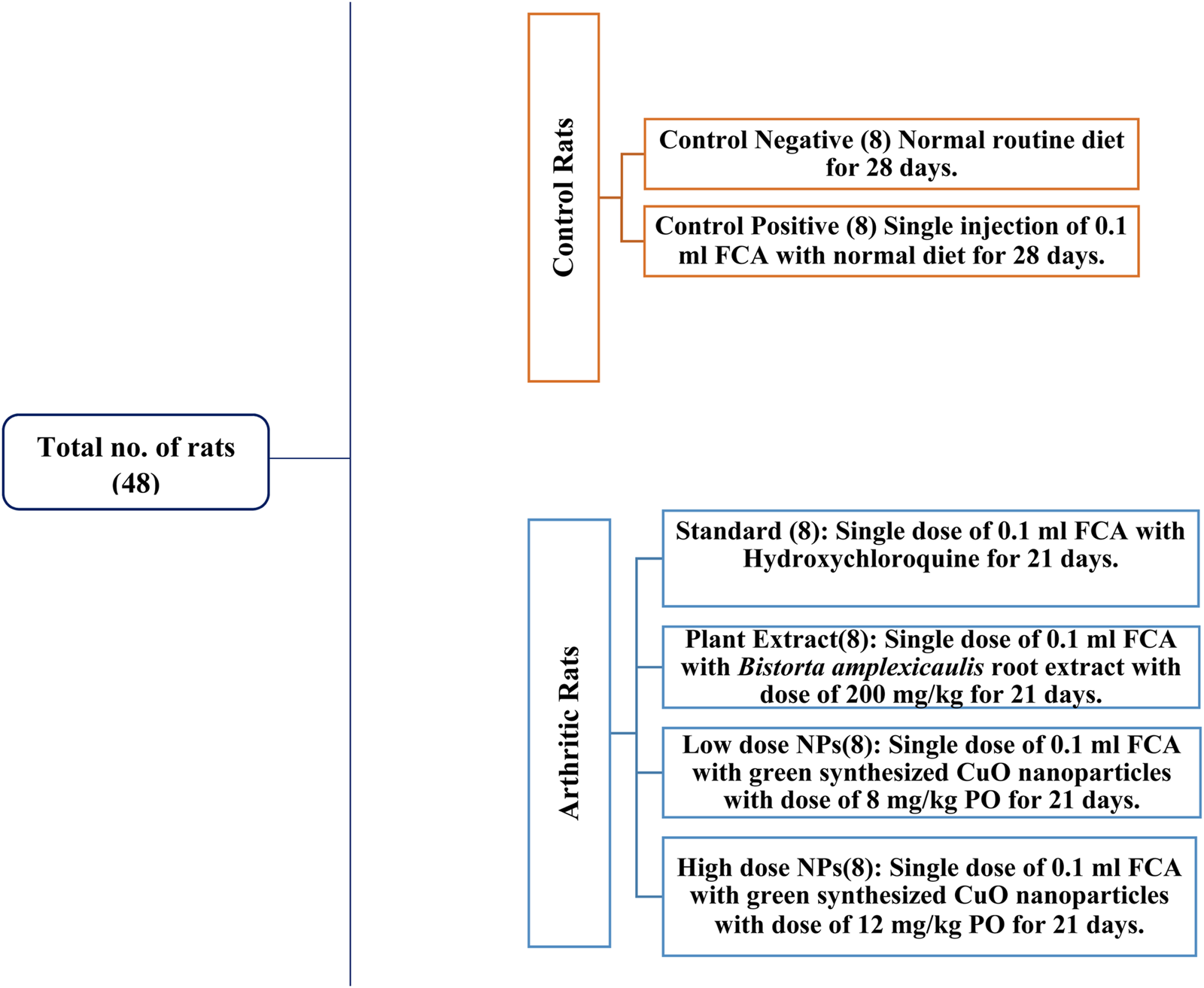

Figure 3. Study design of experimental rats.
2.15 Arthritis induction
Arthritis was induced by using Freund’s complete adjuvant. FCA was injected into the subplantar region of the left hind paw of rats at a dose of 0.1 mL. Induction took approximately 6–7 days to reach peak inflammation. The paw volume was measured using a Vernier caliper before and after the induction on every 0, 7, 14, 21, and 28th day, as shown in the figure (Bhalekar et al., 2016). On day 7 after the induction, treatment was started with hydroxychloroquine in the standard group, a simple extract dose in treatment 1, a low-nanoparticle dose in treatment 2, and high nanoparticles in treatment 3. The treatment protocol was followed for a total of 21 days from day 7 to day 28. The weight of the rats was measured on days 0, 7, 14, 21, and 28 using a weighing balance to check the effect of the treatment. The paw thickness was measured using a Vernier caliper on days 0, 7, 14, 21, and 28 day in all the groups to check the effectiveness of the treatment.
2.16 Mobility score
The mobility score was determined on days 0, 7, 14, 21, and 28 in all the experimental groups for the estimation of the effectiveness of green-synthesized nanoparticles using B. amplexicaulis roots. The score was determined from 0 to 6 grade (Arora et al., 2015).
2.17 Joint stiffness
Joint stiffness was measured on every seventh day from day 7 to day 28 to check the effectiveness of the treatment. The grading system of 0–2 was followed (Arora et al., 2015).
2.18 Decapitation and in vivo testing
On day 29 of treatment, the animals were anesthetized using the drop method with 5% isoflurane. The animal to be anesthetized was placed in a transparent plastic glass anesthesia chamber of volume 3.5 L. Isoflurane was introduced into the chamber using a cotton swab soaked with 1.32 mL of isoflurane. The quantity of isoflurane required was calculated using the ideal gas law (PV = nRT, where P = pressure, V = volume, n = moles of isoflurane, R = universal gas constant (8.314), and T = temperature). The animal was left in the chamber for 5 min and then decapitated when fully sedated following the bioethics protocol. Blood samples of each rat from each group were collected in ethylenediaminetetraacetic acid (EDTA) tubes for analyzing the complete blood count (CBC).
The tests were performed in the Diagnostic Laboratory of the Department of Pathology, University of Agriculture, Faisalabad. Blood was collected in EDTA tubes and then centrifuged at 5,000 rpm for 5 min to collect the serum. The serum was collected in labeled Eppendorf tubes and stored in the ultra-freezer at −20°C for further testing of oxidative stress parameters, inflammatory mediators, and biochemical testing. After decapitation, organs including the spleen, thymus, liver, kidney, and paw were collected. The spleen and thymus were collected and weighed for the immune organ index (Chui et al., 2019). After weighing, they were discarded.
The liver, kidney, and paw were collected in 10% normal buffer formalin for histopathological studies. Serum biochemical parameters such as the liver function and kidney function and cytokine biomarkers including TNF-α, IL-6, C-reactive protein (CRP), and RA factor levels were determined. On day 29, FCA-induced arthritic rats were subjected to radiological examination (exposure was 50 KVp and 200 mAs) using an X-ray unit (KXO-12R, Toshiba, Japan). Qualitative assessment was performed for the swelling of soft tissues, narrowing of joint space, joint ankylosis, osteolysis, and periosteal reaction at the metatarsal area (Ananthi et al., 2017).
2.19 Statistical analysis
Statistical analysis was done by one-way and two-way ANOVA and Tukey’s multi-comparison test using GraphPad Prism software (Murtaza et al., 2021).
3 Results
3.1 Proximate composition analysis
Parameters including the dry weight, moisture content, crude protein, fats, carbohydrates, fiber, and total ash were determined for the estimation of the nutritive value. Moisture content was found to be 4.7%; dry matter, 95%; crude fiber, 8%; crude protein, 10.93%; carbohydrates, 63.59%; crude fat, 5%; and total ash, 7.78%. The nutritive value was found to be 343.04 kJ/mol.
3.2 Mineral analysis
The concentration of various minerals including manganese, cobalt, iron, calcium, lead, copper, zinc, and cadmium was determined in B. amplexicaulis roots using the AAS. The amount of minerals was found to be 0.034; Co, 0.2035; Fe, 0.3162; Ca, 3.45; Pb, 0.0727; Cu, 0.1; Cd, 0.0327; and Zn, 0.08 ppm.
3.3 Qualitative phytochemical analysis of the extract
The B. amplexicaulis extract was phytochemically analyzed for the presence of bioactive compounds in the plant. The results showed the presence of acids, cardiac glycosides, flavonoids, fixed oils, phenols, amino acids, betacyanins, phlobatannins, alkaloids, quinones, tannins, saponins, volatile oils, and terpenoids, while no gums were detected in the sample.
3.4 Total phenolic and flavonoid content
The total phenolic content was estimated to be 585.847 ± 1.423 mg, and the total flavonoid content was found to be 274.98 ± 1.388 mg.
3.5 HPLC
Various phytochemical compounds including quercetin, gallic acid, vanillic acid, benzoic acid, chlorogenic acid, syringic acid, m-coumaric acid, and cinnamic acid were identified via the HPLC technique in the B. amplexicaulis extract, and their retention time and respective concentrations are given in Table 1 and Figure 4.
Table 1. Concentrations and retention times of phytocompounds detected in B. amplexicaulis

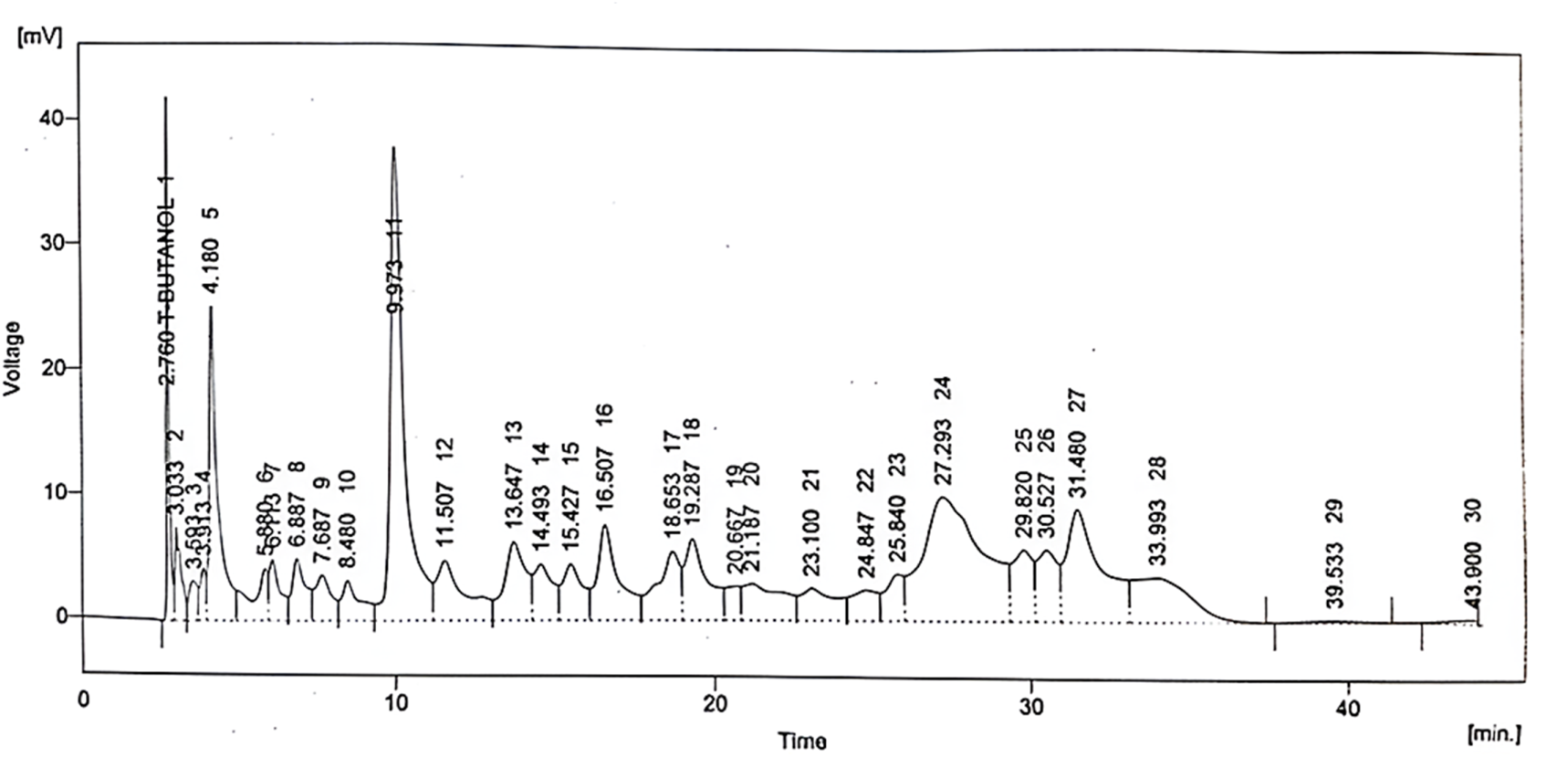

Figure 4. Chromatographic spectrum of Bistorta amplexicaulis.
3.6 FTIR spectroscopy
The possible role of the B. amplexicaulis root extract was determined by FTIR spectroscopy. The FTIR analysis showed the presence of different functional groups at different peaks, including an O-H bond at 3,227.9 cm−1, C-H bending at 1,684.8 cm−1, C-C bending at 1,438.8 cm−1, CF stretching at 1,280.3 cm-1, N-H bending at 1,620.8 cm−1, C=C stretching at 1,602.8 cm−1, O-H bending at 1,340.0 cm−1, C-O stretching at 1,239.3 cm−1, C-F stretching at 1,155.5 cm−1, C-Cl stretching at 795.8 cm−1, and C-N stretching at 1,101.4 cm−1, as shown in Figure 5.

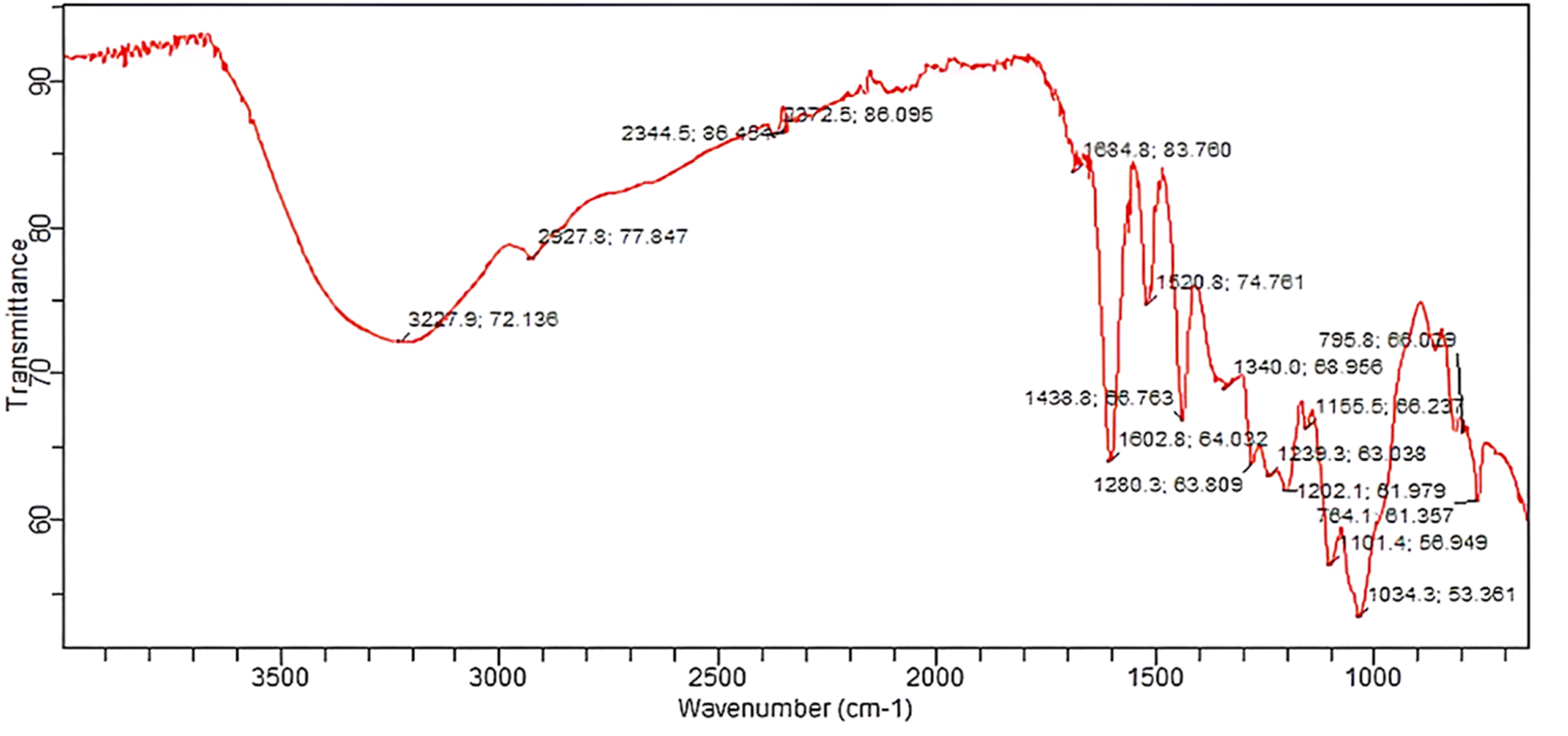

Figure 5. FTIR spectrum of the B. amplexicaulis extract.
3.7 DPPH% inhibition
The antioxidant potential of the B. amplexicaulis extract was determined through the DPPH assay in vitro. The extract exhibited dose–response antioxidant activity in the DPPH radical assay compared to a standard (ascorbic acid), and its percentage inhibitions calculated from the results are given in Table 2.
Table 2. Percentage inhibition of B. amplexicaulis and ascorbic acid for the DPPH assay.
3.8 Characterization of CuO NPs
3.8.1 FTIR spectroscopy
The copper oxide nanoparticles were subjected to FTIR analysis using an FTIR spectrophotometer (Spectrum Two™, PerkinElmer) accompanied with a detector (deuterated triglycine sulfate), a beam splitter, and a window-based system to detect different functional groups in the sample. For this purpose, 10 mg of the lyophilized sample was encapsulated in 100 mg of KBr pellet, and the sample was loaded in an FTIR spectroscope with a range of 4,000–500 cm−1.
The FTIR analysis of B. amplexicaulis showed the presence of different functional groups at different frequencies, including O-H at 3,365.8 cm-1, O-H at 2,163.7 cm−1, C=O at 1,608.3 cm−1, N-O at 1,522.6 cm−1, C-C at 1,436.9 cm−1, O-H at 1,364.2 cm−1, CN at 1,280.3 cm−1, C-O at 1,207.7 cm−1, and C-N at 1,112.6 cm−1, as shown in Figure 6.
Figure 6. FTIR spectrum of CuO NPs.
The comparison of the FTIR spectra of the plant extract and CuO NPs showed a similarity in the peaks at wavelengths of O-H bonds at 3,227.9 cm−1 and 3,365.8 cm−1, C-C bending at 1,438.8 cm−1 and C-C at 1,436.9 cm−1, O-H bending at 1,340.0 cm−1 and O-H at 1,364.2 cm−1, C-O stretching at 1,239.3 cm−1 and C-O at 1,207.7 cm−1, and C-N stretching at 1,101.4 cm−1 and C-N at 1,112.6 cm−1, indicating the presence of these functional groups in both samples, and a slight shift in the peaks indicates the involvement of the plant extract in the synthesis of CuO NPs.
3.8.2 SEM analysis
The SEM analysis of CuO nanoparticles indicated that the particles were amorphous in shape and in cluster form. The surface of nanoparticles was porous in nature, according to the analysis (Figure 7).

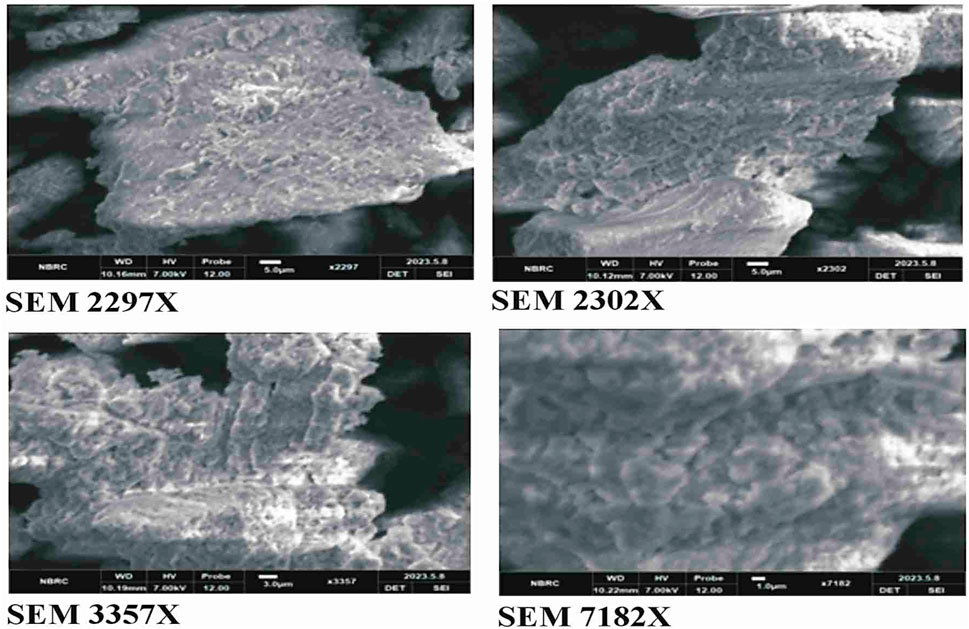

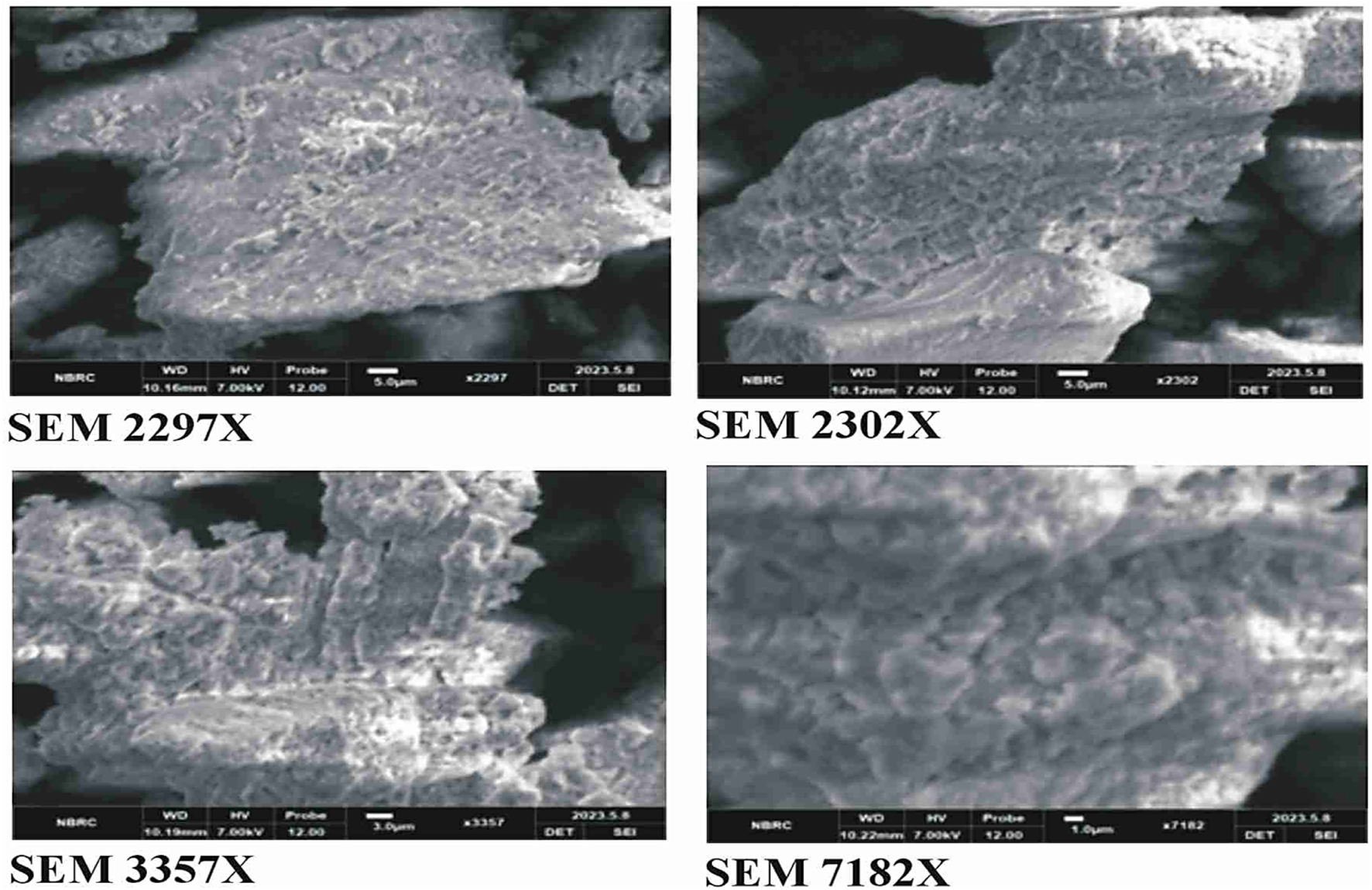

Figure 7. SEM analysis of green synthesized CuO nanoparticles from the B. amplexicaulis root extract.
3.8.3 Particle size
The zeta size results revealed the size of nanoparticles to be 186.8 nm.
3.8.4 Zeta potential
The results showed that the potential charge present on the surface of biosynthesized CuO nanoparticles is −9.23 mV, which means that nanoparticles are strongly anionic, as shown in Figure 8.

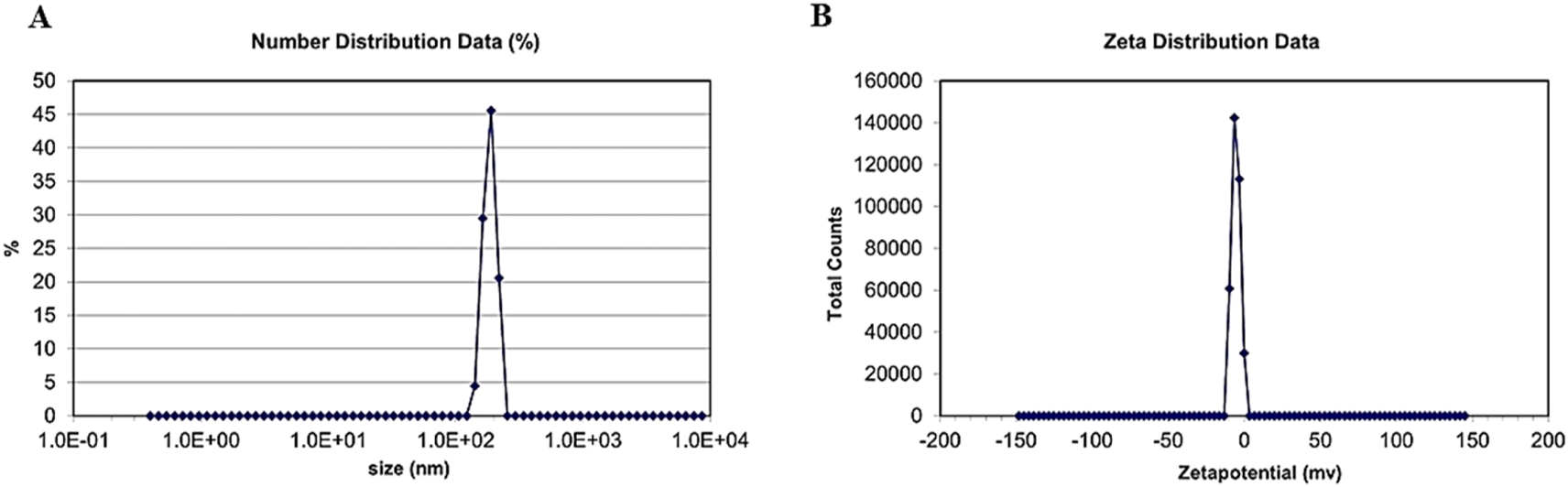

Figure 8. (A) Distribution of zeta size. (B) Zeta potential of green synthesized CuO nanoparticles from the B. amplexicaulis root extract.
3.8.5 Anti-arthritic activity in adjuvant-induced arthritis in albino Wistar rats
3.8.5.1 Effect of the green synthesized CuO nanoparticles from the B. amplexicaulis root extract on body weight (g)
The body weight of all experimental animals was measured on days 0, 7, 14, 21, and 28 of the experiment. After the induction of arthritis, a significant (p < 0.01) increase in weight was exhibited by treatment groups, but a gradual increase in weight was exhibited by the positive control group (Figure 9A).

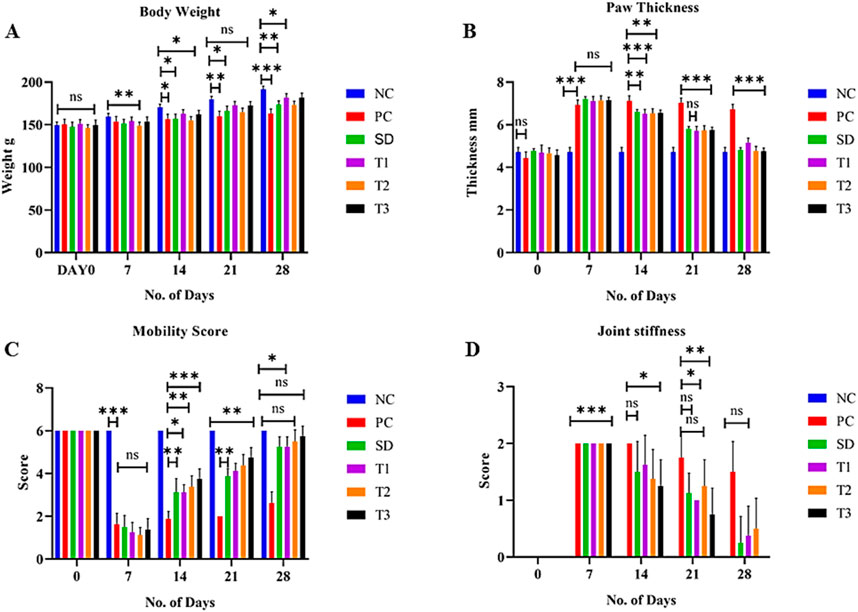

Figure 9. Effect of green synthesized CuO nanoparticles of the B. amplexicaulis root extract on (A) body weight; (B) paw thickness; (C) mobility score; and (D) joint stiffness score. Control negative (NC), control positive (PC), standard dose (SD), plant extract (T1), low-dose nanoparticles (T2), and high-dose nanoparticles (T3). Significance value: *p < 0.05, **p < 0.001, and ***p < 0.0001. Comparison of the disease group with other groups.
3.8.5.2 Effect of the green synthesized CuO nanoparticles from the B. amplexicaulis root extract on paw thickness
The paw thickness was significantly (p < 0.001) increased in all groups on day 7 compared to the negative control group after the induction of arthritis. The paw thickness began to reduce significantly (p < 0.001) after the initiation of treatment, as shown in Figure 9B.
3.8.5.3 Effect of the green synthesized CuO nanoparticles from the B. amplexicaulis root extract on the mobility score
The statistical analysis of the mobility score showed a significant (p < 0.001) variation among different treatment groups on different days. A significant (p < 0.001) increase in the mobility score was observed in treatment groups compared to the positive control group. A nonsignificant variation was observed between low- and high-dose nanoparticles (Figure 9C).
3.8.5.4 Effect of the green synthesized CuO nanoparticles from the B. amplexicaulis root extract on joint stiffness
The statistical analysis of joint stiffness showed a significant (p < 0.001) variation among different treatment groups on different days. A significant (p < 0.001) reduction in joint stiffness was observed in the standard group compared to the positive control group. A nonsignificant variation was observed between negative control and high-dose nanoparticles on day 28 of the treatment, as shown in Figure 9D.
3.8.5.5 Effect of the green synthesized CuO nanoparticles from the B. amplexicaulis root extract on the spleen organ index
The statistical analysis of the spleen weight index exhibited great variation among the treatment groups. The statistical analysis displayed a significant (p < 0.001) increase in the weight of the spleen in the arthritic control group compared to the control negative group. The negative control group displayed a nonsignificant association with the high-dose NP-treated group but showed a significant association with all the other groups. A significant reduction in the weight of the spleen was observed in the B. amplexicaulis extract and low- and high-dose-treated groups, as shown in Figure 10A.

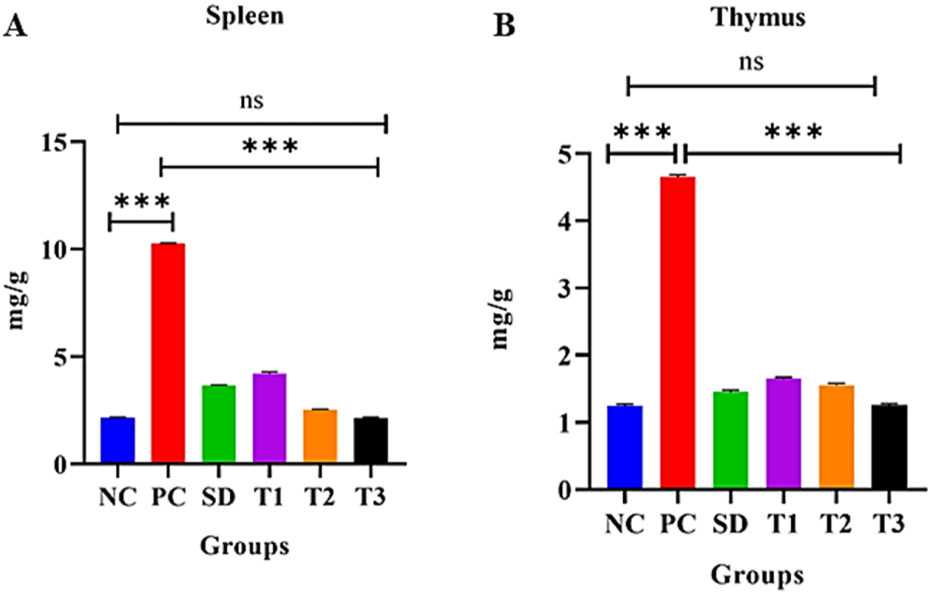

Figure 10. Effect of green synthesized CuO nanoparticles of the B. amplexicaulis root extract on (A) spleen weight index and (B) thymus weight index of different groups of rats: negative control (NC), positive control (PC), standard dose (SD), plant extract (T1), low-dose nanoparticles (T2), and high-dose nanoparticles (T3). Significance value: *p < 0.05, **p < 0.001, and ***p < 0.0001. Comparison of the disease group with other groups.
3.8.5.6 Effect of green synthesized CuO nanoparticles from the B. amplexicaulis root extract on the thymus organ index
The statistical assessment of the thymus weigh index exhibited a great variation among treatment groups. The association between the negative control and arthritic (positive) control was found to be significant (p < 0.001). Negative control and high-dose NPs were found to exhibit a nonsignificant association, while all other groups were highly significant. Moreover, a decrease in the weight of the thymus was observed in the simple extract dose, low-dose nanoparticles, and high-dose nanoparticles, as shown in Figure 10B.
3.8.5.7 Effect of green synthesized CuO nanoparticles from the B. amplexicaulis root extract on red blood cells (1012/L)
The statistical analysis of red blood cells (RBCs) showed a significant (p < 0.001) decrease in RBCs in the positive control group compared to the negative control. The negative control, low-dose NP-, and high-dose NP-treated groups were found to be nonsignificant, while other groups were significantly different from each other, as shown in Figure 11A, Table 3.

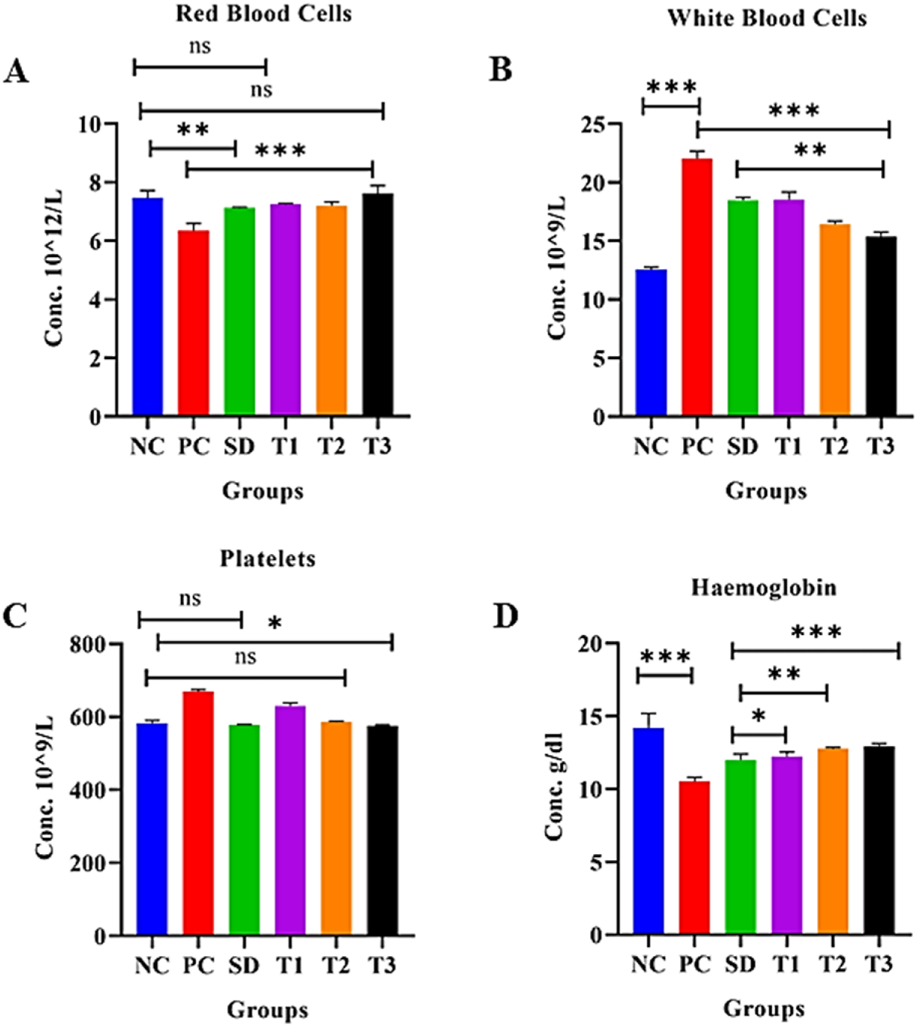

Figure 11. Effect of green synthesized CuO nanoparticles of the B. amplexicaulis root extract on (A) RBC, (B) WBC, (C) platelets, and (D) Hb. Negative control (NC), positive control (PC), standard dose (SD), plant extract (T1), low-dose nanoparticles (T2), and high-dose nanoparticles (T3). Significance value: *p <0.05, **p < 0.001, and ***p < 0.0001. Comparison of the disease group with other groups.
Table 3. Comparison of hematological parameters of different study groups.
3.8.5.8 Effect of green synthesized CuO nanoparticles from the B. amplexicaulis root extract on white blood cells (109/L)
The statistical analysis of white blood cells (WBCs) showed a significant (p < 0.001) increase in WBC count in the arthritic control group compared to the negative control group. However, the treatments showed a significant reduction (p < 0.001) in the WBC level compared to the arthritic group, as shown in the table and figure: the graph confirmed a significant decrease in the level of WBCs in the standard, plant extract, low-dose, and high-dose NP-treated groups (Figure 11B) Table 3.
3.8.5.9 Effect of green synthesized CuO nanoparticles from the B. amplexicaulis root extract on the platelet count (109/µL)
In the statistical assessment of the platelet count in treatment groups, arthritic control exhibited a significant (p < 0.001) increase in the platelet count compared to the negative control. A nonsignificant association was found between the standard and low-dose nanoparticle-treated groups. Negative control and high-dose NPs were found to be less significantly associated. The number of platelets decreased to normal levels in all three treatment groups (Figure 11C) Table 3.
The statistical analysis of Hb showed a significant (p < 0.001) variation between the negative and positive control groups. A significant (p < 0.001) association was also observed between the positive control and other three treatment groups. A nonsignificant association was observed between the standard and simple extract group. All three treatment groups showed a significant increase in Hb levels, as shown in Figure 11D, Table 3.
3.8.5.10 Effect of green synthesized CuO nanoparticles from the B. amplexicaulis root extract on alanine aminotransferase levels (U/L)
The statistical analysis revealed a significant increase in ALT levels (p < 0.0001) in the positive control group compared to the negative control group. A significant association (p < 0.0001) was also observed between the standard treatment group and the negative control group. However, there was a nonsignificant relationship between the negative control group and treatment groups 1 and 2. Additionally, a marginally significant relationship was found between the negative control and treatment group 3, as shown in Figure 12A.

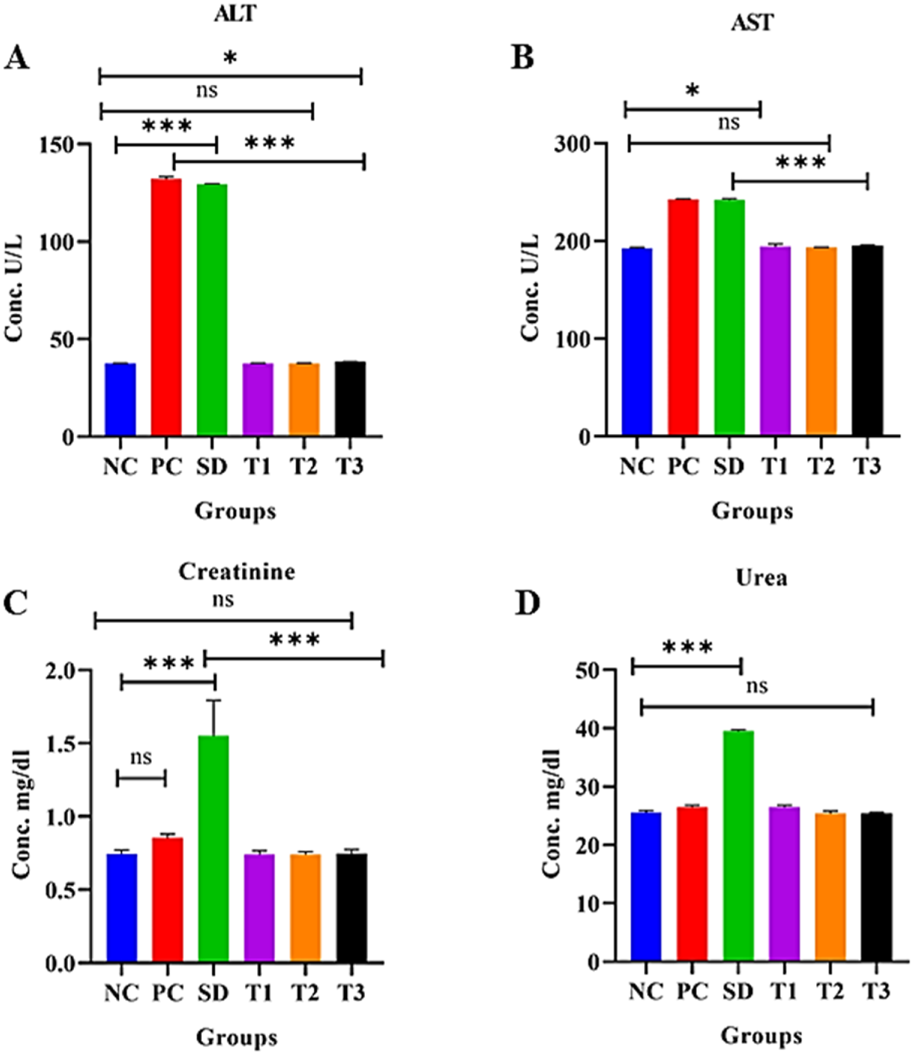

Figure 12. Effect of green synthesized CuO nanoparticles of the B. amplexicaulis root extract on (A) ALT, (B) AST, (C) creatinine, and (D) urea levels. Negative control (NC), positive control (PC), standard dose (SD), plant extract (T1), low-dose nanoparticles (T2), and high-dose nanoparticles (T3). Significance value: *p <0.05, **p < 0.001, and ***p < 0.0001. Comparison of the disease group with other groups.
3.8.5.11 Effect of green synthesized CuO nanoparticles from the B. amplexicaulis root extract on aspartate aminotransferase levels (U/L)
Statistical analysis of aspartate aminotransferase (AST) levels indicated a significant increase (p < 0.01) in the positive control group compared to the negative control group. Additionally, a significant increase (p < 0.001) in AST levels was observed in the standard treatment group relative to the negative control group. The analysis also revealed a nonsignificant association between the negative control group and treatment groups 1 and 2. Furthermore, a marginally nonsignificant association was found between the negative control and treatment group 3, as shown in Figure 12B.
3.8.5.12 Effect of green synthesized CuO nanoparticles from the B. amplexicaulis root extract on serum creatinine levels (mg/dL)
The statistical analysis revealed a significant increase in creatinine levels (p < 0.0001) in the standard treatment group compared to the negative control group. However, no significant variation was observed between the negative control and the three other treatment groups. There was no difference in creatinine levels between the positive and negative control groups. Both the plant extract and nanoparticles showed a reduction in creatinine levels compared to the standard treatment group, as shown in Figure 12C.
3.8.5.13 Effect of green synthesized CuO nanoparticles from the B. amplexicaulis root extract effect on serum urea levels (mg/dL)
Statistical analysis showed a significant increase in urea levels (p < 0.001) in the standard treatment group compared to the negative control group. However, there was no significant variation between the positive and negative control groups. Additionally, a nonsignificant association was observed between the negative control group and both the low- and high-dose NP treatment groups, as shown in Figure 12D.
3.8.5.14 Effect of green synthesized CuO nanoparticles from the B. amplexicaulis root extract on serum CRP levels
The statistical analysis revealed a significant increase in CRP levels (p < 0.0001) in the positive control group compared to the negative control group. In contrast, a significant decrease in CRP levels (p < 0.0001) was observed in the other treatment groups. Additionally, a significant association (p < 0.0001) was found between treatment 2 and treatment 3 groups, as shown in Figure 13A.

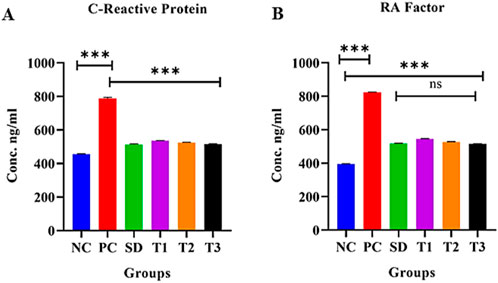

Figure 13. Effect of green synthesized CuO nanoparticles of the B. amplexicaulis root extract on (A) CRP and (B) RA factor. Negative control (NC), positive control (PC), standard dose (SD), plant extract (T1), low-dose nanoparticles (T2), and high-dose nanoparticles (T3). Significance value: *p <0.05, **p < 0.001, and ***p < 0.0001. Comparison of the disease group with other groups.
3.8.5.15 Effect of green synthesized CuO nanoparticles from the B. amplexicaulis root extract on serum RF levels
The statistical analysis revealed a significant increase in RA factor levels (p < 0.001) in the positive control group compared to the negative control group. In contrast, a significant decrease in RA factor levels (p < 0.001) was observed in the other treatment groups. Additionally, the standard treatment group and treatment 3 group showed a nonsignificant association with each other, as shown in Figure 13B.
3.8.5.16 Effect of green synthesized CuO nanoparticles from the B. amplexicaulis root extract effect on superoxide dismutase activity in liver tissue
A significant decrease in superoxide dismutase (SOD) (U/mL protein) levels (p < 0.001) was observed in the positive control group compared to the negative control group. Conversely, a significant increase in SOD levels (p < 0.001) was noted in the other treatment groups. However, there was a nonsignificant difference (p < 0.001) between the negative control and treatment 1 group, as well as between the negative control and treatment 3 group, as shown in Figure 14A.

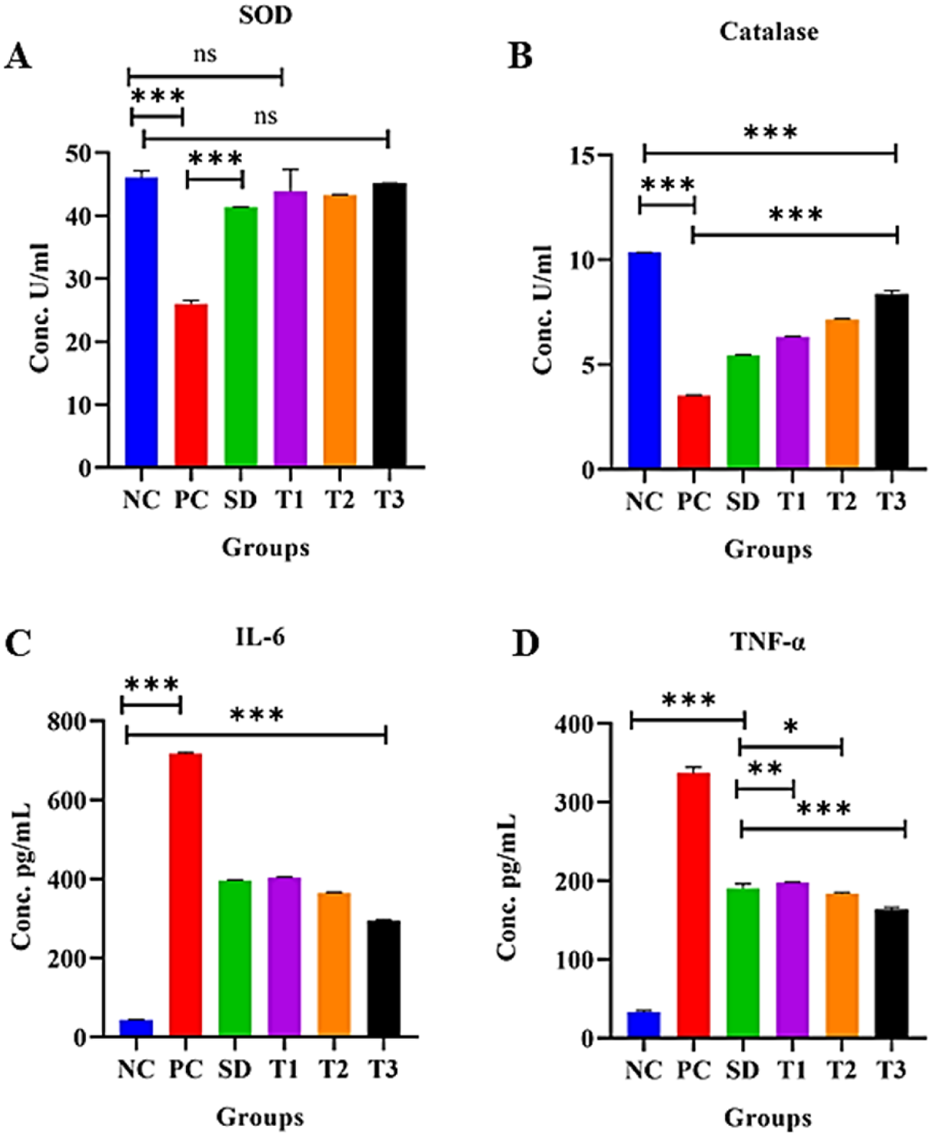

Figure 14. Effect of green synthesized CuO nanoparticles of the B. amplexicaulis root extract on (A) SOD; (B) catalase; (C) IL-6; and (D) TNF-α levels. Negative control (NC), positive control (PC), standard dose (SD), plant extract (T1), low-dose nanoparticles (T2), and high-dose nanoparticles (T3). Significance value: *p <0.05, **p < 0.001, and ***p < 0.0001. Comparison of the disease group with other groups.
3.8.5.17 Effect of green synthesized CuO nanoparticles from the B. amplexicaulis root extract effect on catalase activity in liver tissue
The statistical analysis revealed a significant decrease in catalase (CAT) (U/mL protein) levels (p < 0.001) in the positive control group compared to the negative control group. In contrast, the treatment groups demonstrated a significant increase in catalase levels (p < 0.001), as shown in Figure 14B.
3.8.5.18 Effect of the treatment of green-synthesized CuO nanoparticles from the B. amplexicaulis root extract on IL-6 levels
The statistical analysis of IL-6 levels showed a significant increase (p < 0.001) in the positive control group compared to the negative control group. In contrast, a significant decrease in IL-6 levels (p < 0.001) was observed in the treatment groups compared to the positive control group. Specifically, a notable reduction (p < 0.001) in IL-6 levels was observed across three treatment groups, as shown in Figure 14C.
3.8.5.19 Effect of the treatment of green synthesized CuO nanoparticles from the B. amplexicaulis root extract on TNF-α levels
The statistical analysis revealed a significant increase in TNF-α levels in the positive control group compared to the negative control (p < 0.001). Conversely, a significant decrease in TNF-α levels (p < 0.001) was observed in the treatment groups compared to the positive control group, as shown in Figure 14D.
3.8.5.20 Effect of green synthesized CuO nanoparticles from the B. amplexicaulis root extract effect on histopathological examination
3.8.5.20.1 Liver
The histopathological examination of the liver showed hepatic cell necrosis, infiltration of monocytes, and vacuolization in the arthritic control group. However, the treated groups showed a reduction in the monocyte infiltration and vacuolization, as shown in Figures 15A–F.
Figure 15. Histopathological analysis of liver (A). Negative control group (B). Positive control (C). Standard (D). Simple extract (E). Low-dose NPs (F). High-dose NPs. Green arrow: hepatocytes vacuolated; curved arrow: sinusoids degenerated; arrow H: hepatocyte. CV: central vein. S: sinusoids.
3.8.5.20.2 Kidney
The histopathological examination of the kidney of normal group showed normal renal parenchyma. The histopathology of the standard treatment group showed damaged renal parenchyma, necrosis, and congestion. Infiltration of inflammatory cells was also observed. However, in all other groups, less damage to renal parenchyma, less congestion, and less infiltration of inflammatory cells were observed, as shown in Figures 16A–F.
Figure 16. Histopathological analysis of the kidney (A). Negative control group (B). Positive control (C). Standard (D). Simple extract (E). Low-dose NPs (F). High-dose NPs. Red arrow: dilation of the glomerulus. Black arrow: normal morphology of glomeruli.
3.8.5.20.3 Ankle joint
The histopathological examination of the ankle joint shows mononuclear cell infiltration, damage of bone, and hyperplasia of the synovium. However, histopathology of treated groups showed a decrease in mononuclear cell infiltration, as shown in Figures 17A–F.
Figure 17. Histopathological analysis of the ankle joint (A). Negative control group (B). Positive control (C). Standard (D). Simple extract (E). Low-dose NPs (F). High-dose NPs.
3.8.5.21 Effect of the green synthesized CuO nanoparticles from the B. amplexicaulis root extract on the radiological examination of paw thickness
Radiological X-ray examination depicted marked inflammation in the arthritic group (B) compared to healthy rats. Radiological examination of arthritic rats showed swelling of soft tissues, narrowing of joint space, ankylosed joints, periosteal reaction at the metatarsal area, and osteolysis inconsistency with paw swelling and arthritic score compared to the healthy group. The treatment with both the plant extract and nanoparticles showed attenuated effects; but nanoparticles showed better results than the plant extract dose. Moreover, high-dose nanoparticles exhibited better effects on inflammation than low-dose nanoparticles. Nanoparticle-treated groups showed a marked reduction in ankylosed joints and less swelling and periosteal reaction at the metatarsal area. The hydroxychloroquine-treated group showed a marked reduction in joint space narrowing and bone damage, along with less swelling of tissues (Figure 18).
Figure 18. Radiological examination of experimental rats.
4 Discussion
Formerly known as Polygonum amplexicaule, B. amplexicaulis has been used in folklore medicines against various diseases, with a long history of usage for treating pain, fractures, cardiovascular and cerebrovascular illnesses, and other conditions, and is renowned for its antioxidant, antibacterial, anticancer, antifungal, and cardioprotective properties (Xiang et al., 2011). Therefore, in this study, phytochemical B. amplexicaulis extract was phytochemically characterized and evaluated for antioxidant potential in vitro and anti-arthritic activity in FCA-induced arthritis in albino Wistar rats.
The estimated carbohydrate content of B. amplexicaulis was high. Crude fiber content was estimated to be 8%, and crude fiber could lower the risks of digestive disorders by increasing bowel movements and aid in the increased absorption of trace minerals in the gut (Abolaji et al., 2007; Olowokudejo et al., 2008). Ash content provides an estimation of the mineral content in the plant. The total nutritive value was estimated to be 343.08 kJ/mol. The daily recommended energy value is 1,900–2,900 kcal/day to maintain a healthy weight (Rehman and Adnan, 2018).
The results depicted that B. amplexicaulis has a high content of calcium, cobalt, copper, iron, and zinc and a low amount of cadmium and manganese. All these minerals are necessary for bones, blood coagulation, structural stiffness, and as an enzyme co-factor (Rodwell et al., 2015). According to Pathak and Kapil (2004) immunity, cell reproduction, and protein synthesis are all dependent on zinc, oxidation of biomolecules to manage obesity, and for the synthesis of hemoglobin (Thomas and Krishnakumari, 2015; Indrayan et al., 2005). Cobalt aids in the synthesis of cobalamin (vitamin B12) and vitamin absorption (Yamada, 2013). These minerals strengthen the immune system and act as antioxidants by lowering lipid peroxidation.
Preliminary phytochemical screening of B. amplexicaulis showed the presence of alkaloids, amino acids, cardiac glycosides, betacyanins, carbohydrates, flavonoids, fixed oils, phenols, phlobatannins, quinones, tannins, and terpenoids. Flavonoids and phenols are considered valuable due to their attributed antioxidant potential. The free radical scavenging nature of flavonoids and phenolics makes them valuable in oxidative stress and has efficacy in cardiac and inflammatory disorders (Doughari, 2012).
HPLC techniques were used for the quantification of flavonoids and phenolic compounds. Quercetin, vanillic acid, caffeic acid, chlorogenic acid, gallic acid, and coumaric acid were detected in B. amplexicaulis, owing to its antioxidant, hepatoprotective, anti-pyretic, analgesic, neuroprotective, and anti-inflammatory properties due to its free radical scavenging capabilities (Ying et al., 2013; Naveed et al., 2018; Espíndola et al., 2019; Pei et al., 2016).
The FTIR spectrum of the B. amplexicaulis extract indicated the presence of different functional groups at different frequency ranges. The spectrum showed that the plant is rich in antioxidants. The carboxyl group at 3,500–2,400 cm−1 indicated the presence of flavonoids in the plant. The presence of an O-H group at 1,390–1,310 cm−1 indicated the presence of phenols, owing to the antioxidant potential of the plant.
In vitro DPPH bioassay was performed to validate and scrutinize the antioxidant capacity of the B. amplexicaulis extract, which showed the significant free radical DPPH scavenging ability of the plant (Szabo et al., 2007).
CuO nanoparticles were synthesized using the green synthesis method, which is cheap, less harmful to the environment, and also because copper oxide has various pharmacological activities including antioxidant, anti-tumor, and antibacterial effects (Maqbool et al., 2017). These nanoparticles were characterized with SEM and particle size and zeta potential techniques, which confirmed that NPs were predominantly spherical and non-crystalline with a zeta size of 186.8 nm and strong anionic zeta potential of −9.23 mV, indicating good stability. The FTIR analysis of CuO NPs showed the presence of various functional groups including O-H, C-O, N-O, and C-N, which indicated the presence of phenolic, ketonic, nitro, and amino groups, owing to the antioxidant potential of nanoparticles (Clogston and Patri, 2011; Al-Kalifawi, 2016).
In the present study, the hydroalcoholic extract and CuO nanoparticles of B. amplexicaulis were evaluated for its anti-arthritic activity in FCA-induced arthritis albino Wistar rats. Post-arthritic oral treatment with hydroxychloroquine, extracts, and nanoparticles significantly reduced the paw inflammation and arthritic score in arthritic rats, with the higher dose of nanoparticles producing remarkable effects compared to hydroxychloroquine and plant extract, which suggest the possible anti-arthritic effect of CuO nanoparticles. These nanoparticles also significantly normalized hematological parameters such as red blood cells, white blood cells, Hb, and platelets, indicating an ameliorative effect on arthritis conditions. Anemia is an indication of rheumatoid arthritis. Various factors, including the suppression of bone marrow, ineffective erythropoiesis, and GIT bleeding, may cause anemia (Bowman, 2002). Studies reported that arthritic patients commonly experienced anemic conditions and observed a link between the severity of arthritis symptoms and the degree of anemia. Treated RA patients, having improved anemia, also showed improvement in the quality of life (Wilson et al., 2004). The WBCs are an essential immune system marker, which is associated with inflammation induction and other infectious diseases (Bowman, 2002). Induction of pro-inflammatory cytokines into the injured area and stimulation of the immune system can be indicated by an increased platelet count and WBC level in RA patients (Sattar et al., 2003).
The immune organs such as the thymus and spleen of arthritic rats were also observed at the end of the study and weighed. CuO nanoparticles showed better results than the standard drug and extract of B. amplexicaulis roots. CFA-induced arthritis significantly upregulated the serum levels of cytokines, including TNF-α and IL-6, accompanied by an elevation in circulatory inflammatory cells, which can be confirmed through the increased weight of the thymus and spleen (Banji et al., 2014; Akramas et al., 2015).
In the present study, CuO nanoparticles reduced the levels of RA and CRP in arthritic rats. The CRP is considered one of the essential systemic inflammatory markers. Several studies reported a conflicting relation of RA diagnosis with the CRP level. An increased CRP level was found in patients before RA diagnosis (Masi et al., 2001), and one study showed an increased level of CRP in male and female blood donors within 2 years of RA diagnosis but changes in the CRP level did not correlate primarily with the prediction of RA incidence (Shadick et al., 2006). The level of autoantibodies, such as RF linked to the severity of the disease, is partly based on structural damage. The detection of the RF in the serum is assumed as an independent predictor of the structural deterioration of joints (Laurent et al., 2011).
The biochemical analysis of liver function markers of arthritic rats demonstrated an increase in ALT and AST levels, indicating free radical-mediated hepatic injury (Ijaz et al., 2022). The elevated level of these cellular enzymes can be indicative of bone and organ impairment. The generation of mediators was affected by increased ALT and AST levels and, hence, accelerates the bone and organ damaging effects in RA patients (Rehman and Lane, 2001; Coelho et al., 2004). The results of the present study showed the possible anti-arthritic ability of the B. amplexicaulis extract and CuO nanoparticles, along with protecting bone loss and organ damage by reducing the levels of these indexes, which not only indicated the antioxidant effect but also hepatoprotective activity of these nanoparticles, which was good compared to the standard treatment drug. Hydroxychloroquine showed an elevation in the levels of these indexes, indicating that this drug is not hepatoprotective and has liver-associated side effects. However, nonsignificant alterations of renal function markers such as creatinine and urea were observed in the present study contrary to previous studies (Mishra et al., 2011).
The persistent dysregulated generation of IL-6 plays a vital function in RA development and other autoimmune disorders. The results of the present study showed an upregulation in IL-6 expression in arthritic rats, while hydroxychloroquine extract and CuO nanoparticle-treated arthritic animals exhibited a decreased level of IL-6 expression.
The results of the present study demonstrated the marked effect of treatments on TNF-α expression in arthritic rats. Hydroxychloroquine, extract, and CuO NPs showed the suppression of TNF-α compared to arthritic control. CuO NPs showed better suppression of TNF-α levels than other treatment groups. TNF-α is also believed to cause connective tissue damage by inducing PGE2 and collagenase synthesis (Vasanthi et al., 2007).
Histopathological examination was performed to check the effect of biosynthesized CuO NPs on the ankle joint, liver, and kidney. The arthritic group showed an increase in mononuclear cells, formation of pannus, bone destruction, and hyperplasia of the synovium in ankle joint (Figure 17). The results revealed a decrease in mononuclear cells and reduction in bone destruction. Liver histopathology also showed a significant number of inflammatory cells, hepatic cell congestion, and necrosis, which were significantly reduced by treating arthritic rats with green synthesized CuO NPs (Figure 15). The kidney displayed the infiltration of inflammatory cells and necrosis in the standard group, which decreased to a lower degree of infiltration and necrosis in other treated groups (Figure 16).
In this study, the findings of radiographic changes of arthritic rats showed swelling of soft tissues along with joint space narrowing, which depicts bone damage in arthritic experimental animals (Ekambaram et al., 2010). The use of hydroxychloroquine in adjuvant-induced arthritic rats showed protection against the damaging effects of arthritis. Arthritic groups treated with the B. amplexicaulis extract and CuO NPs at a high dose revealed significant prevention against bone damage and soft tissue swelling observed at the end of the study. CuO NP-treated groups showed better results than plant extract-treated groups. Gross macroscopic observations were in concordance with radiographic findings, as reported in previous studies (Ananthi et al., 2017).
5 Conclusion
From the findings, we can conclude the probability of using green-synthesized copper oxide nanoparticles as an alternative treatment for RA, instead of using different therapeutic approaches, due to its antioxidant and anti-inflammatory potential. The given data showed that green-synthesized copper oxide nanoparticles not only significantly affect the rheumatoid arthritis parameters and hematological parameters but also decrease the kidney and liver markers. Inflammatory markers that are directly linked to antioxidants also decrease with the treatment of green synthesized CuO NPs. The histological examination revealed a marked decrease in the number of inflammatory cells in the ankle, kidney, and liver and especially showed significant reduction in pannus formation and bone destruction in green synthesized NP-treated groups. Thus, it was observed that green synthesized copper oxide nanoparticles from B. amplexicaulis roots showed better results.
Data availability statement
The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.
Ethics statement
The animal study was approved by the Institutional Biosafety and Bioethics Committee, University of Agriculture, Faisalabad. The study was conducted in accordance with the local legislation and institutional requirements.
Author contributions
MB: formal analysis, investigation, methodology, software, writing–original draft, and writing–review and editing. BA: conceptualization, validation, visualization, and writing–review and editing. MNF: investigation, methodology, validation, and writing–review and editing. AM: funding acquisition, investigation, validation, and writing–review and editing. SA: funding acquisition, investigation, methodology, validation, and writing–review and editing. SF: validation, funding acquisition, writing–review and editing. WM: formal analysis, investigation, methodology, and writing–review and editing. AU: formal analysis, investigation, methodology, and writing–review and editing. MAF: conceptualization, funding acquisition, investigation, methodology, supervision, validation, writing–review and editing, and writing–original draft.
Funding
The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This work was funded by the Researchers Supporting Project (number RSPD2024R966), King Saud University, Riyadh, Saudi Arabia. This research was also partially supported by the Office of Research, Innovation, and Commercialization (ORIC), University of Agriculture, Faisalabad, Pakistan.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Abolaji, A., Adebayo, A., and O.S, O. (2007). Nutritional qualities of three medicinal plant parts (xylopia aethiopica, blighia sapida and Parinari polyandra) commonly used by pregnant women in the western part of Nigeria. Pak. J. Nutr. 6, 665–668. doi:10.3923/pjn.2007.665.668
Akramas, L., Leonavičienė, L., Vasiliauskas, A., Bradūnaitė, R., Vaitkienė, D., Zabulytė, D., et al. (2015). Anti-inflammatory and anti-oxidative effects of herbal preparation EM 1201 in adjuvant arthritic rats. Medicina 51 (6), 368–377. doi:10.1016/j.medici.2015.11.002
Al-Kalifawi, E. J. (2016). Green synthesis of silver nanoparticles using leaf extract of al-rawag tree (Moringa oleifera Lamarck) cultivated in Iraq and efficacy the antimicrobial activity. Mesop Environ. J. Spicial Issue A, 39–48.
Ananthi, S., Gayathri, V., Malarvizhi, R., Bhardwaj, M., and Vasanthi, H. R. (2017). Anti-arthritic potential of marine macroalgae Turbinaria ornata in Complete Freund’s Adjuvant induced rats. Exp. Toxicol. Pathology 69 (8), 672–680. doi:10.1016/j.etp.2017.06.006
AOAC (1990). Official Methods of Analysis. (Arlington, VA, USA: Association of Official Analytical Chemists).
Arora, R., Kuhad, A., Kaur, I. P., and Chopra, K. (2015). Curcumin loaded solid lipid nanoparticles ameliorate adjuvant-induced arthritis in rats. Eur. J. Pain 19 (7), 940–952. doi:10.1002/ejp.620
Banji, O. J., Banji, D., Soumya, N., Chilipi, K. K., Kalpana, C., Kumar, C. K., et al. (2014). Combination of carvacrol with methotrexate suppresses Complete Freund's Adjuvant induced synovial inflammation with reduced hepatotoxicity in rats. Eur. J. Pharmacol. 723, 91–98. doi:10.1016/j.ejphar.2013.12.009
Bhalekar, M. R., Upadhaya, P. G., and Madgulkar, A. R. (2016). Fabrication and efficacy evaluation of chloroquine nanoparticles in CFA-induced arthritic rats using TNF-α ELISA. Eur. J. Pharm. Sci. 84, 1–8. doi:10.1016/j.ejps.2016.01.009
Bowman, S. (2002). Hematological manifestations of rheumatoid arthritis. Scand. J. Rheumatology 31 (5), 251–259. doi:10.1080/030097402760375124
Calabresi, E., Petrelli, F., Bonifacio, A. F., Puxeddu, I., and Alunno, A. (2018). One year in review 2018: pathogenesis of rheumatoid arthritis. Clin. Exp. Rheumatol. 36 (2), 175–184.
Catrina, A. I., Joshua, V., Klareskog, L., and Malmström, V. (2016). Mechanisms involved in triggering rheumatoid arthritis. Immunol. Rev. 269 (1), 162–174. doi:10.1111/imr.12379
Chui, X. R., Wang, P., Bian, Q., Wu, Q. V. D., and Seshadri, L. L. (2019). Evaluation of antiarthritic activity of nimbolide against Freund's adjuvant induced arthritis in rats. Artif. Cells. Nanomed. Biotechno 47, 3391–3398.
Chillingworth, N. L., and Donaldson, L. F. (2003). Characterisation of a Freund's complete adjuvant-induced model of chronic arthritis in mice. J. Neurosci. Methods 128 (1-2), 45–52. doi:10.1016/s0165-0270(03)00147-x
Chiu, Y. G., and Ritchlin, C. T. (2017). Denosumab: targeting the RANKL pathway to treat rheumatoid arthritis. Expert Opin. Biol. Ther. 17 (1), 119–128. doi:10.1080/14712598.2017.1263614
Clogston, J. D., and Patri, A. K. (2011). “Zeta potential measurement,” in Characterization of nanoparticles intended for drug delivery (Springer), 63–70.
Coelho, M., Reis, P., Gava, V., Marques, P., Gayer, C., Laranja, G., et al. (2004). Anti-arthritic effect and subacute toxicological evaluation of Baccharis genistelloides aqueous extract. Toxicol. Lett. 154 (1-2), 69–80. doi:10.1016/j.toxlet.2004.07.004
Dilshad, S. R., Rehman, N., Nazir Ahmad, N. A., and Iqbal, A. (2010). Documentation of ethnoveterinary practices for mastitis in dairy animals in Pakistan. Pak Vet. J. 30 (3), 167–171.
Doughari, J. H. (2012). Phytochemicals: extraction methods, basic structures and mode of action as potential chemotherapeutic agents. Rijeka, Croatia: INTECH Open Access Publisher.
Ekambaram, S., Perumal, S. S., and Subramanian, V. (2010). Evaluation of antiarthritic activity of Strychnos potatorum Linn seeds in Freund's adjuvant induced arthritic rat model. BMC complementary Altern. Med. 10, 56–59. doi:10.1186/1472-6882-10-56
Espíndola, K. M. M., Ferreira, R. G., Narvaez, L. E. M., Silva Rosario, A. C. R., Da Silva, A. H. M., Silva, A. G. B., et al. (2019). Chemical and pharmacological aspects of caffeic acid and its activity in hepatocarcinoma. Front. Oncol. 541. doi:10.3389/fonc.2019.00541
Faisal, S., Jan, H., Abdullah, A., Alam, I., Rizwan, M., Hussain, Z., et al. (2022). In vivo analgesic, anti-inflammatory, and anti-diabetic screening of Bacopa monnieri-synthesized copper oxide nanoparticles. ACS omega 7 (5), 4071–4082. doi:10.1021/acsomega.1c05410
Heidari, B. (2011). Rheumatoid Arthritis: early diagnosis and treatment outcomes. Casp. J. Intern. Med. 2 (1), 161–170.
Heilborn, U., Berge, O.-G., Arborelius, L., and Brodin, E. (2007). Spontaneous nociceptive behaviour in female mice with Freund's complete adjuvant-and carrageenan-induced monoarthritis. Brain Res. 1143, 143–149. doi:10.1016/j.brainres.2007.01.054
Ijaz, M. U., Ishtiaq, A., Ehsan, N., Imran, M., and Zhu, G.-P. (2022). Hepatoprotective potential of Genkwanin against aflatoxin B1-induced biochemical, inflammatory and histopathological toxicity in rats. Pak. Veterinary J. 42, 493–498. doi:10.29261/pakvetj/2022.048
Ilavarasan, R., Mallika, M., and Venkataraman, S. (2006). Anti-inflammatory and free radical scavenging activity of Ricinus communis root extract. J. Ethnopharmacol. 103 (3), 478–480. doi:10.1016/j.jep.2005.07.029
Indrayan, A., Sharma, S., Durgapal, D., Kumar, N., and Kumar, M. (2005). Determination of nutritive value and analysis of mineral elements for some medicinally valued plants from Uttaranchal. Curr. Sci. 89, 1252–1255.
Janakiraman, K., Krishnaswami, V., Rajendran, V., Natesan, S., and Kandasamy, R. (2018). Novel nano therapeutic materials for the effective treatment of rheumatoid arthritis-recent insights. Mater Today Commun. 17, 200–213. doi:10.1016/j.mtcomm.2018.09.011
Katchamart, W., Trudeau, J., Phumethum, V., and Bombardier, C. (2010). Methotrexate monotherapy versus methotrexate combination therapy with non-biologic disease modifying anti-rheumatic drugs for rheumatoid arthritis. Cochrane Database Syst. Rev. 2010 (4), CD008495. doi:10.1002/14651858.CD008495
Khan, M. L., Sharif, M., Sarwar, M., and Ameen, M. (2010). Chemical composition of different varieties of linseed. Pak. Veterinary J. 30 (2).
Kumari, S., Tyagi, M., and Jagadevan, S. (2019). Mechanistic removal of environmental contaminants using biogenic nano-materials. Int. J. Environ. Sci. Technol. 16 (11), 7591–7606. doi:10.1007/s13762-019-02468-3
Laurent, L., Clavel, C., Lemaire, O., Anquetil, F., Cornillet, M., Zabraniecki, L., et al. (2011). Fcγ receptor profile of monocytes and macrophages from rheumatoid arthritis patients and their response to immune complexes formed with autoantibodies to citrullinated proteins. Ann. rheumatic Dis. 70 (6), 1052–1059. doi:10.1136/ard.2010.142091
Maqbool, Q., Iftikhar, S., Nazar, M., Abbas, F., Saleem, A., Hussain, T., et al. (2017). Green fabricated CuO nanobullets via Olea europaea leaf extract shows auspicious antimicrobial potential. IET nanobiotechnology 11 (4), 463–468. doi:10.1049/iet-nbt.2016.0125
Masi, A., Aldag, J., and Sipes, J. (2001). Do elevated levels of serum C-reactive protein predict rheumatoid arthritis in men: correlations with pre-RA status and baseline positive rheumatoid factors. J. rheumatology 28 (10), 2359–2361.
Mellado, M., Martínez-Muñoz, L., Cascio, G., Lucas, P., Pablos, J. L., and Rodríguez-Frade, J. M. (2015). T cell migration in rheumatoid arthritis. Front. Immunol. 6, 384. doi:10.3389/fimmu.2015.00384
Merola, J. F., Espinoza, L. R., and Fleischmann, R. (2018). Distinguishing rheumatoid arthritis from psoriatic arthritis. RMD open 4 (2), e000656. doi:10.1136/rmdopen-2018-000656
Mishra, N., Bstia, S., Mishra, G., Chowdary, K., and Patra, S. (2011). Anti-arthritic activity of Glycyrrhiza glabra, Boswellia serrata and their synergistic activity in combined formulation studied in freund's adjuvant induced arthritic rats. J. Pharm. Educ. Res. 2 (2), 92.
Mujokoro, B., Madani, F., Esnaashari, S. S., Khosravani, M., and Adabi, M. (2020). Combination and Co-delivery of methotrexate and curcumin: preparation and in vitro cytotoxic investigation on glioma cells. J. Pharm. Innovation 15 (4), 617–626. doi:10.1007/s12247-019-09406-3
Murtaza, S., Khan, J. A., Aslam, B., and Faisal, M. N. (2021). Pomegranate peel extract and quercetin possess antioxidant and hepatoprotective activity against concanavalin A-induced liver injury in mice. Pak. Veterinary J. 41 (2).
Naveed, M., Hejazi, V., Abbas, M., Kamboh, A. A., Khan, G. J., Shumzaid, M., et al. (2018). Chlorogenic acid (CGA): a pharmacological review and call for further research. Biomed. Pharmacother. 97, 67–74. doi:10.1016/j.biopha.2017.10.064
Olowokudejo, J., Kadiri, A., and Travih, V. A. (2008). An ethnobotanical survey of herbal markets and medicinal plants in lagos state of Nigeria. Ethnobot. Leafl. 12.
Pathak, P., and Kapil, U. (2004). Role of trace elements zinc, copper and magnesium during pregnancy and its outcome. Indian J. Pediatr. 71, 1003–1005. doi:10.1007/BF02828116
Pei, K., Ou, J., Huang, J., and Ou, S. (2016). p-Coumaric acid and its conjugates: dietary sources, pharmacokinetic properties and biological activities. J. Sci. Food Agric. 96 (9), 2952–2962. doi:10.1002/jsfa.7578
Rehman, A., and Adnan, M. (2018). Nutritional potential of Pakistani medicinal plants and their contribution to human health in times of climate change and food insecurity. Pak. J. Bot. 50.
Rehman, Q., and Lane, N. E. (2001). Bone loss: therapeutic approaches for preventing bone loss in inflammatory arthritis. Arthritis Res. and Ther. 3 (4), 221–227. doi:10.1186/ar305
Rodwell, V. W., Bender, D. A., Botham, K. M., Kennelly, P. J., and Weil, A. (2015). Illustrated biochemistry. New York: McGraw-Hill.
Sattar, N., McCarey, D. W., Capell, H., and McInnes, I. B. (2003). Explaining how “high-grade” systemic inflammation accelerates vascular risk in rheumatoid arthritis. Circulation 108 (24), 2957–2963. doi:10.1161/01.CIR.0000099844.31524.05
Seal, T. (2016). Quantitative HPLC analysis of phenolic acids, flavonoids and ascorbic acid in four different solvent extracts of two wild edible leaves, Sonchus arvensis and Oenanthe linearis of North-Eastern region in India. J. Appl. Pharm. Sci. 6, 157–166. doi:10.7324/JAPS.2016.60225
Shadick, N. A., Cook, N. R., Karlson, E. W., Ridker, P. M., Maher, N. E., Manson, J. E., et al. (2006). C-reactive protein in the prediction of rheumatoid arthritis in women. Archives Intern. Med. 166 (22), 2490–2494. doi:10.1001/archinte.166.22.2490
Smolen, J. S., Aletaha, D., and McInnes, I. B. (2016). Rheumatoid arthritis. Lancet 388 (10055), 2023–2038. doi:10.1016/s0140-6736(16)30173-8
Stils, H. F. (2005). Adjuvants and antibody production: dispelling the myths associated with Freund's complete and other adjuvants. ILAR J. 46 (3), 280–293. doi:10.1093/ilar.46.3.280
Szabo, M., Idiţoiu, C., Chambre, D., and Lupea, A. (2007). Improved DPPH determination for antioxidant activity spectrophotometric assay. Chem. Pap. 61 (3), 214–216. doi:10.2478/s11696-007-0022-7
Thomas, R. A., and Krishnakumari, S. (2015). Proximate analysis and mineral composition of Myristica fragrans seeds. J. Pharmacogn. Phytochemistry 3 (6), 39–42.
Uhlig, T., and Kvien, T. K. (2005). Is rheumatoid arthritis disappearing? Ann. Rheumatic Dis. 64 (1), 7–10. doi:10.1136/ard.2004.023044
Van Steenbergen, H. W., Da Silva, J. A. P., Huizinga, T. W., and van der Helm-van Mil, A. H. (2018). Preventing progression from arthralgia to arthritis: targeting the right patients. Nat. Rev. Rheumatol. 14 (1), 32–41. doi:10.1038/nrrheum.2017.185
Vasanthi, P., Nalini, G., and Rajasekhar, G. (2007). Role of tumor necrosis factor-alpha in rheumatoid arthritis: a review. APLAR J. Rheumatology 10 (4), 270–274. doi:10.1111/j.1479-8077.2007.00305.x
Wilson, A., Yu, H.-T., Goodnough, L. T., and Nissenson, A. R. (2004). Prevalence and outcomes of anemia in rheumatoid arthritis: a systematic review of the literature. Am. J. Med. 116 (7), 50–57. doi:10.1016/j.amjmed.2003.12.012
Xiang, M., Su, H., Hu, J., and Yan, Y. (2011). Isolation, identification and determination of methyl caffeate, ethyl caffeate and other phenolic compounds from Polygonum amplexicaule var. sinense. J. Med. Plants Res. 5 (9), 1685–1691.
Yamada, K. (2013). “Cobalt: its role in health and disease,” in Interrelations between essential metal ions and human diseases (Springer), 295–320.
Ying, H.-Z., Liu, Y.-H., Yu, B., Wang, Z.-Y., Zang, J.-N., and Yu, C.-H. (2013). Dietary quercetin ameliorates nonalcoholic steatohepatitis induced by a high-fat diet in gerbils. Food Chem. Toxicol. 52, 53–60. doi:10.1016/j.fct.2012.10.030
Zhang, Z., Chinnathambi, A., Ali Alharbi, S., and Bai, L. (2020). Copper oxide nanoparticles from Rabdosia rubescens attenuates the complete Freund’s adjuvant (CFA) induced rheumatoid arthritis in rats via suppressing the inflammatory proteins COX-2/PGE2. Arabian J. Chem. 13 (6), 5639–5650. doi:10.1016/j.arabjc.2020.04.005
Keywords: rheumatoid arthritis, green synthesis, copper oxide nanoparticles, Bistorta amplexicaulis, anti-inflammatory activity, phytochemical analysis, autoimmune diseases
Citation: Babar M, Aslam B, Faisal MN, Malik A, Akhtar S, Fatima S, Majeed W, Umer A and Farooq MA (2024) Phytochemical characterization and anti-arthritic potential of green-synthesized CuO nanoparticles derived from the Bistorta amplexicaulis root extract. Front. Pharmacol. 15:1474592. doi: 10.3389/fphar.2024.1474592
Received: 01 August 2024; Accepted: 22 November 2024;
Published: 17 December 2024.
Edited by:
Mubashar Rehman, Quaid-i-Azam University, PakistanReviewed by:
Aziza Abdel-Salam El-Nekeety, National Research Centre, EgyptNayab Tahir, University of Sargodha, Pakistan
Copyright © 2024 Babar, Aslam, Faisal, Malik, Akhtar, Fatima, Majeed, Umer and Farooq. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Muhammad Akmal Farooq, ZHIubWFrbWFsQHVhZi5lZHUucGs=
